USER MANUAL YT-85180 Yato
Close-up of a hand holding a mechanical component, possibly a tool or device, with no visible text or symbols.
- housing
- rear handle
- front handle
- nozzle
- collection bag connector
- power switch
- operating mode lever
- thrust adjustment
- collection bag
- auxiliary belt
DE
Read the operating instruction
Wear protective goggles
Schutzbrille tragen
Wear hearing protectors
Stay away from bystanders
Beware of the discarded items
Before adjusting or cleaning, in case of cable braiding or damage, switch off the device and pull the plug out of the socket.
This symbol indicates that waste electrical and electronic equipment (including batteries and storage cells) cannot be disposed of with other types of waste. Waste equipment should be collected and handed over separately to a collection point for recycling and recovery, in order to reduce the amount of waste and the use of natural resources. Uncontrolled release of hazardous components contained in electrical and electronic equipment may pose a risk to human health and have adverse effects for the environment. The household plays an important role in contributing to reuse and recovery, including recycling of waste equipment. For more information about the appropriate recycling methods, contact your local authority or retailer.
The blower/vacuum cleaner is used for cleaning in the garden and directly in the vicinity of the house. It can be used to move fallen leaves or mowed grass with an air stream or vacuum them. Thanks to a special rotor, the leaves are shredded during vacuuming, which means they take up less space than unshredded leaves. The blower should not be used as a domestic vacuum cleaner. It is also forbidden to blow or vacuum ash. Proper, reliable, and safe operation of the product depends on its appropriate use; that is why you should:
Read this entire instructions manual before the first use of the tool and keep it for future reference.
The supplier shall not be liable for any damage resulting from failure to comply with the safety instructions and recommendations specified in this instructions manual.
EQUIPMENT
The product is delivered complete but requires certain preliminary assembly actions described in further sections of the manual. The product is supplied with a nozzle and vacuum cleaner collection bag.
TECHNICAL DATA
| Parameter Unit Value | ||
| Catalogue No. YT-85180 | ||
| Rated voltage [V~] 220 – 240 | ||
| Rated frequency [Hz] 50 | ||
| Rated power [W] 3500 | ||
| Rated rpm [min] | ^-1 9000 – 15000 | |
| Airflow rate | [m3/min] | 13.2 |
| Insulation class | II | |
| Protection rating | IPX0 | |
| Noise | ||
| - sound pressure L_p ± K | [dB(A)] | 90.2 ± 3.0 |
| - acoustic power L_wA ± K | [dB(A)] | 102.4 ± 3.0 |
| Vibration level a_h ± K | [m/s2] | 4.27 ± 1.5 |
| Weight | [kg] | 2.65 |
SAFETY INSTRUCTIONS
WARNING! Read all the following instructions. Failure to do so may result in electric shock, fire, or personal injury.
OBSERVE THE INSTRUCTIONS BELOW
Do not use the machine in a potentially explosive environment containing flammable liquids, gases, or vapours.
Do not place the machine near any heat or fire sources.
Protect the machine from moisture. Do not expose the machine to rain or other precipitation. Never immerse any part in water or other liquids. Do not operate the product in an environment with relative humidity above 80%.
Avoid using the machine in bad weather conditions, especially when there is a risk of lightning.
Connect the machine only to a mains with the parameters shown on the machine's name-plate. After each use, disconnect the plug of the cable supplying the machine from the mains. Warning! Never start the machine if any persons, especially children or animals, are nearby.
EN
Use the machine as a garden blower or vacuum cleaner only. Any other use is prohibited.
Do not use the blower for inflating, e.g., mattresses, firing up barbecues, or bonfires. Do not blow into hot ash, embers, or fire. Embers scattered by the blow may cause fire and lead to serious burns.
When using the machine as a vacuum cleaner, it is forbidden to suck in wet or hot debris, e.g., hot ash. Do not use the machine for blowing or vacuuming snow or water.
Do not direct the air outlet at yourself, other people, or animals.
Before blowing, check the work area and remove any objects which, if blown air stream is directed towards them, can cause a hazard. Note that ejected particles can bounce off obstacles and hit the operator.
When operating the machine, wear personal protective equipment such as work clothing with long legs and sleeves as well as protective gloves. Wear eye protection and a face mask.
Moreover, use hearing protection. Wear solid footwear with full uppers and non-slip soles.
Do not obstruct the ventilation openings and make sure they are clear. Obstructed or clogged ventilation openings may cause the machine to overheat. This can lead to damage to the machine and cause fire or electric shock.
If you notice any damage to any part of the machine, you must discontinue using it. In this case, hand the machine over to an authorised service centre or replace this part by yourself, provided the user's manual permits this.
Turn off the machine and unplug the power cord plug from the mains socket before you start any work on replacing parts, cleaning, or adjusting.
Turn off the machine before replacing the accessories and unplug the power cord plug from the mains socket.
The machine must not be used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, as well as those who fail to read this manual. Local regulations may restrict the operator's age. Children should not play with the machine. Children left unattended should not be allowed to perform cleaning and maintenance of the machine.
The machine is designed to be operated with two hands. Hold the machine by the handles. The handles should always point upwards. Make sure that the air inlet and outlet are not obstructed when holding the product. The air inlet cannot be too close to the ground to prevent dirt from being sucked into the machine.
Keep a proper standing position during work so that you can always maintain balance. When working on a slope, move across the slope. Never run while working – always walk.
Always use the machine when it is fully assembled. Never use the product without the attached nozzle. Always use a collection bag when using the machine as a vacuum cleaner.
Do not touch dangerous moving parts until the machine has been unplugged from the mains by disconnecting the power cord plug, and the dangerous moving parts have come to a complete standstill.
Plug the power cord plug into the socket only after first ensuring that the power switch is in the off position.
Check the machine's condition each time before you start it, or after dropping it, or when it hits an object. If you notice any damage, such as a cracked housing, you must not use the
EN
machine until the damage has been remedied.
If, during operation, a malfunction or accident occurs, first turn off the machine, disconnect the power cord plug from the socket and then help the injured persons. Rectify the cause of the malfunction or accident. Check the condition of the machine for damage before resuming operation.
If the power cord is damaged, it should be replaced with a new one. The power cord cannot be repaired. The power cord must be replaced at an authorised manufacturer's service centre.
Always disconnect the power supply by disconnecting the batteries: when the user leaves the machine; before removing the jam; before inspecting, cleaning, or working on the machine; after the machine has hit an object to check for damage; if the machine starts to vibrate abnormally, for an immediate check.
If the machine starts to vibrate excessively after start-up or during operation, this means that the machine is not operating correctly. In this case, turn the machine off immediately, disconnect the batteries and check it. Check the nozzle for any obstructions in the air inlet and outlet. Once the obstruction has been removed, reassemble the machine, connect it to the power source, and restart it. If excessive vibration persists, turn off the machine immediately, disconnect the power cord plug from the mains socket and hand it over to an authorised service centre.
Although precautions have been taken during the machine's engineering and design and considering that the guidelines in this manual have been followed, there is still a residual risk in terms of exposure to vibration and noise. Therefore, use personal protective equipment, do not work too long, and take regular breaks.
Make sure that the batteries have been disconnected from the machine before carrying out its maintenance.
Keep the machine out of reach of unauthorised persons, especially children. Make sure that the machine is out of the reach of unauthorised persons, especially children, also during operation.
PRODUCT OPERATION
Preparing for operation
Unpack the product by removing all packaging components. It is recommended not to dispose of the packaging as it may be useful for later storage of the product.
Check all parts of the product for damage. Check whether the nozzle, the collection bag attachment and the air inlet and outlet are not obstructed.
The product can be assembled for work as a blower or vacuum cleaner.
Warning! Make sure that the product is turned off during assembly i.e. that the power switch is in the off position and the power cord plug is unplugged from the mains socket.
Product assembly
Fix the nozzle onto the air outlet.
The nozzle is equipped with protruding elements, which should fit into the holes in the housing (II). Secure the connection with a screw (II).

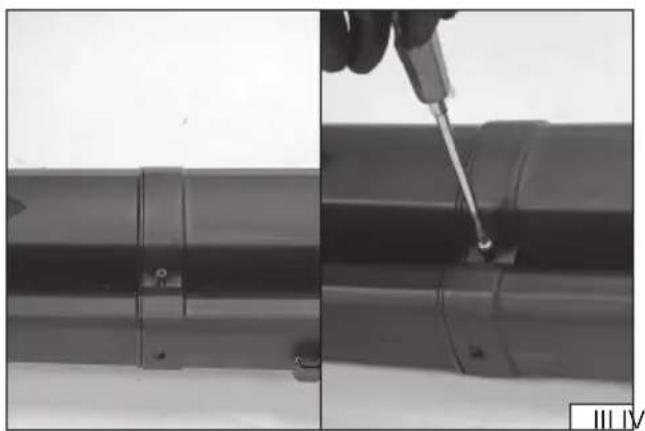

Install the nozzle extension into the nozzle by sliding one part into the other so that the protruding elements fit into the holes and then secure the connection using the screw (III).

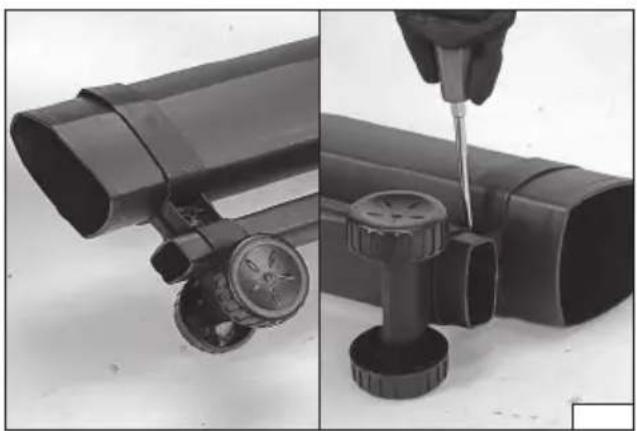

Mount auxiliary wheels at the end of the nozzle extension to help guide the blower/vacuum cleaner over the ground. Slide the wheel clamp onto the end of the nozzle extension until it rests on the stop protruding elements, then secure the wheel position with the screw (IV).
EN
Preparing for operation — blower

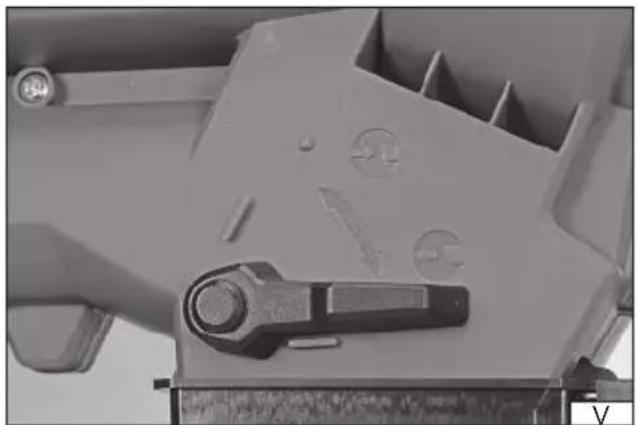

Move the operating mode selection lever to the bottom position so that it is next to the symbol showing the direction of air flow — blowing (V). Make sure that the collection bag is not fixed to the blower.
The product is ready for use as a blower.
Preparing for operation — vacuum cleaner

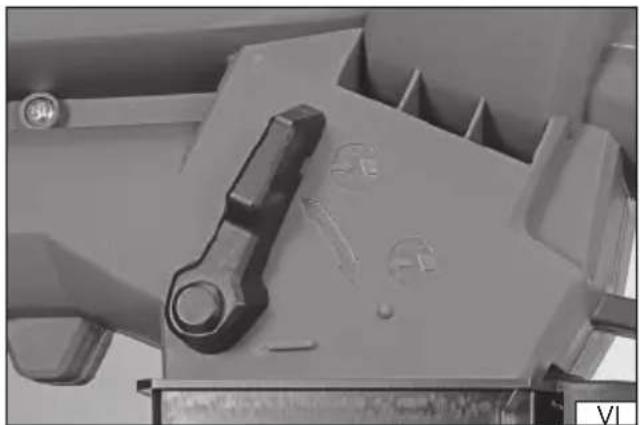

Move the operating mode selection lever to the upper position so that it is next to the symbol showing the direction of air flow — suction (VI). Place the front part of the collection bag clamp over the front part of the air outlet and then slide the clamp over the air outlet so that the latch (VII) engages. There is a band with an eye in the front part of the collection bag, which should be fastened on the hook located at the bottom of the nozzle (VIII).

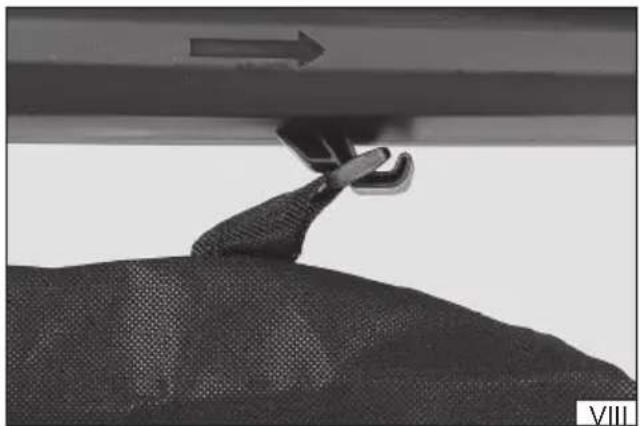

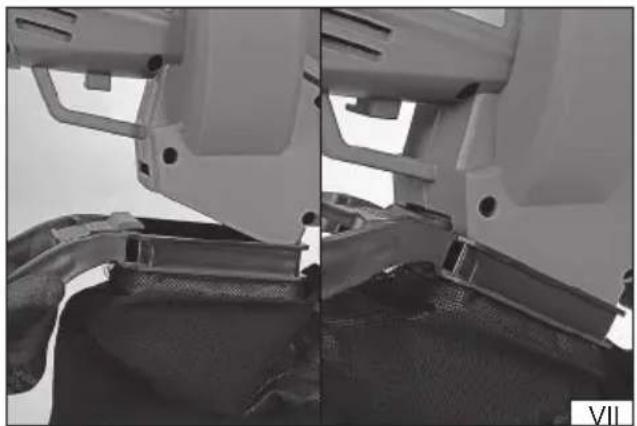

The collection bag can be removed by pressing and holding the collection bag latch and then sliding the bag clamp off the air outlet.
The collection bag at the bottom has a closure. It allows easy emptying of the bag. Make sure that the collection bag is completely emptied and closed before using it with the vacuum cleaner.

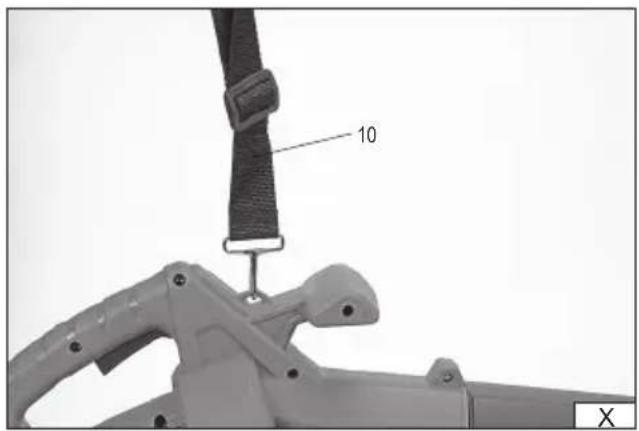

Carrying belt (X)
The vacuum is equipped with an auxiliary carrying belt. It allows for reducing the load on the hands holding the machine, especially during prolonged use. The belt latch must be passed through the opening on the top of the machine housing. The belt should be placed diagonally over the operator's body and its length adjusted so that the majority of the machine's weight rests on the belt.
Connecting to the power supply
The machine has only a short power cord terminated with a power plug. Due to the high power consumed by the machine, a separate power supply line equipped with a single socket should be prepared for its power supply. Preparation of the system should be entrusted to an electrician with appropriate qualifications.
Use an electric extension cord to power the machine. Always use extension cords intended for outdoor use due to the nature of the blower work. The power cord should have a single socket matching the machine's plug. It is forbidden to modify the plug or socket to make them fit. The electrical parameters of the power cord should correspond to the electrical parameters of the device listed on the nameplate. It should be noted that the power cord's cross-section depends on the length of the cord. Follow the instructions below regarding the power cord cross-section:
- 1.5 mm ^2 – cord length not greater than 40 m;
- 2.5 mm ^4 – cord length not greater than 60 m.
When preparing for the operation and during operation, pay attention to the power cord. Protect the power cord from water, moisture, oils, heat sources and sharp objects. Lay the power cord so that it is not sucked in by the blower. Cutting the cord may result in electric shock and serious injury or death. Make sure that you do not become entangled in the cord. This can lead to a fall and serious injury.
Do not overload the power cord, and do not cause any of the cord's section to become tensioned. Do not pull the cord when moving the device. Always disconnect the power cord plug from the socket by pulling on the plug and socket housing, never pull on the cord.

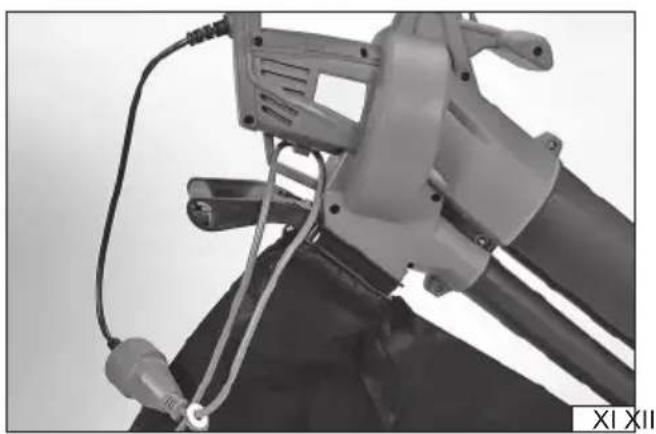

The blower has a special hook on which the extension cord (XI) is to be hooked. Such connection will prevent the power cord from being pulled out in the event of a sudden jerk.
Starting and stopping the blower

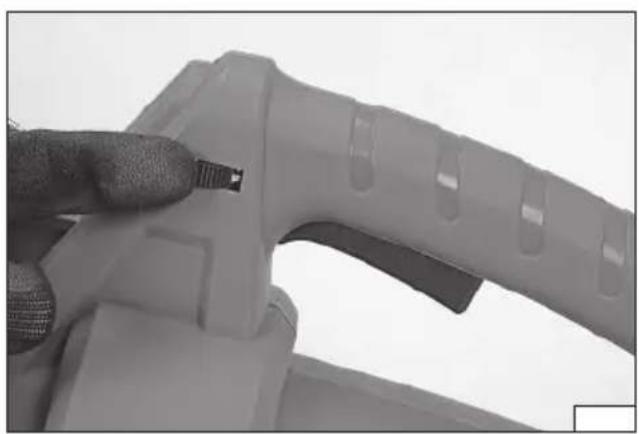

The machine is started by pressing and holding the power switch in this position. Releasing pressure on the power switch stops the machine. Take into account that after releasing the pressure on the power switch, the motor and thus the rotor generating the air thrust will be still running for some time. The power switch cannot be locked in the on or off position.
The machine is equipped with motor rotational speed control and thus thrust control. This is adjusted using the knob (XII). The arrow symbols on the knob show the direction of rotation to adjust the thrust.
After finishing work, turn off the machine with the power switch, wait for the moving parts to stop completely, and then unplug the power cord plug from the socket.
Recommendations for product use
Always make sure that the inlet, outlet, and nozzle are not obstructed. Increased noise and vibration will be the first sign if any of these is partly or completely obstructed. Restore the fully unobstructed condition immediately. Working with an obstructed product is inefficient and can cause overheating and damage to it.
Before starting work, check the work area and remove any objects which, if blown air stream is directed towards them, can cause a hazard. Also, remove any objects that may move unexpectedly under the influence of the air stream, e.g., tip over and cause danger.
Provide a safety zone of at least 15 m wide from the working area. The safety zone must not be accessible to any persons, especially children. Persons who enter the safety zone must exercise caution and wear the personal protective equipment described above in the manual.
Always direct the blower nozzle downwards, towards the ground to be cleaned. Do not blow debris in the direction of other people or animals.
Do not blow air towards a substrate that is too loose. The dust generated during such use impairs the ability to watch the work-
EN
place, which does not allow for appropriate response in the event of an emergency.
As far as possible, direct the air flow in the same direction as the wind. This will prevent debris from moving into the already cleaned area.
Always use the vacuum cleaner with the correctly installed collection bag. Check the amount of debris in the bag regularly during operation, and empty it. Collection bag overfilling will lead to blockages.
There are auxiliary wheels at the nozzle outlet, which facilitate the nozzle guidance on the cleaned surface.
Do not use the vacuum cleaner to suck in wet, damp, or hot waste. Do not suck in construction waste and dust generated during construction works, e.g., dust generated when finishing gypsum skim coats. The product is not suitable for use with such materials. If the product features a speed adjustment, use the lowest speed possible to carry out the work. Higher speeds cause more noise and also cause faster wear of the product.
Walk and keep your balance at all times, do not run, do not jump, do not overreach during the work. Do not use the product to clean a surface that is out of sight.
PRODUCT MAINTENANCE AND STORAGE
Each time after finishing work, unplug the power cord plug from the mains socket and proceed with maintenance. Dismount the nozzle and the collection bag, if used. Clean both the ventilation openings and the inlet and outlet with a soft handheld brush or a painting brush with plastic bristles. Clean the housing, handle, and controls with a soft, slightly dampened with water cloth and then dry them. A compressed air stream with a pressure not exceeding 0.3 MPa can be used for cleaning. Once the nozzle is removed, it can be cleaned with a jet of water and then dried or left to dry. Empty the collection bag by unzipping it and removing dust residue using a stream of compressed air of 0.3 MPa or less.
Do not use sharp objects, abrasives, solvents, or alcohol for cleaning.
Spare parts
The user cannot replace any parts other than the nozzle and the collection bag. For a detailed list of spare parts for the product go to the "Download" section in the Product tab on the TOYA SA website: www.toya.pl.
Product storage
Store the product disassembled. The storage area should guarantee that unauthorised access to the product is prevented. The storage area must be protected from moisture, direct sunlight, and excessively low temperatures. Store the product in a temperature range of 0\~+40°C with a maximum relative humidity of 80%. It is recommended to store the product in the original packaging.
GERÄTEBESCHREIBUNG
CARACTÉRISTIQUES DU PRODUIT
DECLARATION OF CONFORMITY
0625/YT-85180/EC/2025
We declare and guarantee with full responsibility that the following products:
Blower; 220-240 V\~; 50 Hz; 3500 W; 9000-15000 min ^-1 ; item no. YT-85180
meet requirements of the following European Standards / Technical Specifications:
EN 60335-1:2012 + A11:2014 + A13:2017 + A1:2019 + A14:2019 + A2:2019 + A15:2021
EN 50636-2-100:2014
EN 62233:2008
EN IEC 55014-1:2021
EN IEC 55014-2:2021
EN 61000-3-2:2019 + A1:2021
EN 61000-3-3:2013 + A1:2019
and fulfill requirements of the following European Directives:
2006/42/EC Machinery and safety elements
2014/30/EU Electromagnetic compatibility (EMC) Directive
2011/65/EU Restriction of the Use of Certain Hazardous Substances
Serial number: concern all serials numbers of item(s) mentioned in this declaration
The person authorized to compile the technical file:
Agnieszka Rędziak
(Place and date of issue)
V-CE PREZES ZARZADU
JAN SZMIDT
(Name and signature of authorized person)
TOYA S.A.
DECLARATION OF CONFORMITY
0625/YT-85180/EC/2025
We declare and guarantee with full responsibility that the following products:
Blower; 220-240 V\~; 50 Hz; 3500 W; 9000-15000 min ^-1 ; item no. YT-85180
fulfil requirements of the following European Directive: 2000/14/WE
Conformity assessment procedure:
Manufacturer quality-control system, examination of the manufacturer's technical file and periodical inspection by notified body
Notified body:
TÜV SUD Product Service GmbH:: notification no. 0123
Ridlerstraße 65, 80339 MÜNCHEN; Germany
Measured sound power level on an equipment representative for this type: 102,4 dB(A)
Guaranteed sound power level for this equipment: 105 dB(A)
conformity and references of the other Community Directives applied:
2006/42/EC Machinery and safety elements
2014/30/EU Electromagnetic compatibility (EMC) Directive
2011/65/EU Restriction of the Use of Certain Hazardous Substances
Wrocław, 2025.06.02
(Place and date of issue)
V-CE PREZES ZARZADU
JAN SZMIDT
(Name and signature of authorized person)
TOYA S.A.
