USER MANUAL YT-85173 Yato


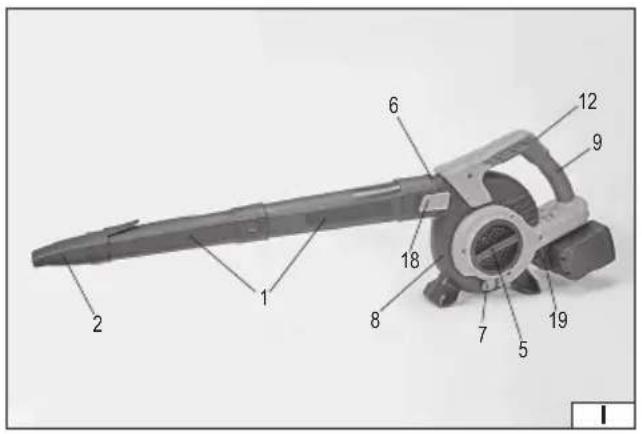

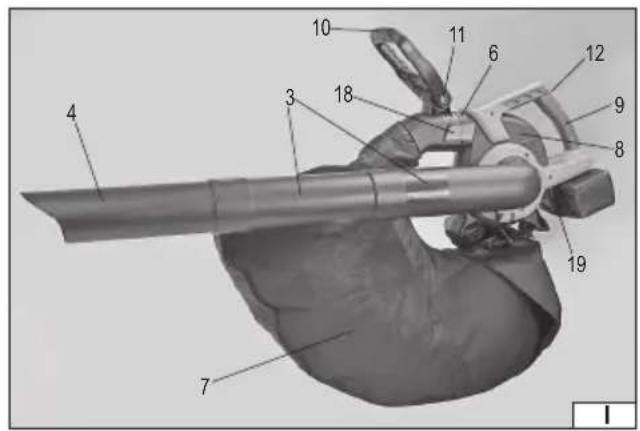

Close-up of two metallic cylindrical mechanical components with internal cutouts and mounting holes (no text or symbols visible)- blower tube
- blower nozzle
- vacuum tube
- vacuum nozzle
- air inlet cover
- air outlet
- collection bag
- housing
- back handle
- front handle
- handle lock
- control panel
- battery charge indicator
- flow rate indicator
- flow rate control
- power switch
- turbo button
- lock button
- battery socket
- belt clip
- bag holder
DE
Beware of ejected objects.
Stay away from bystanders
Keep your hands away from rotating parts.
Read the operating instruction
Do not expose to precipitation
Wear protective goggles
Wear hearing protectors
This symbol indicates that waste electrical and electronic equipment (including batteries and storage cells) cannot be disposed of with other types of waste. Waste equipment should be collected and handed over separately to a collection point for recycling and recovery, in order to reduce the amount of waste and the use of natural resources. Uncontrolled release of hazardous components contained in electrical and electronic equipment may pose a risk to human health and have adverse effects for the environment. The household plays an important role in contributing to reuse and recovery, including recycling of waste equipment. For more information about the appropriate recycling methods, contact your local authority or retailer.
This blower / vacuum is used for cleaning in the garden and directly in the vicinity of the house. It can be used to move fallen leaves or mowed grass with an air stream or to vacuum them. Battery power supply greatly facilitates operation and increases its operating range. The blower should not be used as a domestic vacuum cleaner. It is also forbidden to blow or vacuum ash. Proper, reliable, and safe operation of the product depends on its appropriate use; that is why:
Read this entire manual before the first use of the tool and keep it for future reference.
The supplier is not liable for any damage resulting from failure to observe the safety instructions and recommendations contained in this manual.
EQUIPMENT
The product is delivered complete but requires certain preliminary assembly actions described in further sections of the manual. The product is supplied with a nozzle and vacuum collection bag. Power supply batteries and battery charger are not supplied.
TECHNICAL DATA
| Parameter Unit Value | ||
| Part No. YT-85173 | ||
| Rated voltage [V DC] 36 | ||
| Rated rpm [min | ^-1 ] 6000 – 17000 | |
| Blow capacity [m | ^3/h ] 308 – 700 | |
| Insulation class III | ||
| Protection rating IPX0 | ||
| Noise | ||
| - sound pressure L_pA ± K [dB(A)] 87.6 ± 3.0 | ||
| - acoustic power L_mA ± K [dB(A)] 96.5 ± 3.0 | ||
| Vibration level a_L ± K | [m/s ^2 ] 1.69 ± 1.5 | |
| Drive unit weight (without accessories) | [kg] | 2.16 |
| Battery type | Li-Ion |
SAFETY INSTRUCTIONS
WARNING! Read all the following instructions. Failure to do so may result in electric shock, fire, or personal injury.
OBSERVE THE INSTRUCTIONS BELOW
Do not use the machine in a potentially explosive environment containing flammable liquids, gases, or vapours. Do not place the machine near any heat or fire sources. Protect the machine from moisture. Do not expose the machine to rain or other precipitation. Never immerse any part in water or other liquids. Do not use in an environment with relative humidity above 80%. Avoid using the machine in bad weather, especially when there is a risk of lightning. Connect the machine only to a battery with the rated voltage shown on its nameplate. After each use, disconnect the battery from the machine.
Warning! Never start the machine if any persons, especially children or animals, are nearby. The machine should only be used as a garden blower. Any other use is prohibited. Do not use the blower for pumping, e.g., mattresses, firing up barbecues, or bonfires. Do not blow into hot ash, embers, or fire. Embers scattered by the blow may cause fire and lead to serious burns. Do not use the machine to blow snow or water. Do not direct the air outlet
EN
at yourself, other people, or animals. Before blowing, check the work area and remove any objects that may cause danger. Please note that ejected particles can bounce off obstacles and hit the operator. When operating the machine, wear personal protective equipment such as work clothing with long legs and sleeves as well as protective gloves. Wear eye protection and a face mask. Moreover, use hearing protection. Wear solid footwear with full uppers and non-slip soles. Do not obstruct the vent holes and make sure they are clear. Obstructed or clogged ventilation openings may cause the machine to overheat. This can lead to damage to the machine and cause fire or electrocution. If you notice any damage to any part of the machine, you must discontinue using it. In this case, hand the machine over to an authorised service centre or replace this part by yourself, provided the user's manual permits this. Turn off the machine and disconnect the battery before performing any activities related to replacing parts, cleaning, or adjustment. Turn off the machine and disconnect the battery before replacing the accessories. The machine must not be used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, as well as those who fail to read this manual. Local regulations may restrict the operator's age. Children should not play with the machine. Children left unattended should not be allowed to perform the cleaning and maintenance of the machine. Hold the machine by the handle. Make sure that air inlet and outlet are not obstructed when holding the product. The air inlet must not be too close to the ground to prevent dirt from being sucked into the machine. Keep a proper standing position during work so that you can always maintain balance. When working on a slope, move across the slope. Never run while working, always walk. Always use the machine when it is fully assembled. Never use the product without the attached nozzle. Do not touch dangerous moving parts until the machine has been disconnected from the power supply by disconnecting the battery and the dangerous moving parts have come to a complete stop. Before connecting, ensure that the battery fits into the machine socket and that its voltage rating is the same as stated on the machine's rating plate. Always connect the batteries to the machine after making sure that the power switch is in the off position. Check the machine's condition each time before you start it, or after dropping it, or when the blower hits an object. If you notice any damage, such as a cracked housing, you must not use the machine until the damage has been remedied. If, during operation, a malfunction or accident occurs, turn off the machine first, disconnect the batteries and then administer aid to injured persons. Rectify the cause of the malfunction or accident. Check the condition of the machine for damage before resuming operation. Always disconnect the power supply by disconnecting the batteries: when the user leaves the machine; before removing the jam; before inspecting, cleaning, or works on the machine; after the machine has hit an object to check for damage; if the machine starts to vibrate abnormally, for an immediate check. If the machine starts to vibrate excessively after start-up or during operation, this means that the machine is not operating correctly. In this case, turn the machine off immediately, disconnect the batteries and check it. Check the nozzle for any obstructions in the air inlet and outlet. Once the obstruction has been removed, reassemble the machine, connect it to the power source, and restart it. If excessive vibration persists, immediately turn the machine off with the power switch, disconnect the batteries and hand it over to an authorised service centre. Although precautions have been taken during the machine's engineering and design and
EN
considering that the guidelines in this manual have been followed, there is still a residual risk in terms of exposure to vibration and noise. Therefore, use personal protective equipment, do not work too long, and take regular breaks. Make sure that the batteries have been disconnected from the machine before carrying out its maintenance. Keep the machine out of reach of unauthorised persons, especially children. Make sure that the machine is out of the reach of unauthorised persons, especially children, also during operation.
PRODUCT OPERATION
Preparing for operation
Unpack the product by removing all packaging components. It is recommended not to dispose of the packaging as it may be useful for later storage of the product. Check all parts of the product for damage. Check the nozzle, the air inlet and outlet for clogging. Warning! During assembly operations, ensure that the product is switched off and that the batteries are not connected to the socket in the machine.
Blower mode assembly

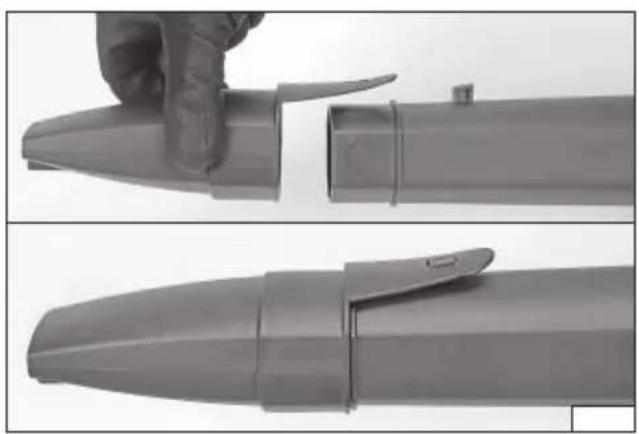

Ensure that the device is disconnected from the power supply. The power supply batteries have been removed from the unit's socket. The blower tube consists of 2 parts and a nozzle. In the first step, connect the nozzle to the first part of the blower tube (II). Slide the blower nozzle onto the end of the first part of the tube until the locking catch hits the hole in the side wall of the nozzle. Ensure that the connection is properly locked. In a second step, slide the first part of the blower tube over the second part of the tube until the locking catch hits the hole in the side wall of the tube (III). Ensure that the connection is properly locked. In the third step, the correctly assembled blower tube must be fitted to the air outlet in the unit housing (IV). To do this, press and hold the tube lock button, then slide the tube onto the blower air outlet, release the button. The locking catch should hit the hole in the side wall of the tube. Ensure that the connection is properly locked. A properly assembled blower tube can only be dismantled by following the steps in reverse order of assembly.

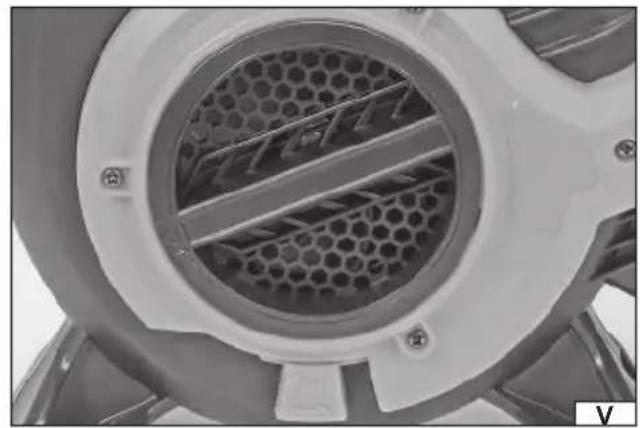

NOTE! If the unit is to be used as a blower, the air inlet cover must be correctly fixed on the inlet duct (V). To avoid serious injury, do not use the blower without the air inlet cover. The inlet duct contains an impeller and cutting blades that make a rotating motion when the machine is in operation and can cause serious injury.
Vacuum mode assembly

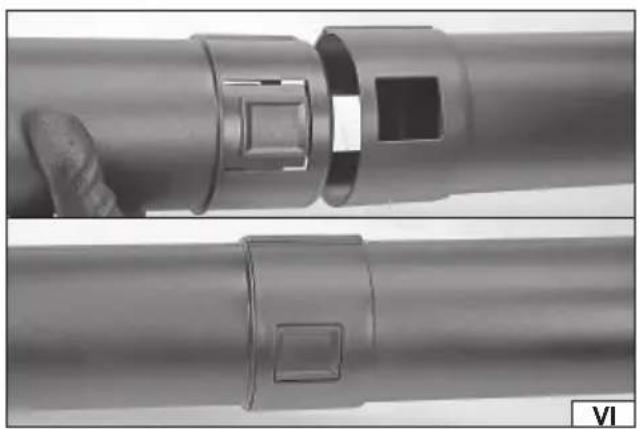

Ensure that the device is disconnected from the power supply. The power supply batteries have been removed from the unit's socket. The vacuum tube consists of 3 components. In the first step, connect the vacuum nozzle to the first part of the blower tube (VI). Slide the vacuum nozzle onto the end of the first part of the tube until the locking catch hits the hole in the wall of the nozzle. Ensure that the connection is properly locked. In a second step, slide the first part of the vacuum tube over the second part of the tube until the locking catch hits the hole in the side wall of the tube (VII). Ensure that the connection is properly locked. In the third step, install the correctly assembled vacuum tube into the air inlet duct in the blower housing (VIII). To do this, move and hold the lock according to the direction marked by the arrow. Pull out the air inlet cover, then place the first part of the vacuum tube onto the air inlet duct, release the lock. Ensure that the connection is properly locked. In the fourth step, fit the collection bag into the air outlet located in the unit's housing (IX). To do this, press and hold the tube lock button, then slide the bag's mounting onto the air outlet, release the button. Ensure that the connection is properly locked. Attach the bag clip to the bag holder located at the bottom of the product housing. Ensure that the connection is properly locked. A properly assembled vacuum tube and collection bag can only be dismantled by following the steps in reverse order of assembly.
The next step is to adjust the front handle. After pressing and holding the handle lock buttons, it is possible to adjust the position of the handle (X). The position of the handle should be selected experimentally, adjusting it to the physical conditions of the operator and the area where the vacuum will be used. The position of the handle should allow you to work with your elbows bent and your back straight. It should also ensure freedom of movement of the vacuum in the working plane.
NOTE! It is prohibited to use the vacuum without a correctly fitted bag or with a damaged collection bag. The machine should only be used with the bag provided. To purchase a new bag, contact the manufacturer's authorised service centre.
Carrying belt
On the housing of the unit, there is an attachment clamp for the carrying belt (XI). The belt clip should be attached to the clamp so that the hitch lock secures the machine against accidental detachment during operation. The belt should be worn so that it rests on one shoulder and then diagonally wraps around the operator's chest, allowing the tool to be hooked at hip level (XII).
Connecting the device to the power supply
The tool is powered by two batteries. The tool will not start up if one of the batteries is not mounted in the tool or is discharged. The batteries in the tool are connected in series, which means that the tool is supplied with the sum of their rated voltages. It is recommended that both batteries have the same capacity and are charged to the same level. The batteries used to supply the tool
EN
should also have the same level of wear. It is not recommended to connect a flat battery with a new one, even if both batteries are charged to the same level and have the same capacity. Failure to comply with the above recommendations will result in shorter operating times and faster wear of the batteries used to supply the tool. Slide the battery into one of the sockets so that its latch is outside the socket (XIII). Slide the battery into the seat until the latch engages. Repeat for the second battery. Make sure that the batteries will not disconnect on its own during operation. Disconnect the battery by pressing and holding the latch and then pulling the battery out of the seat.
Only the following 18V Li-Ion YATO batteries can be used to power the tool: YT-82842, YT-82843, YT-82844 and YT-82845, which can only be charged with YATO YT-82848 or YT-82849 chargers. It is forbidden to use other batteries with a different rated voltage and not matching the tool battery socket. It is forbidden to modify the socket or battery to make them match.
Activation of the blower / vacuum
Ensure that the batteries are connected to the unit. Grasp the product by the handle, make sure that neither the air inlet nor the air outlet is obstructed. Direct the nozzle outlet so that the airflow is not directed at any person, animal or object. Start the product by pressing the switch located on the control panel with your finger. Pressing the switch will start the airflow. On the control panel (XIV) there are lights indicating the approximate state of charge of the batteries: red, orange, green - battery charged. Red, orange – battery partially charged. Red – battery needs charging.
Once started, the unit operates at its weakest airflow force. To increase the airflow force, press the airflow force button on the control panel marked with an upward arrow. To reduce the airflow force, press the airflow force button on the control panel marked with a down arrow. Each single press of the increase or decrease button increases or decreases the airflow force by one degree. A change in the airflow force is indicated by the lights lighting up, the more lights lit up, the higher the blowing or suction force. To switch off the blower, press your finger on the switch, wait until the operation of the machine is completely stopped, disconnect the machine from the power supply by disconnecting the batteries. Next, proceed with maintenance.
Turbo function
During unit's operation, it is possible to increase the airflow capacity to maximum by using the turbo function. This function should only be used briefly, for a maximum of 30 seconds, only if the airflow force in normal operation is insufficient. The turbo function operates independently of the currently set airflow strength. To use the turbo function, the device must be switched on. The turbo function cannot be switched on until the machine has reached full speed for normal operation. Then press and hold the "TURBO" button on the control panel. Releasing pressure on the button will allow the machine to return to normal operation. The blower does not have the option of running in turbo mode by holding down the "TURBO" button.
Instructions for use
Always make sure that the inlet, outlet, and nozzle are not clogged. Increased noise and vibration will be the first sign if any of these is partly or completely clogged. Restore the flow capacity immediately. Working with a clogged product is inefficient and can cause overheating and damage to it. Before starting work, check the work area thoroughly, removing any objects that may cause a hazard if propelled by an air blow. Also, remove any objects that may move unexpectedly under the influence of the air stream, e.g., tip over and cause danger. Provide a safety zone of at least 15 m wide from the working area. The safety zone must not be accessible to any persons, especially children. Persons entering the safety zone should exercise caution and use the same personal protective equipment as the machine operator.
Always direct the blower nozzle downwards, towards the ground to be cleaned. Do not blow debris in the direction of other people or animals. Do not blow air towards a surface that is too loose. The dust generated during such use impairs the ability to watch the workplace, which does not allow for appropriate response in the event of an emergency. As far as possible, direct the air flow in the same direction as the wind. This will prevent debris from moving into the already cleared area. Before starting the vacuum, always make sure that the collection bag is correctly installed. Check the amount of debris in the bag regularly during operation, and empty it. Collection bag overfilling will lead to clogging. Do not use the vacuum to suck in wet, damp, or hot waste. Do not suck in construction waste and dust generated during construction works, e.g., dust generated when finishing gypsum skim coats. The product is not suitable for such materials. If the product has a speed adjustment function, use the lowest speed possible to carry out the work. Higher speeds cause more noise and also cause faster wear of the product. Walk and keep your balance at all times, do not run, do not jump, do not overreach during the work. Do not use the product to clean a surface that is out of sight.
PRODUCT MAINTENANCE AND STORAGE
Whenever work is completed, disconnect the batteries from the product and proceed with maintenance. Dismount the nozzle and the collection bag, if it was used. Clean both the vents and the inlet and outlet with a soft brush or a painting brush with plastic bristles. Clean the housing, handle, and controls with a soft, slightly dampened with water cloth and then dry them. A compressed air stream with a pressure not exceeding 0.3 MPa can be used for cleaning. Once the nozzle is removed, it can be cleaned with a water jet and then dried or left to dry. Do not immerse the device or batteries in water or any other liquid. Do not clean the unit with a jet of water or other liquid. Empty the bag by unzipping it and removing dust residue using a stream of compressed air of 0.3 MPa or less. Do not use sharp objects, abrasives, solvents, or alcohol for cleaning. Take special care when cleaning the blades attached to the rotor. Blades have sharp edges and their improper handling can lead to injury.
EN
Spare parts
The user is not permitted to replace any parts other than these described in the manual. For a detailed list of spare parts for the product go to the "Download" section in the Product tab on the TOYA SA website: toya24.pl.
Product storage
Store the product disassembled. The storage area should not allow for any unauthorised access to the product. The storage area must be protected from moisture, direct sunlight, and excessively low temperatures. Store the product in a temperature range 0\~+40°C with a maximum relative humidity of 80%. It is recommended to store the product in the original packaging.
PRODUKTBESCHREIBUNG
CARACTÉRISTIQUES DU PRODUIT
DEKLARACJA ZGODNOŚCI DECLARATION OF CONFORMITY DECLARATIE DE CONFORMITATE
0925/YT-85173/EC/2025
We declare and guarantee with full responsibility that the following products:
meet requirements of the following European Standards / Technical Specifications:
and fulfill requirements of the following European Directives:
Machinery and safety elements
Restriction of the Use of Certain Hazardous Substances
Serial number: concern all serials numbers of item(s) mentioned in this declaration
The person authorized to compile the technical file:
DEKLARACJA ZGODNOŚCI DECLARATION OF CONFORMITY DECLARATIE DE CONFORMITATE
0925/YT-85173/EC/2025
We declare and guarantee with full responsibility that the following products:
meet requirements of the following European Directive: 2000/14/EC
Measured sound power level on an equipment representative for this type:
Guaranteed sound power level for this equipment:
conformity and references of the other Community Directives applied:
