USER MANUAL YT-85683 Yato
- filter
- tank lock button
- switch
- handle
- battery socket
- wide nozzle
- narrow nozzle
- crevice nozzle
- extension tube
- battery
- charger
DE
Read the operating instruction
This symbol indicates that waste electrical and electronic equipment (including batteries and storage cells) cannot be disposed of with other types of waste. Waste equipment should be collected and handed over separately to a collection point for recycling and recovery, in order to reduce the amount of waste and the use of natural resources. Uncontrolled release of hazardous components contained in electrical and electronic equipment may pose a risk to human health and have adverse effects for the environment. The household plays an important role in contributing to reuse and recovery, including recycling of waste equipment. For more information about the appropriate recycling methods, contact your local authority or retailer.
YT-828500, YT-828501, YT-828502, YT-828503, YT-828504
PRODUCT CHARACTERISTICS
The battery vacuum cleaner is used for small cleaning tasks in the household and workshop. Thanks to its small size and battery power, it can also be used to clean vehicles. The vacuum cleaner is equipped with a replaceable air filter. The correct, reliable and safe operation of the tool depends on proper use, therefore:
Before using this product, read the entire manual and keep it.
The supplier is not liable for any damage caused by failure to comply with the safety regulations and recommendations of this manual. Using the product in a manner other than for its intended purpose results in the loss of the user's rights to the guarantee, as well as under the warranty.
EQUIPMENT
The product is supplied with suction tips and extension tubes.
Note! Product with catalog number: YT-85682 is supplied with a battery and a charging station. Product YT-85683 is not supplied with a battery and a charging station.
TECHNICAL DATA
| Parameter Unit of measurement Value | ||
| Catalogue number YT-85682, YT-85683 | ||
| Nominal voltage [V DC] 18 | ||
| Power [W] 150 | ||
| The negative pressure generated [kPa] 9 | ||
| Weight (without battery) [kg] 1,0 | ||
| Insulation class III | ||
| Battery* | ||
| - Type Li-Ion | ||
| - Capacity | [Ah] | 4 |
| - Charging time** | [h] | 2 |
| Charger* | ||
| - Input voltage | [V~] | 200 - 240 |
| - Network frequency [Hz] | 50 / 60 | |
| - Rated current | [A] | 1,5 |
| - Output voltage | [V] | 21,5 DC |
| - Output current | [A] | 2,2 |
* only for models equipped with a battery and charger
** the charging time given applies only to the battery capacity listed in the table
SAFETY INSTRUCTIONS
WARNING! Read all instructions below. Failure to follow them may result in electric shock, fire or personal injury.
FOLLOW THE INSTRUCTIONS BELOW
Do not use the device in environments with an increased risk of explosion, containing flammable liquids, gases or vapors.
Do not place the device near heat sources or fire.
The device should only be connected to an electrical mains with the voltage and frequency indicated on the device's rating plate.
Please disconnect the battery from the device after each use.
EN
The device is intended for indoor use only. Do not expose the device to precipitation or moisture. Water or moisture entering the device increases the risk of electric shock. Do not immerse the device in water or any other liquid.
Do not cover the ventilation holes and keep them clear. Covered and/or blocked ventilation holes can cause the device to overheat. This can damage the device and may also cause a fire or electric shock.
If you notice any damage to any part of the device, do not continue using it. In such a case, you should take the device to an authorized service center or replace the part yourself if the user manual allows such repair actions.
Before starting any activities involving replacing parts, cleaning or adjustments, the device must be turned on and the battery disconnected from the device.
Before replacing accessories, turn the device on and disconnect the battery from the device. The appliance may be used by children aged 8 years and over and by persons with reduced physical, mental abilities and persons lacking experience and knowledge of the appliance, if supervision or instruction is provided regarding the safe use of the appliance so that the hazards involved are understood. Children should not play with the appliance. Children should not clean or maintain the appliance without supervision.
The vacuum cleaner is designed for dry operation. It is forbidden to suck up water, wet ash or other wet waste. This may result in electric shock, which may consequently pose a threat to the health and life of the user and bystanders.
Never vacuum up hot, glowing or burning objects. This can cause fire or explosion and expose the user to serious injury or death. The maximum temperature of the dirt being vacuumed must not exceed 40^ C.
Before each use, check the condition of the device, including the battery and accessories. If you notice any defects, do not use the device.
Before performing any maintenance on the device, make sure that the battery has been disconnected from the device.
The device should be stored in a place inaccessible to unauthorized persons, especially children. Also during operation, care should be taken to ensure that the device is located in a place inaccessible to unauthorized persons, especially children.
ADDITIONAL SAFETY INSTRUCTIONS
Battery Charging Safety Instructions
Attention! Before charging, make sure that the power supply body, cable and plug are not cracked or damaged. It is forbidden to use a faulty or damaged charging station and power supply! Only the charging station and power supply provided in the set may be used to charge the batteries. Using another power supply may cause a fire or destroy the device. The battery may only be charged in a closed, dry room protected from access by unauthorized persons, especially children. Do not use the charging station without constant adult supervision! If it is necessary to leave the room where charging is taking place, disconnect the charger by unplugging the cable plug from the power socket. If smoke, a suspicious smell, etc. is emitted from the charger, immediately remove the charger plug from the power socket!
The drill-driver is supplied with an uncharged battery, therefore before starting work it should be charged according to the procedure described below using the included power supply and charging station. Li-Ion batteries do not exhibit the so-called „memory effect", which allows them to be charged at any time. However, it is recommended to discharge the battery during normal operation and then charge it to full capacity. If due to the nature of the work it is not possible to treat the battery in this way every time, then it should be done at least every few or a dozen cycles of operation. Under no circumstances should batteries be discharged by short-circuiting the electrodes, as this causes irreversible damage! It is also forbidden to check the battery charge by short-circuiting the electrodes and checking for sparking.
EN
Battery storage
To extend the battery life, ensure proper storage conditions. The battery can withstand about 500 charge-discharge cycles. The battery should be stored in a temperature range of 0 to 30 degrees Celsius, with a relative humidity of 50%. To store the battery for a longer period of time, it should be charged to about 70% of its capacity. In the case of longer storage, the battery should be charged periodically, once a year. Do not over-discharge the battery, as this shortens its life and may cause irreversible damage. During storage, the battery will gradually discharge due to leakage. The self-discharge process depends on the storage temperature, the higher the temperature, the faster the discharge process. If the batteries are not stored properly, the electrolyte may leak. In the event of a leak, secure the leak with a neutralizing agent, in the event of contact of the electrolyte with the eyes, rinse the eyes thoroughly with water and then seek medical attention immediately. It is forbidden to use the device with a damaged battery.
When the battery is completely worn out, it should be taken to a specialist waste disposal facility.
Battery transportation
Lithium-ion batteries are considered hazardous materials by law. The user can transport the device with the battery and the batteries themselves by land. No additional conditions need to be met. In the event of entrusting transport to third parties (e.g. shipping by courier), the regulations for the transport of hazardous materials must be followed. Before shipping, contact a person with appropriate qualifications on this matter.
It is forbidden to transport damaged batteries. During transport, dismantled batteries must be removed from the tool, and exposed contacts must be protected, e.g. with insulating tape. Batteries must be secured in the packaging in such a way that they do not move inside the packaging during transport. National regulations regarding the transport of hazardous materials must also be observed.
Battery charging

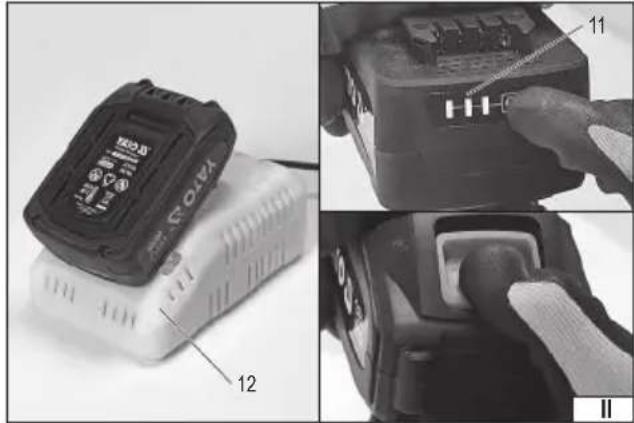

Insert the battery into the charger socket (II).
Connect the charger to a wall outlet.
There is a charger operation indicator light near the battery socket, as described in the "Charger operation indicator" table. After charging is complete, disconnect the power supply plug from the electrical outlet. Slide the battery out of the charging station by pressing and holding the battery latch button, and then slide the battery out of the charger socket.
| Green color Red color Work Status | ||
| continuous light waiting for loading | ||
| continuous light landing | ||
| continuous light battery charged | ||
YT-828500, YT-828501, YT-828502, YT-828503, YT-828504
| Green color Yellow color* | Red color Work Status | ||
| waiting for loading | |||
| pulsating landing | |||
| continuous light battery charged | |||
| pulsating battery overheating | |||
| continuous light battery damaged | |||
| pulsating charger overheating | |||
| continuous light | charger damaged | ||
* only in model with catalog number YT-828502
Power battery
Only one of the following YATO 18 V Li-Ion batteries can be used for power: YT-828461, YT-828462, YT-828463, YT-828464, YT-828465, which can only be charged using YATO chargers: YT-828498, YT-828499, YT-828500, YT-828501, YT-828502, YT-828503, YT-828504. The use of other batteries with a different rated voltage and that do not fit the device's battery socket is prohibited. Modifying the socket and/or battery to fit them is prohibited.

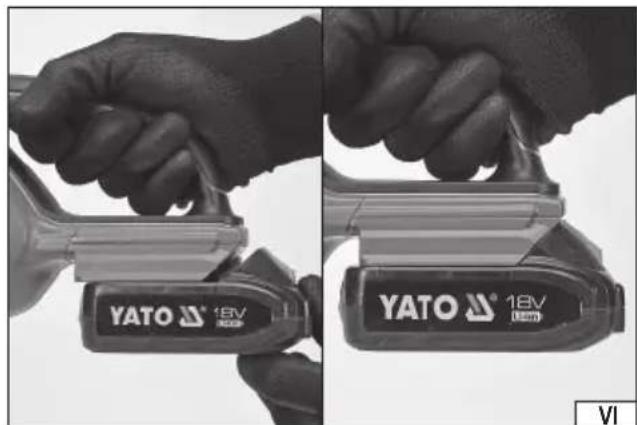

Battery Insert the battery slot guides with the contacts facing inside the tool until the battery latch (VI) engages. Make sure that the battery does not slide out of the slot during operation. Disconnect the battery by pressing and holding the latch, then sliding the battery out of the tool slot.
EN
Warning! During all assembly and disassembly activities, the device must be switched on and the battery disconnected.
Preparing for work

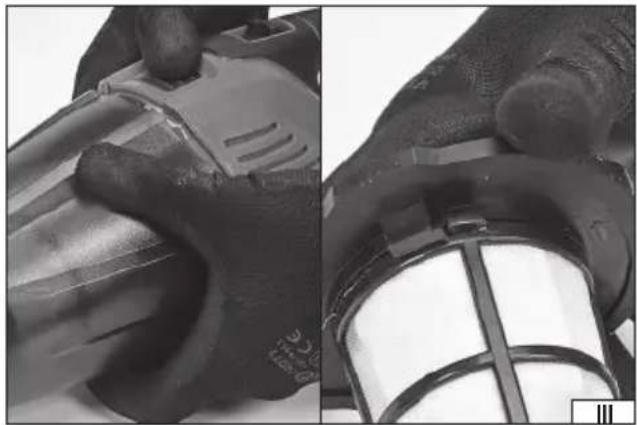

Hold the vacuum cleaner so that one hand is on the vacuum cleaner housing and the other on the dust container. Press and hold the lock button, then disconnect the container from the housing (III). Slide the filter out of the inside of the container and disconnect it from the base, slightly turning the base relative to the filter housing (III).
Clean the container and filter according to the instructions in the section "Vacuum cleaner maintenance".

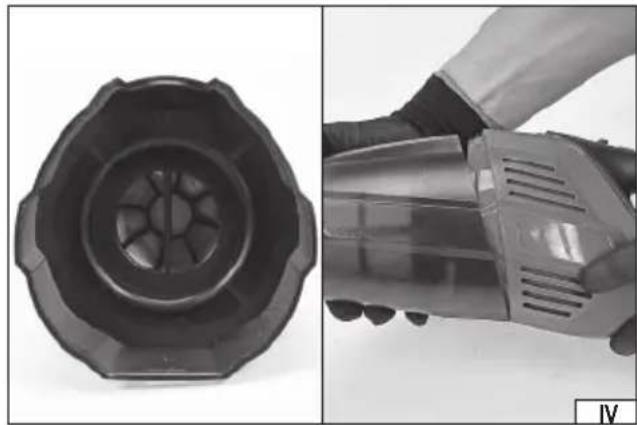

Insert the filter mounted to the base into the dust container so that the shape of the base matches the shape of the inside of the container (IV). Then, resting the lower edge of the dust container on the vacuum cleaner housing, mount the container to the housing. A correctly mounted container adheres to the vacuum cleaner with its edge all around and cannot be removed in any other way than by pressing the lock button.

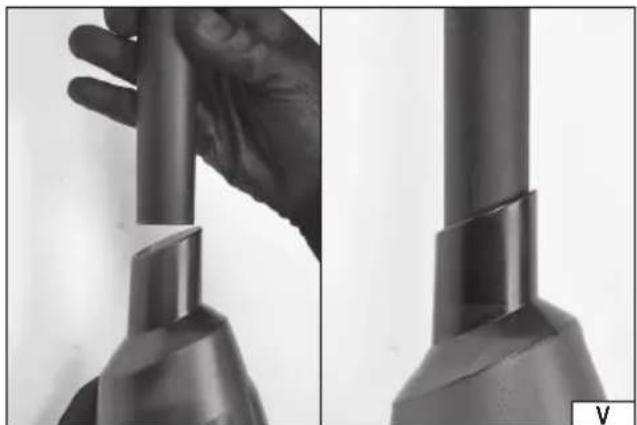

Insert one of the supplied nozzles (V) into the opening at the front of the dust container. The nozzles can also be mounted using an extension tube. The mounting diameter of the suction cups and both ends of the extension tubes is selected so that only correct assembly is possible.
Working with a vacuum cleaner
Warning! It is forbidden to work with hot ash with a vacuum cleaner. The temperature of the waste sucked in by the vacuum cleaner must not exceed 40 degrees Celsius.
Make sure that all preparations have been carried out correctly.

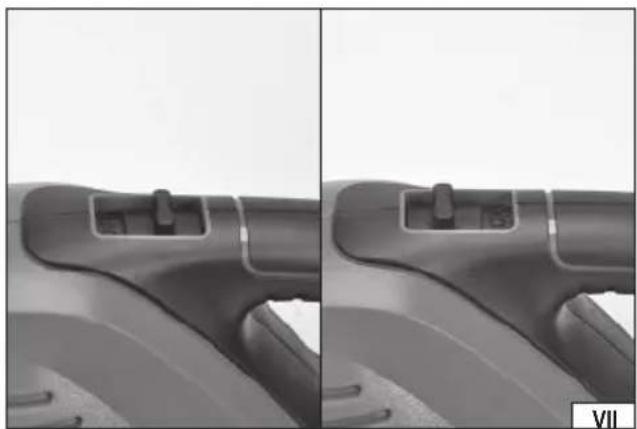

Grab the vacuum cleaner by the handle and use your thumb to push the switch towards the front of the device so that the "I" symbol on the switch (VII) is visible. The vacuum cleaner will start and you can start working. It is not necessary to hold the switch during operation.
After finishing work, slide the switch towards the back of the device so that the "0" symbol on the switch is visible. This will stop the vacuum cleaner.
Disconnect the battery from the device and then proceed with maintenance.
Warning! If you notice any suspicious vibrations, a drop in traction or hear the engine running louder during operation, this may mean that the tank is full or the pipe or nozzle is clogged. In such a case, immediately turn on the vacuum cleaner using the switch and disconnect the battery. Then empty the tank and check that the pipe and nozzle are not clogged. If necessary, unclog them. If unclogging is not possible, replace them with new ones before continuing work.
Vacuum cleaner maintenance
Warning! Before starting any maintenance, make sure the battery has been disconnected from the device.
After each use of the vacuum cleaner, check the tank and air filter as described in the section: "Preparing for work".
Clean the outside of the vacuum cleaner and the filter using a compressed air jet with a pressure of no more than 0.3 MPa. Pay particular attention to the patency of the ventilation holes, both inlet and outlet. Do not use sharp, metal objects to clean the ventilation holes. Do not immerse the vacuum cleaner in water to clean it. Remove larger dirt from the housing with a soft cloth.
