USER MANUAL Humi Ambient CHICCO

Technical diagram of a device with numbered components, showing exploded and assembled views of a device's internal structure.

ISTRUZIONI PER L'USO

On (I)/Stand by mode

Grandate (Como) Italy

Before use, read the instructions and warnings provided in this manual carefully and save the manual for further consultation.

SAFETY WARNINGS

WARNING!

The European Standard EN 60335-1:2012 envisages, for the protection of child safety, that this device can only be used by children over 8 years old, under the supervision of an adult. In compliance with the provisions of the current legislation, Artsana S.p.A. reports the warnings required by such regulation below:

• This product cannot be used by children unless they are over 8 years old and are supervised and adequately instructed on the correct use of the device by a person responsible for their safety and have understood the risks involved.
• Cleaning and maintenance of this device cannot be performed by children unless they are supervised and adequately instructed on the correct use of the device by a person responsible for their safety, and have understood the risks involved.

However, due to the characteristics of this product category, Artsana S.p.A. recommends that no children of any age be allowed to use or interact

with the product, even under the supervision of an adult.

- This device is not intended for use by persons with reduced physical or cognitive capacities without the necessary experience or knowledge, unless they have been trained to use the device correctly by a person responsible for their safety and have understood the risks involved.

- ⚠️WARNING! This product is not a toy. Keep the device, all its parts/components and the power cable (5) out of the reach of children. Steam and boiling water may cause burns

• Children should not play with this device and must be supervised to ensure they do not do so.

- WARNING! When this device is on, maximum care and caution must be taken by the user as it contains and may issue boiling water and steam. This is also true after the device has been switched off, until it has completely cooled down.

- WARNING! The user of this device must be aware of the fact that the levels of moisture may increase the growth of biological organisms in the environment.

- When the device is on, the surfaces around the steam outlet (3) could become damp and/or wet due to the condensation of the steam.

- Do not allow absorbent materials such as carpets, curtains or tablecloths to get wet and/or become damp

- Do not allow the area around the humidifier to become damp or wet. In case of dampness, reduce the flow of outgoing steam from the humidifier by turning the regulating switch to the left (10). If the flow of steam coming out of the humidifier cannot be re-

duced enough, use the humidifier intermittently.

• Never leave water in the device when it is not in use.
• ⚠️WARNING! Before lifting, moving, tilting, cleaning or maintaining the device, and/or removing/filling the water tank (2), always put the device off, pull the power cable (5) out from the mains socket and wait until the device and the water contained therein have completely cooled down.
• The device must be cleaned and dried thoroughly before every use and at the end of every cycle.
• This device must only be used for the purpose for which it was designed, "humidifier for domestic use". Any other use is to be deemed improper and therefore dangerous.
• Artsana refuses to take responsibility for any damage that may be caused by the inappropriate, erroneous or irrational use of the device.
• After removing any packaging materials, ensure that the device has not been damaged. When in doubt, do not use the device and contact technically competent personnel, dealers or an service centre authorised by the manufacturer.
• Keep all packaging materials (plastic bags, boxes, cardboard, etc.) out of reach of children.
• Before connecting the power cable plug (5) to the mains socket, make sure that the information on the power adaptor data plate is compatible with your electricity distribution network. The rating plate is located on the bottom of the device.
• Connect the power cable plug to a socket that is only easily accessible by an adult.
  • To turn the device off, unplug the power cable plug

(5) from the mains socket.

- WARNING! Never pull on the power cable (5) or drag the device to unplug the appliance from the mains socket.

- The device is intended for indoor use only and must not be left exposed to the sun, rain and any other atmospheric conditions.

- ⚠️WARNING! Always place this device only on flat, stable surfaces not accessible to children, away from cribs and beds as during use, the water inside becomes hot and unintentional tipping could cause severe burns! Always pay maximum care and attention!

- Place this device far from materials, equipment and delicate surfaces that are sensitive to heat, dampness and steam as they could be damaged.

- Do not place the device above or near warm surfaces, gas ovens, electric plates, water, steam or on surfaces within the reach of children.

- Do not direct the steam towards people, furniture, curtains, walls, electrical appliances or other objects.

- WARNING! Do not put more than 2-3 drops of essences or balsamic oils in the essence holder (1). When pouring essences or balsamic oils into the essence holder (1), always take care not to fill it excessively and make sure that the liquids do not leak, coming into contact with the external surfaces of the device (water tank and technical base) as these would be irreparably damaged.

- WARNING! Never put salts, essences, balsamic oils or other substances inside the device through the steam outlet (3), or directly into the

water tank (2) or the heating tank (13) as these would irreparably damage the device, and the boiling water could also overflow and cause burns and/or scalding.

• WARNING! Never add/introduce essences, balsamic oils or other substances into the essence holder (1) when the device is on or still warm, or connected to the electricity network. Always take great care.
• ⚠️WARNING! The flow of steam will begin to come out only a few minutes after the device is switched on and, based on the room temperature, the outgoing steam could be invisible, so take great care not to touch or move the hands and/or face near the steam outlet (3), as the temperature of the outlet and that of the outgoing steam could cause serious burns.
• ⚠️WARNING! When the device is running, do not remove or handle the steam outlet (3) and always pay great attention.
• ⚠️ WARNING! Immediately after switching off the device, the water contained in the heating tank (13) may continue to boil for a few minutes. Always pay close attention, as the high temperature of the water contained in the device can cause severe burns. Always turn the device off, unplug it from the mains and wait until it is completely cool before handling it.
• ⚠️WARNING! Before performing any operation that brings the user into contact with the heating plate (12) and/or cleaning or drying the device, make sure the power cable is unplugged from the mains socket and always wait until the device has completely cooled down.

- WARNING! The surface of the heating plate(12), the heating tank (13) and the steam duct (4) reach high temperatures and so must not be touched unless the device is completely cold, as they could still cause severe burns. Always pay maximum care and attention.

- WARNING! In case the emergency thermostat is activated, unplug the power cable (5) from the mains socket, allow the device to cool completely, avoid trying to turn it on again and refer to the section "PROBLEMS AND SOLUTIONS".

- WARNING! For the operations involving filling the tank, cleaning and limescaling the device and its parts, refer to the paragraph “CLEANING AND MAINTENANCE” in this instruction manual.

- WARNING! To correctly remove the water tank (2) from the technical base (6) and prevent accidental spillages, (this operation must only be performed after unplugging the power cable from the mains socket, when the device is switched off and has completely cooled down), detach the steam outlet (3) and remove it by lifting it vertically using the handle provided (15) until it has been fully extracted from the steam duct (4) (see fig. D)

- WARNING! To avoid accidental infiltrations of water in the technical base (6) during the cleaning operations, empty out the water contained in the heating tank (13) by tilting the technical base (6) in the direction indicated by the two arrows (a) present in the tank (13) (see fig. F).

- WARNING! Do not move, lift or tilt the device, the water tank (2) or other parts of the device, or perform any cleaning or maintenance operations when the

humidifier is in use or connected to the electricity network, or when it is still warm. The temperature of the water and all the internal parts can cause severe burns. While the device is running, never remove the steam duct (4) and/or the water tank (2) and always take great care when handling it

- WARNING! Only fill the water tank (2) with cold, drinkable water, without ever adding other substances.

- WARNING! Do not block the ventilation opening filter (7) located under the device with cloths or any other objects. Such an obstruction could cause the internal electric circuit or the outgoing steam to overheat.

- Check the filter (7) on a weekly basis for dust or blockages. If necessary, clean it as indicated in the paragraph "CLEANING AND MAINTENANCE".

• Always disconnect the power cable plug from the mains socket when the appliance is not in use or left unattended. Furthermore, when it is running, avoid leaving the device and its power cable near heat sources. If the power cable (5) is damaged, it must be replaced by the manufacturer, its technical service centre or by duly qualified technicians using a spare original cable supplied by the manufacturer, to prevent dangerous situations from occurring.

- Before storing the device, always empty the water contained in it, thoroughly clean it and dry it.

• To avoid the risk of fires, do not pass the power cable (5) under rugs or near radiators or heaters.

- Never immerse the device in water or other liquid or place it under running water. Do not touch the device with wet or damp hands and never use it with bare or

wet feet.

- Never touch the device if it is accidentally dropped into water; immediately disconnect the power supply, lowering the lever of your central fuse box and disconnect the plug from the mains socket before touching the device. Do not use the device again subsequently. Instead contact the manufacturer only, or an authorised service centre or technically qualified personnel.

- WARNING! Never run the device without filling the water tank (2), without the steam duct (4) or steam outlet (3) or without water in the heating tank (13)

- Connect the device to a mains socket that is easily accessible only by an adult.

- Artsana declines all responsibility for any damage caused by inappropriate, incorrect or irrational use of the device.

- Do not use accessories, spare parts or components not provided or supplied by the manufacturer.

- No adjustment is needed for the change of frequency.

- Any repairs must be carried out exclusively by the manufacturer, an authorised service centre or by technically qualified personnel.

WARNING!

- When using any electrical device, it is necessary to follow a few basic safety rules:

- Never cover the device when it is operating or when it is still hot.

- Do not leave the device switched on unnecessarily as it is a potential source of danger.

- Only place the device on hard, flat and stable surfaces,

away from equipment or materials that are sensitive to heat, moisture and steam.

- Never place the device directly on or near hot surfaces, gas rings, electric warming plates, delicate surfaces, sensitive to heat, water and humidity, or on surfaces within the reach of children.

- The device is intended for indoor use only; do not leave it exposed to the sun, rain and any other atmospheric conditions.

- The device should not be operated by means of an external timer or by means of a separate remote control.

- This device does not contain user-serviceable or reusable parts. In the event of a failure and/or poor operation of the device, switch it off immediately and remove the plug from the electrical socket. Do not attempt to tamper with the device and only contact technically competent personnel, dealers or a service centre authorised by the manufacturer.

- This device can only be opened using special tools

- If the device is not used for an extended period of time, store as detailed in the paragraph "CLEANING AND MAINTENANCE".

- Should the device no longer be used, after removing the plug from the socket, it is advisable to make it in-operative by cutting the power cable.

- Do not keep the humidifier in environments with extreme temperatures.

- Never use plug adaptors, multiple plugs and/or extension wires. If their use becomes necessary, only use simple or multiple adapters and extensions that comply with current safety standards, taking care not

to exceed the power limit indicated on the adapter and/or extension.

- Do not dispose as household waste but recycle, as it is electrical/electronic equipment (WEEE), as required by applicable laws and EU directives.

- The product's specifications may be subject to change without prior notice by the manufacturer.

- The reproduction, transmission, transcription or translation into another language, of any part and in any form of this manual is strictly prohibited without prior written consent from the manufacturer.

- In case the humidifier is sold by the purchaser or given to third party users, they must receive instructions for the safe use of the appliance, and have understood the hazards involved, through reading the instruction manual and in particular the safety warnings contained in it, which should always accompany the appliance.

- If there are doubts about the interpretation of any contents of this instructions manual, contact the Artsana S.p.A dealer or distributor.

- These instructions are available on www.chicco.com

SYMBOLS KEY

Appliance compliant with the essential requirements of applicable EC Directives

Alternate current

WARNING!

WARNING! Hot steam

Warning! Hot surface!

Read the instructions for use

Instructions

On (I)/Standby mode

For indoor use only

Equipment certified and approved by IMQ (Italian Quality Brand Institute)

Do not dispose of this appliance or its components as normal urban refuse. Dispose of them at an appropriate differentiated collection point, as requested by the laws in force in each country.

EN Lukewarm Steam Humidifier Humi Ambient

WARNING!

Read the safety instructions at the beginning of the manual.

Humi Ambient is the new lukewarm steam humidifier by Chicco with a compact, harmonious design that ensures daily well-being and a healthy environment for the whole family. The steam helps re-establish the correct level of humidity in heated environments or in rooms with air conditioning, preventing dry air from forming. A room that is adequately humidified helps to maintain the natural protective mechanisms of the nasal mucosa and the membranes of the respiratory tract, providing greater protection from bacteria and polluting particles.

CONTENTS

Humidifier

Instruction manual

COMPONENTS OF THE UNIT (FIG. A)

1. Essence holder

2. Water tank

3. Steam outlet

4. Steam duct

5. Power cable with plug

6. Technical base

7. Ventilation opening filter

8. Lid

9. Set of magnets (not removable)

10. On / stand-by button and steam intensity regulation

11. Led

12. Heating plate

13. Heating tank

14. Cap

15. Tank handle.

16. Air duct

17. Steam duct lock

INSTRUCTIONS

Preliminary operations

• Ensure that the device is perfectly clean and intact and that the power cable (5) is not plugged into the mains socket.
• Remove the lid (8) from the water tank (2)
• Remove the water tank (2) by lifting it vertically using the handle provided (15).
  • Unscrew the cap of the tank (14).
• Fill the water tank (2) with drinkable tap water [not excessively cold or at room temperature]. (Fig. C) Make sure that the steam duct (4) is correctly positioned in the heating tank (13), Screw the tank cap (14) on fully and again put the water tank on to the heating tank.
• If necessary, add no more than 2-3 drops of balsamic oil or essences to the essence holder (1) (Fig. B.), ensuring that the balsamic oil or essence does not come into contact with the external surfaces of the water tank (2) or penetrate the device through the steam outlet (3), as this could irreparably damage the device and the water tank (2).
  • Always install the device as indicated in the SAFETY WARNINGS paragraph of this manual.

ON / STAND-BY MODE

• Connect the power cable plug (5) to a socket that is only easily accessible by an adult.
• When the humidifier is connected to the electricity network, the device will issue a warning signal ("beep") and the LED (11) will light up green for approximately 2 seconds, after which the LED will become red and the device will remain in standby mode.
• When the humidifier is in standby mode, the LED will remain on with a constant red light and the heating element, ventilation system and steam intensity regulation function will not be activated
• In stand-by mode, if the water tank (2) contains enough water, when the switch (10) is pressed for more than 2 seconds, the humidifier switches on in "low steam intensity" mode, the LED (11) turns green and the water in the heating tank (13) begins to heat up. By turning the switch (10) clockwise, "high steam intensity" mode is activated and the green Led becomes brighter.

• To return to "low steam intensity" mode, turn the switch (10) counter-clockwise.
• To stop the device from running, activate the standby function by pressing down on the switch (10) for at least 2 seconds.
• To turn the device off, unplug the power cable plug from the mains.

FUNCTION FOR PROTECTING THE DEVICE FROM LACK OF WATER

• Should there be no water in the water tank (2) and heating tank (13), when the device is turned on, the humidifier will return to standby mode and the buzzer will issue a "beep". To turn the device on again, unplug the power cable from the mains socket and fill up the water tank again as indicated in the "PRE-LIMINARY OPERATIONS" paragraph.
• When the device is running, should there be no water in the water tank (2) and heating tank (13) the humidifier will stop heating and return to standby mode, the buzzer will issue a "beep" and the fan will stay on for approximately 30 seconds.
• To turn the device on again, unplug the power cable from the mains socket, wait for the humidifier to cool down completely and again fill up the water tank as indicated in the "PRELIMINARY OPERATIONS" paragraph.

EMERGENCY THERMOSTAT

• should the emergency thermostat be activated the humidifier will return to run in standby mode, the buzzer will issue a "beep", the LED (11) will remain on issuing an intermittent red light and the functions of the button (10) will remain deactivated.
• In case the emergency thermostat is activated, unplug the power cable (5) from the mains, allow the device to cool completely, avoid trying to turn it on again and refer to the section "PROBLEMS AND SOLUTIONS".

FAN INTERRUPTION PROTECTION MODE

• If the fan breaks or blocks, the humidifier returns to run in standby mode, the buzzer

issues a warning "beep" at regular 1-second intervals, the LED (11) flashes red continuously and the functions of the power on and regulation button (10) are deactivated. The warning will remain active until the plug of the power cable (5) is removed from the mains socket. The humidifier must not be used again. To repair the device, contact Artsana, qualified technical personnel or a technical service centre.

CLEANING & MAINTENANCE WARNING!

- WARNING! Before performing the cleaning/maintenance operations indicated in this paragraph, turn off the humidifier, unplug the power cable (5) from the mains socket and allow the device to cool down completely.

• Clean the outer parts of the device using a soft cloth. Avoid using abrasive detergents, alcohol, solvents or similar products that can cause irreparable damage to the surfaces of the device.
• Do not scratch the heating unit (12) and do not use chemical or abrasive products to clean it.
• When necessary, clean the ventilation opening filter (7), remove it from its position by sliding it out, then remove the dust present in the surface with the aid of a small soft brush, rinse gently under cold running water, leave to dry in the air without exposing it to direct sunlight, then put it back on to the device in its original position
• Do not put/wash the device and all its components in dishwashers.

CLEANING THE TANK (2), STEAM DUCT (4), HEATING TANK (13) AND HEATING PLATE (12)

• During the normal use of the device, the mineral salts dissolved in the water can cause encrustation to form due to limescale in the steam duct(4), heating tank (13) and heating plate (12).
  • These limescale encrustations may form slowly or quickly depending on the hardness of the water and the frequency with

which the device is used. The harder the water and the more often the device is used, the quicker deposits/encrustations will form, leading to a reduction in performances, an increase in noise and the device being unable to run normally. It is therefore recommended to clean and decalcify at least once a week as follows:

- WARNING! Before proceeding in performing any cleaning or maintenance procedures on the device, make sure that the power cable (5) is unplugged from the mains socket and that the device and its components have cooled down completely.

- Since the device contains water (which could leak out during the operations described below), these must always be performed on suitable surfaces that are not sensitive to water and dampness.

1. Remove the lid (8) from the water tank (2) WARNING: when the humidifier is running, water is condensed in the lid (8), and when this is removed, trickles of condensation could leak out and wet the surfaces around the device.

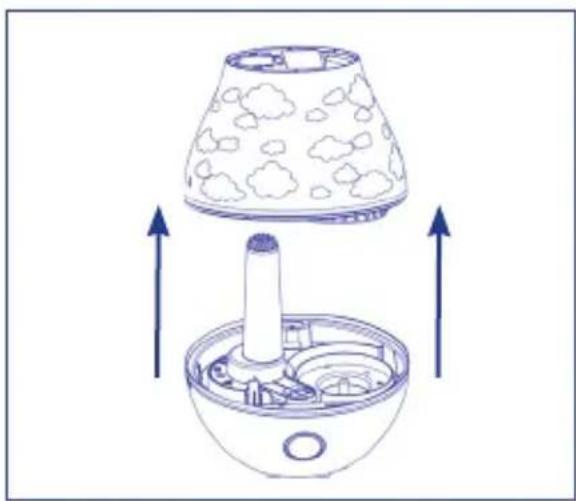

2. Remove the water tank (2) by lifting it vertically using the handle provided (15). (Fig. D)

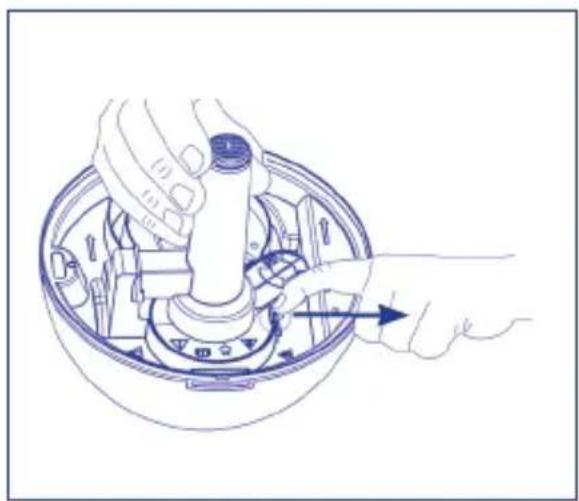

3. Slightly move the steam duct lock (17) (Fig. E) and remove the duct by carefully lifting it up, rinse it and remove the limescale residues with a cloth, also using a tool if necessary. Carefully rinse and dry with a soft cloth.

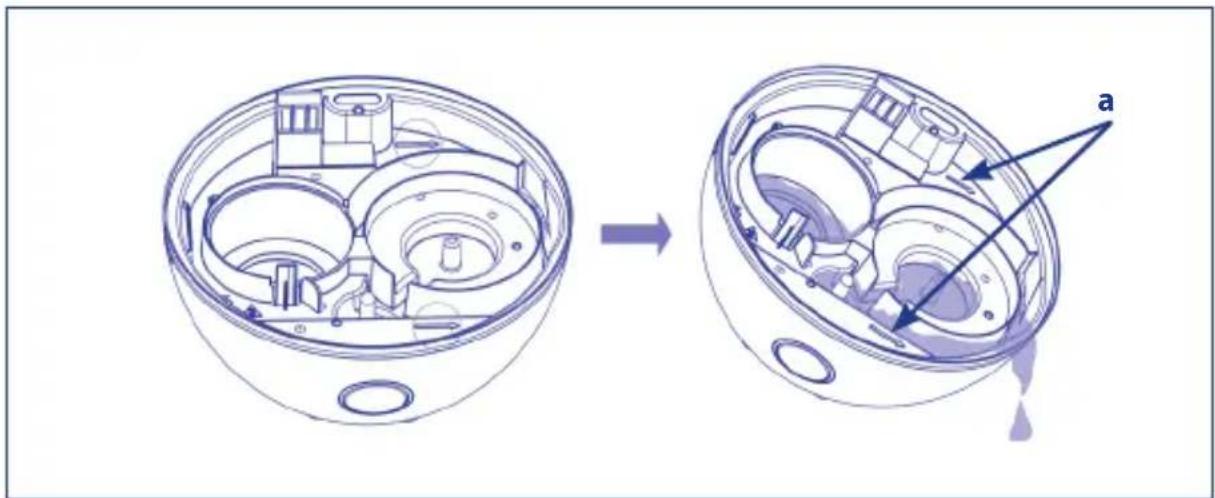

4. Empty out the residues of water in the heating tank (13) by tilting the technical base in the direction indicated by the arrows (a) on the same as indicated in figure F, taking care not to wet the plug and the power cable (5) or allow the water to enter the air duct (16).

5. Pour approximately 250 ml of water into the heating tank (13) and repeat the operation described in point 4 twice.

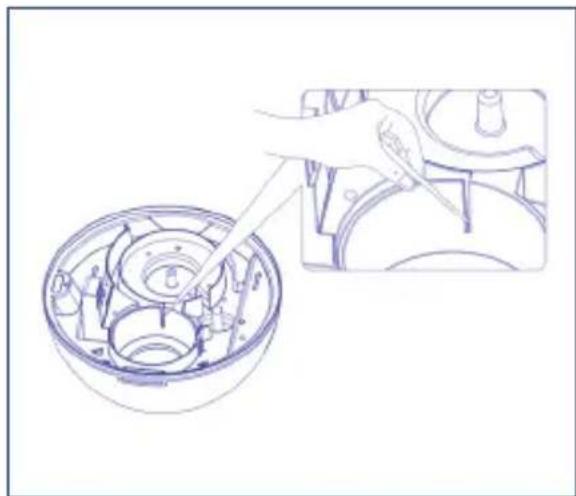

6. Remove any residues remaining in the heating tank with a cloth (13) using a small tool to remove the limescale in the water inlet channel (Fig. H), repeat the operations indicated at point 5. and dry carefully.

7. Unscrew the cap of the water tank (14), empty the water residues contained in the water tank (2) then fill it completely with cold drinkable tap water.

8. Rinse a few times and dry carefully.

9. Pour about 1 litre of a solution with equal parts of water and white wine vinegar into the water tank (2).

10. Screw the cap back on to the water tank (14) and shake it for about a minute, put the steam duct (4) down into the bottom of the heating tank (13) ensuring that the ballcock structure (9), is correctly inserted on to the cylinder present inside the technical base (6). (Fig. G).

11. Insert the water tank (2) on to the technical base (6) and let it rest there for at least 4 hours or, better still, overnight if possible.

12. Repeat the operations from points 2 to 8.

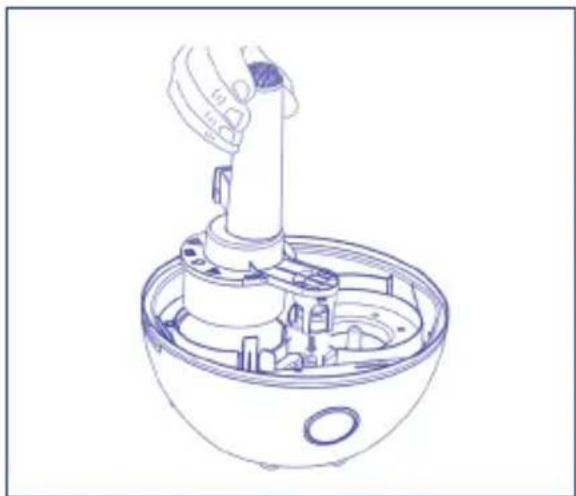

13. Put the steam duct (4) down into the bottom of the heating tank (13) ensuring that the ballcock structure (9), is correctly inserted on to the cylinder present inside the technical base (6).

14. If you wish to use the device again, fill the tank (2) full with cold drinkable tap water and screw the cap tightly on to the heating tank (14), lift the tank using the handle provided (15) and insert it, keeping it in a vertical position, on to the technical base (6), carefully rinse and dry the cap (8) and place it on the tank.

15. The device is now ready to be used again

16. Instead, if the device is not to be used again, carefully dry the inside of the tank (2) with a soft cloth, screw the water tank cap on (14) leaving it very loose to reduce the possibility of odours forming therein, and insert it on to the technical base (6).

17. Carefully rinse and dry the cap (8) and place it on the tank.

18. Put the device back in a cool, dry, clean place away from direct sunlight.

PROBLEMS AND SOLUTIONS

PROBLEM DETECTED SOLUTION
• If the humidifier does not work	• Check that the power cable plug (5) is correctly connected to the mains socket.• Check that there is network voltage in the electrical system.• Check whether the LED (11) is on.• Unplug the power cable from the mains, leave the device until it has completely cooled down and put the plug into the mains socket again.• Verify that the steam duct (4) is correctly positioned in the heating tank (13).
If the device is very noisy.	• Perform the normal cleaning operations as indicated in the paragraph “CLEANING AND MAINTENANCE”, then air the water tank (2) in a cool place for 24 hours with the cap (14) open.
The light of the LED (11) will be red and will flash	• Remove the power cable plug (5) from the mains socket, wait until the device has completely cooled down, plug the power cable (5) into the mains socket and switch the device on again.
If none of the solutions detailed above resolves the problem and/or in case of functional faults other than those described above, take the device to the dealer, contact Artsana S.p.A. or a technical service centre.

TECHNICAL FEATURES

Mod. 07503 Humi Ambient

Nominal power voltage:

220-240V \~ 50/60Hz

Absorbed power: 250 W

Safety classification: Class I

Water tank capacity: 3.5 L approx

Nebulising capacity: about 260±80 ml/h

Autonomy: about 8 hours at 230V of nominal voltage

Type of appliance: continuous operation mode

Noise level: ≤ 50 dBA

Weight: 1.6kg

Dimensions: 231x231x306mm

Storage conditions: - 40 ÷ +70 °C

Relative humidity: 10 ÷ 90%

Ref. 00008031000000

Declaration of EC Compliance:

This humidifier device Chicco Model 07503 complies with all the essential requirements and other provisions indicated in the EU Directives 2014/30/EC (electromagnetic compatibility), 2014/35/EC (Low Voltage), and 2011/65/EC (RoHS).

A copy of the declaration of EC compliance can be requested from manufacturer:

This product complies with the Directive 2012/19/EU.

The crossed bin symbol on the appliance indicates that the product, at the end of its life, must be disposed of separately from domestic waste, either

by taking it to a separate waste disposal site for electric and electronic appliances or by returning it to your dealer when you buy another similar appliance. The user is responsible for taking the appliance to a special waste disposal site at the end of its life. If the disused

appliance is collected correctly as separate waste, it can be recycled, treated and disposed of ecologically; this avoids a negative impact on both the environment and health, and contributes towards the recycling of the product's materials. For further information regarding the waste disposal services available, contact your local waste disposal agency or the shop where you bought the item.

WARRANTY

The product is guaranteed against any conformity defect in normal conditions of use as provided for by the instructions for use.

The warranty shall not therefore apply in the case of damages caused by improper use, wear or accidental events.

For the duration of warranty on conformity defects please refer to the specific provisions of national laws applicable in the country of purchase, where provided

Manufacturer: Artsana S.p.A – via Saldarini Catelli, 1 -22070 Grandate (Como) – Italy

Made in China.

MODED'EMPLOI

Attention! Surface chaude!

On (I)/Stand by mode

MODALITÉ ON / STAND-BY

Dimensions: 231x231x306mm

On (I)/Stand by mode

Grandate (Como) Italy

PROBLEMAS E SOLUÇÕES

Line drawing of a hand pouring liquid from a container into a decorative bowl (no text or symbols)

Fig. D Fig. E

Diagram of a lampshade with internal components and upward arrows indicating motion (no text or symbols)

Line drawing of a hand operating a mechanical component with a circular base and adjustment knob (no text or symbols)

Fig. F

Technical illustration of a device interior showing internal components before and after assembly (no text or symbols)

Fig. G Fig. H

Line drawing of a hand operating a cleaning or cleaning device inside a bowl (no text or symbols)

Technical line drawing showing a hand operating a mechanical component inside a bowl (no text or symbols present)

chicco®

CE

Costruttore - Manufacturer - Fabricante - Fabricante - κατασκευαστής Artsana S.p.A - via Saldarini Catelli, 1 - 22070 Grandate (Como) - Italy

Fabbricato in Cina - Made in China - Fabricado en China Fabricado em China - κατασκευάζονται στην Κίνα
