USER MANUAL PERT 300 C1 PARKSIDE
parkside-diy.com
DE AT CH
ELEKTRO-RASENTRIMMER
Bedienungsanleitung
Translation of the original instructions
FR BE
GB/IE User manual Page 26
Line drawing of a person using a handheld tool (no text or symbols)List of pictograms used ...... Page 27
Introduction Page 28
Intended use.... Page 28
Scope of delivery Page 28
Parts list Page 29
Technical data. Page 29
General safety notes ...... Page 30
Before first use.... Page 35
Unpacking the product. Page 35
Assembly Page 35
Operation.... Page 35
Switching on/off Page 35
Settings.... Page 36
Working instructions ...... Page 36

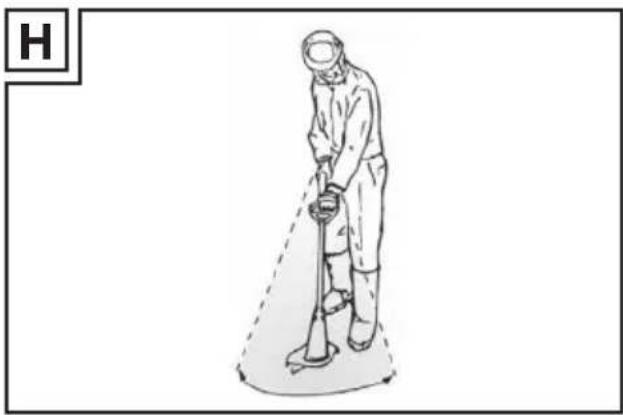

Cutting grass Page 37
Troubleshooting Page 37
Cleaning and maintenance Page 38
Cleaning Page 38
Maintenance Page 38
Replacing the spool cap/line spool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 38
Transport. Page 40
Replacement parts/Accessories. Page 40
Storage Page 40
Disposal Page 40
Warranty.... Page 40
Warranty claim procedure.... Page 41
Service Page 41
EU declaration of conformity.... Page 42
| List of pictograms used | |||
 | Read the instruction manual. Keep |  anders well away. | |
 | WARNING! – Designating a hazard with moderate risk, which can result in death or severe injury if not avoided (e.g. risk of electric shock) |  | Always switch the product off, disconnect it from the mains and let it cool down before performing inspection, maintenance or cleaning works. |
 | CAUTION! – Designating a hazard with low risk, which could result in minor or moderate injury if not avoided (e.g. risk of scalding) |  | Do not expose the product to moisture. Do not work when it is raining and do not cut wet grass. |
 | Protection class II (double insulation) |  | Alternating current/voltage |
 | Wear ear protection! |  | Wear protective, slip-resistant footwear! |
 | Wear eye protection! Wear protec |  othing! | |
 | Disconnect the mains plug if the mains cord 4 is damaged or entangled. |  | Always unplug the mains plug from the socket-outlet during maintenance work. |
 | Guaranteed sound power level LWA indicated in dB |  | Cutting circle |
| 23 cm | Cutting circle Direction of line rotatior | ||
 | Loosening the spool cover 15 |  | Fixing the spool cover 15 |
Safety information Instructions for use
CE mark indicates conformity with relevant EU directives applicable for this product.
ELECTRIC LAWN TRIMMER
Introduction
We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.
Intended use
This product is intended for cutting grass and weeds in the garden. Do not use the product to trim hedges or bushes.
☐ The product uses a fully automatic line spool 16 for cutting.
☐ A protective cover 8 protects the user from the cutting head 9.
☐ Any other use or modification of the product are considered improper use and can result in hazards such as death, life-threatening injuries and damage. The manufacturer is not
liable for any damages caused by improper use.
This product is designed for domestic use and similar applications. The product is not suitable for commercial use.
The product is designed for use by adults. Adolescents over the age of 16 may use the product only under supervision. The operator or user is responsible for accidents or damage to other people or their property.
☐ Scope of delivery
WARNING!
The product and the packaging are not children's toys! Children must not play with plastic bags, sheets and small parts! There is a danger of choking and suffocation!
1 Electric lawn trimmer
1 Auxiliary handle
1 Protective cover
1 Line spool (pre-installed)
4 Cross-head screws (long)
2 Cross-head screws (short)
1 User manual
Parts list
Before reading, unfold the pages containing the illustrations and familiarise yourself with all functions of the product.
(Fig. A)
| 1 | On/off switch |
| 2 | Upper handle |
| 3 | Strain relief |
| 4 | Mains cord with mains plug |
| 5 | Handle section |
| 6 | Centre piece |
| 7 | Motor head |
| 8 | Protective cover |
| 9 | Cutting head |
| 10 | Auxiliary handle |
| 11a | Cross-head screw (long) |
| 11b | Cross-head screw (short) |
(Fig. D)
| 12 | Nut |
| 13 | Bolt |
| 14 | Handle unit |

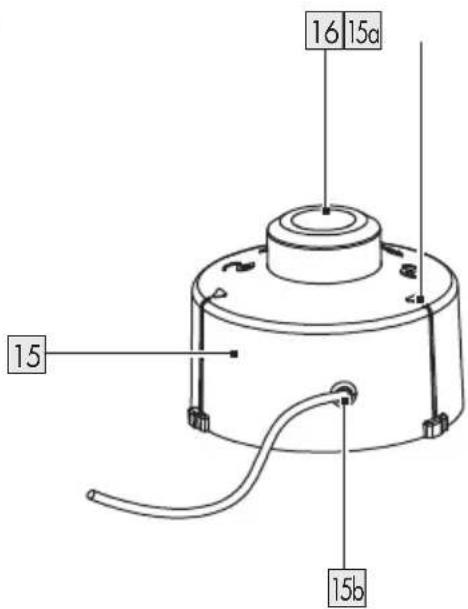

(Fig. G)
| 15 | Spool cover |
| 15c | Triangular marking |
| 15b | Line outlet loop (spool cover) |
| 16 | Line spool |
| 17 | Spring |
| 18 | Spool cap |
| 19 | Line cutter |
| 20 | Opening (line spool) |
- Technical data
| Electric lawn trimmer | PERT 300 C1 |
| Nominal input voltageU: | 230 V~,50 Hz |
| Power consumption: 300 | W |
| Idling speed: 12,500 min | -1 |
| Protection class: | II/☐ |
| Protection category: IPX0 | |
| Cutting circle: 230 mm | |
| Line length: 4 m |
| Line thickness: 1.6 mm | |
| Weight: VDE version: BS version: | 1.5 kg2.15 kg |
Noise emission value
The measured values have been determined in accordance with EN 50636-2-91. The A-rated noise level of the power tool is typically as follows:
| Sound pressure level L_pA : 78 dB | |
| Uncertainty K_pA : 3 dB | |
| Sound power level L_WA guaranteed:measured: | 90 dB88 dB |
| Uncertainty K_WA : | 1.95 dB |
Vibration emission value
Vibration total values (triaxial vector sum) determined according to EN 50636-2-91:
| Main handle ah: | 9.6 m/s2 |
| Uncertainty K: | 1.5 m/s2 |
| Auxiliary handle ah: | ≤2.5 m/s2 |
| Uncertainty K: | 1.5 m/s2 |
WARNING!
Wear ear protection!
NOTE
The declared vibration total value and the declared noise emission value have been measured in accordance with a standard test method and may be used for comparing one tool with another.
The declared total vibration value and the declared noise emission value may also be used for a preliminary assessment of exposure.
WARNING!
The vibration and noise emissions during actual use of the power tool can differ from the declared values depending on the manner in which the tool is used, especially what kind of workpiece is processed.
It is necessary to identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).
General safety notes
General power tool safety warnings
WARNING!
Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
Work area safety
1) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
2) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
3) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
Electrical safety
1) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
2) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
3) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
4) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
5) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
6) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
Personal safety
1) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
2) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
3) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
4) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
5) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
6) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
7) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
8) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
Power tool use and care
1) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
2) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
3) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
4) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
5) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many
accidents are caused by poorly maintained power tools.
6) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
7) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
8) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
Service
1) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
Additional safety instructions Training
The product is not suitable for use by children. Children should be supervised to ensure that they do not play with the product. Cleaning and user maintenance shall not be made by children.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
This product is not intended for use by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge.
■ Never let children or persons who are not familiar with the instructions mentioned use the product.
■ Local regulations or by-laws may determine the minimum age for using the product.
- Read the user manual carefully. Be familiar with the controls and the correct use of the machine.
The operator or user is responsible for accidents or damage to other people or their property.
The product must not be used at altitudes higher than 2000 m.
Preparation
Before each use, carry out an inspection on damaged, missing or wrongly mounted protective devices or parts of the cutting device.
Before commissioning and after any impacts, check the product for signs of wear and damages, and have any necessary repairs performed.
Use only approved extension cords (H05VVH2-F) that are not more than 75 m long and designed for outdoor use. Always roll the extension cord completely off the cable drum before use. Check the extension cord for damage and ageing.
- Do not connect a damaged cable to the mains supply. Do not touch a damaged cable before it has been disconnected from the mains supply, as you could come into contact with live parts.
- Prior to use, check the mains cord and extension cord for signs of damage or ageing. If the cord is damaged during use, disconnect it from the mains immediately. DO NOT TOUCH THE CORD BEFORE IT HAS BEEN DISCONNECTED FROM THE MAINS SUPPLY. Do not use the product if the cord is damaged or worn.
- To unplug the mains cord from the socket, always pull on the mains plug, and never on the mains cord.
Operation
WARNING!
Do not touch any moving dangerous parts before the product has been unplugged from the mains supply and the moving dangerous parts have come to a complete stop.
- Keep the connecting cable and extension cable away from the cutting device to avoid damages to the cords which can lead to contact with live parts.
■ Wear safety goggles, stable shoes and long trousers over the entire period of use of the product.
The use of the product under bad weather conditions, especially in case of lightning risk, must be avoided.
There is a risk of injury from cuts on hands and feet.
■ Stop using the product when persons, above all children, and house pets are in the vicinity.
■ Use the product only in daylight or with good artificial lighting.
■ Always keep your hands and feet away from the cutting equipment, above all when you switch the motor on.
■ Never replace the non-metallic cutting device with a metallic cutting device.
- Never use the product with damaged or missing protective equipment or covers or if the cord is damaged or worn.
- Avoid an abnormal body posture. Ensure secure footing at all times to maintain balance when working on slopes.
- Go slowly. Do not run with the product in your hand.
In the case of an accident or malfunction during operation, switch off the product immediately. Injuries must be properly treated or medical assistance sought. Read the “Troubleshooting” section to correct any malfunctions or contact our customer service. - Keep the extension cord away from dangerous moving parts to prevent damages to cords that can lead to contact with live parts.
If the mains cord gets damaged or becomes tangled during use, immediately switch off the product and unplug the mains cord to disconnect the product from the mains supply.
■ Use a residual current device (RCD) with a tripping current of not more than 30 mA. - Do not use any accessories that are not recommended by Parkside. This can result in electric shock or fire.
■ Always disconnect the product from the mains supply (i.e. disconnect the plug from the mains)
– whenever the product is left unattended;
– before clearing a blockage;
– before checking, cleaning or using the product;
– after striking a foreign object;
– whenever the product starts vibrating abnormally.
If the product starts to vibrate abnormally, an immediate check must be carried out.
– Search for signs of damage.
- Perform any necessary repairs to damaged parts.
- Examine for loose parts and tighten these.
■ Always ensure that the ventilation openings are kept free of foreign objects.
Maintenance and storage
- Disconnect the product from the mains supply (i.e. disconnect the plug from the mains) before carrying out maintenance or cleaning work.
■ Use only spare parts and accessories supplied and recommended by the manufacturer.
■ Regularly check and maintain the product. Have the product repaired in a licensed workshop only. - When not in use, store the product out of the reach of children.
■ Make sure that the air vents are free of dirt.
Vibration and noise reduction
To reduce the impact of noise and vibration emission, limit the time of operation, use low-vibration and low-noise operating modes as well as wear personal protective equipment.
Take the following points into account to minimise the vibration and noise exposure risks:
- Only use the product as intended by its design and these instructions.
■ Ensure that the product is in good condition and well maintained.
■ Use correct accessory tools for the product and ensure they are in good condition. - Keep tight grip on the handles/grip surface.
- Maintain this product in accordance with these instructions and keep it well lubricated (where appropriate).
Plan your work schedule to spread any high vibration tool use across a longer period of time.
Behaviour in emergency situations
Familiarise yourself with the use of this product by means of this instruction manual. Memorise the safety warnings and follow them to the letter. This will help to prevent risks and hazards.
■ Always be alert when using this product, so that you can recognise and handle risks early. Fast intervention can prevent serious injury and damage to property.
- Switch the product off and disconnect it from the mains if there are malfunctions. Have the product checked by a qualified professional and repaired, if necessary, before you operate it again.
Residual risks
■ Even if properly operating and handling the product, some residual risks will remain. Due to its construction and build, the product may present the following hazards:
- Cuts;
– Hearing loss if working without hearing protection;
- Damage caused to your health resulting from hand/arm vibrations if the power tool is used over a longer period of time or if it is not properly used and maintained.
NOTE
This product produces an electromagnetic field during operation! This field may under some circumstances interfere with active or passive medical implants! To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their doctor and the medical implant manufacturer before operating this product!
Before first use
- Unpacking the product
- Take the product out of the packaging and remove all packaging materials and plastic wrappings.
- Check to make sure that all listed parts are included (see "Scope of delivery").
- Check whether the product and all parts are in good condition, if any damage or defect is detected, do not use the product, but follow the procedure described in chapter "Warranty".
Assembly
Centre piece (Fig. B)
- Place the centre piece 6 onto the motor head 7.
- Place the handle section 5 onto the centre piece 6.
- Fix the centre piece 6 to the motor head 7 and the handle section 5 with 4 long cross-head screws 11a.
Protective cover (Fig. C)
- Place the protective cover 8 onto the motor head 7.
- Fasten the protective cover 8 with 2 short cross-head screws 11b.
Auxiliary handle (Fig. D)
- Unscrew and remove the pre-installed nut 12 and bolt 13 of the auxiliary handle 10.
- Pull the ends of the auxiliary handle 10 apart and slide them over the handle unit 14.
- Screw on the auxiliary handle 10 with the bolt 13 and nut 12.
Operation
CAUTION! Risk of injury!
Do not operate the product without the protective cover 8.
CAUTION! Risk of injury!
▶ Wear suitable clothing as well as eye and ear protection.
Prior to every use, check that the product is fully functional.
Do not lock the on/off switch ^1 in place. After releasing the on/off switch, the motor must switch off. Stop using the product if the on/off switch is damaged.
NOTE
▶ Observe local regulations concerning noise protection.
- Switching on/off
⚠️ CAUTION! Risk of injury and property damage!
Maintain a firm stand and hold the product well with both hands at a safe distance away from your body.
Before switching on the product, check that it does not touch any objects.
After the product has been switched off, the line spool 16 continues moving for some time. Allow the line spool to come to a complete stop.
Keep hands and feet at a safe distance from the line spool 16.
NOTE
For transport safety during delivery, the cutting line is knotted at the end. The end with the knot is cut by the line cutter 19 the first time the cutting line is extended.
The product cannot be switched to continuous operation.
NOTE
Remove grass cuttings regularly from the line spool [] to make sure that cutting is not impaired.
(Fig. E)
- Form a loop from the end of the extension cord. Pass the loop through the opening on the upper handle [2] and hook it into the strain relief [3].
- Connect the product to the mains supply.
- Ensure your stance is stable and hold the product tightly with both hands. Do not allow the spool cap to hit the floor.
- Switching on: Press and hold the on/off switch [1].
- Switching off: Release the on/off switch [1].
Settings
Adjusting the auxiliary handle (Fig. F)
You can adjust the auxiliary handle [] to various positions. Adjust the auxiliary handle so that the spool cap [] is tilted slightly forward as you work.
☐ Loosen the nut [] and adjust the auxiliary handle [] to the desired position. Re-tighten the nut.
Extending the cutting line
NOTE
▶ Regularly remove any grass cuttings from the line cutter [] so that the cutting effect is not impaired.
▶ Check the cutting line regularly for damage. Make sure the cutting line has the length specified by the line cutter □].
☐ The product is equipped with an auto-tap feed. The 1 line is extended when you tap the cutting head [9] on the ground and press the on/off switch [1].
☐ If the lines are initially longer than the cutting diameter, they are automatically shortened to the right length by the line cutter .
☐ If no line ends are visible: Replace the line spool [☐] (see “Replacing the line spool”).
☐ Setting the line length manually:
- Disconnect the product from the mains supply.
- Pull on the line end and press on the cutting head [9] repeatedly until the line end protrudes approx. 1 cm beyond the line cutter [1].
● Working instructions
⚠ WARNING! Risk of injury!
Do not cut moist or wet grass.
Before switching on the product, make sure that the line spool [] does not touch any stones, scree, or other foreign objects.
Switch on the product before you approach the grass that is to be cut.
Do not overload the product during operation.
Avoid contact with obstacles (stones, walls, fences, etc.). Otherwise the line spool □] wears out quickly.
Avoid using the product in bad weather, especially if there is a danger of lightning.
Do not select a position for the auxiliary handle [] that is too close to the upper handle 2]. Otherwise you cannot control the product properly.
⚠ WARNING! Risk of injury!
When working, hold the product so that the protective cover 8 protects you from the trimming assembly.
☐ Cut the grass by swaying the product sideways to the right and left.
☐ Cut slowly and hold the product with the cutting circle parallel to the ground when cutting.
☐ Cut tall grass by a series of levels from top to bottom.
Cutting grass
| Problem Possible cause Action | ||
| The product does not start. | The on/off switch 1 is defective. | Contact our customer service to have the product repaired. |
| The motor is defective. | ||
| The product works with intermittent operation. | Internal loose contact. | |
| The on/off switch 1 is defective. | ||
| The product makes much vibration and loud noise. | The trimming assembly is dirty. | Clean the trimming assembly (see “Cleaning”). |
| The motor is defective. Contact | our customer service to have the product repaired. | |
| The trimming result is bad. | The line spool 16 does not have enough cutting line. | Extend the cutting line if required (see “Extending the cutting line”). |
| Replace the line spool 16 (see “Replacing the line spool”). | ||
| The cutting line is not led out of the spool cover 15. | Remove the spool cover 15. Feed the cutting line through the line outlet loop 15b to the outside. Reinstall the spool cover 15. | |
● Cleaning and maintenance
⚠ WARNING! Risk of injury!
Always switch the product off, disconnect it from the mains and let it cool down before performing inspection, maintenance or cleaning works.
⚠ WARNING! Risk of injury!
Risk of injury from moving dangerous parts!
CAUTION!
Any maintenance and repair other than described in this manual: Contact an authorised service centre or a similarly qualified person to check or repair the product. Only use original parts.
NOTE
The following cleaning and servicing should be done regularly. This will ensure a long and reliable service life.
Cleaning
⚠ WARNING! Risk of electric shock!
Do not spray the product with water and do not immerse it in water.
⚠ WARNING! Risk of injury!
Be careful with the line cutter ^19 . The line cutter can cause serious lacerations.
NOTE
Do not use cleaning agents or solvents. You may otherwise irreparably damage the product.
- Keep clean the ventilation slots, motor housing and handles of the product. Use a damp cloth or a brush. - After every trimming session, remove grass and soil from the protective cover 8 and the trimming assembly.
Maintenance
- Prior to every use, check the product for obvious defects such as loose, worn or damaged parts. - Check covers and safety devices for damages and correct installation. Replace as necessary.
● Replacing the spool cap/line spool
(Fig. G)
NOTE
- Check the line cutter ^19 . Never use the product without a line cutter or with a defective line cutter. If the line cutter is damaged, contact our customer service. - Standard strings available from DIY stores can also be used, allowing you to re-use empty line spools (see “Technical data”). The winding direction is indicated on the line spool ^16 .
Replacing the spool cap
- Unplug the mains plug.
- Hold the spool cap 18 firmly with 1 hand and turn the spool cover 15 in the direction.
- Slowly remove the spool cover 15 together with the line spool 16.
Hold the spool cover and the line spool firmly, because the spring 17 will push them out.
- Place the new spool cover 15 with the line spool 16 on the spool cap 18. Make sure that the triangular markings 15a on the spool cover and the spool cap line up.
- Hold the spool cap 18 firmly with 1 hand. Screw on the spool cover 15 by turning it in the direction. Hold the spool cover firmly, because the spring 17 will push it out.
- Pull on the line end and press on the cutting head 9 repeatedly until the line end protrudes approx. 1 cm beyond the line cutter 19.
- Make sure that the spool cover 15 is flatly locked into the spool cap 18, not skewed (see detail photos in Fig. G).
Replacing the line spool
- Unplug the mains plug.
- Open the spool cap 18 by holding it firmly with 1 hand and turning the spool cover 15 in the direction.
- Slowly remove the spool cover 15 from the spool cap 18 and take out the line spool 16. Hold the spool cover and the line spool firmly, because the spring 17 will push them out.
- Press the line end of the new spool out of the spool slot.
- Thread the end of the line through the line outlet loop 15b in the spool cover 15 .
- Insert the new spool into the spool cap 18. The side of the spool on which the winding direction is indicated by an arrow must be visible after insertion.
-
Put the spool cover 15 back on the spool cap 18. Make sure that the triangular markings 15a on the spool cover and the spool cap line up.
-
Hold the spool cap 18 firmly with 1 hand. Screw on the spool cover 15 by turning it in the direction. Hold the spool cover firmly, because the spring 17 will push it out.
- Pull on the line end and press on the cutting head 9 repeatedly until the line end protrudes approx. 1 cm beyond the line cutter 19.
- Make sure that the spool cover 15 is flatly locked into the spool cap 18 , not skewed (see detail photos in Fig. G).
Winding up the spare line
NOTE
The correct winding direction of the line spool 16 is indicated on its top.
- Remove the empty line spool 16 (see "Replacing the line spool", points 1–3).
- Thread 1 end of the spare line through the opening 20 of the line spool 16 .
- Wind the line onto the line spool 16.
- Thread the end of the line through the line outlet loop 15b in the spool cover 15 .
- Insert the line spool 16 into the spool cap 18. The side of the line spool on which the winding direction is indicated by an arrow must be visible after insertion.
- Put the spool cover 15 back on the spool cap 18. Make sure that the triangular markings 15 on the spool cover and the spool cap line up.
- Hold the spool cap 18 firmly with 1 hand. Screw on the spool cover 15 by turning it in the direction. Hold the spool cover firmly, because the spring 17 will push it out.
-
Pull on the line end and press on the cutting head 9 repeatedly until the line end protrudes approx. 1 cm beyond the line cutter 19.
-
Make sure that the spool cover 15 is flatly locked into the spool cap 18, not skewed (see detail photos in Fig. G).
Transport
□ Carry the switched off product with one hand at the upper handle 2 and the other hand at the auxiliary handle 10.
☐ Face the cutting unit towards the ground. This prevents any contact with the cutting unit during transport.
● Replacement parts/Accessories
□ Compatible replacement parts for this product can be purchased at www.Optimex-Shop.com. Have the order number ready for your order. Orders can only be placed and processed online. If you are not sure where you can purchase compatible parts, contact our customer service.
| Position | Description | Order number |
| 16 | Line spool 94 | 7185401 |
Storage
□ Store the product in a dry place well out of reach of children.
☐ Do not stand the product on its protective cover 8. Suspend the product by its upper handle 2 in such a manner that the protective cover does not come into contact with other objects. This is because the protective cover could become deformed, thereby changing its dimensions and its safety properties.
- Disposal
The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.
Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics/20–22: paper and fibreboard/80–98: composite materials.
Product:
The product incl. accessories and packaging materials are recyclable and are subject to extended producer responsibility.
Dispose them separately, following the illustrated Info-tri (sorting information), for better waste treatment.
The Triman logo is valid in France only.
Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.
To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.
Warranty
The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of material or manufacturing defects you have legal rights against the retailer
of this product. Your legal rights are not limited in any way by our warranty detailed below.
The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Keep the original sales receipt in a safe location as this document is required as proof of purchase.
Any damage or defects already present at the time of purchase must be reported without delay after unpacking the product.
Should the product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. The warranty period is not extended as a result of a claim being granted. This also applies to replaced and repaired parts.
This warranty becomes void if the product has been damaged, or used or maintained improperly.
The warranty covers material or manufacturing defects. This warranty does not cover product parts subject to normal wear and tear, thus considered consumables (e.g. batteries, rechargeable batteries, tubes, cartridges), nor damage to fragile parts, e.g. switches or glass parts.
● Warranty claim procedure
So that your request can be processed quickly, please observe the following instructions:
For all inquiries, please have the receipt and item number (IAN 471854_2407) ready as proof of purchase.
The article number can be taken from the identification label on the product, engraving on the product, the front cover of your manual (at the bottom left), or the sticker on the back or bottom of the product.
If malfunctions or other defects arise, first contact the service department indicated below by phone or email.
You can then send a product recorded as defective to the communicated service address postage-free, making sure to enclose proof of purchase (receipt) and information on the details of the defect and when it occurred.
Service
GB Service Great Britain
Tel.: 0800 0569216
E-Mail: owim@lidl.co.uk
IE Service Ireland
Tel.: 1800 200736
E-Mail: owim@lidl.ie
● EUdeclarationofconformity
EU DECLARATION OF CONFORMITY (No 471854\_2407)
IAN: 471854_2407
Product identification:
"PARKSIDE" Electric Lawn Trimmer
Model Number: HG10989
The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:
| Directive 2006/42/EC |
| Directive 2000/14/EC |
| Directive 2014/30/EU |
| Directive 2011/65/EU and all related amendments |
References to the relevant harmonised standards used or references to the other technical specifications in relation to which conformity is declared:
| N° / Parts |
| Directive 2006/42/EC |
| EN 60335-1:2012/A15:2021 |
| EN 50636-2-91:2014 |
| EN 62233:2008 |
| Directive 2014/30/EU |
| EN IEC 55014-1:2021 |
| EN IEC 55014-2:2021 |
| EN IEC 61000-3-2:2019/A1:2021 |
| EN 61000-3-3:2013/A2:2021 |
The object of the declaration described above is in conformity with Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment:
| N° / Parts |
| EN IEC 63000:2018 |
Conformity Assessment procedure / name&adress notified body where appropriate: Annex VI, TÜV SÜD Industrie Service GmbH (NB 0036), Westendstraße 199, 80686 München, Germany
Measured sound power level on an equipment representative for this type: 88 dB(A)
Guaranteed sound power level for this equipment: 90 dB(A)
Keeper of the technical documentation: OWIM GmbH & Co.KG
Signed for and on behalf of:
This declaration of conformity is issued under the sole responsibility of the manufacturer.
Translation of the original declaration of conformity
Neckarsulm 23.09.202
Place
Date
ppa. Stefan Haensel
ppa. Buchheim ppa. Jøhs Buchheim
Authorised Signatory Authorised Signatory
EN
CE
Line drawing of a person in protective gear using a handheld device, no text or symbols presentnatural_image
Three black-and-white icons representing food, beverage, and food safety symbols (no text or labels)natural_image
Line drawing of a person in full protective suit using a power tool on a platform (no text or symbols)natural_image
Line drawing of a person using a handheld tool (no text or symbols)natural_image
Line drawing of a person in protective gear using a handheld device (no text or symbols)natural_image
Line drawing of a person in protective gear using a handheld tool (no text or symbols)□ Trávu koste pohybovaním produktu doprava a dolava.
□ Koste pomaly a pri kosení držte produkt s priemerom kosenia paralelne k zemi.
□ Dlhú trávu koste po vrstvách zhora dole.
