USER MANUAL PHDS 110 B2 Silent PARKSIDE

Close-up of a black precision camera mount with a screwdriver and base mount (no visible text or symbols)

PDF ONLINE parkside-diy.com

Flächenreiniger / Surface Cleaner / Accessoire de nettoyage haute pression PFR 28 B3

DE AT CH

Flächenreiniger

Translation of the original instructions

NL BE

Terrasreiniger

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

Technical diagram of a cleaning or cleaning device with numbered parts and directional arrows indicating assembly steps.

1 2 3 4

B

B 10 11

C

Close-up of a mechanical component with circular features and directional arrows (no text or symbols)

Inhaltsverzeichnis

Einleitung......4

Scope of delivery/accessories....11

Overview.... 11

Technical data.... 11

Safety information.... 11

Pictograms and symbols......11

Meaning of the safety information.... 11

General safety instructions......12

Working with the device.....12

Preparation......12

Control elements......12

Connection without adapter.....12

Connection with adapter.....13

Operation....13

Working instructions...... 13

Pressure control.... 13

Cleaning, maintenance and storage....13

Cleaning.... 13

Maintenance....13

Storage....14

Transport...... 14

Disposal/environmental protection....14

Service....14

Service Centre....14

Importer....14

Spare parts and accessories......15

Translation of the original EC declaration of conformity....15

Introduction

Congratulations on purchasing your new surface cleaner (hereafter referred to as device or product).

You have chosen a high-quality device. This device was quality-tested and subjected to a final inspection during production, therefore ensuring proper functioning of your device.

The instruction manual forms part of this device. It contains important information on safety, use and disposal. Read the instruction manual carefully. Familiarise yourself with the controls and how to use the device correctly. Use the device only as described and for the stated fields of application. Store the instruction manual carefully and ensure that all documents are handed over in the event that the device is passed on to another user.

Proper use

This device is only intended for the following use:

- high-pressure cleaning of floor and wall surfaces.

WARNING! Follow the

manufacturer's instructions for the object being cleaned.

The device is intended for use with the following PARKSIDE pressure washers: PHD 100, PHD 110 A1-E1, PHD 135 A1-F5, PHD 150, PHD 170, PHDS 110 A1 Silent, PHDF 150 A1, PHDM 110 A1 Mini.

Any other use that is not expressly permitted in this instruction manual may pose a serious hazard to the user and result in damage to the device. The operator or user of the machine is responsible for any accidents or personal injury and/or material damage to third parties or their property. The machine is intended to be used by do-it-yourselfers. It was not designed for heavy commercial use. The warranty is void in the case of commercial use. The manufacturer

is not liable for damage caused by improper use or incorrect operation.

Scope of delivery/accessories

Unpack the device and check that everything is present.

Dispose of the packaging material properly.

• Surface Cleaner
• Main tube
• Extension arm
• Adapter*
• Translation of the original instructions

* for other common pressure washers (Rated pressure: Max. 11.5 MPa / 1668 psi), e.g. Kärcher.

Overview

The illustrations for the device can be found on the front fold-out page.

1 Adapter (Third-party device)
2 Coupling nut (Adapter)
3 Coupling nut
4 Extension arm
5 Main tube
6 Connection
7 Housing
8 Handle
9 Pressure regulator

(Fig. B)

10 Spray nozzle
11 Safety clip

Technical data

Surface Cleaner .... PFR 28 B3 Suitable for pressure washers with the following performance data:

Rated pressure(p)

11.5 MPa / 1668 psi

Permissible pressure (p max) ..... 18 MPa / 2611 psi Max. inlet temperature ( T_in;max ) ..... 60 °C / 140 °F

Only use the device with pressure washers with a permissible pressure (p max) of: 9-18 MPa (90-180 bar)

Safety information

This section deals with the basic safety instructions for using the device.

Pictograms and symbols Symbols on the device

Attention!

Read the instruction manual

Do not reach under the surface cleaner during operation.

Sweep open spaces before using the device.

Meaning of the safety information

⚠ DANGER! If you do not observe this safety instruction, an accident will occur. The result of which is severe bodily injury or death.
⚠ WARNING! If you do not observe this safety instruction, an accident may occur. The result of which is likely severe bodily injury or death.
⚠ CAUTION! If you do not observe this safety instruction, an accident will occur. The result of which is likely minor or moderate bodily injury. NOTICE! If you do not observe this safety instruction, an accident will occur. The result of which is possible damage to property.

General safety instructions

• The device must not be used by children. Children must be supervised to ensure that they do not play with the device.
  The device can be operated by individuals with reduced physical, sensory or mental abilities or a lack of experience and knowledge if they are supervised or have been instructed in the safe use of the device and understand the resulting hazards.
• People who are not familiar with the instruction manual may not use the device.
• WARNING! Please also note the safety information of your pressure washer.

Working with the device

Pressure washers can be dangerous if used incorrectly. The jet must not be directed at persons, animals, active electrical equipment or the device itself.

• Do not direct the jet at yourself or others to clean clothing or shoes.
• Do not use the device if other people are within range unless they are wearing protective clothing.
• Take appropriate measures to keep children away from the running device.
• Do not use the device near flammable liquids or gases. There is a risk of fire or explosion if this advice is not heeded.
• Store the device in a dry place and out of reach of children.
• Please also note the safety information of your pressure washer.

- The operator or user is responsible for any accidents or personal injury and/or material damage to third parties or their property.

⚠ WARNING! This is how to avoid damage to the equipment and possible personal injuries resulting from this:

• Do not use for cleaning windows.
• Do not work with a damaged or incomplete device or one which has been converted without the permission of the manufacturer.
• Protect the device from frost.
• Use only original accessories and do not carry out any modifications.

Preparation

⚠ WARNING! Risk of injury due to unintentional start-up.

Control elements

Familiarise yourself with the operating elements before using the device for the first time.

Pressure regulator (9)

• Increasing the pressure: Turn the pressure control in the direction +
• Reducing the pressure: Turn the pressure control in the direction —

Connection without adapter

Procedure

1. Screw the main pipe (5) to the connection (6).
2. Optional: Fit the extension arm (4) to the main pipe (Bayonet locking device: plug and turn).
3. Connect the device to the spray gun of the PARKSIDE pressure washer (Bayonet locking device: plug and turn).

Connection with adapter

Procedure (Fig. A)

1. Fit the adapter (1) to the extension arm (4) or main pipe (5) (Bayonet locking device: plug and turn).
2. Only when mounting on the extension arm: Screw the coupling nut (3) onto the adapter.
3. Connect the device to the spray gun of the PARKSIDE pressure washer (Bayonet locking device: plug and turn).
4. Screw the coupling nut (2) of the adapter onto the spray gun.

Detaching (Fig. A)

1. Unscrew the coupling nut (2) on the adapter (1).
2. If necessary, loosen the coupling nut (3) on the extension arm (4).
3. Unscrew the adapter from the spray gun and extension arm (Bayonet locking device: push, turn and pull).

Operation

Working instructions

⚠ WARNING! Risk of injury! Be aware of the recoil force when the water jet commences. Ensure you are standing firmly and holding the spray gun firmly. Otherwise there is a risk of injuring yourself or other people.

• Do not activate the high-pressure jet of your pressure washer until the device is in contact with the surface to be cleaned.
  • Always hold the device by the handle (8) when cleaning walls.
• Do not guide the device over freestanding corners.

• The device is not suitable for scouring or scrubbing.

• AUTION! Damage to the spray nozzle. Sweep open spaces before using the device.

• Only use cleaning agents recommended by PARKSIDE (e.g. W5 URM 0.5 l).

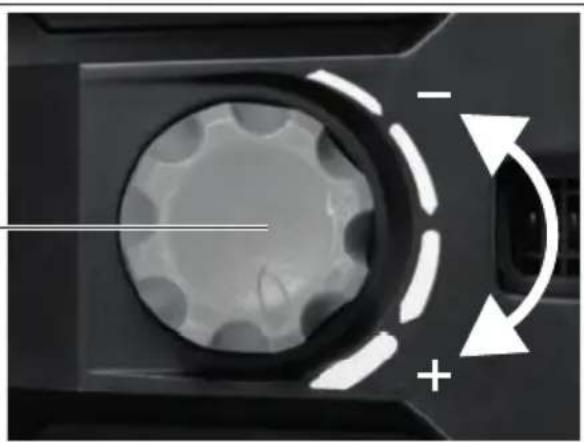

Pressure control

Procedure (Fig. C)

You can regulate the pressure of the emerging water jet by turning the pressure control (9). The rotation speed of the nozzles changes accordingly.

• Increasing the pressure: Turn the pressure control in the direction +
• Reducing the pressure: Turn the pressure control in the direction —

Cleaning, maintenance and storage

⚠ WARNING! Risk of injury due to unintentional start-up. Protect yourself when performing maintenance or cleaning work.

You should have any repair and maintenance work that is not described in these instructions carried out by our Service Centre. Only use original replacement parts.

Cleaning

• Always keep the product clean.
- Clean the device with a soft brush or a slightly damp cloth.
- Do not use any cleaning agents or solvents.

Maintenance

- Grease the O-rings on the main pipe (5) and extension arm (4) (e.g. with plumber's grease).

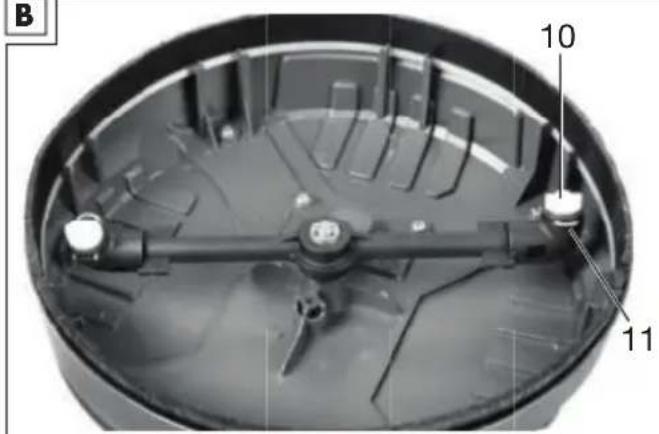

Changing the spray nozzles

Tools and aids required

(not included)

- Sharp object (e.g. screwdriver)

Procedure

1. Remove the safety clips (11).
2. Pull the mounted spray nozzles (10) out of the holders.
3. Press the new spray nozzles into the holders.
4. Secure the spray nozzles with the safety clips.

Storage

Always store the device and accessories:

• clean
• dry
• protected against dust
• protected against frost
  • out of the reach of children
• protected from sunlight

Transport

- Always carry the device with one hand on the handle (8).

Disposal/ environmental protection

The products and packaging should be properly recycled.

Service

Service Centre

Service Great Britain

Tel.: [phone]

Contact form on parkside-diy.com IAN 466673_2404

Service Malta

Tel.: [phone] Contact form on parkside-diy.com IAN 466673_2404

QR code image with a central logo, likely linking to a digital resource or website.

PDF ONLINE parkside-diy.com

You can view and download these and many other manuals on parkside-diy.com. This QR code will take you directly to parkside-diy.com. Select your country and search for the operating instructions via the search mask. You can open your operating instructions by entering the article number (IAN) 466673_2404.

Importer

Please note that the address below is not a service address. Contact the service centre named above first.

Spare parts and accessories

You can get spare parts and accessories from www.grizzlytools.shop. If you have any problems with your order, contact us via our online shop. If you have any other questions, contact: Service Centre, p. 14

Translation of the original EC declaration of conformity

Product: Surface Cleaner

Model: PFR 28 B3

Serial number: 000001-067900

The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:

2006/42/EC •

This declaration of conformity is issued under the sole responsibility of the manufacturer:

Authorised representative of documentation
