USER MANUAL PBSG 92 A1 PARKSIDE

QR code image with a central logo, likely linking to a digital resource or website.

PDF ONLINE

parkside-diy.com

Black plastic mechanical component with stepped cylindrical body and tapered ends (no text or symbols visible)

Black Parkside portable electric heater with visible branding and control panel (no text or symbols on body)

BOHRERSCHÄRFGERÄT/DRILL BIT SHARPENER/ AFFÛTEUSE DE FORETS PBSG 92 A1

DE AT CH

BOHRERSCHÄRFGERÄT

Operation and safety notes Translation of the original instructions

FR BE

AFFÛTEUSE DE FORETS

GB/IE Operation and safety notes Page 25

C ① ② ② ② ⑫ ⑫

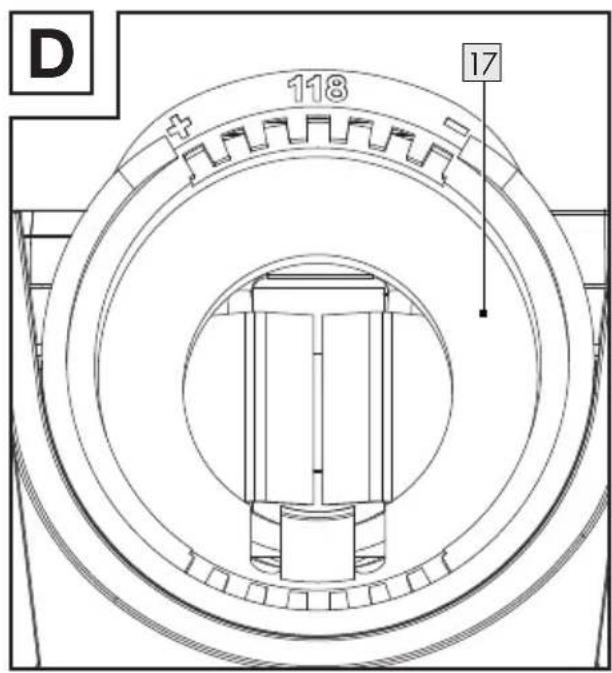

D 118 17

E 19 21 1 2 15

F 15 6 8 24 3b 3a 5

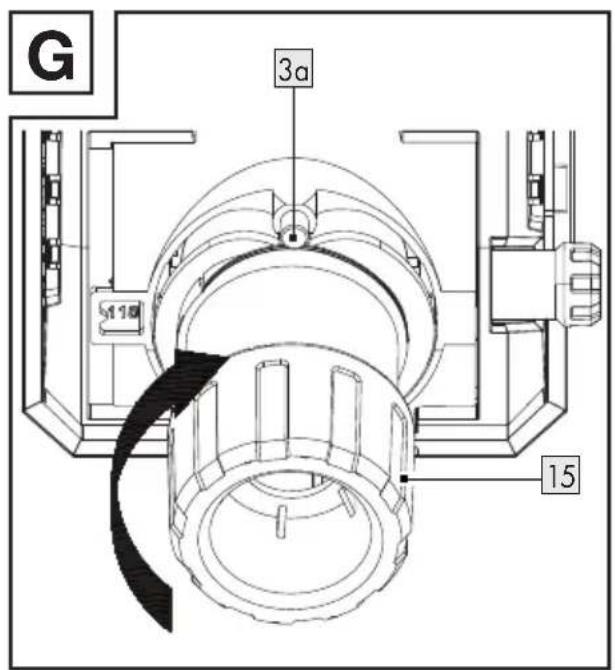

G 3a 15

H 15 4

13-16 mm 23 24 24

J 10 22

K III PARKSIDE ① ② ⑪

L 35 9

M 18

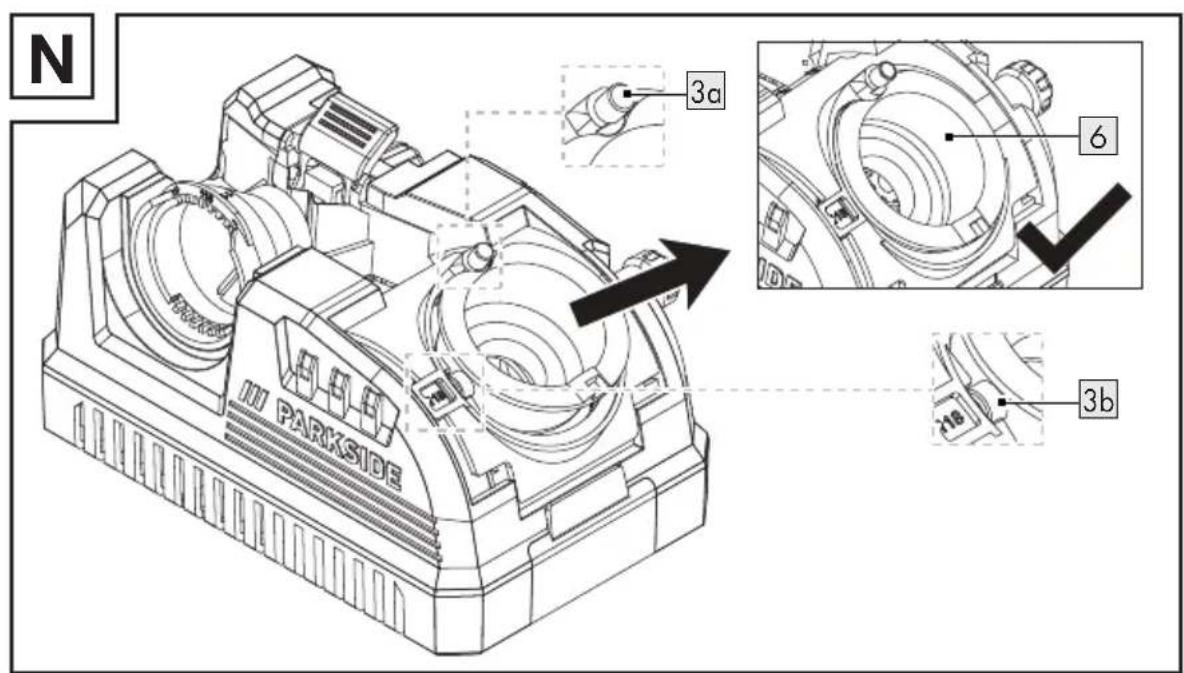

N 3a 6 3b PARKSIDE

List of pictograms used ...... Page 26

Introduction Page 27

Intended use. Page 27

Scope of delivery Page 27

Parts description. Page 27

Technical data. Page 29

Safety instructions ...... Page 29

General power tool safety warnings.... Page 29

Vibration and noise reduction. Page 32

Behaviour in emergency situations. Page 32

Residual risks Page 32

Before first use.... Page 32

Unpacking the product. Page 32

Before use.... Page 33

Preparation Page 33

Selecting the point angle Page 33

Setting the point angle ...... Page 34

Clamping the drill bit. Page 34

Adjusting the relief angles and the removal length. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 34

Checking the drill bit position. Page 34

Inserting the chuck Page 35

Operation.... Page 35

Switching on/off Page 35

Sharpening the drill bit Page 35

Pointing the drill bit. Page 36

Sharpening a masonry drill bit Page 36

Dust extraction Page 37

Work instructions.... Page 37

Cleaning and care Page 37

Cleaning Page 37

Maintenance Page 38

Turning/replacing the grinding stone Page 38

Emptying the dust tray Page 38

Replacement parts/Accessories. Page 38

Storage Page 39

Transportation. Page 39

Disposal Page 39

Warranty.... Page 39

Warranty claim procedure. Page 40

Service Page 40

EU Declaration of conformity.... Page 41

List of pictograms used
	WARNING! – Designating a hazard with moderate risk, which can result in death or severe injury if not avoided (e.g. risk of electric shock)		Switch off the product and remove the mains plug from the mains outlet before making any adjustments, performing maintenance, cleaning and when the product is not in use.
	CAUTION! – Designating a hazard with low risk, which could result in minor or moderate injury if not avoided (e.g. risk of scalding)		Wear protective gloves!
	NOTICE! – Warns of possible damage to property/the product if not avoided (e.g. risk of short circuit)		Wear hearing protection!
	This symbol means that the operating instructions must be observed when using the product.		Wear breathing protection!
	Follow the warnings and safety notes!		Wear eye protection!
	Danger – risk of electric shock! Di
	Alternating current/voltage		Symbol for a Protection Class II product
	CE mark indicates conformity with relevant EU directives applicable for this product.	[AKZW]	Safety information Instructions for use

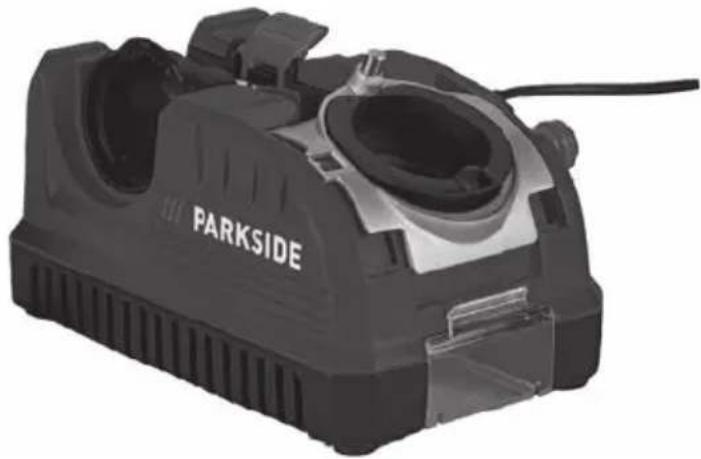

DRILL BIT SHARPENER

● Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

This drill bit sharpener (hereinafter "product" or "power tool") is suitable for performing the following tasks:
- Sharpening and pointing HSS drill bits and masonry drill bits (∅ 2.5 to 19 mm)
- Use the product in dry indoor spaces only.
■ Any other use or modification of the product are considered improper use and can result in hazards such as death, life-threatening injuries and damage.

■ The manufacturer is not liable for any damages caused by improper use.
The product is exclusively intended for domestic use.
The product is not intended for commercial use, industrial operations or similar purposes.
- Observe all applicable local safety regulations, standards and ordinances. The use of noise emitting power tools may be restricted to certain times by national or local regulations.

- Scope of delivery

WARNING!

The product and the packaging are not children's toys! Children must not play with plastic bags, sheets and small parts! There is a danger of choking and suffocation!

1 Drill bit sharpener
1 Chuck
1 Grinding stone (pre-installed)
1 Wrench (for grinding stone)
1 User manual

Parts description

Before reading, unfold the pages containing the illustrations and familiarise yourself with all functions of the product.

Fig. A: Parts Remarks

1 Lock switch	□ Locks the chuck in the alignment port
2 Settings knob	□ Setting the material take-off
3a Pin	□ Align the chuck with the pins during sharpening
3b Pin for mounting the sharpening port
Fig. A: Parts Remarks
4 Split point port and grit tube	Split point port: Pointing drill bitsGrit tube:- Reduces dust accumulation in the air and on the workbench- Keeps sparks inside the product- Allows for connection of an external dust extraction device
5 Angle knob	Setting the point angle
6 Sharpening port	Sharpening drill bits
7 Grinding ring	Holds the chuck in position during sharpening
8 Adjustment plate	Move adjustment plate to one of the point angle positions
9 Display	View set point angle
10 Grinding stone	Grinding stones can either be turned or replaced

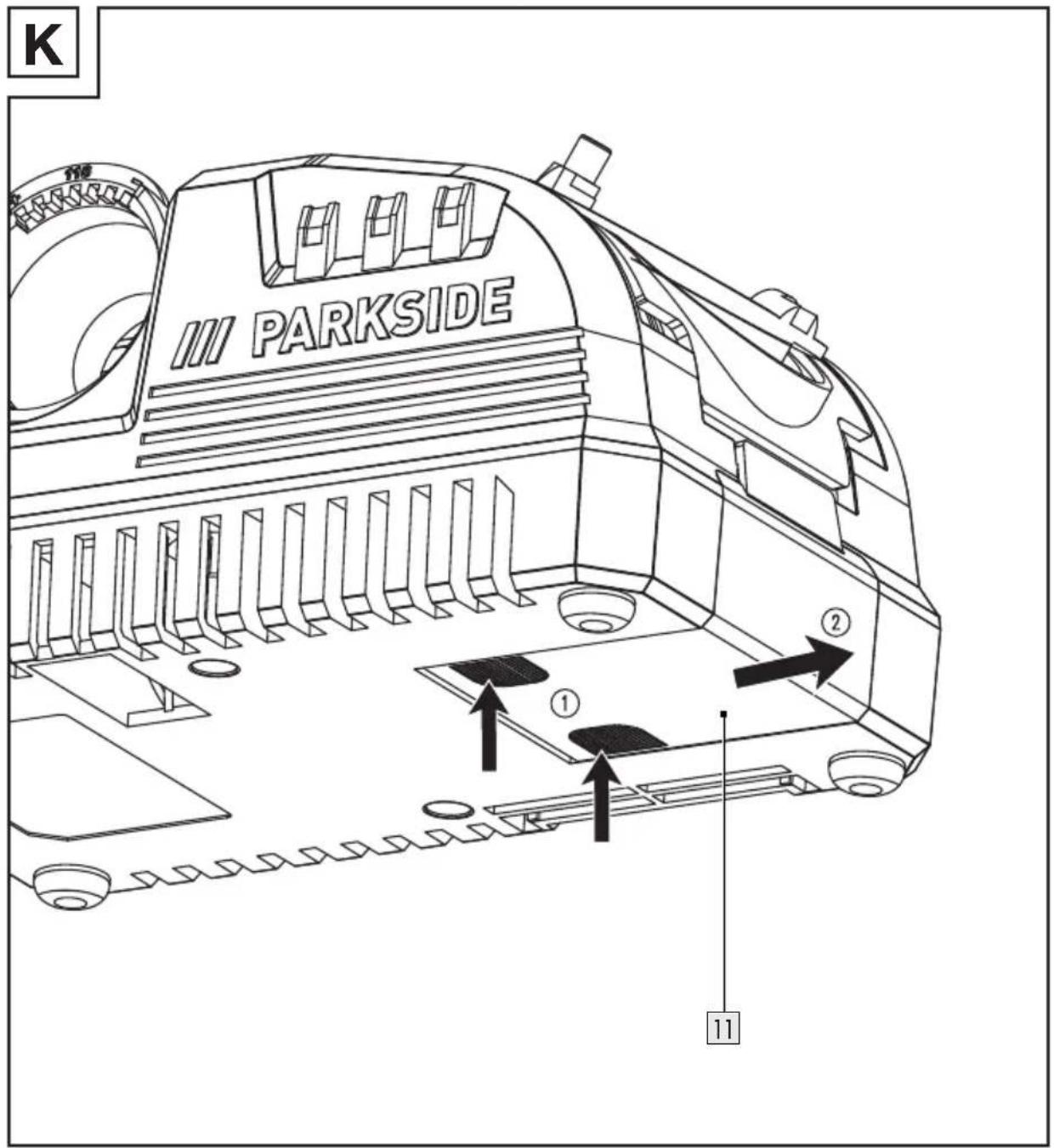

11 Dust tray	Collects the grinding dust
12 Drill clamps	The drill clamps hold the drill bit in position in the chuck
13 Guides	The guides make it easier to insert the chuck
14 Ring	Holder for adjusting, sharpening and pointing drill bits
15 Chuck	Holds the chuck in position during sharpening
16 Air vents
17 Alignment port	Adjusting drill bit lengthAdjusting material take-off
18 Mains cord with mains plug
19 Clamping jaws	The clamping jaws hold the drill bit in position during adjustment
20 On/off switch

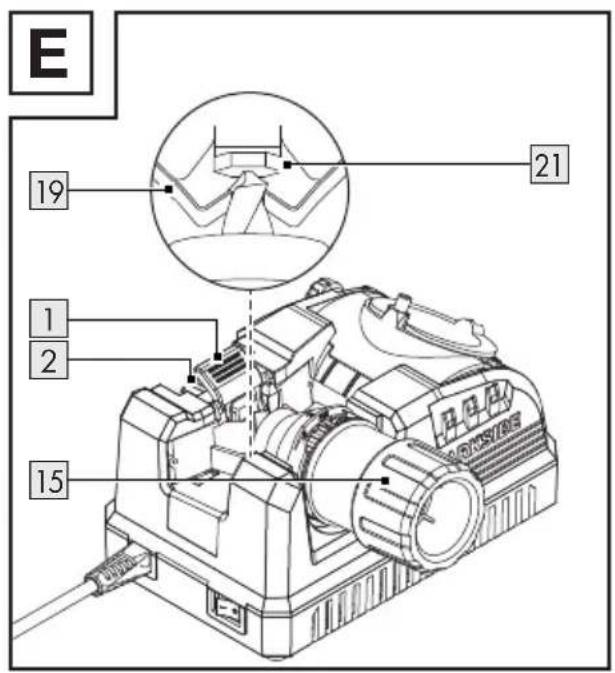

Fig. E: Parts Remarks
21 Drill stop	□ Aligns the drill bit with the drill stop

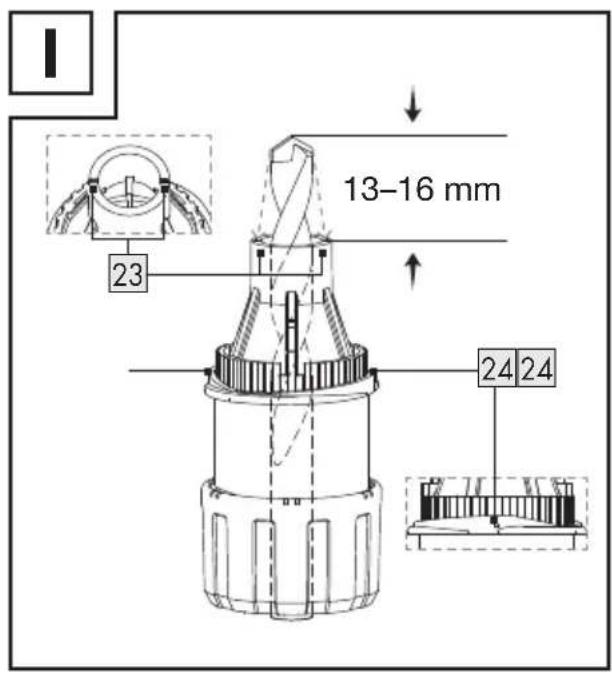

Fig. I: Parts Remarks
22 Wrench	□ Loosen and tighten the grinding stone

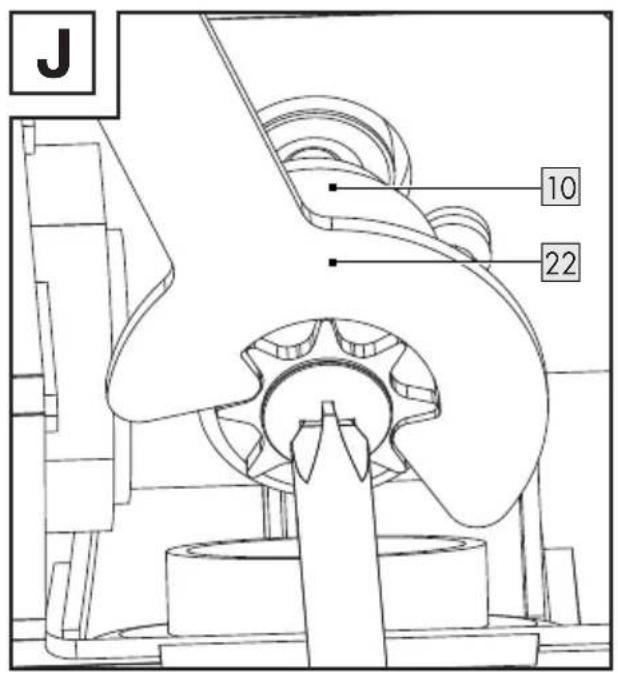

Fig. J: Parts

23 Sharpening marks (for masonry drill bits)

24 Sharpening guide

- Technical data

Drill bit sharpener PBSG 92 A1
– VDE plug HG13141
– BS plug HG13141-BS
Rated voltage: 220–240	V~,50 Hz
Rated power: 92 W
For drill-∅: 2.5 to 19 mm
Protection class:	II / ☑

Noise emission value

The measured values have been determined in accordance with EN 62841. The A-rated noise level of the power tool is typically:

Noise level L	_pA : 74.5 dB
Uncertainty	K_pA : 3 dB
Sound power level	L_WA : 87.5 dB
Uncertainty	K_WA : 3 dB

WARNING!

Wear hearing protection.

NOTE

The declared noise emission value has been measured in accordance with a standard test method and may be used for comparing one tool with another.
The declared noise emission value may also be used for a preliminary assessment of exposure.

WARNING!

The noise emissions during actual use of the product can differ from the declared values depending on the manner in which the tool is used, especially what kind of workpiece is processed.
Try to minimise exposure to vibration and noise. Examples of measures to reduce vibration include wearing gloves when using the tool and limiting working time. All parts of the operating cycle must be taken into account (e.g. times when the product is switched off and when it is running idle in addition to the trigger time).

Safety instructions

● General power tool safety warnings

WARNING!

Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work area safety

1) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
2) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
3) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical safety

1) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
2) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
3) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
4) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp

edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

5) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

6) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Personal safety

1) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

2) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

3) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

4) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

5) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
6) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
7) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
8) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

Power tool use and care

1) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
2) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
3) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
4) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions

to operate the power tool. Power tools are dangerous in the hands of untrained users.

5) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
6) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
7) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
8) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

Service

1) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

● Vibration and noise reduction

To reduce the impact of noise and vibration emission, limit the time of operation, use low-vibration and low-noise operating modes as well as wear personal protective equipment.

Take the following points into account to minimise the vibration and noise exposure risks:

■ Only use the product as intended by its design and these instructions.
■ Ensure that the product is in good condition and well maintained.
■ Use correct accessory tools for the product and ensure they are in good condition.
- Keep tight grip on the handles/grip surface.
- Maintain this product in accordance with these instructions and keep it well lubricated (where appropriate).
- Plan your work schedule to spread any high vibration tool use across a longer period of time.

● Behaviour in emergency situations

Familiarise yourself with the use of this product by means of this instruction manual. Memorise the safety warnings and follow them to the letter. This will help to prevent risks and hazards.

■ Always be alert when using this product, so that you can recognise and handle risks early. Fast intervention can prevent serious injury and damage to property.
■ Switch the product off and disconnect it from the mains if there are malfunctions. Have the product checked by a qualified professional and repaired, if necessary, before you operate it again.

- Residual risks

Even if you are operating this product in accordance with all the safety requirements, potential risks of injury and damage remain. The following dangers can arise in connection with the structure and design of this product:

■ Health defects resulting from vibration emission if the product is being used over long periods of time or not adequately managed and properly maintained.
Injuries and damage to property due to broken accessory tools or the sudden impact of hidden objects during use.
■ Danger of injury and property damage caused by flying objects.
The following hazards may occur damage to health as a result of: - touching the area of the grinding tool which is not covered; - ejection of parts of work pieces or damaged grindstone.

NOTE

This product produces an electromagnetic field during operation! This field may under some circumstances interfere with active or passive medical implants! To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their doctor and the medical implant manufacturer before operating this product!

Before first use

● Unpacking the product

1. Take the product out of the packaging and remove all packaging materials and plastic wrappings.

2. Check to make sure that all listed parts are included (see "Scope of delivery").

3. Check whether the product and all parts are in good condition, if any damage or defect is detected, do not use the product, but follow the procedure described in chapter "Warranty".

Before use

⚠ WARNING! Risk of injury!

Be aware of the risk of injury from splintering and flying material. Wear eye protection and protective gloves.

The noise level during operation may exceed 85 dB(A). Wear hearing protection.

⚠️ CAUTION! Risk of electric shock!

Always ensure that the mains voltage matches the voltage indicated on the product's rating plate.

● Preparation

Preparation steps
1. Selecting the point angle	Identify the appropriate point angle to which a blunt drill can be sharpened.
2. Setting the point angle	Adjust the product to the point angle.
3. Clamping the drill bit	Insert the drill bit into the chuck 15.

Preparation steps
4. Adjusting the drill bit	Adjust the drill bit's protruding length and the material take-off.
5. Checking the drill bit position
6. Inserting the chuck	Insert the chuck 15 into the sharpening port 6.

☐ Detailed descriptions of these steps can be found in the next sections.
- Selecting the point angle

NOTE

▶ Required tool: – Protractor *

☐ The product allows you to sharpen drill bits to the following standard point angles:

- 118° (standard point angle) - 135° (flat point angle)

You can also sharpen drill bits to any point angle between 115^ and 140^ .

☐ Use a protractor to determine the drill bit type.

Angle Typical materials
	□ Wood□ Plastic
118°	□ Soft metals(e.g. aluminium)
	□ Steel□ Stainless steel
135°	□ Tool steel□ Hard metals

- Setting the point angle

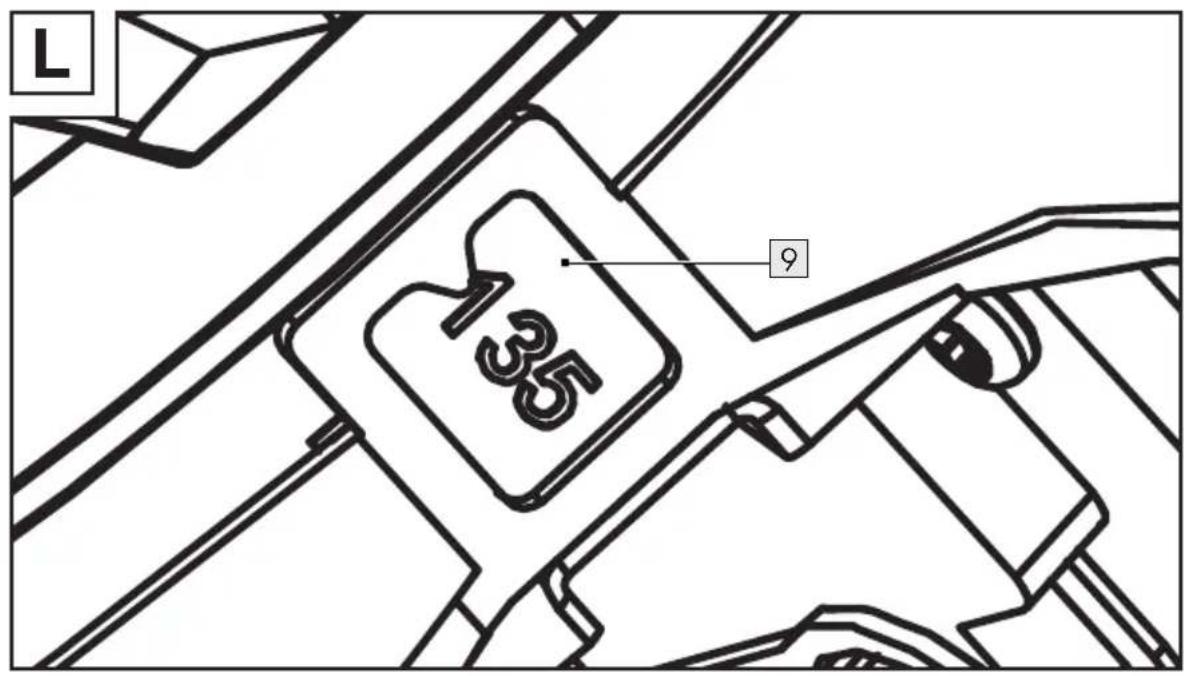

(Fig. B, L)

1. Loosen the angle knob 5 by turning it anti-clockwise.
2. Slide the adjustment plate 8 to point angle 118° or 135°. The arrow has to point to the middle of the letter. The selected point angle is shown in the display 9.
3. Tighten the angle knob 5 by turning it clockwise.

- Clamping the drill bit

(Fig. C)

1. Insert a drill bit into the chuck 15 (Fig. C, ①).
2. Hold the chuck 15 with one hand and turn the ring 14 with the other hand (Fig. C, ②).
3. Close the drill clamps 12 just enough so that the drill bit can still slide in and out smoothly.
4. Do not over tighten the chuck 15, as the drill bit must still be able to move.

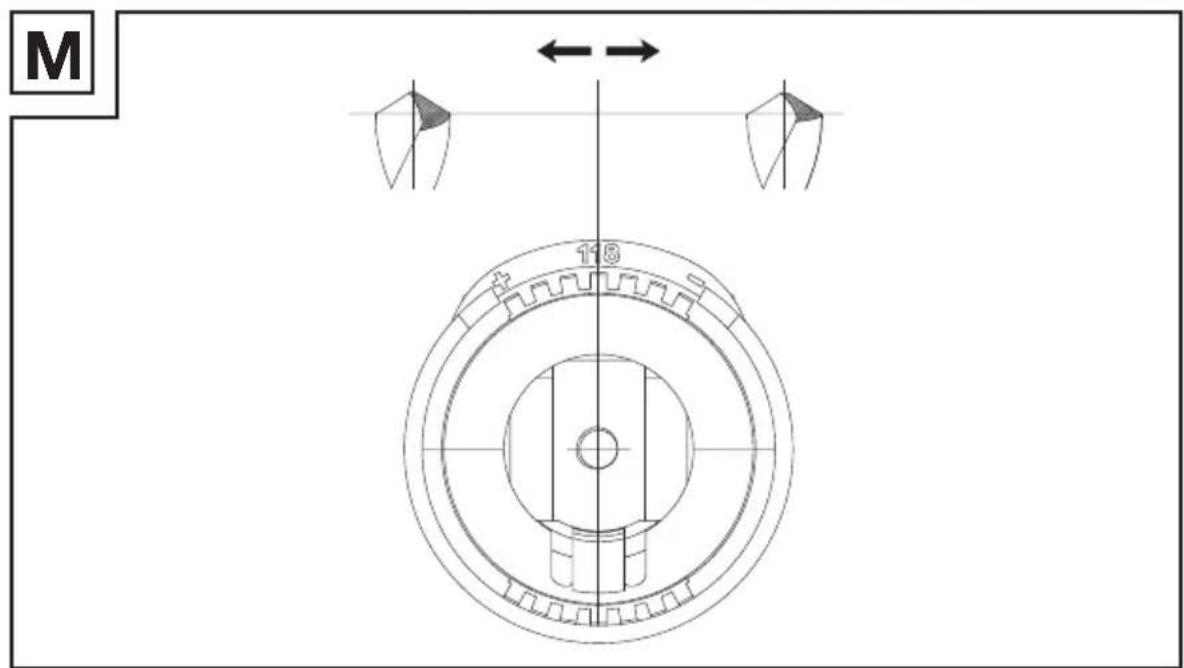

- Adjusting the relief angles and the removal length

(Fig. D, E, M)

NOTE

▶ Increasing the relief makes a more aggressive drill hole. Decreasing the relief makes a more precise drill hole.
When increasing the relief: Only adjust one slot at a time.
Do not adjust the relief too far since this causes the drill to lose all relief.

NOTE

▶ Start with a lower material take-off and increase the removal if necessary.

1. Insert the guides 13 of the chuck 15 completely into the middle 118^ recesses of the alignment ports 17 :
2. Increasing the relief: Insert the chuck 15 in the alignment port 17 closer to the + position.

3. Decreasing the chisel and the relief: Insert the chuck 15 in the alignment port 17 closer to the - position.

4. Open the clamping jaws 19: Push in and hold the lock switch 1.

5. Insert the drill bit into the alignment port 17 until the drill bit tip touches the drill stop 21.

6. Close the clamping jaws 19: Release the lock switch 1.

7. The clamping jaws should grip the drill bit at its narrowest point (in the grooves of the drill bit).

8. If this is not the case, rotate the drill bit slightly until the clamping jaws engage the grooves.

9. Set the desired material take-off with the settings knob 2:

Material take-off Rotation

More removal anti-clockwise

Less removal clockwise

- Checking the drill bit position

1. Check that the drill bit is held firmly by the clamping jaws 19.

2. Hold the chuck 15 with one hand and lightly tighten the ring 14 with the other hand to ensure that the drill bit does not move during sharpening. Do not over-tighten the chuck to avoid product damage.

3. Remove the chuck 15: Push in and hold the lock switch 1. Pull the chuck out of the alignment port 17.

4. Tighten the chuck 15 one more time to ensure the drill bit cannot move when sharpening. The product is now ready for sharpening the drill bit.

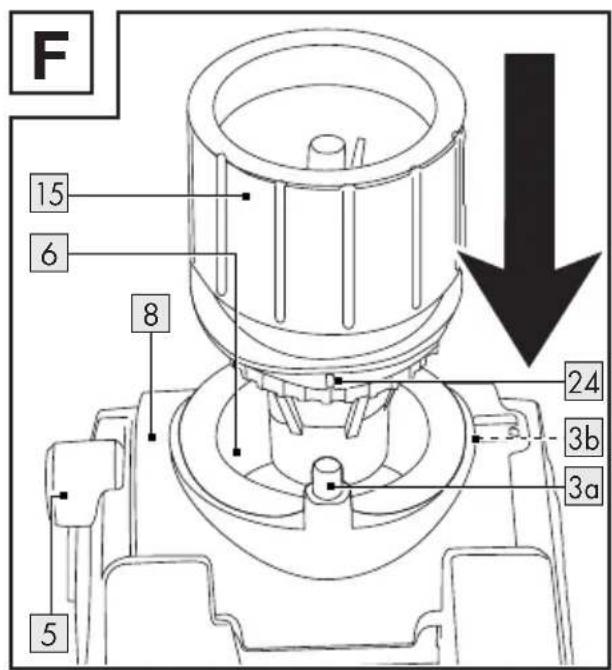

- Inserting the chuck

(Fig. F)

1. Preparation:

2. Check that the drill bit is firmly seated in the chuck 15.

3. Check that the adjustment plate 8 is tightened and that the desired point angle is selected with the angle knob 5.

4. Insert the chuck 15 into the sharpening port 6.

Operation

- Switching on/off

☐ Before switching on: Connect the mains plug 18 to a mains outlet.
☐ Switching on/off: Push the on/off switch 20.
□ After switching off: Disconnect the mains plug 18 from the mains outlet.
● Sharpening the drill bit

(Fig. G, N)

NOTE

During sharpening, always keep the chuck 15 with light pressure in contact with the pin 3a.
You will hear a grinding sound as you complete each half turn and each side of the drill bit is sharpened.

NOTE

▶ Rough grind severely damaged drill bits on a bench grinder before sharpening.
Always make an even number of turns to sharpen both sides of the drill bit.
The number of turns required depends on the drill bit size.
Masonry drill bits require a special procedure (see “Sharpening a masonry drill bit”).
Do not remove the sharpening port 6 from the product.
If the sharpening port 6 was removed:
- Align both pins 3a/3b on the notches.
– Insert the sharpening port into the housing again.

1. Rotate the chuck 15 clockwise in half turns at a steady speed.

2. Start from the oval tips position in contact with the pin 3a. The chuck follows the designed gaps of the sharpening port 6.
   – The chuck moves up and down and from high to low to get a proper sharpening surface.

3. Continue sharpening until the grinding noise stops. This will produce a clean and straight chisel edge and the entire surface will be finely ground.

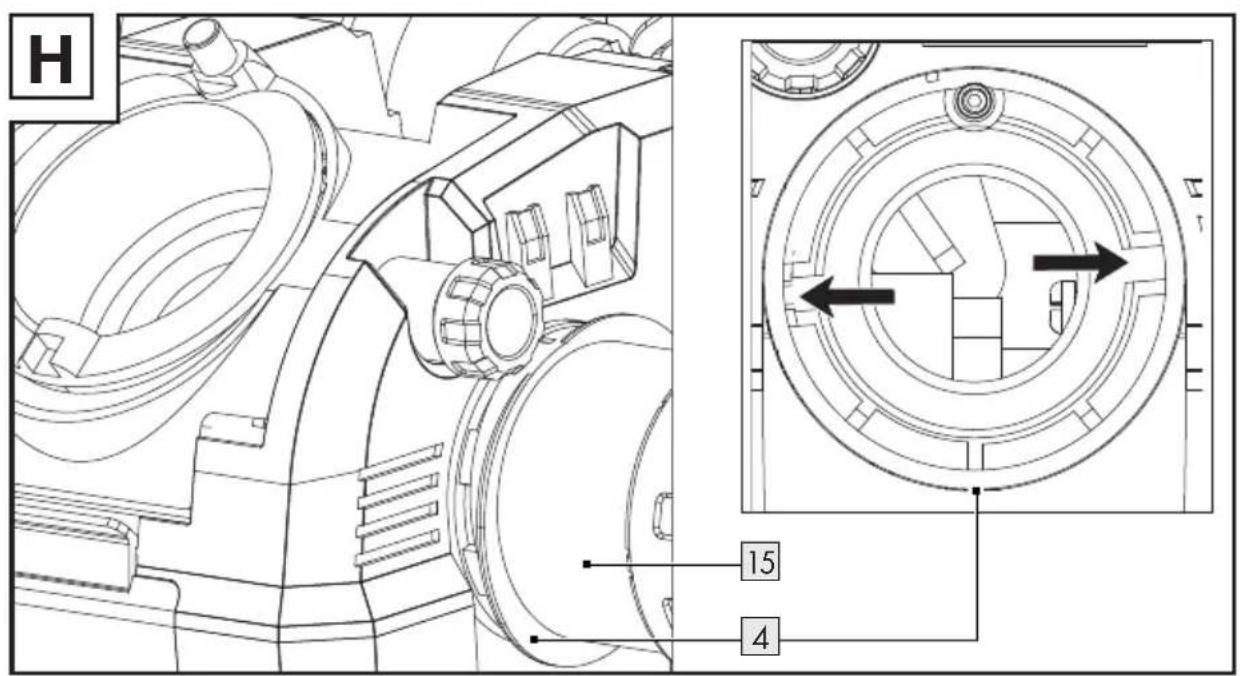

- Pointing the drill bit

(Fig. H)

NOTE

Pointed (also called “self-centering”) drill bits prevent the drill bit from wandering around on the material before it penetrates. It is not necessary to mark the material before drilling.

1. Preparation (mandatory):

2. Sharpen the drill bit (see "Sharpening the drill bit").

3. Leave the sharpened drill bit in the chuck 15.

4. Pull the grit tube 4 out of the split point port 4.

5. Press the on/off switch 20. The grinding stone 10 starts to rotate.

6. Press the chuck 15 slowly and firmly into the split point port 4 along the guides 13 until it stops.
7. Pull the chuck 15 out of the split point port 4.
8. Turn the chuck 15 180° and repeat the process.

● Sharpening a masonry drill bit

(Fig. F, I)

NOTE

Do not make any rotations in the sharpening port 6 when sharpening a masonry drill bit. Instead, sharpen the masonry drill bit by “plunging” (see following instructions).

1. Select the point angle (see "Selecting the point angle").
2. Insert the masonry drill bit into the chuck 15.
3. Align the carbide insert on the tip of the masonry drill bit with the sharpening marks 23 on the end of the chuck 15.

Leave about 13 mm to 16 mm of the masonry drill bit protruding past the nose of the chuck.

1. Tighten the chuck 15 just to the point where the masonry drill bit can barely slide in and out.
2. Set the depth by lining up one of the sharpening guides 24 with the pin 3a.
3. Push the chuck 15 into the sharpening port 6 until it stops.
4. Remove the chuck 15 to ensure the insert is aligned with the sharpening marks 23.
5. Tighten the chuck 15 again.
6. Align the slot of the sharpening guide 24 on the chuck 15 with the pin 3a.
7. Press the on/off switch 20. The grinding stone 10 starts to rotate.
8. Plunge the chuck 15 into the sharpening port 6 until the masonry drill bit touches the grinding stone 10.
9. Pull the chuck 15 out of the sharpening port 6.
10. Turn the chuck 15 180° in clockwise direction and repeat the process.
11. Check the result.

Repeat the procedure until the edges of the masonry drill bit are sharp. If the masonry drill bit is not being sharpened any further and its edges are not as sharp as desired: Reset the depth and continue sharpening.

Dust extraction

NOTE

During sharpening, a dust extraction device can be connected to the grit tube 4.
▶ Diameter of the grit tube 4: 32 mm

1. Mount the grit tube 4 to the split point port 4.

2. Connect a suitable dust extraction device to the grit tube 4.

● Work instructions

WARNING! Risk of injury!

Wear gloves when handling the product. This will prevent cuts.

CAUTION! Risk of personal injury and damage to property!

Make sure the workplace is adequately ventilated.
Avoid over-stressing the product during work.

NOTE

If the product becomes blocked, switch it off and disconnect the mains plug 18 from the mains outlet. Only then remove the blockage.

● Cleaning and care

WARNING!

Always switch the product off, remove the mains plug 18 from the mains outlet and let the product cool before performing inspection, maintenance and cleaning work!

Cleaning

NOTE

▶ Never allow fluids to get into the product.
The product must always be kept clean, dry and free from oil or grease. Remove debris from the product after each use and before storage.
▶ Regular and proper cleaning will help ensure safe use and prolong the life of the product.

Part Cleaning
4 Split point port6 Sharpening port17 Alignment port	□ Wipe these parts with a dry cloth.
Housing4 Grit tube7 Ring	□ Clean these parts with a dry cloth.□ Use a soft brush for hard-to-reach places.
10 Grinding stone	□ Remove grinding dust with a soft brush.
11 Dust tray	□ Shake the accumulated grinding dust out of the dust tray.
15Chuck	1. Unscrew the ring 14 from the chuck.2. Clean both threads with a soft brush.3. Reassemble the chuck and the ring. The chuck must be able to move freely after connecting.- Do not unscrew the ring 14 completely from the chuck.- In case the ring 14 is detached completely: Position and insert the loose holding plates for the drills correctly in their guides.
16Air vents	□ Remove dirt and dust from the air vents with a cloth and a soft brush.□ The air vents must always remain clear.

Maintenance

If replacement of the mains connection cable is necessary, this must be carried out by the manufacturer or his representative in order to avoid safety hazards.

● Turning/replacing the grinding stone

(Fig. J)

NOTE

Grinding stones can be turned over once for longer use.
Replace worn grinding stones to achieve good grinding results.
▶ Required tools: - Cross-head screw driver - Wrench 22

1. Remove the dust tray 11 (see "Emptying the dust tray").
2. Turn the product upside down.
3. Lock the screw teeth using the wrench 22. Simultaneously, loosen the screw by turning it in clockwise direction using a cross-head screw driver.
4. Pull the grinding stone 10 together with the screw off the shaft.

5. Turn the grinding stone 10 over or replace it with a new one.

6. Proceed in reverse order to secure the grinding stone 10.

7. Put the dust tray 11 back in place.

● Emptying the dust tray

(Fig. K)

1. Push both tabs at the bottom of the dust tray 11 upwards (Fig. K, ①)
2. Pull out the dust tray 11 (Fig. K, ②)
3. Shake the accumulated grinding dust out of the dust tray [11].
4. Insert the dust tray 11 back into the product.

● Replacement parts/Accessories

□ Customers can obtain compatible replacement parts and accessories via www.optimex-shop.com.
☐ Orders can only be placed and processed online. Have the order number ready for your order.
□ Contact the Lidl service hotline (see „Service“) for further information.

Part Order number

4 Grit tube 99948838403

10 Grinding stone 99948838404

15 Chuck 99948838401

22 Wrench 99948838402

Storage

Before storage: Clean the product (see "Cleaning").
□ Store the product and its accessories in a dark, dry, frost-free, well-ventilated place.
□ Always store the product in a place that is inaccessible to children.
□ Store the product in its original packaging.

- Transportation

□ Transport the product in its original packaging.
□ Protect the product from any heavy impact or strong vibrations which may occur during transportation in vehicles.
☐ Secure the product to prevent it from slipping or falling over.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics/20–22: paper and fibreboard/80–98: composite materials.

Product:

The product and packaging materials are recyclable and are subject to extended producer responsibility. Dispose them separately, following the illustrated Info-tri (sorting information), for better waste treatment.

The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of material or manufacturing defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Keep the original sales receipt in a safe location as this document is required as proof of purchase.

Any damage or defects already present at the time of purchase must be reported without delay after unpacking the product.

Should the product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. The warranty period is not extended as a result of a claim being granted. This also applies to replaced and repaired parts.

This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty covers material or manufacturing defects. This warranty does not cover product parts subject to normal wear and tear, thus considered consumables (e.g. batteries, tubes, cartridges), nor damage to fragile parts, e.g. switches or glass parts.

● Warranty claim procedure

So that your request can be processed quickly, please observe the following instructions:

For all inquiries, please have the receipt and item number (IAN 488384_2501) ready as proof of purchase.

The article number can be taken from the identification label on the product, engraving on the product, the front cover of your manual (at the bottom left), or the sticker on the back or bottom of the product.

If malfunctions or other defects arise, first contact the service department indicated below by phone or email.

You can then send a product recorded as defective to the communicated service address postage-free, making

sure to enclose proof of purchase (receipt) and information on the details of the defect and when it occurred.

PDF ONLINE parkside-diy.com

You can download and view this and numerous other manuals at parkside-diy.com. This QR code takes you directly to parkside-diy.com. Choose your country and use the search screen to search for the operating instructions. Entering the item number (IAN) 488384_2501 takes you to the operating instructions for your item.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

E-Mail: [e-mail]

● EU Declaration of conformity

EU DECLARATION OF CONFORMITY (No 488384\_2501)

IAN: 488384_2501

Product identification:

"PARKSIDE" Drill Sharpener

Model Number: HG13141

The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:

Directive 2006/42/EC

Directive 2014/30/EU

Directive 2011/65/EU and all related amendments

References to the relevant harmonised standards used or references to the other technical specifications in relation to which conformity is declared:

N° / Parts

Directive 2006/42/EC

EN 62841-1:2015/A11:2022

EN ISO 12100:2010

Directive 2014/30/EU

EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN IEC 61000-3-2:2019/A2:2024

EN 61000-3-3:2013/A2:2021

The object of the declaration described above is in conformity with Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment:

N° / Parts

EN IEC 63000:2018

Keeper of the technical documentation: OWIM GmbH & Co.KG

Signed for and on behalf of:

This declaration of conformity is issued under the sole responsibility of the manufacturer.

Translation of the original declaration of conformity

Neckarsulm 03.04.2025

Place

Date

ppa. Budnei ppa. T. Laier ppa. Jens Buchheim ppa. Dr. Thorsten Maier Authorised Signatory Authorised Signatory

EN

- Activer/désactiver

WAARSCHUWING! Verwondingsgevaar!
