CORDLESS WORK LIGHT

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

The product is intended for use at indoor or outdoor areas without electrical connection, e.g. workshop, garages, or garden sheds, etc. The product features 2 brightness settings plus white flashing light and red flashing light.

This product is intended for use in private, domestic environment only and not for commercial purposes.

ATTENTION: The flashing light is not suitable as a traffic warning light. The product can further also be used as a power bank for small electronic devices with USB charging.

s product is not suitable for household room illumination.

- Scope of delivery

After unpacking the product, check if the delivery is complete and if all parts are in good condition. Remove all packing materials before use.

1 Cordless work light
1 USB cable
1 Short manual

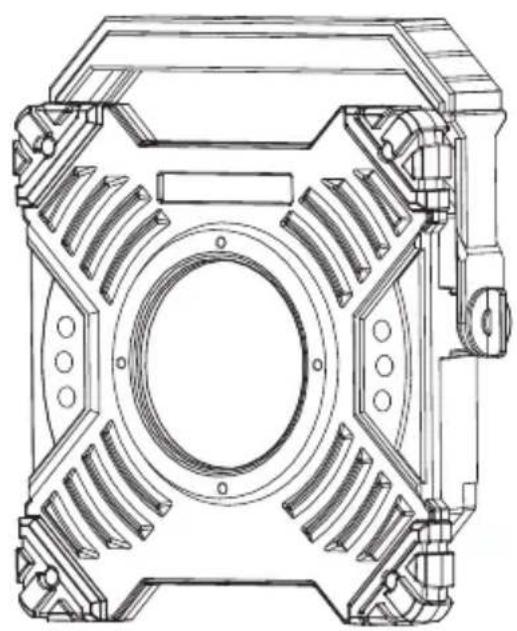

• Description of parts

1 LED light
2 ON/OFF switch
3 Screw of hinge joint
4 Adjustable foot/Hand grip
5 Magnet
6 Charging indicator
7 Battery status button
8 Protective cap
9 USB input socket (type C)
10 USB output socket
11 USB cable

- Technical data

Flashlight and work light

LEDs: 1 COB LED	(non-replaceable); approx. 40 W
Rechargeable battery *:	Lithium-Ion rechargeable battery, 11.1 V, 4000 mAh 44.4 Wh
Power bank rated capacity:	3500 mAh, at 5 V, 2.1 A
Charging time for drained battery: approx. 7 hours
Light duration (with fully loaded rechargeable battery):	White light at max. mode: approx. 2 hours
White light at Eco mode: approx. 4 hours
SOS blinking: approx. 8 hours
Red light blinking: approx. 60 hours
Protection class: III/ [IMAGE]
Protection type
Product: IP65
(While charging or when using as a power bank: Use only in indoor areas. This product is only Dust-tight/water jet proof (IP65) with the protective cap 8 attached to it).
USB cable:	IP20 (USB cable 11 for indoor use only)
	The USB cable 11 is suitable for indoor use only.

USB input voltage/current: 5 V	---, 2 A
USB socket output voltage/ current: 5 V	---, 2.1 A

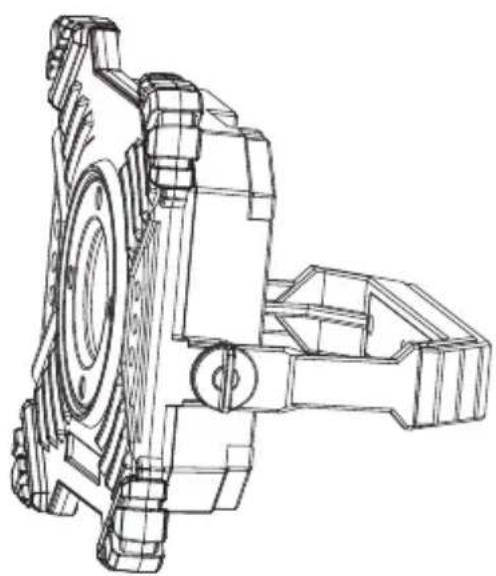

Operating position:	The product can be used as shown in figure B or hanging.
Product weight: 980 g
Overall dimensions:	185 × 185 × 50 mm
Maximum projected area:	330 cm2
For indoor and outdoor use
HG11729:	GS certified (TÜV SÜD)

NOTES:

■ Use only SELV power supply of maximum working output voltage 5 V === , (Uout), 2 A.
■ Use the product within 1 month after the purchase.

Safety instructions

BEFORE USING THE PRODUCT, FAMILIARISE YOURSELF WITH ALL OF THE SAFETY INFORMATION AND INSTRUCTIONS FOR USE! WHEN PASSING THIS PRODUCT ON TO OTHERS, ALSO INCLUDE ALL THE DOCUMENTS!

WARNING! DANGER TO LIFE AND RISK OF ACCIDENTS FOR INFANTS AND CHILDREN!

Never leave children unsupervised with the packaging material. Always keep children away from the packaging material.

This product may be used by children aged 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or those lacking experience and/or knowledge provided they are supervised or instructed in the safe use of the product and they understand the associated risks. Do not allow children to play with the product. Cleaning and user maintenance must not be performed by children without supervision.
This product is not a toy and should be kept out of the reach of children. Children are not aware of the dangers associated with handling electrical products.
- Do not use the product if you detect any type of damage.
■ Never immerse the product in water or other liquids!
- Only connect the product to a USB power supply. The voltage must comply with information given in the section “Technical data”.
- Do not carry out any modifications or repairs to the product yourself. The LEDs cannot and must not be replaced.
■ The LEDs are not replaceable.

If the LEDs fail at the end of their lives, the entire product must be replaced.

CAUTION! DANGER OF BURN

INJURIES! To prevent burns, verify the product is switched off and has cooled down for at least 15 minutes before touching it. The product can become very hot.

The accessible surface, especially heat shrink, is very hot when the lamp is operating.
FIRE HAZARD! Fit the product so that it is at least 0.1 metre away from the material to be illuminated. Excessive heat can result in a fire.

WARNING! Do not turn on the light when the product is facing down to a combustible surface. The exposed surface may be overheated or ignited.

• Do not place burning candles or open fire on or near the product.
• Do not use the product near heat sources such as radiators or devices emitting heat.
  ■ Dispose of the product if the product or the USB cable 11 are damaged.

Ensure the USB cable 11 cannot become damaged by sharp edges or hot objects. Unwind the USB cable 11 completely before use.

The provided USB cable 11 is only suitable for use with this product.

The flashing light is not suitable as a traffic warning light.

Immediately switch the product off and remove the charging cable from the product if you smell burning or see smoke. Have the product examined by a qualified technician before using it again.
If you use a USB power supply, the socket used must always be easily accessible so that the USB power supply can be quickly removed from the socket in the case of emergency. Please also refer to the manufacturer's instruction manual.
- Observe the usage restrictions and prohibitions of use for battery-operated products in situations which may be hazardous such as at petrol stations, airports, hospitals, etc.

WARNING! Do not cover the product while charging. There is a risk of warming and overheating.

• When hanging the product, do not exceed the maximum height of 2 m.
  ■ Protect the product from extreme heat and cold.

Safety instructions for batteries/rechargeable batteries

⚠️ DANGER TO LIFE! Keep batteries/rechargeable batteries out of reach of children. If accidentally swallowed seek immediate medical attention.

DANGER OF EXPLOSION!

Never recharge non-rechargeable batteries. Do not short-circuit batteries/rechargeable batteries and/or open them. Overheating, fire or bursting can be the result.

■ Never throw batteries/rechargeable batteries into fire or water.
- Do not exert mechanical loads to batteries/rechargeable batteries.

Risk of leakage of batteries/rechargeable batteries

• Avoid extreme environmental conditions and temperatures, which could affect batteries/rechargeable batteries, e.g. radiators/direct sunlight.
  If batteries/rechargeable batteries have leaked, avoid contact with skin, eyes and mucous membranes with the chemicals! Flush immediately the affected areas with fresh water and seek medical attention!

WEAR PROTECTIVE GLOVES!

Leaked or damaged batteries/rechargeable batteries can cause burns on contact with the skin. Wear suitable protective gloves at all times if such an event occurs.

This product has a built-in rechargeable battery which cannot be replaced by the user. The removal or replacement of the rechargeable battery may only be carried out by the manufacturer or his customer service or by a similarly qualified person in order to avoid hazards. When disposing of the product, it should be noted that this product contains a rechargeable battery.

Before use

● Charging the product

NOTES:

■ Remove all packaging materials from the product.

- You can charge the product's rechargeable battery via the USB cable 11 with a suitable USB power supply (not included). Make sure that the USB output voltage/current of the USB power supply matches the USB input voltage/current of the product (see “Technical data”).

- Set up the product in close proximity to the USB power supply (not included).

NOTES:

■ The battery charging status is shown by the charging indicator 6:

Charging indicator 6 status	Battery charging status
1 LED flashes 0–25 %
1 LED lights up,1 LED flashes 25–50 %
2 LEDs light up,1 LED flashes 50–75 %
3 LEDs light up,1 LED flashes 75–100 %
4 LEDs light up 100 %

■ The charging time is approximately 7 hours when the battery was drained.

NOTES:

In order to use the product without a USB cable 11, you need to recharge the rechargeable battery before use. The charging process takes about 7 hours. The rechargeable battery is firmly integrated into the base of the product.

■ Fully charge the rechargeable battery prior to first use.

- Charge the battery if it becomes empty (only 1 LED of the charging indicator 6 is flashing).

■ Open the protective cap 8.

■ Connect the USB cable [11] with the USB port of the USB power supply.

■ Connect the USB plug (type C) of the USB cable 11 to the USB input socket (type C) 9 on the product.

■ Connect the USB power supply to a socket.

NOTE: The product has an overcharging protection system. Nevertheless, you should disconnect the product from the mains once the charging process is complete.

■ Disconnect the USB cable 11 from the product to prevent the batteries discharging themselves.

- Close the protective cap 8 before you start to use the product again. Otherwise water could enter to the product when it is used outdoors.

- Checking the battery capacity

When product is not charged: Press the battery status button 7 to check the battery capacity. The green charging indicator 6 shows the capacity* of the battery inside the product.

1 LED lights up = 25 %*

2 LEDs light up = 50 %*

3 LEDs light up = 75 %*

4 LEDs light up = 100 %*

* This is the approximate percentage of battery capacity but not actual measurement.

● Power saving mode

The power saving mode reduces the self-current consumption if you stop using the product or store the product for a long period of time.
- Activating the power saving mode: Press and hold the battery status button 7 for 3 seconds.
■ Deactivating the power saving mode: Press the ON/OFF switch 2 and the battery status button 7 simultaneously or charge the product.

Operation

⚠️ RISK OF ACCIDENT! Preferably do not use the product whilst driving the vehicle. When using the product in a vehicle, be sure this does not endanger the driver or the passengers. Always store and secure the product so that even full braking does not pose a risk of injury from the product or product damage.

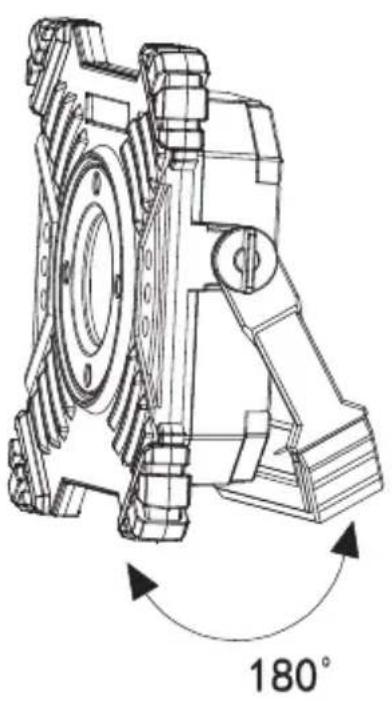

■ Turn the adjustable foot/hand grip 4 and fix the product at desired position. For that tighten the screw of the hinge joint 3 by hand. The adjustable foot/hand grip 4 can also be turned up by approximately 180° and be used as a hand grip.

The product can also be fixed by attaching it to a flat ferromagnetic surface with the magnet 5 of the adjustable foot/handle 4.

⚠️ CAUTION! Please note the position of your hands whilst turning the adjustable foot/hand grip 4 to prevent pinching your fingers.

■ The product may be used as a light and a power bank.

NOTE: The energy stored in the rechargeable batteries power both the LED light and the power bank. Using the product as a power bank therefore reduces the operating time and brightness in lighting mode.

Using as a LED light

• Fully charge the product as described in the section “Charging the product”.
  The product can be operated in 4 different modes. Select these by repeatedly pressing the ON/OFF switch 2.

ON/OFF switch	Mode
Press 1x: The white light lights up at maximum mode.
Press 2x: The white light lights up at Eco mode.
Press 3x: SOS blinking (white light)
Press 4x: Red light blinkingATTENTION! The flashing red light can have adverse effects on the health of predisposed individuals!The flashing light is not suitable as a traffic warning light.
Press 5x: Switch off the light.

- Using as a power bank

When used with the USB cable [11] , the product may be used to charge small electronics devices with USB socket (type C) for charging (e.g. mobiles or digital cameras).

Please note, the charging current the device requires may not exceed 2 A. Carefully read the instructions for use of the device you wish to charge.

ATTENTION! Charging a device which requires a higher charging current may cause a defect in both devices.

■ Open the protective cap 8.
- Insert the USB plug of the USB cable 11 into the USB output socket 10.
- Insert the USB plug (type C) of the USB cable 11 into the small electronic devices you wish to charge. The green charging indicator 6 lights up, indicating the battery capacity.

■ Remove the USB cable 11 as soon as charging is complete.

■ Close the protective cap 8.

● Maintenance and cleaning

The product requires no maintenance. The LEDs cannot be replaced.

■ Switch off the product and disconnect the USB power supply before cleaning.

- Close the protective cap 8 on the USB input socket 9 and USB output socket 10.

■ Never immerse the product in water or other liquids.

■ Never use caustic cleaners.

- Regularly clean the product with a dry, lint-free cloth. Use a slightly moist cloth to remove any stubborn dirt.

Before storage: Fully charge the rechargeable battery and activate the power saving mode.

If you plan to store the product for longer than 3 months: Fully charge the rechargeable battery every 3 months.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics/20–22: paper and fibreboard/80–98: composite materials.

Product:

The product incl. accessories and packaging materials are recyclable and are subject to extended producer responsibility.

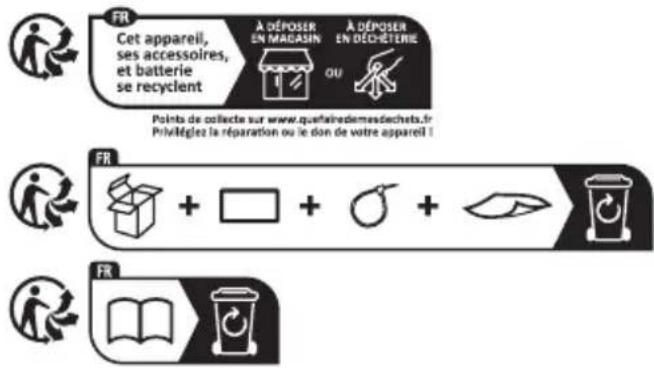

Dispose them separately, following the illustrated Info-tri (sorting information), for better waste treatment.

The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Faulty or used batteries/rechargeable batteries must be recycled. Return the batteries/rechargeable batteries and/or the product to the available collection points.

Environmental damage through incorrect disposal of the batteries/rechargeable batteries!

Batteries/rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries/rechargeable batteries at a local collection point.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of material or manufacturing defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Keep the original sales receipt in a safe location as this document is required as proof of purchase.

Any damage or defects already present at the time of purchase must be reported without delay after unpacking the product.

Should the product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. The warranty period is not extended as a result of a claim being granted. This also applies to replaced and repaired parts.

This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty covers material or manufacturing defects. This warranty does not cover product parts subject to normal wear and tear, thus considered consumables (e.g. batteries, rechargeable batteries, tubes, cartridges), nor damage to fragile parts, e.g. switches or glass parts.

For this product, rechargeable battery is also covered by its warranty period.

● Warranty claim procedure

So that your request can be processed quickly, please observe the following instructions:

For all inquiries, please have the receipt and item number (IAN 459118_2401) ready as proof of purchase.

The article number can be taken from the identification label on the product, engraving on the product, the front cover of your manual (at the bottom left), or the sticker on the back or bottom of the product.

If malfunctions or other defects arise, first contact the service department indicated below by phone or email.

You can then send a product recorded as defective to the communicated service address postage-free, making sure to enclose proof of purchase (receipt) and information on the details of the defect and when it occurred.

PDF ONLINE parkside-diy.com

You can download and view this and numerous other manuals at parkside-diy.com. This QR code takes you directly to parkside-diy.com. Choose your country and use the search screen to search for the operating instructions. Entering the item number (IAN) 459118_2401 takes you to the operating instructions for your item.

Service

GB Service Great Britain

Tel.:[phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.:[phone]

E-Mail: [e-mail]

CE

IP65

The USB cable 11 is suitable for indoor use only.

■ Gooi batterijen/accu's nooit in vuur of water.
