USER MANUAL PASL 44 A1 PARKSIDE

Technical line drawing of a mechanical device with internal components and labeled part (5), no readable text or symbols present.

F

Technical line drawing of a mechanical housing or enclosure with internal components and mounting brackets (no text or symbols)

Liste der verwendeten Piktogramme/Symbole . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Intended use.... Page 16

Scope of delivery Page 16

Parts list Page 16

Technical data. Page 16

General safety instructions.... Page 17

First use.... Page 19

Unpacking the product.... Page 19

Setting up the product ...... Page 19

Usage Page 19

Switching the product on/off Page 19

Connecting an external appliance to the socket-outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Cleaning Page 20

Disposal Page 20

Warranty Page 20

Warranty claim procedure.... Page 21

Service Page 21

List of pictograms used
	DANGER! – Designating a hazard with high risk, which will result in death or severe injury if not avoided (e.g. risk of suffocation)		Alternating current/voltage
	WARNING! – Designating a hazard with moderate risk, which can result in death or severe injury if not avoided (e.g. risk of electric shock)		Dust-protected + splash-proof (IP54) for LED work light (except socket-outlet)
	CAUTION! – Designating a hazard with low risk, which could result in minor or moderate injury if not avoided (e.g. risk of scalding)		Splash-proof (only socket-outlet)
	NOTICE! – Warns of possible damage to property/the product if not avoided (e.g. risk of short circuit)		Water jet protected (only socket-outlet)
	INFO: This symbol with the “Info” signal word offers additional useful information.		Length of the mains cord: 3 m
[---1.0m]	Minimum distance to illuminated material		Product designed to withstand severe mechanical handling
	Not suitable for household room illumination	[weater]	Safety information Instructions for use
CE	CE mark indicates conformity with relevant EU directives applicable for this product.	[beast]	CAUTION. Hot surface!

LED WORK LIGHT

● Short manual

This document is a shorter printed version of the complete operating instructions. Scanning the QR code takes you directly to parkside-diy.com. Choose your country and use the search screen to search for the operating instructions. Entering the item number (IAN) 500080_2504 takes you to the operating instructions for your item. The short guide is an integral part of this product. Prior to using the product, familiarize yourself with all operation and safety notes. Store the short guide in a safe place and if you hand the product on to third parties, all documentation should be passed on as well.

Intended use

This product is intended for use in rough conditions.
This product is only suitable for private use in outdoor areas.
This product is not intended for commercial use or for use in other applications.

This product is not suitable for household room illumination.

- Technical data

Model: HG12248 HG12248-FR HG12248-BS HG12248-CH
Input voltage: 230 V~, 50 Hz
Total power consumption: 43.5 W
Protection class:	I
Power output via socket-outlet:	max. 2,500 W		max. 2,300 W

- Scope of delivery

1 LED work light
1 User manual

Parts list

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the product.

Figure A, B, C, D:

1 Handle
2 Socket-outlet cover
3 Socket-outlet
4 On/off switch
5 Stand
6 LED panel
7 Star knob screw
8 Mains cord with mains plug

Figure D:

2a Interlock

Model: HG12248 HG12248-F		FR HG12248	BS HG12248-CH
Dimensions: approx.		25.8 cm × 26 cm × 8 cm (HG12248) approx. 25.8 cm × 26 cm × 7 cm (HG12248-FR)		approx. 25.8 cm × 26 cm × 12 cm	approx. 25.8 cm × 26 cm × 9.5 cm
Weight: approx. 1,300 g
Projected area: approx. 450 cm		2
Certification: GS - - -
Degree of protection	Product (except socket-outlet): IP54 1		IP541,3	IP541,3	IP541
	Socket-outlet: IPX4 2		IPX42,4	IPX42,5	IPX56
This product contains a light source of energy efficiency class “F”.
1 dust-protected/splash-proof2 splash-proof3 mains plug for indoor use only4 only when socket-outlet cover closed (without mains plug inserted)5 only when socket-outlet cover closed6 water-jet-protected

General safety instructions

BEFORE USING THE PRODUCT, FAMILIARISE YOURSELF WITH ALL OF THE SAFETY INFORMATION AND INSTRUCTIONS FOR USE! WHEN PASSING THIS PRODUCT ON TO OTHERS, ALSO INCLUDE ALL THE DOCUMENTS!

WARNING! DANGER TO LIFE AND RISK OF ACCIDENTS FOR INFANTS AND CHILDREN!

Never leave children unsupervised with the packaging material. Always keep children away from the packaging material.

This product may be used by children aged 8 years and up, as well as by

persons with reduced physical, sensory or mental capacities, or those lacking experience and/or knowledge provided they are supervised or instructed in the safe use of the product and they understand the associated risks. Do not allow children to play with the product. Cleaning and user maintenance must not be performed by children without supervision.

This product is not a toy and should be kept out of the reach of children. Children are not aware of the dangers associated with handling electrical products.

⚠️ DANGER! Risk of suffocation!

Children could swallow and choke on small included parts (e.g. screws). Keep children away from the work area during assembly.

• Do not use the product if you detect any type of damage.
  ■ Never immerse the product in water or other liquids!
• Do not carry out any modifications or repairs to the product yourself. The built-in LED module and built-in LED driver cannot be replaced.
  If the LEDs fail at the end of their lives, the entire product must be replaced.
  The mains cord of this product cannot be replaced. If the mains cord is damaged, the product shall be destroyed.

Danger to life by electric shock

■ Always check the product for damage before connecting it to the mains. Never use the product if it shows any signs of damage.
- Protect the mains cord against sharp edges, mechanical stresses and hot surfaces.
■ Always unplug the mains plug from the socket before cleaning.
■ Disconnect the product from the mains supply if it is not going to be used for some time (e.g. holiday).
- Verify that the mains voltage on site corresponds with the operating voltage required for the product (230 V\~, 50 Hz), before you use it. Otherwise do not use the product.

⚠️ CAUTION! Risk of burn injuries! To prevent burns, verify the product is switched off and has cooled down for at least 15 minutes before touching it. The product can become very hot.

- The accessible surface, is very hot when the lamp is operating.

1.0m

FIRE HAZARD! Fit the product so that it is at least 1.0 metre away from the material to be illuminated. Excessive heat can result in a fire.

WARNING! Do not turn on the light when the product is facing down to a combustible surface. The exposed surface may be overheated or ignited.

• Do not place burning candles or open fire on or near the product.
• Do not use the product near heat sources such as radiators or devices emitting heat.
  The product is only suited for use with the built-in LED control gear.

The product continues to draw a small amount of power even if the product is off as long as product is connected to supply mains. To switch the product off completely, unplug the mains plug from the socket-outlet.

The mains plug can only be connected with a corresponding socket-outlet with the same IP degree in order to keep the protective degree against dust/water (HG12248-BS only; mains plug for indoor use only).

■ Luminaires shall not be connected after each other.

The product can be hung up or it can be used on a flat, stable surface, e.g. floor or table.

■ The product must not be used as a hand lamp.

- Do not mount the product to a wall or ceiling. The product may only be used as described in this user manual.

- First use

● Unpacking the product

1. Take the product out of the packaging and remove all packaging materials and plastic wrappings.
2. Check to make sure that all listed parts are included (see "Scope of delivery").
3. Check whether the product and all parts are in good condition. If any damage or defect is detected, do not use the product, but follow the procedure described in chapter "Warranty".

- Setting up the product

(Fig. E, F)

⚠️ CAUTION! Risk of injury! Note the position of your hands whilst folding the stand 5 in or out. There is a risk of pinching your fingers.

1. Loosen both star knob screws 7.
2. Fold out the stand 5 as far as it will go.
3. Tighten both star knob screws 7.
4. Place the product on a stable, horizontal surface.
5. Check the stability of the product.

● Usage

- Switching the product on/off

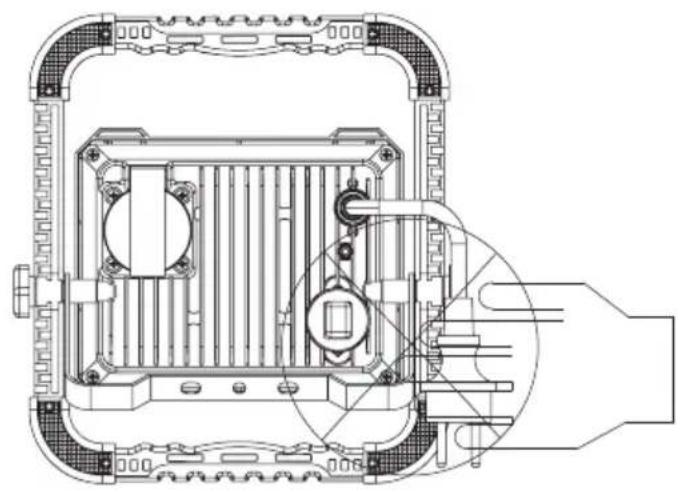

⚠ NOTICE! Risk of property damage! Do not move the mains cord 8 after connecting the mains plug to a socket-outlet. There is a risk that the product will slip or tip over.
① INFO: Connect the mains plug 8 to an IPX4 socket-outlet during outdoor use.
□ Connect the mains plug 8 to a suitable socket-outlet.

☐ Switching on: Press the on/off switch 4 to position I (normal brightness) or II (max. brightness).

□ Switching off: Press the on/off switch 4 to position O.

- Connecting an external appliance to the socket-outlet

⚠ WARNING! Risk of fire! Do not connect any appliance with a total power consumption of more than 2,500 W (HG12248/HG12248-FR/HG12248-BS) or 2,300 W (HG12248-CH).
⚠ WARNING! Risk of electric shock! Water may enter the product if you connect an appliance featuring a non-waterproof mains plug. When using the product outdoors, make sure that the appliance to be connected to the socket-outlet 3 features a waterproof mains plug.

For HG12248/HG12248-FR:

■ The socket-outlet 3 is only IPX4 protected.
☐ Only insert a corresponding IPX4 mains plug for outdoor use.

For HG12248-BS:

1. Open the socket-outlet cover 2.
2. Connect the mains plug of your appliance to the socket-outlet 3.
3. Close the socket-outlet cover 2.
4. Lock the socket-outlet cover 2 with the interlock 2a.

For HG12248-CH:

■ The socket-outlet 3 is only IPX5 protected.
☐ Only insert a corresponding IPX5 mains plug for outdoor use.

1. Open the socket-outlet cover 2.
2. Connect the mains plug of your appliance to the socket-outlet 3.
3. After use, disconnect the mains plug of your appliance from the socket-outlet 3. Close the socket-outlet cover 2.

- Cleaning

■ Never immerse the product in water or other liquids. Otherwise the product can be damaged.
Before cleaning:

• Remove the mains plug 8 from the socket-outlet.
  -Allow the product to cool down.
• Close the socket-outlet cover 2.
  □ Clean the product with a lint-free, slightly moist cloth and mild cleaning agent.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the

packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics/20–22: paper and fibreboard/80–98: composite materials.

Product:

The product incl. accessories and packaging materials are recyclable and are subject to extended producer responsibility. Dispose them separately, following the illustrated Info-tri (sorting information), for better waste treatment.

The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

to protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of material or manufacturing defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Keep the original sales receipt in a safe location as this document is required as proof of purchase.

Any damage or defects already present at the time of purchase must be reported without delay after unpacking the product.

Should the product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. The warranty period is not extended as a result of a claim being granted. This also applies to replaced and repaired parts.

This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty covers material or manufacturing defects. This warranty does not cover product parts subject to normal wear and tear, thus considered consumables (e.g. batteries, tubes, cartridges), nor damage to fragile parts, e.g. switches or glass parts.

● Warranty claim procedure

So that your request can be processed quickly, please observe the following instructions:

For all inquiries, please have the receipt and item number (IAN 500080_2504) ready as proof of purchase.

The article number can be taken from the identification label on the product, engraving on the product, the front cover of your manual (at the bottom left), or the sticker on the back or bottom of the product.

If malfunctions or other defects arise, first contact the service department indicated below by phone or email.

You can then send a product recorded as defective to the communicated service address postage-free, making sure to enclose proof of purchase (receipt) and information on the details of the defect and when it occurred.

PDF ONLINE parkside-diy.com

You can download and view this and numerous other manuals at parkside-diy.com. This QR code takes you directly to parkside-diy.com. Choose your country and use the search screen to search for the operating instructions. Entering the item number (IAN) 500080_2504 takes you to the operating instructions for your item.

Service

GB Service Great Britain

Tel.: [phone]

Contact form on parkside-diy.com

IAN 500080_2504

IE Service Ireland

Tel.: [phone]

Contact form on parkside-diy.com

IAN 500080_2504
