USER MANUAL PISE 800 A1 PARKSIDE

Exterior view of a Parkside portable electricity generator (no visible text or symbols on the device body)

PDF ONLINE www.lidl-service.com

INVERTER GENERATOR 800 W - PISE 800 A1 INVERTER STROMERZEUGER 800 W - PISE 800 A1 GENERATEUR ELECTRIQUE INVERTER 800 W - PISE 800 A1

GB E N I CY MT ○ ○

INVERTER GENERATOR 800 W

Operating and Safety Instructions

Translation of Original Operating Manual

FR BE

GÉNÉRATEUR ÉLECTRIQUE INVERTER 800 W

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

DE AI CH

GB / IE / NI / CY / MT Operating and Safety Instructions Page 01

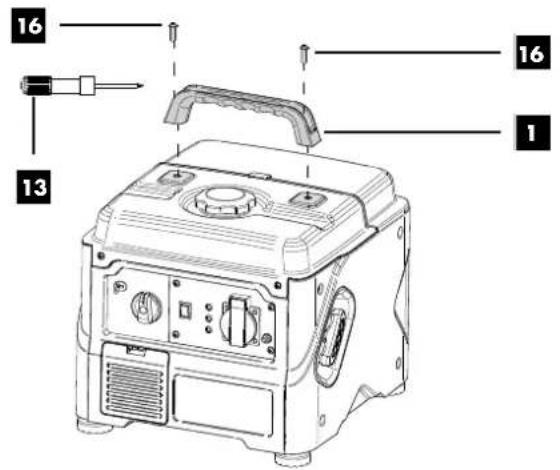

Technical diagram of a mechanical device with labeled parts including brackets, a curved component, and a tool.

3

16 13 16 1

4

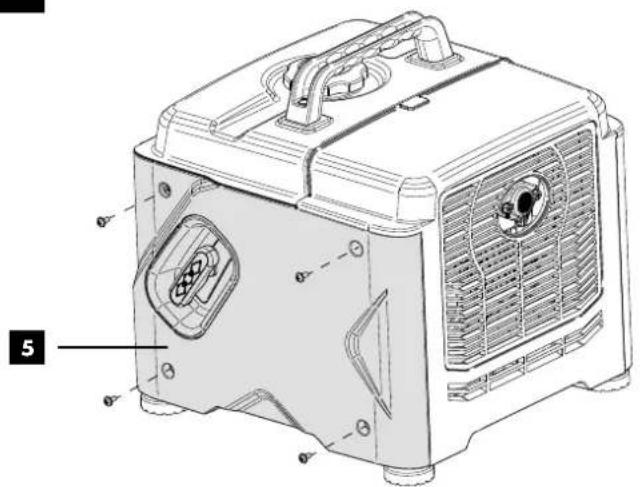

Technical diagram of a portable electronic device with labeled ports and components, marked with numbers 17 and 0°.

5

5

6
5

Technical line drawing of an internal combustion engine unit with visible components and wiring (no text or labels)

7

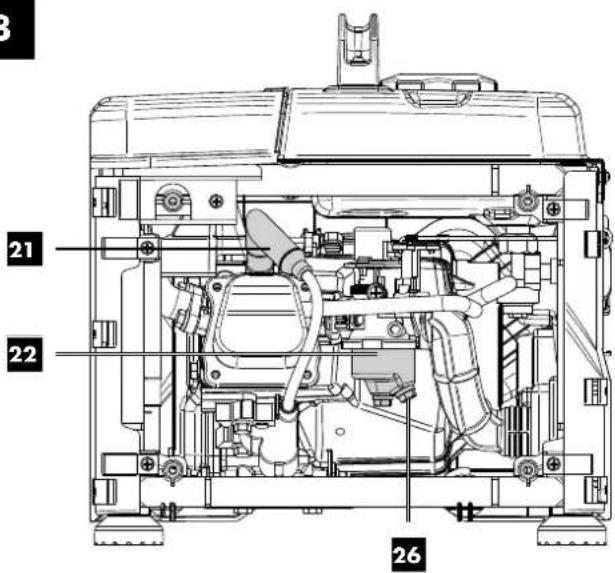

Technical diagram of a device with labeled parts, showing internal components and part numbers 19 and 20.

8

21 22 26

9 21 23

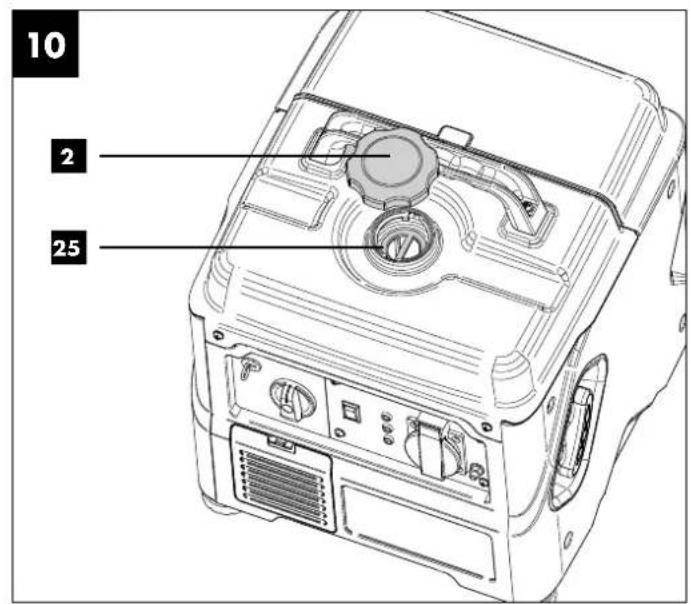

10 2 25

11 2 24

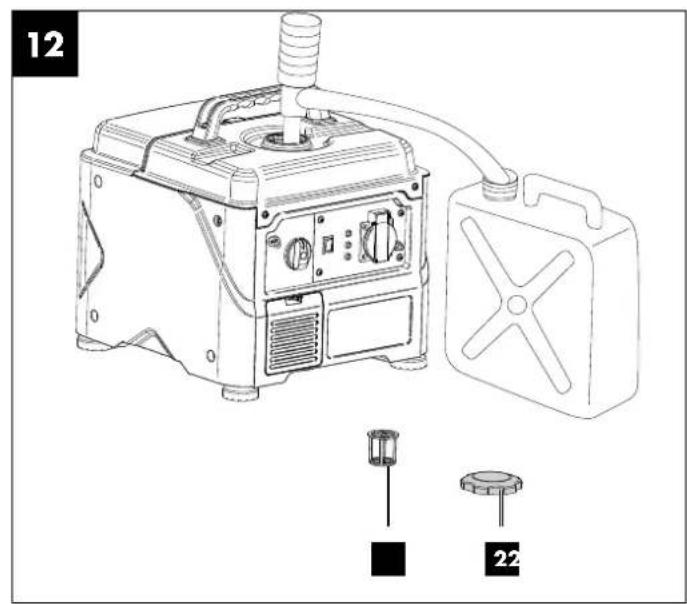

12 22

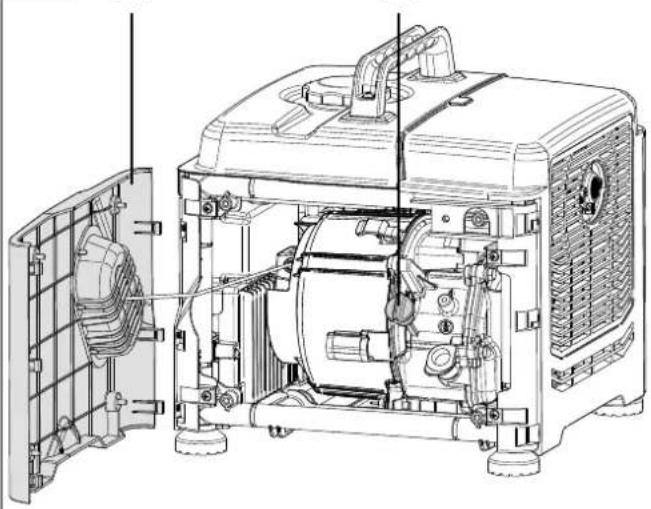

Technical line drawing of a mechanical device with internal components and housing (no text or symbols)

Table of contents: Page:

1. Explanation of the symbols on the device....2
2. Introduction......4
3. Device description (Fig. 1 - 13)....4
4. Scope of delivery 4
5. Proper use....4
6. Safety information....5
7. Technical data....7
8. Unpacking....7
9. Before commissioning....7
10. Operation....8
11. Cleaning and maintenance....8
12. Storage....10
13. Transport....10
14. Ordering spare parts....10
15. Disposal and recycling....10
16. Troubleshooting....11
17. Maintenance plan....11
18. Warranty certificate....12
19. Exploded view....103
20. Declaration of conformity....104

1. Explanation of the symbols on the device

Attention! Failure to observe the safety signs and warning information affixed to the machine and failure to observe the safety and operating instructions can result in serious injury or even death.

Read the operating and safety instructions before start-up and follow them!

Wear hearing protection!

Wear work gloves!

Do not expose the device to rain.

Naked flames or smoking near the device is strictly prohibited!

Warning - Hot parts!

Warning against electrical voltage.

Make sure that other persons maintain a sufficient safety distance. Keep uninvolved persons away from the device.

Attention: hot surface! Danger of burning.

Before carrying out any cleaning or maintenance work, switch off the engine and remove the spark plug connector from the spark plug.

Danger of poisoning! Only use the device outdoors and never in closed or poorly ventilated rooms.

	Sparks are produced when the engine is started. These can ignite nearby flammable gases.
	Read the whole text of the operating instructions through carefully before start up!
	Important. Always switch off the engine before refuelling. Do not refill during operation.
	Guaranteed sound power level of the device
	Be very careful when dealing with fuels and lubricants!
	Checking the oil level
	The choke lever must be set to the CHOKE position during cold starting. To start a warm engine, set the choke lever to RUN.
	Fuel valve open (ON) / closed (OFF).
	The product complies with the applicable European directives.

2. Introduction

Manufacturer:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

Dear customer,

We hope your new tool brings you much enjoyment and success.

Note:

In accordance with the applicable product liability laws, the manufacturer of this device assumes no liability for damage to the device or caused by the device arising from:

• Improper handling,
• Failure to comply with the operating instructions.
• Repairs carried out by third parties, unauthorised specialists.
  • Installing and replacing non-original spare parts,
  • Application other than specified.

Please consider:

Read through the complete text in the operating manual before installing and commissioning the device.

This operating manual should help you to familiarise yourself with your device and to use it for its intended purpose.

The operating manual includes important instructions for safe, proper and economic operation of the device, for avoiding danger, for minimising repair costs and downtimes, and for increasing the reliability and extending the service life of the device.

In addition to the safety instructions in this operating manual, you must also observe the regulations applicable to the operation of the device in your country.

Keep the operating manual package with the machine at all times and store it in a plastic cover to protect it from dirt and moisture. They must be read and carefully observed by all operating personnel before starting the work. The device may only be used by personnel who have been trained to use it and who have been instructed with respect to the associated hazards.

In addition to the safety instructions in this operating manual and the separate regulations of your country, the generally recognised technical rules for operating devices of the same design must also be observed.

We accept no liability for accidents or damage that occur due to a failure to observe this manual and the safety instructions.

3. Device description (Fig. 1 - 13)

1. Carrying handle
2. Tank cover
3. Overload indicator
4. Earthing screw
5. Engine cover
6. Pull cable starter
7. 230 V \~ socket
8. Operating display
9. On/off switch
10. Fuel valve
11. Choke
12. Oil warning indicator
13. Screwdriver
14. Funnel
15. Spark plug wrench
16. Screws for handle

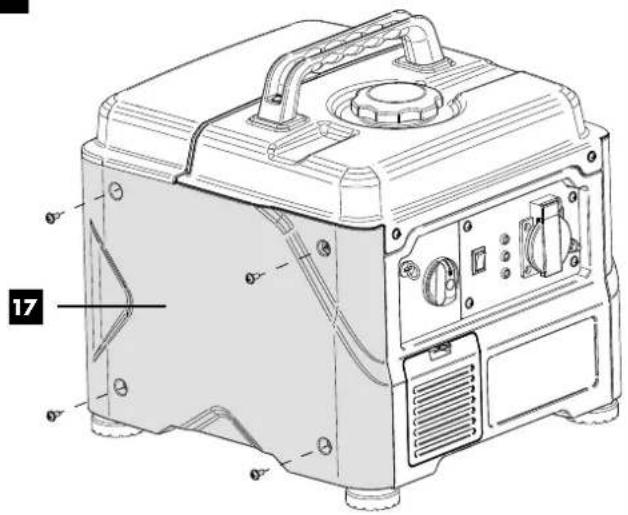

17. Cover
18. Oil dipstick

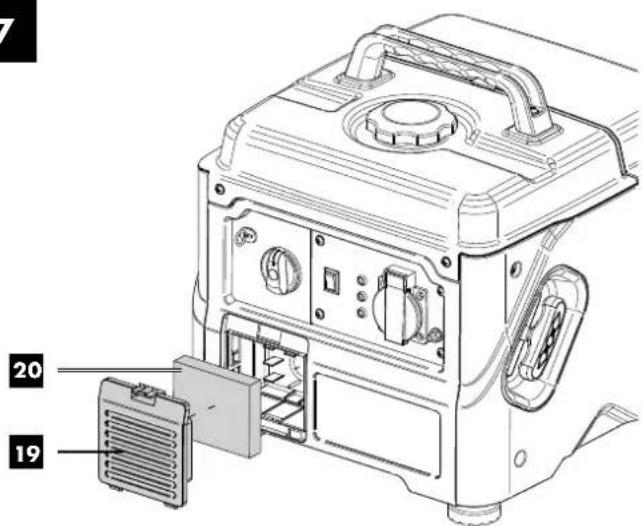

19. Air filter cover
20. Air filter

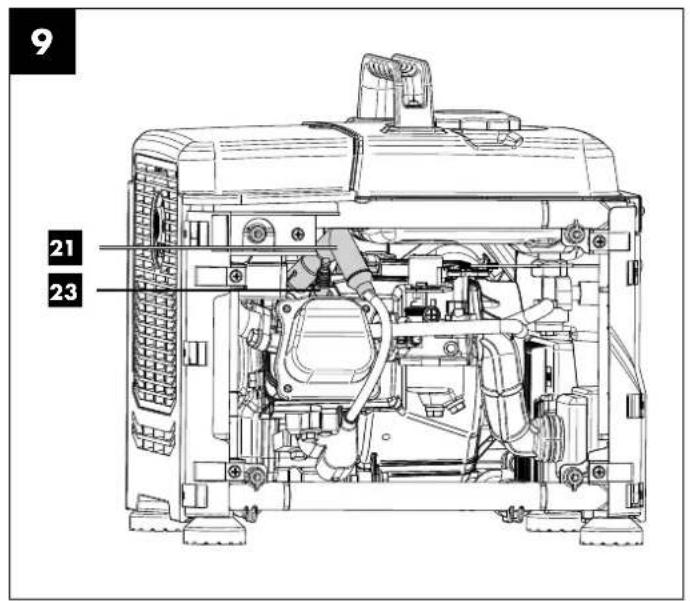

21. Spark plug connector
22. Carburettor
23. Spark plug

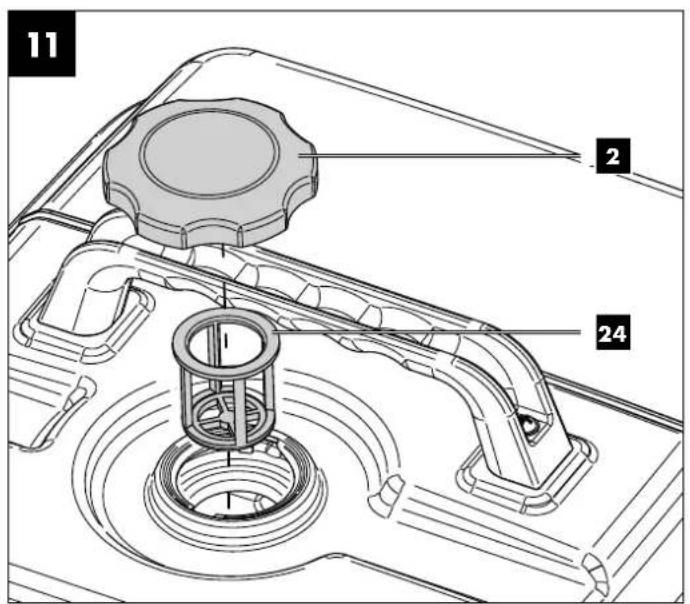

24. Fuel filter insert
25. Fill level marking
26. Carburettor screw

4. Scope of delivery

• Power generator/inverter
- Handle (1)
- Screwdriver (13)
- Funnel (14)
- Spark plug wrench (15)
- Screws for handle (16)
- Operating manual

5. Proper use

The power generator/inverter is suitable for devices that are intended to operate on a 230 V ^- AC voltage source. With household devices and electronic devices, please check the suitability according to the respective manufacturer's specifications.

The machine may only be used in the intended manner. Any use beyond this is improper. The user/operator, not the manufacturer, is responsible for damages or injuries of any type resulting from this.

An element of the intended use is also the observance of the safety instructions, as well as the assembly instructions and operating information in the operating manual.

Persons who operate and maintain the machine must be familiar with it and must be informed about potential dangers.

In addition, the applicable accident prevention regulations must be strictly observed.

Other general occupational health and safety-related rules and regulations must be observed.

The liability of the manufacturer and resulting damages are excluded in the event of modifications of the machine. Please observe that our equipment was not designed with the intention of use for commercial or industrial purposes. We assume no guarantee if the equipment is used in commercial or industrial applications, or for equivalent work.

6. Safety information

We have marked points in the operating manual that impact your safety with this symbol: ⚠

Furthermore, the operating manual contains other important text sections that are marked with the word "ATTENTION!".

Attention!

When using equipment, several safety warnings must be observed to prevent injuries and damage. For this reason, please carefully read this operating manual / safety instructions. If the device is handed over to another person, hand over the operating and safety instructions with it. We accept no liability for accidents or damage that occur due to a failure to observe this manual and the safety instructions.

DANGER

A failure to observe these instructions poses an extreme danger of death or the risk of life-threatening injuries.

⚠ WARNING

A failure to observe these instructions poses a danger of death or the risk of serious injuries.

CAUTION

A failure to observe these instructions poses a minor to moderate risk of injury.

NOTE!

A failure to observe these instructions poses a risk of damage to the engine or other property.

1) It is prohibited to make any modifications to the power generator/inverter.
2) The manufacturer's preset speed must not be changed. Power generator/inverters or connected devices may be damaged.
3) Danger of poisoning! Exhaust gases, fuel and lubricants are poisonous, exhaust gases may not be inhaled.
4) Fire risk! Petrol and fuel vapours are highly flammable and explosive.
5) Motor exhaust gases are toxic. The power generator/inverter must not be operated in unventilated rooms. If the power generator/inverter is to be operated in well-ventilated rooms, the exhaust gases must be discharged directly outside via an exhaust gas hose. Additional requirements for protection against fire and explosion must also be observed. Toxic exhaust gases can also escape when operating an exhaust hose. Because of the risk of fire, the exhaust hose must never be directed at flammable materials.

6) Never operate the power generator/inverter in rooms with highly flammable substances.

7) Hot surfaces! Danger of burning, do not touch suction system and drive unit.
8) Do not touch any mechanically moving or hot parts. Do not remove any protective covers.
9) Protective equipment! Use suitable hearing protection when you are near the device.
10) Only original parts may be used for maintenance and accessories.
11) Repair and adjustment work may only be carried out by authorised specialist personnel.
12) Protect yourself from electrical hazards.
13) Never touch the power generator/inverter with wet hands.
14) Only use approved and appropriately identified extension cables for use outdoors (H07RN).
15) If extension leads or mobile distribution networks are used, the resistance value must not exceed 1.5 Ω. As a guideline value, the total length of lines for a cross-section of 1.5 mm² should not exceed 60 m, and for a cross-section of 2.5 mm², 100 m should not be exceeded.
16) Never operate the power generator/inverter during rain or snowfall.
17) Always switch off the engine during transport and refueling.
18) Fuel is combustible and highly flammable. Do fuel the unit during operation. Do not fuel the unit when someone is smoking or near open flames. Do not spill any fuel.
19) Do not refuel or empty the tank near open light, fire or flying sparks. Smoking prohibited!
20) Give the power generator/inverter a secure, level place. Turning and tilting or changing location during operation are forbidden.
21) Place the power generator/inverter at least 1 m away from walls or connected devices.
22) Children must be protected by ensuring that they stay a safe distance away from the inverter power generator.
23) Some parts of the reciprocating internal combustion motor are hot and may cause burns. The warnings on the power generator/inverter must be observed.
24) Values specified in the technical data under sound power level ( L_WA ) and sound pressure level ( L_pA ) represent emission levels and are not necessarily safe working levels. Since there is a correlation between emission and exposure levels, it cannot be reliably used to determine any additional precautionary measures that may be required. Factors influencing the current exposure level of the worker include the characteristics of the workspace, other noise sources, airborne noise, etc., such as the number of machines and other adjacent processes and the length of time an operator is exposed to the noise. The permitted exposure level may also vary from country to country.
Nevertheless, this information will enable the operator of the machine to make a better assessment of the risks and hazards. If necessary, acoustical measurements should be taken after installation to determine the sound pressure level.
25) Warning! Comply with the electrical safety regulations applicable to the place where the inverter power generators are used.

26) Warning! Consider the requirements and precautionary measures in case of re-supply of a system by inverter power generators depending on the protective measures of this system and the applicable directives.
27) Inverter power generators should only be used up to their rated power under the rated ambient conditions. If the inverter power generator is used in conditions that do not comply with the reference conditions according to ISO 8528-8:2016, 7.1, and if the cooling of the engine or generator is impaired, e.g. as a result of operation in restricted areas, a reduction in power is required.
28) Due to high mechanical loads, only durable rubber hose lines (according to IEC 60245-4) or equivalent equipment should be used.
29) Observe the electrical safety regulations applicable to the place where the power generator/inverter is used.
30) Consider the requirements and precautionary measures in case of re-supply of a system by inverter power generators depending on the protective measures of this system and the applicable directives.

Electrical safety

1. Prior to use, the generator and its electrical equipment (including lines and plug connectors) should be checked to ensure that there are no defects.
2. The power generating unit must not be connected to another power source such as the power supply of energy supply companies. In special cases where a reserve connection to existing electrical systems is provided, this must only be carried out by a qualified electrician who will take into account the differences between the operated equipment using the public mains and operation of the power generating unit. According to this part of ISO 8528, the differences in the operating manual must be specified.
3. Protection against electric shocks depends on the circuit breakers which are matched precisely to the power generating unit. If a circuit breaker must be replaced, this should be done using a circuit breaker with the same rating and performance characteristics.

ATTENTION: Use only Super E10 petrol as fuel.

⚠ Use of petrol

⚠ Danger to life! Petrol is toxic and highly flammable.

• Only store petrol in containers (canisters) designed and tested for this purpose. The tank caps must always be properly screwed on and tightened. Defective caps must be replaced for safety reasons.
• Keep petrol away from sparks, open flames, permanent flames, heat sources and other sources of ignition. Do not smoke!
• Refuel outdoors only and do not smoke while refuelling.
• Before refuelling, switch off the combustion engine and let it cool down.

• Petrol must be filled before starting the combustion engine. While the combustion engine runs or if the machine is hot, the tank plug must not be opened and petrol must not be filled.

• Open the tank plug carefully and slowly. Wait for the pressure to equalise and only then remove the tank cover completely.

• Use a suitable funnel or filler pipe for refuelling so that no fuel can spill onto the combustion engine and housing or lawn.

Do not overfill the fuel tank!

• To leave room for the fuel to expand, never fill the fuel tank beyond the lower edge of the filling nozzle. Observe additional information in the combustion engine user manual.
• If petrol has overflowed, do not start the combustion engine until the petrol-contaminated area has been cleaned. Avoid starting the engine until the fuel vapours have evaporated (wipe dry).

• Always wipe up spilled fuel immediately.
- If petrol has got on clothing, it must be changed.
- The tank cover must be properly screwed on and tightened after each refuelling operation. The device must not be put into operation without the original tank cover screwed on.
- For safety reasons, check fuel line, fuel tank, tank plug and connections regularly for damage, ageing (brittleness), tight fit and leaks and replace if necessary.
- Only empty the tank outdoors.
- Never use beverage bottles or similar to dispose of or store operating materials, such as fuel. People, especially children, could be tempted to drink from it.
- Never store the device with petrol in the tank inside a building. Any fuel vapours produced can come into contact with naked flames or sparks and ignite.
- Do not place the device and fuel tank near heaters, radiant heaters, welding machines or other sources of heat.

Risk of explosion!

If a defect is detected on the tank, the tank cover or on fuel-carrying parts (fuel lines) during operation, the combustion engine must be switched off immediately. Then consult a specialist dealer.

Residual risks

The electric tool has been built according to state-of-the-art and the recognised technical safety rules. However, individual residual risks can arise during operation.

• Health hazard due to electrical power, with the use of improper electrical connection cables.
  • Furthermore, despite all precautions having been met, some non-obvious residual risks may still remain.
• Residual risks can be minimised if the "Safety information" and the "Proper use" together with the operating manual as a whole are observed.
• Avoid accidental start-ups of the power generator/inverter.
• Use the device in the way that is recommended in this operating manual. This is how to ensure that your power generator//inverter provides optimum performance.

7. Technical data

Power generator/inverter......Digital inverter

Protection category IP23M

Continuous output P_n (COP) (230 V) (S1).....0.7 kW

Max. power P_max (230 V) (S2 5min) .....0.8 kW

Rated voltage U_n 230 V \~

Rated current I_n 3 A (230 V-)

Frequency F....50 Hz

Performance class....G2

Active power factor 1

Quality class ...... B

Drive motor type....4-stroke 1 cylinder, air-cooled

Displacement....56 cm ^4

Max. power (engine) 1.3 kW / 1.76 HP

Fuel....Super E10 petrol

Tank contents 31

Engine oil type 15W40

Oil volume (approx.) 280 ml

Weight 11.8 kg

Max. temperature.... 40 °C

Max. altitude (above mean sea level) 1000 m

Spark plug....A5RTC

Technical changes reserved!

Operating mode S1 (continuous operation)

The machine may be operated continuously with the specified power.

Operating mode S2 (short-term operation)

The machine may only be operated at the specified power for a brief time (5 min.).

Information about the noise level measured in accordance with applicable standards (EN ISO 3744:1995, ISO 8528-10:1998):

Sound pressure L_pA = 73.3 dB

Sound pressure L_wA = 92.9 dB

Measurement uncertainty K = 1.97 dB

Wear hearing protection. Excessive noise can result in a loss of hearing.

8. Unpacking

• Open the packaging and carefully remove the device.
• Remove the packaging material, as well as the packaging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the device and accessory parts for transport damage. In the event of complaints the carrier must be informed immediately. Later claims will not be recognised.
• If possible, keep the packaging until the expiry of the warranty period.
• Familiarise yourself with the product by means of the operating manual before using for the first time.
• With accessories as well as wearing parts and replacement parts use only original parts. Replacement parts can be obtained from your dealer.
• When ordering please provide our article number as well as type and year of manufacture for your product.

Note!

The funnel (14) is located in the base of the device.

⚠️ DANGER!

The device and the packaging are not children's toys!

Do not let children play with plastic bags, films or small parts! There is a danger of choking or suffocating!

9. Before commissioning

Electrical safety

Prior to use, the power generator/inverter and its electrical equipment (including lines and plug connectors) should be checked to ensure that there are no defects.

Never connect the power generator/inverter to the mains (socket).

The power lines to the consumer must be kept as short as possible.

Earthing (Fig. 1)

⚠ Attention! Electric shock!

• Do not use bare wires for earthing.
• Power generator/inverter must be safely earthed.

Earthing the housing is necessary to discharge static charging. To do this, connect a cable on one side to the earthing screw (4) of the power generator/inverter and on the other side to an external earth (e.g. earth rod).

ATTENTION!

Check before operation

• Check all sides of the engine for oil or fuel leaks.
• Check the engine oil level.
• Check the fuel level - Fill with at least 2 litres of Super E10 petrol.
• Check the condition of the air filter.
• Check the condition of the fuel lines.
• Look for signs of damage.
• Check that all protective covers are in place and all screws are tightened.
• Ensure that the device is sufficiently ventilated.
• Make sure that the spark plug connector (21) is attached to the spark plug (23).
• Disconnect any connected electrical devices from the power generator/inverter.

9.1 Mounting the handle (1) (Fig. 3)

1. Place the device on a level, even surface.
2. Screw the handle (1) on tightly with the handle screws (16). Use the screwdriver (13) for this.

9.2 Top up oil (Fig. 5 + 6)

Attention!

The power generator/inverter is delivered without engine oil. Therefore, ensure that you add oil before starting it up. Use 15W40 oil here.

Check the oil level regularly before commissioning. An oil level that is too low can damage the engine.

1. Place the device on a level, even surface.
2. Remove the engine cover (5) by unscrewing the four screws with the screwdriver (13).
3. Unscrew the oil dipstick (18).
4. Fill the tank with engine oil using a funnel (14). Note the max. filling capacity of 280 ml. Carefully fill the oil up to the lower edge of the filler neck.
5. Wipe the oil dipstick (18) with a clean, lint-free cloth.
6. Re-insert the oil dipstick (18) and check the oil level without screwing the dipstick tight again.
7. The oil level must be within the middle mark on the oil dipstick (18).
8. If the oil level is too low, add the recommended amount of oil (max. 280 ml).
9. Then screw the oil dipstick (18) in again.
10. Put the engine cover (5) on and fix in place by retightening the four screws.

9.3 Filling in fuel (Fig. 10, 11)

Attention!

The power generator/inverter is delivered without petrol. It is therefore essential to fill with petrol before commissioning. Use Super E10 petrol for this.

1. Unscrew the tank filler cap (2) and fill a maximum of 3.0 l Super E10 petrol into the tank container using the funnel (14).
2. Ensure that the tank is not overfilled (Observe the fill level marking (24)!) and that no petrol is spilled. Use a fuel filter insert (23). Clean up spilled petrol immediately and wait until the fuel vapours have evaporated (wipe dry).
3. Close the tank cover (2).

ATTENTION!

Refuel in a well-ventilated area with the engine stopped.

If the engine was in operation immediately before, allow it to cool first. Never refuel the engine in a building where the petrol vapour may come into contact with flames or sparks.

Petrol is highly inflammable and explosive. When handling fuels, you may suffer burns or other severe injuries.

10. Operation

10.1 Start the engine (Fig. 1)

⚠ Attention! Danger of poisoning!

- Only use the device outdoors and never in closed or poorly ventilated rooms.

When the engine is cold

1. Attention! Never allow the pull starter (6) to whip back. This can result in damage.
2. Set the on/off switch (9) to the "ON" position.
3. Set the fuel valve (10) to "ON".
4. Pull out the choke (11).
5. Now pull the pull starter (6) and the engine should start. If the engine does not start, repeat the process.
6. Push the choke (11) back in after starting the engine.
7. If the engine does not start even after several attempts, read the "Troubleshooting" chapter.

Note: With high outside temperatures, it may be necessary to start the power generator/inverter without the choke even when the engine is cold!

When the engine is warm

1. Set the on/off switch (9) to the "ON" position.
2. Set the fuel valve (10) to "ON".
3. Now pull the pull starter (6) quickly. The device should start after a maximum of 2 pulls. If the device has still not started, repeat the procedure described under "Starting the engine when cold".

Note:

If the engine is being started for the first time, several tries are required to start until the fuel has been delivered from the tank to the engine.

1. Push the choke (11) back in after starting the engine.

10.2 Switch off the engine (Fig. 1)

Allow the power generator/inverter to run for a short time (approx. 30 seconds) without load before switching it off so that it can "cool down".

1. Set the on/off switch (9) to the "OFF" position.
2. Disconnect the power consumers from the device.
3. Set the fuel valve (10) to "OFF".

10.3 Operating display (8) (Fig. 1)

The operating display (8) is active when the engine is running.

10.4 Overload indicator (3) (Fig. 1)

The overload protection becomes active if the power consumption is too high and switches off the 230 V \~ socket (7).

1. Switch the device off as described in section 10.2.
2. Disconnect the power consumers from the device.

10.5 Oil warning indicator (12) (Fig. 1)

The indicator activates when the oil level is too low and deactivates as soon as the oil level is sufficient.

If the oil level is too low, the oil warning indicator (12) lights up during the start attempt. Top up engine oil as described in 9.2 and repeat the starting procedure.

10.6 Automatic oil cut-off

The automatic oil cut-off system responds when there is too little engine oil. The oil warning indicator (12) starts flashing when there is too little oil in the engine. The indicator lamp starts to light up when the oil quantity has not reached the safety quantity. The engine switches itself off after a short time. It is not possible to start the engine until the engine oil has been filled (see chapter 9.2).

11. Cleaning and maintenance

Before carrying out any cleaning or maintenance work, switch off the engine and remove the spark plug connector (21) from the spark plug (23).

ATTENTION! Danger of burning! Wait until the device has cooled down before cleaning or maintenance.

ATTENTION!

Take any contaminated maintenance material and operating materials to a collection point designated for this purpose.

ATTENTION! Danger of burning! Wait until the device has cooled down before performing cleaning or maintenance work.

11.1 Cleaning

Keep protective devices, air vents and the motor housing as free of dust and dirt as possible. Rub the device clean with a clean cloth or blow it off with compressed air at low pressure. We recommend that you clean the device directly after every use.

Clean the device at regular intervals using a damp cloth and a little soft soap. Do not use any cleaning products or solvents; they could attack the plastic parts of the device. Make sure that no water can penetrate the device interior.

11.2 Maintenance

WARNING!

Always wear protective gloves and a mask during maintenance work!

11.3 Maintenance plan

Always comply with the following maintenance intervals in order to ensure problem-free operation.

ATTENTION! At initial start-up, engine oil and fuel must be filled.

11.3.1 Check the oil level (Fig. 5 + 6)

1. Proceed as described in 9.2.

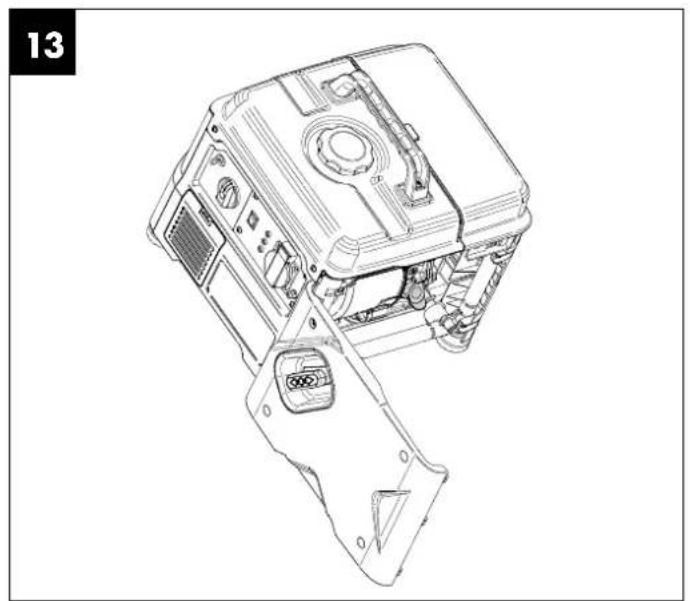

11.3.2 Changing oil (Fig. 6 + 13)

Change the engine oil after 20 operating hours, then after 50 hours or every three months.

The engine oil change should be carried out while the engine is at operating temperature.

1. Place the device on a level, even surface.
2. Remove the engine cover (5) as described in 9.2. (Fig. 6)
3. Provide a collection container (not included in the scope of delivery).
4. Open the oil dipstick (18) and drain warm engine oil into the collection container (Fig. 13) by tilting the power generator/inverter.
5. Fill up with new engine oil (max. 0.28 l).
6. Screw the oil dipstick (18) in again.
7. Dispose of the used oil properly.

11.3.3 Air filter (Fig. 7)

NOTE!

Risk of damage!

Operating the engine without a filter element or with a damaged filter element can cause engine damage.

- Never run the engine without the air filter element or with a damaged filter element. This would allow dirt into the engine, which would result in severe damage to the engine.

Clean the air filter (20) every 50 operating hours, replace if necessary.

1. Remove the air filter cover (19).
2. Remove the air filter (20).
3. Do not use harsh cleaners or petrol to clean the filter.
4. Clean the elements by knocking them out on a flat surface. If heavily soiled, wash with soapy water, then rinse with clean water and allow to air dry.
5. The re-assembly takes place in reverse order.

11.3.4 Spark plug (Fig. 4 + 9)

⚠️ ATTENTION: Only replace the spark plug when the engine is cold!

Check the spark plug (23) for contamination for the first time after 20 operating hours and clean it with a copper wire brush if necessary. Then maintain the spark plug (23) every 50 operating hours.

1. Place the device on a level, even surface.
2. Remove the cover (17) by unscrewing the four screws with the screwdriver (13).
3. Pull off the spark plug connector (21) with a twisting motion.
4. Remove the spark plug (23) with the enclosed spark plug wrench (15).
5. Remove any dirt from the base of the spark plug (23).
6. Visually inspect the spark plug (23). Remove any deposits present using a wire brush.
7. Check the spark plug gap. Set the electrode gap to 0.6 to 0.8 mm with a feeler gauge.
8. The re-assembly takes place in reverse order.

NOTE

A loose spark plug can overheat and cause damage to the engine. Tightening the spark plug too much can damage the thread in the cylinder head.

11.3.5 Cleaning the fuel filter insert (24) (Fig. 11)

Note: The fuel filter insert (24) is a filter cup which is located directly under the tank cover (2) and filters all the fuel filled in.

1. Set the on/off switch (9) to the "OFF" position.
2. Open the tank cover (2).
3. Remove the fuel filter insert (24) and the fill level marking (25). Clean it in a non-flammable solvent or a solvent with a high flash point.
4. Reinsert the fuel filter insert (24) with the fill level marking (25).
5. Close the tank cover (2).

Please provide the following information in the event of any enquiries:

• Data of machine type plate
• Data of motor type plate

Important note in the case of repairs:

When returning the device for repair, please ensure for safety reasons that it is free of oil and fuel when it is sent to the service centre.

11.4 Ordering spare parts

Please provide the following information when ordering replacement parts:

• Device type
  • Device article number

Service information

With this product, it is necessary to note that the following parts are subject to natural or usage-related wear, or that the following parts are required as consumables.

Wearing parts*: Spark plug, air filter

* may not be included in the scope of supply!

11.5 Drain petrol with a petrol extraction pump (Fig. 10 + 12)

In case of storage over a longer period of time, the petrol must be drained.

⚠ WARNING!

Risk to health!

Inhalation of petrol/lubricating oil vapours and exhaust gases can cause serious damage to health, unconsciousness and in extreme cases death.

- Do not breathe petrol/lubricating oil vapours and exhaust gases.

- Empty out fuel only outdoors.

1. Set the fuel valve (10) to "OFF".
2. Hold a collection container under the hose of the petrol extraction pump (not included in the scope of delivery).
3. Unscrew and remove the tank filler cap (2).
4. Remove the fuel filter insert (25).
5. Push the hose of the petrol suction pump into the fuel tank and drain out the petrol completely using the petrol suction pump.
6. Reinsert the fuel filter insert (25).
7. Retighten the tank cover (2).
8. To ensure that no petrol remains in the carburettor (22), the remaining petrol must be drained out of the carburettor. To do this, place a suitable container (not included in the scope of delivery) under the carburettor (22) and open the carburettor screw (26) (Fig. 8).

12. Storage

Preparation for storage

• Empty the fuel tank with a petrol suction pump. Remove fuel filter and drain the carburettor (23). Loosen the screw on the lower side of the carburettor and drain the petrol into a receptacle provided for this purpose.
• Warning: Do not remove the petrol in enclosed spaces, near fire or when smoking. Petrol fumes can cause explosions and fire.
• Start the engine and let it run until the remaining petrol is used up.
• Store fuel in tanks specifically designed for this purpose.
• Change the oil at the end of every season.
• To do so, remove the used engine oil from a warm engine and refill with fresh oil.
• Remove the spark plug (23).
• Fill the cylinder with approx. 20 ml of oil from an oil can.
• Pull the pull starter (6) slowly so that the oil protects the inside of the cylinder.
• Screw the spark plug (23) back in.
• Store the machine in a well-ventilated place.

13. Transport

Preparation for transport

• Empty the fuel tank into an approved canister with a petrol suction pump or alternatively via the fuel valve.
• If operational, keep the engine running until the remaining petrol has been used up.
• Drain the engine oil from the warm engine (as described).
• Remove the spark plug connector (21) from the spark plug (23).
• Secure the device against slipping using a tension strap, for example.

14. Ordering spare parts

Service information

With this product, it is necessary to note that the following parts are subject to natural or usage-related wear, or that the following parts are required as consumables.

Wearing parts*: Spark plug

* may not be included in the scope of supply!

Spare parts and accessories can be obtained from our service centre. To do this, scan the QR code on the cover page.

15. Disposal and recycling

Information on packaging

The packaging materials are recyclable. Please dispose of packaging in an environmentally friendly manner.

Information on the German Electrical and Electronic Equipment Act (ElectroG)

Electrical and electronic appliances do not belong in household waste, but should be collected and disposed of separately.

• Used batteries or rechargeable batteries that are not installed permanently in the old appliance must be removed non-destructively before disposal. Their disposal is regulated by the battery law.
• Owners or users of electrical and electronic appliances are obliged by law to return them after use.
• The end user bears personal responsibility for deleting his personal data from the old appliance to be disposed of.
• The symbol of the crossed-through rubbish bin means that electrical and electronic appliances may not be disposed of in the household rubbish.
• Electrical and electronic appliances can be handed in at the following places at no charge:
• Public service disposal or collection points (e.g. municipal building yards)

• LIDL offers you return options directly in the branches and stores. Return and disposal are free of charge for you.

• Up to three waste electrical devices per type of device, with an edge length of no more than 25 centimetres, can be returned free of charge to the manufacturer without prior purchase of a new device from the manufacturer or taken to another authorised collection point in your vicinity.

• Further supplementary take-back conditions of the manufacturers and distributors can be obtained from the respective customer service.

- If the manufacturer delivers a new electrical appliance to a private household, the manufacturer can arrange for the free collection of the old electrical appliance upon request from the end user. Please contact the manufacturer's customer service for this.

- These statements only apply to appliances that are installed and sold in the countries of the European Union and are subject to European Directive 2012/19/EU. Different provisions may apply to the disposal of electrical and electronic appliances in countries outside the European Union.

Fuels and oils

• Before disposing of the unit, the fuel tank and the engine oil tank must be emptied!
• Fuel and engine oil do not belong in household waste or drains, but must be collected or disposed of separately!
• Empty oil and fuel tanks must be disposed of in an environmentally friendly manner.

16. Troubleshooting

Fault Possible cause Remedy
Engine cannot be started	Automatic oil cut-off starts Check oil level, fill with	engine oil
	Spark plug sooty Clean or replace spark plug.	Electrode gap 0.6 mm
	No fuel Refill fuel / have fuel valve checked
Device has insufficient or no voltage	Electronics defective Contact the specialist dealer
	Overload protection switch tripped	Restart the power generator/inverter, Reduce consumers
	Air filter dirty. Clean or replace filter

17. Maintenance plan

Always comply with the following maintenance intervals in order to ensure problem-free operation.

ATTENTION! At initial start-up, engine oil and fuel must be filled.

	Before every use after operating for 20 hours		after operating for 50 hours	after operating for 100 hours
Checking the engine oil	X
Changing the engine oil		first time, then every 50 hours	X
Checking the air filter	X		Change filter insert if necessary
Cleaning the air filter		X
Visual inspection of the device	X
Cleaning the spark plug			Check gap: 0.6 - 0.8 mm	Replace if necessary
Check and readjust the throttle valve				X^*
Cleaning the cylinder head				X^*
Adjust the valve play				X^*
Fuel tankClean fuel filter insert				X
Attention: Only have points "X*" carried out by an authorised specialist company.

18. Warranty certificate

Dear Customer,

All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card. Of course, if you would prefer to call us then we are also happy to offer our assistance under the service number printed below. Please note the following terms under which guarantee claims can be made:

• These guarantee terms cover additional guarantee rights and do not affect your statutory warranty rights. We do not charge you for this guarantee.
• Our guarantee only covers problems caused by material or manufacturing defects, and it is restricted to the rectification of these defects or replacement of the device. Please note that our devices have not been designed for use in commercial, trade or industrial applications. Consequently, the guarantee is invalidated if the equipment is used in commercial, trade or industrial applications or for other equivalent activities. The following are also excluded from our guarantee: compensation for transport damage, damage caused by failure to comply with the installation/assembly instructions or damage caused by unprofessional installation, failure to comply with the operating instructions (e.g. connection to the wrong mains voltage or current type), misuse or inappropriate use (such as overloading of the device or use of non-approved tools or accessories), failure to comply with the maintenance and safety regulations, ingress of foreign bodies into the device (e.g. sand, stones or dust), effects of force or external influences (e.g. damage caused by the device being dropped) and normal wear resulting from proper operation of the device.

The guarantee is rendered null and void if any attempt is made to tamper with the device.

- The guarantee is valid for a period of 3 years starting from the purchase date of the device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies when an on-site service is used.

- In order to assert your guarantee claim, please contact the service partner shown below. If the complaint is within the guarantee period, we will provide you with a return slip, with which you can return your defective device free of charge to us. It would help us if you could describe the nature of the problem in as much detail as possible. If the defect is covered by our guarantee then your device will either be repaired immediately and returned to you, or we will send you a new device.

Of course, we are also happy offer a chargeable repair service for any defects which are not covered by the scope of this guarantee or for units which are no longer covered. To take advantage of this service, please send the device to our service address.

Service-Hotline (GB): Service-Hotline (IE): Service-Hotline (NI)

00800 4003 4003 00800 4003 4003 00800 4003 4003

(0,00 EUR/Min.) (0,00 EUR/Min.) (0,00 EUR/Min.)

Service-Email (GB): Service-Email (IE): Service-Email (NI):

[e-mail]

[e-mail]

[e-mail]

Service Address (GB): Service Address (IE): Service Address (NI):

Forest Park & Garden LetMeRepair

Forest Park & Garden

Coed Court, Taffsmead Road

1 Langlands Court / Kelvin South Business Park

Coed Court, Taffsmead Road

Treforest, Ind. Estate, Pontypridd CF375SW

East Kilbride G75 0YB

Treforest, Ind. Estate, Pontypridd

CF375SW

Service-Hotline (CY):

00800 4003 4003

(0,00 EUR/Min.) (0,00 EUR/Min.)

[e-mail]

Service Address (CY):

GEORGE C SOLOMONIDES & SON LTD

PO.BOX 56236 / 169, LEONTIOS A'

GR - 3305 LIMASSOL/CYPRUS

At www.lidl-service.com you can download this and many more manuals, product videos plus installation software.

The QR code takes you directly to the Lidl service page (www.lidl-service.com) and you can open your operating manual by entering the article number (IAN) 421064_2204.

Inhalt:

Seite:

Günzburger Straße 69

D-89335 Ichenhausen

Verehrter Kunde,

[e-mail]

[e-mail]

Service Adresse (DE): Service Adresse (AT): Service Adresse (CH):

Scheppach GmbH Gausch Hubert

Klaus-Häberling AG

Günzburger Str. 69

Günzburger Straße 69

D-89335 Ichenhausen

Cher client,

Service-hotline (BE):

00800 4003 4003

(0,00 €/Min.)

Service-Hotline (CH):

00800 4003 4003

(0,00 €/Min.)

Email du service (FR):

[e-mail]

E-mailadres (BE):

[e-mail]

Service-Email (CH):

[e-mail]

Scheppach France Strassburg

2, Impasse Jean Millot

FR - 6700 Strasbourg

Serviceadres (BE):

Service Center Bruyninckx

Guldendelle 30

BE - 1930 Zventem (Nossegem)

Günzburger Straße 69

D-89335 Ichenhausen

Geachte klant,

10.1 Motor starten (afb. 1)

10.4 Vulbelasting (3) (afb. 1)

Service-hotline (BE):

00800 4003 4003

(0,00 €/Min.)

E-mailadres / Email du service (NL):

[e-mail]

E-mailadres (BE):

[e-mail]

Serviceadres / Adresse du service (NL):

Günzburger Straße 69

D-89335 Ichenhausen

Vážený zákazníku,

Günzburger Straße 69

D-89335 Ichenhausen

Vážený zákazník,

Günzburger Straße 69

D-89335 Ichenhausen

Kære kunde,

Günzburger Straße 69

D-89335 Ichenhausen

Kedves Ügyfelünk!

Exploded view diagram of a mechanical assembly with numbered parts for identification

EC Declaration of Conformity

Translation of the original EC declaration of conformity

Standard references:

EN ISO 8528-13:2016; EN 61000-6-1:2007; EN 55012:2007+A1:2009

This declaration of conformity is issued under the sole responsibility of the manufacturer.

Subject to change without notice

Documents registrar: Tobias Ihle

Günzburger Str. 69, D-89335 Ichenhausen

CE

SCHEPPACH GMBH

Günzburger Str. 69

D-89335 Ichenhausen

FSC

www.fsc.org

MIX

Paper from responsible sources

^8 C109606

FSC

www.fsc.org

MIXTE
