USER MANUAL PSE 2800 B2 PARKSIDE

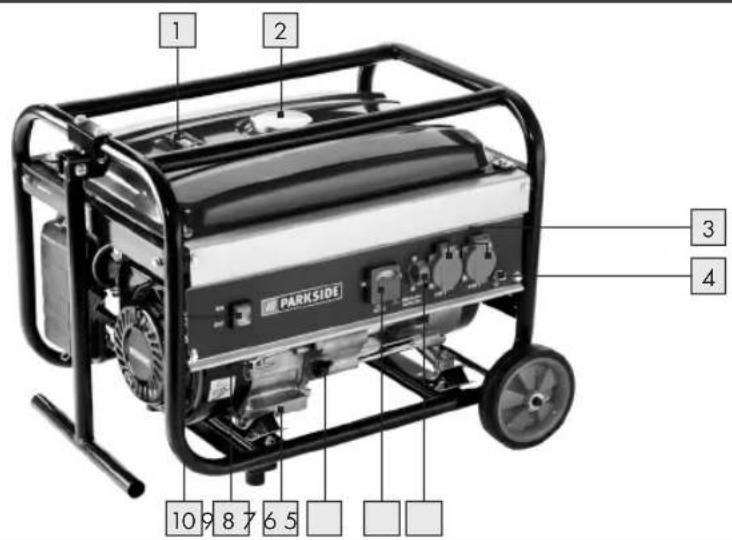

Protection anti-surcharge

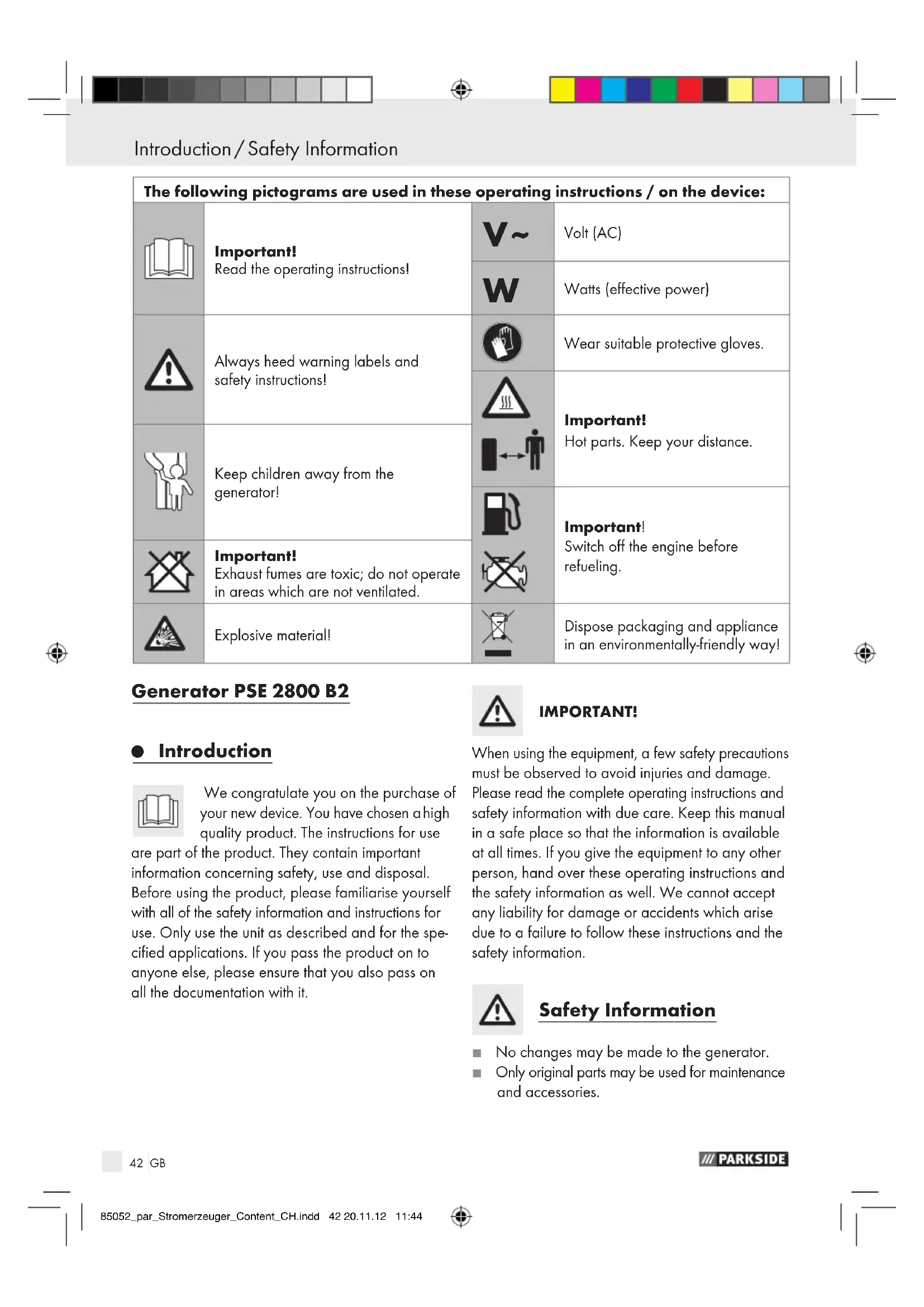

Watts (effective power) Always heed warning labels and safety instructions! Wear suitable protective gloves. Important! Hot parts. Keep your distance. Keep children away from the generator! Important! Switch off the engine before refueling. Important! Exhaust fumes are toxic; do not operate in areas which are not ventilated. Explosive material! Dispose packaging and appliance in an environmentally-friendly way! 85052_par_Stromerzeuger_Content_CH.indd 42 20.11.12 11:4443 GB Safety Information Introduction / Safety Information J IMPORTANT! Danger of poisoning. Emissions, fuels and lubricants are toxic. Do not inhale emissions. J Children are to be kept away from the generator. J IMPORTANT! Risk of burns. Do not touch the exhaust system or drive unit. Please observe the warning notes depicted on the generator. J Wear suitable ear protection when in the vicinity of the equipment. J IMPORTANT! Petrol and petrol fumes are highly combustible or explosive. J Never operate the generator in non- ventilated rooms or in a highly inflam- mable environment. If you intend to operate the generator in rooms with good ven- tilation, the exhaust gases must be channeled directly outdoors through an exhaust hose. IMPORTANT! Toxic exhaust gases can escape despite the exhaust hose. Due to the fire hazard, never direct the exhaust hose towards inflammable materials. J RISK OF EXPLOSION! Never operate the generator in rooms with combustible materials. J The speed preset by the manufacturer is not allowed to be changed. The generator or con- nected equipment may be damaged. J Secure the generator against shifting and top- pling during transport. J Place the generator at least 1m away from walls and equipment connected to them. J Place the generator in a secure, level position. Do not turn, tip or change the generator’s posi- tion while it is working. J Always switch off the engine when transporting and refueling the generator. J Make sure that when you refuel the generator no fuel is spilt on the engine or exhaust pipe. J Never operate the generator in rain or snow. J Never touch the generator with wet hands. J Guard against electric danger. J When working outdoors, use only extension cables that are approved for outdoor use and which are marked accordingly (H07RN). J The overall length of the extension cables used is not allowed to exceed 50 m for 1.5 mm² and 100 m for 2.5 mm². J No changes may be made to the settings of the motor or generator. J Installation, repair and maintenance work must only be performed by authorised qualified personnel. J Do not refuel or empty the tank near open lights, fire or sparks. Do not smoke! J Do not touch any mechanically driven or hot parts. Do not remove the safety guards. J Do not expose the equipment to damp or dust. Permissible ambient temperature -10 to +40°, altitude: 1000 m above sea level, relative humidity: 90 % (non-condensing) J Generators may only be stressed up to the limit of the nominal load under the given operating conditions. If the generator is used under con- ditions that differ from the ones stated above, and motor or generator cooling is impaired, e.g. as a result of operation in small rooms, the load must be reduced. A reduction in the load must be made at higher temperatures, altitude and humidity, compared with that stated in the operating conditions. J The generator is driven by a combustion engine, which produces heat in the range of the exhaust (on the opposite side of the socket) and exhaust outlet. You should therefore avoid coming near these surfaces because of risk of skin burns. J The values quoted in the technical data under sound power level (LWA) and sound pressure level (LpA) are emission values and not neces- sarily reliable workplace values. As there is a correlation between emission and immission levels, the values cannot be taken to reliably determine the possible need for additional pre- cautions. Factors influencing the current immis- sion level of the user / operator include the properties of the work area, other sound sources etc., e.g. the number of machines and other neighboring processes, and the time span over which the user / operator is subjected to the noise. Also, the permitted immission level 85052_par_Stromerzeuger_Content_CH.indd 43 20.11.12 11:4444 GB Safety Information / Before starting the equipment / Operation Safety Information can vary from country to country. Nevertheless, this information makes it possible for the user to be able to make a better assessment of the dangers and risks involved. IMPORTANT: Use only normal, unleaded petrol as fuel. Read all the safety regulations and instruc- tions. Any errors made in following the safety reg- ulations and instructions may result in an electric shock, fire and/or serious injury. Keep all safety regulations and instructions in a safe place for future use. Layout (Fig. A - M)

Oil deficiency protection for low oil switch-off

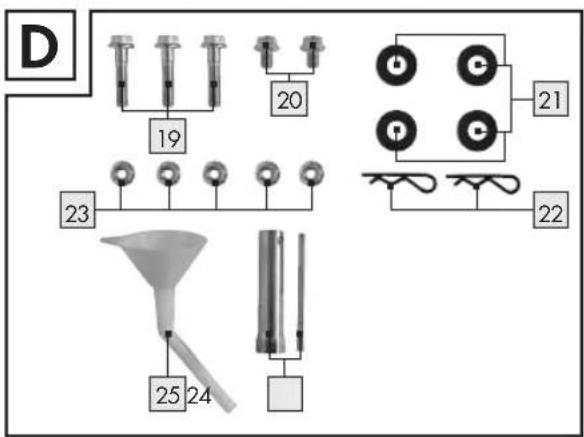

Securing split pins for wheels

Spark plug wrench Intended use The device is designed for applications operated with a 230 V alternating current source. Be sure to observe the restrictions in the safety instructions. The generator is intended to provide electric power tools and light sources with electricity. When using the device with household appliances, please check their suitability in accordance with the relevant manufacturer’s instructions. In case of doubt, ask an authorized dealer of the respective equipment. The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user/operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this. Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the equipment is used in commercial, trade or industrial businesses or for equivalent purposes. Technical data Generator: Synchronous Protection type: IP23M Continuous rated power Prated (S1): 2600 W Maximum power Pmax (S2 2 min): 2800 W Rated voltage Urated: 2 x 230 V

Rated current Irated: 11.3 A Frequency Frated: 50 Hz Drive engine design: 4-stroke, air-cooled Displacement: 208 cm³ Fuel: Petrol Tank capacity: 15 l Engine oil: approx. 0.6 l (15W40) 85052_par_Stromerzeuger_Content_CH.indd 44 20.11.12 11:4445 GB Safety Information / Before starting the equipment / Operation Safety Information Consumption at 2/3 load: approx. 1.36 l/h Weight: 42 kg LpA sound pressure level: 74,2 dB(A) Uncertainty K: 2 dB(A) LWA sound power level 96 dB(A) K uncertainty: 2,3 dB(A) Power factor cos ϕ: 1 Power class: G1 Max. temperature: 40°C Max. altitude (above mean sea level): 1,000 m Spark plug: LD F6TC Operating mode S1 (continuous operation) The equipment can be continuously operated with the quoted power output. Operating mode S2 (temporary operation) The equipment may be temporarily operated with the quoted power output 2 min. Before starting the equipment Assembly The installation of the equipment requires two open-ended wrenches (size 12). Assemble all parts before filling in fuel and oil in order to prevent the fluids from leaking out. Assemble the foot

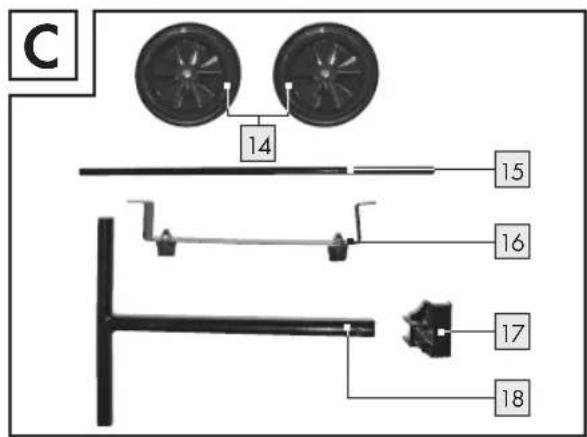

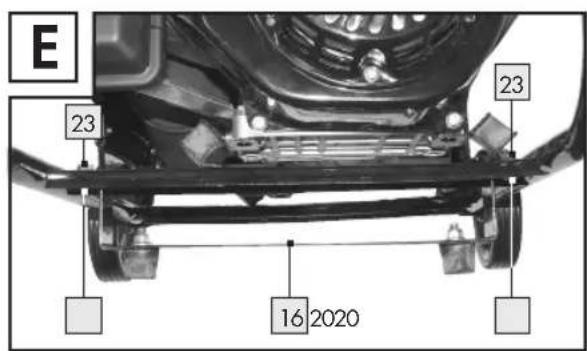

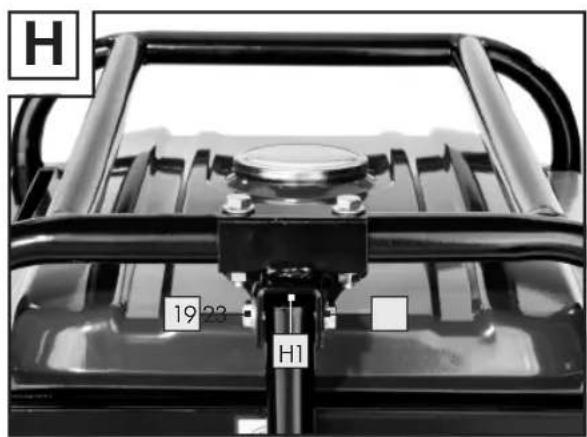

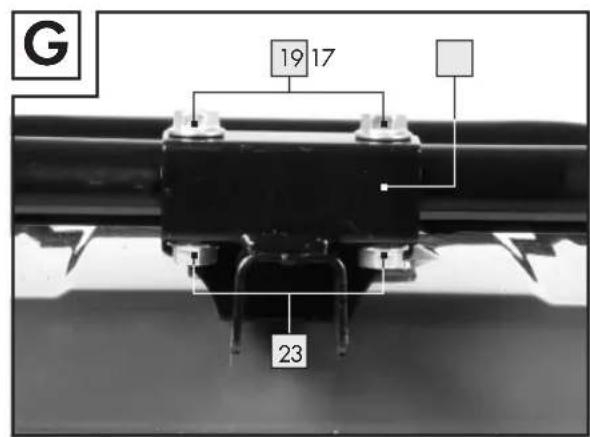

as shown in Figures E - H. To mount the wheels, first slide the axle

through the mountings on the bottom of the generator and fit the wheels

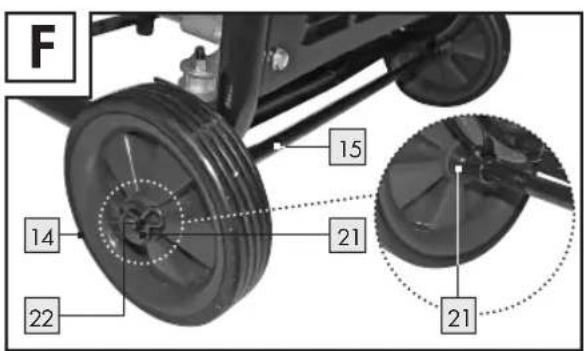

as shown on Figure F. Electrical safety J Electric supply cables and connected equipment must be in perfect condition. J The generator is to be operated only with equipment whose voltage specifications conform to the generator’s output voltage. J Never connect the generator to the power supply (socket-outlet). J Keep the cable length to the consumer as short as possible. Environmental protection Dispose of soiled maintenance material and operating materials at the appropriate collection point. Recycle packaging material, metal and plastics. Connecting to earth The housing must be connected to earth in order to discharge static electricity. To do this, connect one end of a cable to the earth con- nection

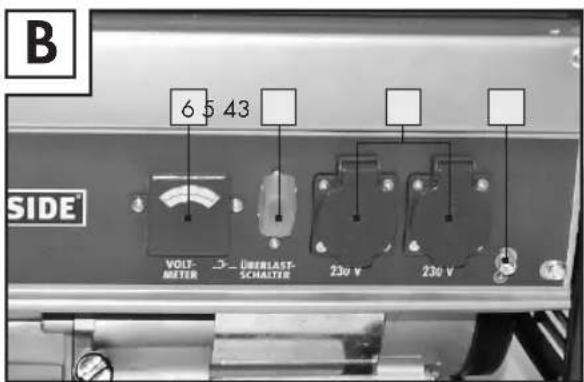

on the generator (Fig. B) and the other end to an external earth. Operation IMPORTANT! You must fill up with engine oil (approx. 0.6 l) and fuel before you can start the engine. Check the fuel level and engine oil level, refill if necessary by topping up the oil though the oil fille r screw

and the petrol through the petrol filler cap

Make sure that the generator has sufficient ventilation. Make sure that the ignition cable is secured to the spark plug. Inspect the immediate vicinity of the generator. Disconnect any electrical equipment which may already be connected to the generator. 85052_par_Stromerzeuger_Content_CH.indd 45 20.11.12 11:4446 GB Cleaning, maintenance, storage, transport and ordering of spare parts Operation / Cleaning, maintenance, storage, transport and ordering of spare parts Starting the engine IMPORTANT! When starting with the reserve starter

, the motor may recoil suddenly as it starts up, resulting in hand injuries. Wear protective gloves when starting the equipment. Open the petrol cock

by turning it down. Set the ON / OFF switch

to the “ON” position. Move the choke lever

to position I Ø I. Start the engine with the reversing starter

by pulling forcefully on the handle. If the engine does not start, pull the handle again. Push the choke lever

back after the engine has started. Connecting consumers to the generator Connect the equipment you want to use to the 230 V

IMPORTANT! These sockets may be loaded continuously (S1) with 2600 W and temporarily (S2) for a maximum of 2 minutes with 2800 W. J The generator is suitable for 230 V

AC appli- ances only. Do not connect the generator to the household mains system as this may result in damage to the generator itself or to other electrical appli- ances in your home. Note: Some electrical appliances (power jigsaws, drills, etc.) may have a higher level of power con- sumption when used in difficult conditions Switching off the engine Before you switch off the generator, allow it to run briefly with no consumers so that it can “cool down”. Set the ON / OFF switch

to the “OFF” position. Close the petrol cock

Overload cut-out 2 x 230 V socket-outlets IMPORTANT! The generator is fitted with an overload cut-out. This shuts down the sockets

by pressing the overload cut-out

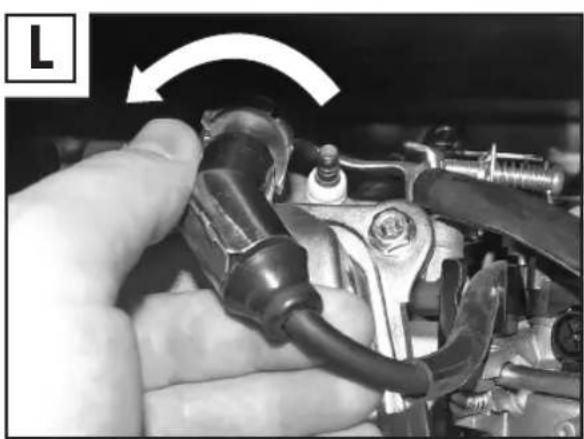

IMPORTANT! If this happens, reduce the electric power you are taking from the generator or remove any defective connected appliances. IMPORTANT! Defective overload cut- outs must be replaced only by overload cut-outs of identical design and with the same performance data. If repairs are necessary, please contact your customer service center. Cleaning, maintenance, storage, transport and ordering of spare parts Switch off the motor and pull the spark plug boot from the spark plug before doing any cleaning and maintenance work on the equipment. ATTENTION! Stop the appliance in- stantly and contact your point of service:

In the event of unusual vibrations or noise

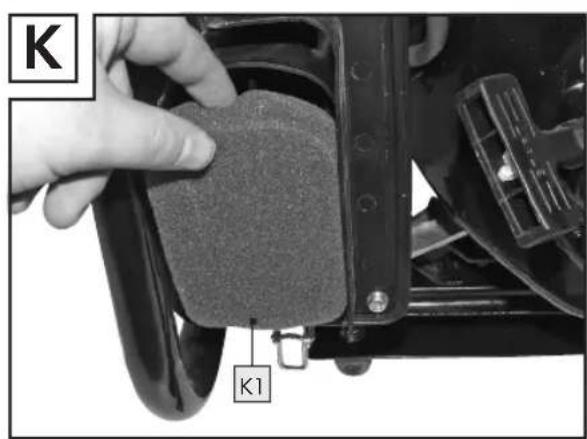

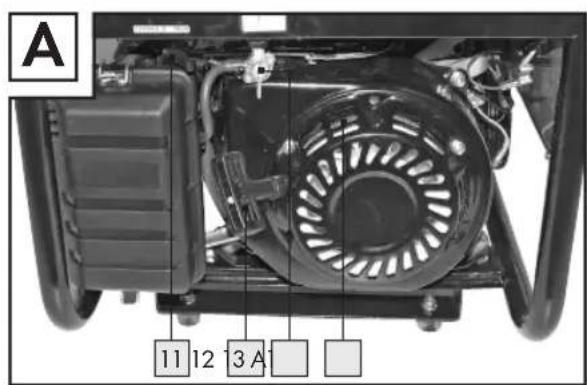

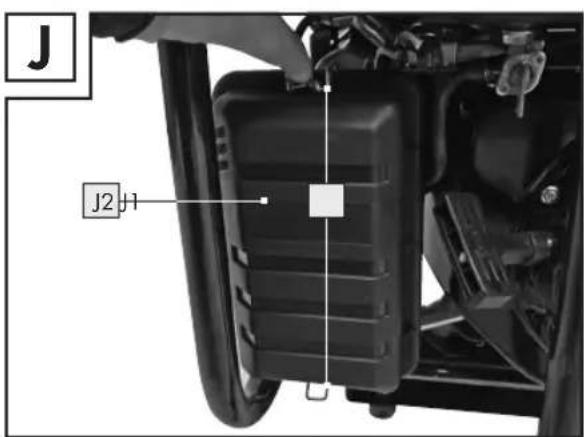

If the engine appears to be overloaded or misfires Cleaning Keep all safety devices, air vents (Fig. A/Item A1) and the motor housing free of dirt and dust as far as possible. Wipe the equipment 85052_par_Stromerzeuger_Content_CH.indd 46 20.11.12 11:4447 GB Cleaning, maintenance, storage, transport and ordering of spare partsOperation / Cleaning, maintenance, storage, transport and ordering of spare parts with a clean cloth or blow it down with com- pressed air at low pressure. We recommend that you clean the equipment immediately after you use it. Clean the equipment regularly with a damp cloth and some soft soap. Do not use cleaning agents or solvents; these may be aggressive to the plastic parts in the equipment. Ensure that no water can get into the interior of the equip- ment. Air filter In this connection, please also read the service information. Clean the air filter at regular intervals, and re- place it if necessary. Open both clips (Fig. J/J1) and remove the air filter cover (Fig. J/J2). Remove the filter elements (Fig. K/K1) Do not use abrasive cleaning agents or petrol to clean the elements. Clean the elements by tapping them on a flat surface. In cases of stubborn dirt first clean with soapy water, then rinse with clear water and air-dry. Assemble in reverse order. Spark plug (Fig. L - M) Check the spark plug for dirt and grime after 20 hours of operation and if necessary clean it with a copper wire brush. Thereafter service the spark plug after every 50 hours of operation. Pull off the spark plug boot (Fig. L) by twisting. Remove the spark plug (Fig. M/M1) with the supplied spark plug wrench

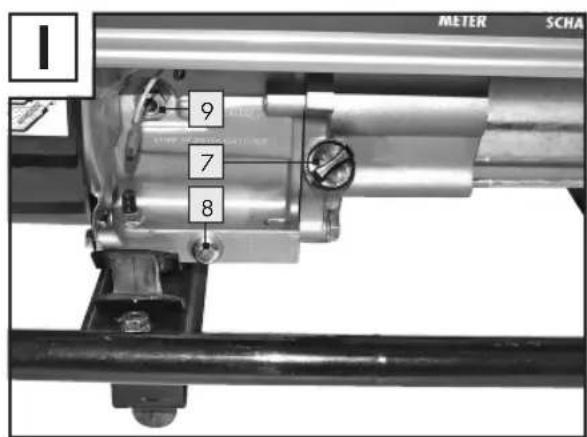

Assemble in reverse order. Changing the oil and checking the oil level (before using the equipment) The motor oil is best changed when the motor is at working temperature. Only use motor oil (15 W 40). Place the generator on a slightly inclined sur- face so that the oil drainage screw

is at the lower end. Open the oil filler screw

Open the oil drainage screw and let the hot engine oil drain out into a drip tray. After the old oil has drained out, close the oil drainage screw and place the generator on a level surface again. Fill in engine oil up to the top mark on the oil dip stick (approx. 0.6 liters). IMPORTANT! Do not screw the dipstick (oil filler screw) in to check the oil level, simply insert it up to the thread. Dispose of the waste oil properly. Low oil switch-off The low oil switch-off responds, if not enough en- gine oil is present. In this case, the engine will not start or switches off automatically after a short pe- riod of operation. A restart will only be possible af- ter topping-up the oil level (see Chapter „Changing the oil and checking the oil level (before using the equipment)“). Preparing the equipment for long-term storage

Warning: Do not empty the petrol tank in en-

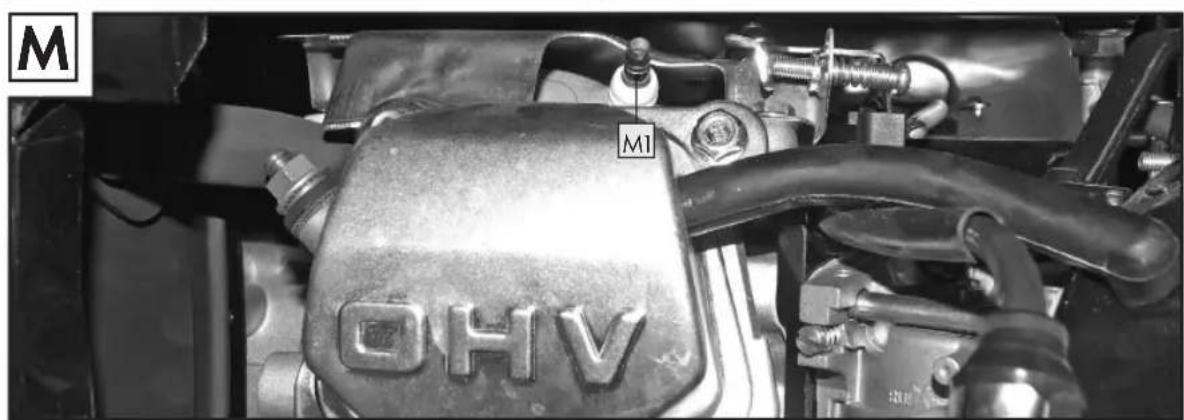

closed areas, near fire or when smoking. Petrol fumes can cause explosions and fire. Empty the petrol tank using a petrol suction pump. Petrol and oil have to be disposed off accor- ding to the regulations. Please inform yourself, where a suitable collection point is near you. 85052_par_Stromerzeuger_Content_CH.indd 47 20.11.12 11:4448 GB Troubleshooting guide / Maintenance schedule Cleaning, maintenance, storage, transport and ... / Disposal and recycling Start the engine and run it until the tank and fuel line are completely empty and the engine stalls. Please change the oil after an operation time of 20, respectively 50 hours. For this, remove the old oil from the warm engine and refill with new oil. Remove spark plug (Fig. M / Pos. M1). Fill about 20 ml of oil into the cylinder using an oil can. Pull the pull cord slowly, so that the oil protects the cylinder from the inside. Screw the spark plug back in. Clean the entire appliance to protect the paint. Store the appliance in a well ventilated area. Preparing the equipment for transport Empty the petrol tank using a petrol suction pump. Always let the engine run until it has used up the remainder of petrol in the tank. Empty the engine oil from the warm engine. Remove the spark plug boot (Fig. L) from the spark plug. Secure the equipment, e.g. with straps, against shifting. Ordering replacement parts Please provide the following information on all orders for spare parts: Model/type of the equipment Article number of the equipment ID number of the equipment For our latest prices and information please go to www.isc-gmbh.info Disposal and recycling The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Defec- tive components must be disposed of as special waste. Ask your dealer or your local council. For EU countries only Never place any electric power tools in your household refuse! To comply with European Directive 2002/96/EC concerning old electric and electronic equipment and its implementation in national laws, old electric power tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot. Recycling alternative to the return request: Instead of returning the equipment to the manufac- turer, the owner of the electrical equipment is obliged to ensure that the equipment is properly disposed of if he abandons ownership. The old equipment can be returned to a suitable collection point, that will dispose of the equipment in accordance with the national recycling and waste disposal regula- tions. This does not apply to any accessories or aids without electrical components supplied with the old equipment. 85052_par_Stromerzeuger_Content_CH.indd 48 20.11.12 11:4449 GB Troubleshooting guide / Maintenance schedule Cleaning, maintenance, storage, transport and ... / Disposal and recycling Troubleshooting guide Fault Cause Remedy Engine does not start Automatic oil cut-out has not responded Check oil level, top up engine oil Spark plug fouled Clean or replace spark plug (electrode spacing 0.6 mm) No fuel Refuel / have the petrol cock checked Generator has too little or no voltage Controller or capacitor defective Contact your dealer Overcurrent circuit-breaker has triggered Actuate the circuit-breaker and reduce the consumers Air filter dirty Clean or replace the filter Maintenance schedule Please adhere to the following maintenance periods in order to ensure a failure-free operation. IMPORTANT! The equipment must be filled with engine oil and fuel before it is started. Before each use After an operating period of 20 hours After an operating period of 50 hours After an operating period of 100 hours After an operating period of 300 hours Checking the engine oil

Changing the engine oil For the first time, then every 50 hours

Cleaning the petrol filter

85052_par_Stromerzeuger_Content_CH.indd 49 20.11.12 11:4450 GB Guarantee certificate Maintenance schedule Before each use After an operating period of 20 hours After an operating period of 50 hours After an operating period of 100 hours After an operating period of 300 hours Cleaning the spark plug Distance: 0.6 mm, replace if necessary Checking and readjusting the throttle vale on the carburetor

Cleaning the cylinder head

Important: The positions marked with “x*“ should only be carried out by an autho- rized dealer. The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of ISC GmbH. Technical changes subject to change. 85052_par_Stromerzeuger_Content_CH.indd 50 20.11.12 11:4451 GB Guarantee certificate Maintenance schedule Guarantee certificate IAN 85052 85052_par_Stromerzeuger_Content_CH.indd 51 20.11.12 11:4452 GB Declaration of conformity Declaration of conformity Generator PSE 2800 B2 (Parkside) Generator PSE 2800 B2 (Parkside) 85052_par_Stromerzeuger_Content_CH.indd 52 20.11.12 11:44IAN 85052
