USER MANUAL SPS 1.5 B2 SILVERCREST

GB/IE Operating instructions Page 1

Operating elements 3

Technical data 4

Safety instructions 5

Safety instructions for handling batteries 7

Inserting the battery 9

Tips and tricks 10

Using the appliance . 1 1

Removing and connecting the attachments 1 1

Using the bikini line trimmer 12

Using the eyebrow trimmer 14

Cleaning and care 17

Storage 17

Troubleshooting 18

Disposal 18

Appliance 19

Disposal of the packaging 20

Disposal of batteries 20

Kompernass Handels GmbH warranty 21

Service 23

Importer 23

Introduction

Congratulations on the purchase of your new appliance.

You have selected a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner.

Intended use

This appliance is intended solely for trimming eyebrows, the bikini line and the underarm area in private households. It is not suitable for commercial use! The device is not intended for any other purpose, nor for use beyond the scope described.

Claims of any kind for damages resulting from misuse, improper repairs, unauthorised modifications or the use of unauthorised spare parts are excluded.

The risk shall be borne solely by the user.

Package contents

Beauty trimmer
Protective cap for the eyebrow trimmer
Eyebrow trimmer
Eyebrow comb
Trimmer
Trimmer comb
Storage pouch

Cleaning brush
AA battery
Operating instructions

Extract all parts of the appliance from the carton and remove all packaging material. Check the package for completeness and signs of visible damage.

NOTES

If the delivery is incomplete or damage has occurred as a result of defective packaging or during transport, contact the Service hotline (see section Service).

Operating elements

See fold-out page for illustrations:

Protective cap for the eyebrow trimmer
Eyebrow trimmer comb
Eyebrow trimmer
Handset
5 Battery compartment cover
Cleaning brush
AA battery
Storage pouch
Bikini line trimmer
Bikini line trimmer comb

Technical data

Appliance
Voltage supply 1 x 1.5 V, type AA/LR6/Mignon
Voltage 1.5 V	= (DC)
Protection type	IPX4 Protection against water splashes from any direction.
Protection class	III / (protection through low voltage)

Safety instructions

• Check the device for visible external damage before use. Do not operate an appliance which has been damaged or dropped.

DANGER! Do not allow children to play with the packaging material! Keep all packaging materials away from children.

There is a risk of suffocation!

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised not to play with the appliance. Cleaning and maintenance may not be carried out by unsupervised children.

• Do not expose the device to direct sunlight or high temperatures. Otherwise it may overheat and be irreparably damaged.

DANGER! Do not operate the device close to naked flames (e.g. candles) and do not place burning candles on or next to the device. This will help to prevent fires.
- To avoid personal injury, do not use the appliance with a damaged or faulty attachment.
- Switch the device off immediately if you hear any unusual noises, smell fumes or notice any smoke. Have the device checked by a qualified specialist before using it again.
- All repairs must be carried out by authorised specialist companies or by the customer service department. Improper repairs may put the user at risk. It will also invalidate any warranty claims.
- Do not make any unauthorised modifications or alterations to the appliance. This appliance may not be opened by the user.
WARNING! Keep the appliance dry at all times.

Safety instructions for handling batteries

WARNING! Mishandling the batteries can cause fires, explosions, leakages or other hazards!

• Keep batteries out of the reach of children.
• Make sure that no one can swallow the batteries.
  If a battery is swallowed, seek medical assistance immediately.
  Always use the stated battery type.
• Never try to recharge non-rechargeable batteries.
• Remove rechargeable batteries from the appliance before recharging them.
• Do not throw batteries into a fire or water.
• Never expose batteries to high temperatures or direct sunlight.
  Never open or deform batteries. Do not use modified or damaged batteries.

Do not short-circuit the terminals.

• Remove depleted batteries from the appliance and dispose of them safely.

use different types of batteries together or mix new batteries with used batteries.

ensure that the batteries are installed in the appliance with the correctly aligned polarity.

• Remove the batteries if you do not intend to use the appliance for an extended period.

• Check the condition of the batteries at regular intervals. Leaking batteries can cause injuries as well as damage to the appliance.

Always use protective gloves when handling leaking batteries! Clean the battery and appliance contacts and the battery compartment with a dry cloth. Do not let the chemicals get into contact with your skin and mucous membranes, especially your eyes. In case of contact with chemicals, wash the affected area with plenty of water and immediately seek medical attention.

Inserting the battery

1) Turn the battery compartment cover ⑤ clockwise until the ▲ marking on the battery compartment cover ⑤ points towards the ▼ marking on the handset ④.
2) Pull the battery compartment cover 5 off the housing.
3) If necessary, remove the used batteries.
4) Insert the AA battery ⑦ into the handset ④ with the positive terminal (+) first.
5) Reattach the battery compartment cover ⑤ to the handset ④ with the ▲ marking on the battery compartment cover ⑤ pointing towards the ▼ marking on the handset ④.
6) Turn the battery compartment cover ⑤ anticlockwise until the ▲ marking on the battery compartment cover ⑤ points towards the O marking on the handset ④.

Tips and tricks

NOTE

Do not use the appliance if...
- You have sunburn on the specific part of the body.
- You have skin irritation or redness.
- You have a skin disease such as neurodermatitis.
- You have pimples, moles or warts on the affected parts of the body.
- You have wounds, open sores or raised scars on the affected parts of the body.
Test the appliance in a small, usually covered spot first in order to establish skin compatibility.
Before using the appliance, treat the skin with a scrub treatment or a massage glove. This helps remove dead skin cells, prevents ingrowing hair and make fine hair stand up. This enables the appliance to cut the hair better.
Only use the appliance on dry, clean hair.
After using the appliance, treat the skin with a moisturising lotion or cream. Ideally, use a cream containing aloe vera or camomile extracts to soothe and maintain the skin.

Using the appliance

Removing and connecting the attachments

The supplied attachments (bikini line trimmer 9 and eyebrow trimmer 3) are connected and removed in the same way. Ensure the correct orientation of the attachment to the handset 4.

• Removing the attachment:

1) Turn the attachment anticlockwise until the marking on the attachment points towards the marking on the handset 4.

2) Remove the attachment from the handset 4.

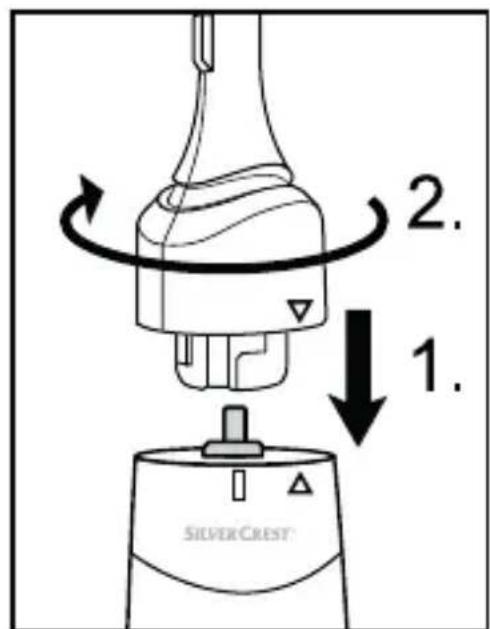

• Connecting the attachment:

(Fig. 1)

1) Fix the attachment to the handset 4 such that the marking on the attachment faces towards the marking on the handset 4 (see Fig. 1).
2) Turn the attachment clockwise until the marking on the attachment points towards the marking on the handset (see Fig. 1).

Using the bikini line trimmer

To trim your bikini line or underarm hair, proceed as follows:

1) Attach the bikini line trimmer to the handset as described in the section "Removing and connecting the attachments".

NOTE

If you wish to trim your hair to a specific length, you can attach the bikini line trimmer comb ⑩ to the bikini line trimmer ⑨:

• plug the length control unit of the bikini line trimmer comb 10 into the gap on the bikini line trimmer 9 (see Fig. 2).

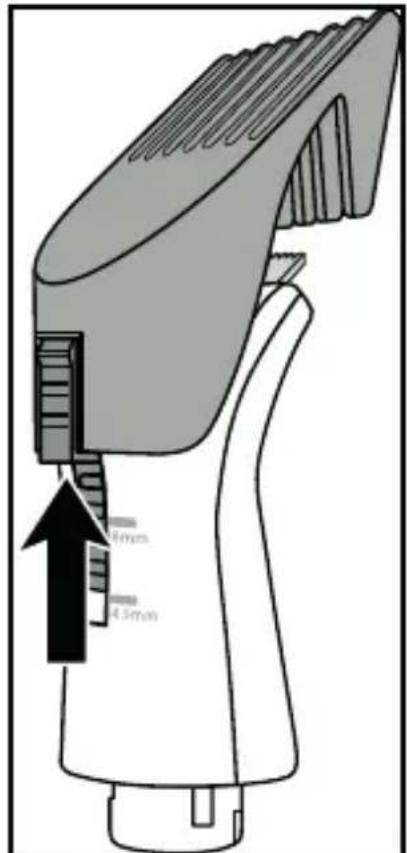

• Lock the bikini line trimmer comb ⑩ at the desired length. The further you push the bikini line trimmer comb ⑩ into the gap on the bikini line trimmer ⑨ , the shorter your hair will be trimmed.

(Fig. 2)

Length settings of the bikini line trimmer comb ⑩

Level 1 (pushed all the way in)	3.5 mm
Level 2 4.5 mm
Level 3 6 mm
Level 4 8 mm

2) To switch the appliance on, turn the battery compartment cover 5 anticlockwise until the marking on the battery compartment cover 5 points towards the marked on the handset 4.
3) Move the bikini line trimmer against the direction of growth across the patch of skin to be shaved.
4) To switch the appliance off, turn the marking of the battery compartment cover ⑤ to the O marking on the handset ④.

NOTE

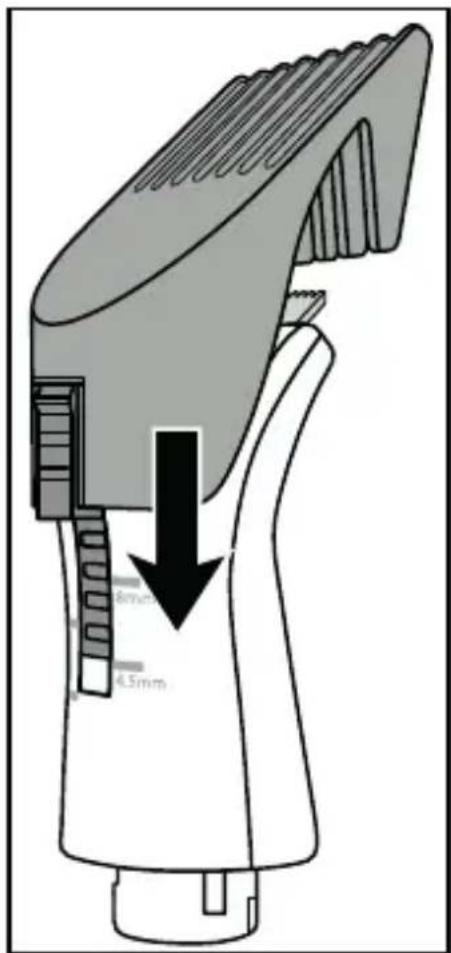

To remove the bikini line trimmer comb ⑩ from the bikini line trimmer ⑨, push the length control unit down while simultaneously pulling the bikini line trimmer comb ⑩ off upwards (see Fig. 3).

(Fig.3)

Using the eyebrow trimmer

To trim your eyebrows or remove facial hair, proceed as follows:

1) Attach the eyebrow trimmer ③ to the handset ④ as described in the section "Removing and connecting the attachments".
2) To trim the hair to a length of 3 ~mm or 6 ~mm , additionally attach the eyebrow trimmer comb ② to the eyebrow trimmer ③:

(Fig.4)

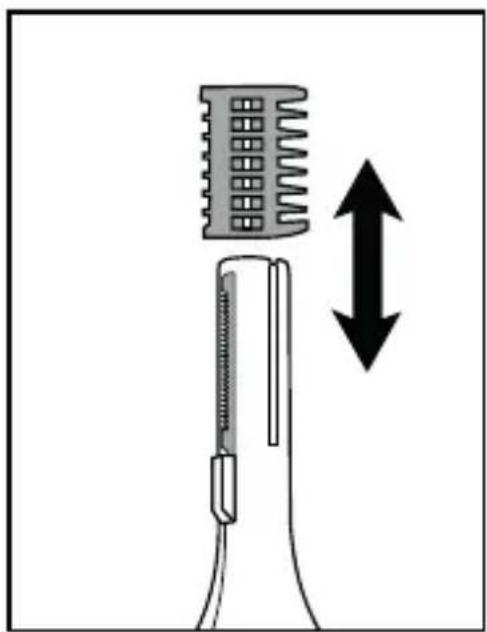

Lock the eyebrow trimmer comb 2 into the guide rail on the eyebrow trimmer 3 (see Fig. 4). Ensure that the desired length of the eyebrow trimmer comb 2 is adjacent to the side of the eyebrow trimmer 3 which has the longer blade.

The short edges of the eyebrow trimmer comb ② allow you to trim your eyebrows to 3mm and the long edges of the eyebrow trimmer comb ② allow you to trim your eyebrows to 6mm evenly; to do this, apply the eyebrow trimmer comb ② vertically to your skin (Fig. 5).

(Fig. 5)

3) In order to switch the appliance on, turn the battery compartment cover 5 anticlockwise until the marking on the battery compartment cover 5 points towards the I marking on the handset 4.

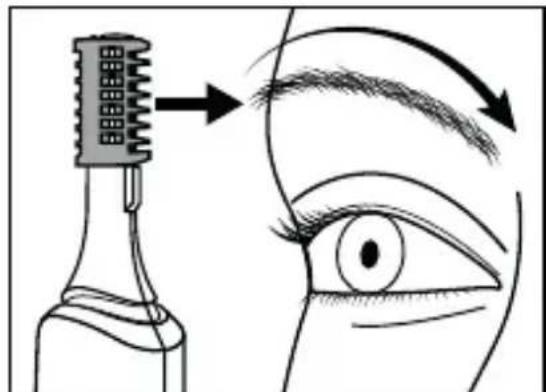

4) Place the eyebrow trimmer ③ with the desired length of the eyebrow trimmer comb ② against the beginning of the eyebrow you are about to trim. Move the tip of the eyebrow trimmer comb ② over the eyebrow against the direction of growth several times.
5) To switch the appliance off, turn the marking of the battery compartment cover ⑤ to the O marking on the handset ④.

NOTE

• You can use the eyebrow trimmer ③ without the eyebrow trimmer comb ② in order to shape the contours of your eyebrows. Carefully use the short blade of the eyebrow trimmer ③ to remove stray hairs at the edges of your eyebrows. Move the blade against the direction of growth.

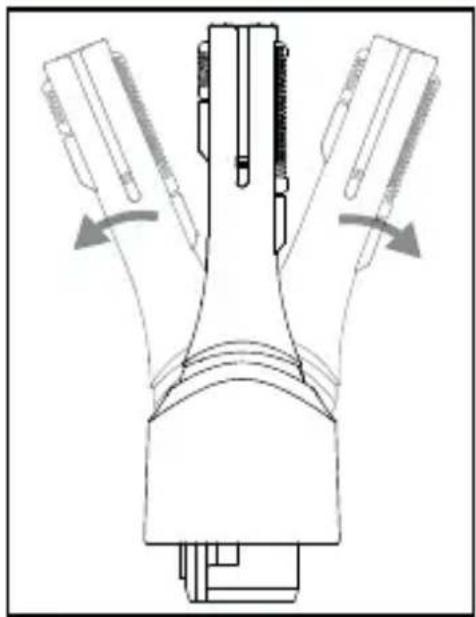

  For precise adjustment to the facial contours, the eyebrow trimmer can be tilted to the right or left (Fig. 6).

(Abb. 6)

Cleaning and care

CAUTION - SPROPERTY DAMAGE!

Never immerse the appliance in water or other liquids!
Ensure that the appliance is switched off for cleaning.

Before cleaning the attachments 3 / 9 , remove the combs 2 / 10 from the attachments 3 / 9
After each use, clean the attachments 3 / 9 using the supplied cleaning brush ⑥ to remove loose hair.
Regularly clean and disinfect the attachments ③ / 9 with disinfectant spray.

■ Wipe the appliance with a damp cloth. If required, use some mild detergent on the cloth. Ensure that the appliance is completely dry before the next use.

You can also clean the attachments 3 / 9 under running water:

• Remove the attachment 3 / 9 from the handset ④ as described in the section "Removing and connecting the attachments".
• Clean the attachments 3 / 9 under running water.
• Ensure that the attachments 3 / 9 are completely dry before using them again.

Storage

Always protect the eyebrow trimmer 3 using the supplied protective cap 1.
Store the appliance and all accessories in a dry and dust-free location in the supplied storage pouch 8.

Troubleshooting

The appliance is not working:

Replace the battery.
The appliance is defective. Contact the Customer Service department.

Not all hairs are plucked:

■ You are working too fast. Move the appliance over your skin slowly.

Disposal

Applies only to France:

The product, its packaging and the operating instructions are recyclable. They are subject to an extended manufacturer responsibility and will be collected separately.

Appliance

The adjacent symbol of a crossed-out dustbin means that this appliance is subject to Directive 2012/19/EU. This directive states that this appliance may not be disposed of in the normal household waste at the end of its useful life, but must be taken to specially set-up collection locations, recycling depots or disposal companies.

The disposal is free of charge for the user. Protect the environment and dispose of this appliance properly.

If your old appliance has stored any personal data, you are responsible for deleting it yourself before returning it.

If it is possible to do so without destroying the old appliance, remove the old batteries or rechargeable batteries before returning the appliance for disposal and take them to a separate collection point. In the case of permanently installed rechargeable batteries, you must indicate during disposal that the appliance contains a battery.

Your local community or municipal authorities can provide information on how to dispose of the worn-out product.

Disposal of the packaging

The packaging materials have been selected for their environmental friendliness and ease of disposal and are therefore recyclable. Dispose of packaging materials that are no longer needed in accordance with applicable local regulations.

Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal, if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1-7: plastics, 20-22: paper and cardboard, 80-98: composites.

Disposal of batteries

Batteries/rechargeable batteries must be treated as hazardous waste and must therefore be disposed of in an environmentally sound manner by appropriate bodies (dealers, specialist dealers, public municipal bodies, commercial disposal companies). Batteries/rechargeable batteries may contain toxic heavy metals.

The heavy metals contained are identified by letters below the symbol: Cd = cadmium, Hg = mercury, Pb = lead.

For this reason, do not dispose of batteries/rechargeable batteries in domestic waste. Take them to a specialist collection point.

Only return batteries that are fully discharged.

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase.

If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion). This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches, batteries or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number
(IAN) 444868_2307 available as proof of purchase.
■ You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product.
If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com.

This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN) 444868_2307.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Servicelreland

Tel.: [phone]

E-Mail: [e-mail]

IAN444868_2307

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Inhaltsverzeichnis

Einführung 26

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DEUTSCHLAND

www.kompernass.com

Table des matieres

Introduction 50

Chere cliente, cher client,

Chere cliente, cher client,

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALLEMAGNE

www.kompernass.com

Inhoud

Inleiding 78

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DUITSLAND

www.kompernass.com

Obsah

Uvod 102

POZOR - HMOTNÉŠKODY!

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NÉMECKO

www.kompernass.com

Spistresci

Wstep 124

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NIEMCY

www.kompernass.com

Obsah

Uvod 148

Urcené použitie 148

Obsah dodávky 148

Ovladace privky 149

Technické udaje 150

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NEMECKO

www.kompernass.com

Indice

Introduccion 172

Uso previsto 172

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALEMANIA

www.kompernass.com

Indholdsfortegnelse

Introduktion 196

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

TYSKLAND

www.kompernass.com

Indice

Introduzione 218

Uso conforme 218

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANIA

www.kompernass.com

Tartalomjegyzék

Bevezeto 242

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NÉMETORSZÁG

www.kompernass.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com
