USER MANUAL D4015 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

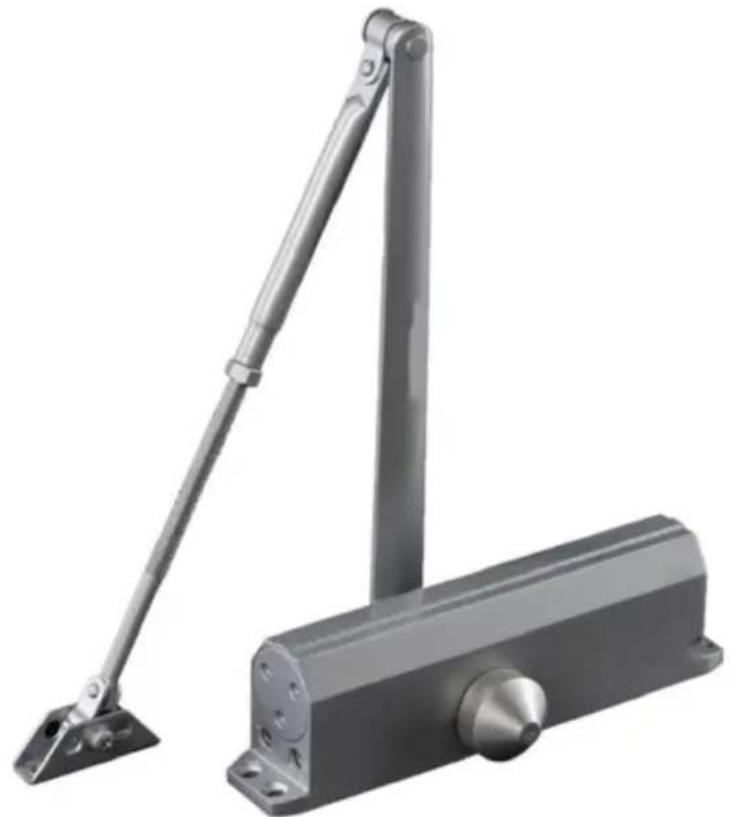

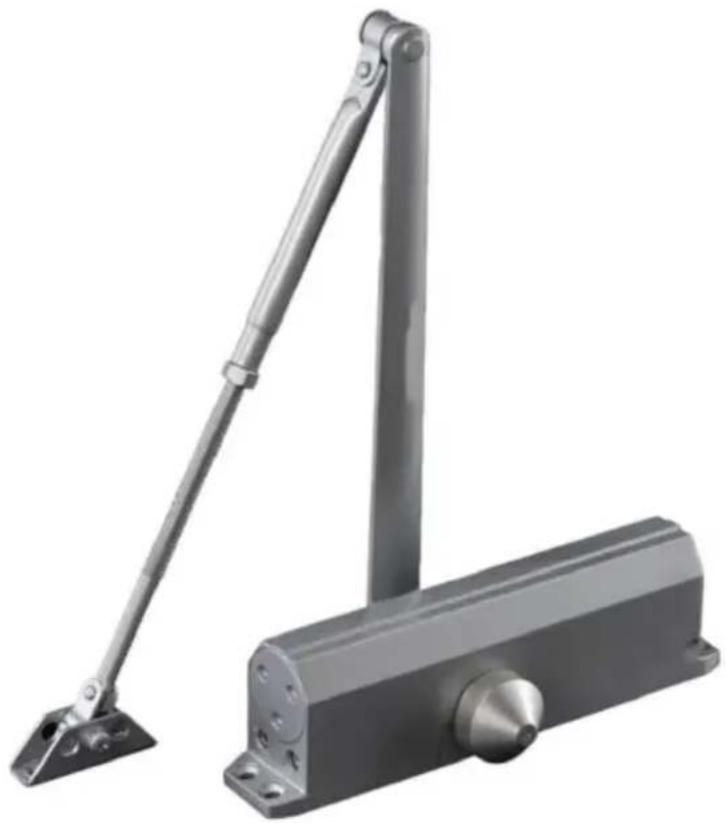

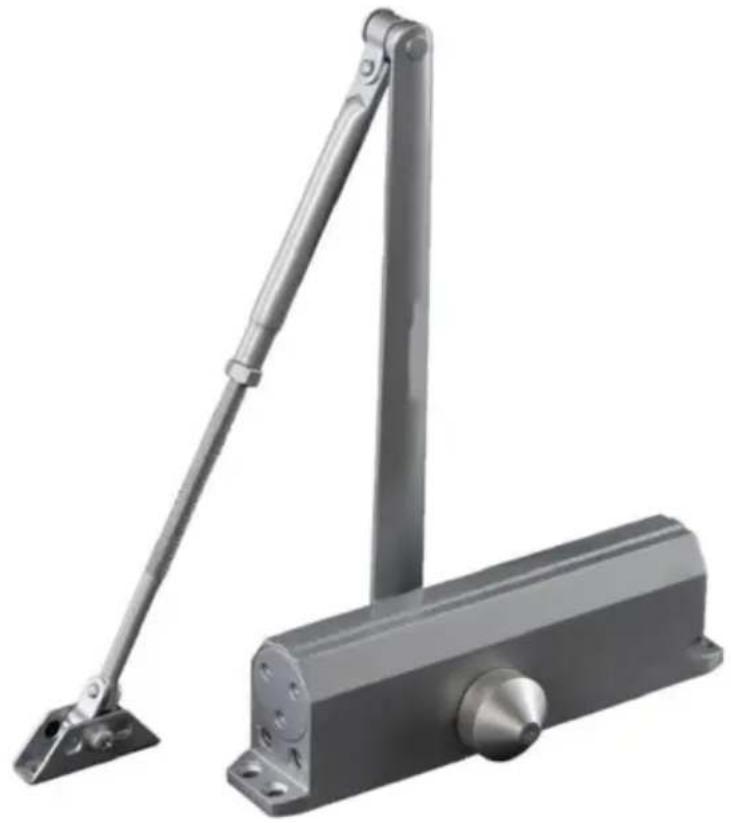

DOOR CLOSER

MODEL:D4015 / D4016

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

DOOR CLOSER

MODEL: D4015 / D4016

Metallic hand-operated door lock with adjustable lever and base (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING:

1. Do not allow children to climb on the unit.
2. Keep children and pets away during assembly.

ASSEMBLY PRECAUTIONS

1. Please assemble the product in strict accordance with the instructic Incorrect assembly could be hazardous.
2. Please wear safety goggles and work gloves properly during assem
3. Do not try to assemble the product when feeling tired or when ur influence of alcohol, drugs or medication.
4. Load bearing capacity and other product parameters are applied to properly and completely assembled product only.
5. Separate and count all parts and hardware.
6. Prepare the following tool: Philips Head Screwdriver.
7. If using power tools, please be careful to slow down and stop wr needed.
8. Two people are required for assembly.
9. Follow the intended uses only.
10. Use on stable surfaces only.
11. Regularly inspect for signs of wear, damage, or loose parts.

SAVE THESE INSTRUCTIONS

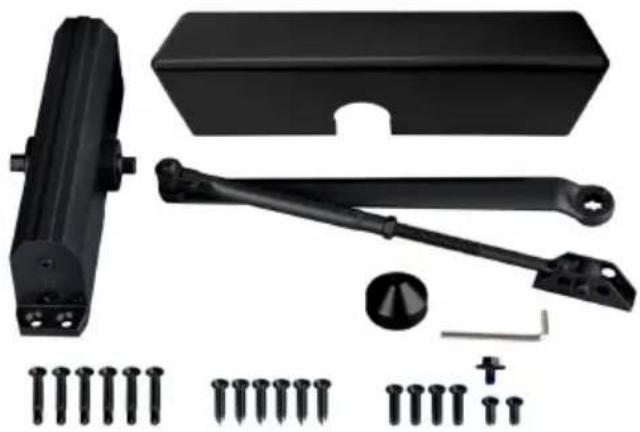

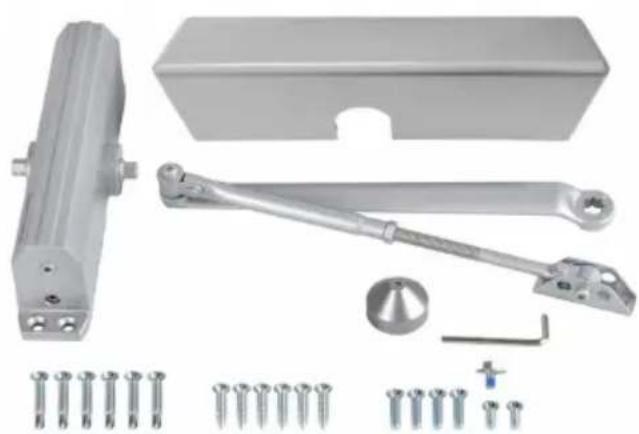

PART LIST

When unpacking this product, check to make sure the parts listed be are included and carefully inspect for any damage that may have occurred during transit. If any part is missing or damaged, do not attempt to assemble or use the product.

Collection of mechanical components including a sliding contactor, bracket, and screws (no text or symbols visible)

Collection of black mechanical components including a sliding contactor, bracket, and screw fasteners (no text or symbols visible)

NO	PICTURE	PART NAME	QTY
A		Door closer body	1
B		HO Arm	1
C		Rocker Arm Bolt M6×10	1
D		Wooden Doors Screw ST6.3×30	6
E		Hex Wrench	1
F	[X3CV]	Self-tapping Screw ST6.3×38	6
G		Metal Doors Screw 1/4-20×16	2
H		Metal Doors Screw 1/4-20×25	4
I		Pinion Cap	1
J		Plastic Cover	1

PRODUCT PAREMETERS

Model	D4015	D4016
Material	Aluminum	Aluminum
Color	Silvery or Black	Silvery or Black
Door Max Load T Use	265 lbs	330 lbs

INSTALLATION AND OPERATION INSTRUCTIONS

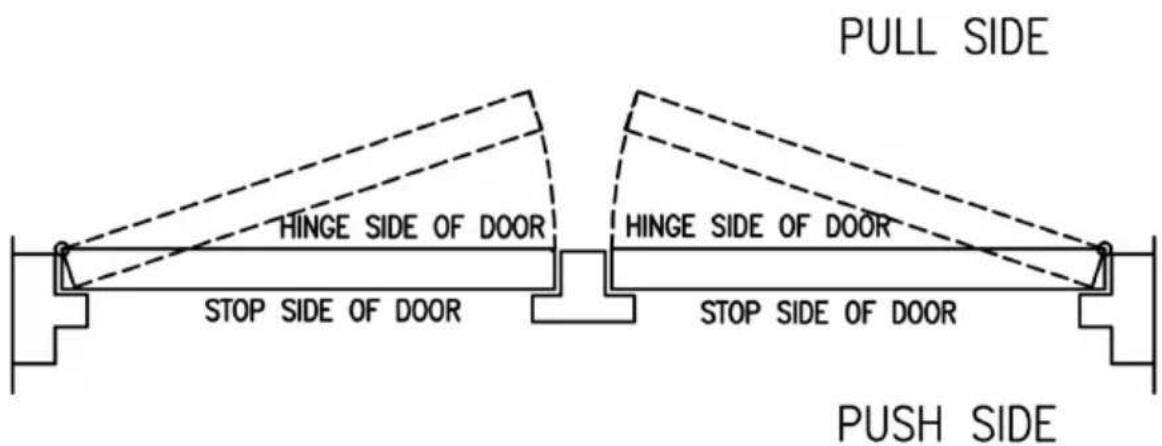

1. Chart to determine hand of door.

PULL SIDE HINGE SIDE OF DOOR HINGE SIDE OF DOOR STOP SIDE OF DOOR STOP SIDE OF DOOR PUSH SIDE

THIS IS A LEFT HAND DOOR

THIS IS A RIGHT HAND DOOR

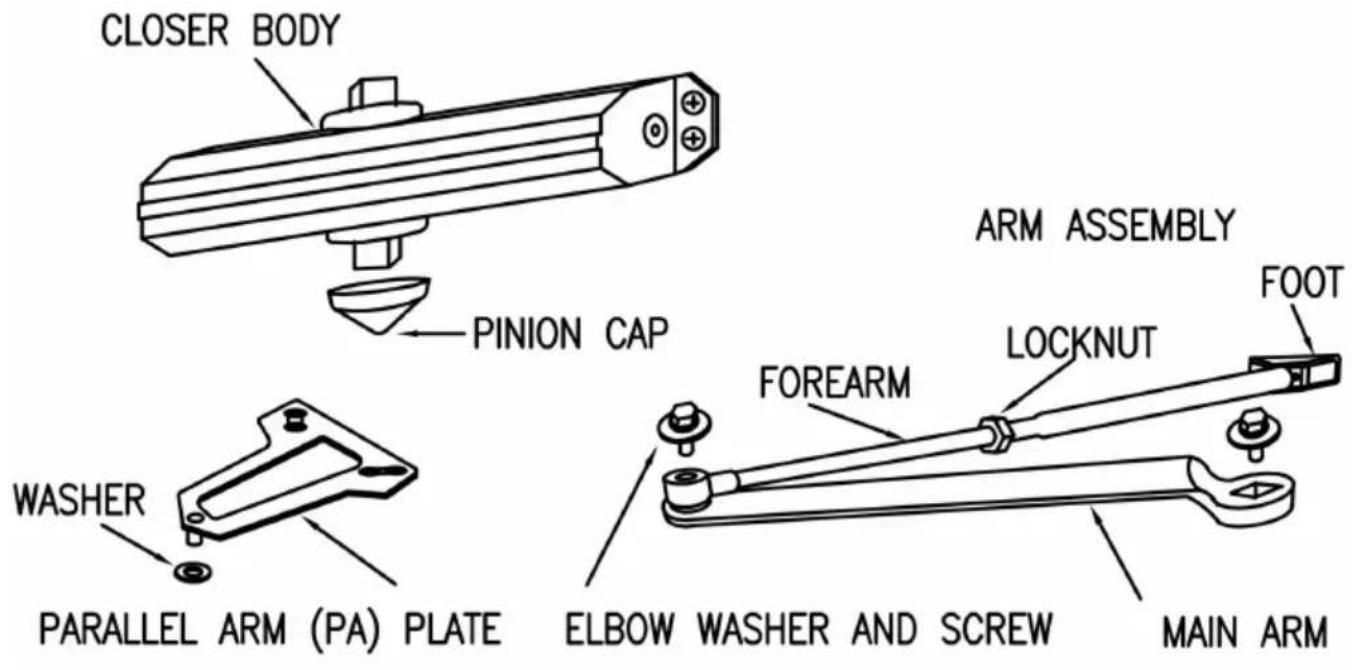

2.Components.

CLOSER BODY PINION CAP ARM ASSEMBLY FOOT WASHER PARALLEL ARM (PA) PLATE FOREARM LOCKNUT ELBOW WASHER AND SCREW MAIN ARM

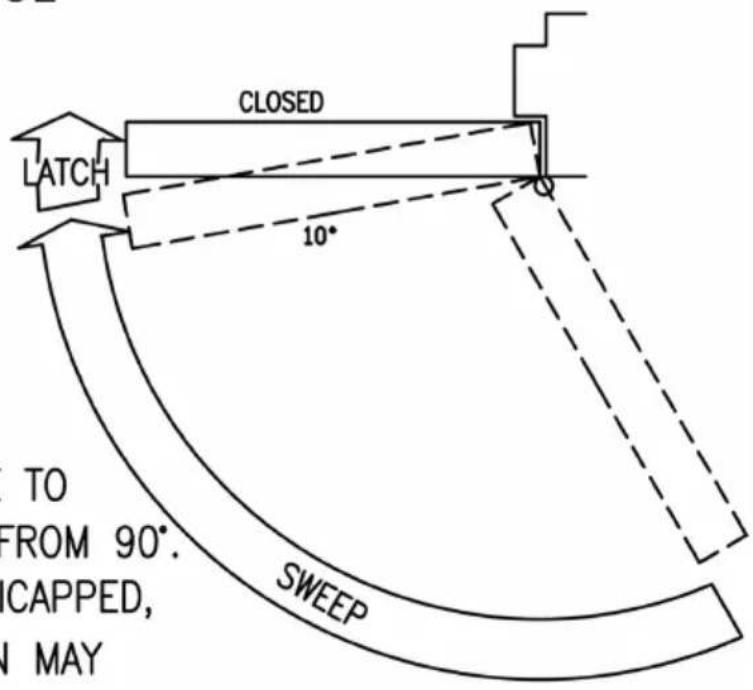

3. Control Function.

CLOSING SPEED CONTROL

CAUTION DO NOT BACK VALVES OUT OF CLOSER OR A LEAK WILL RESULT

ATTENTION:

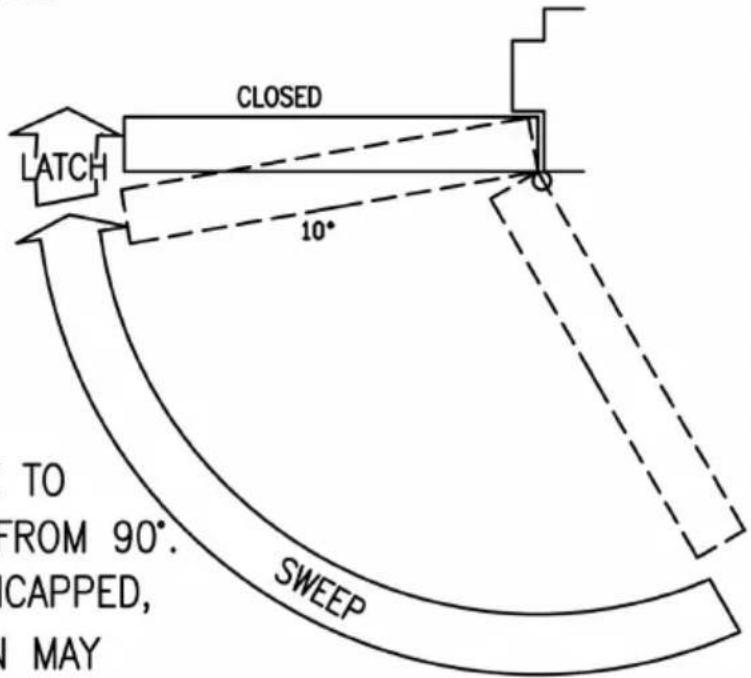

ADJUST CLOSING SPEED TIME TO BETWEEN 4 TO 6 SECONDS FROM 90°. USE OF THE DOOR BY HANDICAPPED, ELDERLY OR SMALL CHILDREN MAY REQUIRE LONGER CLOSING TIME.

CLOSED LATCH 10° TO FROM 90°. CAPPED, I MAY SWEEP

STANDARD CLOSING CYCLE

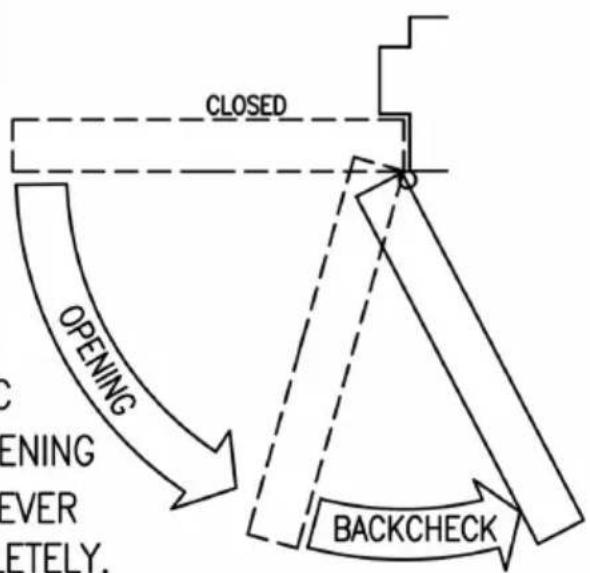

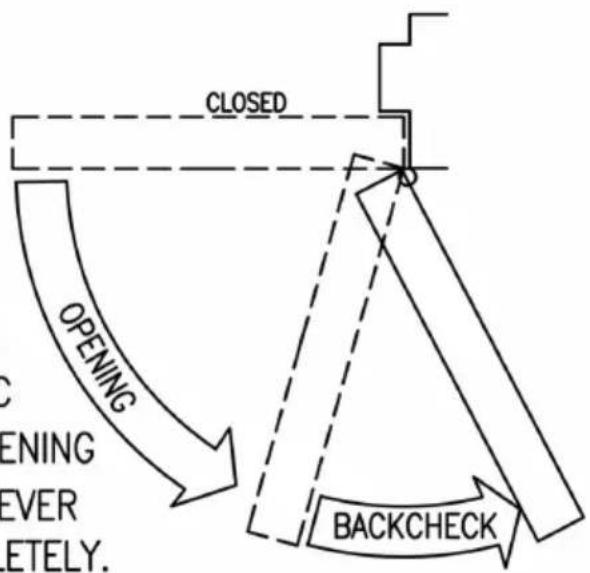

OPENING DOOR CONTROL

CAUTION

DO NOT BACK VALVES OUT OF

CLOSER OR A LEAK WILL RESULT

ATTENTION:

BACKCHECK ("BC") VALVE

CONTROLS THE HYDRAULIC

RESISTANCE TO DOOR OPENING

IN BACKCHECK RANGE. NEVER

CLOSE THIS VALVE COMPLETELY.

IT IS NOT TO PROVIDE A POSITIVE STOP.

4. Final adjustment and regulating procedures.

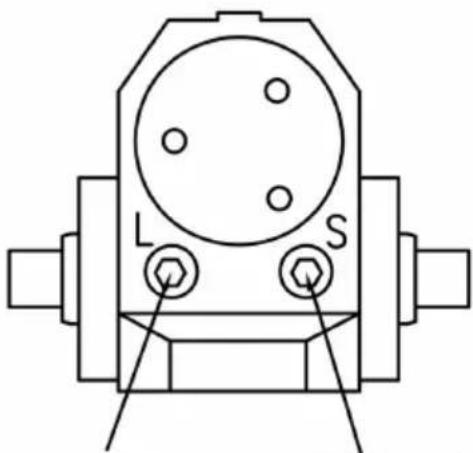

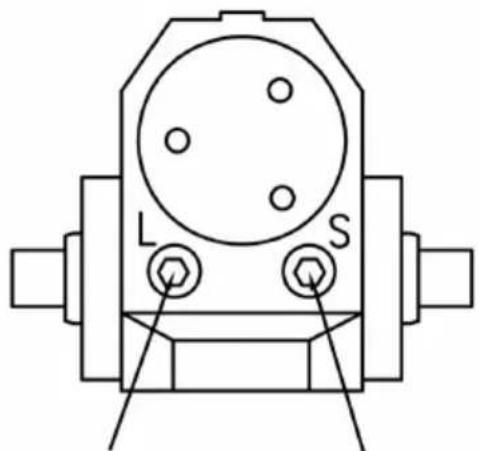

REGULATING DOOR SPEED AND LATCHING SPEED

TURN SPEED REGULATING VALVE CLOCKWISE TO SLOW DOWN OR COUNTER CLOCKWISE TO SPEED UP DOOR MOVEMENT

L S

THIS VAVLE CONTROLS LATCHING SPEED

THIS VAVLE CONTROLS DOOR SWEEP SPEED

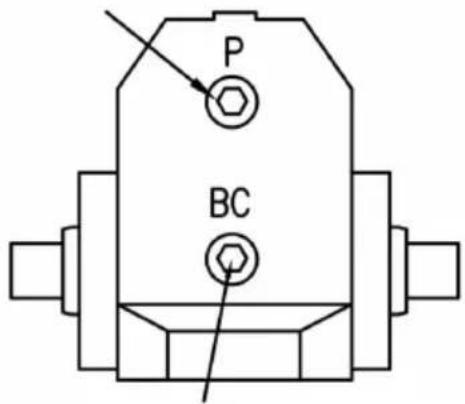

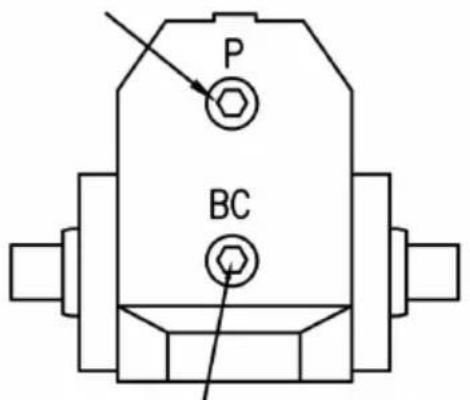

REGULATING SPRING POWER REGULATING BC POWER

POWER ADJUSTMENT SCREW. TURN THIS SCREW CLOCKWISE TO INCREASE OR COUNTER CLOCKWISE TO DECREASE.

P BC

TURN BC REGULATING VALVE CLOCKWISE TO INCREASE OR COUNTER CLOCKWISE TO DECREASE. NEVER CLOSE THIS VALVE COMPLETELY.

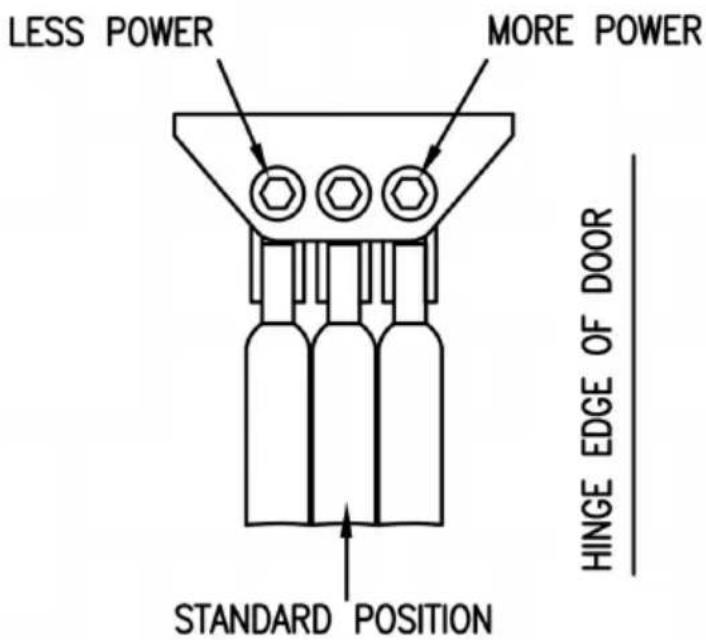

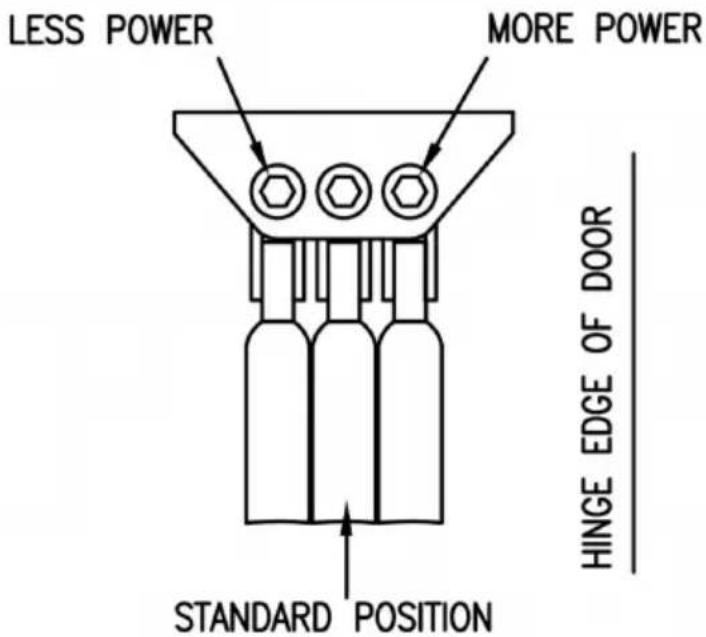

ADJUSTING FOOT FOR CLOSING POWER

MOVE FOOT PIVOT TO HOLE AS ILLUSTRATED BELOW

LESS POWER MORE POWER STANDARD POSITION HINGE EDGE OF DOOR

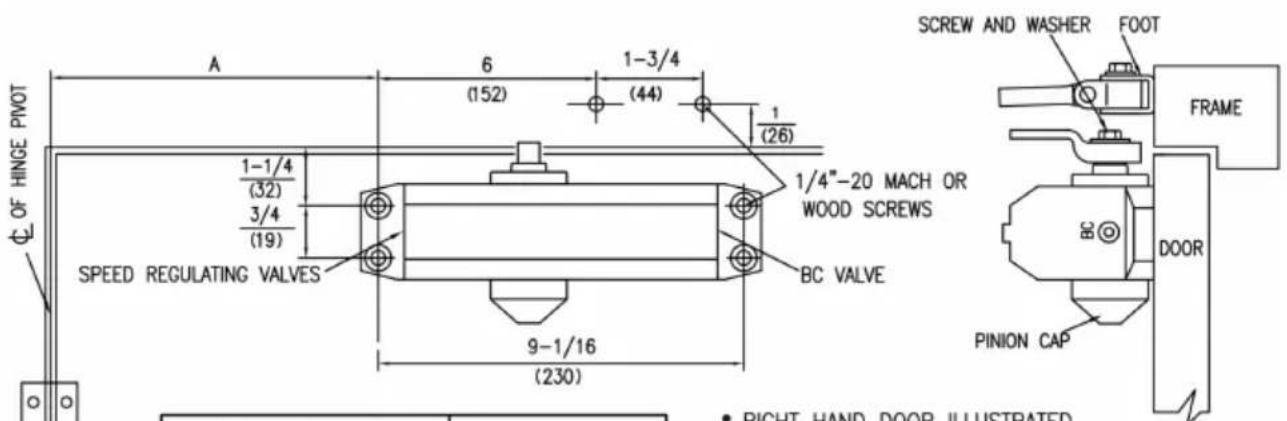

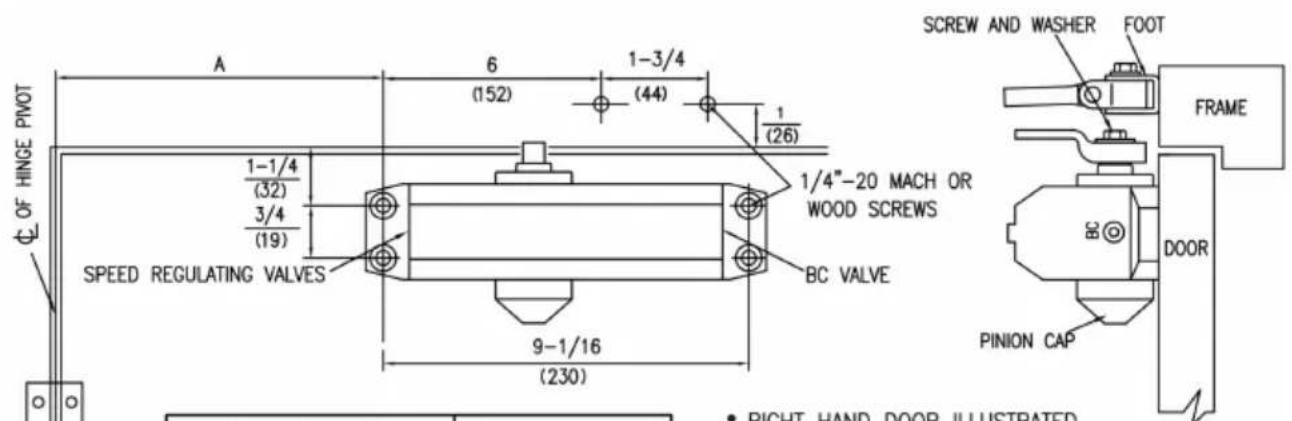

5.Regular Arm installaion.

A 6 1-3/4 (152) (44) 1 (26) 1-1/4 (32) 3/4 (19) SPEED REGULATING VALVES 1/4"-20 MACH OR WOOD SCREWS BC VALVE 9-1/16 (230) SCREW AND WASHER FOOT FRAME DOOR PINION CAP ● RIGHT HAND DOOR ILLUSTRATED

DIMENSIONS "A"		OPENING
inches	mm
7	178	T100°
6	152	101°T0120°
3-1/2	89	*121°T0180°

• RIGHT HAND DOOR ILLUSTRATED SAME DIMENSIONS APPLY TO LEFT HAND DOOR

• MEASURED FROM HINGE € DIMENSIONS ARE IN inches (mm)

• DO NOT SCALE DRAWING

* Door/Wall/Hardware/Jamb conditions permitting

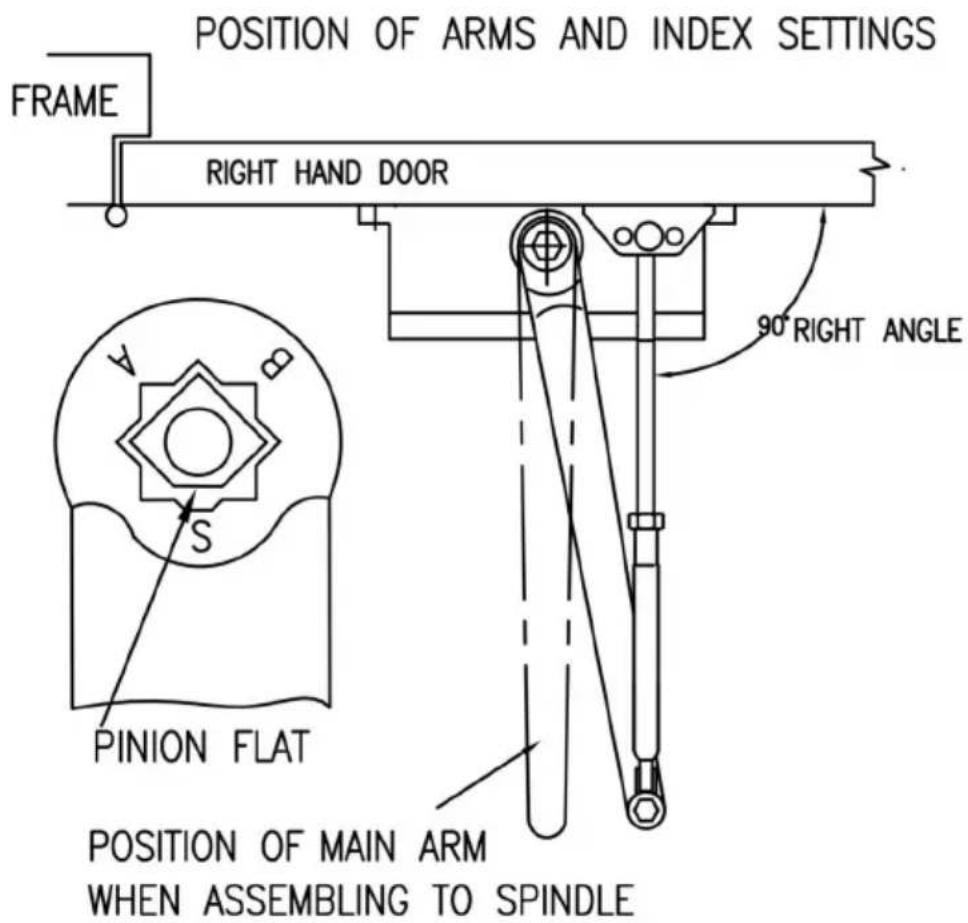

POSITION OF ARMS AND INDEX SETTINGS FRAME RIGHT HAND DOOR 90° RIGHT ANGLE PINION FLAT POSITION OF MAIN ARM WHEN ASSEMBLING TO SPINDLE

Installation Instructions

1. Select degree of door. Use dimensions shown in chart and illustrate above to mark location of attaching screws on door and frame holes.
2. Assemble main arm to closer.
3. Attach closer to door with speed regulating valves toward hing
4. Attach the foot of the forearm to frame.
5. Adjust length of forearm to position forearm at right angle to when connected to main arm at elbow use washer and screw secure pivot connection. Tighten lock nut on forearm.
6. Snap pinion cap over spindle at bottom of closer.
7. Adjust closer.

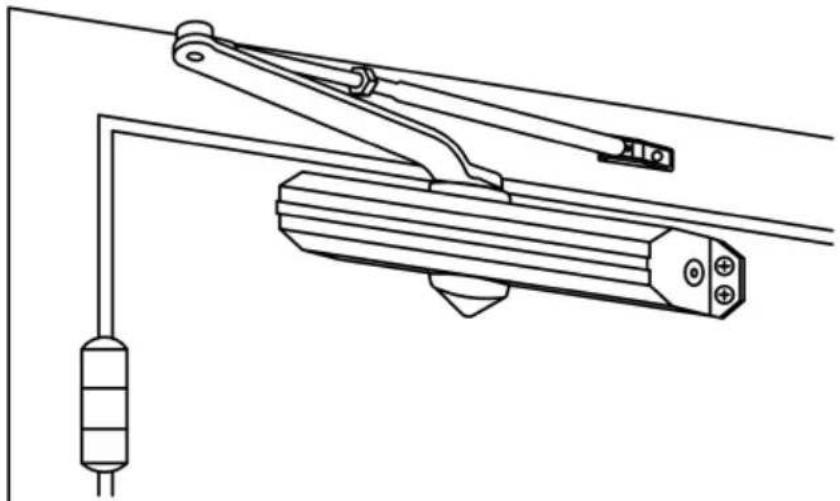

Technical line drawing of a mechanical lever system with a cylindrical component attached (no text or symbols)

The chart is suitable for power adjustment door closer.

MAXIMUM DOOR WIDTH		FULL TURNS REQUIRED
EXTERIOR DOORS	INTERIOR DOORS
——	5 lb-f*	13 TURNS C.C.W.
8.5 lb-f*	34" (864)	9 TURNS C.C.W.
30" (762)	38" (962)	5 TURNS C.C.W.
36" (914)	48" (1219)	0 TURNS
42" (1067)	54" (1372)	5 TURNS C.W.
48" (1219)	60" (1524)	10 TURNS C.W.

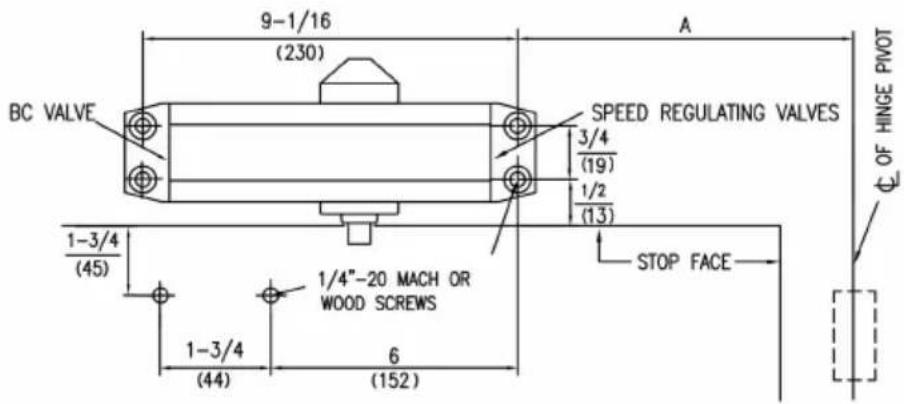

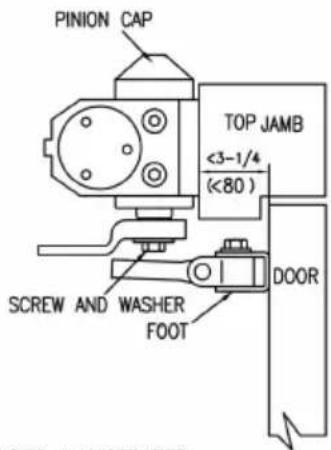

6.Top JAMB installation

9-1/16 (230) BC VALVE SPEED REGULATING VALVES 3/4 (19) 1/2 (13) 1-3/4 (45) 1/4"-20 MACH OR WOOD SCREWS 1-3/4 (44) 6 (152) STOP FACE A Φ OF HINGE PIVOT

PINION CAP TOP JAMB <3-1/4 (<80) SCREW AND WASHER FOOT DOOR

DIMENSIONS "A"		OPENING
inches	mm
7-1/2	191	T100°
6	152	101°TO120°
3-1/2	89	*121°TO180°

* Door/Wall/Hardware/Jamb conditions permitting

• RIGHT HAND DOOR ILLUSTRATED SAME DIMENSIONS APPLY TO LEFT HAND DOOR
• MEASURED FROM HINGE € DIMENSIONS ARE IN inches (mm)
• DO NOT SCALE DRAWING

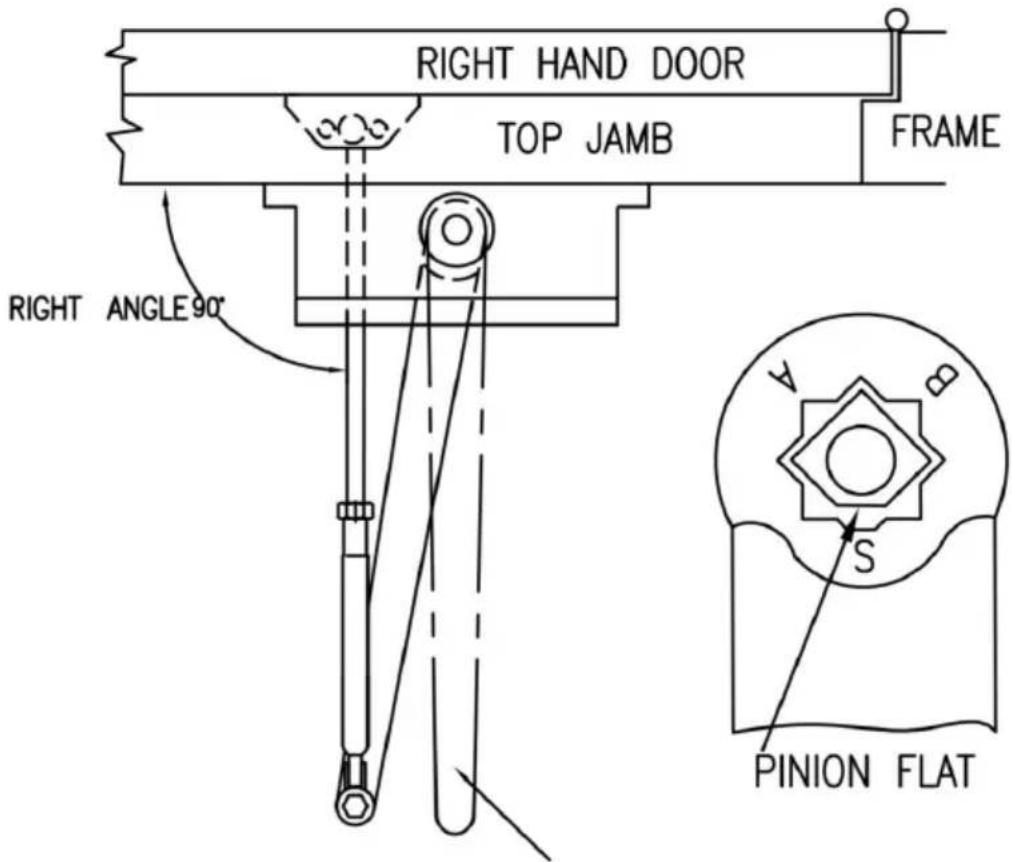

Position of arms and index settings

RIGHT HAND DOOR TOP JAMB FRAME RIGHT ANGLE 90° PINION FLAT

POSITION OF MAIN ARM
WHEN ASSEMBLING TO SPINDLE

Installation instructions

1. Select degree of door. Use dimensions shown in chart and illustratic above to mark location of attaching screws on door and frame prepar holes.
2. Assemble main arm to closer.
3. Attach closer to frame with speed regulating valves toward hinge.
4. Attach the foot of the forearm to door.
5. Adjust length of forearm to position forearm at right angle to frame connected to main arm at elbow use washer and screw provided to pivot connection. Tighten lock nut on forearm.
6. Snap pinion cap over spindle at bottom of closer.
7. Adjust closer.

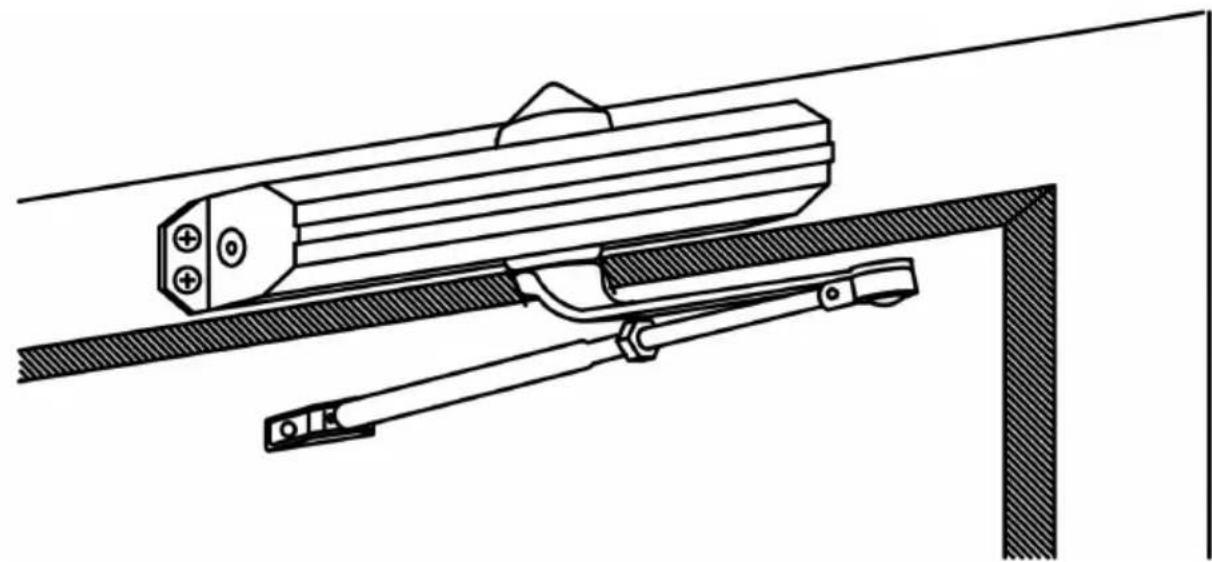

Technical line drawing of a mechanical assembly with a cylindrical component and lever mechanism (no text or symbols)

About Power Adjustment

Before installation, Adjust the spring power as chart in page 2. Adjust spring power DO NOT exceed the maximum turn.

The spring power has been reset on 0 turns in factory.

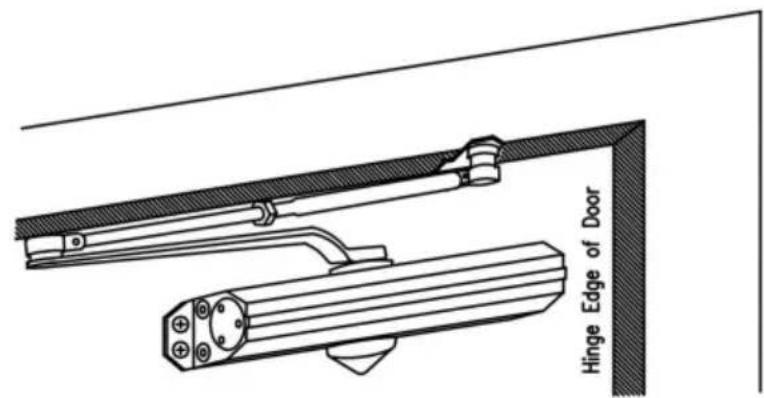

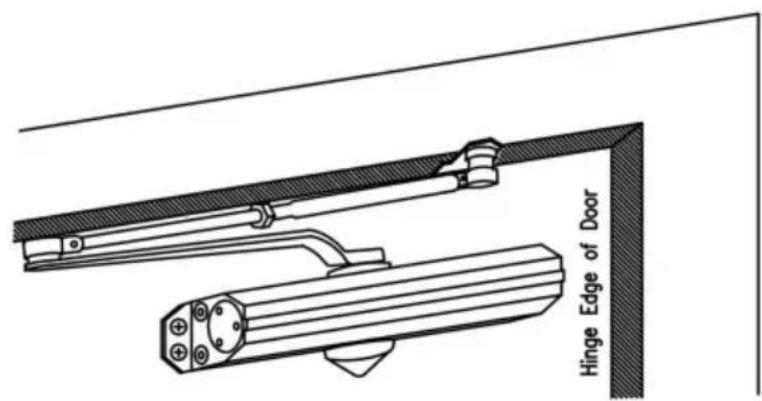

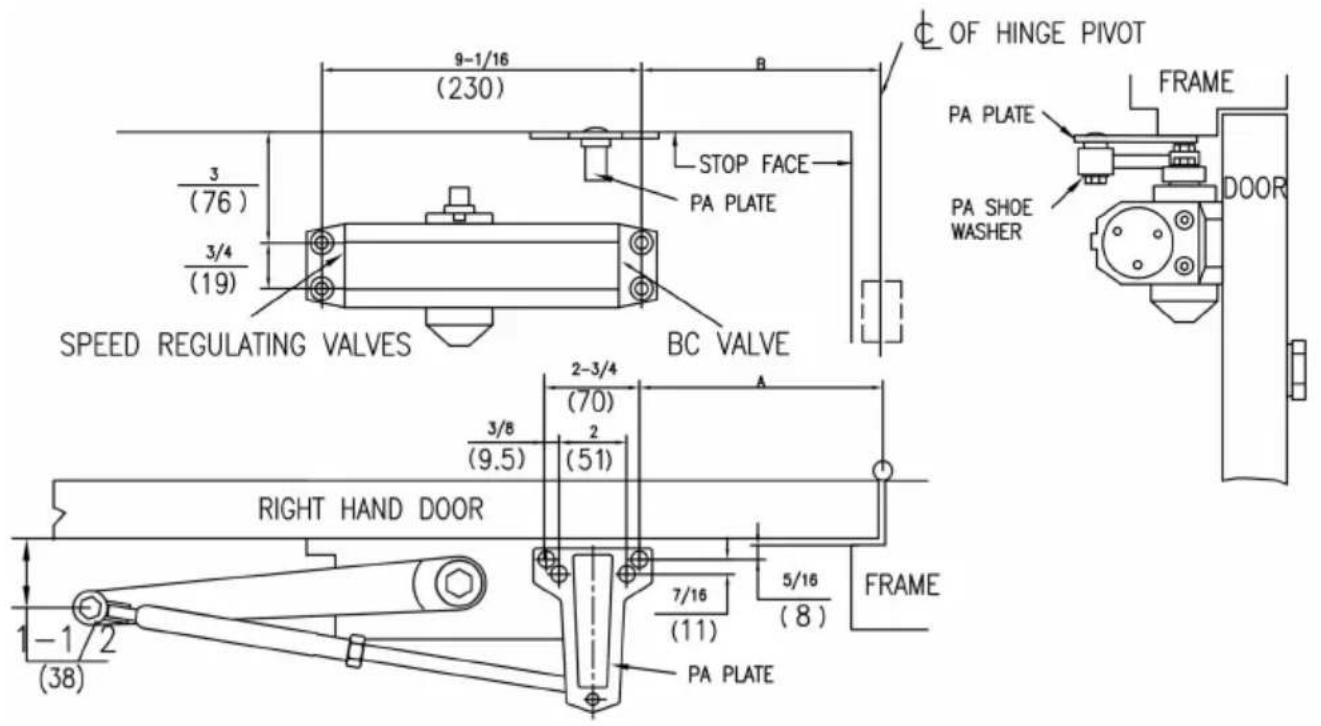

7. Parallel arm installation

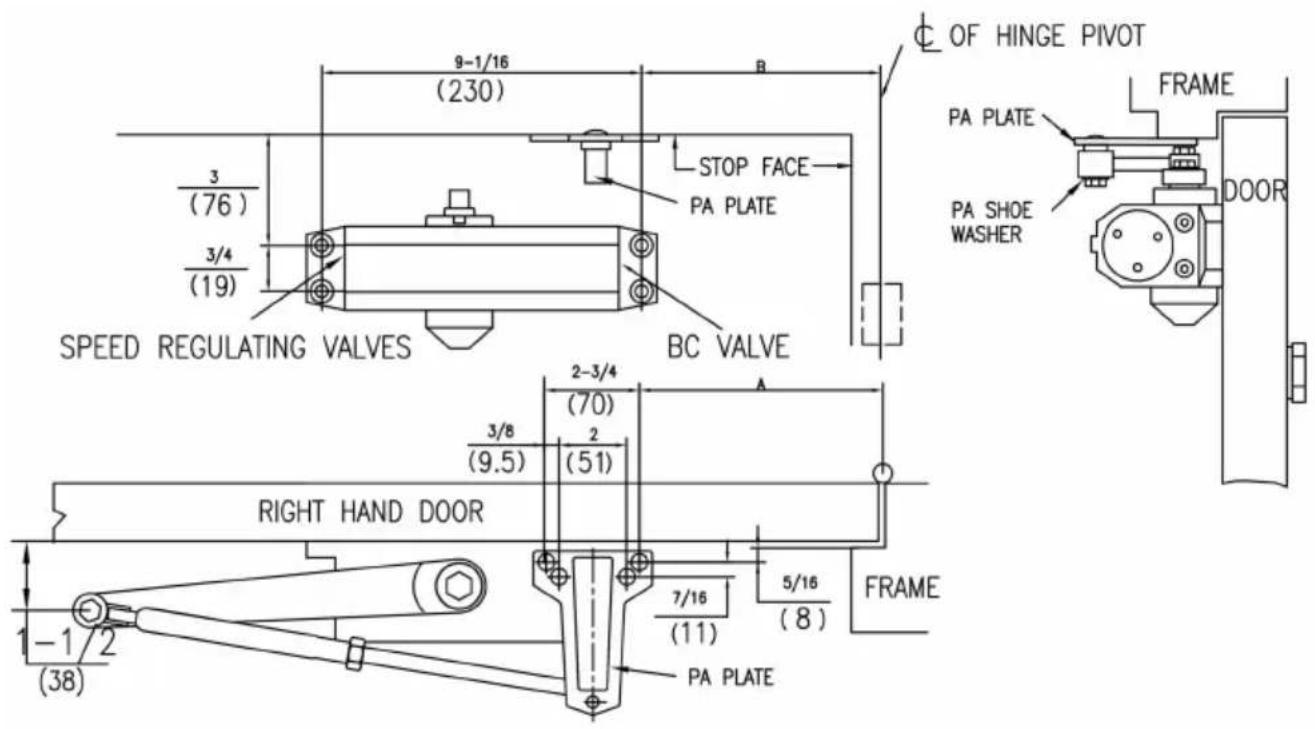

9-1/16 (230) STOP FACE PA PLATE SPEED REGULATING VALVES BC VALVE 2-3/4 (70) 3/8 (9.5) 2 (51) RIGHT HAND DOOR 7/16 (11) 5/16 (8) FRAME PA PLATE FRAME PA SHOE WASHER DOOR 3/4 (19) 3/76 3 (-76) (-19) (-1/2) (-38)

• RIGHT HAND DOOR ILLUSTRATED
SAME DIMENSIONS APPLY TO LEFT HAND DOOR
• MEASURED FROM HINGE ♦
DIMENSIONS ARE IN (mm)
• DO NOT SCALE DRAWING

DIMENSIONS "A"		DIMENSIONS "B"		OPENING
inches	mm	inches	mm
9-1/4	235	7-5/8	194	TO 100°
7-3/4	197	6-1/8	156	101° TO 150°
5-3/4	146	4-1/8	105	OVER 151°

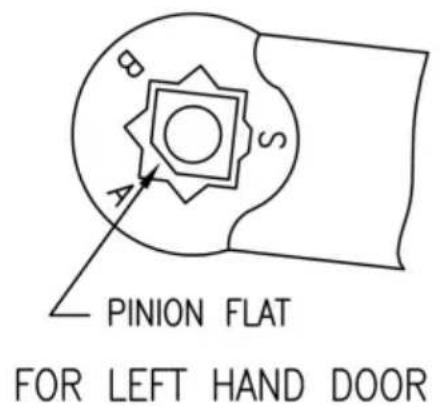

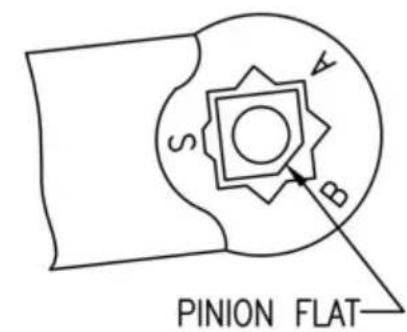

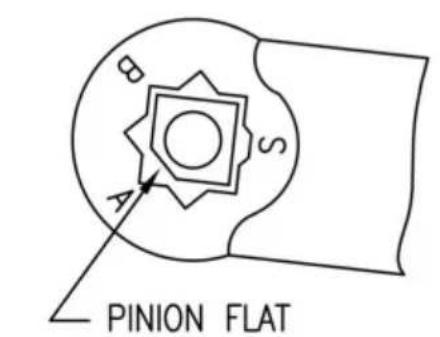

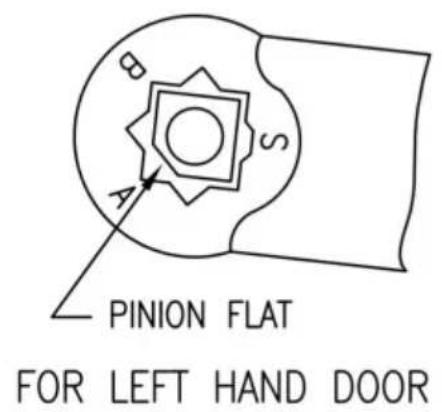

PINION FLAT FOR LEFT HAND DOOR

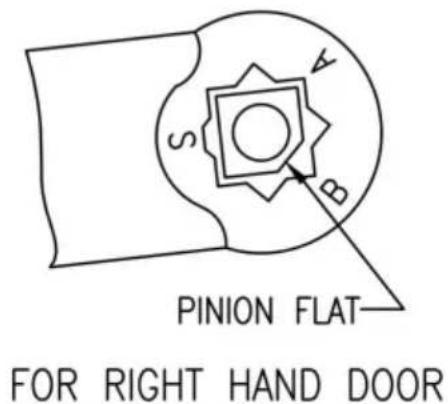

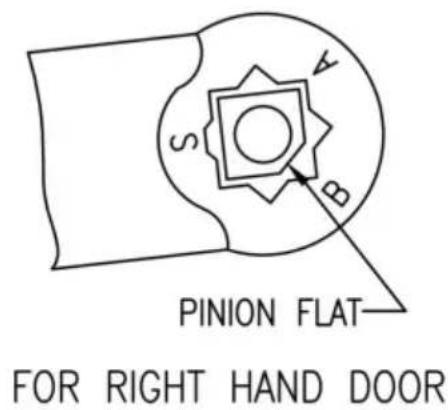

A S B PINION FLAT FOR RIGHT HAND DOOR

Hinge Edge of Door

Installation instructions

1. Select degree of door.use dimensions shown in chart and illustration above to mark location of attaching screws on door and frame prepar holes.

2. Attach closer to door with speed regulating valves back to hinge.

3. Attach pa plate to top frame as shown

4. Remove foot from forearm and discard.

5. Install arm on pinion shaft. rotate pinion45° toward hinge edge of door align main arm letter “B”(right hand door) or “A”(left hand door) with p flat.fasten with arm screw.

6. Fasten forearm to pa plate using screw removed from foot in step pa shoe washer included in screw pack.

7. Adjust forearm length to set arm elbow about 1-1/2"(38mm) from do when connected to main arm. use washer and screw provided to secu pivot connection. Tighten lock nut.

8. Snap pinion cap over spindle at bottom

9. Adjust closer.
