USER MANUAL D202 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

DOOR CLOSER

MODEL:D202

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

DOOR CLOSER

MODEL: D202

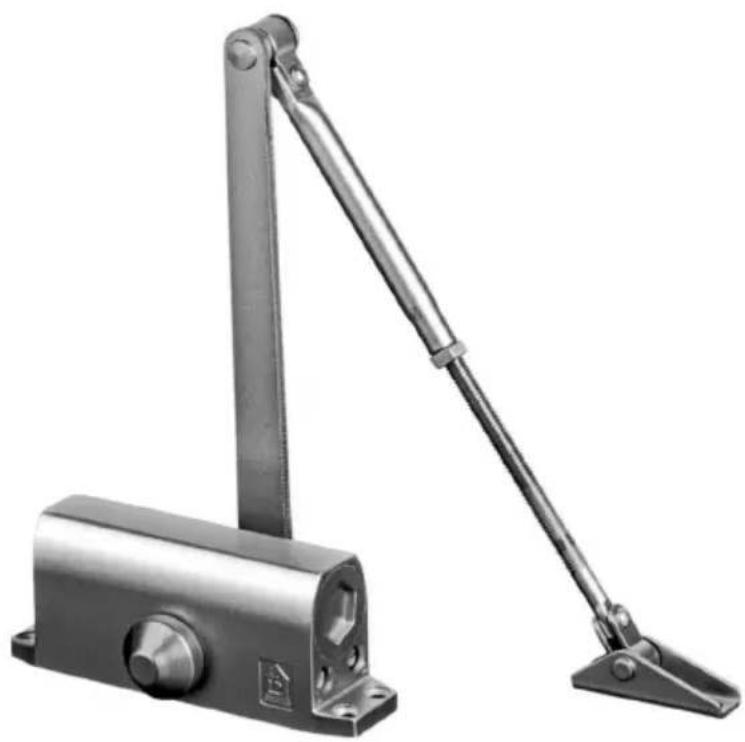

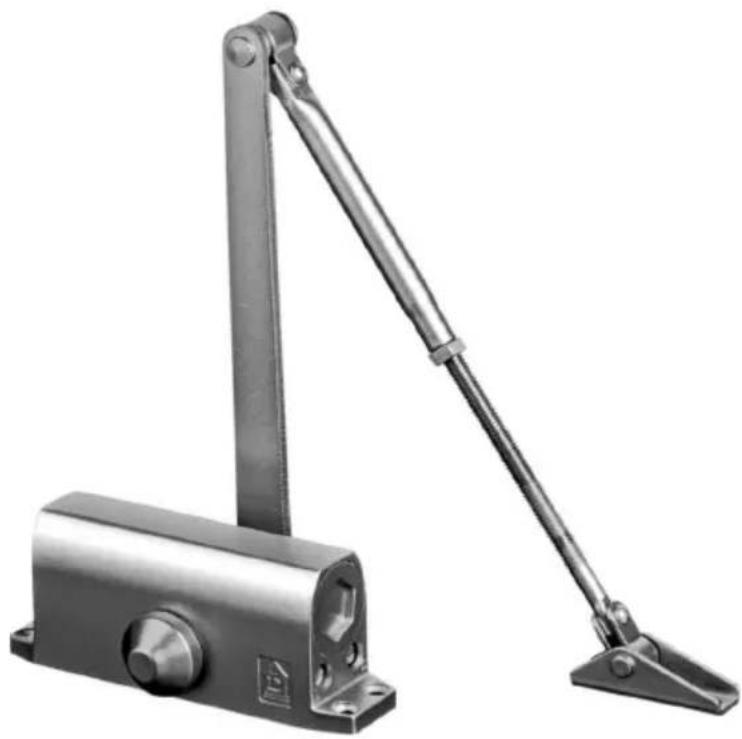

Metallic industrial lock device with adjustable handle and mounting bracket (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING:

1. Do not allow children to climb on the unit.
2. Keep children and pets away during assembly.

ASSEMBLY PRECAUTIONS

1. Please assemble the product in strict accordance with the instructic Incorrect assembly could be hazardous.
2. Please wear safety goggles and work gloves properly during assem
3. Do not try to assemble the product when feeling tired or when ur influence of alcohol, drugs or medication.
4. Load bearing capacity and other product parameters are applied to properly and completely assembled product only.
5. Separate and count all parts and hardware.
6. Prepare the following tool: Philips Head Screwdriver.
7. If using power tools, please be careful to slow down and stop wr needed.
8. Two people are required for assembly.
9. Follow the intended uses only.
10. Use on stable surfaces only.
11. Regularly inspect for signs of wear, damage, or loose parts.

SAVE THESE INSTRUCTIONS

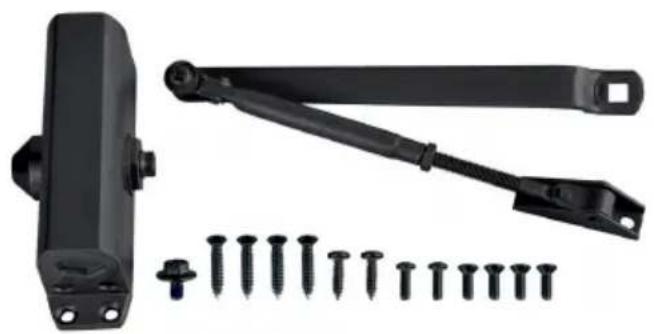

PART LIST

When unpacking this product, check to make sure the parts listed be are included and carefully inspect for any damage that may have occurred during transit. If any part is missing or damaged, do not attempt to assemble or use the product.

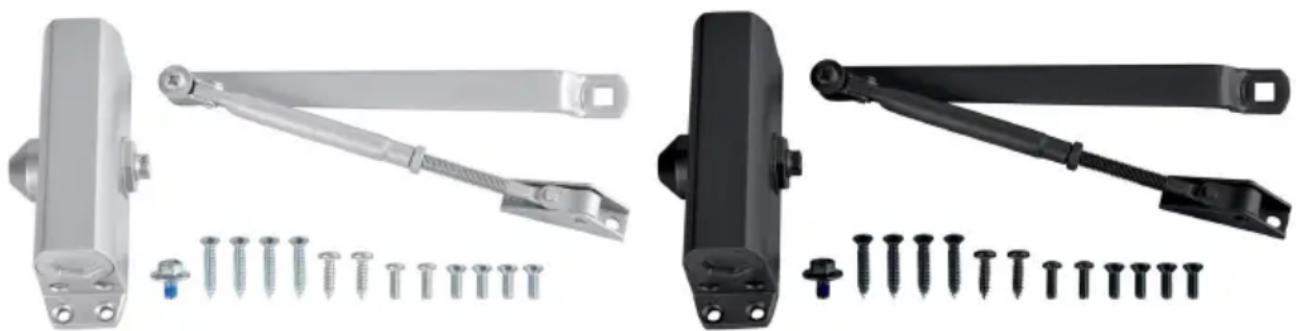

Product image showing various mechanical components including a metallic hinge, screws, and black handle (no text or symbols visible)

NO	PICTURE	PART NAME	QTY
A		Door closer body	1
B		HO Arm	1
C		Rocker Arm Bolt M6×10	1
D		Wooden Doors Screw ST5.5×30	4
E		Wooden Doors Screw ST5.5×20	2
F		Metal Doors Screw M5×15	2
G		Metal Doors Screw M5×1	4
H		Pinion Cap	1

PRODUCT PAREMETERS

Model	D202
Material	Aluminum
Color	Silvery or Black
Door Max Load To Use	100 lbs

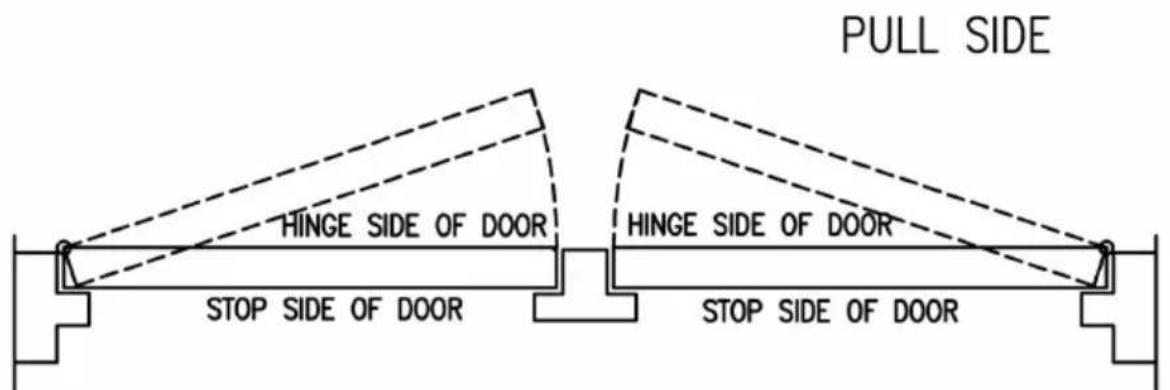

1. Chart to determine hand of door.

PULL SIDE HINGE SIDE OF DOOR HINGE SIDE OF DOOR STOP SIDE OF DOOR STOP SIDE OF DOOR

PUSH SIDE

THIS IS A LEFT HAND DOOR

THIS IS A RIGHT HAND DOOR

1. Final adjustment and regulating procedures.

REGULATING DOOR SPEED AND LATCHING SPEED

TURN SPEED REGULATING VALVE CLOCK- WISE TO SLOW DOWN -OR COUNTER CLOCKWISE TO SPEED UP DOOR MOVE- MENT

Technical line drawing of a mechanical component with mounting flanges and central hub (no text or symbols)

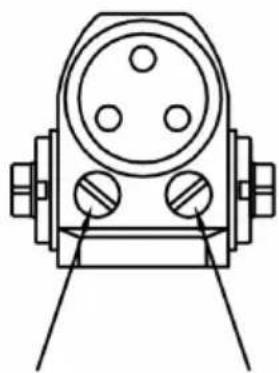

THIS VAVLE CONTROLS LATCHING SPEED
THIS VAVLE CONTROLS DOOR SWEEP SPEED

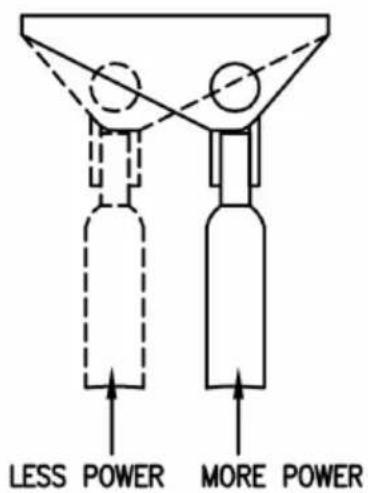

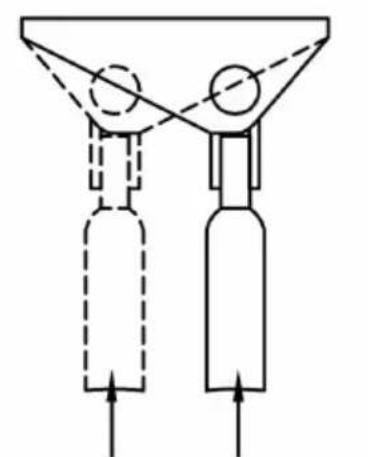

ADJUSTING FOOT FOR CLOSING POWER

Pure mechanical diagram showing two connected cylindrical components with dashed lines indicating internal connections (no text or symbols)

HINGE EDGE OF DOOR

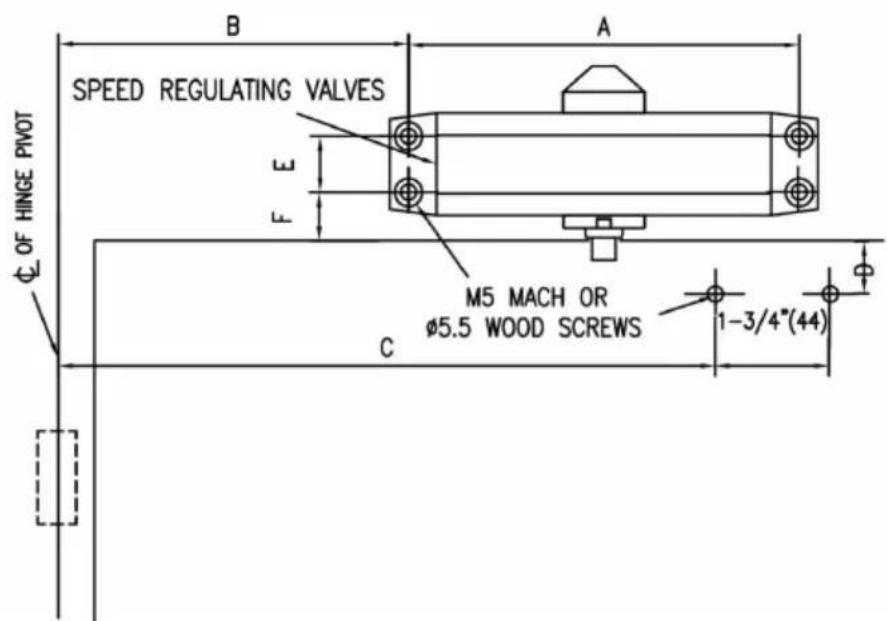

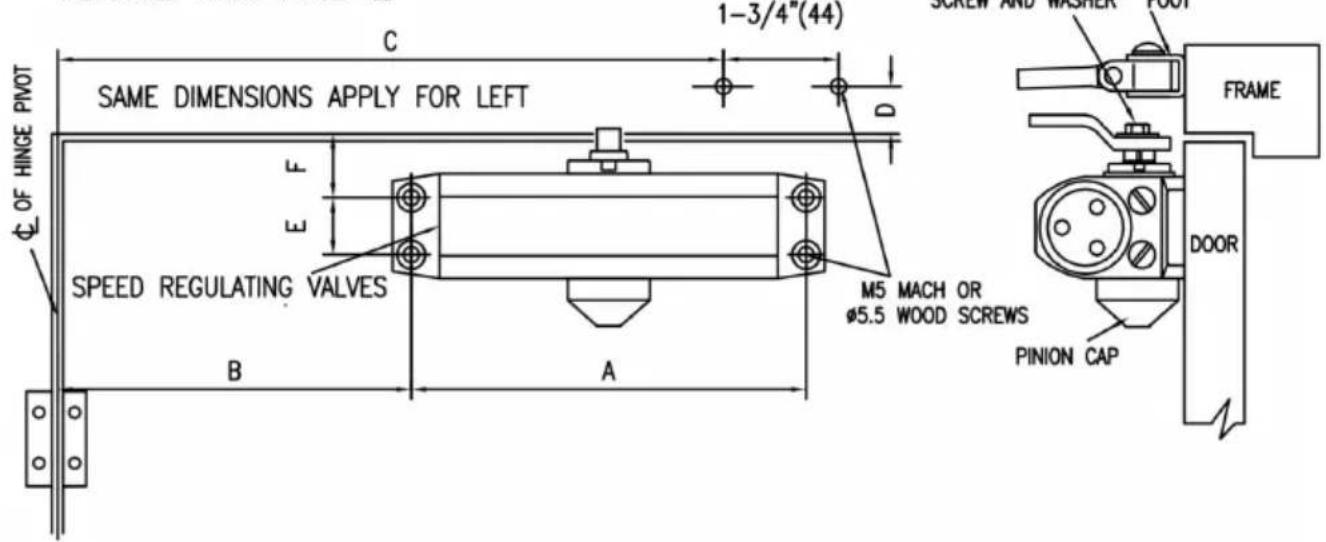

3. Standard installation: pull side right installation.

RIGHT HAND DOOR ILLUSTRATED

SAME DIMENSIONS APPLY TO LEFT HAND DOOR

MEASURED FROM HINGE

SAME DIMENSIONS APPLY FOR LEFT SPEED REGULATING VALVES B A C 1-3/4"(44) F E D M5 MACH OR Ø5.5 WOOD SCREWS FRAME DOOR PINION CAP

(mm)

A	B	C	D	E	F	ANGLE OF OPEN DOOR
5-3/16"(132)	4-3/8"(112)	7-9/16"(192)	1"(26)	3/4"(19)	21/32"(16.5)	115°
5-3/16"(132)	2-1/4"(58)	5-7/16"(138)	1"(26)	3/4"(19)	21/32"(16.5)	150°

Installation Instructions

1. Select degree of door .Use dimensions shown in chart and il above to mark location of attaching screws on door and frame holes.
2. Assemble main arm to closer.
3. Attach closer to door with speed regulating valves toward hing
4. Attach the foot of the forearm to frame.
5. Adjust length of forearm to position forearm at right angle to when connected to main arm at elbow use washer and screw secure pivot connection. Tighten lock nut on forearm.

6. Snap pinion cap over spindle at bottom of closer.

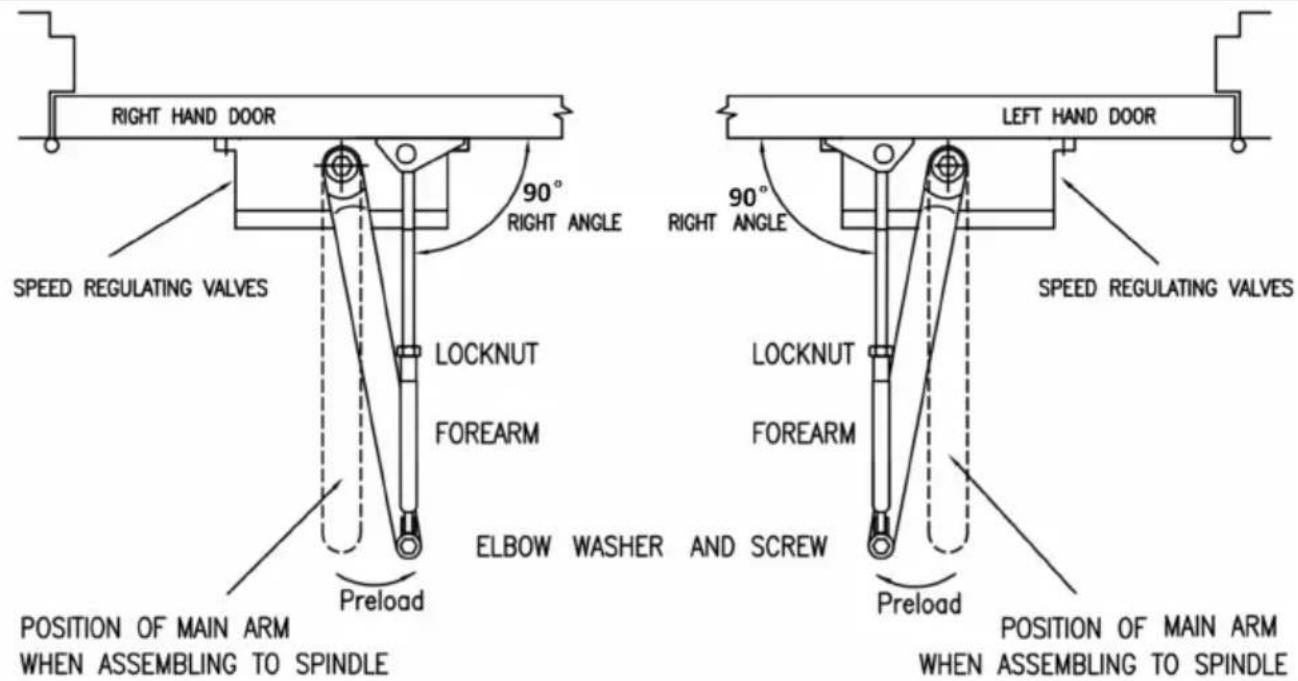

7. Standard installation position of arms and index setting


RIGHT HAND DOOR 90° RIGHT ANGLE SPEED REGULATING VALVES LOCKNUT FOREARM ELBOW WASHER AND SCREW Preload POSITION OF MAIN ARM WHEN ASSEMBLING TO SPINDLE LEFT HAND DOOR 90° RIGHT ANGLE SPEED REGULATING VALVES LOCKNUT FOREARM Preload POSITION OF MAIN ARM WHEN ASSEMBLING TO SPINDLE

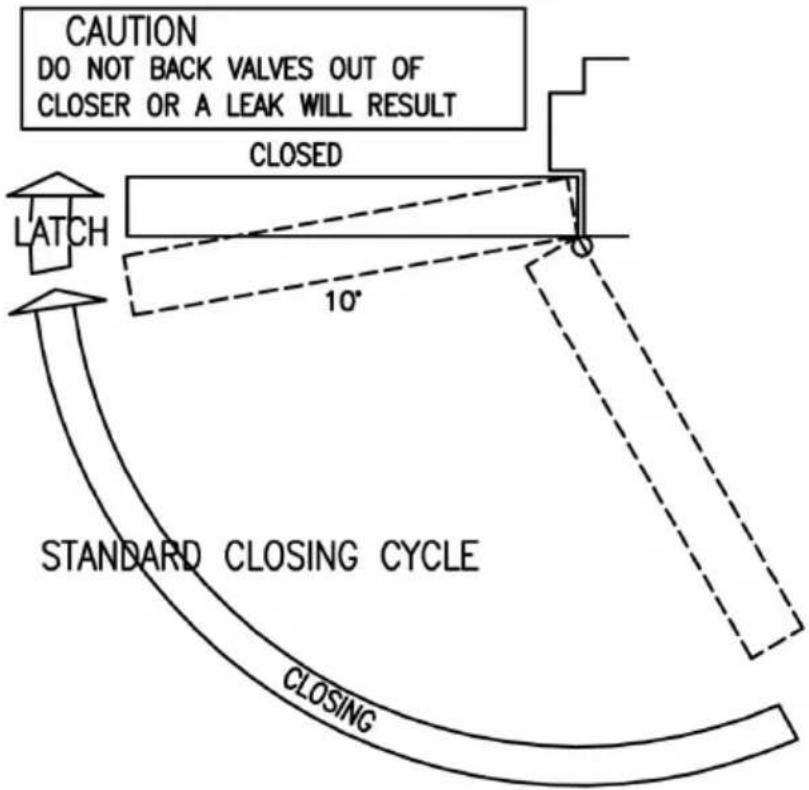

CLOSING SPEED CONTROL

CAUTION DO NOT BACK VALVES OUT OF CLOSER OR A LEAK WILL RESULT CLOSED LATCH 10° STANDARD CLOSING CYCLE CLOSING

Attention:

Adjust closing speed time to between 46 seconds from 90^ use of the door handicapped. Elderly or small children may require longer closing time.

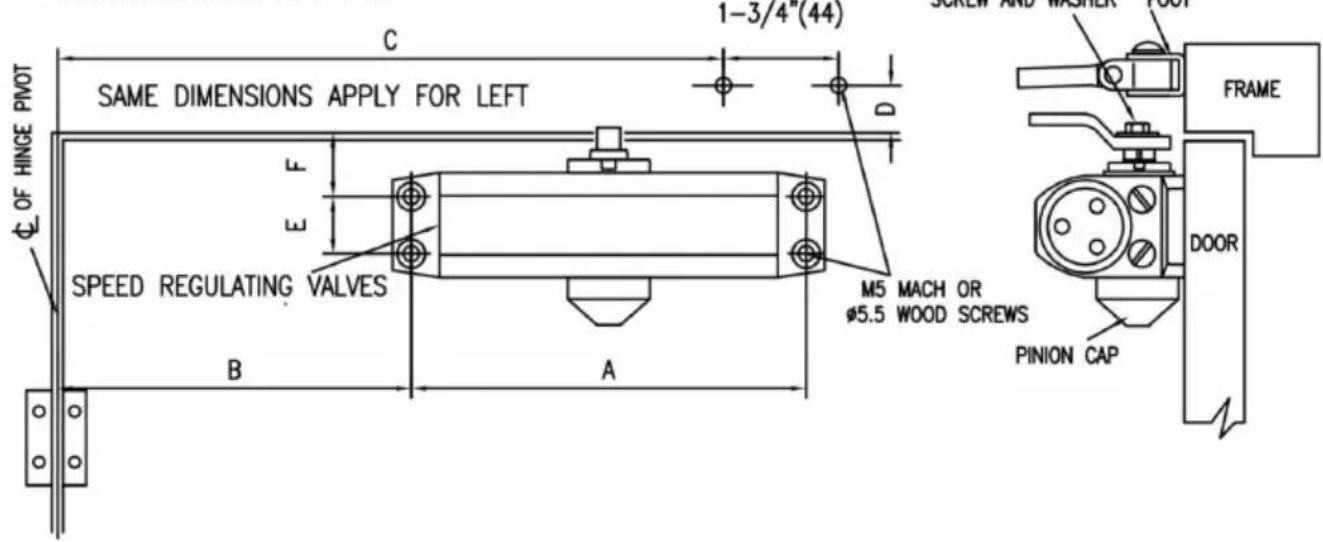

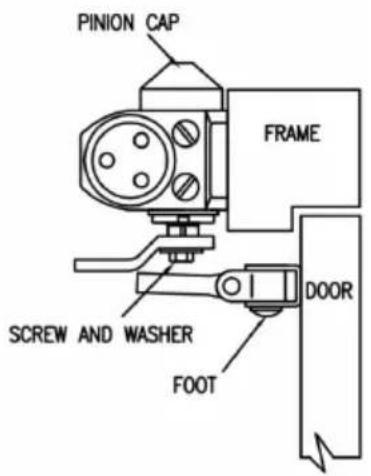

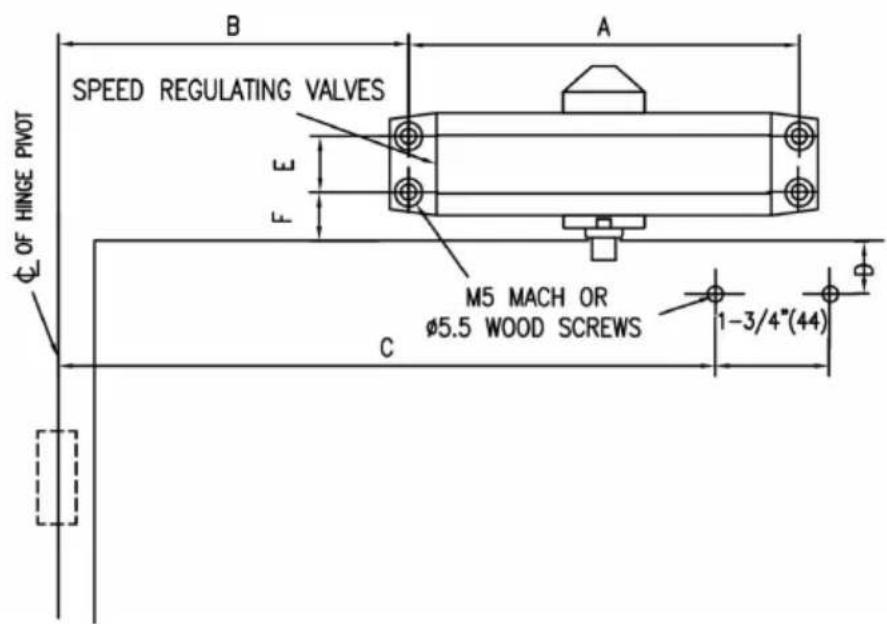

5. Other installation: push side right installation

LEFT HAND DOOR ILLUSTRATED

SAME DIMENSIONS APPLY TO RIGHT HAND DOOR

MEASURED FROM HINGE ¢

B A SPEED REGULATING VALVES E F C OF HINGE PIVOT M5 MACH OR Ø5.5 WOOD SCREWS 1-3/4"(44)

PINION CAP FRAME SCREW AND WASHER FOOT DOOR

(mm)

A	B	C	D	E	F	ANGLE OF OPEN DOOR
5-3/16"(132)	2-5/8"(67)	5-7/8"(149)	1"(26)	3/4"(19)	21/32"(16.5)	150°

Installation Instructions

1. Select degree of door .Use dimensions shown in chart and ill above to mark location of attaching screws on door and frame holes.
2. Assemble main arm to closer.
3. Attach closer to frame with speed regulating valves toward hin
4. Attach the foot of the forearm to frame.
5. Adjust length of forearm to position forearm at right angle to when connected to main arm at elbow use washer and screw secure pivot connection .Tighten lock nut on forearm.
6. Snap pinion cap over spindle at bottom of closer.

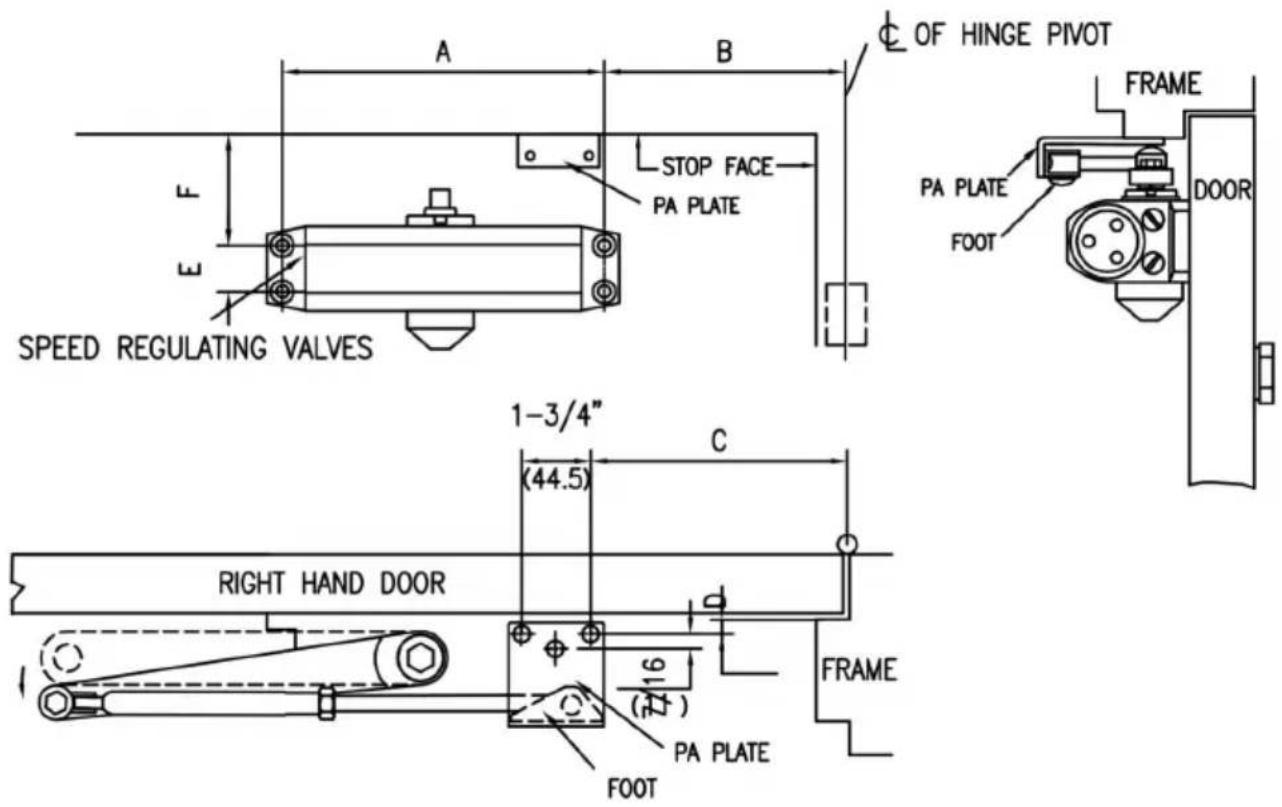

6. Other installation: push side parallel installation

RIGHT HAND DOOR ILLUSTRATED

SAME DIMENSIONS APPLY TO LEFT HAND DOOR

MEASURED FROM HINGE ¢

A	B	C	D	E	F	ANGLE OF OPEN DOOR
5-3/16" (132)	2-3/8" (60)	2-13/16" (72)	5/16" (8)	3/4" (19)	2-5/8" (66)	180°

Installation Instructions

Select degree of door. Use dimensions shown in chart and illustrate above to mark location of attaching screws on door and frame holes.

Attach closer to door with speed regulating valves back to hinge Attach main arm as follow:

Place open end wrench on bottom shaft & turn toward hinge a Place main arm on top shaft, Insert arm screw into top of shaft tighten.

1. Attach pa plate to top frame as shown.

2. Remove foot from forearm and discard.

6.Fasten forearm to pa plate.

1. Adjust length of forearm to position main arm at parallel to fr connected to main arm at elbow use washer and screw provide secure pivot connection. Tighten lock nut.

2. Snap pinion cap over spindle at bottom.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Imported to AUS:SIHAO PTY LTD.1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250,9166 Anaheim Place, Rancho Cucamonga, CA91730

UK

REP

Pooledas Group Ltd

Unit 5 Albert Edward House,

The Pavilions Preston, United Kingdom

[e-mail]

01772418127

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021,76351

Technical Support and E-Warranty Certificate

www.vevor.com/support

Made In China
