DOOR CLOSER

MODEL:D404

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

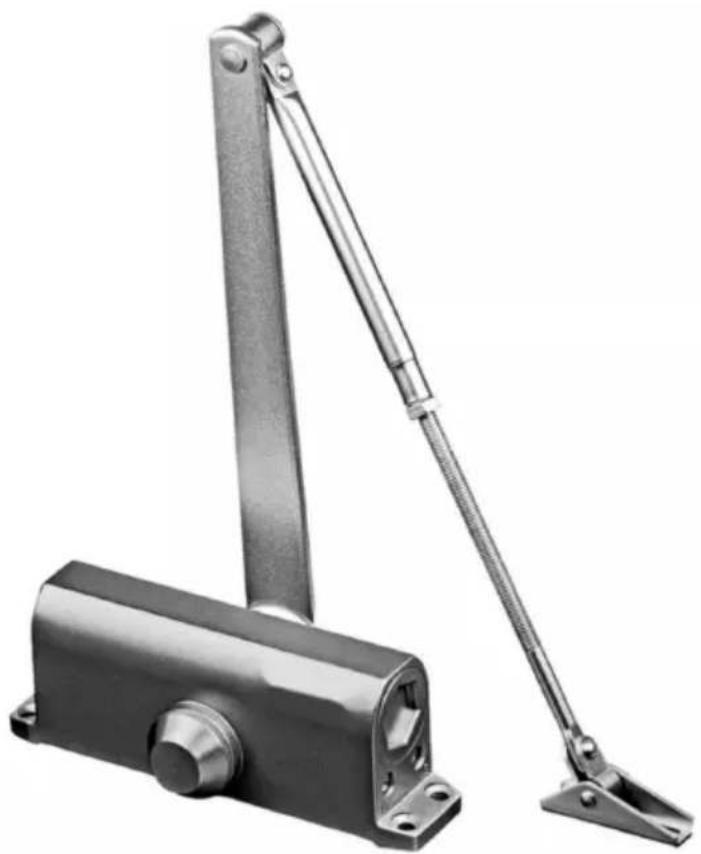

DOOR CLOSER

MODEL: D404

Metallic industrial lock device with adjustable handle and mounting bracket (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING:

1. Do not allow children to climb on the unit.
2. Keep children and pets away during assembly.

ASSEMBLY PRECAUTIONS

1. Please assemble the product in strict accordance with the instructic Incorrect assembly could be hazardous.
2. Please wear safety goggles and work gloves properly during assem
3. Do not try to assemble the product when feeling tired or when ur influence of alcohol, drugs or medication.
4. Load bearing capacity and other product parameters are applied to properly and completely assembled product only.
5. Separate and count all parts and hardware.
6. Prepare the following tool: Philips Head Screwdriver.
7. If using power tools, please be careful to slow down and stop with needed.
8. Two people are required for assembly.
9. Follow the intended uses only.
10. Use on stable surfaces only.
11. Regularly inspect for signs of wear, damage, or loose parts.

SAVE THESE INSTRUCTIONS

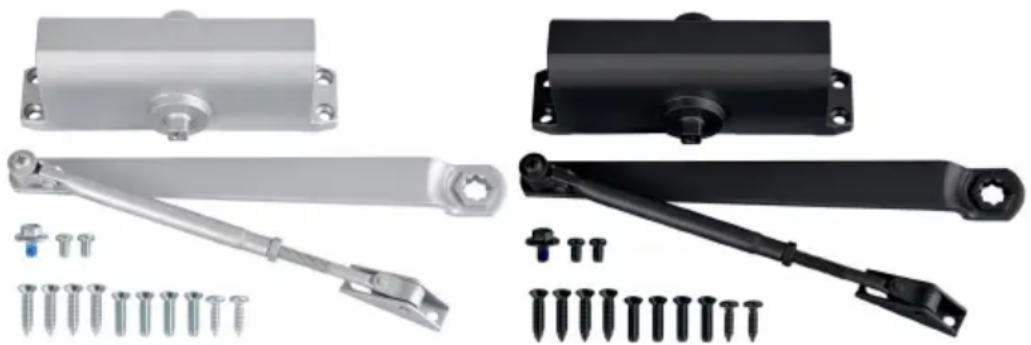

PART LIST

When unpacking this product, check to make sure the parts listed be are included and carefully inspect for any damage that may have occurred during transit. If any part is missing or damaged, do not attempt to assemble or use the product.

Collection of mechanical components including a lock, bracket, and screw assembly (no text or symbols visible)

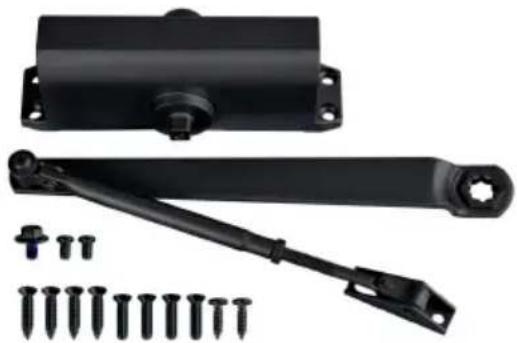

NO	PICTURE	PART NAME	QTY

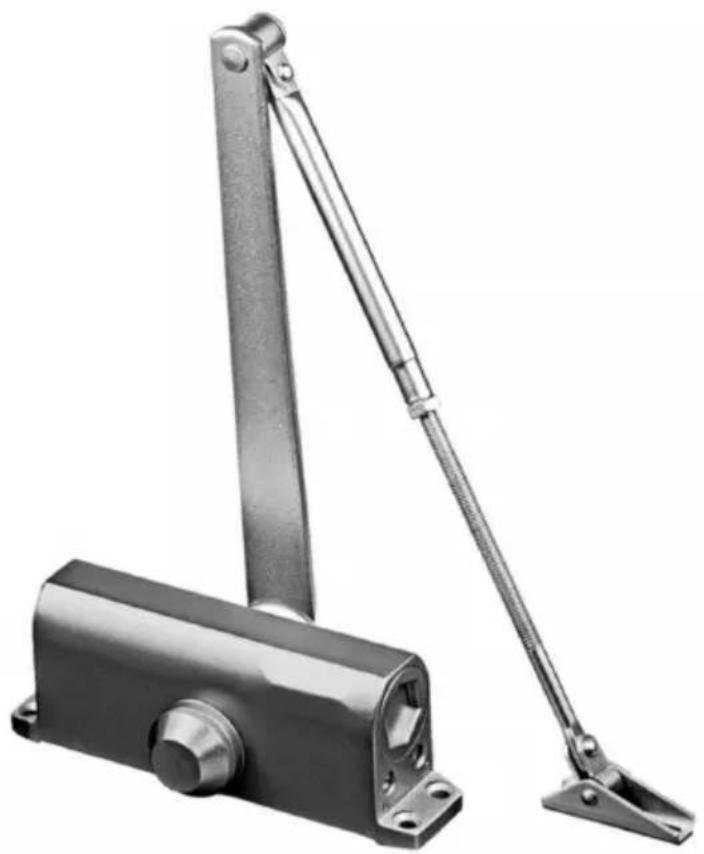

A		Door closer body	1
B		HO Arm	1
C		Rocker Arm Bolt M6×10	1
D		Wooden Doors Screw ST6.3×30	4
E		Wooden Doors Screw ST5.5×20	2
F		Metal Doors Screw M6×10	2
G		Metal Doors Screw M6×	4
H		Pinion Cap	1

PRODUCT PAREMETERS

Model	D404
Material	Aluminum
Color	Silvery or Black
Door Max Load To Use	187 lbs

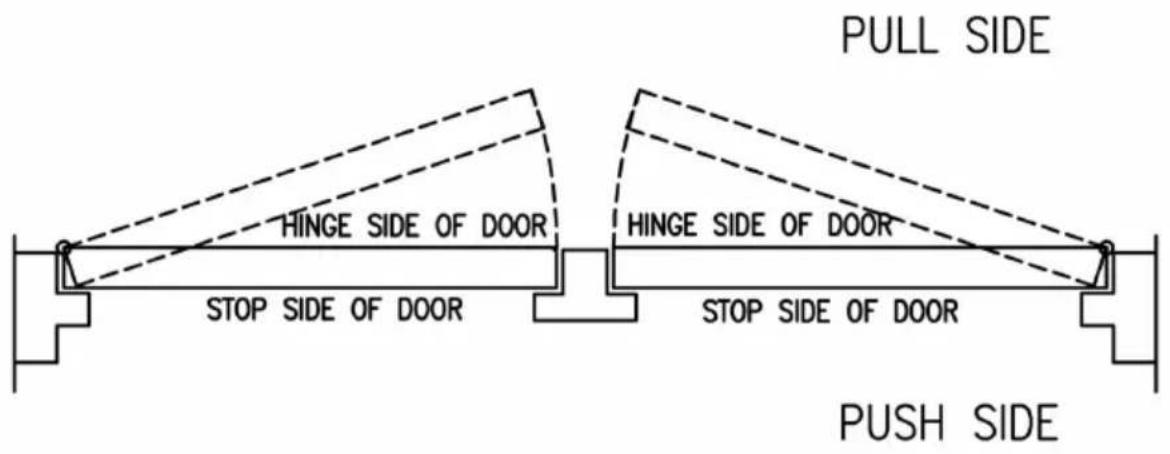

1. Chart to determine hand of door.

PULL SIDE HINGE SIDE OF DOOR HINGE SIDE OF DOOR STOP SIDE OF DOOR STOP SIDE OF DOOR HINGE SIDE OF DOOR STOP SIDE OF DOOR PUSH SIDE

THIS IS A LEFT HAND DOOR
THIS IS A RIGHT HAND DOOR

1. Final adjustment and regulating procedures.

REGULATING DOOR SPEED AND LATCHING SPEED

TURN SPEED REGULATING VALVE CLOCK- WISE TO SLOW DOWN -OR COUNTER CLOCKWISE TO SPEED UP DOOR MOVE- MENT

Technical line drawing of a mechanical component with mounting holes and shafts (no text or symbols)

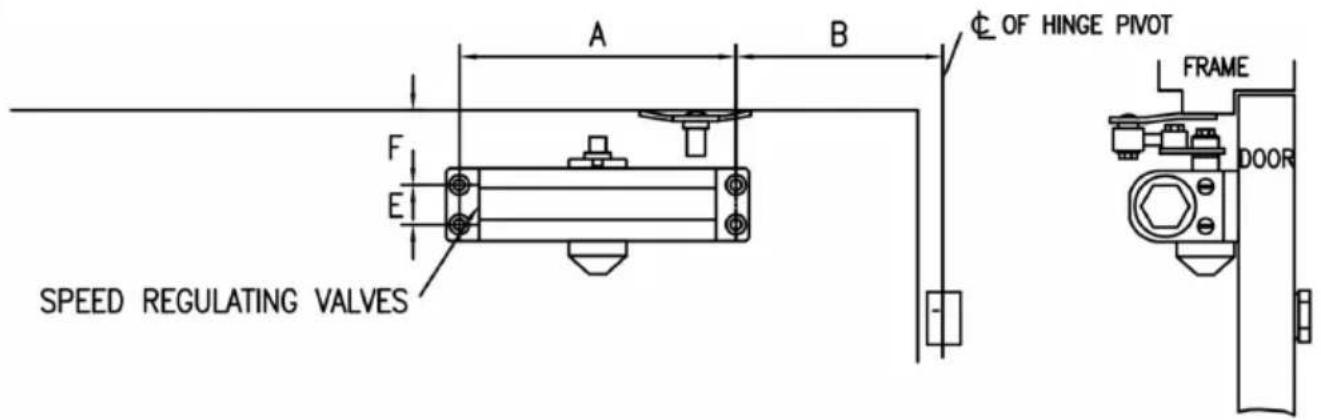

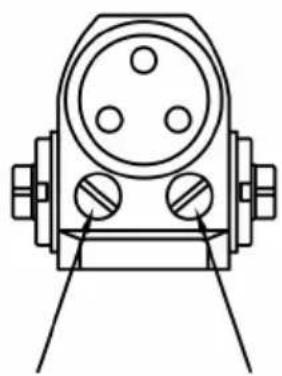

THIS VAVLE CONTROLS LATCHING SPEED
THIS VAVLE CONTROLS DOOR SWEEP SPEED

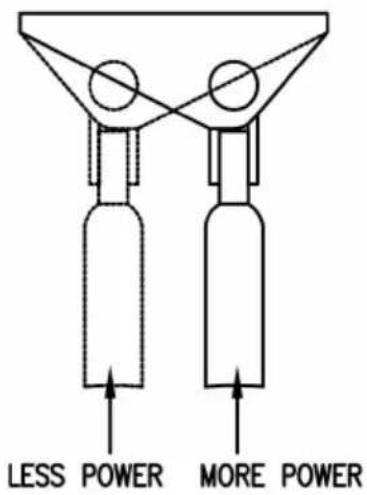

ADJUSTING FOOT FOR CLOSING POWER

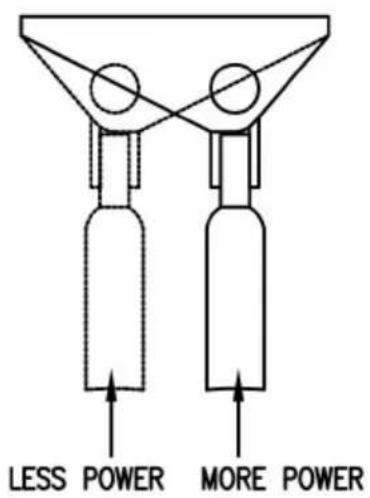

LESS POWER MORE POWER

HINGE EDGE OF DOOR

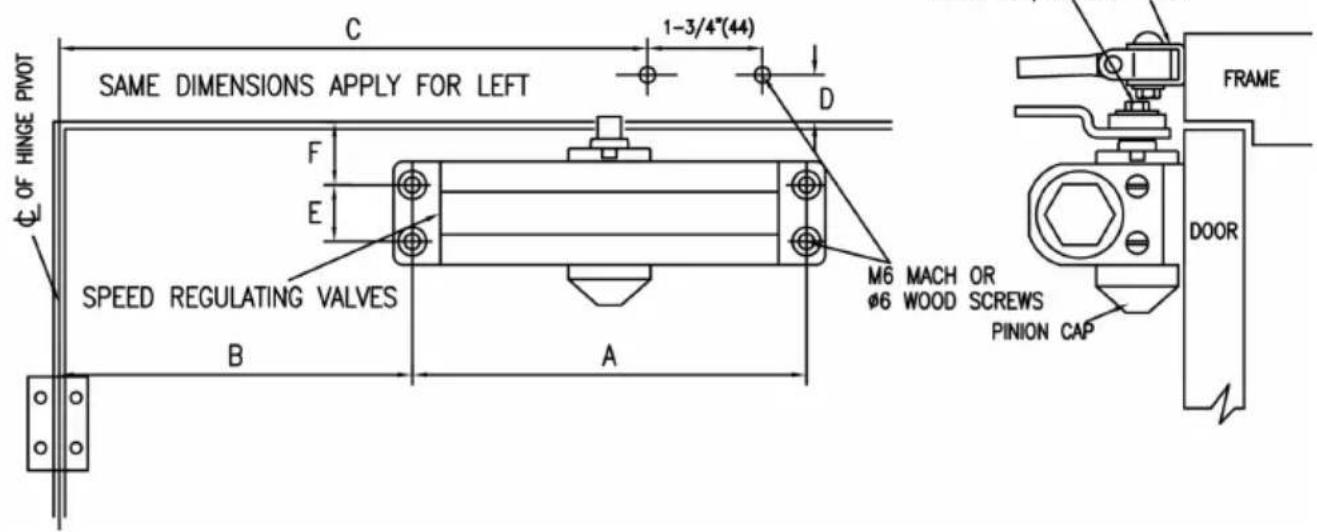

3. Standard installation: pull side right installation.

RIGHT HAND DOOR ILLUSTRATED

SAME DIMENSIONS APPLY TO LEFT HAND DOOR

MEASURED FROM HINGE ¢

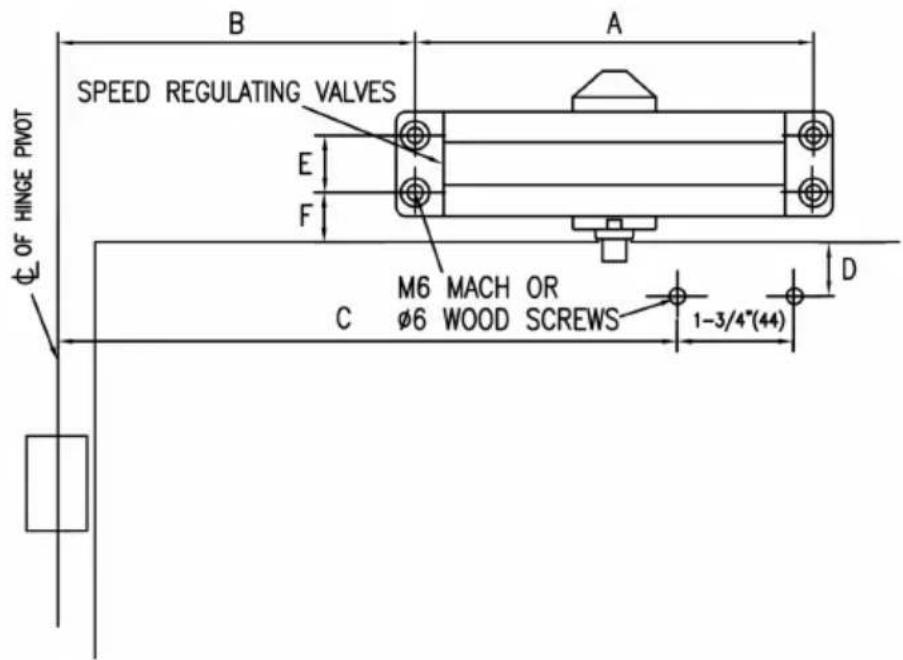

SAME DIMENSIONS APPLY FOR LEFT 1-3/4"(44) Φ OF HINGE PIVOT SPEED REGULATING VALVES B A M6 MACH OR Ø6 WOOD SCREWS PINION CAP FRAME DOOR

(mm)

A	B	C	D	E	F	ANGLE OF OPEN DOOR
6-5/8"(168)	6-9/16"(166)	10-15/16"(278)	1-1/8"(28)	15/16"(24)	25/32"(20)	115°
6-5/8"(168)	3-9/16"(90)	7-15/16"(202)	1-1/8"(28)	15/16"(24)	25/32"(20)	150°

Installation Instructions

1. Select degree of door .Use dimensions shown in chart and ill above to mark location of attaching screws on door and frame holes.
2. Assemble main arm to closer.
3. Attach closer to door with speed regulating valves toward hing

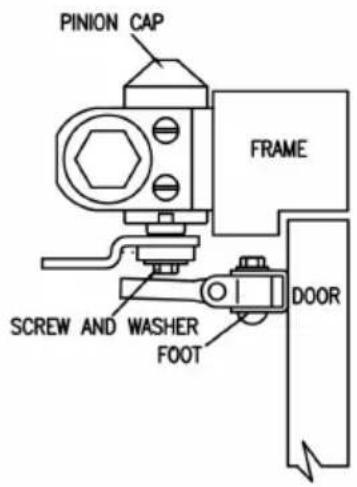

4. Attach the foot of the forearm to frame.
5. Adjust length of forearm to position forearm at right angle to when connected to main arm at elbow use washer and screw secure pivot connection. Tighten lock nut on forearm.

6. Snap pinion cap over spindle at bottom of closer.

7. Standard installation position of arms and index setting

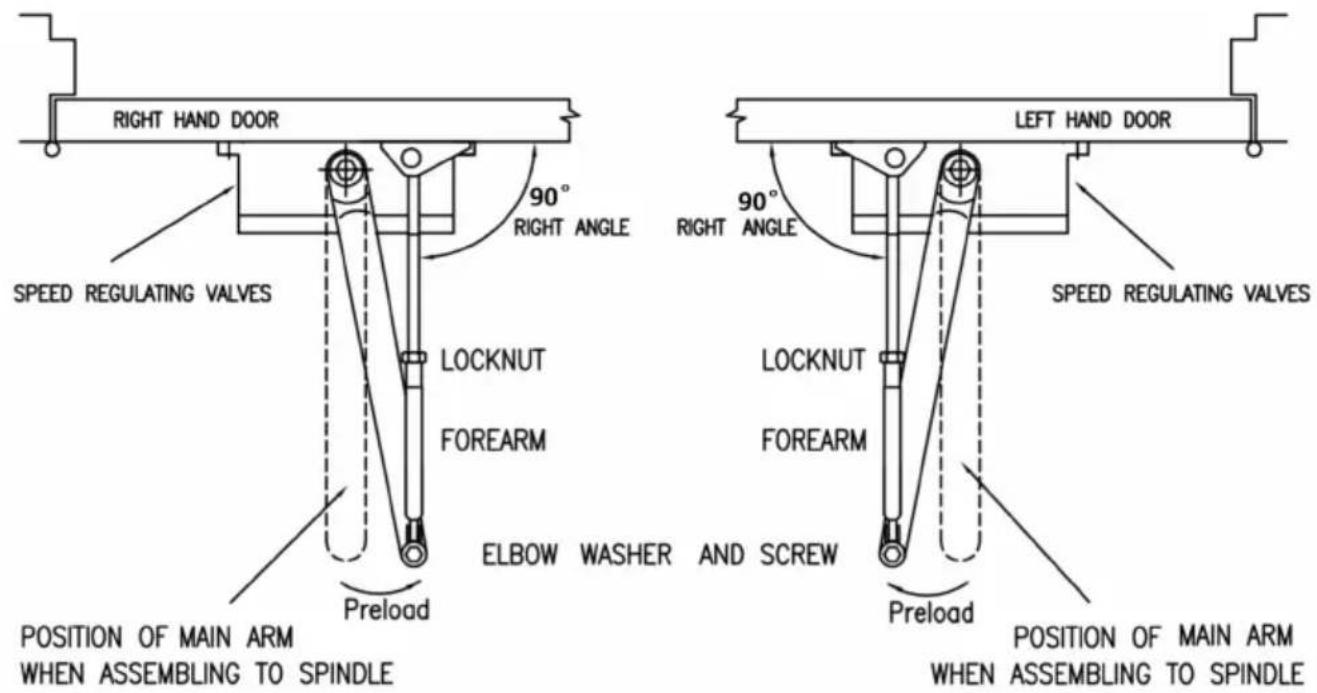

RIGHT HAND DOOR 90° RIGHT ANGLE SPEED REGULATING VALVES LOCKNUT FOREARM ELBOW WASHER AND SCREW Preload POSITION OF MAIN ARM WHEN ASSEMBLING TO SPINDLE LEFT HAND DOOR 90° RIGHT ANGLE SPEED REGULATING VALVES LOCKNUT FOREARM Preload POSITION OF MAIN ARM WHEN ASSEMBLING TO SPINDLE

CLOSING SPEED CONTROL

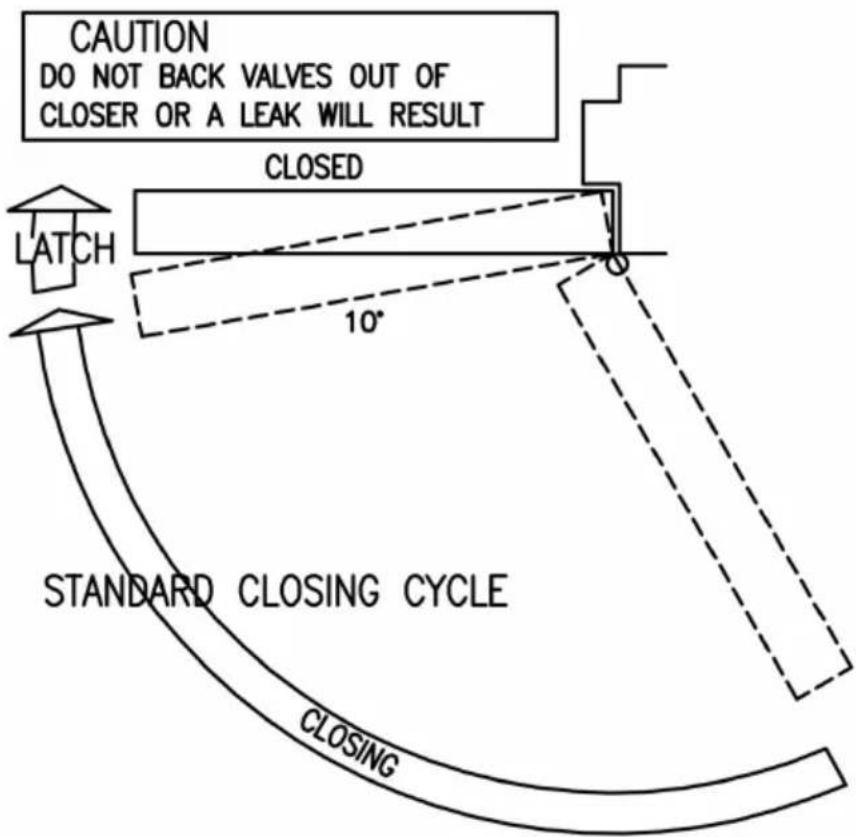

CAUTION DO NOT BACK VALVES OUT OF CLOSER OR A LEAK WILL RESULT CLOSED LATCH 10° STANDARD CLOSING CYCLE CLOSING

Attention:

Adjust closing speed time to between 46 seconds from 90^ use of the door handicapped.Elderly or small children must require longer closing time.

5. Other installation: push side right installation

LEFT HAND DOOR ILLUSTRATED

SAME DIMENSIONS APPLY TO RIGHT HAND DOOR

B A SPEED REGULATING VALVES E F C M6 MACH OR φ6 WOOD SCREWS 1-3/4"(44) D φL OF HINGE PIVOT

PINION CAP FRAME SCREW AND WASHER FOOT DOOR

(mm)

A	B	C	D	E	F	ANGLE OF OPEN DOOR
6-5/8"(168)	3"(76)	7-3/4"(197)	1-1/8"(28)	15/16"(24)	25/32"(20)	180°

Installation Instructions

1. Select degree of door .Use dimensions shown in chart and ill above to mark location of attaching screws on door and frame holes.
2. Assemble main arm to closer.
3. Attach closer to frame with speed regulating valves toward hin
4. Attach the foot of the forearm to frame.
5. Adjust length of forearm to position forearm at right angle to when connected to main arm at elbow use washer and screw secure pivot connection .Tighten lock nut on forearm.
6. Snap pinion cap over spindle at bottom of closer.

6. Other installation: push side parallel installation

RIGHT HAND DOOR ILLUSTRATED

SAME DIMENSIONS APPLY TO LEFT HAND DOOR

MEASURED FROM HINGE ¢

A B C OF HINGE PIVOT FRAME F E SPEED REGULATING VALVES DOOR

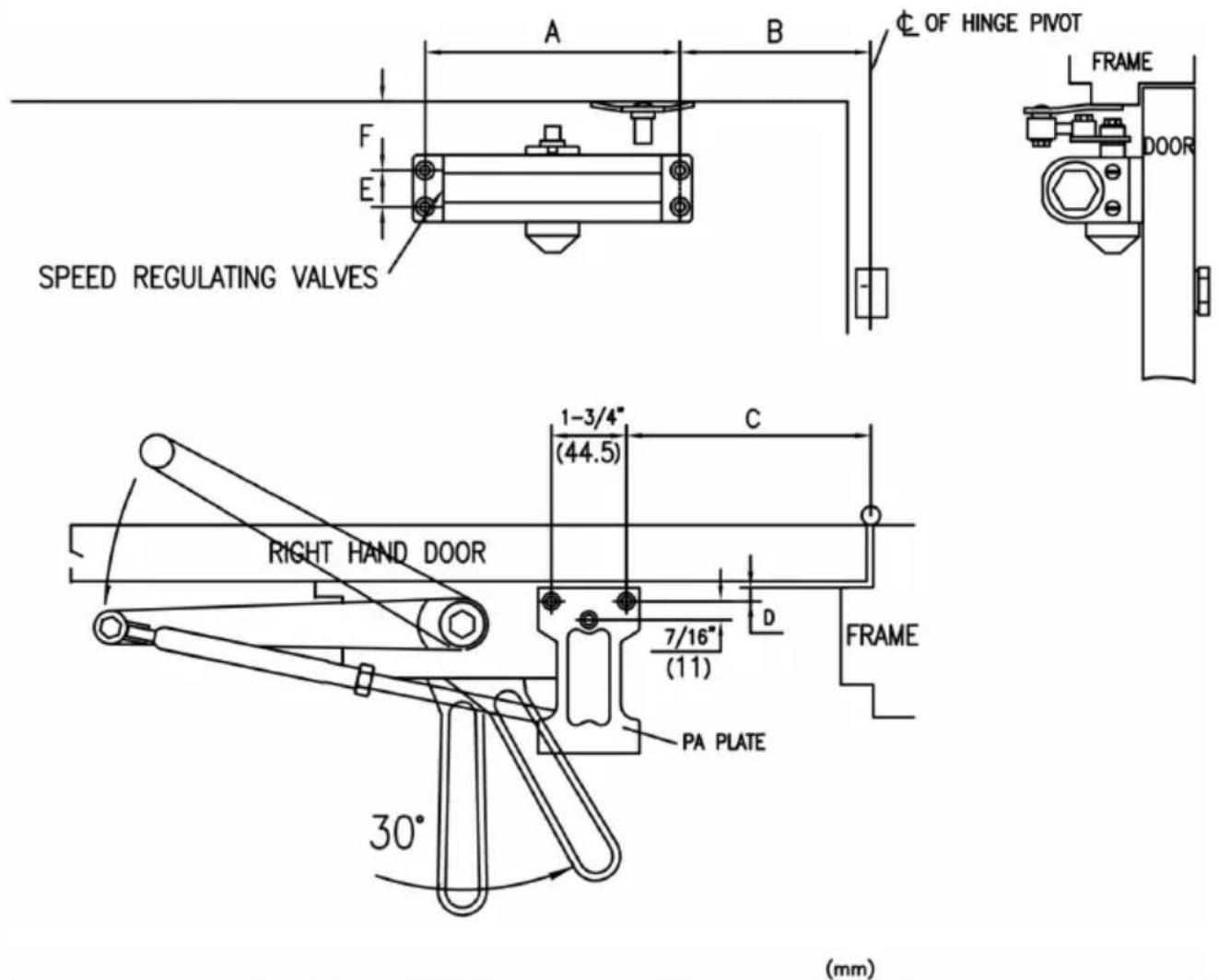

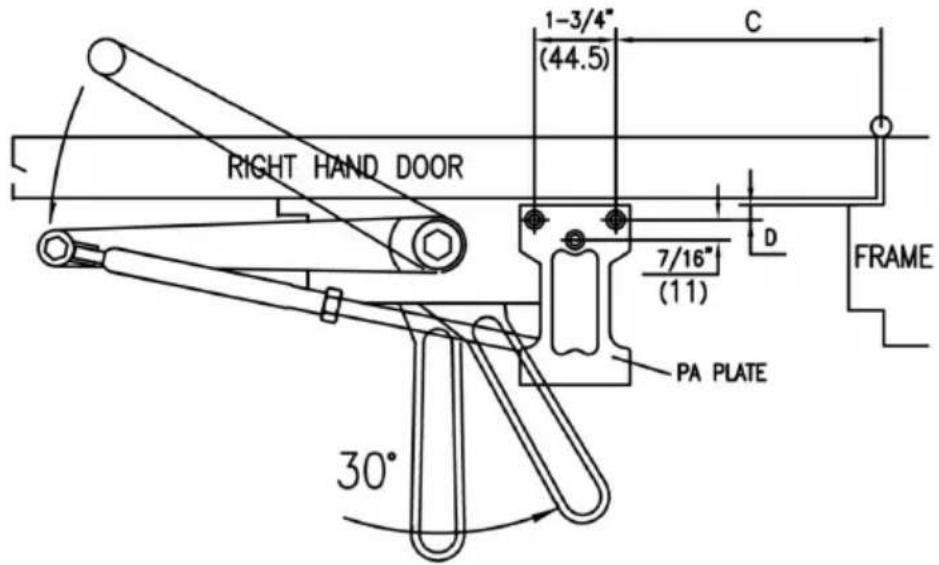

RIGHT HAND DOOR 1-3/4" (44.5) C 7/16" (11) D FRAME PA PLATE 30°

(mm)

A	B	C	D	E	F	ANGLE OF OPEN DOOR
6-5/8" (168)	5-9/16" (141)	6" (151)	5/16" (8)	15/16" (24)	2-3/4" (70)	180°

Installation Instructions

Select degree of door. Use dimensions shown in chart and illustrate above to mark location of attaching screws on door and frame holes.

Attach closer to door with speed regulating valves back to hinge Attach main arm as follow:

(a) Place open end wrench on bottom shaft & turn toward hing 30^ .

(b) Place main arm on top shaft, Insert arm screw into top of s tighten.

Attach pa plate to top frame as shown.

Remove foot from forearm and discard.

Fasten forearm to pa plate.

Adjust length of forearm to position main arm at parallel to fran connected to main arm at elbow use washer and screw provide secure pivot connection. Tighten lock nut.

Snap pinion cap over spindle at bottom.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Imported to AUS:SIHAO PTY LTD.1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA:Sanven Technology Ltd. Suite 250,9166 Anaheim Place,Rancho Cucamonga,CA91730

Pooledas Group Ltd

UK

REP

Unit 5 Albert Edward House,

The Pavilions Preston, United Kingdom

[e-mail]

01772418127

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021,76351

Technical Support and E-Warranty Certificate

www.vevor.com/support

Made In China

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

DOOR CLOSER

MODÈLE : D404

Metallic industrial lock device with adjustable handle and mounting bracket (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

AVERTISSEMENT:

Mechanical assembly with metallic components and screws (no text or symbols visible)

Black mechanical assembly with bolts and a handle, no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

THIS VAVLE CONTROLS LATCHING SPEED
THIS VAVLE CONTROLS DOOR SWEEP SPEED

ADJUSTING FOOT FOR CLOSING POWER

LESS POWER MORE POWER

HINGE EDGE OF DOOR

RIGHT HAND DOOR ILLUSTRATED SAME DIMENSIONS APPLY TO LEFT HAND DOOR MEASURED FROM HINGE Ø C 1-3/4"(44) SAME DIMENSIONS APPLY FOR LEFT D F E SPEED REGULATING VALVES B A M6 MACH OR Ø6 WOOD SCREWS PINION CAP SCREW AND WASHER FOOT FRAME DOOR

(mm)

A	B	C	D	E	F	ANGLE OF OPEN DOOR
6-5/8"(168)	6-9/16"(166)	10-15/16"(278)	1-1/8"(28)	15/16"(24)	25/32"(20)	115°
6-5/8"(168)	3-9/16"(90)	7-15/16"(202)	1-1/8"(28)	15/16"(24)	25/32"(20)	150°

SAME DIMENSIONS APPLY TO RIGHT HAND DOOR

B A SPEED REGULATING VALVES E F C M6 MACH OR φ6 WOOD SCREWS 1-3/4"(44) D Φ OF HINGE PIVOT

PINION CAP FRAME SCREW AND WASHER FOOT DOOR

(mm)

A	B	C	D	E	F	ANGLE OF OPEN DOOR
6-5/8"(168)	3"(76)	7-3/4"(197)	1-1/8"(28)	15/16"(24)	25/32"(20)	180°

SAME DIMENSIONS APPLY TO LEFT HAND DOOR

MEASURED FROM HINGE ¢

(mm)

A	B	C	D	E	F	ANGLE OF OPEN DOOR
6-5/8"(168)	5-9/16"(141)	6"(151)	5/16"(8)	15/16"(24)	2-3/4"(70)	180°

Instructions d' installation

Unit 5 Albert Edward House,

The Pavilions Preston, United Kingdom

[e-mail]

01772418127

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021,76351

www.vevor.com/support

Fabriqué en Chine

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

DOOR CLOSER

MODELL : D404

Metallic industrial lock device with adjustable handle and mounting bracket (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNUNG:

Metal mechanical assembly with bolts and a handle, no visible text or symbols

Black mechanical assembly with bolts and a handle, no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

THIS VAVLE CONTROLS LATCHING SPEED
THIS VAVLE CONTROLS DOOR SWEEP SPEED

ADJUSTING FOOT FOR CLOSING POWER

LESS POWER MORE POWER

HINGE EDGE OF DOOR

RIGHT HAND DOOR ILLUSTRATED SAME DIMENSIONS APPLY TO LEFT HAND DOOR MEASURED FROM HINGE Ø C 1-3/4"(44) SAME DIMENSIONS APPLY FOR LEFT D F E SPEED REGULATING VALVES B A M6 MACH OR Ø6 WOOD SCREWS PINION CAP FRAME DOOR (mm) A B C D E F ANGLE OF OPEN DOOR 6-5/8" (168) 6-9/16" (166) 10-15/16" (278) 1-1/8" (28) 15/16" (24) 25/32" (20) 115° 6-5/8" (168) 3-9/16" (90) 7-15/16" (202) 1-1/8" (28) 15/16" (24) 25/32" (20) 150°

SAME DIMENSIONS APPLY TO RIGHT HAND DOOR

B A SPEED REGULATING VALVES E F C M6 MACH OR φ6 WOOD SCREWS 1-3/4"(44) D Φ OF HINGE PIVOT

PINION CAP FRAME SCREW AND WASHER FOOT DOOR

(mm)

A	B	C	D	E	F	ANGLE OF OPEN DOOR
6-5/8"(168)	3"(76)	7-3/4"(197)	1-1/8"(28)	15/16"(24)	25/32"(20)	180°

SAME DIMENSIONS APPLY TO LEFT HAND DOOR

MEASURED FROM HINGE ¢

A B C OF HINGE PIVOT FRAME F E SPEED REGULATING VALVES DOOR

RIGHT HAND DOOR 1-3/4" (44.5) C 7/16" (11) D FRAME PA PLATE 30°

(mm)

A	B	C	D	E	F	ANGLE OF OPEN DOOR
6-5/8" (168)	5-9/16" (141)	6" (151)	5/16" (8)	15/16" (24)	2-3/4" (70)	180°

Unit 5 Albert Edward House,

The Pavilions Preston, United Kingdom

[e-mail]

01772418127

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021,76351

www.vevor.com/support

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

DOOR CLOSER

MODELLO : D404

Metallic industrial lock device with adjustable handle and mounting bracket (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

AVVERTIMENTO:

Mechanical assembly with metallic components and screws (no text or symbols visible)

Black mechanical assembly with bolts and a handle, no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

THIS VAVLE CONTROLS LATCHING SPEED
THIS VAVLE CONTROLS DOOR SWEEP SPEED

ADJUSTING FOOT FOR CLOSING POWER

LESS POWER MORE POWER

HINGE EDGE OF DOOR

RIGHT HAND DOOR ILLUSTRATED SAME DIMENSIONS APPLY TO LEFT HAND DOOR MEASURED FROM HINGE Ø C 1-3/4"(44) SAME DIMENSIONS APPLY FOR LEFT D F E SPEED REGULATING VALVES B A M6 MACH OR Ø6 WOOD SCREWS PINION CAP SCREW AND WASHER FOOT FRAME DOOR

(mm)

A	B	C	D	E	F	ANGLE OF OPEN DOOR
6-5/8"(168)	6-9/16"(166)	10-15/16"(278)	1-1/8"(28)	15/16"(24)	25/32"(20)	115°
6-5/8"(168)	3-9/16"(90)	7-15/16"(202)	1-1/8"(28)	15/16"(24)	25/32"(20)	150°

SAME DIMENSIONS APPLY TO RIGHT HAND DOOR

B A SPEED REGULATING VALVES E F C M6 MACH OR φ6 WOOD SCREWS 1-3/4"(44) D Φ OF HINGE PIVOT

PINION CAP FRAME SCREW AND WASHER FOOT DOOR

(mm)

A	B	C	D	E	F	ANGLE OF OPEN DOOR
6-5/8"(168)	3"(76)	7-3/4"(197)	1-1/8"(28)	15/16"(24)	25/32"(20)	180°

SAME DIMENSIONS APPLY TO LEFT HAND DOOR

MEASURED FROM HINGE ¢

A B C OF HINGE PIVOT FRAME F E SPEED REGULATING VALVES DOOR

RIGHT HAND DOOR 1-3/4" (44.5) C 7/16" (11) D FRAME PA PLATE 30°

(mm)

A	B	C	D	E	F	ANGLE OF OPEN DOOR
6-5/8"(168)	5-9/16"(141)	6"(151)	5/16"(8)	15/16"(24)	2-3/4"(70)	180°

Unit 5 Albert Edward House,

The Pavilions Preston, United Kingdom

[e-mail]

01772418127

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021,76351

www.vevor.com/support

Made in China

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

DOOR CLOSER

MODELO : D404

Metallic industrial lock device with adjustable handle and mounting bracket (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

ADVERTENCIA:

Mechanical assembly components including a sliding lock, handle, and screws (no text or symbols visible)

Black mechanical assembly with bolts and a handle, no visible text or symbols

Technical line drawing of a mechanical component with mounting flanges and central hub (no text or symbols)

THIS VAVLE CONTROLS LATCHING SPEED
THIS VAVLE CONTROLS DOOR SWEEP SPEED

ADJUSTING FOOT FOR CLOSING POWER

LESS POWER MORE POWER

HINGE EDGE OF DOOR

RIGHT HAND DOOR ILLUSTRATED SAME DIMENSIONS APPLY TO LEFT HAND DOOR MEASURED FROM HINGE Ø C 1-3/4"(44) SAME DIMENSIONS APPLY FOR LEFT D F E SPEED REGULATING VALVES B A M6 MACH OR Ø6 WOOD SCREWS PINION CAP SCREW AND WASHER FOOT FRAME DOOR

(mm)

A	B	C	D	E	F	ANGLE OF OPEN DOOR
6-5/8"(168)	6-9/16"(166)	10-15/16"(278)	1-1/8"(28)	15/16"(24)	25/32"(20)	115°
6-5/8"(168)	3-9/16"(90)	7-15/16"(202)	1-1/8"(28)	15/16"(24)	25/32"(20)	150°

SAME DIMENSIONS APPLY TO RIGHT HAND DOOR

B A SPEED REGULATING VALVES E F C M6 MACH OR φ6 WOOD SCREWS 1-3/4"(44) D Φ OF HINGE PIVOT

PINION CAP FRAME SCREW AND WASHER FOOT DOOR

(mm)

A	B	C	D	E	F	ANGLE OF OPEN DOOR
6-5/8"(168)	3"(76)	7-3/4"(197)	1-1/8"(28)	15/16"(24)	25/32"(20)	180°

SAME DIMENSIONS APPLY TO LEFT HAND DOOR

MEASURED FROM HINGE ¢

A B C OF HINGE PIVOT FRAME F E SPEED REGULATING VALVES DOOR

RIGHT HAND DOOR 1-3/4" (44.5) C 7/16" (11) D FRAME PA PLATE 30°

(mm)

A	B	C	D	E	F	ANGLE OF OPEN DOOR
6-5/8" (168)	5-9/16" (141)	6" (151)	5/16" (8)	15/16" (24)	2-3/4" (70)	180°

Lugar, Rancho Cucamonga, CA91730

UK

REP

Pooledas Group Ltd

Unit 5 Albert Edward House,

The Pavilions Preston, United Kingdom

[e-mail]

01772418127

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021,76351

www.vevor.com/support

Hecho en china

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

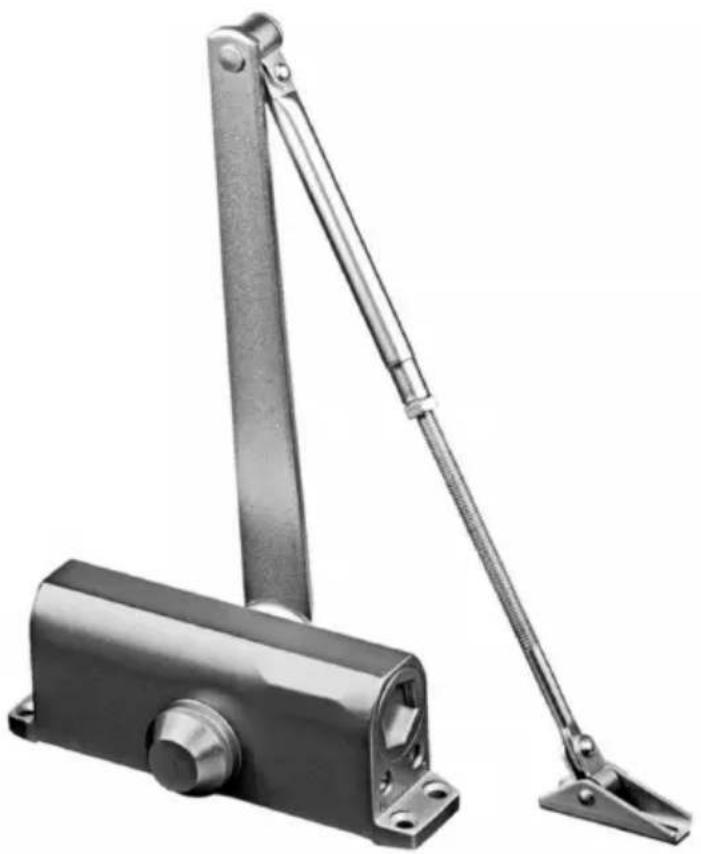

DOOR CLOSER

MODEL : D404

Metallic industrial lock device with adjustable handle and mounting bracket (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

OSTRZEŻENIE:

Technical line drawing of a mechanical component with no visible text or symbols

THIS VAVLE CONTROLS LATCHING SPEED
THIS VAVLE CONTROLS DOOR SWEEP SPEED

ADJUSTING FOOT FOR CLOSING POWER

LESS POWER MORE POWER

HINGE EDGE OF DOOR

RIGHT HAND DOOR ILLUSTRATED SAME DIMENSIONS APPLY TO LEFT HAND DOOR MEASURED FROM HINGE Ø C 1-3/4"(44) SAME DIMENSIONS APPLY FOR LEFT D F E SPEED REGULATING VALVES B A M6 MACH OR Ø6 WOOD SCREWS PINION CAP FRAME DOOR (mm) A B C D E F ANGLE OF OPEN DOOR 6-5/8" (168) 6-9/16" (166) 10-15/16" (278) 1-1/8" (28) 15/16" (24) 25/32" (20) 115° 6-5/8" (168) 3-9/16" (90) 7-15/16" (202) 1-1/8" (28) 15/16" (24) 25/32" (20) 150°

SAME DIMENSIONS APPLY TO RIGHT HAND DOOR

B A SPEED REGULATING VALVES E F C M6 MACH OR φ6 WOOD SCREWS 1-3/4"(44) D Φ OF HINGE PIVOT

PINION CAP FRAME SCREW AND WASHER FOOT DOOR

(mm)

A	B	C	D	E	F	ANGLE OF OPEN DOOR
6-5/8"(168)	3"(76)	7-3/4"(197)	1-1/8"(28)	15/16"(24)	25/32"(20)	180°

SAME DIMENSIONS APPLY TO LEFT HAND DOOR

MEASURED FROM HINGE ¢

(mm)

A	B	C	D	E	F	ANGLE OF OPEN DOOR
6-5/8"(168)	5-9/16"(141)	6"(151)	5/16"(8)	15/16"(24)	2-3/4"(70)	180°

Unit 5 Albert Edward House,

The Pavilions Preston, United Kingdom

[e-mail]

01772418127

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021,76351

www.vevor.com/support

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

DOOR CLOSER

MODEL : D404

Metallic industrial lock device with adjustable handle and mounting bracket (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WAARSCHUWING:

Metal mechanical assembly with bolts and a handle, no visible text or symbols

Black mechanical assembly with bolts and a handle, no visible text or symbols

NEE	AFBEELDING	DEELNAAM	AANTAL
A		Deurdranger lichaam	1
B		HO-arm	1
C		Tuimelaarbout M6×10	1
D		Houten Deuren Schroef ST6,3×30	4
E		Houten deuren Schroef ST5,5×20	2
F	[XXHH]	Metalen Deuren Schroef M6×10	2
G		Metalen deuren Schroef M6×25	4
H		Rondsel kap	1

PRODUCT PAREMETERS

Technical line drawing of a mechanical component with no visible text or symbols

THIS VAVLE CONTROLS LATCHING SPEED
THIS VAVLE CONTROLS DOOR SWEEP SPEED

ADJUSTING FOOT FOR CLOSING POWER

LESS POWER MORE POWER

HINGE EDGE OF DOOR

RIGHT HAND DOOR ILLUSTRATED SAME DIMENSIONS APPLY TO LEFT HAND DOOR MEASURED FROM HINGE Ø C 1-3/4"(44) SAME DIMENSIONS APPLY FOR LEFT D F E SPEED REGULATING VALVES B A M6 MACH OR Ø6 WOOD SCREWS PINION CAP FRAME DOOR (mm) A B C D E F ANGLE OF OPEN DOOR 6-5/8" (168) 6-9/16" (166) 10-15/16" (278) 1-1/8" (28) 15/16" (24) 25/32" (20) 115° 6-5/8" (168) 3-9/16" (90) 7-15/16" (202) 1-1/8" (28) 15/16" (24) 25/32" (20) 150°

SAME DIMENSIONS APPLY TO RIGHT HAND DOOR

B A SPEED REGULATING VALVES E F C M6 MACH OR φ6 WOOD SCREWS 1-3/4"(44) D Φ OF HINGE PIVOT

PINION CAP FRAME SCREW AND WASHER FOOT DOOR

(mm)

A	B	C	D	E	F	ANGLE OF OPEN DOOR
6-5/8"(168)	3"(76)	7-3/4"(197)	1-1/8"(28)	15/16"(24)	25/32"(20)	180°

SAME DIMENSIONS APPLY TO LEFT HAND DOOR

MEASURED FROM HINGE ¢

(mm)

A	B	C	D	E	F	ANGLE OF OPEN DOOR
6-5/8"(168)	5-9/16"(141)	6"(151)	5/16"(8)	15/16"(24)	2-3/4"(70)	180°

Unit 5 Albert Edward House,

The Pavilions Preston, United Kingdom

[e-mail]

01772418127

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021,76351

www.vevor.com/support

Gemaakt in China

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

DOOR CLOSER

MODELL : D404

Metallic industrial lock device with adjustable handle and mounting bracket (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING:

Mechanical assembly with metallic components and screws (no text or symbols visible)

Black mechanical assembly with bolts and a handle, no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

THIS VAVLE CONTROLS LATCHING SPEED
THIS VAVLE CONTROLS DOOR SWEEP SPEED

ADJUSTING FOOT FOR CLOSING POWER

LESS POWER MORE POWER

HINGE EDGE OF DOOR

RIGHT HAND DOOR ILLUSTRATED SAME DIMENSIONS APPLY TO LEFT HAND DOOR MEASURED FROM HINGE Ø C 1-3/4"(44) SAME DIMENSIONS APPLY FOR LEFT D F E SPEED REGULATING VALVES B A M6 MACH OR Ø6 WOOD SCREWS PINION CAP FRAME DOOR (mm) A B C D E F ANGLE OF OPEN DOOR 6-5/8" (168) 6-9/16" (166) 10-15/16" (278) 1-1/8" (28) 15/16" (24) 25/32" (20) 115° 6-5/8" (168) 3-9/16" (90) 7-15/16" (202) 1-1/8" (28) 15/16" (24) 25/32" (20) 150°

installations instruktioner

SAME DIMENSIONS APPLY TO RIGHT HAND DOOR

B A SPEED REGULATING VALVES E F C M6 MACH OR φ6 WOOD SCREWS 1-3/4"(44) D Φ OF HINGE PIVOT

PINION CAP FRAME SCREW AND WASHER FOOT DOOR

(mm)

A	B	C	D	E	F	ANGLE OF OPEN DOOR
6-5/8"(168)	3"(76)	7-3/4"(197)	1-1/8"(28)	15/16"(24)	25/32"(20)	180°

installations instruktioner

SAME DIMENSIONS APPLY TO LEFT HAND DOOR

MEASURED FROM HINGE ¢

A B C OF HINGE PIVOT FRAME F E SPEED REGULATING VALVES DOOR

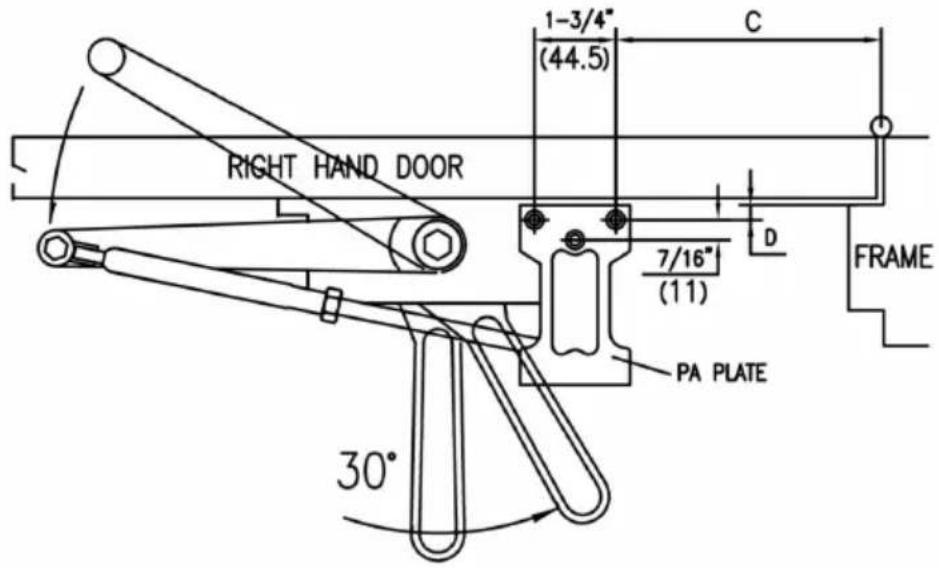

RIGHT HAND DOOR 1-3/4" (44.5) C 7/16" (11) D FRAME PA PLATE 30°

(mm)

A	B	C	D	E	F	ANGLE OF OPEN DOOR
6-5/8" (168)	5-9/16" (141)	6" (151)	5/16" (8)	15/16" (24)	2-3/4" (70)	180°

Installations instruktioner

Unit 5 Albert Edward House,

The Pavilions Preston, United Kingdom

[e-mail]

01772418127

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021,76351

www.vevor.com/support

Tillverkad i Kina
