BIFOLD SLIDING BARN DOOR

HARDWARE KIT

Model:36IN-3D-3K/40IN-3D-3K/52IN-2D-3K

Technical Support and E-Warranty Certificate

www.vevor.com/support

Model:36IN-3D-3K/40IN-3D-3K/52IN-2D-3K

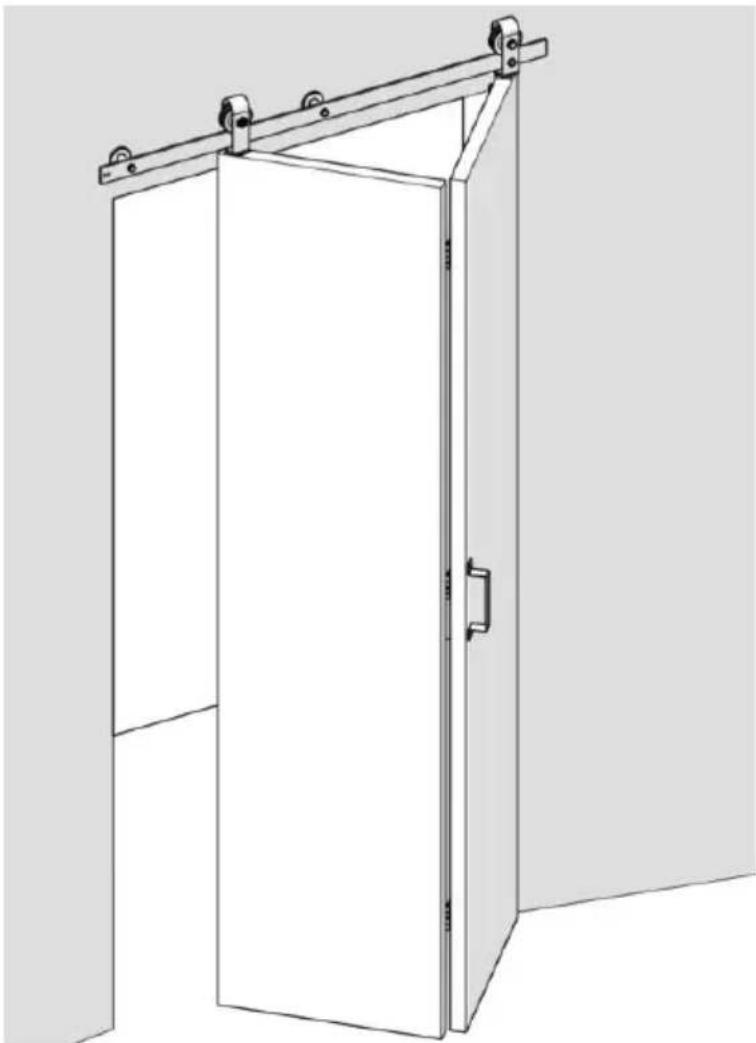

Line drawing of a door with a metal frame and attached bracket (no text or symbols)

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING:

Read this material before using this product. Failure to do so can re serious injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly can create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves du assembly.
3. Keep assembly area clean and well lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of alcohol drugs or medication.
6. Product capabilities apply to properly and completely assembled product only.
7. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap separate all parts in a clean work area.
8. For safety reasons, This hardware is recommended to be installed by people
9. Products are installed away from children and pets;

Use precautions

1. This product is not a toy. Do not allow children to play with this
2. Use as intended only.
3. Inspect before every use; do not use if parts are loose or damage

SAVE THESE INSTRUCTIONS

Product Suitability

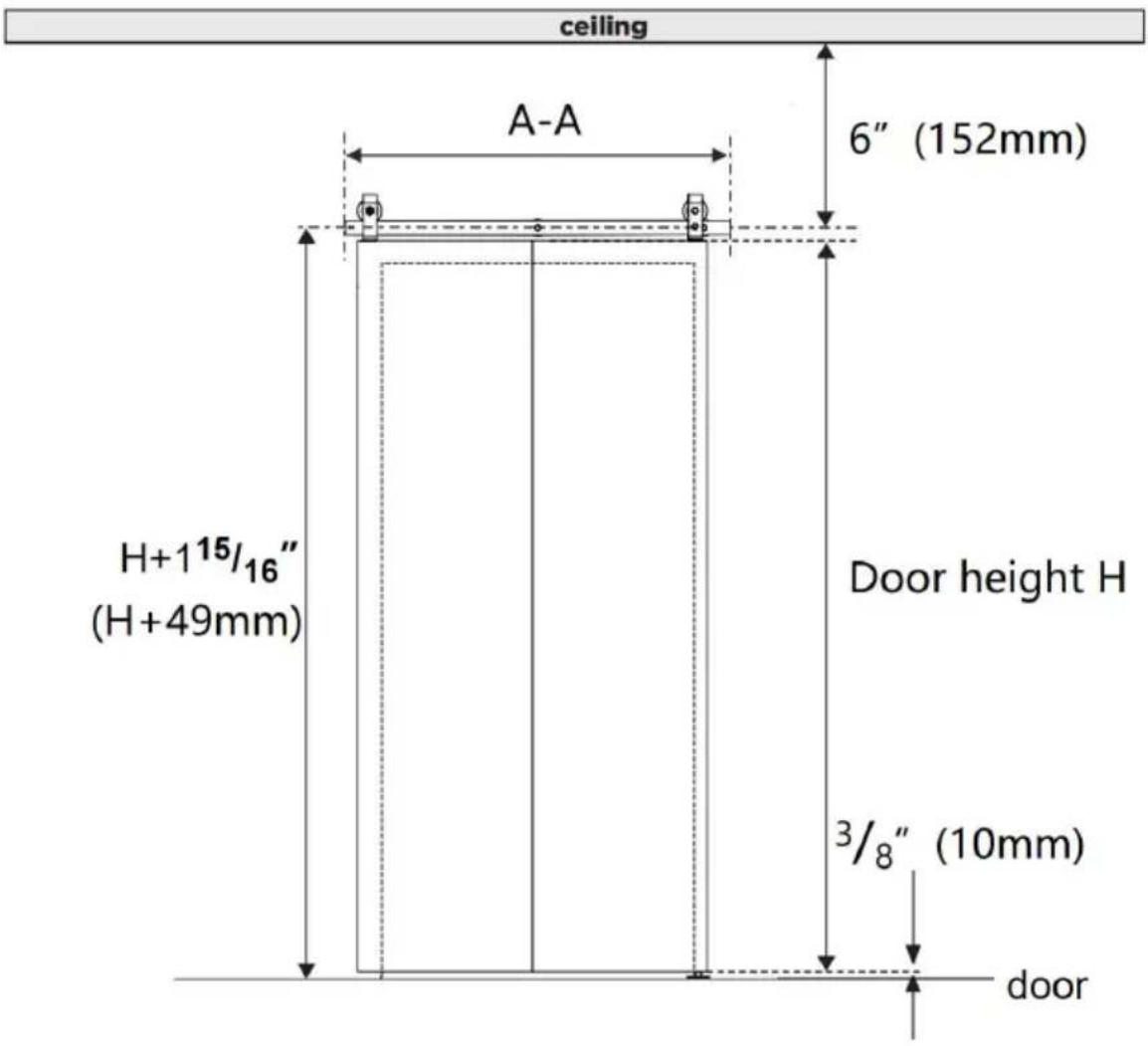

ceiling A-A 6" (152mm) H+1¹⁵/₁₆" (H+49mm) Door height H 3/8" (10mm) door

Model	36IN-3D-3K	40IN-3D-3K	52IN-2D-3K
rail length A-A	36inch(914mm)	40inch(1016mm)	52inch(1320mm)
Door width	≤16inch	≤18inch	≤24inch
Door thick	1.375 to 1.75inchs (34.92-44.45mm)
Door height	H(Depending on the user)
Distance of the rail from ground	H+49mm
Distance at the bottom of door from the ground	10mm
Distance between the dot top and the ceiling	6inch(152mm)
quantity of doors	2pcs

The box does not contain door panels and other wooden squares, while require additional purchase.

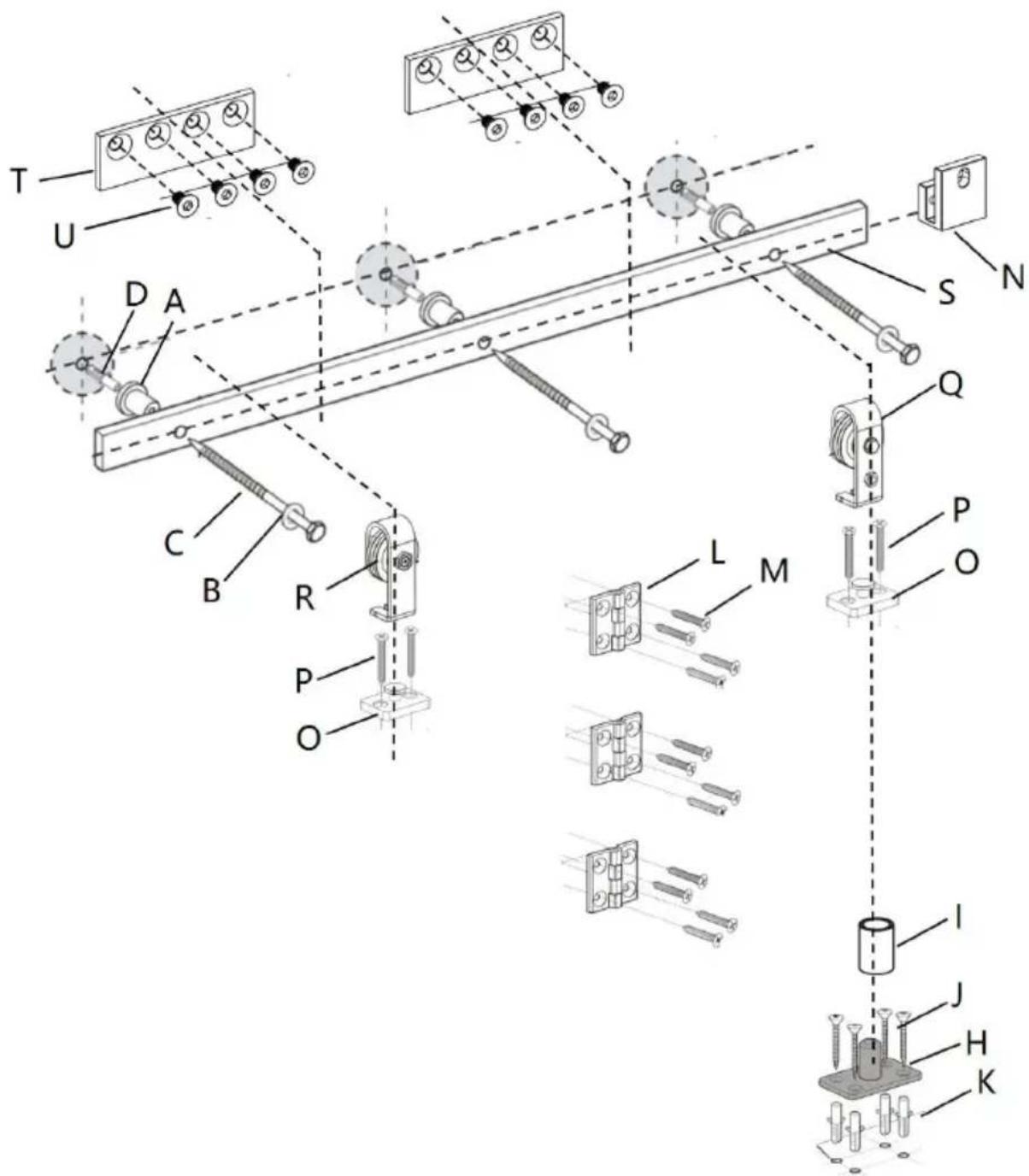

Product decomposition diagram

Technical diagram of a mechanical assembly with labeled components and assembly lines, including parts A through T.

Parts list

Same parts of different models
A:Wall Spacer×3pcs	B:washers×3pcs	C:M8×90mm Plastic Tapping Screw×3pcs	D:φ12×50 Plastic expansion bolt×3pcs
E:2mm Hex Key×1pc	F 2.5mm Hex Key×1pc	G: 4mm Hex Key×1pc	H:Bottom Pivot Plate×1pc
I:Sleeve×1pc	J:M4×30 countersunk head tapping screw×4pcs	K:φ6×30 Plastic expansion bolt×4pcs	L:Bi-Fold Door Butt Hinges×3pcs
M:M6×25 countersunk head tapping screw×12pcs	N:Fixed Roller Lock Bracket×1pc	O: Roller Rotating Base×2pcs	P:M5×50 countersunk head tapping screw×4pcs
Q:FixedRoller×1pc	R:AdjustableRoller×1pc	S:Rail Kit 1pc	V:SealingStrip×1pc
The model 36IN-3D-3K and 40IN-3D-3K have these parts, but not available in the model 52IN-2D-3K
U:M6×10bolt×8pcs	T:connectionstrap×2pcs

CNOAUTION

Mishandling of heavy objects (i.e.,doors) may cause a loss of balance serious injury. Always be sure you have a secure

hold on the object and are balanced before moving the object. Always safety shoes when lifting heavy objects.

Getting body parts (i.e., hair, fingers) caught in moving parts may cause pinching and serious injury. Do not put fingers in parts that may move always remove or contain anything on your body that may become entangled with a moving part.

Closing doors with your hand on the end of the door may result in hand, or fingers, getting caught between the door and other solid obj (i.e., another door, molding) causing serious injury. Always use the do handle to close door.

Usage Statement

Use of excessive force when opening and closing the door(s) may re damage to the hardware. Always hold the handle to gently move the door(s).

Tools required

Speed Square	Pencil	PhillipsScrewdriver	Tape
Wrench	Level	Drill	Φ19/32”Drill Bit
Φ29/64”Drill Bit	Φ7/32”Drill Bit	Φ3/16”Drill Bit

Product Assembly

It is very important to determine whether you need to install a Header Board before you install the track.

If you meet following situations, we highly recommended you using a header board (These situations might include but are not limited to)

- there is a doorway trim (like a door frame or a skirting line)

•the wall is not concrete wall, such as drywall or other type wall

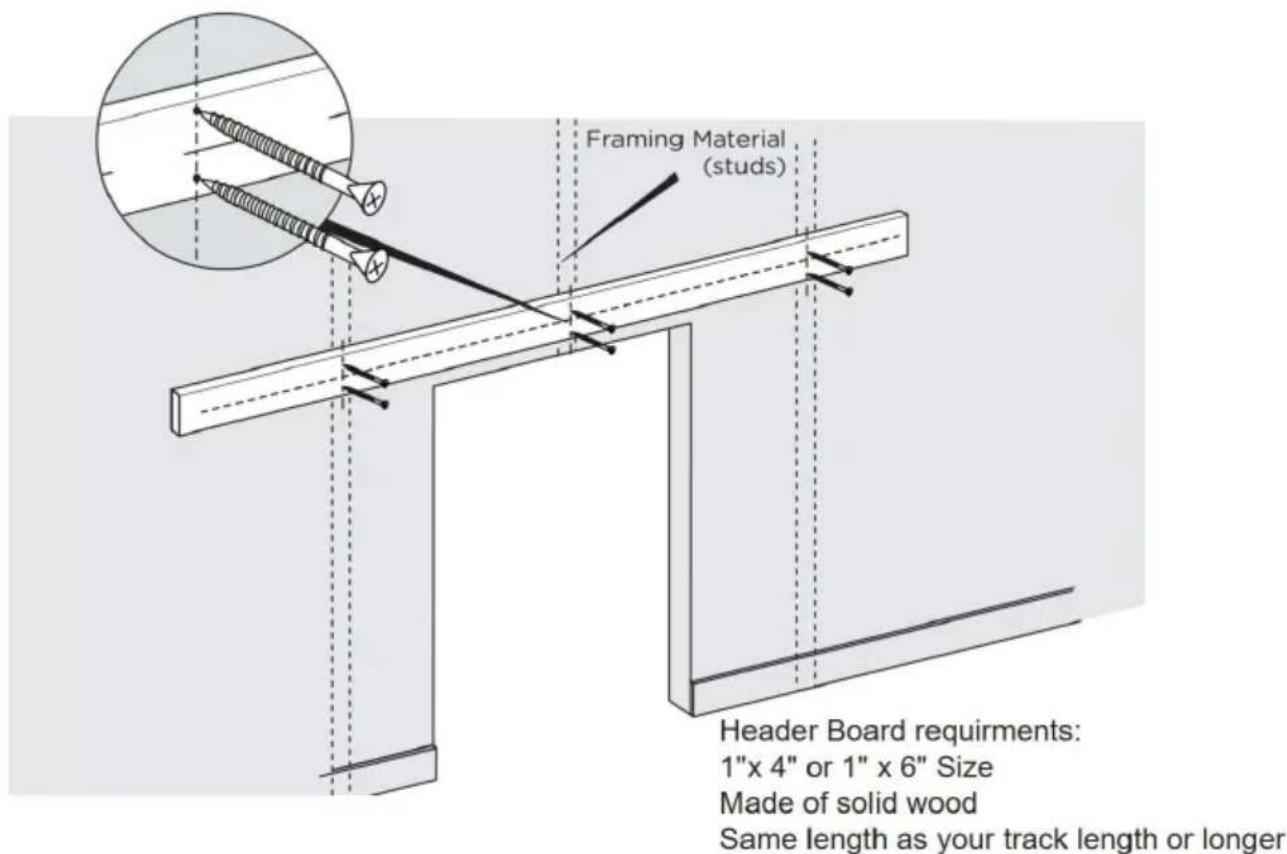

Framing Material (studs) Header Board requirements: 1" x 4" or 1" x 6" Size Made of solid wood Same length as your track length or longer

Attention: Header Board & the screws to install header board are not included. You can buy them online or offline.

Step-1

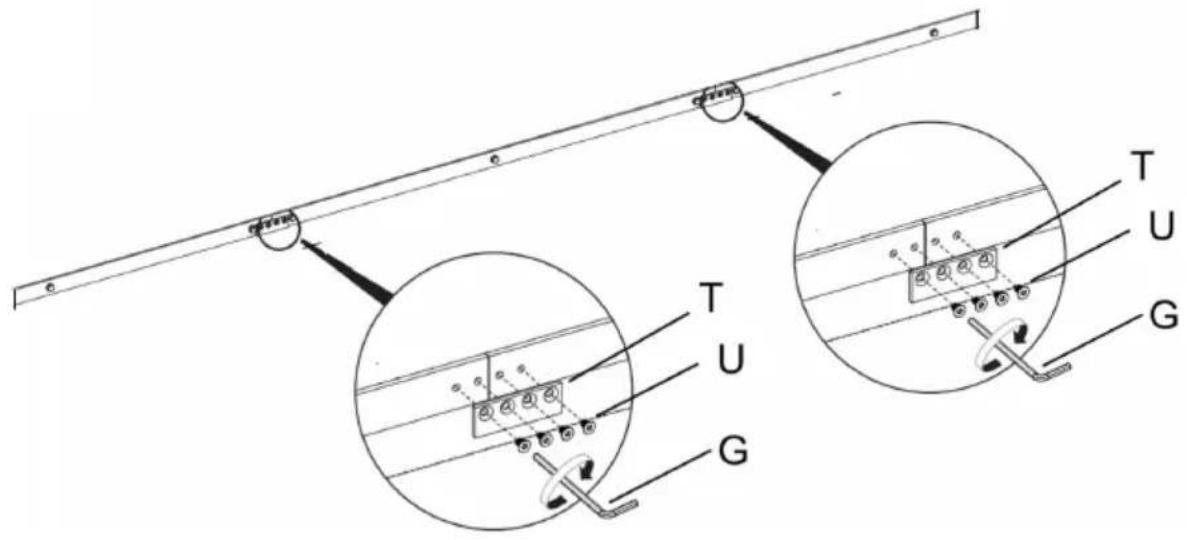

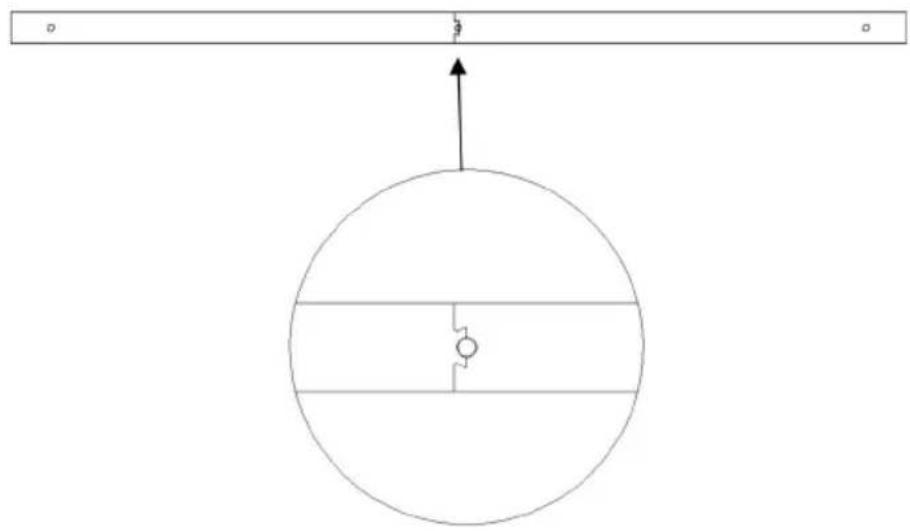

1.1.Tighten screw U with Hex Key G to connect connection strap T rails;Complete the connection of the guide rail.This installation method suitable for the guide rail of the model 36IN-3D-3K and 40IN-3D-3K

T U G G T U G

1.2. The rail of the model 52IN-2D-3K is a 2-segment rail splicing by shape.

Simple circular diagram with horizontal and vertical lines, no text or symbols present

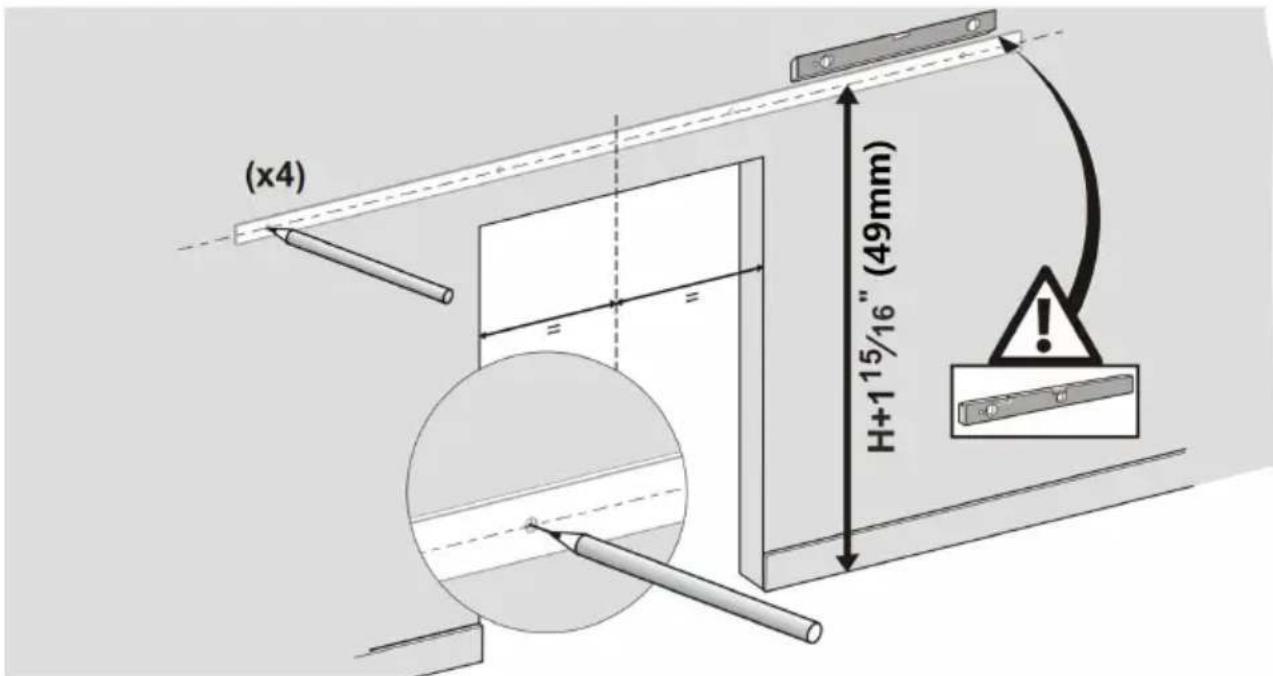

1.3. Use a Level and Tape Measure to mark the center line of the tr shown in the product selection diagram, the height of the door is H picture above, the height of the center line (measuring up from the flo the height of your door PLUS 115/16".

1.4. Position the track in place by the marked center line, ensuring it and use the track as a template to mark mounting holes location for track with a pencil. You can also refer to the track size to mark the of the rail holes.

See installation tip below.

(x4) H+1 15/16" (49mm)

C-C B-B B-B C-C A-A

Model	36IN-3D-3K	40IN-3D-3K	52IN-2D-3K
rail length A-A	36inch(9140mm)	40inch(1016mm)	52inch(1320mm)

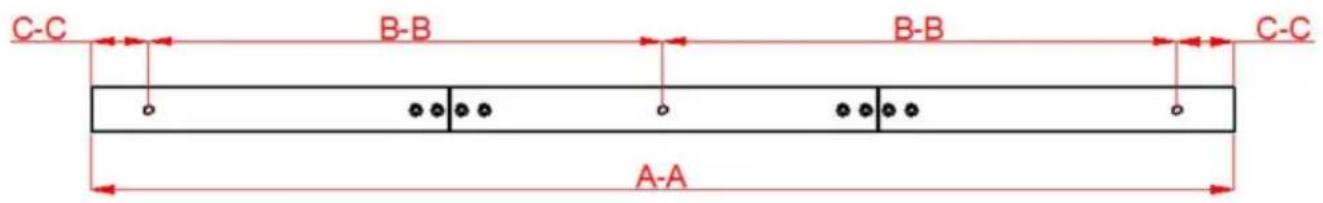

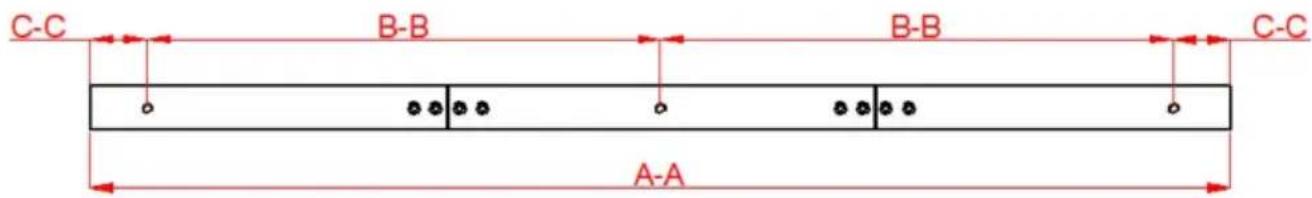

rail hole distance B-B	406mm	457mm	600mm
rail hole distance C-C	51mm	51mm	60mm

We suggest that the center of the track is at the center of the wall

Step-2:

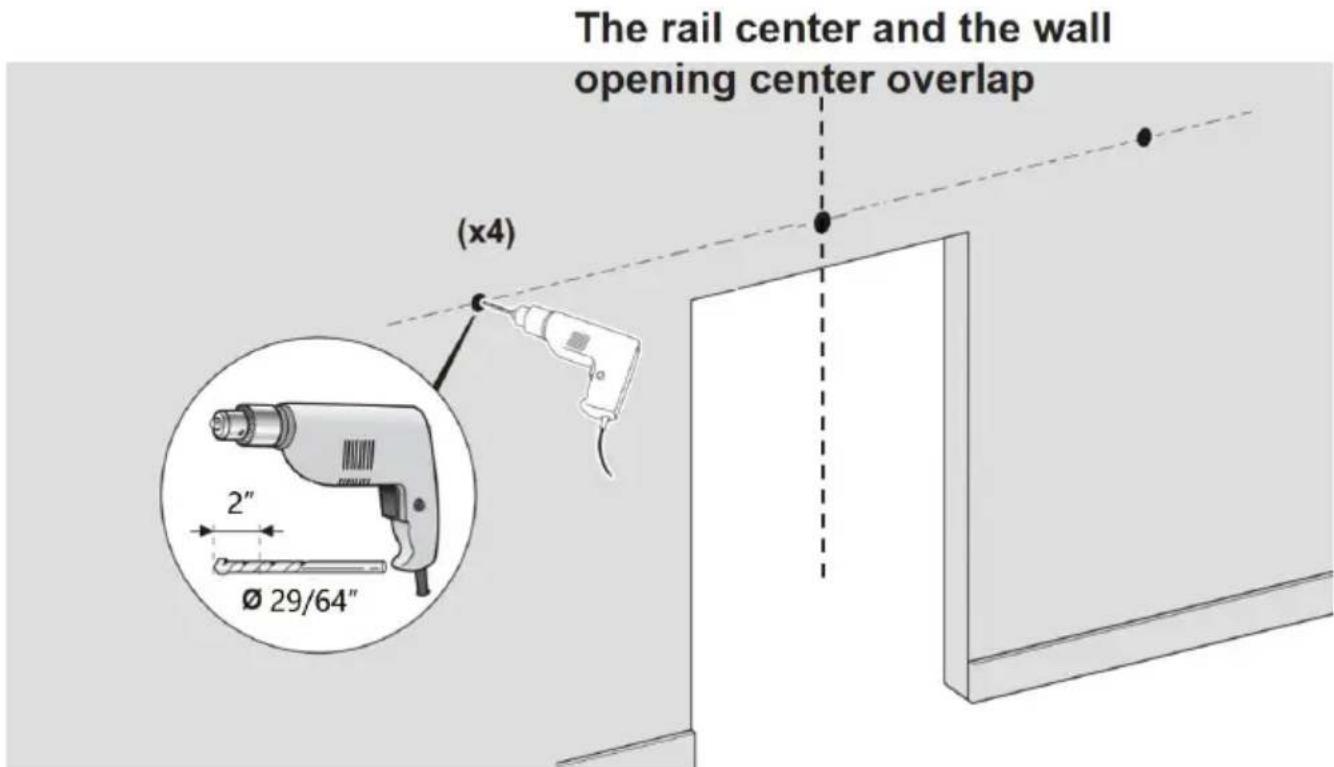

2.1. Use a 29 / 64 "drill hole in the marked position, 2inches deep;

The rail center and the wall opening center overlap (x4) 2" Ø 29/64"

Step-3: Install the guide rail

3.1. Install the Plastic expansion bolt D to holes on the concrete wall first, Then use screw P through the washers B, rail S and Wall Space and finally lock on Plastic expansion bolt D.

Technical diagram showing a mechanical assembly with labeled parts and an inset magnified view of a tool mechanism.

Step-4

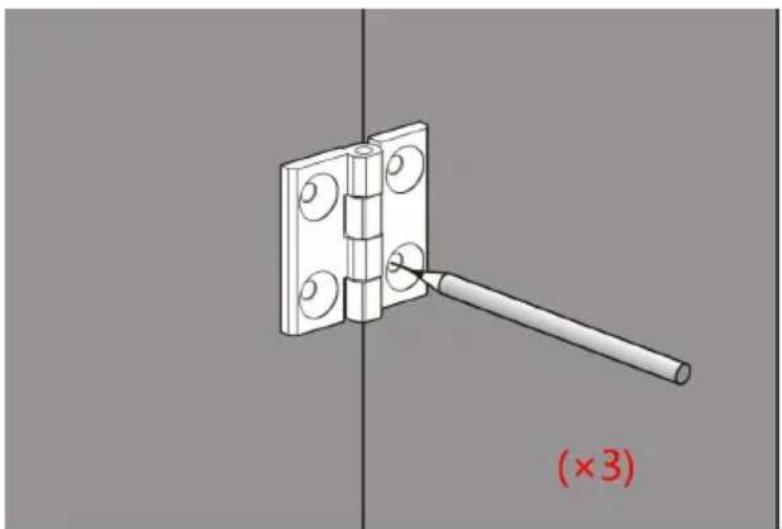

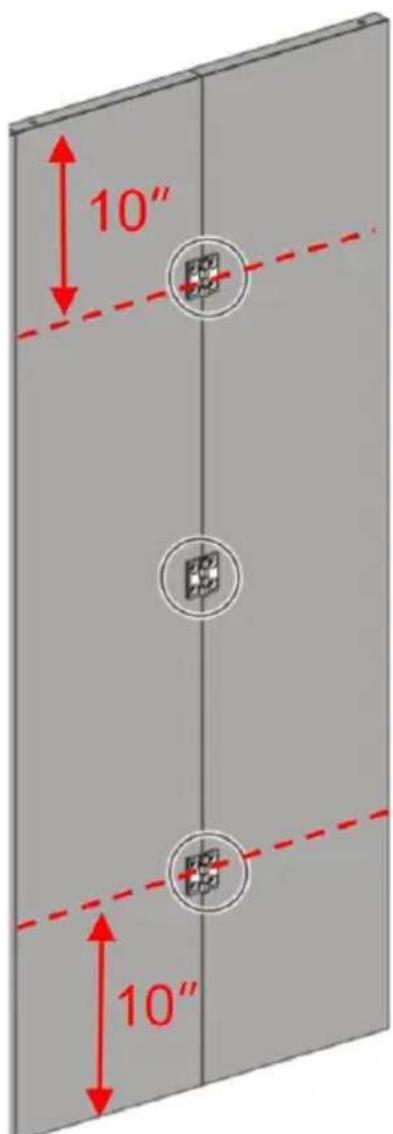

4.1.First splicing the door together, with the Bi-Fold Door Butt Hinges hole in the door to determine the position of the screw,and mark,and with 3 / 16" drill hole,hole-depth of 1inch.

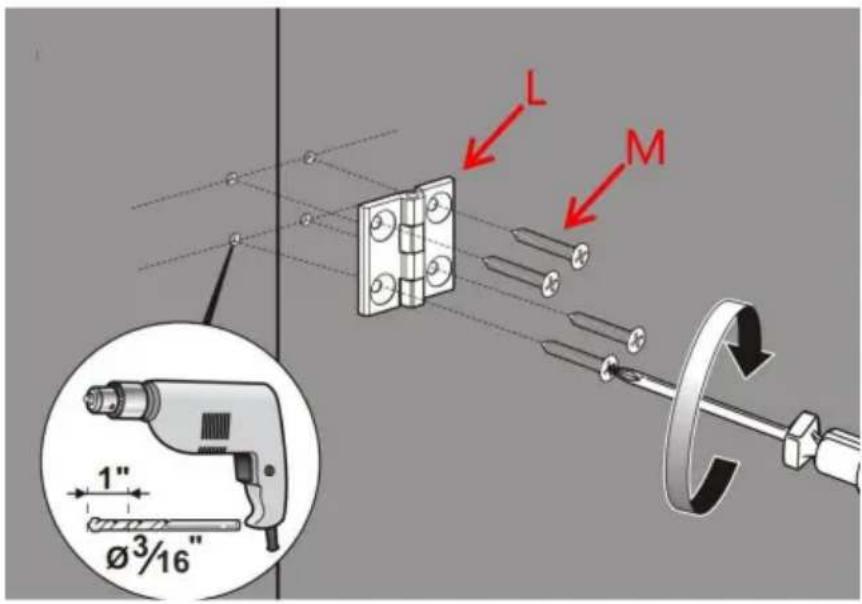

4.2.Screw M holds the Bi-Fold Door Butt Hinges L to the door,Compl assembly of the door.

Diagram of a hinge with a pin and a handle, labeled (×3) (no text or symbols on the diagram itself)

L M 1" Ø3/16"

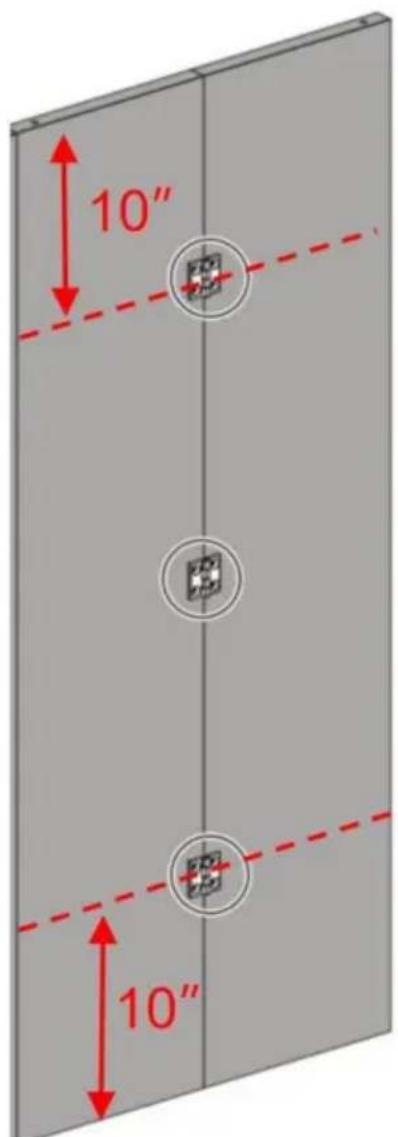

10" 10"

Step-5

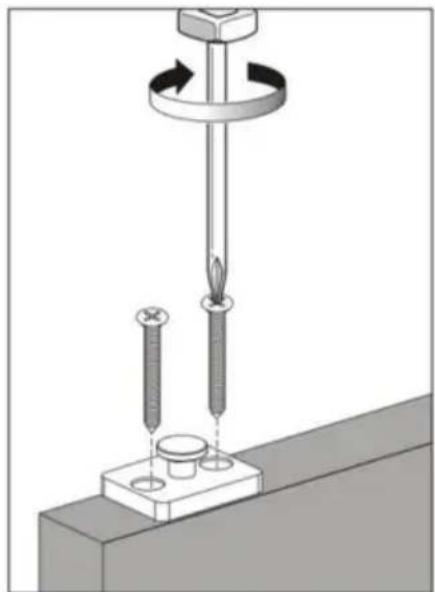

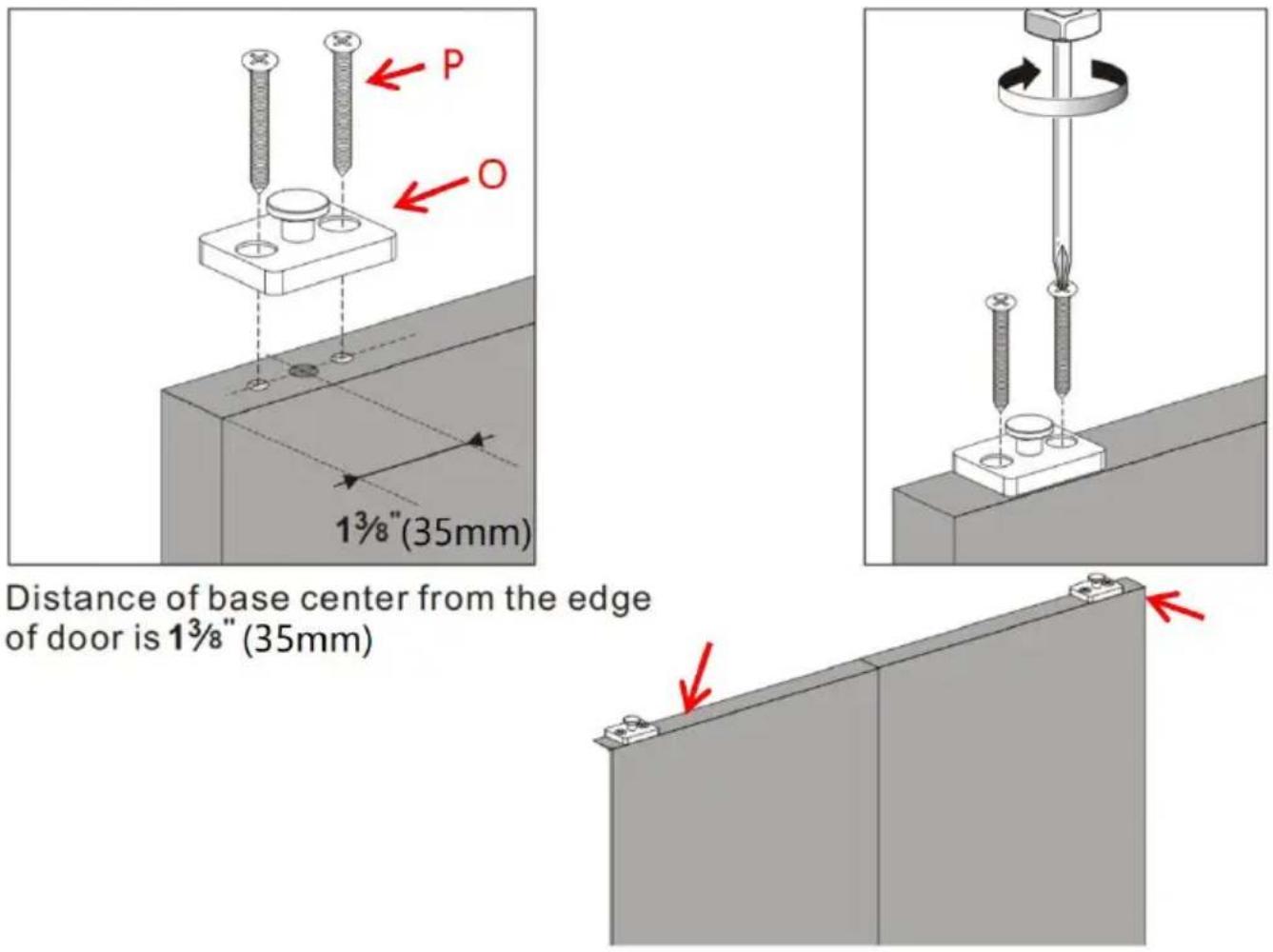

Using screw P, install 2 Roller Rotating Base O on the top of the center of Roller Rotating Base O is 35mm from the edge of the doc

Step-6

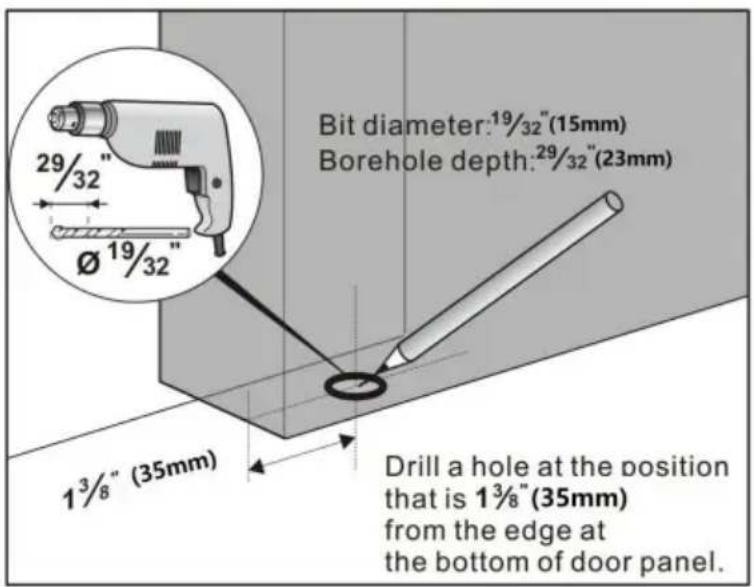

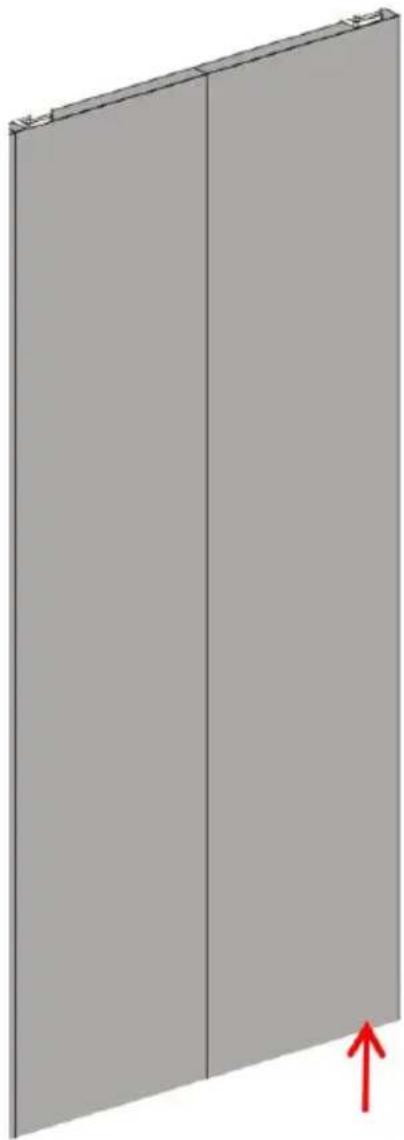

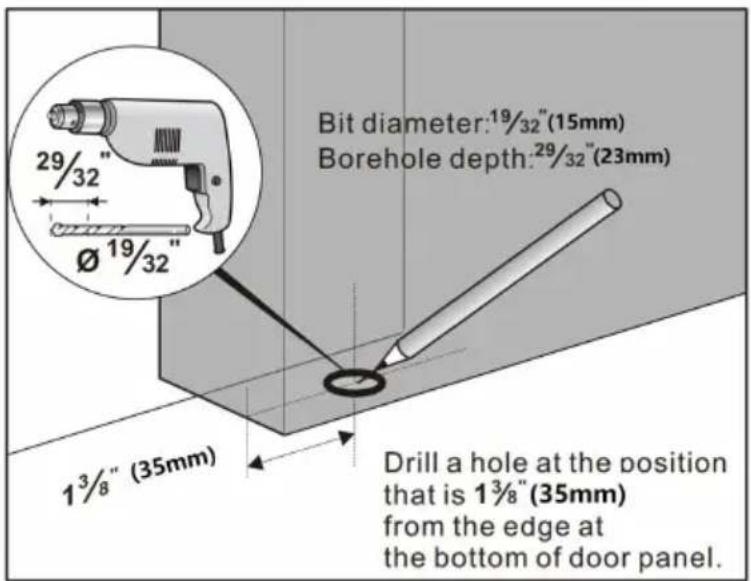

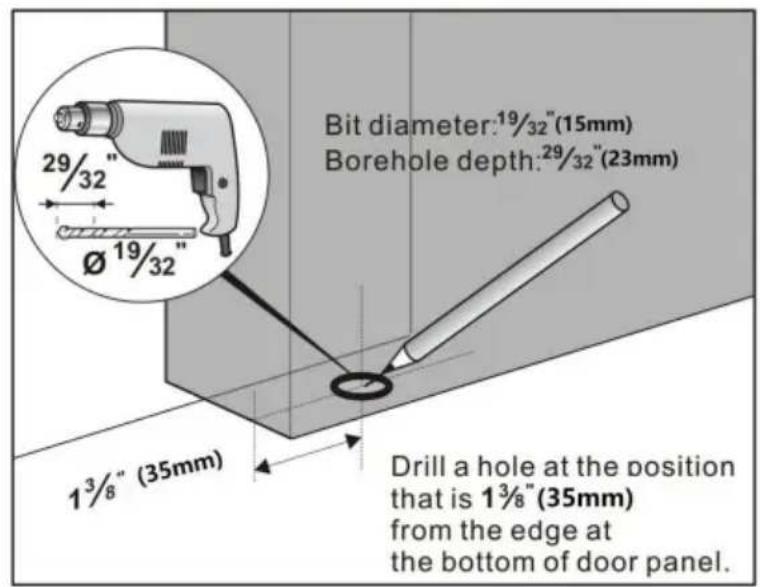

6.1.drill depth 23mm holes on side of the door with a 19 / 32" drill;the center of the hole is located 35mm away from the door edge;

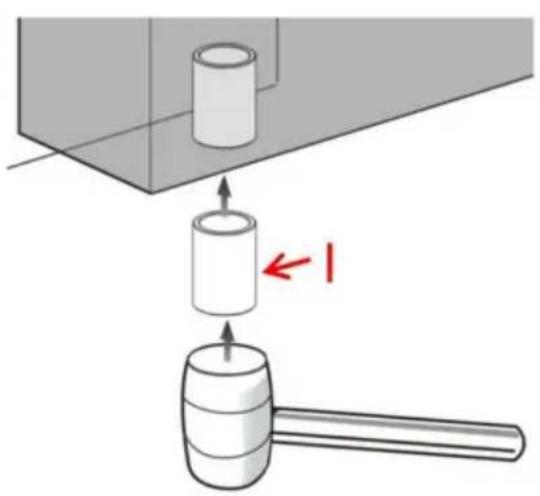

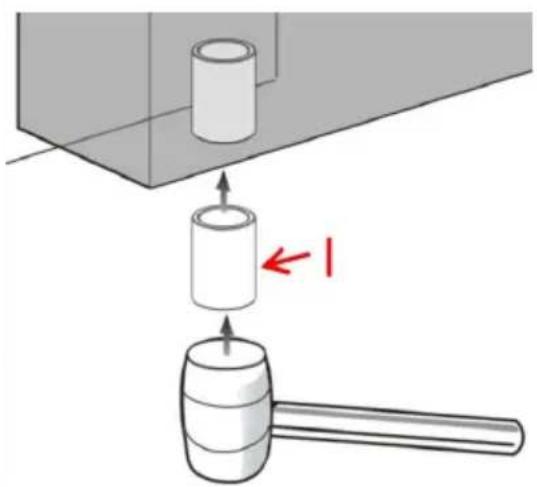

6.2. Fill Sleeve I into the hole;

3D diagram of a vertical panel with a red upward arrow indicating direction (no text or symbols)

Bit diameter:19/32" (15mm) Borehole depth:29/32" (23mm) 29/32" Ø 19/32" 13/8" (35mm) Drill a hole at the position that is 13/8" (35mm) from the edge at the bottom of door panel.

Diagram showing a mechanical assembly with a gavel and a cylindrical component, labeled with directional arrows and a red '1' indicating a specific point.

Step-7

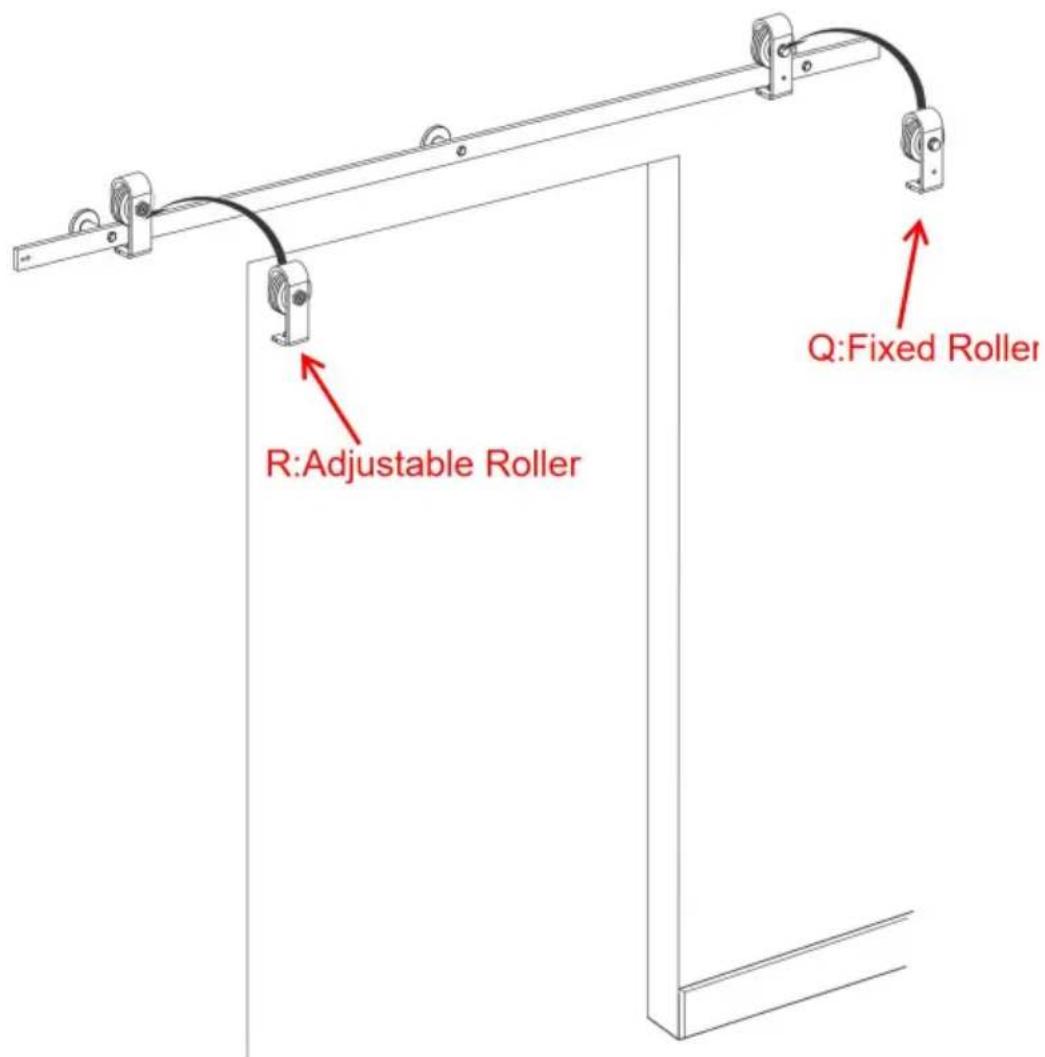

7.1.Hang the Fixed Roller Q And Adjustable Roller R on the rail.

R:Adjustable Roller Q:Fixed Roller

Step-8

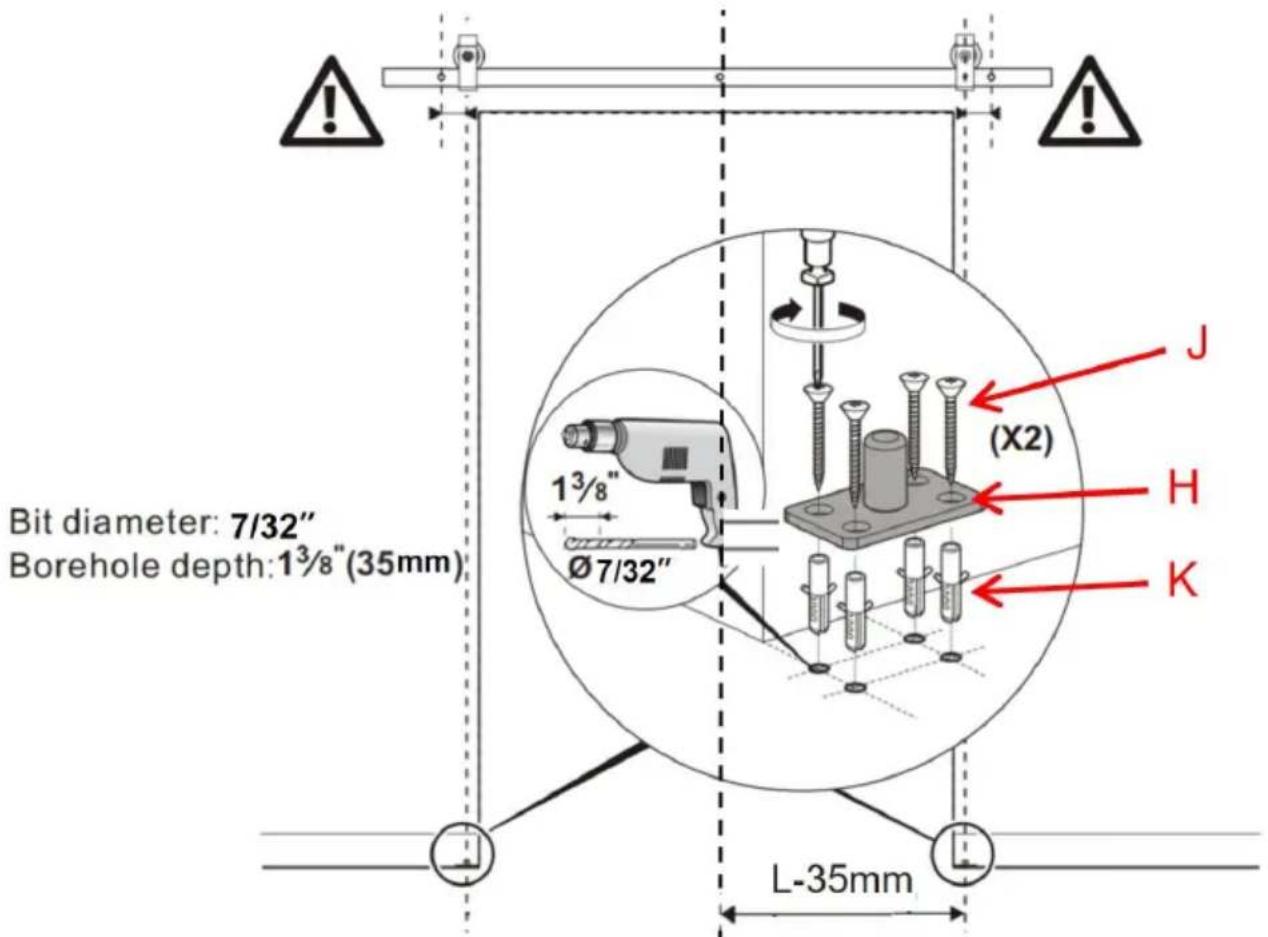

8.1.Install Bottom Pivot Plate H;Assuming the width of a single door in L;the distance between the bottom pivot plate H and the central axis wall opening is L-35mm;the distance of Bottom Pivot Plate H center is the wall is 47.6mm; 8.2.Four spots were marked above the ground with the through-hole of Bottom Pivot Plate H;drill depth 35mm holes in the mark with a Φ7/32"drill;then insert Plastic expansion bolt k into the holes.

8.3. Attach the Bottom Pivot Plate H to the floor using a screw J. 8.4. The distance between the center of Fixed Roller Q and the outer of the track is not less than 30mm

Bit diameter: 7/32" Borehole depth: 1³/8" (35mm) Ø7/32" X2 J H K L-35mm

Assuming that the width of the door panel is L, the distance between the floor guides is L-35mm

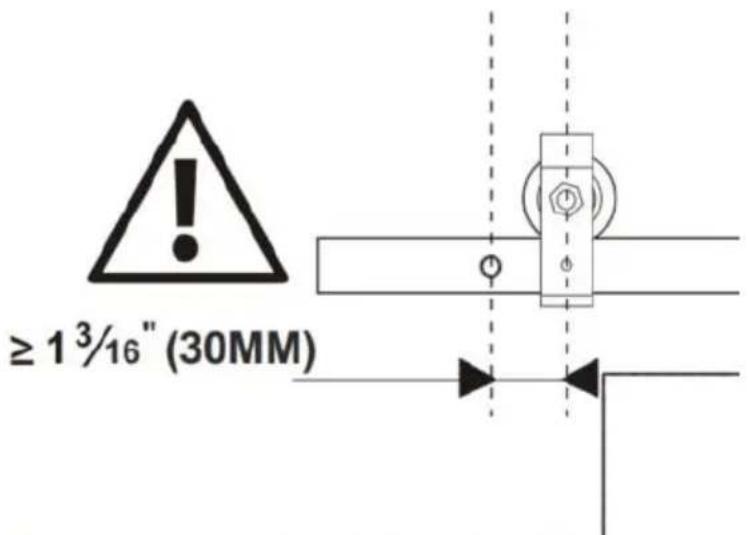

≥1 3/16" (30MM)

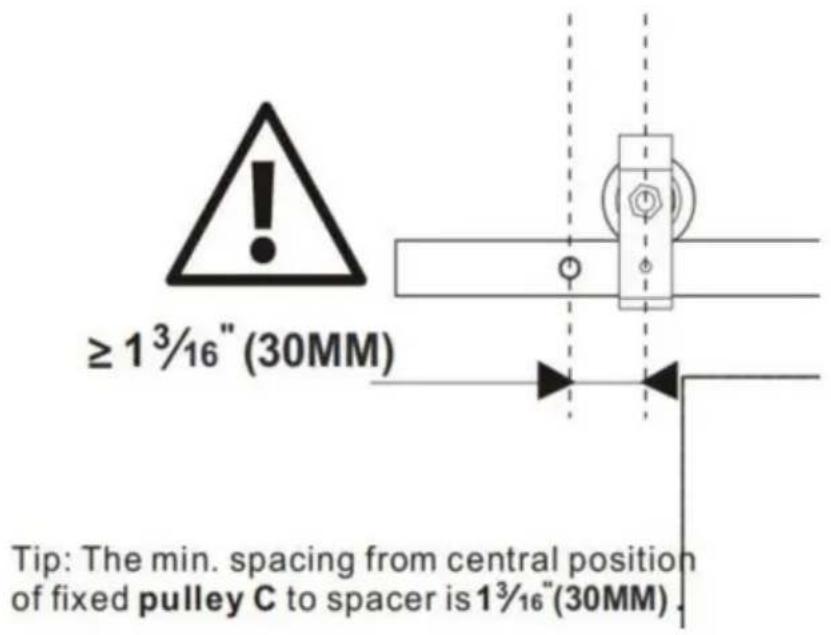

Tip: The min. spacing from central position of fixed pulley C to spacer is 1^3/_16 " (30MM).

Step-9

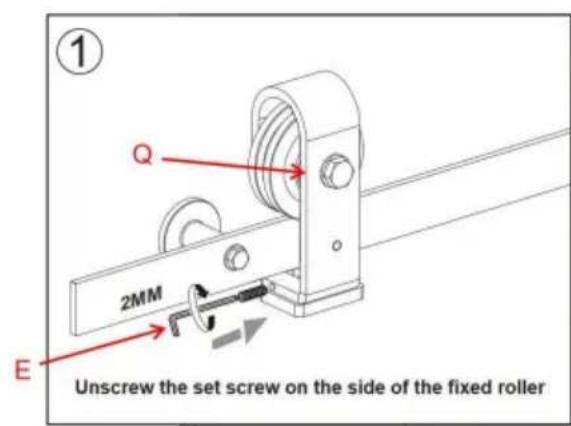

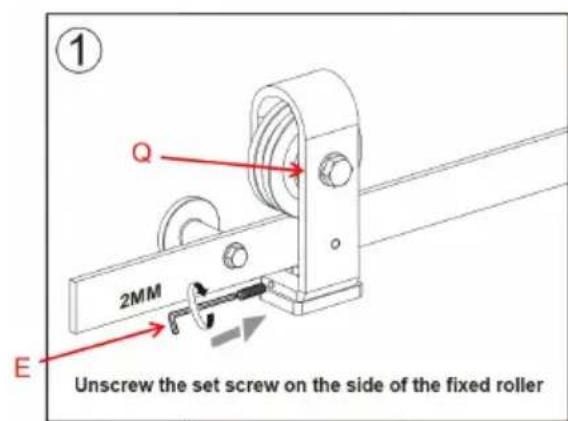

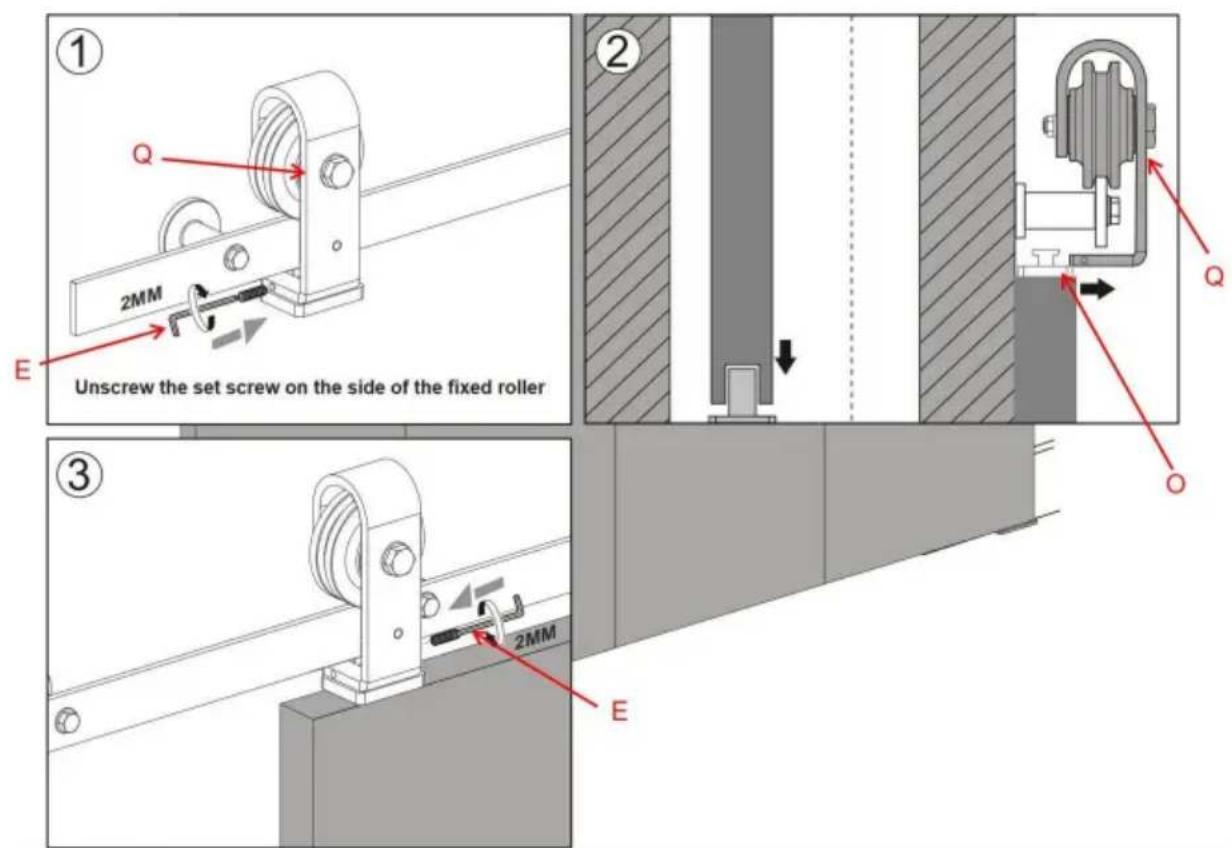

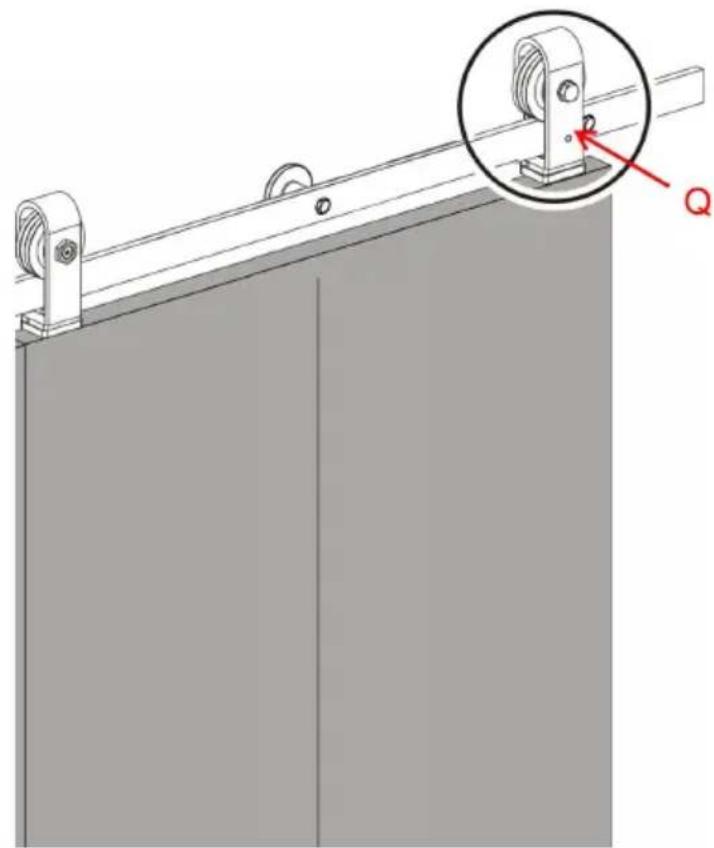

9.1. Unscrew the set screw on the side of the fixed roller Q.

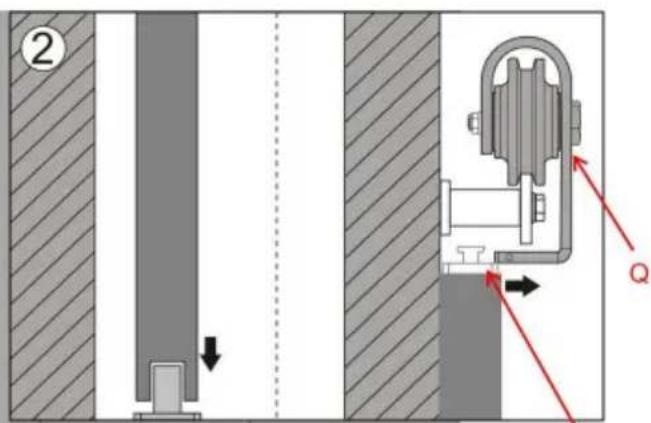

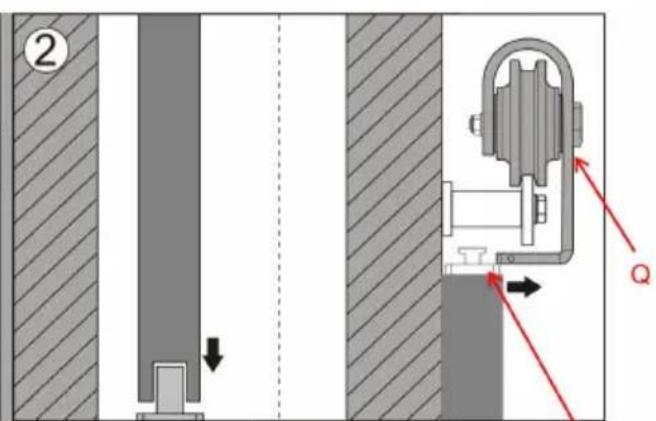

9.2. Put the door on the Sleeve I; Engage the Roller Rotating Base O on the top of the door with the fixed roller

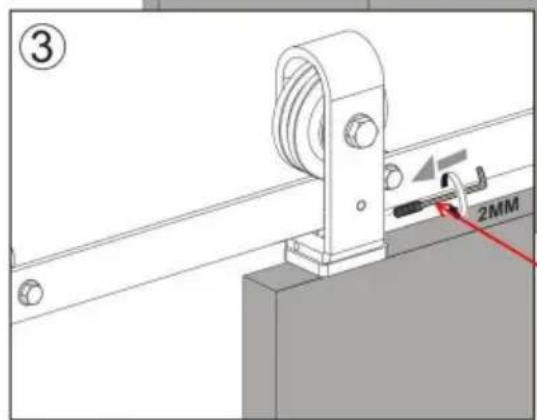

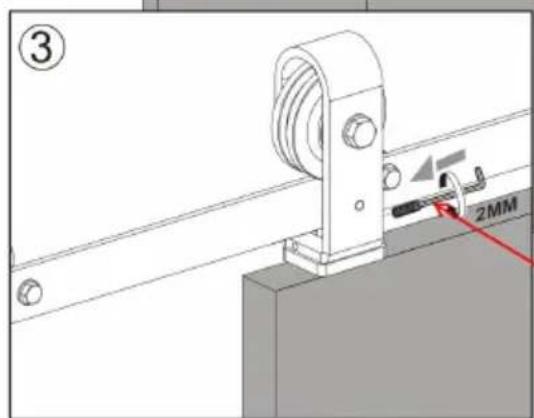

9.3. Tight down set screws to lock the fixed roller to the Roller Rotati Base O.

Diagram of a mechanical sliding mechanism with a magnified inset showing a component (no text or symbols)

① Q 2MM E Unscrew the set screw on the side of the fixed roller

Technical diagram showing mechanical assembly with labeled components and directional arrows, including section 2 and Q annotation.

③ 2MM

E O

Step-10

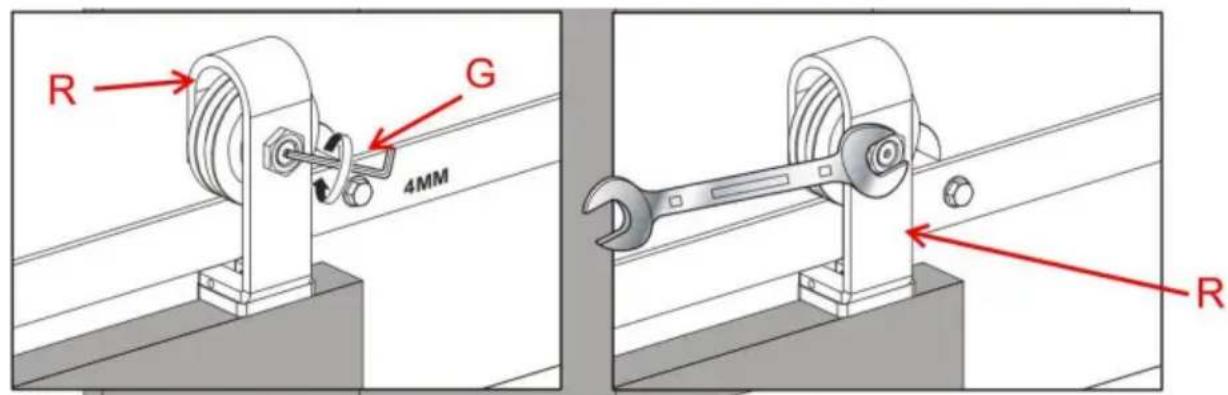

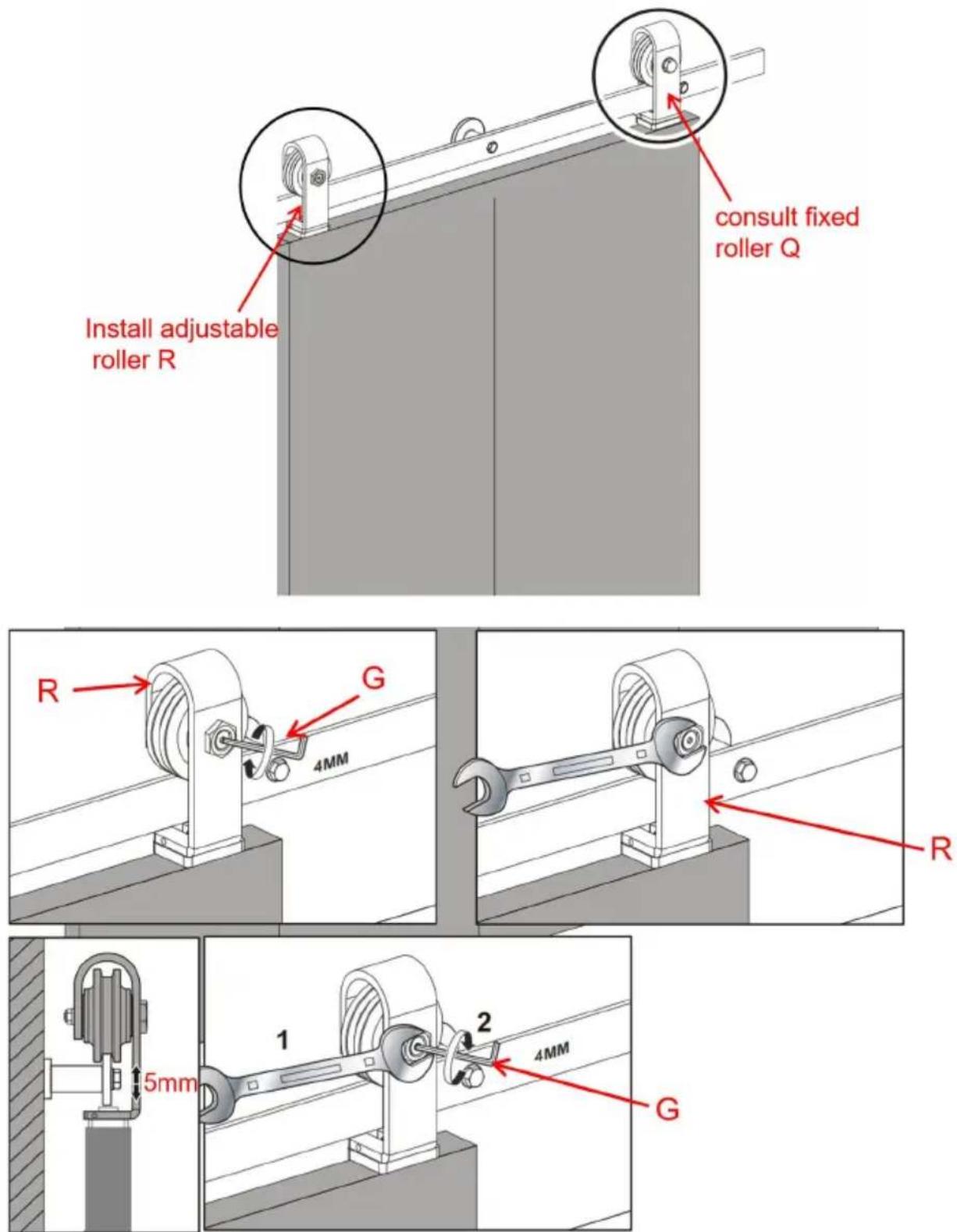

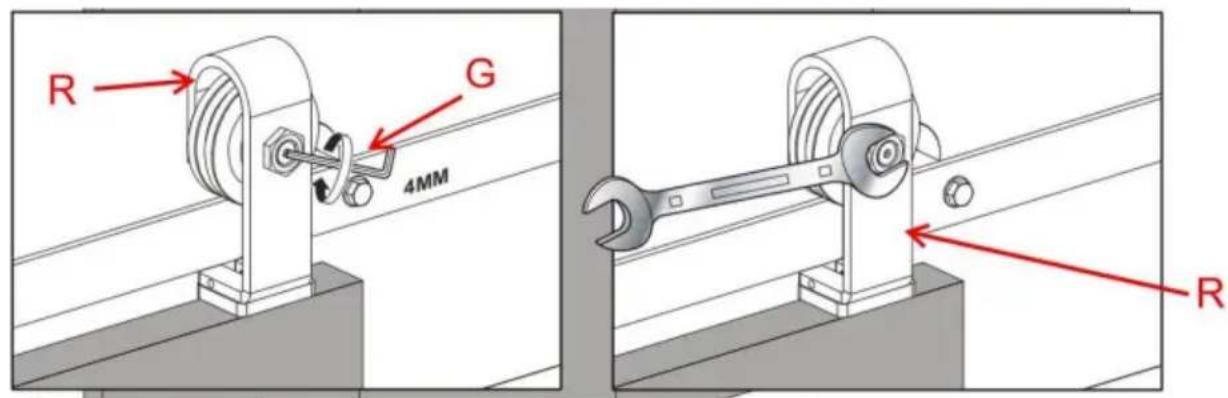

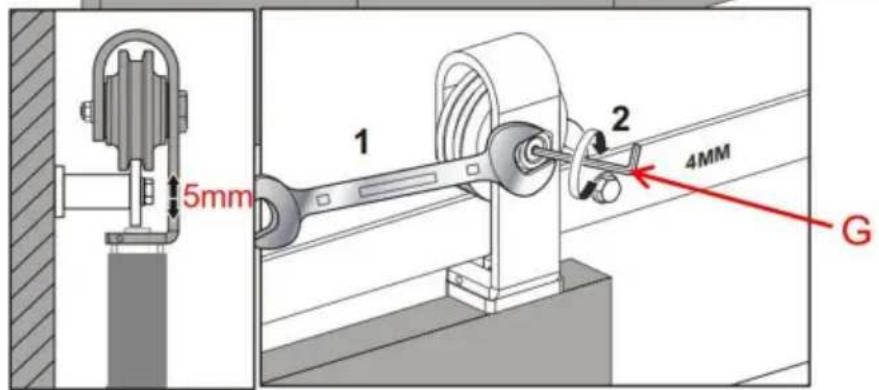

10.1. Refer to step 9, install Adjustable Roller R by the method of ins fixed roller Q.
10.2. Refer to the prompts below, Adjust the height of the adjustable ro to a suitable position. Let the left and right door height be at the sar The height of the door can be adjusted by Approximately 5mm

Step-11

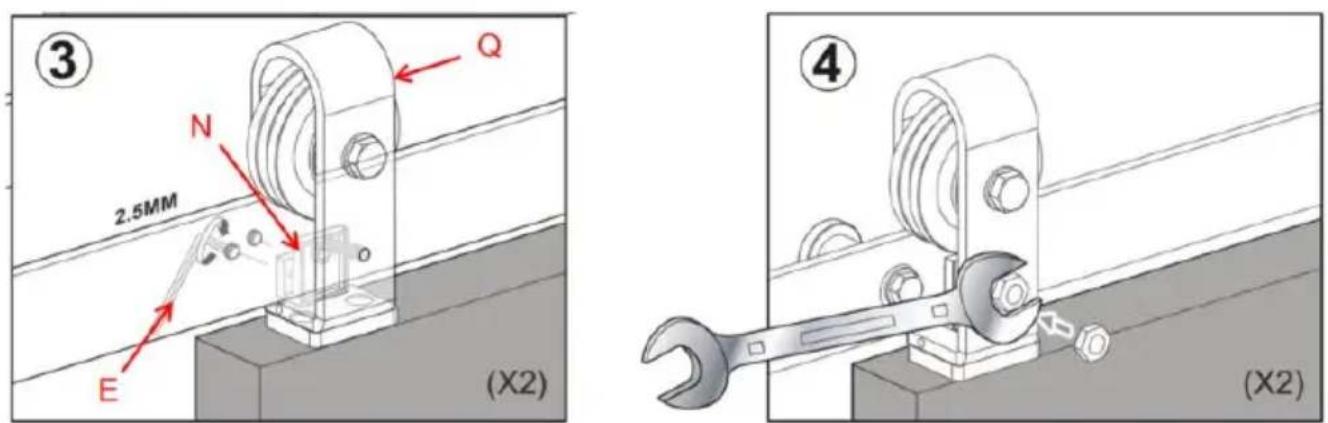

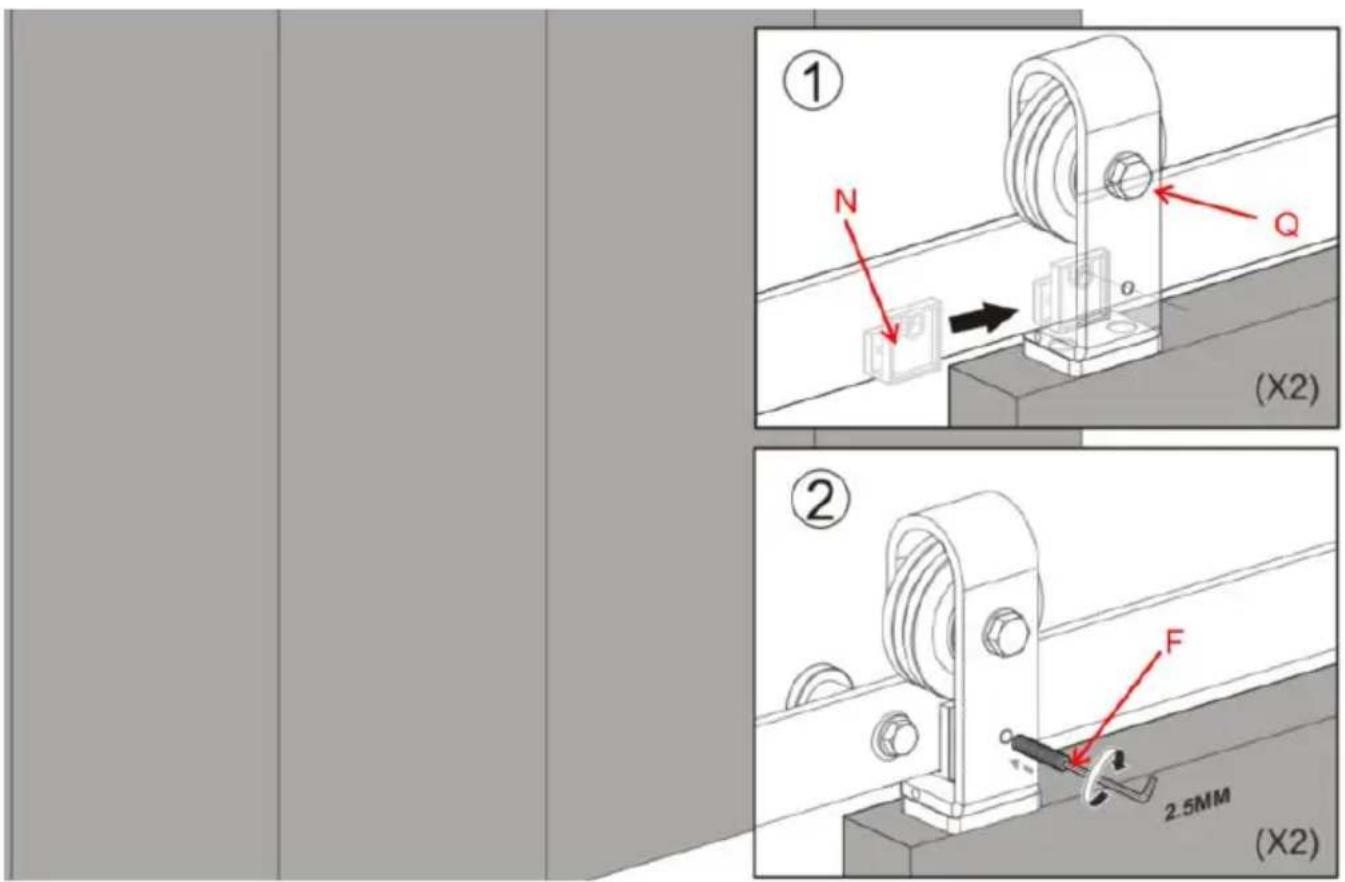

Install the fixed roller lock bracket N.

11.1.Slide the fixed roller lock bracket N onto the rail behind the set located on the front of the fixed roller Q.

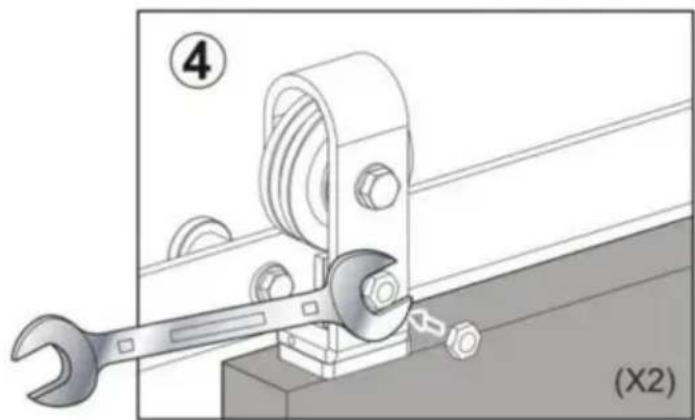

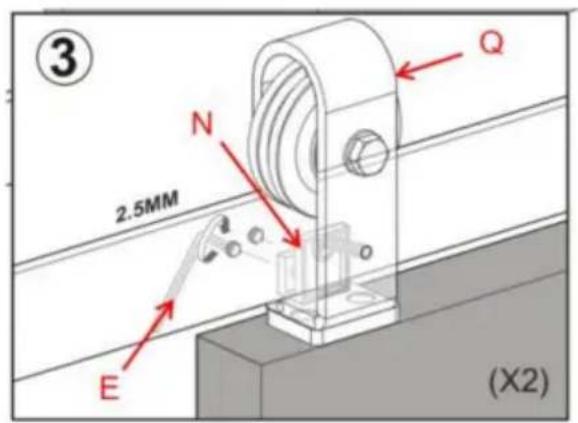

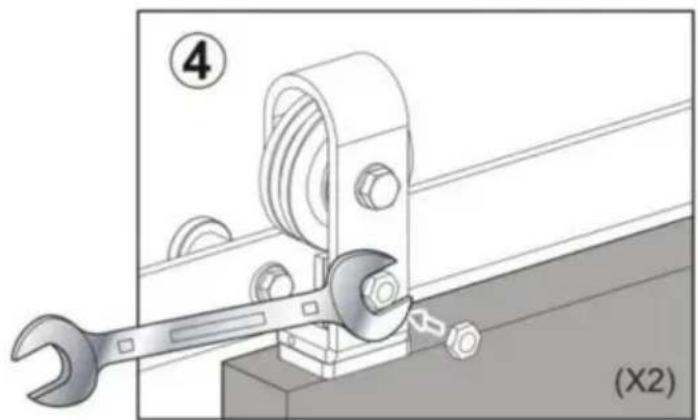

11.2. Using the supplied Allen Wrench F, tighten the set screws on th of the fixed roller lock bracket N.
11.3. Lock the fixed roller Q onto the rail by tightening the long set s through the fixed roller strap lock bracket and into the rail.

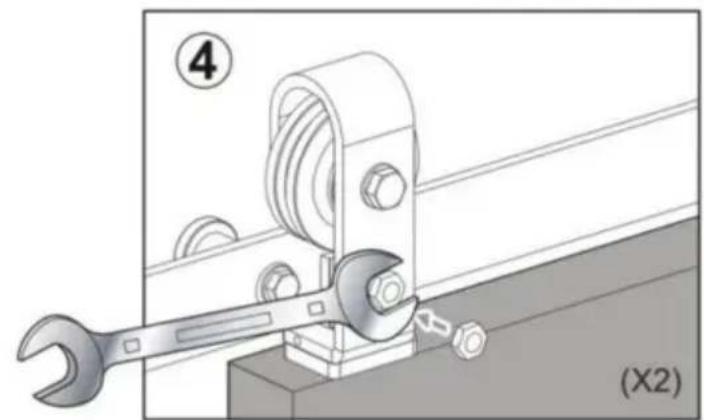

11.4. tighten the hex-head nut onto this set screw.

Technical diagram showing two mechanical assembly steps with labeled components and force indicators

③ N 2.5MM E Q (X2) ④ (X2)

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD

NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim

Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

PORTE DE GRANGE COULISSANTE À DEUX PORTES

KIT DE MATÉRIEL

Modèle : 36IN-3D-3K/40IN-3D-3K/52IN-2D-3K

Line drawing of a door with a metal latch and railings (no text or symbols)

ceiling A-A 6" (152mm) H+1¹⁵/₁₆" (H+49mm) Door height H 3/8" (10mm) door

Technical diagram of a mechanical assembly with labeled components and assembly lines, including parts A through T.

Liste des pièces

Framing Material (studs) Header Board requirements: 1"x 4" or 1" x 6" Size Made of solid wood Same length as your track length or longer

T U G T G

Simple line drawing of a circular object with horizontal and vertical lines, no text or symbols present.

(x4) H+1 15/16" (49mm)

C-C B-B B-B C-C A-A

Modèle	36IN-3D-3K	40IN-3D-3K	52IN-2D-3K
longueur du rail AA	36 pouces (9140 mm),	40 pouces (1016 mm),	52 pouces (1320 mm)
trou de rail distance BB	406 mm	457 mm	600 mm
trou de rail distance CC	51 mm	51 mm	60 mm

The rail center and the wall opening center overlap (x4) 2" Ø 29/64"

Technical diagram showing a mechanical assembly with labeled parts and an inset magnified view of a tool mechanism.

Étape 4

Technical illustration of a hinge with a handle and mounting bracket, labeled (×3) (no text or symbols on the diagram itself)

L M 1" Ø3/16"

10" 10"

Étape 5

3D diagram of a two-panel cabinet or enclosure with a red upward arrow indicating rotation (no text or symbols)

Bit diameter:19/32" (15mm) Borehole depth:29/32" (23mm) 29/32" Ø 19/32" 13/8" (35mm) Drill a hole at the position that is 13/8" (35mm) from the edge at the bottom of door panel.

Diagram showing a gavel pressing a cylindrical component with directional arrows indicating force or movement, labeled with red arrows and '1'.

Étape 7

Assuming that the width of the door panel is L, the distance between the floor guides is L-35mm

≥ 1³/₁₆" (30MM) Tip: The min. spacing from central position of fixed pulley C to spacer is 1³/₁₆"(30MM)

Étape 9

Technical diagram of a mechanical sliding mechanism with a magnified inset showing a component (no text or symbols)

① Q 2MM E Unscrew the set screw on the side of the fixed roller

Technical diagram showing mechanical assembly with labeled components and directional arrows

③ 2MM

E O

Étape 10

Technical diagram showing two mechanical assembly steps with labeled components and force indicators

③ 2.5MM N Q E (X2)

Mechanical assembly diagram showing a wrench inserted into a pulley mechanism (no text or symbols)

Fabricant : Shanghaimuxinmuyeyouxiangongsi Adresse :

Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Importé en Australie : SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australie

YH CONSULTING LIMITED. C/O YH Consulting Limited Bureau 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

REPRÉSENTANT DE LA CE

E-CrossStu GmbH

Mainzer Landstr.69,

Affordable. Reliable. Home Improvement.

FALTBARES SCHIEBETÜR

HARDWARE KIT

Modell: 36IN-3D-3K/40IN-3D-3K/52IN-2D-3K

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a door with a metal latch and railings (no text or symbols)

ceiling A-A 6" (152mm) H+1¹⁵/₁₆" (H+49mm) Door height H 3/8" (10mm) door

Technical diagram of a mechanical assembly with labeled components and assembly lines, including parts A through T.

Ersatzteilliste

Framing Material (studs) Header Board requirements: 1"x 4" or 1" x 6" Size Made of solid wood Same length as your track length or longer

T U G T G

Simple line drawing of a circular object with horizontal and vertical lines, no text or symbols present.

(x4) H+1 15/16" (49mm)

C-C B-B B-B C-C A-A

Modell	36IN-3D-3K	40IN-3D-3K 52IN-2D-3K
Schienenlänge AA	36 Zoll (9140 mm) 40	Zoll (1016 mm) 52 Zoll (1320 mm)
Schienenloch Abstand BB	406 mm	457 mm 600 mm
Schienenloch Abstand CC	51 mm	51 mm 60 mm

The rail center and the wall opening center overlap (x4) 2" Ø 29/64"

Technical diagram showing a mechanical assembly with labeled parts and an inset magnified view of a tool mechanism.

Schritt

Technical illustration of a hinge with a handle and mounting bracket, labeled (×3) (no text or symbols on the diagram itself)

L M 1" Ø3/16"

10" 10"

Schritt

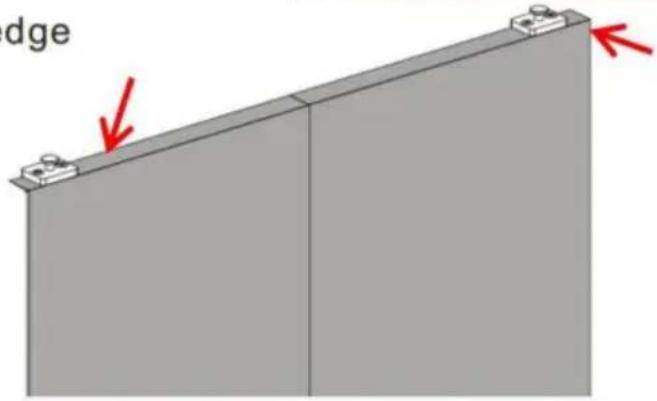

Distance of base center from the edge of door is 138 " (35mm)

Mechanical testing setup showing a rotating tool interacting with two screws on a base (no text or symbols visible)

dge

Schritt

3D rendering of a two-panel cabinet or shelf with a red upward arrow indicating compression (no text or symbols)

Bit diameter:19/32" (15mm) Borehole depth:29/32" (23mm) 29/32" Ø 19/32" 13/8" (35mm) Drill a hole at the position that is 13/8" (35mm) from the edge at the bottom of door panel.

Diagram showing a gavel pressing a cylindrical component with directional arrows indicating force or movement, labeled with red arrows and '1'.

Schritt

Assuming that the width of the door panel is L, the distance between the floor guides is L-35mm

≥ 1 3/16" (30MM) Tip: The min. spacing from central position of fixed pulley C to spacer is 1 3/16"(30MM)

Schritt 9

Technical diagram of a mechanical sliding mechanism with a magnified inset showing a component (no text or symbols)

① Q 2MM E Unscrew the set screw on the side of the fixed roller

Technical diagram showing mechanical assembly with labeled components and directional arrows

③ 2MM

E O

Schritt 10

Technical diagram showing two mechanical assembly steps with labeled components and dimensions (X2)

③ 2.5MM N Q E (X2)

Mechanical assembly diagram showing a wrench inserted into a bracket with a pulley and screw fastener (no text or symbols)

Hersteller: Shanghaimuxinmuyeyouxiangongsi Adresse:

Shuangchenglu 803nong11hao1602A-1609shi, Baoshanqu, Shanghai 200000 CN.

Nach AUS importiert: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australien

Importiert in die USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK REP

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

PORTA SCORREVOLE A PIEGHEVOLE

KIT FERRAMENTA

Modello:36IN-3D-3K/40IN-3D-3K/52IN-2D-3K

Line drawing of a door with a metal latch and railings (no text or symbols)

Framing Material (studs) Header Board requirements: 1"x 4" or 1" x 6" Size Made of solid wood Same length as your track length or longer

T U G T G

Simple line drawing of a circular object with horizontal and vertical lines, no text or symbols present.

(x4) H+1 15/16" (49mm)

C-C B-B B-B C-C A-A

The rail center and the wall opening center overlap (x4) 2" Ø 29/64"

Technical diagram showing a mechanical assembly with labeled parts and an inset magnified view of a tool mechanism.

Fase 4

Technical illustration of a hinge with a rod and mounting bracket, labeled (×3) (no text or symbols on the diagram itself)

L M 1" Ø3/16"

10" 10"

Fase 5

3D rendering of a two-panel cabinet or shelf with a red upward arrow indicating compression (no text or symbols)

Bit diameter:19/32" (15mm) Borehole depth:29/32" (23mm) 29/32" Ø 19/32" 13/8" (35mm) Drill a hole at the position that is 13/8" (35mm) from the edge at the bottom of door panel.

Diagram showing a gavel pressing a cylindrical component with directional arrows indicating force or movement, labeled with red arrows.

Fase 7

Assuming that the width of the door panel is L, the distance between the floor guides is L-35mm

≥ 1 3/16" (30MM) Tip: The min. spacing from central position of fixed pulley C to spacer is 1 3/16"(30MM)

Passo 9

Technical diagram of a mechanical sliding mechanism with a magnified inset showing a component labeled 'Q' (no text or symbols present)

① Q 2MM E Unscrew the set screw on the side of the fixed roller

Technical diagram showing mechanical assembly with labeled components and directional arrows

③ 2MM

E O

Passo 10

Install adjustable roller R consult fixed roller Q

R G 4MM R

5mm 1 2 4MM G

Passo 11

Technical diagram showing two mechanical assembly steps with labeled components and force indicators

③ 2.5MM N Q E (X2)

Mechanical assembly diagram showing a wrench inserted into a bracket with a gear mechanism, labeled (X2), and figure number 4 (no text or symbols on the diagram itself)

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importato negli USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

RAPPRESENTANZA DEL REGNO UNITO

YH CONSULTING LIMITED. C/O YH Consulting Limited Ufficio 147, Centurion House, London Road, Staines- upon-Thames, Surrey, TW18 4AX

Affordable. Reliable. Home Improvement.

Line drawing of a door with a metal latch and railings (no text or symbols)

ceiling A-A 6" (152mm) H+1¹⁵/₁₆" (H+49mm) Door height H 3/8" (10mm) door

Technical diagram of a mechanical assembly with labeled components and assembly lines, including parts A through T.

Lista de piezas

Framing Material (studs) Header Board requirements: 1"x 4" or 1" x 6" Size Made of solid wood Same length as your track length or longer

T U G T G

Simple line drawing of a circular object with horizontal and vertical lines, no text or symbols present.

(x4) H+1 15/16" (49mm)

C-C B-B B-B C-C A-A

Modelo	36 pulgadas, 3D, 3K	40 EN 3D 3K	52 pulgadas, 2 dimensiones, 3 kilos
longitud del rielAmpio ca lapa	36 pulgadas (9140 mm) 40	pulgadas (1016 mm) 52	pulgadas (1320 mm)
agujero del carrildistancia BB	406 mm	457 millímetros	600 mm
agujero del carrildistancia CC	51 mm	51 mm	60 mm

The rail center and the wall opening center overlap (x4) 2" Ø 29/64"

Technical diagram showing a mechanical assembly with labeled parts and an inset magnified view of a tool mechanism.

Paso 4

Technical illustration of a hinge with a handle and mounting bracket, labeled (×3) (no text or symbols on the diagram itself)

L M 1" Ø3/16"

10" 10"

Paso 5:

3D diagram of a two-panel cabinet or enclosure with a red upward arrow indicating rotation (no text or symbols)

Bit diameter:19/32" (15mm) Borehole depth:29/32" (23mm) 29/32" Ø 19/32" 13/8" (35mm) Drill a hole at the position that is 13/8" (35mm) from the edge at the bottom of door panel.

Diagram showing a gavel pressing a cylindrical component with directional arrows indicating force or movement, labeled with red arrows and '1'.

Paso 7

Assuming that the width of the door panel is L, the distance between the floor guides is L-35mm

≥ 1 3/16" (30MM) Tip: The min. spacing from central position of fixed pulley C to spacer is 1 3/16"(30MM)

Paso 9

Technical diagram of a mechanical sliding mechanism with a magnified inset showing a component (no text or symbols)

(①) Q 2MM E Unscrew the set screw on the side of the fixed roller ② Q O ③ 2MM E

Paso 10

Install adjustable roller R consult fixed roller Q

R G 4MM R

5mm 1 2 4MM G

Paso 11

Technical diagram showing two mechanical assembly steps with labeled components and force indicators

③ 2.5MM N Q E (X2)

Mechanical assembly diagram showing a wrench inserted into a bracket with a gear mechanism, labeled (X2), and figure number 4 (no text or symbols on the diagram itself)

Road, Staines-upon-Thames, Surrey, TW18 4AX

REPRESENTANTE CE

E-CrossStu GmbH

Mainzer Landstr.69,

Affordable. Reliable. Home Improvement.

DRZWI SKŁADANE PRZESUWNE DO STODOŁY

ZESTAW SPRZĘTOWY

Model:36IN-3D-3K/40IN-3D-3K/52IN-2D-3K

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a door with a metal latch and railings (no text or symbols)

ceiling A-A 6" (152mm) H+1¹⁵/₁₆" (H+49mm) Door height H 3/8" (10mm) door

Technical diagram of a mechanical assembly with labeled components and assembly lines

Lista części

Framing Material (studs) Header Board requirements: 1"x 4" or 1" x 6" Size Made of solid wood Same length as your track length or longer

T U G T G

Simple line drawing of a circle with horizontal and vertical lines, no text or symbols present

(x4) H+1 15/16" (49mm)

C-C B-B B-B C-C A-A

The rail center and the wall opening center overlap (x4) 2" Ø 29/64"

Technical diagram showing a mechanical assembly with labeled parts and an inset magnified view of a tool mechanism.

Krok 4

Technical illustration of a hinge with a rod and mounting bracket, labeled (×3) (no text or symbols on the diagram itself)

L M 1" Ø3/16"

10" 10"

Krok 5

3D diagram of a two-panel cabinet or enclosure with a red upward arrow indicating rotation (no text or symbols)

Bit diameter:19/32" (15mm) Borehole depth:29/32" (23mm) 29/32" Ø 19/32" 13/8" (35mm) Drill a hole at the position that is 13/8" (35mm) from the edge at the bottom of door panel.

Diagram showing a gavel pressing a cylindrical component with directional arrows indicating force or movement, labeled with red arrows and '1'.

Krok 7

Assuming that the width of the door panel is L, the distance between the floor guides is L-35mm

≥ 1³/16" (30MM) Tip: The min. spacing from central position of fixed pulley C to spacer is 1³/16"(30MM)

Krok 9

Technical diagram of a mechanical sliding mechanism with a magnified inset showing a component labeled 'Q' (no text or symbols present)

(①) Q 2MM E Unscrew the set screw on the side of the fixed roller ② Q 2MM E ③

Krok 10

Install adjustable roller R consult fixed roller Q

R G 4MM R

5mm 1 2 4MM G

Krok 11

Technical diagram showing two mechanical assembly steps with labeled components and force indicators

③ 2.5MM N Q E (X2)

Mechanical assembly diagram showing a wrench inserted into a bracket with a gear mechanism, labeled (X2), and figure number 4 (no text or symbols on the diagram itself)

Producent: Shanghaimuxinmuyeyouxiangongsi Adres:

Shuangchenglu 803nong11hao1602A-1609shi, Baoshanqu, Szanghaj 200000 CN.

Importowane do AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importowane do USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

REP WIEL KIEJ BRYTANII

YH CONSULTING LIMITED. C/O YH Consulting Limited Biuro 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Przedstaw ciel UE

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt nad Menem.

Affordable. Reliable. Home Improvement.

SCHUIFDEUR MET DUBBELE SCHUIFDEUR

HARDWARE-KIT

Model: 36IN-3D-3K/40IN-3D-3K/52IN-2D-3K

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a door with a metal latch and railings (no text or symbols)

ceiling A-A 6" (152mm) H+1¹⁵/₁₆" (H+49mm) Door height H 3/8" (10mm) door

Technical diagram of a mechanical assembly with labeled components and assembly lines, including parts A through T.

Onderdelenlijst

Framing Material (studs) Header Board requirements: 1"x 4" or 1" x 6" Size Made of solid wood Same length as your track length or longer

T U G T G

Simple line drawing of a circular object with horizontal and vertical lines, no text or symbols present.

(x4) H+1 15/16" (49mm)

C-C B-B B-B C-C A-A

Model	36IN-3D-3K	40IN-3D-3K	52IN-2D-3K
spoorlengte AA	36 inch (9140 mm)	40 inch (1016 mm) 52	inch (1320 mm)
spoor gat afstand BB		457mm406mm	600mm
spoor gat afstand CC	51mm	51mm	60mm

The rail center and the wall opening center overlap (x4) 2" Ø 29/64"

Technical diagram showing a mechanical assembly with labeled parts and an inset magnified view of a tool mechanism.

Stap 4

Technical illustration of a hinge with a handle and mounting bracket, labeled (×3) (no text or symbols on the diagram itself)

L M 1" Ø3/16"

10" 10"

Stap 5

3D diagram of a vertical panel with a red upward arrow indicating direction (no text or symbols)

Bit diameter:19/32" (15mm) Borehole depth:29/32" (23mm) 29/32" Ø 19/32" 13/8" (35mm) Drill a hole at the position that is 13/8" (35mm) from the edge at the bottom of door panel.

Diagram showing a gavel pressing a cylindrical component with directional arrows indicating force or movement, labeled with red arrows and '1'.

Stap 7

Assuming that the width of the door panel is L, the distance between the floor guides is L-35mm

≥ 1³/₁₆" (30MM) Tip: The min. spacing from central position of fixed pulley C to spacer is 1³/₁₆"(30MM)

Stap 9

Technical diagram of a mechanical sliding mechanism with a magnified inset showing a component (no text or symbols)

① Q 2MM E Unscrew the set screw on the side of the fixed roller

Technical diagram showing mechanical assembly with labeled components and directional arrows

③ 2MM

E O

Stap 10

Install adjustable roller R consult fixed roller Q

R G 4MM R

5mm 1 2 4MM G

Stap 11

Monteer de vaste rolvergrendelingsbeugel N.

Technical diagram showing two mechanical assembly steps with labeled components and force indicators

③ 2.5MM N Q E (X2)

Mechanical assembly diagram showing a wrench inserted into a bracket with a gear mechanism, labeled (X2), and figure number 4 (no text or symbols on the diagram itself)

Fabrikant: Shanghaimuxinmuyeyouxiangongsi Adres:

Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

YH CONSULTING LIMITED. C/O YH Consulting Limited Kantoor 147, Centurion House, London Road, Staines- upon-Thames, Surrey, TW18 4AX

EC-REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

BIFOLD SKJUDBÖR DÖRR

HÅRDVARUKIT

Modell: 36IN-3D-3K/40IN-3D-3K/52IN-2D-3K

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a door with a metal latch and railings (no text or symbols)

ceiling A-A 6" (152mm) H+1¹⁵/₁₆" (H+49mm) Door height H 3/8" (10mm) door

Technical diagram of a mechanical assembly with labeled components and assembly lines, including parts A through T.

Delarlista

Framing Material (studs) Header Board requirements: 1"x 4" or 1" x 6" Size Made of solid wood Same length as your track length or longer

T U G T G

Simple line drawing of a circle with horizontal and vertical lines, no text or symbols present

(x4) H+1 15/16" (49mm)

C-C B-B B-B C-C A-A

The rail center and the wall opening center overlap (x4) 2" Ø 29/64"

Steg-3: Installera styrskenan

Technical diagram showing a mechanical assembly with labeled parts and an inset magnified view of a tool mechanism.

Steg-4

Technical illustration of a hinge with a handle and mounting bracket, labeled (×3) (no text or symbols on the diagram itself)

L M 1" Ø3/16"

10" 10"

Steg-5

3D diagram of a vertical panel with a red upward arrow indicating direction (no text or symbols)

Bit diameter:19/32" (15mm) Borehole depth:29/32" (23mm) 29/32" Ø 19/32" 13/8" (35mm) Drill a hole at the position that is 13/8" (35mm) from the edge at the bottom of door panel.

Diagram showing a gavel pressing a cylindrical component with directional arrows indicating force or movement, labeled with red arrows and '1'.

Steg-7

Assuming that the width of the door panel is L, the distance between the floor guides is L-35mm

≥ 1 3/16" (30MM) Tip: The min. spacing from central position of fixed pulley C to spacer is 1 3/16"(30MM)

Steg-9

Technical diagram of a mechanical sliding mechanism with a magnified inset showing a component (no text or symbols)

(①) Q 2MM E Unscrew the set screw on the side of the fixed roller ② Q O ③ 2MM E

Steg-10

Install adjustable roller R consult fixed roller Q

R G 4MM R

5mm 1 2 4MM G

Steg-11

Technical diagram showing two mechanical assembly steps with labeled components and force indicators

③ 2.5MM N Q E (X2)

Mechanical assembly diagram showing a wrench inserted into a bracket with a gear mechanism, labeled (X2), and figure number 4 (no text or symbols on the diagram itself)

Tillverkare: Shanghaimuxinmuyeyouxiangongsi Adress:

Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Importerad till AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australien

Importerad till USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

www.vevor.com/support
