6FT-2D-5K-H - Hardware Vevor - Free user manual and instructions

Product Type	Single Sliding Barn Door Hardware Kit
Model	6FT-2D-5K-H
Brand	Vevor
Rail Length	6 feet (1830 mm)
Compatible Door Width	Up to 36 inches (≤914 mm)
Compatible Door Thickness	1-3/8" to 1-3/4" (35 mm to 44 mm)
Hanger Type	J-Hanger (J-shaped mold)
Product Color	Black
Number of Hangers Included	2 pieces
Number of Rail Mounting Holes	5 pieces
Main Material	Steel
Kit Weight	Approximately 5 kg
Power	None (manual use)
Main Functions	Sliding opening and closing of barn door
Safety	Anti-jump blocks, door stops, floor guide
Maintenance and Cleaning	Clean with a soft, dry cloth. Lubricate the rail periodically with a dry lubricant.
Spare Parts and Repairability	Parts available: hangers, stops, guides. Technical support via www.vevor.com/support
General Information	Suitable for mounting on concrete walls or with a header board on drywall. Requires 2 people for installation.

Frequently Asked Questions - 6FT-2D-5K-H Vevor

What is the rail length of the 6FT-2D-5K-H model?

The rail measures 6 feet (1830 mm).

What types of doors can this kit support?

It is designed for single doors with a maximum width of 36 inches and a thickness between 1-3/8" and 1-3/4".

Is the kit suitable for installation on drywall?

Yes, but it is strongly recommended to install a header board (not included) to distribute the weight if the studs are not spaced 16 inches on center.

How many hangers are included in this kit?

The kit includes 2 hangers of the J-Hanger type.

How to install the floor guide?

Place the floor guide, mark the holes, drill with a 7/32" bit, insert the plastic anchors, and fix with the provided screws.

What to do if the door does not slide smoothly?

Check that the rail is level, the door stops are properly positioned, and the floor guide is aligned. Lubricate the rail with a dry lubricant.

Is the kit delivered with instructions?

Yes, a detailed user manual is included in the package. You can also download it for free on Vevor's website.

What tools are necessary for installation?

You will need a level, a pencil, a Phillips screwdriver, a wrench, a drill, and drill bits of 3/8", 29/64", and 7/32".

How to maintain the kit?

Regularly clean the rail with a dry cloth. Apply a dry lubricant to the rail to ensure smooth sliding. Periodically check the tightness of the screws.

Where can I get spare parts or technical assistance?

Contact Vevor support via www.vevor.com/support for spare parts and technical assistance.

USER MANUAL 6FT-2D-5K-H Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

SIMPLE SLIDING BARN DOOR HARDWARE KI

MODEL:5FT-2D-5K-H/5FT-2D-5K-Y/6FT-2D-5K-H/

6FT-2D-5K-Y/6.6FT-2D-5K-H/6.6FT-2D-5K-Y/

8FT-2D-6K/8FT(J)Single Door/8FT(I)Single Door/

10FT-3D-7K-J/10FT-3D-7K-I

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL:5FT-2D-5K-H/5FT-2D-5K-Y/6FT-2D-5K-H/6FT-2D-5K-Y/6.6FT-2D-5K-H/6.6FT-2D-5K-Y/8FT-2D-6K/8FT(J)Single Door/8FT(I)Single Door/10FT-3D-7K-J/10FT-3D-7K-I

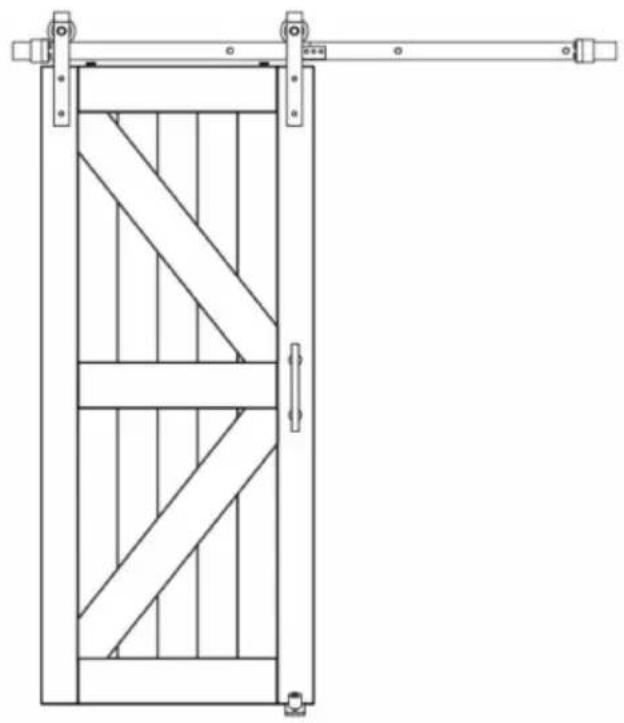

Line drawing of a wooden double door with diagonal bracing and vertical supports (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you and there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING:

Read this material before using this product. Failure to do so can re serious injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly can create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves du assembly.
3. Keep assembly area clean and well lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of alcohol drugs or medication.
6. Product capabilities apply to properly and completely assembled product only.
7. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap separate all parts in a clean work area.
8. For safety reasons, This hardware is recommended to be installed by 2 people
9. Products are installed away from children and pets;

Use precautions

1. This product is not a toy. Do not allow children to play with this
2. Use as intended only.
3. Inspect before every use; do not use if parts are loose or damage

SAVE THESE INSTRUCTIONS

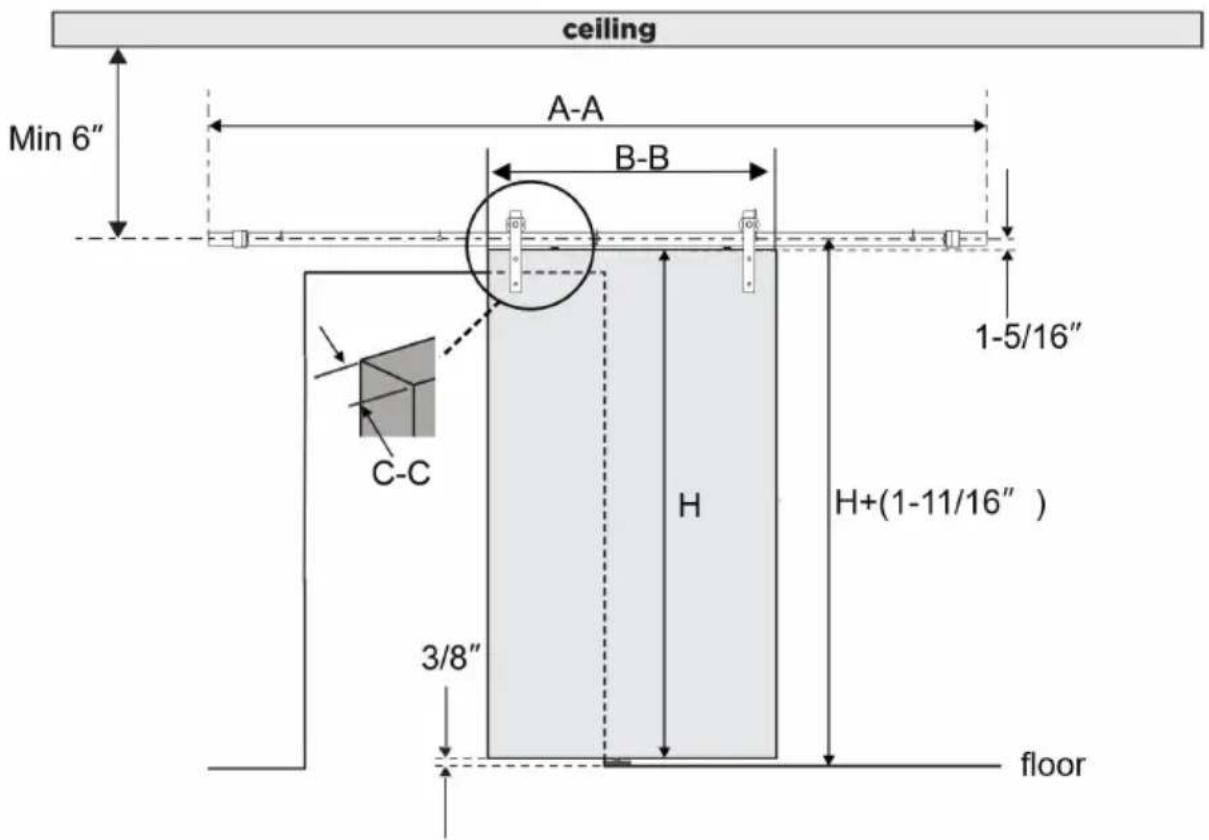

Product Suitability

The box does not contain door panels and other wooden squares, while require additional purchase

Model	rail length A-A	Door width B-B	Door thickness C-C
5FT-2D-5K-H	5ft(1500mm)	≤30inch	1-3/8" to 1-3/4"
5FT-2D-5K-Y
6FT-2D-5K-H	6ft(1830mm)	≤36inch	1-3/8" to 1-3/4"
6FT-2D-5K-Y
6.6FT-2D-5K-H	6.6ft(2000mm)	36-40inch	1-3/8" to 1-3/4"
6.6FT-2D-5K-Y
8FT-2D-6K	8ft(2440mm)	42-48inch	1-3/8" to 1-3/4"
8ft(j)single door
8ft(I)single door
10FT-3D-7K-J	10ft(3000mm)	≤60inch	1-3/8" to 1-3/4"
10FT-3D-7K-I

The remaining dimensions:

1. Product is applicable to the single sliding door, the door height is H depending on the height you purchase;
2. The track center to the ground height needs to be 1.6875 inches h than the door height;
3. The distance of the track center from the ceiling is not less than 6
4. The distance between the bottom side and the bottom side is 0.375 inches

Parameter List

Model	Product color	hanger type	Orbit split number	Number of rail mounting holes
5FT-2D-5K-H	black	J mould	2pcs	5pcs
5FT-2D-5K-Y	Dark silver
6FT-2D-5K-H	black
6FT-2D-5K-Y	Dark silver
6.6FT-2D-5K-H	black
6.6FT-2D-5K-Y	Dark silver
8FT-2D-6K	Dark silver	J mould	2pcs	6pcs
8ft(j)single door	black	J mould
8ft(I)single door	black	I mould
10FT-3D-7K-J	black	J mould	3pcs	7pcs
10FT-3D-7K-I		I mould

Parts list

Same number of parts

A:Anti-jumpblock×2pcs	B:M4×25countersunk headtapping screw×2pcs	C:DoorStopper × 2pc	D:T shapeFloor Guide× 1pc
E:φ6×30 Plasticexpansion bolt ×2pcs	F:M4×25 Roundhead tapping screw×2pcs	G:2.5mm HexKey × 1pc	H:WallSpacer×4
K:M10×55 bolt×4	L:Rail Kit × 1pc

Parts with different quantities

Model	J:Hanger-J	O:washers	P:M8×90Screw	Q:φ12×50Plasticexpansionbolt	M:WallSpacer
5FT-2D-5K-H	2	13	5	5	5
5FT-2D-5K-Y
6FT-2D-5K-H
6FT-2D-5K-Y
6.6FT-2D-5K-H
6.6FT-2D-5K-Y
8FT-2D-6K	2	14	6	6	6
8ft(j)single door
8ft(I)Single Door	0
10FT-3D-7K-J	2	15	7	7	7
10FT-3D-7K-I	0
The following are the model 8FT-2D-6K, 8ft(j)single door, 8ft(I);Door only available accessories
R:M6*10 bolt×4pcs		S:connection strap×1pc		T:4mm Hex ×1pc

The following are the model 10FT-3D-7K-I and 8ft(I)Single Doc available accessories`

I:Hanger-I×2

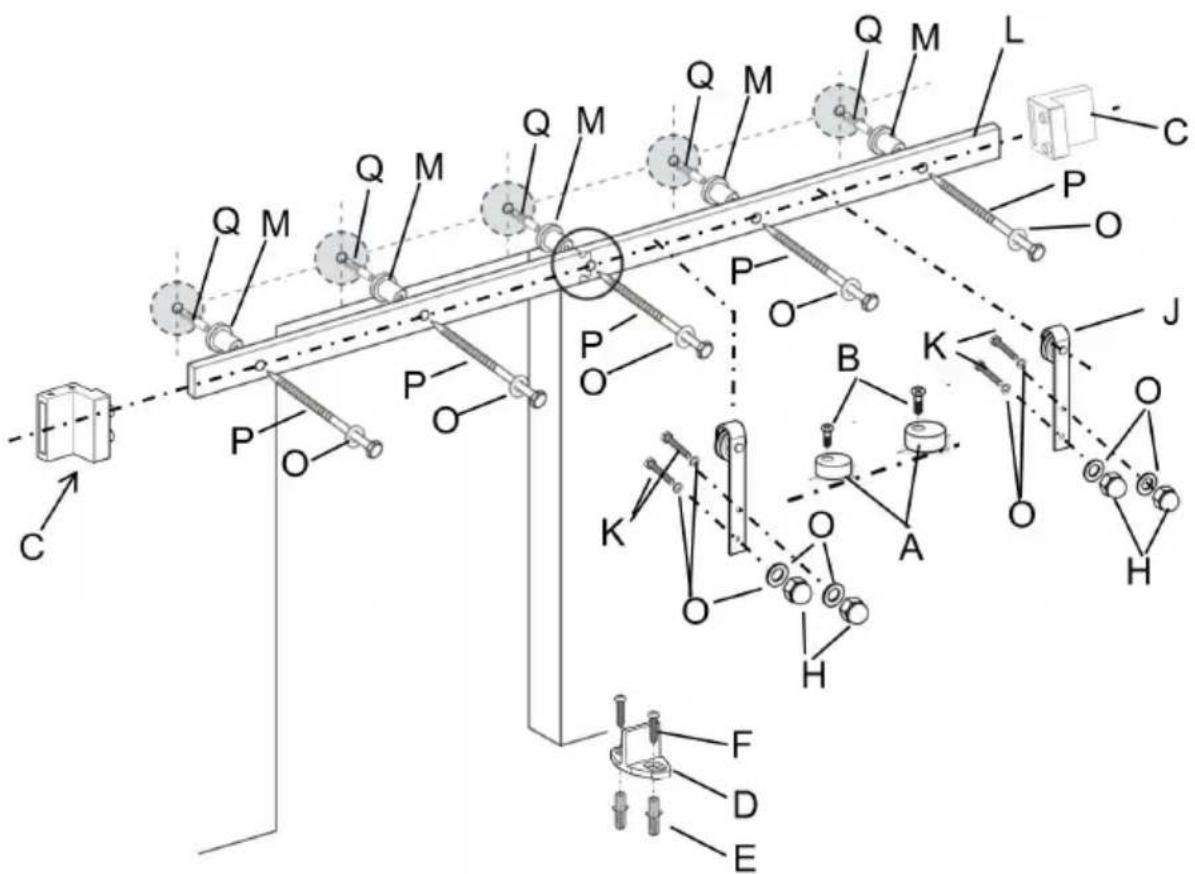

Decomposition Diagram Of Model 6ft-2d-5k-h

Note: The remaining model decomposition plots are similar

CNOAUTION

Mishandling of heavy objects (i.e.,doors) may cause a loss of balance serious injury. Always be sure you have a secure

hold on the object and are balanced before moving the object. Always safety shoes when lifting heavy objects.

Getting body parts (i.e., hair, fingers) caught in moving parts may cause pinching and serious injury. Do not put fingers in parts that may move always remove or contain anything on your body that may become entangled with a moving part.

Closing sliding doors with your hand on the end of the door may re your hand, or fingers, getting caught between the door and other soli objects (i.e., another door, molding) causing serious injury. Always use door handle to close door

Usage Statement

Use of excessive force when opening and closing the door(s) may re damage to the hardware. Always hold the handle to gently move the door(s).

Tools required

Speed Square	Pencil	Phillips Screwdriver	Tape
Wrench	Level	Drill	Φ3/8”Drill Bit
Φ29/64”Drill Bit	Φ7/32”Drill Bit

Product Assembly

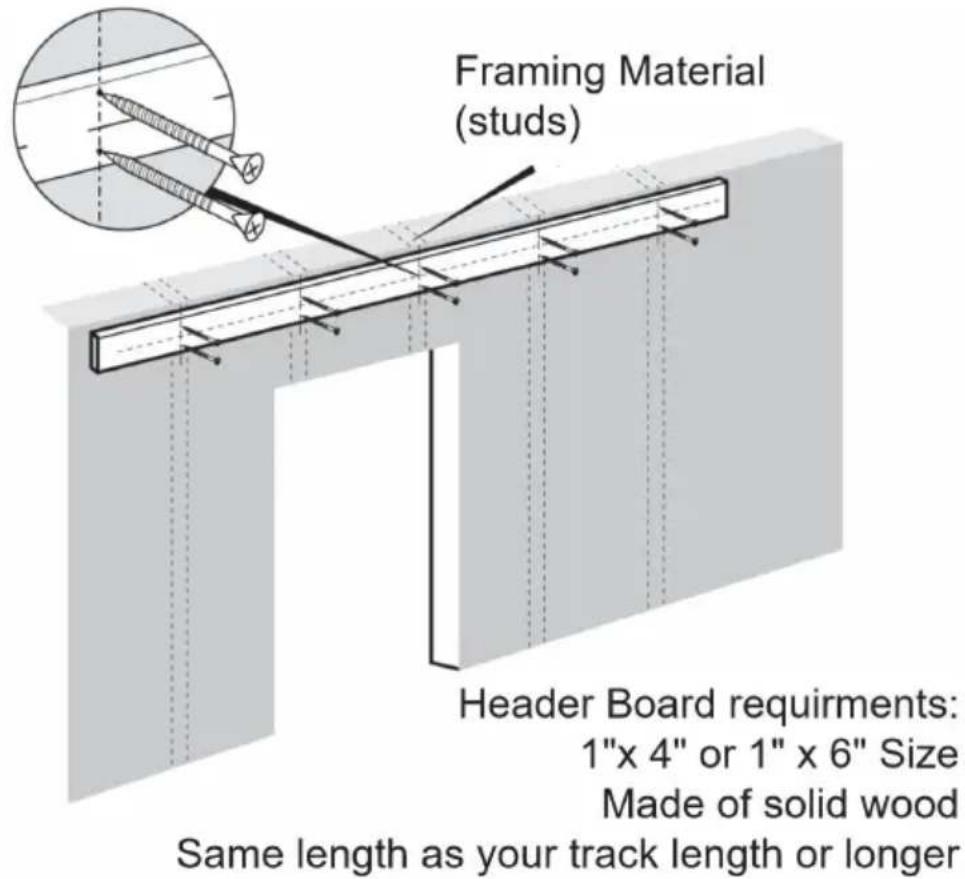

It is very important to determine whether you need to install a Head Board before you install the track.

IF you meet the following situations, we highly recommend you using Header Board.

• IF your wall studs are not 16" on center which won't line up with rail(our rail comes with pre-drilled holes every 16" on center)
• IF your wall type is non-concrete wall, is drywall or other wall type may not support the weight of the track and mounted door)
• IF there is a doorway trim

Attention: Header Board & the screws to install header board are included. You can buy them online or offline.

Step-1

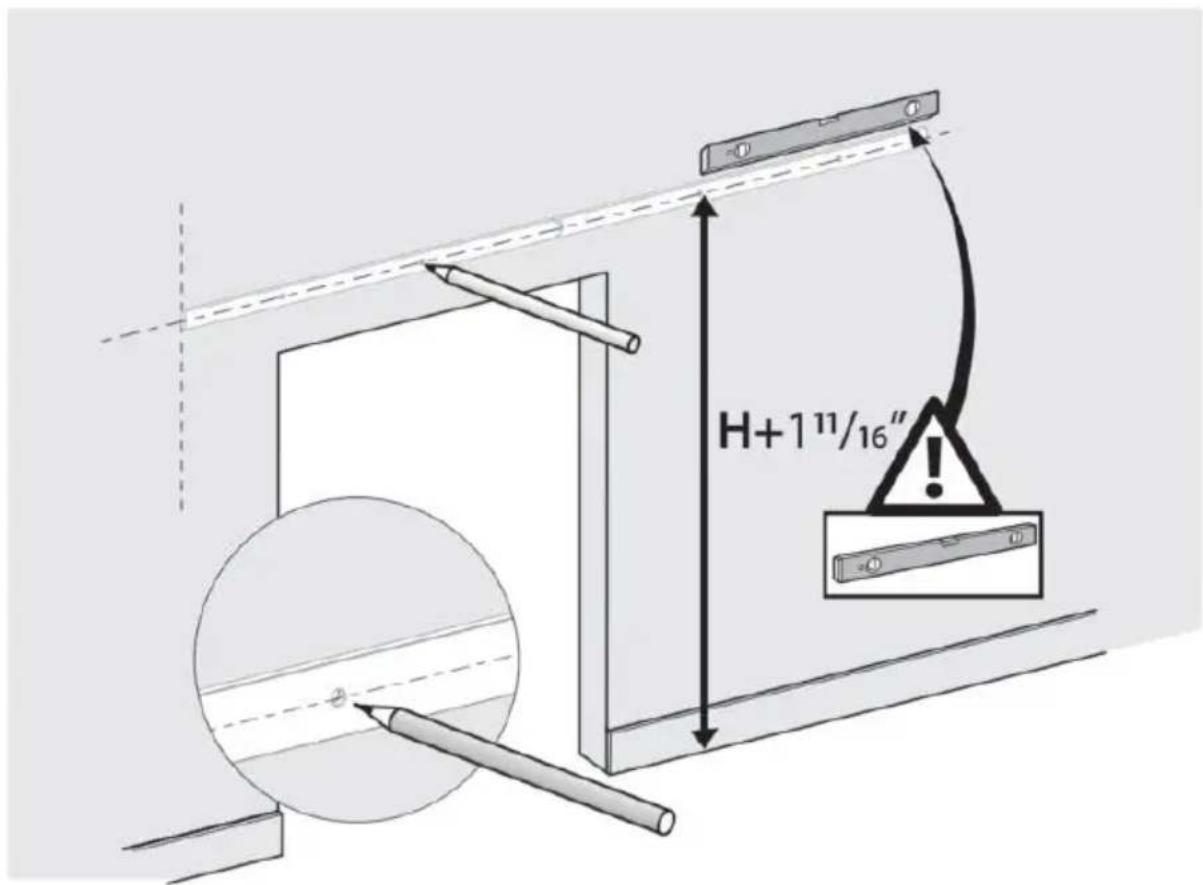

1.1. Use a Level and Tape Measure to mark the center line of the tr shown in the product selection diagram, the height of the door is H in

picture above, the height of the center line(measuring up from the flo the height of your door PLUS 1-11/16".

1.2. Position the track in place by the marked center line, ensuring it and use the track as a template to mark mounting holes location for track with a pencil.

See installation tip below.

The track needs to fully cover the door openings on the wall panels; suggest that one end of the track is flush with the opening of the v this is related to the width of the door.

INSTALLATION TIP:

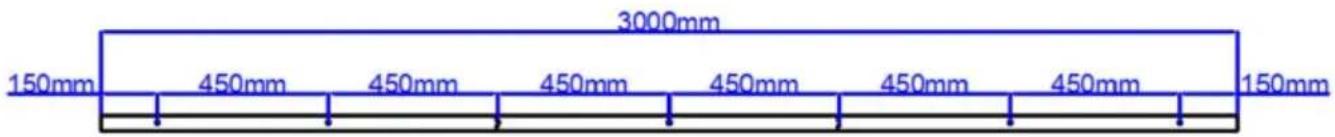

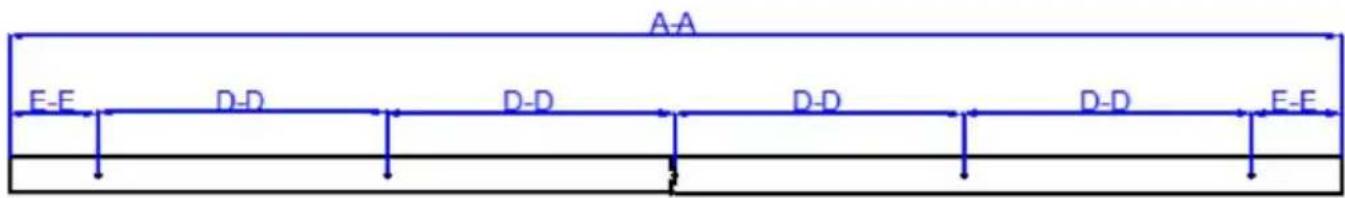

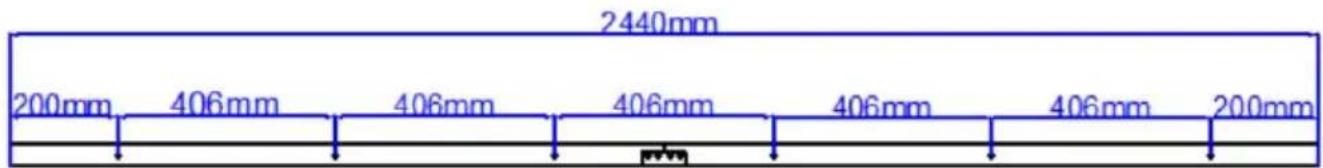

To mark the holes more conveniently, you could install track with one bolt without spacer, which helps fix one end of the track. And then move the free end to ensure the track level to mark mounting holes. You can also refer to the track size to mark the position of the track.

Model	rail length A-A	rail hole distance D-D	rail side hol and rail edg E-E	Number of marked holes
5FT-2D-5K-H	5ft(1500mm)	325mm	100mm	5pcs
5FT-2D-5K-Y
6FT-2D-5K-H	6ft(1830mm)	406mm	103mm	5pcs
6FT-2D-5K-Y
6.6FT-2D-5K-H	6.6ft(2000mm)	406mm	188mm	5pcs
6.6FT-2D-5K-Y

The rail mounting holes of model 8FT-2D-6K ,8ft(J)single door and 8ft(I)single door are as follows,six holes;

The rail mounting dimensions for model-FT-3D-7K-J and 10FT-3D-7K-I are as follows, seven holes;

Step-2:

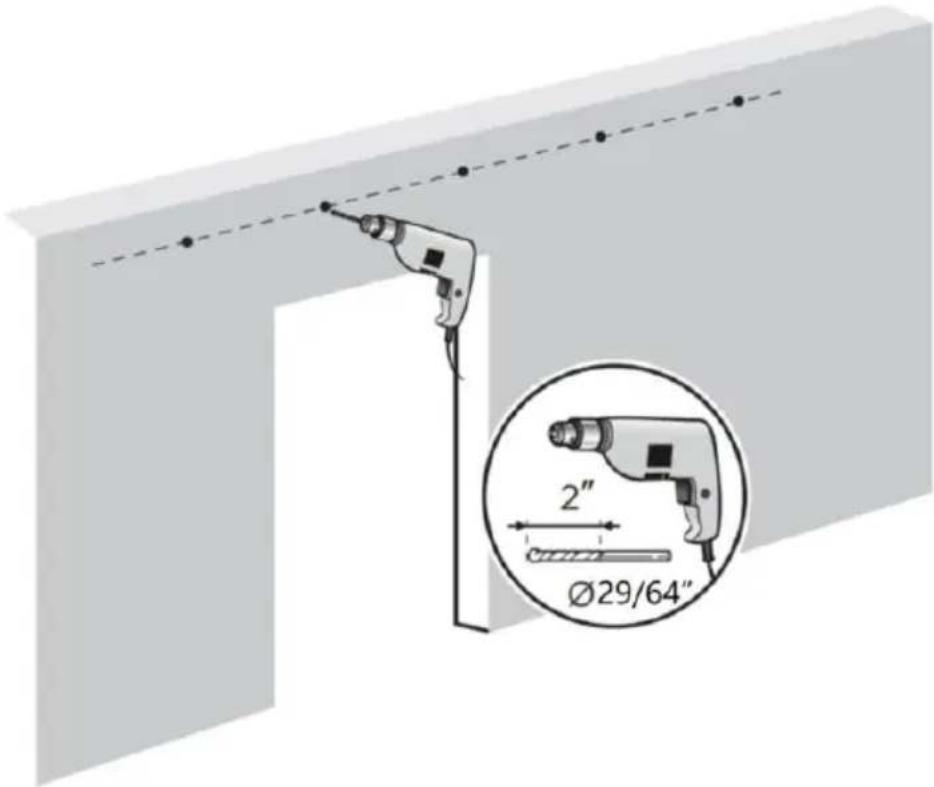

2.1. Use a Φ29/64"drill hole in the marked position, 2 inches deep;

Step-3: Install the guide rail

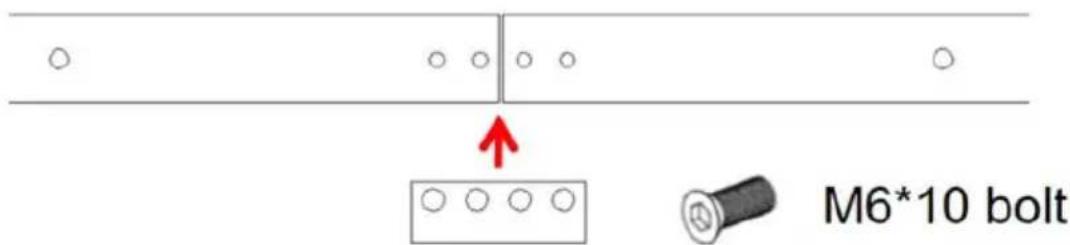

3.1.The 2 guide of model 8FT-2D-6K is combined by connection strap 4 bolts;

The remaining models are flower-shaped combinations via the rail.

Pure technical line drawing of two mechanical components with no text or symbols

3.2.Concrete wall Installation.

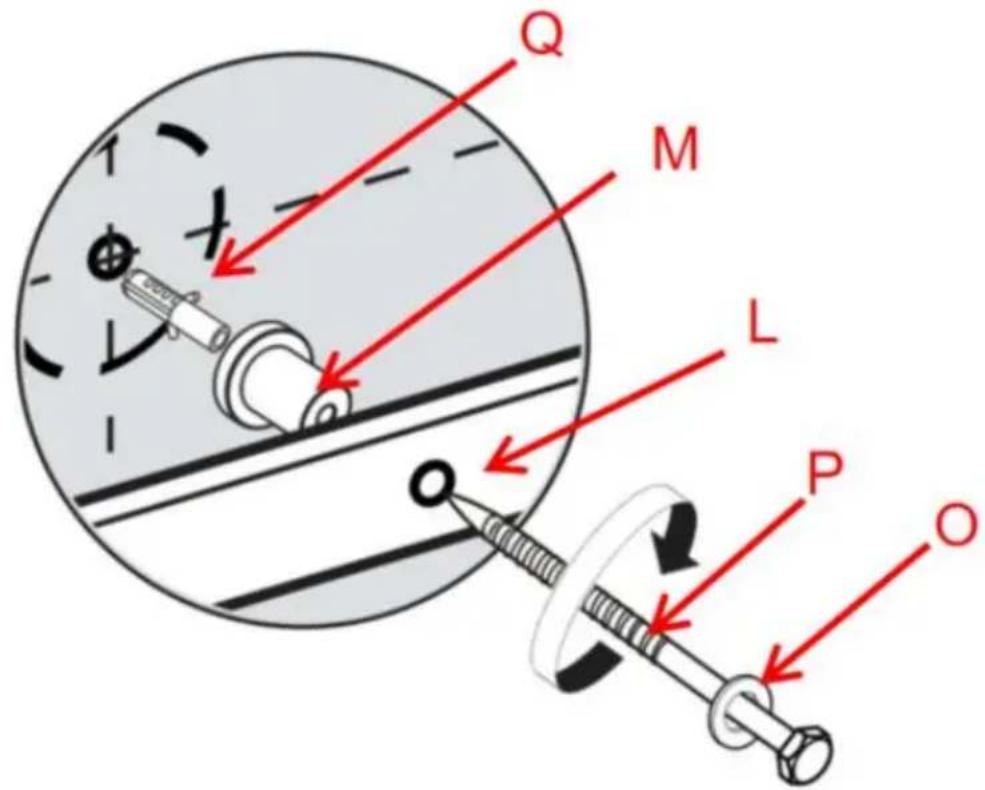

Install the Plastic expansion bolt Q to holes on the concrete wall first use screw P through the washers O, rail L and Wall Spacer M, and lock on Plastic expansion bolt Q.

Step-4

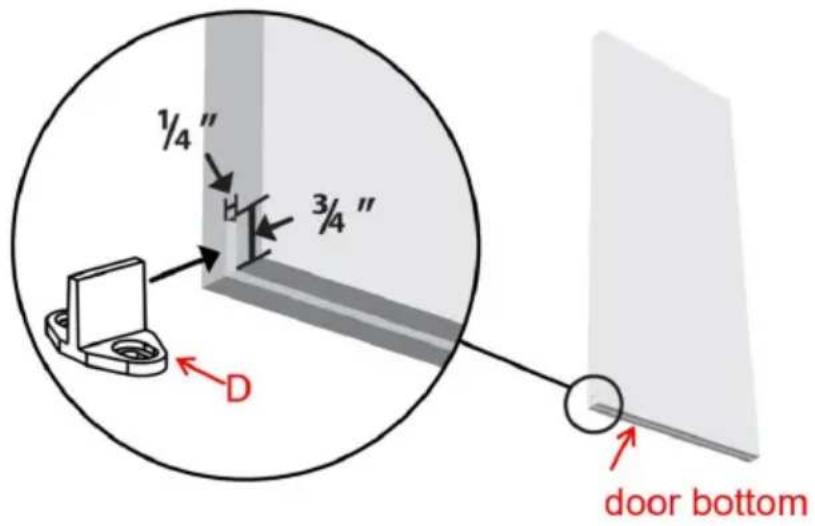

Use router or circular saw to create a kerf at bottom of the door, a center to allow the tip of the T-shaped floor guide to fit in between. The floor guide is used to keep your door stable and prevent the do bottom swinging back and forth when you slide it open and closed.

Step-5

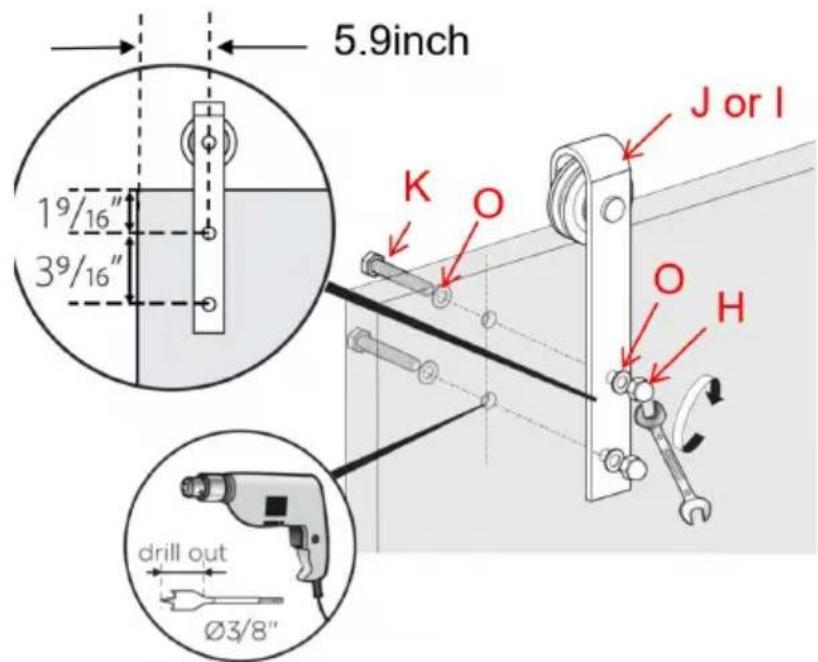

According to the following figure, use the bolt K to pass through the O, door, Hanger J, washer O, and finally tighten the bolt H with the secure the Hanger J on the top of the door; install the hangers on the door ,Make sure the bolt K are located in the middle line of the side.

Each Hanger requires two Bolts;2 hangers are required for each door.

Note: The Hanger for the Model 10FT-3D-7K-I is the Hanger I. If your door thickness is 1-3/4 inch, you do not need to install O.

Step-6

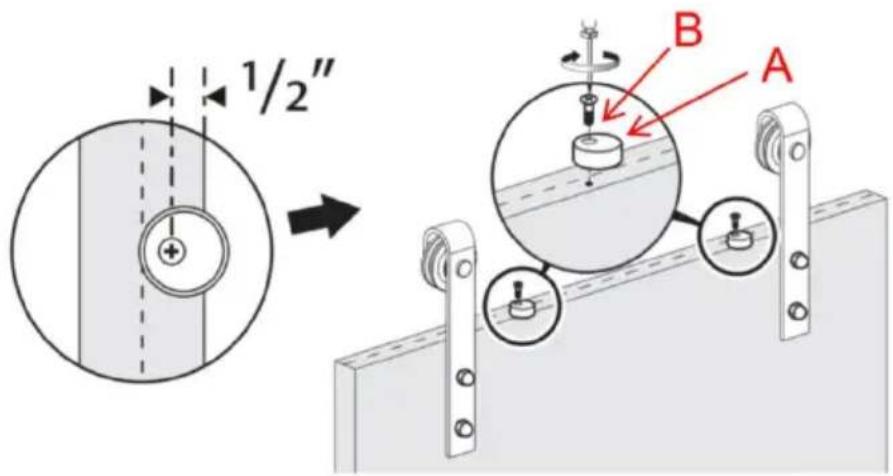

The anti-jump blocks are used to protect the door from touching the when sliding the door.

First, mark at 0.5inch from the edge of the door, then let the screw Anti-jump block A to align the mark, use the screw B through Anti-ju block A, and lock at the mark.

Step-7

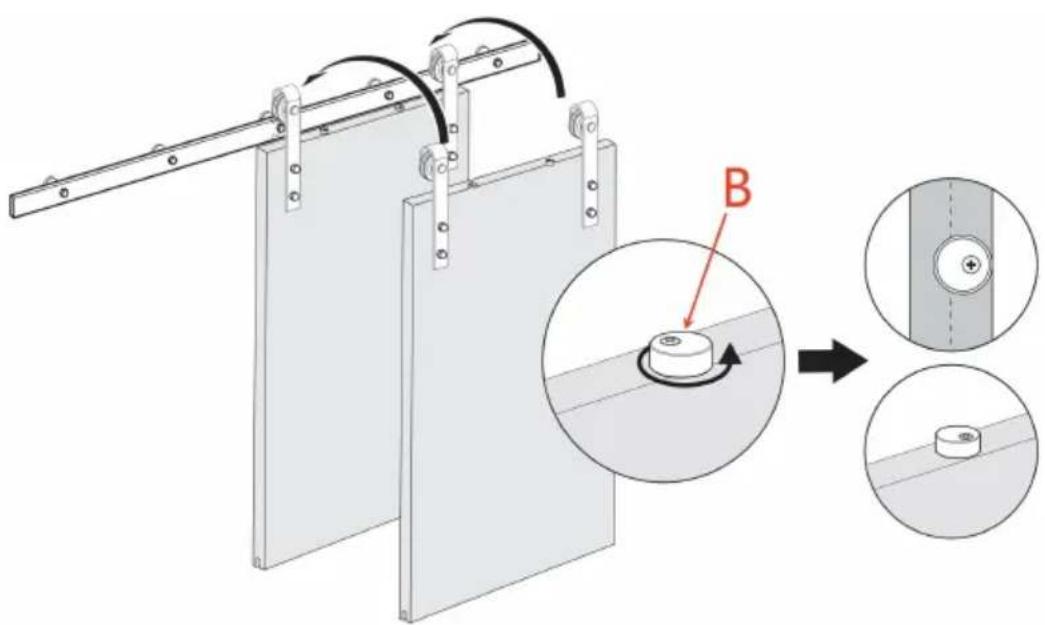

Hang the door over the track and rotate the anti-jump blocks 180°

Step-8

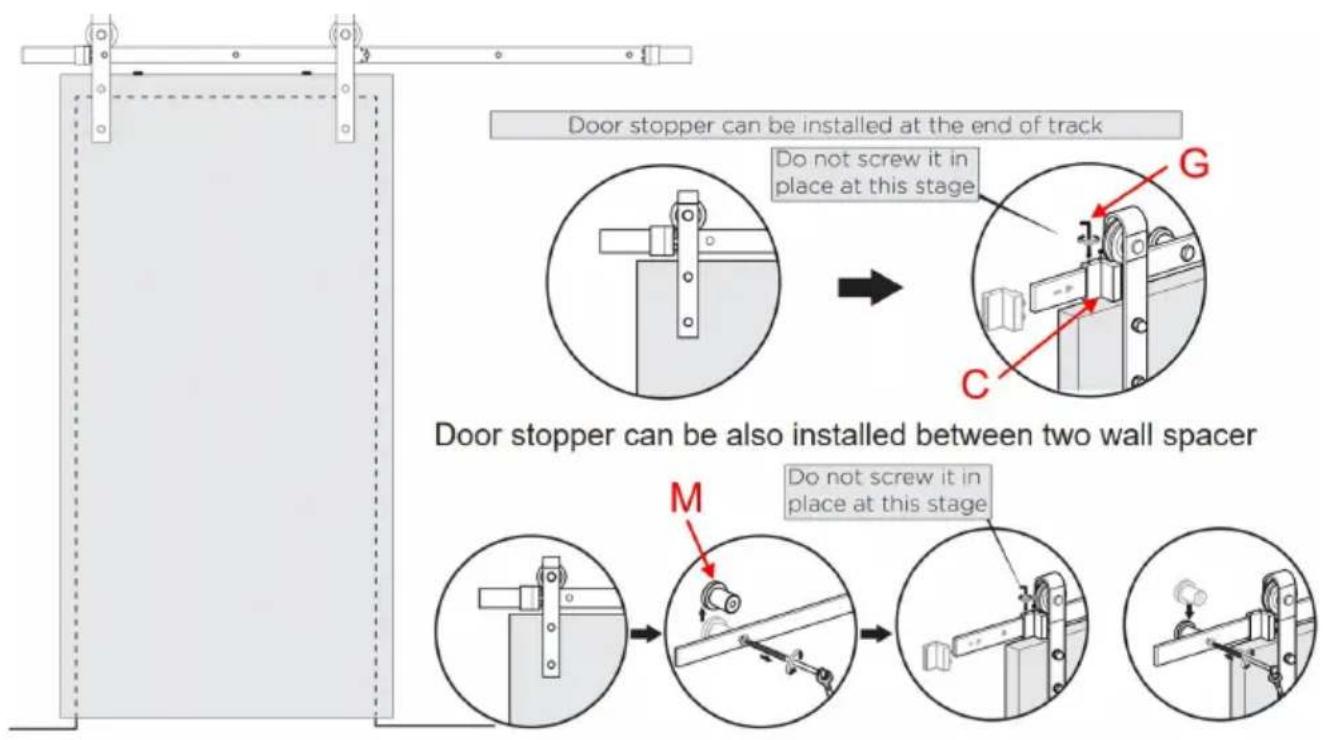

Slide door stoppers C on both ends of track.

Slide door back and forward to test how well the door covers the o Reposition door stoppers as you need. Adjust the position of the left right door stopper when the door is open and closed.If you reduce the trip, the door stoppers C can move toward the middle of the rail.

When door stoppers C is blocked by wall spacer M and unable to r you can remove wall spacer M, move to the appropriate position and install door stoppers M back to the original position.

Door stopper can be also installed between two wall spacer

Step-9

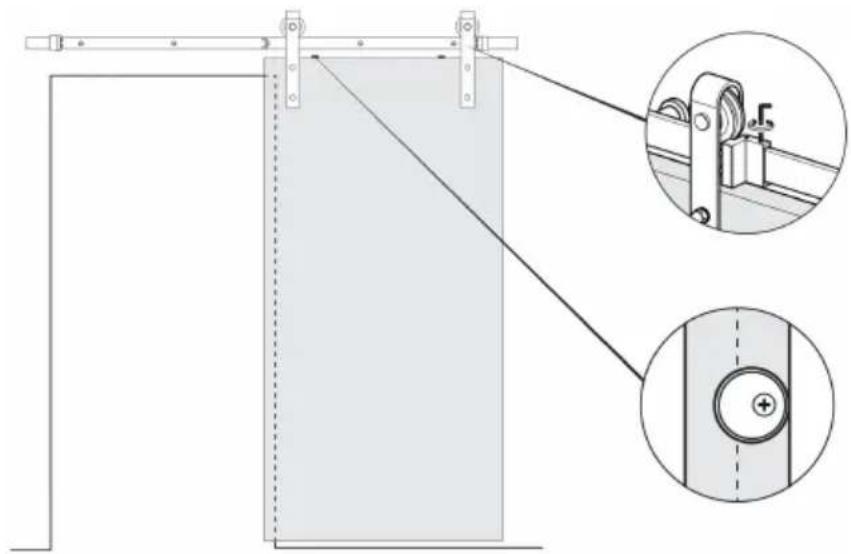

Final Check of door stoppers and Anti-jump blocks.

Check the door stoppers are properly located and tightened in place Hex Key G.

Also check the anti-jump blocks are rotated correctly and tightened.

Technical diagram of a sliding door mechanism with mounting bracket and inset close-up views (no text or symbols)

Step-10

Install the floor guide D.

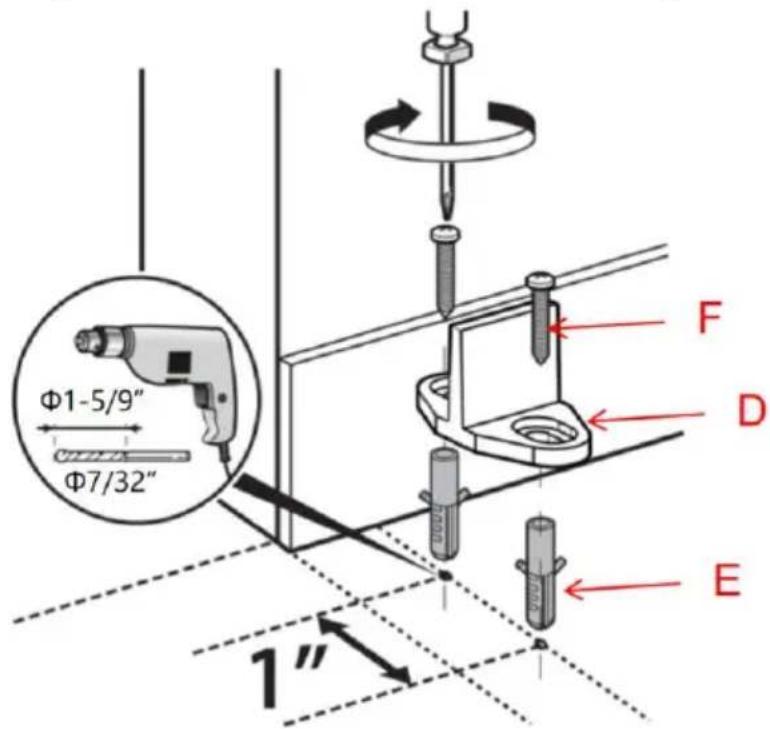

10.1. Put the floor guide on the floor first to a suitable position, sliding door so that the tip of the floor guide can work well in the slot of of the door. And then mark 2 holes of the floor guide. Then two sections through floor guide mark two points on the floor.

10.2. Use 7 / 32" drill bit to drill holes with a depth of 1.375inch on the floor mark; Then put Plastic expansion bolt E into the floor hole; Screw F through the screw hole of floor guide D and installed in Plastic expa bolt E to complete the installation of floor guide D.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD

NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim

Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

MODÈLE : 5 PI-2D-5K-H/5 PI-2D-5K-Y/6 PI-2D-5K-H/

6 PI-2D-5K-Y/6,6 PI-2D-5K-H/6,6 PI-2D-5K-Y/

8FT-2D-6K/8FT(J)Porte simple/8FT(I)Porte simple/

10FT-3D-7K-J/10FT-3D-7K-I

MODÈLE : 5 PI-2D-5K-H/5 PI-2D-5K-Y/6 PI-2D-5K-H/6 PI-2D-5K-Y/

6,6 pi-2D-5K-H/6,6 pi-2D-5K-Y/8 pi-2D-6K/8 pi (J) porte simple/8 pi (I) porte simple/10 pi-3D-7K-J/10 pi-3D-7K-I

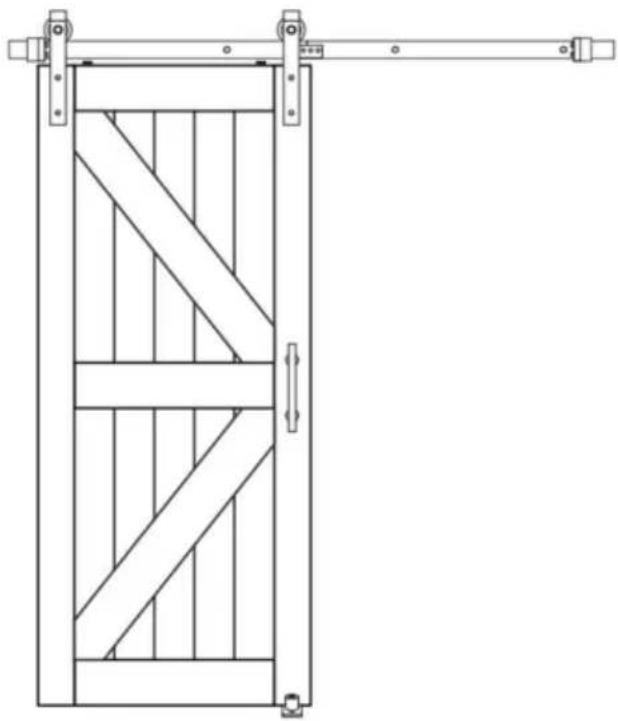

Technical line drawing of a door frame with diagonal bracing and horizontal railings (no text or symbols)

BESOIN D'AIDE? CONTACTEZ-NOUS!

Header Board requirements:

1"x 4" or 1"x 6" Size

Made of solid wood

Same length as your track length or longer

Étape 2 :

Technical line drawing of two mechanical components with no visible text or symbols

Étape 4

Étape 6

Étape 8

Étape 9

Technical diagram of a sliding door mechanism with two views of the handle (no text or symbols)

Étape 10

YH CONSULTING LIMITED. C/O YH Consulting Limited Bureau 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

REPRÉSENTANT DE LA CE

E-CrossStu GmbH

Mainzer Landstr.69,

Technical line drawing of a door frame with diagonal bracing and support brackets (no text or symbols)

Header Board requirements:

1"x 4" or 1"x 6" Size

Made of solid wood

Same length as your track length or longer

Schritt 2:

Technical line drawing of two mechanical components with no visible text or symbols

3.2.Betonwandinstallation.

Schritt

Schritt

Schritt 8

Schritt 9

Technical diagram of a mechanical assembly with two views: one showing a sliding mechanism and the other showing a circular component (no text or symbols present)

Schritt 10:

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawing of a door frame with diagonal bracing and support brackets (no text or symbols)

Fase 2:

Pure technical line drawing of two mechanical components with no text or symbols

Fase 4

Fase 6

Passo 8

Passo 9

Technical diagram of a sliding door mechanism with two views of the handle (no text or symbols)

Fase 10

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importato negli USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

YH CONSULTING LIMITED. C/O YH Consulting Limited Ufficio 147, Centurion House, London Road, Staines- upon-Thames, Surrey, TW18 4AX

elettronica www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawing of a door frame with diagonal bracing and horizontal railings (no text or symbols)

www.vevor.com/support

Paso 2:

Pure technical line drawing of two mechanical components with no text or symbols

Paso 4:

Paso 6

Paso 8

Paso 9

Technical diagram of a mechanical latch or guard system with two views of the latch mechanism (no text or symbols present)

Paso 10

Road, Staines-upon-Thames, Surrey, TW18 4AX

E-CrossStu GmbH

Mainzer Landstr.69,

Technical line drawing of a door frame with diagonal bracing and horizontal railings (no text or symbols)

POTRZEBUJESZ POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Model	długość szyny AA	Szerokość drzwi	Grubość drzwi DK
5FT-2D-5K-H	5 stóp (1500 mm)	30 cali	1-3/8" do 1-3/4"
5FT-2D-5K-Y
6FT-2D-5K-H	6 stóp (1830 mm)	36 cali	1-3/8" do 1-3/4"
6FT-2D-5K-Y
6,6FT-2D-5K-H	6,6 stopy (2000 mm)	36-40 cali	1-3/8" do 1-3/4"
6,6FT-2D-5K-Y
8FT-2D-6K	8 stóp (2440 mm)	42-48 cali	1-3/8" do 1-3/4"
8ft(j) pojedyncze drzwi
8ft(I) pojedyncze drzwi
10FT-3D-7K-J	10 stóp (3000 mm)	60 cali	1-3/8" do 1-3/4"
10FT-3D-7K-I

Pozostałe wymiary:

Header Board requirements:

1"x 4" or 1"x 6" Size

Made of solid wood

Same length as your track length or longer

Krok 2:

Technical line drawing of two mechanical brackets with no text or symbols

Krok 4

Krok 6

Krok 8

Krok 9

Technical diagram of a mechanical assembly with two views: one showing a vertical rod and plate, the other showing a close-up of a sliding mechanism (no text or symbols present)

Krok 10

YH CONSULTING LIMITED. C/O YH Consulting Limited Biuro 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Przedstaw ciel UE

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt nad Menem.

VEVOR®

TOUGH TOOLS, HALF PRICE

6FT-2D-5K-J/6.6FT-2D-5K-H/6.6FT-2D-5K-J/

8FT-2D-6K/8FT(J)Enkele deur/8FT(I)Enkele deur/

10FT-3D-7K-J/10FT-3D-7K-I

Technical line drawing of a door frame with diagonal bracing and horizontal railings (no text or symbols)

HULP NODIG? NEEM CONTACT MET ONS OP!

Model	spoorlengte AA	Deurbreedte BB	Deurdikte CC
5FT-2D-5K-H	5 voet (1500 mm)	ÿ30 inch	1-3/8" tot 1-3/4"
5FT-2D-5K-J
6FT-2D-5K-H	6 voet (1830 mm)	ÿ36 inch	1-3/8" tot 1-3/4"
6FT-2D-5K-J
6,6FT-2D-5K-H	6,6 voet (2000 mm)	36-40 inch	1-3/8" tot 1-3/4"
6,6FT-2D-5K-J
8FT-2D-6K	8 voet (2440 mm)	42-48 inch	1-3/8" tot 1-3/4"
8ft(j)enkele deur
8ft(l)enkele deur
10FT-3D-7K-J	10 voet (3000 mm)	ÿ60 inch	1-3/8" tot 1-3/4"
10FT-3D-7K-I

Header Board requirements:

1"x 4" or 1"x 6" Size

Made of solid wood

Same length as your track length or longer

Stap 2:

Stap 3: De geleiderail monteren

Technical line drawing of two mechanical brackets with no text or symbols

Stap 4

Stap 6

Stap 8

Stap 9

Technical diagram of a mechanical latch or guard system with two views of the latch mechanism (no text or symbols present)

Stap 10

YH CONSULTING LIMITED. C/O YH Consulting Limited Kantoor 147, Centurion House, London Road, Staines- upon-Thames, Surrey, TW18 4AX

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawing of a door frame with diagonal bracing and horizontal railings (no text or symbols)

BEHÖVER HJÄLP? KONTAKTA OSS!

Modell	räls längd AA	Dörrbredd BB	Dörrtjocklek CC
5FT-2D-5K-H	5 fot (1500 mm)	ÿ30 tum	1-3/8" till 1-3/4"
5FT-2D-5K-Y
6FT-2D-5K-H	6 fot (1830 mm)	ÿ36 tum	1-3/8" till 1-3/4"
6FT-2D-5K-Y
6.6FT-2D-5K-H	6,6 fot (2000 mm)	36-40 tum	1-3/8" till 1-3/4"
6.6FT-2D-5K-Y
8FT-2D-6K	8 fot (2440 mm)	42-48 tum	1-3/8" till 1-3/4"
8ft(j) enkeldörr
8 fot(I) enkeldörr
10FT-3D-7K-J	10 fot (3000 mm)	ÿ60 tum	1-3/8" till 1-3/4"
10FT-3D-7K-I

Steg-2:

Steg-3: Installera styrskenan

Technical line drawing of two mechanical brackets with no text or symbols

Steg-4

Steg-6

Steg-8

Steg-9

Technical diagram of a mechanical assembly with two views: one showing a sliding mechanism and the other showing a circular component (no text or symbols present)

Steg-10

Installera golvguiden D.

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support
