Brand	Vevor
Model	PHS23701-40
Product Type	Clip-on Hydraulic Cabinet Hinge
Number of Pieces per Lot	40 hinges
Cup Diameter	35 mm
Cup Depth	10.6 mm
Opening	100°
Finish	Nickel-plated
Overlay (K)	5 (full overlay)
Maximum Dynamic Load	16.5 lb (7.5 kg)
Adjustment Type	6-way (3D): front/back (±1.8 mm), up/down (±2.0 mm), depth (±1.5 mm)
Main Function	Soft-closing and holding cabinet doors
Material	Nickel-plated steel
Included Screws	4x16 mm (200 screws)
Care and Cleaning	Clean with a soft, dry cloth. Avoid abrasive products.
Safety	Use the provided screws. Check the fastening regularly.
Spare Parts and Repairability	The hinges are not individually repairable. Replace the entire unit if defective.
General Information	Warranty and technical support via www.vevor.com/support

Frequently Asked Questions - PHS23701-40 Vevor

How to install Vevor PHS23701-40 hinges?

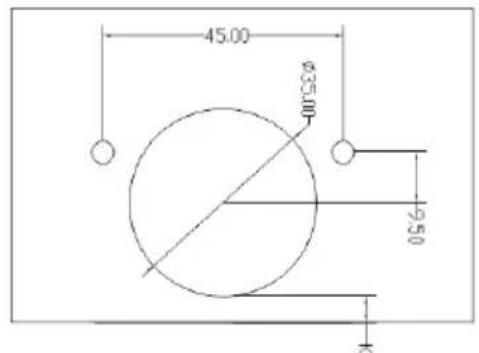

Drill a 35 mm diameter hole and 10.6 mm depth for the cup. Attach the hinge with the provided 4x16 mm screws. For adjustment, use the front/back, up/down, and depth adjustment screws.

What is the difference between the PHS23701-40 and PHS23701-50 models?

The difference is the number of hinges per lot: 40 for model -40 and 50 for model -50. The technical specifications are identical.

Are the hinges suitable for a 16 mm thick cabinet door?

Yes, these hinges generally fit standard cabinet doors 15-20 mm thick. Check the overlay (K=5) for full overlay.

How to adjust the closing damping?

These hinges are hydraulic with built-in soft-close. There is no separate damping adjustment. The closing speed is fixed.

Can I use these hinges for a recessed cabinet?

Yes, the overlay is adjustable. For full overlay, use the front/back adjustment (D) with a range of ±1.8 mm to adjust.

What tools are needed for installation?

You will need a drill with a 35 mm bit, a Phillips screwdriver, and a tape measure for measurements.

How to clean and maintain these hinges?

Clean with a soft, dry cloth. Avoid abrasive or solvent-based cleaners. Periodically check the tightness of the screws.

Are the hinges compatible with glass doors?

No, these hinges are designed for wood or particle board doors. For glass, use specific hinges.

What to do if a hinge no longer closes properly?

First check the alignment and tightness of screws. If the problem persists, the hinge may be defective and must be replaced.

Where can I find the complete user manual?

The manual is available for free download at notice-facile.com for the Vevor model PHS23701-40.

USER MANUAL PHS23701-40 Vevor

Cabinet Hinges

MODEL: PHS25101-40/ PHS23701-40/PHS25101-50

/PHS23701-50/PHS25001-60/PHS23601-60/PHS25201-20

/PHS25201-30/PHS24501-40/PHS24501-50/PHS25201-60

We continue to be committed to provide you tools with competitive price.

"Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Cabinet Hinges

MODEL: PHS25101-40/ PHS23701-40/PHS25101-50

/PHS23701-50/PHS25001-60/PHS23601-60/PHS25201-20

/PHS25201-30/PHS24501-40/PHS24501-50/PHS25201-60

PHS23601-60

PHS25001-60

PHS23701-40/50

PHS25101-40/50

PHS25201-20/30/60

PHS24501-40/50

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again there are any technology or software updates on our product.

PARAMETER LIST

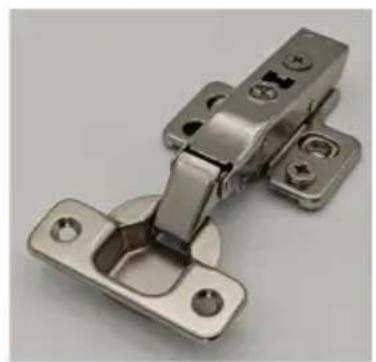

Φ35 CLIP ON ONE WAY HYDRAULIC BUFFERING HINGES

Model	PHS23601
Cup Diameter	35
Cup Depth	10.6
Cup Pattern	45
Opening	100 °
Finish	Nickel-plated
(K)	5
Overlay	Full Overlay
Max.Dynamic Load (lbs/kg)	16.5/7.5

Part List

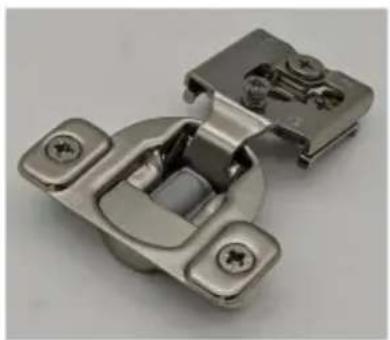

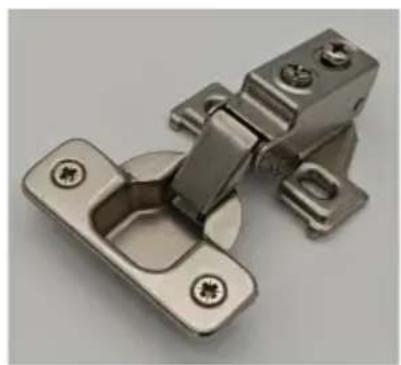

Code	Picture	Name	PHS23601-60
1		HINGES	60
2		4*16 SCREWS	12*30=360

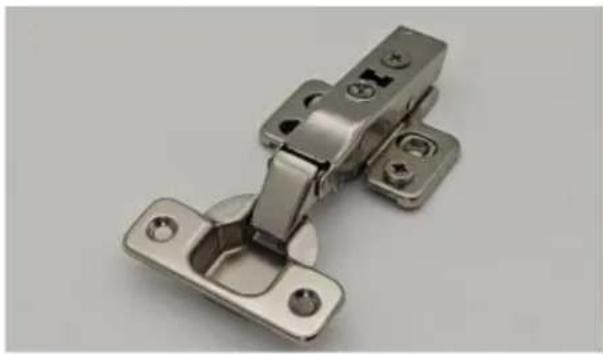

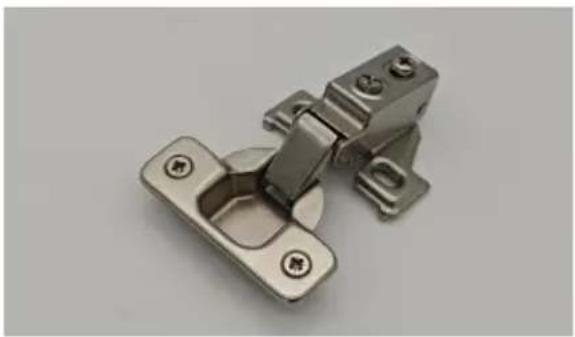

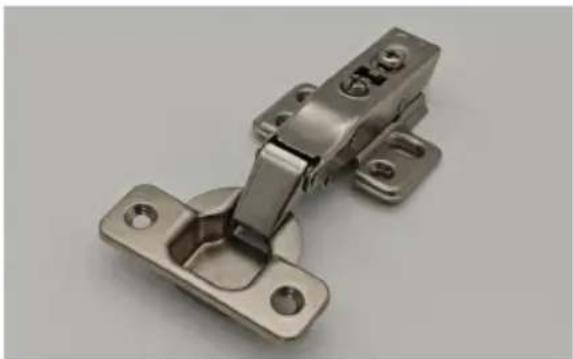

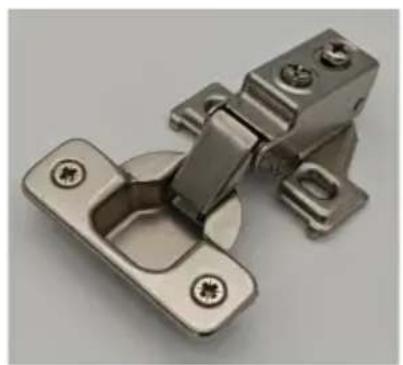

Φ35 FIXED ON ONE WAY SHORT ARMS HYDRAULIC BUFFERING HINGES

Model	PHS25001
Cup Diameter	35
Cup Depth	10.6
Cup Pattern	45
Opening	100 °
Finish	Nickel-plated
Overlay	Full Overlay
(K)	5
Max.Dynamic Load (lbs/kg)	7.7/3.5

Part List
Code	Picture	Name	PHS25001-60
1		HINGES	60
2		4*16 SCREWS	8*30=240
3		NUTS (Optional)	4*30=120
4		SCREWS (Optional)	4*30=120

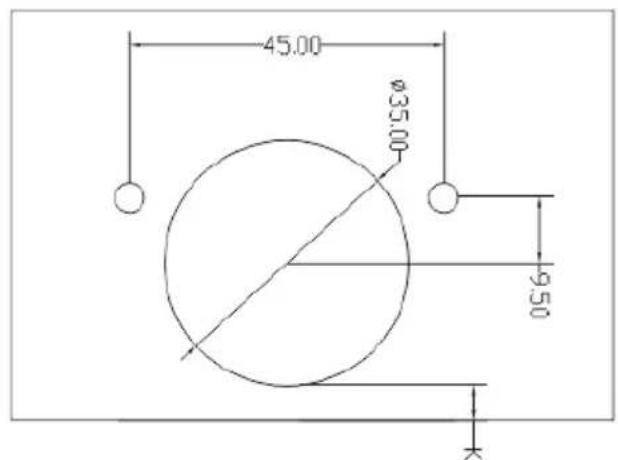

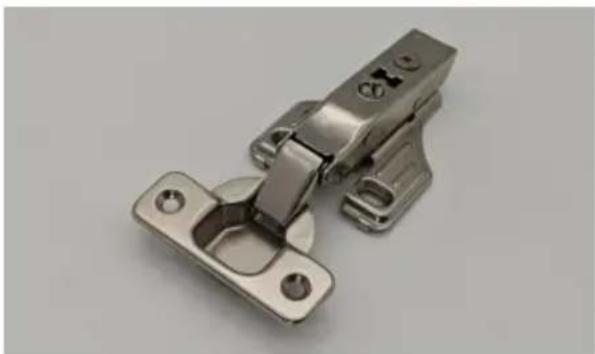

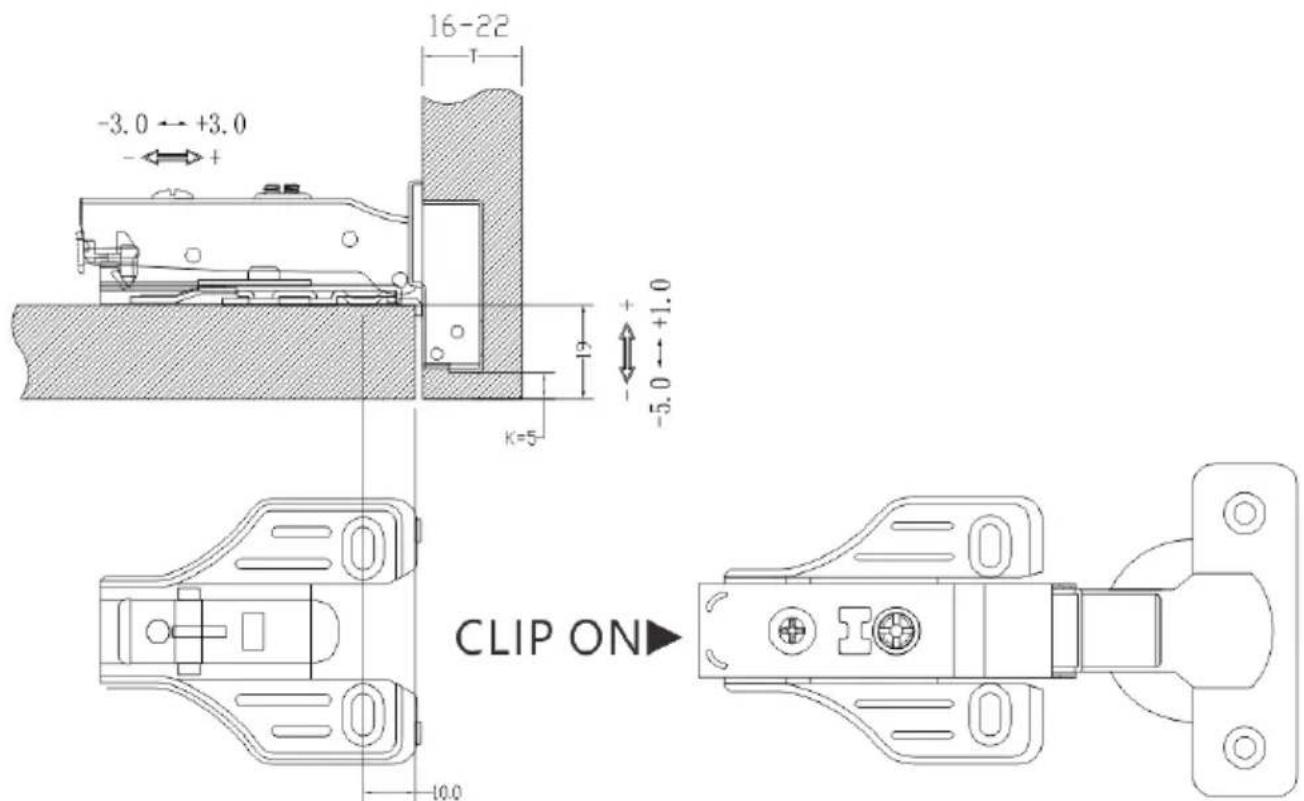

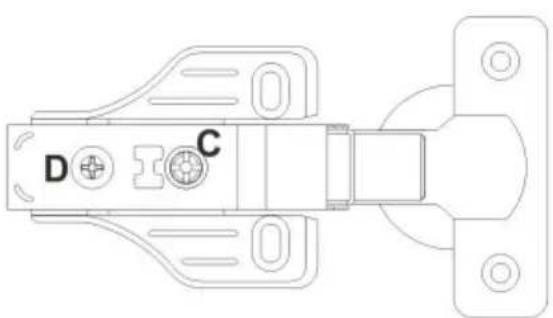

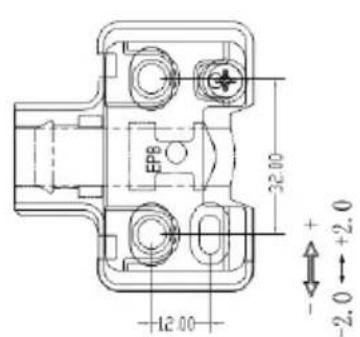

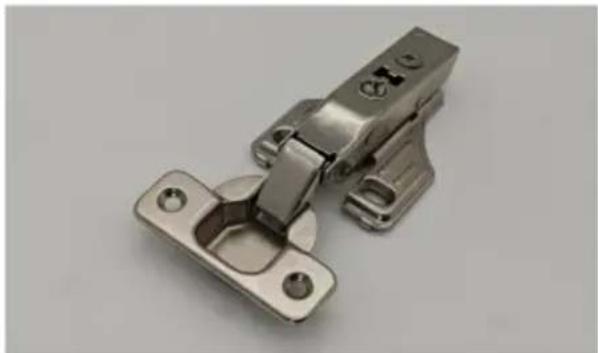

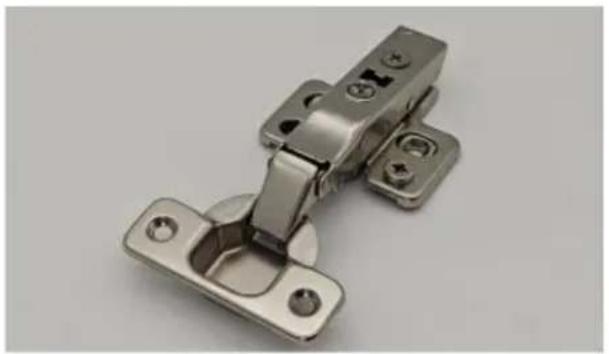

Φ35 CLIP ON ONE WAY (3D) SIX-WAY ADJUSTABLE HYDRAULIC BUFFERING HINGES

Model	PHS23701
Cup Diameter	35
Cup Depth	10.6
Cup Pattern	45
Opening	100 °
Finish	Nickel-plated
Overlay	5
(K)	Full Overlay
Max.Dynamic Load (lbs/kg)	16.5/7.5

Part List

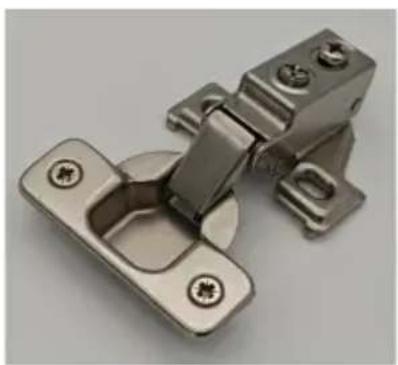

Code	Picture	Name	PHS23701-50	PHS23701-40
1		HINGES	50	40
2		4*16 SCREWS	10*25=250	10*20=200

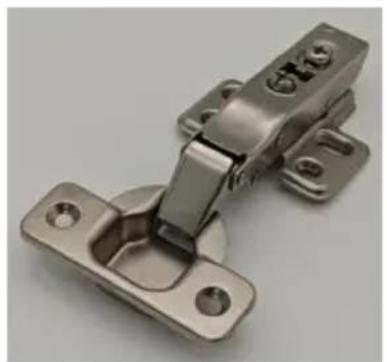

Φ35 CLIP ON ONE WAY (2D) FOUR-WAY ADJUSTABLE HYDRAULIC BUFFERING HINGES

Model	PHS25101
Cup Diameter	35
Cup Depth	10.6
Cup Pattern	45
Opening	100 °
Finish	Nickel-plated
Overlay	5
(K)	Full Overlay
Max.Dynamic Load (lbs/kg)	16.5/7.5

Part List
Code	Picture	Name	PHS25101-50	PHS25101-40
1		HINGES	50	40
2		4*16 SCREWS	8*25=200	8*20=160

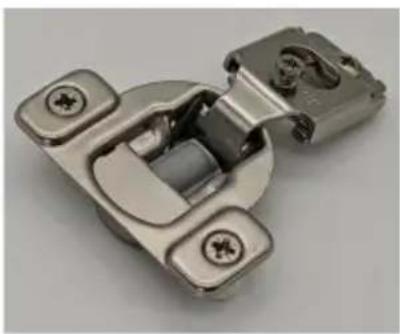

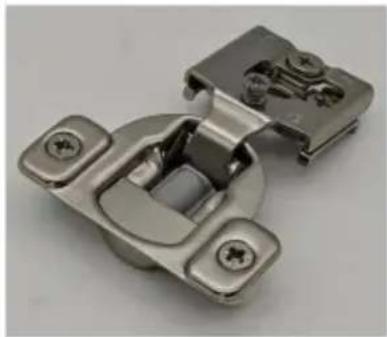

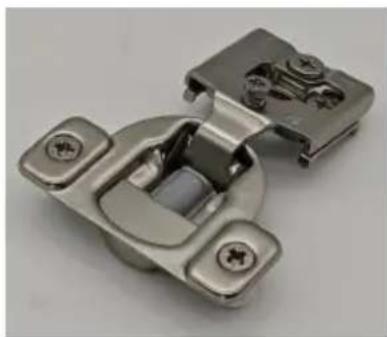

Φ35 (3D) SIX-WAY ADJUSTABLE SOFT CLOSE FACE FRAME HINGE

Model	PHS25201
Cup Diameter	35
Cup Depth	10.5
Cup Pattern	45
Opening	105 °
Finish	Nickel-plated
Overlay	3
(K)	1/2” / 12.7
Max.Dynamic Load (lbs/kg)	7.7/3.5

Part List
Code	Picture	Name	PHS25201-60	PHS25201-30	PHS25201-20
1		HINGES	60	40	20
2		4*16 SCREWS	6*30=180	6*15=90	6*10=60
3		4*20 SCREWS	2*30=60	2*15=30	2*10=20
3		NUTS (Optional)	4*30=120	4*15=60	4*10=40
4		SCREWS (Optional)	4*30=120	4*15=60	4*10=40

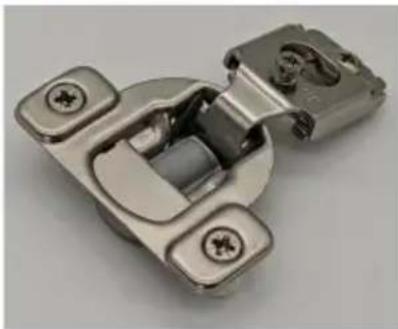

Φ35 (2D) FOUR-WAY ADJUSTABLE SOFT CLOSE FACE FRAME HINGES

Model	PHS24501
Cup Diameter	35
Cup Depth	10.5
Cup Pattern	45
Opening	105 °
Finish	Nickel-plated
Overlay	3
(K)	1/2” / 12.7
Max.Dynamic Load (lbs/kg)	7.7 / 3.5

Part List
Code	Picture	Name	PHS24501-50	PHS24501-40
1		HINGES	50	40
2		4*16 SCREWS	4*25=150	4*20=120
3		4*20 SCREWS	2*25=50	2*20=40
4		NUTS (Optional)	4*25=100	4*20=80
5		SCREWS(Optional)	4*25=100	4*20=80

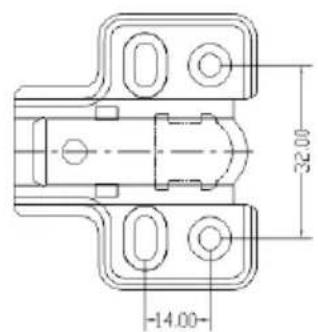

OPERATION

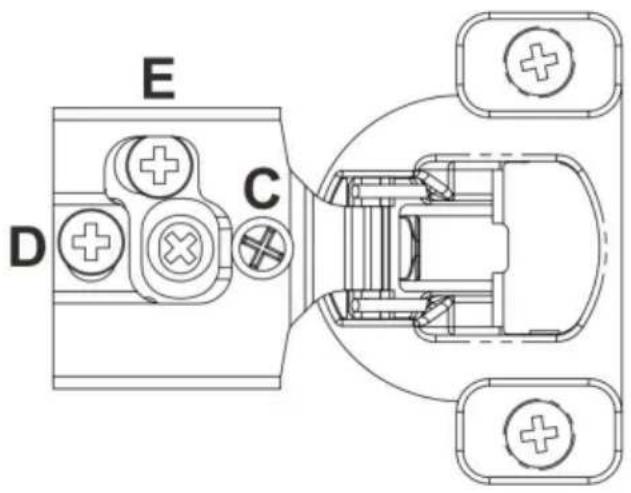

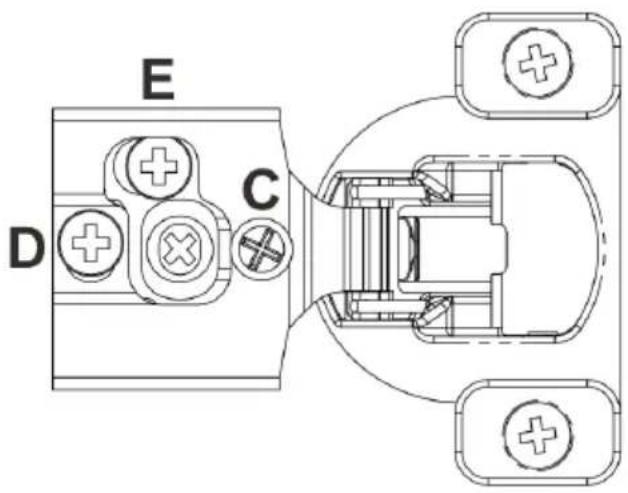

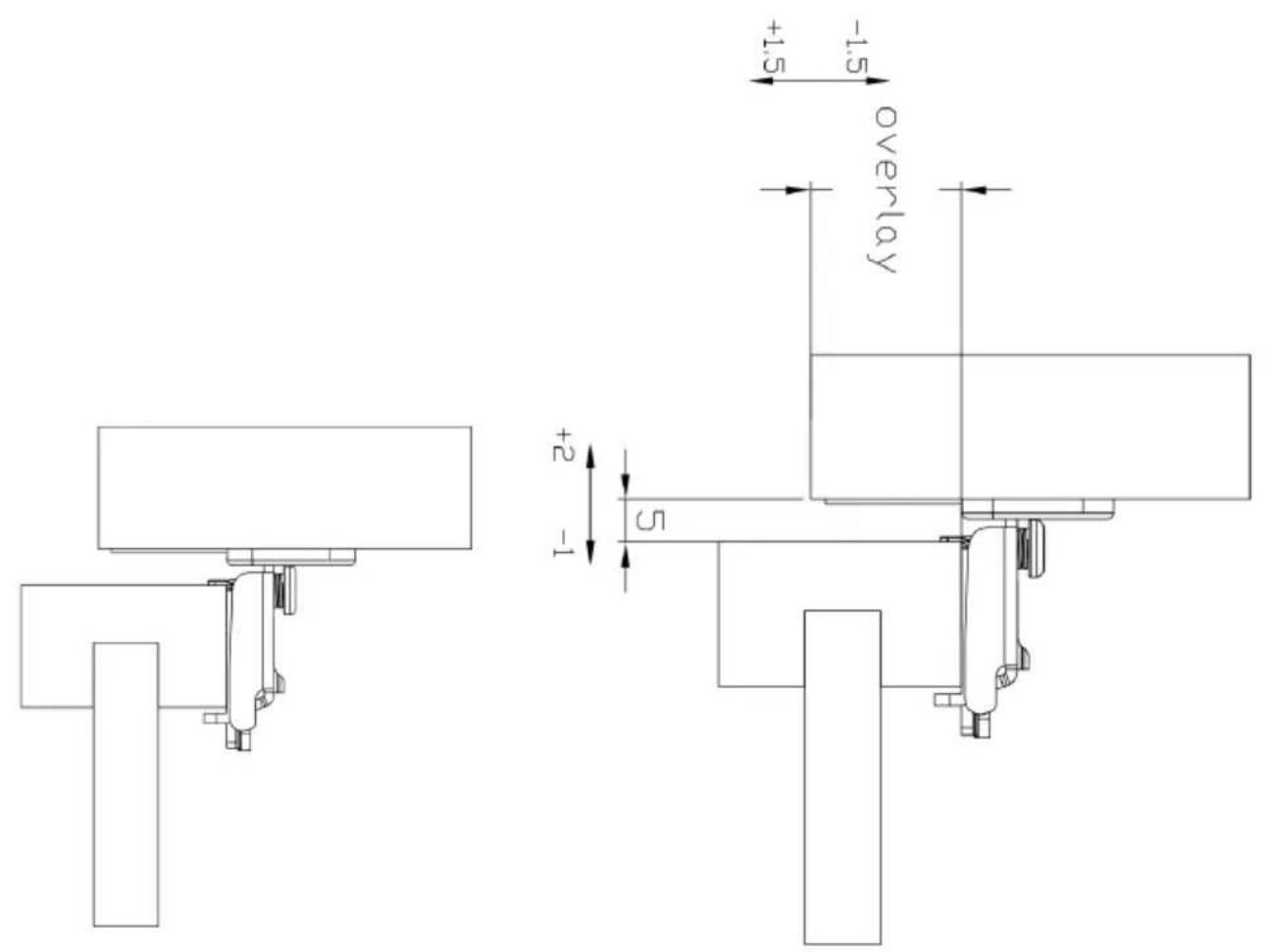

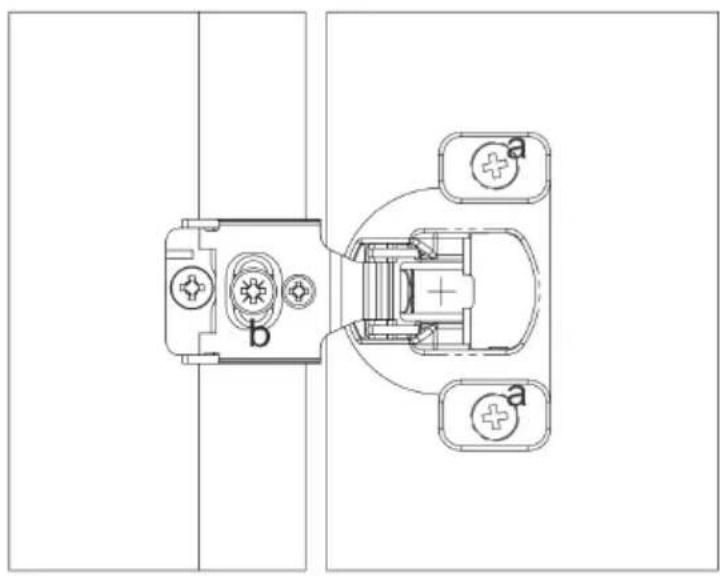

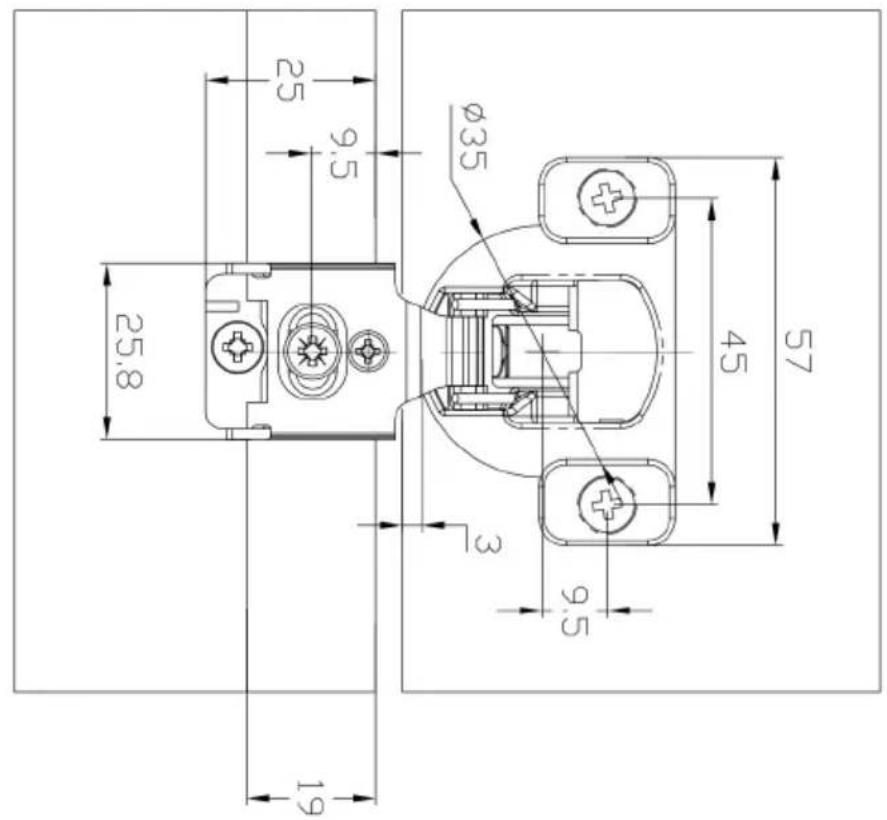

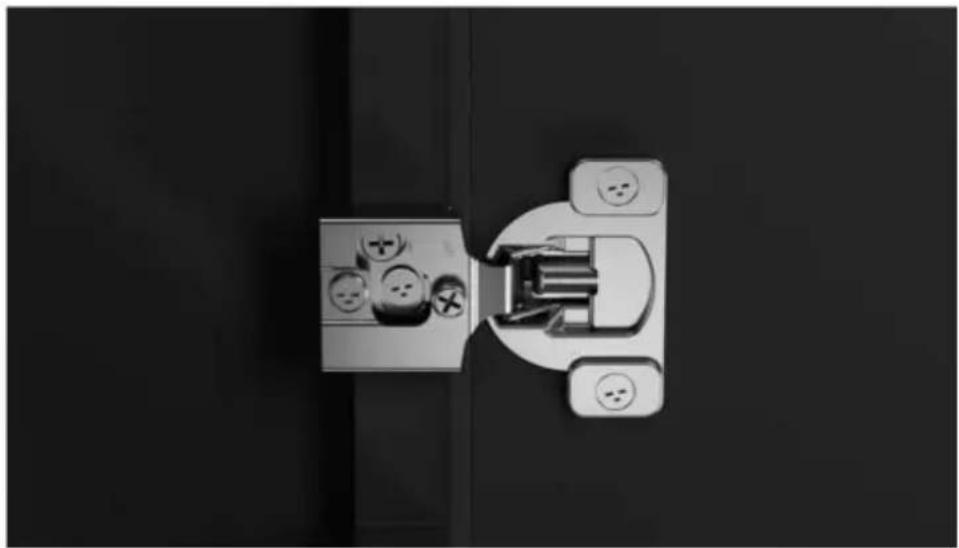

Φ35 (3D) SIX-WAY ADJUSTABLE SOFT CLOSE FACE FRAME HINGE

Adjustment Range:

C Overlay (Left/Right)

Adjustment: ±1.8mm

D Overlay (Front/back)

Adjustment: ±2.0mm

E Overlay (Up/down)

Adjustment: ±1.5mm

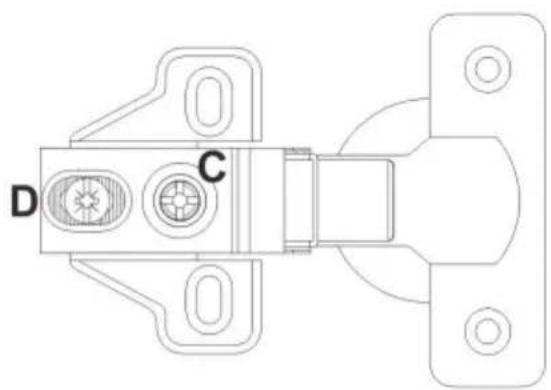

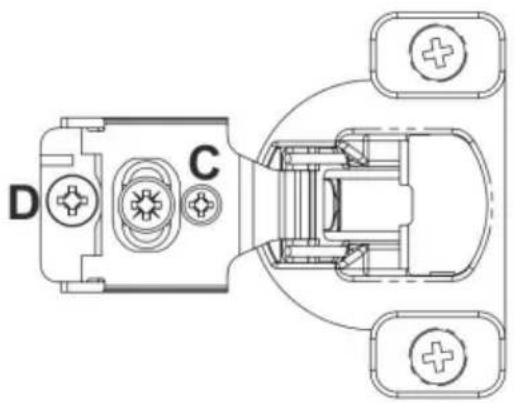

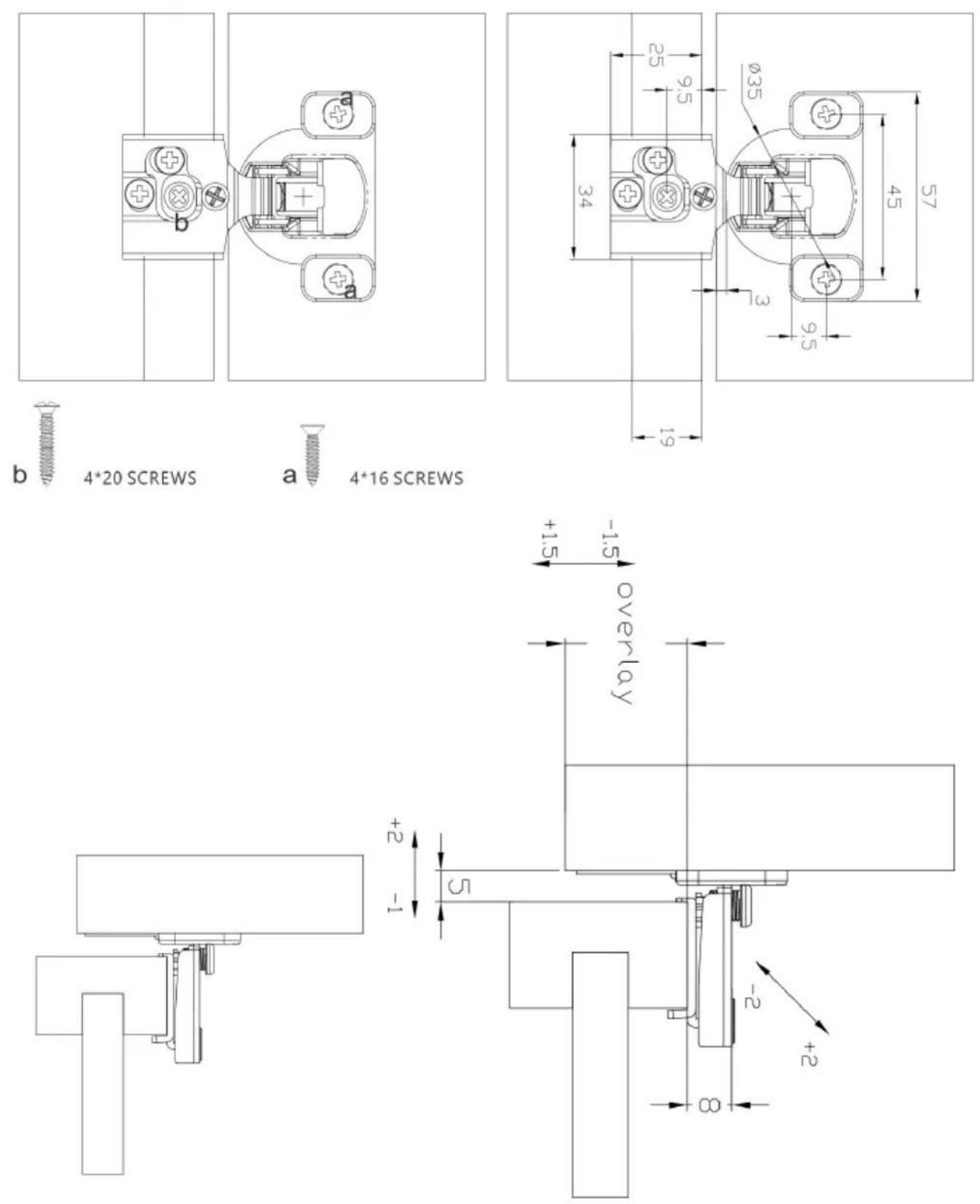

Installation instructions Φ35 (2D) FOUR-WAY ADJUSTABLE SOFT CLOSE FACE FRAME HINGES

Adjustment Range:

C Overlay (Left/Right)

Adjustment: ±1.8mm

D Overlay (Front/back)

Adjustment: ±2.0mm

Installation instructions

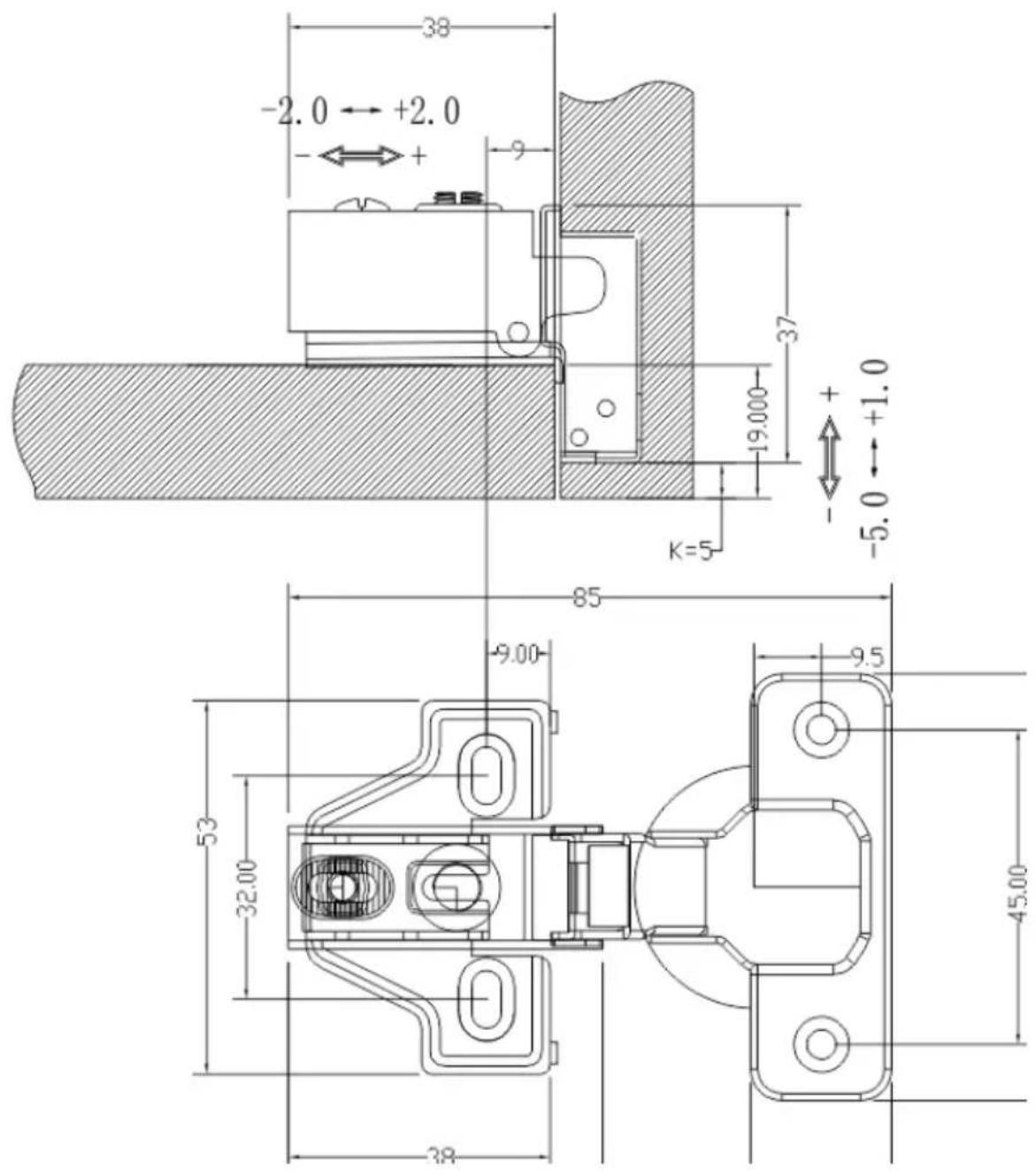

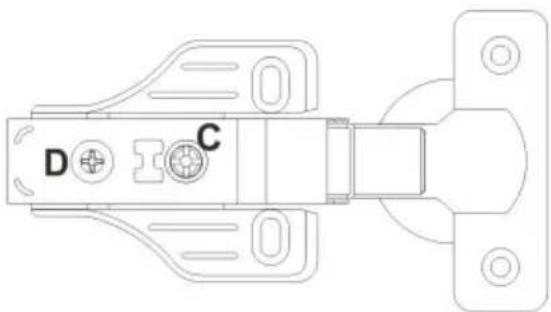

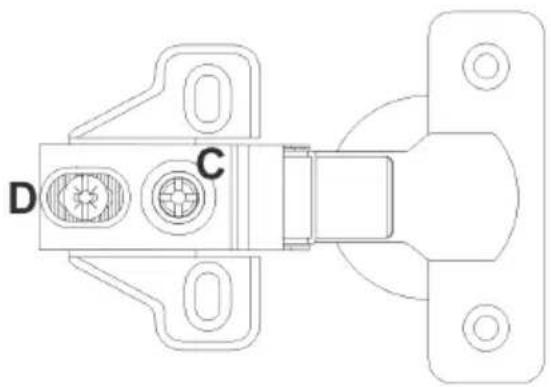

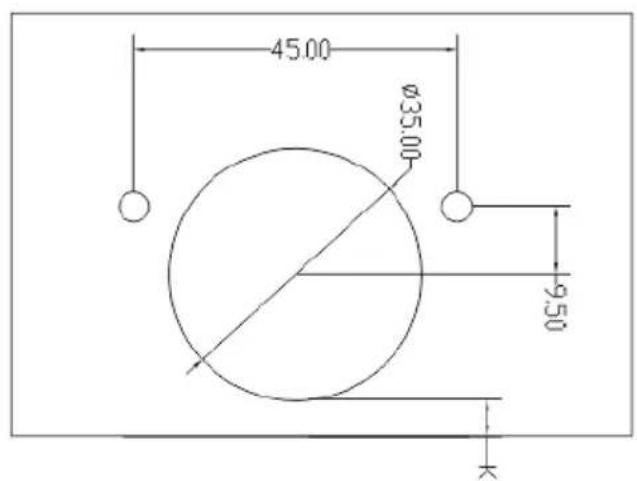

Φ35 fixed on one-way short arms hydraulic buffering hinges

Adjustment Range:

C Overlay (Left/Right)

Adjustment: ±1.0mm

D Overlay (Front/back)

Adjustment: ±2.0mm

H\K	3	4	5	6
0	16	17	18	19

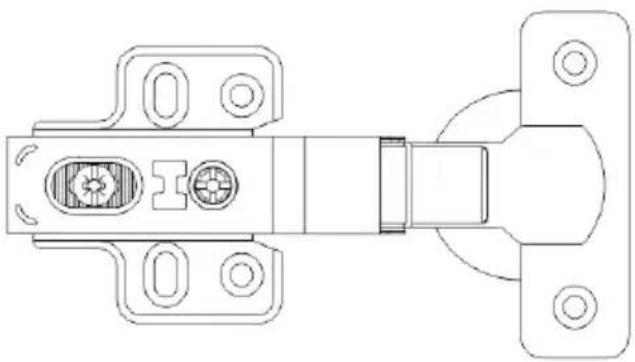

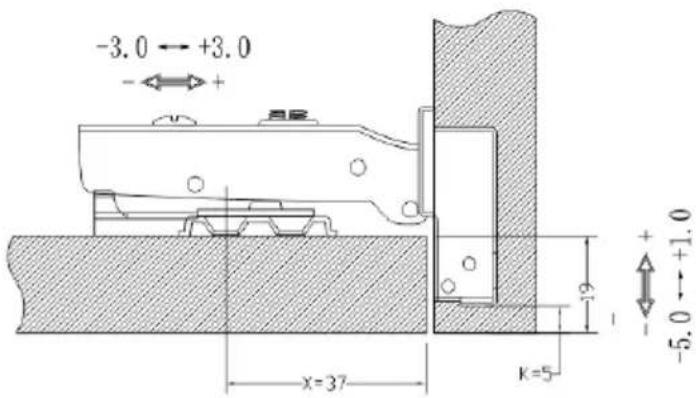

Φ35 clip on one-way hydraulic buffering hinges

Adjustment Range:

C Overlay (Left/Right)

Adjustment: ±1.0mm

D Overlay (Front/back)

Adjustment: ±3.0mm

H\K	3	4	5	6
0	16	17	18	19

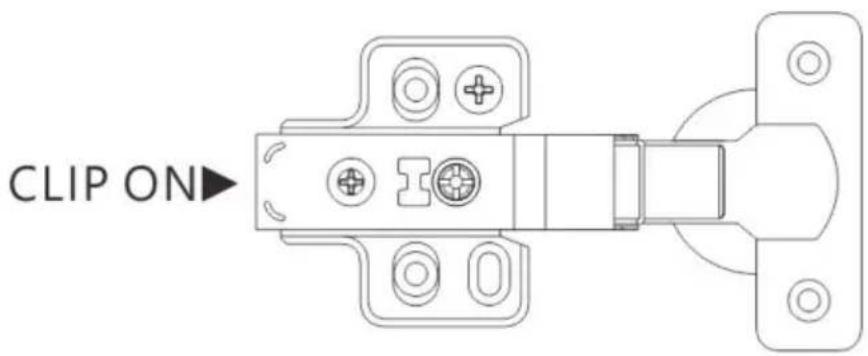

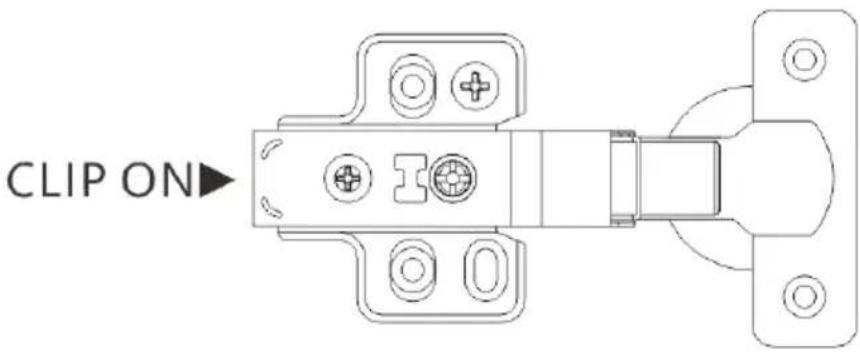

Clip on ▶

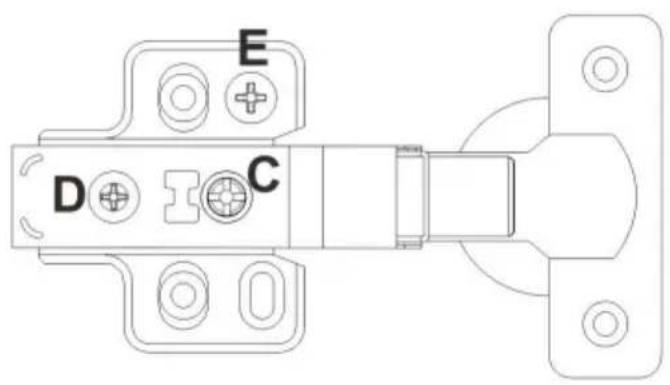

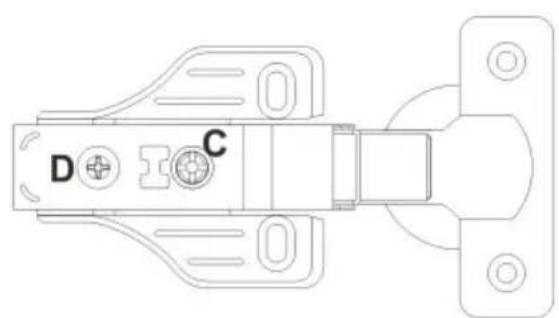

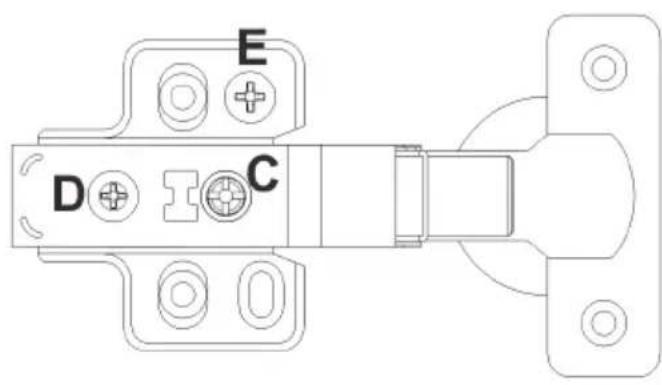

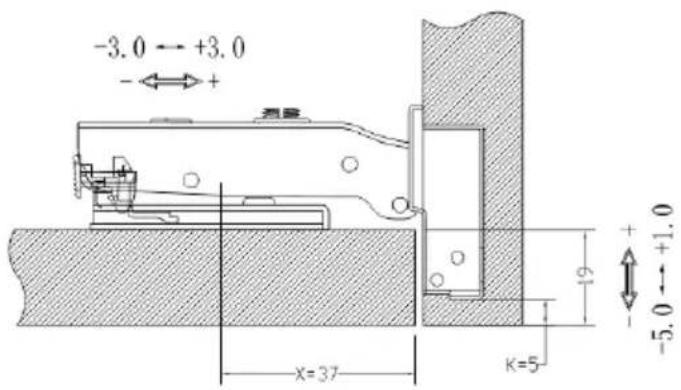

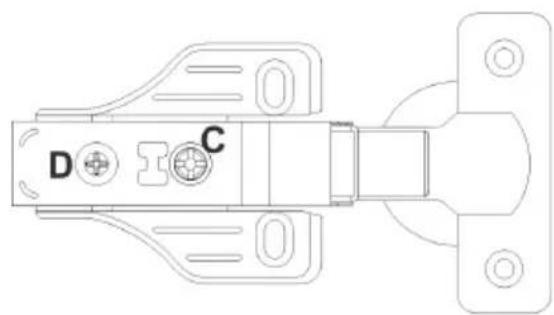

Φ35 clip on one-way (3D) six-way adjustable hydraulic buffering hinge

Adjustment Range:

C Overlay (Left/Right)

Adjustment: ±1.0mm

D Overlay (Front/Back)

Adjustment: ±3.0mm

E Overlay (Up/Down)

Adjustment: ±2.0mm

H\K	3	4	5	6
0	16	17	18	19

Φ35 CLIP ON ONE WAY (2D) FOUR-WAY ADJUSTABLE HYDRAULIC BUFFERING HINGES

Adjustment Range:

C Overlay (Left/Right)

Adjustment: ±1.0mm

D Overlay (Front/Back)

Adjustment: ±3.0mm

H\K	3	4	5	6
0	16	17	18	19

Manufacturer: Shanghai Muxin Wood Industry Co., Ltd.

Address: Room 1602A-1609, No. 11, Lane 803, Shuangcheng Road, Baoshan District, Shanghai 200000, CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREET EASTWOOD NSW 2122 Australia
