Product Type	Cabinet Hinges
Brand	Vevor
Model	PHS25201-20
Cup Diameter	35 mm
Cup Depth	10.5 mm
Cup Model	45
Opening Angle	105°
Finish	Nickel
Overlay	12.7 mm (1/2")
Max Dynamic Load	3.5 kg (7.7 lb)
Adjustment Type	6-way (3D)
Function	Hydraulic Soft Closing
Material	Nickel-plated Steel
Package Contents	20 hinges, screws (4x16, 4x20), optional nuts and screws
Application	Cabinet Doors
Support	www.vevor.com/support

Frequently Asked Questions - PHS25201-20 Vevor

How to adjust the front/back overlay on PHS25201-20 hinges?

Use adjustment screw D to adjust the front/back overlay by ±1.8 mm. Turn the screw clockwise to increase the gap, counterclockwise to reduce.

What is the drilling hole diameter for the cup?

The cup diameter is 35 mm, so drill a hole of 35 mm diameter with a depth of at least 10.5 mm.

Are the hinges suitable for soft closing?

Yes, these hinges are equipped with a hydraulic soft closing mechanism that prevents slamming.

How many screws are provided in the PHS25201-20 package?

The package contains 60 screws 4x16, 20 screws 4x20, 40 nuts, and 40 optional screws.

What is the difference between models PHS25201-20 and PHS25201-30?

The difference lies in the number of hinges: PHS25201-20 contains 20 hinges, while PHS25201-30 contains 40. The technical specifications are identical.

How to adjust the door height?

Use adjustment E (up/down) which allows an adjustment of ±2.0 mm. Turn the corresponding screw in the appropriate direction.

What is the finish type of the hinges?

The hinges have a nickel finish, providing good corrosion resistance.

Can I use these hinges for a heavy cabinet door?

The maximum dynamic load is 3.5 kg per hinge. For heavier doors, it is recommended to use more hinges or a model with higher capacity.

Are adjustment screws provided?

Yes, adjustment screws are included in the package. Check the parts list for exact quantities.

How to properly install the hinge on the cabinet frame?

Drill a 35 mm hole for the cup, attach the hinge with the provided screws, then adjust the overlay using adjustments D, E, and lateral if necessary. Refer to the installation diagrams in the manual.

USER MANUAL PHS25201-20 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

CABINET HINGES

MODEL: PHS25101-40/ PHS23701-40/PHS25101-50

/PHS23701-50/PHS25001-60/PHS23601-60/PHS25201-20

/PHS25201-30/PHS24501-40/PHS24501-50/PHS25201-60

We continue to be committed to provide you tools with competitive price.

"Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Cabinet Hinges

MODEL: MODEL: PHS25101-40/ PHS23701-40/PHS25101-50

/PHS23701-50/PHS25001-60/PHS23601-60/PHS25201-20

/PHS25201-30/PHS24501-40/PHS24501-50/PHS25201-60

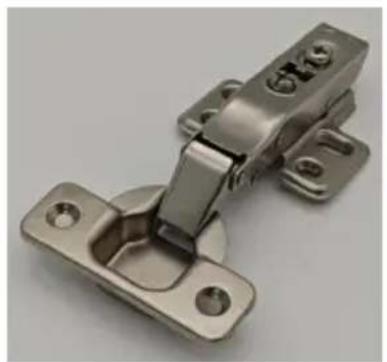

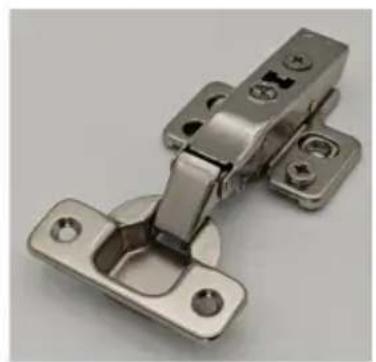

Metallic plastic hinge component with mounting holes and a central handle (no text or symbols visible)

PHS23601-60

Metal-colored plastic hinge component with mounting holes and mounting holes (no text or symbols visible)

PHS25001-60

Close-up of a metallic glass hinge with mounting holes and a central handle (no text or symbols visible)

PHS23701-40/50

Metal-colored plastic hinge component with mounting holes and a small inset showing internal features (no text or symbols visible)

PHS25101-40/50

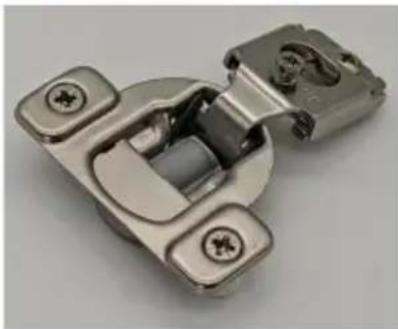

Close-up of two metallic plastic hinge clips with mounting holes (no text or symbols visible)

PHS25201-20/30/60

Close-up of a metallic glass plastic hinge component with mounting holes (no text or symbols visible)

PHS24501-40/50

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again there are any technology or software updates on our product.

PARAMETER LIST

Φ35 CLIP ON ONE WAY HYDRAULIC BUFFERING HINGES

Metal-colored plastic hinge component with mounting holes and a central handle (no text or symbols visible)

Model	PHS23601
Cup Diameter	35
Cup Depth	10.6
Cup Pattern	45
Opening	100 °
Finish	Nickel-plated
(K)	5
Overlay	Full Overlay
Max.Dynamic Load (lbs/kg)	16.5/7.5

Part List
Code	Picture	Name	PHS23601-60
1		HINGES	60
2		4*16 SCREWS	12*30=360

Φ35 FIXED ON ONE WAY SHORT ARMS HYDRAULIC BUFFERING HINGES

Metal-colored plastic hinge component with mounting holes (no text or symbols visible)

Model	PHS25001
Cup Diameter	35
Cup Depth	10.6
Cup Pattern	45
Opening	100 °
Finish	Nickel-plated
Overlay	Full Overlay
(K)	5
Max.Dynamic Load (lbs/kg)	7.7/3.5

Part List
Code	Picture	Name	PHS25001-60
1		HINGES	60
2		4*16 SCREWS	8*30=240
3		NUTS (Optional)	4*30=120
4		SCREWS (Optional)	4*30=120

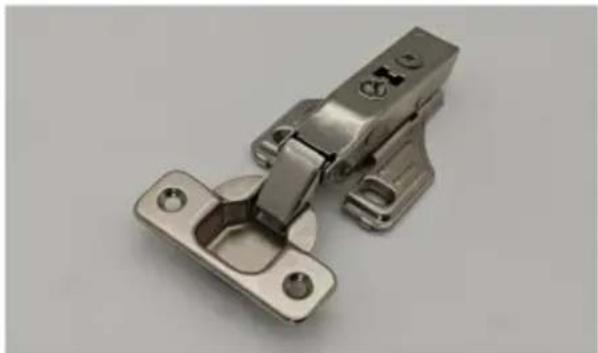

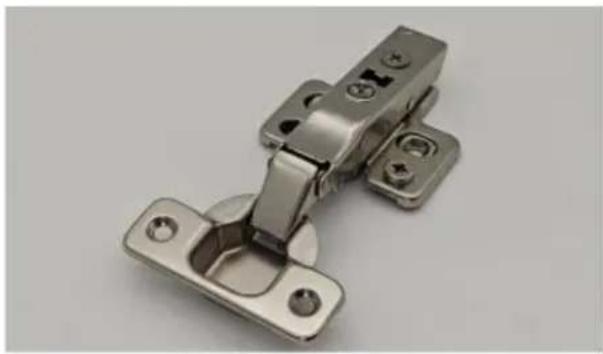

Φ35 CLIP ON ONE WAY (3D) SIX-WAY ADJUSATABLE HYDRAULIC BUFFERING HINGES

Metal-colored plastic hinge component with mounting holes (no text or symbols visible)

Model	PHS23701
Cup Diameter	35
Cup Depth	10.6
Cup Pattern	45
Opening	100 °
Finish	Nickel-plated
Overlay	5
(K)	Full Overlay
Max.Dynamic Load (lbs/kg)	16.5/7.5

Part List
Code	Picture	Name	PHS23701-50	PHS23701-40
1		HINGES	50	40
2		4*16 SCREWS	10*25=250	10*20=200

Φ35 CLIP ON ONE WAY(2D)FOUR-WAY ADJUSATABLE HYDRAULIC BUFFERING HINGES

Metal-colored plastic hinge component with mounting holes (no text or symbols visible)

Model	PHS25101
Cup Diameter	35
Cup Depth	10.6
Cup Pattern	45
Opening	100 °
Finish	Nickel-plated
Overlay	5
(K)	Full Overlay
Max.Dynamic Load (lbs/kg)	16.5/7.5

Part List
Code	Picture	Name	PHS25101-50	PHS25101-40
1		HINGES	50	40
2		4*16 SCREWS	8*25=200	8*20=160

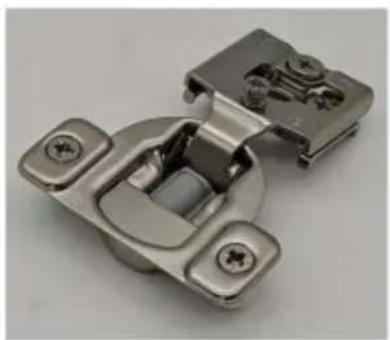

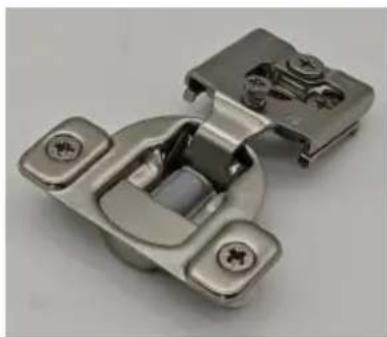

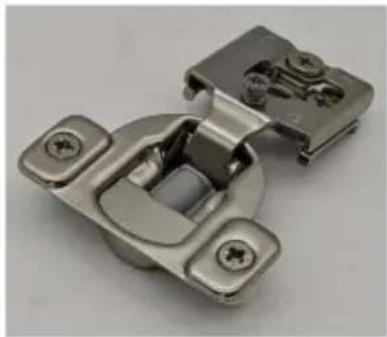

Φ35(3D)SIX-WAY ADJUSATABLE SOFT CLOSE FACE FRAME HINGE

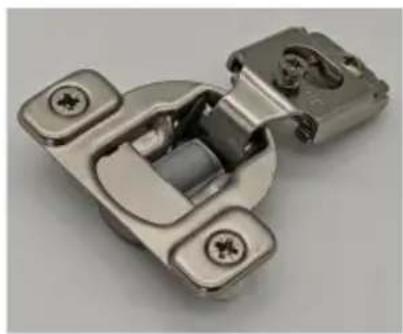

Close-up of a metallic glass plastic hinge component (no text or symbols visible)

Model	PHS25201
Cup Diameter	35
Cup Depth	10.5
Cup Pattern	45
Opening	105 °
Finish	Nickel-plated
Overlay	3
(K)	1/2” / 12.7
Max.Dynamic Load (lbs/kg)	7.7/3.5

Part List
Code	Picture	Name	PHS25201-60	PHS25201-30	PHS25201-20
1		HINGES	60	40	20
2		4*16 SCREWS	6*30=180	6*15=90	6*10=60
3		4*20 SCREWS	2*30=60	2*15=30	2*10=20
3		NUTS (Optional)	4*30=120	4*15=60	4*10=40
4		SCREWS (Optional)	4*30=120	4*15=60	4*10=40

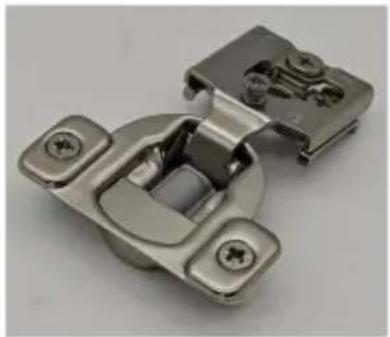

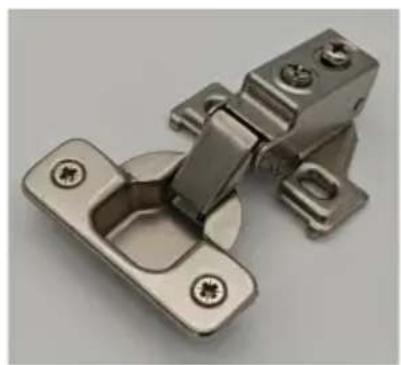

Φ35(2D)FOUR-WAY ADJUSATABLE SOFT CLOSE FACE FRAME HINGES

Close-up of a metallic plastic hinge component with mounting holes (no text or symbols visible)

Model	PHS24501
Cup Diameter	35
Cup Depth	10.5
Cup Pattern	45
Opening	105 °
Finish	Nickel-plated
Overlay	3
(K)	1/2” / 12.7
Max.Dynamic Load (lbs/kg)	7.7 / 3.5

Part List
Code	Picture	Name	PHS24501-50	PHS24501-40
1		HINGES	50	40
2		4*16 SCREWS	4*25=150	4*20=120
3		4*20 SCREWS	2*25=50	2*20=40
4		NUTS (Optional)	4*25=100	4*20=80
5		SCREWS(Optional)	4*25=100	4*20=80

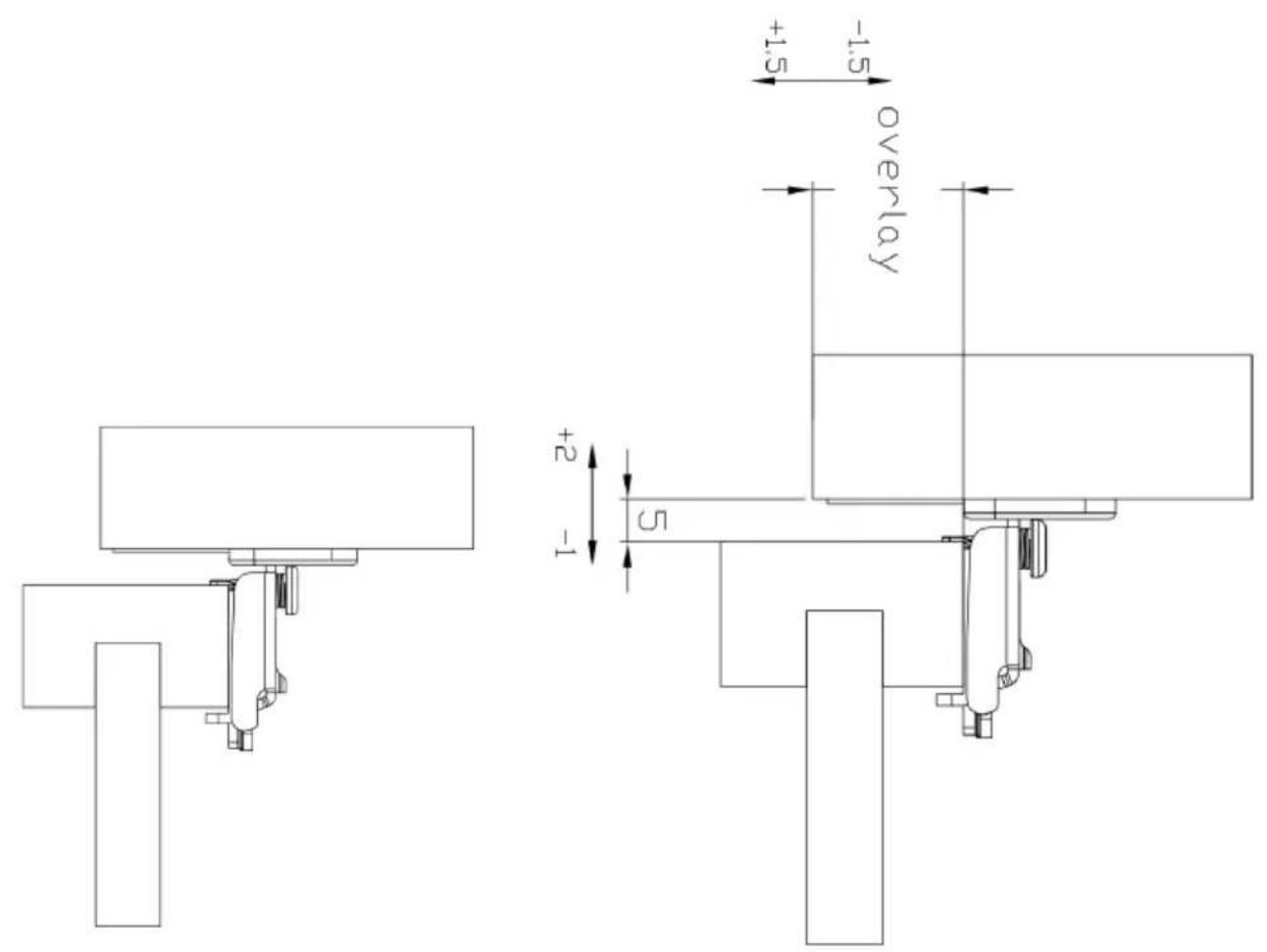

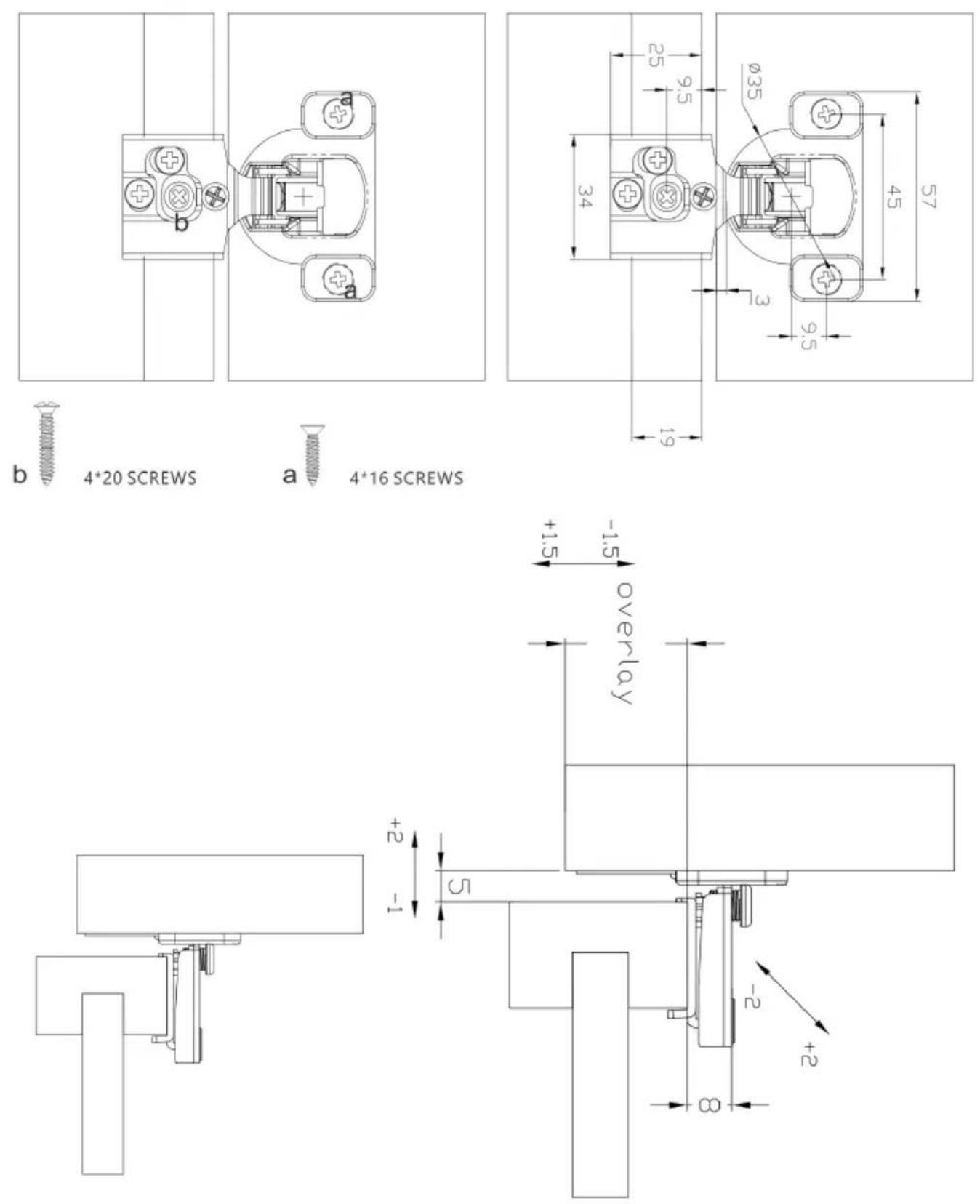

OPERATION

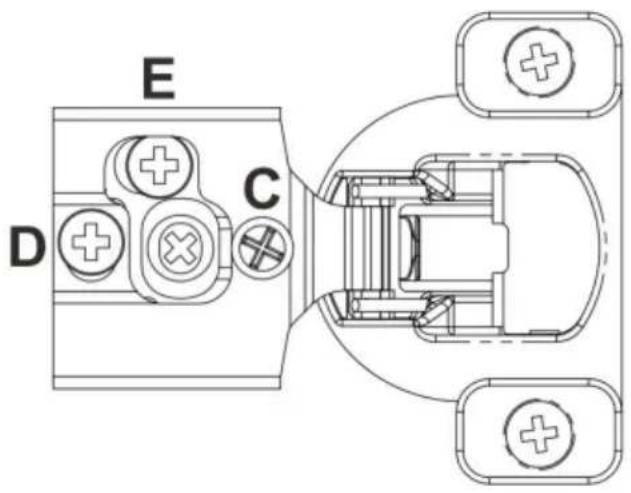

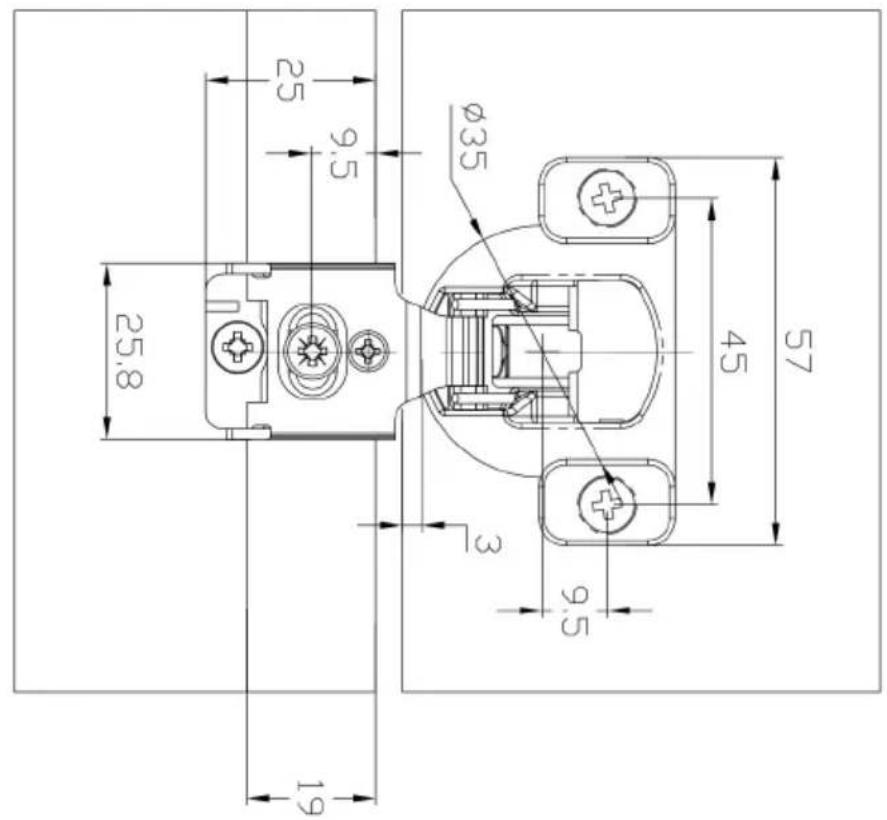

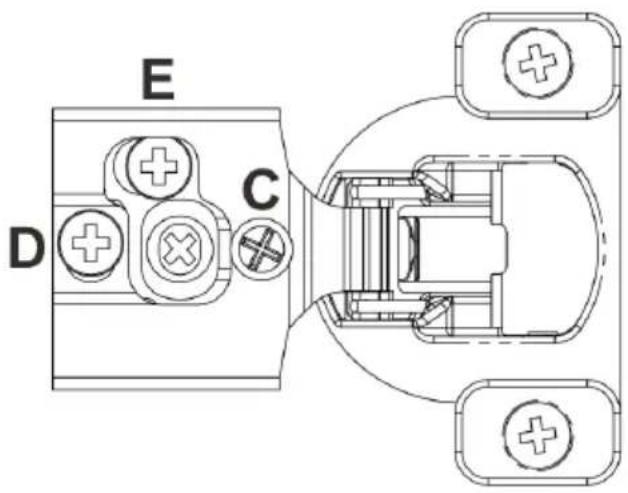

Φ35(3D)SIX-WAY ADJUSATABLE SOFT CLOSE FACE FRAME HINGE

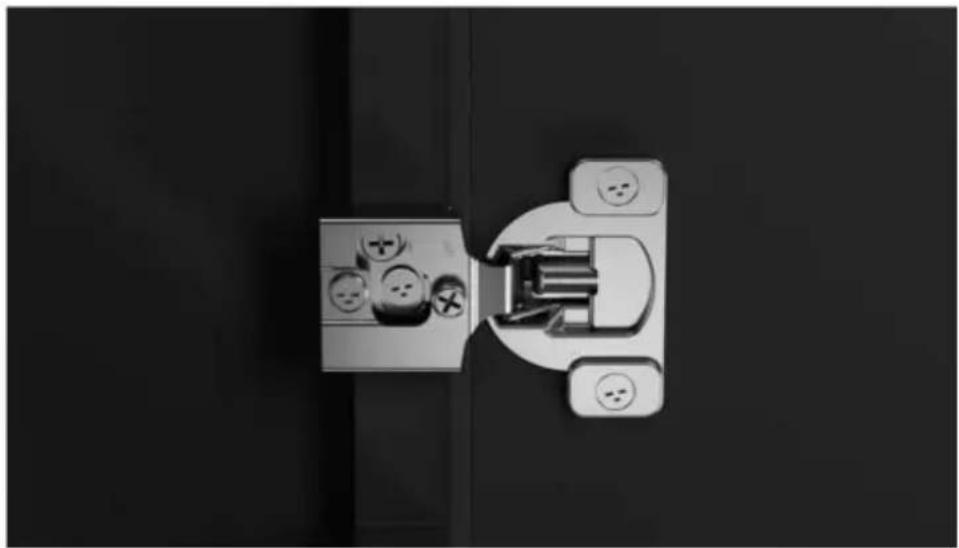

Top-down view of a door with three switches and a highlighted electrical outlet (no text or symbols visible)

Adjustment Range:

C Overlay(Left/Right)

Adjustment:±1.8mm

D Overlay(Front/back)

Adjustment:±2.0mm

E Overlay(Up/down)

Adjustment:±1.5mm

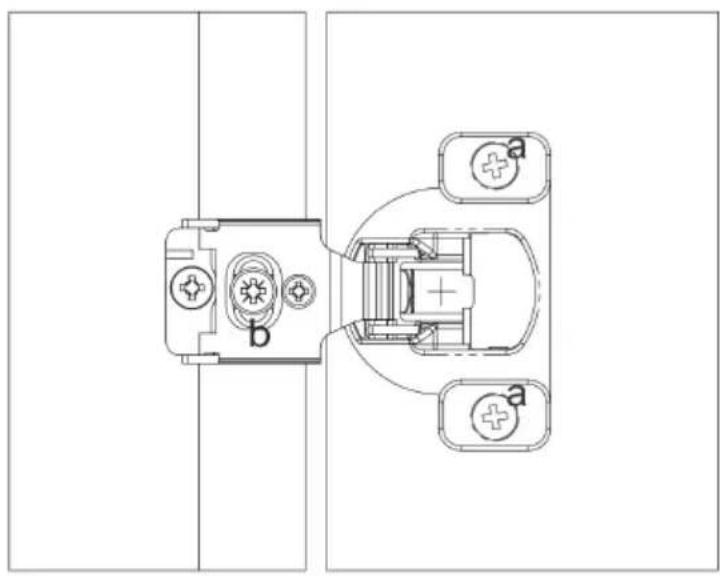

Installation instructions

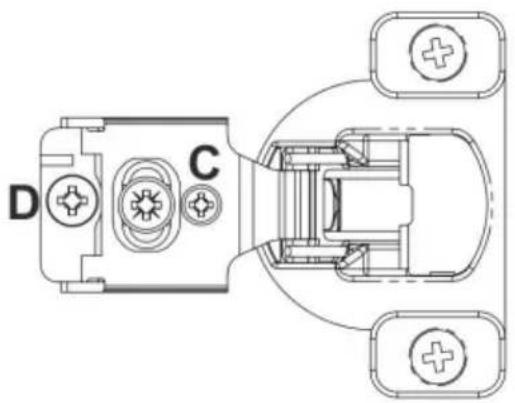

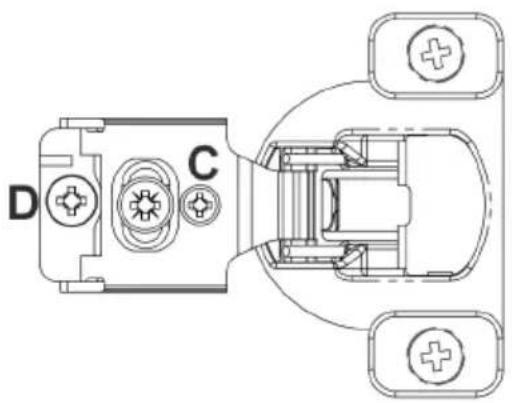

Φ35(2D)FOUR-WAY ADJUSATABLE SOFT CLOSE FACE FRAME HINGES

Close-up of a metallic door handle assembly with cartoon figures, mounted on a dark surface (no text or symbols visible)

Adjustment Range:

C Overlay (Left/Right)

Adjustment:±1.8mm

D Overlay(Front/back)

Adjustment:±2.0mm

Installation instructions

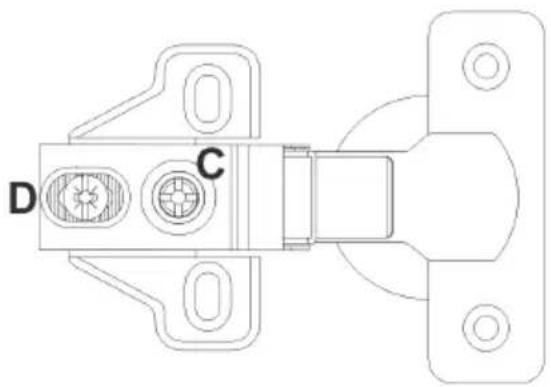

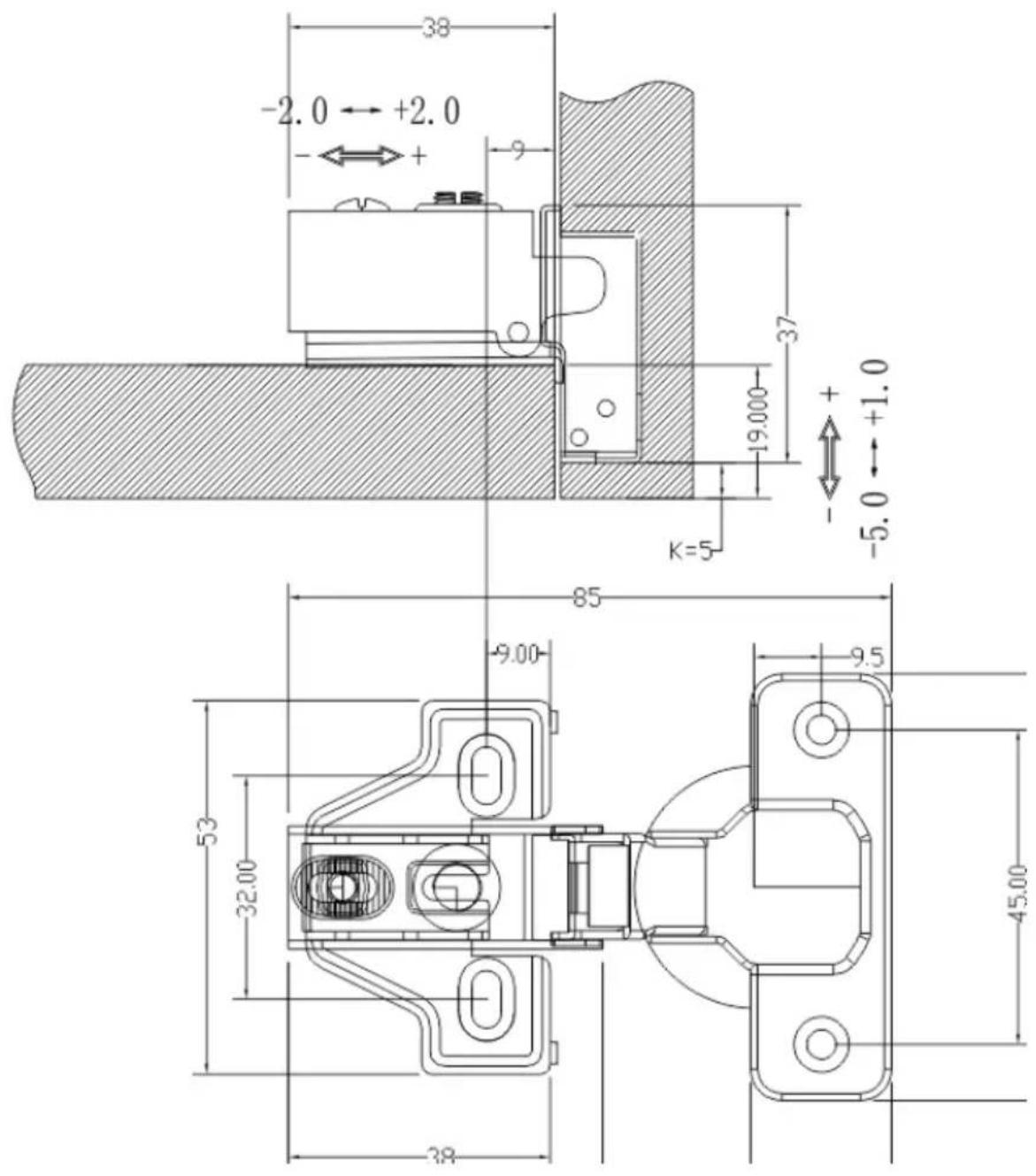

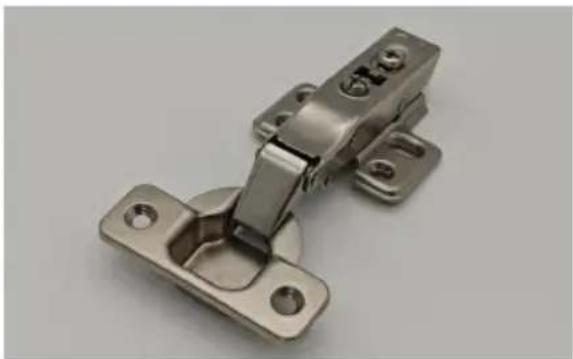

Φ35 FIXED ON ONE WAY SHORT ARMS HYDRAULIC BUFFERING HINGES

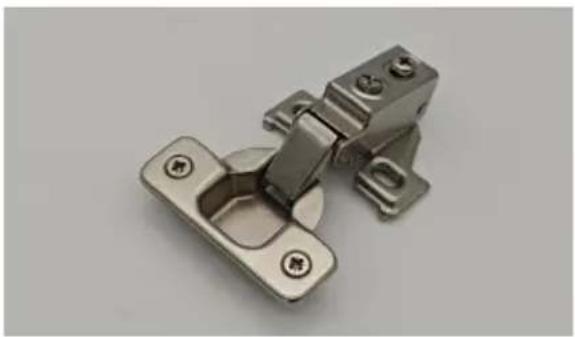

Metal-colored plastic hinge component with mounting holes and mounting holes (no text or symbols visible)

Adjustment Range:

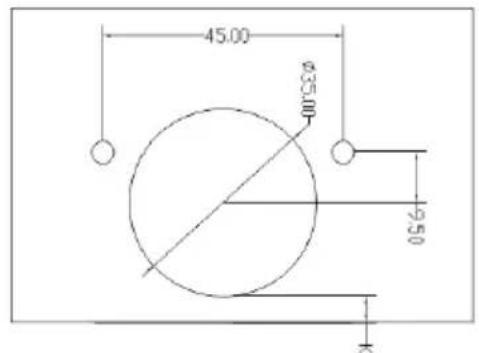

Technical line drawing of a mechanical hinge component with labeled points D and C (no text or symbols beyond labels)

C Overlay (Left/Right)

Adjustment:±1.0mm

D Overlay(Front/back)

Adjustment:±2.0mm

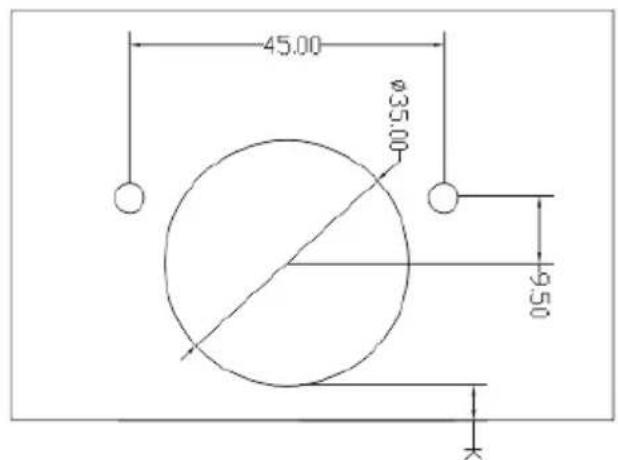

H\K	3	4	5	6
0	16	17	18	19

Φ35 CLIP ON ONE WAY HYDRAULIC BUFFERING HINGES

Metal-colored plastic hinge component with mounting holes and a central handle (no text or symbols visible)

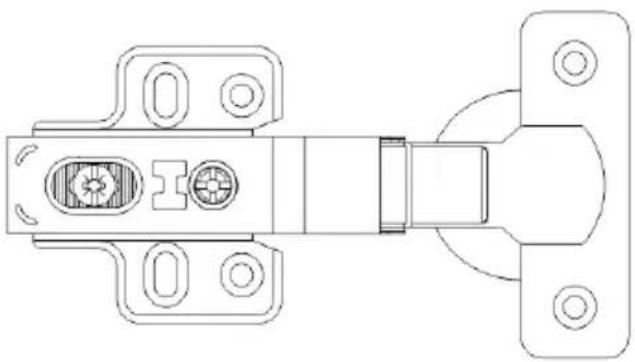

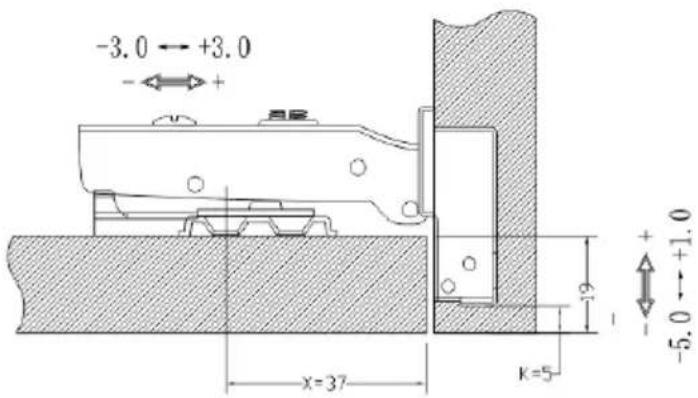

Adjustment Range:

Technical line drawing of a mechanical hinge component with labeled parts D and C (no text or symbols beyond labels)

C Overlay(Left/Right)

Adjustment:±1.0mm

D Overlay(Front/back)

Adjustment:±3.0mm

H\K	3	4	5	6
0	16	17	18	19

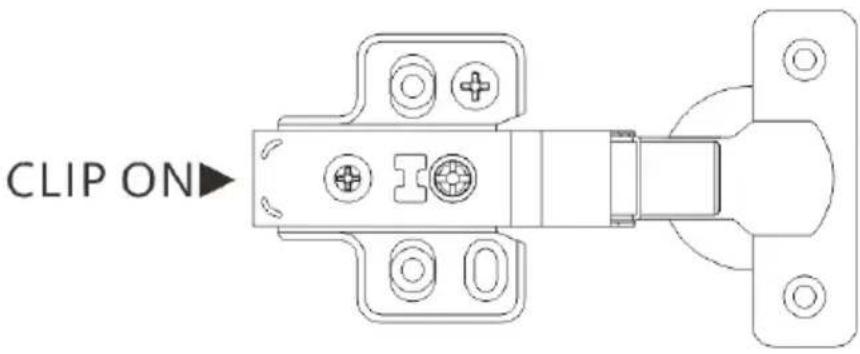

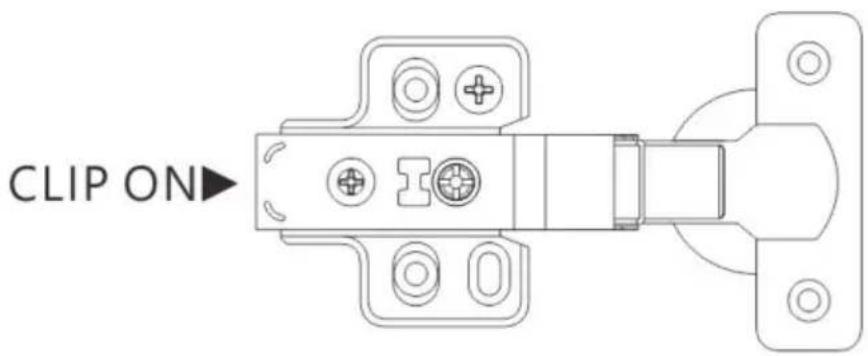

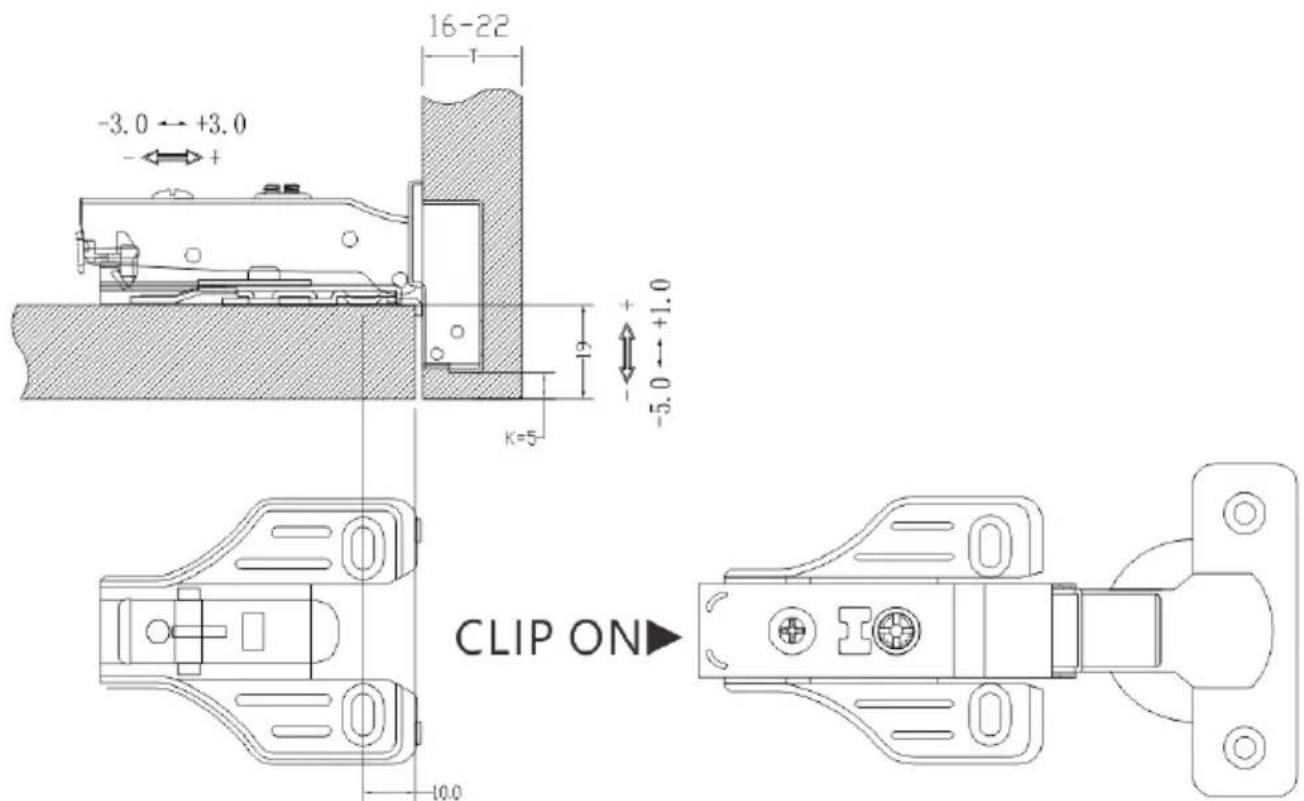

CLIP ON▶

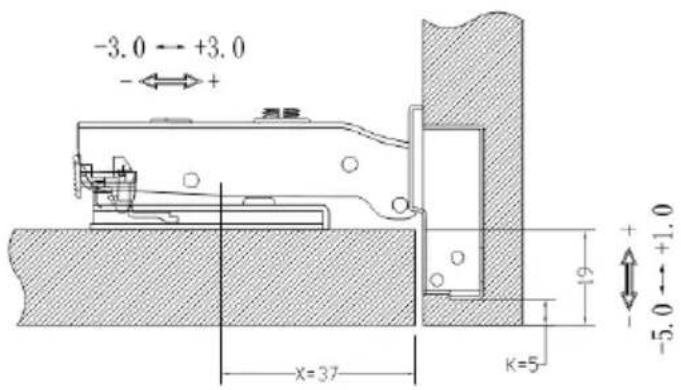

Technical line drawing of a mechanical hinge component with mounting holes and internal features (no text or symbols)

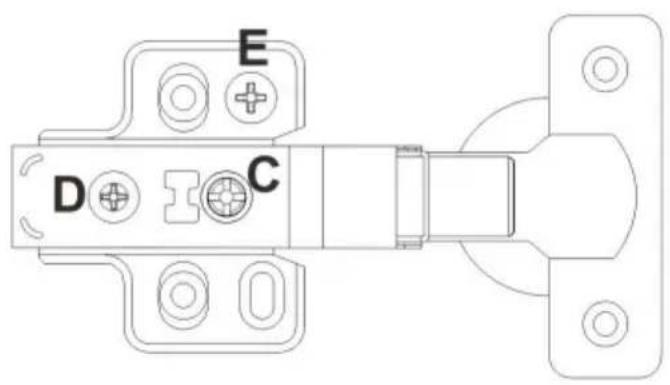

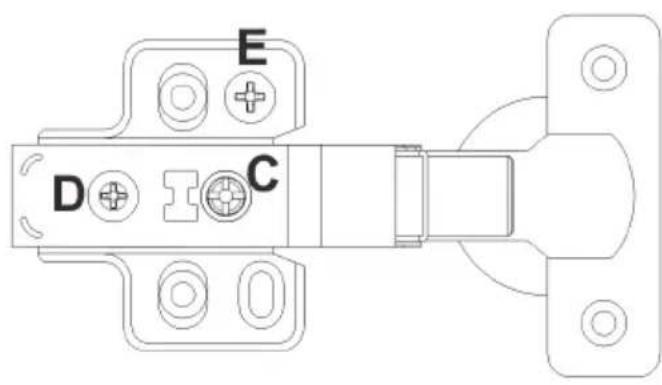

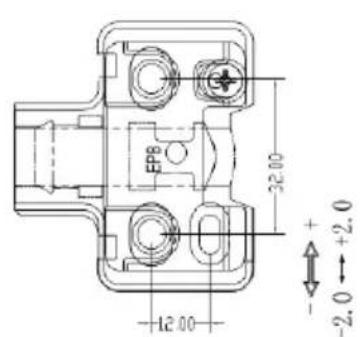

Φ35 CLIP ON ONE WAY (3D) SIX-WAY ADJUSATABLE HYDRAULIC BUFFERING HINGE

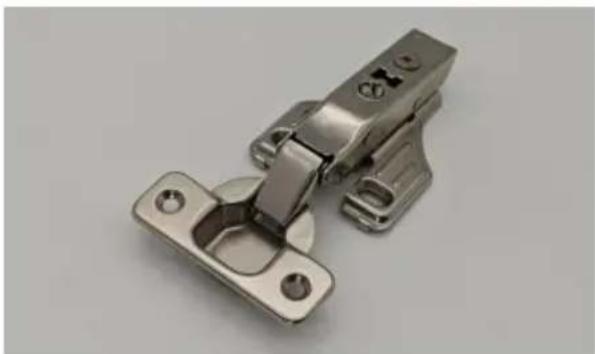

Metal-colored plastic hinge component with mounting holes and a central handle (no text or symbols visible)

Adjustment Range:

C Overlay(Left/Right)

Adjustment:±1.0mm

D Overlay(Front/back)

Adjustment:±3.0mm

E Overlay(Up/down)

Adjustment:±2.0mm

H\K	3	4	5	6
0	16	17	18	19

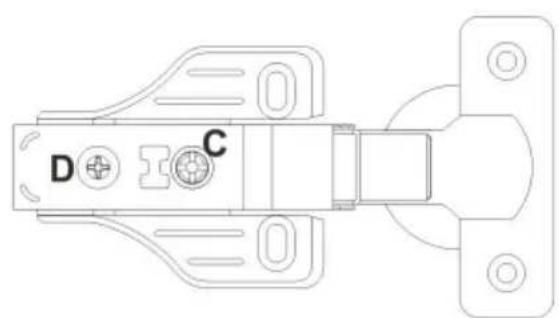

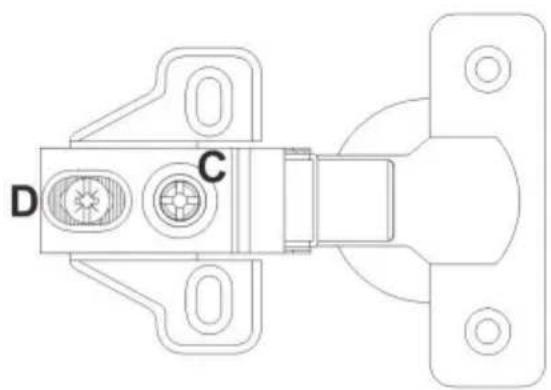

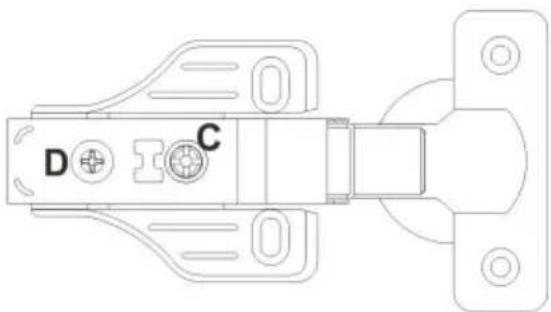

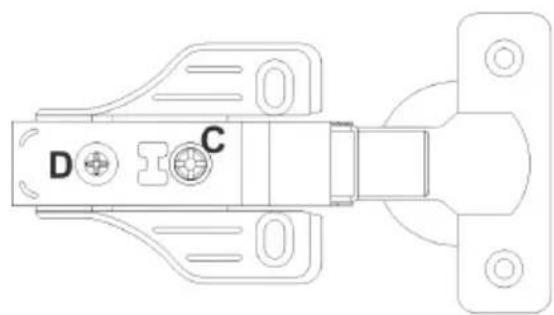

Φ35 CLIP ON ONE WAY(2D)FOUR-WAY ADJUSATABLE HYDRAULIC BUFFERING HINGES

Metal-colored plastic hinge component with mounting holes and a small inset view (no text or symbols visible)

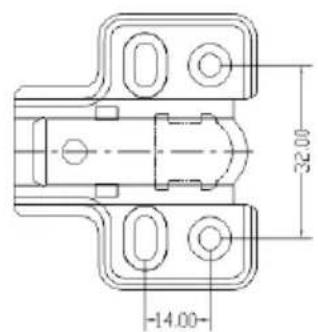

Adjustment Range:

Technical line drawing of a mechanical component with labeled parts D and C (no text or symbols beyond labels)

C Overlay(Left/Right)

Adjustment:±1.0mm

D Overlay(Front/back)

Adjustment:±3.0mm

H\K	3	4	5	6
0	16	17	18	19

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Metal-colored plastic hinge component with mounting holes and a central handle (no text or symbols visible)

PHS23601-60

Close-up of a metallic glass hinge with mounting holes and a central handle (no text or symbols visible)

Close-up of a metallic glass hinge with mounting holes and mounting holes (no text or symbols visible)

PHS23701-40/50PHS25001-60

Metal-colored plastic hinge component with mounting holes and a central handle (no text or symbols visible)

PHS25101-40/50 PHS25201-20/30/60

Close-up of a metallic plastic hinge component with mounting holes (no text or symbols visible)

Close-up of a metallic glass Tunisia coefficient hinge (no text or symbols visible)

PHS24501-40/50

BESOIN D'AIDE? CONTACTEZ-NOUS!

Metal-colored plastic hinge component with mounting holes and a central handle (no text or symbols visible)

Metal-colored plastic hinge component with mounting holes (no text or symbols visible)

Metal double-hinged glass hinge component (no text or symbols visible)

Metal-colored plastic hinge component with mounting holes (no text or symbols visible)

Close-up of a metallic glass plastic hinge component (no text or symbols visible)

Close-up of a metallic mechanical component with mounting holes and internal cavity (no text or symbols visible)

Top-down view of a mechanical assembly with three circular components and a central bracket (no visible text or symbols)

Plage de réglage :

C Superposition (gauche/droite)

Close-up of a door handle mechanism with cartoon figures and control buttons (no text or symbols visible)

Plage de réglage :

Superposition C (gauche/droite)

4*20 SCREWS

4*16 SCREWS

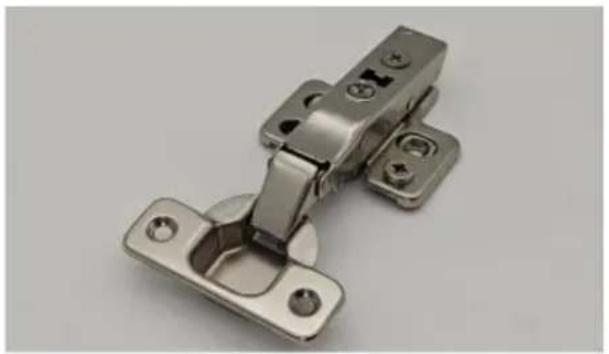

Φ35 FIXE SUR UN SENS BRAS COURTS TAMPON HYDRAULIQUE

CHARNIÈRES

Metal-colored plastic hinge component with mounting holes and mounting holes (no text or symbols visible)

Plage de réglage :

Technical line drawing of a mechanical hinge component with labeled parts D and C (no text or symbols beyond labels)

C Superposition (gauche/droite)

Metallic glass hinge component with mounting holes and a central cutout (no text or symbols visible)

Plage de réglage :

Technical line drawing of a mechanical assembly with labeled components D and C (no text or symbols beyond labels)

C Superposition (gauche/droite)

Technical line drawing of a mechanical hinge component with mounting holes and internal features (no text or symbols)

Φ35 CLIP ON UNIQUE (3D) SIX VOIES RÉGLABLES HYDRAULIQUES CHARNIÈRE DE TAMPONNAGE

Metal-colored plastic hinge component with mounting holes and mounting holes (no text or symbols visible)

Plage de réglage :

C Superposition (gauche/droite)

Φ35 CLIP SUR UNE VOIE (2D) QUATRE VOIES RÉGLABLE HYDRAULIQUE CHARNIÈRES TAMPONNANTES

Metallic stainless steel hinge component with mounting holes (no text or symbols visible)

Plage de réglage :

Technical line drawing of a mechanical latch or connector assembly (no text or symbols)

C Superposition (gauche/droite)

Fabricant : Shanghaimuxinmuyeyouxiangongsi Adresse :

Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Importé en Australie : SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australie

YH CONSULTING LIMITED. C/O YH Consulting Limited Bureau 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

REPRÉSENTANT DE LA CE

E-CrossStu GmbH

Mainzer Landstr.69,

Metal-colored plastic hinge component with mounting holes and a central handle (no text or symbols visible)

PHS23601-60

Close-up of a metallic glass hinge component with mounting holes and mounting holes (no text or symbols visible)

PHS25001-60 PHS23701-40/50

Close-up of a metallic glass intra-day hinge (DHS) with mounting holes and mounting holes (no text or symbols visible)

Metallic plastic hinge component with mounting holes and a central handle (no text or symbols visible)

PHS25101-40/50 PHS25201-20/30/60

Close-up of two metallic plastic hinge clips with mounting holes (no text or symbols visible)

Close-up of a metallic glass Tunisia coefficient hinge (no text or symbols visible)

PHS24501-40/50

Metal-colored plastic hinge component with mounting holes (no text or symbols visible)

Metal-colored plastic hinge component with mounting holes (no text or symbols visible)

Metal double-hinged glass hinge component (no text or symbols visible)

Metal-colored plastic hinge component with mounting holes (no text or symbols visible)

Close-up of a metallic glass plastic hinge component (no text or symbols visible)

Metal-colored plastic hinge component with mounting holes (no text or symbols visible)

Top-down view of a mechanical assembly with three circular components and a central bracket (no visible text or symbols)

Einstellbereich:

C- Overlay (links/rechts)

Close-up of a door handle mechanism with cartoon figures and control buttons (no text or symbols visible)

Einstellbereich:

Metal-colored plastic hinge component with mounting holes and mounting holes (no text or symbols visible)

Einstellbereich:

Technical line drawing of a mechanical hinge component with labeled parts D and C (no text or symbols beyond labels)

Metallic glass hinge component with mounting holes and a central cutout (no text or symbols visible)

Einstellbereich:

Technical line drawing of a mechanical hinge component with labeled parts D and C (no text or symbols beyond labels)

C- Overlay (links/rechts)

Technical line drawing of a mechanical hinge component with mounting holes and internal features (no text or symbols)

ÿ35 CLIP ON EINWEG (3D) SECHSFACH EINSTELLBAR HYDRAULISCH PUFFERSCHARNIER

Metal-colored plastic hinge component with mounting holes and mounting holes (no text or symbols visible)

Einstellbereich:

C- Overlay (links/rechts)

ÿ35 CLIP ON EINWEG (2D) VIERWEGE EINSTELLBAR HYDRAULISCH PUFFERSCHARNIERE

Metallic stainless steel hinge component with mounting holes (no text or symbols visible)

Einstellbereich:

Technical line drawing of a mechanical latch or connector with labeled parts D and C (no text or symbols beyond labels)

C- Overlay (links/rechts)

Hersteller: Shanghaimuxinmuyeyouxiangongsi Adresse:

Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, Shanghai 200000 CN.

Nach AUS importiert: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australien

Importiert in die USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Metal-colored plastic hinge component with mounting holes and a central handle (no text or symbols visible)

Close-up of a metallic glass hinge component with mounting holes and mounting holes (no text or symbols visible)

Metal-colored plastic hinge component with mounting holes and a central handle (no text or symbols visible)

Metallic stainless steel hinge component with mounting holes (no text or symbols visible)

Modello PHS25101-40/50

Close-up of two metallic plastic hinge clips with mounting holes (no text or symbols visible)

PHS25201-20/30/60

Close-up of a metallic glass Tunisia coefficient hinge (no text or symbols visible)

Metal-colored plastic hinge component with mounting holes (no text or symbols visible)

Metal-colored plastic hinge component with mounting holes (no text or symbols visible)

Metal double-hinged glass hinge component (no text or symbols visible)

Metal-colored plastic hinge component with mounting holes (no text or symbols visible)

Close-up of a metallic glass plastic hinge component (no text or symbols visible)

Close-up of a metallic mechanical component with mounting holes and internal cavity (no text or symbols visible)

Top-down view of a mechanical assembly with three circular components and a central bracket (no visible text or symbols)

Close-up of a door handle mechanism with cartoon figures and control buttons (no text or symbols visible)

4*20 SCREWS

4*16 SCREWS

ÿ35 FISSATO SU BRACCI CORTI MONODIREZIONALI AMMORTIZZATORE IDRAULICO CERNIERE

Metal-colored plastic hinge component with mounting holes and mounting holes (no text or symbols visible)

Technical line drawing of a mechanical hinge component with labeled parts D and C (no text or symbols beyond labels)

Metallic glass hinge component with mounting holes and a central cutout (no text or symbols visible)

Technical line drawing of a mechanical hinge component with labeled parts D and C (no text or symbols beyond labels)

ÿ35 CLIP ON UNIDIREZIONALE (3D) IDRAULICO REGOLABILE A SEI VIE CERNIERA DI TAMPONAMENTO

Metal-colored plastic hinge component with mounting holes and mounting holes (no text or symbols visible)

ÿ35 CLIP ON UNIDIREZIONALE (2D) IDRAULICO REGOLABILE A QUATTRO VIE CERNIERE TAMPONATE

Metallic stainless steel hinge component with mounting holes (no text or symbols visible)

Technical line drawing of a mechanical latch or connector assembly (no text or symbols)

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importato negli USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

RAPPRESENTANZA DEL REGNO UNITO

YH CONSULTING LIMITED. C/O YH Consulting Limited Ufficio 147, Centurion House, London Road, Staines- upon-Thames, Surrey, TW18 4AX

elettronica www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Metal-colored plastic hinge component with mounting holes and a central handle (no text or symbols visible)

PHS23601-60

Close-up of a metallic glass hinge component with mounting holes and mounting holes (no text or symbols visible)

PHS25001-60

Metal-colored plastic hinge component with mounting holes and mounting holes (no text or symbols visible)

PHS23701-40/50

Metal-colored plastic hinge component with mounting holes and mounting holes (no text or symbols visible)

PHS25101-40/50

Close-up of a metallic plastic hinge component with mounting holes (no text or symbols visible)

PHS25201-20/30/60

Close-up of a metallic plastic hinge component with mounting holes (no text or symbols visible)

PHS24501-40/50

www.vevor.com/support

Metal-colored plastic hinge component with mounting holes and a central handle (no text or symbols visible)

Metal-colored plastic hinge component with mounting holes (no text or symbols visible)

Metal double-hinged glass hinge component (no text or symbols visible)

Metal-colored plastic hinge component with mounting holes (no text or symbols visible)

Close-up of a metallic glass plastic hinge component (no text or symbols visible)

Metal-colored plastic hinge component with mounting holes (no text or symbols visible)

Top-down view of a mechanical assembly with three circular components and a central component (no visible text or symbols)

Rango de ajuste:

Close-up of a door handle mechanism with cartoon figures and control buttons (no text or symbols visible)

Rango de ajuste:

4*20 SCREWS

4*16 SCREWS

Metal-colored plastic hinge component with mounting holes and mounting holes (no text or symbols visible)

Rango de ajuste:

Technical line drawing of a mechanical hinge component with labeled parts D and C (no text or symbols beyond labels)

Metallic glass hinge component with mounting holes and a central cutout (no text or symbols visible)

Rango de ajuste:

Technical line drawing of a mechanical assembly with labeled components D and C (no text or symbols beyond labels)

Technical line drawing of a mechanical hinge component with mounting holes and internal features (no text or symbols)

Metal-colored plastic hinge component with mounting holes and mounting holes (no text or symbols visible)

Rango de ajuste:

Φ35 CLIP EN UNA VÍA (2D) CUATRO VÍAS AJUSTABLE HIDRÁULICO BISAGRAS AMORTIGUADORAS

Metallic stainless steel hinge component with mounting holes (no text or symbols visible)

Rango de ajuste:

Technical line drawing of a mechanical latch or connector assembly (no text or symbols)

Road, Staines-upon-Thames, Surrey, TW18 4AX

E-CrossStu GmbH

Mainzer Landstr.69,

Metal-colored plastic hinge component with mounting holes and a central handle (no text or symbols visible)

PHS23601-60

Close-up of a metallic glass hinge component with mounting holes and mounting holes (no text or symbols visible)

PHS25001-60 PHS23701-40/50

Metal-colored plastic hinge component with mounting holes and mounting holes (no text or symbols visible)

Metal-colored plastic hinge component with mounting holes and mounting holes (no text or symbols visible)

PHS25101-40/50

Close-up of a metallic plastic hinge component with mounting holes (no text or symbols visible)

Close-up of a metallic plastic hinge component with mounting holes (no text or symbols visible)

PHS24501-40/50PHS25201-20,

POTRZEBUJESZ POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Metal-colored plastic hinge component with mounting holes (no text or symbols visible)

Metal-colored plastic hinge component with mounting holes (no text or symbols visible)

Metal-colored plastic hinge component with mounting holes (no text or symbols visible)

Metal-colored plastic hinge component with mounting holes (no text or symbols visible)

Close-up of a metallic plastic hinge component (no text or symbols visible)

Close-up of a metallic mechanical component with mounting holes and internal cavity (no text or symbols visible)

Top-down view of a mechanical assembly with three circular components and a central bracket (no visible text or symbols)

Zakres regulacji:

Close-up of a door handle mechanism with cartoon figures and control buttons (no text or symbols visible)

Zakres regulacji:

4*20 SCREWS

4*16 SCREWS

Φ35 MOCOWANE NA JEDNORAZOWYCH KRÓTKICH RAMIONACH BUFOROWO-HYDRAULICZNE ZAWIASY

Metal-colored plastic hinge component with mounting holes and mounting holes (no text or symbols visible)

Zakres regulacji:

Technical line drawing of a mechanical hinge component with labeled parts D and C (no text or symbols beyond labels)

Metallic glass hinge component with mounting holes and a central cutout (no text or symbols visible)

Zakres regulacji:

Technical line drawing of a mechanical hinge component with labeled parts D and C (no text or symbols beyond labels)

Technical line drawing of a mechanical hinge component with mounting holes and internal features (no text or symbols)

Φ35 ZACISK JEDNORAZOWY (3D) SZEŚCIOKROTNY REGULOWANY HYDRAULICZNY ZAWIAS BUFOROWANY

Metal-colored plastic hinge component with mounting holes and mounting holes (no text or symbols visible)

Zakres regulacji:

Φ35 ZACISK JEDNORAZOWY (2D) CZTEROROKIERUNKOWY REGULOWANY HYDRAULICZNY ZAWIASY BUFOROWANE

Metallic stainless steel hinge component with mounting holes (no text or symbols visible)

Zakres regulacji:

Technical line drawing of a mechanical latch or valve component with labeled ports (D, C) and mounting holes (no text or symbols beyond labels)

Producent: Shanghaimuxinmuyeyouxiangongsi Adres:

Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, szanghaj 200000 CN.

Importowane do AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importowane do USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

REP WIEL KIEJ BRYTANII

YH CONSULTING LIMITED. C/O YH Consulting Limited Biuro 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Przedstawiciel UE

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt nad Menem.

VEVOR®

TOUGH TOOLS, HALF PRICE

Metal-colored plastic hinge component with mounting holes and a central handle (no text or symbols visible)

PHS23601-60

Metal hinge with mounting holes and a recessed plastic sheet (no text or symbols visible)

PHS25001-60

Close-up of a metallic glass intra-day hinge (DHS) with mounting holes and mounting holes (no text or symbols visible)

PHS23701-40/50

Metal-colored plastic hinge component with mounting holes and a central handle (no text or symbols visible)

PHS25101-40/50

Close-up of two metallic plastic hinge clips with mounting holes (no text or symbols visible)

PHS25201-20/30/60

Close-up of a metallic plastic hinge component with mounting holes (no text or symbols visible)

PHS24501-40/50

HULP NODIG? NEEM CONTACT MET ONS OP!

www.vevor.com/support

Metal-colored plastic hinge component with mounting holes (no text or symbols visible)

Model	PHS23601
Kopdiameter	35
Diepte van de beker	10.6
Koppatroon	45
Opening	100°
Finish	Vernikkeld
(K)	5
Overlappen	Volledige overlay
Max. dynamische belasting (pond/kg)	16,5/7,5

Metal-colored plastic hinge component with mounting holes (no text or symbols visible)

Model	PHS25001
Kopdiameter	35
Diepte van de beker	10.6
Koppatroon	45
Opening	100
Finish	Vernikkeld
Overlappen	Volledige overlay
(K)	5
Max. dynamische belasting (pond/kg)	7,7/3,5

Metal double-hinged glass hinge component (no text or symbols visible)

Model	PHS23701
Kopdiameter	35
Diepte van de beker	10.6
Koppatroon	45
Opening	100°
Finish	Vernikkeld
Overlappen	5
(K)	Volledige overlay
Max. dynamische belasting (pond/kg)	16,5/7,5

Metal-colored plastic hinge component with mounting holes (no text or symbols visible)

Model	PHS25101
Kopdiameter	35
Diepte van de beker	10.6
Koppatroon	45
Opening	100°
Finish	Vernikkeld
Overlappen	5
(K)	Volledige overlay
Max. dynamische belasting (pond/kg)	16,5/7,5

Close-up of a metallic plastic hinge component with mounting holes (no text or symbols visible)

Model	PHS25201
Kopdiameter	35
Diepte van de beker	10.5
Koppatroon	45
Opening	105°
Finish	Vernikkeld
Overlappen	3
(K)	1/2" / 12,7
Max. dynamische belasting (pond/kg)	7,7/3,5

Onderdelenlijst
Code Afbeelding		Naam	PHS25201-60	PHS25201-30	PHS25201-20
1		SCHARNIEREN	60	40	20
2		4*16SCHROEVEN	6*30=180 6*15=90		6*10=60
3		4*20SCHROEVEN	2*30=60	2*15=30	2*10=20
3		NOTEN(Optioneel)	4*30=120 4*15=60		4*10=40
4		SCHROEVEN(Optioneel)	4*30=120 4*15=60		4*10=40

ÿ35(2D)VIER-WIJDIG VERSTELBAAR SOFT CLOSE FACE FRAME

SCHARNIEREN

Close-up of a metallic mechanical component with mounting holes and internal cavity (no text or symbols visible)

Model	PHS24501
Kopdiameter	35
Diepte van de beker	10.5
Koppatroon	45
Opening	105°
Finish	Vernikkeld
Overlappen	3
(K)	1/2” / 12,7
Max. dynamische belasting (pond/kg)	7,7 / 3,5

Onderdelenlijst
Code	Afbeelding	Naam PHS2	24501-50 PHS24501-40
1		SCHARNIEREN	50	40
2		4*16 SCHROEVEN	4*25=150	4*20=120
3		4*20 SCHROEVEN	2*25=50	2*20=40
4		NOTEN (Optioneel)	4*25=100	4*20=80

5 4*20=80

SCHROEVEN (Optioneel)

4*25=100

WERKING

ÿ35(3D) ZES-WIJZE VERSTELBARE SOFT CLOSE FRAME SCHARNIEREN

Top-down view of a door handle with two switches and three circular buttons, mounted on a black surface (no text or symbols visible)

Aanpassingsbereik:

Aanpassing: ±2,0 mm E

-overlay (omhoog/omlaag)

Aanpassing: ±1,5 mm

Installatie-instructies

ÿ35(2D)VIER-WIJDIG VERSTELBAAR SOFT CLOSE FACE FRAME
SCHARNIEREN

Close-up of a door handle mechanism with cartoon figures and control buttons (no text or symbols visible)

Aanpassingsbereik:

Metallic glass hinge component with mounting holes and a central cutout (no text or symbols visible)

Aanpassingsbereik:

Technical line drawing of a mechanical hinge component with labeled parts D and C (no text or symbols beyond labels)

Technical line drawing of a mechanical hinge component with mounting holes and internal features (no text or symbols)

ÿ35 CLIP OP EENWEG (3D) ZES-WEG VERSTELBARE HYDRAULISCHE BUFFERINGSCHARNIER

Metal-colored plastic hinge component with mounting holes and mounting holes (no text or symbols visible)

Aanpassingsbereik:

Aanpassing: ±3,0 mm E

Overlay (omhoog/omlaag)

Aanpassing: ±2,0 mm

H\K	3	4	5	6
0	16	17	18	19

ÿ35 CLIP OP EENWEG (2D) VIERWEG VERSTELBARE HYDRAULISCHE BUFFERINGSCHARNIEREN

Metallic stainless steel hinge component with mounting holes (no text or symbols visible)

Aanpassingsbereik:

Technical line drawing of a mechanical latch or connector with labeled parts D and C (no text or symbols beyond labels)

Fabrikant: Shanghaimuxinmuyeyouxiangongsi Adres:

Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

YH CONSULTING LIMITED. C/O YH Consulting Limited Kantoor 147, Centurion House, London Road, Staines- upon-Thames, Surrey, TW18 4AX

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Metal-colored plastic hinge component with mounting holes and a central handle (no text or symbols visible)

PHS23601-60

Close-up of a metallic glass hinge component with mounting holes and a central handle (no text or symbols visible)

PHS25001-60 PHS23701-40/50

Metal-colored plastic hinge component with mounting holes and mounting holes (no text or symbols visible)

Metal-colored plastic hinge component with mounting holes and mounting holes (no text or symbols visible)

PHS25101-40/50

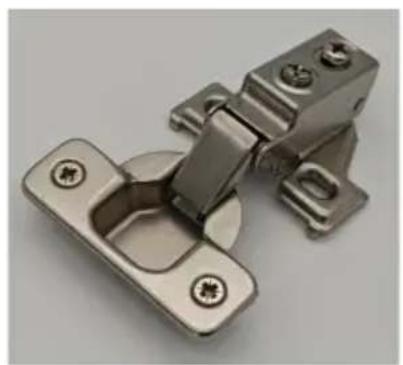

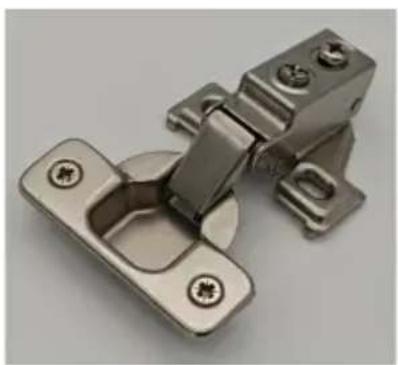

Close-up of a metallic glass hinge component with mounting holes (no text or symbols visible)

PHS25201-20/30/60

Close-up of a metallic plastic hinge component with mounting holes (no text or symbols visible)

PHS24501-40/50

BEHÖVER HJÄLP? KONTAKTA OSS!

Metal-colored plastic hinge component with mounting holes (no text or symbols visible)

Metal-colored plastic hinge component with mounting holes (no text or symbols visible)

Metal double-hinged glass hinge component (no text or symbols visible)

Metal-colored plastic hinge component with mounting holes (no text or symbols visible)

Close-up of a metallic glass plastic hinge component (no text or symbols visible)

Close-up of a metallic mechanical component with mounting holes and internal cavity (no text or symbols visible)

Top-down view of a mechanical assembly with three circular components and a central bracket (no visible text or symbols)

Justeringsområde:

Justering: ±2,0 mm E Overlay (upp/ner)

Justering: ±1,5 mm

Installationsanvisningar

ÿ35(2D)FYRVÄGS JUSTERBAR MJUK NÄRHETSRAM GÅNGJÄRN

Close-up of a door handle mechanism with cartoon figures and control buttons (no text or symbols visible)

Justeringsområde:

Top-down schematic of a vehicle or car assembly with labeled components (no text or symbols present)

4*20 SCREWS

4*16 SCREWS

ÿ35 FAST PÅ ENVÄGS HYDRAULISK BUFFERING KORTA ARMAR GÅNGJÄRN

Metal-colored plastic hinge component with mounting holes and mounting holes (no text or symbols visible)

Justeringsområde:

Technical line drawing of a mechanical hinge component with labeled parts D and C (no text or symbols beyond labels)

Metallic glass hinge component with mounting holes and a central cutout (no text or symbols visible)

Justeringsområde:

Technical line drawing of a mechanical hinge component with labeled parts D and C (no text or symbols beyond labels)

Technical line drawing of a mechanical hinge component with mounting holes and internal features (no text or symbols)

ÿ35 CLIP ON ONE WAY (3D) SEX-VÄGS JUSTERBAR HYDRAULIK BUFFERINGSGJÄRN

Metal-colored plastic hinge component with mounting holes and mounting holes (no text or symbols visible)

Justeringsområde:

Justering: ±3,0 mm E

Overlay (upp/ner)

Justering: ±2,0 mm

H\K	3	4	5	6
0	16	17	18	19

ÿ35 KLÄMPA PÅ ENVÄGS(2D)FYRVÄGS JUSTERBAR HYDRAULIK BUFFERADE GÅNGJÄRN

Metallic stainless steel hinge component with mounting holes and a small circular feature (no text or symbols visible)

Justeringsområde:

Technical line drawing of a mechanical latch or connector with labeled parts D and C (no text or symbols beyond labels)

Justering: ±1,0 mm D

Overlay (fram/bak)

Justering: ±3,0 mm

H\K	3	4	5	6
0	16	17	18	19

Tillverkare: Shanghaimuxinmuyeyouxiangongsi Adress:

Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Importerad till AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australien

Importerad till USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

www.vevor.com/support
