BIFOLD SLIDING BARN DOOR

HARDWARE KIT

Model:52IN-2D-4K/60IN-2D-4K/64IN-2D-4K/

76IN-2D-4K

Technical Support and E-Warranty Certificate

www.vevor.com/support

Model:52IN-2D-4K/60IN-2D-4K/64IN-2D-4K/76IN-2D-4K

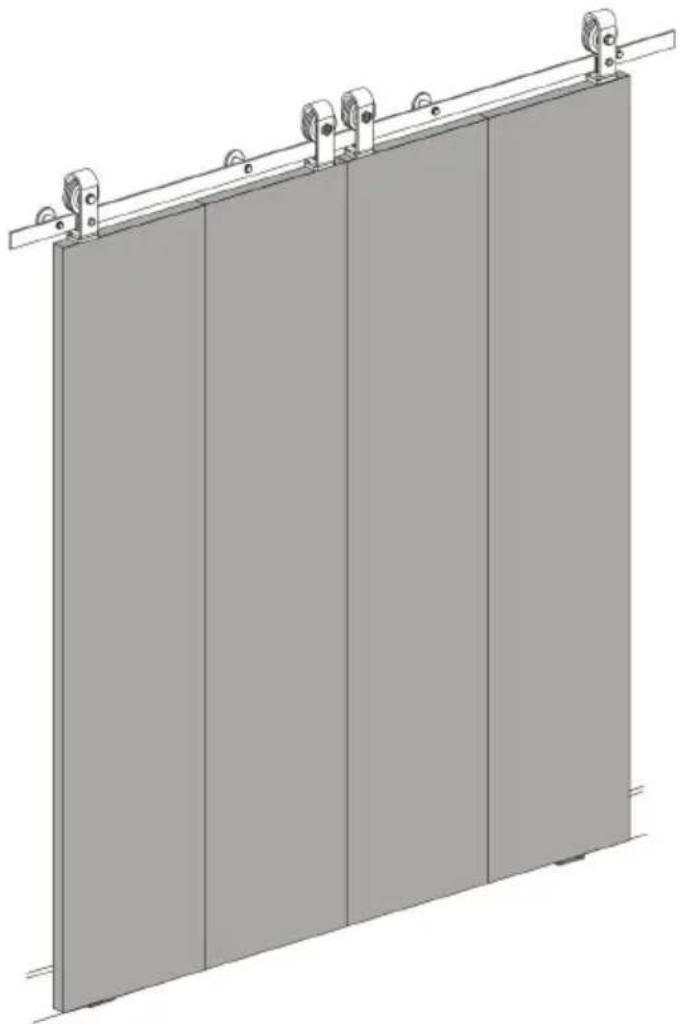

Diagram of a modular storage cabinet with mounting rails and railings (no text or symbols)

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING:

Read this material before using this product. Failure to do so can re serious injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly can create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves du assembly.
3. Keep assembly area clean and well lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of alcohol drugs or medication.
6. Product capabilities apply to properly and completely assembled product only.
7. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap separate all parts in a clean work area.
8. For safety reasons, This hardware is recommended to be installed by 2 people
9. Products are installed away from children and pets;

Use precautions

1. This product is not a toy. Do not allow children to play with this
2. Use as intended only.
3. Inspect before every use; do not use if parts are loose or damage

SAVE THESE INSTRUCTIONS

Product Suitability

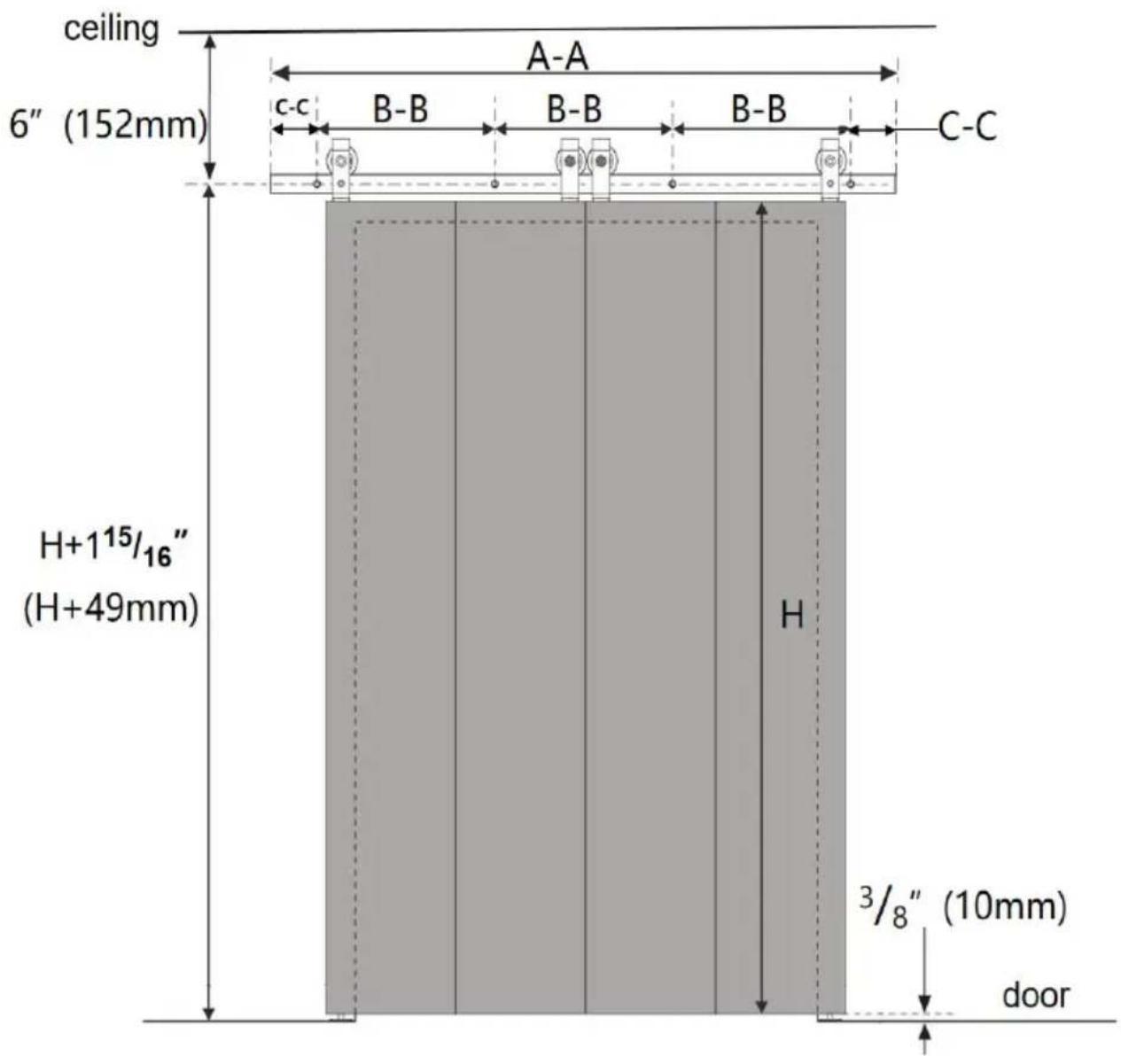

ceiling 6" (152mm) A-A C-C B-B B-B B-B C-C H+1¹⁵/₁₆" (H+49mm) H ³/₈" (10mm) door

Model	52IN-2D-4K	60IN-2D-4K	64IN-2D-4K	76IN-2D-4K
rail length A-A	52inch (1320mm)	60inch (1524mm)	64inch (1626mm)	76inch (1930mm)
distance of the rail hole B-B	406mm	456mm	506mm	600mm
rail size C-C	51mm	70mm	54mm	65mm
quantity of rail holes	4pcs
Rail split quantity	2pcs
Door width	≤12inch	≤14inch	≤15inch	≤18inch
Door thick	1.375 to 1.75inchs (34.92-44.45mm)
Door height	H (Depending on the user)
Distance of the rail from the ground	H+49mm
Distance at the bottom of the door from the ground	10mm
Distance between the door top and the ceiling	6inch(152mm)
quantity of doors	4pcs

The box does not contain door panels and other wooden squares, which require additional purchase.

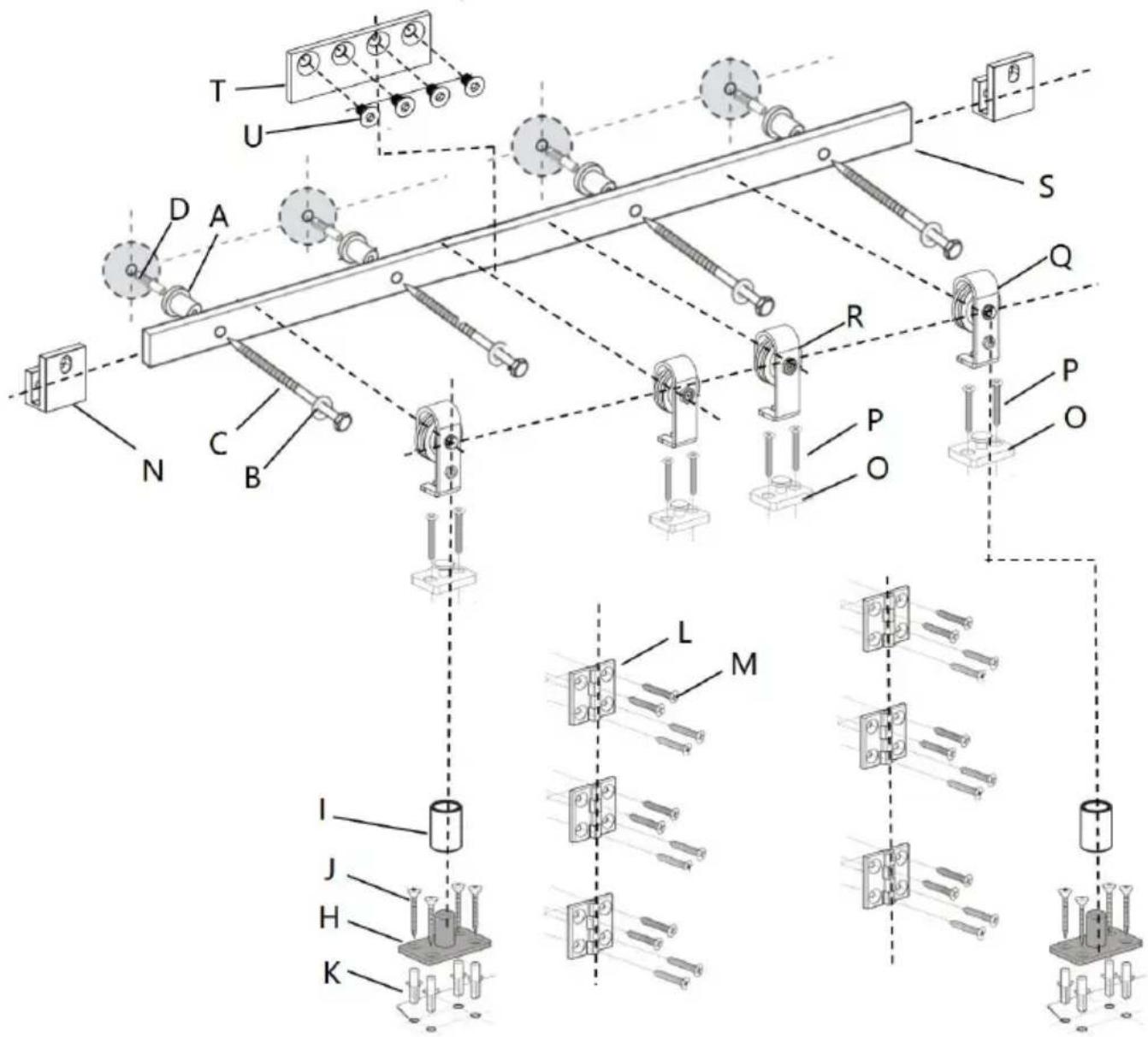

Product decomposition diagram

Technical diagram of a mechanical assembly with labeled components and assembly lines, including pulleys, rods, and mounting brackets.

Parts list (Parts are consistent for all models)

A:Wall Spacer×4pcs	B:washers×4pcs	C:M8×90mm Plastic Tapping Screw×4pcs	D:φ12×50 Plastic expansion bolt×4pcs
E: 2mm Hex Key×1pc	F 2.5mm Hex Key×1pc	G: 4mm Hex Key×1pc	H:Bottom Pivot Plate×2pcs
I:Sleeve×2pcs	J:M4×30 countersunk head tapping screw×8pc	K:φ6×30 Plastic expansion bolt×8pcs	L:Bi-Fold Door Butt Hinges×6pcs
M:M6×25 countersunk head tapping screw×24pcs	N:Fixed Roller Lock Bracket×2pcs	O: Roller Rotating Base×4pcs	P:M5×50 countersunk head tapping screw×8pcs
Q:Fixed Roller×2pcs	R:Adjustable Roller×2pcs	S:Rail 2pcs	T:connection strap×1pc
U:M6×10 bolt×4pcs	V:Sealing Strip×1pc

CNOAUTION

Mishandling of heavy objects (i.e.,doors) may cause a loss of balance serious injury. Always be sure you have a secure

hold on the object and are balanced before moving the object. Always safety shoes when lifting heavy objects.

Getting body parts (i.e., hair, fingers) caught in moving parts may cause pinching and serious injury. Do not put fingers in parts that may move always remove or contain anything on your body that may become entangled with a moving part.

Closing doors with your hand on the end of the door may result in hand, or fingers, getting caught between the door and other solid obj (i.e., another door, molding) causing serious injury. Always use the do handle to close door.

Usage Statement

Use of excessive force when opening and closing the door(s) may re damage to the hardware. Always hold the handle to gently move the door(s).

Tools required

Speed Square	Pencil	PhillipsScrewdriver	Tape
Wrench	Level	Drill	Φ19/32”DrillBit
	Bit

Product Assembly

It is very important to determine whether you need to install a Head Board before you install the track.

If you meet following situations, we highly recommended you using a header board (These situations might include but are not limited to)

• there is a doorway trim (like a door frame or a skirting line)
  • the wall is not concrete wall, such as drywall or other type wall

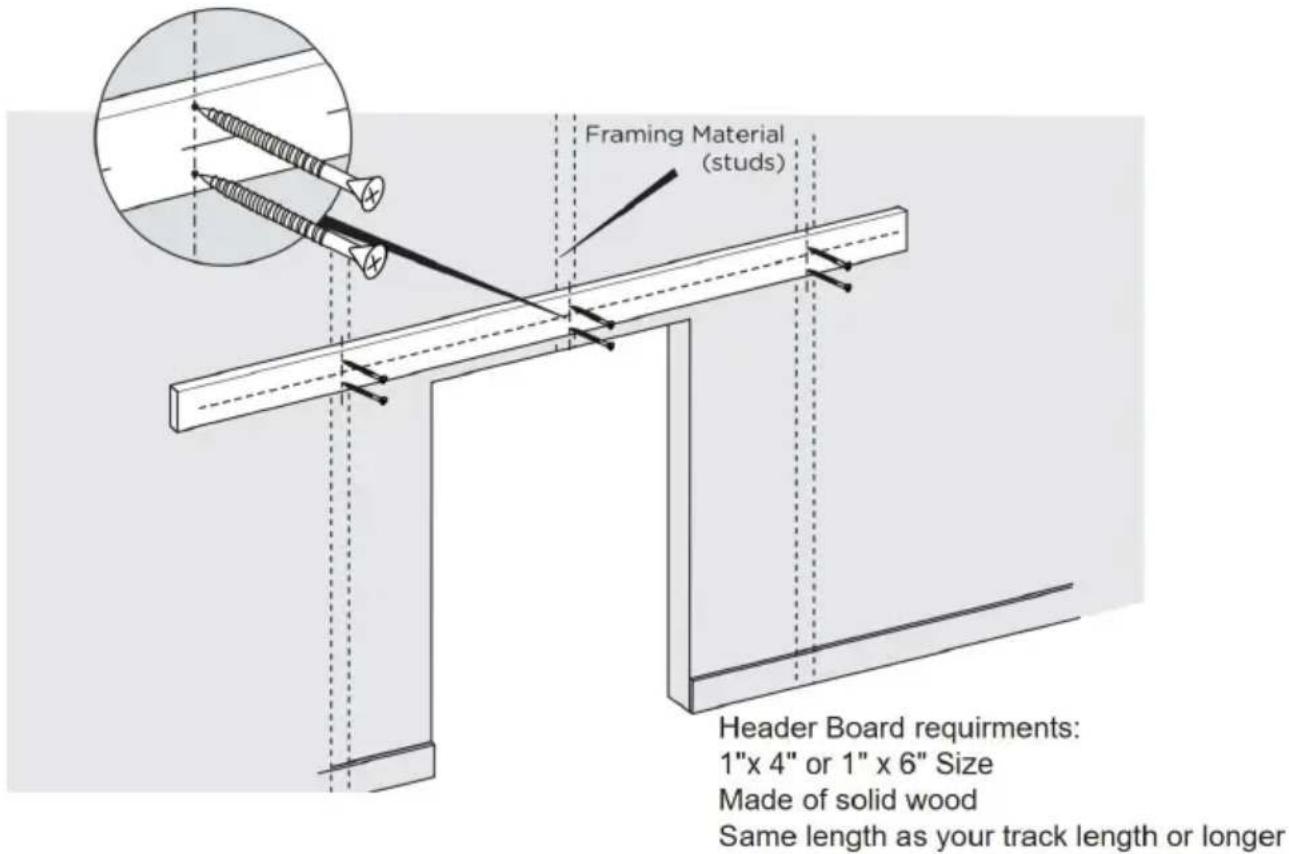

Framing Material (studs) Header Board requirements: 1"x 4" or 1" x 6" Size Made of solid wood Same length as your track length or longer

Attention: Header Board & the screws to install header board are not included. You can buy them online or offline.

Step-1

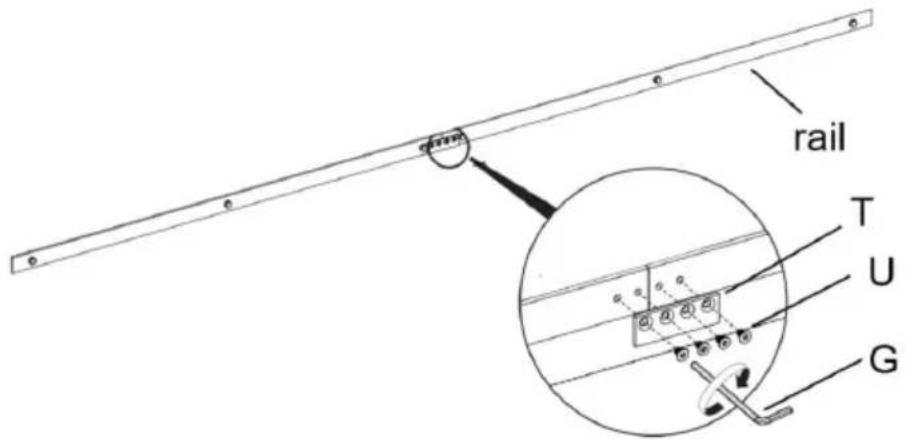

1.1.Tighten screw U with Hex Key G to connect connection strap T rails

rail T U G

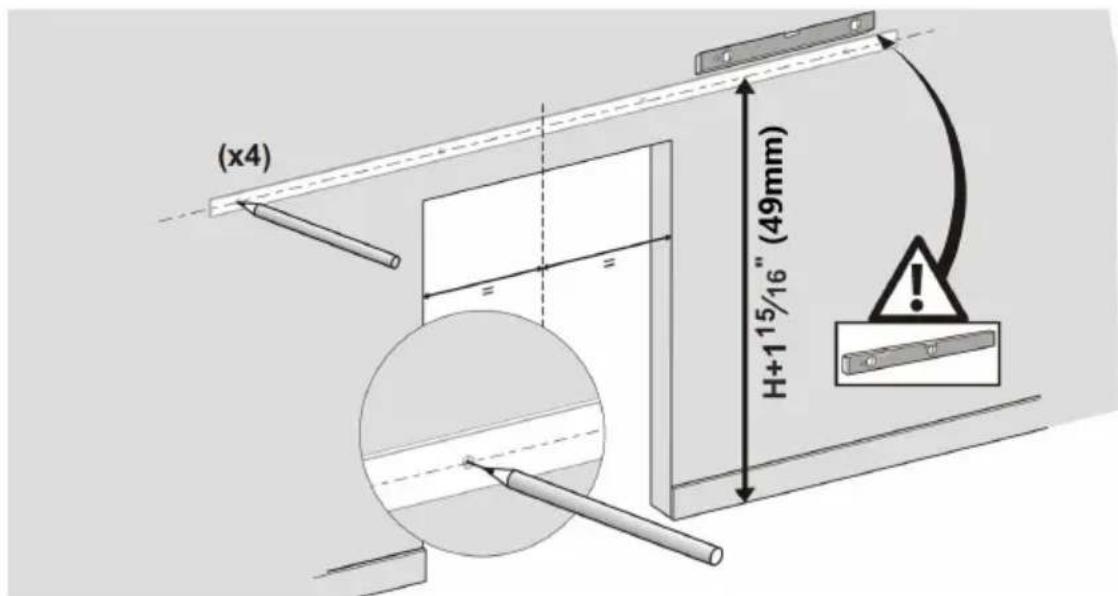

1.2. Use a Level and Tape Measure to mark the center line of the tr shown in the product selection diagram, the height of the door is H in picture above, the height of the center line (measuring up from the flo the height of your door PLUS 115/16).
1.2. Position the track in place by the marked center line, ensuring it and use the track as a template to mark mounting holes location for track with a pencil. You can also refer to the track size to mark the of the track opening.

See installation tip below.

(x4) H+1 15/16" (49mm)

We suggest that the center of the track is at the center of the wall

Step-2:

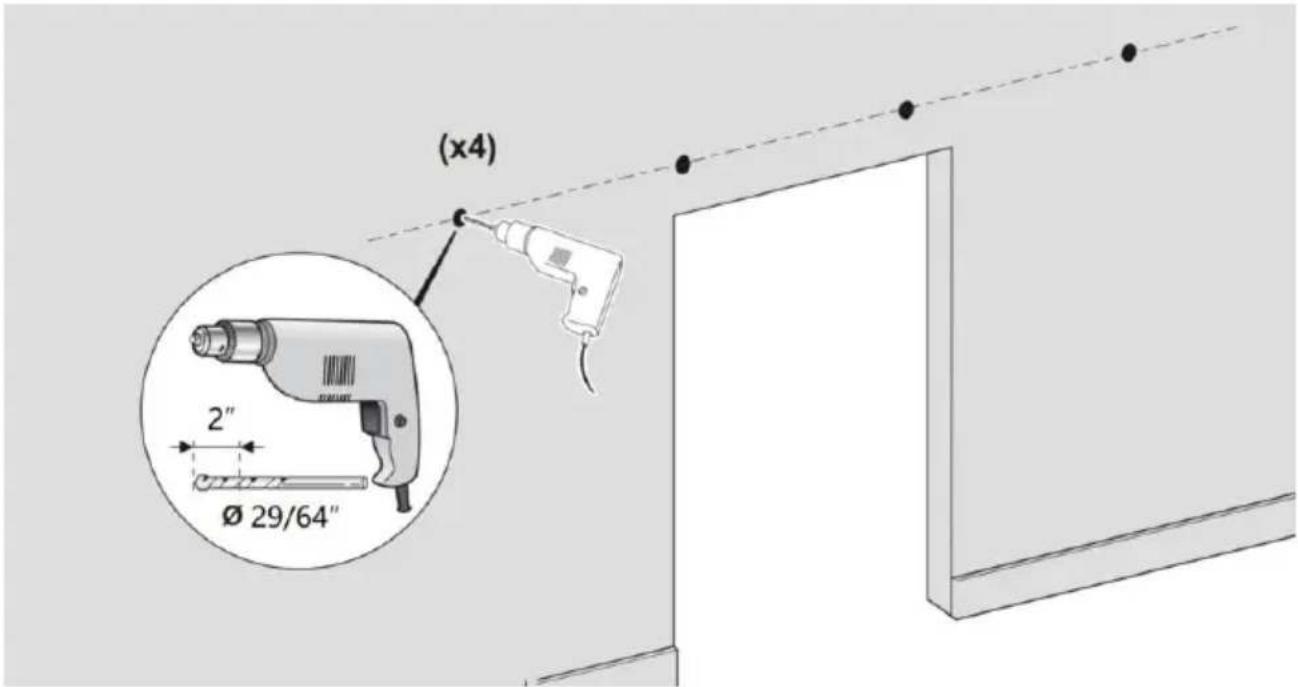

2.1. Use a 29 / 64 "drill hole in the marked position, 2 inches deep;

(x4) 2" Ø 29/64"

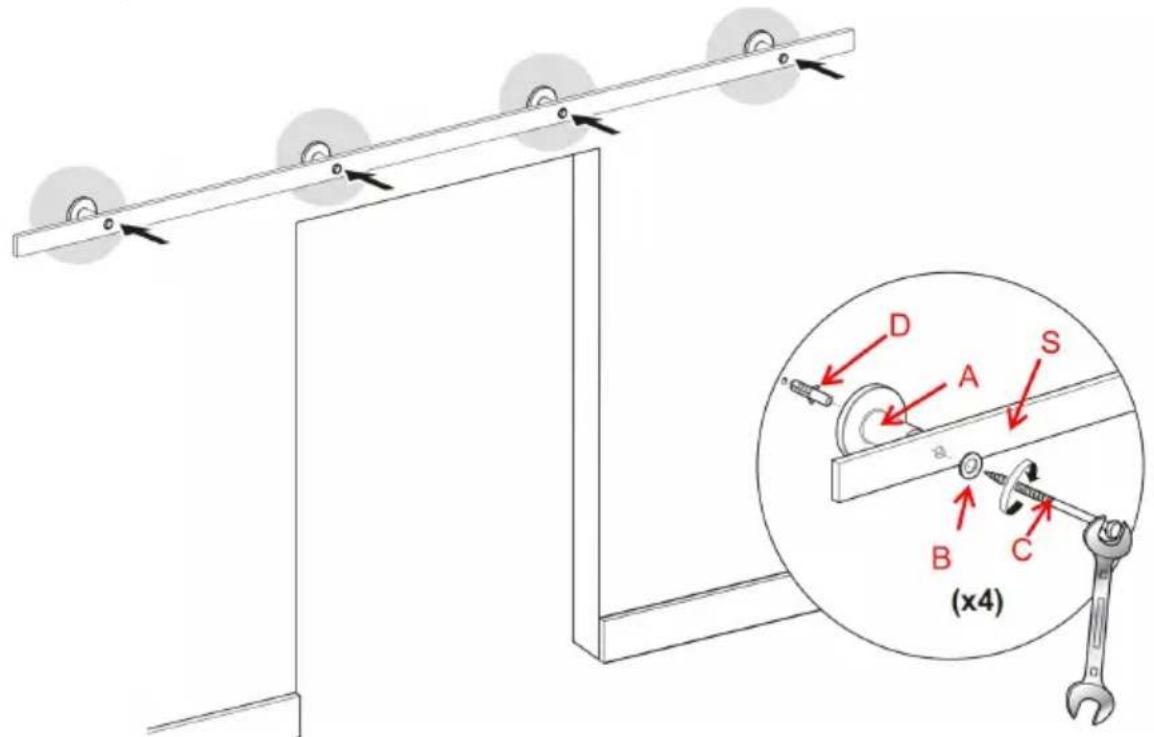

Step-3: Install the guide rail

3.1. Install the Plastic expansion bolt D to holes on the concrete wall first, Then use screw P through the washers B, rail S and Wall Space and finally lock on Plastic expansion bolt D.

Technical diagram showing a mechanical assembly with labeled parts and an inset magnified view of a mechanical component.

Step-4

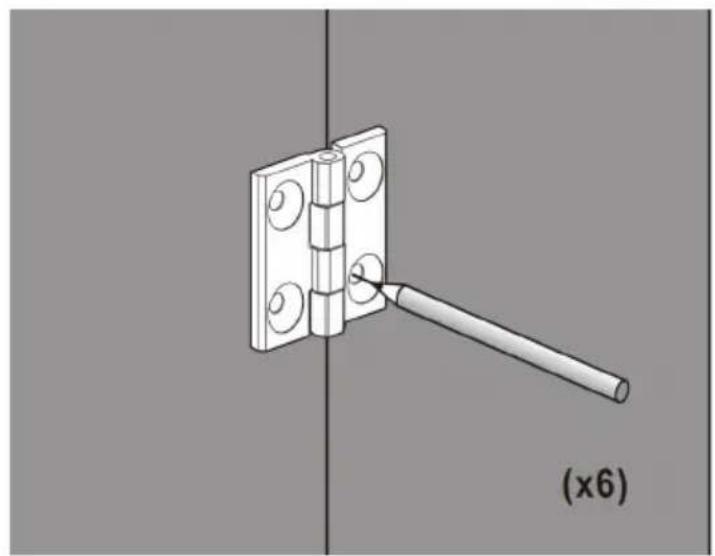

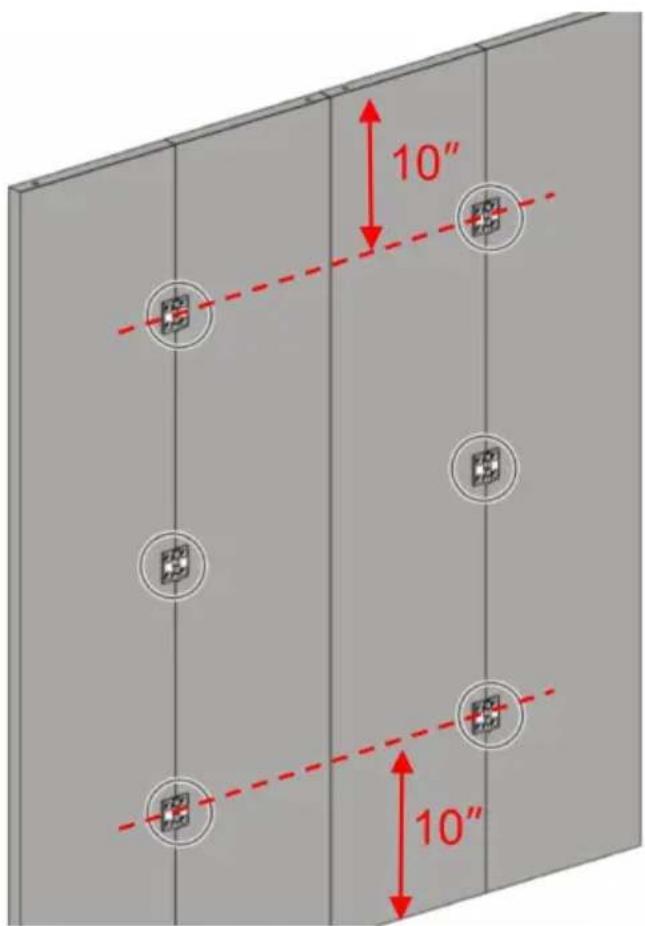

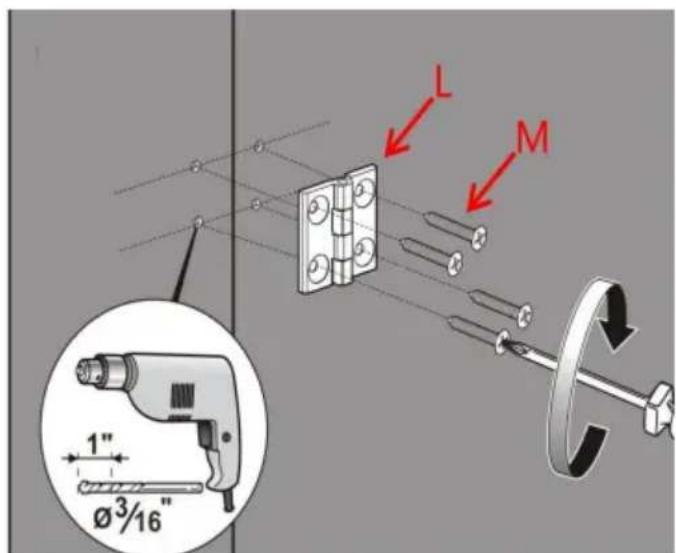

4.1. First splicing the door together, with the Bi-Fold Door Butt Hinges hole in the door to determine the position of the screw, and mark, and with 3/16'' drill hole, hole-depth of 1 inch.

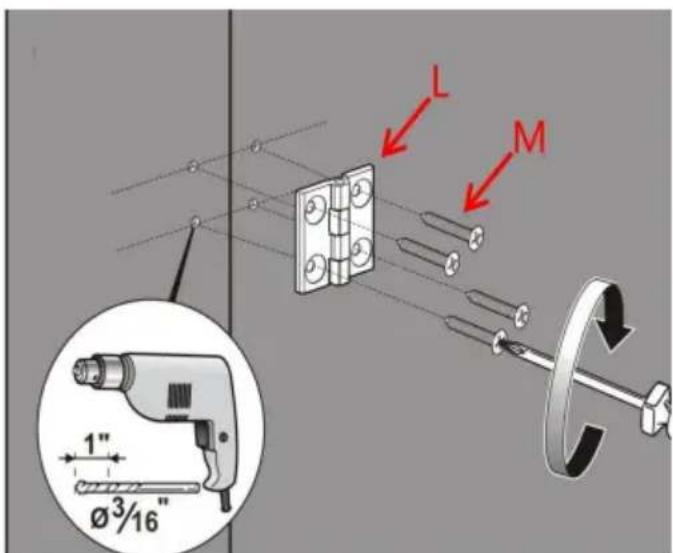

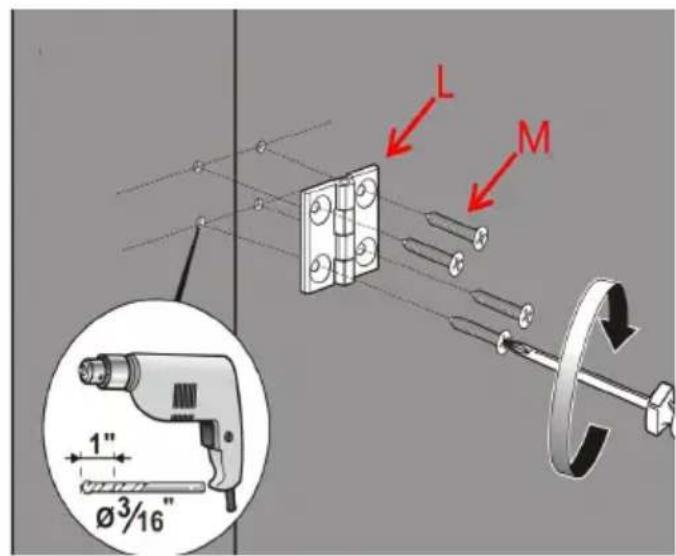

4.2.Screw M holds the Bi-Fold Door Butt Hinges L to the door,Compl assembly of the door.

10" 10"

Diagram of a hinge with a handle and mounting bracket, labeled (x6), showing no text or symbols beyond the label.

L M 1" Ø3/16"

Step-5

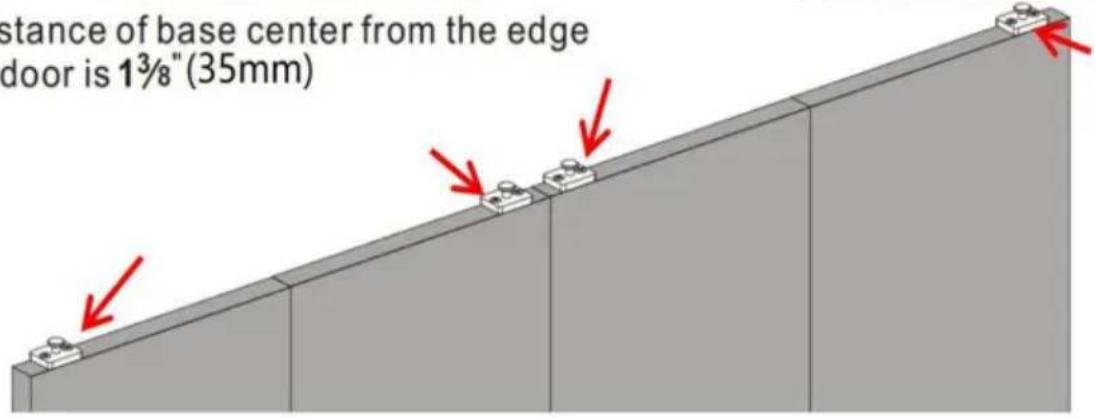

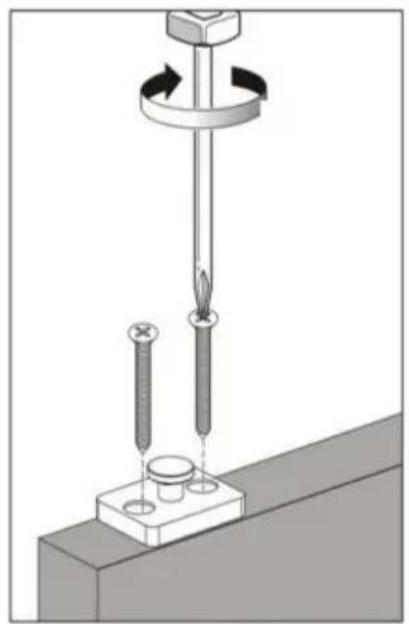

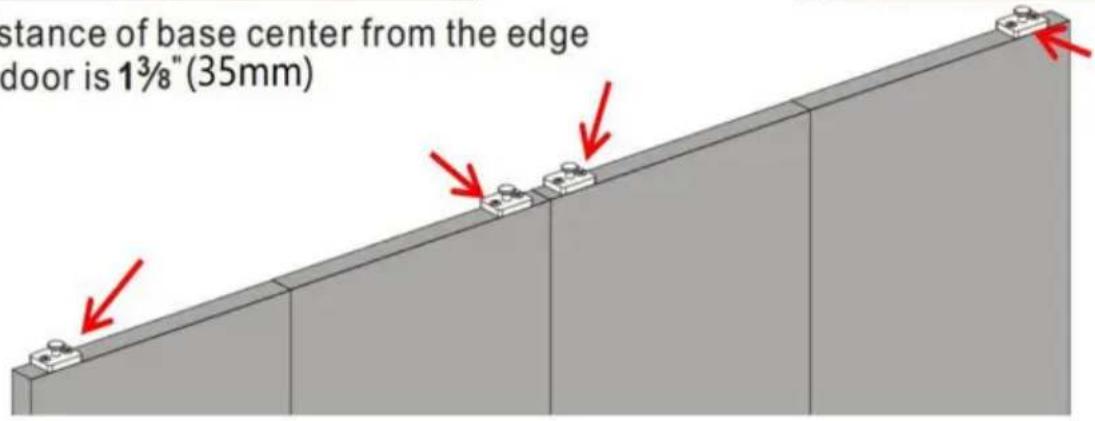

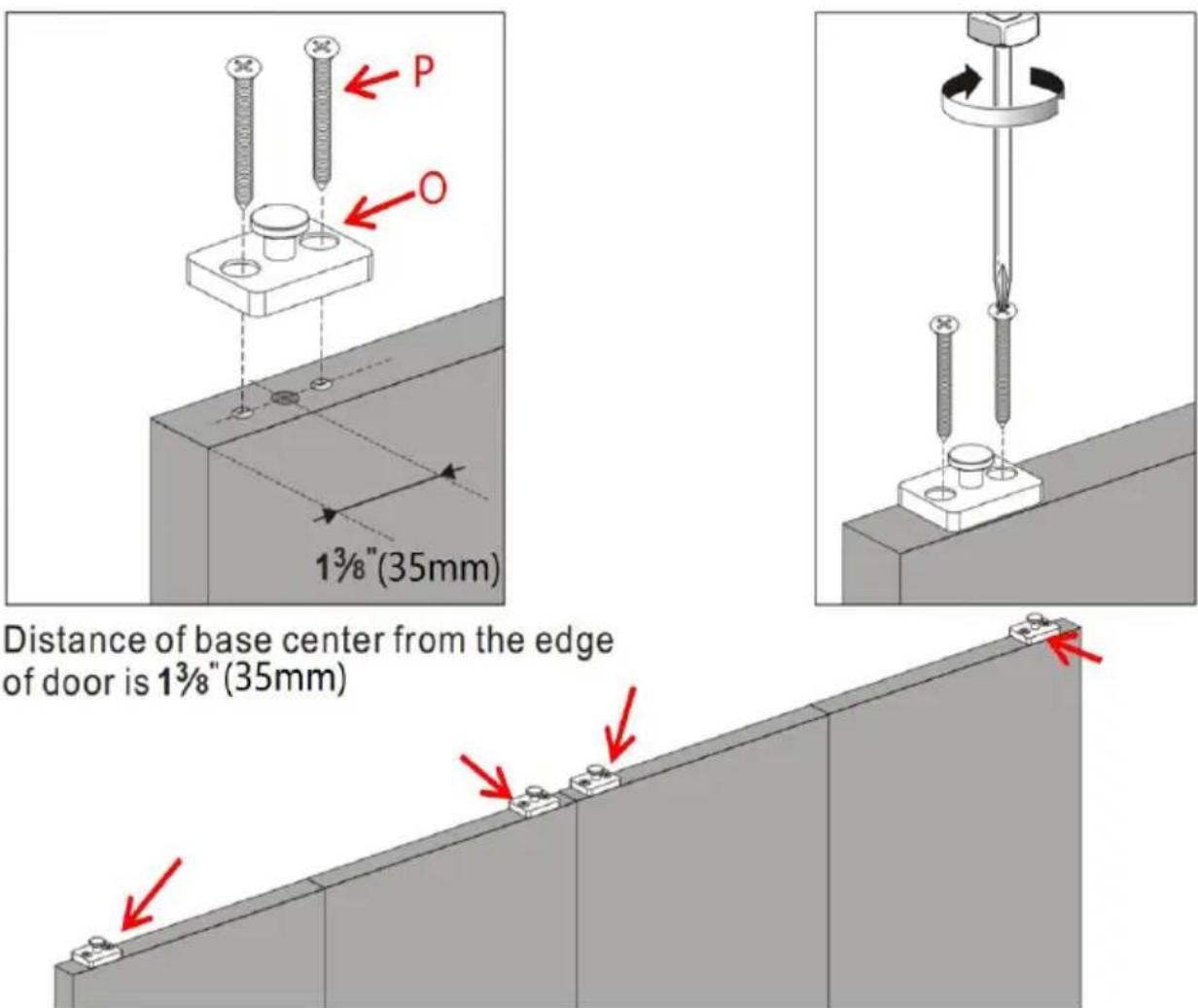

Using screw P, install 4 Roller Rotating Base O on the top of the center of Roller Rotating Base O is 35mm from the edge of the doc

Step-6

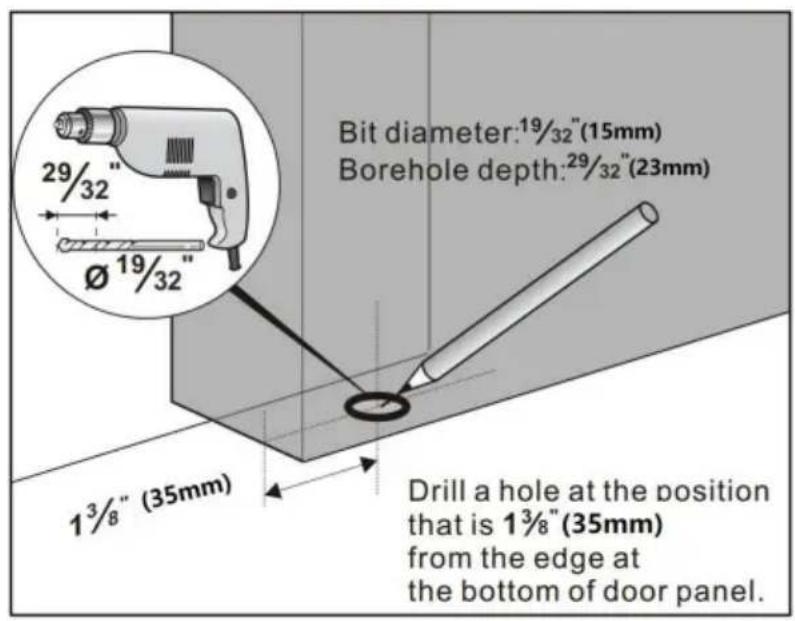

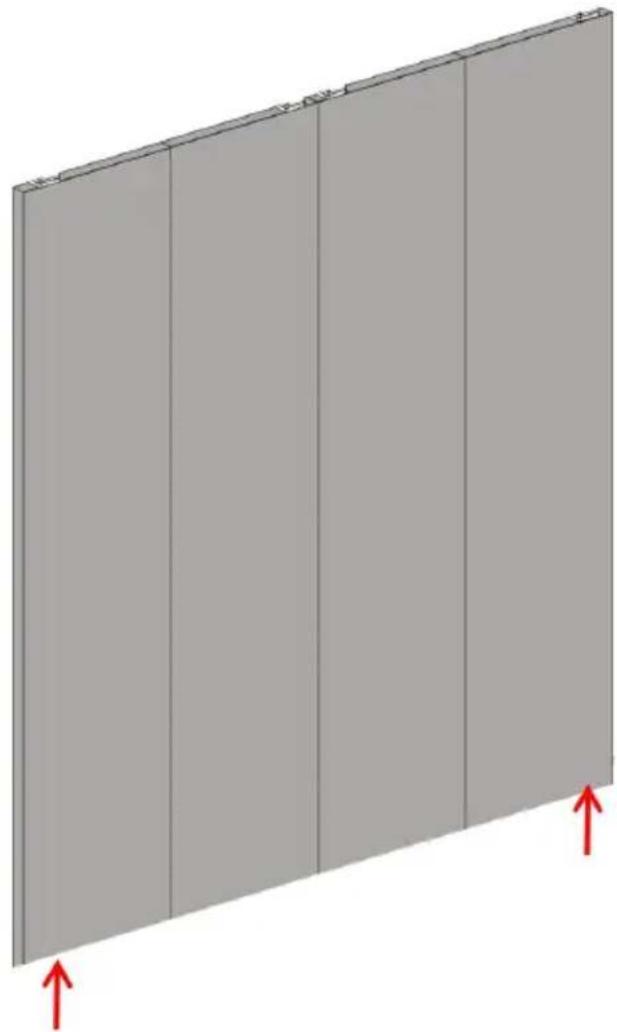

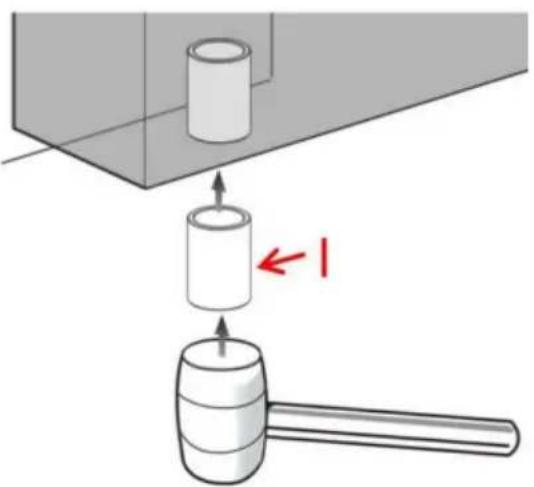

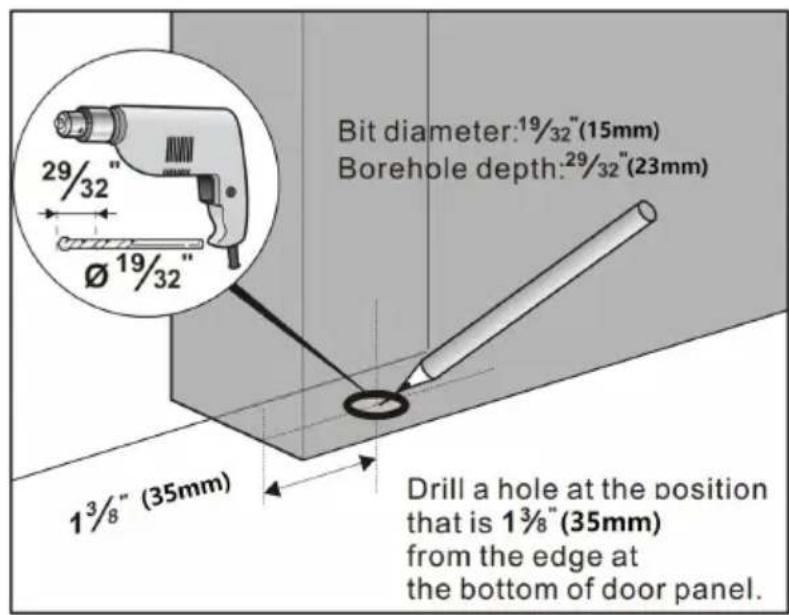

6.1.drill depth 23mm holes on either side of the door with a 19 / 32" center of the hole is located 35mm away from the door edge.

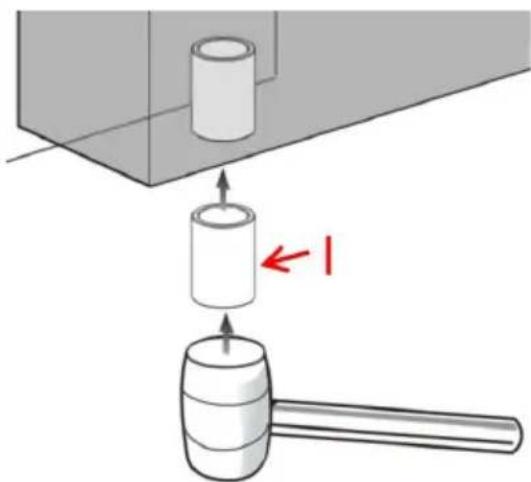

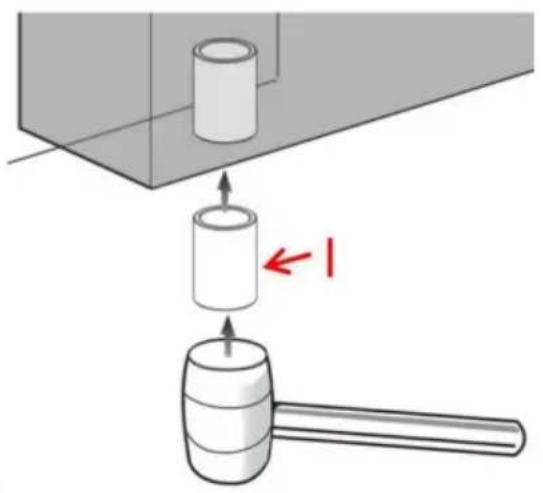

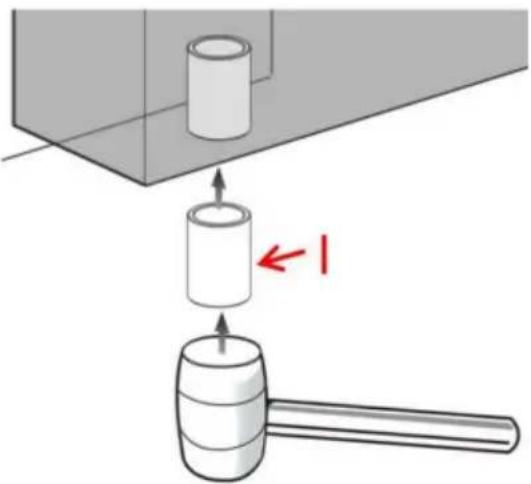

6.2. Fill 2 Sleeve I into the hole

3D diagram of a rectangular panel with four vertical panels and two red arrows pointing upward (no text or symbols)

Bit diameter:19/32"(15mm) Borehole depth:29/32"(23mm) 29/32" Ø 19/32" 13/8"(35mm) Drill a hole at the position that is 1¾"(35mm) from the edge at the bottom of door panel.

Diagram showing a gavel pressing a cylindrical object into a container, with red arrows indicating direction of movement.

Step-7

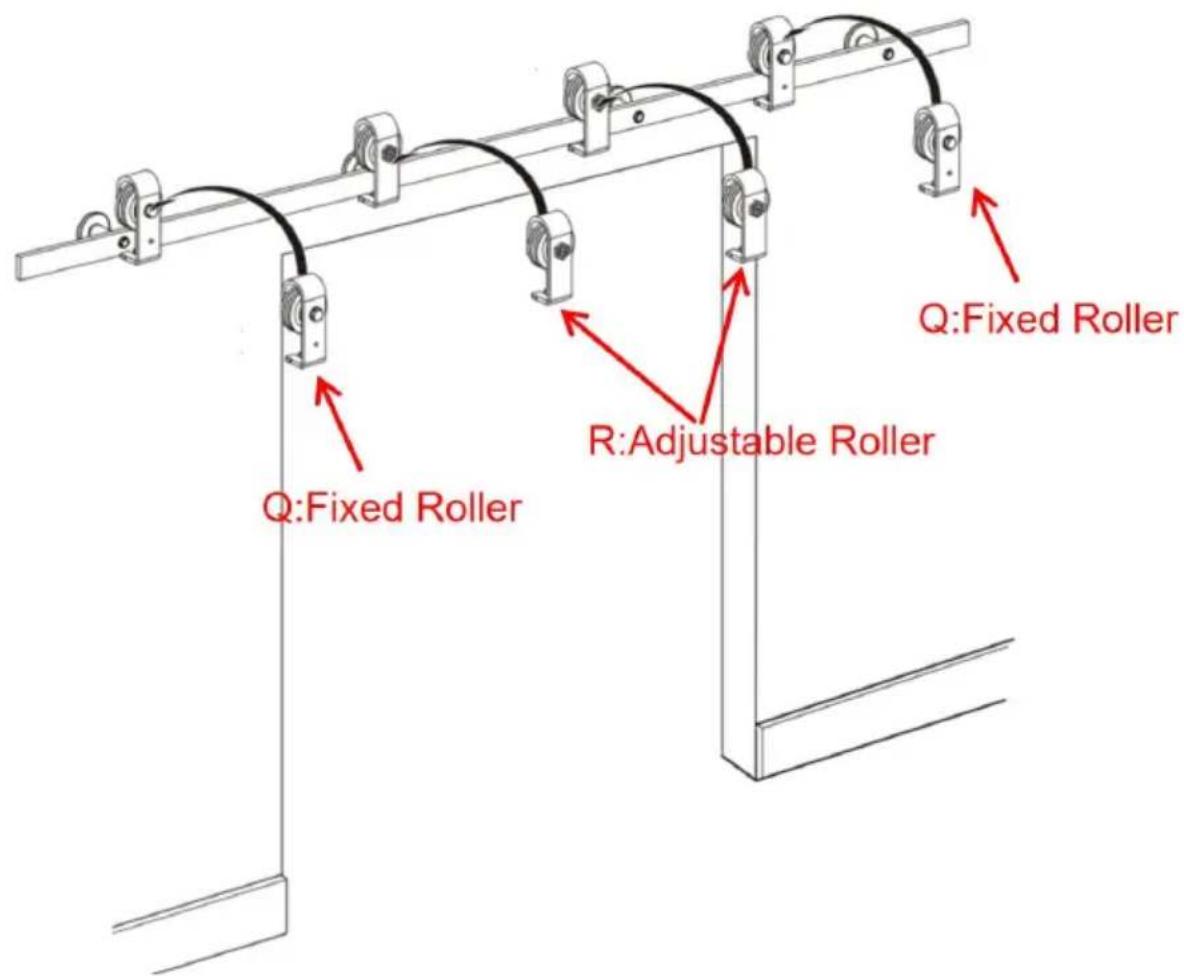

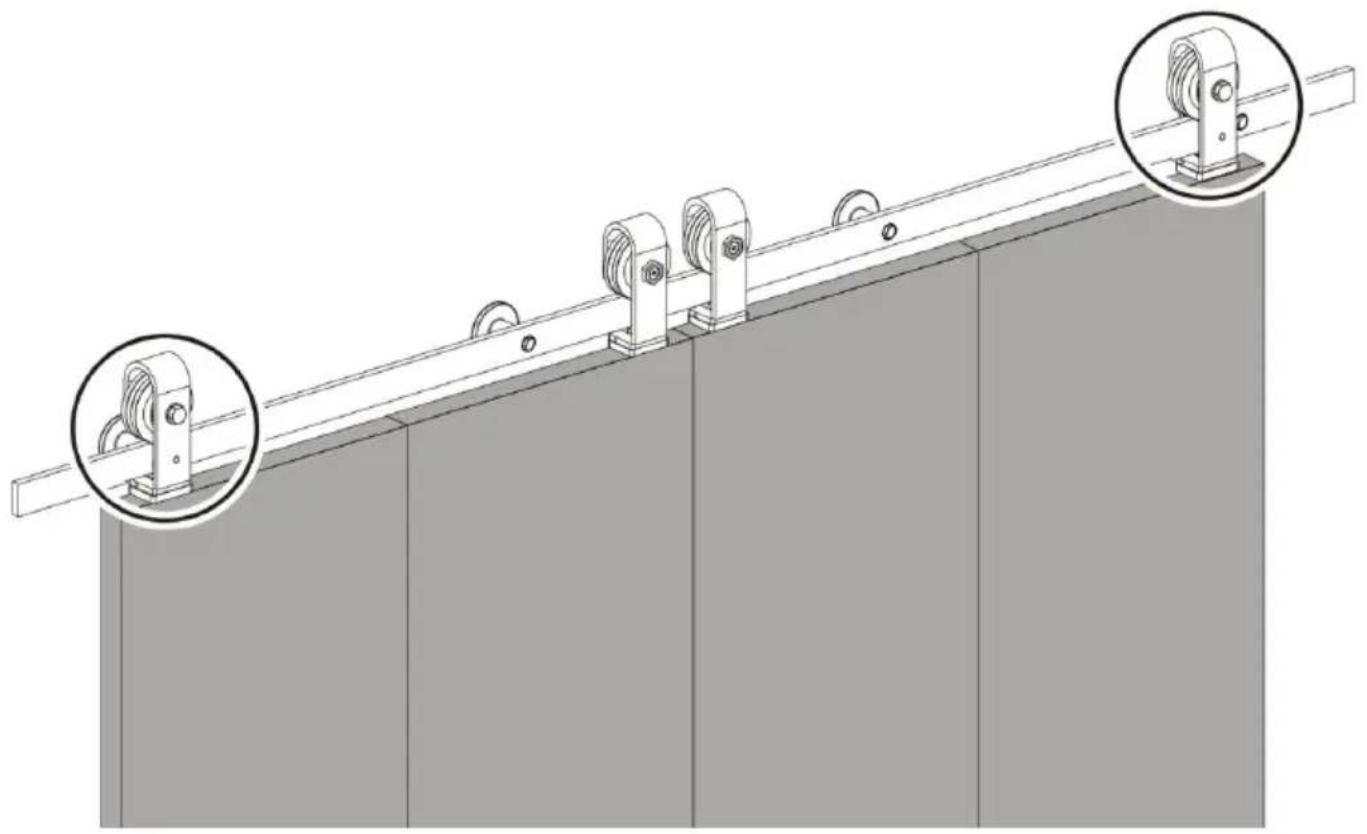

7.1.Hang the Fixed Roller Q And Adjustable Roller R on the rail

Q:Fixed Roller R:Adjustable Roller Q:Fixed Roller

Step-8

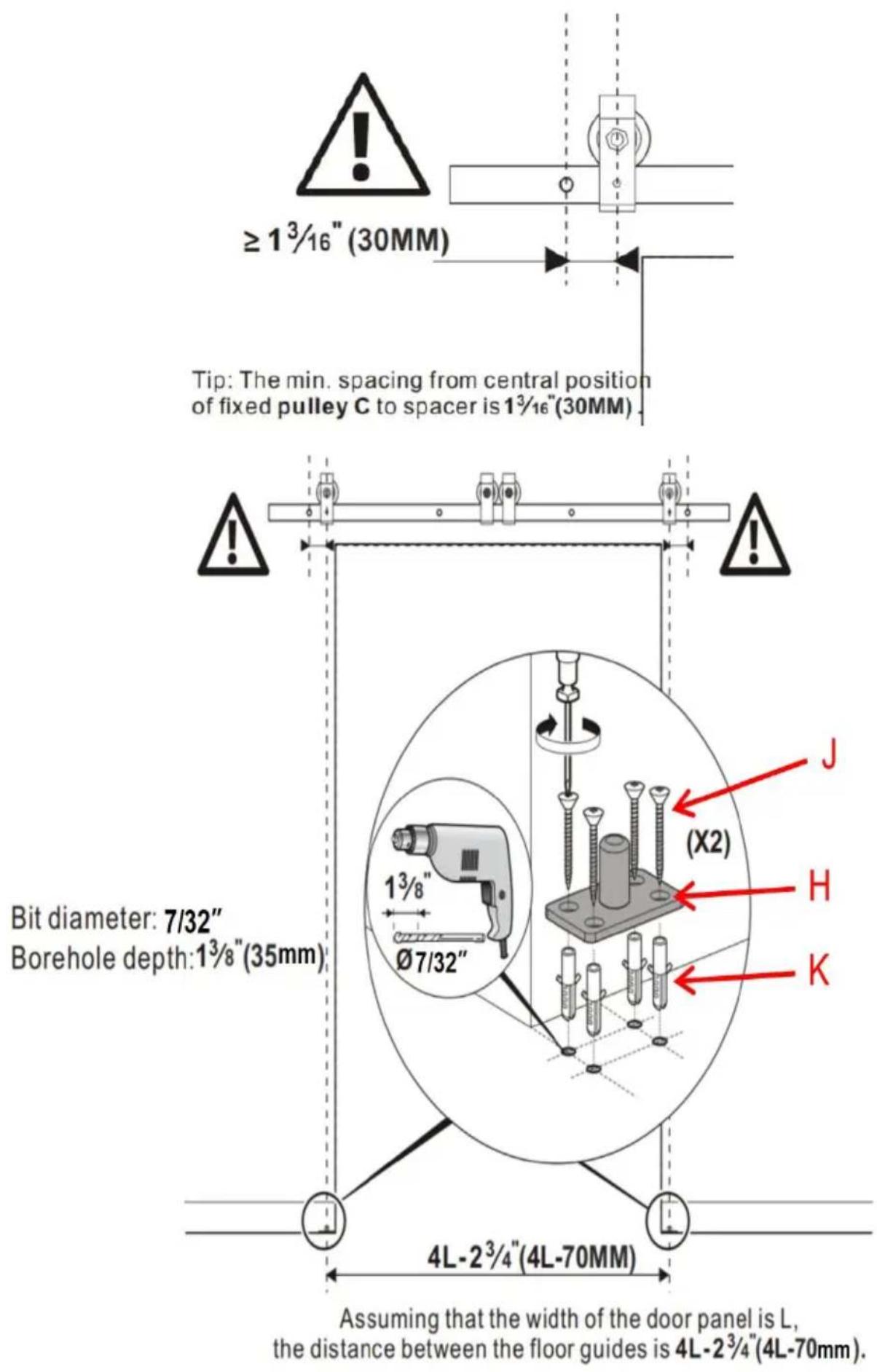

8.1. Install two Bottom Pivot Plate H; Assuming the width of a single dL, the distance between the center of the two H's is 4L-70mm; the of Bottom Pivot Plate H center from the wall is 47.6mm;

8.2. Four spots were marked above the ground with the through-hole of Bottom Pivot Plate H;drill depth 35mm holes in the mark with a 7 / 32" drill;then insert Plastic expansion bolt k into the holes.

8.3.Attach the Bottom Pivot Plate H to the floor using a screw J.

≥ 1 3/16" (30MM) Tip: The min. spacing from central position of fixed pulley C to spacer is 1 3/16"(30MM) Bit diameter: 7/32" Borehole depth: 1 3/8"(35mm) 4L - 2 3/4"(4L-70MM) Assuming that the width of the door panel is L, the distance between the floor guides is 4L - 2 3/4"(4L-70mm)

Step-9

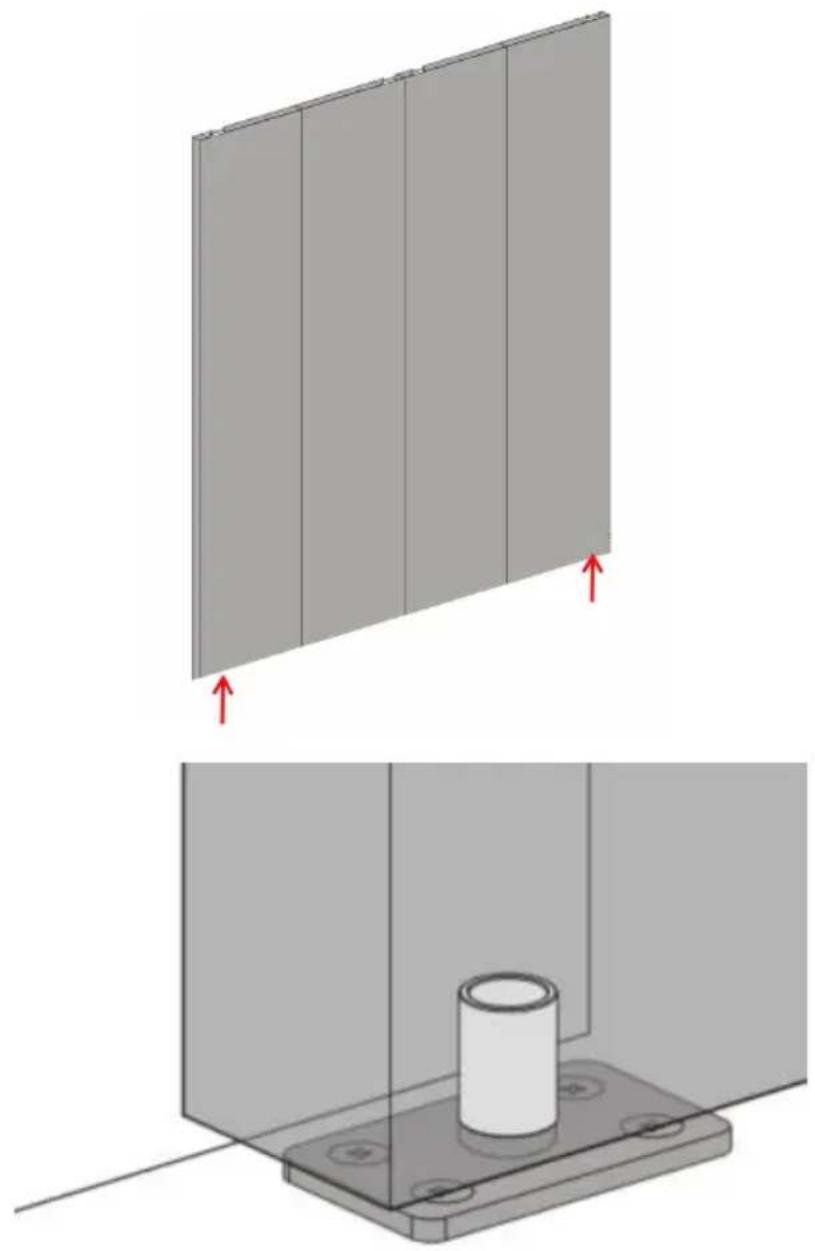

Insert two Sleeve I at the bottom of the door into two Bottom Pivot on the floor.

3D diagram showing a panel mounted on a base with a cylindrical component inserted, no text or symbols present

Step-10

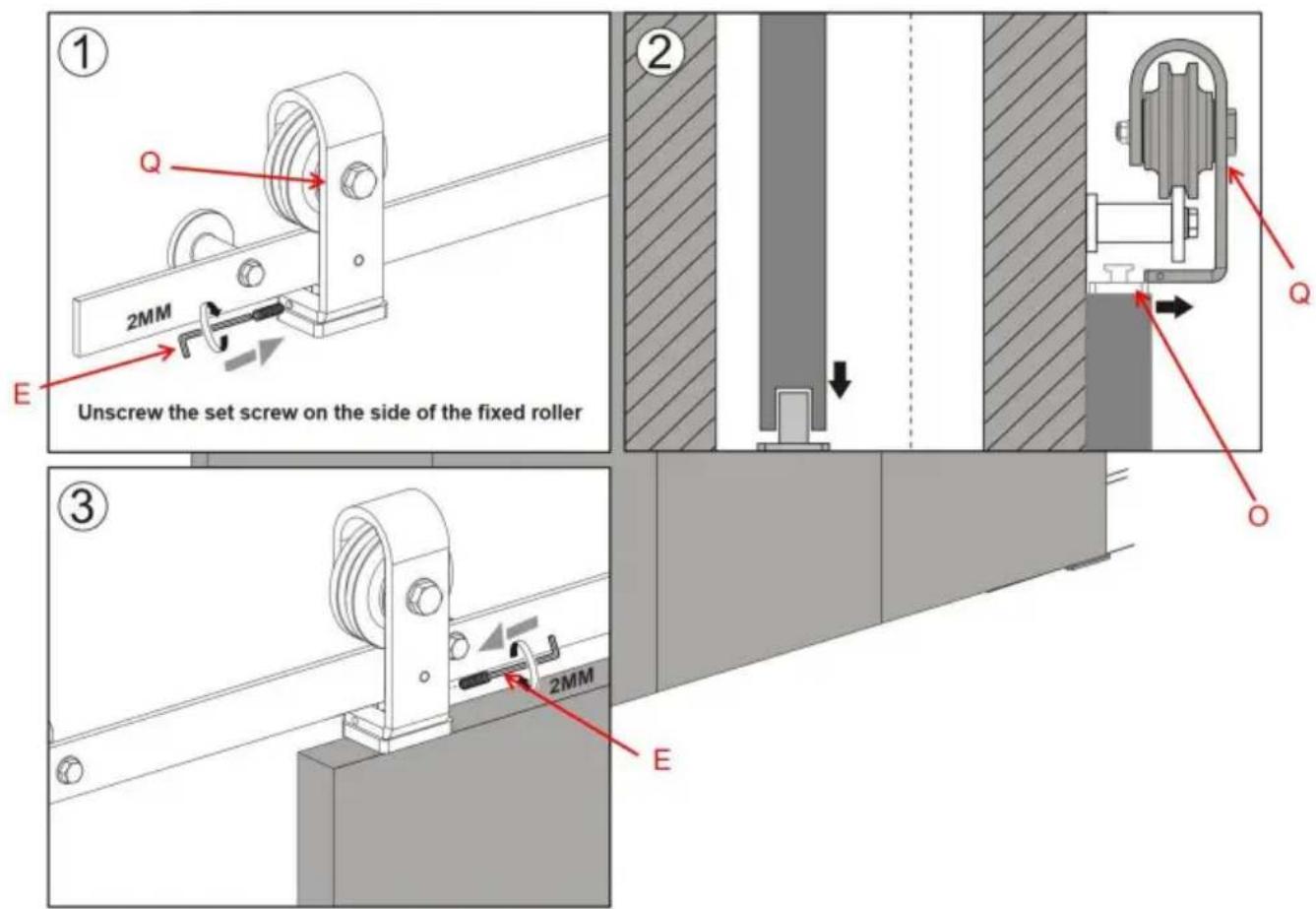

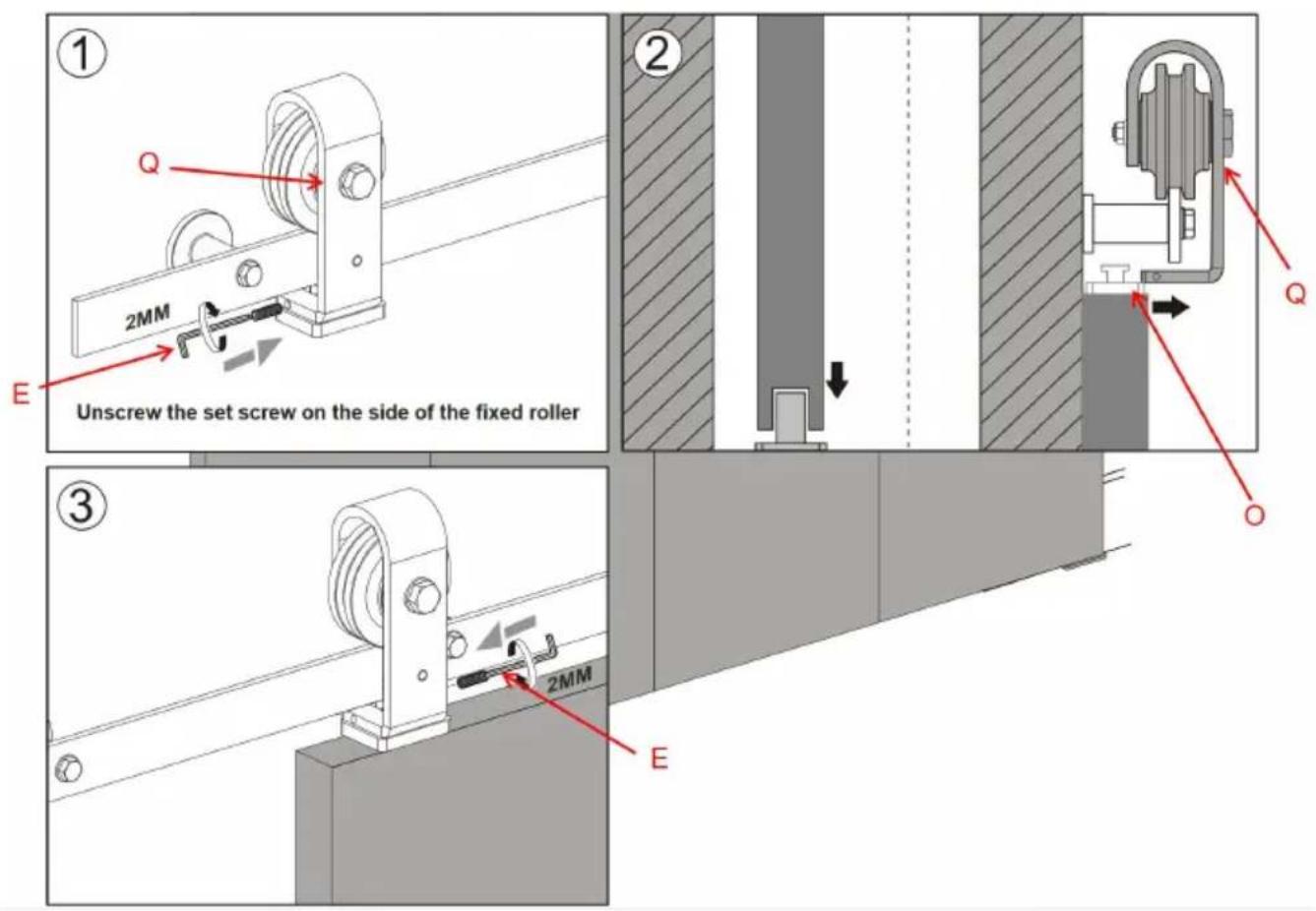

10.1. Unscrew the set screw on the side of the fixed roller.

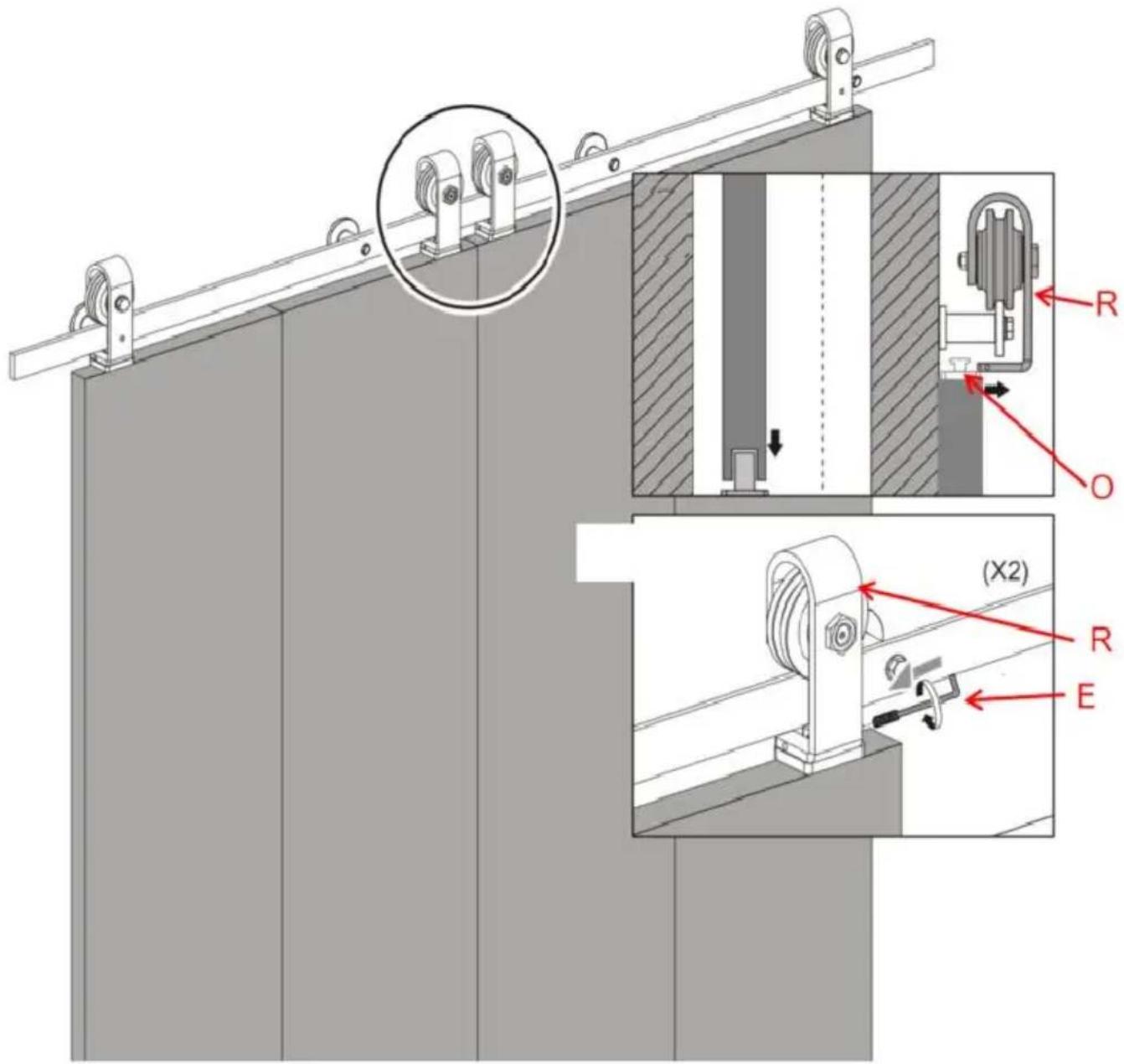

10.2. Put the door on the Sleeve I; Engage the Roller Rotating Base C the top of the door with the fixed roller
10.3.Tight down set screws to lock the fixed roller to the Roller Rota Base O.

Diagram of a mechanical rail system with multiple pulleys mounted on a beam, showing two circular insets highlighting specific components (no text or symbols present)

① Q 2MM E Unscrew the set screw on the side of the fixed roller ② Q O ③ 2MM E

Step-11

11.1. Refer to step 10, install Adjustable Roller R by the method of ir fixed roller Q.

Technical diagram of a mechanical assembly with labeled components and cross-sectional views

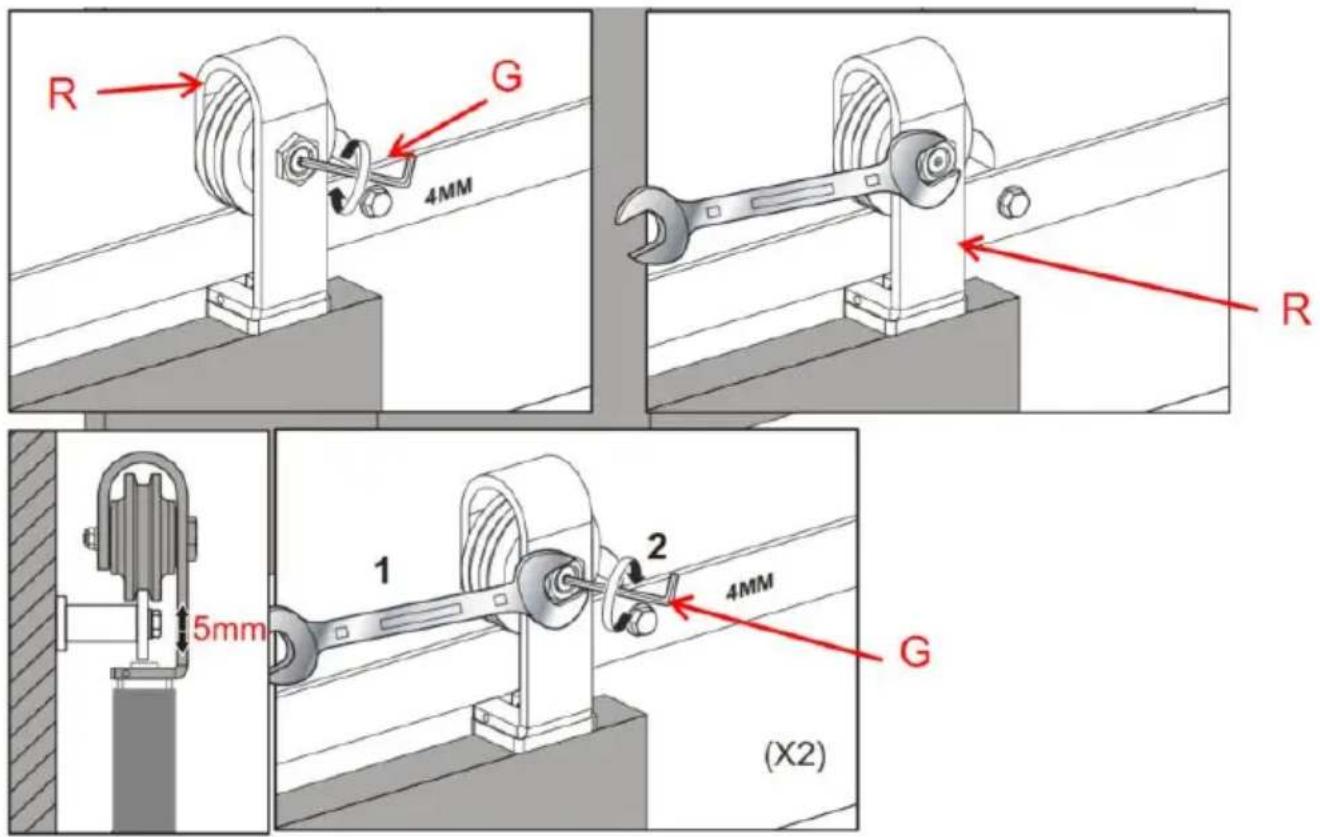

11.2. Refer to the prompts below, Adjust the height of the adjustable ro to a suitable position. Let the left and right door height be at the sar The height of the door can be adjusted by Approximately 5mm

R G 4MM R 1 2 4MM G 5mm (X2)

Step-12

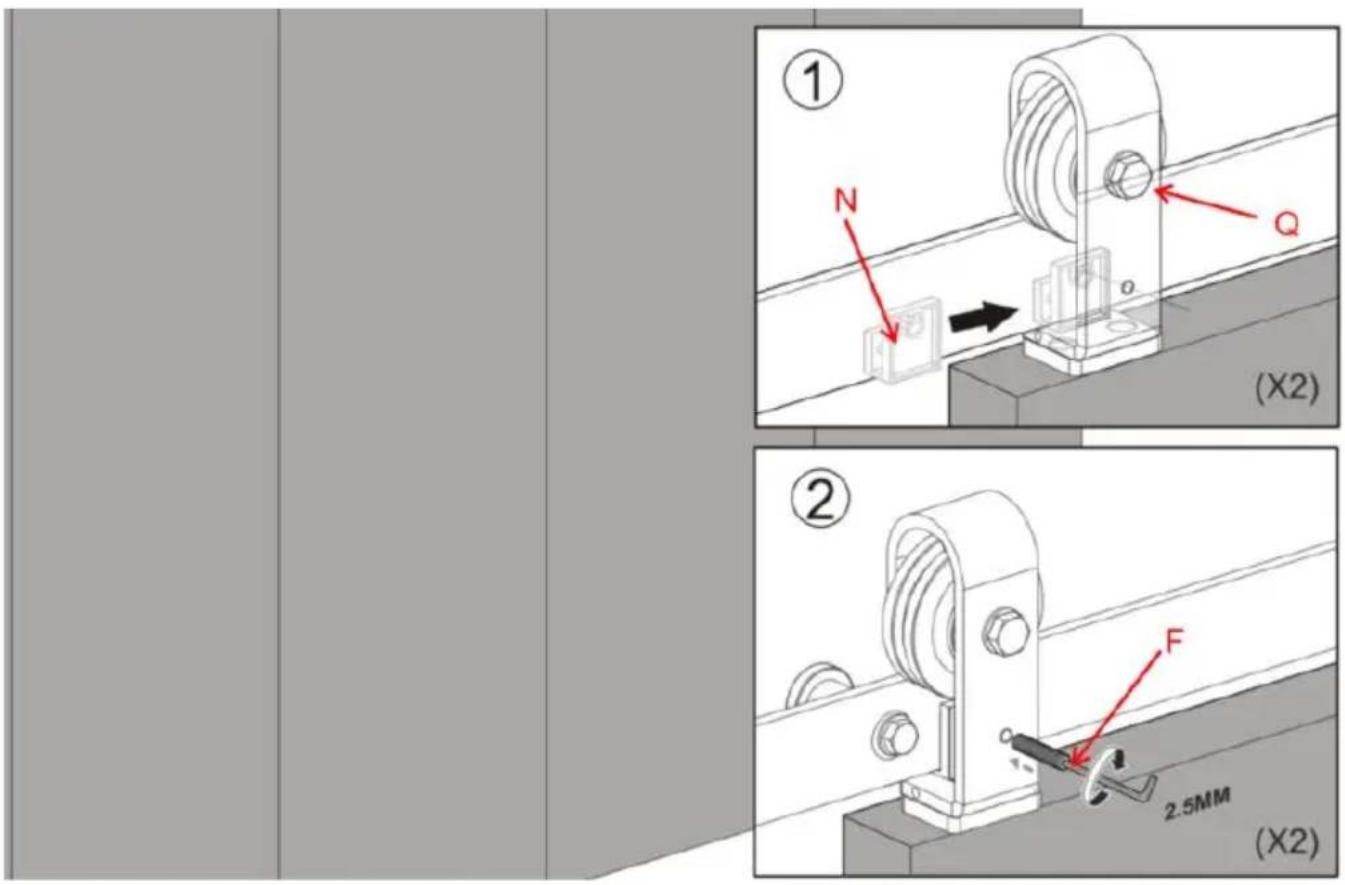

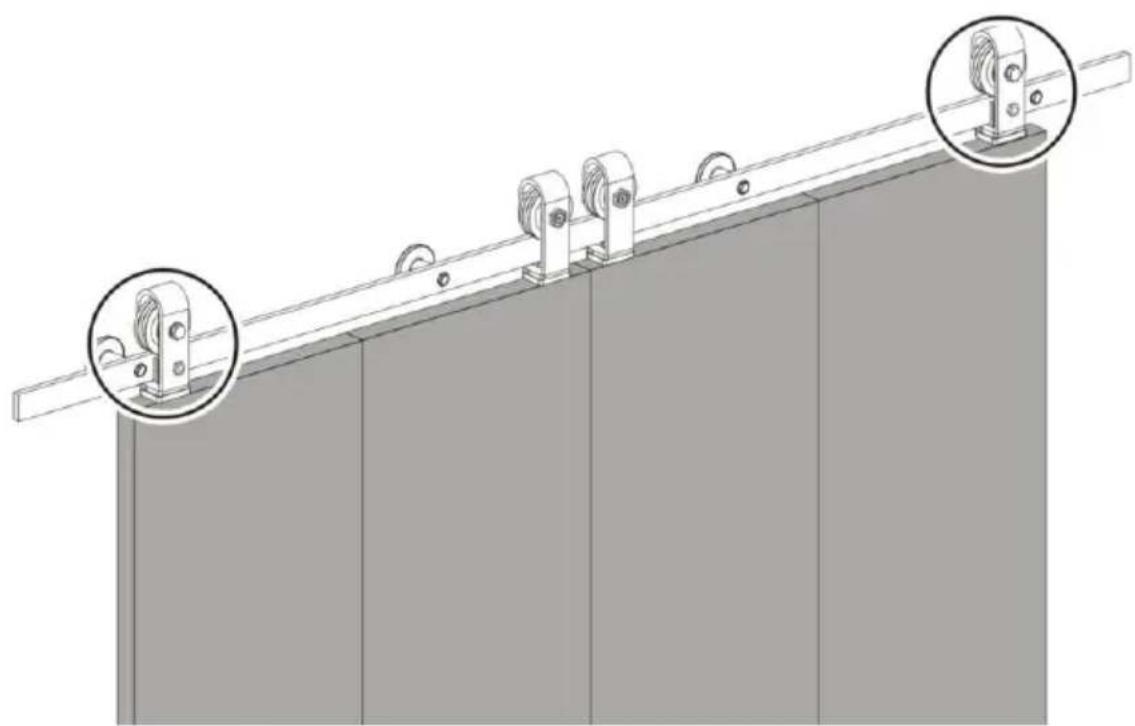

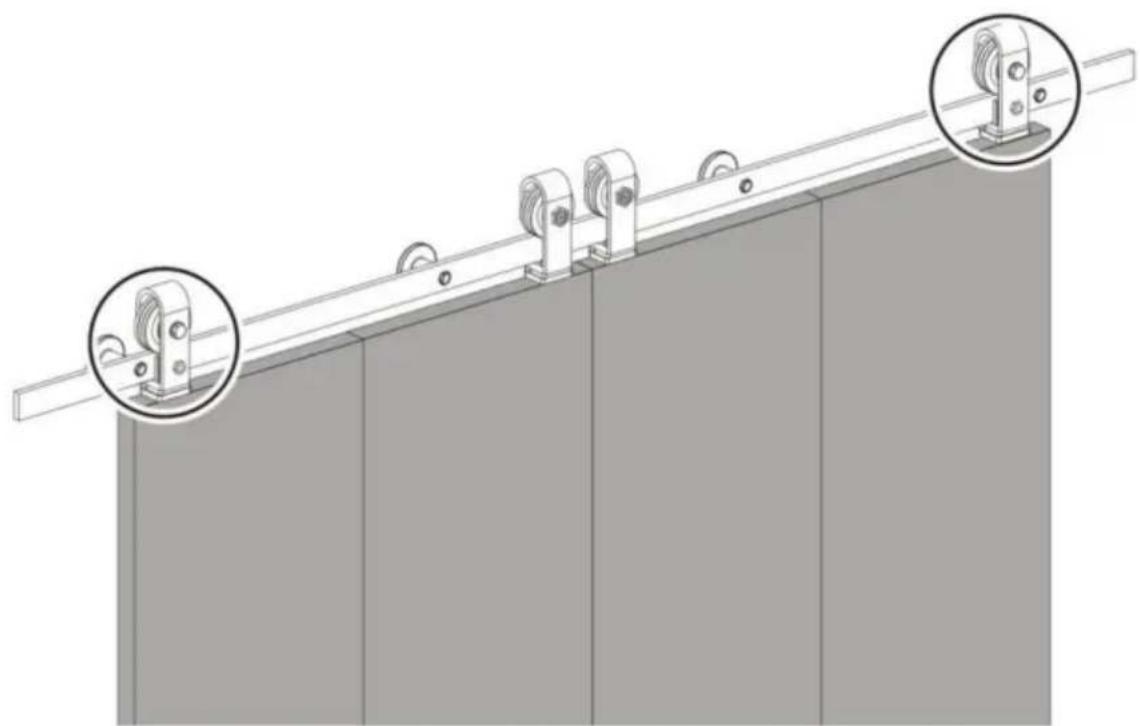

Install the fixed roller lock bracket N.

Diagram of a sliding mechanism with pulleys and railings, showing two circular insets (no text or symbols)

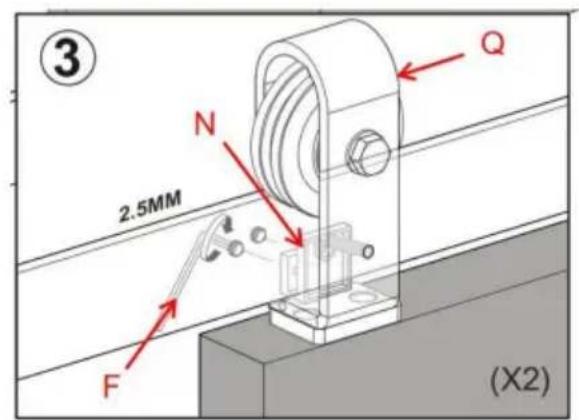

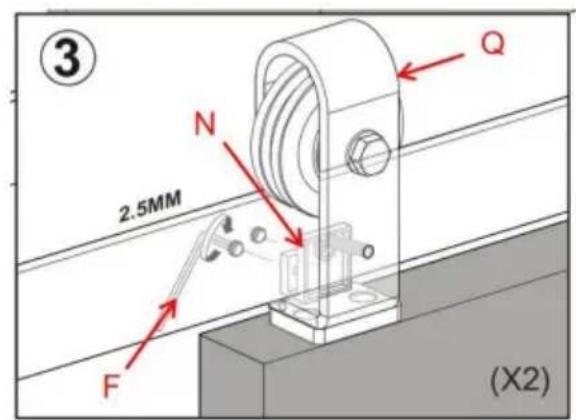

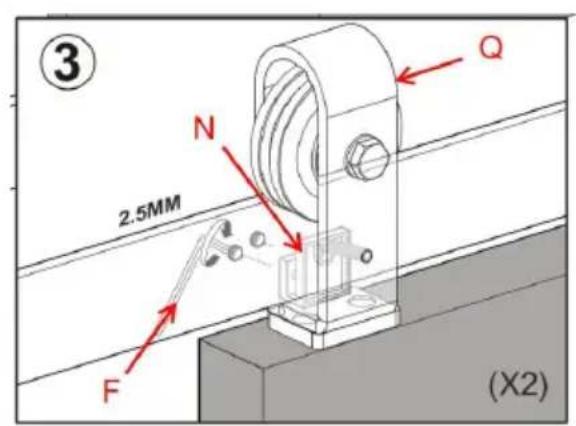

12.1.Slide the fixed roller lock bracket N onto the rail behind the set located on the front of the fixed roller Q.

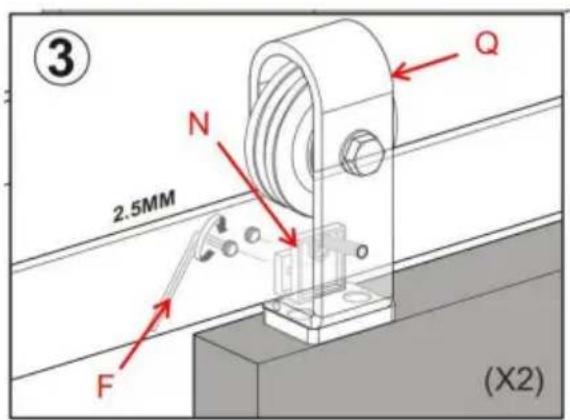

12.2. Using the supplied Allen Wrench F, tighten the set screws on th of the fixed roller lock bracket N.
12.3. Lock the fixed roller Q onto the rail by tightening the long set s through the fixed roller strap lock bracket and into the rail.

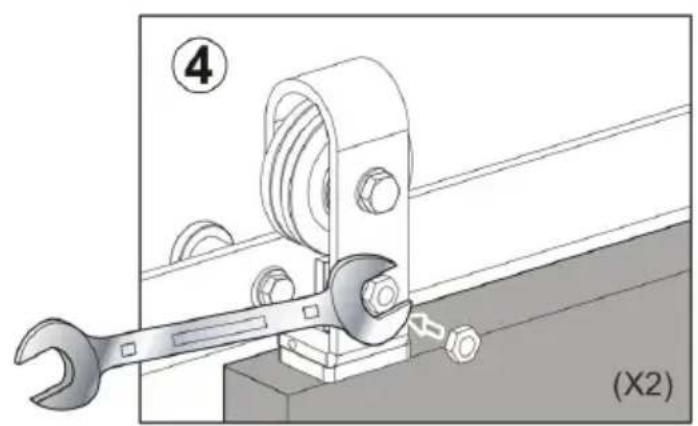

12.4. tighten the hex-head nut onto this set screw.

Technical diagram showing two mechanical assembly steps with labeled components and force indicators

③ 2.5MM N Q F (X2)

Mechanical assembly diagram showing a wrench inserted into a bracket with a nut, labeled (X2) and numbered 4 (no text or symbols on the diagram itself)

Step-12

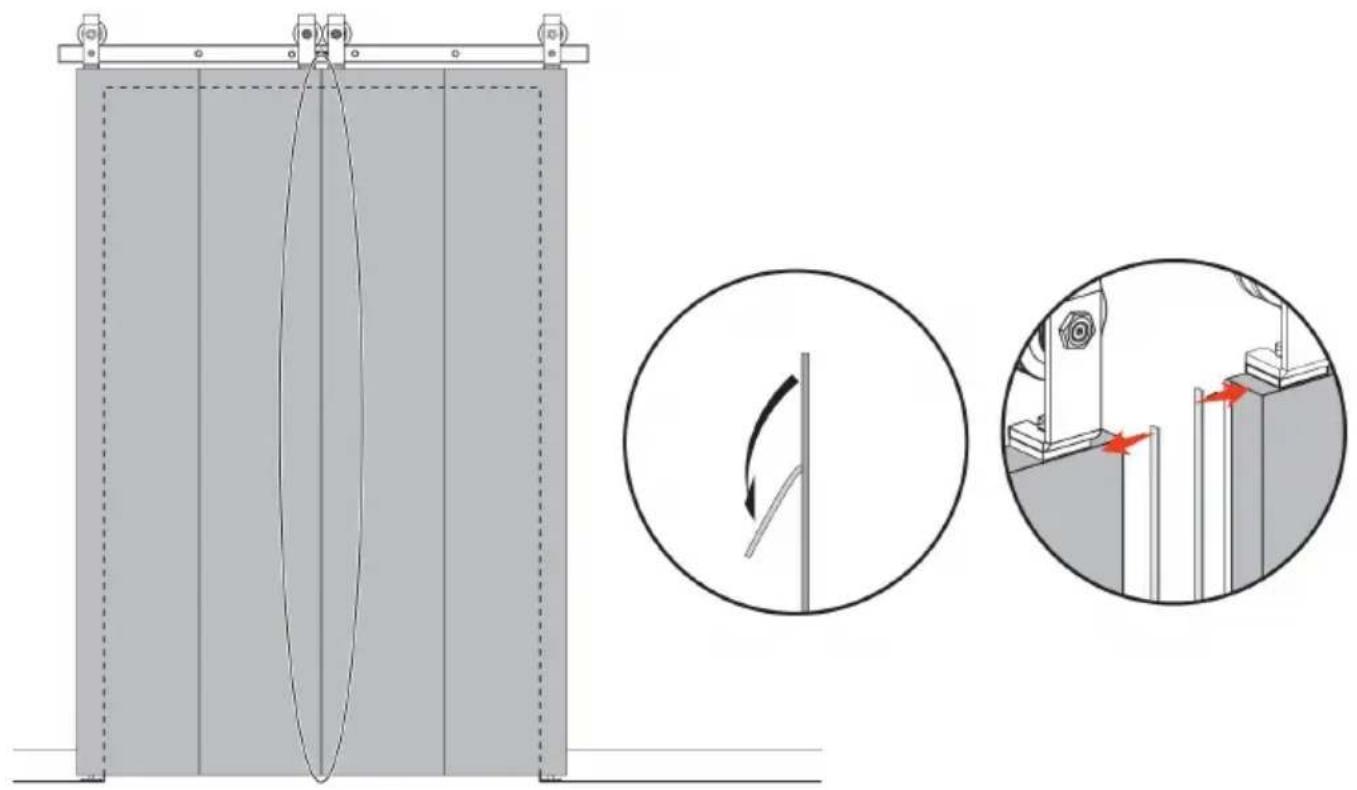

Stick the anti-collision strip on the door. In order to prevent the gap between the door and the door from being too large, please stick it diagonally as shown below.

Technical diagram showing a structural frame with internal components and a magnified inset illustrating the motion of a curved component (no text or symbols present)

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD

NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim

Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR
