Product Type	Soft-closing cabinet hinge
Brand	Vevor
Model	PHS25201-60
Cup diameter	35 mm
Cup depth	10.5 mm
Opening	105°
Finish	Nickel-plated
Overlay	1/2" (12.7 mm) / K=5
Maximum dynamic load	7.7 lb / 3.5 kg
Adjustments	6-way (3D): front/back ±1.8 mm, up/down ±2.0 mm, depth ±1.5 mm
Package contents	60 hinges, screws 4x16 (180), screws 4x20 (60), nuts (120), additional screws (120)
Mounting type	Clip-on frame
Main function	Soft and damped closing of cabinet doors
Care and cleaning	Wipe with a soft dry cloth; avoid abrasive products
Safety	Professional installation recommended; respect maximum loads
Spare parts available	Screws, nuts and individual hinges (Vevor reference)
Warranty	Electronic warranty certificate at www.vevor.com/support
Brand	Vevor
Country of origin	Imported by Sanven Technology Ltd. (USA)

Frequently Asked Questions - PHS25201-60 Vevor

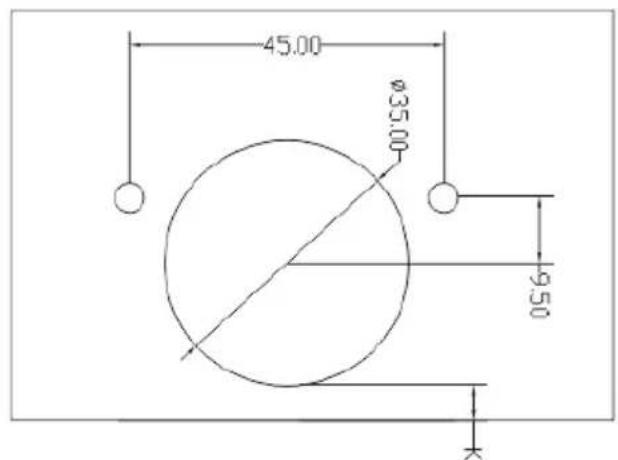

What is the required drilling diameter for the cup?

The drilling diameter must be 35 mm to accommodate the hinge cup.

How to adjust the hinge overlay?

Use the adjustment screws to adjust front/back overlay (D) by ±1.8 mm, up/down (E) by ±2.0 mm, and depth by ±1.5 mm.

What is the maximum load supported by a hinge?

The maximum dynamic load is 7.7 lb (3.5 kg) per hinge.

Is the hinge suitable for an overlay cabinet door?

Yes, this model is designed for a 1/2" (12.7 mm) overlay, corresponding to K=5 overlay.

How to install the hinge on the frame?

First mount the mounting plate on the frame with the provided screws, then clip the hinge onto the plate. Then adjust to the desired position.

What to do if the soft-close stops working?

Check that the adjustment screws are not too tight and that the hydraulic mechanism is not obstructed. If the problem persists, contact Vevor support.

Are the hinges delivered with mounting screws?

Yes, the package contains screws 4x16, 4x20, nuts, and additional screws for mounting.

What is the finish of the hinges?

The hinges have a nickel-plated finish, resistant to corrosion.

Can I use these hinges for solid wood cabinet doors?

Yes, but ensure that the door weight does not exceed 3.5 kg per hinge and that the drilling is suitable.

Where to find the warranty certificate?

The electronic warranty certificate is available at www.vevor.com/support after product registration.

USER MANUAL PHS25201-60 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

CABINET HINGES

MODEL: PHS25101-40/ PHS23701-40/PHS25101-50

/PHS23701-50/PHS25001-60/PHS23601-60/PHS25201-20

/PHS25201-30/PHS24501-40/PHS24501-50/PHS25201-60

We continue to be committed to provide you tools with competitive price.

"Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Cabinet Hinges

MODEL: MODEL: PHS25101-40/ PHS23701-40/PHS25101-50

/PHS23701-50/PHS25001-60/PHS23601-60/PHS25201-20

/PHS25201-30/PHS24501-40/PHS24501-50/PHS25201-60

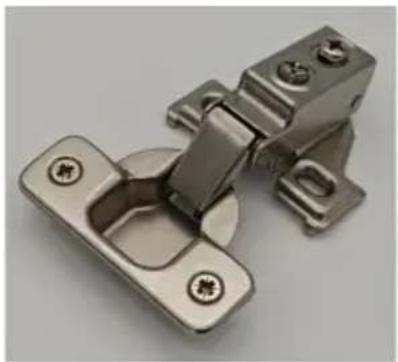

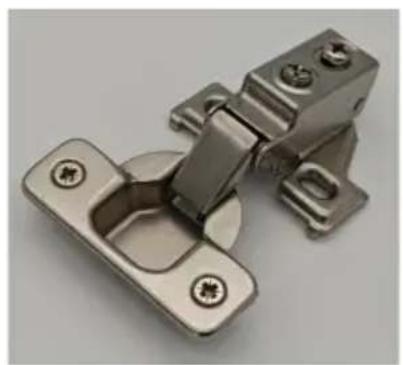

Metallic plastic hinge component with mounting holes and a central handle (no text or symbols visible)

PHS23601-60

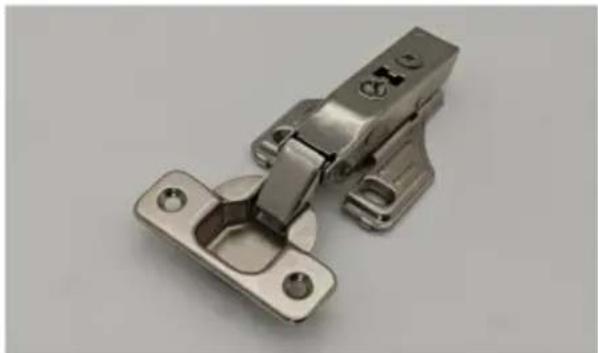

Metal-colored plastic hinge component with mounting holes and mounting holes (no text or symbols visible)

PHS25001-60

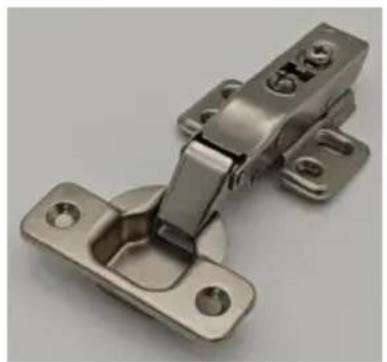

Close-up of a metallic glass hinge with mounting holes and a central handle (no text or symbols visible)

PHS23701-40/50

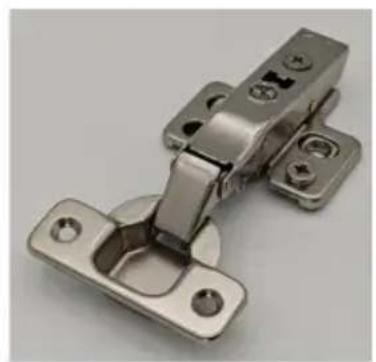

Metal-colored plastic hinge component with mounting holes and a small inset showing internal features (no text or symbols visible)

PHS25101-40/50

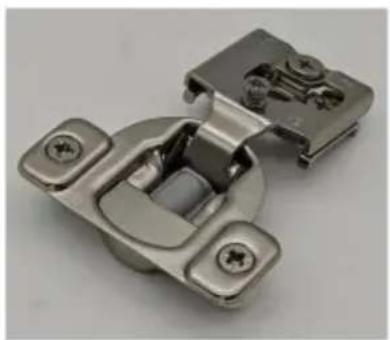

Close-up of two metallic plastic hinge clips with mounting holes (no text or symbols visible)

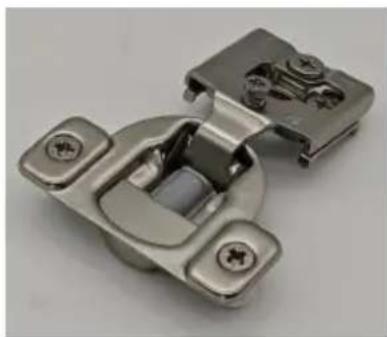

PHS25201-20/30/60

Close-up of a metallic glass plastic hinge component with mounting holes (no text or symbols visible)

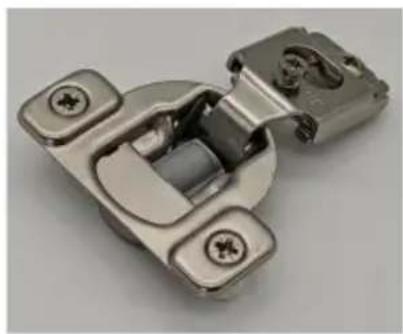

PHS24501-40/50

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again there are any technology or software updates on our product.

PARAMETER LIST

Φ35 CLIP ON ONE WAY HYDRAULIC BUFFERING HINGES

Metal-colored plastic hinge component with mounting holes and a central handle (no text or symbols visible)

Model	PHS23601
Cup Diameter	35
Cup Depth	10.6
Cup Pattern	45
Opening	100 °
Finish	Nickel-plated
(K)	5
Overlay	Full Overlay
Max.Dynamic Load (lbs/kg)	16.5/7.5

Part List
Code	Picture	Name	PHS23601-60
1		HINGES	60
2		4*16 SCREWS	12*30=360

Φ35 FIXED ON ONE WAY SHORT ARMS HYDRAULIC BUFFERING HINGES

Metal-colored plastic hinge component with mounting holes (no text or symbols visible)

Model	PHS25001
Cup Diameter	35
Cup Depth	10.6
Cup Pattern	45
Opening	100 °
Finish	Nickel-plated
Overlay	Full Overlay
(K)	5
Max.Dynamic Load (lbs/kg)	7.7/3.5

Part List
Code	Picture	Name	PHS25001-60
1		HINGES	60
2		4*16 SCREWS	8*30=240
3		NUTS (Optional)	4*30=120
4		SCREWS (Optional)	4*30=120

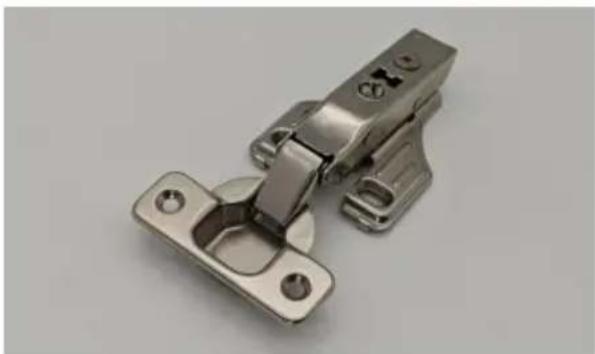

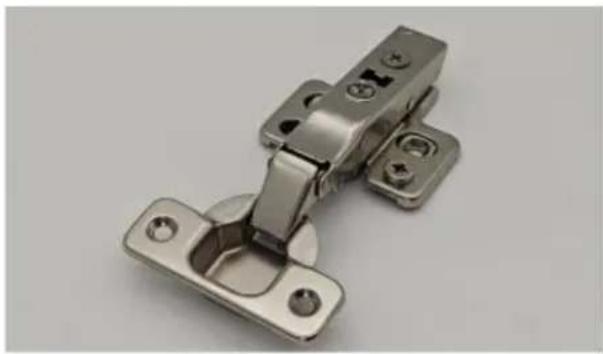

Φ35 CLIP ON ONE WAY (3D) SIX-WAY ADJUSATABLE HYDRAULIC BUFFERING HINGES

Metal-colored plastic hinge component with mounting holes (no text or symbols visible)

Model	PHS23701
Cup Diameter	35
Cup Depth	10.6
Cup Pattern	45
Opening	100 °
Finish	Nickel-plated
Overlay	5
(K)	Full Overlay
Max.Dynamic Load (lbs/kg)	16.5/7.5

Part List
Code	Picture	Name	PHS23701-50	PHS23701-40
1		HINGES	50	40
2		4*16 SCREWS	10*25=250	10*20=200

Φ35 CLIP ON ONE WAY(2D)FOUR-WAY ADJUSATABLE HYDRAULIC BUFFERING HINGES

Metal-colored plastic hinge component with mounting holes (no text or symbols visible)

Model	PHS25101
Cup Diameter	35
Cup Depth	10.6
Cup Pattern	45
Opening	100 °
Finish	Nickel-plated
Overlay	5
(K)	Full Overlay
Max.Dynamic Load (lbs/kg)	16.5/7.5

Part List
Code	Picture	Name	PHS25101-50	PHS25101-40
1		HINGES	50	40
2		4*16 SCREWS	8*25=200	8*20=160

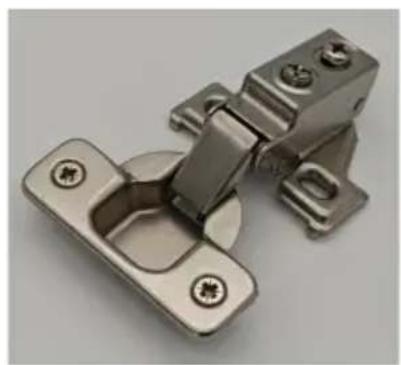

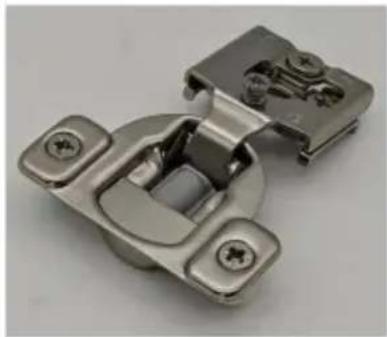

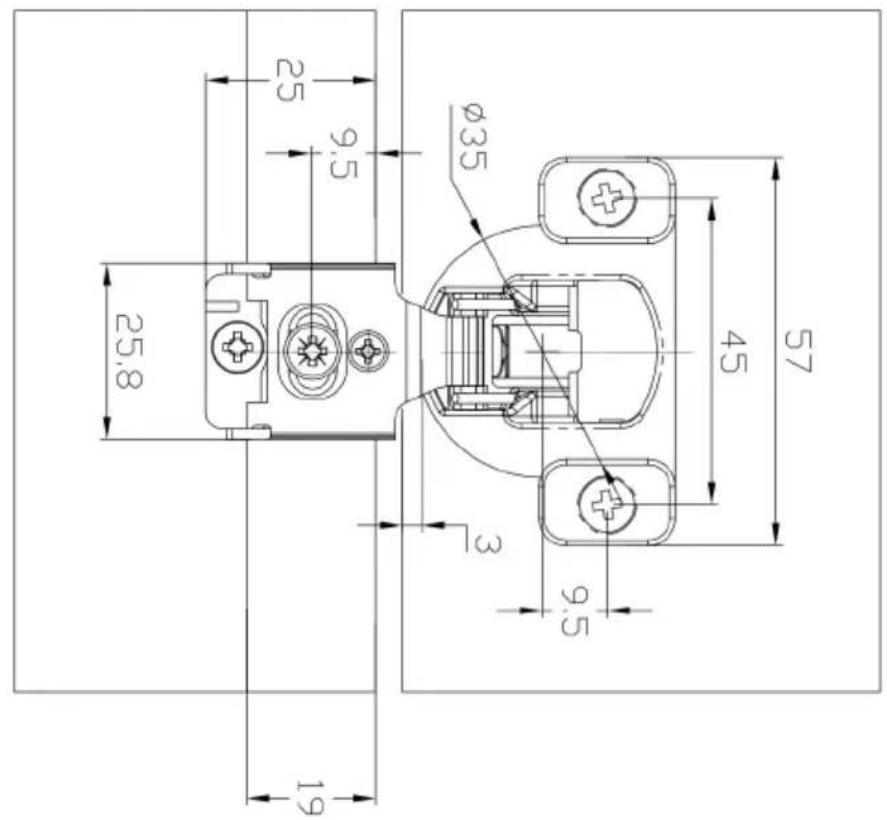

Φ35(3D)SIX-WAY ADJUSATABLE SOFT CLOSE FACE FRAME HINGE

Close-up of a metallic glass plastic hinge component (no text or symbols visible)

Model	PHS25201
Cup Diameter	35
Cup Depth	10.5
Cup Pattern	45
Opening	105 °
Finish	Nickel-plated
Overlay	3
(K)	1/2” / 12.7
Max.Dynamic Load (lbs/kg)	7.7/3.5

Part List
Code	Picture	Name	PHS25201-60	PHS25201-30	PHS25201-20
1		HINGES	60	40	20
2		4*16 SCREWS	6*30=180	6*15=90	6*10=60
3		4*20 SCREWS	2*30=60	2*15=30	2*10=20
3		NUTS(Optional)	4*30=120	4*15=60	4*10=40
4		SCREWS(Optional)	4*30=120	4*15=60	4*10=40

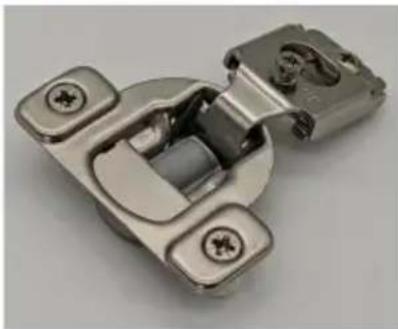

Φ35(2D)FOUR-WAY ADJUSATABLE SOFT CLOSE FACE FRAME HINGES

Close-up of a metallic plastic hinge component with mounting holes (no text or symbols visible)

Model	PHS24501
Cup Diameter	35
Cup Depth	10.5
Cup Pattern	45
Opening	105 °
Finish	Nickel-plated
Overlay	3
(K)	1/2” / 12.7
Max.Dynamic Load (lbs/kg)	7.7 / 3.5

Part List
Code	Picture	Name	PHS24501-50	PHS24501-40
1		HINGES	50	40
2		4*16 SCREWS	4*25=150	4*20=120
3		4*20 SCREWS	2*25=50	2*20=40
4		NUTS (Optional)	4*25=100	4*20=80
5		SCREWS(Optional)	4*25=100	4*20=80

OPERATION

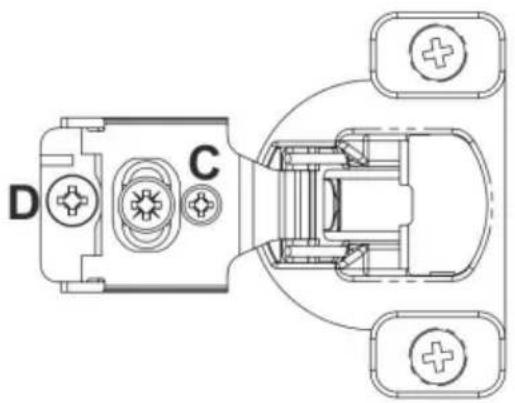

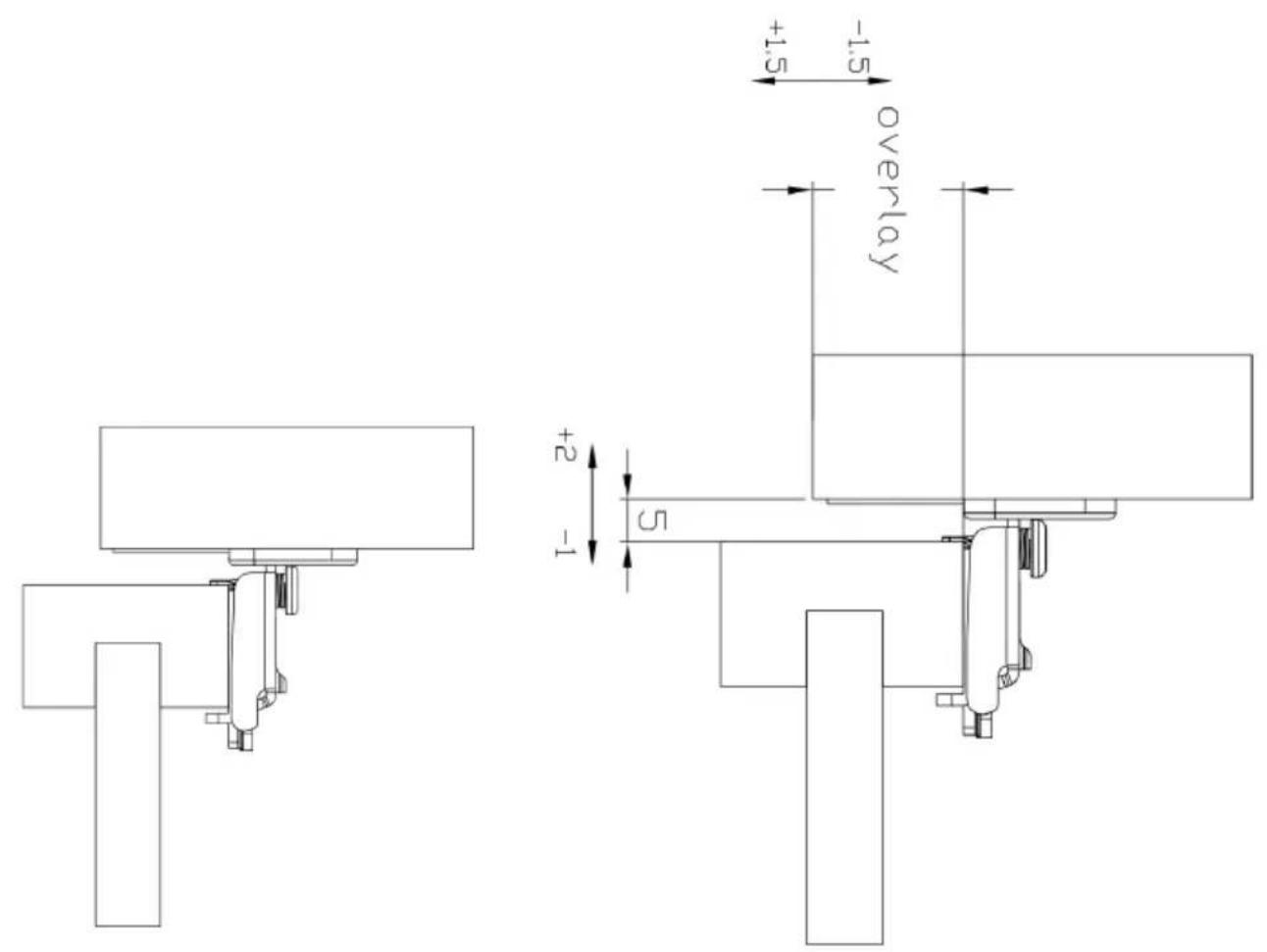

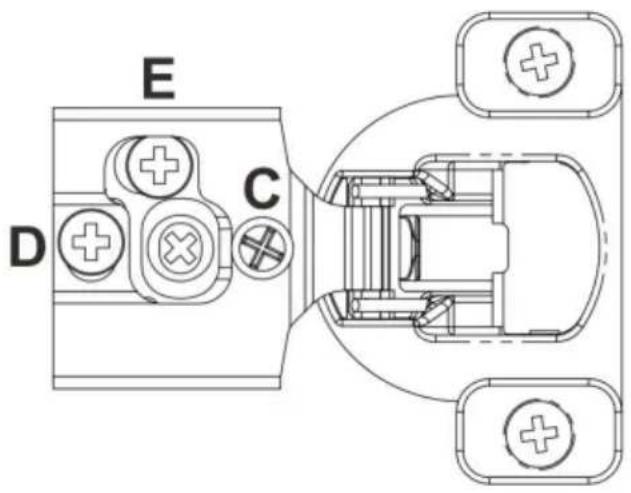

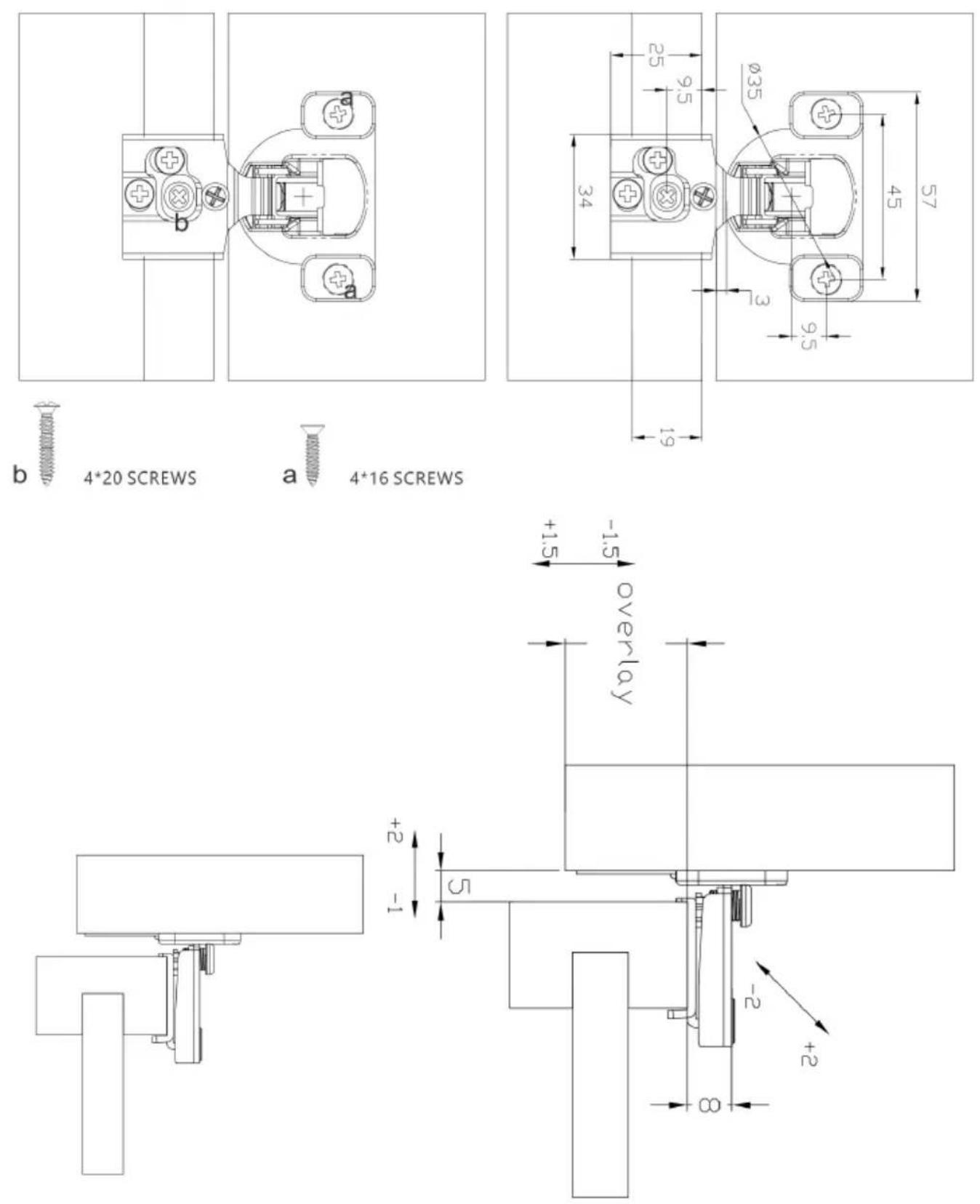

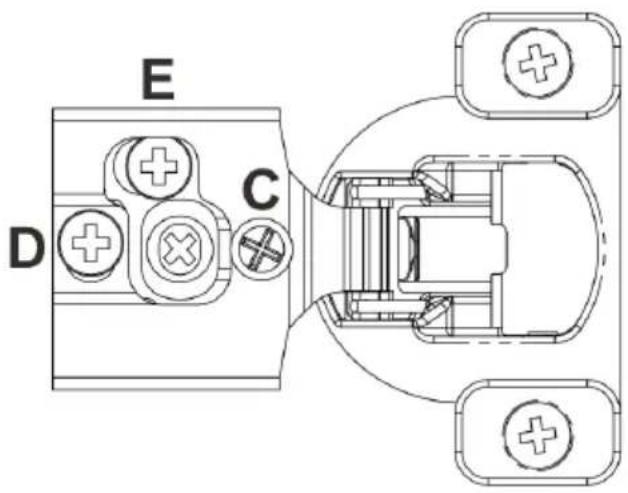

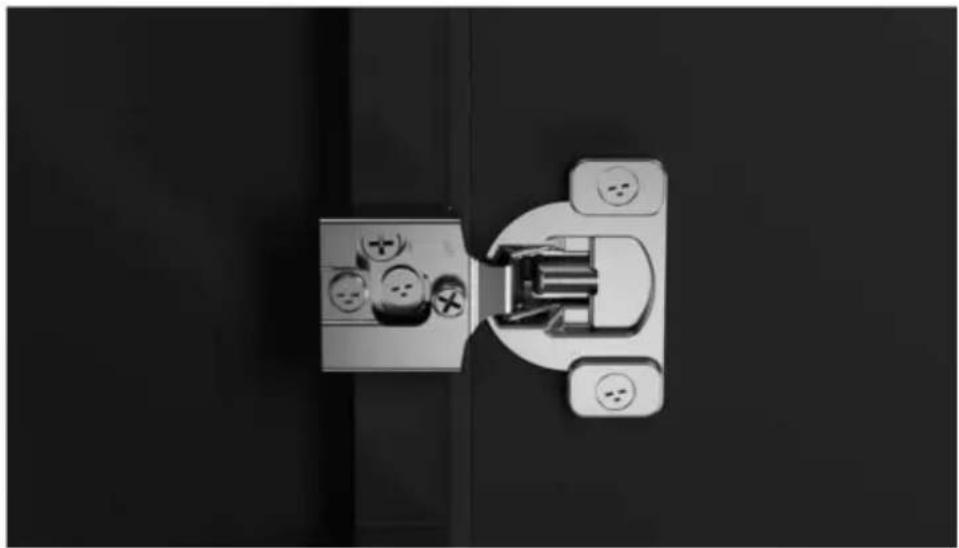

Φ35(3D)SIX-WAY ADJUSATABLE SOFT CLOSE FACE FRAME HINGE

Top-down view of a door handle mechanism with three switches and a highlighted component (no text or symbols visible)

Adjustment Range:

C Overlay(Left/Right)

Adjustment:±1.8mm

D Overlay(Front/back)

Adjustment:±2.0mm

E Overlay(Up/down)

Adjustment:±1.5mm

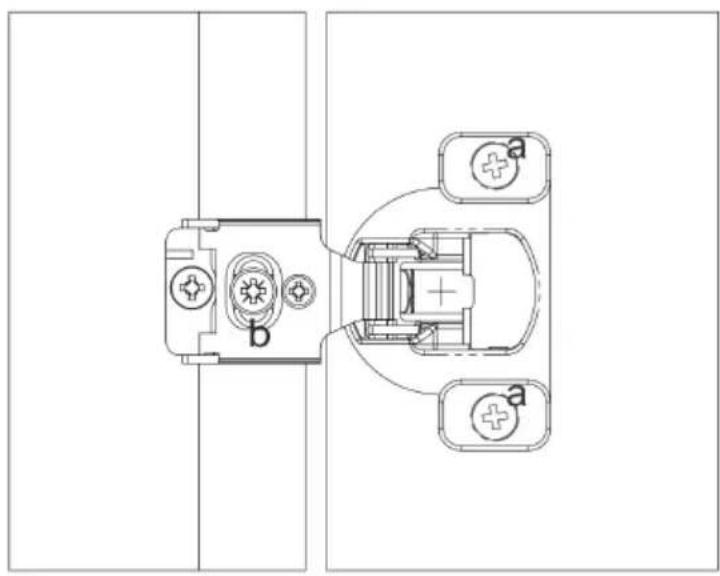

Installation instructions

Φ35(2D)FOUR-WAY ADJUSATABLE SOFT CLOSE FACE FRAME HINGES

Close-up of a metallic door handle assembly with cartoon figures on the handle (no text or symbols visible)

Adjustment Range:

C Overlay (Left/Right)

Adjustment:±1.8mm

D Overlay(Front/back)

Adjustment:±2.0mm

Installation instructions

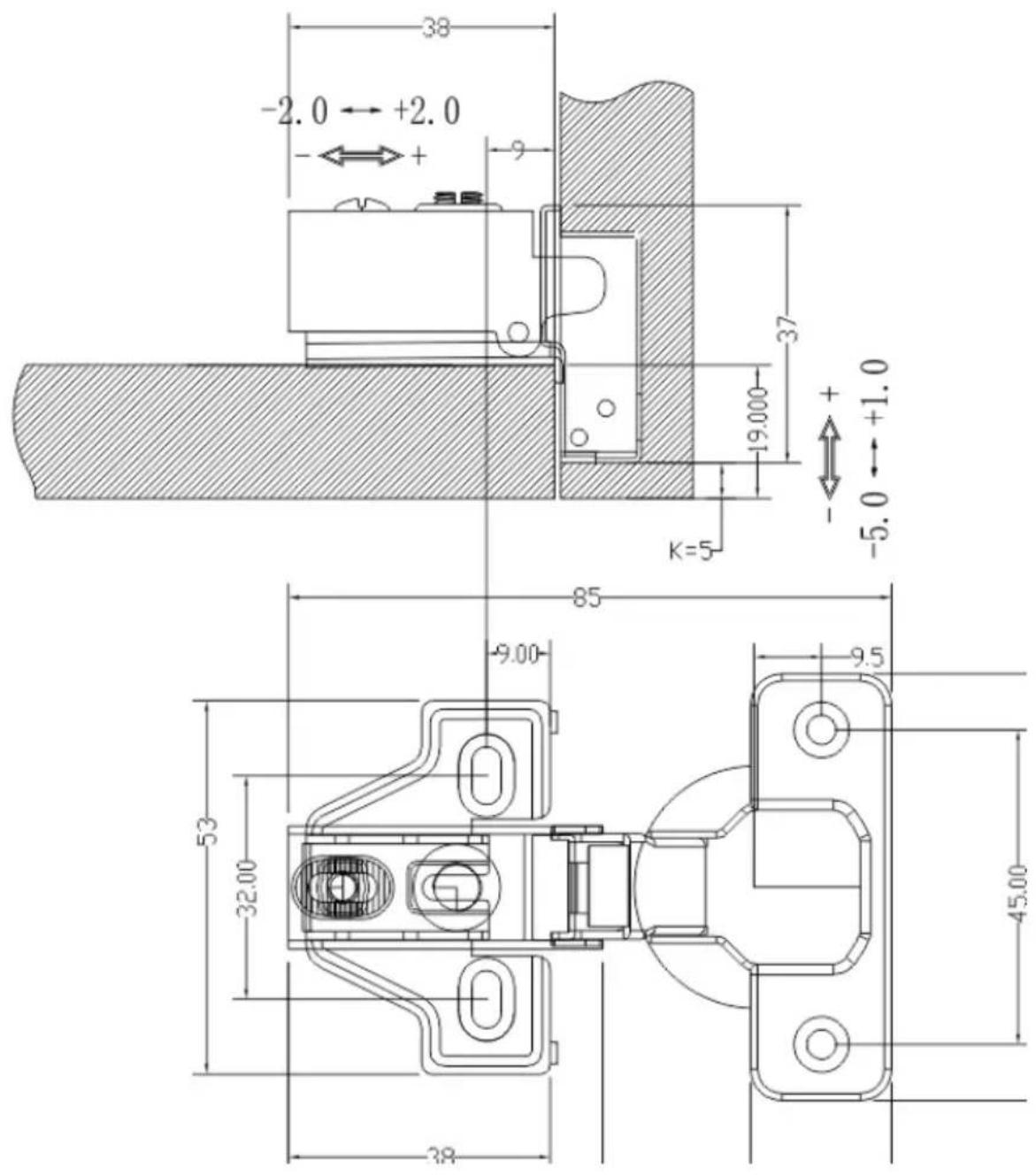

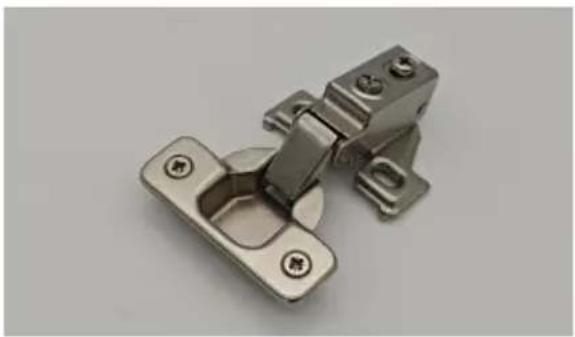

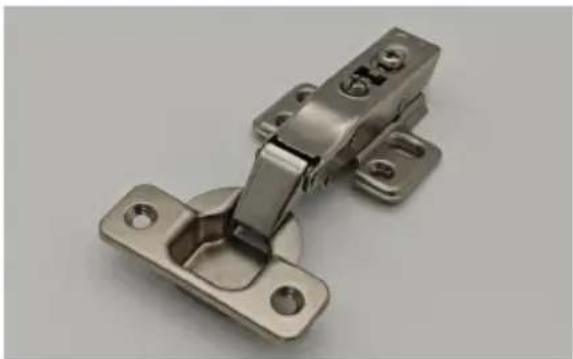

Φ35 FIXED ON ONE WAY SHORT ARMS HYDRAULIC BUFFERING HINGES

Metal-colored plastic hinge component with mounting holes and mounting holes (no text or symbols visible)

Adjustment Range:

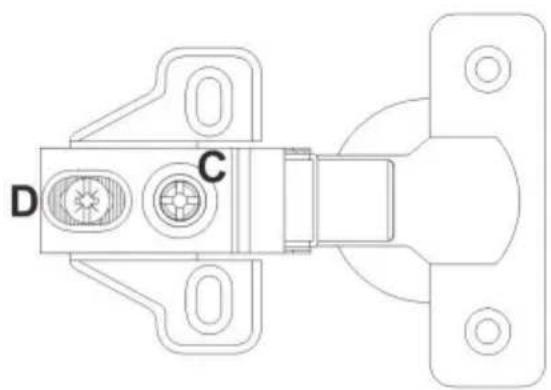

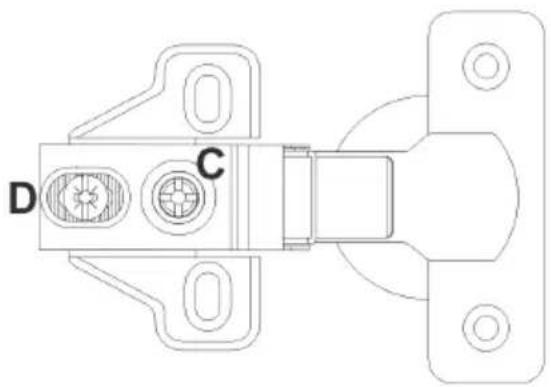

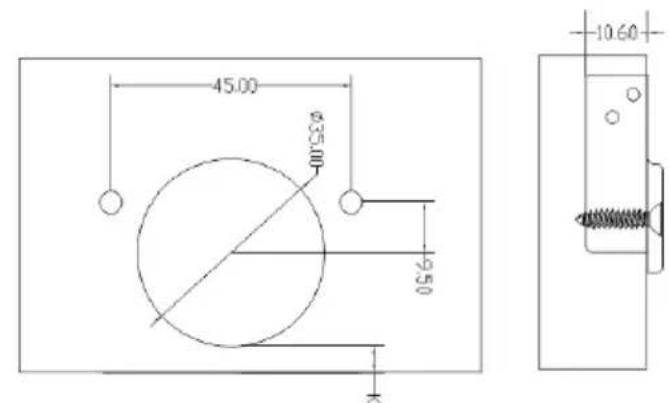

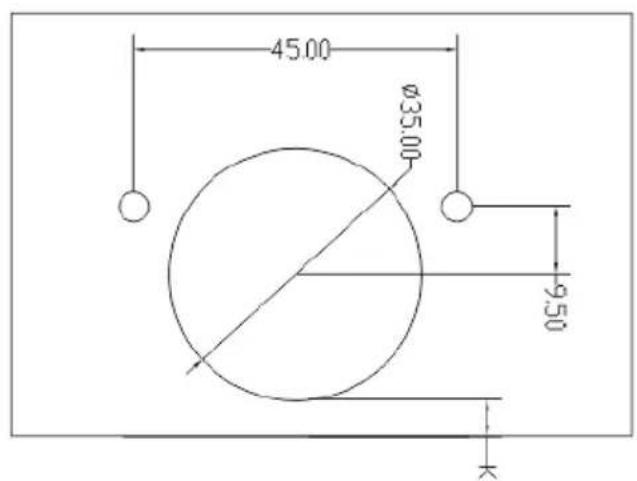

Technical line drawing of a mechanical hinge component with labeled points D and C (no text or symbols beyond labels)

C Overlay (Left/Right)

Adjustment:±1.0mm

D Overlay(Front/back)

Adjustment:±2.0mm

H\K	3	4	5	6
0	16	17	18	19

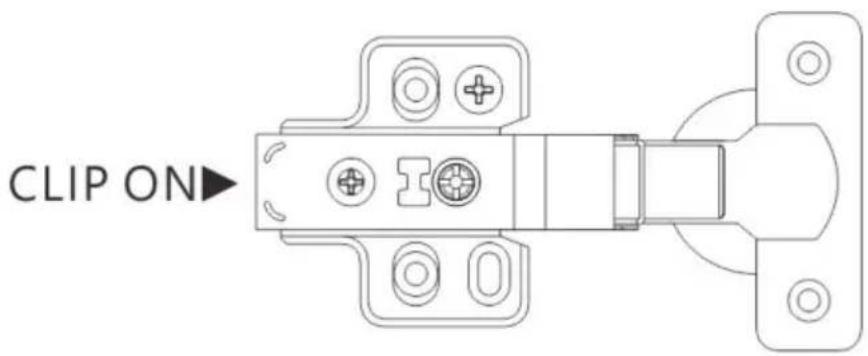

Φ35 CLIP ON ONE WAY HYDRAULIC BUFFERING HINGES

Metal-colored plastic hinge component with mounting holes and a central handle (no text or symbols visible)

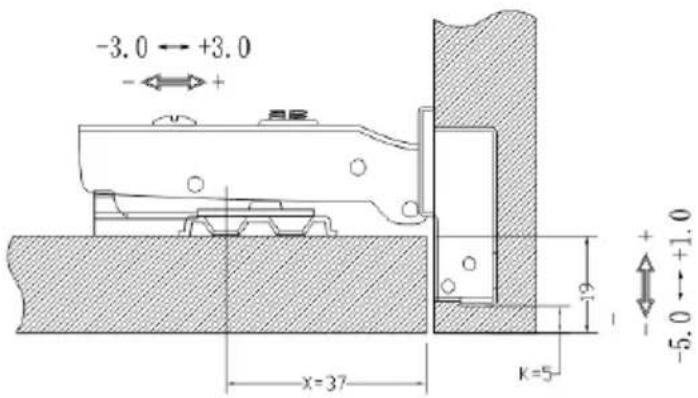

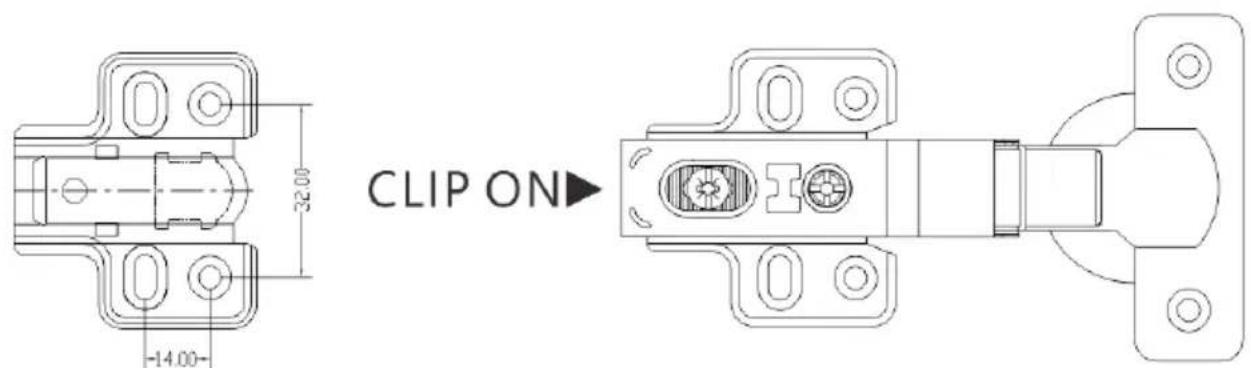

Adjustment Range:

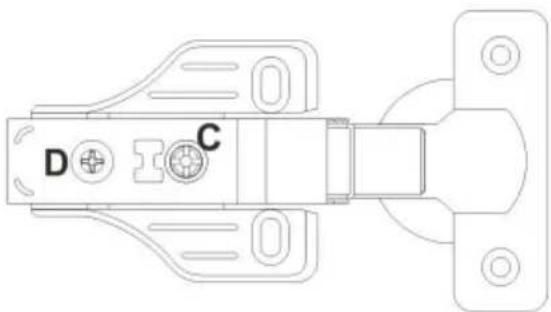

Technical line drawing of a mechanical hinge component with labeled parts D and C (no text or symbols beyond labels)

C Overlay(Left/Right)

Adjustment:±1.0mm

D Overlay(Front/back)

Adjustment:±3.0mm

H\K	3	4	5	6
0	16	17	18	19

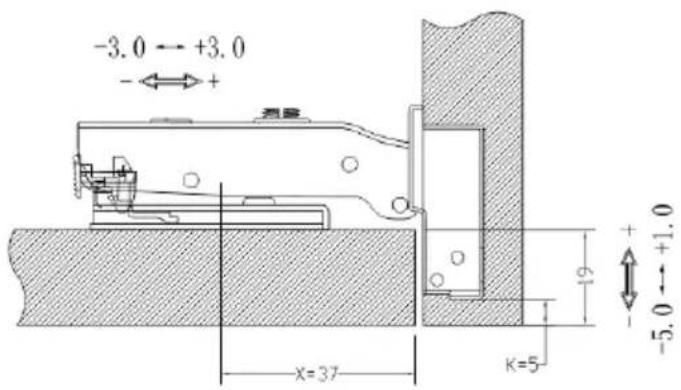

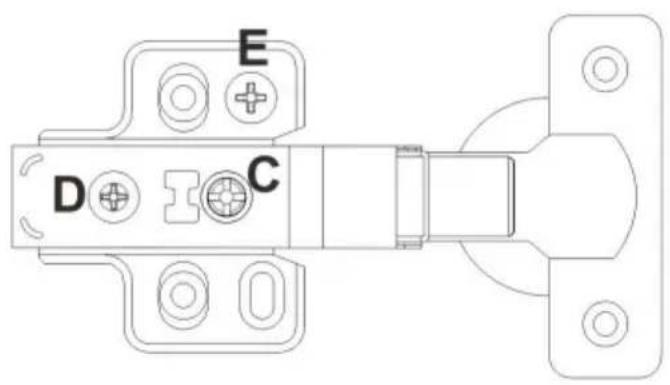

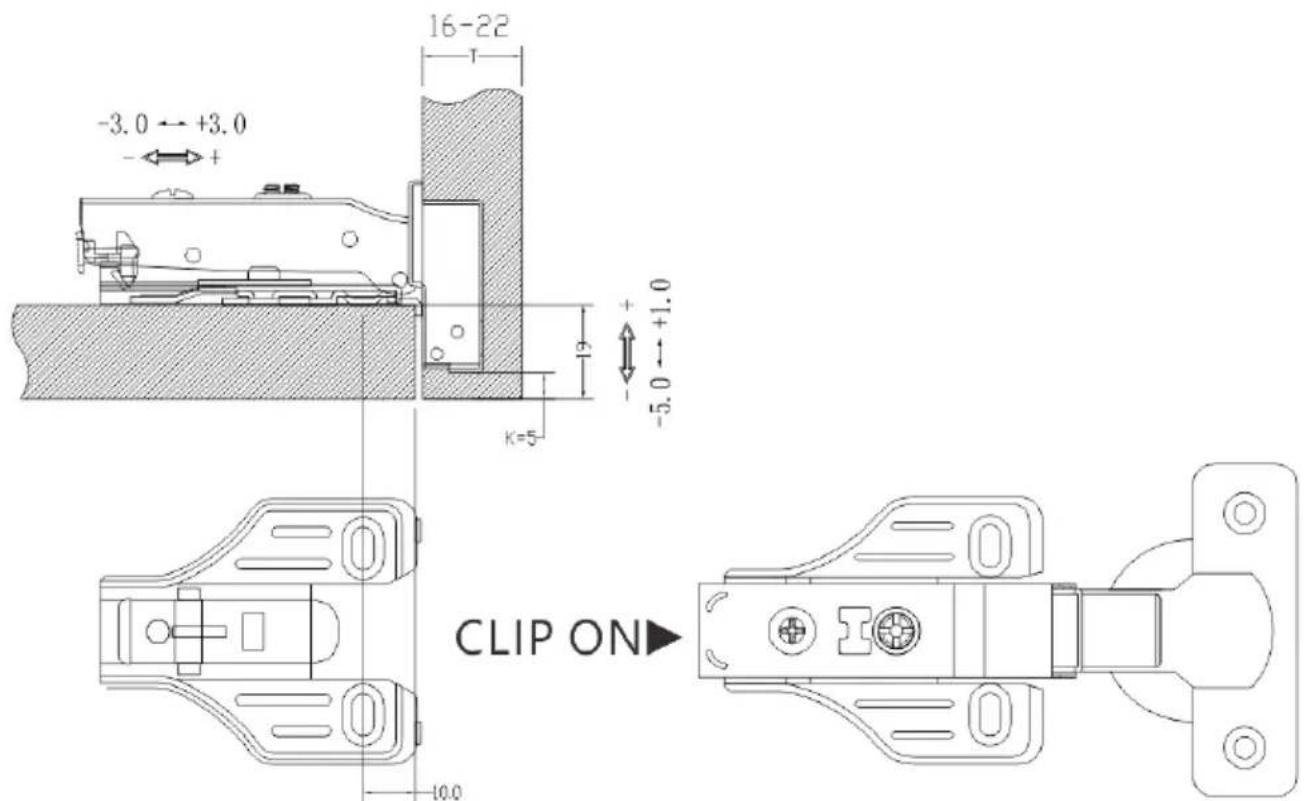

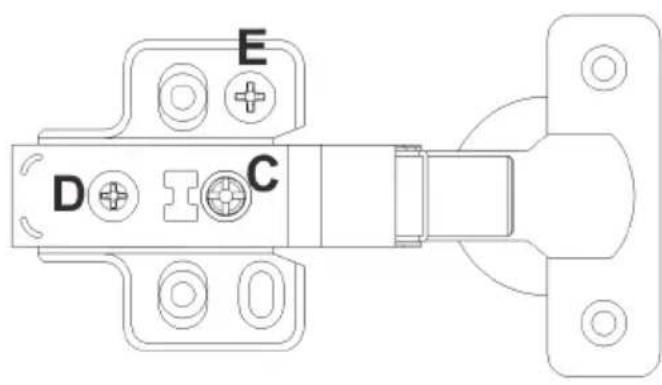

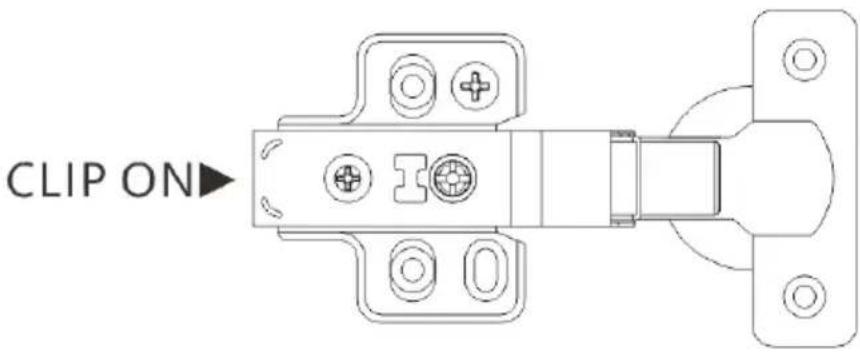

Φ35 CLIP ON ONE WAY (3D) SIX-WAY ADJUSATABLE HYDRAULIC BUFFERING HINGE

Metal-colored plastic hinge component with mounting holes and a central handle (no text or symbols visible)

Adjustment Range:

C Overlay(Left/Right)

Adjustment:±1.0mm

D Overlay(Front/back)

Adjustment:±3.0mm

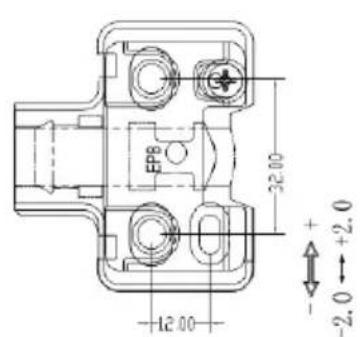

E Overlay(Up/down)

Adjustment:±2.0mm

H\K	3	4	5	6
0	16	17	18	19

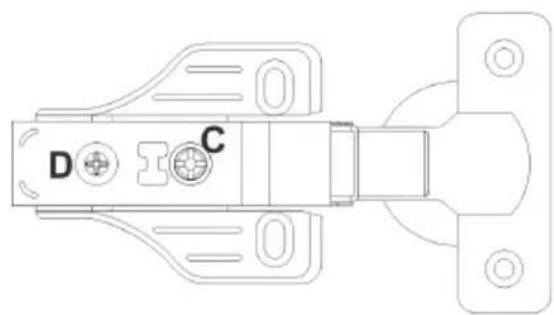

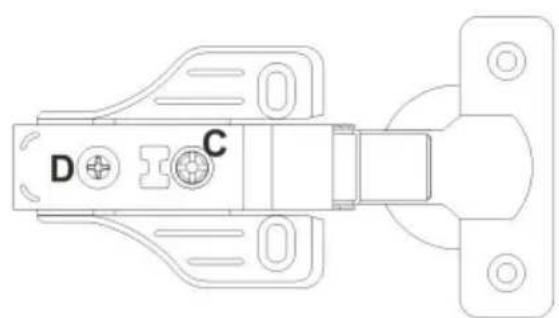

Φ35 CLIP ON ONE WAY(2D)FOUR-WAY ADJUSATABLE HYDRAULIC BUFFERING HINGES

Metal-colored plastic hinge component with mounting holes and a small inset view (no text or symbols visible)

Adjustment Range:

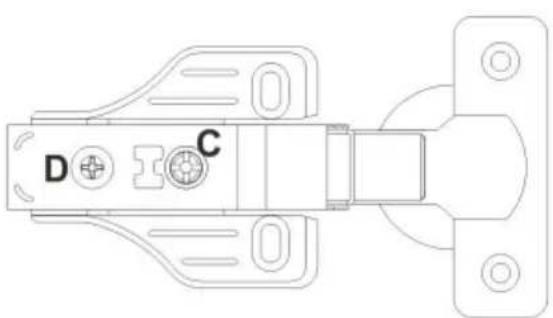

Technical line drawing of a mechanical component with labeled parts D and C (no text or symbols beyond labels)

C Overlay(Left/Right)

Adjustment:±1.0mm

D Overlay(Front/back)

Adjustment:±3.0mm

H\K	3	4	5	6
0	16	17	18	19
