USER MANUAL LD-821A Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

CORDLESS GREASE GUN USER MANUAL

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

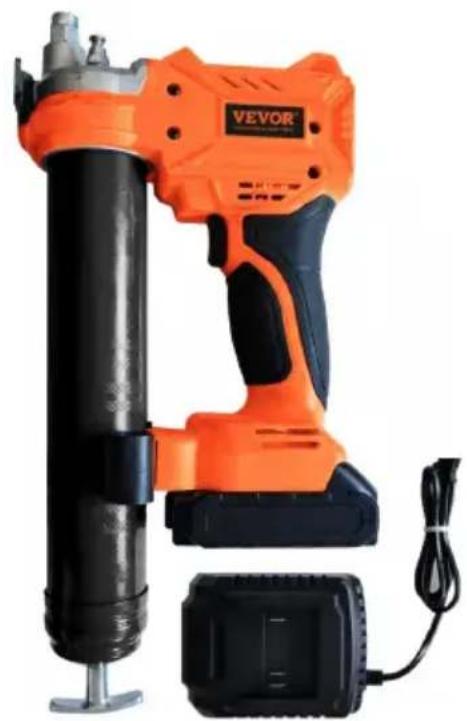

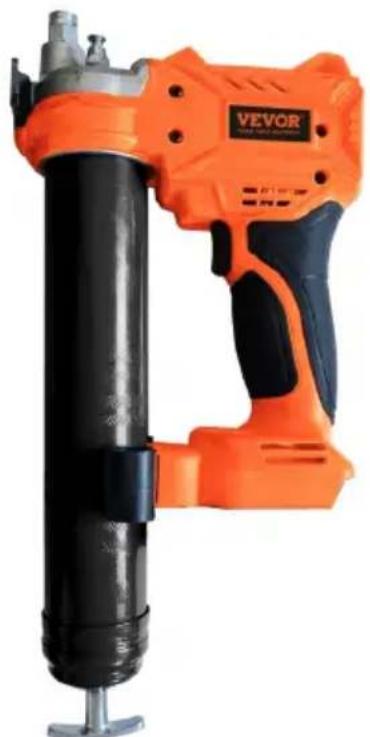

Model: LD-821A LD-821B / LD-821C

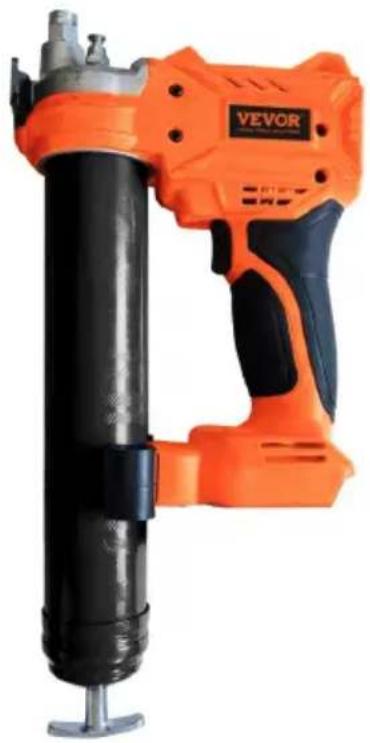

Orange Vevor electric drill press tool with black and black components (no visible text or symbols)

LD-821A

Orange VEVOR electric drill putter with black base and power cord, no visible text or symbols on the device body

LD-821B / LD-821C
Photo for reference

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING

1. Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating.
2. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury.

Specification

Model: LD-821A, LD-821B / LD-821Gsed 18V-21V is acceptable. And our tool's can be matched with Makita's battery

Model	With Battery or not	Plug type	Power	Charger
				Input	Output
LD-821A	No	Without	18.5V DC	Without
LD-821B	Yes	US	18.5V 2.0Ah	AC100-240V 50/60Hz	DC21V,2A
LD-821C	Yes	EU	18.5V 2.0Ah	AC220-240V 50/60Hz	DC21V,2A

The product has the following characteristics

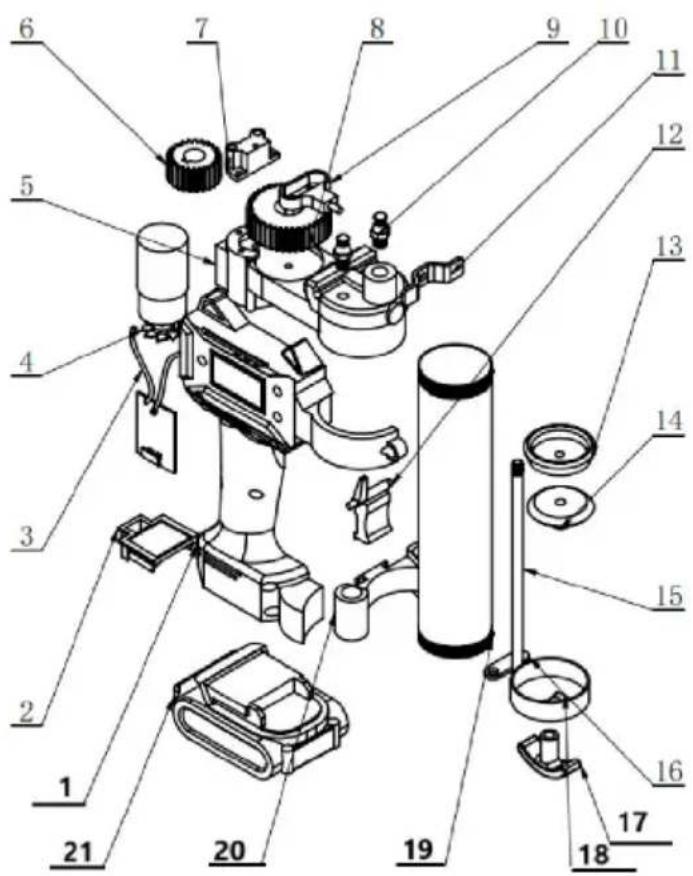

Exploded view diagram of a mechanical device with numbered parts for identification

Stable oil injection

Stable exhaust ensures smooth oil injection

Strong pressure

High oil injection pressure, continuous balance, quick and effective

Be easy to carry about

Comes with the car, saves time and effort, and is convenient and fast

Flexible and efficient use

It can be injected into any pa of the nozzle that can be extended oil in place

SN	Part No	Qty	SN	Part No	Qty
1	Shell - Left	1	12	Button switch	1
2	Lithium battery interfa	1	13	Rubber piston	1
3	Control board	1	14	Fixed components	1
4	electric machinery	1	15	Pull rod	1
5	Aluminum pump body	1	16	Insurance card	1
6	pinion	1	17	Aluminum handle	1
7	Gear cover	1	18	Oil cylinder cover	1
8	big gear wheel	1	19	Oil storage cylinder	1
9	Eccentric bearing sleeve	1	20	Gasket	1
10	Exhaust valve	1	21	Lithium battery pad	1
11	Foot support	1

Before using the inspection method, check if the work light will light up when the product is plugged in with a battery. In the case of no load, is the machine running normally

Instructions for using butter balls

step 1. Pull back the plunger rod handle and fill the barrel with grease.

Line drawing of a syringe with a handle and pointed tip (no text or symbols)

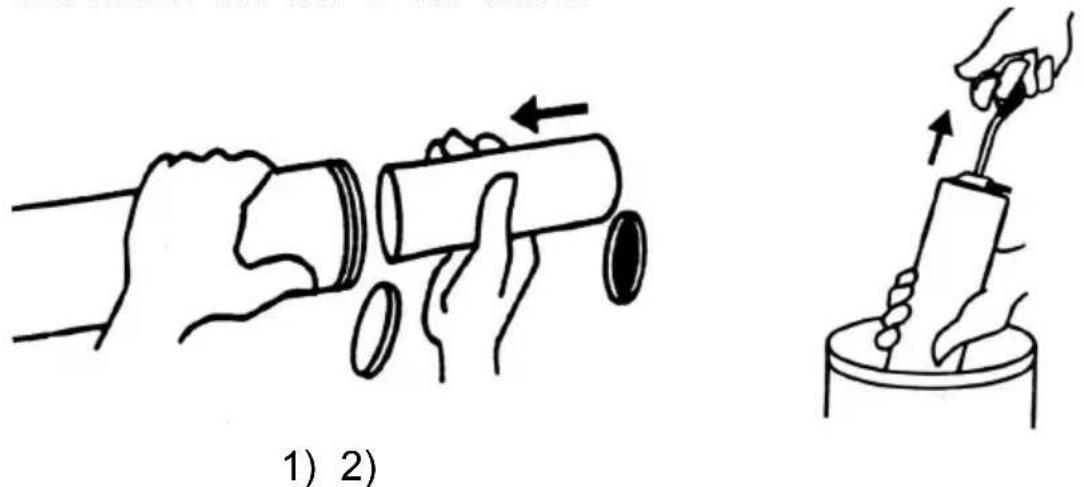

Grease filling options:

1) Cartridge Loading: Remove the plastic cap from the cartridge and insert the open end of the cartridge into the grease gun barrel until the rim of the pull-tab end meets the rim of the barrel.

2) Suction Fill: Insert the open end of the barrel about 2" into the grease container. Slowly pull the plunger rod handle to draw in grease into the empty barrel while pushing the barrel deeper into the grease until the plunger rod is completely extended. The outside surface may have a lot of grease stuck to it and should be wiped clean for safety. (it's hard to operate, for skilled operator)

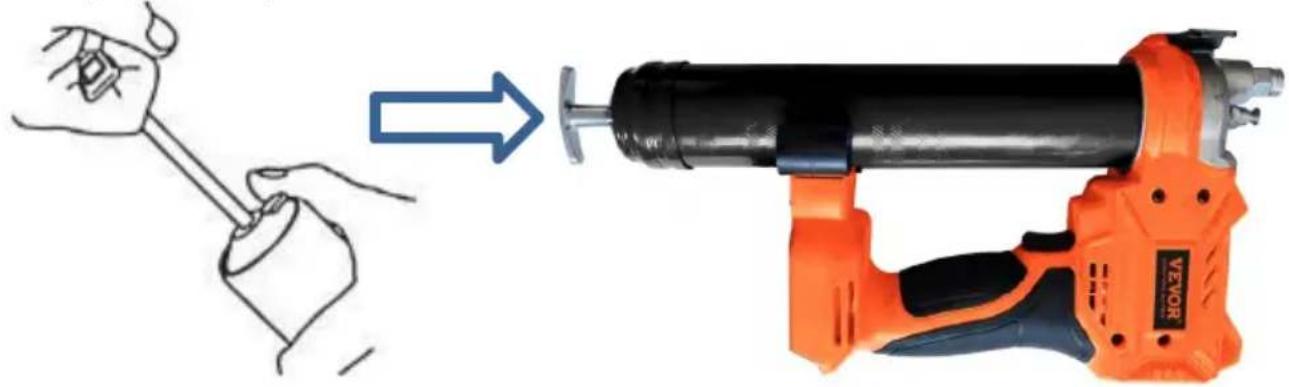

Step2: Assemble the barrel back into the grease gun. Activate the safety catch and push the push rod back into the Barrel.

Illustration of a hand using a tool to lift a cup, with an orange VEVOR electric drill being processed (no text or symbols)

As shown in the figure:

① Rotate and disassemble the dual-purpose gun barrel. Pull the inner chain of the gun barrel to the tail and secure it.
②Rotate the dual-purpose barrel to the muzzle. You can use it now.

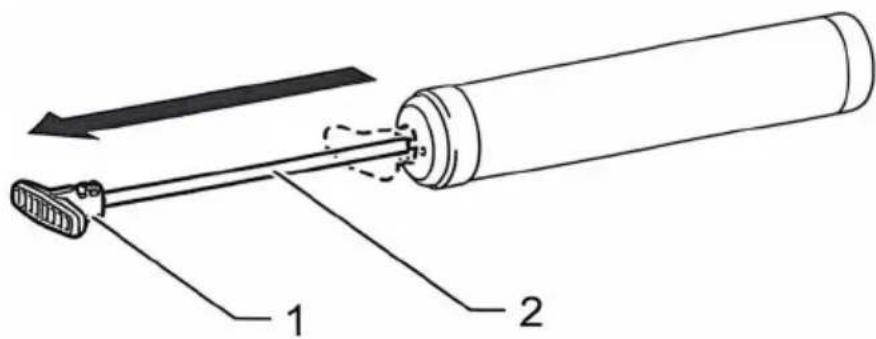

Rod handle

1) Pull the rod handle when installing grease in the barrel.

Diagram of a mechanical device with labeled parts 1 and 2, showing directional arrows and internal components.

1. Rod handle 2. Rod

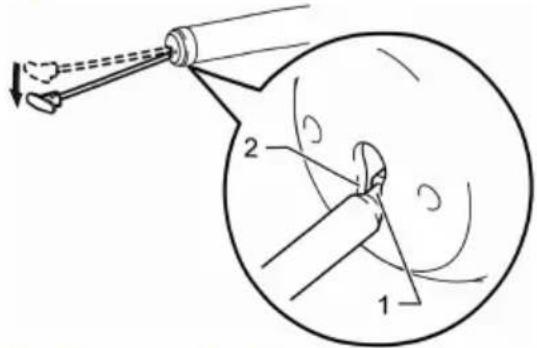

2) To lock the rod handle fully pulled, pull the rod handle until the groove on the rod can be seen, and then hook the groove onto the slot. To unlock the rod handle. unhook the groove so the rod moves forward.

Technical diagram showing a mechanical assembly with labeled parts 1 and 2, likely illustrating a tool or component in machining.

1. Groove 2. Slot

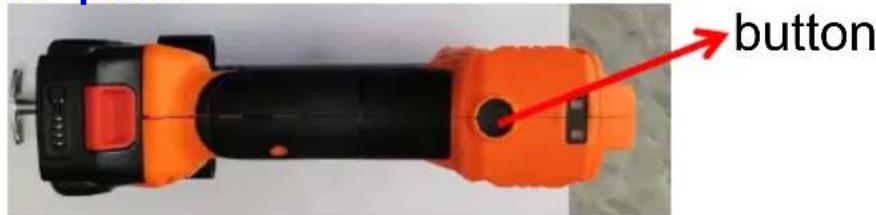

Function panel:

button

1) When click the button, The indicator light is displayed green, the tools can shoot Grease fast continuous.
2) When click the button, The indicator light is displayed red, the tools can show Grease fast continuous,

Battery usage method

Electrical safety:

① The charging method of the battery needs to be known: the plug of the lithium battery tool must match the socket. Please do not modify the plug; do not connect electric tools with grounding wires to any transformer plug Used together. Using unmodified plugs and matching sockets can reduce the danger of electric shock.

② The charging method of the battery needs to be known: the plug of the lithium battery tool must match the socket. Please do not modify the plug; do not connect electric tools with grounding wires to any transformer plug Used together Using unmodified plugs and matching sockets can reduce the danger of electric shock.
③ Lithium-ion tools should not be exposed to rain. Do not place it in a damp environment; water should flow into the electric tool Will increase the risk of electric shock.
④ When charging, the battery is strictly prohibited from being close to flammable, explosive, or corrosive materials, with a circumference of 15 meters. No debris should be placed inside, and multiple batteries should not be charged to prevent overloading of the circuit. Use to cause wire heating.
⑤ It is strictly prohibited to charge batteries on wooden, plastic, or other items.

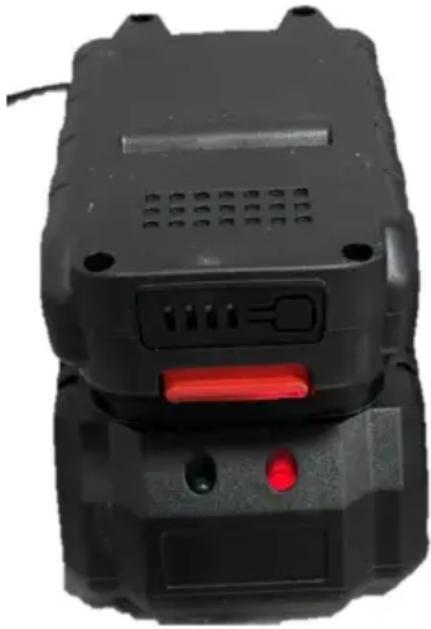

Black electronic device with red indicator lights and a grid of ports (no visible text or symbols)

Photo for reference

To charge the battery, line up the slot of the battery with the slot of the charger and slide into place.

The battery indicator light should turn from green to red when the battery is charging. When the indicator light has turned green the battery should be fully charged.

WARNING: Allow the battery to cool down before charging if the battery is hot after continuous use.

Charging method:

Before using the lithium grease gun, please charge the battery according to the following method

① insert the power plug of the battery charger into an appropriate AC voltage source, and the charging indicator light will turn green.
② Insert the DC plug of the charger into the DC socket of the battery box.
③ When connected to the power supply, the charger indicator light will turn red, and charging will begin. During the charging process, the indicator light will remain stable, and the red light will remain on.
④ When the charger indicator light changes from red to green, it indicates that the charging cycle is complete.
⑤ After charging, please unplug the power plug of the charger from the power plug.

Attention:

The battery charger is only used to charge the original factory battery box. Do not use it for other purposes or charge it with batteries from other manufacturers, when it comes to new products. When charging the battery case, it may not be fully charged. Please fully discharge it and charge it several times before charging. If charging a rechargeable battery that has just been used or has been exposed to direct sunlight or heat for a long time, the charging indicator light can be used. It will light up and turn green. Please wait for a while, as the battery pack will start charging once it cools down.

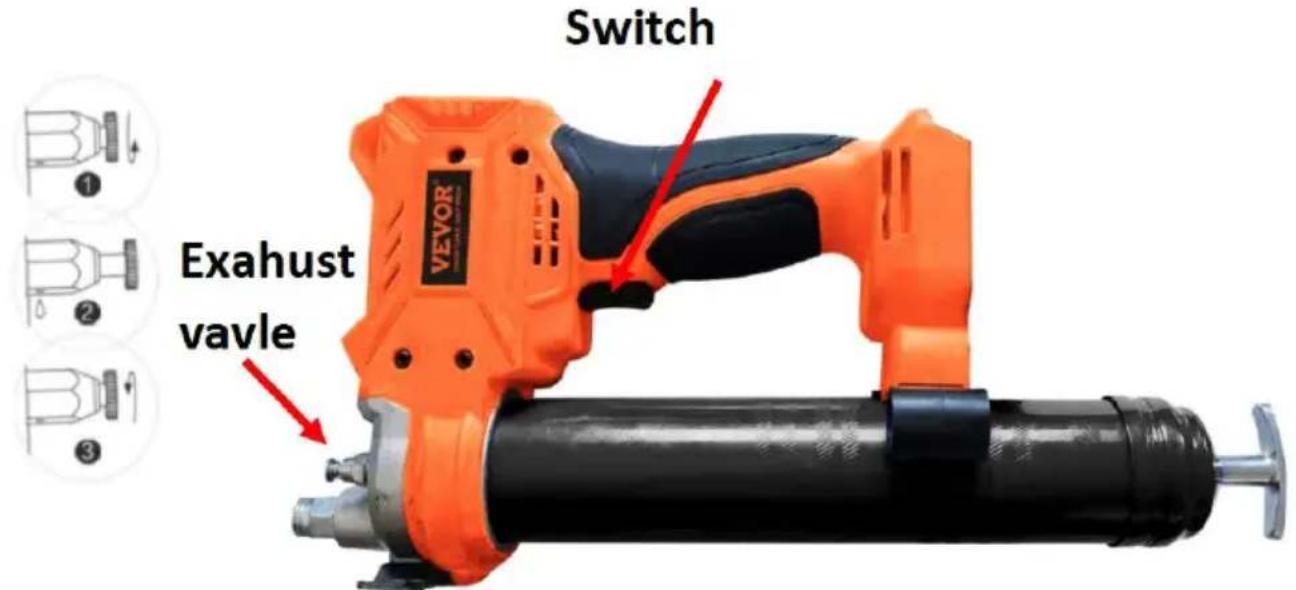

Switch Exhaust vavle

Problems that will occur during the oiling process and the solutions

1. Problem: The butter gun operates normally during use, but there is no butter discharged from the oil outlet nozzle. Reason: It may be due to the phenomenon of air being sucked in by the pipe during the oil suction process, causing the butter to be unable to be discharged normally or checking if the tail chain is stuck

2. Problem: Motor speed slows down. Reason: Oil circuit blockage, insufficient battery power

Press the switch to the exhaust and oil discharge diagram

Air exhaust operation method, as shown in the figure: Open the exhaust valve as shown in figure 9, rotate the exhaust valve twice, press the main switch until the exhaust valve releases to air and a small amount of grease, and then it can be used normally. If the oil still cannot be discharged normally, repeat this operation method to ensure normal discharge.

Product parameters of 18.5V lithium dual-purpose electric grease gun

Model: LD-8207, LD-8207A / LD-8207B

How many pipes of oil can be filled under no-load conditions: with a flat nozzle and a hose, six pipes can be filled. How many pipes of oil can be filled under load of 800 PSI: with a hose and a flat nozzle, four pipes can be filled.

Motor model: LY4815A

Battery voltage: 18.5V

Maximum working pressure: 6000PSI-8500PSI

Oil output per battery: 3200g with hose and flat nozzle+Oil output per minute: 110g-130g

Total oil output of two batteries: 6400g

Motor service life: over 140 hours

Time required to fully charge the battery: about1.5h

Battery charging output: 21V

Maximum pressure of hose: 10000PSI

Battery charging input: 100\~240V/50Hz for US version, 220\~240V/50Hz for EU version

Product material: Alloy steel

Working temperature: -20°C\~50°C

Working current: 4A-24A

1、Daily maintenance

1) After each use of the oil gun, wipe the outer shell clean and place it in the toolbox for proper storage
2) When not in use for a long time, drain the grease inside the transparent gun barrel completely.

2、Precautions

①Non professionals, please do not disassemble or repair the host. If there are quality issues that require repair, please contact the dealer and manufacturer's repair personnel.
②When using the product, please handle it with care and do not throw it high a will.
③ Use the specified type of grease according to the product specifications.
④Please wear professional protective equipment before using this product on construction sites and operating sites
⑤ Please do not aim the oil gun at the person's face during operation for safe operation
⑥ After the product is not in use, please remove the lithium battery. The lithium battery should be charged every 3 days, and the accessories of the product and the operation of the body should be checked regularly.
⑦Product storage conditions: ventilated and dry, independent storage, not mixed with other products.
⑧ Do not drop or collide the battery pack, and keep it away from sources of f
⑨ Regularly check the hose and do not excessively bend it during use.

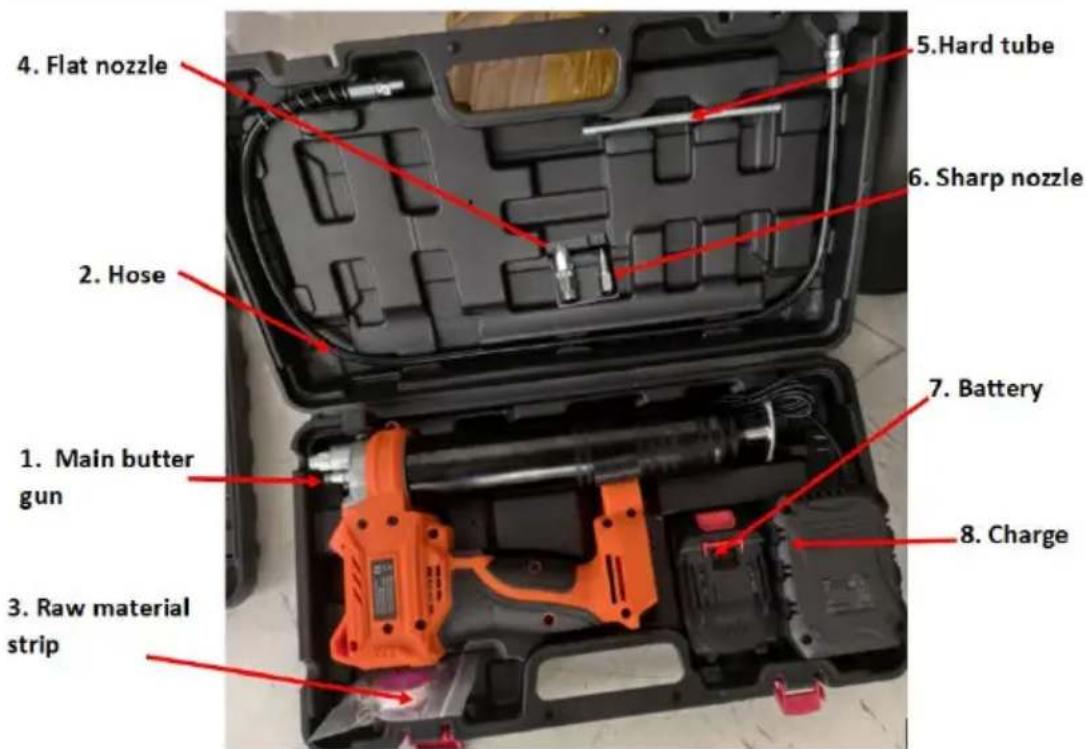

Introduction to Product Auxiliary Tools

(Only top of the line products include all accessories)

4. Flat nozzle 2. Hose 1. Main butter gun 3. Raw material strip 5. Hard tube 6. Sharp nozzle 7. Battery 8. Charge

1. Main butter gun 2. Hose, 3. Raw material strip, 4. Flat nozzle

2. Hard tube, 6. Sharp nozzle 7. Battery, 8. Charge

Comparison of benefits between electric butter guns and manual butter guns in one year

Project: 20 ton excavator

Electric	Manual
1 Working hours and lost time:8 minutes/day*219 days=29hours*180yuan/hour=5220 yuan/year	25 minutes/day*219 days=91hours*180yuan/hour=16400yuan/year
2 Fuel consumption:2900grams/day*219 days=197 kilograms=13barrels*200 yuan=2180 yuan/year	500 grams/day*219 days=109kilograms=7barrels*200yuan=1400 yuan/year
3 Machine maintenance+repair costs+loss of work costs4 axles*2000 yuan/axle=8000yuan/2years (repair cost)2400 yuan/day* 4 days=9600 yuan/2years (loss of work fee)Total: 13600 yuan/year	4 axles * 2000 yuan/axle=8000yuan/year(repair cost)2400yuan/day * 4 days=9600yuan/year(loss of work fee)Total:27200 yuan/year
4 Purchase price electric:1000 yuan/unit=500 yuan (2 years per unit)	150 yuan * 2=300 yuan (2 piece per year)
Total: 5220+2180+13600+500=21500yuan/year	Total:16400+1400+27200+300=45300yuan/year
Total price difference: 45300-21500= 23800 yuan/year

Comparison of benefits between electric grease guns and manual grease guns.

Warning - To reduce the risk of injury, user must read instruct manual carefully

Wear head protection

FCC Information:

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) This product may cause harmful interference.
2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party responsible for compliance could void the user's authority to operate the product.

Note: This product has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This product generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and receiver.
• Connect the product to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for assistance.

CORRECT DISPOSAL

This product is subject to the provision of European Directive 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be

discarded with normal domestic waste, but must be taken to a collection point for recycling electrical and electronic devices.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX
