GREASE GUN USER MANUAL

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

Grease Gun

MODEL: LD-868,LD-867A,LD-867B,LD-2710

LD-868	LD-867A	LD-867B	LD-2710

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING

1. Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating.

2. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury.

GENERAL SAFETY RULES

WARNING: Read and understand all instructions. Failure to follow all instructions listed below may result in serious injury.

Various dangers may occur if the hand lever grease gun is improper handled during installation, commissioning and daily operation.

Risk of injury and damage to material property because of improper handling.

Hold the manual at the disposal of the operating staff at the usage the unit.

Country-specific safety measures and accident prevention regulations must be observed.

Only qualified and authorized persons are allowed to operate the great gun.

Persons are qualified if they are, due to their training, experience, instruction and knowledge of the relevant standards, able to assess assigned tasks and to identify potentially hazardous situations.

All persons charged with installation, operation, maintenance and repair work, must have read and understood this operation instructions.

The grease gun is designed exclusively for the delivery of grease lubricants.

Any use beyond these parameters can lead to serious risks and is

regarded as use that is contrary to the intended purpose.

The operator is responsible for damages resulting from use other than intended use.

CAUTION: Excess pressure can result in the bursting of the grease head and of accessories!

Excess pressure at the greasing point can damage the grease nipple even the machine.

Comply with the machine manufacturer's maintenance and service instructions

Defective accessories can lead to personal injury and material damage. Grease hoses must not be kinked, twisted or stretched.

During their period of use, accessories must be checked for wear, crack and other damage.

Defective accessories should be replaced immediately.

Do not open the grease gun when it is under pressure!

Every time that the grease gun head and barrel are to be separated push rod must be fully retracted and automatically locked by means of safety catch.

Excess pressure can result in the bursting of the grease gun head a Equipment.

When using the grease gun, use suitable equipment such as protective gloves and eye protection

SAVE THESE INSTRUCTIONS.

Model	LD-867A	LD-867B	LD-2710	LD-868
Capacity	400CC	400CC	600CC	120CC
Maximum Pressure	6000PSI	6000PSI	10000PSI	3500PSI
Grease gun discharge connection	NPT 1/8	NPT 1/8	NPT 1/8	NPT 1/8
Grease Filling Options	Cartridge Loading	Cartridge Loading	Cartridge Loading	Cartridge Loading
	Suction Fill	Suction Fill	Suction Fill	/
	Filler Device Loading	Filler Device Loading	/	/
Material	Steel+Aluminium Alloy
Color	Black+Silver	Black+Silver	Black	Silver

LD-867A, LD-867B

1 2 3 4 5 6 7 8

1. Head
2. Air Release Valve
3. Movable Handle
4. Fix Handle
5. Barrel
6. Safety Catch
7. Plunger Rod Handle
8. End Cap

LD-2710

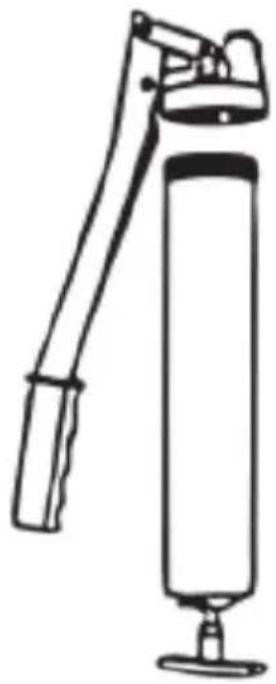

Labeled diagram of a mechanical device with numbered parts for identification

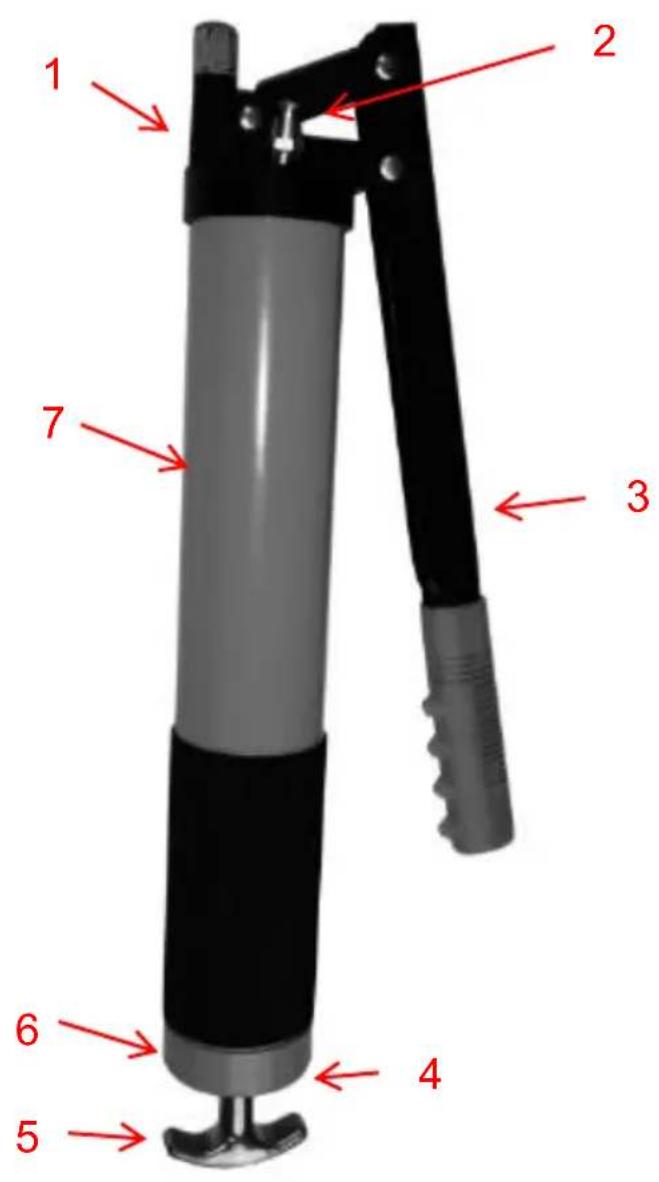

1. Head
2. Air Release Valve
3. Handle
4. Safety Catch
5. Plunger Rod Handle
6. End Cap
7. Barrel

1 2 3 4 5

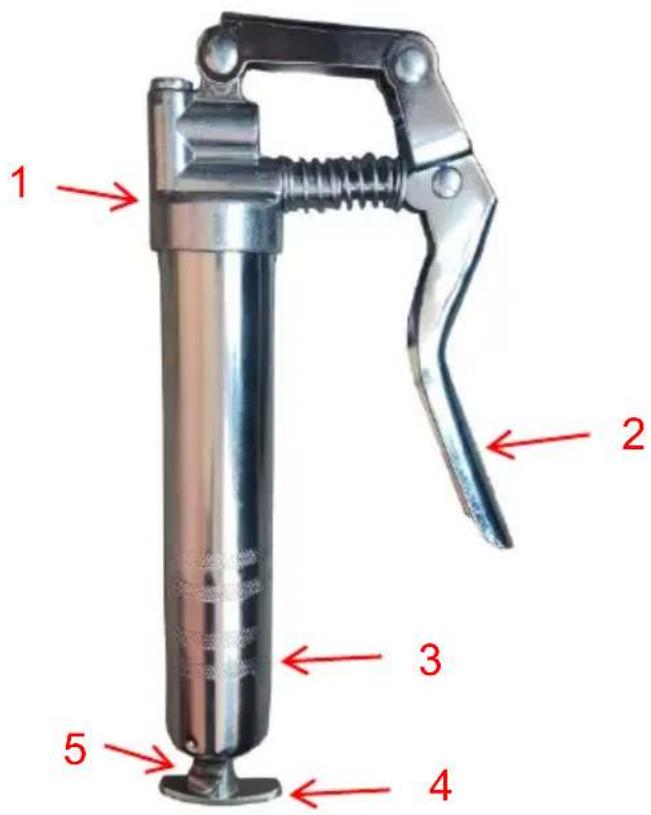

1. Head
2. Handle
3. Barrel
4. Plunger Rod Handle
5. Safety Catch

Parts\Mode	LD-867A	LD-867B	LD-2710	LD-868
Grease Gun	1	1	1	1
Grease Hose	1	1	1	1
Straight Metal Pipe	1	/	1	2
Bent Metal Pipe	1	1	/	/
Coupler	2	1	2	2
Pointed Coupler	1	1	/	/
Locking Clamp Coupler	1	/	/	/
Cleaning Cloth	1	/	/	/
Leakproof cap	1	1	/	/
Reinforced Nozzle	/	/	/	1
Grease Cartridge	/	/	/	1
User Manual	1	1	1	1

Step1: Hold the head of the grease gun and unscrew the barrel.

Take LD-2710 as an exam

Line drawing of a fire extinguisher with lever and base mount (no text or symbols)

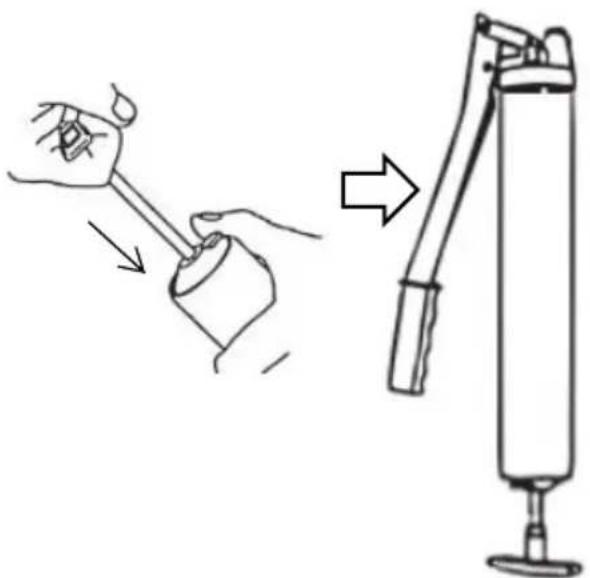

Step2: Pull back the plunger rod handle and fill the barrel with grease.

Simple line drawing of a syringe with a pointed tip (no text or symbols)

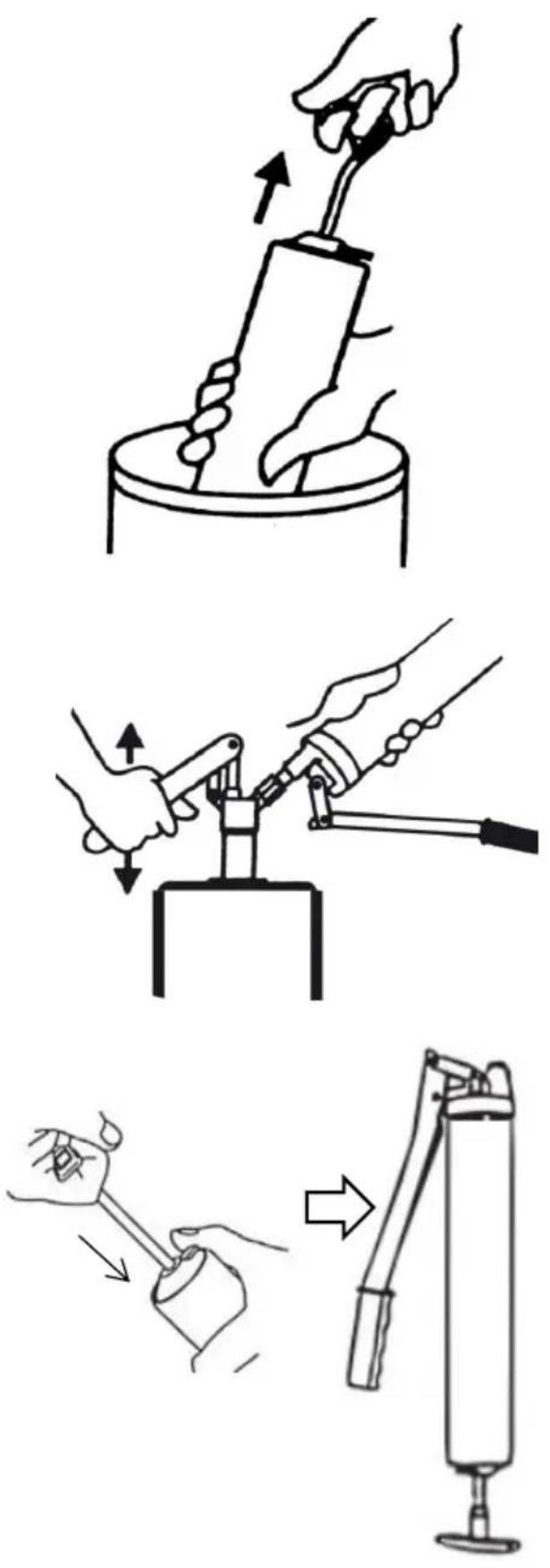

Grease filling options:

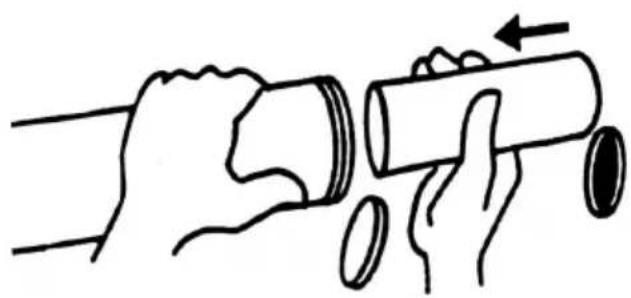

Cartridge Loading: Remove the plastic cap from the cartridge and insert the open end of cartridge into the grease gun barrel until the rim of the pull-tab end meets the rim the barrel.

Hand holding a cylindrical object with coins inserted, no text or symbols present

Suction Fill: Insert the open end of the barrel about 2" into the gelt container. Slowly pull the plunger rod handle to draw in grease the empty barrel while pushing barrel deeper into the grease of the plunger rod is completely extended. The outside surface may have a lot of grease stud it and should be wiped clean safety.

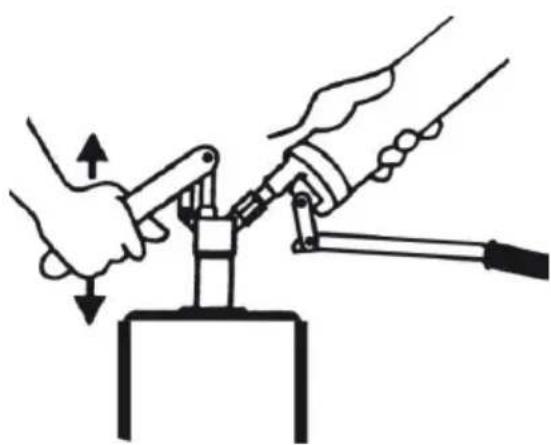

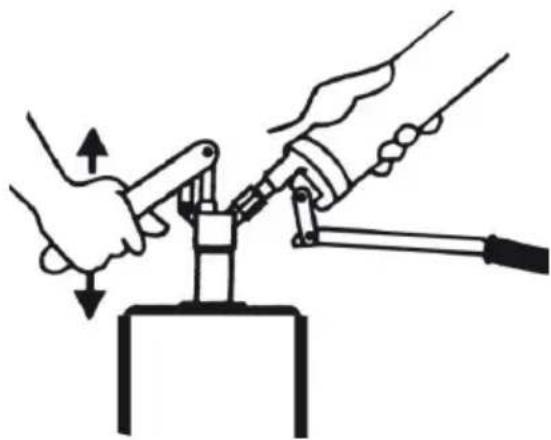

Grease Gun Filling Device: Pla the grease gun onto the filling valve of the grease gun filling and hold it in place with light counter pressure.

Fill the grease gun by activatir the filling device.

Step3: Assemble the barrel back into the grease gun. Activate the safety catch and push the pus rod back into the Barrel.

Step4: Exhaust air by pressing the air release valve or loosening the head and barrel (half a turn maximum) or by repeatedly actuating the handle.

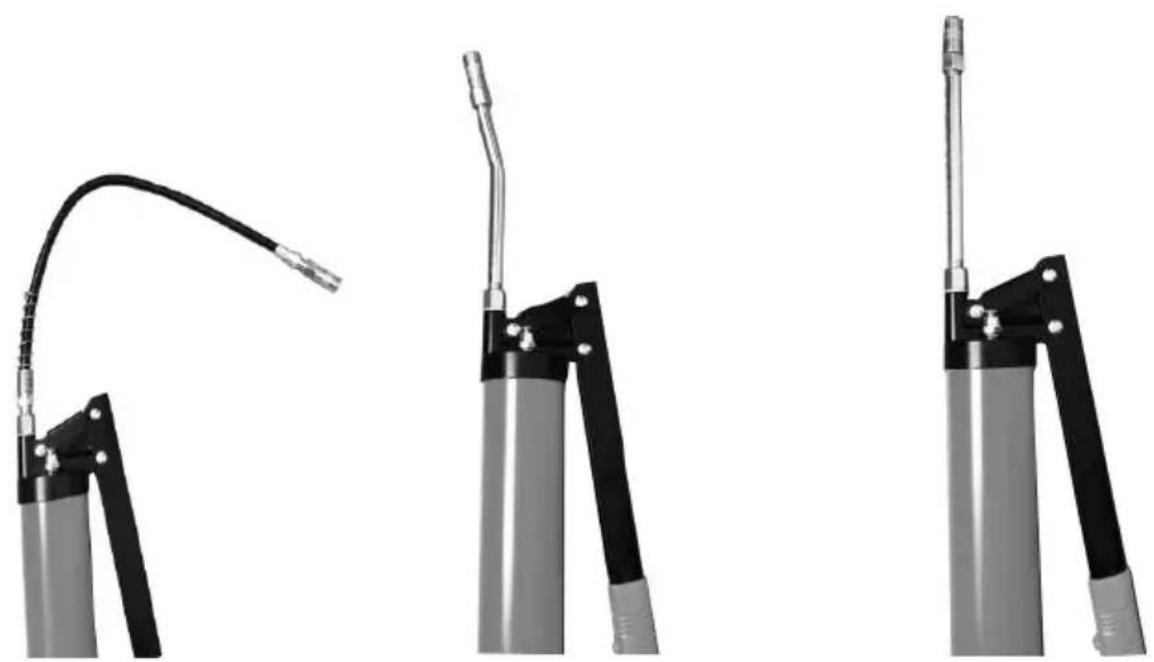

Step5: Install the required fittings as required as shown below.(Fig 1, F Fig 3)

Note: If necessary, wrap 3\~5 loops of raw material tape around the

Three mechanical components with black and gray parts, one curved and two angled (no text or symbols visible)

Fig 1. Fig 2. Fig 3.

Step6: Press the coupler straight onto the grease fitting, Start operating handle for grease filling.

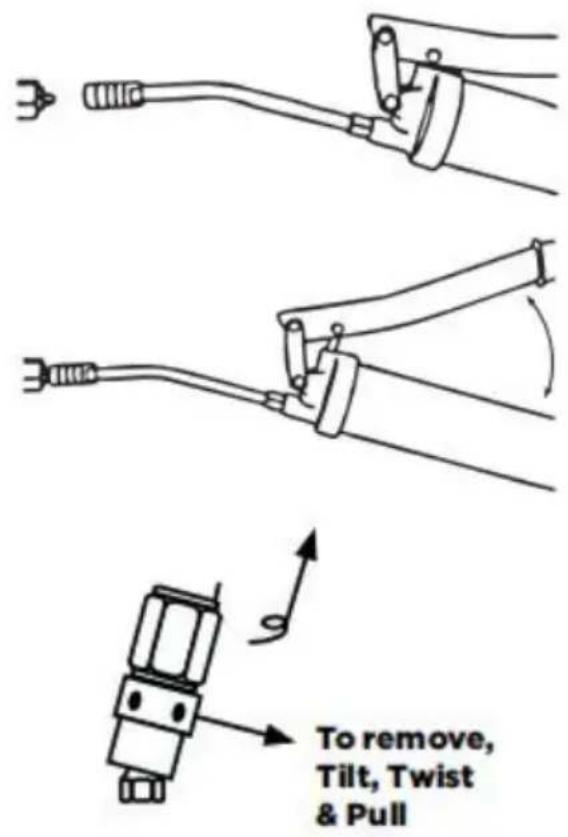

Once greasing is done, slightly tilt the coupler, twist and pull back. T and twist action will allow easy removal of the coupler from the great fitting.

To remove, Tilt, Twist & Pull

Above are the LD-2710 operations. The operations of the LD-868, LD-867A, LD-867B are the same as that of LD-2710.

TROUBLESHOOTING

Problem	Possible Cause	Possible Solution
Grease gun pumps little or no grease	Air is trapped in grease	Empty air
	Blocked hose	Clean or replace the hose
	Grease too thick or col	Store grease gun and grease away from extreme cold or use thinner grease
Excessive grease leaks out from the back side the grease gun around the plunger rod	Rubber follower is damaged	Replace the grease gun
Grease leaks from the connection between the grease gun head & the extension or between extension & coupler	Loose connection	Tighten the connection using raw material tape

MAINTENANCE

Before each use, inspect general condition of Grease Gun. Check for cracked or damaged parts, misaligned or bending of moving parts, lead connections, and any other condition that may affect product's safe operation. If a problem occurs, have the problem corrected before further use. Do not use damaged equipment.

After every use, dry with a soft cloth, remove all grease and debris Grease Gun. Do not use solvents to clean or immerse in any liquids

When storing, keep in a clean, dry and safe location away from child

All maintenance, service, and repairs not discussed in manual should be performed by qualified service technician.

Sanven Technology Ltd.

Address: Suite 250, 9166 Anaheim Place,

Rancho Cucamonga, CA 91730

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

Grease Gun

MODÈLE : LD-8 68, LD-867A, LD-867 B, LD-2710

LD-8 68	LD-867A	LD-867 B	LD-2710

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING

Labeled diagram of a mechanical device with numbered parts for identification

Line drawing of a fire extinguisher with lever and base mount (no text or symbols)

Simple line drawing of a syringe with a handle and spout (no text or symbols)

Hand holding a cylindrical object with a directional arrow indicating movement (no text or symbols)

Illustration of a hand using a tool to press or install a cylindrical object on a rotating stand (no text or symbols)

Illustration of two hands operating a mechanical clamp or lever system (no text or symbols present)

Illustration showing a hand holding a cup and a syringe with an arrow indicating motion (no text or symbols)

Three industrial robotic arms with black and gray components, shown from different angles (no text or symbols visible)

Fig 1. Fig 2. Fig 3.

To remove, Tilt, Twist & Pull

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

Grease Gun

MODELL: LD-8 68, LD-867A, LD-867 B, LD-2710

LD-8 68	LD-867A	LD-867 B	LD-2710

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING

Labeled diagram of a mechanical device with numbered parts and directional arrows indicating assembly or movement.

Line drawing of a fire extinguisher with lever and base mount (no text or symbols)

Simple line drawing of a syringe with a pointed tip (no text or symbols)

Hand holding a cylindrical object with a coin inserted, no text or symbols present

Illustration of a hand using a tool to lift a cylindrical object, with an arrow indicating motion (no text or symbols)

Illustration of two hands operating a mechanical clamp or tool (no text or symbols present)

Illustration showing a hand holding a cup and a syringe being inserted, with no text or symbols present.

To remove, Tilt, Twist & Pull

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

Grease Gun

MODELLO: LD-8 68, LD-867A, LD-867 B, LD-2710

LD-8 68	Modello LD-867A	LD-867B .	LD-2710

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your use, there are any technology or software updates on our product.

WARNING

Line drawing of a fire extinguisher with lever and base mount (no text or symbols)

Simple line drawing of a syringe with a handle and spout (no text or symbols)

Hand holding a cylindrical object with a directional arrow indicating movement (no text or symbols)

Illustration of a hand using a tool to press or install a cylindrical object on a stand (no text or symbols present)

Illustration of two hands operating a mechanical clamp or lever system (no text or symbols present)

Illustration showing a hand holding a cup and a syringe with an arrow indicating motion (no text or symbols)

Rancho Cucamonga, CA 91730

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

Grease Gun

MODELO: LD-868, LD-867A, LD-867B, LD-2710

LD-8 68	LD-867A	LD-867 B	LD-2710

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your use, there are any technology or software updates on our product.

WARNING

Line drawing of a fire extinguisher with lever and base mount (no text or symbols)

Simple line drawing of a syringe with a handle and spout (no text or symbols)

Hand holding a cylindrical object with a directional arrow indicating movement (no text or symbols)

Illustration of a hand using a tool to press or interact with a cylindrical object, no text or symbols present

Illustration of two hands operating a mechanical clamp or lever (no text or symbols present)

Illustration showing a hand holding a cup and a syringe with an arrow indicating motion (no text or symbols)

To remove, Tilt, Twist & Pull

Rancho Cucamonga, CA 91730

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

Grease Gun

MODEL: LD-8 68, LD-867A, LD-867 B, LD-2710

LD-8 68	LD-867A	LD- 867B	LD-2710

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING

Line drawing of a fire extinguisher with lever and base mount (no text or symbols)

Simple line drawing of a syringe with a pointed tip (no text or symbols)

Opcje napełniania

tłuszczem:

Hand holding a cylindrical object with a coin inserted, no text or symbols present

Illustration of a hand using a tool to lift a cylindrical object, with an arrow indicating motion (no text or symbols)

Illustration of two hands operating a mechanical clamp or lever system (no text or symbols present)

Illustration showing a hand holding a cup and a syringe being inserted, with no text or symbols present.

To remove, Tilt, Twist & Pull

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

Grease Gun

MODEL: LD-868, LD-867A, LD-867B, LD-2710

LD-8 68	LD-867A	LD- 867B	LD-2710

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your use, there are any technology or software updates on our product.

WARNING

Line drawing of a fire extinguisher with lever and base mount (no text or symbols)

Simple line drawing of a syringe with a pointed tip (no text or symbols)

Hand holding a cylindrical object with a coin inserted, no text or symbols present

Illustration of a hand using a tool to lift a cylindrical object, with an arrow indicating motion (no text or symbols)

Illustration of two hands operating a mechanical clamp or tool (no text or symbols present)

Illustration showing a hand holding a cup and a syringe with an arrow indicating motion (no text or symbols)

Three mechanical components with black and gray parts, one with a curved cable or wire, shown from different angles (no text or symbols visible)

Figuur 1. Figuur 2. Figuur 3.

To remove, Tilt, Twist & Pull

Rancho Cucamonga, CA 91730

VEVOR®

TOUGH TOOLS, HALF PRICE

Technisch Ondersteuning en E-garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

Grease Gun

MODELL: LD-8 68, LD-867A, LD-867 B, LD-2710

LD-8 68	LD-867A	LD-867 B	LD-2710

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your use, there are any technology or software updates on our product.

WARNING

Labeled diagram of a manual hand pump tool with numbered parts for identification

Line drawing of a fire extinguisher with lever and base mount (no text or symbols)

Simple line drawing of a syringe with a handle and spout (no text or symbols)

Simple line drawing of a hand holding a cylindrical object with a coin inserted, no text or symbols present

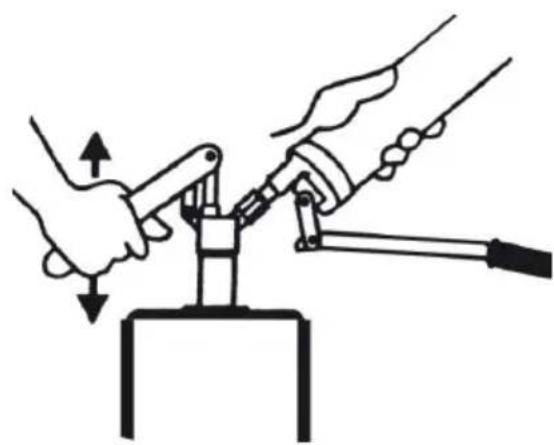

Diagram illustrating three different manual labor techniques for a mechanical device, showing hand positioning and tool application steps.

Three mechanical components with black and gray parts, one showing a curved cable or wire (no text or symbols visible)

Fig 1. Fig 2. Fig 3.

To remove, Tilt, Twist & Pull

Adress: Suite 250, 9166 Anaheim Place,

Rancho Cucamonga, CA 91730

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support
