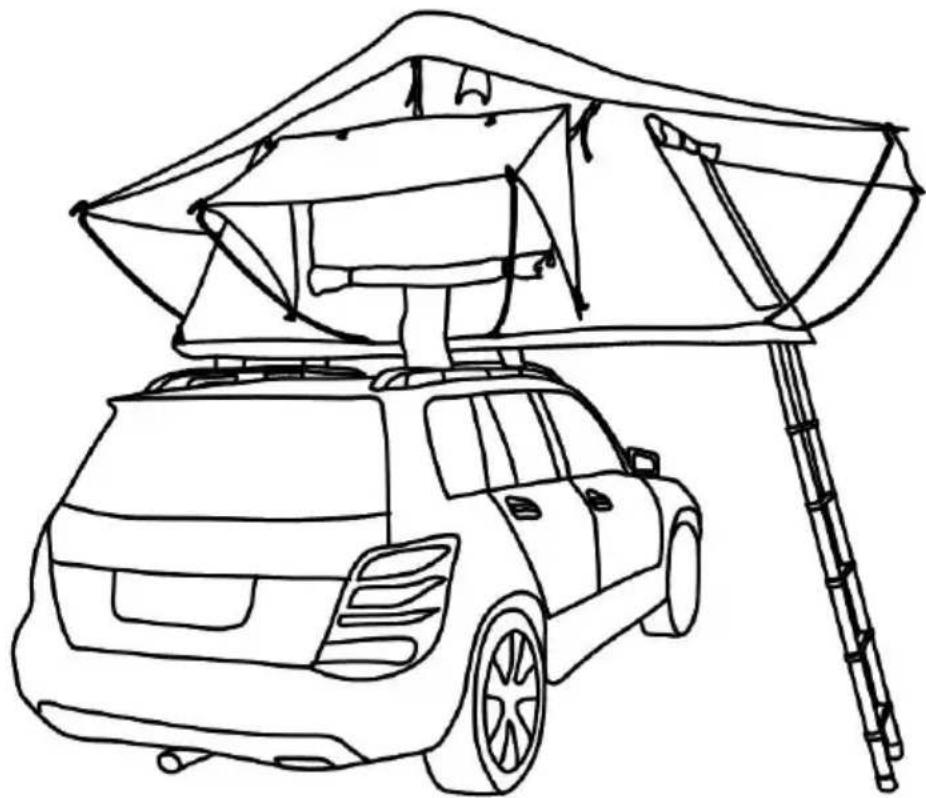

ROOFTOP TENT

LY-RD0619/ LY-RD0614

Line drawing of a car with a roof-mounted structure and ladder, no text or symbols present

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your data on our product.

INTRODUCTION

WARNING:

PLEASE READ AND UNDERSTAND ALL DETAILS BEFORE ASSEMBLY AND USE OF THE ROOFTOP TENT.

WARNING!

■ If you have any back, knee or any other health complications, do not atte to mount the roof tent on your vehicle.
■ Your vehicle must have a roof rack or cross bars installed in order to make the roof tent.
■ The cross bars must have a dynamic weight load of at least 600 lbs (27 and must be at least 30" (76cm) apart.
■ It is easiest to mount the roof tent from the side of your vehicle, not from front or the back.

Save the instructions.

PRODUCT PAREMETERS

Model	LED Lights	Occupant Capacity	Vehicle Service Type	Vehicle Load Capacity	Tent Size
LY-RD 0619	DC5V, 3W	2 adults & 1 Children	Minivan, Suv, Car, Pickup Truck	>600 lbs	3400*3100*1320 mm
LY-RD 0614	DC5V, 3W	2 adults & 1 children	Minivan, Suv, Car, Pickup Truck	>600 lbs	3360*2650*1320 mm

PART LIST

When unpacking this product, ensure the parts listed below are includ and carefully inspect for any damage that may have occurred during Do not attempt to assemble or use the product if any part is missin damaged.

NO	PART NAME	QTY	PICTURE
1	Tent	1
2	Track	2
3	Aluminum Ladder	1
4	Steel Bar Pole	10/8
5	External Hexagonal Screw M8 * 55	8
6	Anti Loosening Nut M8	8
7	Flat Gasket 8	8
8	Track Cover	4
9	Long Hole Steel Sheet	4
10	Slider	8
11	Open End Wrench	2
12	Ladder Seat	2
13	External Hexagonal Screw M6 * 40	10
14	External Hexagonal Screw M6 * 20	2
15	Anti Loosening Nut M6	12
16	Plastic Gasket	2
17	Flat Washer 6	12
18	Large Flat Gasket 6 *	6
19	Double Hook Elastic Rope	4
20	Tool Bag	1
21	Reinforcement Bag	1
22	Outer Cover	1

INSTALLATION PRECAUTIONS

Direction of Opening

Before you fit your new rooftop tent to your vehicle, you will need to whether you wish to have

the rooftop tent open to the back or to the side of your vehicle.

A. “Off the Back”

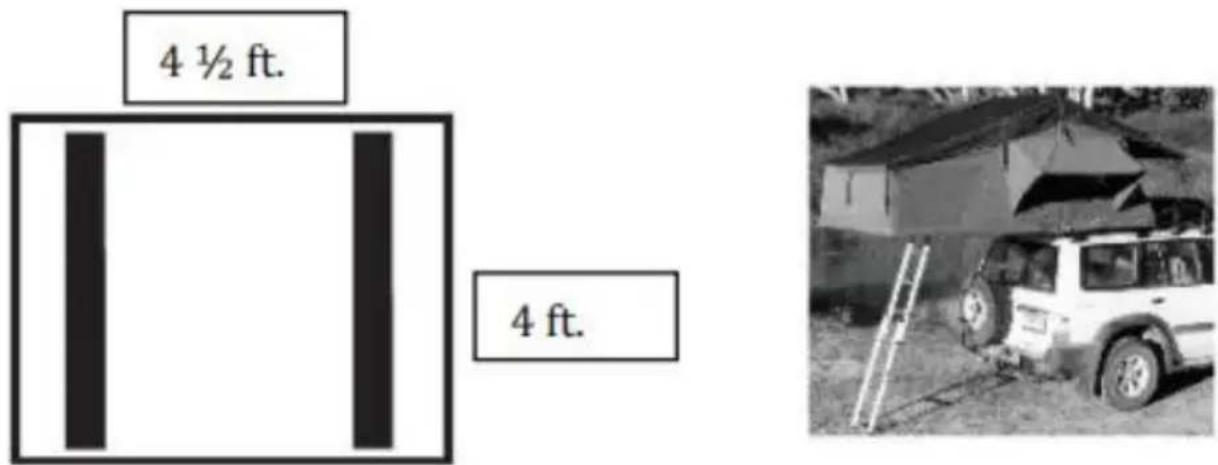

For most larger size ( SUV) vehicles opening “off the back” is prefer. The advantages of this

orientation are:

● Leaves extra roof space for additional storage.
- With the tent open you will gain weather protection from the tent you head when accessing the back of your vehicle.

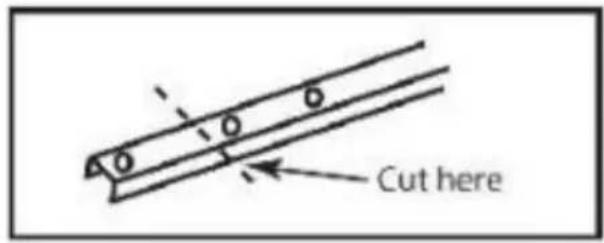

The mounting extrusions need to be cut off at both ends up to the pre-drilled hole, prior to being fitted to the base of the rooftop tent.

Cut here

The mounting extrusions are then bolted to the base of the tent at angles to the roof rack or roof bars, in the direction of opening (alone length of the tent base).

4 ½ ft. 4 ft.

B. "Off the Side"

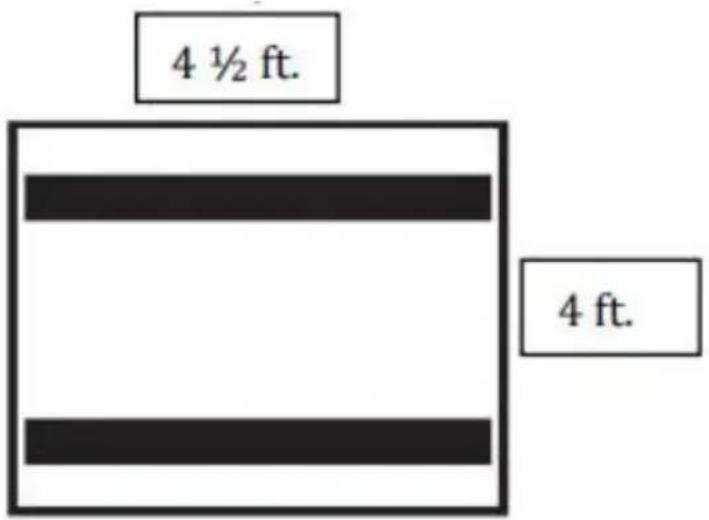

For most medium (such as Jeep Wrangler) or small vehicles opening the side" is preferable. The advantages of this orientation are:

• Allows for tailgates to operate normally.
• Means the closed tent pack is better balanced on the roof and cre less wind drag as the narrow face of the tent pack is travelling

The mounting extrusions bolt to the base of the tent at right angles roof rack or roof bars (across the width of the tent base).

4 ½ ft. 4 ft.

INSTALLATION METHODS

Model:LY-RD0619/ LY-RD0614

Step 1:

Unfasten the cover strap and then remove the cover from the te unfastening the Velcro around the edge and then carefully fold th over to the side. (Fig A, B).

Step 2:

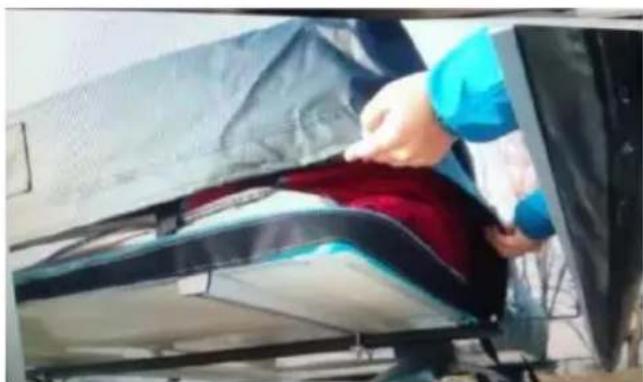

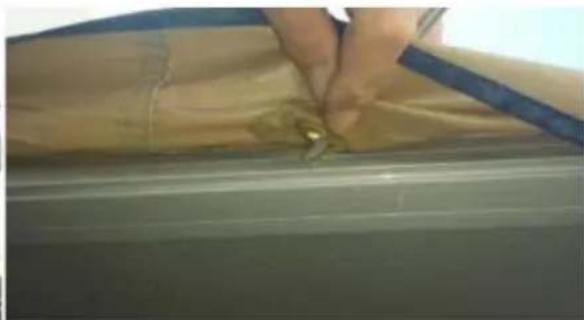

Release the hold down Velcro straps on each side of the tent (I

Person installing a red car body on a flat-screen TV (no visible text or symbols)

(Fig A)

Close-up of a hand cleaning a car's side panel (no visible text or symbols)

(Fig B)

Close-up of a car seatbelt buckle and belt against a textured background (no visible text or symbols)

(Fig C)

Step 3:

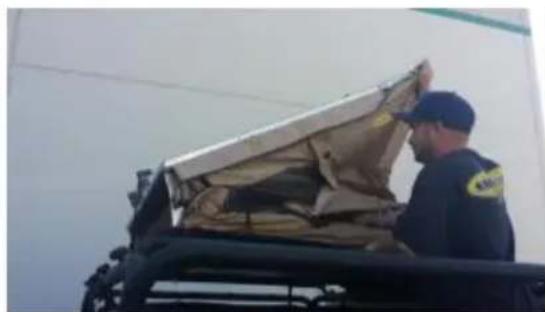

Slide out the ladder until locking pins engage. The ladder can not as a lever to help open the tent. Carefully fold open tent. (Fig 1) the ladder on the ground. Note: if ladder is too vertical you will ladder extension. The ladder should be at an angle not straight

Person in uniform inspecting a large open airbag on a truck (no visible text or symbols)

(Fig D)

Interior view of a room with an open trunk and a hand holding a tool, no visible text or symbols

(Fig E)

Exterior view of an orange vehicle with a metal ladder attached to its roof (no visible text or symbols)

(Fig F)

Step 4:

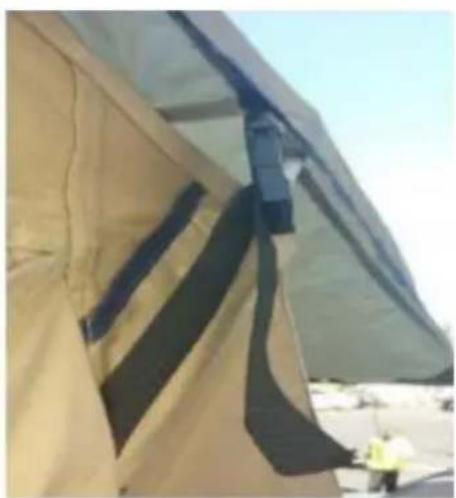

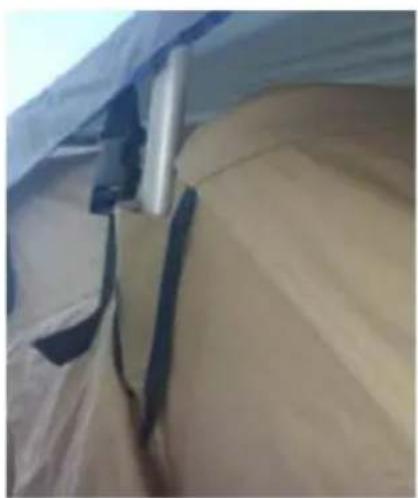

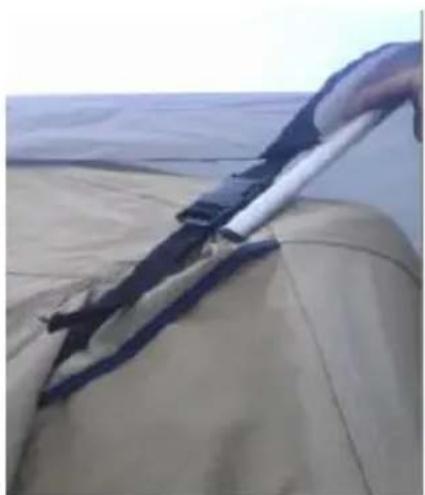

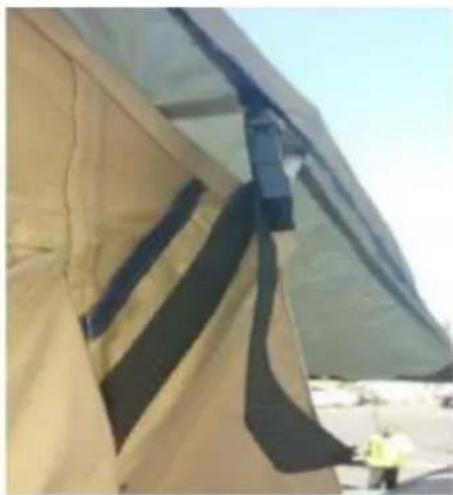

If using the rain fly, slide the ends of the rain fly poles into the side of the tent. After the poles are set into pockets and you installed the side rods in the next step, go back and tighten the release straps/buckles on the sides of the rain fly. (G, H, I)

Close-up of a person using a cable device on a beige fabric surface, with no visible text or symbols.

(Fig G)

Close-up of a beige fabric or material surface with dark bands and a metallic bracket, no visible text or symbols.

(Fig H)

Exterior view of a building corner with beige and dark fabric panels, no visible text or symbols

(Fig I)

Step 5:

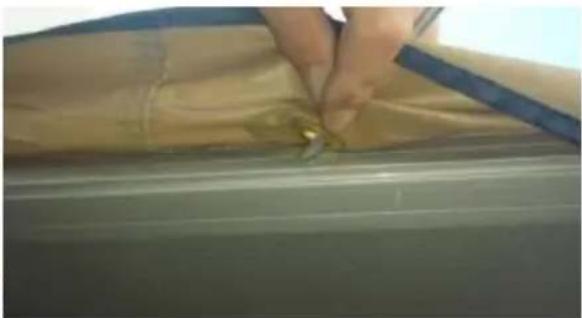

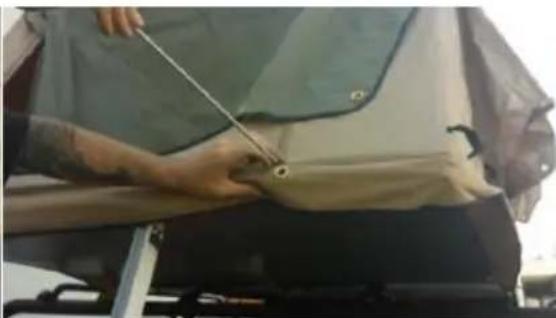

You can now enter your tent. Install door/window cover rods. Line grommet on the base of the tent with the predrilled hole. (Fig J) of rod through grommet and into base of tent, make sure rod is completely. (Fig K, L) Note: They are meant to have a “bow” in installed. They will be at an angle to the side when installed into

Close-up of a beige garment collar with a gold circular button on the side (no text or symbols visible)

(Fig J)

Person using a tool on a car wheel, no visible text or symbols

(Fig K)

Close-up of a hand holding a blue object over a yellow fabric or cloth, with no visible text or symbols.

(Fig L)

Step 6:

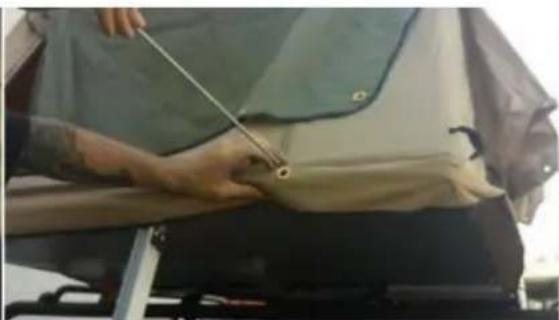

Place the hook end of rod through grommet on rain fly/shade co the hook part facing outward and downward. (Fig M, N, O) Proc this on all 4 sides (If desired)

Close-up of a hand holding a small object against a blue grid background (no visible text or symbols)

(Fig M)

Person installing a large wall-mounted panel under clear sky (no visible text or symbols)

(Fig N)

Exterior view of a small outdoor camping tent with a canopy and open dormer (no signage or text visible)

(Fig O)

Features

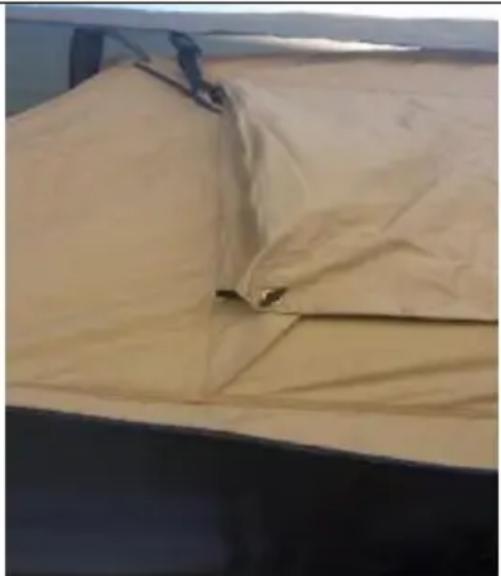

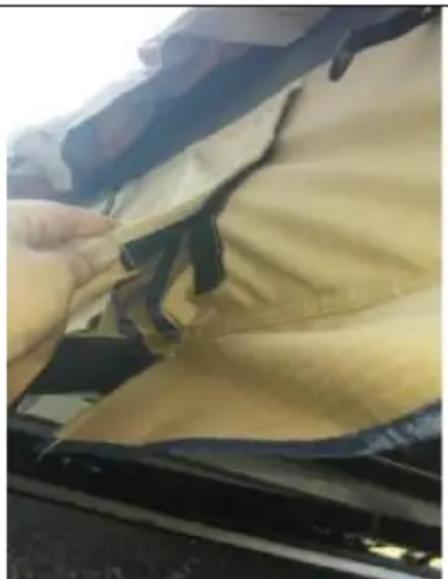

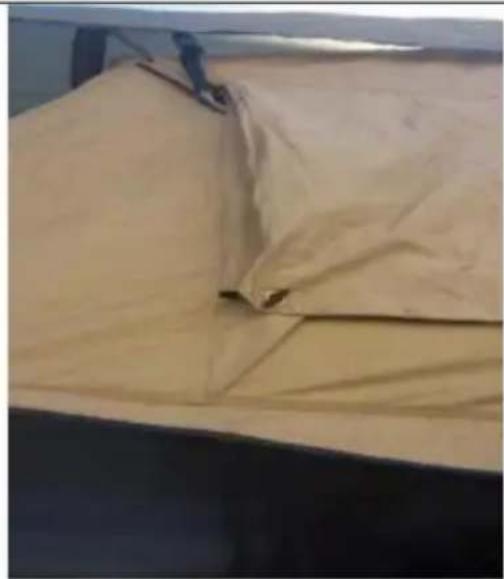

A. The tent features red nylon grab handle straps for assistance on get out. (Fig M)

Always use caution when going up and down ladder.

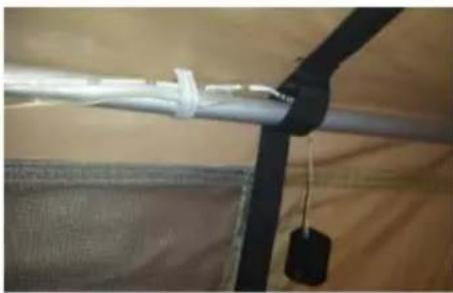

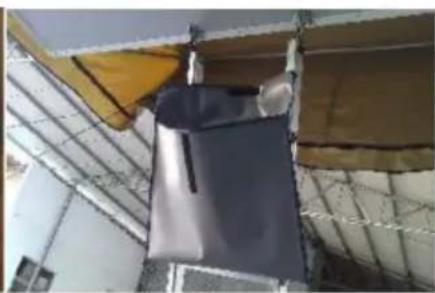

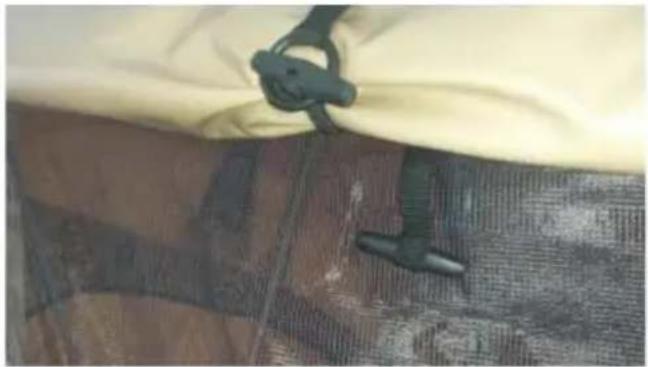

B. The screens and covers can be rolled up and held up using the att (Fig N, O)

Close-up of a hand holding a red ribbon over a dark surface, possibly part of a vehicle or industrial component (no visible text or symbols)

(Fig M)

Close-up of a fabric or carpet with dark wood and a yellow cloth, featuring a black handle and a small object on the surface (no visible text or symbols)

(Fig N)

Exterior view of a modern office building (no signage)

(Fig O)

C. LED – Light, pull out battery tab first. Then press on/off button to u D. Shoe Bag- Included is a shoe/storage bag that can be installed on t side of tent on the clips on the underside of the tent. (Q, R, S)

Close-up of a metal pipe with attached black cable and hanging weight (no text or symbols visible)

(Fig Q)

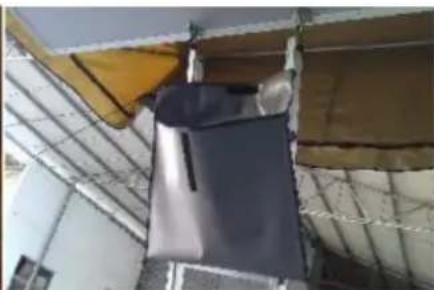

Interior view of a room with ceiling-mounted equipment and a dark fabric item suspended (no visible text or symbols)

(Fig R)

Exterior view of a modern building with a large canopy and glass facade (no signage or text visible)

(Fig S)

E. Sun-Roof – This can be used with or without rain fly. For best use, rainfall.

F. 12-Volt- Plug into your vehicle 12 volt outlet, run wire through vehicle door up towards tent and through side opening ( Fig T)

G. The side flaps can be strapped down by pulling the bottom cord with through the grommets. (Fig U)

Close-up of a person's seatbelt being adjusted for a piece, showing yellow fabric and black trim (no text or symbols visible)

(Fig T)

Folded fabric with beige and beige bands, no visible text or symbols

(Fig U)

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
