BIKE STORAGE SHELTERS USER MANUAL

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

BIKE STORAGE SHELTERS

MODEL:GXSKU5

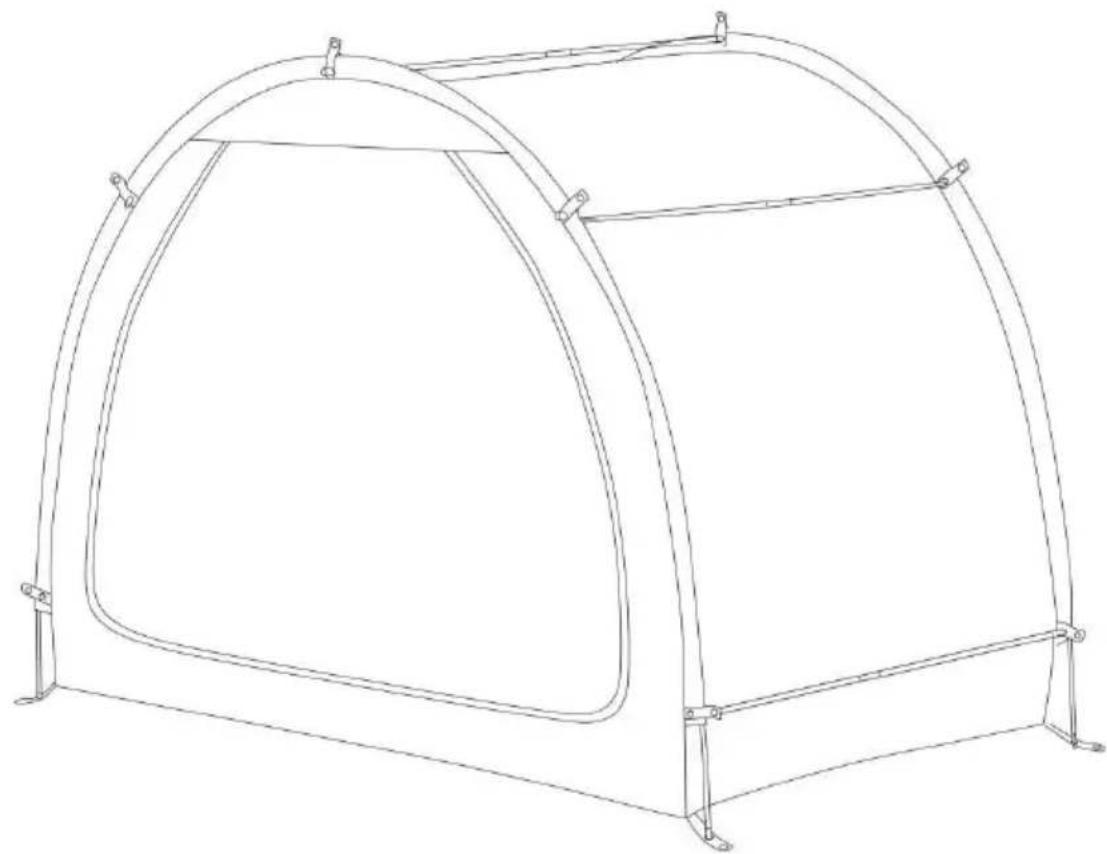

Line drawing of a simple tent structure with arched top and rectangular base (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so ca result in serious injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly c create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble if tired or when under the influence of alcohol, or medication.
6. The product capabilities apply to properly and completely assembled products only.
7. Assemble on a flat, level, hard and smooth surface capable of sa supporting the Bike Storage Shelters
8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unw and separate all parts in a clean work area.

Use precautions

1. DO NOT SIT OR STAND ON THIS ITEM.
2. This product is not a toy. Do not allow children to play with or item.
3. Do not exceed specified weight capacities.
4. It is recommended that the bike storage shed be installed and use a flat and hard ground
5. Use as intended only.
6. Inspect before every use; do not use if parts are loose or damage

SAVE THIS MANUAL

PARTS LIST

A

Pure technical line drawing of two parallel wooden beams with no text or symbols

E

Simple line drawing of a rectangular shape with a curved top edge (no text or symbols)

B

Five identical cylindrical objects with pointed ends, arranged horizontally (no text or symbols visible)

F

Simple line drawing of a rectangular frame with a curved edge and a small wavy line at the bottom (no text or symbols)

C

Three parallel curved lines with rounded ends, resembling coiled or wire鋤 (no text or symbols)

G

Simple line drawing of a toolbox with handle and spout (no text or symbols)

D

Simple line drawing of a rectangular object with a curved top surface (no text or symbols)

A	Curved support rod x2
B	Short support rod ×5
C	Windproof ground nail x 4
D	Tent cloth x 1
E	Support rod storage bag ×1
F	storage bag x1
G	Tent organizer bag ×1

ASSEMBLY STEP

Line drawing showing two different cable or cable joint configurations, one with a loop and the other with a handle (no text or symbols)

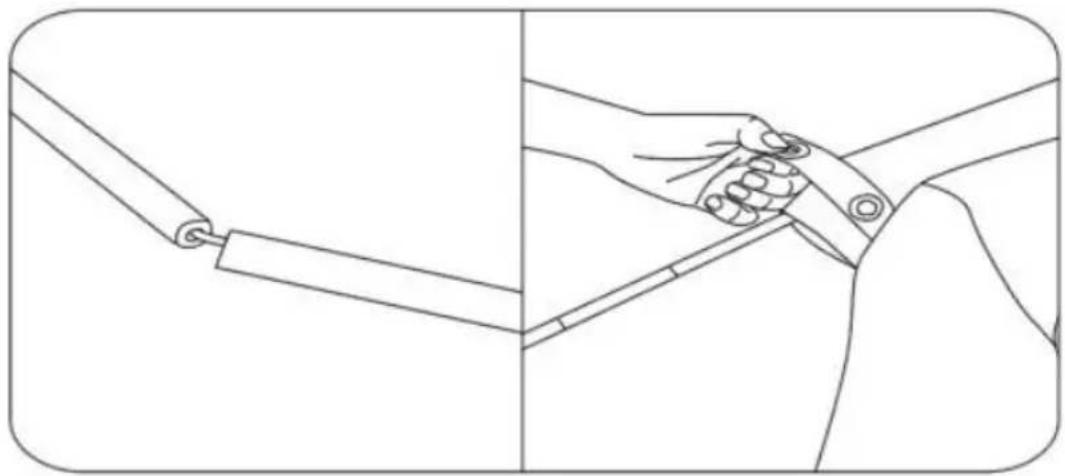

STEP-1: Connect the support rods and thread them through one end of bicycle shed fabric, and do the same on the other side First install the support rod (A)

Technical line drawing of a dome-shaped structure with internal components and directional arrows (no text or symbols)

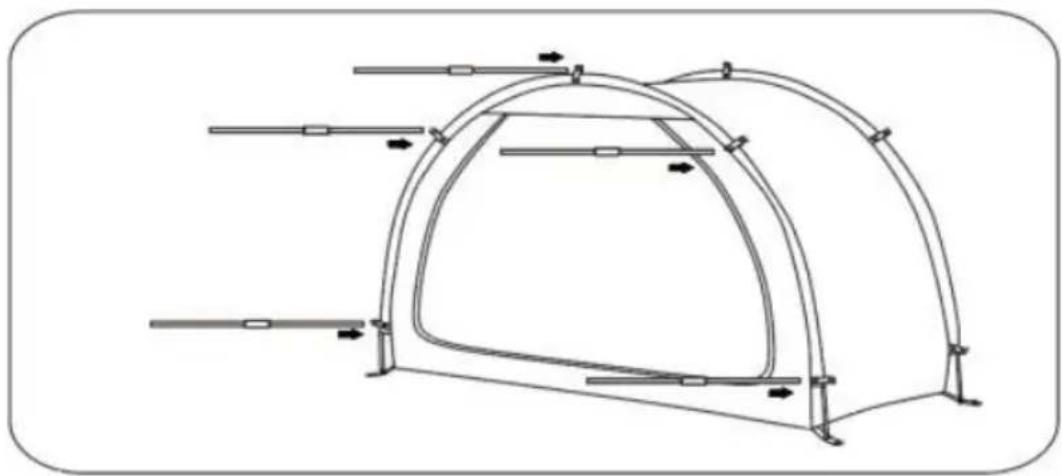

STEP-2: Place the remaining short support rods (B) on the six and other five positions of the carport to provide support.

Line drawing of a robotic arm gripping a tool, with no text or symbols present

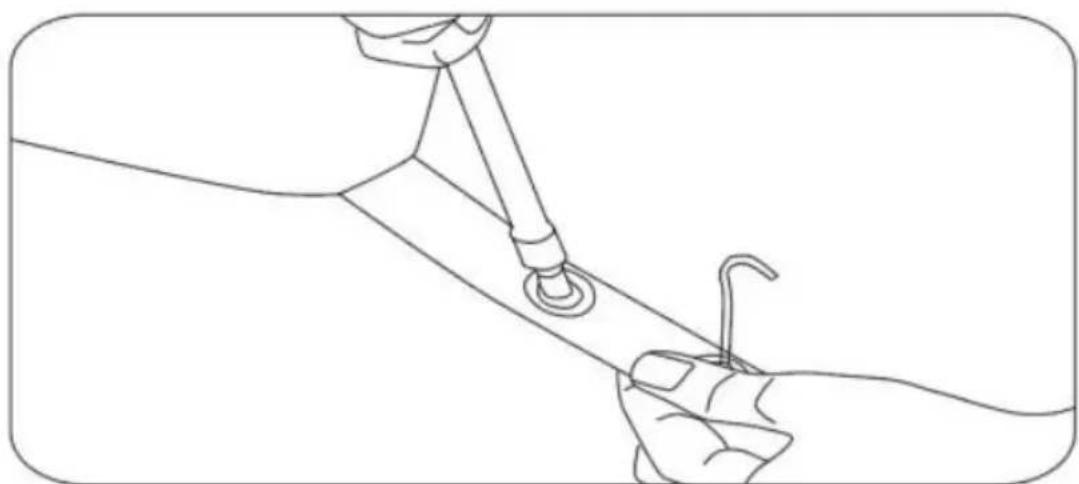

STEP-3: The Side support rod is installed in the round holes four corners, and then the windproof ground nails are fixed

Line drawing of a simple arched structure with support legs and a central opening (no text or symbols)

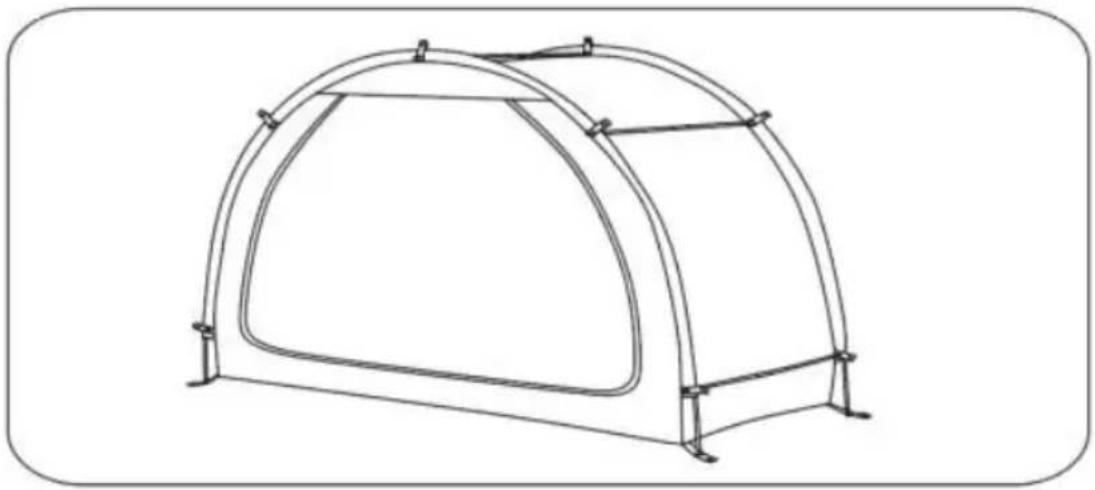

STEP-4:Finish

PRODUCT PARAMETER

Model	GXSKU5
Colour	Black
Product Size	2190*1550*1730mm

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
