Foldable LED Ring Light studio Box USER MANUAL

MODEL: ZC-DYSY-03

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL:ZC-DYSY-03

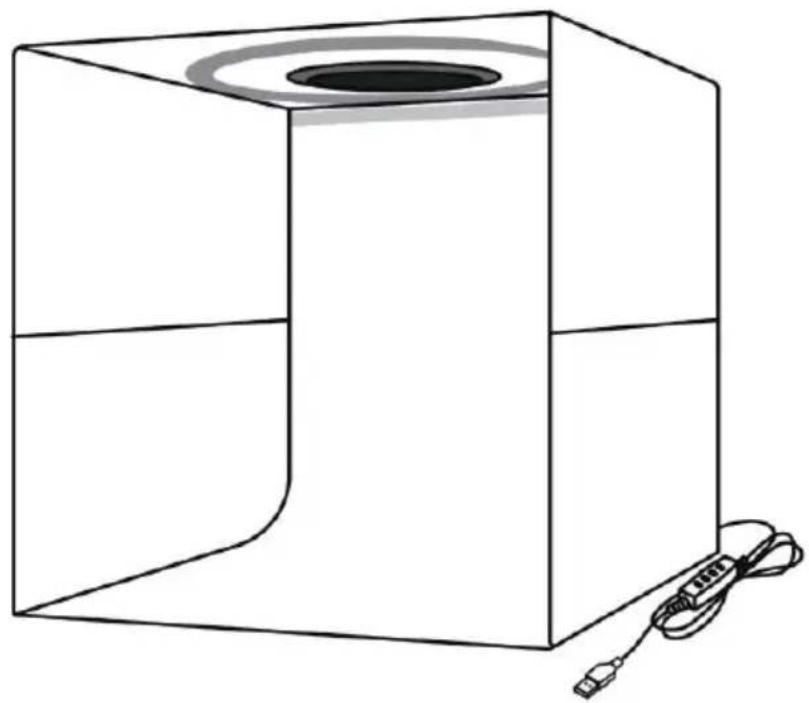

Line drawing of a rectangular box with a circular top and cable attached to the bottom-right corner (no text or symbols)

(The picture is for reference only, please refer to the actual obje

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read in manual carefully.
	This device complies with Part 15 of the FCC Rules. (1) This device is subject to the following two conditions: (1) This device cause harmful interference, and (2) this device must accept interference received, including interference that may cause undesired operation.
	This product is subject to the provision of European Di 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products are such may not be discarded with normal domestic waste must be taken to a collection point for recycling electric electronic devices

PACKAGE LIST

Black and white photo studio lighting unit with a circular vent and cable (no text or symbols visible)

Vertical color swatch with alternating black, gray, teal, white, pink, and yellow stripes (no text or symbols)

Black plastic shopping bag with handle (no text or symbols visible)

Main Studio Box*1 Colors Backdrops*6 Soft Cloth*1 Carry Bag*1

1. Number of lamp beads: 120PCS
2. Lamp bead model: 2835
   3.luminous flux: 0-480LM adjustable
   4.Color temperature range: 3000K-5600K
3. Dimming level: 10 stops
   6.CRI:Greater than or equal 95
4. Operating voltage: 5V
5. Power consumption: 0.5-13W
6. Ring light board size: 20cm
7. Power supply: USB port power supply.

QUESTIONS AND ANSWERS

1. What causes the flickering light?

a. Poor USB port connector.
b. LED panel does not fit voltage, proper supplying voltage is 5V/2A.
c.Environmental temperature is too high, it may have over temperature protection.
d. Air environment is too humid.
e. Cable control itself has quality issues.

1. What may cause weak light?

a. Adjust cable control light dimmer switch “+”.
b. Power supply is too small, it should ensure above 5V/2.0A.
c. If there are other light sources around.
d. Cable control quality is poor.

FUNCTIONAL CONTROL DESCRIPTION

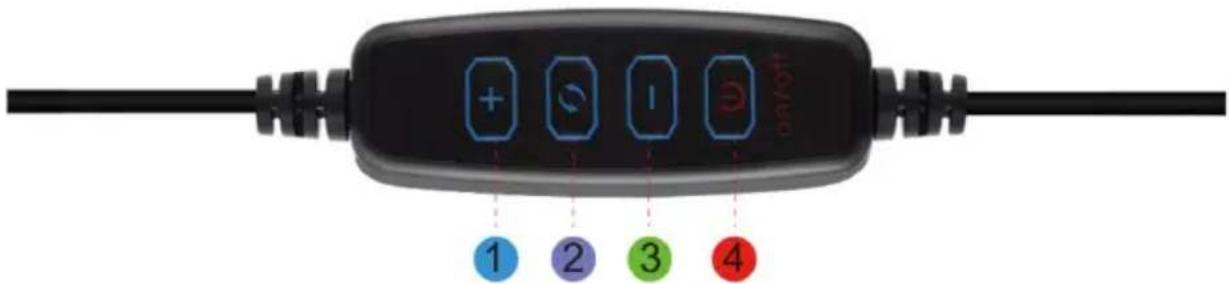

Diagram of a black cable connector with four labeled buttons (1-4) and a plus/minus/minus symbols, likely for electrical or audio control.

(1)Brightness "+" switch.
(2)Color temperature mode switch (3 color temperature modes).
(3)Brightness "-" switch.
(4)Power switch (ON/OFF).

SUITABLE FOR USB INTERFACE

Close-up of a black USB cable with two metallic connector ends (no text or symbols visible)

Desktop computer setup with monitor, keyboard, tower, and mouse (no visible text or symbols)

Computer Host

Illustration of a laptop with a colorful abstract wallpaper on screen (no text or symbols visible)

Laptop

3D rendering of a rectangular electronic component with a black base and metallic top (no text or symbols visible)

Power Bank

White rectangular electronic device with three side slots, no visible text or symbols

USB Charger

Diagram of a V-shaped structure with internal dark material and two blue arrows indicating direction (no text or symbols)

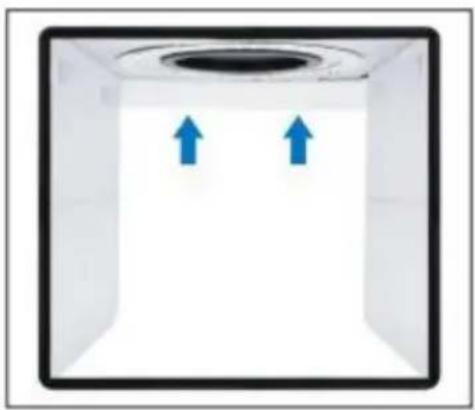

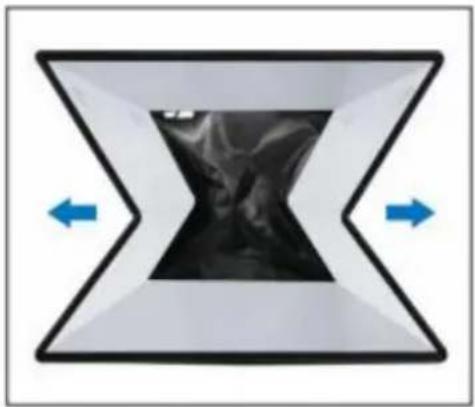

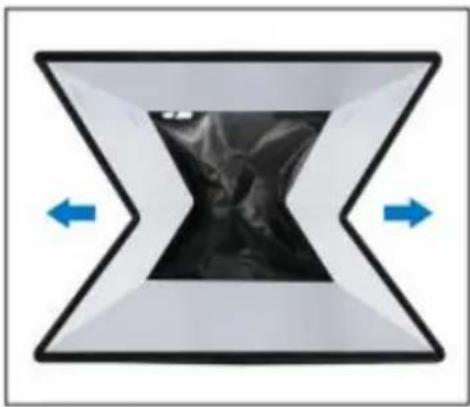

1. Expand the studio

Interior view of a ceiling-mounted air duct with two blue arrows indicating downward flow (no text or symbols)

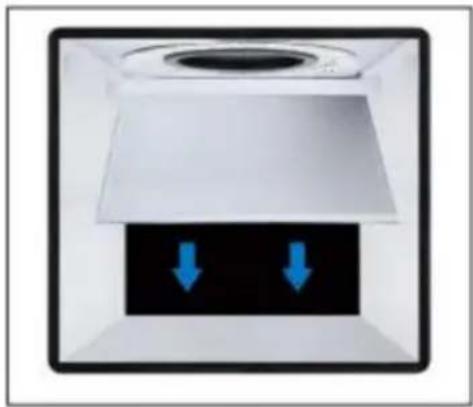

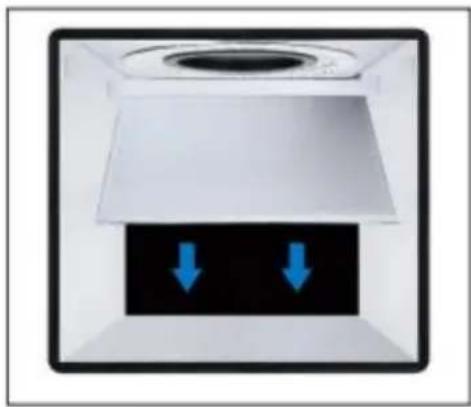

1. Put down the support plate to fix the studio

Interior view of a transparent cylindrical chamber with two blue upward arrows indicating flow or movement (no text or symbols)

1. Insert the background cloth into the elastic band

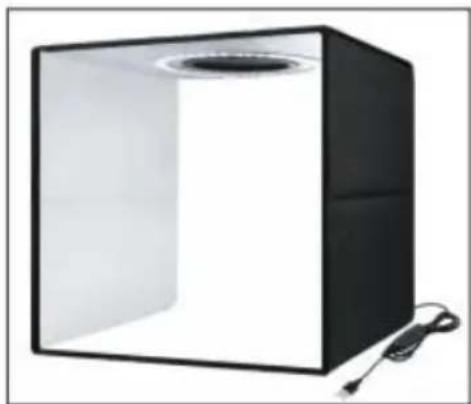

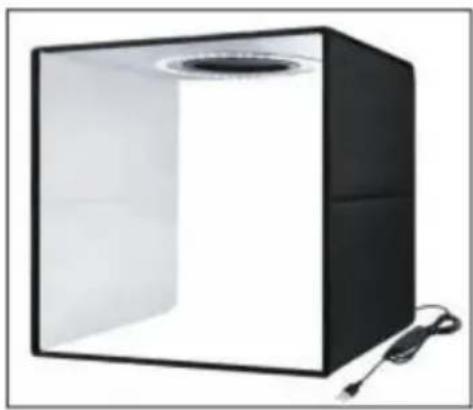

Exterior view of a modern black and white studio lighting unit with a circular vent and cable (no text or symbols visible)

1. Assembly complete

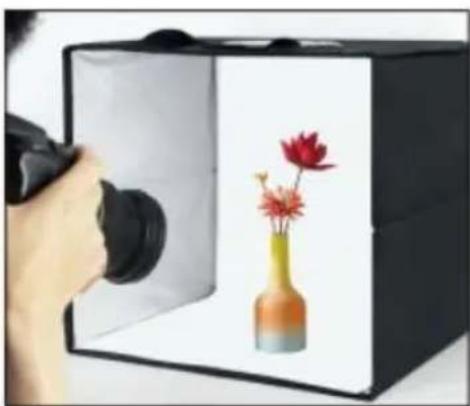

Person using a camera to photograph a small vase with red flowers inside a black studio box (no text or symbols visible)

1. Connect power to use

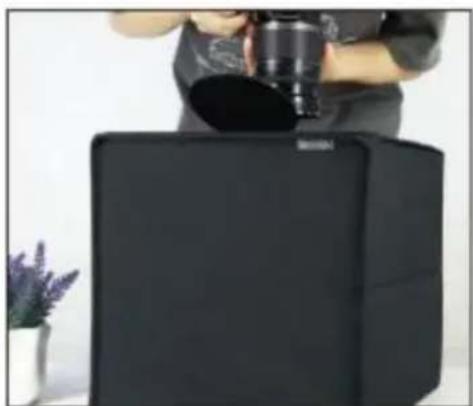

Person holding a camera lens on a black box, with a purple flower nearby (no visible text or symbols)

1. Overlook

Cabinet size: about 12FT(30cm)

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NS 2122 Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Pla Rancho Cucamonga, CA 91730
