Foldable LED Ring Light studio Box USER MANUAL

MODEL: ZK-RY-15

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL:ZK-RY-15

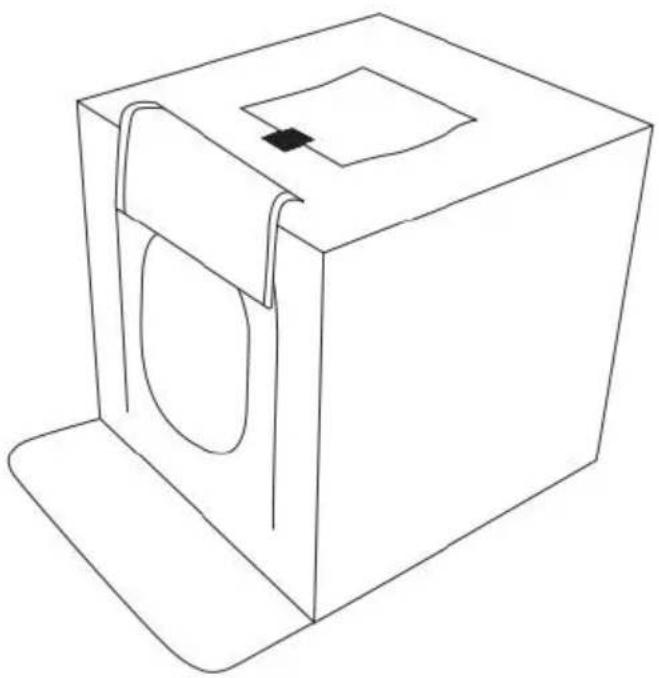

Line drawing of a 3D box with cutouts and a small square opening (no text or symbols)

(The picture is for reference only, please refer to the actual obje

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read in manual carefully.
	This device complies with Part 15 of the FCC Rules. (1) This device cause harmful interference, and (2) this device must acce interference received, including interference that may cause undesired operation.
	This product is subject to the provision of European Di 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refus collection in the European Union. This applies to the product and all accessories marked with this symbol. Products are such may not be discarded with normal domestic waste must be taken to a collection point for recycling electric electronic devices

Thank you very much for choosing Studio Box. Please read this m before using the product as it may contain some information you don know. If you have any questions, please feel free to send us email th amazon.

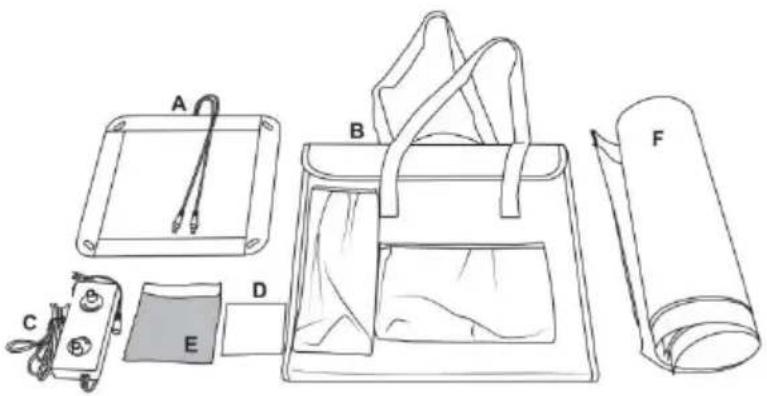

PACKAGE LIST

Line drawing of household items including a battery, handbag, and rolled-up blanket (no text or symbols)

A. Studio Tent *1(It has been installed on the cabinet)
B. Cary Bag *1 (Box + handbag integrated light box)
C. Power Supply *1
D. Instructions *1
E. Light Diffuser *1
F. Colored Backdrops *6

STUDIO BOX ASSEMBLY

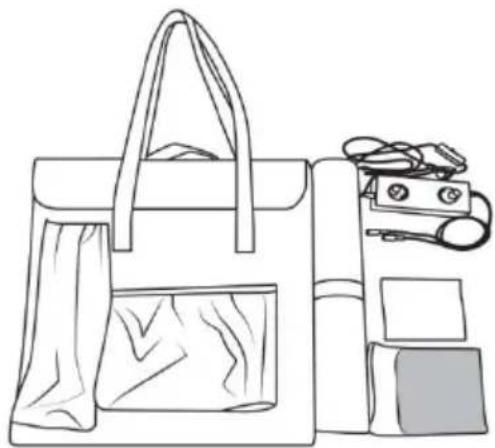

Step 1: Open the box and make sure all parts are available. See Fig

Line drawing of a handbag, fabric pouch, and accessories including accessories (no text or symbols)

Figure 1

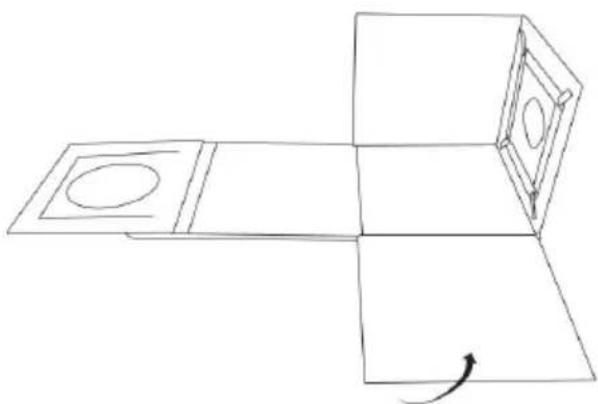

Step 2: Start by laying the tent on a flat surface, then open out the tent. See Figure 2.

Pure geometric diagram of a cross-shaped structure with arrows indicating rotation, no text or symbols present

Figure 2

Step 3: Unfold the panels of the light tent, and then attach the Velcro together to form a cube. See Figure 3.

Simple line drawing of a 3D geometric shape with a rectangular base and circular cutout, no text or symbols present.

Figure 3

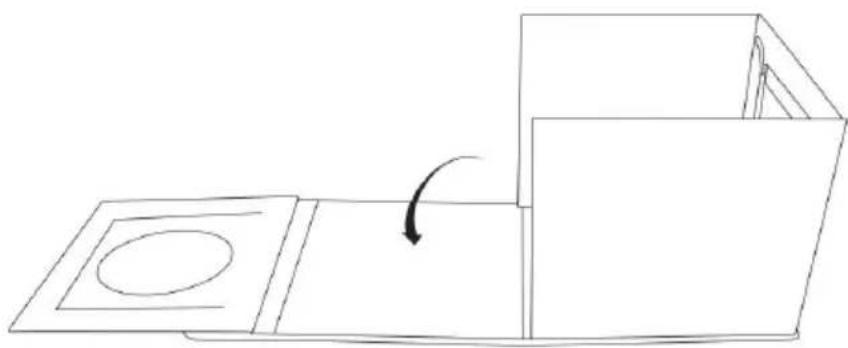

Step 4: Now fold the first three panels over, to attach it to the bottom. See Figure 4.

Simple line drawing of a box with an arrow indicating rotation or movement (no text or symbols)

Figure 4

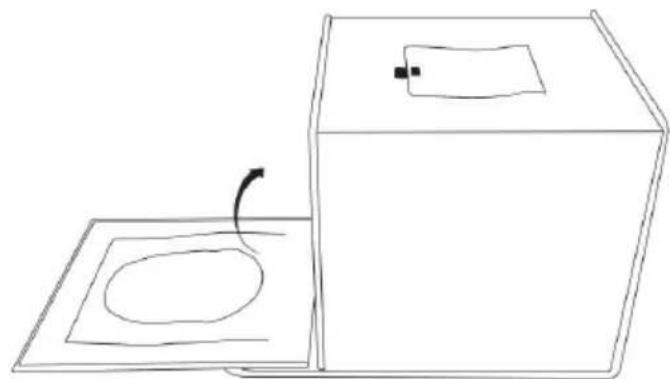

Step 5:Finally fold the front panel of the tent up, and then attach it rest of the light tent using the Velcro edges.See Figure 5.

Simple line drawing of a box and a square with an arrow indicating rotation (no text or symbols)

Figure 5

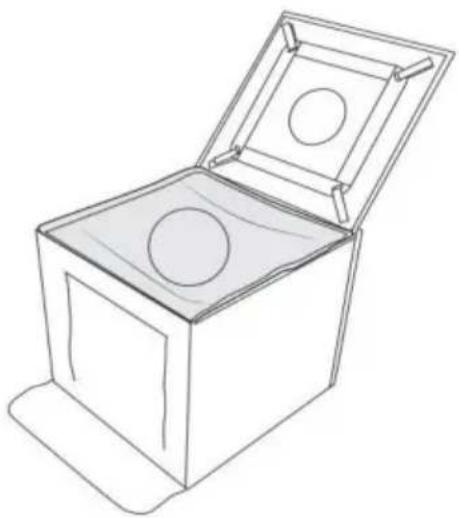

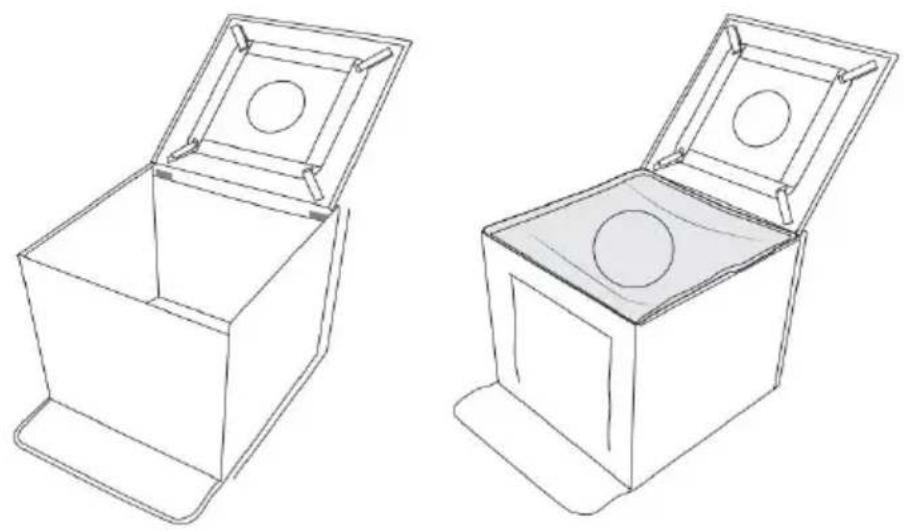

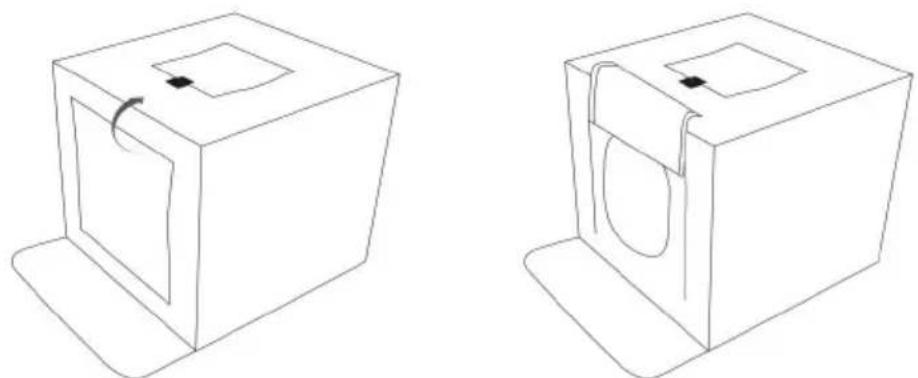

Step 6: Roll up the flaps covering the front-shooting window, and attach the Velcro at the top of the LED light tent. You can also shoot top of the light tent. Simply open the flap covering the top shot window. See Figure 6.

Two line drawings of a 3D box with internal cutouts and mounting base (no text or symbols)

Figure 6

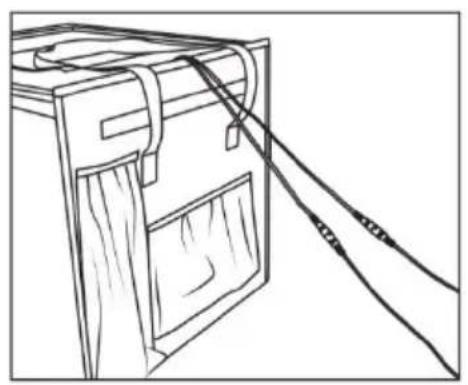

Step 7: To use one of the four coloured backdrops, open the top of tent, and then slide in your backdrop of choice into place. Attach backdrop to the back of the tent using the Velcro tabs located a top left and right-hand corners of the light tent. Tuck the bottom of the background into the pocket located at the front of the ten Figure 7.

Diagram of a folded document or folder with an inset showing a magnified view of the cover (no text or symbols present)

Illustration of hands holding a rectangular object with a ruler, no text or symbols present

Simple line drawing of a room corner with a door and wall, no text or symbols present

Figure 7

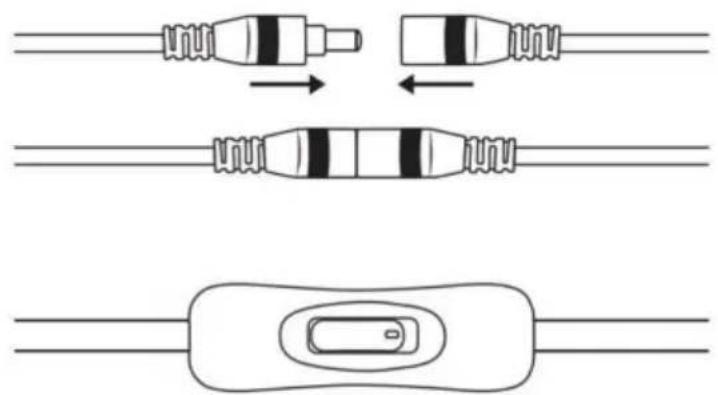

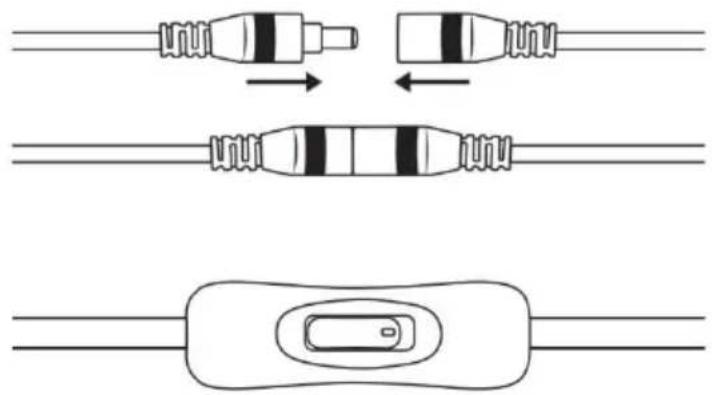

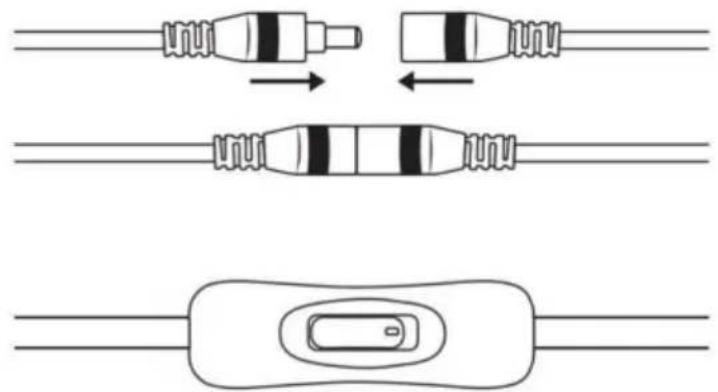

Step 8: Connect the cable, power the tent and switch the light on. See Figure 8.

Line drawing of a mechanical device with attached wires and a handle (no text or symbols)

Diagram showing three types of resistor components with arrows indicating direction (no text or symbols)

Figure 8

Step 9: Also comes with diffusion material to further diffuse light from LED. To use the diffusion material, open the top of the light ten attach the material to the left and right sides, and then close the again. See Figure 9.

Line drawing of two open box-like objects with circular cutouts, no text or symbols present

Figure 9

Step 10: Adjustable Brightness: You can adjust brightness gradually and steadily with the dimmer switch, which helps you to take professional pictures and photos of small to large sized objects. See Figure 10

Close-up of a small colorful figurine inside a transparent cylindrical device (no text or symbols visible)

10%

Illustration of a colorful carousel inside a black frame, no text or symbols visible

50%

Illustration of a cartoon character inside a circular frame, no text or symbols present

100%
Figure 10

Step 11: Brightness can be adjusted: turn the power knob to adjust brightness. No matter whether you're shooting with a DSLR camera a smartphone, all photographs will be satisfying. See Figure 11.

Close-up of a black electronic device with two rotary dials and blue indicator lights, no visible text or symbols on the main body.

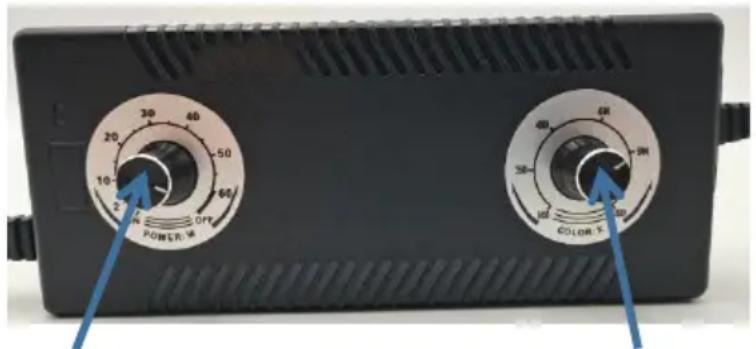

Brightness adjustable switch Color temperature adjustment switch

Figure 11

●Brightness adjustable switch: Turn off the LED light by turning it counterclockwise to the end.
●Brightness adjustable switch: Rotate clockwise to the end for maximum brightness.
●Color temperature adjustment switch: Rotate clockwise to turn the color temperature up, counterclockwise to turn the color temperature down (the higher the number, the higher the temperature, the lower the number)

Caution: The light panels are very bright. Do not look directly at illuminated light panel for long time when the light panel is lit.

Note: The factory power adapter must be used, if you use a non-factory power adapter, it will cause damage to the LED light; severe cases, it may cause a fire.

Storage instructions

1. Unplug the power cord, disconnect the light panel and power adapter take out the backdrops and light diffuser.

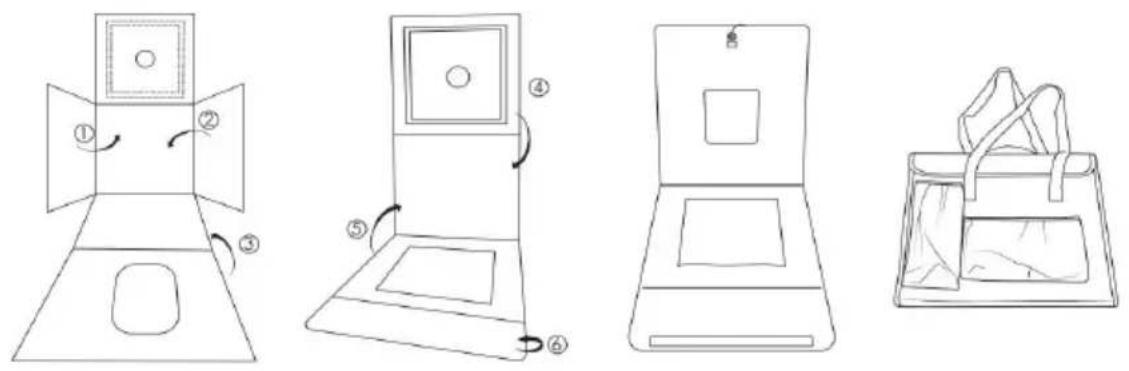

2. Follow the steps in Figure 12 to fold the tent step by step.

Figure 12

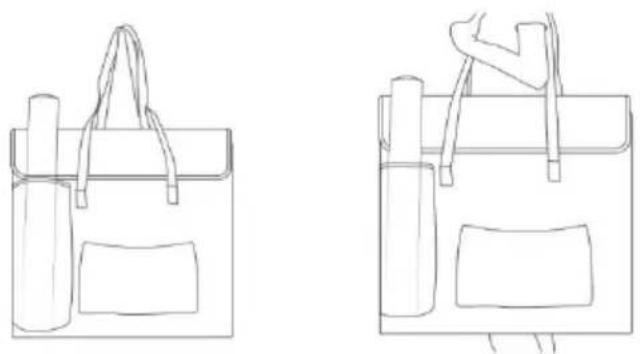

1. Put the adapter, light diffuser and backdrops in the pouches, now y can take your light box everywhere you want to go! See Figure 13.

Figure 13

Specifications

Enter the power supply	AC110-240V 50/60Hz
Actual Power	2-60W adjustable
Illuminance	50-5500 LM
Color Temperature	3000-5600K adjustable
Color rendering index	≥95
Lightbox size	24FT(59cm)

QUESTIONS AND ANSWERS

1. What causes the flickering light?

a. Whether the power adapter is not a factory accessory. b.Environmental temperature is too high, it may have over temperature protection.

c. Air environment is too humid.

d. There was a problem with the power adapter.

1. What may cause weak light?

a. Adjust the dimmer switch to 80% rotation.
b. Whether the power adapter is not a factory accessory.
c. If there are other light sources around.
d. There was a problem with the power adapter.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NS 2122 Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Pla Rancho Cucamonga, CA 91730
