USER MANUAL ZC-DYSY-02 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

Foldable LED Ring Light studio Box USER MANUAL

MODEL: ZC-DYSY-02

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

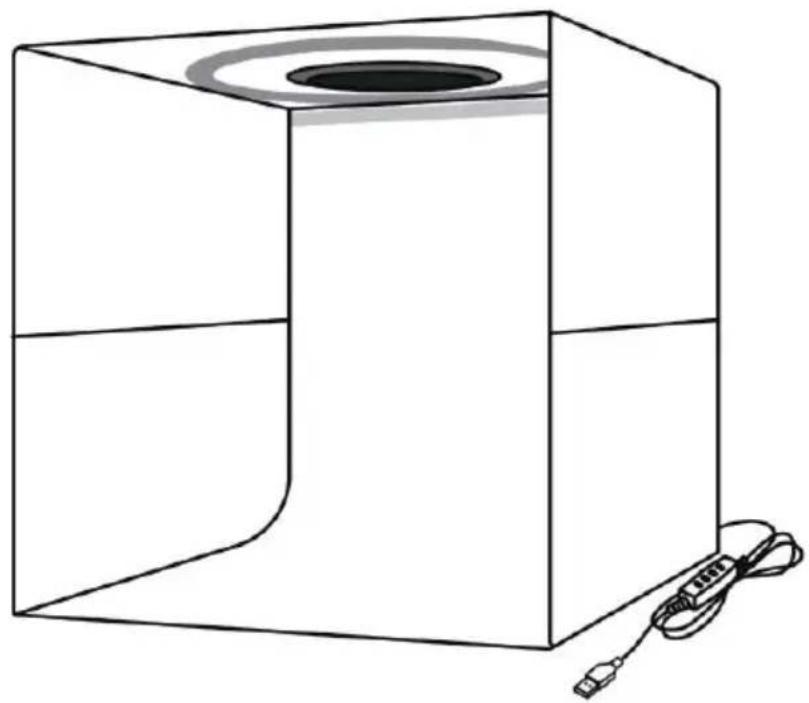

MODEL:ZC-DYSY-02

(The picture is for reference only, please refer to the actual obje

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must read in manual carefully.

This device complies with Part 15 of the FCC Rules. is subject to the following two conditions:(1)This device cause harmful interference, and (2)this device must acce interference received, including interference that may cause undesired operation.

This product is subject to the provision of European Di 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refus collection in the European Union. This applies to the p and all accessories marked with this symbol. Products r as such may not be discarded with normal domestic w must be taken to a collection point for recycling electric electronic devices

PACKAGE LIST

Main Studio Box*1 Colors Backdrops*6 Soft Cloth*1 Carry Bag*1

SPECIFICATIONS

1.Number of lamp beads: 120PCS
2.Lamp bead model: 2835
3.luminous flux: 0-480LM adjustable
4.Color temperature range: 3000K-5600K
5.Dimming level: 10 stops
6.CRI:Greater than or equal 95
7.Operating voltage: 5V
8.Power consumption: 0.5-13W
9.Ring light board size: 20cm
10.Power supply: USB port power supply.

QUESTIONS AND ANSWERS

1. What causes the flickering light?

a. Poor USB port connector.
b. LED panel does not fit voltage, proper supplying voltage is 5V/2A.
c.Environmental temperature is too high, it may have over temperature protection.
d. Air environment is too humid.
e. Cable control itself has quality issue.

1. What may cause weak light?

a. Adjust cable control light dimmer switch “+”.
b. Power supply is too small, it should ensure above 5V/2.0A.
c. If there is other light sources around.
d. Cable control quality is poor.

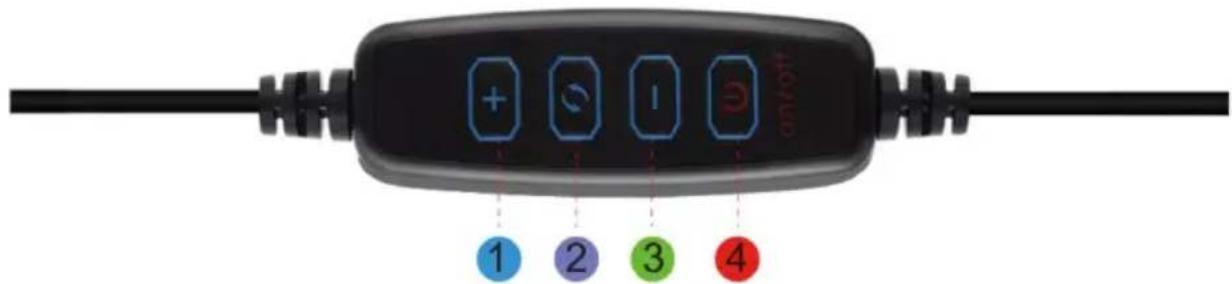

FUNCTIONAL CONTROL DESCRIPTION

(1)Brightness "+" switch.
(2)Color temperature mode switch (3 color temperature modes).
(3)Brightness "-" switch.
(4)Power switch (ON/OFF).

SUITABLE FOR USB INTERFACE

Computer Host

Laptop

Power Bank

USB Charger

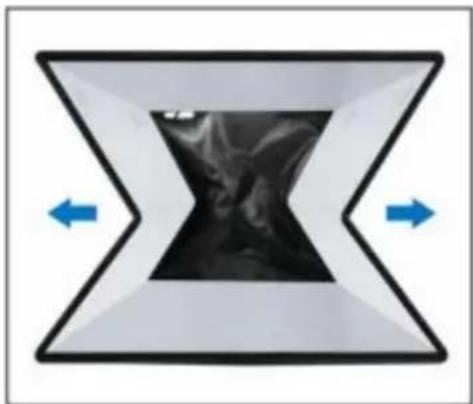

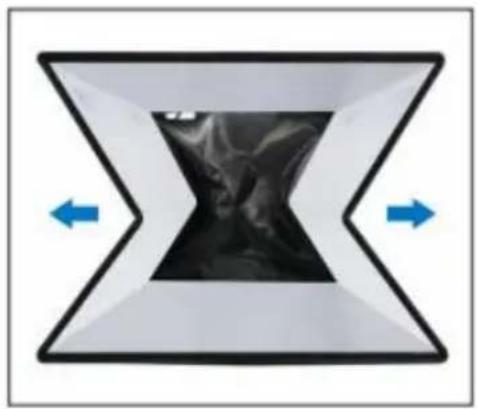

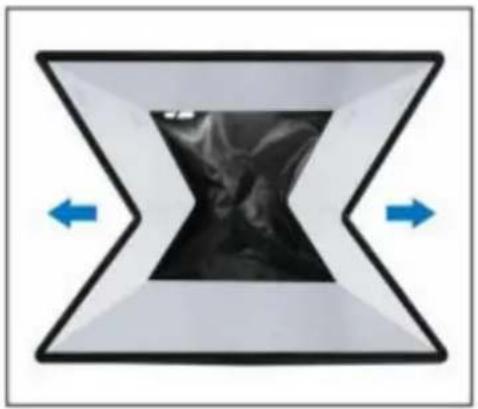

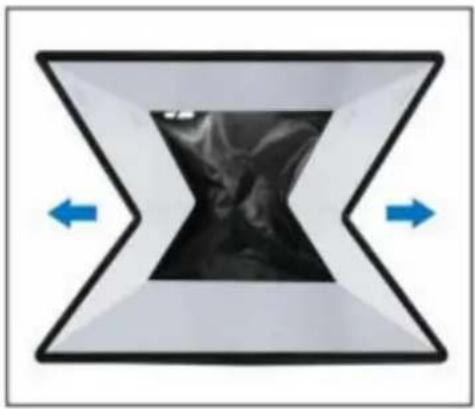

1. Expand the studio

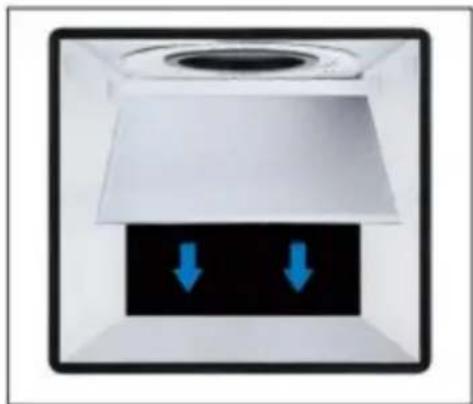

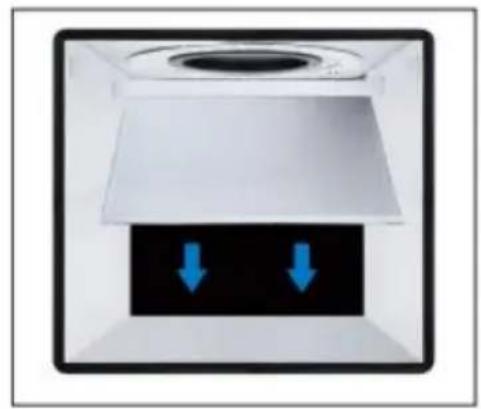

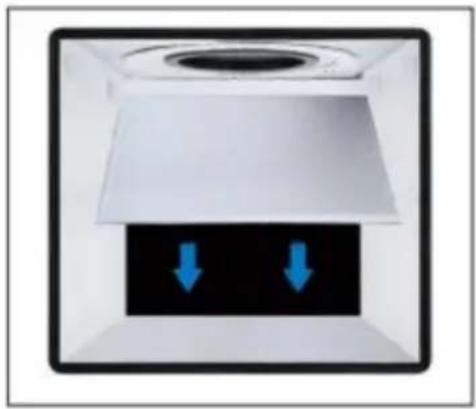

2. Put down the support plate to fix the studio

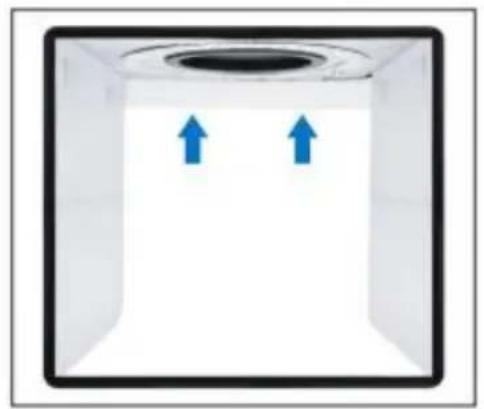

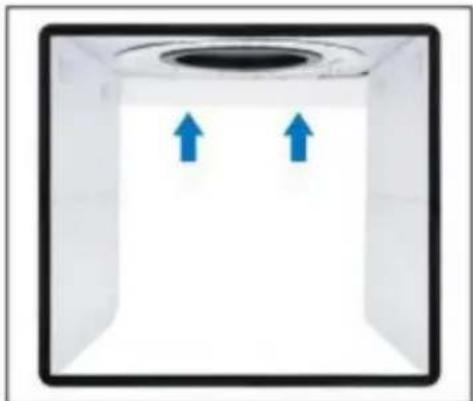

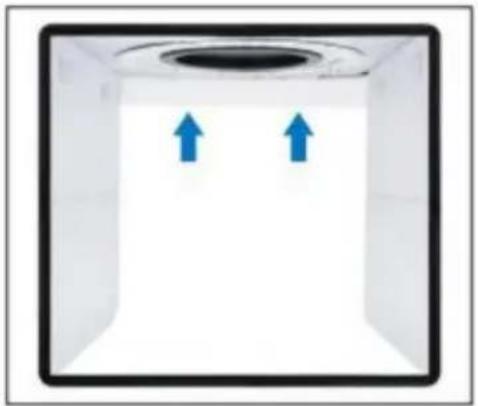

3. Insert the background cloth into the elastic band

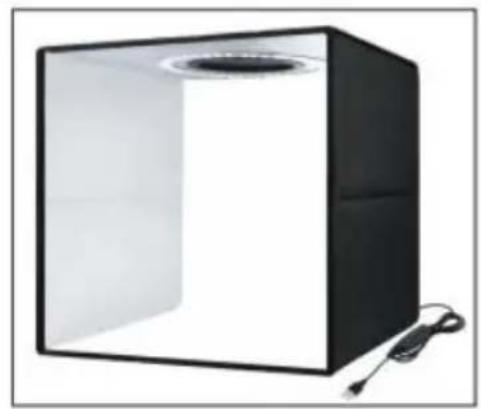

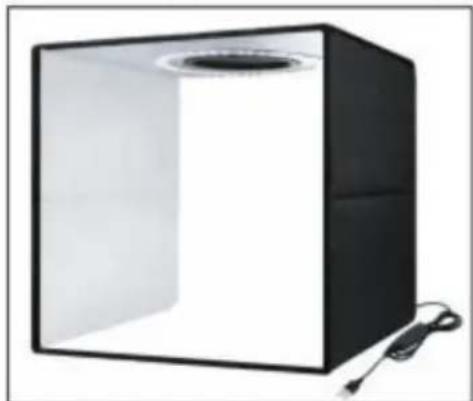

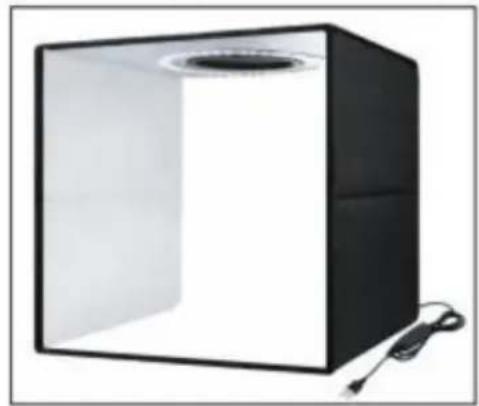

4. Assembly complete

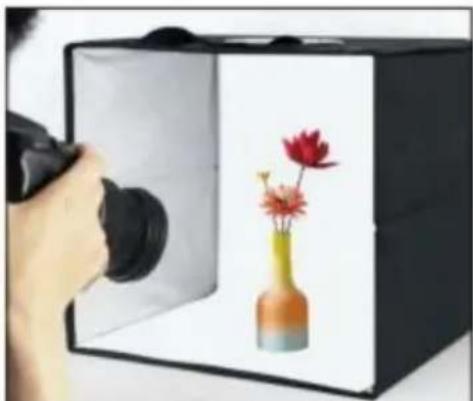

5. Connect power to use

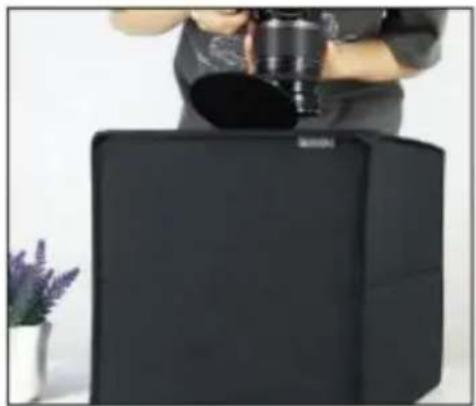

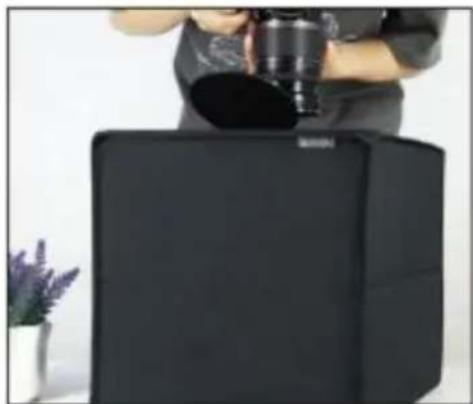

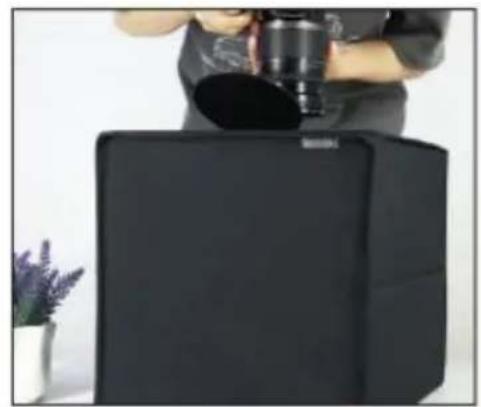

6. Overlook

Cabinet size: about 16FT(40cm)

Manufacturer: Shanghaiuxinmuyeyouxianggsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NS 2122 Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Pla Rancho Cucamonga, CA 91730

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Ma

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H, London Road, Staines-upon-Thames, Surrey, TW18 4
