USER MANUAL PL860 Soundmaster

Copyright by Woerlein GmbH, 90556 Cadolzburg, www.soundmaster.de

Do not dispose of this product with the normal household waste at the end of its life cycle. Return it to a collection point for the recycling of electrical and electronic devices. This is indicated by the symbol on the product, user manual or packaging

The materials are recyclable according to their labeling. By reusing materials or other forms of recycling old devices and packaging, you are making an important contribution to protecting our environment. If necessary, remove batteries and personal data before disposal free of charge and ask your local authority about the responsible disposal point

警告	WARNING	!
	Risk of electric shock Do not open!
Caution: To reduce the risk of electric shock, do not remove the cover (or back). There are no user serviceable parts inside. Refer servicing to qualified service personnel.

This symbol indicates the presence of dangerous voltage inside the enclosure, sufficient enough to cause electric shock.

This symbol indicates the presence of important operating and maintenance instructions for the device

Used batteries are hazardous waste and NOT to be disposed of with the household waste! As a consumer you are legally obligated to return all batteries for environmentally responsible recycling - no matter whether or not the batteries contain harmful substances*)

Return batteries free of charge to public collection points in your community or shops selling batteries of the respective kind. Only return fully discharged batteries *) marked Cd = cadmium, Hg = mercury, Pb = lead

• Only use mercury and cadmium-free batteries.
• Used batteries are hazardous waste and NOT to be disposed of with the household waste!!!
• Keep batteries away from children. Children might swallow batteries.
• Contact a physician immediately if a battery was swallowed.
• Check your batteries regularly to avoid battery leakage.
• Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
• CAUTION: Danger of explosion if battery is incorrectly replaced
• Replace only with the same or equivalent type

WARNING

DO NOT INGEST BATTERY, CHEMICAL BURN HAZARD

This product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

Safety, Environmental and Setup Instructions

• Use the device in dry indoor environments only.
• Protect the device from humidity.
• This apparatus is for moderate climates areas use, not suitable for use in tropical climates countries.
• No objects filled with liquids, such as vases, shall be placed on the apparatus.
• The mains plug or an appliance coupler is used as the disconnect device, the disconnect devices shall remain readily operable.
• Connect this device to a properly installed and earthed wall outlet only. Make sure the mains voltage corresponds with the specifications on the rating plate.
• Make sure the mains cable stays dry during operation. Do not pinch or damage the mains cable in any way.
• A damaged mains cable or plug must immediately be replaced by an authorized service center.
• In case of lightning, immediately disconnect the device from the mains supply.
  Children should be supervised by parents when using the device.
• Clean the device with a dry cloth only.
• Do NOT use CLEANING AGENTS or ABRASIVE CLOTHS!
• Do not expose the device to direct sunlight or other heat sources.
• Install the device at a location with sufficient ventilation in order to prevent heat accumulation.
• Do not cover the ventilation openings!
• Install the device at a safe and vibration-free location.
• Install the device as far away as possible from computers and microwave units; otherwise radio reception may be disturbed.
• Do not open or repair the enclosure. It is not safe to do so and will void your warranty. Repairs only by authorized service/ customer center.
• No naked flame sources, such as lighted candles, should be placed on the unit.
• When you are necessary to ship the unit store it in its original package. Save the package for this purpose.
• In case of malfunction due to electrostatic discharge or fast transient (burst), remove and reconnect the power supply.
• If the unit is not using for a long period of time, disconnect it from the power supply by unplugging the power plug. This is to avoid the risk of fire.

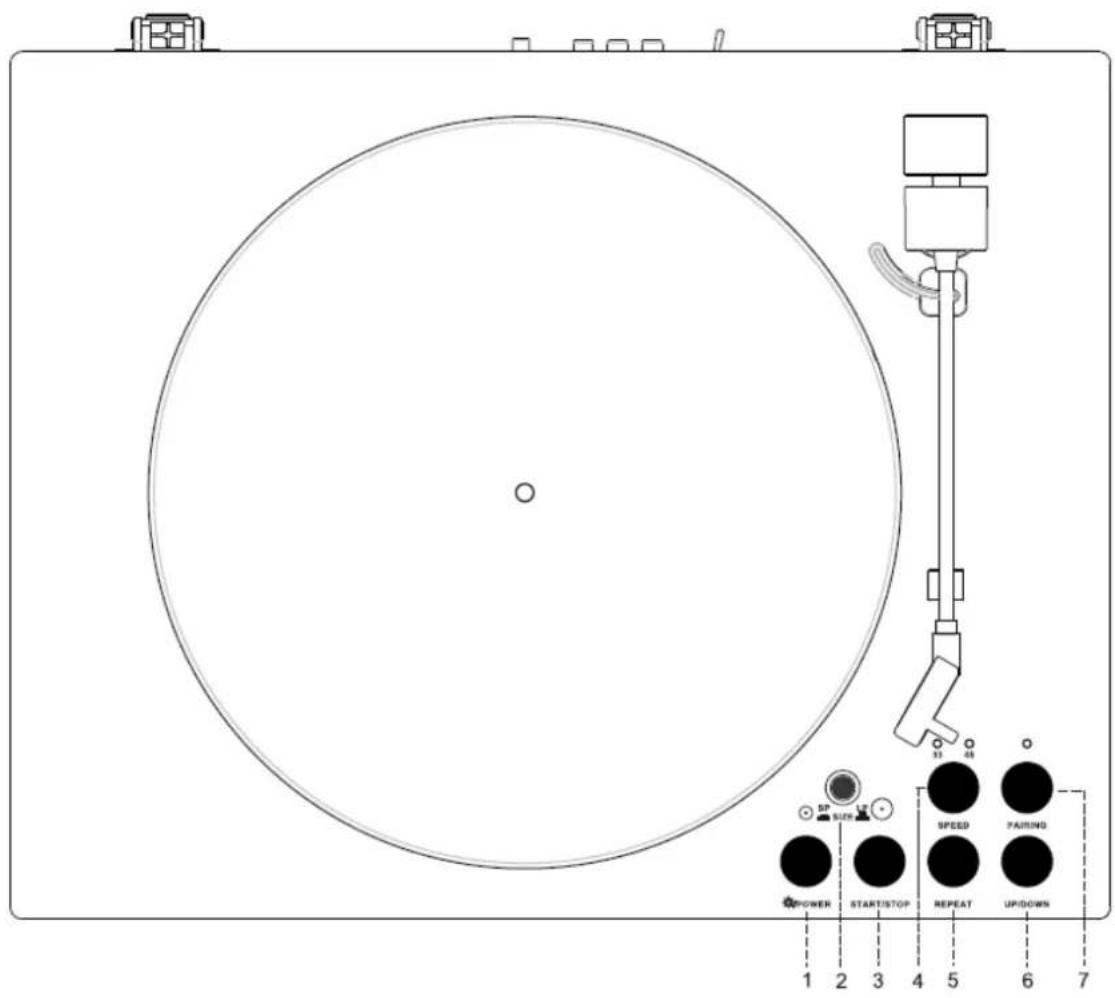

LOCATION OF CONTROLS

1 / POWER

Long press - On / standby

Short press - colour change

2 SIZE SP/LP

SP/LP size selector

3 START/STOP

Start / stop

4 SPEED 33/45

Speed selector 33 / 45 RPM

5 REPEAT

Repeat function

6 UP/DOWN

Tone arm up / down

7 PAIRING

Bluetooth function

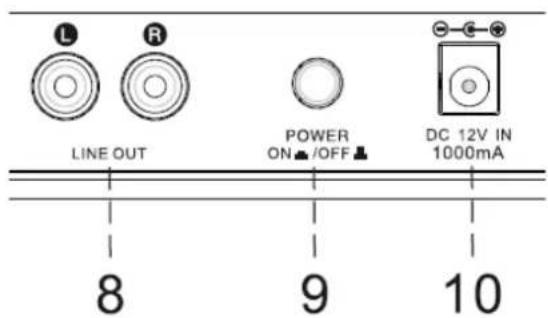

8 LINE OUT

Line out jack

9 POWER ON/OFF

Power on / off switch

10 DC 12 VIN

Power supply jack

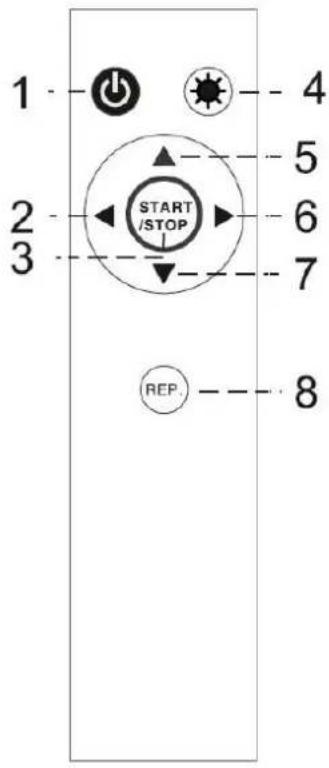

REMOTE CONTROL

1 Long press - On / standby Short press colour change
2 Short press skip forwards Long press search forwards
3 START/STOPPlayback start/stop
4 Illumination - intensity 5 Tonearm up
6 Short press skip backwards Long press search backwards
7 Tonearm down
8 REP Repeat

BATTERY INSTALLATION

1. Press and slide the back cover to open the battery compartment of the remote control.
2. Insert two AAA size batteries. Make sure the (+) and (-) ends of the batteries match the (+) and (-) ends indicated in the battery compartment.
3. Close the battery compartment cover.

INSTALLATION

CONTENT OF DELIVERY

Main unit
Instruction Manual
Turntable slip mat
45 RPM Adaptor
Warranty Sheet

AC-DC Adaptor
Dust cover
Metal platter with belt
Remote control

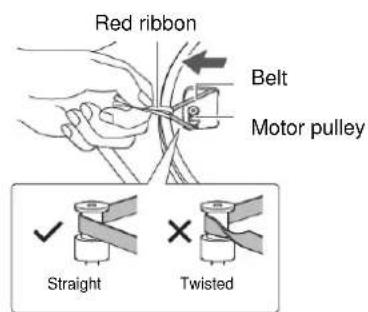

INSTALLING THE TURNTABLE PLATTER

Turntable belt and ribbon are pre-installed on the platter.

To install the platter on the unit and the belt on the pulley, please do the following:

a. Position the platter with the cutout over the drive roller.
b. Pull the belt with red ribbon over the motor pulley.
c. When fitting the belt, make sure that it does not on the upper or lower edge of the drive. The belt must in center, not twisted and run parallel (as shown) over the motor drive and turntable platter.

TURNTABLE INSTALLATION

1. Place the unit on a flat and level surface. The selected location should be stable and free from vibration.
2. Install the dustcover to the hinges.
3. Place the slip mat on top of the turntable platter.
4. Connect the AC/DC adaptor to the power jack of the unit. Do not plug the AC/DC adaptor to power outlet before all the assembly is completed. Before turning the power on, make sure again all the connection settings are correct. Always turn off the power when connecting or disconnecting.
5. Remove the tie-wrap that is holding the tonearm.
6. Switch on the turntable at the rear with "POWER ON/OFF" and press and hold 12 / POWER" or , " to switch the device on completely. Press and hold , / POWER" or , " to switch the device to standby.

AUDIO CONNECTIONS

RCA JACKS

The jacks output signal is analog line-level and could be connected directly with a pair of active speakers or the appropriate input of your stereo system.

The red plug connects with the right channel and the white plug connects with the left channel.

Note:

When the RCA jacks connected to the stereo system's phono input, the sound might be distorted due to input overload and could damage your stereo system.
RCA jack is not designed to be connected directly to the passive/unpowered speakers and if it does, the volume will be very low

BLUETOOTH OPERATION

1. When the device is powered on, press "PAIRING" to enter the transmitting state. The button LED will flash.
2. The device will automatically search for nearby receivable Bluetooth devices and connect to them, the button light will stay on when the connection is done.
3. Press „PAIRING" again to turn Bluetooth off.
4. Press and hold „PAIRING" to disconnect the connection and search for new units.

NOTE:

To ensure sound quality, please keep your Bluetooth device within ten meters of this machine.

Since the output volume is not controlled this device, please set the volume of the signal receiver to a lower level to prevent the output volume from being too loud.

TURNTABLE OPERATION

Gently remove the stylus protector at a parallel angle.

Notes about the record stylus

Record styluses are precision parts, so handle them carefully to avoid bending or damaging their tips. If a stylus becomes bent or damaged, it might not be able to follow the audio groove precisely and could damage records or cause another malfunction.

If a stylus becomes dirty, use a commercially available stylus cleaner or similar product to clean it.

Do not rub the stylus tip forcefully with anything hard. Do not wipe the stylus with thinner or other chemicals. Doing so could harm it.
Switch on the turntable, place a record on the on it (use a 45RPM adapter if necessary).
Select the speed (33/45RPM) and record size (SP - 7 inch / LP - 12 inch) accordingly.
IMPORTANT!

Before playing a single (SP), make absolutely sure that the size switch is correctly set to SP! We expressly point out that if the disc size is set incorrectly (LP instead of SP), the tonearm will be lowered onto the support mat instead of the disc during automatic start, the pickup system may be damaged as a result and there is no warranty claim for this!

Remove the stylus protector from the stylus assembly.
Press "START / STOP" and the tonearm will automatically start playing the record.
During playing, press "UP/DOWN" or "▲/▼" and the tonearm will automatically rise or fall.
Press short “<” or “>” to skip for or backwards on the. Press and hold extend the skip range.
Press "REPEAT" or "REP" to repeat the record.
During playing, press "START / STOP" and the tonearm will automatically go to tonearm rest.

Note:

To avoid stylus damage, make certain the included stylus guard is in place whenever the turntable is being moved or cleaned.

Do not bump the product while the record is playing.
Do not switch the record size selection while the record is playing. Doing either of these can cause the product to malfunction.
When the tonearm reaches the end (center) of the record, it will automatically lift up and return to the tonearm rest. Do not interfere with its motion. Doing so can cause the product to malfunction.
If the tonearm does not lift and return to the tonearm rest, press "START / STOP" to complete this operation.
The device it will automatically shut down if there is no sound output for 10 minutes.

LIGHTING CONTROL

Press / POWER" or " to switch between the different light colors (blue, yellow, cyan, purple, white, red and green).

Press “*” repeatedly to change the brightness in four levels (bright, medium, dark and off).
The lighting is switched off in standby mode.

NEEDLE REPLACEMENT

Removing Needle

1. Gently pull down the front edge of the needle
2. Pull needle forward
3. Pull out and remove

Installing Needle

1. Position the needle with its tip facing down
2. Line up the back of the needle with the cartridge
3. Insert the needle with its front end at a downward angle and gently lift the front of the needle upward until it snaps into place.

The current instruction manual can be downloaded from www.soundmaster.de

Technical changes and misprints reserved.

Copyright by Woerlein GmbH, 90556 Cadolzburg, www.soundmaster.de

Duplication only with the permission of Woerlein GmbH

CE

PROTECTION DE L'ENVIRONNEMENT

1. Avlagsna det vridna band som haller fast tonarmen.
2. Switch on the turntable at the rear with "POWER ON/OFF" and press and hold 12 / POWER or 12 " to switch the device on completely. Press and hold 12 / POWER or 12 " to switch the device to standby.

LJUDANSLUTNINGAR

RCA-ANSLUTNINGAR

Cadolzburg, www.soundmaster.de

Hereby, Wörlein GmbH declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU.

A copy of the declaration of conformity can be obtained from the above address.
