4459 - Kettle Cloer - Free user manual and instructions

Product type	Electric kettle
Brand	Cloer
Model	4459
Capacity	1.7 L (max), 0.5 L (min)
Temperature range	60 °C to 100 °C (in 10 °C increments)
Functions	Electronic temperature control, keep warm (2 h max), automatic shut-off
Control	Touch zone with temperature bar and On/Off switch
Display	Blue LED indicating actual and set temperature
Base	360° swivel base with electrical contact
Safety	Overheat protection (automatic shut-off if dry boiling), end-of-cycle shut-off, hot surface indicator
Scale filter	Removable filter located under the spout, cleanable with water
Material	Stainless steel, plastic (handle, lid)
Power supply	220-240 V ~ 50/60 Hz
Power	Approx. 2000 W
Cleaning	Wipe exterior with a damp cloth; do not immerse
Descaling	Recommended every 2-3 weeks depending on water hardness; use a descaling product or vinegar (without boiling)
Manufacturer warranty	2 years (subject to registration within 6 months)
Included accessories	Base, instruction manual

Frequently Asked Questions - 4459 Cloer

How to use the keep warm function?

After selecting the desired temperature (60-100 °C), press the Keep warm button instead of the On/Off switch. The appliance heats and then maintains the water at that temperature for about 2 hours. You can remove and replace the kettle during this time.

How to set the exact temperature?

On the touch zone, directly touch the desired temperature on the bar (60, 70, 80, 90 or 100 °C). The LED display lights up blue up to that mark. Confirm by pressing On/Off.

What to do if the kettle does not turn on?

First check that the plug is properly inserted. If the overheat protection has been triggered (dry boiling), let it cool for 1 hour then fill with cold water. If the problem persists, contact customer service.

How to clean the scale filter?

The filter is located under the spout. To remove it, press on the flat top edge with both thumbs to unclip the fastenings. Clean it under running water, then replace it by inserting the lower pin first and engaging the upper hooks.

How to descale the kettle?

Use a commercial descaling product (e.g., Durgol without boiling) or a mixture of 5-6 tablespoons of vinegar for 0.5 L of water. Do not boil the vinegar: let it act cold, then rinse twice with clean water. Descale every 2-3 weeks depending on water hardness.

What is the minimum amount of water I should put in?

The minimum level (MIN mark) is 0.5 litre. It is essential to cover the temperature sensor for the appliance to turn off correctly. Otherwise, the kettle may not stop.

How to avoid overflows?

Do not exceed the MAX mark (1.7 L). If you pour too much water, boiling water may overflow through the spout. In case of overflow, turn off and let cool before wiping.

Can I open the lid while the water is heating?

No, never open the lid during boiling or just after, due to the risk of steam burns. Wait until the water has stopped boiling.

How to reset the kettle after overheating?

If the overheat protection has been triggered (appliance used dry), unplug and let cool for about 1 hour. Then fill with cold water; the appliance is operational again.

What to do if the kettle makes an unusual noise?

A louder noise than usual is generally due to limescale. Descale the kettle as indicated in the manual. If the noise persists after descaling, contact customer service.

USER MANUAL 4459 Cloer

Electric Kettle with Temperature Controller Cloer-4459

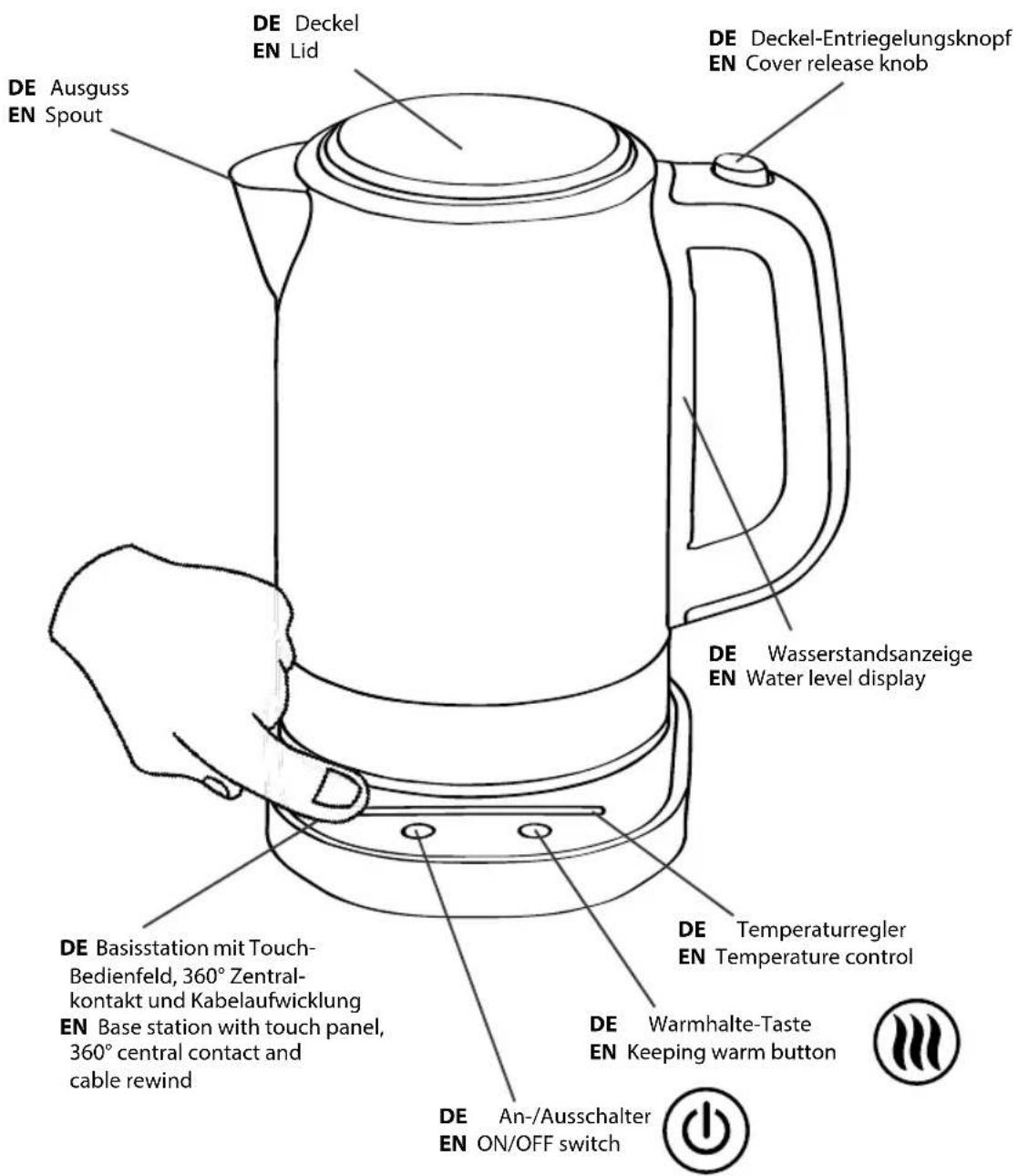

SPRACHEN - LANGUAGES

DE Bedienungsanleitung S. 4
EN Instruction Manual....S. 8
NL Gebruiksaanwijzing....S. 12
FR Notice d'utilisation.... S.16
IT Istruzioni sull'uso....S. 20
ES Instrucciones de uso S. 24
PT Instruções de uso....S. 28
LT Naudojimo instrukcija ....S. 32
LV Lietošanas instrukcija ....S. 36
DK Brugsanvisning S. 40
NO Bruksanvisning S. 44
SE Bruksanvisning S. 48
FI Használati utasitás S. 52
HU Használati utasitás S. 56
TR Kullanım talimatı S. 60
RU Руководство к применению ...... S. 64
PL Instrukcja obsługi S. 68

Cloer Online-Shop

https://cloer.de

Gewährleistung

Basic safety instructions

- The appliance is intended to be used in household only and using in:

– staff kitchen areas in shops, offices and other working environments,

– in farm houses,

– by clients in hotels, motels and other residential type environments, on bed and breakfast type environments.

- Have repairs of Cloer electronic appliances carried out only by authorized Cloer specialist dealers or by the Cloer customer service. Improper repairs can involve substantial dangers for the user. Furthermore, this will void your warranty claims.

- Only operate the appliance at household-usual power sockets. Check if the mains voltage stated on the type plate is up to that of your power supply network.

- If the supply cord is damaged, it must be replaced by Cloer, its service agent or similarly qualified persons in order to avoid a hazard.

- Pull power plug of the power socket

– in case of a defect,

- if the appliance is not used for a longer time,

– before any cleaning.

- Only pull at the plug, never at the feed cable.

- Do not stretch the feed cable over sharp edges and do not tighten it too tight, do not use it for carrying and protect it from heat (hotplate, for example).

- Do not tighten the feed cable too tight as otherwise the appliance is likely to tip over. Do not stretch the feed cable over sharp edges.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

- Do not leave children unattended to ensure they do not play with the appliance.

- Keep the appliance and its cord out of reach of children less than 8 years.

- Do not immerse the appliance in water.

- Protect the appliance from humidity (splashing water or rain)

- Let the appliance cool off before cleaning or stowing away. More information about proper cleaning on the following pages

- Do not use the appliance outdoors.

- Do not immerse appliance or base in water and do not clean under running water.

- Use the product only to cook water. An improper use of the appliance may lead to serious injuries.

- ATTENTION: After use, the heating plate of the device will still give off residual heat, risk of burns!

- Do not fill the appliance over the MAX mark (800ml).

- Please avoid that water spills on the base station.

- If water is accidentally spilled onto the contact base, proceed as follows:

– Unplug the unit from the wall socket.

– Dry the contact base with an absorbent dry kitchen towel.

– Dry the surface beneath the contact base.

– Plug the unit into the wall socket again.

Please do not open the lid during the boiling process or immediately after it.

Technical Data

type volt hz watt

445

220

240

50/60

18

50-2200

Before the first use

Read these operating instructions carefully before using the appliance for the first time.

• Remove all packing parts and possibly stickers, but not the type plate nor the serial number.
• Place the kettle on a dry, non-slip and level surface. Pour away the water from the very first boiling process.

EC Label / Safety information

The appliance meets the requirements of the applicable EC directives.

The appliance is designed for indoor domestic use only.

ATTENTION! Always unplug the appliance when not in use and before cleaning.

ATTENTION! The Surface is hot during operation. Only touch the device at its handle.

• Caution! Always fill the kettle with at least enough water to completely cover the spout.
• Do not fill the kettle with water beyond the MAX mark. There is a risk of scalding due to possible over-spouting.
• Always remove the kettle from the base station before filling it with water.
• The base station may only be put into operation when it is dry.

Touch control panel

• Your kettle is equipped with a temperature control and a keep-warm function, which are controlled by touch using a modern touch control panel.
• A temperature in the range of 60° - 100°C can be selected for both.
• The closed surface prevents dirt, dust or water from getting into the inside of the base.

Operation

• Plug the power plug into the wall socket
• Remove the electric kettle from the contact base.

• Open the lid by pressing the cover release knob at the handle.

• Fill the electric kettle with desired amount of cold tap water using the water markings on the water level display behind the handle.

• ATTENTION: Make sure not to fill below the MIN marking (= 0.5 l) so that the heat detector is covered with water, otherwise the appliance can not switch off properly.
• ATTENTION: Make sure not to fill water past the MAX marking (= 1,7 l) on the water level display. Scalding may result from water boiling over.
• Close the lid manually and place the electric kettle anywhere on the 360° contact base.
• Your water boiler is equipped with a temperature control and works by touch (please see also "Touch control panel").
• Select the desired temperature (between 60° and 100°C ) by touching it on the "Touch-Temperature Strip". The LED display then lights up blue to this point.
• INFO: Water will boil at a temperature of 100°C .
• Please observe that the water temperature after boiling may deviate from the selected temperature by a few degrees Celsius.
• To switch it on, press the ON/OFF switch on the touch panel.

• The temperature can be selected in steps of 10: 60-70-80-90-100°
• When the water has reached the desired temperature, the kettle beeps three times and then switches off automatically.
• The temperature of the water is displayed in steps of 5: 55-60-65-70-75-80-85-90-95-100 °C
• The LEDs on the temperature bar remain lit for some time.
• The set temperature flashes, the ACTUAL temperature lights up.
• You can also cancel the current cooking process at any time by pressing the on/off switch again. The set temperature can be changed during the cooking process.
• Please wait a moment until the water stops bubbling.
• To pour out the water, lift the kettle off the contact base.
• If the kettle is returned to the base with hot water above 55°C , the current water temperature is automatically displayed.
• Wait a few minutes until you fill the appliance with water again and use it to allow it to cool down. Make sure that you do not touch the hot housing when operating the appliance. Danger of burning!

Keeping warm function

• You can keep the water hot after boiling.
• Proceed as described in „Operation“, but push the button for keeping warm instead of the ON/OFF switch.

• This automatically operates the ON/OFF switch and the device starts to boil.
• Then the water is kept warm on the selected temperature.
• You can remove the water boiler from the contact socket at any time during the keeping warm time, pour water and return it, which will continue the keeping warm function.
• You can stop the keeping warm function at any time by pushing the keeping warm button again.
• Otherwise, the device will automatically switch off after approx. 30 minutes.
• You may also switch on the keeping warm button subsequently during a regular boiling process.
• For this, boil water as usual and select the keeping warm button after pushing the ON/OFF switch.

Overheating protection device

• The electric kettle is equipped with a overheating protection. In the event that you accidentally operate the electric kettle without water, the device will automatically switch off for your safety and can have no function for a short time. Let the appliance allow to cool for ca. 1 hour. Afterwards fill in cold water and the device will be ready to operate again.
• Fill in cold water and let the appliance cool down for about 15 min. Then the appliance is again ready for operation.

Cleaning

• CAUTION: Do not immerse appliance or base in water and do not clean under running water!
• Do not clean the electric kettle with heavily abrasive cleaners. They could scratch the appliance.
• Clean very dirty appliances with a damp cloth and lukewarm water.

Removing / cleaning the lime filter

• The lime filter is located below the pouring spout inside of the kettle.
• Remove the filter towards the top.
• Clean the lime filter with a little bit of soapy water and place it into the bottom hole of the scale filter holder of the water boiler with the bottom pin first. Then push the two upper filter hooks back into the square holes of the holder in the water boiler until the scale filter latches.

Decalcifying

If the water contains limescale, the kettle should be descaled at regular

intervals (depending on the water hardness hardness of the water, approx. every 2-3 weeks). By regular descaling keeps the power consumption low consumption is kept low and the service life of your kettle is extended. A layer of limescale on the heating element prevents optimum heat transfer to the water, which extends the brewing time and may stop the function completely.

It also leads to increased noise during the boiling process. Use a commercially available descaling agent for descaling and follow the instructions for use.

When using a descaler, we recommend:

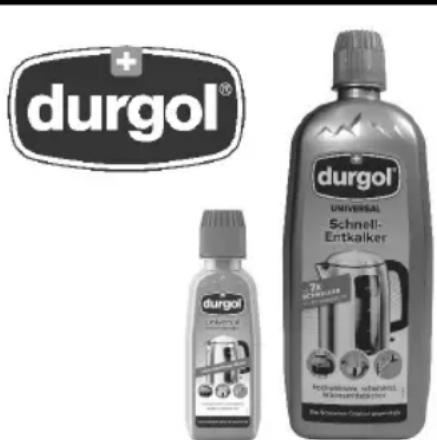

Please follow the instructions for use when using Durgol. Unlike other descaling agents, Durgol is used without boiling.

Tip: If the kettle is slightly calcified, you can also descale it with a mixture of 5-6 tablespoons of vinegar to 0.5 litres of water instead of using descaling agents.

Please note when descaling with vinegar:

• First fill the kettle with cold water:
• Boil this briefly
• Now add the vinegar and leave the appliance to stand for a while.
• CAUTION: Do not boil this mixture.
  • After descaling, rinse the kettle twice with clean water.
• If the appliance malfunctions due to limescale, there is no warranty claim!

NOTE

The lime content varies from region to region. Please ask your local waterworks or public utility company about the hardness of your water. Hard water should be descaled more often, soft water less often.

Problem /Cause / Solution

Problem Possible cause		Solution
Electric kettle does not function	Appliance is not plugged in	Plug the power plug into the wall socket
Electric kettle does not function	Overheating protection switches off appliance	Please see page 11 under “Overheating protection device”
Water bubbles over in the electric kettle	Too much water has been added	Add less water, do not exceed the MAX marking
Electric kettle does not switch off	Added to little watter	Add more water / do not come below the MIN marking (= 0.8 l)
Electric kettle makes loud noises during operation or	Too much calcification inside the electric kettle	Decalcify the electric kettle
White spots form at the bottom of the electric kettle	Too much calcification inside the electric kettle	Decalcify the electric kettle

Environmentally friendly disposal

We use environmentally friendly packaging for the transport of our appliances. Please recycle cardboard/ paper and plastic packaging appropriately.

ATTENTION!

Electrical appliances should not be disposed of with the household trash.

Electrical appliances contain valuable raw materials. When an appliance is worn-out, please take it to a recognised recycling facility. Consult the local authorities for information on recycling appliances.

Warranty

Cloer electrical appliances are in conformity with the currently required EC-guidelines and safety regulations. If your Cloer electrical appliance has a defect or it does not work properly, contact your specialist dealer.

Registered clients have at their disposal our technical customer service.

Manufacturer warranty

Please register your appliances in the period of 6 months since the purchase in order to benefit from our manufacturer warranty. The published conditions of warranty in the moment of the registration are valid. You will find conditions of warranty and product registration here:

Manufacturer warranty

https://cloer.eu/guarantee

NL

-in bed-and-breakfasts.

type voltage hz watt

445

220

240

50/60

18

50-2200

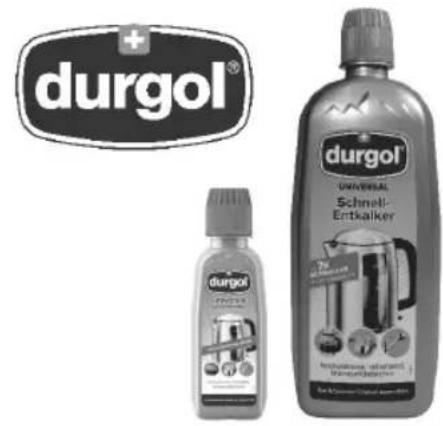

When using a descaler, we recommend:

© 2024 by Cloer Germany GmbH&CoKG

We reserve the right to make technical changes, we are not liable for any errors or printing errors.
