The product is only suitable for well-insulated rooms or for occasional use.

NOTE: BEFORE USING THE EQUIPMENT, PLEASE READ THIS MANUAL CAREFULLY AND KEEP IT FOR FUTURE REFERENCE. PERSONS WHO HAVE NOT READ THE INSTRUCTIONS SHOULD NOT CARRY OUT ASSEMBLY, ADJUSTMENT OR OPERATION OF THE EQUIPMENT.

READ THE USER MANUAL CAREFULLY TO FAMILIARISE YOURSELF WITH THE APPLIANCE KEEP THIS MANUAL FOR REFERENCEFUTURE.

SPECIFIC SAFETY PROVISIONS NOTE!

Read the operating instructions carefully, follow the warnings and safety conditions contained therein. The appliance has been designed for safe operation. Nevertheless: installation, maintenance and operation of the appliance can be dangerous. Following the following procedures will reduce the risk of fire, electric shock, injury and will reduce the installation time of the appliance.

This equipment may be used by children of at least 8 years of age and by people with reduced physical or mental capabilities or lack of familiarity with the equipment the equipment if supervision or instruction is provided on how use to safely so that the associated risks are understood. Children should not play with the equipment. Unsupervised children should not carry out cleaning or maintenance of the equipment The unit is used for occasional operation.

SAFETY RULES

- The unit must not be used outdoors in damp weather, in bathrooms or other wet or humid environments.

- Please note that the appliance can become very hot. Therefore, the appliance should be placed at safe distance of a at least 1 metre (3 feet) from flammable objects such as: furniture, curtains etc.

- Do not cover the unit with, for example, a towel.

- The appliance must not be located directly under a wall socket.

- The appliance must not be connected to the mains via a timer or programmable switch.

- The appliance must not be placed in rooms where flammable dusts, liquids or gases are used or present.

- If the appliance is connected by means of an extension cord, ensure that the extension cord is as short as possible and fully extended and of the correct cross-section.

- The unit should not be used in the immediate vicinity of a bath, shower or swimming pool.

- If the power supply cable is damaged, it must be replaced by the manufacturer, its representative, service or a qualified person in order to avoid danger.

- Do not connect other devices to the same mains socket to which the device is connected.

- The appliance should not be left unattended. Keep children and pets away from the appliance.

- 12. do not place the unit on unstable, moving surfaces or where it can be knocked over.

- If the appliance is not used for a long time, unplug it from the power supply. Do not leave the appliance switched on unattended. When disconnecting the appliance from the mains, pull out the plug, never pull on the power cord.

- Keep the unit away from curtains, curtains or places where the air inlet is easily blocked.

- To prevent possible electric shock, never operate the appliance with wet hands or when there is water on the power cord.

- Do not dispose of electrical appliances with unsorted municipal waste, use separate collection points. Contact your local authorities for information on available collection systems. If electrical appliances are disposed of in landfill sites, hazardous substances can seep into the groundwater and enter the food chain, damaging your health.

- This equipment is not intended for use by persons (including children) with reduced physical or mental capabilities or lack of experience unless supervision or instruction is provided regarding the safe use of the equipment so that the associated risks are understood.

- Children should be supervised to ensure that they do not play with the appliance.

- Do not modify or repair the appliance yourself. To do so, send it to a service centre or qualified electrician (during the post-warranty period).

PICTOGRAMS AND WARNINGS

1 2 3 4 5 6 7 8 9 10

1. Read the operating instructions, observe the warnings and safety conditions contained therein!

2. The device may require installation

3.Do not touch the hot surface

4.Do not cover

5.Disconnect from power supply before repair or maintenance

1. For indoor use

2. Protect from moisture

3. Keep out of the reach of children

9.Do not dispose of with household waste

10.Recyclable

DESCRIPTION OF THE GRAPHIC ELEMENTS

The following numbering refers to the components of the device shown on the graphic pages of this manual.

Figure A

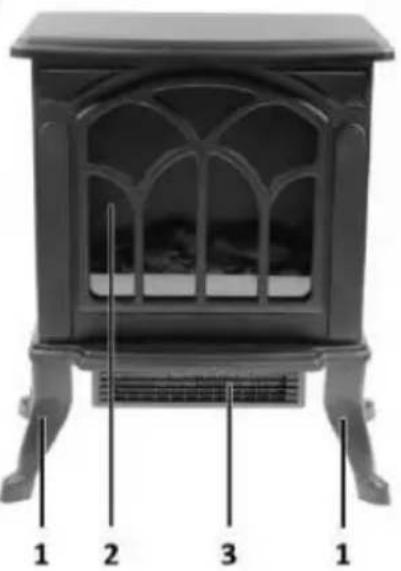

1. Legs of the heater

2.Flame screen

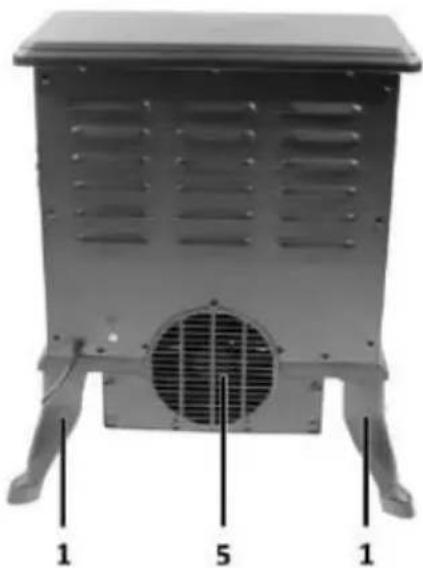

1. Hot air outlet

2. Control panel, switching on the heater

3. Air inlet / fan guard

Figure B

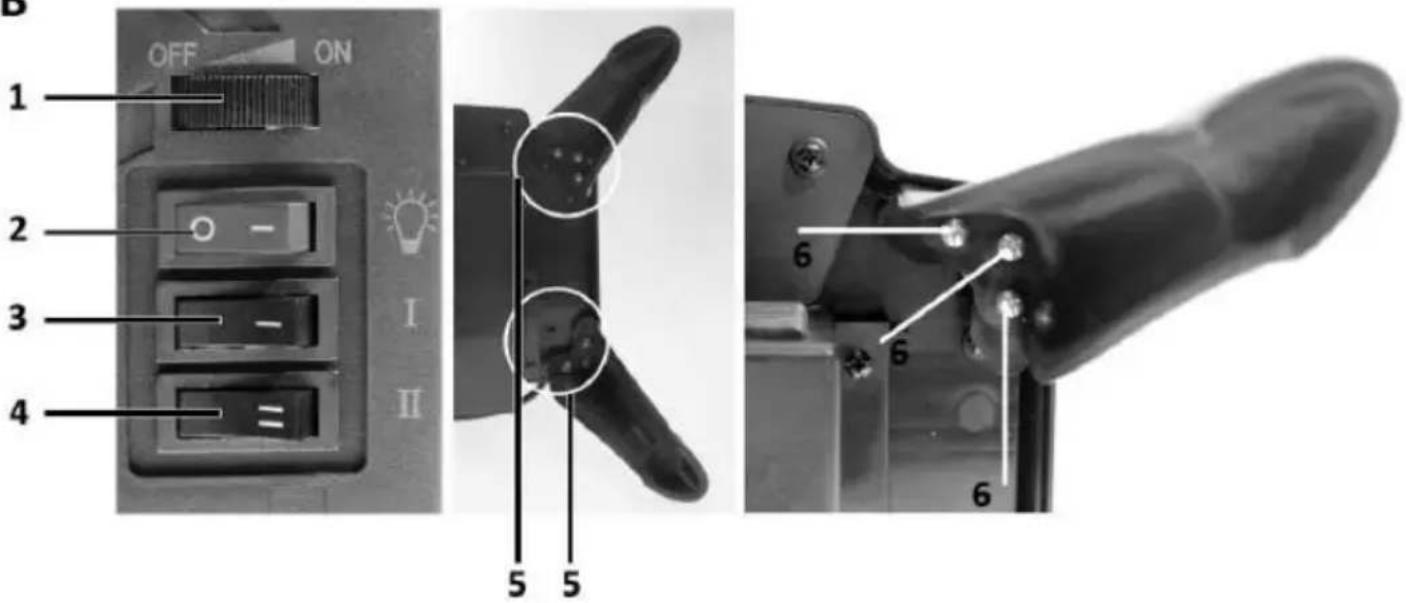

1. Thermostat control, main switch

2. Flame switch (visual flames only)

3. Half power heating switch

4.Full power heating switch

5.Leg attachment point

1. Leg fixing screws

* There may be differences between the graphic and the actual product

PREPARATION

This product is intended for home and office use only and not for industrial or other commercial use. Use only with a power cord that is undamaged and in good condition, which meets the applicable standards and regulations. The heater must be from the mains whose parameters are specified in the rating table. Do not connect other additional appliances on the same circuit as the heater in operation.

Always operate the heater in an upright position, following all instructions and recommendations listed in this manual

LOCATION OF THE HEATER

Place the heater in the coldest part of the room.

HEATER CONNECTION

Plug the heater directly into a wall socket. Make sure that the plug fits tightly into the socket. A loose connection can cause overheating and damage to the plug.

NOTE: To prevent overloading the circuit, do not connect the heater to a circuit that supports other electrical appliances

TURNING ON: To start the heater, plug the power cord into the socket. Turn the thermostat knob to the right until slowly you hear a soft click. The heater is ready for operation.

FLAME EFFECT (VISUAL ONLY)

To make the flames visible, press the switch fig. B2 to the I position. To deactivate the effectflame, press the switch flg. B2 to position 0. The flame effect can be activated independently of heatingthe appliance.

THERMOSTAT SETTING:

Once switched the heater is and the desired room temperature is reached, slowly turn the thermostat knob on Fig. B1 counterclockwise until the heater switches off (you should hear a faint "click") Leaving the thermostat on the setting will automatically maintain set the temperature. To lower the

temperature, turn the knob to the left. To raise the temperature, turn the thermostat knob to the right.

CHANGING THE HEATING POWER

To switch on half the heating power, press the switch fig. B3. To obtain full heating power press the switch still fig. B4. Both buttons must be actuated to full heating power.

TURN OFF: Turn off the main switch Fig. B1 power by turning it counterclockwise until you hear a soft click. The half and full heating switches can be left in any position and no will have power. They will still have the same set functions when the heater is switched on again. The heater should be unplugged when not in use.

IMPORTANT SAFETY FUNCTION

The heater is equipped with an automatic overheating protection device located inside the body of the unit. If the heater grille is obstructed or if the heater becomes too hot for any reason, the automatic overheat protection device will switch off the heater. To reset the heater, simply switch off the power and unplug the heater for 10 minutes down until it has cooled . then You can connect the heater to the power supply and restart it. Make sure the heater is on a smooth, level surface.

MAINTENANCE AND STORAGE

• Unplug the appliance from the power supply and allow it to cool down before cleaning. The housing of the appliance gets dirty easily, so wipe it frequently with a soft sponge. Wipe any soiled part with a sponge soaked in warm water with detergent. Then wipe the washed element with a dry cloth. Take care that water does not get inside the unit. To protect the housing, do not use solvents or strong detergents for cleaning.
• Clean the power cord and plug, then dry and pack in a plastic bag.
• Store the unit in a dry ventilated room away from children.

Ceramic fan heater 90-110
Parameter	Value
Supply voltage	230V AC
Supply frequency	50 Hz
Heating power (1st stage / 2nd stage)	800W / 1500W
Heating area	20-30 m^2
Protection class	I
IP degree of protection	IPX0
Dimensions (mm)	380x240x460mm
Weight (without accessories)	2.94 kg

ENVIRONMENTAL PROTECTION

Electrically-powered products should not be disposed of with household waste, but should be taken to appropriate facilities for disposal. Contact your product dealer or local authority for information on disposal. Waste electrical and electronic equipment contains substances that are not environmentally friendly. Unrecycled equipment poses a potential risk to the environment and human health.

"GTX Poland Spółka z ograniczoną odpowiedzialnością" Spółka komandytowa with its registered office in Warsaw, ul. Pograniczna 2/4 (hereinafter: "GTX Poland") informs that all copyrights to the content of this manual (hereinafter: "Manual"), including among others. All copyrights to the contents of this Manual (hereinafter referred to as "Manual"), including but not limited to its text, photographs, diagrams, drawings, as well as its composition, belong exclusively to GTX Poland and are subject to legal protection under the Act of February 4, 1994 on Copyright and Related Rights (i.e. Journal of Laws 2006 No. 90 Item 631 as amended). Copying, processing, publishing, modifying for commercial purposes the entire Manual as well as its individual elements without the written consent of GTX Poland is strictly prohibited and may result in civil and criminal liability.

EU Declaration of Conformity

Manufacturer: GTX Poland Sp. z o.o. Sp.k., 2/4 Pograniczna St. 02-285

Warsaw

Product: Ceramic fan heater

Model: 90-110

Trade name: NEO TOOLS

Serial number: 00001 ÷ 99999

This declaration of conformity is issued under the sole responsibility of the manufacturer.

The product described above complies with the following documents:

Low Voltage Directive 2014/35/EU

Electromagnetic Compatibility Directive 2014/30/EU

RoHS Directive 2011/65/EU as amended by Directive 2015/863/EU Regulation (EU) 2015/1188 implementing Directive 2009/125/EC

And meets the requirements of the standards:

EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A14:2019+A2:2019;

EN 60335-2-30:2009+A11:2012+A1:2020+A12:2020; EN 62233:2008;

EN 55014-1:2017+A11:2020; EN 55014-2:2015; EN IEC 61000-3-2:2019; EN 61000-3-3:2013+A1:2019;

EN IEC 63000:2018

This declaration relates only to the machinery as placed on the market and does not include components

added by the end user or carried out by him/her subsequently.

Name and address of the EU resident person authorised to prepare the technical dossier:

Signed on behalf of:

GTX Poland Sp. z o.o. Sp.k.

GTX Poland quality officer

Warsaw, 2023-03-21
