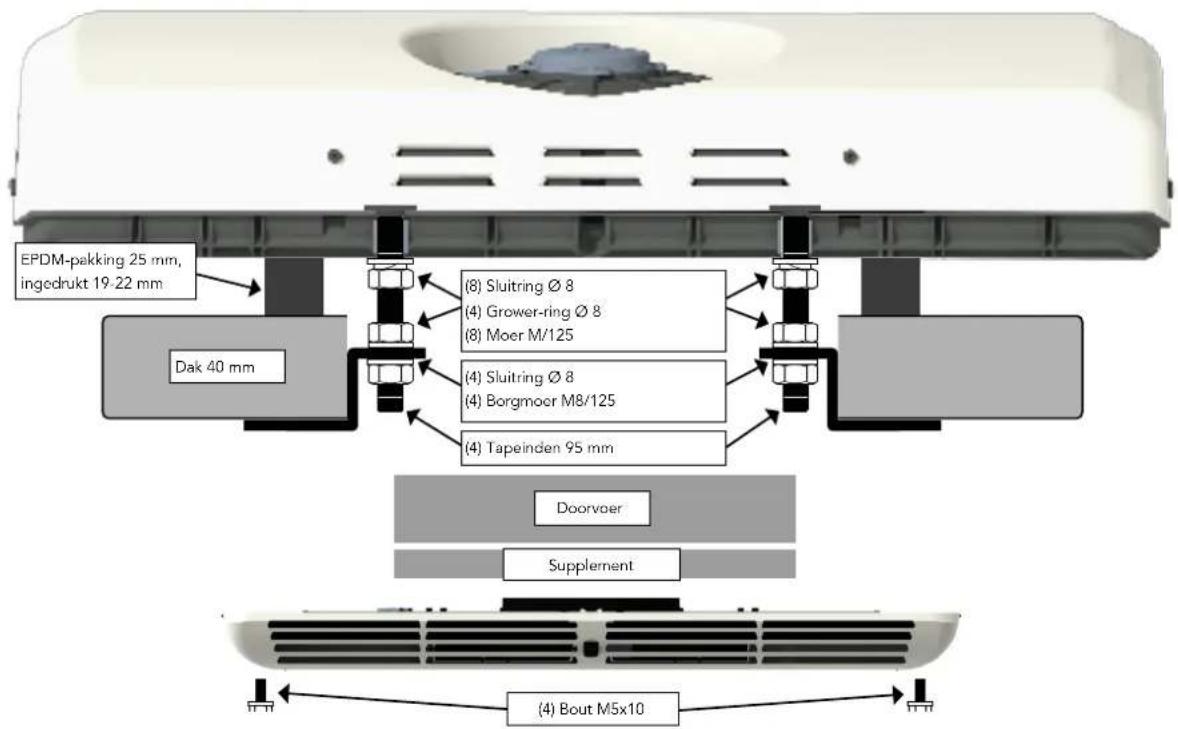

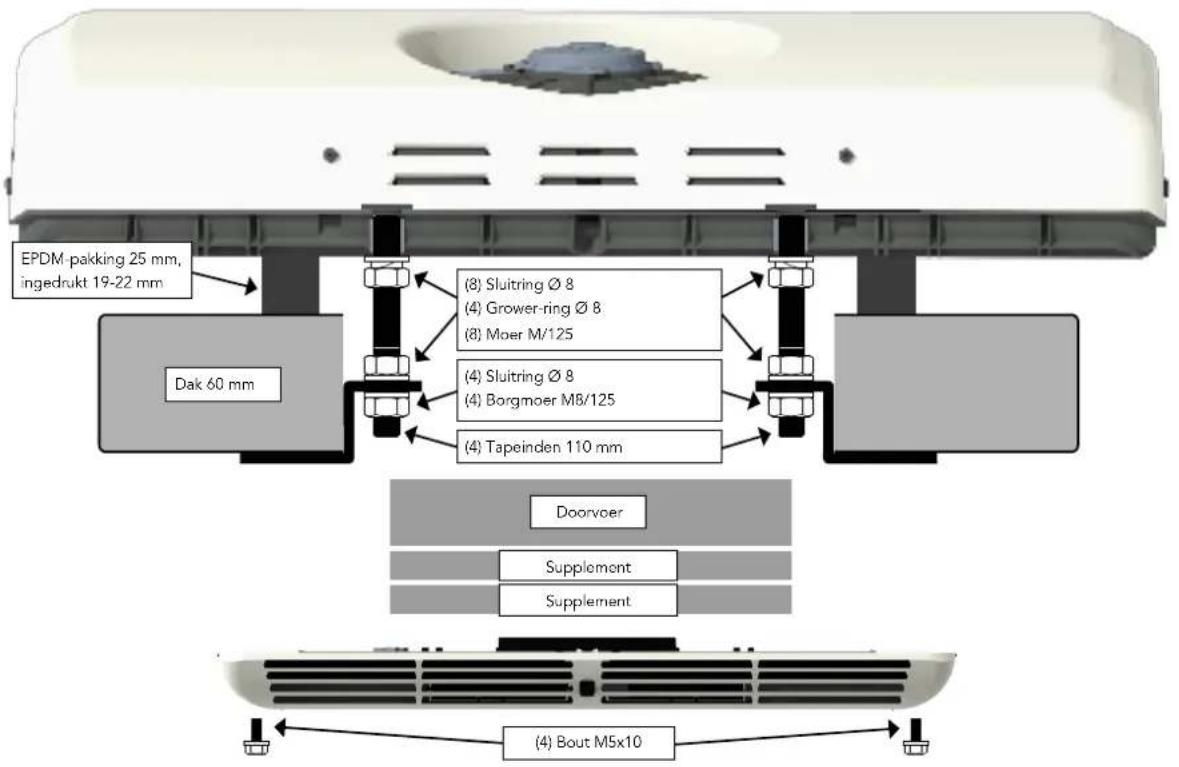

MONTAGEDIAGRAMMEN

Dikte 30 mm

EPDM-pakking 25 mm, ingedrukt 19-22 mm Dak 30 mm (8) Sluitring Ø 8 (4) Grower ring Ø 8 (8) Moer M/125 (4) Sluitring Ø 8 (4) Borgmoer MB/125 (4) Tapeinden 85 mm Doorvoer (4) Bout M5x10

Dikte 40 mm

EPDM-pakking 25 mm, ingedrukt 19-22 mm Dak 40 mm (8) Sluitring Ø 8 (4) Grower-ring Ø 8 (8) Moer M/125 (4) Sluitring Ø 8 (4) Borgmoor M8/125 (4) Tapeinden 95 mm Doorvoer Supplement (4) Bout M5x10

MONTAGEDIAGRAMMEN

Dikte 50 mm

EPDM-pakking 25 mm, ingedrukt 19-22 mm Dak 50 mm (8) Sluitring Ø 8 (4) Grower-ring Ø 8 (8) Moer M/125 (4) Sluitring Ø 8 (4) Borgmoer MB/125 (4) Tapeinden 95 mm Doorvoer Supplement (4) Bout M5x10

Dikte 60 mm

EPDM-pakking 25 mm, ingedrukt 19-22 mm Dak 60 mm (8) Sluitring Ø 8 (4) Grower-ring Ø 8 (8) Moer M/125 (4) Sluitring Ø 8 (4) Borgmoer M8/125 (4) Tapeinden 110 mm Doorvoer Supplement Supplement (4) Bout M5x10

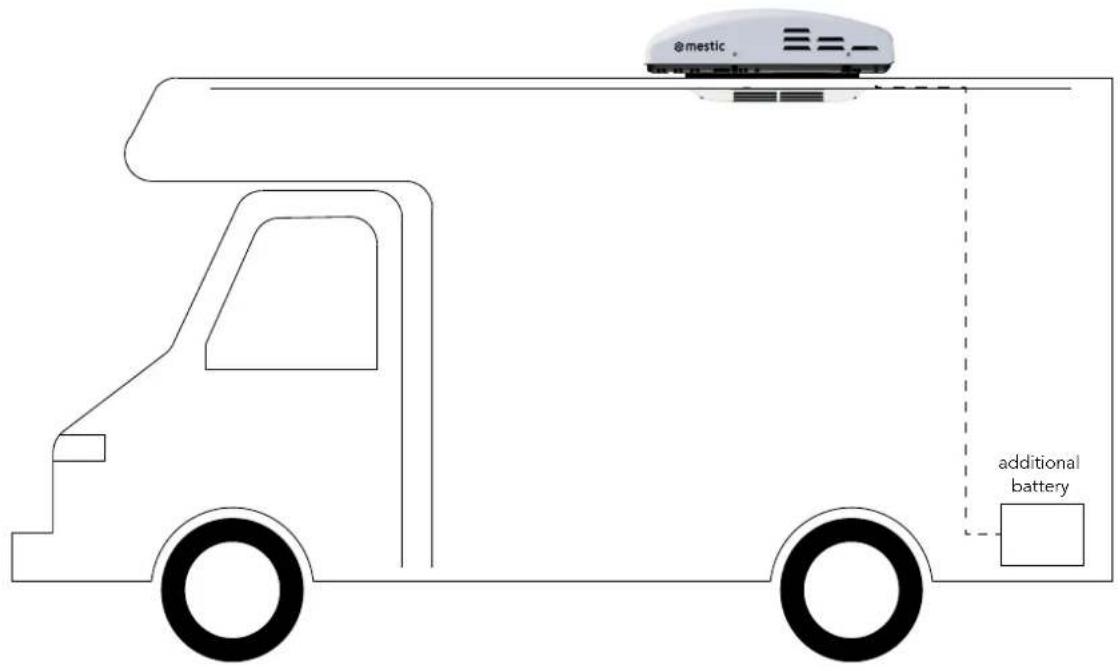

MONTAGE VAN VOEDINGSKABELS EN SIGNAAL NAAR ACCU

18

Omestic Extra accu

19

Close-up of a white electronic device with blue and black connectors, connected to a solar panel (no visible text or symbols)

20

Interior view of an electronic device with visible wiring and components (no text or symbols)

Declaration of conformity 21

Warnings during assembly 22

Using the product correctly.... 22

Assembly options 23

Operations before installing.... 24

Requirements to install 25

Installation process.... 25

Assembly drawings.... 32

Power and battery signal cable assembly 34

Overview 34

Wiring diagram.... 36

RECYCLING

This product bears the selective sorting symbol for waste electrical and electronic equipment. This means that this product must be handled pursuant to European Directive (2012/19/EU) in order to be recycled or dismantled to minimize its impact on the environment. For further information, please contact your local or regional authorities. Electronic products not included in the selective sorting process are potentially dangerous for the environment and human heath due to the presence of hazardous substances.

DECLARATION OF CONFORMITY

Hereby Gimeg Nederland B.V. declares that the device RTA-2000 12V, applies all basic requirements and other relevant regulations listed in the European directive for radio equipment (2014/53/EU), electromagnetic compatibility (2014/30/EU) and ROHS directive (2011/65/EU). If you require a full declaration of conformity, you can contact the address listed on the backside of this manual.

Important:

Read this document carefully before installing the product. The original documentation was written in Spanish, all other languages are translations.

Keep this document for future reference.

All product manuals are available at https://www.mestic.nl/en

All indications published in this manual are non-binding. In particular, Mestic reserves the right to make changes to the technical details, prices, colours, shapes, design, equipment, material and functions of the service without prior notice and without giving its reasons; it also reserves the right to adapt its equipment to local conditions in certain markets, and to end production of a given model without prior notice. Mestic shall be in no way liable for any issues around the availability of equipment, for differences between pictures or descriptions and the actual model, or for errors or omissions in this publication.

© 2025 Mestic

All rights reserved.

Any form of reproduction without the written permission of the copyright owner is strictly forbidden.

Warnings during assembly:

This equipment may only be installed, repaired, and maintained by technical personnel with due training in vehicle air conditioning, potential hazards and applicable standards.
Read the assembly instructions carefully before installing RTA-2000 12V. Follow the instructions carefully during installation.
Switch off the ignition key before starting to install the unit.
Disconnect the vehicle's battery before starting to install RTA-2000 12V.
Install RTA-2000 12V securely to prevent it from falling.
Use appropriate tools for each operation.
During installation, ensure the connection of the electrical components, checking that they are fitted correctly.
If the cable passes through sharp-edged walls during installation, use ducts or guides to prevent any damage to it.
Important alert: Make sure the polarities are not reversed when connecting the unit. If this happens, the control board will not come on and the unit will not work.

Tools required for assembly:

Ratchet with 13 mm wrench.
Torx screwdriver.
13 mm open-end wrench.
Cutter.

Using the product correctly:

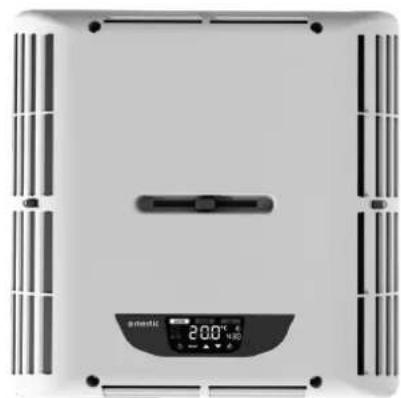

RTA-2000 12V is a high-performance roof-mounted air conditioning unit suitable for use in motorhomes and other recreational vehicles. Installation in any other type of vehicle is not recommended.
Using it in any way other than as envisaged will void the unit's warranty and exempt the manufacturer from any liability.
If you are unsure how to use RTA-2000 12V, check this guide or contact your dealer.

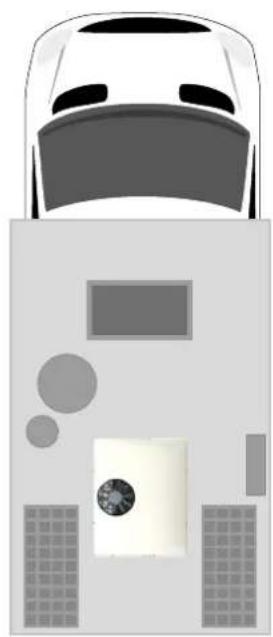

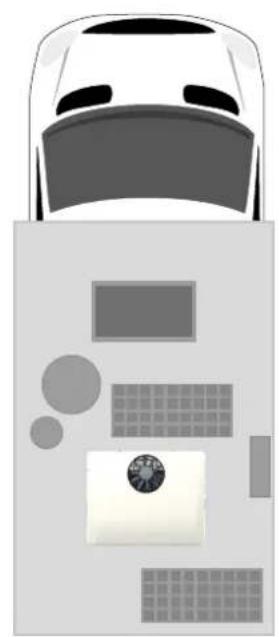

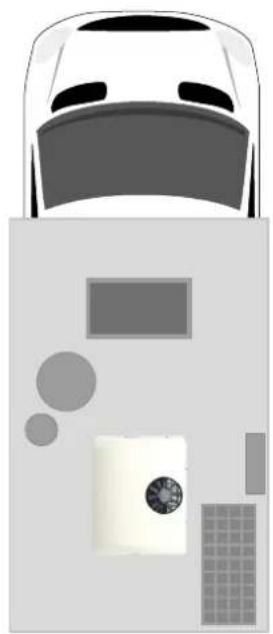

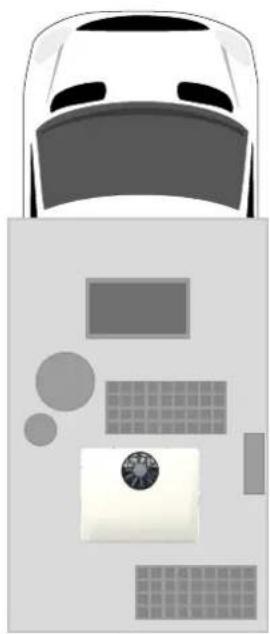

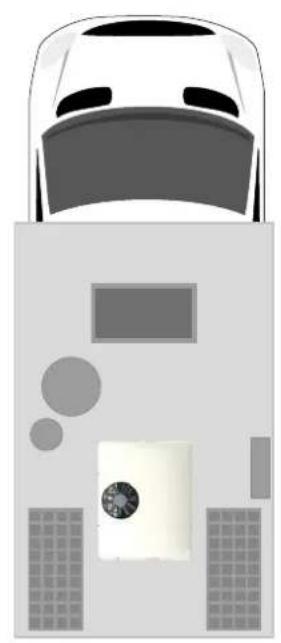

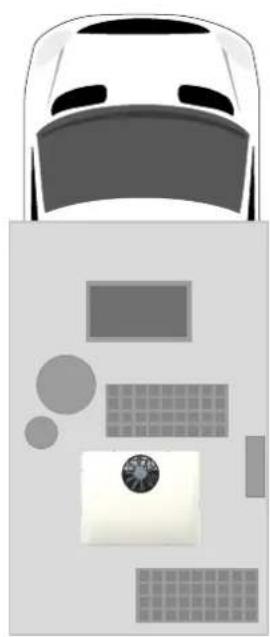

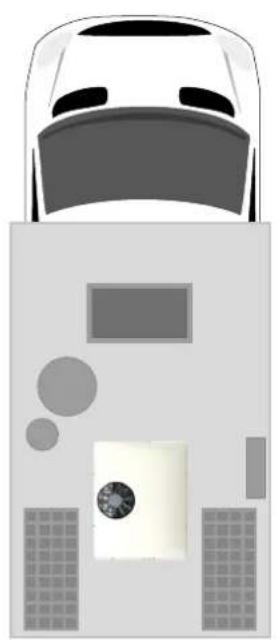

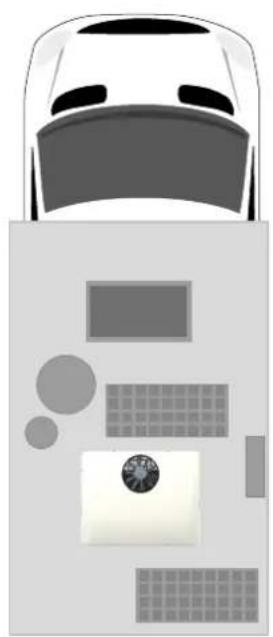

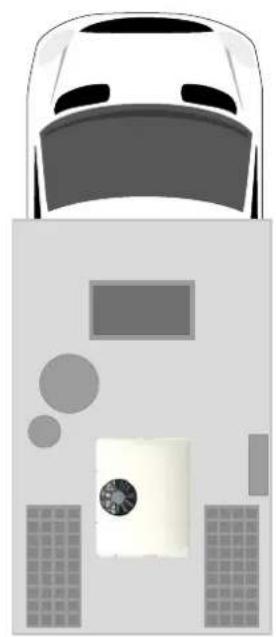

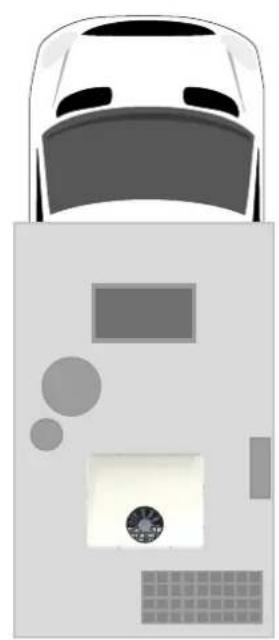

ASSEMBLY OPTIONS

Top-down view of a car with abstract geometric shapes and no visible text or symbols

Top-down architectural rendering of a car with visible roof, windows, and door (no text or symbols)

Top-down view of a car with abstract floor plan elements (no text or symbols)

Top-down view of a car with abstract geometric shapes and no visible text or symbols

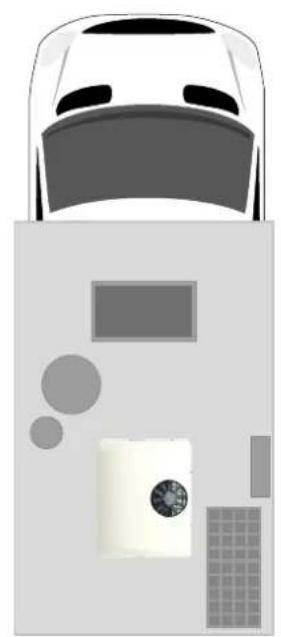

Attention: To ensure proper ventilation of the equipment and avoid poor operation, a space of at least 10 cm must be kept clear along the back of the unit.

10 cm

OPERATIONS BEFORE INSTALLING RTA-2000 12V IN VEHICLES WITH NO ROOF HATCH

1

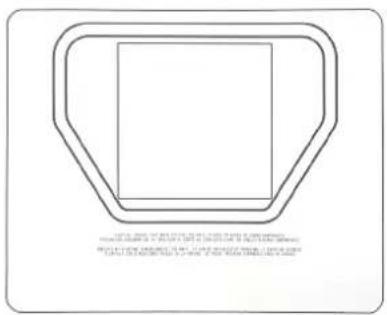

Take the cutting template from the RTA-2000 12V equipment box and place it on the roof of the vehicle to mark the position where the unit will be installed.

Caution: Check that the marking on the outside does not interfere with any element inside the vehicle when mounting the interior console.

Note: RTA-2000 12V is a versatile unit that can be installed every 90^ in order to adapt to the available space on the vehicle's roof, meaning it does not interfere with the rest of the accessories.

Pure geometric diagram of a square with rounded corners and a central rectangle, no text or symbols present.

Pure geometric diagram of a pentagon with dashed inner square, no text or symbols present

2

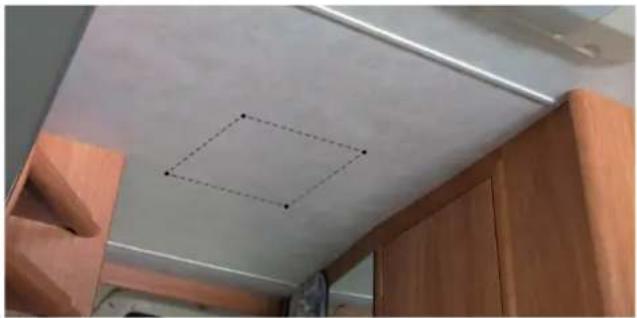

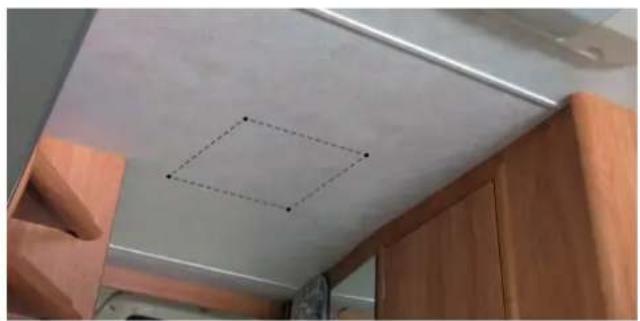

From outside the vehicle, from inside the vehicle, mark the 400 x 400 mm space where the unit will sit. Drill (4) holes in the 4 corners of the marked space.

Drilling

3

From outside the vehicle, join the holes by cutting the roof using a jigsaw. Complete the cut from the inside by cutting the batting and the false ceiling.

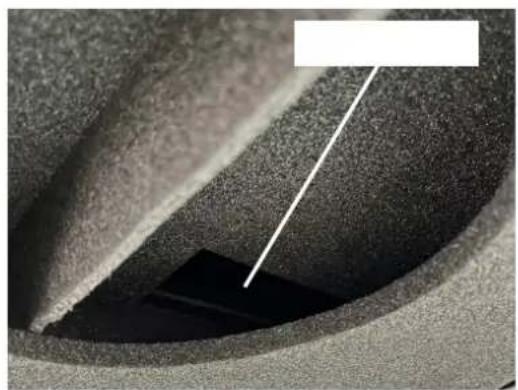

Caution: Take care when making the cut, as there may be a cable duct inside.

Exterior view of a modern office building roof with white metal framing and red horizontal stripe (no signage)

Interior ceiling view with wooden cabinets and a diamond-shaped ceiling fixture (no text or symbols visible)

REQUIREMENTS TO INSTALL RTA-2000 12V IN VEHICLES WITH A ROOF HATCH

Caution: RTA-2000 12V can only be installed in vehicles with a hatch that are equipped with:

- 400 x 400 mm roof opening - Roof 30 to 60 mm thick

4

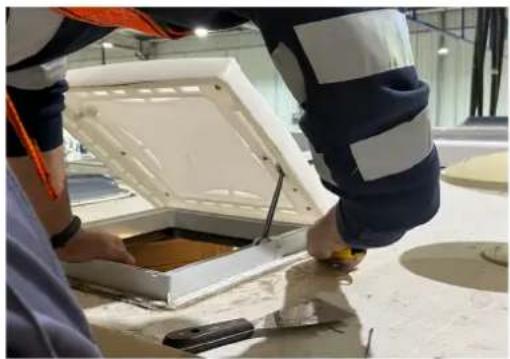

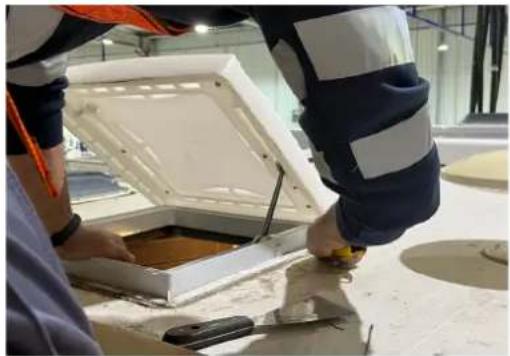

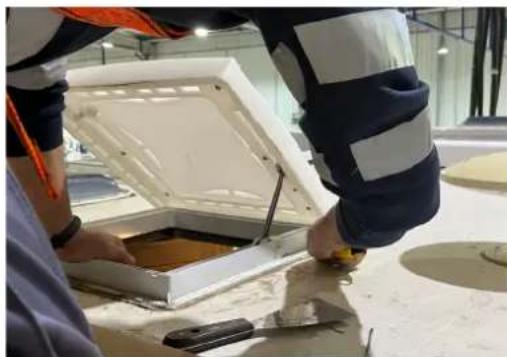

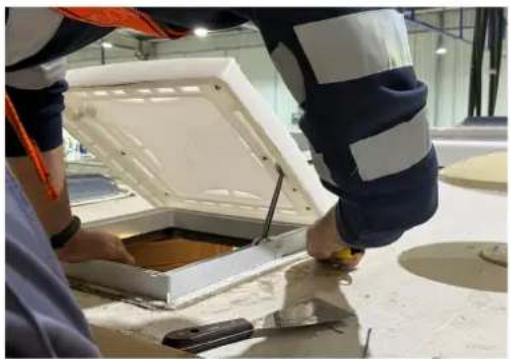

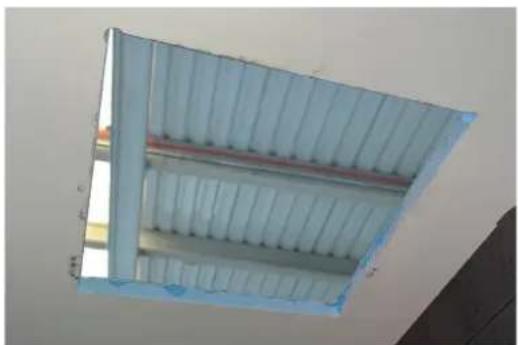

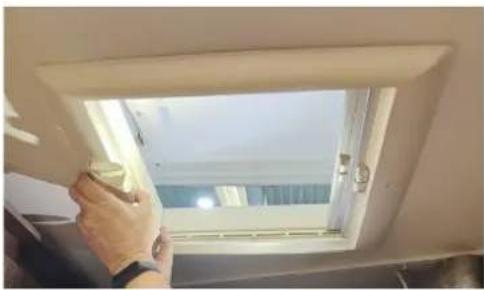

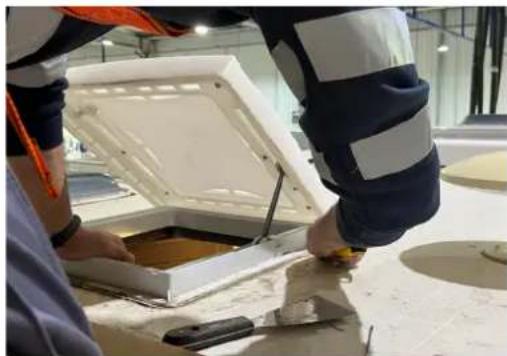

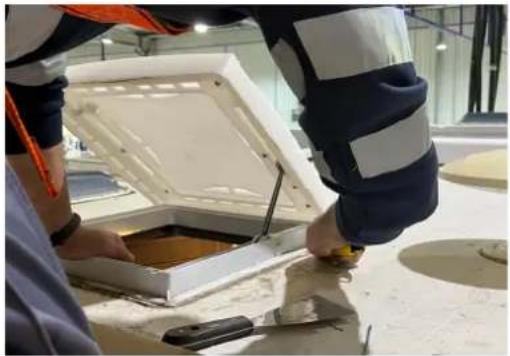

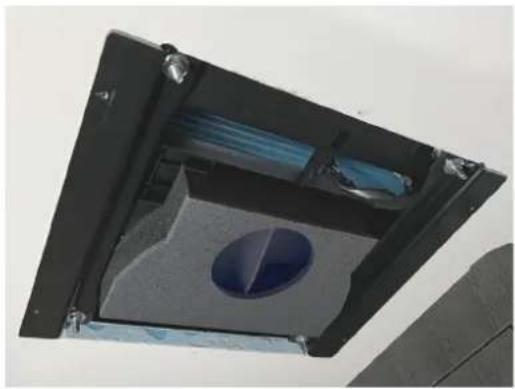

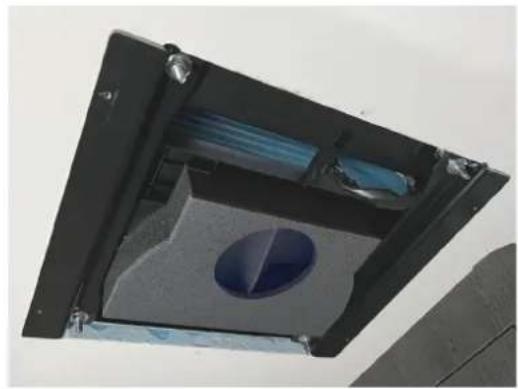

Remove the hatch and the frame of the vehicle where the RTA-2000 12V unit will be installed.

Person cleaning a window with a spray gun, no visible text or symbols

Person in safety gear installing or inspecting a white open box on a workbench (no visible text or symbols)

RTA-2000 12V UNIT INSTALLATION PROCESS

5

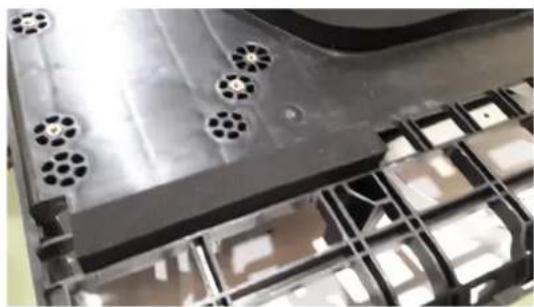

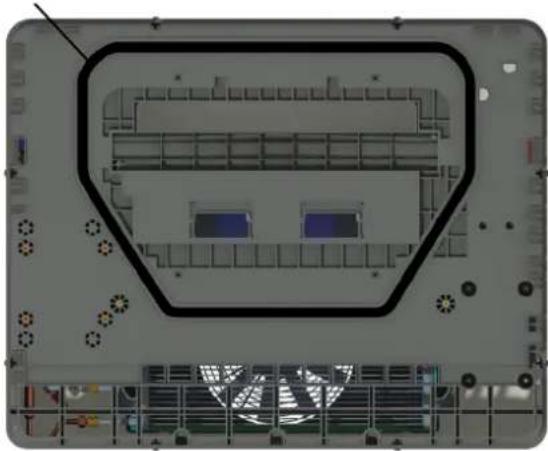

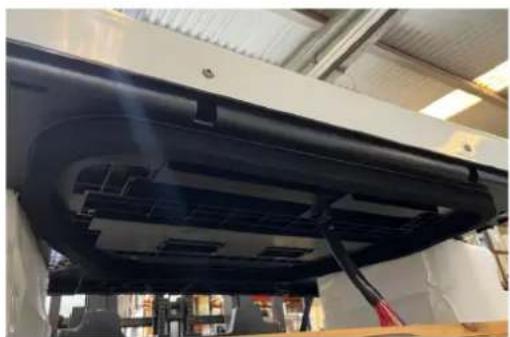

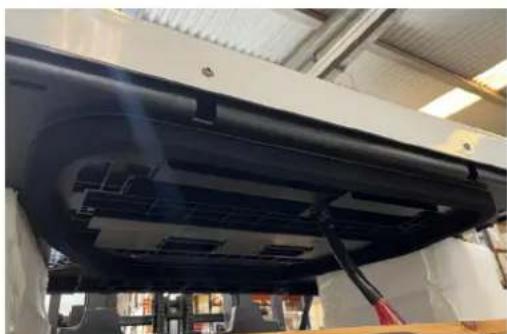

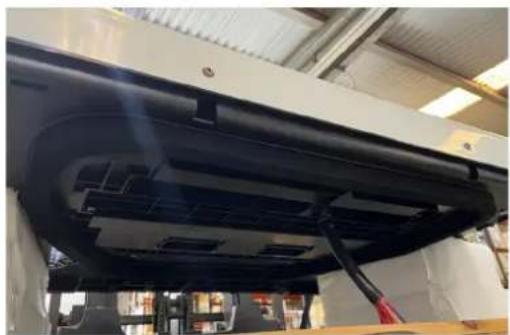

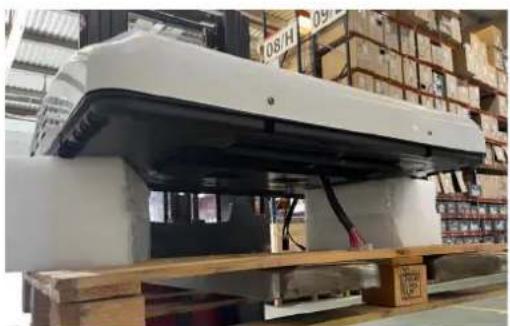

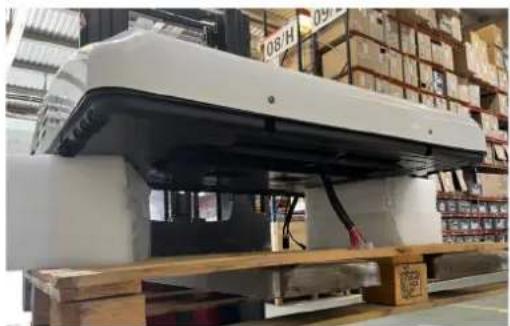

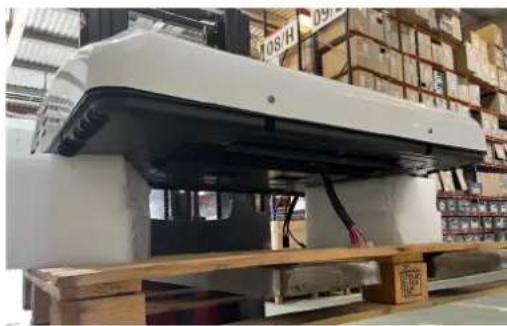

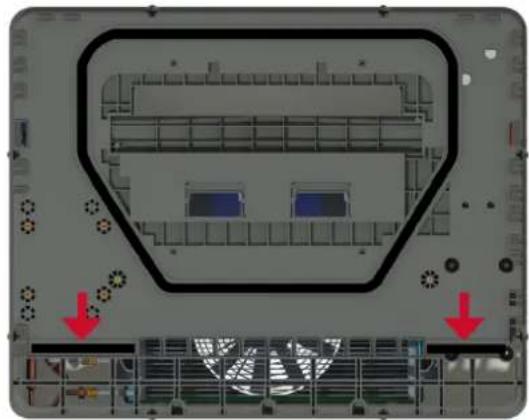

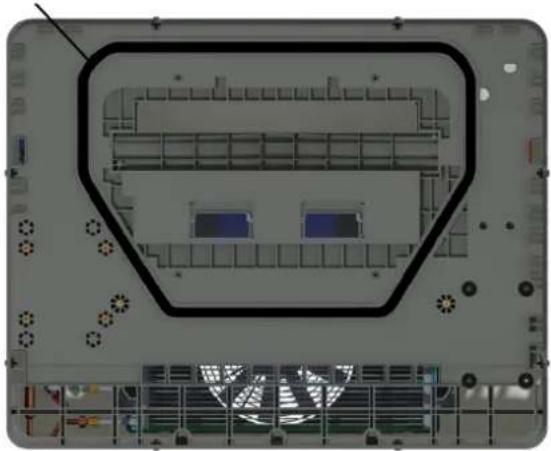

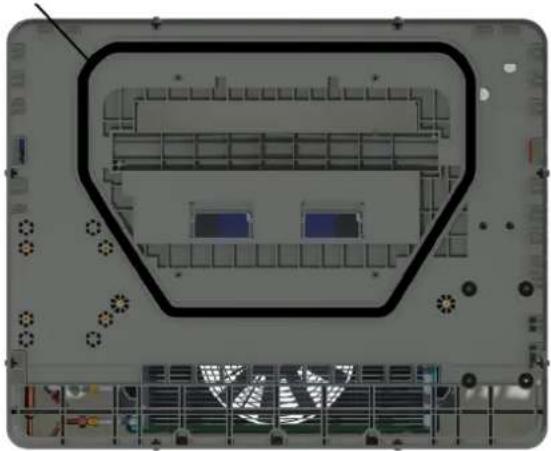

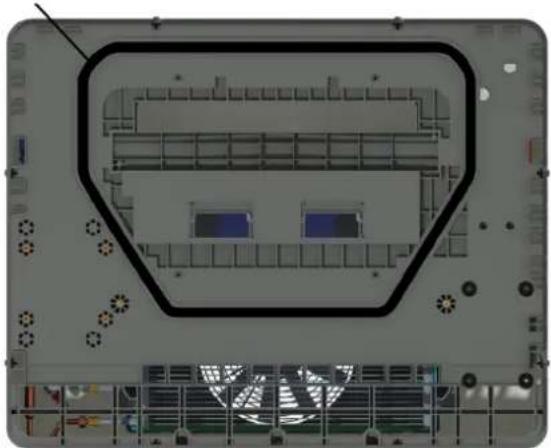

Lift the unit and attach the 25x25 EPDM seal on the base of the unit, following the marked area.

Caution: If the EPDM seal is installed in any other location, the equipment will not work properly and may cause the ingress of water.

EPDM seal

Top-down architectural rendering of a modern building complex with symmetrical structural elements and decorative elements (no visible text or symbols)

Industrial machine component on pallets in a warehouse, no visible text or symbols

Interior view of a vehicle showing a black structural component with visible brackets and wiring (no text or symbols)

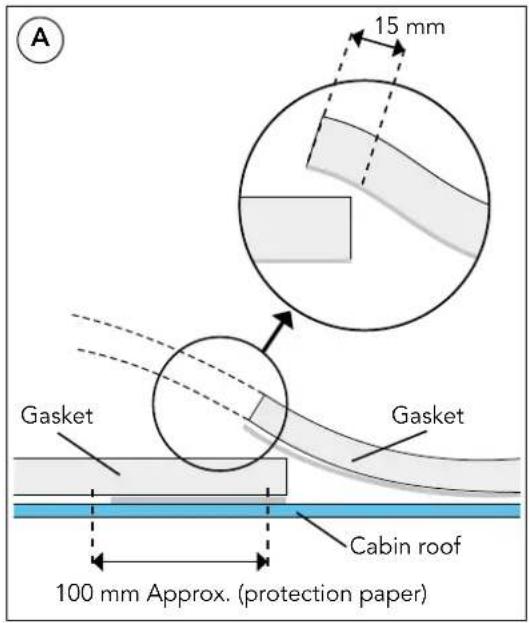

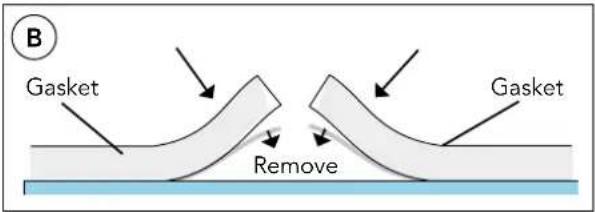

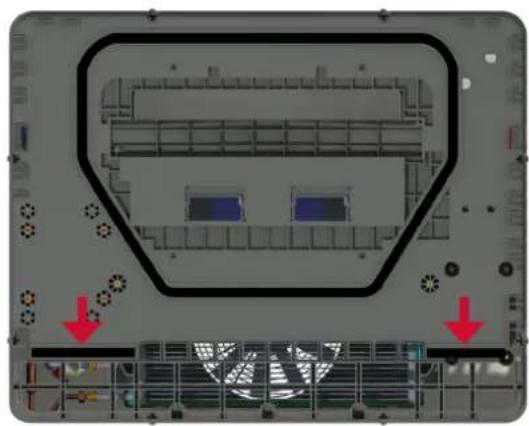

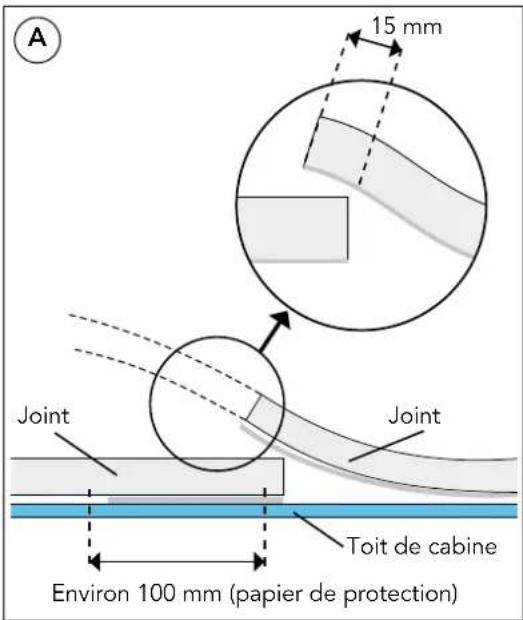

HOW TO CUT EPDM GASKET TO AVOID WATER FILTRATION INTO THE CABIN

A- Glue gasket, keeping 100 mm of protection paper at each side.
B- Remove the two pieces of paper.

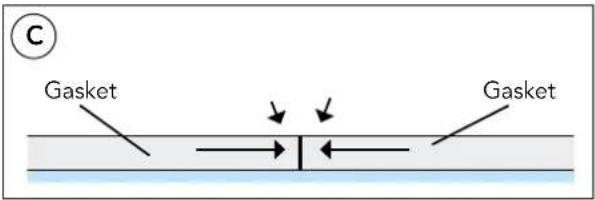

C- Glue by pressing both ends.

B Gasket Remove Gasket

C Gasket Gasket

A 15 mm Gasket Gasket Cabin roof 100 mm Approx. (protection paper)

6

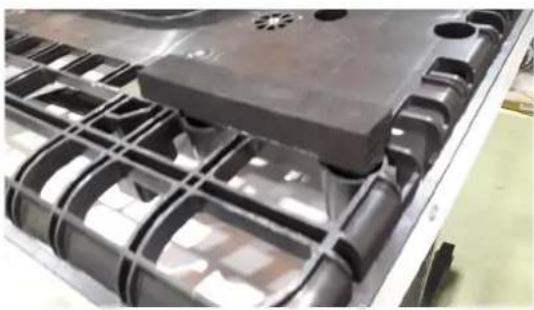

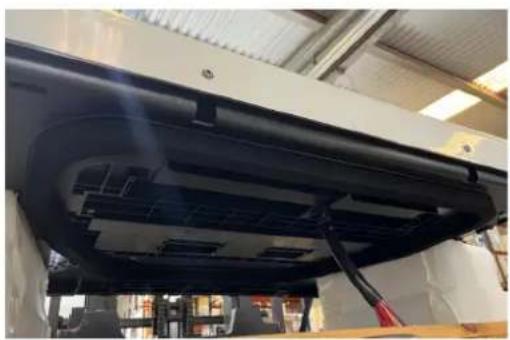

Using the excess assembly seal, cut (2) pieces and attach them to the back of the base in the area shown.

Close-up of industrial machinery components with coiled black metal sheets and ventilation grilles (no visible text or symbols)

Top-down view of a mechanical or electronic component with highlighted structural elements and red arrows indicating features (no text or symbols present)

Close-up of a mechanical component with multiple circular holes and internal cavities (no visible text or symbols)

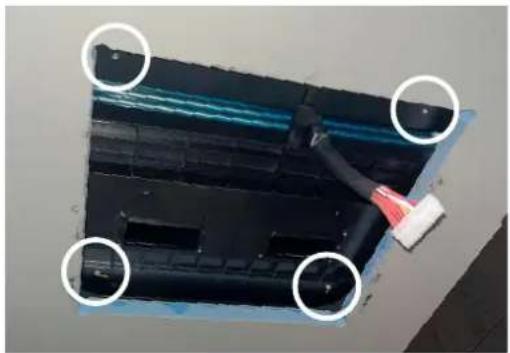

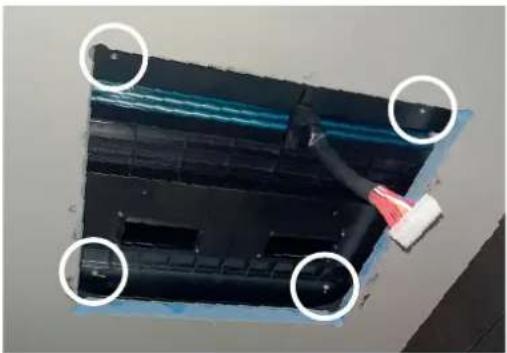

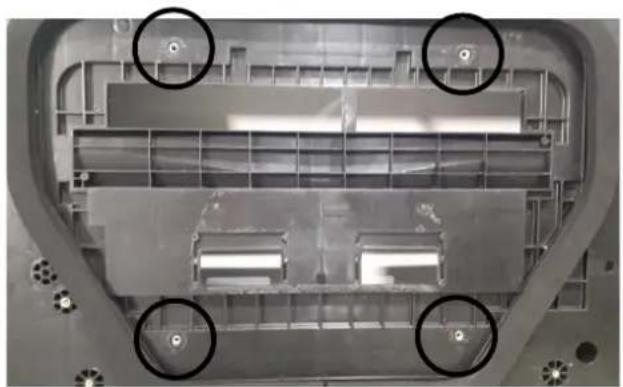

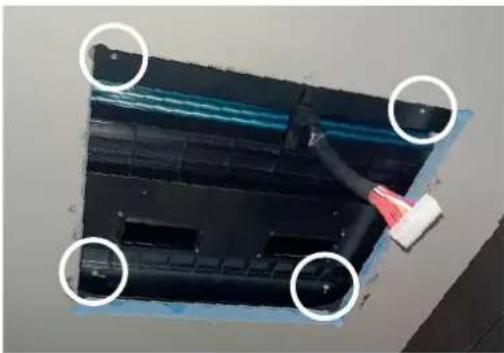

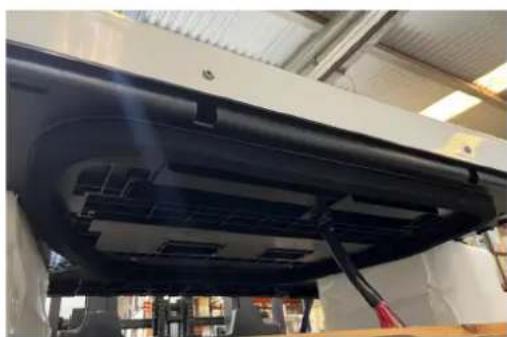

7 Place the unit on the roof by aligning it from inside, ensuring that the (4) fastening brackets on the base of the unit are aligned in the hole in the roof.

Interior view of a mechanical housing with visible structural components and mounting holes (no text or symbols)

Close-up of a battery cell with visible internal structure and three circular annotations (no text or symbols)

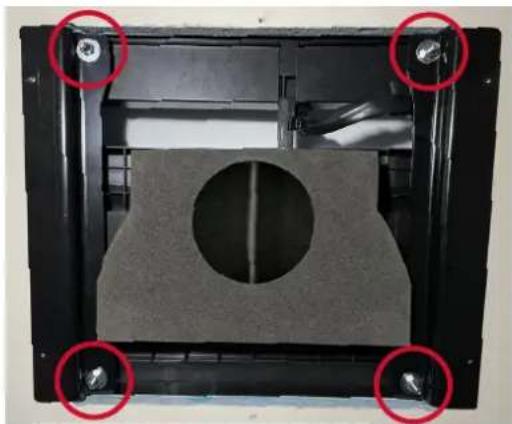

8 Mount (4) studs in the fastening points on the base of the unit, choosing their length based on the thickness of the vehicle's roof.

• 30 mm thick: 85 mm stud
• 40 and 50 mm thick: 95 mm stud
• 60 mm thick: 110 mm stud

30 mm thick

Roof 30 mm 85 mm stud

40 mm thick

Roof 40 mm 95 mm stud

50 mm thick

Roof 50 mm 95 mm stud

60 mm thick

Roof 60 mm 110 mm stud

9

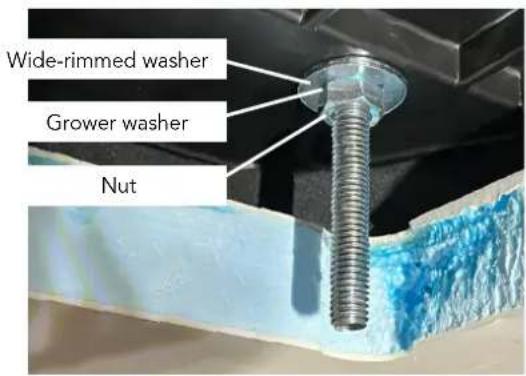

Fasten the (4) studs to the base on the unit with (1) wide-rimmed washer, (1) grower washer and (1) nut on each one.

Wide-rimmed washer Grower washer Nut

10

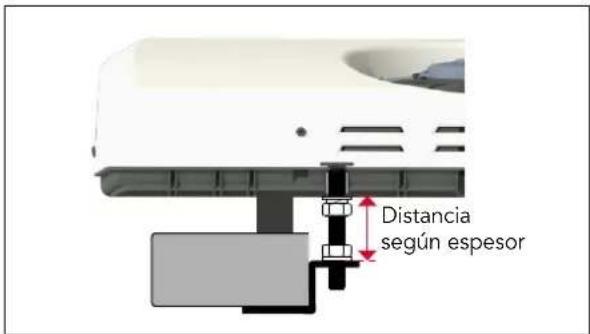

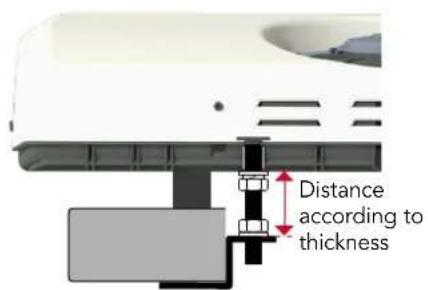

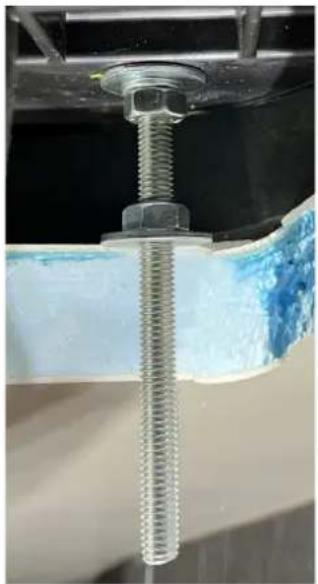

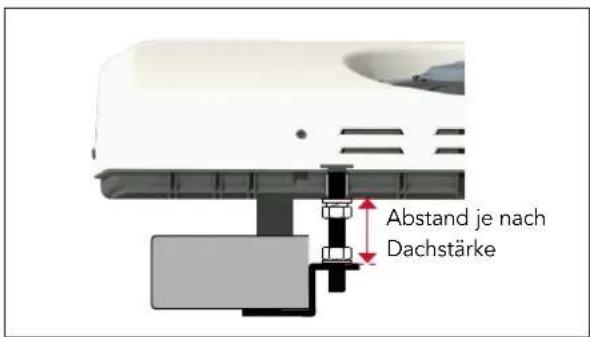

Mount (1) nut and (1) wide-rimmed washer on each stud at the following approximate distances from the base of the unit:

• 30 mm thick: Between 27 and 30 mm
• 40 mm thick: Between 37 and 40 mm
• 50 mm thick: Between 47 and 50 mm
• 60 mm thick: Between 57 and 60 mm

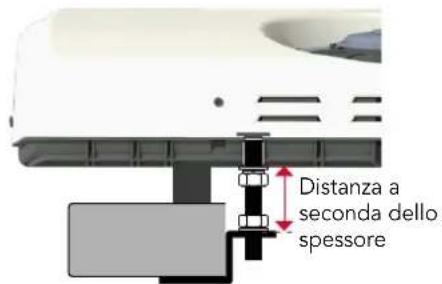

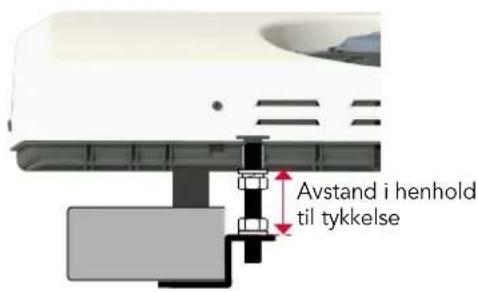

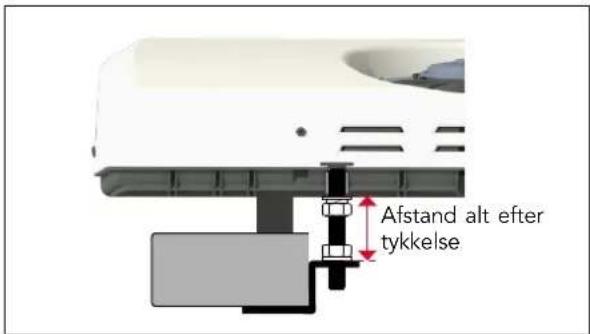

Distance according to thickness

Close-up of a metallic bolt inserted into a blue liquid container (no text or symbols visible)

11

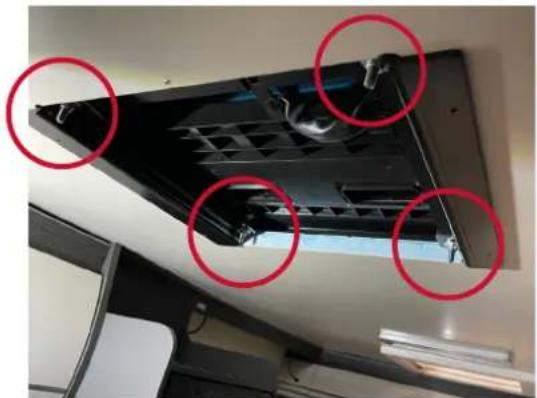

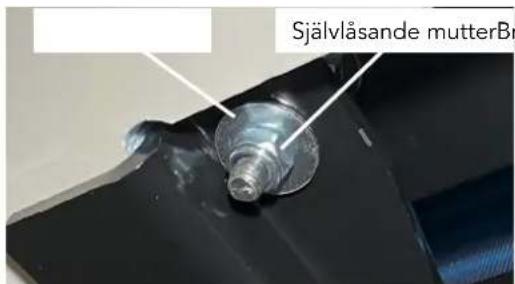

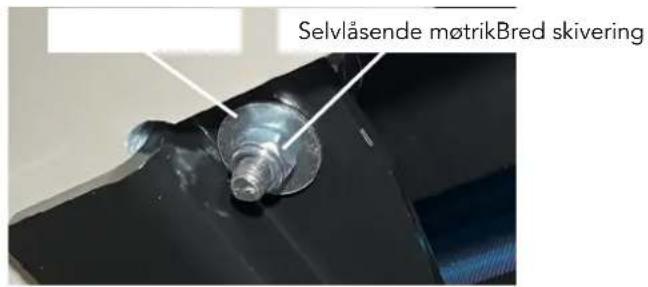

Place fastening brackets on the studs on the base of the unit and fasten the brackets with (1) wide-rimmed washer and (1) self-locking nut on each stud.

Caution: The assembly brackets should be installed longitudinally in the vehicle's direction of travel, such that the air outlet faces the front and rear of the vehicle when the console is installed.

Interior view of a ceiling-mounted air conditioner unit with red-circled mounting points (no text or symbols visible)

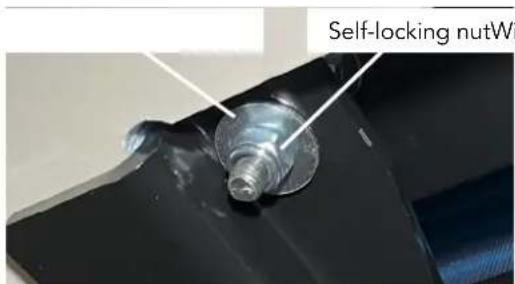

Self-locking nutWide-rimmed washer

Self-locking nutWi

12

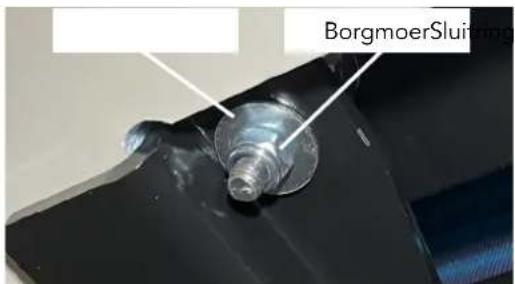

Tighten the self-locking nuts of the fastening brackets by compressing the unit's outer EPDM seal between 3 and 6 mm.

Important: The EPDM seal must be tight with the base of the unit, as shown in the diagram, in order to prevent any leakages of water inside the cabin.

13

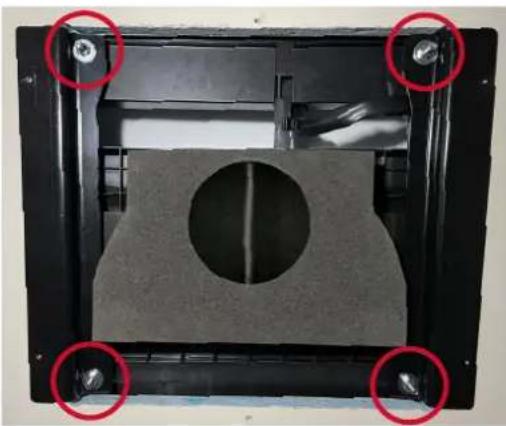

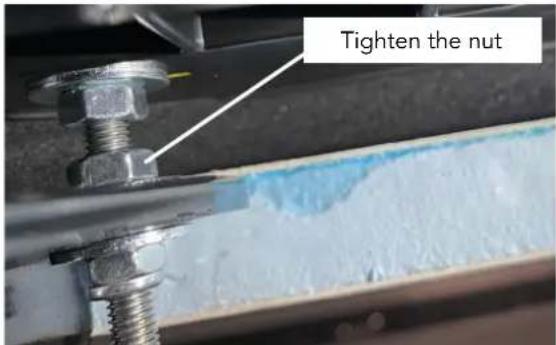

Tighten (4) top nuts of the brackets to complete the fastening process. The brackets should be fastened securely to the roof, ensuring they remain flush and level. Any other situations may lead to problems when installing the interior console.

Tighten the nut

Top-down view of a mechanical component with four red-circled features and a central circular hole (no text or symbols visible)

14

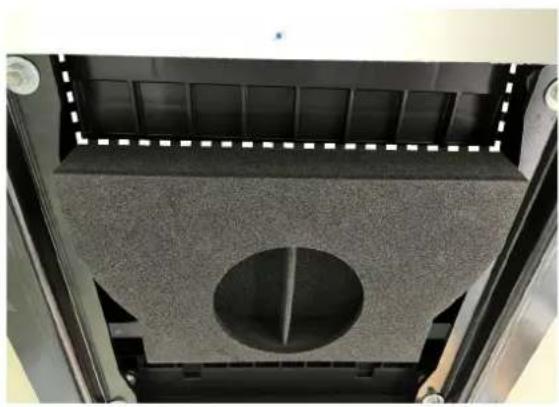

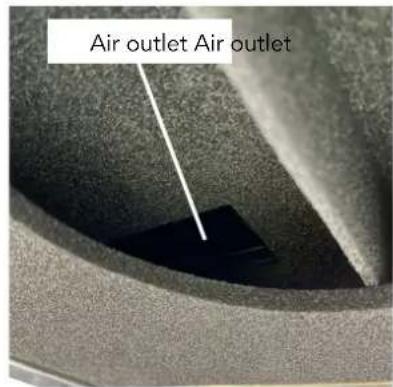

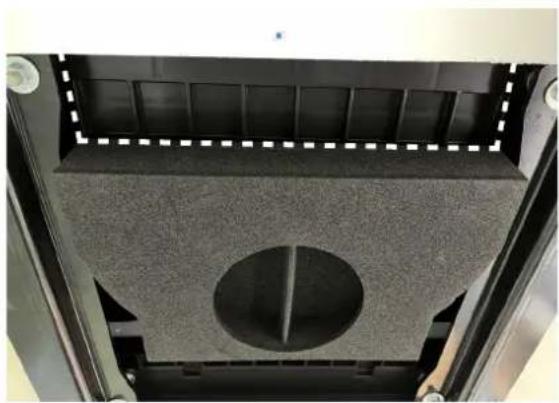

Attach the duct system to the base of the unit, taking the marks on the base as a reference.

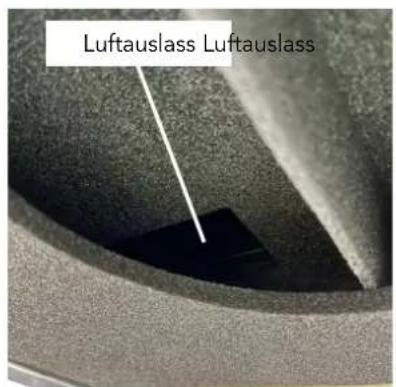

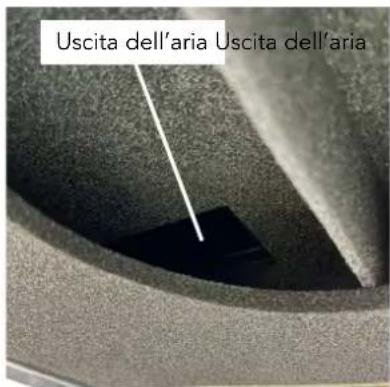

Important: Make sure the blower's air outlets face the duct system's inlets.

Close-up of a mechanical component with a circular hole and textured base (no visible text or symbols)

Interior view of a mechanical device with a central blue circular component and surrounding components (no visible text or symbols)

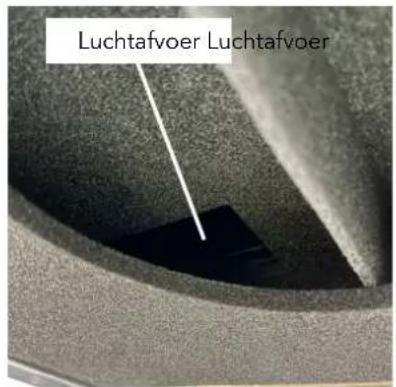

Air outlet Air outlet

Close-up of a textured surface with a dark rectangular object and a white line pointing to it (no text or symbols visible)

15

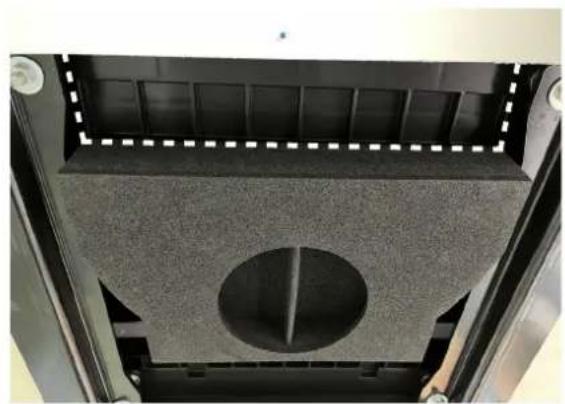

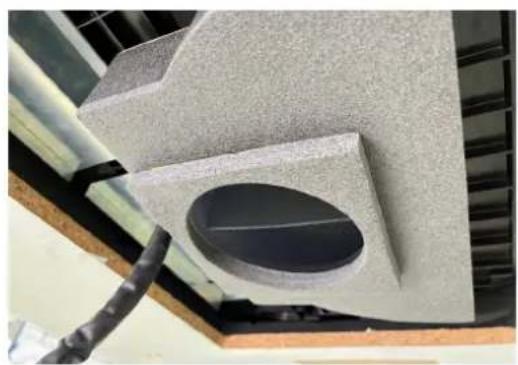

Depending on the thickness of the vehicle's roof, add a supplementary seal by attaching it aligned on the duct system:

Thickness:

• 30 mm: Duct system only.
• 40 mm: Duct system + (1) supplementary seal.
• 50 mm: Duct system + (1) supplementary seal.
• 60 mm: Duct system + (2) supplementary seal.

Close-up of a ceiling-mounted air vent with a circular vent and textured insulation (no text or symbols visible)

16

Tighten the fixing nuts M8/125 of the support brackets, taking into account that the fixing studs must not protrude below the bottom of the support brackets.

Close-up of a mechanical assembly showing a bolt and nut inserted into a workpiece (no text or symbols visible)

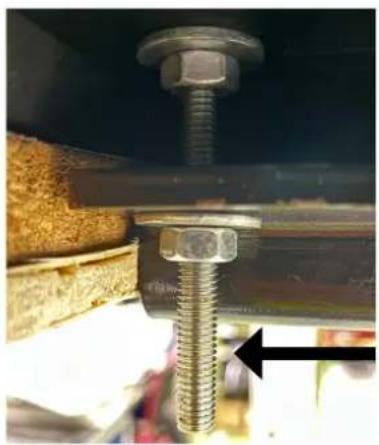

Correct position of the stud without protruding below the bottom of the support bracket.

Close-up of a mechanical clamp or clamping tool with a metallic bolt and nut, showing a bolted joint (no text or symbols visible)

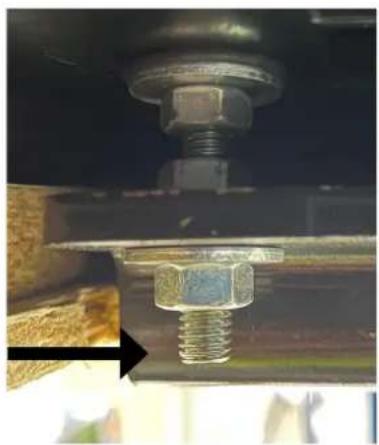

Incorrect position of the stud protruding from the bottom of the bracket.

17

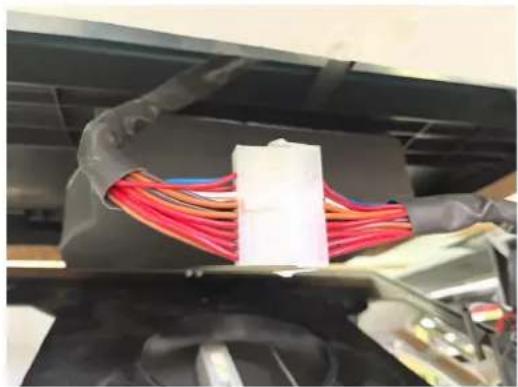

Connect the interior console cabling to the unit's cabling.

Caution: Before securing the interior console, ensure that the cable is not positioned between the duct system and the console, in order to guarantee good airflow.

Close-up of a gloved hand holding a white cable with multicolored wires, partially enclosed in a black vehicle chassis (no visible text or symbols)

18

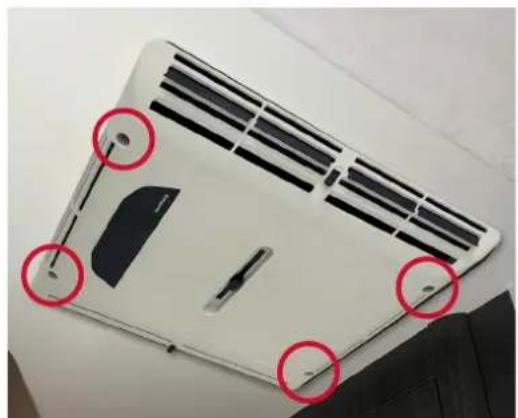

Mount the console with (4) M5x10 screws. The installer can choose the display's final position by placing it to the right or left of the direction of travel.

Close-up of a white air conditioner cover with red circular annotations pointing to features (no text or symbols visible)

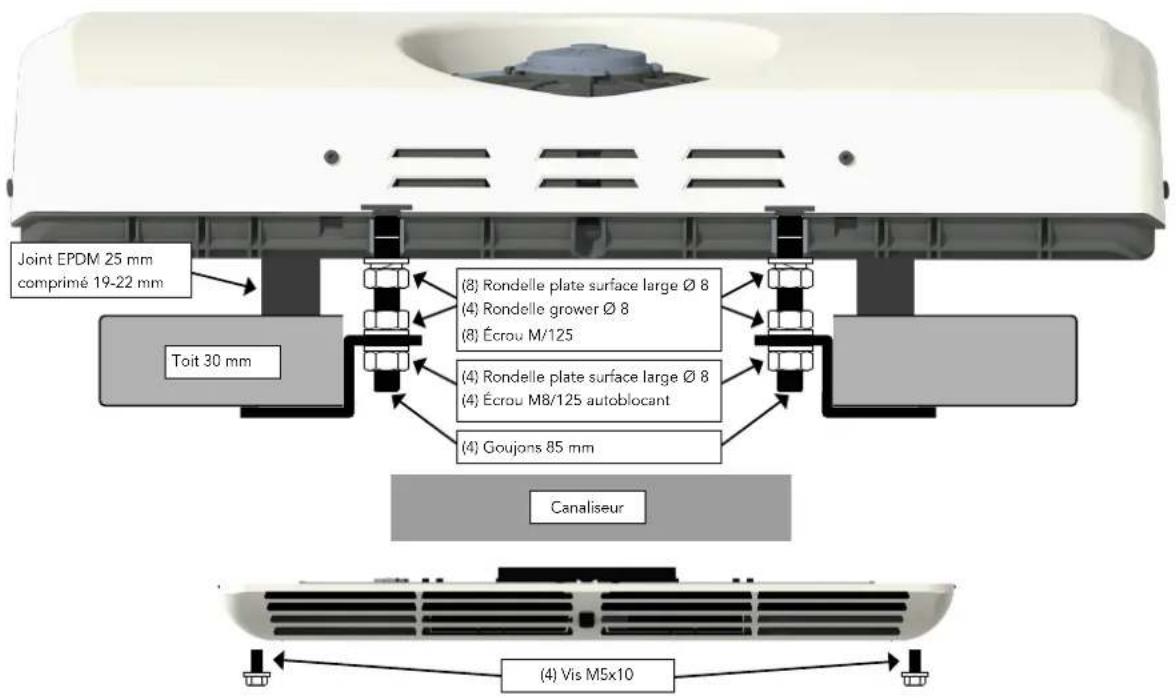

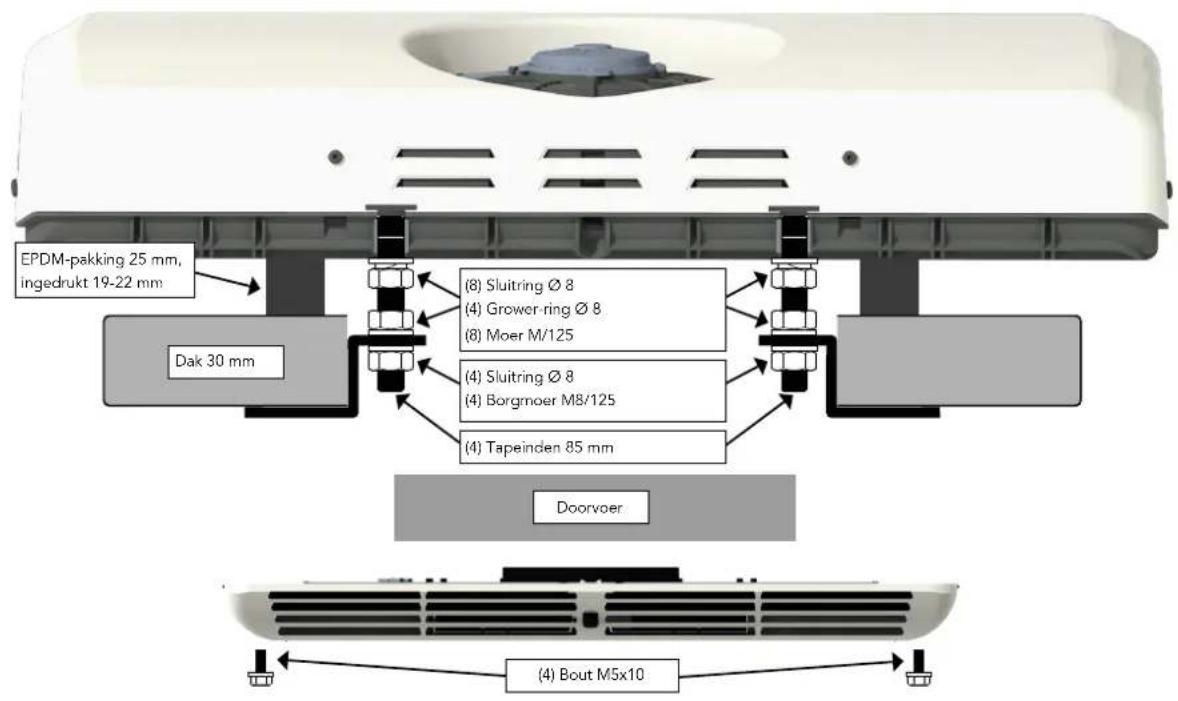

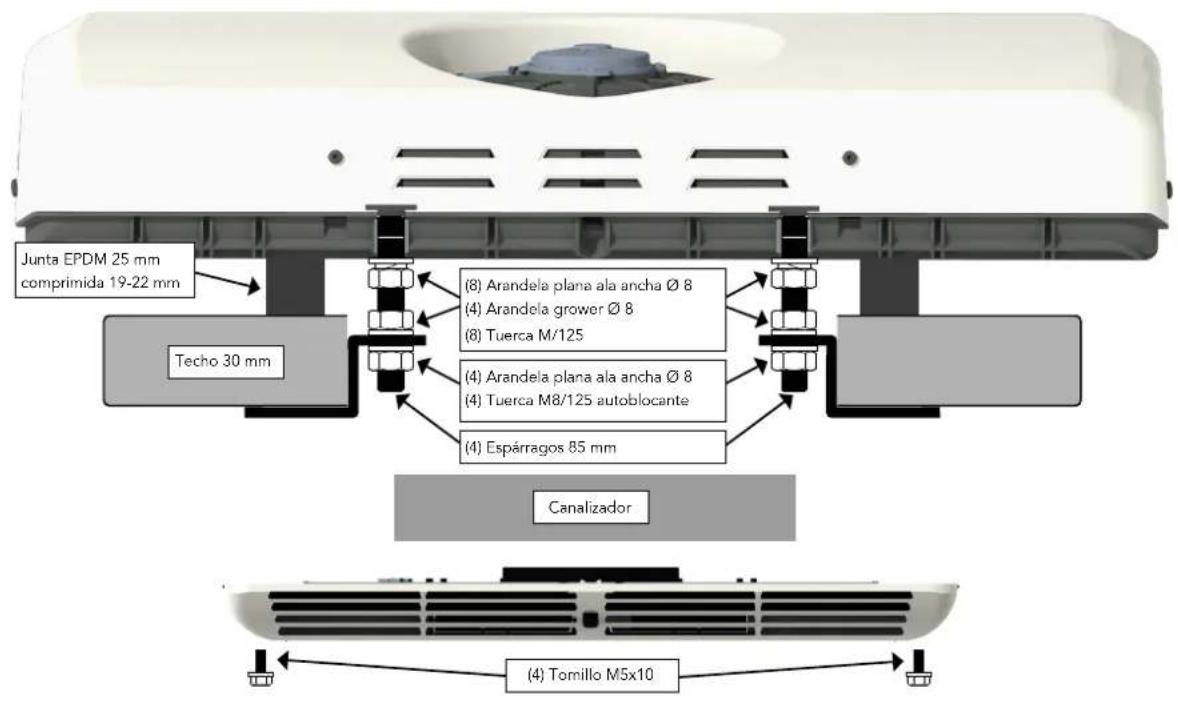

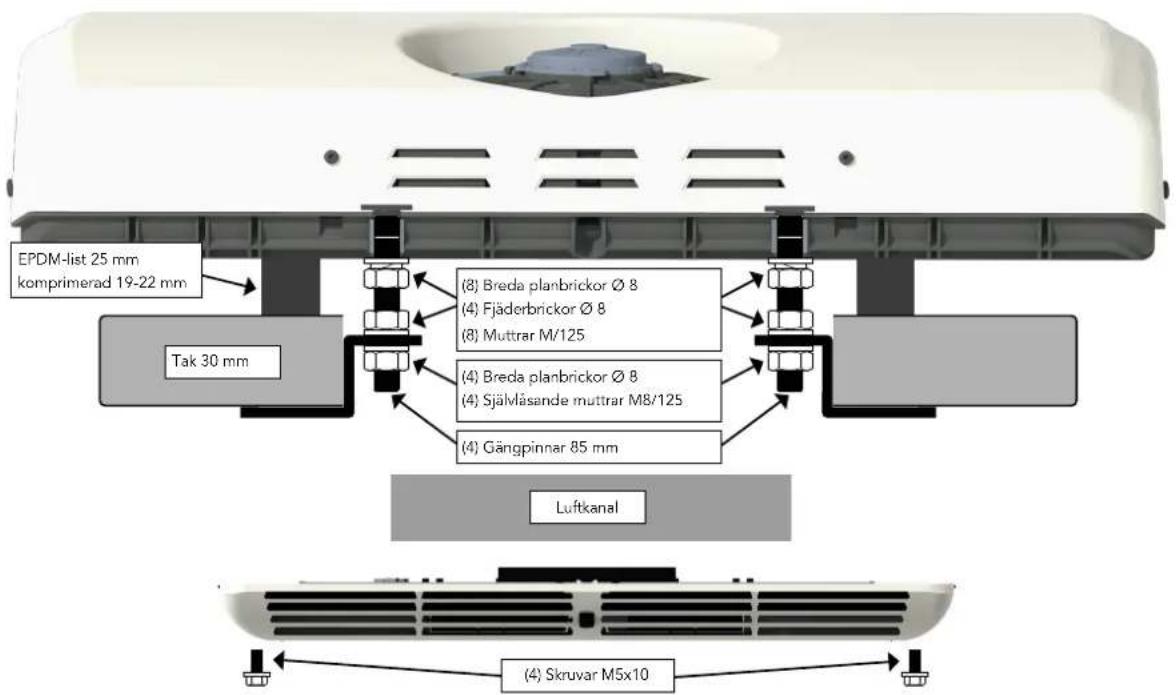

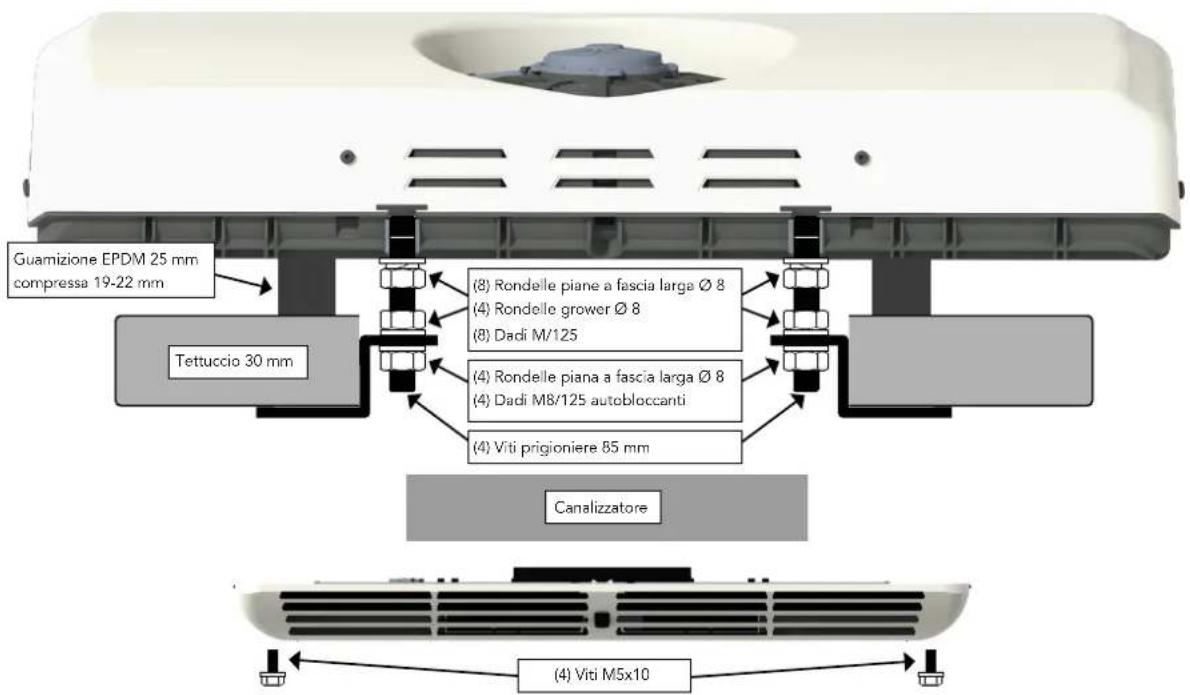

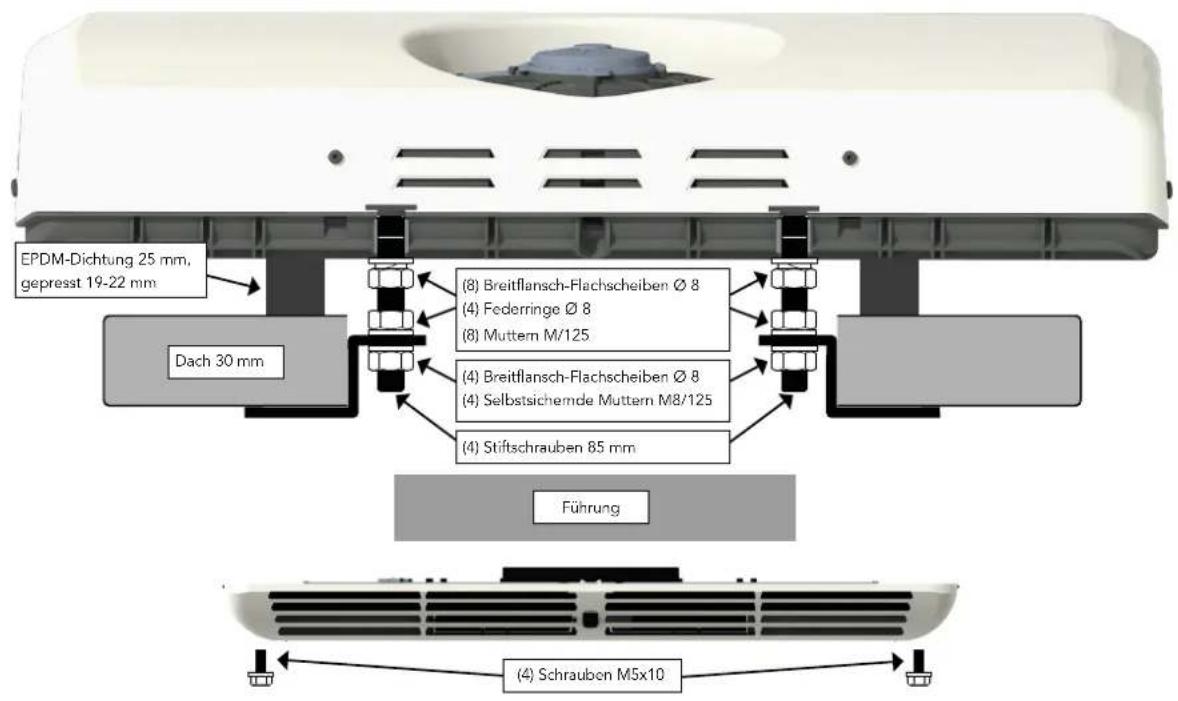

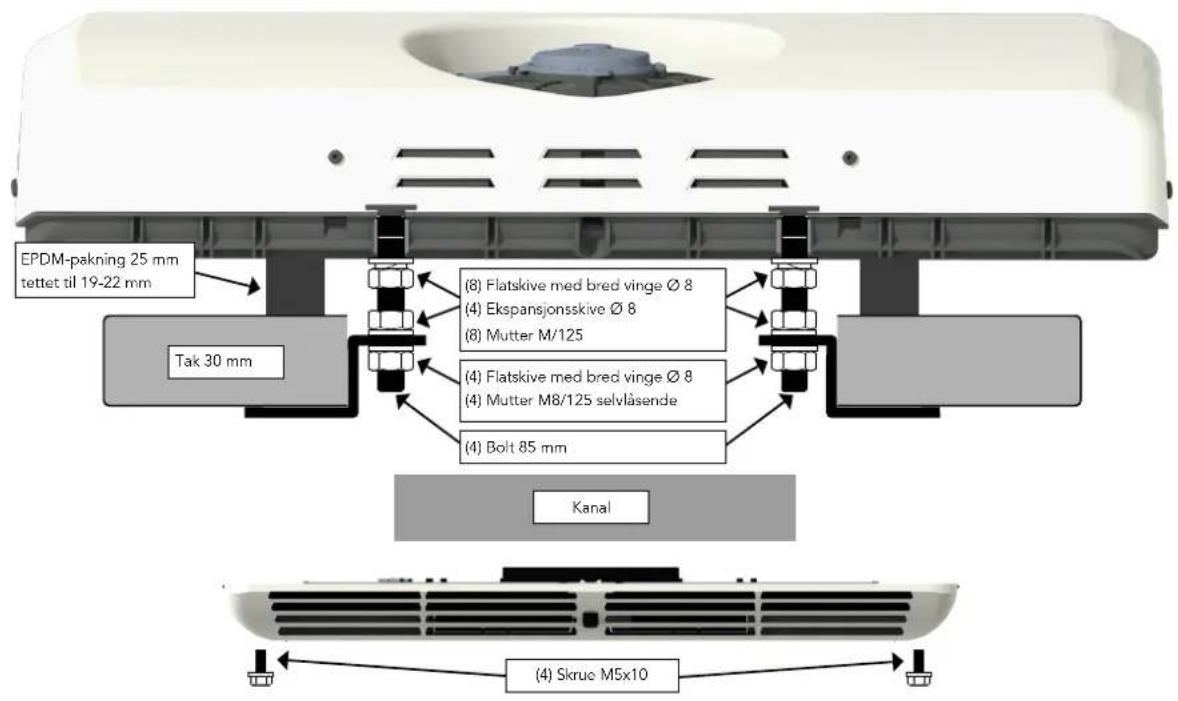

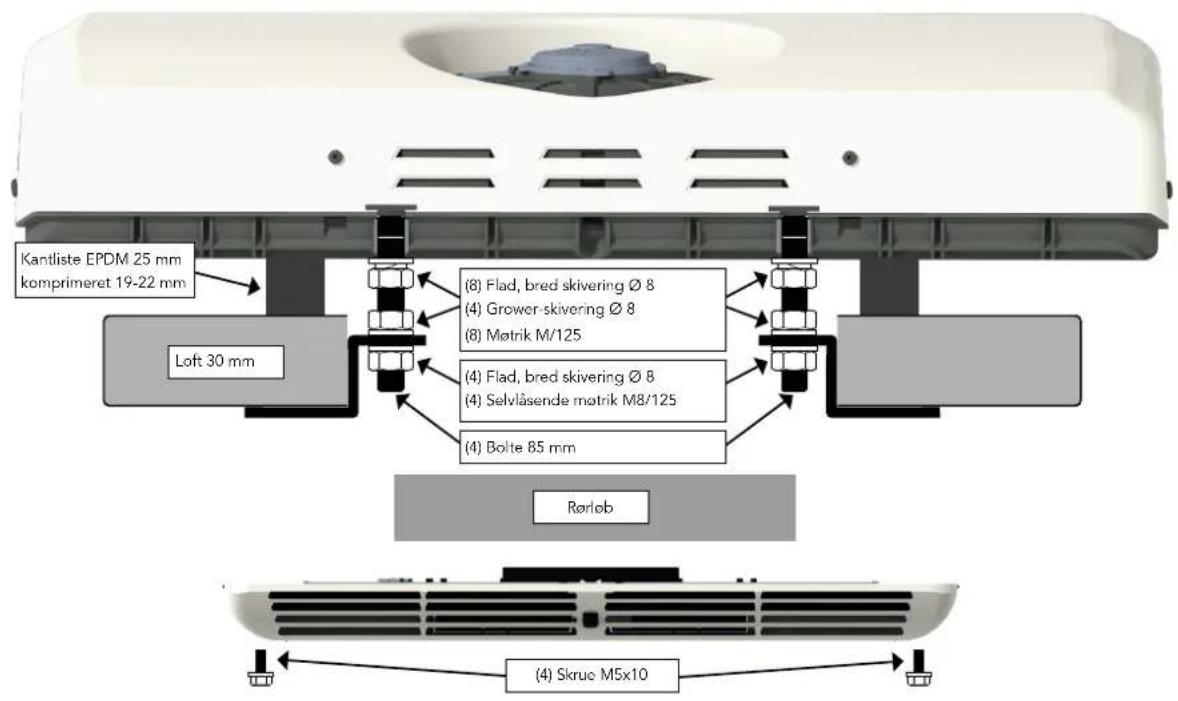

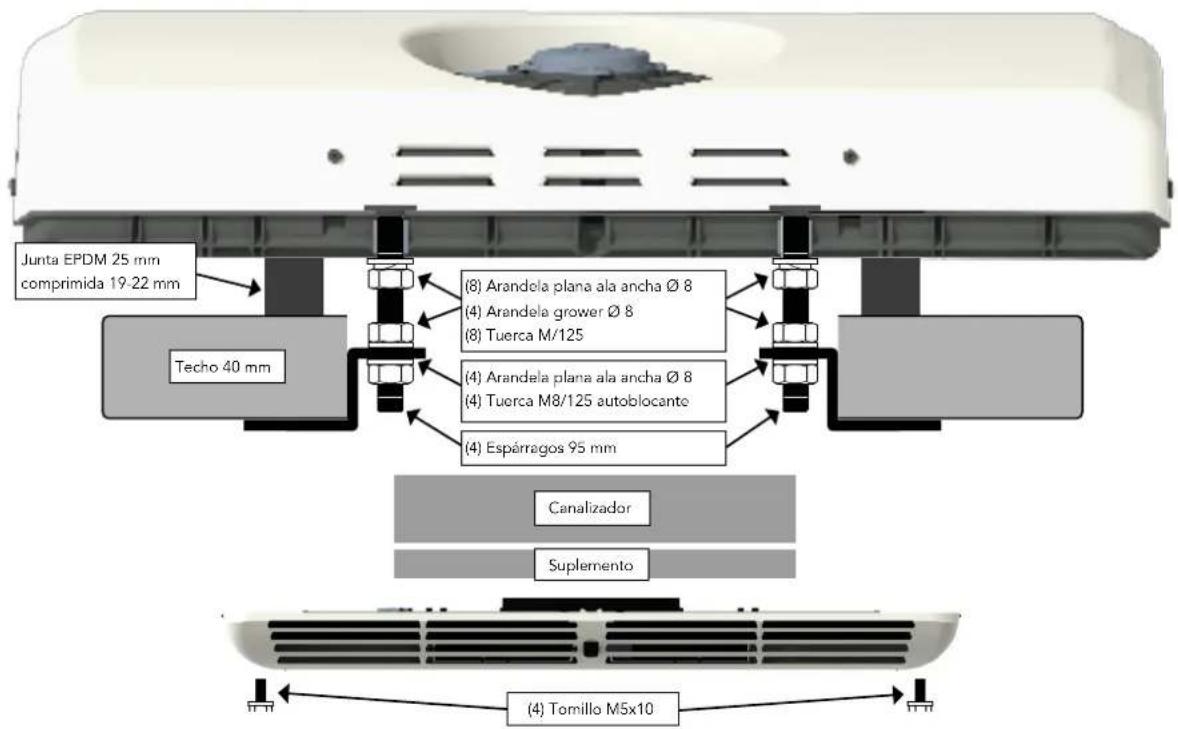

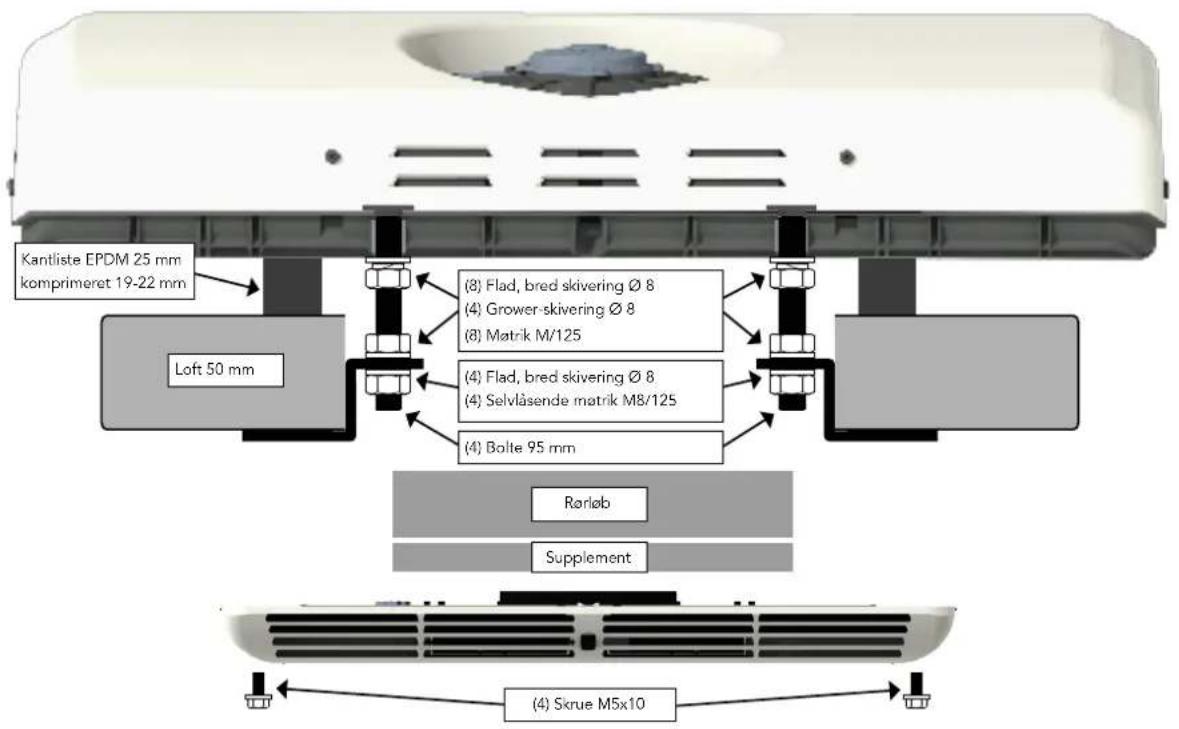

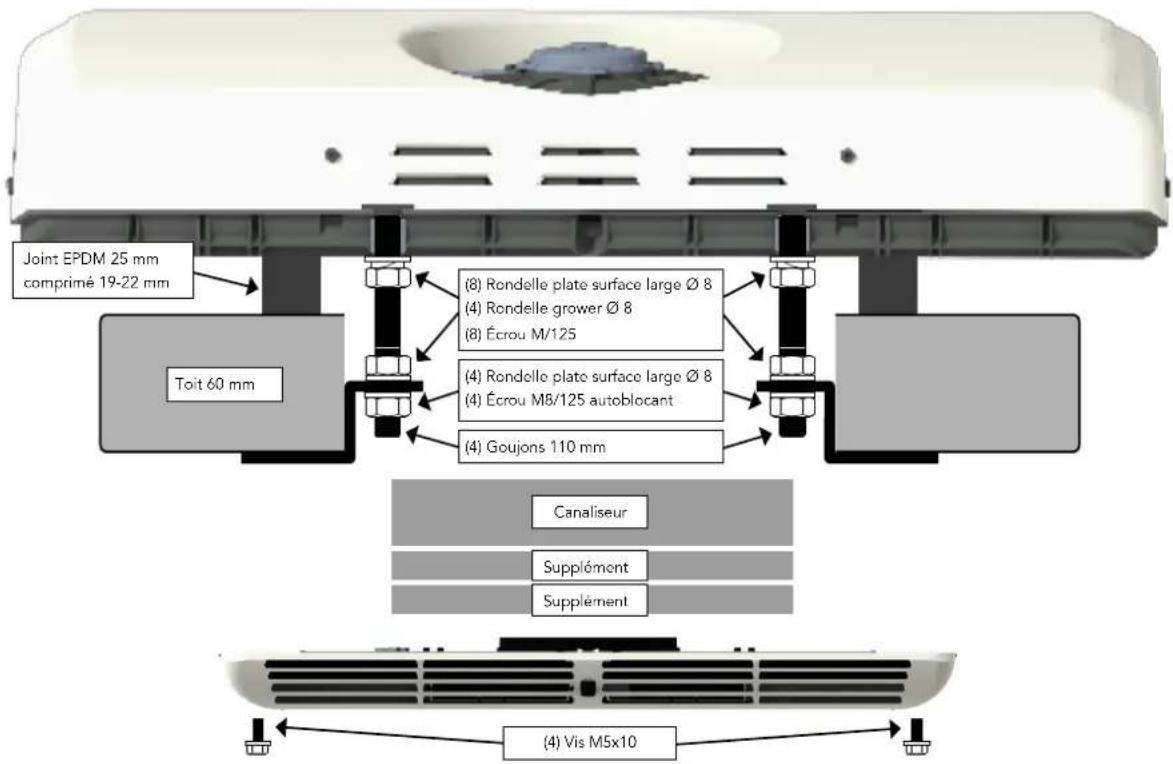

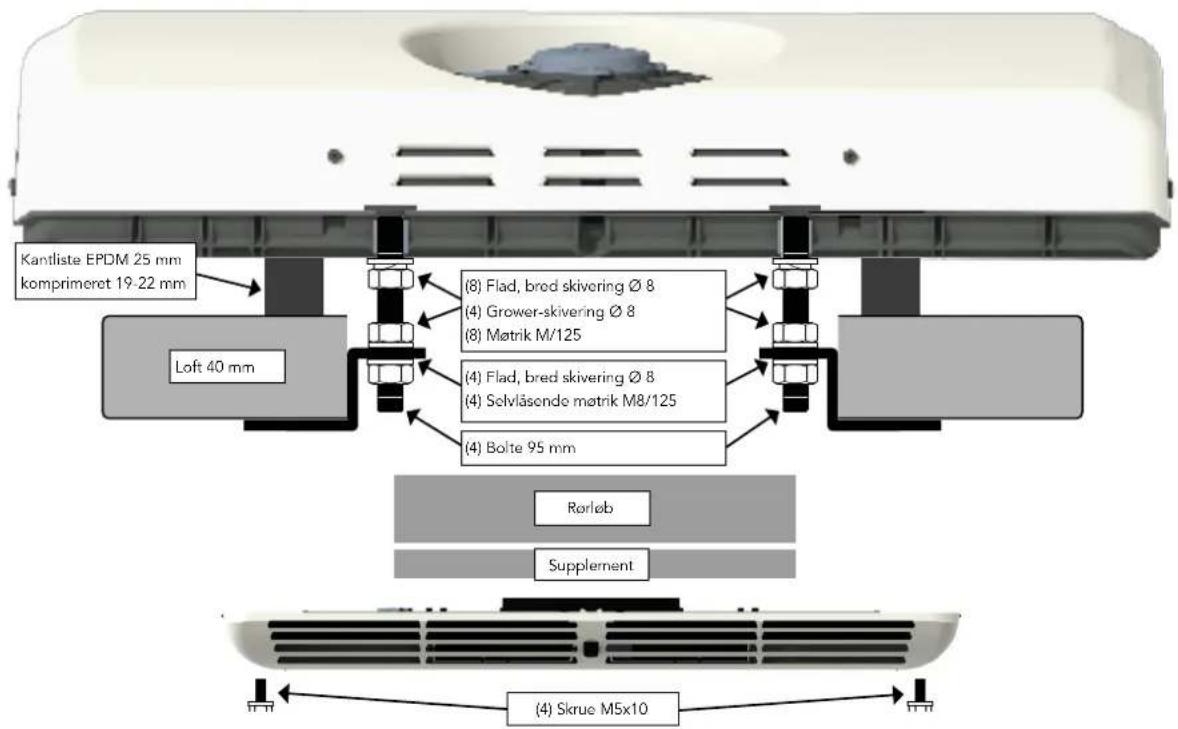

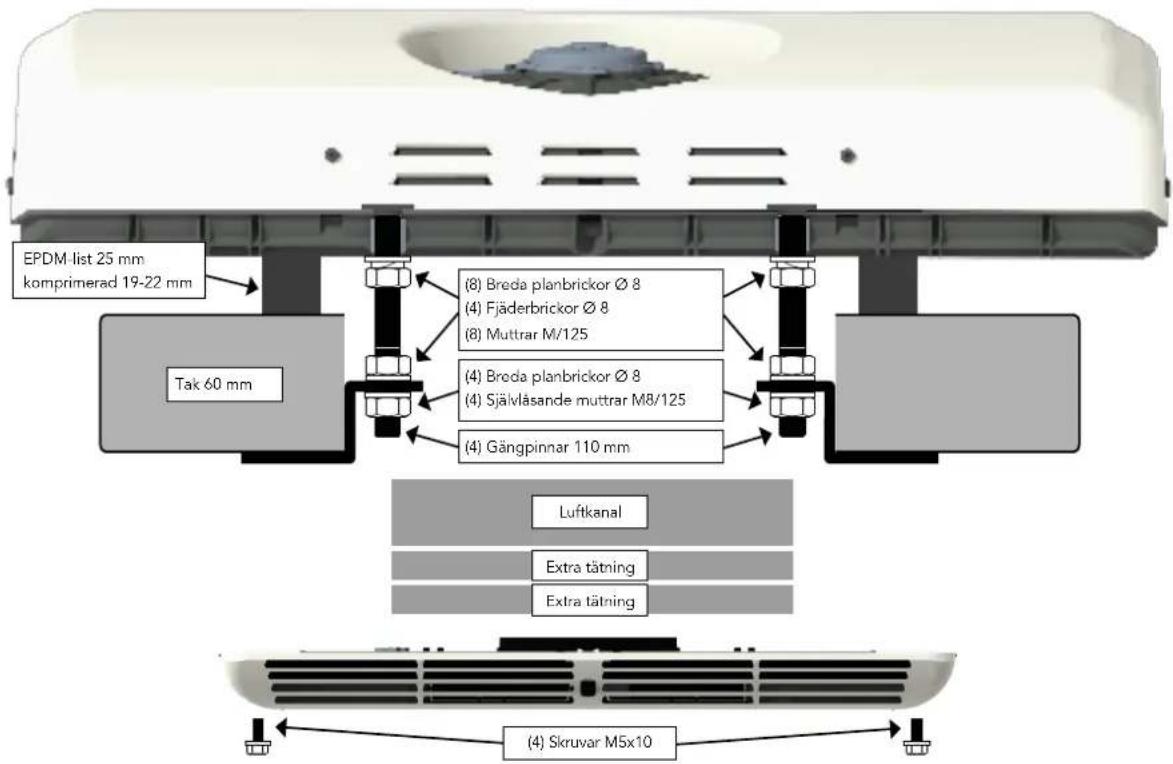

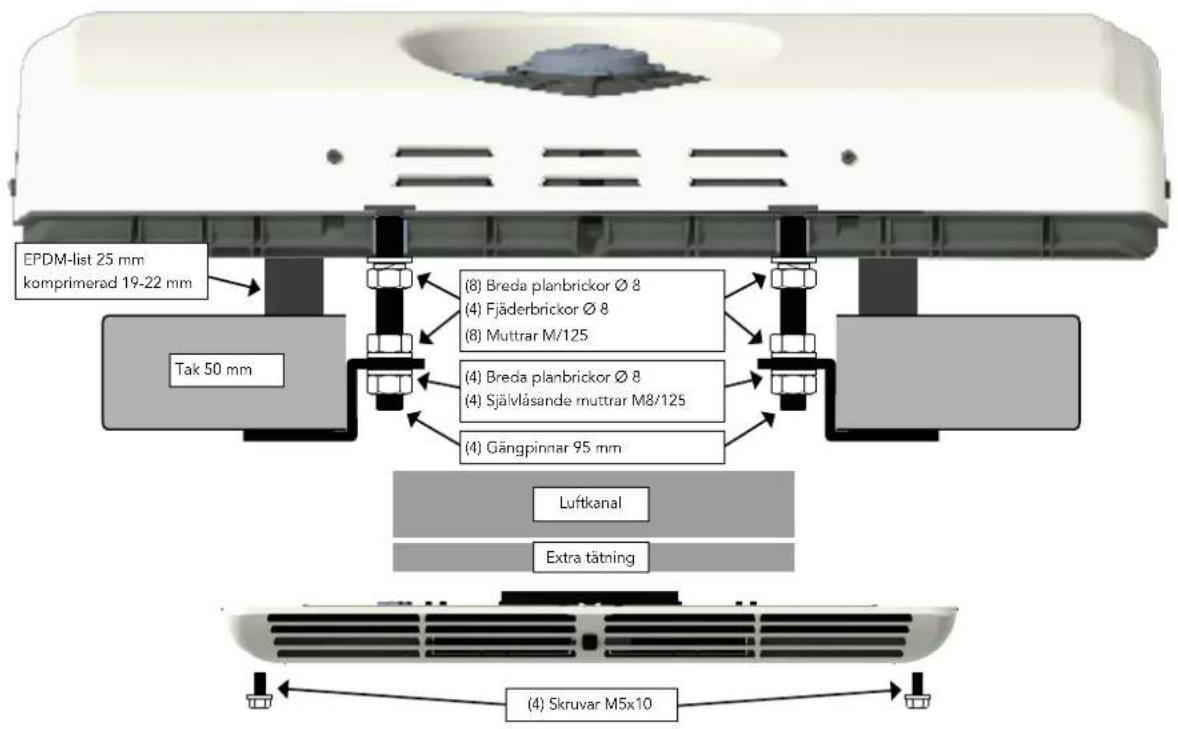

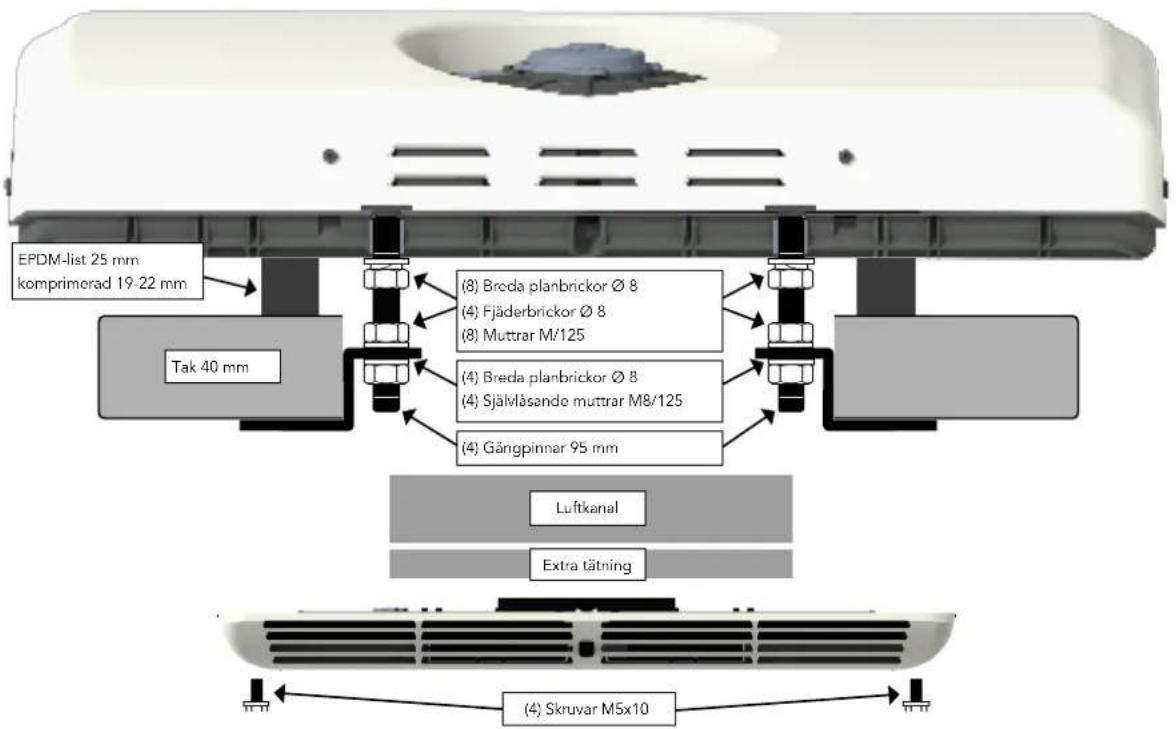

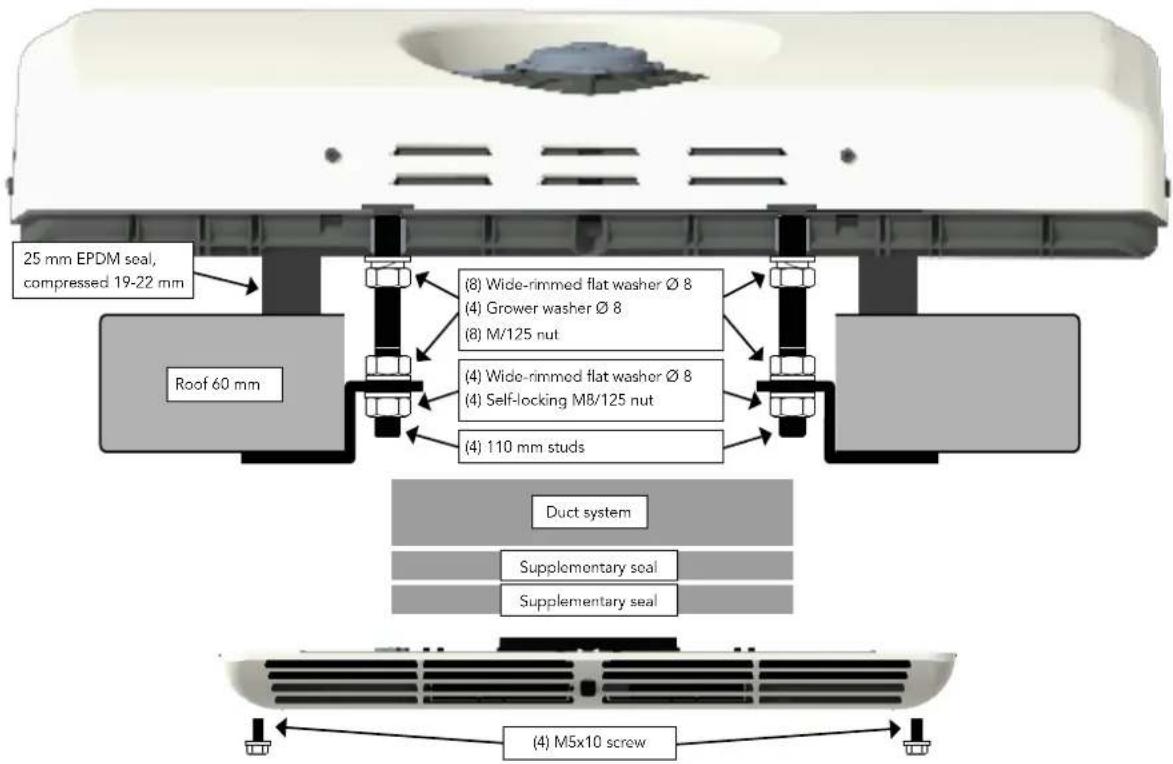

ASSEMBLY DRAWINGS

30 mm thick

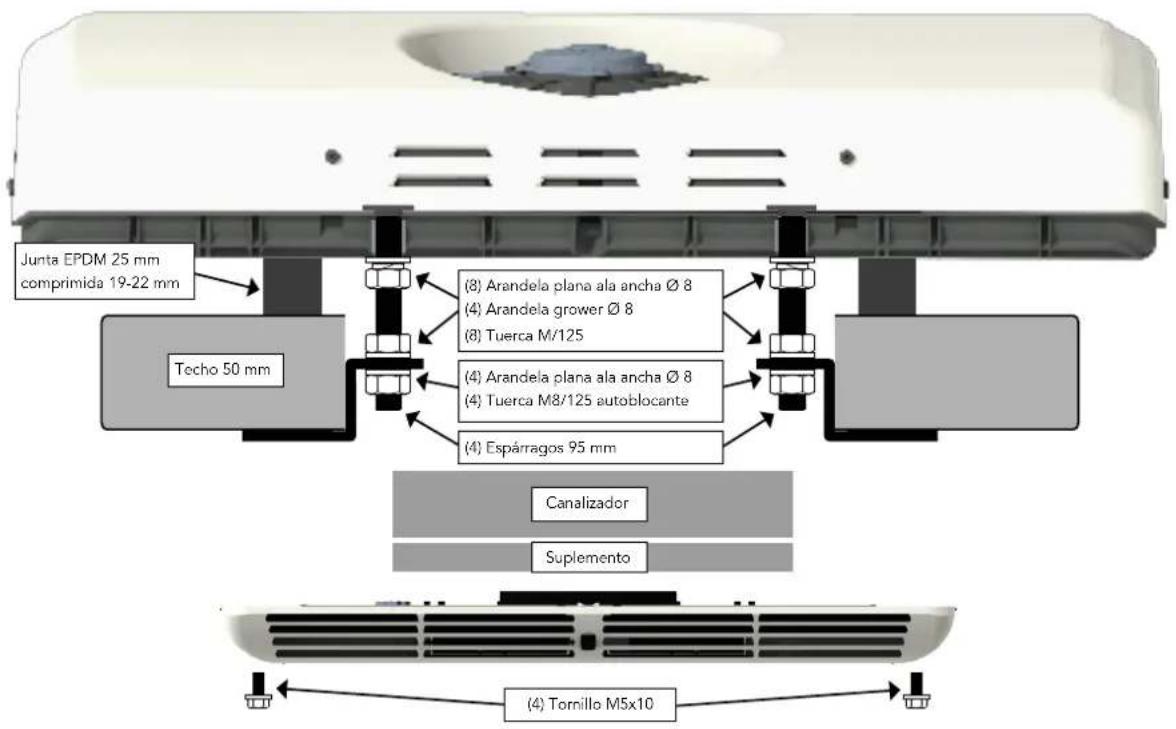

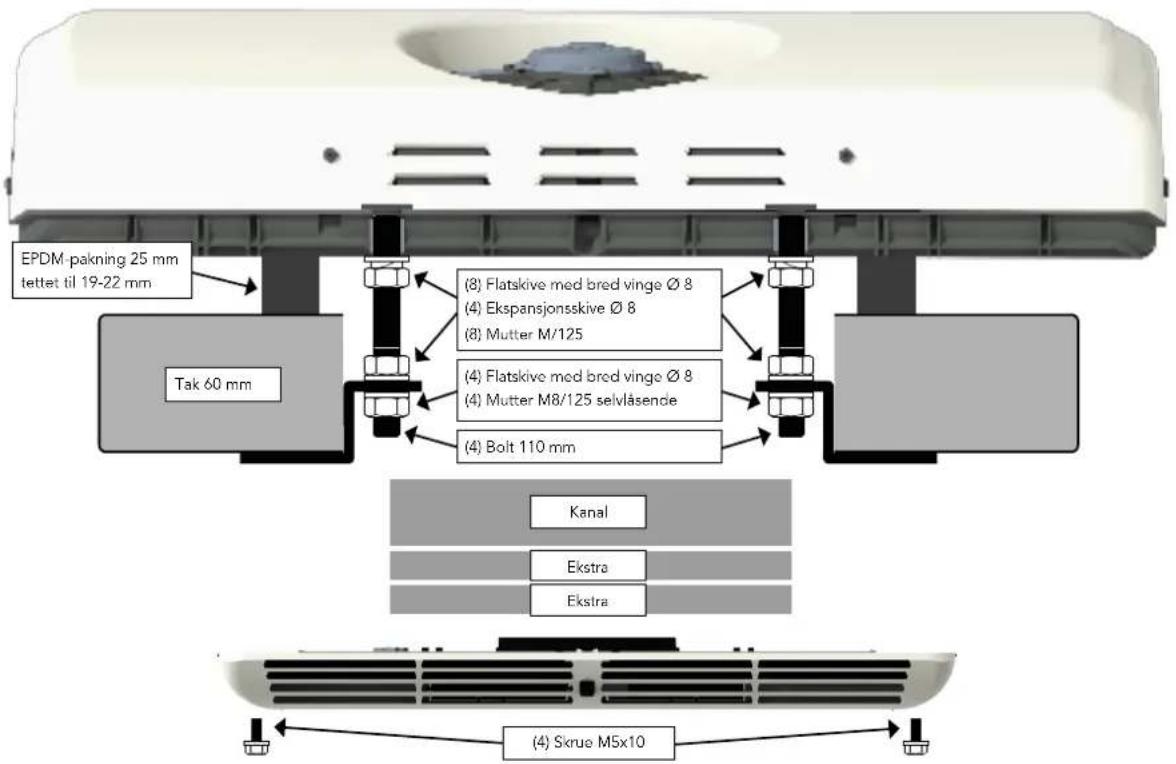

25 mm EPDM seal, compressed 19-22 mm Roof 30 mm (8) Wide-rimmed flat washer Ø 8 (4) Grower washer Ø 8 (8) M/125 nut (4) Wide-rimmed flat washer Ø 8 (4) Self-locking M8/125 nut (4) 85 mm studs Duct system (4) M5x10 screw

40 mm thick

ASSEMBLY DRAWINGS

50 mm thick

25 mm EPDM seal, compressed 19-22 mm Roof 50 mm (8) Wide-rimmed flat washer Ø 8 (4) Grower washer Ø 8 (8) M/125 nut (4) Wide-rimmed flat washer Ø 8 (4) Self-locking M8/125 nut (4) 95 mm studs Duct system Supplementary seal (4) M5x10 screw

60 mm thick

25 mm EPDM seal, compressed 19-22 mm Roof 60 mm (8) Wide-rimmed flat washer Ø 8 (4) Grower washer Ø 8 (8) M/125 nut (4) Wide-rimmed flat washer Ø 8 (4) Self-locking M8/125 nut (4) 110 mm studs Duct system Supplementary seal Supplementary seal (4) M5x10 screw

POWER AND BATTERY SIGNAL CABLE ASSEMBLY

18

Attention: RTA-2000 12V does NOT include a battery power cable. Mestic has several installation options as optional products sold separately.

If none of these options are purchased, the recommended battery power and signal wiring are:

Power cabling:

Cable type: FLRY-B

Minimum section: 25 mm ^4

Signal cabling:

Cable type: FLRY-B

Minimum section: 1,5 mm ^4

INSTALLATION OPTIONS
Reference Description
1003599692	Electrical connectors kit
1003599704	Battery power cable 10 m
1003599705	Battery power cable 8 m

OVERVIEW

@mestic additional battery

19

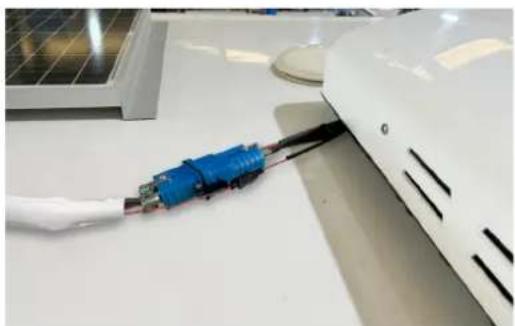

Connect the power and signal cables to the unit.

Close-up of a white solar panel connected to a blue and white cable, with no visible text or symbols.

20

The installer will choose the best way to route the cable to the battery.

Important: A 100 A fuse must be installed in the power supply wiring and a 1 A fuse in the signal wiring, both next to the battery.

21

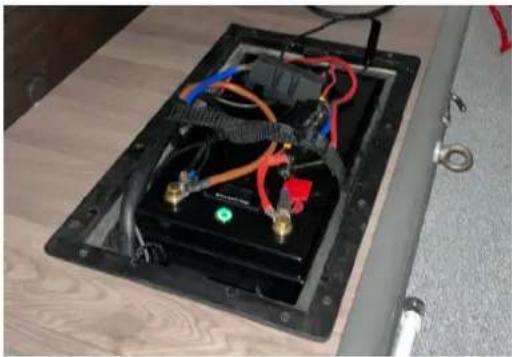

Connect the power and signal (positive) cables to the battery.

Important: To ensure proper operation of the equipment, the power cable and signal cable must be connected directly to the battery.

Interior view of a black electronic device with visible wiring and components, placed on a wooden surface (no text or symbols)

!

Important: Before starting up the unit, see the User Manual.

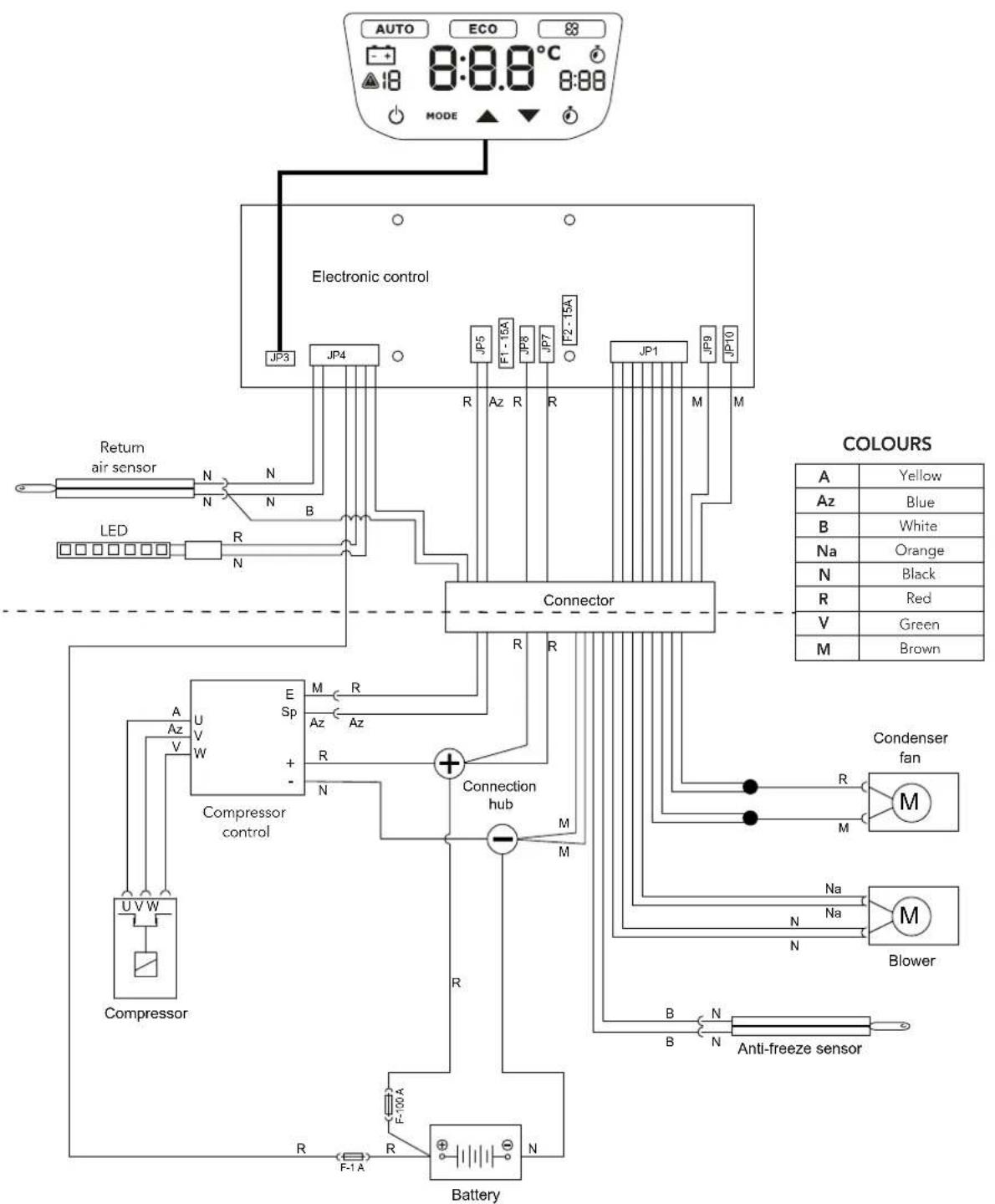

WIRING DIAGRAM

INDEX

Recycling 38

Top-down view of a car with abstract geometric shapes and no visible text or symbols

Top-down architectural rendering of a car with visible windows and doorways (no text or symbols)

Top-down view of a car with abstract geometric shapes and no visible text or symbols

Top-down architectural rendering of a car with abstract wall and floor features (no text or symbols)

Diagram of a circular fan with radial blades and a 10 cm measurement label (no text or symbols beyond the scale indicator)

Simple line drawing of a symmetrical geometric shape with a central square (no text or symbols)

Simple geometric diagram with a square inside a rounded rectangle, no text or symbols present.

Exterior view of a modern office building roof with white metal framing and red trim (no signage or text visible)

Interior ceiling view with wooden furniture and a dashed diamond-shaped pattern on the ceiling (no text or symbols visible)

Person spraying a spray bottle into a large open air duct (no text or symbols visible)

Two workers in safety gear inspecting a white open box on a workbench (no visible text or symbols)

INSTALLATION VON RTA-2000 12V

5

Industrial machine component on wooden pallets in a warehouse (no visible text or symbols)

EPDM-Dichtung

Top-down architectural rendering of a modern building complex with symmetrical structural elements and decorative elements (no visible text or symbols)

Interior view of a large industrial machine with visible structural components and wiring (no text or symbols)

Close-up of industrial machinery components with coiled black metal sheets and ventilation slots (no visible text or symbols)

Top-down view of a computer motherboard layout with highlighted components and red arrows indicating directional flow (no text or symbols)

Close-up of a mechanical component with circular holes and internal compartments (no visible text or symbols)

7

Interior view of a mechanical or electronic component with visible structural layers and mounting holes (no text or symbols)

Close-up of a battery module with visible wiring and mounting holes, no text or symbols present

8

Close-up of a metallic bolt attached to a mechanical component, with blue water visible in the background (no text or symbols)

Interior view of a kitchen appliance with red-circled mounting points (no visible text or symbols)

Close-up of a mechanical component with a circular hole and four red-circled features, no visible text or symbols.

Close-up of a 3D printer's front panel showing a circular vent and textured base (no text or symbols visible)

Interior view of a black electronic device with a blue internal component and a circular display (no visible text or symbols)

Luftauslass Luftauslass

Close-up of a textured surface with a dark rectangular object and a white line pointing to it (no text or symbols visible)

Close-up of a mechanical component with textured surface and circular opening (no visible text or symbols)

16

Close-up of a mechanical assembly showing a bolt inserted into a spring, with no visible text or symbols.

Close-up of a metal screw fastener inserted into a mechanical component, with no visible text or symbols.

Close-up of a gloved hand handling colorful cable wires in a car (no visible text or symbols)

18

Close-up of a white air conditioner cover with ventilation slots and a handle, marked by red circles (no text or symbols visible)

MONTAGEPLÄNE

30 mm Dicke

Close-up of a white solar panel connected to a blue and black cable, with no visible text or symbols.

20

Interior view of an electronic device with visible wiring and components (no text or symbols)

DÉCLARATION DE CONFORMITÉ

Top-down view of a car with abstract geometric shapes and no visible text or symbols

Top-down architectural rendering of a car with visible roof, windows, and door (no text or symbols)

Top-down view of a car with abstract floor plan elements (no text or symbols)

Top-down view of a car with abstract geometric shapes and no visible text or symbols

Simple line drawing of a symmetrical geometric shape with a central square (no text or symbols)

Geometric diagram of a pentagon with a dashed inner square, no text or symbols present

2

Exterior view of a modern building roof with white metal framing and red horizontal stripe (no signage or text visible)

Interior ceiling view with wooden furniture and a dashed diamond-shaped pattern on the ceiling (no text or symbols)

CONDITIONS POUR L'INSTALLATION D'RTA-2000 12V DANS LES VÉHICULES ÉQUIPÉS DE TRAPPES DE TOIT

Person opening a door with a spray gun, viewed from the window (no text or symbols visible)

Person in safety gear installing or maintaining a white open box on a construction site (no visible text or symbols)

PROCESSUS D'INSTALLATION DE L'UNITÉ RTA-2000 12V

5

Industrial machine on pallets in a warehouse, no visible text or symbols

Joint EPDM

Top-down architectural rendering of a modern building complex with symmetrical structural elements and decorative elements (no visible text or symbols)

Interior view of a vehicle showing a car under canopy with visible structural components and wiring (no text or symbols)

COMMENT COUPER LE JOINT EPDM POUR A EVITER LES FILTRATIONS DANS LA CABINE

Joint Retirer Joint

A 15 mm Joint Joint Toit de cabine Environ 100 mm (papier de protection)

C Joint Joint

6

Close-up of a mechanical component with coiled black bands and a metallic top (no visible text or symbols)

Top-down view of a semiconductor chip layout with highlighted components and red arrows indicating features (no text or symbols)

Close-up of a mechanical component with multiple circular holes and internal compartments (no visible text or symbols)

Interior view of a mechanical or electronic component with visible structural layers and mounting holes (no text or symbols)

Close-up of a battery cell with visible internal structure and three circular annotations (no text or symbols)

Close-up of a metallic bolt inserted into a blue liquid container (no text or symbols visible)

11

Interior view of a ceiling-mounted device with red-circled mounting points (no visible text or symbols)

Close-up of a mechanical component with a metallic bolt and wire, mounted on a black surface (no visible text or symbols)

Close-up of a mechanical component with a circular hole and four red-circled features, no visible text or symbols.

14

Close-up of a mechanical component with a circular hole and textured base (no visible text or symbols)

Interior view of a black rectangular device with a circular blue pattern on the front panel (no text or symbols visible)

Close-up of a textured surface with a dark rectangular object and a white line pointing to it (no text or symbols visible)

15

Close-up of a mechanical component with a circular opening and textured surface (no visible text or symbols)

16

Close-up of a mechanical assembly showing a bolt inserted into a nut, with a close-up inset highlighting a detail (no text or symbols visible)

Close-up of a mechanical assembly with a metallic bolt and nut, showing a bolted joint (no text or symbols visible)

Close-up of a gloved hand holding a white plastic bag over a red and orange cable rack inside a vehicle (no visible text or symbols)

18

Close-up of a white air conditioner cover with red circular annotations pointing to the front panel (no text or symbols visible)

SCHÉMAS DE MONTAGE

Épaisseur de 30 mm

Joint EPDM 25 mm comprimé 19-22 mm Toit 30 mm (8) Rondelle plate surface large Ø 8 (4) Rondelle grower Ø 8 (8) Écrou M/125 (4) Rondelle plate surface large Ø 8 (4) Écrou M8/125 autoblocant (4) Goujons 85 mm Canaliseur (4) Vis M5x10

Épaisseur de 40 mm

Joint EPDM 25 mm comprimé 19-22 mm Toit 40 mm (8) Rondelle plate surface large Ø 8 (4) Rondelle grower Ø 8 (8) Écrou M/125 (4) Rondelle plate surface large Ø 8 (4) Écrou M8/125 autoblocant (4) Goujons 95 mm Canaliseur Supplément (4) Vis M5x10

SCHÉMAS DE MONTAGE

Épaisseur de 50 mm

Joint EPDM 25 mm comprimé 19-22 mm Toit 50 mm (8) Rondelle plate surface large Ø 8 (4) Rondelle grower Ø 8 (8) Écrou M/125 (4) Rondelle plate surface large Ø 8 (4) Écrou M8/125 autoblocant (4) Goujons 95 mm Canaliseur Supplément (4) Vis M5x10

Épaisseur de 60 mm

Joint EPDM 25 mm comprimé 19-22 mm Toit 60 mm (8) Rondelle plate surface large Ø 8 (4) Rondelle grower Ø 8 (8) Écrou M/125 (4) Rondelle plate surface large Ø 8 (4) Écrou M8/125 autoblocant (4) Goujons 110 mm Canaliseur Supplément Supplément (4) Vis M5x10

MONTAGE DE L'ALIMENTATION ET SIGNAL À LA BATTERIE

18

Close-up of a white electronic device with blue connectors and wires, next to a solar panel (no visible text or symbols)

20

Interior view of an electronic device with exposed wiring and a green indicator light (no text or symbols visible)

!

Top-down architectural rendering of a car with visible windows and floor areas (no text or symbols)

Top-down architectural rendering of a car with visible windows and decorative elements (no text or symbols)

Top-down view of a car with abstract geometric shapes and no visible text or symbols

Top-down architectural rendering of a car with abstract floor plans and windows (no text or symbols)

Simple line drawing of a symmetrical geometric shape with a central square (no text or symbols)

Diagram with a square and rounded rectangular shape, accompanied by Chinese explanatory text below.

Exterior view of a modern office building (no signage)

Interior ceiling view with wooden furniture and a dashed diamond-shaped ceiling fixture (no text or symbols visible)

Person opening a window with a spray gun, no visible text or symbols

Two workers in safety gear handling a large open white box or container in an indoor setting (no visible text or symbols)

Industrial machine setup on pallets in a warehouse, no visible text or symbols

Junta EPDM

Top-down architectural rendering of a modern building complex with a central circular structure and surrounding equipment (no visible text or symbols)

Interior view of a factory showing a large black industrial component with visible structural details and a red cable (no text or symbols)

Close-up of industrial machinery with coiled black components and ventilation grilles (no visible text or symbols)

Top-down view of a smart grid layout with highlighted components and red arrows indicating directional flow (no text or symbols)

Close-up of a mechanical component with circular holes and internal compartments (no visible text or symbols)

7

Interior view of a mechanical or electronic component with visible structural layers and mounting holes (no text or symbols)

Close-up of a battery pack with visible wiring and mounting holes, no text or symbols present

8

Close-up of a metallic bolt inserted into a cylindrical component, with blue water visible inside (no text or symbols)

Interior view of a device with red circles highlighting four components (no visible text or symbols)

Tuerca autoblocanteArandela ala ancha

Close-up of a mechanical component with a metallic bolt and threaded shaft, no visible text or symbols

12

Close-up of a mechanical component with four red-circled holes and mounting screws (no text or symbols visible)

Interior view of a black electronic device with a blue internal component and a circular display (no visible text or symbols)

Close-up of a mechanical component with a circular recess and textured base (no visible text or symbols)

Salida de aire Salida de aire

Close-up of a textured surface with a dark rectangular object and a white line pointing to it (no text or symbols visible)

Close-up of a textured wall-mounted device with a circular vent and attached cable (no visible text or symbols)

16

Close-up of a mechanical assembly showing a bolt inserted into a housing, with no visible text or symbols.

Close-up of a metal screw fastener inserted into a wooden beam, with a bolt and nut visible (no text or symbols)

Close-up of a gloved hand holding colorful cable bundles inside a vehicle (no visible text or symbols)

18

Close-up of a white air conditioner cover with ventilation slots and a handle, marked by red circles (no text or symbols visible)

ESQUEMAS DE MONTAJE

Espesor de 30 mm

Junta EPDM 25 mm comprimida 19-22 mm Techo 30 mm (8) Arandela plana ala ancha Ø 8 (4) Arandela grower Ø 8 (8) Tuerca M/125 (4) Arandela plana ala ancha Ø 8 (4) Tuerca M8/125 autoblocante (4) Espárragos 85 mm Canalizador (4) Tomillo M5x10

Espesor de 40 mm

Junta EPDM 25 mm comprimida 19-22 mm Techo 40 mm (8) Arandela plana ala ancha Ø 8 (4) Arandela grower Ø 8 (8) Tuerca M/125 (4) Arandela plana ala ancha Ø 8 (4) Tuerca M8/125 autoblocante (4) Espárragos 95 mm Canalizador Suplemento (4) Tomillo M5x10

ESQUEMAS DE MONTAJE

Espesor de 50 mm

Junta EPDM 25 mm comprimida 19-22 mm Techo 50 mm (8) Arandela plana ala ancha Ø 8 (4) Arandela grower Ø 8 (8) Tuerca M/125 (4) Arandela plana ala ancha Ø 8 (4) Tuerca M8/125 autoblocante (4) Espárragos 95 mm Canalizador Suplemento (4) Tomillo M5x10

Espesor de 60 mm

Junta EPDM 25 mm comprimida 19-22 mm Techo 60 mm (8) Arandela plana ala ancha Ø 8 (4) Arandela grower Ø 8 (8) Tuerca M/125 (4) Arandela plana ala ancha Ø 8 (4) Tuerca M8/125 autoblocante (4) Espárragos 110 mm Canalizador Suplemento Suplemento (4) Tornillo M5x10

Close-up of a white solar panel connected to a blue and black cable, with no visible text or symbols.

20

Interior view of an electronic device with visible wiring and components (no text or symbols)

Top-down view of a car with abstract geometric shapes and no visible text or symbols

Top-down architectural rendering of a car with visible windows, door, and window layout (no text or symbols)

Top-down view of a car with abstract floor plan elements (no text or symbols)

Top-down view of a car with abstract geometric shapes and no visible text or symbols

Simple line drawing of a symmetrical geometric shape with a central square (no text or symbols)

Geometric diagram of a pentagon with a dashed inner square, no text or symbols present

2

Exterior view of a modern building roof with white metal framing and red horizontal stripe (no signage or text visible)

Interior ceiling view with wooden furniture and a dashed diamond-shaped ceiling fixture (no text or symbols visible)

REQUISITI PER L'INSTALLAZIONE DI RTA-2000 12V IN VEICOLI CON BOTOLE DISPONIBILI SUL TETTUCCIO

Person spraying a spray bottle into a window frame (no text or symbols visible)

Person in safety gear installing or inspecting a white open box on a workbench (no visible text or symbols)

PROCESSO DI INSTALLAZIONE DELL'IMPIANTO RTA-2000 12V

Industrial machine setup in a warehouse with stacked boxes and pallets (no visible text or symbols)

Guarnizione EPDM

Top-down architectural rendering of a modern building complex with symmetrical structural elements and decorative elements (no visible text or symbols)

Interior view of a vehicle showing a large black car hood under assembly, with no visible text or symbols.

Close-up of a mechanical device with coiled black components and ventilation grilles (no visible text or symbols)

Top-down view of a semiconductor or electronic component with highlighted structural layers and red arrows indicating features (no text or symbols present)

Close-up of a mechanical component with multiple circular holes and internal compartments (no visible text or symbols)

Interior view of a mechanical or electronic component with visible structural layers and mounting holes (no text or symbols)

Close-up of a battery cell with visible internal structure and four circular annotations highlighting specific components (no text or symbols present)

Rondella a fascia larga Rondella grower Dado

10

Close-up of a metallic bolt inserted into a blue liquid container (no text or symbols visible)

Interior view of a kitchen appliance with red-circled mounting points (no visible text or symbols)

Close-up of a mechanical component with a metallic bolt and threaded shaft, mounted on a black surface (no visible text or symbols)

12

Close-up of a mechanical component with a circular hole and four red-circled features, no visible text or symbols.

14

Close-up of a mechanical component with a circular hole and textured base (no visible text or symbols)

Interior view of a black rectangular device with a circular blue component on the front panel (no visible text or symbols)

Close-up of a textured fabric surface with a dark rectangular indentation and a white line pointing to it (no text or symbols)

15

Close-up of a ceiling-mounted air vent with a circular vent and textured insulation (no text or symbols visible)

16

Close-up of a mechanical assembly showing a bolt inserted into a nut, with a close-up inset highlighting a detail (no text or symbols visible)

Close-up of a metal screw fastener inserted into a wooden beam, with a black arrow pointing to the bolt (no text or symbols visible)

Close-up of a gloved hand handling colorful cable bundles in a storage or packaging container (no visible text or symbols)

18

Close-up of a white air conditioner cover with red circular annotations pointing to the front panel (no text or symbols visible)

SCHEMI DI MONTAGGIO

Spessore 30 mm

Close-up of a white electronic device with blue and white connectors, connected to a solar panel (no visible text or symbols)

20

Interior view of an electronic device with exposed wiring and a green indicator light (no text or symbols visible)

!

Advarsler under montering.... 107

Installationskrav 110

Top-down view of a car with abstract geometric shapes and no visible text or symbols

Top-down architectural rendering of a car with visible windows and decorative elements (no text or symbols)

Top-down view of a car with abstract geometric shapes and no visible text or symbols

Top-down architectural rendering of a car with abstract floor plans and windows (no text or symbols)

Diagram of a circular fan with radial blades and a 10 cm measurement label (no text or symbols beyond the scale indicator)

HANDLINGER, DER SKAL UDF∅RES FORUD FOR INSTALLERINGEN AF R TA-2000 12V I K∅RET∅JER, DER IKKE ER UDSTYRET MED TAGLUGE

Pure geometric diagram of a trapezoidal shape with a square cutout, no text or symbols present.

Diagram with a square and rounded rectangular shape, accompanied by Chinese text describing a geometric or architectural concept.

Exterior view of a white corrugated metal roof structure with visible windows and red trim (no text or symbols)

Interior ceiling view with wooden furniture and a dashed diamond-shaped ceiling fixture (no text or symbols visible)

INSTALLATIONSKRAV TIL RTA-2000 12V PÅ K∅RET∅JER MED TAGLUGE I LOFTET

Person cleaning a window with a spray gun, no visible text or symbols

Person in safety gear installing or maintaining a white open hood on a workbench (no visible text or symbols)

INSTALLATIONSPROCES FOR UDSTYRET RTA-2000 12V

5

Top-down architectural rendering of a modern building complex with symmetrical structural elements and decorative elements (no visible text or symbols)

Industrial machine setup in a warehouse with shelves of boxes and cardboard boxes in the background (no visible text or symbols)

Interior view of a large industrial machine with visible cooling duct and mounting bracket (no text or symbols)

SÅDAN UDSKÆRES KANTLISTEN EPDM, SÅ MAN UNDGÅR, AT DER TRÆNGER VAND IND I K∅RET∅JET

Close-up of a mechanical component with coiled black bands and a black housing (no visible text or symbols)

Top-down view of a semiconductor or electronic component with highlighted structural features and red arrows indicating direction (no text or symbols)

Close-up of a mechanical component with multiple circular holes and internal compartments (no visible text or symbols)

7

Interior view of a mechanical or electronic component with four circular annotations highlighting specific features (no text or symbols present)

Close-up of a battery module with visible wiring and mounting holes, no text or symbols present

8

Close-up of a metallic bolt inserted into a blue liquid container (no text or symbols visible)

Interior view of a device with red circles highlighting four components (no text or symbols visible)

Selvlåsende møtrikBred skivering

12

Stram møtrik

Close-up of a mechanical component with four red-circled features and mounting holes (no text or symbols visible)

Interior view of a black electronic device with a blue internal component and a circular display (no visible text or symbols)

Close-up of a mechanical component with a circular recess and textured base (no visible text or symbols)

Close-up of a textured surface with a dark rectangular object and a white line pointing to it (no text or symbols visible)

Close-up of a ceiling-mounted air vent with a circular vent and textured insulation (no text or symbols visible)

16

Close-up of a mechanical assembly showing a bolt inserted into a spring, with no visible text or symbols.

Close-up of a metal screw fastener inserted into a bolt, with a black arrow pointing to the bolt end (no text or symbols visible)

Forkert boltposition, hvor bolten stikker ud på undersiden af understøtningsdelen.

17

Close-up of a gloved hand handling colorful cable bundles in a vehicle (no visible text or symbols)

18

Close-up of a white air conditioner cover with ventilation slots and a handle, marked by red circles (no text or symbols visible)

MONTERINGSSKEMAER

Tykkelse på 30 mm

Kantliste EPDM 25 mm komprimeret 19-22 mm Loft 30 mm (8) Flad, bred skivering Ø 8 (4) Grower-skivering Ø 8 (8) Møtrik M/125 (4) Flad, bred skivering Ø 8 (4) Selvlåsende møtrik M8/125 (4) Bolte 85 mm Rørlob (4) Skruc M5x10

Tykkelse på 40 mm

Kantliste EPDM 25 mm komprimeret 19-22 mm Loft 40 mm (8) Flad, bred skivering Ø 8 (4) Grower-skivering Ø 8 (8) Møtrik M/125 (4) Flad, bred skivering Ø 8 (4) Selvlåsende møtrik M8/125 (4) Bolte 95 mm Rørløb Supplement (4) Skrue M5x10

MONTERINGSSKEMAER

Tykkelse på 50 mm

Kantliste EPDM 25 mm komprimeret 19-22 mm Loft 50 mm (8) Flad, bred skivering Ø 8 (4) Grower-skivering Ø 8 (8) Matrik M/125 (4) Flad, bred skivering Ø 8 (4) Selvlåsende matrik M8/125 (4) Bolte 95 mm Rørlob Supplement (4) Skrue M5x10

Tykkelse på 60 mm

Kantliste EPDM 25 mm komprimeret 19-22 mm Loft 60 mm (8) Flad, bred skivering Ø 8 (4) Grower-skivering Ø 8 (8) Matrik M/125 (4) Flad, bred skivering Ø 8 (4) Selvlåsende matrik M8/125 (4) Bolte 110 mm Rørlob Supplement Supplement (4) Skrue M5x10

MONTERING AF STR∅MKABLER OG SIGNAL TIL BATTERI

18

Close-up of a white solar panel connected to a blue and black cable, with no visible text or symbols.

20

Interior view of a black electronic device with visible wiring and components, placed on a wooden surface (no text or symbols)

Installationskrav 127

Installation.... 127

Monteringsritningar 134

Top-down view of a car with abstract geometric shapes and no visible text or symbols

Top-down architectural rendering of a car with visible windows, door, and window layout (no text or symbols)

Top-down view of a car with abstract floor plan elements (no text or symbols)

Top-down view of a car with abstract geometric shapes and no visible text or symbols

Pure geometric diagram of a square with rounded corners and a central rectangle, no text or symbols present.

Geometric diagram of a pentagon with a dashed inner square, no text or symbols present

2

Exterior view of a modern building roof with white metal framing and red trim (no signage or text visible)

Interior ceiling view with wooden furniture and a diamond-shaped ceiling fixture (no text or symbols visible)

KRAV FÖR INSTALLATION AV RTA-2000 12V PÅ FORDON MED TAKLUCKA

Varning: RTA-2000 12V kan bara installeras på fordon med taklucka som har:

Hand cleaning a window frame with a spray gun, no visible text or symbols

Two workers in safety gear inspecting a white open box on a workbench (no visible text or symbols)

INSTALLATION AV UTRUSTNINGEN RTA-2000 12V

5

Industrial machine setup in a warehouse with pallets and cardboard boxes in the background (no visible text or symbols)

EPDM-tätningslist

Top-down architectural rendering of a modern building complex with symmetrical structural elements and decorative elements (no visible text or symbols)

Interior view of a vehicle showing a black structural component with visible internal components and wiring (no text or symbols)

HUR EPDM-TÄTNINGSLISTEN SKA KAPAS FÖR ATT FÖRHINDRA VATTEN FRÅN ATT LÄCKA IN I FORDONET

Close-up of a mechanical component with coiled black bands and a metallic top (no visible text or symbols)

Top-down view of a semiconductor chip layout with highlighted components and red arrows indicating features (no text or symbols)

Close-up of a mechanical component with multiple circular holes and internal compartments (no visible text or symbols)

Interior view of a mechanical housing or enclosure with visible structural components and mounting holes (no text or symbols)

Close-up of a battery pack with visible circuitry and wiring, marked by four white circles (no text or symbols)

Close-up of a metallic bolt inserted into a cylindrical component, showing internal threading and blue water droplets (no text or symbols visible)

11

Top-down view of a black electronic device with red circles highlighting four components (no text or symbols visible)

Top-down view of a mechanical component with four red-circled holes and a central circular hole, no visible text or symbols.

14

Close-up of a mechanical component with a circular hole and textured surface (no visible text or symbols)

Interior view of a black rectangular device with a central circular component and blue internal bands (no text or symbols visible)

Luftutlopp Luftutlopp

Close-up of a textured surface with a dark rectangular object and a white diagonal line pointing to it (no text or symbols visible)

15

Close-up of a ceiling-mounted air vent with a circular vent and textured insulation (no text or symbols visible)

16

Close-up of a mechanical assembly showing a bolt inserted into a nut, with no visible text or symbols.

Close-up of a mechanical clamp or clamping tool with a metallic bolt and nut, showing a bolted joint (no text or symbols visible)

Felaktig placering av gängpinne som sticker ut under fästets undersida.

17

Close-up of a gloved hand holding a white plastic container with colorful cable bands, partially enclosed in a black frame (no visible text or symbols)

18

Top-down view of a white air conditioner cover with red circular annotations pointing to specific parts (no text or symbols visible)

MONTERINGSRITNING

Tjocklek på 30 mm

EPDM-list 25 mm komprimerad 19-22 mm Tak 30 mm (8) Breda planbrickor Ø 8 (4) Fjäderbrickor Ø 8 (8) Muttrar M/125 (4) Breda planbrickor Ø 8 (4) Själmåsande muttrar MB/125 (4) Gängpinnar 85 mm Luftkanal (4) Skruvar M5x10

Tjocklek på 40 mm

EPDM-list 25 mm komprimerad 19-22 mm Tak 40 mm (8) Breda planbrickor Ø 8 (4) Fjäderbrickor Ø 8 (8) Muttrar M/125 (4) Breda planbrickor Ø 8 (4) Själmåsande muttrar M8/125 (4) Gängpinnar 95 mm Luftkanal Extra tätning (4) Skruvar M5x10

MONTERINGSRITNING

Tjocklek på 50 mm

EPDM-list 25 mm komprimerad 19-22 mm Tak 50 mm (8) Breda planbrickor Ø 8 (4) Fjäderbrickor Ø 8 (8) Muttrar M/125 (4) Breda planbrickor Ø 8 (4) Självlåsande muttrar M8/125 (4) Gängpinnar 95 mm Luftkanal Extra tätning (4) Skruvar M5x10

Tjocklek på 60 mm

Close-up of a white air conditioner unit with blue connectors and wiring, next to a solar panel (no visible text or symbols)

20

Interior view of an electronic device with visible wiring and components (no text or symbols)

Top-down view of a car with abstract geometric shapes and no visible text or symbols

Top-down architectural rendering of a car with visible windows and decorative elements (no text or symbols)

Top-down view of a car with abstract geometric shapes and no visible text or symbols

Top-down architectural rendering of a car with abstract floor plans and windows (no text or symbols)

Diagram of a circular fan with radial blades and a 10 cm measurement label (no text or symbols beyond the scale indicator)

TILTAK F∅R INSTALLERING AV RTA-2000 12V I KJ∅RET∅YER SOM IKKE HAR EN TAKLUKE

Pure geometric diagram of a square with rounded corners and a central rectangle, no text or symbols present.

Simple geometric diagram with nested shapes and dashed inner lines, no text or symbols present.

Exterior view of a corrugated metal roof structure (no signage or text visible)

Interior ceiling view with wooden furniture and a dashed diamond-shaped pattern on the ceiling (no text or symbols)

KRAV FOR INSTALLERING AV RTA-2000 12V I KJ∅RET∅YER MED TAKLUKE

Obs: RTA-2000 12V kan kun installeres i biler med takluke som har:

Person opening a door with a spray gun, no visible text or symbols

Two workers in a workshop handling equipment, one open with open lid and tools, the other inspecting or adjusting (no visible text or symbols)

INSTALLASJONSPROSESS FOR RTA-2000 12V-UTSTYRET

Top-down architectural rendering of a modern building complex with enclosed structural elements and decorative elements (no visible text or symbols)

Industrial machine setup in a warehouse with stacked boxes and wooden pallets (no visible text or symbols)

Interior view of a mechanical assembly or machine with visible internal components and mounting brackets (no text or symbols)

HVORDAN MAN KUTTER EPDM- PAKNINGEN FOR Å FORHINDRE VANNLEKKASJER INNE I KJ∅RET∅YET

Close-up of industrial machinery with coiled black components and a metal cover (no visible text or symbols)

Top-down view of a semiconductor chip layout with highlighted components and red arrows indicating features (no text or symbols)

Close-up of a mechanical component with circular holes and internal compartments (no visible text or symbols)

7

Interior view of a mechanical housing or enclosure with visible structural components and mounting holes (no text or symbols)

Close-up of a battery pack with visible circuitry and wiring, no text or symbols present

8

Close-up of a metallic bolt inserted into a cylindrical component, with blue water visible inside (no text or symbols)

Avstand i henhold til tykkelse

11

Interior view of a kitchen appliance with red-circled annotations pointing to structural components (no visible text or symbols)

Selvlåsende mutterBred vingeskive

Close-up of a mechanical component with a metallic bolt and threaded shaft, mounted on a black surface (no visible text or symbols)

12

Close-up of a mechanical component with a circular hole and four red-circled features, no visible text or symbols.

Close-up of a mechanical component with a circular hole and textured surface (no visible text or symbols)

Interior view of a black rectangular device with a blue internal component and a circular display on the surface (no text or symbols visible)

Close-up of a textured surface with a dark rectangular object and a white line pointing to it (no text or symbols visible)

Close-up of a ceiling-mounted air vent with a circular vent and textured insulation (no text or symbols visible)

16

Close-up of a mechanical assembly with a bolt and nut inserted into a metal component (no visible text or symbols)

Close-up of a metal bolt and nut assembly with a black arrow pointing to a component (no text or symbols visible)

Close-up of a cable rack with colorful wires wrapped around it, no visible text or symbols

18

Close-up of a white air conditioner cover with ventilation slots and a handle, marked by red circles (no text or symbols visible)

MONTERINGSDIAGRAM

30 mm tykkelse

EPDM-pakning 25 mm tettet til 19-22 mm Tak 30 mm (8) Flatskive med bred vinge Ø 8 (4) Ekspansjonsskive Ø 8 (8) Mutter M/125 (4) Flatskive med bred vinge Ø 8 (4) Mutter M8/125 selvläsende (4) Bolt 85 mm Kanal (4) Skruc M5x10

40 mm tykkelse

EPDM-pakning 25 mm tettet til 19-22 mm Tak 40 mm (8) Flatskive med bred vinge Ø 8 (4) Ekspansjonsskive Ø 8 (8) Mutter M/125 (4) Flatskive med bred vinge Ø 8 (4) Mutter M8/125 solvlåsonde (4) Bolt 95 mm Kanal Ekstra (4) Skrue M5x10

MONTERINGSDIAGRAM

50 mm tykkelse

EPDM-pakning 25 mm tettet til 19-22 mm Tak 50 mm (8) Flatskive med bred vinge Ø 8 (4) Ekspansjonsskive Ø 8 (8) Mutter M/125 (4) Flatskive med bred vinge Ø 8 (4) Mutter M8/125 selvlåsende (4) Bolt 95 mm Kanal Ekstra (4) Skrue M5x10

60 mm tykkelse

EPDM-pakning 25 mm tettet til 19-22 mm Tak 60 mm (8) Flatskive med bred vinge Ø 8 (4) Ekspansjonsskive Ø 8 (8) Mutter M/125 (4) Flatskive med bred vinge Ø 8 (4) Mutter M8/125 selvlåsende (4) Bolt 110 mm Kanal Ekstra Ekstra (4) Skrue M5x10

MONTERING AV STR∅M- OG SIGNALLEDNINGER TIL BATTERIET

18

Close-up of a white electronic device with blue and white connectors, connected by wires to a solar panel (no visible text or symbols)

20

Interior view of an electronic device with visible wiring and components (no text or symbols)

Mestic is a brand of Gimeg Nederland BV
