Original instructions

Dear Customer,

Thank you for the trust you have placed in us by buying a Metabo power tool. Each Metabo power tool is carefully tested and subject to strict quality controls by Metabo's quality assurance. Nevertheless, the service life of a power tool depends to a great extent on you. Please observe the information contained in these instructions and the enclosed documentation. The more carefully you treat your Metabo power tool, the longer it will provide dependable service.

Contents

1 Conformity Declaration
2 Specified Use
3 General Safety Instructions
4 Special Safety Instructions
5 Overview
6 Special Product Features
7 Commissioning
8 Attaching the Grinding Wheel
9 Use
10 Cleaning
11 Troubleshooting
12 Accessories
13 Repairs
14 Environmental Protection
15 Technical Specifications

1 Conformity Declaration

We, being solely responsible, hereby declare that this product conforms to the standards and directives specified on page 2.

2 Specified Use

Machines fitted with original Metabo accessories are suitable for grinding and separating metal, concrete, stone and similar materials without the use of water.

The machines are fitted with a special spindle. Always use the Metabo "Quick-Stop" clamping nut supplied with the machine.

The user bears sole responsibility for damage caused by improper use.

Generally accepted accident prevention regulations and the enclosed safety information must be observed.

3 General Safety Instructions

WARNING – Reading the operating instructions will reduce the risk of injury.

WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

Before using this power tool, carefully read through and familiarise yourself with all the enclosed safety information and the instructions. Keep all enclosed documentation for future reference, and pass on your power tool only together with this documentation.

4 Special Safety Instructions

4.1 Safety Warnings Common for Grinding and Cutting-Off Operations:

a) This power tool is intended to function as a grinder or cut-off tool. Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

b) Operations such as sanding, wire brushing or polishing are not recommended to be performed with this power tool. Operations for which the power tool was not designed may create a hazard and cause personal injury.

c) Do not use accessories which are not specifically designed and recommended by the tool manufacturer. Just because the accessory can be attached to your power tool, it does not assure safe operation.

d) The rated speed of the accessory must be at least equal to the maximum speed marked on the power tool. Accessories running faster than their rated speed can break and fly apart.

e) The outside diameter and the thickness of your accessory must be within the capacity rating of your power tool. Incorrectly sized accessories cannot be adequately guarded or controlled.

f) The grinding wheels or any other accessories must fit exactly on the grinding spindle of your power tool. Accessories with arbour holes that do not match the mounting hardware of the power tool will run out of balance, vibrate excessively and may cause loss of control.

9) Do not use a damaged accessory. Before each use inspect the accessories such as abrasive wheels for chips and cracks. If a power tool or accessory is dropped, inspect for damage or install an undamaged accessory. After inspecting and installing an accessory, position yourself and bystanders away from the plane of the rotating accessory and run the power tool at maximum no-load speed for one minute. Damaged accessories will normally break apart during this test time.
h) Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. As appropriate, wear dust mask, hearing protectors, gloves and a workshop apron capable of stopping small abrasive or workpiece fragments. The eye protection must be capable of stopping flying debris generated by various operations. The dust mask or respirator must be capable of filtrating particles generated by your operation. Prolonged exposure to high intensity noise may cause hearing loss.
i) Keep bystanders a safe distance away from work area. Anyone entering the work area must wear personal protective equipment. Fragments of workpiece or of a broken accessory may fly away and cause injury beyond immediate area of operation.
j) Hold power tool by insulated gripping surfaces only, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and shock the operator.
k) Position the cord clear of the spinning accessory. If you lose control, the cord may be cut or snagged and your hand or arm may be pulled into the spinning accessory.
I) Never lay the power tool down until the accessory has come to a complete stop. The spinning accessory may grab the surface and pull the power tool out of your control.
m) Do not run the power tool while carrying it at your side. Accidental contact with the spinning accessory could snag your clothing, pulling the accessory into your body.
n) Regularly clean the power tool's air vents. The motor's fan will draw the dust inside the housing and excessive accumulation of powdered metal may cause electrical hazards.
o) Do not operate the power tool near flammable materials. Sparks could ignite these materials.
p) Do not use accessories that require liquid coolants. Using water or other liquid coolants may result in electrocution or shock.

4.2 Kickback and Related Warnings:

Kickback is a sudden reaction to a pinched or snagged rotating wheel or any other accessory. Pinching or snagging causes rapid stalling of the rotating accessory which in turn causes the uncontrolled power tool to be forced in the direction opposite of the accessory's rotation at the point of the binding.

For example, if an abrasive wheel is snagged or pinched by the workpiece, the edge of the wheel that is entering into the pinch point can dig into the surface of the material causing the wheel to climb out or kick out. The wheel may either jump toward or away from the operator, depending on direction of the wheel's movement at the point of pinching. Abrasive wheels may also break under these conditions.

Kickback is the result of power tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below.

a) Maintain a firm grip on the power tool and position your body and arm to allow you to resist kickback forces. Always use auxiliary handle, if provided, for maximum control over kickback or torque reaction during start-up. The operator can control torque reactions or kickback forces, if proper precautions are taken.
b) Never place your hand near the rotating accessory. Accessory may kickback over your hand.
c) Do not position your body in the area where power tool will move if kickback occurs. Kickback will propel the tool in direction opposite to the wheel's movement at the point of snagging.
d) Use special care when working corners, sharp edges etc. Avoid bouncing and snagging the accessory. Corners, sharp edges or bouncing have a tendency to snag the rotating accessory and cause loss of control or kickback.
e) Do not attach a saw chain woodcarving blade or toothed saw blade. Such blades create frequent kickback and loss of control.

4.3 Safety Warnings Specific for Grinding and Cutting-Off Operations:

a) Use only wheel types that are recommended for your power tool and the specific guard designed for the selected wheel. Wheels for which the power tool was not designed cannot be adequately guarded and are unsafe.
b) The guard must be securely attached to the power tool and positioned for maximum safety, so the least amount of wheel is exposed towards the operator. The guard helps to protect operator from broken wheel fragments and accidental contact with wheel.

c) Wheels must be used only for recommended applications. For example: do not grind with the side of cut-off wheel. Abrasive cut-off wheels are intended for peripheral grinding, side forces applied to these wheels may cause them to shatter.
d) Always use undamaged wheel flanges that are of correct size and shape for your selected wheel. Proper wheel flanges support the wheel thus reducing the possibility of wheel breakage. Flanges for cut-off wheels may be different from grinding wheel flanges.
e) Do not use worn down wheels from larger power tools. Wheels intended for larger power tools are not suitable for the higher speed of a smaller tool and may burst.

4.4 Additional Safety Warnings Specific for Abrasive Cutting-Off Operations:

a) Do not "jam" the cut-off wheel or apply excessive pressure. Do not attempt to make an excessive depth of cut. Overstressing the wheel increases the loading and susceptibility to twisting or binding of the wheel in the cut and the possibility of kickback or wheel breakage.
b) Do not position your body in line with and behind the rotating wheel. When the wheel, at the point of operation, is moving away from your body, the possible kickback may propel the spinning wheel and the power tool directly at you.
c) When wheel is binding or when interrupting a cut for any reason, switch off the power tool and hold the power tool motionless until the wheel comes to a complete stop. Never attempt to remove the cut-off wheel from the cut while the wheel is in motion otherwise kick-back may occur. Investigate and take corrective action to eliminate the cause of wheel binding.
d) Do not restart the cutting operation in the workpiece. Let the wheel reach full speed and carefully reenter the cut. The wheel may bind, walk up or kickback if the power tool is restarted in the workpiece.
e) Support panels or any oversized workpiece to minimize the risk of wheel pinching and kick-back. Large workpieces tend to sag under their own weight. Supports must be placed under the workpiece near the line of cut and near the edge of the workpiece on both sides of the wheel.
f) Use extra caution when making a "pocket cut" into existing walls or other blind areas. The protruding wheel may cut gas or water pipes, electrical wiring or objects that can cause kickback.

The machine is provided with a "Quick-Stop" function. For this reason, the machine is equipped with a special grinding spindle and a special Metabo "Quick-Stop" adjusting nut.

WHEN FITTING THE TOOLS, ONLY USE THE ORIGINAL METABO "QUICK-STOP" ADJUSTING NUT, WHICH CAN BE RECOGNISED BY THE LETTERING "METABO QUICK-STOP". No other clamping elements or threaded tools can be fitted and are not permitted to avoid hazards and injury, including damage to the grinding spindle. Only the accessories named in chapter 12 can be fitted.

Use elastic cushioning layers if they have been supplied with the abrasive and if required.

Observe the specifications of the tool or accessory manufacturer! Protect the discs from grease or impacts!

Grinding wheels must be stored and handled with care in accordance with the manufacturer's instructions.

Never use parting grinder discs for roughing work! Do not apply pressure to the side of parting grinder discs.

The tool must lay flat and be secured against slipping, e.g. using clamps. Large workpieces must be sufficiently supported.

Do not use accessories with threaded inserts.

For your own protection and for the protection of your power tool pay attention to all parts of the text that are marked with this symbol!

Always wear protective goggles.

During machining, of metals in particular, conductive dust can form deposits inside the machine. This can lead to the transfer of electrical energy onto the machine housing. This can mean a temporary danger of electric shocks. This is why it is necessary when the machine is running to blow compressed air through the rear ventilation slots of the machine regularly, frequently and thoroughly. Here, the machine must be held firmly.

We recommend using a stationary extractor system and connecting a residual current circuit-breaker (FI) upstream. When the angle grinder is shut down via the FI circuit-breaker, it must be checked and cleaned. See chapter 10 Cleaning for more information on cleaning the motor.

Dust from material such as paint containing lead, some wood species, minerals and metal may be harmful. Contact with or inhalation of the dust may cause allergic reactions and/or respiratory diseases to the operator or bystanders.

Certain kinds of dust are classified as carcinogenic such as oak and beech dust especially in conjunction with additives for wood conditioning (chromate, wood preservative). Material containing asbestos must only be treated by specialists.

- Where the use of a dust extraction device is possible it shall be used.

• The work place must be well ventilated.
• The use of a dust mask of filter class P2 is recommended.

Follow national requirements for the materials you want to work with.

Materials that generate dusts or vapours that may be harmful to health (e.g. asbestos) must not be processed.

When working in dusty conditions, ensure that ventilation openings are not blocked. If it becomes necessary to remove dust, first disconnect the power tool from the mains supply (use non-metallic objects) and avoid damaging internal components.

Damaged, eccentric or vibrating tools must not be used.

Avoid damage to gas or water pipes, electrical cables and loadbearing walls (static).

Connect a FI circuit-breaker with max. release current (30 mA) upstream when using the machine outdoors!

Pull the plug out of the socket before any making adjustments, converting or servicing the machine.

Metabo S-automatic safety clutch. When the safety clutch responds, switch off the machine immediately!

A damaged or cracked additional handle must be replaced. Never operate a machine with a defective additional handle.

A damaged or cracked safety guard must be replaced. Never operate a machine with a defective safety guard.

The machine is equipped with a "Quick-Stop" function. Have the machine repaired if braking time is clearly lengthened.

This electric power tool is not designed for sanding, wire brushing or polishing. Improper use of the machine will void the warranty! When used for polishing, the motor may overheat and damage the electric power tool. We recommend using our angle polisher for polishing work.

5 Overview

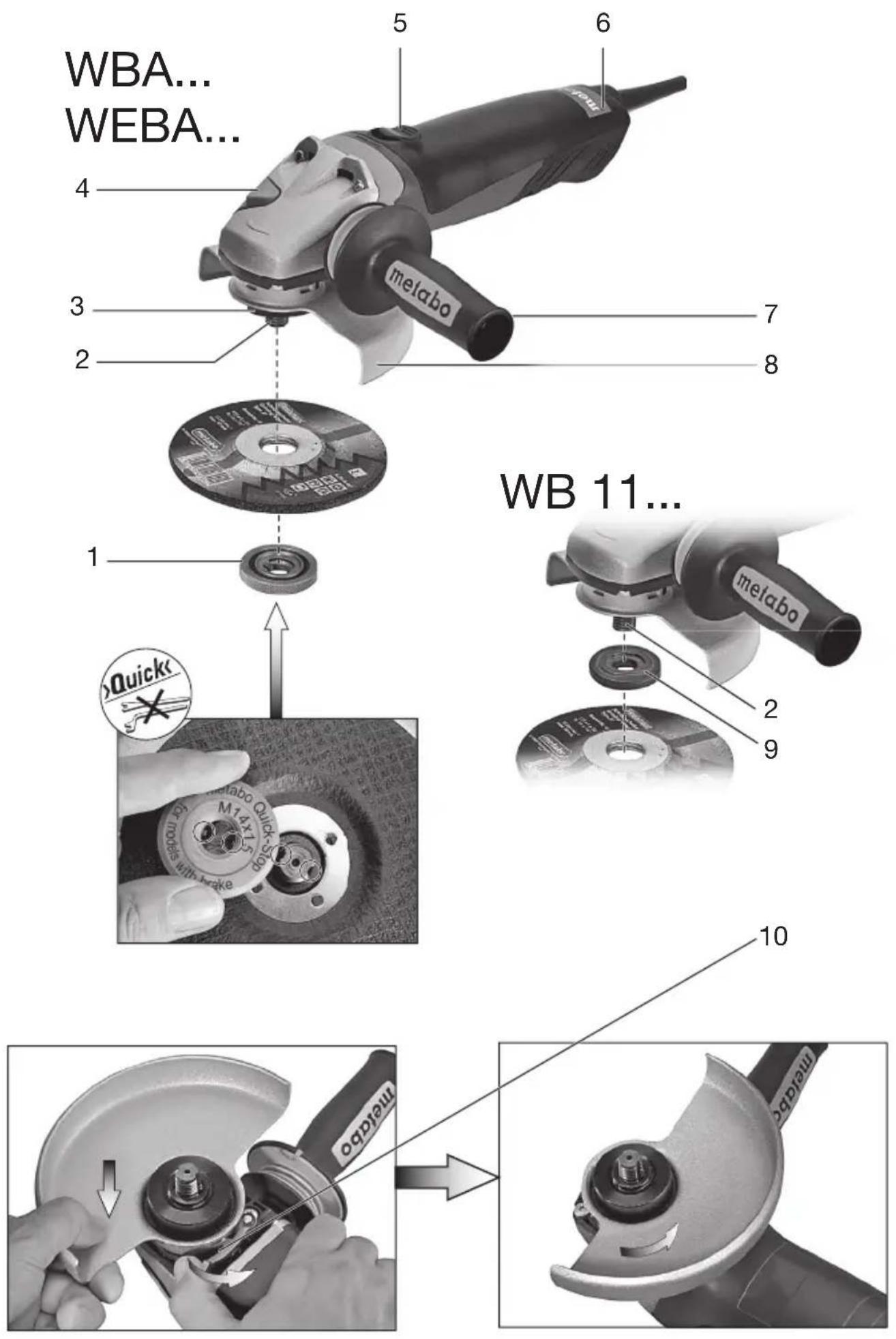

See page 3 (please unfold).

1 "Quick-Stop" clamping nut
2 Spindle
3 Autobalancer support flange (non-detachable)*
4 Spindle locking button
5 S l i dn/off switch
6 Electronic signal indicator *
7 Additional handle / Additional handle with vibration damping*

8 Safety cover

9 Support flange *

10 Lever for safety guard attachment

* depending on equipment/not in scope of delivery

6 Special Product Features

• WBA..., WEBA...: Integrated Autobalancer for minimal vibrations on the machine
• Powerful angle grinder with efficient cooling for rapid work progress even under the toughest operating conditions
• "Quick-Stop" function for stopping the grinding wheel within 3 seconds of machine shutdown
• Robust, durable Metabo marathon motor
• Metabo dust protection technology for an extremely long machine service life
• Ergonomic housing design with distinctive handholds for maximum control when cutting and roughing
• Metabo S-automatic safety clutch
• Metabo "Quick" tool change

7 Commissioning

Before plugging in, check to see that the rated mains voltage and mains frequency,

as stated on the rating label, match your power supply.

7.1 Attaching the additional handle

Always work with the additional handle attached (7)! Attach the additional handle on

the left or right of the machine and secure.

7.2 Attaching the safety guard

(for work involving grinding wheels)

For reasons of safety, the safety guard (8) should always be attached when roughing

work is performed.

For reasons of safety, the special parting guard should always be attached before working is performed (see chapter 12 Access).

See illustration on page 3.

• Push and hold the lever (10). Place the safety guard (8) in the position indicated.
• Release the lever and turn the safety guard until the lever engages.
• Push the lever and turn the safety guard until the closed section is facing the operator.

- Make sure that the guard is seated securely: the lever must engage and you should not be able to turn the safety guard.

8 Attaching the grinding wheel

The machine is provided with a "Quick-Stop" function. For this reason, the machine is equipped with a special grinding spindle and a special Metabo "Quick-Stop" adjusting nut. WHEN FITTING THE TOOLS, ONLY USE THE ORIGINAL METABO "QUICK-STOP" ADJUSTING NUT, WHICH CAN BE RECOGNISED BY THE LETTERING "METABO QUICK-STOP". No other clamping elements or threaded tools can be fitted and are not permitted to avoid hazards and injury, including damage to the grinding spindle. Only the accessories named in chapter 12 can be fitted.

Disconnect the mains plug before changing any accessories. The machine must be switched off and the spindle at a standstill.

For reasons of safety, attach the parting guard before performing parting work (see chapter 12 Accessories).

8.1 Locking the spindle

- Press in the spindle locking button (4) and turn the spindle (3) by hand until the spindle locking button engages.

8.2 Placing the grinding wheel in position WBA..., WEBA...:

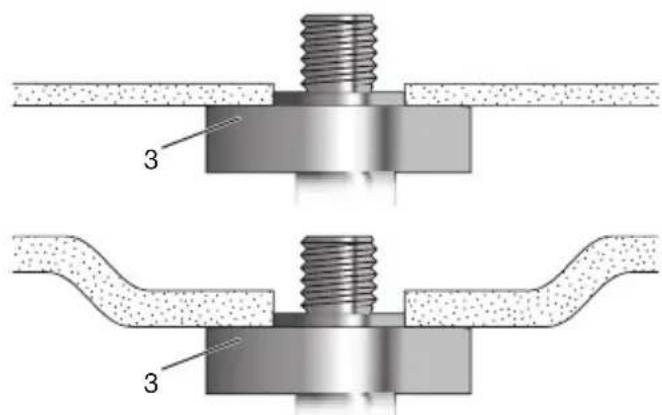

Technical diagram showing two mechanical assembly states with labeled components '3'

The Autobalancer support flange (3) is permanently fitted on the spindle. As is the case with most other angle grinders, a detachable support flange is not necessary.

The contact surfaces of the Autobalancer support flange (3), grinding wheel and the "Quick-Stop" adjusting nut (1) must be clean. Clean if necessary.

- Place the grinding wheel on the Autobalancer support flange (3) (see illustrations above). The grinding wheel must lie flat on the Autobalancer supporting flange. The metal flange on the parting grinder discs must lie flat on the Autobalancer support flange.

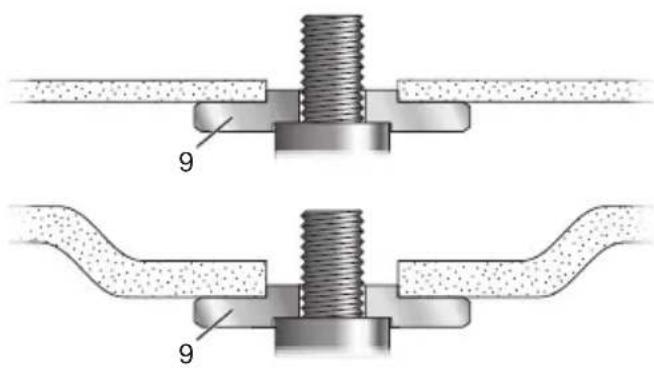

WB 11-125 Quick, WB 11-150 Quick:

9 9

- Place the supporting flange (9) on the spindle (see illustration above). The flange should not turn on the spindle when properly attached. - Place the grinding wheel on the support flange (9) (see illustration above). The grinding wheel must lay flat on the supporting flange. The metal flange on the parting grinder disc must lay flat on the support flange.

8.3 Securing/Releasing the "Quick-Stop" clamping nut

Securing the "Quick-Stop" clamping nut (1):

Do not use accessories with a clamping shank thicker than 8 mm!

The machines are fitted with a special spindle. Always use the Metabo "Quick-clamping nut supplied with the machine."

• Lock the spindle (see chapter 8.1).
• Position the "Quick-Stop" clamping nut (1) on the spindle (3) so that the 2 lugs engage in the 2 grooves on the spindle. See illustration on page 3.
• Tighten the "Quick-Stop" clamping nut by turning clockwise by hand.
• Turn the grinding wheel firmly clockwise to tighten the "Quick-Stop" clamping nut.

Releasing the "Quick-Stop" clamping nut (1):

The "Quick-Stop" clamping nut (1) must be attached before the spindle locking button (4) can hold the spindle!

• The machine continues to run after switching off.
• Press in the spindle locking button (4) just before the grinding wheel stops. The "Quick-Stop" clamping nut (1) is released.

9 Use

Note: We recommend using our angle polisher for polishing work.

9.1 Switching On and Off

Always guide the machine with both hands.

Switch on first, then guide the accessory towards the workpiece.

The machine must not be allowed to draw in additional dust and shavings. When switching the machine on and off, keep it away from dust deposits. After switching off the machine, only place it down when the motor has come to a standstill.

Avoid inadvertent starts: always switch the tool off when the plug is removed from the socket or if there has been a power cut.

In continuous operation, the machine continues running if it is forced out of your s. Therefore, always hold the machine with hands using the handles provided, stand in the position and concentrate.

Slide switch:

Close-up of a hand pressing down on a car's side panel with arrows indicating motion (no text or symbols visible)

To switch on: Push the slide switch (5) forward. For continuous activation, now tilt downwards until it engages.

To switch off: Press the rear end of the slide switch (5) and release it.

9.2 Working instructions

Grinding:

Press down the machine evenly on the surface and move back and forth so that the surface of the workpiece does not become too hot.

Roughing: position the machine at an angle of 30^ - 40^ for the best working results.

Separating:

Always work against the run of the disc (see illustration). Otherwise there is the danger of the machine kicking back from the cut out of control. Guide the machine evenly at a speed suitable for the material being processed. Do not tilt, apply excessive force or sway from side to side.

10 Cleaning

Motor cleaning: blow compressed air through the rear ventilation slots of the machine regularly, frequently and thoroughly. Here, the machine must be held firmly.

11 Troubleshooting

WBA..., WEBA...:

The electronic signal display (6) lights up and the load speed decreases. The coil temperature is too high! Run the machine in until the electronics signal indicator switches

WBA..., WEBA...:

The electronic signal display (6) flashes and the machine does not start. The restart protection is active. If the mains plug is inserted with the machine switched on, or if the current supply is restored following an interruption, the machine does not start up. Switch the machine off and on again.

12 Accessories

Use only genuine Metabo accessories.

If you need any accessories, check with your dealer.

For dealers to select the correct accessory, they need to know the exact model designation of your power tool.

See page 4.

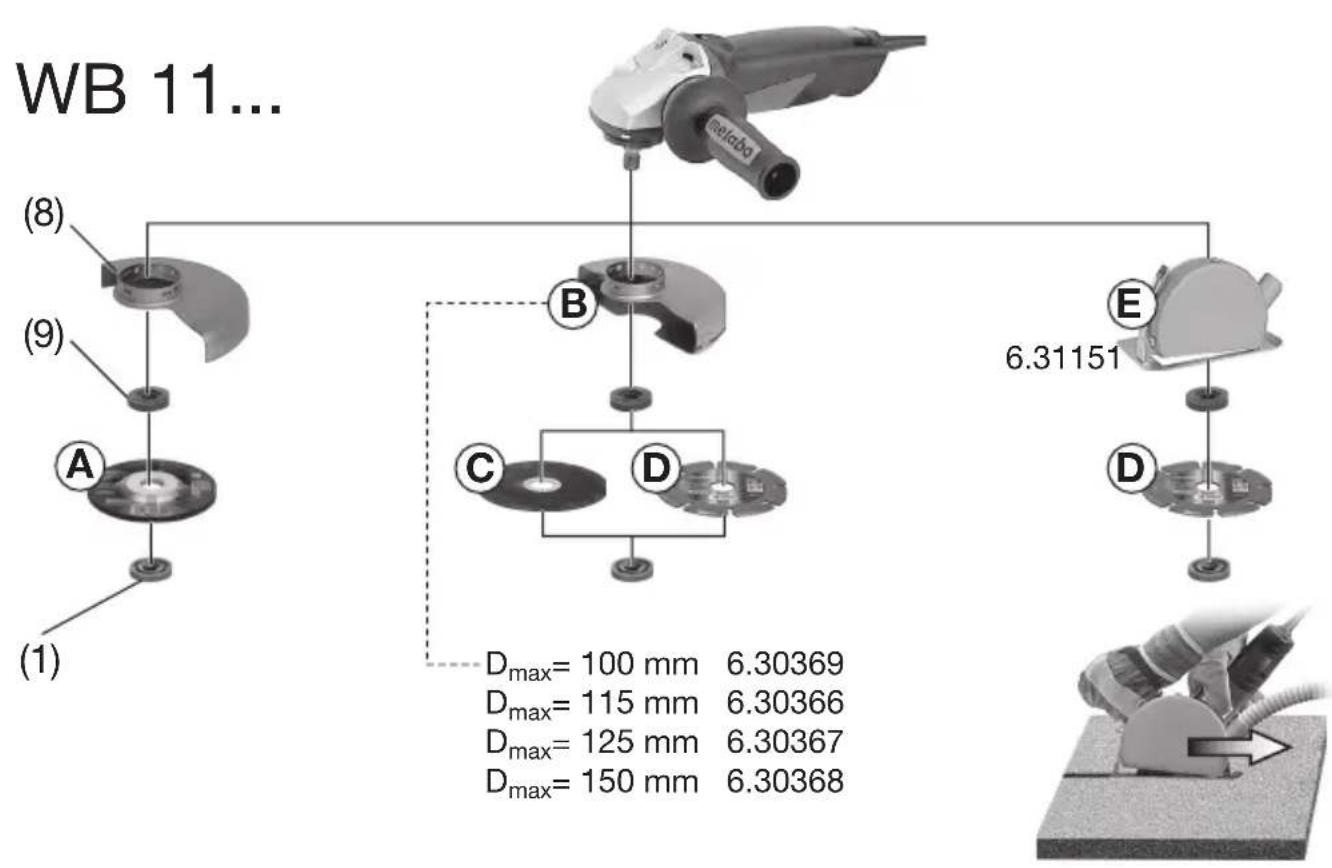

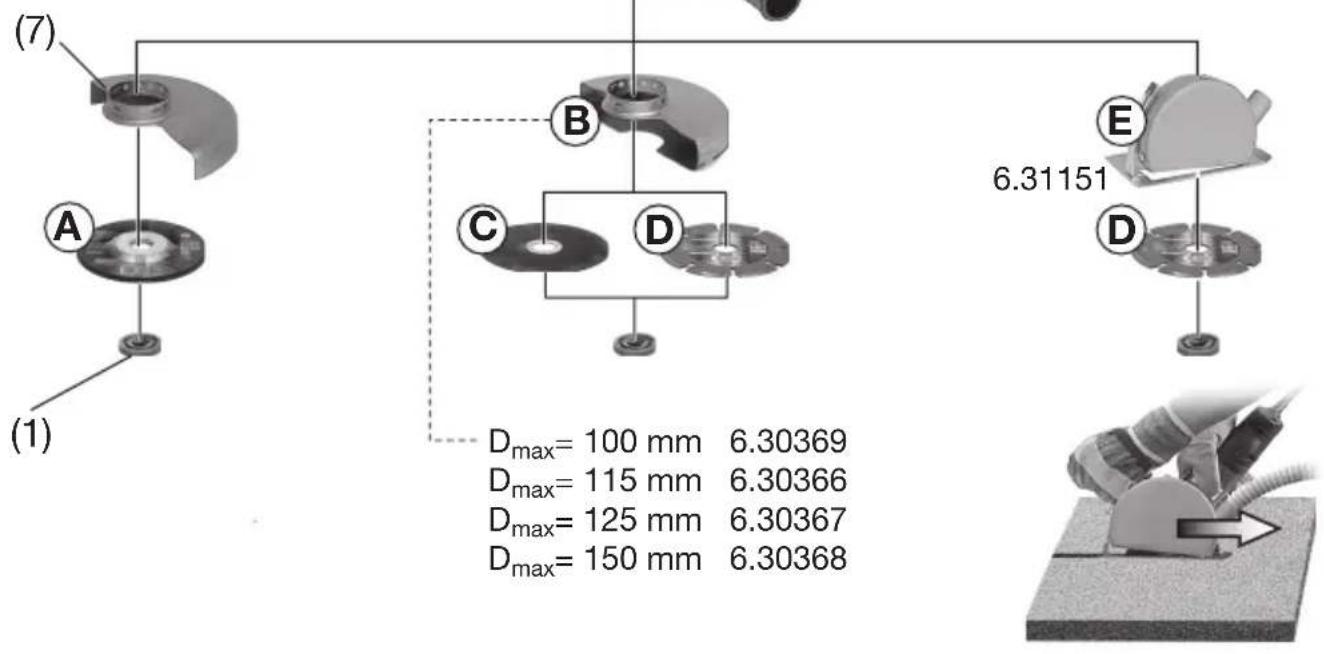

A Roughing disc (always use with safety guard attached)
B Parting safety guard.
C Parting disc (always use with parting safety guard attached)
D Diamond discs (always use with parting safety guard attached)
E Parting safety guard with guide slot (place on machine and secure with screws.) (with adapter for connection to a suitable dust extractor for extraction of stone dust generated when cutting stone slabs.)

F "Quick-Stop" clamping nut

For a complete range of accessories, see www.metabo.com or the main catalogue.

13 Repairs

Repairs to electrical tools must be carried out by qualified electricians ONLY!

Contact your local Metabo representative if you have Metabo power tools requiring repairs. For addresses see www.metabo.com.

You can download a list of spare parts from www.metabo.com.

14 Environmental Protection

The sanding dust generated may contain hazardous materials: do not dispose of with the household waste, but at a special collection point for hazardous waste.

Metabo's packaging can be 100% recycled. Scrap power tools and accessories contain large amounts of valuable resources and plastics that can be recycled.

Only for EU countries: Never dispose of power tools in your household waste! In accordance with European Guideline 2002/96/EC on used electronic and electric equipment and its implementation in national legal systems, used power tools must be collected separately and handed in for environmentally compatible recycling.

These instructions are printed on chlorine-free bleached paper.

15 Technical Specifications

Explanation of details on page 2. Subject to changes serving technical progress.

$$ \begin{array}{l} D _ {\max} = \text { Maximum grinding wheel diameter } \ \begin{array}{r l} t _ {\max, 1} ^ {\text { max }} & = \text { max. permitted thickness of } \ & \text { clamping shank on accessory when } \ & \text { using "Quick - Stop" clamping nut(1) } \end{array} \ \begin{array}{r l} {t _ {\max, 2}} & {= \underset {\text { accessory }} {\text { max. permitted thickness of }}} \end{array} \ M = \text { Spindle thread } \ l = \text { Length of the grinding spindle } \ n = \text { Rated speed (maximum speed) } \ P _ {1} = \text { Nominal power input } \ P _ {2} ^ {\prime} = \text { Power output } \ m = \text { Weight without mains cable } \ \end{array} $$

Vibration total value (vector sum of three directions) determined in accordance with EN 60745:

$$ \begin{array}{l} \begin{array}{r l} a _ {h, S G, 1} & = \text { Vibration emission value } \ & \text {(sanding surfaces, measured value)} \end{array} \ \begin{array}{r l} a _ {h, S G, 2} & = \text {Vibration emission value} \ & \text {(sanding surfaces, specification} \ & \text {according to EN 60745)} \end{array} \ K _ {n, S G} = \text { Uncertainty (vibration) } \ \end{array} $$

The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure.

The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period.

An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

Typical A-effective perceived sound levels:

$$ L _ {p A} = \text { Sound pressure level } $$

$$ L _ {W A} ^ {p A} = \text { Acoustic power level } $$

$$ K _ {p A / W A} ^ {W A} = \text { Uncertainty (sound level) } $$

During operation the noise level can exceed 80 dB(A).

Wear ear protectors!

Measured values determined in conformity with EN 60745.

The technical specifications quoted are subject to tolerances (in compliance with the relevant valid standards).

Notice originale

Cher client,

Mechanical assembly diagram showing a threaded component mounted on a base with two curved supports (no text or symbols)

Close-up of a hand holding a tool with labeled parts (① and ②) and directional arrows indicating movement or action.

Technical diagram showing two mechanical assembly configurations with labeled parts '3'

Close-up of a hand using a tool to press down a car's seat, with arrows indicating movement or force (no text or symbols visible)

Technical diagram showing two mechanical assembly steps with labeled components '3'

Mechanical assembly diagram showing a threaded bolt inserted into a central component, with no visible text or symbols.

Mechanical assembly diagram showing a threaded bolt inserted into a housing with two curved components (no text or symbols)

Close-up of a hand pressing down on a mechanical component with labeled parts 0 and 1, showing directional arrows.

Technical diagram showing two mechanical assembly configurations with labeled parts '3'

Close-up of a sewing machine needle with labeled parts (① and ②) and directional arrows indicating movement or adjustment.

Mechanical assembly diagram showing a threaded component inserted into a rectangular block, with no visible text or symbols.

Mechanical assembly diagram showing a threaded component inserted into a housing, with no visible text or symbols.

Close-up of a hand using a tool to press or install a component, with arrows indicating movement (no visible text or symbols)

Technical diagram showing two mechanical assembly configurations with labeled parts '3'

Close-up of a hand holding a tool with numbered callouts (0 and 1) pointing to a component, likely indicating step 0 or sequence.

Technical diagram showing two mechanical assembly states with labeled components '3'

Diagram showing a hand pressing down an object with labeled parts ① and ②, indicating a process or step in a mechanical or electronic component.

Technical diagram showing two mechanical assembly configurations with labeled parts '3'

Mechanical assembly diagram showing a threaded bolt inserted into a flanged joint (no text or symbols)

Mechanical assembly diagram showing a threaded bolt inserted into a housing with two curved components (no text or symbols)

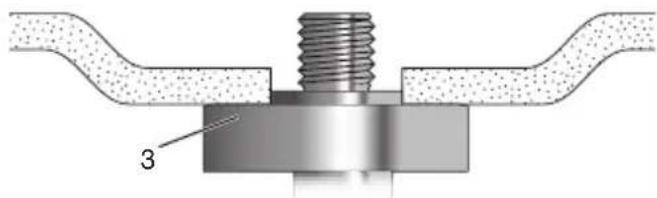

• Sett støtteflensen (9) på spindelen (se bilder over). Den er satt på riktig när det ikke kan dreies på spindelen.
• Sett slipeskiven på støtteflensen (9) (se bilder over).
  Slipeskiven må ligge jevnt på støtteflensen. Plateflensen på kappskiver må ligge på støtteflensen.

Diagram showing a hand pressing down on a car's side panel with labeled arrows and parts ① and ②

Technical diagram showing two mechanical assembly states with labeled components '3'

Diagram showing a hand pressing down on a car's side panel with labeled parts 0 and 1, indicating movement or positioning.

Technical diagram showing two mechanical assembly configurations with labeled parts '3'

Close-up of a hand holding a tool with labeled parts (① and ②) and directional arrows indicating movement or action.

Technical diagram showing two mechanical assembly states with labeled components '3' and threaded fasteners

Diagram showing a hand pressing down on a car's side panel with directional arrows and numbered callouts (0 and 1)

Technical diagram showing two mechanical assembly configurations with labeled parts '3'

Instructional diagram showing a hand pressing down on a car's side panel with labeled arrows and numbered parts ① and ②.

Technical diagram showing two mechanical assembly states with labeled components '3'

Diagram showing a hand pressing down on a component with numbered annotations (① and ②) and directional arrows indicating movement or force.
