USER MANUAL PSB Easy BOSCH

OHJ DOKU-55114-001.fm Page 1 Wednesday, September 28, 2016 12:50 PM

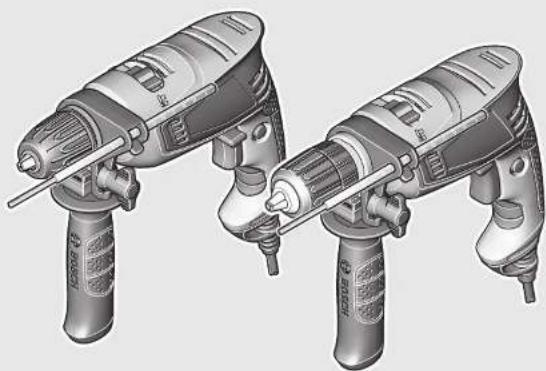

Illustration of two electric drillers with different sizes and components (no text or symbols visible)

Robert Bosch Power Tools GmbH

70538 Stuttgart

GERMANY

www.bosch-pt.com

1609 92A 2LX (2016.09) O/163

Diagram of a drill bit with numbered parts labeled 12 and 13

PSB Easy

4

A 2 9 4 1 21 3 3

B X 23 21 22 9

C 1 2 3 2 1 24 25

D 2 3 1 24 25

E 5 5

Deutsch | 5

Deutsch

Sicherheitshinweise

Diagram showing various components of a drill bit with labeled parts including metal, PVC, and block blocks

Montage

General Power Tool Safety Warnings

WARNING

Read all safety warnings and all instructions. Failure to follow the warnings and result in electric shock, fire and/or serious

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work area safety

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.
  ▶ Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical safety

▶ Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
- Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
▶ Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
▶ Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges and moving parts. Damaged or entangled cords increase the risk of electric shock.

When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Personal safety

Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
▶ Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
▶ Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
▶ Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
▶ Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

Power tool use and care

Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
▶ Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
▶ Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
▶ Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

English | 11

• Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
  ▶ Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
  ▶ Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

Service

▶ Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Safety Warnings for Drills

▶ Wear ear protectors when impact drilling. Exposure to noise can cause hearing loss.
▶ Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.
Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
▶ Application tools can become hot whilst working! There is a risk of injury when changing the application tool. Use protective gloves to remove the application tool.
In order to prevent the power tool from being switched on unintentionally, always unlock the lock-on button. To do so, briefly press the On/Off switch.
▶ Use suitable detectors to determine if utility lines are hidden in the work area or call the local utility company for assistance. Contact with electric lines can lead to fire and electric shock. Damaging a gas line can lead to explosion. Penetrating a water line causes property damage or may cause an electric shock.
Switch off the power tool immediately when the tool insert jams. Be prepared for high reaction torque that can cause kickback. The tool insert jams when: - the power tool is subject to overload or - it becomes wedged in the workpiece.
When working with the machine, always hold it firmly with both hands and provide for a secure stance. The power tool is guided more secure with both hands.
- Secure the workpiece. A workpiece clamped with clamping devices or in a vice is held more secure than by hand.
▶ Always wait until the machine has come to a complete stop before placing it down. The tool insert can jam and lead to loss of control over the power tool.

▶ Products sold in GB only: Your product is fitted with a BS 1363/A approved electric plug with internal fuse (ASTA approved to BS 1362). If the plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place by an authorised customer service agent. The replacement plug should have the same fuse rating as the original plug. The severed plug must be disposed of to avoid a possible shock hazard and should never be inserted into a mains socket elsewhere.

Products sold in AUS and NZ only: Use a residual current device (RCD) with a rated residual current of 30 mA or less.

Product Description and Specifications

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Intended Use

The machine is intended for impact drilling in brick, concrete and stone as well as for drilling in wood, metal and plastic. Machines with electronic control and right/left rotation are also suitable for screwdriving.

Product Features

The numbering of the product features refers to the illustration of the machine on the graphics page.

1 Front sleeve
2 Rear sleeve
3 Keyless chuck
4 "Drilling/Impact Drilling" selector switch
5 Lock-on button for On/Off switch
6 Rotational direction switch
7 On/Off switch
8 Button for depth stop adjustment*
9 Wing bolt for auxiliary handle fastening*
1.0 Auxiliary handle with depth stop *
11 Depth stop*
12 Handle (insulated gripping surface)
13 Auxiliary handle (insulated gripping surface)*
14 Universal bit holder*
15 Screwdriver bit*

*Accessories shown or described are not part of the standard delivery scope of the product. A complete overview of accessories can be found in our accessories program.

12 | English

Technical Data

Impact Drill PSB Easy PSB Easy
Article number 3 603 A30 0.. 3 603 A30 1..
Rated power input	W	5	5
Output power, max.	W	3	7
No-load speed	min^-1	50 - 3000	50 - 3000
Rated speed	min^-1	50 - 3000	50 - 3000
Impact rate	min^-1	33000	33000
Rated torque	Nm 1.2 1.5
Stall torque in accordance with EN 60745	Nm 11 12
Right/left rotation		●	●
Fully automatic spindle locking (Auto-lock)		- ●
Spindle collar dia.	mm 43 43
Max. drilling dia.
- Brickwork	mm	10	10
- Concrete	mm	10	10
- Steel	mm	8	8
- Wood	mm	25	25
Chuck clamping range	mm	2 - 13	2 - 13
Weight according to EPTA-Procedure 01:2014	kg 1.5 1.6
Protection class		☐ /II /II	☐
The values given are valid for a nominal voltage [U] of 230 V. For different voltages and models for specific countries, these values can vary.

Noise/Vibration Information

Sound emission values determined according to EN 60745-2-1.

		PSB Easy PSB Easy
Typically the A-weighted noise levels of the product are
Sound pressure level	dB(A)	96	97
Sound power level	dB(A)	107	108
Uncertainty K	dB(A)	3	3
Wear hearing protection!
Vibration total values a_h (triax vector sum) and uncertainty K determined according to EN 60745-2-1:
Drilling in metal:
a_h	m/s ^2	7.5	6.5
K	m/s ^2	1.5	1.5
Impact drilling in concrete:
a_h	m/s ^2	32	28
K	m/s ^2	4.0	2.0
Screwdriving:
a_h	m/s ^2	<2.5	<2.5
K	m/s ^2	1.5	1.5

The vibration level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure. The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or insertion tools or is poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period.

An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

Assembly

▶ Before any work on the machine itself, pull the mains plug.

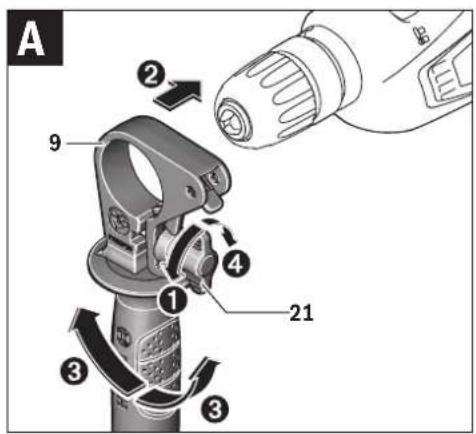

Auxiliary Handle (seefigure A)

- Operate your machine only with the auxiliary handle 10. - Before any work, make sure that the wing bolt 9 is firmly tightened. Loss of control can cause personal injury.

Turn the wing bolt 9 counterclockwise and guide the auxiliary handle 10 over the drill chuck onto the spindle collar of the power tool.

You can swivel the auxiliary handle 10 in order to achieve a safe work posture that minimises your fatigue.

Swivel the auxiliary handle 10 to the required position and retighten the wing bolt 9 in clockwise direction.

Adjusting the Drilling Depth (see figure B)

The required drilling depth X can be set with the depth stop 11.

Press the button for depth stop adjustment 8 and insert the depth stop into the auxiliary handle 10.

The knurled surface of the depth stop 11 must face downward.

Pull out the depth stop until the distance between the tip of the drill bit and the tip of the depth stop corresponds with the desired drilling depth X.

Dust Extraction

Dust from materials such as lead-containing coatings, some wood types, minerals and metal can be harmful to one's health. Touching or breathing-in the dust can cause allergic reactions and/or lead to respiratory infections of the user or bystanders. Certain dust, such as oak or beech dust, is considered carcinogenic, especially in connection with wood-treatment additives (chromate, wood preservative). Materials containing asbestos may only be worked by specialists.

• Use a dust extraction system suitable for the material being worked.
• Provide for good ventilation of the working place.
• It is recommended to wear a P2 filter-class respirator.

Observe the relevant regulations in your country for the materials to be worked.

▶ Prevent dust accumulation at the workplace. Dust can easily ignite.

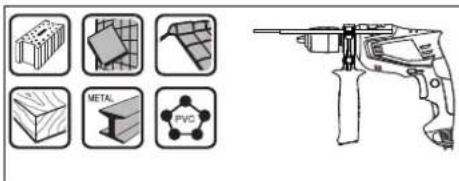

Illustration of a moving-coil tool with icons for metal, PVC, and plastic components (no text or symbols)

Changing the Tool

Keyless Chuck (PSB Easy) (see figure C)

Hold the rear sleeve 2 of the keyless chuck 3 tight and turn the front sleeve 1 in rotation direction ①, until the tool can be inserted. Insert the tool.

Hold the rear sleeve 2 of the keyless chuck 3 tight and firmly turn the front sleeve 1 in rotation direction ② by hand.

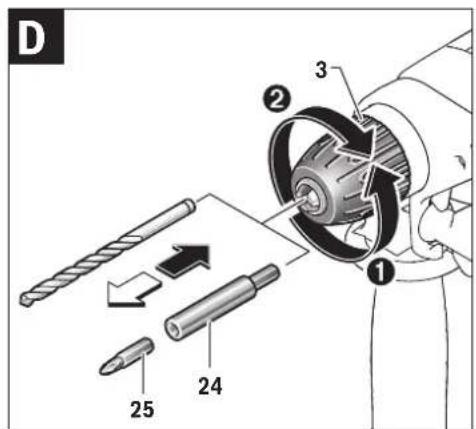

Keyless Chuck (PSB Easy ^+ ) (see figure D)

The drill spindle is locked when the On/Off switch 7 is not pressed. This makes quick, convenient and easy changing of the tool in the drill chuck possible.

Open the keyless chuck 3 by turning in rotation direction ①, until the tool can be inserted. Insert the tool.

Firmly tighten the collar of the keyless chuck 3 by hand in rotation direction ② until the locking action ("click") is no longer heard. This automatically locks the chuck.

The locking is released again to remove the tool when the collar is turned in the opposite direction.

Screwdriver Tools

When working with screwdriver bits 15, a universal bit holder 14 should always be used. Use only screwdriver bits that fit the screw head.

For driving screws, always position the "Drilling/Impact Drilling" selector switch 4 to the "Drilling" symbol.

Replacing the Drill Chuck

For power tools without spindle lock, the drill chuck must be replaced by an authorised after-sales service agent for Bosch power tools.

The drill chuck must be tightened with a tightening torque of approx. 30–35 Nm.

Operation

Starting Operation

▶ Observe correct mains voltage! The voltage of the power source must agree with the voltage specified on the nameplate of the machine. Power tools marked with 230 V can also be operated with 220 V.

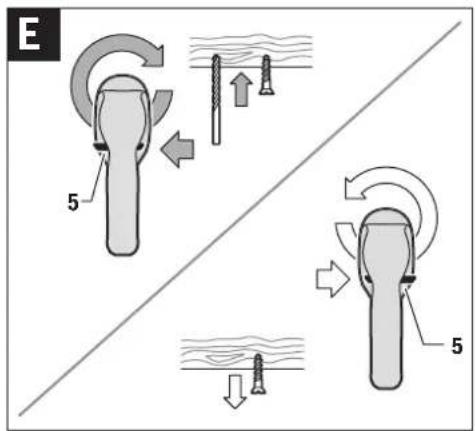

Reversing the rotational direction (see figure K)

The rotational direction switch 6 is used to reverse the rotational direction of the machine. However, this is not possible with the On/Off switch 7 actuated.

Right Rotation: For drilling and driving in screws, push the rotational direction switch 6 left to the stop.

Left Rotation: For loosening and unscrewing screws and nuts, press the rotational direction switch 6 through to the right stop.

14 | English

Setting the operating mode

Drilling and Screwdriving

Set the selector switch 4 to the "Drilling" symbol.

Impact drilling

Set the selector switch 4 to the "Impact drilling" symbol.

The selector switch 4 engages noticeably and can also be actuated with the machine running.

Switching On and Off

To start the machine, press the On/Off switch 7 and keep it pressed.

To lock the pressed On/Off switch 7, press the lock-on button 5.

To switch off the machine, release the On/Off switch 7 or when it is locked with the lock-on button 5, briefly press the On/Off switch 7 and then release it.

To save energy, only switch the power tool on when using it.

Adjusting the Speed/Impact Rate

The speed/impact rate of the switched on power tool can be variably adjusted, depending on how far the On/Off switch 7 is pressed.

Light pressure on the On/Off switch 7 results in low speed/impact rate. Further pressure on the switch increases the speed/impact rate.

Working Advice

▶ Before any work on the machine itself, pull the mains plug.

▶ Apply the power tool to the screw/nut only when it is switched off. Rotating tool inserts can slip off.

After longer periods of working at low speed, allow the machine to cool down by running it for approx. 3 minutes at maximum speed with no load.

Maintenance and Service

Maintenance and Cleaning

▶ Before any work on the machine itself, pull the mains plug.

▶ For safe and proper working, always keep the machine and ventilation slots clean.

If the replacement of the supply cord is necessary, this has to be done by Bosch or an authorized Bosch service agent in order to avoid a safety hazard.

After-sales Service and Application Service

Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. Exploded views and information on spare parts can also be found under:

www.bosch-pt.com

Bosch's application service team will gladly answer questions concerning our products and their accessories.

In all correspondence and spare parts orders, please always include the 10-digit article number given on the nameplate of the product.

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O. Box 98

Broadwater Park

North Orbital Road

Denham

Uxbridge

UB 9 5HJ

At www.bosch-pt.co.uk you can order spare parts or arrange the collection of a product in need of servicing or repair.

Tel. Service: [phone]

E-Mail: [e-mail]

Ireland

Origo Ltd.

Unit 23 Magna Drive

Magna Business Park

City West

Dublin 24

Tel. Service: [phone]

Fax: [phone]

Australia, New Zealand and Pacific Islands

Robert Bosch Australia Pty. Ltd.

Power Tools

Locked Bag 66

Clayton South VIC 3169

Customer Contact Center

Inside Australia:

Phone: [phone]

Fax: [phone]

Inside New Zealand:

Phone: [phone]

Fax: [phone]

Outside AU and NZ:

Phone: [phone]

www.bosch.com.au

Republic of South Africa

Customer service

Hotline: [phone]

Gauteng - BSC Service Centre

35 Roper Street, New Centre

Johannesburg

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

KZN - BSC Service Centre

Unit E, Almar Centre

143 Crompton Street

Pinetown

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Français | 15

Western Cape - BSC Service Centre

Democracy Way, Prosperity Park

Milnerton

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Bosch Headquarters

Midrand, Gauteng

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Disposal

The machine, accessories and packaging should be sorted for environmental-friendly recycling.

Do not dispose of power tools into household waste!

Only for EC countries:

According to the European Directive 2012/19/EU for Waste Electrical and Electronic Equipment and its implementation into national right, power tools that are no longer usable must be collected separately and disposed of in an environmentally correct manner.

Subject to change without notice.

Français

Diagram showing various components of a drill bit with corresponding icons for each type.

Français | 19

Changement d'outil

Mandrin automatique (PSB Easy) (voir figure C)

Robert Bosch (France) S.A.S.

Illustration of a moving pulley with labeled components including metal, PVC, and wooden blocks (no text or symbols present)

Cambio de útil

Illustration of a moving-coil drill bit with labeled components including metal, PVC, and block (no text or symbols on the diagram itself)

30 | Português

Troca de ferramenta

Diagram showing various types of building materials including metal, PVC, and composite structures with corresponding icons.

Diagram showing various types of electrical components including battery pack, metal, PVC, and motor gun

Diagram showing various types of metal components and a disassembled gun, including battery pack, PETT, metal, PVC, and plastic.

Værktøjsskift

Bosch Service Center

Telegrafvej 3

2750 Ballerup

På www.bosch-pt.dk kan der online bestilles reservedele eller oprettes en reparations ordre.

Tlf. Service Center: 44898855

Fax: [phone]

E-Mail: [e-mail]

Bortskaffelse

Bosch Service Center

Telegrafvej 3

2750 Ballerup

Danmark

Tel.: [phone] (inom Sverige)

Fax: [phone]

Avfallshantering

Diagram showing various types of electrical components and a motor gun illustration

Verktøyskifte

Illustration of a moving-coil tool with labeled components including metal, PVC, and plastic blocks (no text or symbols present)

Suomi | 59

Työkalunvaihto

Illustration of a moving-coil tool with labeled components including metal, PVC, and plastic sheet (no text or symbols present)

Diagram showing various components of a moving-coil tool with labeled parts including metal, PVC, and plastic sheeting.

Uç değiştirme

Illustration of a moving-coil tool with icons for metal, PVC, and plastic components (no text or symbols)

Wymiana narzędzi

Robert Bosch Sp. z o.o.

Illustration of a moving-coil tool with labeled components including metal, PVC, and plastic (no text or symbols present)

Montáž

Bosch Service Center PT

K Vápence 1621/16

692 01 Mikulov

Diagram showing various components of a moving-coil gun with labeled parts including metal, PVC, and plastic.

Výmena nástroja

Diagram showing various types of metal components and a drill bit, including battery, magnet, metal, PVC, and plastic.

Összeszerelés

Diagram showing various types of construction materials including metal, PVC, and composite materials with corresponding icons.

Diagram showing various types of metal components and a drill bit, including 3D block, PETT, metal, PVC, and plastic.

Illustration of a moving-coil gun with labeled components including metal, PVC, and housing (no text or symbols on the diagram itself)

Diagram showing various types of electrical components including battery pack, metal, PVC, and motor gun

Schimbarea accesoriiilor

Tel. service scule electrice: [phone]

Fax: [phone]

E-Mail: [e-mail]

Illustration of a moving pulley with labeled components including metal, PVC, and plastic blocks (no text or symbols present)

Illustration of a moving-coil tool with icons for metal, PVC, and structural components (no text or symbols)

Promena alata

Illustration of a moving-coil gun with labeled components including wooden box, metal plate, PVC cube, and handrail (no text or symbols on main elements)

Zamenjava orodja

Hitrovpenjalna glava (PSB Easy) (glejte sliko C)

Diagram showing various components of a moving-coil gun with labeled parts including metal, PVC, and plastic.

Zamjena alata

Illustration of a moving-coil tool with icons for metal, PVC, and plastic components (no text or symbols)

Tarviku vahetus

Klirkinnituspadrun (PSB Easy) (vt joonist C)

Illustration of a moving-coil tool with labeled components including metal, PVC, and plastic blocks (no text or symbols present)

Darbinstrumenta nomaina

Illustration of a moving-coil gun with labeled components including metal, PVC, and wooden blocks (no text or symbols on the diagram itself)

Irankių keitimas

Illustration of a drill bit with six labeled components: wooden blocks, metal, PVC, and a drill bit (no text or symbols on the diagram itself)

2 whose capitalisation 2
