Dreame L50 Pro Ultra

Robot Vacuum and Mop with

Auto-Empty and Mop Self-Cleaning

User Manual

DREAME

For more support, contact us via https://global.dreametech.com

Manufactured by: Dwayne Trading (Tianjin) Co., Ltd.

Made in China

20-9192

Simple curved brown shape on white background (no text or symbols)

The illustrations in this manual are for reference only. Please refer to the actual product.

Contents

ER User Manual 01

To avoid electric shock, fire or injury caused by improper use of the appliance, please read the user manual carefully before using the appliance and keep it for future reference.

Usage Restrictions

This product should not be used by children younger than 8 years old nor persons with physical, sensory, intellectual deficiencies, or limited experience or knowledge without the supervision of a parent or guardian to ensure safe operation and to avoid any risks. Cleaning and maintenance shall not be performed by children without supervision.

The appliance is only to be used with the power supply unit provided with the appliance.

This appliance contains batteries that are only replaceable by skilled persons. Clear the area to be cleaned. Children shall not play with the appliance. Ensure children and pets are kept at a safe distance from the robot while it is operating.

Do not install, charge or use the appliance in the bathrooms or around the pools.

This product is for floor cleaning in a home environment only. Do not use it outdoors, an non-floor surfaces, or in a commercial or industrial setting. Ensure that the appliance operates correctly in a proper environment. Otherwise, do not use the appliance.

If the power cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent. Do not use the robot in an area suspended above ground level without a protective barrier.

Safety Information

Usage Restrictions

Do not place the robot upside down. Do not use the LDS cover, robot cover, or bumper as a handle for the robot.

Use the robot in environments with an ambient temperature above 0°C and below 40°C. Make sure there is no liquid or sticky substance on the floor.

To prevent damage or harm from dragging, clear any loose objects from the floor, and remove cables or power cords on the cleaning path before operating the appliance.

Remove fragile or small items from the floor to prevent the robot from bumping into and damaging them.

Keep hair, fingers, and other body parts away from the suction opening of the robot.

Keep the cleaning tool out of reach of children.

Do not operate the appliance in a room where an infant or child is sleeping. Do not place children, pets, or any item on top of the robot regardless of whether it is stationary or moving.

Only clean water and the officially-approved cleaning solution can be added to the clean water tank. Do not add any other liquid such as alcohol or disinfectant. The ratio of the cleaning solution to clean water can be checked on the cleaning solution bottle. Keep the cleaning solution out of reach of children.

Do not use the robot to clean any burning objects. Do not use the robot to pick up flammable or combustible liquids, corrosive gases, or undiluted acids or solvents.

Safety Information

Usage Restrictions

Do not vacuum hard or sharp objects. Do not use the appliance to pick up objects such as stones, large pieces of paper or any item that may clog the appliance.Plug must be removed from the socket-outlet before cleaning or maintaining the appliance.Do not wipe the robot or the base station with a wet cloth or rinse them with any liquid. After cleaning washable parts, fully dry the parts before reinstalling and using them.Please use this product in accordance with the instructions in the User Manual. Users are responsible for any loss or damage that arise from improper use of this product.

Batteries and Charging

Do not use any third-party battery or base station. The robot can only be used with the model RCLE0101 base station.Do not attempt to disassemble, repair, or modify the battery or the base station on your own.Do not place the base station near a heat source.Do not use a wet cloth or wet hands to wipe or clean the base station's charging contacts.Do not improperly dispose of old batteries. Unneeded batteries should be discarded at an appropriate recycling facility.If the power cord becomes damaged or broken, stop using it immediately and contact after-sales service.

Safety Information

Batteries and Charging	Make sure the robot is turned off when being transported and kept in its original packaging if possible.If the robot will not be used for an extended period of time, fully charge it, then turn it off and store it in a cool, dry place. Recharge the robot at least once every 3 months to avoid over-discharging the battery.
Laser Safety Information	The laser sensor in this product meets the IEC 60825-1:2014/EN 60825-1:2014/A11:2021 Standard for Class 1 laser products. Please avoid direct eye contact with it during use.CLASS 1 LASER PRODUCTCONSUMER LASER PRODUCTEN 50689:2021

For indoor use only

Read operator's manual

Thereby: Dreame Trading (Tianjin) Co., Ltd, declares that the radio equipment type BLL&ACE is in compliance with Directive 2014/53/DU. The full text of the EU declaration of conformity is available at the following internet address: https://global.dreametech.com For detailed e-manual, please go to https://global.dreametech.com/pages/user-manuals-and-faqs.

Product Overview

Package Contents

itabot

Dee Station

Other Accessories

Power Cord

Base Station Ramp Extension Plate

User Manual Auto-Detergent Company (pre-install

Dust Day × 2 (1 pre installed)

Map Pad × 2 (pre-installed)

Mop Pad Holder x 2

Washboard Filter (pre-installed)

Cleaning Solution

Cleaning Tool

Product Overview

Robot

Pure technical line drawing of a circular component with concentric rings and a small circular feature (no text or symbols)

Dock Button
Press to send the robot back to the base station
- Prest and hold for 3 seconds to detable Child Lock
(1) Power / Clean Button
- Press and hold for 3 seconds to turn on or off
Press to start cleaning after the robot is turned on
Circular Status Indicator
Solid Blue: Cleaning or cleanup completed
Solid Green: Charging
- Blinking Orange: Error
Button Status Indicator
Solid White Cleaning or cleanup completed
Breathing White: Charging (not low battery)
- Solid Orange: Standby at low battery or paused at low
Battery
- Breathing Orange: Changing (low battery)
- Blinking Orange: Error
- Blinking Pink: Camera activated
Note:
Press any button on the roost to pause while the roost is clearing or returning to charge.
Child lock can be enabled/disabled through the dream/some app.

Product Overview Product Overview

Robot and Sensors

LED Auxiliary Light Al 31 Camera Al 120 Camera Microphones Versilift Sensor Bumper Bumper Window 2D Dual-Line Laser Sensors

Reset Button/W. Frinductor Press and hold for 3 seconds to restore to factory settings Cover Auto-Empty Vent Edge Sensor Charging Contacts Automatic Water Refilling Inlet Connectors

Note: The Versalift sensor will be lowered when the robot is in standby mode, charging on the base station, or cleaning low-clearance areas. In the case of cleaning low-clearance areas, do not move the robot as it may affect its positioning.

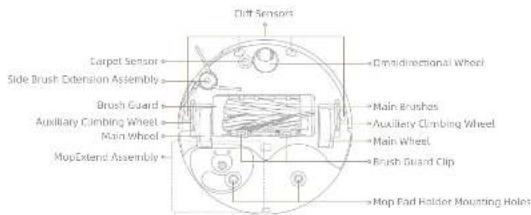

Clift Sensors Carpet Sensor Side Brush Extension Assembly Brush Guard Auxiliary Climbing Wheel Main Wheel Mop Extend Assembly Dimidirectional Wheel Main Brushes Auxiliary Climbing Wheel Main Wheel Brush Guard Clip Mop Pad Holder Mounting Holes

Dust Box

Mop Assembly
Mop Pad Attachment Area

Mop Pad Holder/ Mop Pad

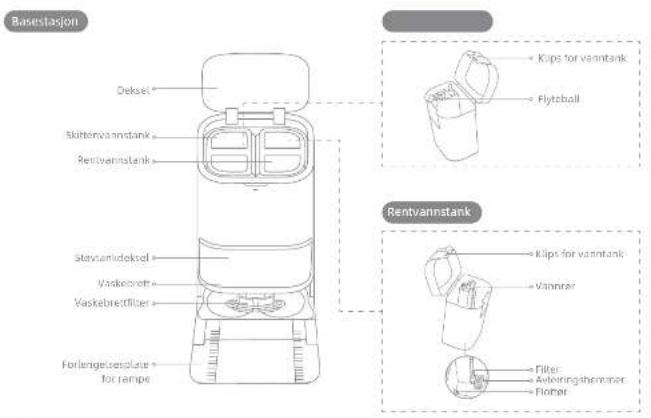

Base Station

Cover Used Water Tank Clean Water Tank Butt Tank Cover Washboard Washboard Filter Ramp Extension Plate

[Non-Text]

Clean Water Tank

Water Tank Clip Water Pipe Filler Scale Inhibitor Hover

Product Overview Product Overview

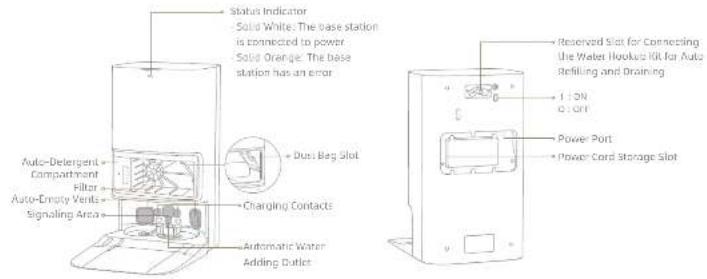

Base Station

Status Indicator Solid White: The base station is connected to power Solid Orange: The base station has an error Auto-Detergent Compartment Filter Auto-Empty Vents Signaling Area + Dust Bag Slot Charging Contacts Automatic Water Adding Doutles Received Slot for Connecting the Water Houlup Kit for Auto Refilling and Draining 1 ON 0 OFF Power Port Power Cord Storage Slot

Note: The water backup for auto refilling and draining needs to be purchased separately. (Cry salesline in specific territory)

Preparing Your Home

Illustration of a room with scattered items including a teddy bear, airplane, airplane, and a robot (no text or symbols)

Before cleaning, please move away untreats, fragile, valuable or dangerous items, and clean up cables, clothes, toys, hard objects and sharp objects on the ground to avoid being entangled, scratched or knocked down by the robot and causing losses.

Simple line drawing of a dining area with table, chairs, lamp, and door (no text or symbols)

Open the door of the room to be cleaned, and put the furniture in its proper place to leave more space.

Note:

When operating the root for the first time, follow around while cleaning to remove any potential obstacles in time.

- The LED auxiliary light will provide auxiliary lighting in dimly lit environments.

Do not vacuum hand objects like stones, steel balls and toy parts, or sharp objects like construction waste, broken glass and nails, otherwise the ground may be scratched.

1-12

Architectural line drawing of a balcony with railing and circular base (no text or symbols)

before closing, place a physical barrier at the edge of the stars to ensure the secure and smooth operations of the robot.

Interior hallway with a person standing at the entrance and a robot near the door, marked with a cross symbol (no text or labels)

To prevent the robot from missing areas that need to be cleaned, do not stand in front of the robot, threshold, balcony, or other places.

To prevent the robot from missing areas that need to be cleaned, do not stand in part of the plant, threshold, delivery, or before places.

To prevent the robot from missing areas that need to be cleaned, do not stand in part of the plant, threshold, delivery, or before places.

Before Use

1. Place the Base Station and Connect to an Electrical Outlet Place the base station in a location that is as open as possible with a good Wi-Fi signal. Leave enough space as shown in the figure and removes any objects in the shaded area. Insert the power cord into the base station and plug it into the socket.

Note:

Make sure that no objects might block the signaling area.

- In prevent water stains from venting road floors or carats, placing the boat station on the floors or garage floors is recommended.

1. Install the Ramp Extension Plate

Note: Ensure the washboard filter is installed into place.

Before Use

1. Remove Robot Protections and Install the Map Assembly 4. Connect the Robot to the Base Station

Diagram illustrating a mechanical assembly or assembly process with numbered components and directional arrows indicating motion.

Press and hold the button ☐ on the robot for 3 seconds to turn it on. Place the robot onto the base station with the map assembly facing toward the washboard. Then you will hear a voice notification when the robot successfully connects to the base station. After the robot is fully charged, the status indicators on the robot and the base station will remain lit for 10 minutes and then dim.

Note: It is recommended to fully charge the robot before its first use, when the robot cannot be turned on after the battery is doubleted, manually connect the robot with the station to charge it.

Before Use

1. Add the Cleaning Solution

(1) Remove the dust tank cover and pull out the auto-detergent compartment.

(2) Open the upper lid of the compartment and add the cleaning solution.

(3) Close the lid of the compartment, put it back into the base station, and then reinstall the dust tank cover. The cleaning solution will be added automatically while working.

Note:

- The auto-detergent compartment can be filled up with cleaning solution for use. Do not add any liquid other than the officially-approved cleaning solution to help prevent malfunction.

- install the auto detection compartment until it clicks into place.

1. Add Water to the Clean Water Tank

Take out the clean water tank from the base station and fill up the tank with clean water. Then install it back into the base station.

Illustration of a kitchen appliance with a chimney and a hand mixer (no text or symbols)

Note: Do not add hot water into the water tank, as this may cause the tank to become deformed.

Connecting with the Dreamehome App

1. Download the Dreamehome App

Remove the robot cover and scan the OR code on the robot, or search "Dreamhome" in the app store to download and install the app.

Note:

Only 2.4 GHz which is supported

Due to upgrades in the app software, the actual operations may differ

from the directions in this manual. Please follow the instructions based on the current application.

1. Add Device

Open the Dreamhome app, up "Scen QR code to connect", and scan the same QR code on the robot again to add the device. Please follow the prompts to finish the Wi-Fi connection.

None: In order W-F1, repeat step 2 and then follows the prompts to finish the W-F1 correction.

Wi-Fi Indicator

Blinding slowly: To be connected Thinking quickly.

Connecting On Connected

How to Use

Turn On/Off

Press and hold the button (for 3 seconds to turn on the robot. The power indicator will remain lt. Or, place the robot onto the base station by aligning the charging contacts of the robot with those of the base station, and then the robot will turn on automatically and begin charging. To turn off the robot, move the robot away from the base station and press and hold the button (for 3 seconds.

East Mapping

After configuring the network for the first time, follow the instructions in the app to quickly create a map. The robot will start mapping without cleaning. When the robot returns to the base station, the mapping process has been completed and the map will be saved automatically.

Pause/Sleep

When the robot is running, press any button to pause it.

If the robot is paused for more than 10 minutes, it automatically enters sleep mode. All indicators on the robot will turn off. Press any button on the robot, or use the app to wake up the robot.

Note: If the robot is paused and placed into the base station, the current cleaning process will be d.

Auto Resume Cleaning

If the battery is too low, the robot will automatically return to the base station to charge. After charging to the appropriate battery level, it will resume unfinished cleaning tasks.

Note: To use this function, please enable it in the app.

Do Not Disturb (DND) Mode

When the robot is set to the Do Not Disturb (DND) mode, the robot will be prevented from resuming cleaning. The DND mode is disabled by default at the factory. You can use the app to enable the DND mode or modify the DND period. The DND period is 22:00-8:00 by default.

Note:

The schoolised cleaning tasks will be performed as usual during the 2011 period.

The robot will resume cleanup where it felt up after the DVD period expires.

Robot Restarting

If the robot stops responding or cannot be turned off, press and hold the button ⏻ for 10 seconds to forcefully turn it off. Then, press and hold the button (for 2 seconds to turn the robot on.

How to Use

Vacuum and Mop

Note: When using the mcp assembly for the first time, the robot performs the "Vacuum and Mep" less by default.

1. Start cleaning

Press the button (on the robot, or use the app to make the robot start from the base station. Then the robot will plan the optimal cleaning route and perform the cleaning task based on the created

Note:

It ensures the robot ready to reach its base station after cleaning, it is recommended to make the robot start from the base station. The map pods will be cleaned before the robot starts mapping, please wait patiently. Do not move the base station, the clean water tank, the used water tank, or the washboard filter during operation. Hot water cleaning can be enacted in the app for map ped cleaning, which applies to all modes. To prevent scaling, do not touch the water outlet when the function is on.

171年

1. Auto mop washing

When cleaning, the robot will automatically return to the base station to wash mop pads based on the mop pad cleaning frequency specified in the app. The base station will automatically refill the robot's water tank and the robot will resume cleanup.

Line drawing of a robotic vacuum cleaner in a clean room (no text or symbols)

How to Use

1. Automatically empty the dust box and wash and dry the mop pads

After the robot finishes a cleaning task and returns to the base station to charge, the base station will automatically empty the dust box and then wash and dry the mop pads.

Line drawing of a vacuum cleaner in a room with a power outlet (no text or symbols)

Note:

If the user empty function is turned off to the app, the base station will not automatically employ the custom. The base station will empty the default according to the setting in the app.

1. Clean the used water tank

After the robot has completed its task, please clean the used water tank to prevent any odor.

Mop after Vacuuming

Enable the mopping after vacuuming function in the app, and the robot will automatically remove the mop assembly on the base station to vacuum the floor. After vacuuming is completed, the robot will return to the base station to install the mop assembly and the base station will automatically empty the dust box. And then, the robot will start mopping after the main brushes and side brush are raised.

Vacuum Only

Enable the vacuuming function in the app, and the robot will automatically remove the mop assembly on the base station and start vacuuming.

Mop Only

Enable the mapping function in the app, and the robot will automatically check if the mop assembly is installed on the base station. If not, the robot will install the mop assembly and start mapping after the main brushes and side brush are raised.

Routine Maintenance

Parts

To keep the robot in good condition, it is recommended to refer to the accessory usage in the app or the following table for routine maintenance.

Part Maintenance / frequency Replacement Period:
User water tank After each hour	/
Clean water tank
Main brushes Every 6 to 12 months
Dust box's filter
Sine brush
Mapped radishes /
Washboard filler Once Every 1 to 2 months	/
East station'ssignaling area
Charging stations
Auto-cavity vents
On/off line inside ahead
Edge sensor
Verbal lift sensor
to dual line seal sensors
Carpel sensor
Off sensors

Part Maintenance Frequency		Replacement Period
Bumper windows	One every month	2
Bumper
Node's automatic water ceiling unit
Bottom of the roof
Desk box	Cash at one needed/km wheels
Auxiliary climbing wheels
Desk bag	Months	Every 2 to 4 months
Mop pads Every 1 to 3 months
Screw inhibitor		Every 10 to 30 months

Note: The frequency of maintenance and replacement depends on actual usage. If an exception occurs due to special circumstances, prompt maintenance or replacement is recommended.

1524

Routine Maintenance

Washboard Filter

1. Take out the robot and remove the washboard filter after the mop pad cleaning is complete.

2. Use the app or press the button ⏻ to return the robot to the base station, or manually put the robot back.

Two line drawings of a kitchen appliance with a side panel and a hand placing food items (no text or symbols)

1. Rinse the washboard filter with clean water, wipe it clean, and then reinstall it in the washboard.

Routine Maintenance

Dust Bag

1. Remove the dust tank cover and discard the dust bag. 3. Install a new dust bag.

Note: Pulling up Wests on the Handle will seal the hand to prevent the dust and detra from accidentally tolling out.

1. Reinstall the dust tank cover.2. Remove the dust and debris from the filter with a dry cloth.
2. Pull put the brushes as shown in the figure. Use the provided

Routine Maintenance

Main Brushes

1. Press the brush guard clips inwards to remove the brush guard, and then lift the brushes out of the robot.

dry cloth. 2. Pull bit the brushes as shown in the figure. Use the provided cleaning tool to remove any hair tangled in the brushes. After cleaning, push the brushes firmly into the main brush holder until they click into place.

Note: So careful while pulling out the main brushes to prevent injury.

1. With the screen-printed arrows facing upwards, insert the main brush holder into the slots downwards in an inclined way.

1. Align the front end of the brush guard with the slot, insert it downwards in an inclined way, and then press it into place.

Routine Maintenance

Side Brush

Unscrew the side brush with a screwdriver, clean the hair from the brush, and then screw it back on.

Mop Pad Holders

Remove and clean the mop pad holders.

Omnidirectional Wheel

Note

Use a tool such as a small screwdriver to separate the side and line of the omnidirectional wheel. Do not use excessive force (since the omnidirectional wheel under the running water and put it back after laying it completely).

Routine Maintenance

Auxiliary Climbing Wheels and Main Wheels

1. Rotate the auxiliary climbing wheel until the "OUT" arrow is facing upward, and then pull out the wheel.

1. Use a proper tool to clean the hair tangled in the main wheel and auxiliary climbing wheel.

1. After cleaning, rotate the main wheel to align the two arrows (see Figure ①). Then, with the "IN" arrow facing downward, insert the left and right auxiliary climbing wheels accordingly until they click into place. (see Figure ②).

Diagram of a device with labeled components and an inset circular view showing internal components.

2324

Routine Maintenance

Dust Box and Filter

1. Remove the robot cover and press the dust box clip to remove the dust box.

1. Remove the dust box filter, and then empty the dust box.

2536

1. Gently tap the basket of the filter to remove the dirt.

Note: Do not attempt to clean the filter with a break, a hinge or sharp objects in present carriage.

1. Rinse the dust box and filter with water and dry them completely before reinstalling.

Note:

- Raise the dust box and filter with clean water only. Do not use any detergent. - Use the dust box and filter only when they are permanently dry.

Routine Maintenance

Robot Sensors

Wipe the robot sensors by using a soft and dry cloth, as shown in the below figure:

VersaLift Sensor Bumper Window 3D Dual-Line Laser Sensors Edge Sensor Bumper

Note: A set cloth can damage sensitive elements within the rubber and the base station. See using a cloth for cleaning.

Charging Contacts and Signaling Area

Clean the charging contacts and the signaling area with a soft and dry cloth.

Auto-Empty Vents

Clean the auto-empty vents of the robot and the base station with a soft and dry cloth.

P/U

Routine Maintenance

Used Water Tank

1. Remove the used water tank, open its cover and pour out the used water

1. Rinse the used water tank with clean water, and use the provided cleaning tool to clean the inner wall of the used water tank.

Note: Be careful while pulling out the main brush to prevent injury.

272年

Mop Pads

Remove the mop pads from the mop pad holders to replace them.

Battery

The robot contains a high-performance lithium-ion battery pack. Make sure that the battery remains well-charged for daily use to maintain optimal battery performances. If the robot is not used for an extended period of time, turn it off and put it away. To prevent damage from over discharging, charge the robot at least once every three months.

Troubleshooting

Problem Solution
The robot will not turn on.	The battery is low. Recharge the robot on the base and try again.The temperature of the battery is too low or too high, it is recommended to operate the appliance at a temperature between 1°C (25°F) and 40°C (104°F).
The robot will not charge.	The base station is not connected to power, please make sure both ends of its power cord are correctly plugged in.The contact between the charging contacts on the base station and the robot is poor, please clean the charging contacts.Check whether there is any foreign object at the connectors of the robot and remove the foreign object if any.
The robot fails to connect to Wi-Fi.	The Wi-Fi network password is incorrect. Make sure the password used to connect to your Wi-Fi network is correct.The robot does not support a 5 GHz Wi-Fi connection. Make sure the robot is connected to a 2.4 GHz Wi-Fi connection.The Wi-Fi signal is weak. Make sure the robot is in an area with good Wi-Fi coverage.The robot may not be ready to be configured. Please exit and re-enter the app, and then try again as instructed.
The robot cannot find one return to the base station.	The base station is disconnected from power or moved when the robot is not on it. Please connect the base station to the power supply or place the robot onto the base station to charge.There are too early obstructions around the base station. Place the base station in a more open area.Moving the robot may cause it to re-positioned seat, and it will remote a map if re-positioning fails. If the robot is too far from the base station, it might not be able to automatically return on its own, in which case you will need to manually place the robot onto the base station.Wipe the signaling area on the base station to remove dust or debris.

Troubleshooting

Problem Solution
The robot gets stuck in front of the base station and cannot return to it.	Check whether there is enough space on both sides or in front of the base station to prevent the robot from being blocked.The route for returning to charge is blocked, e.g., the door is closed.The robot may slip if the floor in front of the base station is overly wet. If so, clean the excess water before trying again.It is recommended to move the base station to a different place and try again.Make sure the ramp extension plate is installed properly.
The robot will not turn off.	The robot cannot be turned off when it is charging. It is recommended to move the robot from the base station, and then press and hold the button (or for 3 seconds to turn it off.If the robot cannot be turned off by performing step 1, press and hold the button (or for 10 seconds to forcibly turn off the robot, if the problem persists, please contact after water service).
The charging speed is slow.	It takes about 4.5 hours to fully charge the robot when its battery is slow.If you operate the robot at temperatures outside of the specified range, the charging speed will automatically slow down to extend the battery life.The charging contacts on both the robot and the base station may be dirty, please wipe them with a dry cloth...
The noise increases while the robot is operating	Check whether the dust box filter is clugged. If so, clean it or replace it.A hard object may be caught in the main brushes or the dust box. Check and remove any hard object.the main brushes or the side brush may become tangled. Check and remove any foreign objects.Switch the suction mode to Standard or Quiet.
The robot moves without following the set route.	Objects such as power cords and slippers should be organized before using the robot.Working on well slippery surfaces causes the main wheel to slip. It is recommended to dry the wet places before using the robot.Wise the bumper window and 3D dual-line laser sensors on the robot with a clean, soft cloth to keep them clean and unboosted.

2534

Troubleshooting

Problem Solution
The robot misses the rooms to be cleaned.	Make sure that the doors of the rooms to be cleaned are open.The place in front of the room to be cleaned may be wet and slippery, causing the robot to slip and work abnormally. Please try drying the floor before using the robot.
The robot will not resume cleaning after chircling.	Make sure that the robot is not set to the Do Not Disturb (BND) mode, which will prevent it from resuming cleaning.The robot will not resume cleaning after you manually place the robot on the base station or send the robot to charge via the app or the button ☐
the station cannot automatically empty the dust box.	Check whether the dust bag in the dust tank is full.If the dust bag is not full, check whether there is any obstruction at the auto-empty vents of the robot, the base station, or the dust box. If any, clean the blocked part in time.
The water level in the washboard is abnormal.	Check whether the seal on the used water tank is loose or not correctly installed, and manually reset it, if so. If the problem persists, please contact the after-sales service team.Gently press down on the used water tank to make sure it is installed correctly.Remove the washboard filter and check whether the sewage drain outlet is blocked and clean it.Check the cleaning solution. Do not add any liquid other than the officially approved cleaning solution.
The mop pad holder is raised abnormally.	Please remove the mop pad holder to check if there is any foreign object stuck in it, and try to restart the robot. If the problem persists, please contact the after-sales service team.
there is water under the clean water tank or around the seal.	When taking out the clean water tank some water in the pipe may be left under the tank or around the seal. This is normal. Please wipe with a dry cloth.

Far more support, contact us via https://global.dreametech.com

Specifications

Robot

Model RLLENCE
Charging Time Approx. 4.5 hours
Rated Voltage 10.4 V	---
Rated Power 75 W
Operation Frequency: 2400-2800.5 MHz
Maximum Output Power < 20 dBm

Under normal use of condition, this equipment should be kept a separation distance of at least 20 cm between the antenna and the body of the user.

Model BCL0101
Rated Input 223-240 V	-50~60 Hz
Rated Output 20 V 2 A	—
Rated Power (during dust emptying)	700 W
Rated Power (during bus water cleaning)	1160 W
Rated Power (during charging and drying)	67 W

Note:
Rated Power (during hot water cleaning) is determined by the power value during the representative period (water temperature 25°C). Rated Power (during charging and drying) is determined by the power value during full load period.

Battery Disposal and Removal

The built-in lithium-ion battery contains substances that are hazardous to the environment. Before disposing of the battery, make sure the battery is removed by qualified technicians and discarded at an appropriate recycling facility.

the battery must be removed from the appliance before it is scrapped.

the appliance must be disconnected from the supply mains when removing the battery;

- the battery is to be disposed of safely

CAUTION:

Before removing the battery, disconnect the power and run out the battery as much as possible.

Unneeded batteries should be discarded at an appropriate recycling facility.

Do not expose to high temperature environment to avoid risks of explosion.

Under abusive conditions, liquid may be ejected from the battery. If contact occurs, flush with water and seek medical help.

Removal Guide:

1. Turn over the robot, use a proper tool to remove the screws on the back of the robot, and then remove the cover.

2. Unplug the terminals between the battery and PCB board to remove the battery.

WEEE Information

All products bearing this symbol are waste electrical and electronic equipment (WHERE, as in directive 2012/19/EU) which should not be mixed with unsorted household waste. Instead, you should protect human health and the environment by handling over your waste equipment to a designated collection point for the recycling of waste electrical and electronic equipment, appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. Please contact the installer or local authorities for more information about the location as well as terms and conditions of such collection points.

Sicherheitshinweise

Simple line drawing of a circular object with a small circular inset showing measurement markings (no text or symbols)

Illustration of a playground with toy cars, a backpack, and a laptop (no text or symbols)

Simple line drawing of a room layout with a desk, lamp, and door (no text or symbols)

Simple line drawing of a balcony with railing and circular base, no text or symbols present

Interior hallway with a person standing at the entrance and a robot icon on the floor (no text or symbols)

Technical diagram showing three-step assembly of a vacuum cleaner with labeled components and parts

Line drawing of a kitchen appliance with a stand and a computer, no text or symbols present

Line drawing of a robotic vacuum cleaner in a clean room with an electrical outlet (no text or symbols)

Benutzung

Line drawing of a vacuum cleaner in a room with a power outlet (no text or symbols)

Hinweis:

Two line drawings of a kitchen appliance in a room, one with a lid and the other with a tray (no text or symbols)

Diagram of a device with labeled components and an inset view showing internal components and connections.

5538

Regelmäßige Wartung

Simple line drawing of a circular structure with concentric rings and a small circular element at the center (no text or symbols)

○ Ebuton Station de baso

Visit five: Mise on charge

Orange clogdant : Effed

Illustration of a toy car with a teddy bear, airplane, and computer monitor on the floor (no text or symbols)

Architectural line drawing of a balcony with railing and circular base (no text or symbols)

Simple line drawing of a room layout with a desk, chair, lamp, and door (no text or symbols)

Interior hallway with a person standing at the entrance and a robot icon nearby (no text or symbols)

Line drawing of a hand washing machine with a bag attached (no text or symbols)

[Unreadable]

Line drawing of a robotic vacuum cleaner in a room with an electrical outlet (no text or symbols)

Mode d'utilisation

Line drawing of a microwave oven with a power outlet (no text or symbols)

Remarque :

Line drawing of two laboratory apparatus setups with a pressure gauge (no text or symbols)

Supports de serpillière

Diagram showing a circular device with internal components and an inset circular view of a fan-like object, labeled with Chinese characters.

Simple line drawing of a circular structure with concentric rings and a small circular feature at the top (no text or symbols)

Pulsante Stazione

Verde faso: in Nepal

Illustration of a room with furniture and symbols (no readable text or labels)

Simple line drawing of a room layout with a desk, chair, lamp, and door (no text or symbols)

Simple line drawing of a wall railing with a circular base and a checkmark symbol (no text or labels)

Interior hallway with a person silhouette and a robot icon, no text or symbols present

Two identical diagrams showing a device with a fan inside, connected to a box and a diamond-shaped object (no text or symbols)

Line drawing of a hand washing machine with a bag attached (no text or symbols)

Note

Line drawing of a robotic vacuum cleaner in a clean room with a power outlet (no text or symbols)

11

Come si usa

Line drawing of a cylindrical device mounted on a base with a power outlet, no text or symbols present

Note

Line drawing of two laboratory apparatus setups with a power outlet and a hand placing a component (no text or symbols)

Diagram illustrating a mechanical or electrical system with labeled components and directional arrows, including a magnified inset showing internal components.

121123

The image is too blurry to recognize any text content.

Simple line drawing of a circular object with a central circular feature and two horizontal lines extending outward (no text or symbols)

Botán de atraque

Illustration of a desk with a laptop, teddy bear, parachute, hand holding a phone, and a cross symbol (no text or labels)

Architectural line drawing of a balcony with railing and wall-mounted door (no text or symbols)

Simple line drawing of a room layout with a desk, lamp, and door (no text or symbols)

Interior hallway with a person standing at the entrance and a robot on the floor, marked with a cross (no text or symbols)

Line drawing of a hand washing machine with a bag attached (no text or symbols)

Line drawing of a robotic vacuum cleaner in a room with an electrical outlet (no text or symbols)

[Unreadable]

Modo de uso

Line drawing of a microwave oven with a power outlet (no text or symbols)

Pintar

Two line drawings of a balance scale with a hand placing a small object on the base (no text or symbols)

Note: Over the number has been set to be linked to the way that the policy is necessary and the results are given as formalization.

Diagram showing a circular device with internal components and an inset magnified view of a device's internal structure.

The image is too blurry to recognize any text content.

Simple line drawing of a circular object with a small circular feature at the center (no text or symbols)

Przycisk dolowania

(3) legacy points accuracy: Eqd

Illustration of a room with icons including a teddy bear, airplane, and computer monitor (no text or symbols)

Simple line drawing of a dining area with table, chairs, lamp, and door (no text or symbols)

Architectural line drawing of a balcony with railing and circular base (no text or symbols)

Interior hallway with a person standing near the door and a robot on the floor, marked with a cross (no text or symbols)

Two identical diagrams showing a device with a fan and a lamp, no text or symbols present.

Line drawing of a hand washing machine with a bag attached (no text or symbols)

Uwag

Line drawing of a robotic vacuum cleaner in a room with an electrical outlet (no text or symbols)

Użytkowanie

Line drawing of a microwave oven with a power outlet, no text or symbols present

Uwages:

Line drawing of two laboratory apparatus setups with a pressure gauge (no text or symbols)

Technical diagram showing a circular component with internal structure and a magnified view of a mechanical assembly with labeled parts.

185784

KLASSE 1 LASERPRODUCT

LASERPRODUCT VOOR CONSUMENTEN

EN 50689:2021

Simple line drawing of a circular object with a curved top and a small circular inset labeled '3' (no text or symbols beyond the label)

Illustration of a person sitting on the floor with scattered objects including a teddy bear, airplane, and a laptop (no text or symbols)

Simple line drawing of a dining table with a lamp and door, no text or symbols present

Architectural line drawing of a balcony with railing and guardrail, plus a circular detail marked with a checkmark (no text or symbols)

Interior hallway with a person standing at the entrance and a robot near the door, no visible text or symbols

Diagram illustrating a three-step process of device installation or assembly, with labeled steps and internal components.

2017.04

Line drawing of a kitchen appliance with a tray and lid, no text or symbols present

- Allop 2,4 GHz with worst understanding.

Line drawing of a robotic vacuum cleaner in a clean room (no text or symbols)

Hoe te gebruiken

Line drawing of a vacuum cleaner in a room with a power outlet (no text or symbols)

Comerling:

Two line drawings of a kitchen appliance with a side panel and a hand placing food items (no text or symbols)

Technical diagram showing a circular device with labeled components and an inset close-up of internal components.

2017年

The image is too blurry to recognize any text content.

Moppepute ×2 (Forhandsmantert)

Vorkebrethler (forhandmonter)

Rengjaring:model

Rongjaringsveriday

Produktoversikt
Robot

Technical line drawing of a circular mechanical component with concentric rings and a small circular feature (no text or symbols)

Dokkingknapp
Trykk for å sende inboten tilbake til lasastasjonen
- Trykk og håld i 3 sekunder for å deaktvare barnesikring
d strem/rengjøringsknapp
Trykk og hold i 3 sekunder for å stå den på eller av
Trykk for a starte length
Sirkulär statusindikatb
Past. Ota. Kenjering Eile Oppreding er Tufbort
- P#e, q#o#t, L##ar
2. 用 H_2O 和 H_3O 的体积为 g 的质量。
Knappens statusindikator
• Fas: hvit; Stengjering eller oppydding er full/vit
Pulserende hvit: Lader (ikke text batter)
- Fast orangeje: Standby ved lavf batter eller palleved
Level better
• Pulterende orange: Lader (layt badleri)
- Blinkende dransje: Feil
- Binkende Rosa: Samena Aktiva
Mark:
Tryke på en vitkårlig knapp på roboten for å pause mens roboten
angjes erst gert ribose till lacing.
Jamesking kan aktiherstdosatvens via dreamhome appen.
23123

Produktoversikt

Robot og sensorer

LED-heloselys KIR-kamera KHO-kamera Microfensor Versalatt sensor Synthanger Sufangervindu 2D-dobbeldinjelaser sensorer

Tilbasiestillingsknapp/Wi. Fl indikator Tryckog hold 13 sekundar for 4 gennoprotte fabrikinnat-llingene Oelsoj Automatske tømningsventi Kanibensor Ladekantacker Automatske varmpåyllingsinnsk Tilknbinger

Moppeputeholder Moppepute

NO
Produktoversikt

BASESTasjon Dekset Skuttenvanntank Rentvanntank Stervtankdokset Vaskebreth Vaskebreftfilter Forlengelzerolate for rampe Kilips for vanntank Flytzball Rentvannstank Kilips for vanntank Vannner Filter Anletringshømmeter Flotter

Illustration of a medical or workplace scene with icons including a robot, airplane, and medical equipment (no text or symbols)

Architectural line drawing of a balcony with railing and circular base (no text or symbols)

Simple line drawing of a room layout with a desk, chair, lamp, and door (no text or symbols)

Interior hallway with a person standing at the entrance and a robot near the door, no visible text or symbols

Diagram illustrating the step-by-step installation of a device with labeled components and internal components.

Two simple line drawings of a refrigerator with a lamp and a cabinet, no text or symbols present.

Merz:

Line drawing of a portable device with a graduation cap and open lid, connected to a computer (no text or symbols)

Merk: Like tiseet varmit vanin i vanrtanken, a den dette kan tare bl at tenken bil deformen.

No

No. Koble til Dreamehome-appen

1. Last ned Dreamehome-appen

BAN 24 GH7 WII TO SECUTS.

Line drawing of a robotic vacuum cleaner in a clean room (no text or symbols)

Bruk

Line drawing of a vacuum cleaner in a room with an electrical outlet (no text or symbols)

Merck

Besesdien automatiske termelunksjorden og slet av i appen, til bilbe basestasjonen automatiskomme stevecristen. Beseestasjonen dammer stevekursken hennhold til instillingene rapp

Line drawing of two identical devices with a control panel and a battery, no text or symbols present

1. Skyll vaskebrettfilteret med rent vann, forr det rent, og installer det deretter på vaskebrettet.

Rutinemessig vedlikehold

Stevpose

1. Fjern stavtankdekslet og kast stavposen. 2. Installer en ny stavpose.

Technical diagram showing a circular device with labeled components and an inset close-up of its internal structure.

Rutinemessig vedlikehold

Dammopase = 2 (7 for installation)

Simple line drawing of a circular object with concentric rings and a small circular feature at the center (no text or symbols)

Dockningsknapp

- Blink and viti, adl (or intra-vent hortner)

The following table provides the first 12th and 2nd place of the

The orange line: Stanhoylge and taigc cedacti. After persale

Andring Green (older first button)

- Matching Orange. Edge

Blinkside Orange. Tel: Blinkside spec: Kamora aktuaradi

D:18

Tryx da va in knapp på ruben for at pauss ruben na den

Illustration of a medical or workplace scene with icons including a robot, airplane, and medical equipment (no text or symbols)

Simple line drawing of a dining area with table, chairs, lamp, and door (no text or symbols)

Architectural line drawing of a balcony with railing and guardrail, plus a circular detail marked with a checkmark (no text or symbols)

Interior hallway with a person standing at the entrance and a robot near the door, no visible text or symbols

Diagram illustrating a three-step assembly of a vacuum cleaner with labeled components and directional arrows.

1. Anslut roboten till basstationen

Illustration of two scenarios showing a device with a fan inside and a box with a diamond-shaped object, both without any text or symbols.

doi:

Line drawing of a portable device with a graduation cap and open lid, connected to a smaller device (no text or symbols)

Obs: Tilssalt inte helt valten - valtentanken, erzernom delta kan geda att lanken derunteras.

图

Ansluter till Dreamehome-appen

1. Ladda ner Dreamehome-appen

Line drawing of a robotic vacuum cleaner in a clean room (no text or symbols)

Bruksanvisning

Line drawing of a vacuum cleaner in a room with an electrical outlet (no text or symbols)

Obs:

Two line drawings of a kitchen appliance with a side panel and a wall-mounted dish (no text or symbols)

Technical diagram showing a circular device with labeled components and an inset magnified view of internal components.

Rutinunderhåll
