USER MANUAL Serie 6 MultiPower MFWS670B BOSCH

QR code image containing encoded data, no visible human-readable text

[de]	Scannen Sie den QR-Code oder besuchen Sie die Webseite, um die erweiterten Hinweise zur Benutzung zu öffnen. Dort finden Sie zusätzliche Informationen zu Ihrem Gerät oder Zubehör.
[en]	Scan the QR code or visit the website to open the Further Notices for Use. You can find additional information about your appliance or accessory here.
[fr]	Scanner le code QR ou visiter le site Web pour ouvrir les informations d'utilisation complémentaires. Vous y trouverez des informations supplémentaires concernant votre appareil ou accessoire.
[it]	Scansionare il codice QR oppure visitare il sito Web per indicazioni dettagliate sull'uso. Si trovano informazioni aggiuntive sull'apparecchio o gli accessori.
[nl]	Scan de QR-code of bezoek de website om de uitgebreide gebruiksinstructies te openen. Hierin vindt u meer informatie over het apparaat of toebehoren.
[da]	Scan QR-koden, eller besøg hjemmesiden, for at åbne de udvidede anvisninger om anvendelse. Der kan der findes yderligere oplysninger om apparatet eller tilbehøret.
[no]	Skann QR-koden eller besøk nettstedet for å åpne mer informasjon om bruken. Der finner du mer informasjon om apparatet eller tilbehøret.
[sv]	Scanna QR-koden eller gå till webbplatsen och öppna de utökade användningsanvisningarna. Där finns mer information om din apparat eller dina tillbehör.
[fi]	Skannaa QR-koodi tai vieraile internet-sivustollamme, jotta voit avata laajennetut käyttötiedot. Sieltä löydät laitetta tai varustetta koskevia lisätietoja.
[es]	Para abrir las indicaciones ampliadas sobre el uso, visite la página web o escanee el código QR. Allí encontrará más información sobre el aparato o los accesorios.
[pt]	Leia o código QR ou visite a página web para abrir as indicações avançadas relativas à utilização. Aí encontra informações adicionais sobre o seu aparelho ou acessório.
[el]	Σαρώστε τον κωδικό QR ή επισκεφτείτε την ιστοσελίδα, για να ανοίξετε τις διευρυμένες υποδείξεις για τη χρήση. Εκεί θα βρείτε πρόσθετες πληροφορίες για τη συσκευή σας ή τα εξαρτήματα.
[tr]	Ayrıntılı kullanım bilgilerine ulaşmak için QR kodu taratin veya web sayfasını ziyaret ediniz. Cihaz ve aksesuarlar ile ilgili ayrıntılı bilgileri bu şekilde edinebilirsiniz.
[pl]	Aby uzyskać rozszerzone informacje na temat zastosowań urządzenia, należy zeskanować kod QR albo wejść na stronę internetową. Można tam znaleźć dodatkowe informacje na temat posiadanego urządzenia i akcesoriów.
[cs]	Pro další informace k používání načtěte QR kód nebo navštivte webovou stránku. Tam najdete další informace ke spotřebiči nebo příslušenství.
[sk]	Naskenujte QR kód alebo navštívte webovú stránku, aby ste sa dozvedeli rozšírené informácie o používaní. Tam nájdete d'alšie informácie o vašom spotrebiči alebo príslušenstve.
[ro]	Scanați codul QR sau accesăți site-ul web pentru a obține mai mult recomandări privind utilizarea. Acolo veți găsi mai multe informații privind aparatul dumneavoastră sau accesoriiile.
[bg]	Сканирайте QR кода или посетете уебстраницата, за да отворите разширените указания за използването. Там ще откриете допълнителна информация за Вашия уред или принадлежност.

QR code image containing encoded data, no visible human-readable text

Diagram showing a device with blue connectors inserted into a container, illustrating the process of connecting to a plug.

2

Diagram of a device with a blue cable and black arrows indicating direction (no text or symbols)

3

Diagram showing a mechanical component being processed into a T-shaped pipe fitting, with an inset image of a knitted pipe component (no text or symbols present)

4

Diagram showing a pipe fitting with a valve and a separate lever mechanism (no text or symbols)

5

Diagram illustrating a mechanical assembly with labeled parts and directional arrows indicating process flow.

6

Illustration of a pipe fitting with a blue cap and black arrow indicating rotation, next to a blue checkmark (no text or symbols)

7

Illustration of a blue pipe fitting next to a white mechanical device with a black arrow pointing to the component (no text or symbols)

8

CLICK

9

Technical illustration of a mechanical device with a blue connector and pipe fitting (no text or symbols)

10

Diagram showing a food cleaning machine with labeled steps: first to press, second to clean it, and third to add a bowl.

The image is too blurry to recognize any text content.

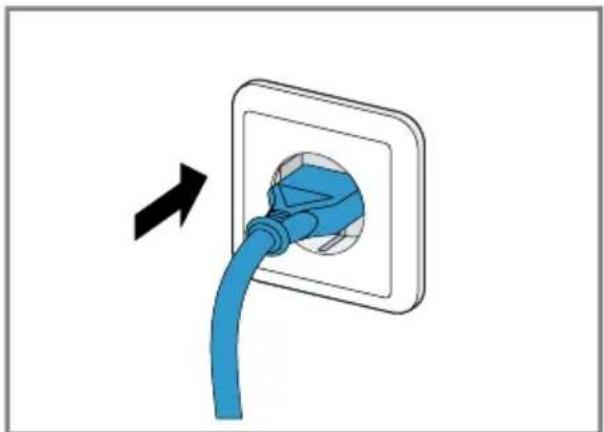

Illustration of a blue cable inserted into a wall socket, with an arrow indicating direction (no text or symbols)

12

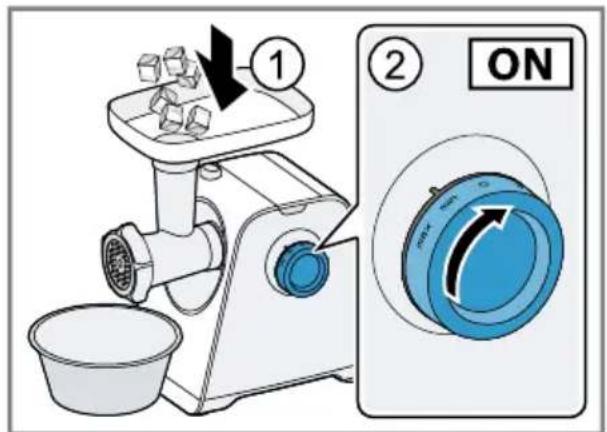

① ② ON

The image is too blurry to recognize any text content.

Illustration of a manual handwashing machine with a blue cup and downward arrow indicating action (no text or symbols)

14

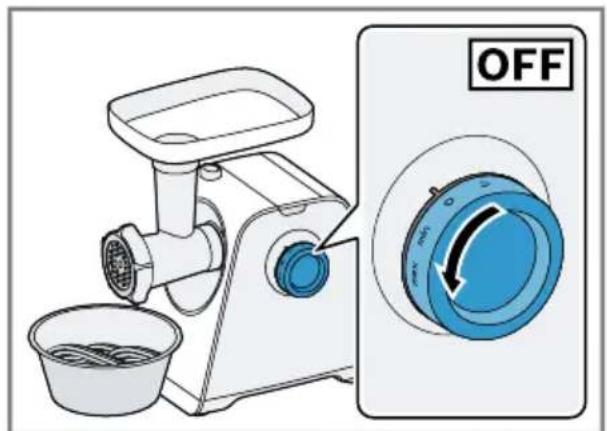

OFF

The image is too blurry to recognize any text content.

Illustration of hands installing or adjusting a wall socket with a blue tool (no text or symbols)

16

Diagram showing a blue mechanical device with two arrows labeled ① and ② indicating movement or assembly steps.

The image is too blurry to recognize any text content.

Diagram illustrating a hand operating a blue industrial pipe valve with numbered steps and a checkmark indicating action.

18

Diagram showing a mechanical component being processed into a T-shaped pipe fitting, with an inset close-up of the component (no text or symbols present)

19

Diagram illustrating a mechanical assembly with labeled components and directional arrows indicating motion or force.

20

Mechanical assembly diagram showing a pipe fitting with a blue component being inserted into a cylindrical part (no text or symbols present)

The image is too blurry to recognize any text content.

Diagram of a mechanical valve or fitting with a blue and white component, no text or symbols present.

22

Diagram illustrating the process of a mechanical component being converted into a T-shaped pipe fitting, with an inset showing the magnified view.

The image is too blurry to recognize any text content.

Diagram showing a pipe fitting with a blue component being inserted, illustrating the process (no text or symbols present)

24

Diagram of a mechanical valve or fitting with blue and white components, no text or symbols present

The image is too blurry to recognize any text content.

Diagram showing a mechanical component being processed into a T-shaped pipe fitting, with an inset close-up of the component (no text or symbols present)

26

Diagram illustrating the step-by-step assembly of a mechanical component, labeled with parts 1 and 2.

The image is too blurry to recognize any text content.

Diagram of a pipe fitting with blue and white components, showing a valve mechanism (no text or symbols)

28

Diagram showing a hand holding a pipe with star ratings and icons, accompanied by a checkmark indicating approval.

The image is too blurry to recognize any text content.

G 1 4 5

30

Diagram showing a pipe fitting process: adding a blue cylindrical component to form a T-shaped pipe fitting (no text or symbols present)

31

Diagram illustrating video playback and sound wave control with labeled buttons and directional arrows

The image is too blurry to recognize any text content.

Diagram showing a blue plastic pipe fitting next to a white industrial machine component with a black arrow indicating assembly (no text or symbols present)

33

CLICK ① ②

The image is too blurry to recognize any text content.

Technical illustration of a mechanical device with a blue rotary knob and a control panel labeled 'ON' (no text or symbols on the device itself)

35

Two-panel illustration showing a manual handwashing machine with a carrot being inserted and pouring granular material into a bowl (no text or symbols)

The image is too blurry to recognize any text content.

OFF

37

Mechanical component diagram showing a blue cap and arrow indicating rotation (no text or symbols)

The image is too blurry to recognize any text content.

Diagram showing a sewing machine operation with numbered steps and a magnified view of the process.

39

Diagram illustrating a mechanical or fluidic device with labeled components and directional arrows, showing two states of flow.

The image is too blurry to recognize any text content.

H 1 3 6

41

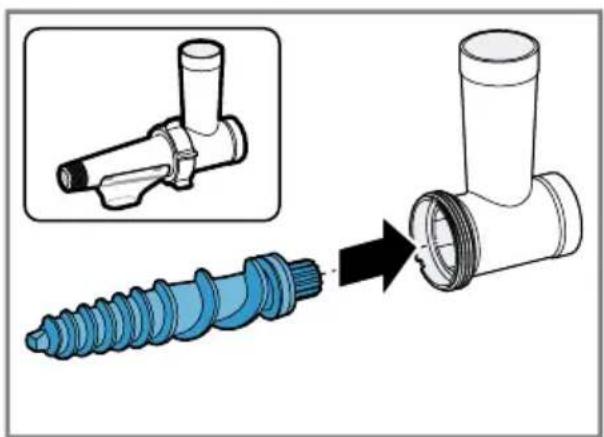

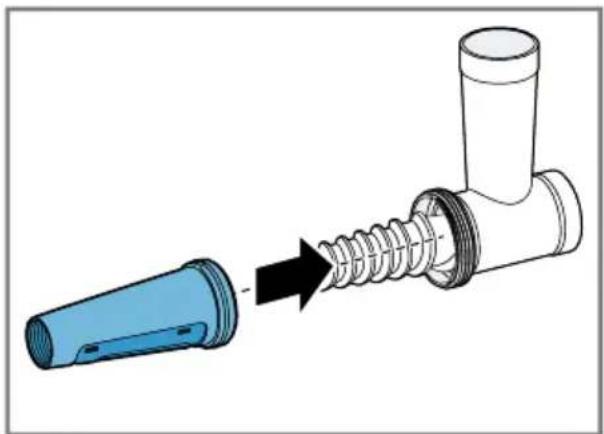

Diagram showing a blue spiral screw being inserted into a white PVC pipe fitting, with an inset close-up of the component (no text or symbols)

42

Diagram showing a blue plastic component being inserted into a cylindrical device, with an arrow indicating the process.

The image is too blurry to recognize any text content.

Diagram showing a blue cylindrical component being inserted into a coiled spring-like pipe fitting (no text or symbols present)

44

Diagram of a pipe fitting with a blue clamp and arrow indicating rotation (no text or symbols)

The image is too blurry to recognize any text content.

Technical line drawing of a mechanical component with a blue threaded end and arrow indicating direction (no text or symbols)

46

CLICK

The image is too blurry to recognize any text content.

Diagram showing a blue mechanical component being inserted into a white industrial machine (no text or symbols present)

48

CLICK

The image is too blurry to recognize any text content.

Diagram illustrating the steps of a food cleaning machine, showing two labeled components: one for adding liquid and another for pouring liquid into a bowl.

50

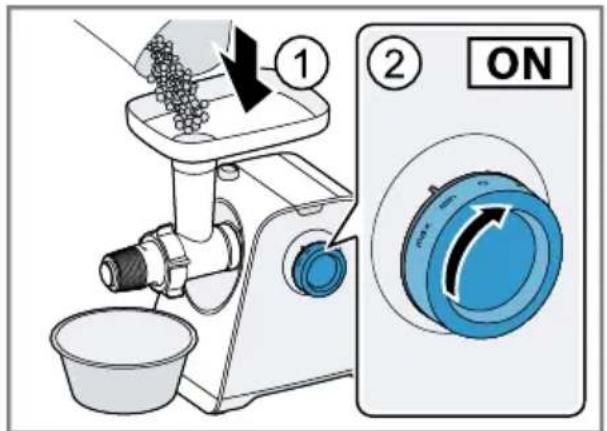

① ② ON

The image is too blurry to recognize any text content.

Illustration of a manual handwashing machine with a bowl of granular material being poured into it, no text or symbols present.

52

Illustration of a hand mixer blending liquid into a bowl, with no text or symbols present.

The image is too blurry to recognize any text content.

OFF

54

Diagram showing a mechanical device with labeled parts and directional arrows indicating motion or assembly.

The image is too blurry to recognize any text content.

Diagram illustrating a mechanical device with numbered steps and a magnified view showing the process.

56

Illustration of a hand holding a blue plastic component inserted into a pipe fitting (no text or symbols)

57

Diagram of a pipe fitting with numbered parts and directional arrows indicating movement or assembly.

58

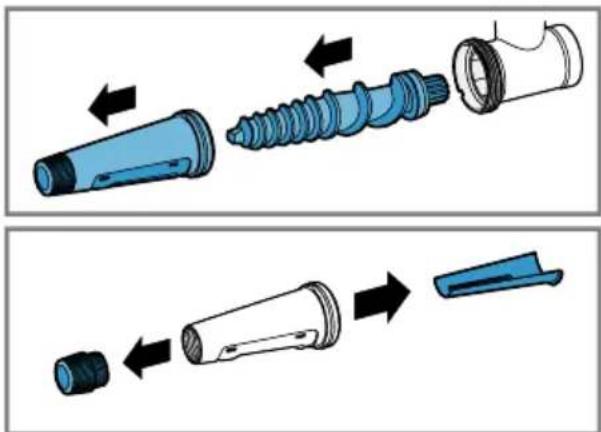

Two-step diagram showing a blue screw being inserted into a cylindrical component, with arrows indicating the process (no text or symbols present)

The image is too blurry to recognize any text content.

1 4 7

60

Diagram showing a pipe fitting being inserted into a plastic pipe fitting, with an inset close-up of the component (no text or symbols present)

61

Diagram showing a pipe fitting with blue and white components, illustrating assembly or installation (no text or symbols present)

The image is too blurry to recognize any text content.

Mechanical assembly diagram showing a blue gear and coiled spring with an arrow indicating rotational motion (no text or symbols)

Mechanical assembly diagram showing a shaft and wheel with an arrow indicating direction (no text or symbols)

Diagram showing a blue pipe fitting being inserted into a cylindrical component via a dashed arrow (no text or symbols present)

63

Diagram of a pipe fitting with a blue valve and arrow indicating rotation, accompanied by a blue checkmark (no text or symbols)

Diagram showing a blue mechanical component being inserted into a white industrial machine (no text or symbols present)

65

CLICK

Diagram showing a manual manual brush tool with labeled parts and a checkmark indicating inspection or completion.

67

Diagram showing a manual handwashing machine with a labeled ON button and directional arrow indicating process flow.

STOP

69

STOP

71

OFF

The image is too blurry to recognize any text content.

Illustration of a manual kitchen tool with a blue tray and mechanical components (no text or symbols)

73

Diagram illustrating a mechanical device operation with numbered steps and a magnified view showing the step 1 being adjusted.

The image is too blurry to recognize any text content.

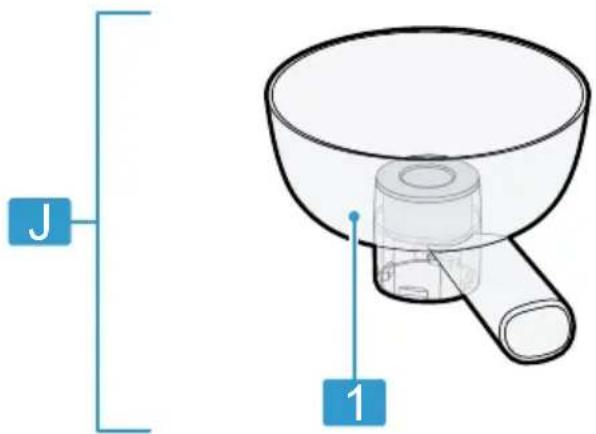

J 1

75

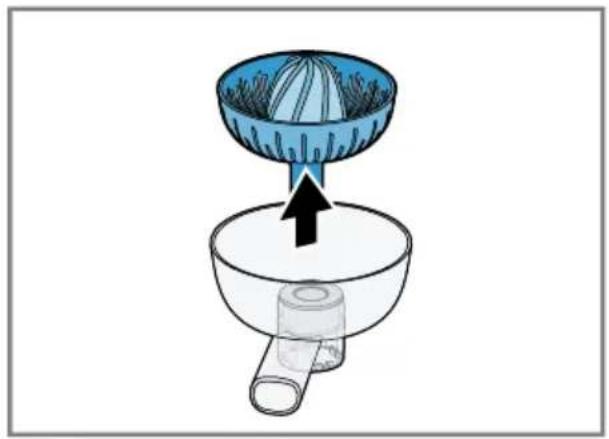

Diagram of a funnel-shaped container with internal blades and a central outlet, labeled with number 2 (no text or symbols on the diagram itself)

Diagram of a mechanical device with a funnel and base component, no text or symbols present

Two blue industrial electronic components with a black arrow pointing to one (no text or symbols)

76

CLICK

78

Diagram of a manual coffee maker with labeled parts and directional arrows indicating process steps

The image is too blurry to recognize any text content.

ON OFF 0.5 mm

80

OFF

The image is too blurry to recognize any text content.

Diagram illustrating a mechanical device with numbered steps and directional arrows indicating process flow.

82

Illustration of a funnel pouring liquid into a container with a handle, showing a black arrow indicating direction (no text or symbols)

The image is too blurry to recognize any text content.

	√	×	×	×	×
	√	√	!	!	×
	√	√	√	√	√
	√	√	√	√	√
	√	√	√	√	√
	√	√	√	√	√
	√	√	√	√	√
	√	√	√	√	√
	√	√	√	√	√

Diagram illustrating the step-by-step assembly of a mechanical component, showing transformation from a circular component to a cylindrical device with labeled parts.

85

Diagram showing two steps of a device with a blue cover and arrows indicating process, including a magnified view of the component.

The image is too blurry to recognize any text content.

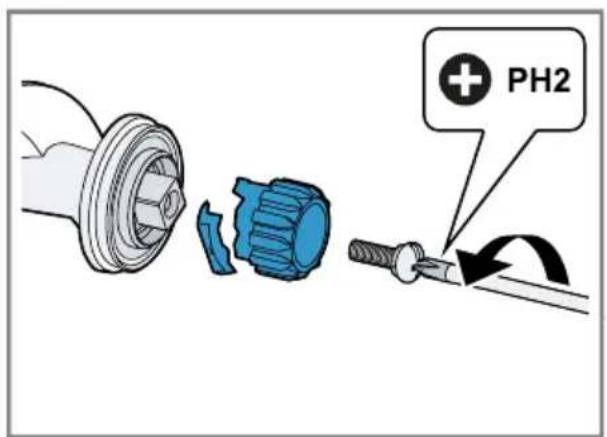

PH2

87

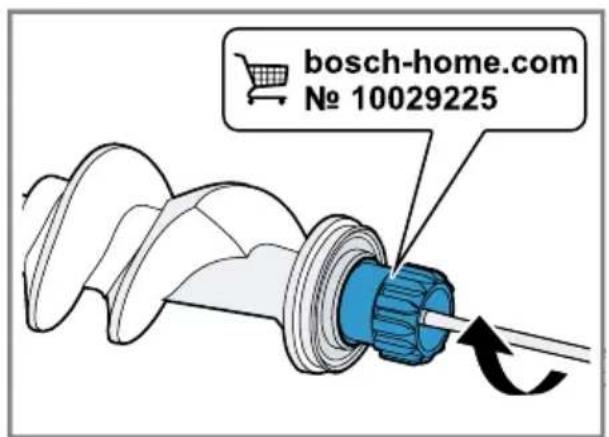

bosch-home.com No 10029225

The image is too blurry to recognize any text content.

Sicherheit

QR code image containing encoded data, no visible human-readable text

Störungen beheben

• Read this instruction manual carefully.
• Keep the instruction manual and the product information safe for future reference or for the next owner.
  ■ Do not connect the appliance if it has been damaged in transit. Only use this appliance:

■ for applications described in these instructions.

■ for cutting up raw or cooked food, e.g. meat, fish and vegetables.

■ under supervision.

■ for normal processing quantities and for normal processing times for domestic use.

■ in private households and in enclosed spaces in a domestic environment at room temperature.

■ up to an altitude of max. 2000 m above sea level.

The appliance must always be disconnected from the mains after each use, whenever it is left unattended, prior to assembly, disassembly or cleaning, in the event of an error and when you are close to rotating parts.

This appliance can be used by persons with reduced physical, sensory or mental capabilities or a lack of experience and/or knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

Do not let children play with the appliance.

Cleaning and user maintenance must not be performed by children.

The appliance must not be used by children. Keep children away from the appliance and power cord.

▶ Never operate a damaged appliance.
▶ Never operate an appliance with a cracked or fractured surface.

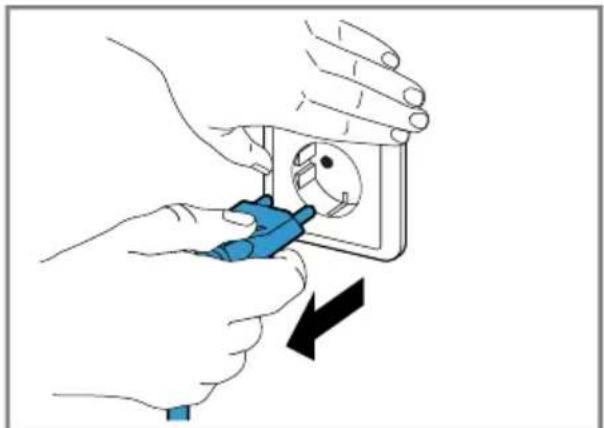

▶ Never pull on the power cord to unplug the appliance. Always unplug the appliance at the mains.
- If the appliance or the power cord is damaged, immediately unplug the power cord or switch off the fuse in the fuse box.
▶ Call customer services. → Page 36

• Connect and operate the appliance only in accordance with the specifications on the rating plate.
  ▶ Never equip the appliance with an external switching device, e.g. a timer or remote control.
• Repairs to the appliance should only be carried out by trained specialist staff.
  ▶ Only use genuine spare parts when repairing the appliance.
  If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.
  ▶ Never immerse the appliance or the power cord in water or clean in the dishwasher.
  ▶ Only use the appliance in enclosed spaces.
  ▶ Never expose the appliance to intense heat or humidity.
• Do not use steam- or high-pressure cleaners to clean the appliance.
  ▶ Never let the power cord come into contact with hot appliance parts or heat sources.
• Never let the power cord come into contact with sharp points or edges.
  ▶ Never kink, crush or modify the power cord.
  ▶ Never place the appliance on or near hot surfaces.
• Keep hands, hair, clothing and utensils away from rotating parts.
  ▶ Only fit and remove attachments once the drive has stopped and the appliance has been unplugged.
  ▶ Do not reach into the filling shaft.
  ▶ Only use the pusher to push down ingredients.
• Parts which show cracks or other damage or do not fit correctly must be replaced with genuine spare parts.
  ▶ Never assemble attachments on the main unit.
  ▶ Only use the attachments once they are fully assembled.
  ▶ Never touch the sharp blades and edges with bare hands.
• Keep packaging material away from children.
• Do not let children play with packaging material.
• Keep small parts away from children.
  ▶ Do not let children play with small parts.
  ▶ Follow the cleaning instructions.

en Avoiding material damage

- Clean surfaces which come in contact with food before each use.

Avoiding material damage

▶ Never operate the appliance for more than 10 minutes without stopping. Then switch off the appliance and allow it to cool down to room temperature.
▶ Do not operate the appliance at no-load.
- Do not insert objects into the filling shaft or housing, e.g. wooden spoons.
▶ Before use, check the filling shaft and housing for foreign objects.

Familiarising yourself with your appliance

Overview

After unpacking all parts, check for any damage in transit and completeness of the delivery.

→ Fig. 1

A	Main unit
B	Meat mincer attachment
C	Sausage filler attachment
D	Kebbe attachment
E	Cleaning brush
F	Cookie cutter attachment ^1
G	Shredding attachment→ "Shredding attachment",Page 32
H	Juice attachment→ "Juice attachment", Page 32
I	Grain mill attachment→ "Grain mill attachment",Page 33
J	Citrus press attachment ^2 → "Citrus press", Page 34
1	Grips for transporting
2	Rotary switch

^1 Special accessory
^2 Depending on the model

3	Holder and drive for attachments
4	Release button
5	Cover for storage compartment
6	Storage compartment for perforated discs
7	Cord storage
8	Filling tray
9	Threaded ring
10	Perforated disc, coarse
11	Knife
12	Worm conveyor with clutch
13	Metal chamber housing
14	Perforated disc, medium ^2
15	Perforated disc, fine
16	Pusher with storage compartment and lid
17	Sausage filler nozzle
18	Sausage filler bearing ring
19	Shape plate
20	Holder for shape plate
21	Bearing ring for cookie cutter attachment

^1 Special accessory
^2 Depending on the model

Note: The juice attachment and the grain mill attachment both use the same housing and the same threaded ring. These parts are included in the scope of supply only once.

Rotary switch

Symbol Function
max	Process ingredients at maximum speed.
min	Process ingredients at low speed.
○	Stop processing.
∅	Food that has got stuck can be released using the reversing function.

Reversing function

The reversing function is designed to release food that has got stuck by briefly running the worm conveyor in reverse.

→ "Troubleshooting", Page 35

Note: The reversing function should only be used with the meat mincer attachment.

Safety systems

Overload protection

The overload protection system prevents the motor and other components from being damaged through being overloaded.

→ "Troubleshooting", Page 35

Thermal circuit breaker

If the motor becomes overloaded or too hot, the thermal circuit breaker will switch the appliance off.

Predetermined breaking point

If the worm conveyor jams or becomes overloaded, the clutch will break at the predetermined breaking point.

Restart lock-out

Restart lock-out prevents your appliance from automatically restarting processing after a power failure.

The appliance is switched on again after a power failure. Processing cannot start again until the rotary switch has been set to O.

Operation

Cleaning the appliance and parts before using for the first time

1. Clean all parts that come into contact with food before using for the first time.

2. Put the cleaned and dried parts out ready for use.

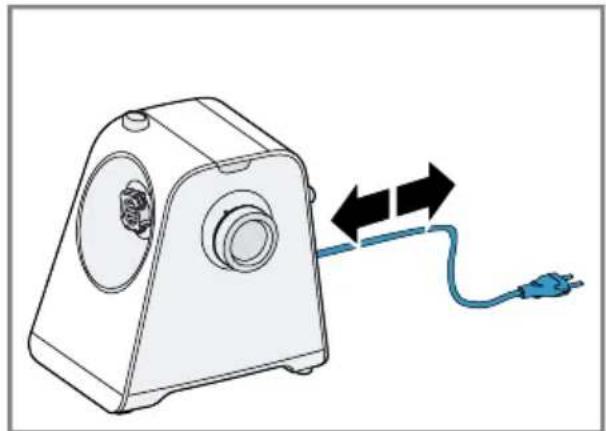

Preparing the main unit

→ Fig. 2 - 3

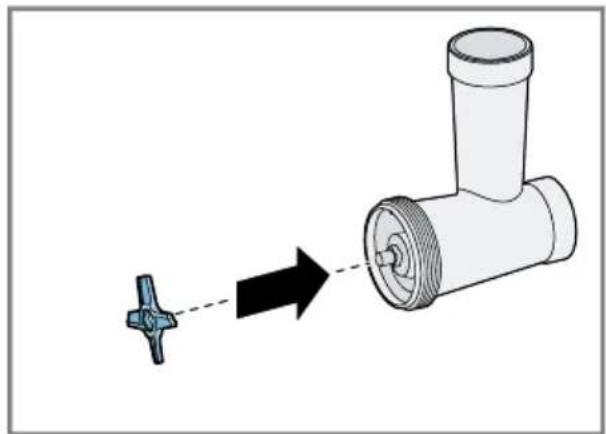

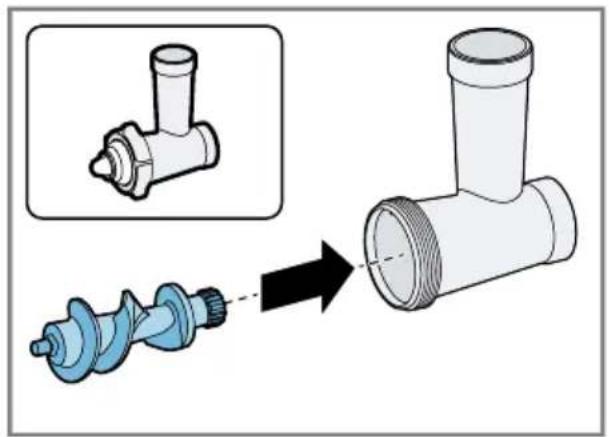

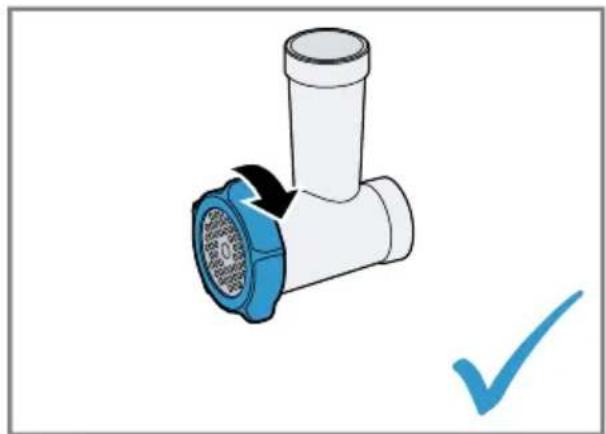

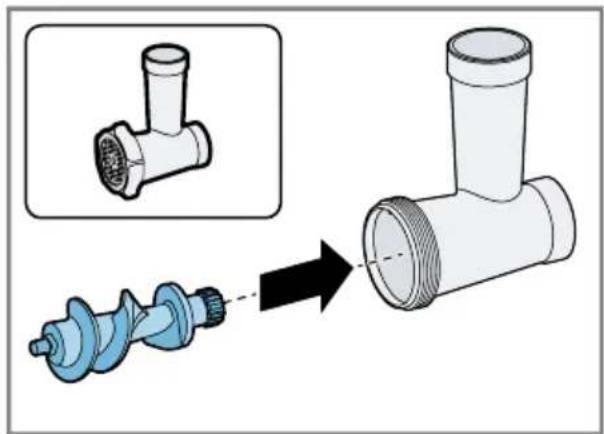

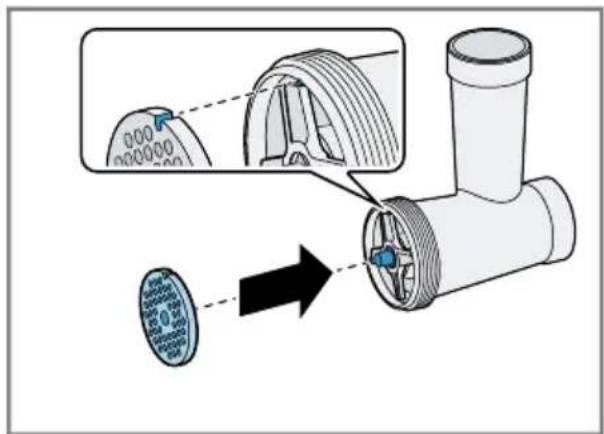

Assembling the meat mincer attachment

→ Fig. 4 - 7

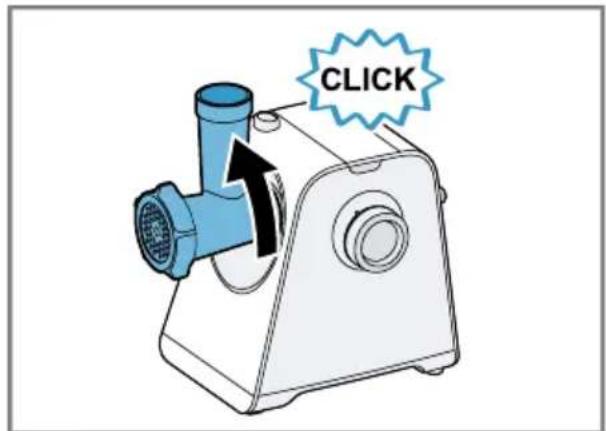

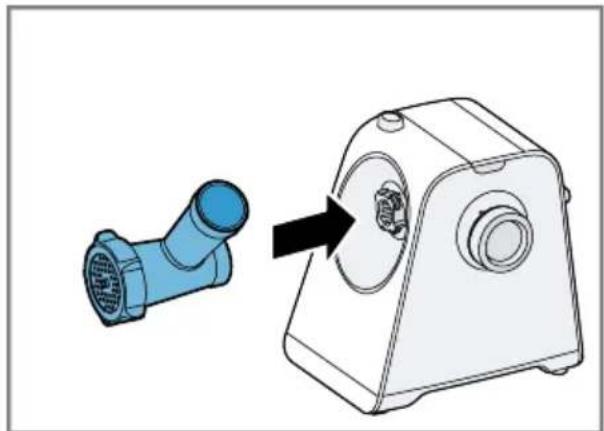

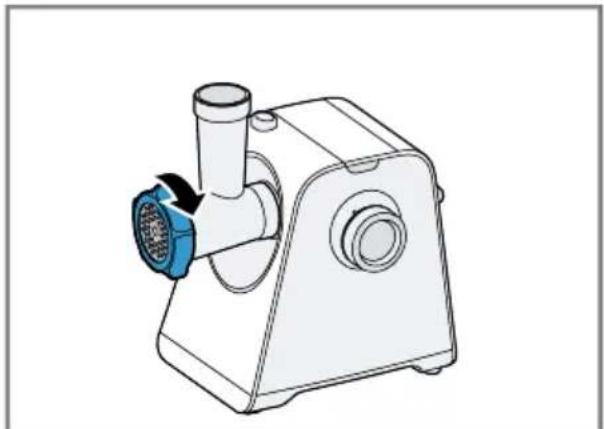

Fitting the attachment

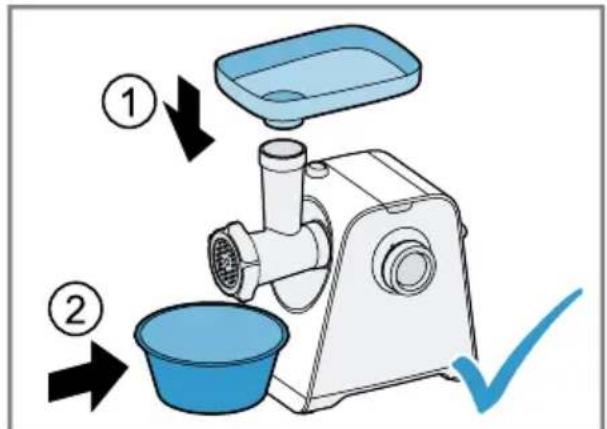

→ Fig. 8 - 11

Recommended speeds

Setting Use

min/max	Meat mincer attachment (perforated discs 3 mm, 4.5 mm, 8 mm)
max	Sausage filler attachment
max	Kebbe attachment

Perforated discs

Perforated disc, fine (3 mm)

Perforated disc, medium (4.5 mm)

Perforated disc, coarse (8 mm)

Note: The coarse perforated disc is suitable for processing chicken bones.

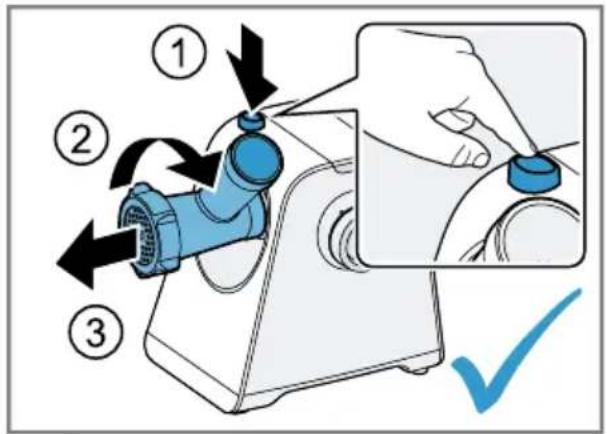

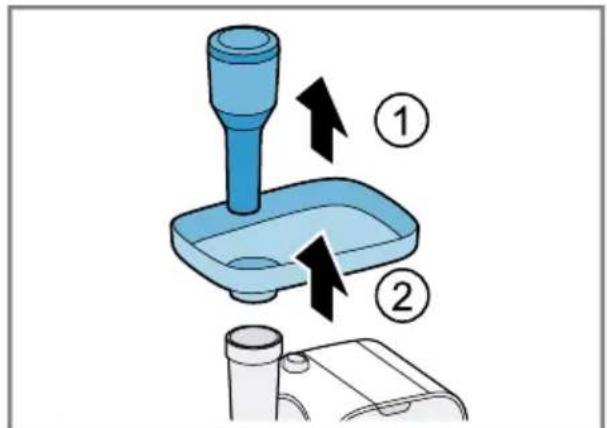

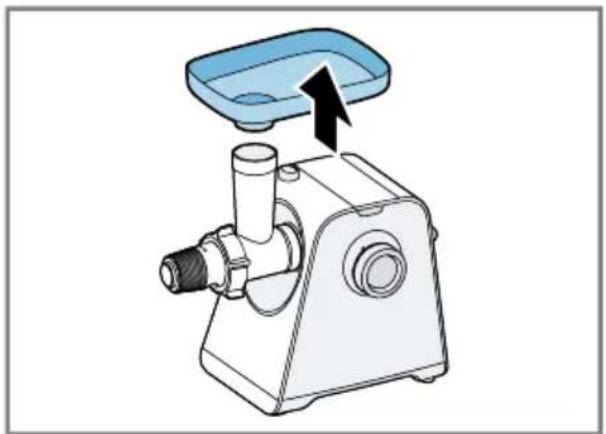

Processing food

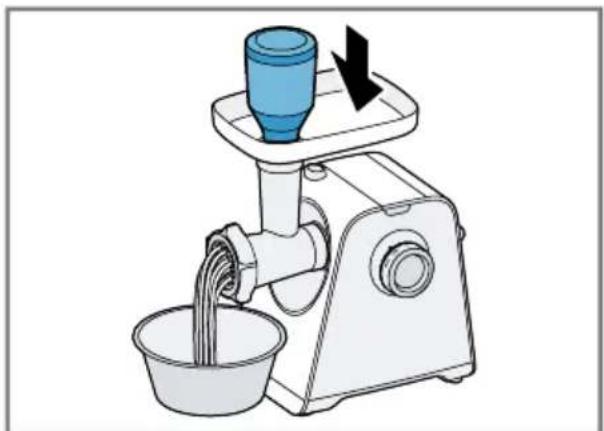

→ Fig. 12 - 18

Additional applications

You can combine accessories with parts of the meat mincer attachment for additional applications.

Note: Assemble the attachment for the individual application you require. Use the prepared attachment as described for the meat mincer attachment.

→ "Fitting the attachment", Page 31

→ "Processing food", Page 31

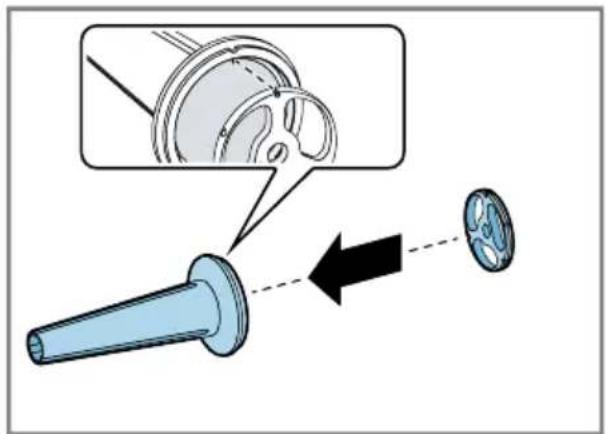

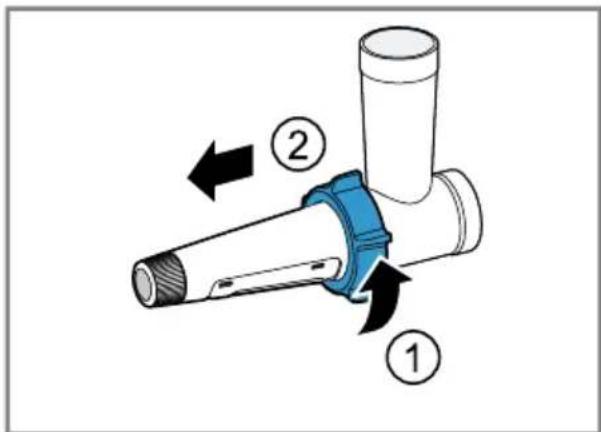

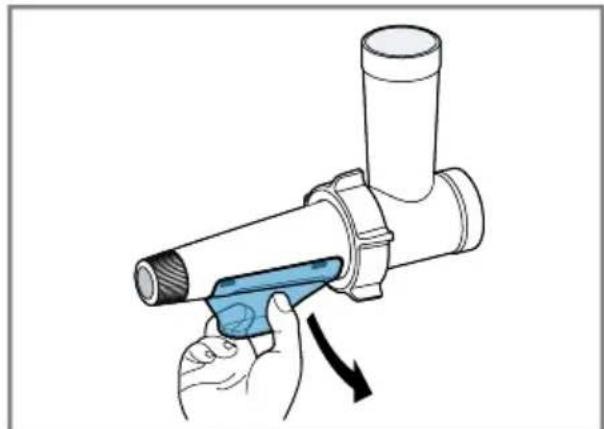

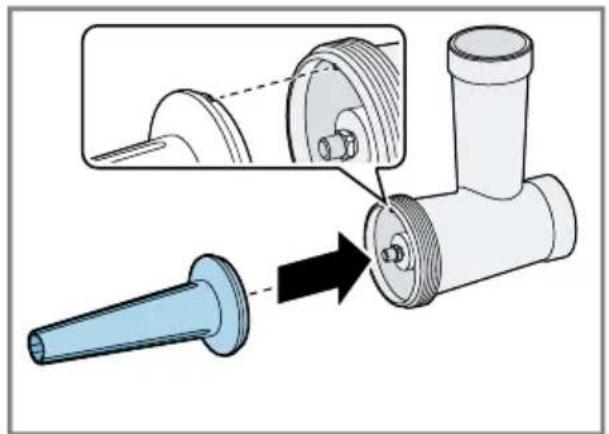

Assembling the sausage filler attachment

The sausage filler attachment is suitable for filling artificial and natural casings with meat and for shaping rolls, e.g. cevapcici.

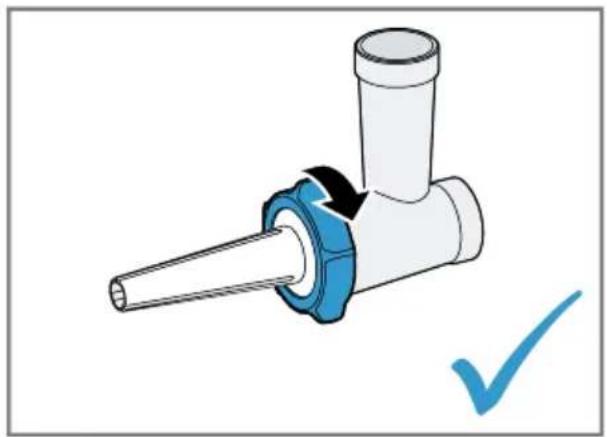

→ Fig. 19 - 22

en Shredding attachment

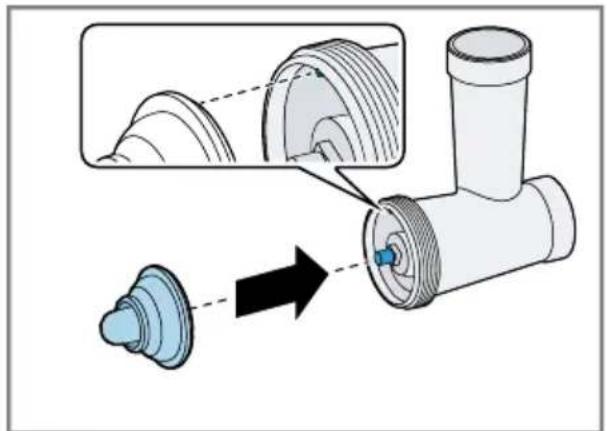

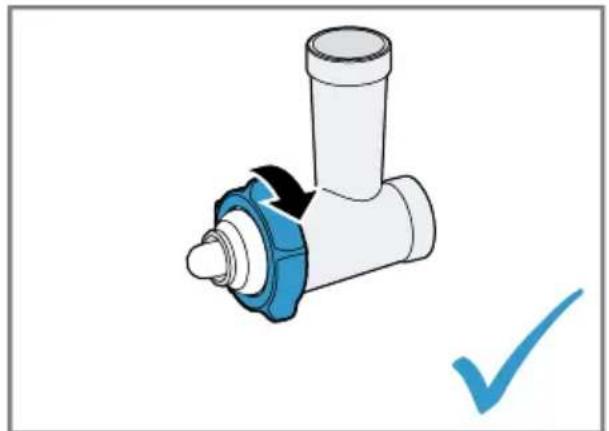

Assembling the kebbe attachment

The kebbe attachment is suitable for shaping dough or minced meat pockets.

→ Fig. 23 - 25

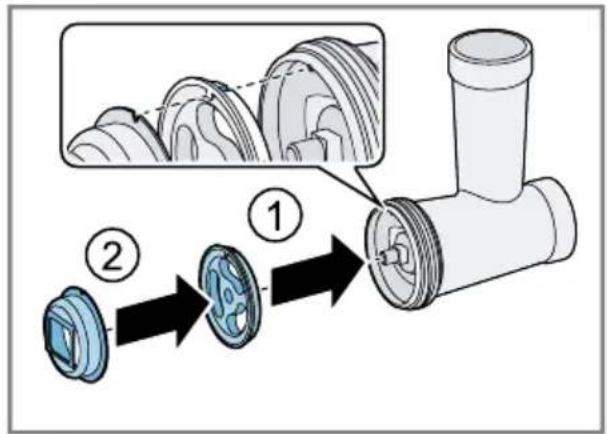

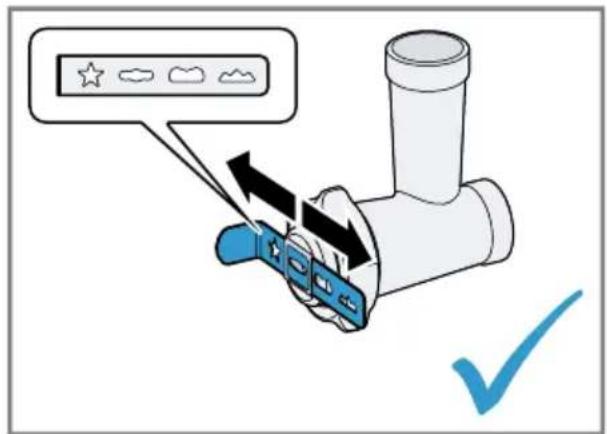

Assembling the cookie cutter attachment

The cookie cutter attachment is suitable for shaping biscuit dough or shortcrust pastry.

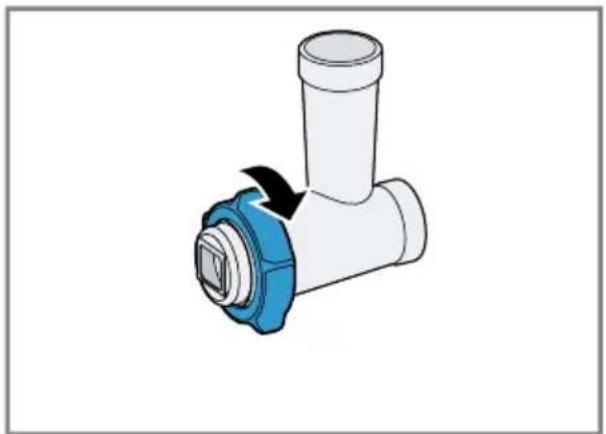

→ Fig. 26 - 29

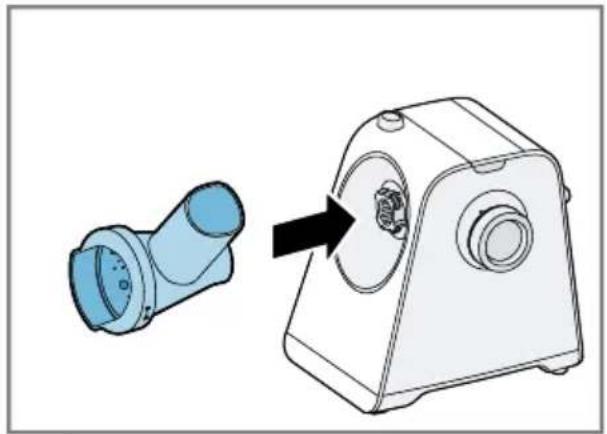

Shredding attachment

The shredding attachment is suitable for shredding, grating and slicing items such as cheese, fruit, vegetables, nuts, almonds or dry bread rolls.

Overview

→ Fig. 30

G	Shredding attachment
1	Closure for barrel safety
2	Shredding housing
3	Pusher for shredding attachment
4	Grating barrel
5	Slicing barrel
6	Shredding barrel coarse
7	Shredding barrel fine

Recommended speeds

Setting Use
max	Grating barrel
min/max	Slicing barrel
min/max	Shredding barrel coarse
min/max	Shredding barrel fine

Barrel inserts

	Grating barrelGrating food finely, e.g. nuts, hard cheese, potatoes.
	Slicing barrelCutting food into slices, e.g. cucumbers, carrots, beetroot.

	Shredding barrel coarse Shredding food into large pieces, e.g. fruit and vegetables like apples or carrots; cheese like Gouda or Edam.
	Shredding barrel fine Shredding food into fine pieces, e.g. nuts; fruit and vegetables like apples or carrots; cheese like Gouda or Edam.

Notes

■ The barrel inserts are not suitable for processing very soft or very fibrous foods.
■ The recommended continuous operating time is 2 minutes.

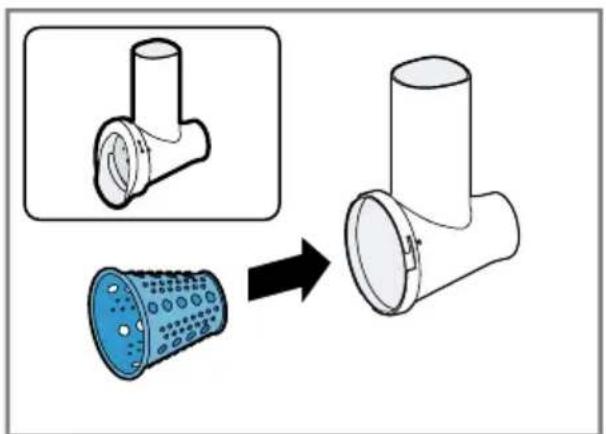

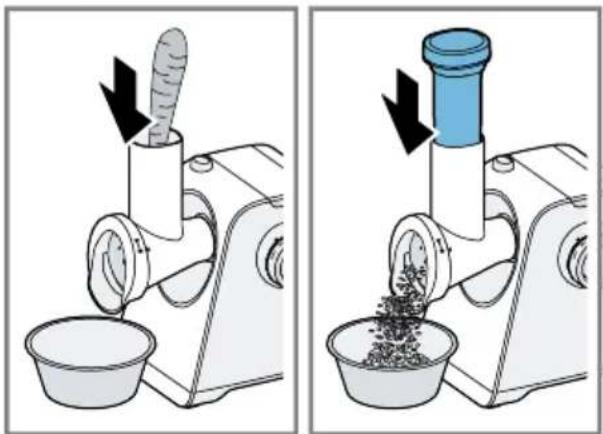

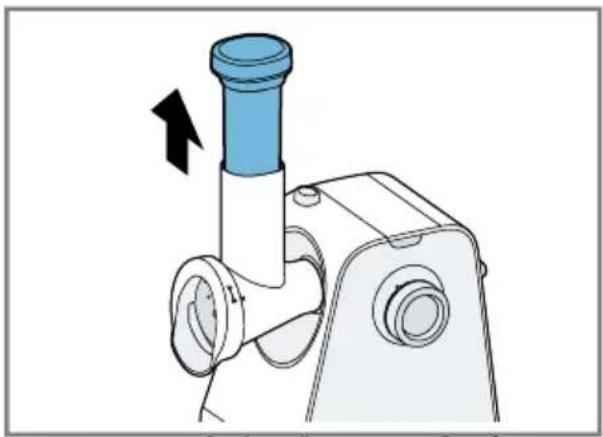

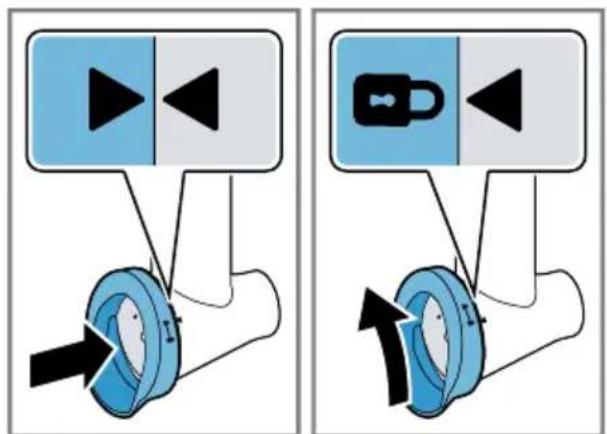

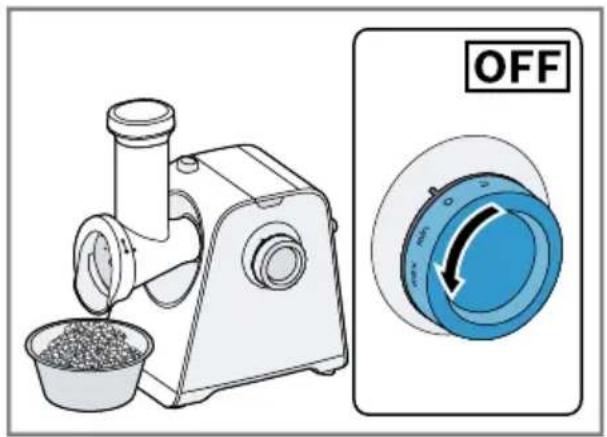

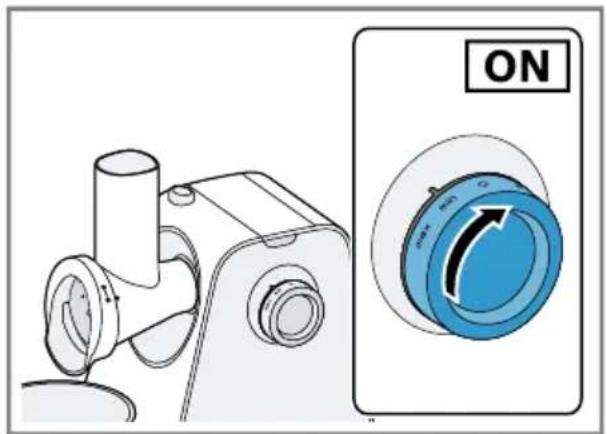

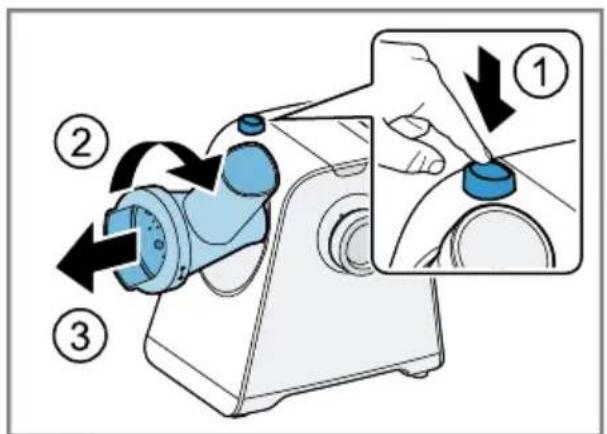

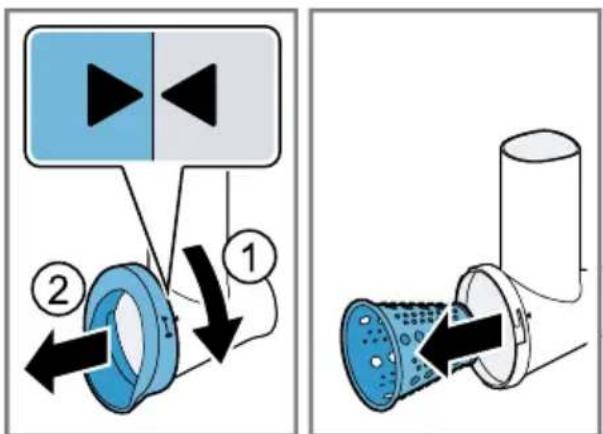

Using the shredding attachment

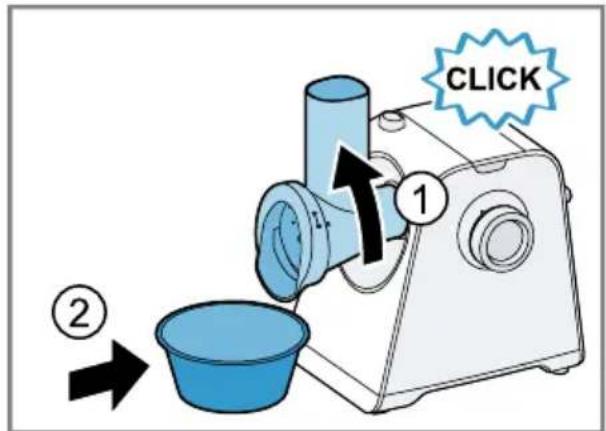

→ Fig. 31 - 40

Juice attachment

The juicer attachment is suitable for squeezing food, e.g. tomatoes, seedless grapes, watermelon and apples.

Note: The juicer attachment is not suitable for squeezing very hard food, e.g. carrots or beetroot.

Overview

→ Fig. 41

H	Juice attachment
1	Threaded ring for juicer attach-ment and grain mill attachment
2	Control nozzle for fruit pulp
3	Filter holder with sealing ring
4	Worm conveyor with sealing ring
5	Housing for juicer attachment and grain mill attachment
6	Outlet funnel
7	Filter insert fine
8	Filter insert coarse

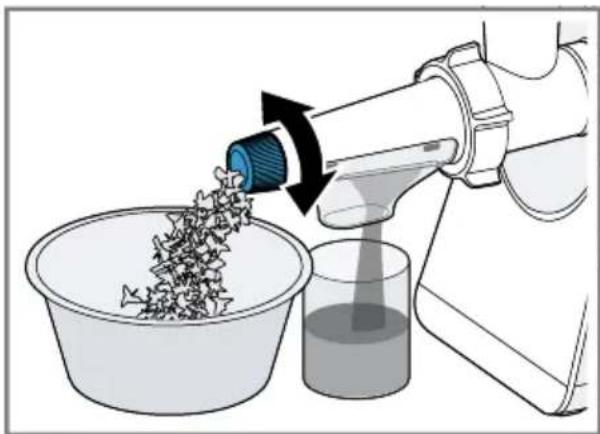

Control nozzle

The control nozzle is used to set the consistency of the fruit pulp.

Turn anticlockwise Pulp more moist and less juice

Turn clockwise Pulp drier and more juice

Note: If the control nozzle is inserted too far, very firm or dry pulp can block the control nozzle. Turn the control nozzle to move out further or remove completely.

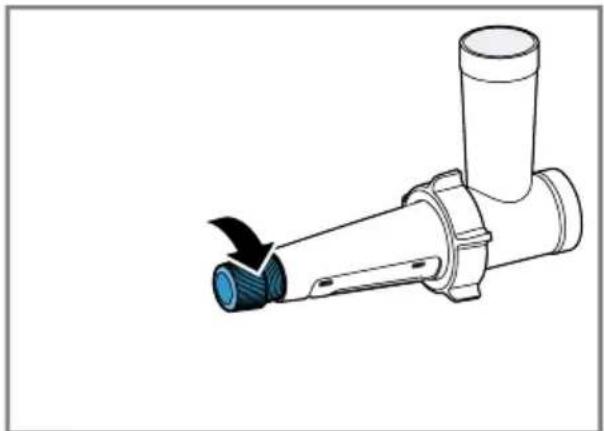

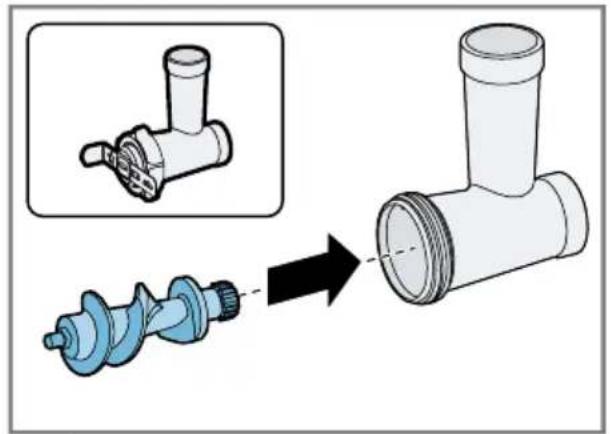

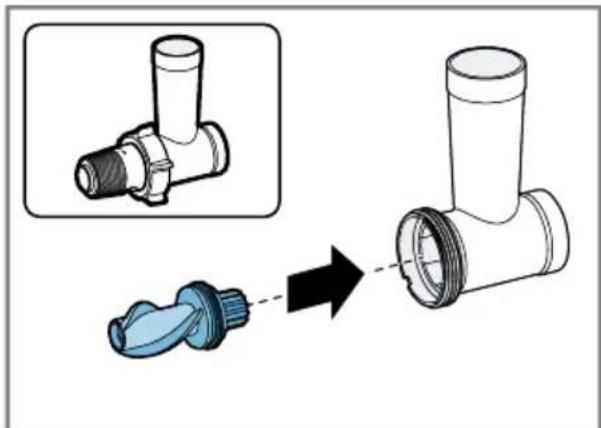

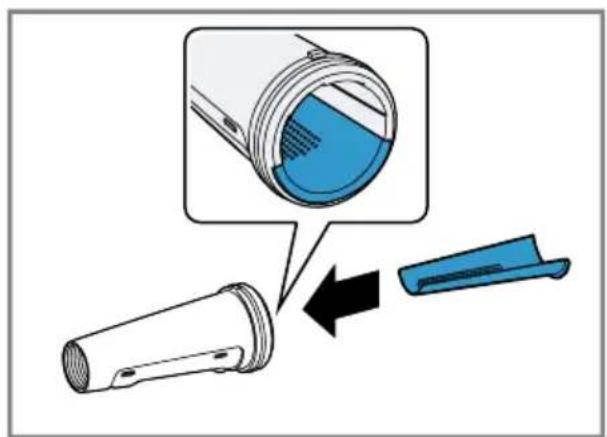

Assembling the juice attachment

Note: Before assembling, check the condition and proper positioning of the sealing rings of the worm conveyor and the filter holder. Never use without the sealing rings and never use if they are damaged.

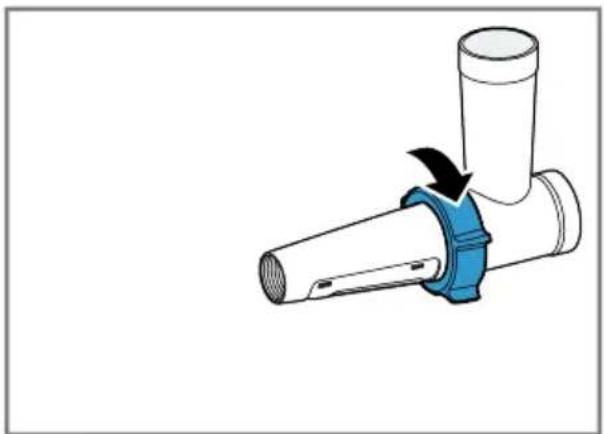

→ Fig. 42 - 47

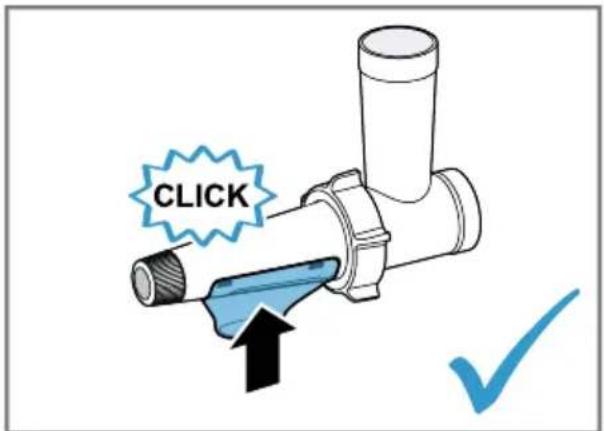

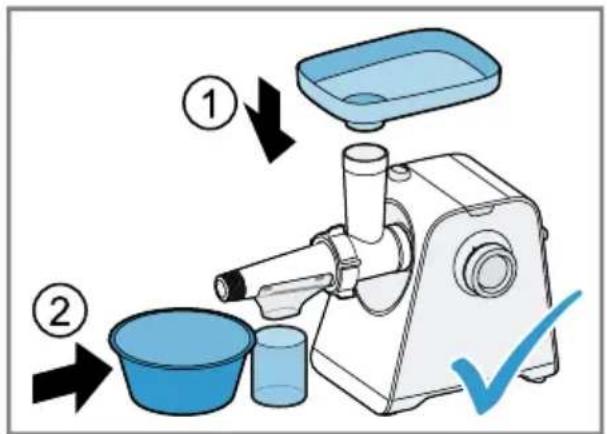

Fitting the juice attachment

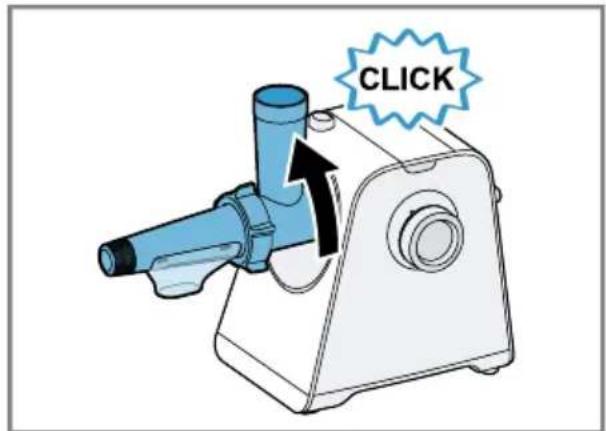

→ Fig. 48 - 50

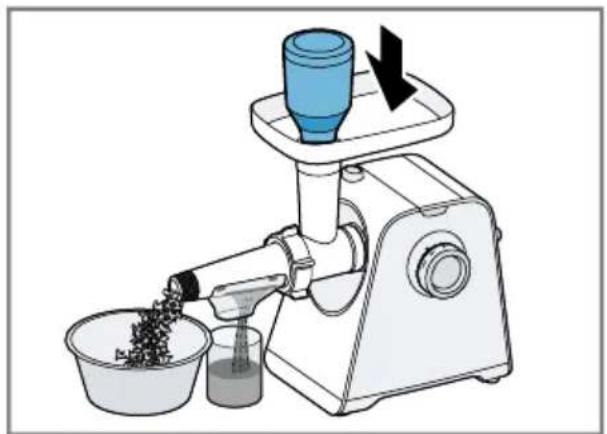

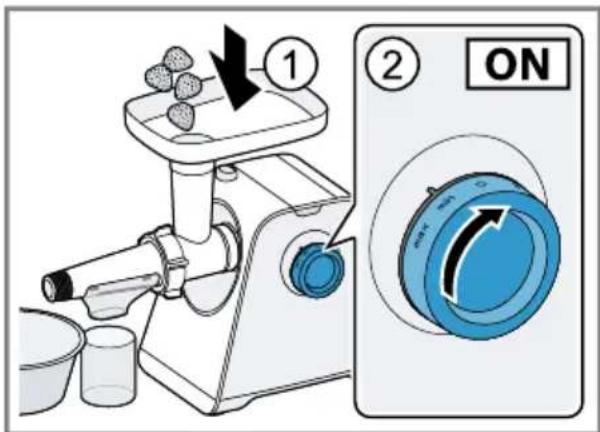

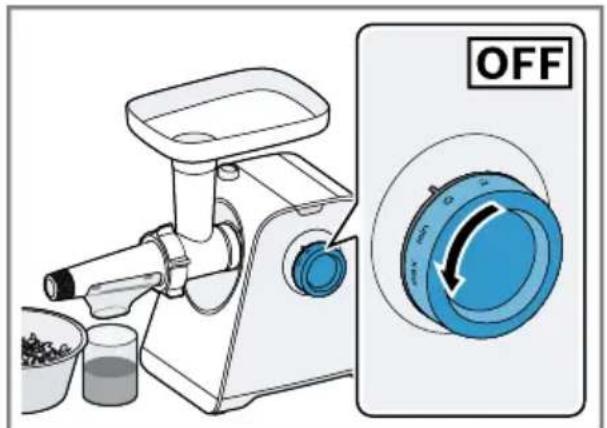

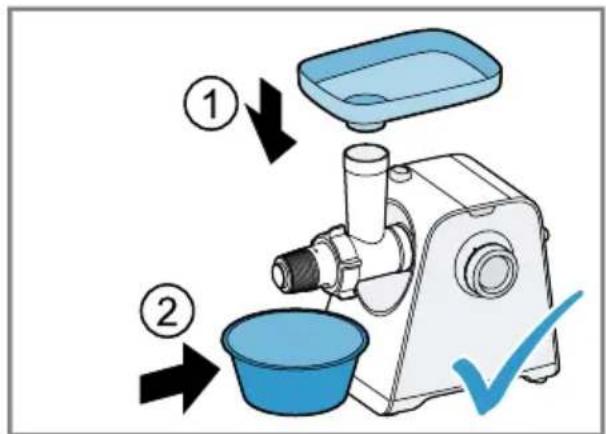

Using the juice attachment

Notes

■ During processing, make sure that the filter insert and the control nozzle do not become blocked or liquid may be forced into the drive and the interior of the appliance. If the juice attachment is blocked, switch off the appliance at once. → "Troubleshooting", Page 35

- The pips of some fruit are similar in size to the openings of the fine or the coarse filter insert and may block it. - Cut large items of fruit into pieces so they fit into the filling shaft. Remove hard peel, stalks, cores and stones.

- Do not process fruit when frozen. - Do not apply great force with the pusher.

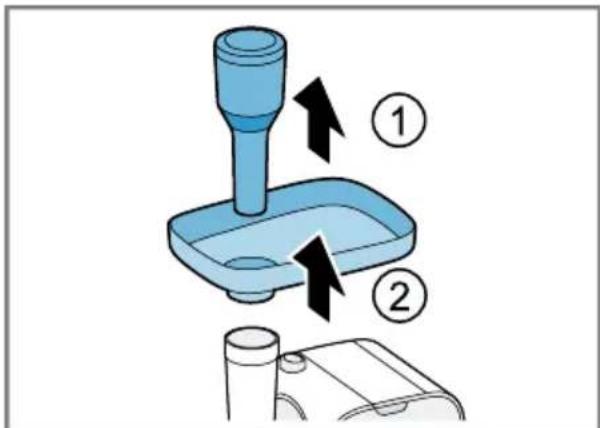

→ Fig. 51 - 56

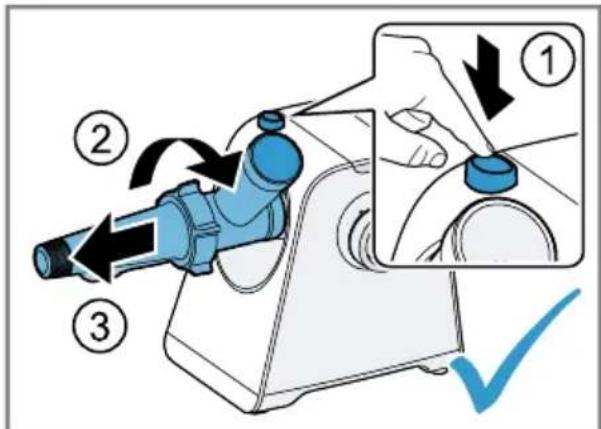

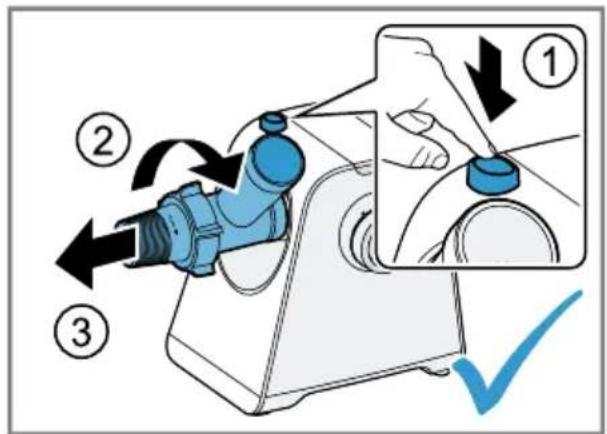

Taking the juicer attachment apart

→ Fig. 57 - 59

Grain mill attachment

The grain mill attachment is suitable for grinding all types of grain except corn and for grinding other foods.

Other suitable foods include e.g. oats, lin-seeds, black pepper or coffee beans.

Note: The grain mill attachment is not suitable for grinding very hard foods, e.g. dried peas, corn, Brazil nuts or nutmeg.

Overview

→ Fig. 60

1	Grain mill attachment
1	Threaded ring for juicer attachment and grain mill attachment
2	Grinding chamber with setting ring
3	Grinding cone
4	Grinding ring
5	Conveying chamber
6	Worm conveyor for grain mill attachment
7	Housing for juicer attachment and grain mill attachment

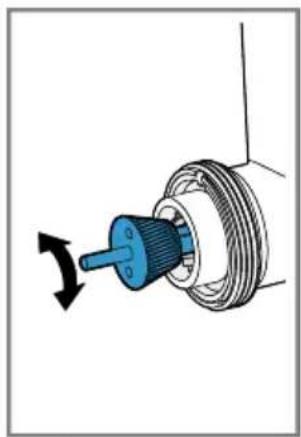

Grinding level

Use the adjusting ring to set the grinding level.

Turn anticlockwise Coarser grinding level

Turn clockwise Finer grinding level

Notes

■ To prevent the grinding mechanism from getting blocked or gummed up, do not process very oily foods with a medium to fine grinding level, e.g. linseeds and poppy seeds.
■ Process soft grains first with a coarse grinding level and then again with a fine one, e.g. oats.

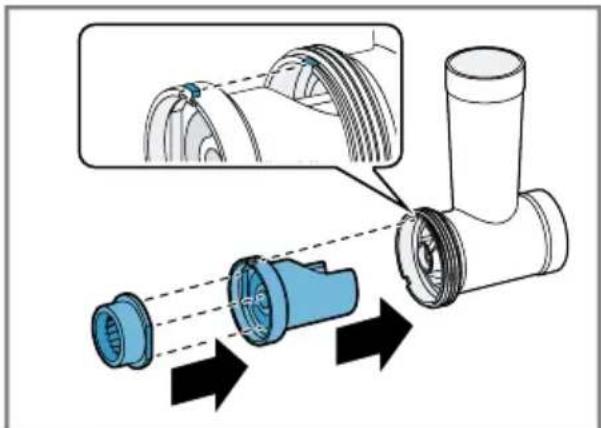

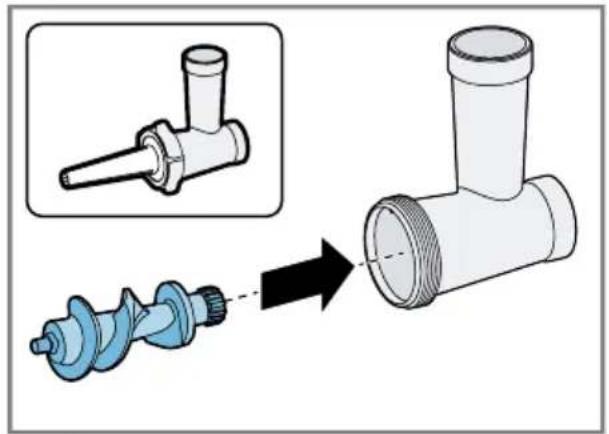

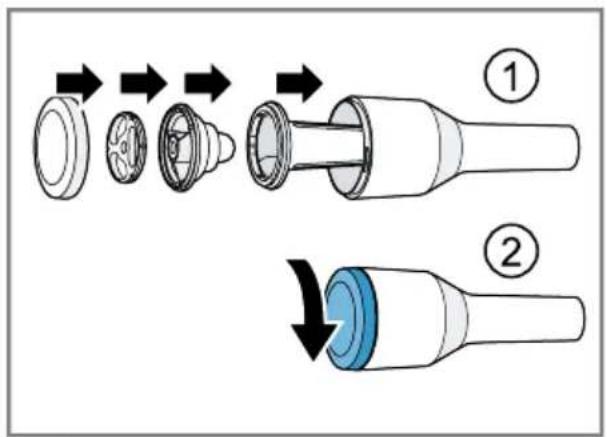

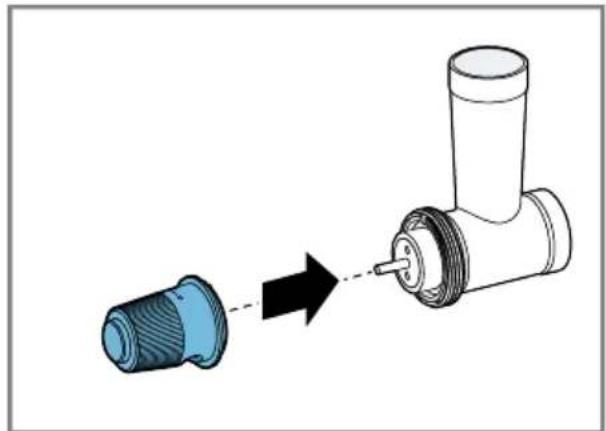

Assembling the grain mill attachment

→ Fig. 61 - 65

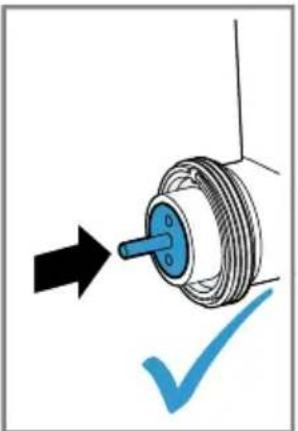

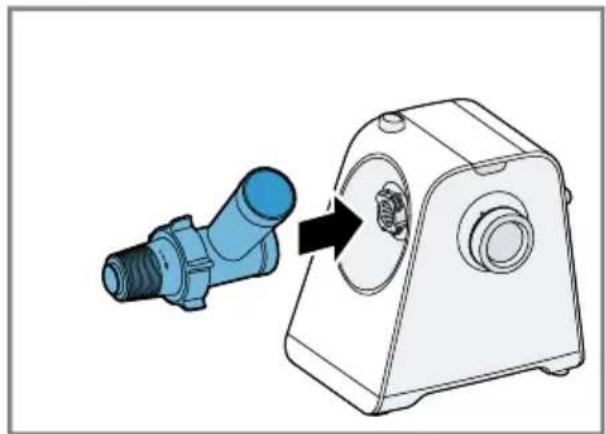

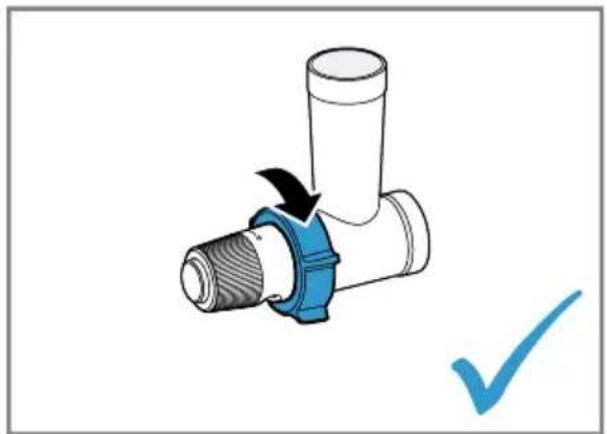

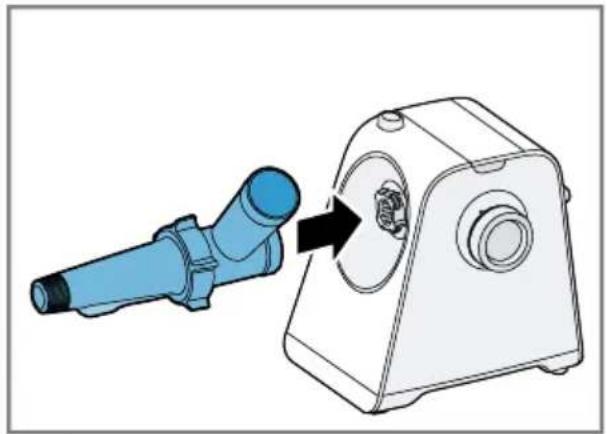

Fitting the grain mill attachment

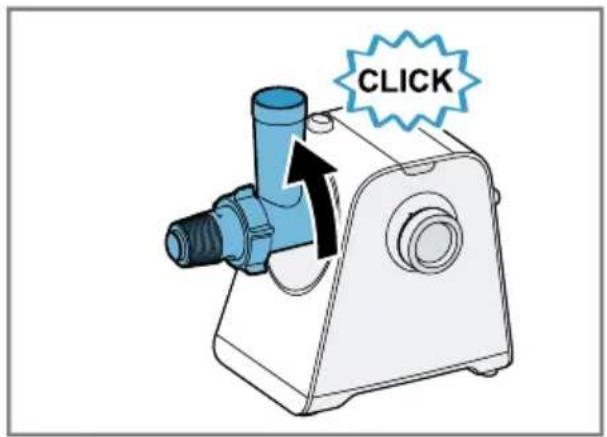

→ Fig. 66 - 68

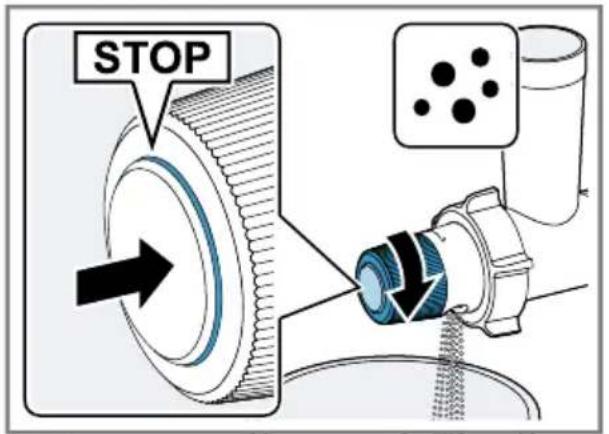

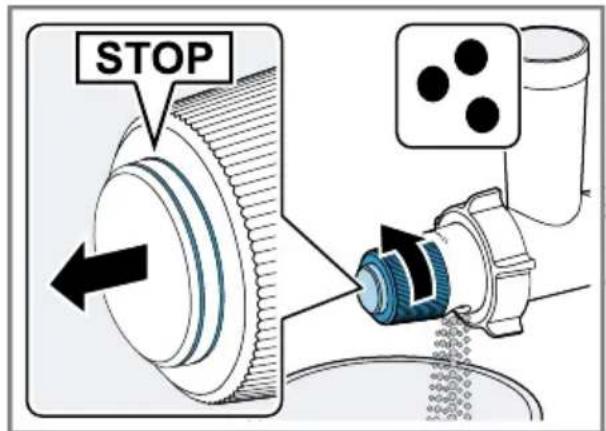

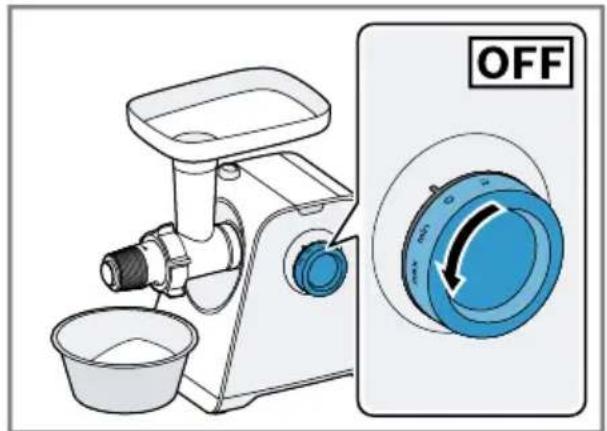

Using the grain mill attachment

Notes

- Do not turn the setting ring further once the end position for the coarsest or the finest grinding level as shown is reached.

en Citrus press

■ Never use the grain mill attachment without having added food.
■ Check food for foreign bodies, e.g. stones, before processing.
■ Only process food if its surfaces are dry and it contains little residual moisture.
■ Before using with another food, clean the grinding mechanism thoroughly to prevent any transfer of taste.

→ Fig. 69 - 74

Citrus press

The citrus press is suitable for pressing citrus fruit, e.g. lemons or oranges.

Overview

→ Fig. 75

J	Citrus press attachment ^1
1	Juice bowl with outlet

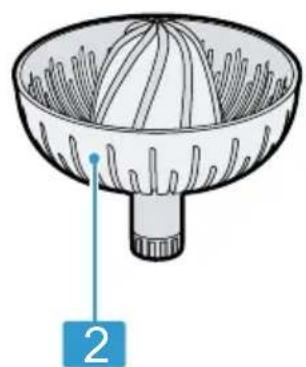

2	Strainer with pressing cone

^1 Depending on the model

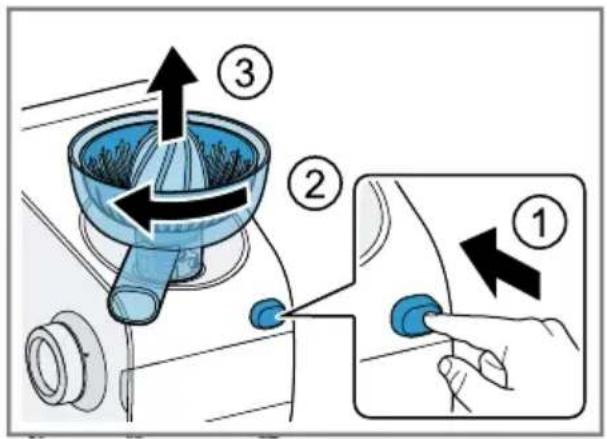

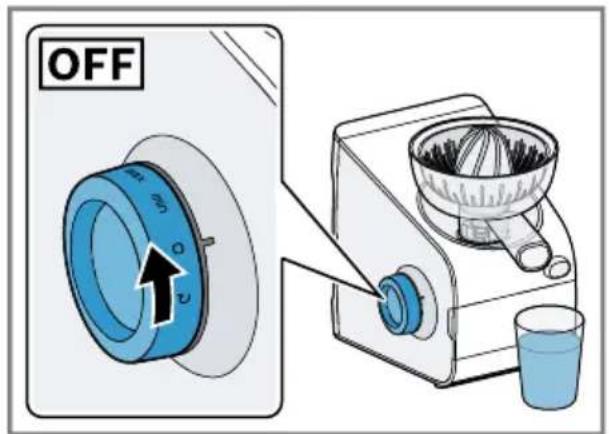

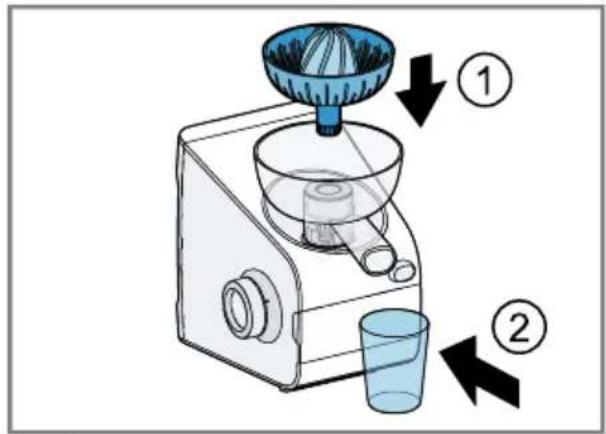

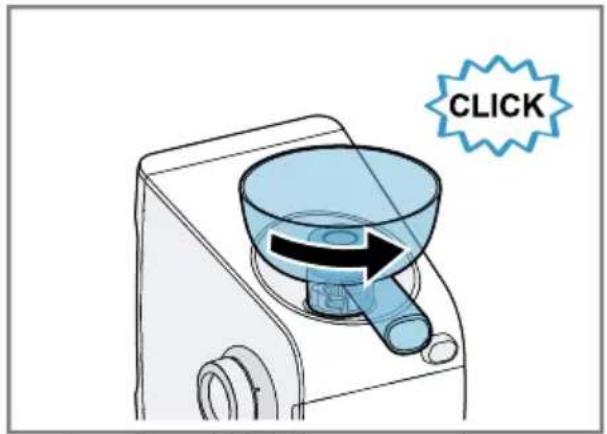

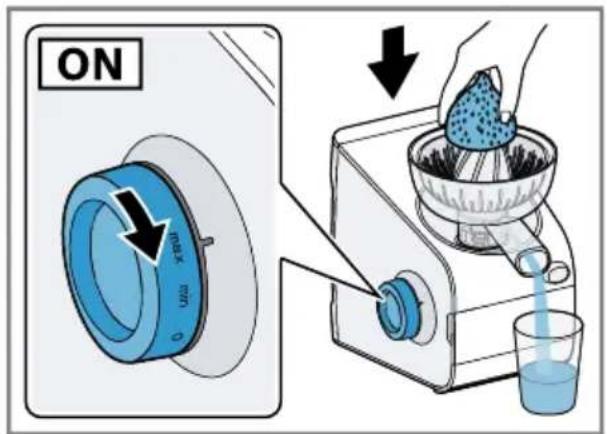

Using the citrus press attachment

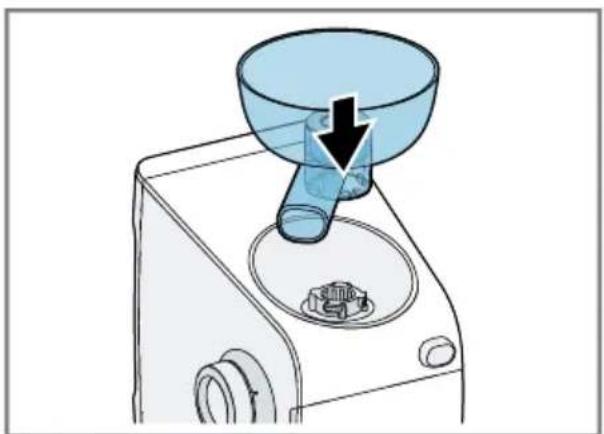

→ Fig. 76 - 83

Overview of cleaning

Clean all parts immediately after use so that residues do not dry on.

• Do not use cleaning agents containing alcohol or spirits.
• Do not use sharp, pointed or metal objects.
• Do not use abrasive cloths or cleaning agents.

Note: Never clean the following parts in the dishwasher: metal chamber housing, threaded ring and worm conveyor. If you clean these parts with detergent and water hotter than 40 °C, this may affect the shiny finish of the parts. It will not impair functioning of the parts.

Clean the individual parts as indicated in the table.

→ Fig. 84

Storing individual parts

1. After cleaning, keep the dried accessories of the meat mincer attachment in the storage compartment for the pusher.

→ Fig. 85

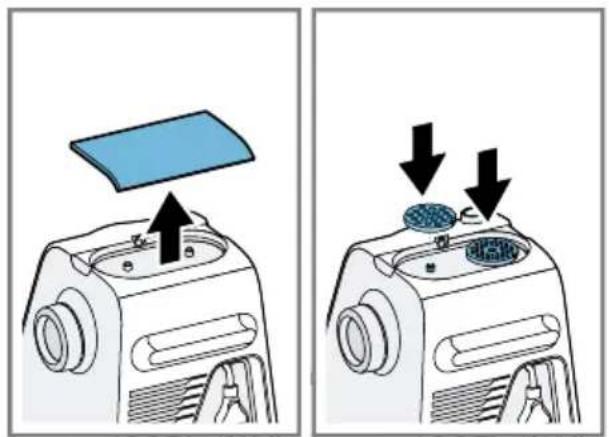

1. To store the perforated discs, take off the cover of the storage compartment on top of the main unit. Fit the perforated discs onto the holders provided and close the lid again.

→ Fig. 86

Processing instructions and application examples

Processing instructions

Meat mincer attachment

■ All perforated discs are suitable for processing raw meat.
- Cut meat and large items of food into pieces so they fit into the filling shaft.

Sausage filler attachment

■ Only process food that has been cut up fine with the sausage filler attachment.
■ Soak natural casing in lukewarm water for 10 minutes before processing.
■ Do not stuff casings too full or the sausages may burst during boiling or frying.

Sample recipe

You can find a sample recipe that has been specially developed for your appliance here.

Ground peanuts

Ingredients

■ 1500-2000 g fresh raw peanuts Preparation

■ Prepare the meat mincer attachment with the fine perforated disc and fit.

■ Add the peanuts to the filling tray.

■ Set the rotary switch to max.

■ Add the peanuts to the filling shaft evenly during processing and press down with the pusher.

■ Process the entire quantity within 2 minutes.

Note: The recommended continuous operating time is 2 minutes.

Tip: Season salads, sauces and other dishes with the ground peanuts or make them into crunchy peanut butter.

Crunchy peanut butter

Preparation

■ Process the ground peanuts another two times with the fine perforated disc.
■ Add 10 ml peanut oil or vegetable oil for every 100 g peanuts.
■ Stir the mixture with a whisk until creamy.
- Enjoy the finished peanut butter spread directly onto bread or use it as a seasoning.

Retrieve more recipes

- To retrieve more recipes online, scan the following QR code.

QR code image containing encoded data, no visible human-readable text

Troubleshooting

Fault Cause and troubleshooting

Appliance does not start processing.

Rotary switch is set incorrectly.► Set the rotary switch to ○ before processing.

Food is not being processed although the main unit is running.

Food has got stuck and is blocking the attachment.Note: Only use the reversing function with the meat mincer attachment.1. Set the rotary switch to ○ and wait until the appliance stops.2. Set the rotary switch to ➕ for a few seconds to start the reversing function and release the food that has got stuck.3. Wait until the appliance stops.4. Set the rotary switch to min and check whether the food is being processed normally again.Note: If the fault cannot be eliminated in this manner, observe the following steps.1. Set the rotary switch to ○ and wait until the appliance stops.2. Remove the attachment and take it apart.3. Remove food that has got stuck und check whether the attachment or the food contains any sinews, bones or other hard pieces.

The clutch of the worm conveyor has been overloaded and has broken at the predetermined breaking point.

Note: Spare parts with a predetermined breaking point are not covered by our warranty obligations. A new clutch is available from customer service under order number 10029225.

Fault Cause and troubleshooting

Food is not being processed although the main unit is running.	1. Release the screw and remove the faulty clutch. → Fig. 872. Insert the new clutch and screw in tight. → Fig. 88
Appliance switches off during processing.	Motor is overheated.1. Set the rotary switch to ○ and wait until the appliance stops.2. Allow the appliance to cool down to deactivate the overload protection device.
No juice or fruit pulp exits from the juice attachment although the base unit is running.	Control nozzle and filter insert are blocked.1. Set the rotary switch to ○ and wait until the appliance stops.2. Do not use the reversing function to avoid damage to the appliance.3. Remove the attachment and take it apart.4. Remove any caked-on food and clean all parts thoroughly.5. Observe all instructions before using the juice attachment again. → "Juice attachment", Page 32

Disposing of old appliance

1. Unplug the appliance from the mains.
2. Cut through the power cord.
3. Dispose of the appliance in an environmentally friendly manner.

Information about current disposal methods are available from your specialist dealer or local authority.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE).

The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Customer Service

Detailed information on the warranty period and terms of warranty in your country is available from our after-sales service, your retailer or on our website.

The contact details for Customer Service can be found in the enclosed Customer Service directory or on our website.

Sécurité

Sécurité anti-surcharge

QR code image containing encoded data, no visible human-readable text

Dépannage

QR code image containing encoded data, no visible human-readable text

Sistemazione guasti

QR code image containing encoded data, no visible human-readable text

Storingen verhelpen

QR code image containing encoded data, no visible human-readable text

Afhjælpning af fejl

styr (waste electrical and electronic equipment - WE-EE).

QR code image containing encoded data, no visible human-readable text

Utbedring av feil

QR code image containing encoded data, no visible human-readable text

Avhjälpning av fel

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Eliminar falhas

QR code image containing encoded data, no visible human-readable text

Αποκατάσταση βλαβών

QR code image containing encoded data, no visible human-readable text

Arızaları giderme

QR code image containing encoded data, no visible human-readable text

Usuwanie usterek

QR code image containing encoded data, no visible human-readable text

Odstranění poruch

QR code image containing encoded data, no visible human-readable text

Odstránenie porúch

QR code image containing encoded data, no visible human-readable text

Remediati defectiunile

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Акауларды жою

QR code image containing encoded data, no visible human-readable text

electrical and electronic

.(equipment - WEEE
