DE	Produktname	Gasherd mit Schrank
EN	Product name	Gas cooker with cabinet
PL	Nazwa produktu	Kuchenka gazowa z szafką
CZ	Název výrobku	Plynový sporák se skříňkou
FR	Nom du produit	Cuisinière à gaz avec meuble
IT	Nome del prodotto	Cucina a gas con mobiletto
ES	Nombre del producto	Cocina a gas con armario
HU	Termék neve	Gáztůzhely szekrénnyel
DA	Produktnavn	Gaskomfur med skab
FI	Tuotteen nimi	Kaasuliesi kaapilla
NL	Productnaam	Gasfornuis met kast
NO	Produktnavn	Gasskomfyr med skap
SE	Produktnamn	Gasspis med skåp
PT	Nome do produto	Fogão a gás com armário
SK	Názov produktu	Plynový sporák so skrinkou
BG	Име на продукта	Газова готварска печка с шкаф
EL	Όνομα προϊόντος	Kouživa υγραερίου με ντουλάπι
HR	Naziv proizvoda	Plinski štednjak s ormarićem
LT	Produkto pavadinimas	Dujinė viryklė su spintele
RO	Numele produsului	Aragaz cu dulap
SL	Ime izdelka	Plinski štedilnik z omarico
DE Modell | EN Product model | PL Model produktu | CZ Model výrobku | FR Modèle | IT Modello | ES Modelo | HU Modell | DA Model | FI Tuotteen malli | NL Productmodel | NO Produktmodell | SE Produktmodell | PT Modelo do produto | SK Model | BG Модел на продукт | EL Movtělo προϊόντος | HR Model proizvoda | LT: Gaminio modelis | RO: Model de produs | SL: Model izdelka		RCGC-40/700C2B
DE Hersteller | EN Manufacturer | PL Producent | CZ Výrobce | FR Fabricant | IT Produttore | ES Fabricante | HU Termelő | DA Producent | FI Valmistaja | NL Producent | NO Produsent | SE Tillverkare | PT Fabricante | SK Výrobca | BG Производител | EL Κατασκευαστής | HR Proizvođač | LT Gamintojas | RO Producător | SL Proizvajalec		expondo Polska sp. z o.o. sp. k.
DE Anschrift des Herstellers | EN Manufacturer Address | PL Adres producenta | CZ Adresa výrobce | FR Adresse du fabricant | IT Indirizzo del produttore | ES Dirección del fabricante | HU A gyártó címe | DA Producentens adresse | FI Valmistajan osoite | NL Adres producent | NO Produsentens adresse | SE Tillverkarens adress | PT Endereço do fabricante | SK Adresa výrobcu | BG Адрес на производителя | EL: Διεύθυνση κατασκευαστή | HR Adresa proizvođača | LT Gamintojo adresas | RO Adresa producătorului | SL Naslov proizvajalca		ul. Nowy Kisielin – Innowacyjna 7, 66-002 Zielona Góra | Poland, EU

This User Manual has been translated using machine translation. We have made every effort to ensure the translation is accurate, but please note that automated translations are not perfect and are not meant to replace human translators. The official version of the User Manual is in English. Any differences between the translated version and the original English are not legally binding. If you have any questions about the accuracy of the translation, please refer to the English version, which is the official reference. More language versions are available upon request via [e-mail].

Technical data

Parameter description	Parameter value
Product name	Gas cooker with cabinet
Model	RCGC-40/700C2B
Type of appliance	A_1
Appliance category	|3+(28-30)/37	|3B/P(30)	|3B/P (50)	|2H (20)
Gas and supply pressure [mbar]	G30 Butane 28~30G31 propane 37	G30 butane and G31 propane 30	G30 butane and G31 propane 50	G20 methane 20
Country code	BE, CH, CY, CZ, ES, FR, GB, GR, IE, IT, LT, PT, SI TR	BG, CY, CZ, DK, EE, FI, GR, HR, HU, IT, LT, NL, NO, RO, SE, SI, PL	AT, DE, CH	AT, CH, CZ, DK, EE, ES, FI, GB, GR, HR, IE, IT, LT, LV, NO, PT, RO, SE, SI, SK, TR
Burner [kW]	1 x 4.2 + 1 x 3
Burner injector size [mm]	1 x ∅1.001 x ∅0.82	1 x ∅1.001 x ∅0.82	1 x ∅0.861 x ∅0.75	1 x ∅1.481 x ∅1.27
Pilot nozzle size [mm]	2 x ∅0.30	2 x ∅0.30	2 x ∅0.25	2 x ∅0.35
Total heat input power [kW]	7.2
Gas consumption [kg/h] / [m3/h]	G30: 0.57; G31:0.56 / G20: 0.76
Dimensions (Width x Length x Height) [mm]	400x740x930
Weight [kg]	43

Purpose

The product is used to offer a combination of efficient gas cooking and practical storage in one compact unit.

Usage

Gas installation

• Ensure that all valves are closed before beginning the installation process.
  • If using LPG as the gas supply, the connection to the machine must be secure and reliable.
  • Do not use a high-pressure valve with this machine.

Operation

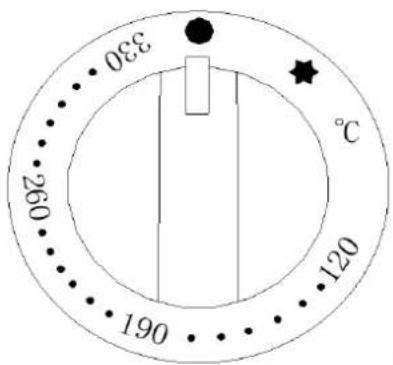

1. Turn the button counterclockwise from the "close" position to the "★" position, then continue turning to the bottom. Press and hold for about 20 seconds to ignite. If the machine has not been used for a long time or is being used for the first time, it may take 2-3 minutes to ignite, which is normal.

2. After the pilot flame ignites, turn the button to the "00" position to ignite the main burner. (Turn the button to the "0" position for the smallest flame.)

3. To turn off the pilot flame, rotate the button from the "★" position to the "●" position.

4. Please close the gas supply valve when the machine is not in use.

1 2 3 4 5 6

1- Minimum flame location

2- Maximum flame location

3- Ignition

4- Big fire

5- Close

6- Small fire

330 260 190 120 °C

Maintenance

• Turn off the oven before cleaning to prevent accidents.

• After daily cleaning, cover the oven with dustproof paper to protect it.

• If the machine will not be used for an extended period, follow these steps:

a. Cut off the gas supply.
b. Use a cloth with petrol to clean the stainless-steel surface.
c. Place the machine in a well-ventilated area.

Troubleshooting

Malfunction	Reasons Analysis
Pilot flame won't ignite	Incorrect installation or connection of the ignition nozzle.Damaged plugs or wiring of the ignition nozzle.Insufficient gas pressure in the pipe.Clogged nozzle.Improper connection of the thermocouple, or a disconnected line in the temperature controller.Damaged thermocouple.Malfunction in the gas temperature control valve.
Pilot flame is lit but the main burner won't ignite	Insufficient gas pressure in the pipe.Clogged nozzle.Malfunction in the gas switch.Malfunction in the temperature controller.Poor contact between the thermocouple and the valve.Damaged thermocouple.

Transportation & Storage

During transportation, handle this product with care to avoid strong vibrations. Generally, the packed product should not be stored outdoors for long periods. It should be kept in a well-ventilated warehouse free from corrosive air. Do not store the product upside down. If outdoor storage is necessary, take appropriate measures to protect it from rain.

For the disposal of the device please consider and act according to the national and local rules and regulations.

CONTACT

expondo Polska sp. z o.o. sp. k.
