RCGC-80/700C4B - Cooker Royal Catering - Free user manual and instructions

Brand	Royal Catering
Model	RCGC-80/700C4B
Product type	Gas cooker with cabinet
Dimensions (W x D x H)	800 x 730 x 930 mm
Weight	74 kg
Gas type	Butane (G30), Propane (G31) or Methane (G20)
Total heat output	14.4 kW
Main burners	2 x 4.2 kW + 2 x 3 kW
Ignition	Pilot with button (press for 20 seconds)
Material	Stainless steel
Maintenance	Clean with a cloth soaked in gasoline; turn off the gas if not in use for a long time; store in a well-ventilated place
Safety	Gas valves closed before installation; do not use a high-pressure valve
Transport and storage	Avoid vibrations; store indoors, away from corrosive air; do not store upside down
Repairability	Thermocouple, nozzle, control valve: parts replaceable by a professional

Frequently Asked Questions - RCGC-80/700C4B Royal Catering

How to light the RCGC-80/700C4B cooker?

Turn the knob counterclockwise from the closed position to the ★ position, then continue to the bottom. Press and hold for about 20 seconds to ignite the pilot flame. Once lit, turn the knob to 00 to light the main burner.

What types of gas can I use with this cooker?

The appliance accepts butane (G30), propane (G31) and methane (G20). The pressures vary by gas: butane/propane 28-30 mbar, 30 mbar or 50 mbar; methane 20 mbar.

What to do if the pilot flame does not ignite?

First check that the ignition nozzle is properly connected and not obstructed. Make sure the gas pressure is sufficient. If the problem persists, the thermocouple or control valve may be defective.

How to clean the stainless steel surface?

Use a cloth soaked in gasoline to clean the surface. After cleaning, cover the oven with dust-proof paper to protect it.

Can I use a high-pressure valve with this appliance?

No, using a high-pressure valve is prohibited. Make sure to use a valve suitable for the gas type and recommended pressure.

What is the total power of the burners?

The total absorbed heat output is 14.4 kW, distributed over 4 burners: 2 x 4.2 kW and 2 x 3 kW.

How to turn off the pilot flame?

Turn the knob from the ★ position to the ● position. Remember to close the gas supply valve when the appliance is not in use.

Where can I get spare parts?

Parts like the thermocouple, nozzles and control valves are available from authorized dealers or by contacting Royal Catering's after-sales service.

How to store the appliance for a long period?

Turn off the gas supply, clean the surface with a cloth soaked in gasoline, then place the appliance in a well-ventilated place, away from moisture and shocks.

What are the dimensions of the cooker?

The dimensions are 800 x 730 x 930 mm (width x depth x height).

USER MANUAL RCGC-80/700C4B Royal Catering

Abstract white line drawing of a mythical creature on a blue background (no text or symbols)

DE	Produktname	Gasherd mit Schrank
EN	Product name	Gas cooker with cabinet
PL	Nazwa produktu	Kuchenka gazowa z szafką
CZ	Název výrobku	Plynový sporák se skříňkou
FR	Nom du produit	Cuisinière à gaz avec meuble
IT	Nome del prodotto	Cucina a gas con mobiletto
ES	Nombre del producto	Cocina a gas con armario
HU	Termék neve	Gáztůzhely szekrénnyel
DA	Produktnavn	Gaskomfur med skab
FI	Tuotteen nimi	Kaasuliesi kaapilla
NL	Productnaam	Gasfornuis met kast
NO	Produktnavn	Gasskomfyr med skap
SE	Produktnamn	Gasspis med skåp
PT	Nome do produto	Fogão a gás com armário
SK	Názov produktu	Plynový sporák so skrinkou
BG	Име на продукта	Газова готварска печка с шкаф
EL	Όνομα προϊόντος	Kouživa υγραερίου με ντουλάπι
HR	Naziv proizvoda	Plinski štednjak s ormarićem
LT	Produkto pavadinimas	Dujinė viryklė su spintele
RO	Numele produsului	Aragaz cu dulap
SL	Ime izdelka	Plinski štedilnik z omarico
DE Modell | EN Product model | PL Model produktu | CZ Model výrobku | FR Modèle | IT Modello | ES Modelo | HU Modell | DA Model | FI Tuotteen malli | NL Productmodel | NO Produktmodell | SE Produktmodell | PT Modelo do produto | SK Model | BG Модел на продукт | EL Movtělo προϊόντος | HR Model proizvoda | LT: Gaminio modelis | RO: Model de produs | SL: Model izdelka		RCGC-80/700C4B
DE Hersteller | EN Manufacturer | PL Producent | CZ Výrobce | FR Fabricant | IT Produttore | ES Fabricante | HU Termelő | DA Producent | FI Valmistaja | NL Producent | NO Produsent | SE Tillverkare | PT Fabricante | SK Výrobca | BG Производител | EL Κατασκευαστής | HR Proizvođač | LT Gamintojas | RO Producător | SL Proizvajalec		expondo Polska sp. z o.o. sp. k.
DE Anschrift des Herstellers | EN Manufacturer Address | PL Adres producenta | CZ Adresa výrobce | FR Adresse du fabricant | IT Indirizzo del produttore | ES Dirección del fabricante | HU A gyártó címe | DA Producentens adresse | FI Valmistajan osoite | NL Adres producent | NO Produsentens adresse | SE Tillverkarens adress | PT Endereço do fabricante | SK Adresa výrobcu | BG Адрес на производителя | EL: Διεύθυνση κατασκευαστή | HR Adresa proizvođača | LT Gamintojo adresas | RO Adresa producătorului | SL Naslov proizvajalca		ul. Nowy Kisielin – Innowacyjna 7, 66-002 Zielona Góra | Poland, EU

This User Manual has been translated using machine translation. We have made every effort to ensure the translation is accurate, but please note that automated translations are not perfect and are not meant to replace human translators. The official version of the User Manual is in English. Any differences between the translated version and the original English are not legally binding. If you have any questions about the accuracy of the translation, please refer to the English version, which is the official reference. More language versions are available upon request via [e-mail].

Technical data

Parameter description	Parameter value
Product name	Gas cooker with cabinet
Model	RCGC-80/700C4B
Type of appliance	A_1
Appliance category	|3+(28-30)/37	|3B/P(30)	|3B/P (50)	|2H (20)
Gas and supply pressure [mbar]	G30 Butane 28~30 G31 propane 37	G30 butane and G31 propane 30	G30 butane and G31 propane 50	G20 methane 20
Country code	BE, CH, CY, CZ, ES, FR, GB, GR, IE, IT, LT, PT, SI TR	BG, CY, CZ, DK, EE, FI, GR, HR, HU, IT, LT, NL, NO, RO, SE, SI, PL	AT, DE, CH	AT, CH, CZ, DK, EE, ES, FI, GB, GR, HR, IE, IT, LT, LV, NO, PT, RO, SE, SI, SK, TR
Burner [kW]	2 x 4.2 + 2 x 3
Burner injector size [mm]	2 x ∅1.002 x ∅0.82	2 x ∅1.002 x ∅0.82	2 x ∅0.862 x ∅0.75	2 x ∅1.482 x ∅1.27
Pilot nozzle size [mm]	4 x ∅0.30	4 x ∅0.30	4 x ∅0.25	4 x ∅0.35
Total heat input power [kW]	14.4
Gas consumption [kg/h] / [m3/h]	G30: 1.14; G31:1.12 / G20: 1.52
Dimensions (Width x Length x Height) [mm]	800x730x930
Weight [kg]	74

Purpose

The product is used to offer a combination of efficient gas cooking and practical storage in one compact unit.

Usage

Gas installation

• Ensure that all valves are closed before beginning the installation process.
  • If using LPG as the gas supply, the connection to the machine must be secure and reliable.
  • Do not use a high-pressure valve with this machine.

Operation

1. Turn the button counterclockwise from the "close" position to the "★" position, then continue turning to the bottom. Press and hold for about 20 seconds to ignite. If the machine has not been used for a long time or is being used for the first time, it may take 2-3 minutes to ignite, which is normal.

2. After the pilot flame ignites, turn the button to the "00" position to ignite the main burner. (Turn the button to the "0" position for the smallest flame.)

3. To turn off the pilot flame, rotate the button from the "★" position to the "●" position.

4. Please close the gas supply valve when the machine is not in use.

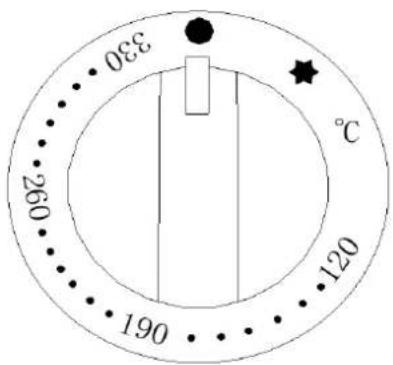

1- Minimum flame location
