USER MANUAL 2000 Series DST2030 PHILIPS

Exterior view of a Philips 2000 Series air iron (no signage or text beyond model name)

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome. Read this user manual, the important information leaflet, and the quick start guide carefully before you use the appliance. Save them for future reference.

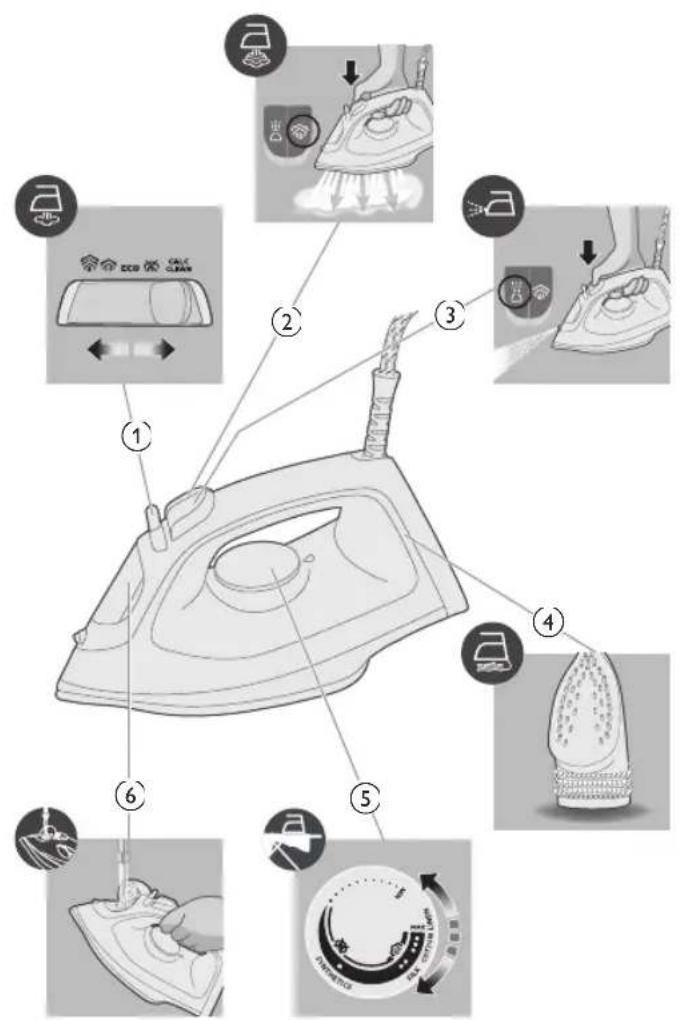

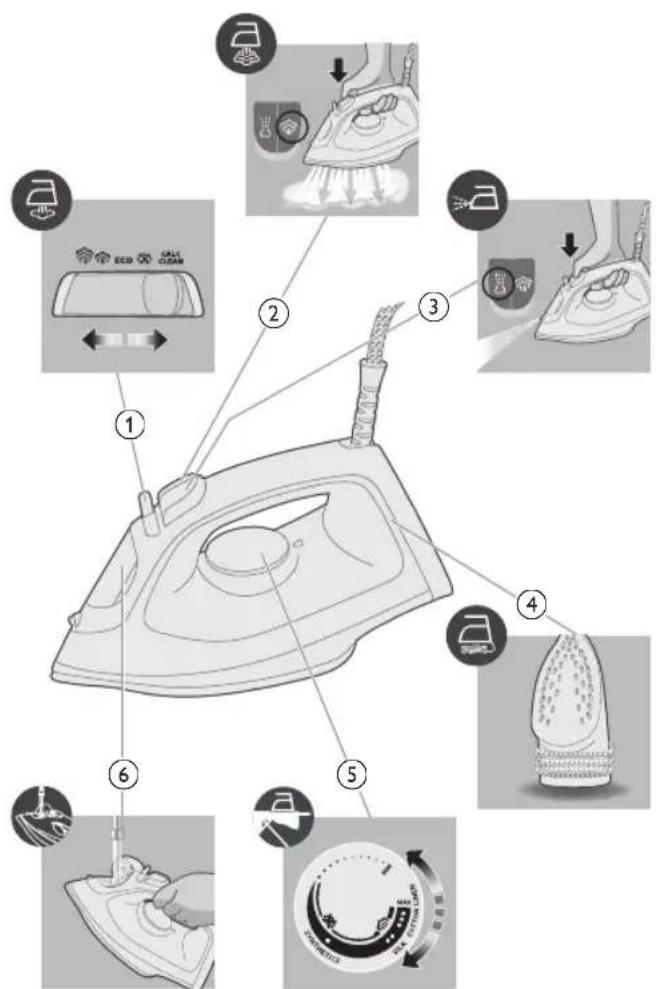

Product overview

Diagram illustrating the step-by-step installation of an iron iron with labeled parts including air conditioner, washing machine, and cleaning tools.

1 Steam selector
2 Steam boost button
3 Water spray
4 Cord winding
5 Temperature dial
6 Water tank lid

Using the appliance

Preparing for use

Note: The iron may give off some steam when you use it for the first time. This stops after a short while.

Type of water to use

The appliance is suitable to be used with tap water. However, if you live in an area with hard water, we recommend that you mix an equal amount of tap water with distilled or demineralized water. This will prevent fast scale build up and prolong the lifetime of the appliance.

Do not add perfume, water from the tumble dryer, vinegar, starch, descaling agents, ironing aids, chemically descaled water or other chemicals, as they may cause water spitting, brown staining or damage to your appliance.

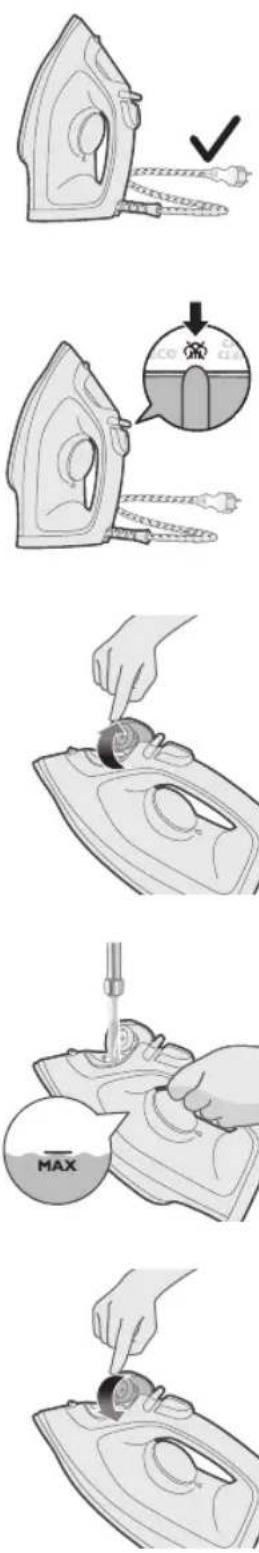

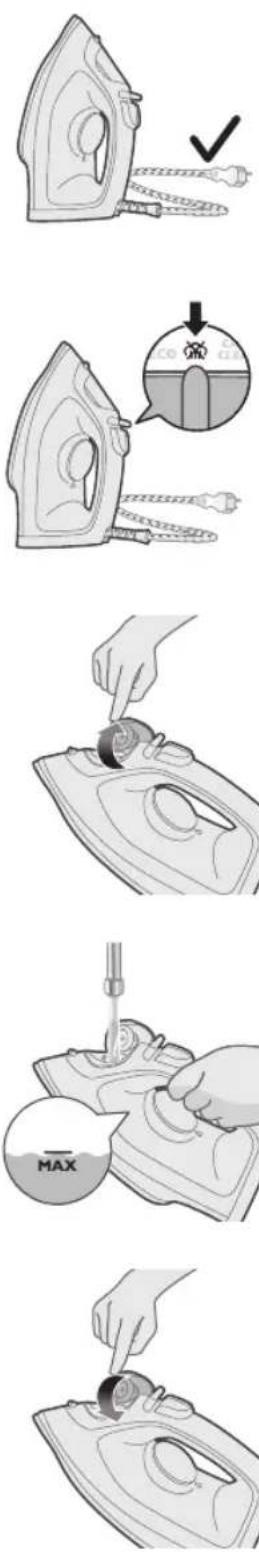

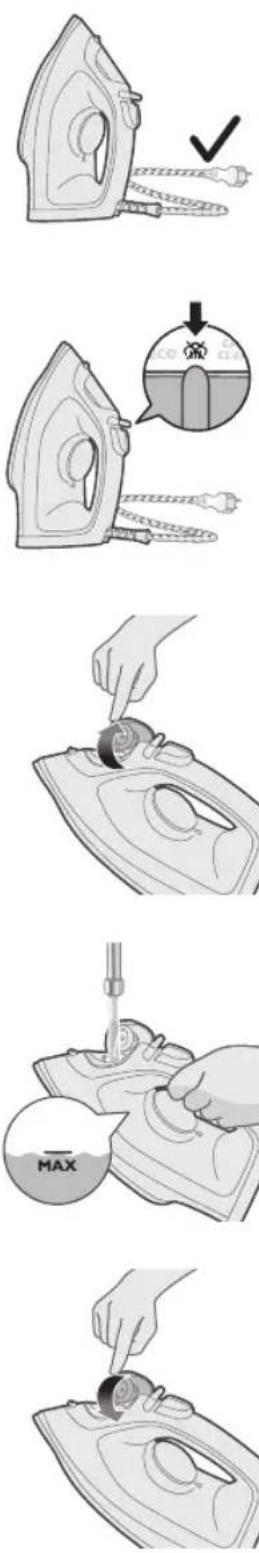

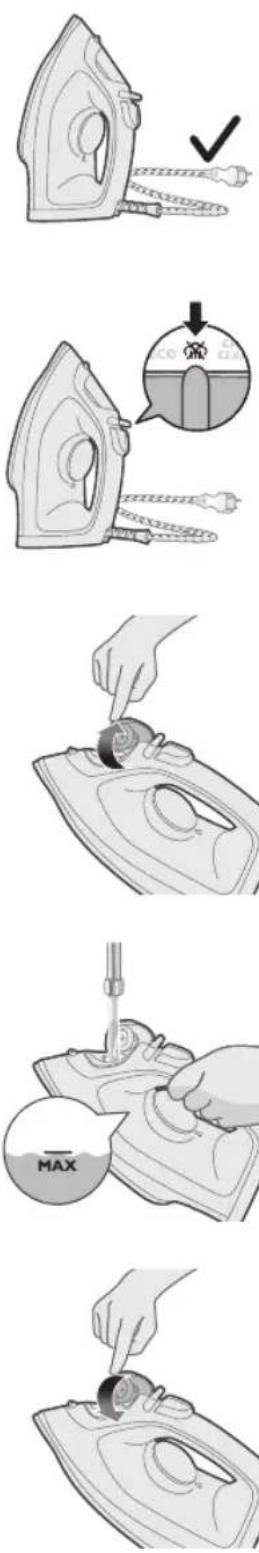

Filling the water tank

1 Do not plug in the appliance.

Simple line drawing of an iron (£) with a power cord and a cross mark symbol (no text or labels)

2 Ensure the appliance is cooled down.

Line drawing of an iron (£) with a checkmark indicating a detail (no text or symbols present)

8 English

Illustration showing a hair iron being heated by a device with a magnified view of the bulb's internal structure.

3 Slide the steam selector to the right to select no steam mode (dry ironing)

Line drawing of a hand pressing down on a mechanical component (no text or symbols)

4 Flip open the water tank lid.

Illustration of a hand using a screwdriver to adjust a shoe with a 'MAX' label (no other text or symbols)

5 Fill water tank up to the MAX indication in the water tank.

Line drawing of a hand pressing down on a small circular object on a surface (no text or symbols)

6 Close the water tank lid firmly.

Setting the temperature

	MAX
	LINEN
	●●●COTTON
	●●SILK	ECO
	●SYNTHETICS

Illustration of a hand using a power iron to clean or store (no text or symbols)

ECO setting: Minimum constant steam is delivered continuously for garments with less creases. This setting also saves energy.

Illustration of a hand using a power tool to press or install a surface, with a small icon in the corner (no text or symbols)

Two steam clouds: More constant steam is delivered continuously for tough creases.

Illustration of a hand using a power iron to clean a surface, with a Wi-Fi icon and a location pin icon below (no text or symbols on main image)

Three steam clouds: Maximum constant steam is delivered continuously for stubborn creases.

Using the appliance

i i

1 Check the garment label for the required ironing.

10

English

Diagram showing a dial indicator with labeled components and a magnified view of the dial's scale.

2 Set the temperature dial to the required ironing temperature by turning it to the appropriate temperature indication.

Illustration of two iron frames with a crossed-out mark indicating inspection or repair (no text or symbols present)

3 Allow the iron to rest on its heel.

Illustration of a steam iron with a cord and power outlet, no text or symbols present

4 Plug the appliance in an earthed wall socket.

Diagram of a handbag with an hourglass icon pointing to a circular object inside (no text or symbols)

5 The iron ready light will light up, indicating iron is heating up.

Simple line drawing of a washing machine component with a checkmark icon (no text or symbols)

6 When the iron ready light has gone out, wait a while before you start ironing. The ready light will go on from time to time during ironing.

No steam/Dry ironing

Diagram showing a steam iron connected to a bag with a warning symbol and a magnified view of the bag's internal structure.

1 Set steam setting to no steam setting.

Illustration of a person using a power tool on a surface (no text or symbols visible)

2 After a short while, steam will cease during ironing.

Water spray

Illustration of a hand using an iron on a surface with a magnified inset showing a hand holding a circular object (no text or symbols)

1 Set steam setting to no steam setting. Press and release the water spray button for a stream of mist to remove stubborn creases.

Steam boost

X MINIATICS MAX JAK GO FIN LEARN

1 Set temperature dial to MAX setting between cotton and linen.

12 English

Illustration of a hand using an iron on a surface with a control panel and home icons nearby (no text or symbols)

2 Press and release the steam boost button for a powerful boost of steam to remove stubborn creases.

Illustration showing a hand washing an iron on a jacket with icons for hair protection and clothing items.

3 You can use the steam boost function when you hold the iron in vertical position for removing creases from hanging garments (for DST2020 and DST2030 only).

Illustration of a person using a hairdryer to clean a jacket, with no visible text or symbols

4 Pull and stretch your garment while applying steam boost to remove stubborn creases (for DST2020 and DST2030 only).

Illustration showing a person holding a device with warning symbols and a cross mark, likely indicating a hazard or safety warning.

5 Do not use your bare hand as a supporting surface when you iron.

Illustration of a person holding a hairdryer with a cross mark, no text or symbols present

6 Do not position the appliance towards yourself/ another person.

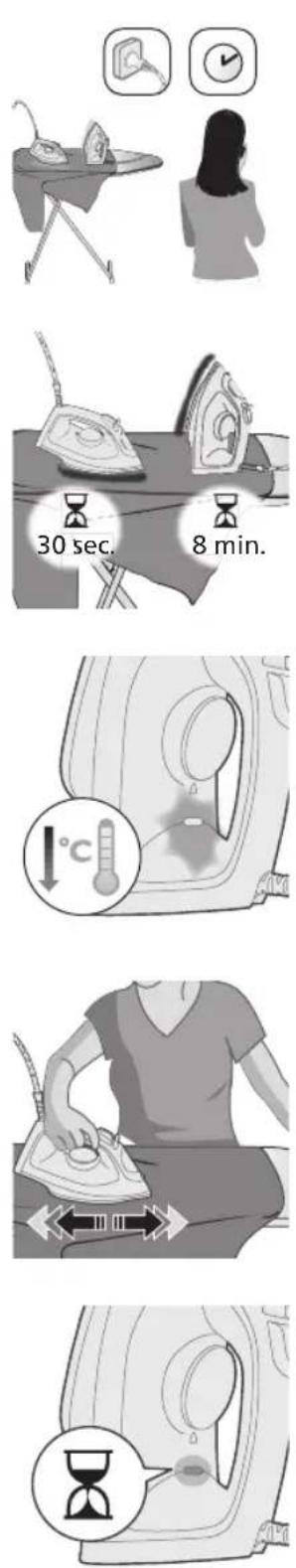

Auto shut off (DST2030)

1 To give you a peace of mind, the appliance will cool down on its own if it is left unattended for a period of time.

2 When the appliance is not in use for more than 30 seconds resting on its soleplate or 8 minutes resting on its heel/ base, the appliance will enter auto shut off mode.

3 The temperature of the appliance will decrease in auto shut-off mode. The iron ready light will also flash non-stop to indicate the appliance is at auto-off status. To completely switch off the appliance, unplug the appliance from the socket.

4 To let the appliance heat up again, pick up the appliance or move it slightly.

5 The iron ready light will light up, indicating the appliance is heating up.

14 English

Diagram of a washing machine with a checkmark indicating the measurement (no text or symbols present)

6 Once the iron ready light turns off, the appliance is ready to use.

Cleaning and maintenance

1 Ensure appliance is not plugged in.

Illustration of an iron (£) with a wavy cord and a black X mark, no text or symbols present.

Illustration of an iron (£) with a checkmark indicating a repair or inspection (no text or symbols present)

2 Ensure the appliance has cooled down.

Illustration of an iron with a thermometer symbol indicating temperature change, showing a cooling effect.

Illustration of a hand holding a textured, irregularly shaped object with a checkmark indicating selection (no text or symbols present)

3 Wipe flakes and other deposit off the soleplate with a damp cloth.

Warning symbol with warning triangle, baby bottle, crosshair, and corn cob with leaves

Note: To keep the soleplate smooth, avoid hard contact with metal objects. Never use a scouring pad, vinegar or other chemicals to clean the soleplate.

Safety warning sign showing incorrect water level with a cross symbol, indicating water scarcity or hazard

4 Do not wash/ clean the appliance under running water.

Calc-Clean

3 4 10 11 12 12 13 6 17 18 19 19 20 3 24 25 25 26 27 0 31

Tip: The Quick Calc Release function can be used at any time. If you live in a hard water area, use the function more frequently.

1 After 1 month of use, it is recommended to perform calc clean to remove scales collected from your appliance to prolong its life and ensure the appliance heats up.

Illustration showing a hair iron being heated by a magnified view of the bulb with a small insect, likely illustrating a chemical experiment or safety concept.

2 Make sure the iron is unplugged and the steam setting is set to no steam mode (dry ironing)

16

English

MAX

3 Fill the water tank to the MAX indication.

SOLKINGHAI SILK COTTON LIVEN MAX

4 Set the temperature dial to MAX.

Line drawing of a steam iron with attached power cord (no text or symbols)

5 Plug in appliance to an earthed wall socket.

Diagram of a handbag with an hourglass icon pointing to a circular object inside (no text or symbols)

6 The iron ready light will light up, indicating the appliance is heating up.

Simple line drawing of a washing machine component with a checkmark icon (no text or symbols)

7 Wait for iron ready light to go out.

Illustration of an electrical outlet connected to a plug with a cable, showing a black arrow indicating direction (no text or symbols)

8 Unplug the iron.

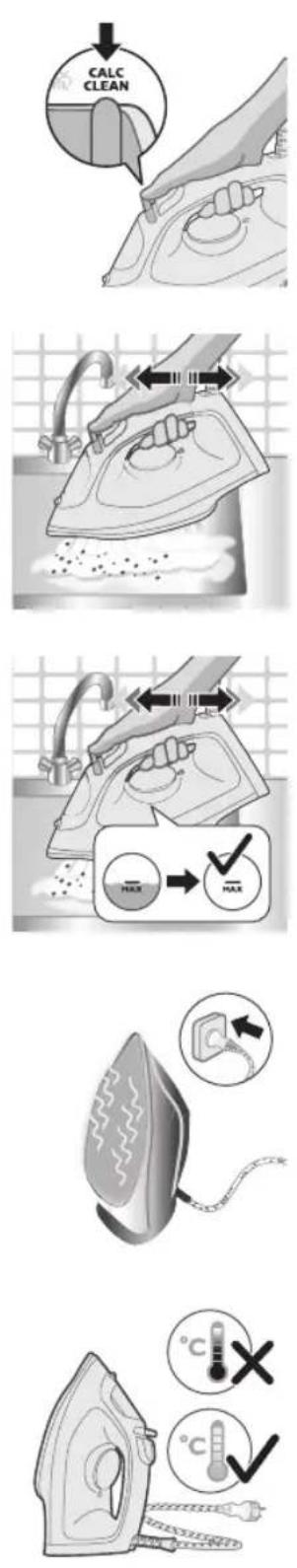

CALC CLEAN

9 Slide the steam selector to the Calc-Clean position and hold it.

Illustration of a hand using a steam iron to clean water, with a faucet and tiled wall background (no text or symbols)

10 Hold the iron over the sink and gently shake the iron. Hot water and calc particles will be released from the soleplate.

Caution: While scale is flushed out, steam and boiling water also come out of the soleplate.

Diagram illustrating washing machine operation with hand and checkmark indicating maximum clearance

11 Continue to shake the iron until all the water in the water tank has been released.

Illustration of a steam iron with a magnified inset showing the cable being inserted (no text or symbols)

12 Plug in the appliance and let the appliance heat up to dry the soleplate. This takes about 2 minutes.

18

English

°C × °C ✓

13 Let the iron cool down.

Illustration of a light bulb with perforated glass inside, resting on a textured base (no text or symbols)

14 Wind the cord around the heel of the iron.

Storage

Diagram showing a steam iron emitting a smoke from a bag with a warning symbol and text labels

1 Slide the steam selector to select no steam mode (dry ironing)

Illustration of a wall socket connected to an electrical plug with a black arrow indicating direction (no text or symbols)

2 Unplug the appliance.

Illustration of an iron (£) with temperature and hourglass symbols indicating heating conditions.

3 Let the appliance cool down.

Illustration of a hand using a power iron on a tiled floor (no text or symbols)

4 Pour any remaining water out of the water tank.

Illustration of a steaming iron with rotating arms and a pointer, no text or symbols present

5 Wind the power cord around the main body of the appliance.

Trouble shooting

This chapter summarizes the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Center in your country.

Problem Possible cause Solution

The iron cannot remove wrinkles from the garment.	There is no steam during ironing. Fill the water tank and set the steam slider to
The iron does not produce any steam.	There is not enough water in the tank.	Fill the water tank.
	The steam slider is set to set the steam slider to .
	The iron is not hot enough yet to product steam.	When the iron is heating up, the "iron-ready" light is steady on.When the iron is ready for use, the light turns off.
Water droplets drips onto the garment during ironing.	You have used the boost function too often within a short period.	Continue ironing in horizontal position and wait a while before you use the steam boost function again.
	You have not closed the water tank lid properly.	Press the lid until you hear a 'click'.

English

The iron does not produce a steam boost.	You have used the steam boost function too often within a short period.	Continue ironing in horizontal position and wait a while before you use the steam boost function again.
	The iron is not hot enough for ironing yet.	Wait until the ‘iron ready’ light has stopped flashing and lights up steadily.
	You have put a chemical into the water tank.	Rinse the water tank and do not put any perfume or chemicals into the water tank.
Water drips from the soleplate after the iron has been unplugged.	The steam slider is set to set the steam slider to .
	You have put the iron in horizontal position with water still left in the water tank.	Empty the water tank after use, or store the iron in vertical position.
The iron leaves a shine or an imprint on the garment.	The surface to be ironed was uneven, for instance because you ironed over a seam or a fold in the garment.	The iron is safe to use on all ironable garments. The shine or imprint is not permanent and disappears when you wash the garment. Avoid ironing over seams or folds. You can also place a cotton cloth over the area to be ironed to avoid imprints.
