USER MANUAL SG-01 MSW

A B C D E F G H

Two types of welding torches with metallic fittings and tubing, labeled a and b (no text or symbols on the devices themselves)

This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

Technical data

Parameter description	Parameter value
Product name	SPRAY GUN
Model	MSW-SG-01
Dimensions [width x depth x height; mm]	120 x 290 x 260
Weight [kg]	1.4
Tank capacity [L]	1.1
Maximum working pressure:Recommended working pressure:[bar/MPa/psi]	8 / 0.8 / 1164-6 / 0.4-0.6 / 58-87
Sound power level L_wA dB (A)	94
Sound pressure level L_pA dB (A)	83
Vibration emission level	<2.5 m/ s^2
Air consumption	~ 140 L/min

1. General Description

This manual is intended to assist you for safe and reliable use. The product is designed and manufactured strictly according to technical specifications using the latest technology and components and maintaining the highest quality standards.

CAREFULLY READ AND UNDERSTAND THIS MANUAL BEFORE STARTING THE WORK.

To ensure long and reliable operation of the device, make sure to operate and maintain it properly in accordance with the guidelines in this instruction manual. The technical data and specifications in this manual are up-to-date. The manufacturer reserves the right to make changes in order to improve the quality. Taking the technical progress and the possibility of reducing noise into account, the unit is designed and built in such

a way so that risks resulting from noise emissions are reduced to the lowest possible level.

Explanation of symbols

CE	The product complies with applicable safety standards.
	Read the manual before use.
	CAUTION! or WARNING! or REMEMBER! describing a situation (general warning sign).
	Wear ear protection. Exposure to noise may cause hearing loss.
	Wear protective goggles.
	Wear a dusk mask (protecting the respiratory tract).
	Wear protective gloves.
	Wear a protective suit.
	CAUTION! Warning against loud noise!

CAUTION! The figures in this manual are illustrative only and may vary in some details from the actual appearance of the product.

2. Safety of use

CAUTION! Read all safety warnings and instructions. Failure to follow warnings and actions could result in serious injury or even death.

The term "device" or "product" in the warnings and in the description of the manual refers to

Spray Gun.

2.1. Safety in the workplace

a) Keep the work area tidy and well lit. Disorder or poor lighting can lead to accidents. Be foresighted, watch what you are doing and use common sense when using the device.

b) If you find any damage or irregularities in the operation of the product, immediately turn it off and report it to an authorized person.

c) If in doubt as to whether the appliance is working, contact the manufacturer's technical service.

d) Repairs to the device may only be carried out by the manufacturer's service. Do not attempt to repair the product on your own!

e) No children or unauthorized persons are allowed in the work area. (Inattention may result in loss of control of the unit).

f) Reinforced hoses should be used in places where there is a risk of damage.

g) Connecting and disconnecting the pressure line should be done with the air valve closed.

h) When starting to operate the unit, gradually increase the air supply to the unit to make sure it is working properly. If you notice that the unit is not working properly, immediately disconnect it from the compressed air supply and contact the manufacturer's service department.

i) Do not point the pressure hose toward yourself or other people or animals.

j) Do not cut off the compressed air supply by crushing or kinking the pressure hoses.

k) Do not use the unit without the nozzle installed.

I) It is forbidden for third parties to stay near the workplace.

m) When using this product together with other devices, also follow the other instructions for use.

Remember! Keep children and other bystanders safe while operating the equipment.

2.2. Personal safety

a) Do not operate this device if you are tired, ill or under the influence of alcohol, drugs or medication that could impair your ability to operate the device.
b) Use caution and common sense when operating this unit. A moment's inattention during operation may result in serious personal injury.
c) Use personal protective equipment as required when operating the unit as specified in Section 1 of the explanation of symbols. The use of appropriate, approved personal protective equipment reduces the risk of injury.
d) To prevent accidental start-up, make sure the switch is in the off position before connecting to a power source.
e) Do not overestimate your capabilities. Maintain body balance and equilibrium at all times during operation. This allows for better control of the machine in unexpected situations.
f) Pressurized air can cause serious injuries.
g) Eye, ear, and respiratory protection is recommended.
h) The product is not a toy. Children should be watched to ensure that they do not play with the appliance.
i) Secure the workpiece, especially one of small size, against accidental displacement, e.g. by blocking it with a vice.
j) Working with the device generates dust that may contain harmful substances, use the device in a very well-ventilated room and use a protective mask with a filter.

2.3. Safe use of the device

a) Do not overload the device. Use tools that are suitable for the application. A correctly selected product will do a better and safer job for which it was designed.
b) Disconnect the pressure hose before making any adjustments, changing accessories, or storing the tool. This precaution reduces the risk of accidental start-up.
c) Keep unused equipment out of the reach of children and out of the reach of anyone unfamiliar with the unit or this instruction manual. Products are dangerous when used by inexperienced users.
d) Keep the unit in good working condition. Check before each use for general damage or damage to moving parts (cracks in parts and components or any other condition that may affect the safe operation of the unit). If damaged, have the unit repaired before use.

e) Keep the product out of the reach of children.
f) Repairs and maintenance should be carried out by qualified personnel using only original spare parts. This will ensure the safety of use.
g) To ensure the designed operational integrity of the device, do not remove factory-installed covers or loosen screws.
h) When transporting or moving the device from storage to the place of use, observe the health and safety rules for manual handling applicable in the country where the device is used.
i) Avoid situations where the unit stops mid-operation under heavy load. This can cause overheating of the drive elements and consequent damage to the equipment.
j) Do not touch any moving parts or accessories unless the device is unplugged.
k) Do not carry or hang the unit by the pressure hose.
I) Maintenance and replacement of hoses, nozzles, etc. should be performed only with the compressed air supply disconnected and the tank depressurized.
m) Use air to power the unit, no other gases are allowed.
n) Transport the unit in an upright position.
o) Only sandblasting material designed for sandblasting machines may be used in the device. It is forbidden to use ordinary sand!
p) Whenever the unit is transported or not in use, the pressure in the sand tank should be relieved. The pressure gauge should read 0.
q) Do not exceed the recommended supply pressure as this may damage the unit.
r) Do not exceed the maximum permissible operating pressure of the unit!

CAUTION! Although the product has been designed to be safe and has adequate safeguards and despite the additional safety features provided to the user, there is still a slight risk of accident or injury when handling the product. Caution and common sense are advised when using the product.

3. Instructions for use

The product is intended for spraying liquid material collected in the attached container, e.g. chemicals, preservatives, etc.

The user is responsible for any damage resulting from misuse.

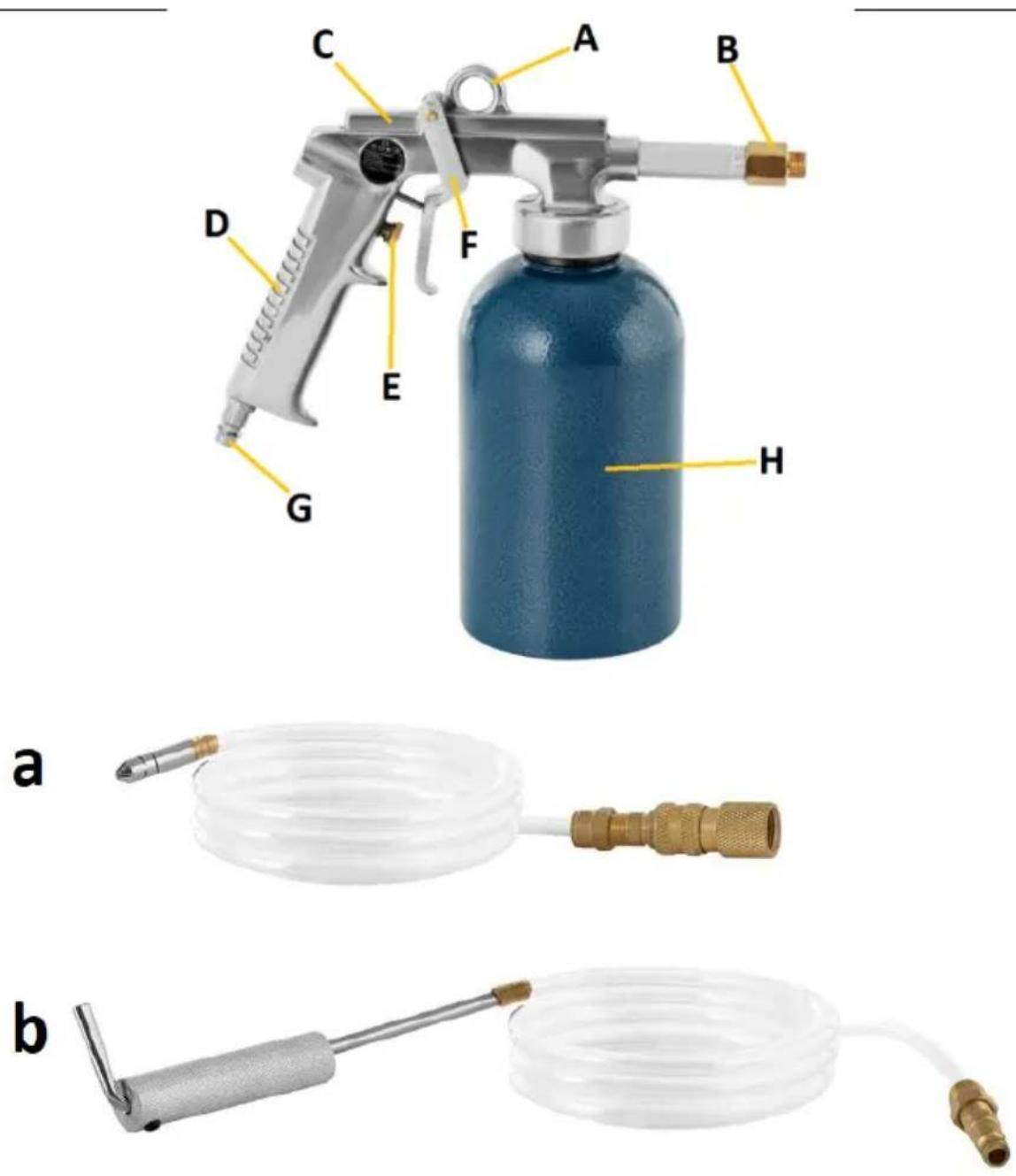

3.1. Product overview

A. Hanging handle
B. End cap/adapter for quick coupler
C. Gun body
D. Handle
E. Flow adjustment knob (stopwatch)
F. Trigger
G. Pneumatic tip (for quick coupler)
H. Spray material container

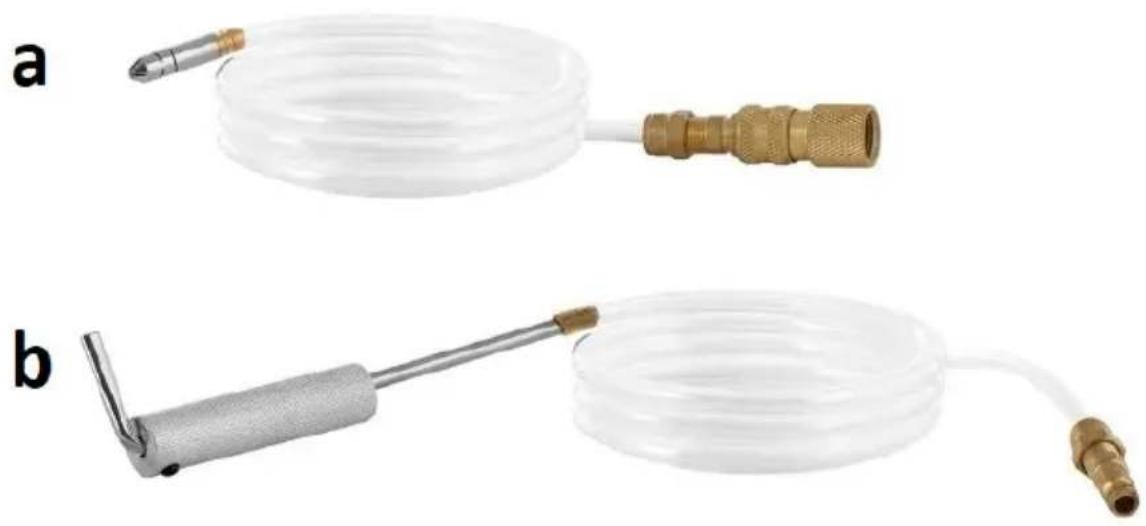

a. Flexible hose with a probe for closed profiles

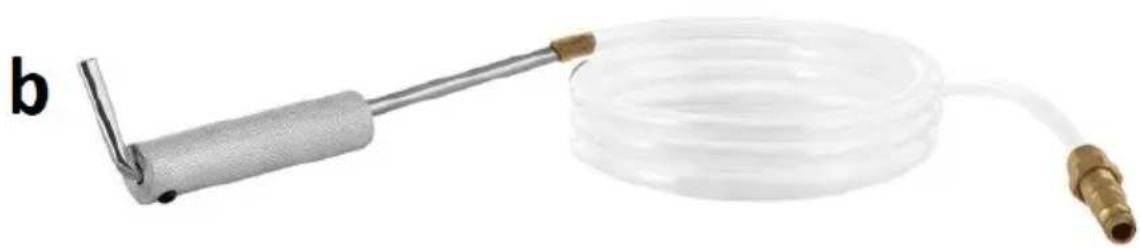

b. Flexible hose with a bent end

3.2. Preparation and use

POSITIONING OF THE UNIT

The ambient temperature must not exceed 45^ C and ambient humidity should not exceed 85%. Use the unit in properly ventilated spaces. Do not block the air outlet of the unit. Keep the unit away from any hot surfaces. Always use the device out of the reach of children, animals and people with limited mental, sensory and intellectual functions. The work area should provide immediate access to the compressed air shut-off valve. Make sure that the pressure of the air supply to the unit does not exceed the recommended range. The air supplied to the device should be cleaned and dried. The minimum diameter of the air supply hose is 10 mm.

ASSEMBLY AND USE

- Attach the device to the pneumatic hose connected to the pneumatic system (during installation, the air supply should be turned off) through the pneumatic tip (G) at the bottom of the handle (D).

IMPORTANT: if the air supply hose is longer than 8 m, the supply pressure must be increased.

- Attach the adapter for the pneumatic quick coupler to the tip and select the appropriate hose with a tip. Check the installation for tightness by unscrewing the compressed air supply and pressing the trigger several times. Then, after releasing the trigger, listen to whether the air is escaping somewhere.

- If the installation is tight, you can unscrew the container (H) from the body (C) and fill it with spraying material. After filling, screw it tightly to the gun body.

- Make a short test spraying, e.g. on a piece of cardboard, to check and, if necessary, adjust the spray using the knob (E) on the handle (D).

- You can start working with the device, but avoid positioning the gun with the container upside down.

3.3. Cleaning and maintenance

a) Always clean the product after using it. After unscrewing the container, blow out the rest of the material collected in the gun by pressing the gun trigger. Likewise, rinse and blow out the used probe. Rinse the container thoroughly to remove material residue.
b) Never leave any unused spraying material in the gun or in the container.
c) After each cleaning, all parts must be thoroughly dried (or blown out with compressed air) before the device is reused.
d) Store the unit in a dry and cool place protected from moisture and direct sunlight.

e) Do not spray the unit with a stream of water or immerse it in water.
f) For cleaning, use a soft cloth and / or a delicate brush and a solvent (e.g. nitro or silicone remover).
g) Do not use sharp and/or metal objects (e.g. wire brush or metal spatula) for cleaning as they may damage the surface of the product material.

A B C D E F G H

Two types of welding torches with metallic fittings and tubing, labeled a and b (no text or symbols on the devices themselves)

A B C D E F G H

Two types of welding torches with metallic fittings and tubing, labeled a and b (no text or symbols on the devices themselves)

A B C D E F G H

A B C D E F G H

Two types of welding torches with metallic fittings and tubing, labeled a and b (no text or symbols on the devices themselves)

A B C D E F G H

Coiled transparent hose with brass connectors, no visible text or symbols

Close-up of a metallic tool with a coiled transparent hose and brass connector (no text or symbols visible)

APPARATETS PLACERING

For the disposal of the device please consider and act according to the national and local rules and regulations.

CONTACT

expondo Polska sp. z o.o. sp. k.
