USER MANUAL S-POWER SYSTEM PSWI 1800 MSW

Diagram of a solar panel installation setup with labeled components A, B, C, D, and E

This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

Technical data

Parameter description	Parameter value
Product name	Mono Solar Module with Pure Sine Wave Inverter
Model	S-POWER SYSTEM PSWI 1800
Rated power [W]	1800
Solar panel power [W]	2 x 155
Output voltage	DC: 12V (3 sockets) / USB: 5V (4 sockets) / AC: 230V (2 sockets)
Battery type	LiFePO4 1400 Wh
Efficiency (at rated conditions) [%]	23
IP protection class	IP63
Ambient temperature during operation	-10°C do +50°C
Inverter dimensions (width x depth x height) [cm]	26x41,5x33
Solar panel dimensions (width x depth x height) [cm]	140x125x25
weight [kg]	38,5

1. General description

The user manual is designed to assist in the safe and trouble-free use of the device. The product is designed and manufactured in accordance with strict technical guidelines, using state-of-the-art technologies and components. Additionally, it is produced in compliance with the most stringent quality standards.

DO NOT USE THE DEVICE UNLESS YOU HAVE THOROUGHLY READ AND UNDERSTOOD THIS USER MANUAL.

To increase the product life of the device and to ensure trouble-free operation, use it in accordance with this user manual and regularly perform maintenance tasks. The technical data and specifications in this user manual are up to date. The manufacturer reserves the right to make changes associated with quality improvement. The device is designed to reduce noise emission risks to a minimum, taking into account technological progress and noise reduction opportunities.

Legend

	The product satisfies the relevant safety standards.
	Read instructions before use.
	The product must be recycled.

WARNING! or CAUTION! or REMEMBER! Applicable to the given situation. (general warning sign)

ATTENTION! Electric shock warning!

PLEASE NOTE! Drawings in this manual are for illustration purposes only and in some details may differ from the actual product.

2. Usage safety

ATTENTION! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in serious injury or even death.

The terms "device" or "product" are used in the warnings and instructions to refer to: Mono Solar Module with Pure Sine Wave Inverter

2.1. Electrical safety

a) The plug must fit the socket. Do not modify the plug in any way. Using original plugs and matching sockets reduces the risk of electric shock.
b) Avoid touching earthed elements such as pipes, heaters, boilers and refrigerators. There is an increased risk of electric shock if the earthed device is exposed to rain, comes into direct contact with a wet surface or is operating in a damp environment. Water getting into the device increases the risk of damage to the device and of electric shock.
c) Do not touch the device with wet or damp hands.
d) Use the cable only for its designated use. Never use it to carry the device or to pull the plug out of a socket. Keep the cable away from heat sources, oil, sharp edges or moving parts. Damaged or tangled cables increase the risk of electric shock.
e) If working with the device outdoors, make sure to use an extension cord suitable for outdoor use. Using an extension cord suitable for outdoor use reduces the risk of electric shock.
f) If using the device in a damp environment cannot be avoided, a residual current device (RCD) should be applied. The use of an RCD reduces the risk of electric shock.
g) Do not use the device if the power cord is damaged or shows obvious signs of wear. A damaged power cord should be replaced by a qualified electrician or the manufacturer's service centre.
h) To avoid electric shock, do not immerse the cord, plug or device in water or other liquids. Do not use the device on wet surfaces.
i) Prevent the device from getting wet. Risk of electric shock!

2.2. Safety in the workplace

a) Make sure the workplace is clean and well lit. A messy or poorly lit workplace may lead to accidents. Try to think ahead, observe what is going on and use common sense when working with the device.
b) If you are unsure about whether the product is operating correctly or if you find damage, please contact the manufacturer's service centre.
c) Only the manufacturer's service centre may make repairs to the product. Do not attempt to make repairs yourself!
d) In case of fire, use a powder or carbon dioxide (CO2) fire extinguisher (one intended for use on live electrical devices) to put it out.
e) Children or unauthorised persons are forbidden to enter a work station. A distraction may result in loss of control over the device.
f) Use the device in a well-ventilated space.
g) Please keep this manual available for future reference. If this device is passed on to a third party, the manual must be passed on with it.
h) Keep packaging elements and small assembly parts in a place not available to children.

i) If this device is used together with another equipment, the remaining instructions for use shall also be followed.

2.3. Personal safety

a) Do not use the device when tired, ill or under the influence of alcohol, narcotics or medication which can significantly impair the ability to operate the device.
b) The device is not designed to be handled by persons (including children) with limited mental and sensory functions or persons lacking relevant experience and/or knowledge unless they are supervised by a person responsible for their safety or they have received instruction on how to operate the device.
c) When working with the device, use common sense and stay alert. Temporary loss of concentration while using the device may lead to serious injuries.
d) To prevent the device from accidentally switching on, make sure the switch is on the OFF position before connecting to a power source.
e) The device is not a toy. Children must be supervised to ensure that they do not play with the device.

2.4. Safe device use

a) Do not overload the device. Use the appropriate tools for the given task. A correctly-selected device will perform the task for which it was designed better and in a safer manner.
b) Do not use the device if the "ON/OFF" switch does not function properly (does not switch the device on and off). Devices which cannot be switched on and off using the "ON/OFF" switch are hazardous, should not be operated and must be repaired.
c) Make sure the plug is disconnected from the socket before attempting any adjustments, accessory replacements or before putting the device aside. Such precautions will reduce the risk of accidentally activating the device.
d) When not in use, store in a safe place, away from children and people not familiar with the device who have not read the user manual. The device may pose a hazard in the hands of inexperienced users.

e) K keep the device in perfect technical condition.

f) Keep the device out of the reach of children.

g) Device repair or maintenance should be carried out by qualified persons, only using original spare parts. This will ensure safe use.

h) To ensure the operational integrity of the device, do not remove factory-fitted guards and do not loosen any screws.

i) When transporting and handling the device between the warehouse and the destination, observe the occupational health and safety principles for manual transport operations which apply in the country where the device will be used.

j) Clean the device regularly to prevent stubborn grime from accumulating.

k) The device is not a toy. Cleaning and maintenance may not be carried out by children without supervision by an adult person.

I) It is forbidden to interfere with the structure of the device in order to change its parameters or construction.

m) Keep the device away from sources of fire and heat.

n) Do not overload the device.

o) Do not cover the ventilation openings!

ATTENTION! Despite the safe design of the device and its protective features, and despite the use of additional elements protecting the operator, there is still a slight risk of accident or injury when using the device. Stay alert and use common sense when using the device.

3. Use guidelines

The device is designed to convert solar energy into electricity, store electricity and power electrical devices.

The user is liable for any damage resulting from unintended use of the device.

3.1. Device description

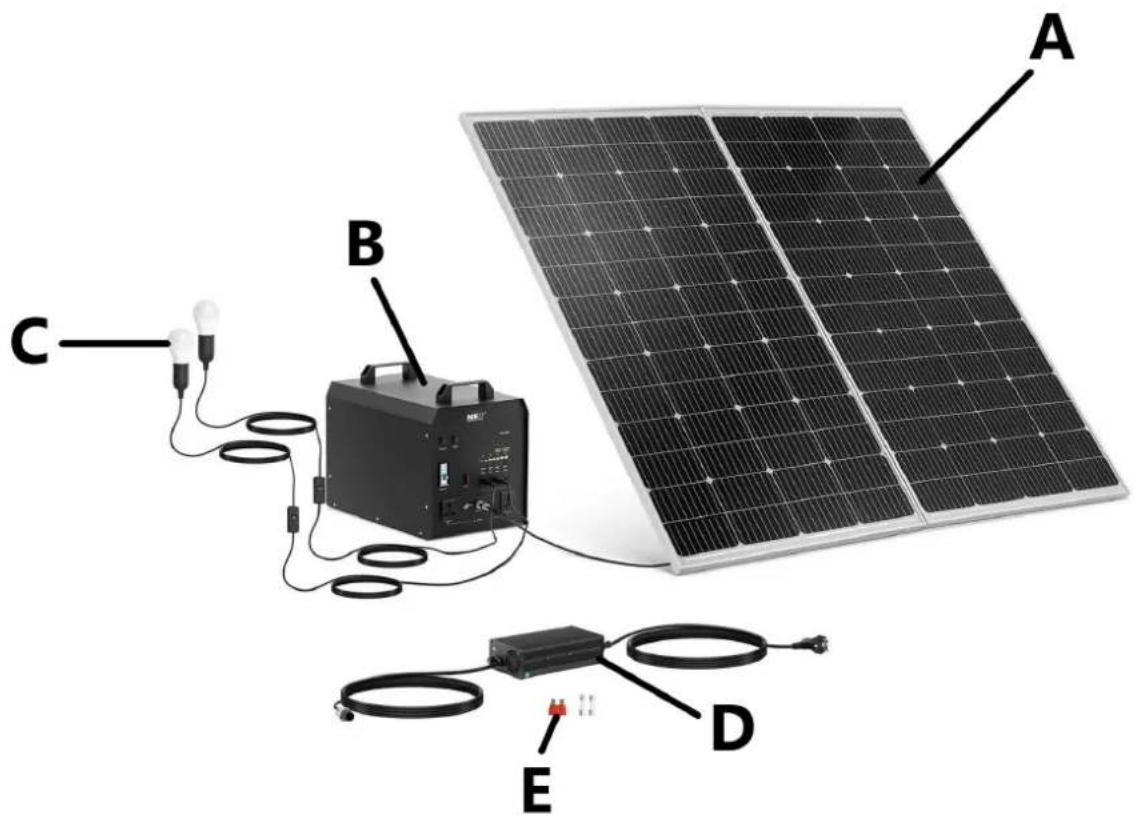

Diagram of a solar panel installation setup with labeled components A, B, C, D, and E

A - Solar panel
B - Solar inverter
C - Lamps
D - Charger
E - Spare fuses

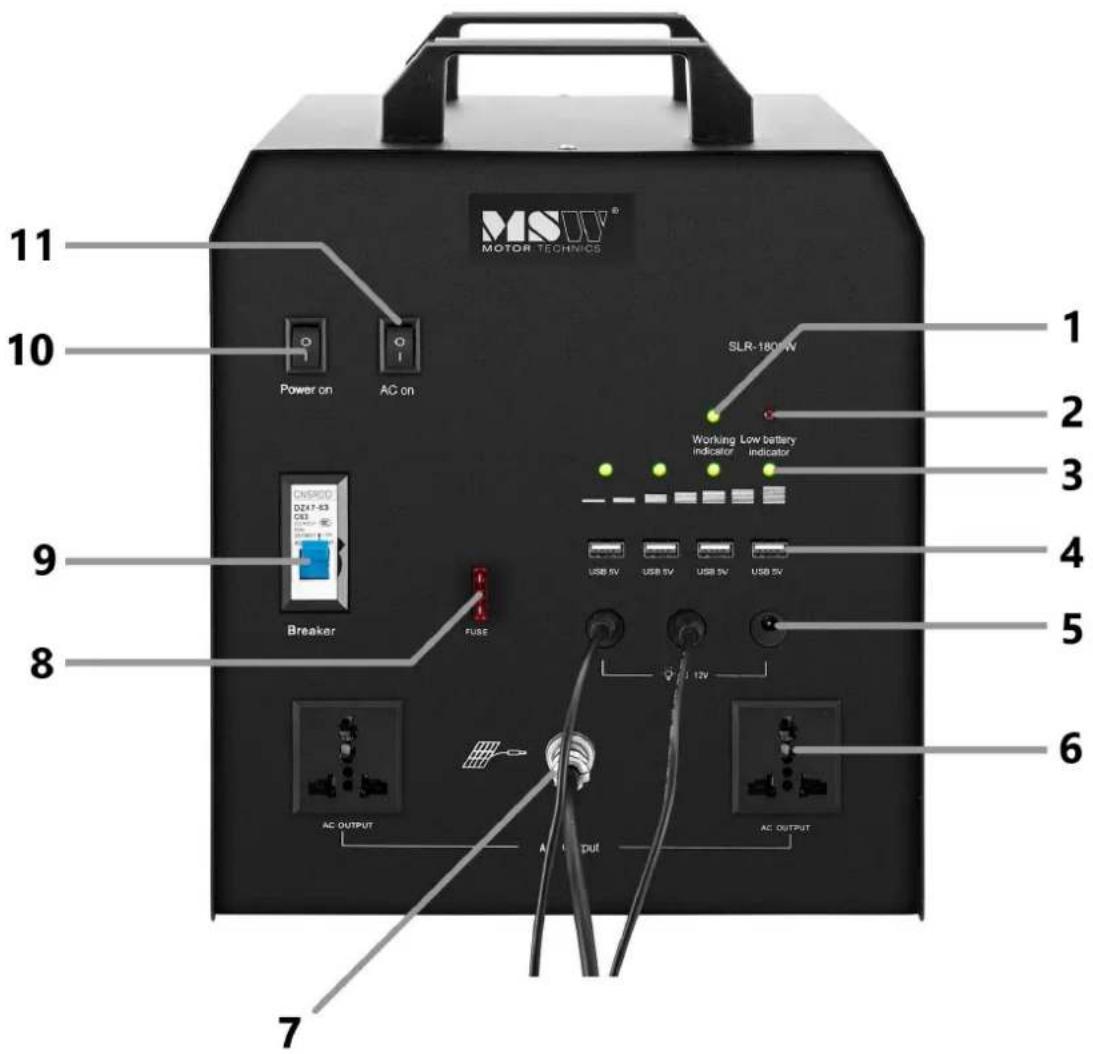

MSUV® MOTOR TECHNICS 11 10 Power on AC on SLR-180kW 2 Working indicator Low battery indicator 3 USB 5V USB 5V USB 5V USB 5V 4 9 Breaker FUSE 12V 5 6 7

1 - Device operation indicator light
2 - Low battery indicator light
3 - Indicator lights to indicate battery status
4 - USB 5V DC sockets
5 - 12V DC sockets
6 - 230V AC sockets
7 - Charging Socket (AC/Solar)
8 - Fuse
9 - Circuit breaker
10 - Power switch
11 - AC Mode Switch

3.2. Preparing for use

Appliance location

The photovoltaic inverter should be placed in a place protected from sunlight and adverse weather conditions such as rain or snow.

Do not use the device in places with high vibrations, impacts, dust, corrosive substances or flammable gases.

The ambient temperature during operation of the device should be in the range of 0 to 40 °C, and the relative humidity in the range of 10% to 90%.

Provide adequate ventilation in the place of use and make sure that the inverter is not exposed to heat from heat sources or fire.

Always use the device on an even, stable, clean, fireproof and dry surface and out of the reach of children and people with reduced mental, sensory and mental capabilities.

When using the mains power supply, the device must be located in such a way that the mains plug can be reached at any time. Make sure that the power supply to the device corresponds to the data on the rating plate!

3.3. Device use

Turning the power on and off

Power button

To turn on the device, set the "Power on" button to the "I" position. To turn off the device, set this "Power on" button to the "O" position.

"AC on" button

Before connecting a device supplied with 230 V AC to the inverter, set the "AC on" button to the "I" position.

To return to power to the DC sockets, turn the "AC on" button to the "O" position.

Battery charging

1) Connect the cable of the solar panel or AC adapter to the charging socket.
2) When charging with solar panel: Place the panel in a sunny place and adjust the angle according to your local latitude. The best operating time for a solar panel is between 10am and 3pm.
3) The battery indicator on the device control panel flashes to indicate that the device is being charged. When the battery is fully charged, all battery level indicator lights will turn on.

System protection

1) When DC overvoltage occurs or a major fault occurs, the fuse may blow and the system will automatically turn off all DC outputs. In this case, replace the 10 A fuse.
2) If the 230V AC output terminal is overloaded during use, the device will automatically activate the overload protection.
3) The system has overcharge and over discharge protection.

3.4. Cleaning and maintenance

a) Before each cleaning and when the device is not in use, pull out the mains plug of the power supply or disconnect the solar panel from the inverter.
b) Use only non-corrosive cleaners to clean the surface.
c) After cleaning the device, all parts should be dried completely before using it again.
d) Store the unit in a dry, cool place, free from moisture and direct exposure to sunlight.
e) Do not spray the device with a water jet or submerge it in water.
f) Make sure that no water gets in through the openings in the housing.
g) The device must be regularly inspected to check its technical efficiency and spot any damage.
h) Use a soft cloth for cleaning.

i) If the device has been exposed to low temperature, drops of water may solidify (inside or outside the casing). In this case, wait until the device is completely dry before using it. Otherwise there is a risk of electric shock.
j) The device will turn off automatically when the battery voltage is too low. Remember to charge the device within 15 days of discharging.
k) Please make sure that the battery level is less than 30% before packing for transport.

I) Please ensure that the device is fully charged before storing it for an extended period of time. Charge the device every 3 months if not in use.

DISPOSING OF USED DEVICES:

Do not dispose of this device in municipal waste systems. Hand it over to an electric and electrical device recycling and collection point. Check the symbol on the product, instruction manual and packaging. The plastics used to construct the device can be recycled in accordance with their markings. By choosing to recycle you are making a significant contribution to the protection of our environment.

Contact local authorities for information on your local recycling facility.

Diagram of a solar panel installation setup with labeled components A, B, C, D, and E

Diagram of a solar panel installation setup with labeled components A, B, C, D, and E

Diagram of a solar panel installation setup with labeled components A, B, C, D, and E

A - Panel solar

B - Inversor solar

C-lámparas

D-cargador

Diagram of a solar panel installation setup with labeled components A, B, C, D, and E

Diagram of a solar panel installation setup with labeled components A, B, C, D, and E

A - Solpanel
B - Solcelleinverter
C - Lamper
D - Oplader
E - Reservesikringer

MSUV® MOTOR TECHNICS 11 10 Power on AC on SLR-180kW 2 Working indicator Low battery indicator 3 USB 5V USB 5V USB 5V USB 5V 4 9 Breaker FUSE 12V 5 6 7

For the disposal of the device please consider and act according to the national and local rules and regulations.
