USER MANUAL S-POWER MP18/160 MSW

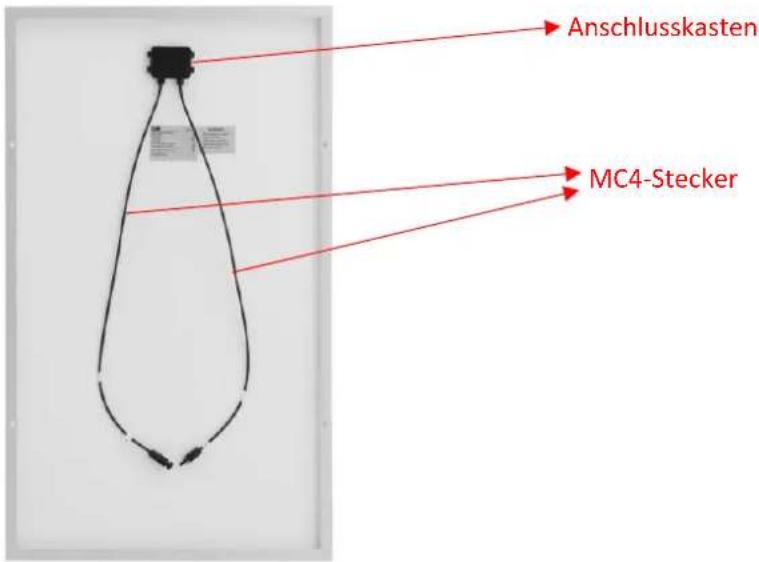

Close-up of a solar panel with visible photovoltaic cells and a small red dot (no text or symbols)

Vorderansicht

Close-up of two black electrical connectors with red cross and plus signs, no visible text or symbols

MC4-Stecker

PV-SY-005

Anschlusskasten

This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

Technical data

Parameter description Parameter value
Product name	Mono solar panel
Model	S-POWER MP18/160
Production year	2023
Solar cell efficiency [%]	23
Open circuit voltage [V]	22.46
Maximum power [W]	160
Voltage at maximum power [V]	18.72
Current at maximum power [A]	8.55
Short circuit current [A]	9.23
Max system voltage	1000V DC
Max overload current [A]	15
Standard test condition (STC)	1000W/m^2 at 25^
Operating temperature	-40 to 85^
Safety application class	Class A
Protection rating IP	IP63
Dimensions [width x depth x height; cm]	73 x 119 x 3
Weight [kg]	8

1. General description

The user manual is designed to assist in the safe and trouble-free use of the device. The product is designed and manufactured in accordance with strict technical guidelines, using state-of-the-art technologies and components. Additionally, it is produced in compliance with the most stringent quality standards.

DO NOT USE THE DEVICE UNLESS YOU HAVE THOROUGHLY READ AND UNDERSTOOD THIS USER MANUAL.

To increase the product life of the device and to ensure trouble-free operation, use it in accordance with this user manual and regularly perform maintenance tasks. The technical data and specifications in this user manual are up to date. The manufacturer reserves the right to make changes associated with quality improvement. The device is designed to reduce noise emission risks to a minimum, taking into account technological progress and noise reduction opportunities.

Legend

CE	The product satisfies the relevant safety standards.
	Read instructions before use.
	The product must be recycled.
	WARNING! or CAUTION! or REMEMBER! Applicable to the given situation.(general warning sign)
	Read the instructions.
	ATTENTION! Electric shock warning!
	ATTENTION! Hand crush hazard!
	ATTENTION! Suspended weight!
	ATTENTION! Hot surface, risk of burns!
	Class II protection device with double insulation.

PLEASE NOTE! Drawings in this manual are for illustration purposes only and in some details may differ from the actual product.

2. Usage safety

ATTENTION!

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury or even death.

The terms "device" or "product" are used in the warnings and instructions to refer to: Mono solar panel

2.1. Electrical safety

a) The plug must fit the socket. Do not modify the plug in any way. Using original plugs and matching sockets reduces the risk of electric shock.
b) Avoid touching earthed elements such as pipes, heaters, boilers and refrigerators. There is an increased risk of electric shock if the earthed device is exposed to rain, comes into direct contact with a wet surface or is operating in a damp environment. Water getting into the device increases the risk of damage to the device and of electric shock.
c) Do not touch the device with wet or damp hands.
d) Use the cable only for its designated use. Never use it to carry the device or to pull the plug out of a socket. Keep the cable away from heat sources, oil, sharp edges or moving parts. Damaged or tangled cables increase the risk of electric shock.
e) If working with the device outdoors, make sure to use an extension cord suitable for outdoor use. Using an extension cord suitable for outdoor use reduces the risk of electric shock.
f) If using the device in a damp environment cannot be avoided, a residual current device (RCD) should be applied. The use of an RCD reduces the risk of electric shock.
g) Do not use the device if the power cord is damaged or shows obvious signs of wear. A damaged power cord should be replaced by a qualified electrician or the manufacturer's service centre.
h) To avoid electric shock, do not immerse the cord, plug or device in water or other liquids. Do not use the device on wet surfaces.
i) ATTENTION! DANGER TO LIFE! While cleaning, never immerse the device in water or other liquids.
j) Do not use in very humid environments or in the direct vicinity of water tanks.
k) Prevent the device from getting wet. Risk of electric shock!

2.2. Safety in the workplace

a) Make sure the workplace is clean and well lit. A messy or poorly lit workplace may lead to accidents. Try to think ahead, observe what is going on and use common sense when working with the device.
b) Do not use the device in a potentially explosive environment, for example in the presence of flammable liquids, gases or dust. The device generates sparks which may ignite dust or fumes.
c) If you discover damage or irregular operation, immediately switch the device off and report it to a supervisor without delay.
d) If you are unsure about whether the product is operating correctly or if you find damage, please contact the manufacturer's service centre.
e) Only the manufacturer's service centre may make repairs to the product. Do not attempt to make repairs yourself!
f) If you are unsure about whether the product is operating correctly or if you find damage, please contact the manufacturer's service centre.
g) Only the manufacturer's service centre may make repairs to the product. Do not attempt to make repairs yourself!
h) In case of fire, use a powder or carbon dioxide (CO _2 ) fire extinguisher (one intended for use on live electrical devices) to put it out.
i) Children or unauthorised persons are forbidden to enter a work station. A distraction may result in loss of control over the device.
j) Use the product in a well-ventilated space.
k) Regularly inspect the condition of the safety labels. If the labels are illegible, they must be replaced.
I) Please keep this manual available for future reference. If this product is passed on to a third party, the manual must be passed on with it.
m) Keep packaging elements and small assembly parts in a place not available to children.
n) Keep the device away from children and animals.
o) If this device is used together with another equipment, the remaining instructions for use shall also be followed.

Remember! When using the device, protect children and other bystanders.

2.3. Personal safety

a) Do not use the device when tired, ill or under the influence of alcohol, narcotics or medication which can significantly impair the ability to operate the device.
b) The machine may be operated by physically fit persons who are able to handle the machine, are properly trained, who have reviewed this operating manual and have received training in occupational health and safety.
c) The product is not designed to be handled by persons (including children) with limited mental and sensory functions or persons lacking relevant experience and/or knowledge unless they are supervised by a person responsible for their safety or they have received instruction on how to operate the product.
d) The device can be handled only by physically fit persons who are capable of handling it, properly trained, familiar with this manual and trained within the scope of occupational health and safety.
e) When working with the device, use common sense and stay alert. Temporary loss of concentration while using the device may lead to serious injuries.
f) Use personal protective equipment as required for working with the device, specified in section 1 "Legend". The use of correct and approved personal protective equipment reduces the risk of injury.
g) To prevent the device from accidentally switching on, make sure the switch is on the OFF position before connecting to a power source.
h) Do not overestimate your abilities. When using the device, keep your balance and remain stable at all times. This will ensure better control over the device in unexpected situations.
i) Remove all adjusting tools or spanners before turning the device on. A tool or spanner left in the revolving part of the device may cause injury.
j) The device is not a toy. Children must be supervised to ensure that they do not play with the device.
k) Do not put your hands or other items inside the device while it is in use!

2.4. Safe device use

a) Do not overload the device. Use the appropriate tools for the given task. A correctly-selected device will perform the task for which it was designed better and in a safer manner.
b) Do not use the device if the "ON/OFF" switch does not function properly (does not switch the device on and off). Devices which cannot be switched on and off using the "ON/OFF" switch are hazardous, should not be operated and must be repaired.
c) Make sure the plug is disconnected from the socket before attempting any adjustments, accessory replacements or before putting the device aside. Such precautions will reduce the risk of accidentally activating the device.
d) Disconnect the device from the power supply before commencement of adjustment, cleaning and maintenance. Such a preventive measure reduces the risk of accidental activation.
e) When not in use, store in a safe place, away from children and people not familiar with the device who have not read the user manual. The device may pose a hazard in the hands of inexperienced users.
f) Keep the device in perfect technical condition. Before each use check for general damage, especially check moving components for cracked parts or elements, and for any other conditions which may impact the safe operation of the device. If damage is discovered, hand over the device for repair before use.
g) Keep the device out of the reach of children.
h) Device repair or maintenance should be carried out by qualified persons, only using original spare parts. This will ensure safe use.
i) To ensure the operational integrity of the device, do not remove factory-fitted guards and do not loosen any screws.
j) When transporting and handling the device between the warehouse and the destination, observe the occupational health and safety principles for manual transport operations which apply in the country where the device will be used.
k) Avoid situations where the device stops working during use due to excessive loading. This may result in overheating of the drive elements and damage to the device.
I) Do not touch articulated parts or accessories unless the device has been disconnected from the power source.
m) Do not move, adjust or rotate the device in the course of work.
n) Do not leave this appliance unattended while it is in use.
o) Clean the device regularly to prevent stubborn grime from accumulating.
p) Do not work on two workpieces at the same time.
q) Do not carry or hang the device by the pressure line.
r) Do not touch any moving parts or accessories unless the device has been disconnected from the compressed air supply.
s) The device is not a toy. Cleaning and maintenance may not be carried out by children without supervision by an adult person.
t) It is forbidden to interfere with the structure of the device in order to change its parameters or construction.
u) Keep the device away from sources of fire and heat.
v) Do not overload the device.

ATTENTION! Despite the safe design of the device and its protective features, and despite the use of additional elements protecting the operator, there is still a slight risk of accident or injury when using the device. Stay alert and use common sense when using the device.

3. Use guidelines

The monocrystalline solar panel is designed for efficient and clean power generation. It works with common inverters (not provided).

The product is intended for home use only!

The user is liable for any damage resulting from unintended use of the device.

3.1. Device description

This device is a monocrystalline solar panel designed to convert sunlight into electricity with an output of 160W and an energy efficiency of 23%, featuring a bypass diode to optimize performance.

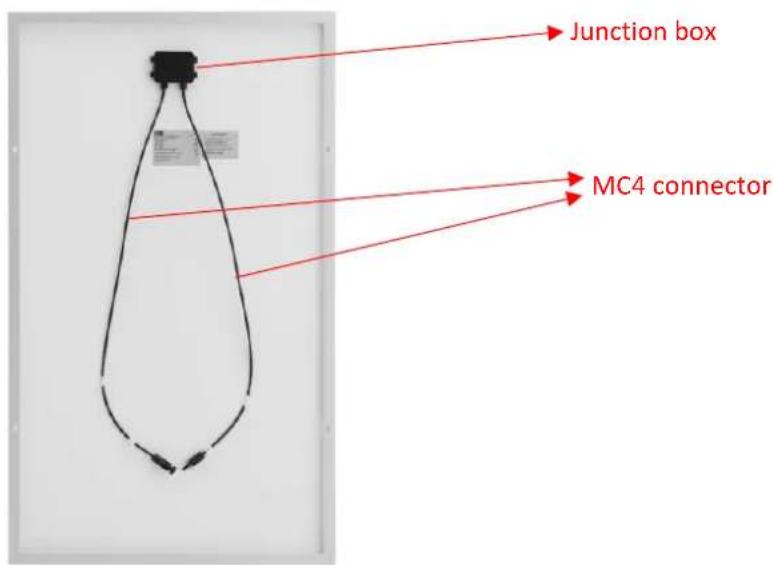

Close-up of a solar panel with visible photovoltaic cells and a small red indicator (no text or symbols)

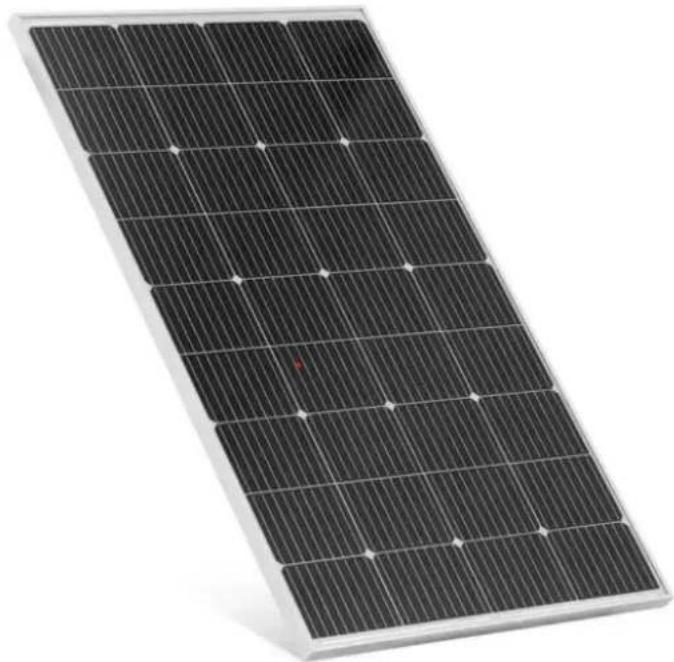

Front view

Junction box MC4 connector

Rear view

MC4 connectors PV-SY-005

Junction box

3.2. Preparing for use

• Ensure you have the appropriate tools for installation, such as wrenches, screwdrivers, etc.
• Choose a location with no obstructions for installing the solar panel.
  • Install in accordance with local regulations and building codes.

3.3. Assembling the device

1. Place the panel steadily at the location you have chosen.
2. Connect the MC4 connectors to the junction box on the back of the panel. Pay attention to the polarity.

3.4. Device use

Connect the MC4 connectors to the inverter or charge controller, battery storage, or DC appliances. You may need to have a professional electrician to help you complete the connection.

After the connection is complete, inspect all connections for security and ensure that there are no exposed wires.

3.5. Cleaning and maintenance

a) Unplug the mains plug and allow the device to cool completely before each cleaning, adjustment or replacement of accessories, or if the device is not being used.
• Wait for the rotating elements to stop.
b) Always unplug the device before cleaning or putting it away.
c) Use only non-corrosive cleaners to clean the surface.
d) Use only mild, food-safe detergents to wash the device.
e) After cleaning the device, all parts should be dried completely before using it again.
f) Store the unit in a dry, cool place, free from moisture and direct exposure to sunlight.
g) Do not spray the device with a water jet or submerge it in water.
h) Do not allow water to get inside the device through vents in the housing of the device.
i) Clean the vents with a brush and compressed air.
j) The device must be regularly inspected to check its technical efficiency and spot any damage.
k) Use a soft cloth for cleaning.
I) Use a soft, damp cloth for cleaning.
m) Do not use sharp and/or metal objects for cleaning (e.g. a wire brush or a metal spatula) because they may damage the surface material of the appliance.
n) Do not clean the device with an acidic substance, agents of medical purposes, thinners, fuel, oils or other chemical substances because it may damage the device.

DISPOSING OF USED DEVICES:

Do not dispose of this device in municipal waste systems. Hand it over to an electric and electrical device recycling and collection point. Check the symbol on the product, instruction manual and packaging. The plastics used to construct the device can be recycled in accordance with their markings. By choosing to recycle you are making a significant contribution to the protection of our environment.

Contact local authorities for information on your local recycling facility.

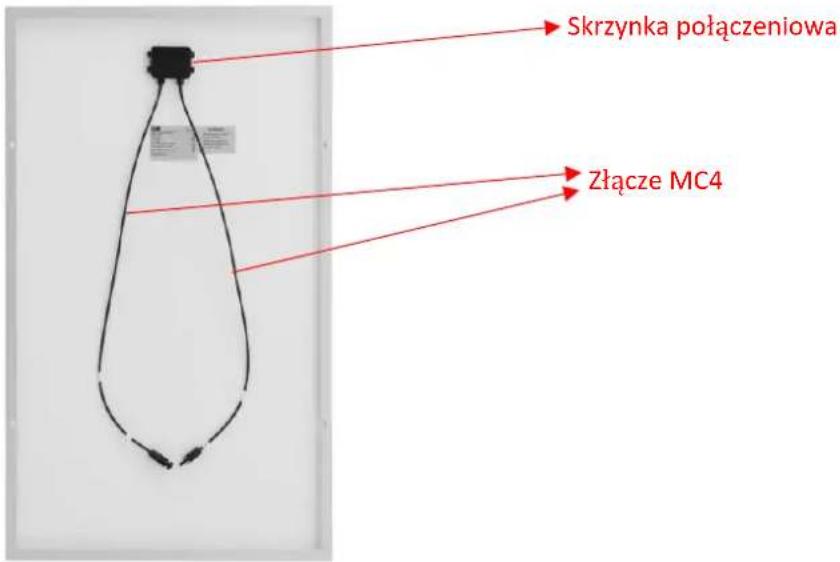

Close-up of a solar panel with visible photovoltaic cells and a small red indicator point (no text or symbols)

Widok od przodu

Close-up of two black electrical connectors with red cross and plus signs, no visible text or symbols

Złącza MC4

PV-SY-005

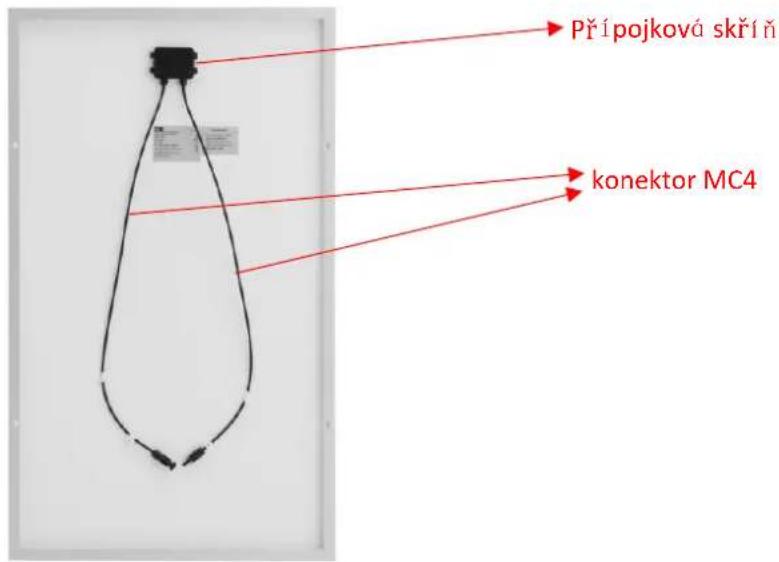

Close-up of a solar panel with visible photovoltaic cells and a small red marker (no text or symbols)

Pohled zepředu

Close-up of a solar panel with visible photovoltaic cells and a small red indicator point (no text or symbols)

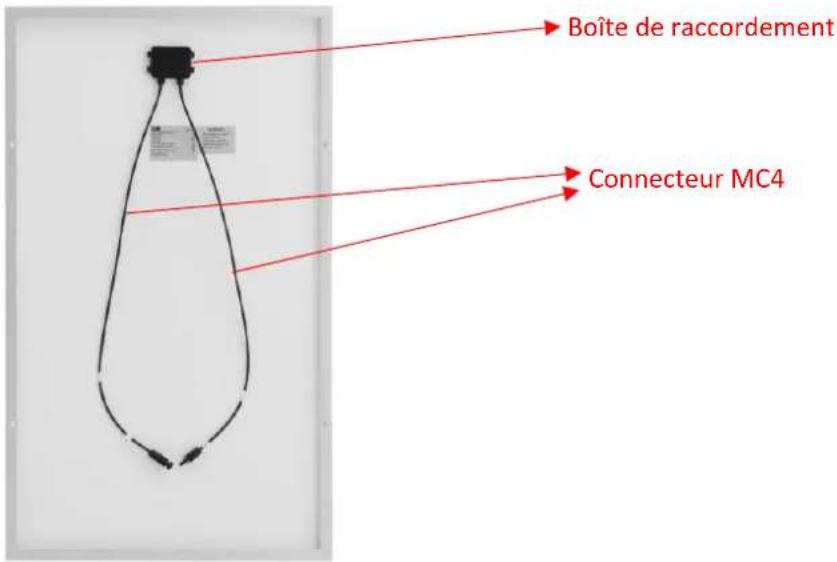

Vue de face

Close-up of two black electrical connectors with red cross and plus signs, no visible text or symbols

Connecteurs MC4

PV-SY-005

Close-up of a solar panel with visible photovoltaic cells and a small red indicator (no text or symbols)

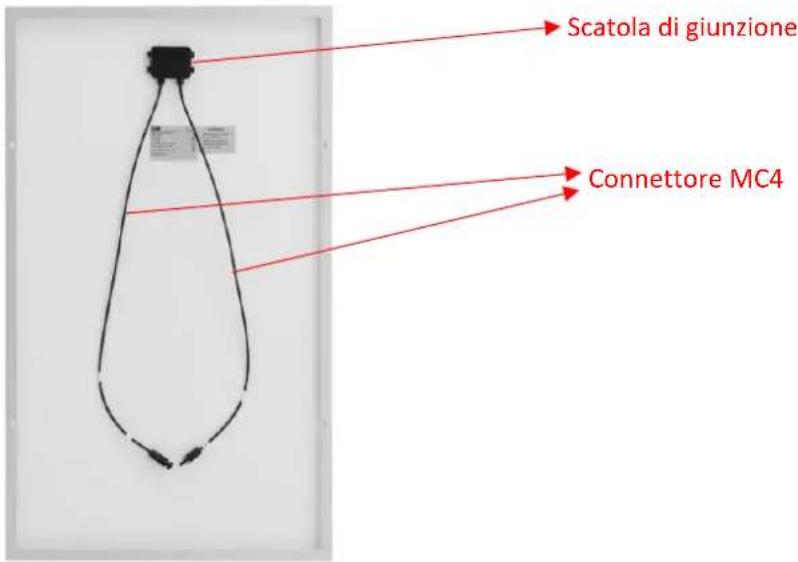

Vista frontale

Close-up of two black electrical connectors with red cross and plus signs, no visible text or symbols

connettori MC4

PV-SY-005

Close-up of a solar panel with visible photovoltaic cells and a small red indicator (no text or symbols)

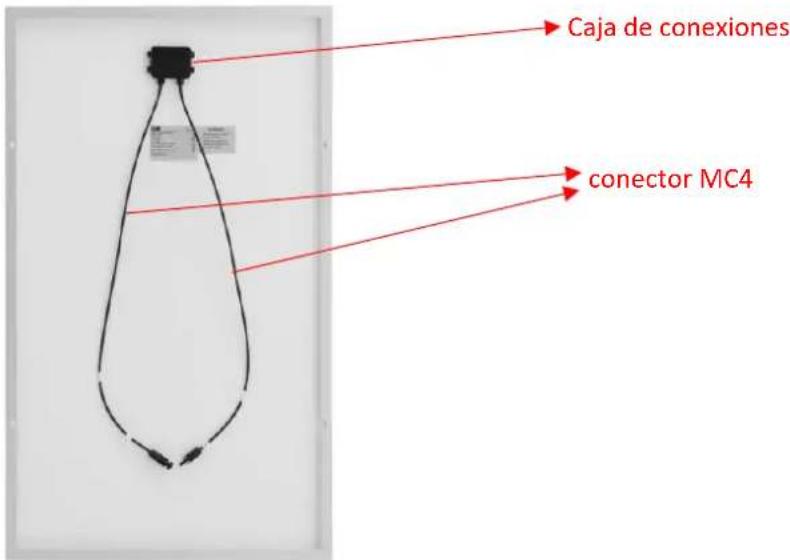

Vista frontal

Caja de conexiones conector MC4

Vista trasera

Close-up of two black plastic electrical connectors with red cross and plus signs, no visible text or symbols

Conectores MC4

PV-SY-005

Caja de conexiones

Close-up of a solar panel with visible photovoltaic cells and a small red indicator light (no text or symbols)

Elölnézet

Csatlakozó ház

MC4 csatlakozó

Hátsó nézet

MC4 csatlakozók

Csatlakozóház

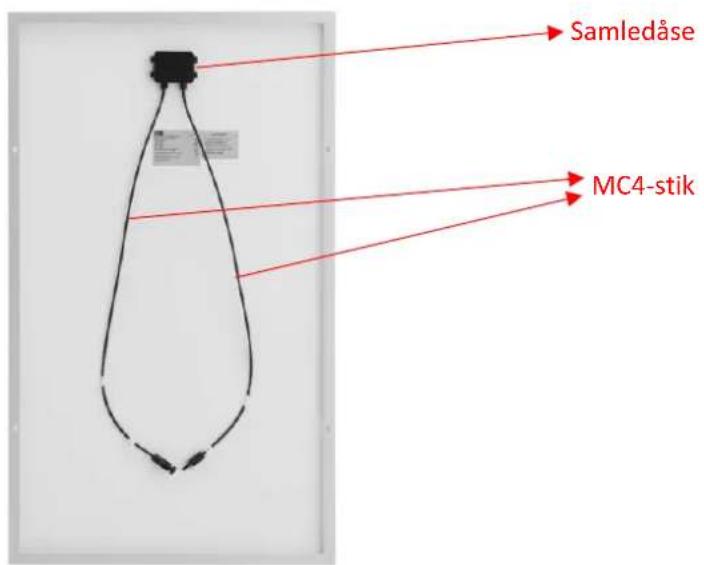

Close-up of a solar panel with visible photovoltaic cells and a small red indicator (no text or symbols)

Udsigt forfra

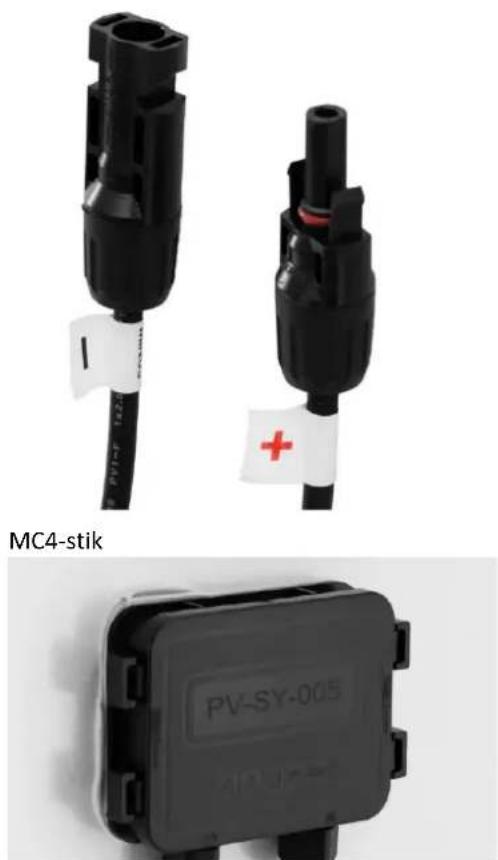

Samledåse MC4-stik

Set bagfra

MC4-stik PV-SY-005

Samledåse

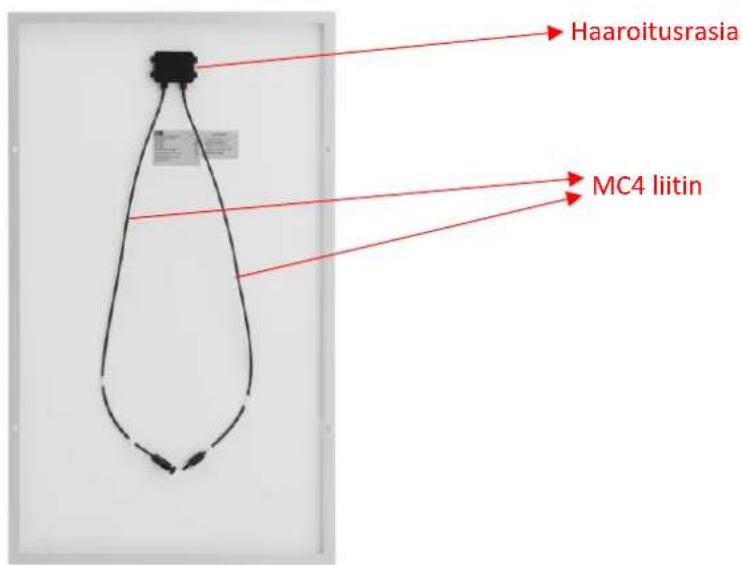

Close-up of a solar panel with visible photovoltaic cells and a small red indicator (no text or symbols)

Etunäkymä

Close-up of a solar panel with visible photovoltaic cells and a small red indicator (no text or symbols)

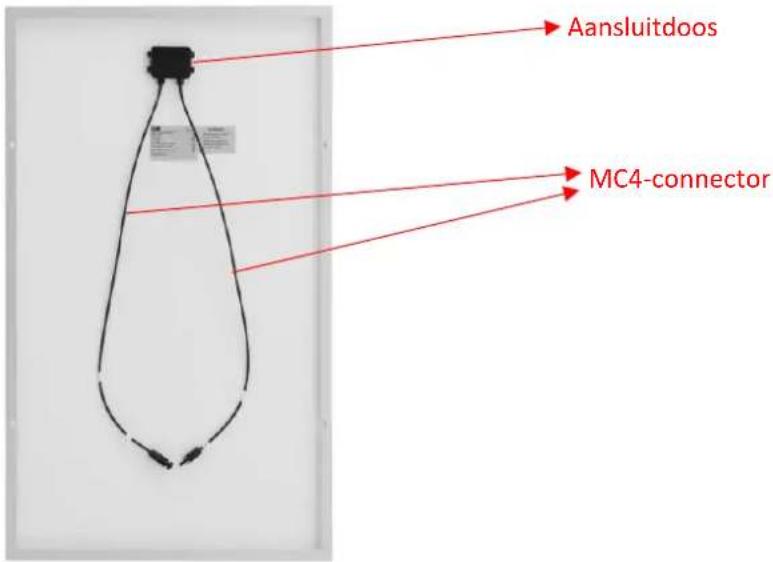

Vooraanzicht

Aansluitdoos MC4-connector

Achteraanzicht

Close-up of two black electrical connectors with red cross and plus signs, no visible text or symbols

MC4-connectoren

PV-SY-005

Aansluitdoos

Close-up of a solar panel with visible photovoltaic cells and a small red indicator (no text or symbols)

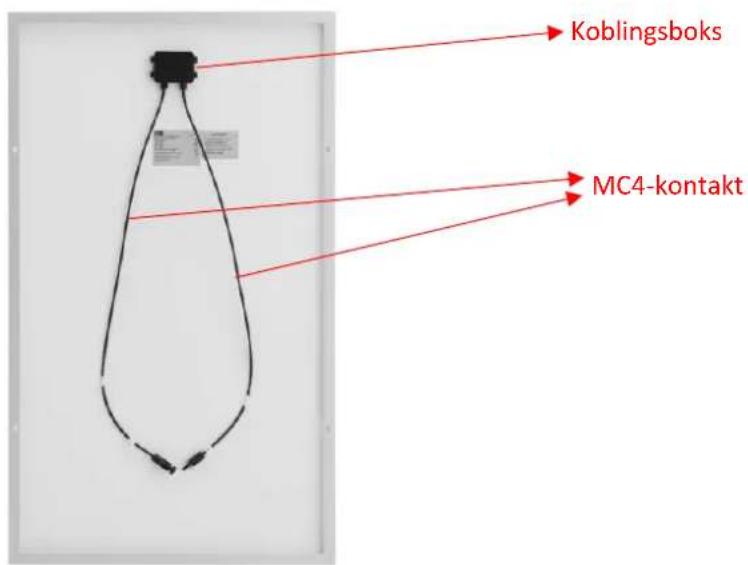

Forfra

Koblingsboks MC4-kontakt

Utsikt bakover

MC4-kontakter PV-SY-005

Koblingsboks

Close-up of a solar panel with visible photovoltaic cells and a small red indicator point (no text or symbols)

Vy framifrån

Kopplingsdosa MC4-kontakt

Bakåtsikt

Close-up of two black electrical connectors with red cross and plus signs, no visible text or symbols

MC4-kontakter

PV-SY-005

Kopplingsdosa

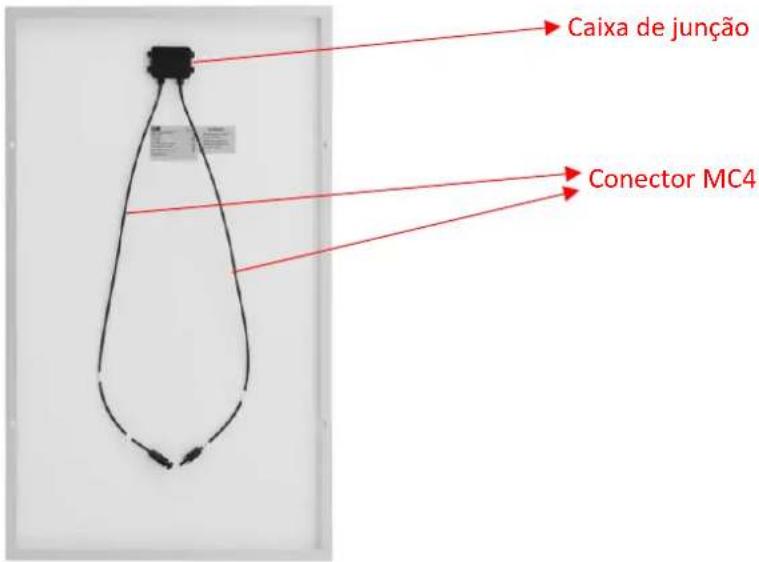

Close-up of a solar panel with visible photovoltaic cells and a small red indicator (no text or symbols)

Vista frontal

Close-up of two black electrical connectors with red cross and plus signs, no visible text or symbols

Conectores MC4

PV-SY-005

Caixa de junção

Close-up of a solar panel with visible photovoltaic cells and a small red indicator (no text or symbols)

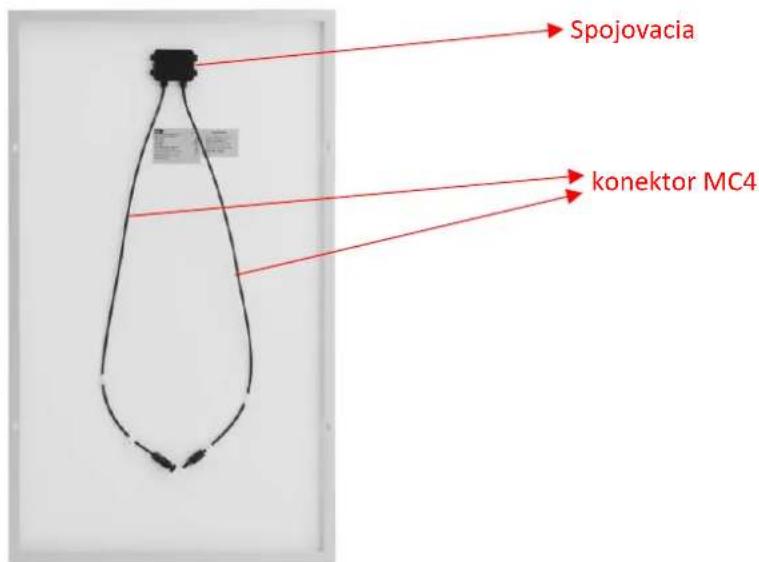

Pohl'ad spredu

Spojovacia konektor MC4

Zadný pohl'ad

Konektory MC4 PV-SY-005

Spojovacia skrinka

For the disposal of the device please consider and act according to the national and local rules and regulations.
