USER MANUAL GW-120EE MSW

Close-up of a yellow plastic tool's black and white button with 'O' and 'I' labels (no additional text or symbols)

2 - Gravierspitze

Close-up of a yellow and black mechanical component with a circular hole (no visible text or symbols)

This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

Technical data

Parameter description	Parameter value
Product name	Electric engraver
Model	MSW-GW-120EE
Supply voltage [V~] / frequency [Hz]	230/50
Rated power [W]	15
Safety class	II
Mode of operation	S2-5min
Rotational speed [RPM]	7100
Dimensions (width x depth x height) [mm]	160 x 100 x 50
Weight [kg]	0.4

1. General Description

The manual is intended to assist in safe and reliable use. The product is designed and manufactured strictly according to technical specifications using the latest technology and components and maintaining the highest quality standards.

CAREFULLY READ AND UNDERSTAND THIS MANUAL BEFORE STARTING THE WORK.

To ensure the long and reliable operation of the device, make sure to operate and maintain it properly following the guidelines in this instruction manual. The technical data and specifications in this manual are up-to-date. The manufacturer reserves the right to make changes to improve the quality. Taking the technical progress and the possibility of reducing noise into account, the unit is designed and built in such a way that risks resulting from noise emissions are reduced to the lowest possible level.

Explanation of symbols

CE !

The product complies with applicable safety standards.

Read the manual before use.

Recyclable product.

CAUTION! or WARNING! or REMEMBER! describing a given situation (general warning sign).

Wear protective goggles.

Wear protective gloves.

Wear protective footwear.

CAUTION! Risk of electric shock!

CAUTION! Danger of fire - flammable material!

Safety class II equipment with double insulation.

Caution! Hot surface can cause burns!

CAUTION! The figures in this manual are illustrative only and may vary in some details from the actual appearance of the product.

2. Safety of use

CAUTION! Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury or death.

The term "device" or "product" in the warnings and the description of the instructions refers to Electric engraver

2.1. Electrical safety

a) The plug of this device must fit into the outlet. Do not modify the plug in any way. Original plugs and matching outlets reduce the risk of electric shock.
b) Do not touch the device with wet or damp hands.
c) Do not use the cord in an unintended manner. Never use it to carry the device or to pull the plug out of the socket. Keep the cord away from heat sources, oil, sharp edges, or moving parts. Damaged or tangled cords increase the risk of electric shock.
d) Do not use the unit if the power cord is damaged or shows signs of wear. A damaged power cord should be replaced by a qualified electrician or the manufacturer's service department.
e) To avoid electric shock, do not immerse the cable, plug, or the device itself in water or other liquid. Do not use the appliance on wet surfaces.
f) CAUTION - DANGER TO LIFE! When cleaning or using the appliance, never immerse it in water or other liquids.
g) Do not use the appliance in rooms with very high humidity / in the immediate vicinity of water tanks!
h) Do not allow the machine to get wet. Risk of electric shock!

2.2. Safety in the workplace

a) Keep the work area tidy and well-lit. Disorder or poor lighting can lead to accidents. Be foresighted, watch what you are doing, and use common sense when using the unit.

b) Do not use the unit in an explosive area, for example in the presence of flammable liquids, gases or dust. The unit produces sparks that can ignite dust or fumes.

c) If you find any damage or irregularities in the operation of the unit, immediately turn it off and report it to an authorized person.

d) If in doubt as to whether the product is working properly or found to be damaged, contact the manufacturer's technical service.

e) Only the manufacturer's service department may repair the appliance. Do not carry out repairs yourself!

f) If you have any doubts as to whether the product is working properly or if it is damaged, contact the manufacturer's service department.

g) Repairs to the device may only be carried out by the manufacturer's service. Do not attempt to repair the product on your own!
h) Keep this manual for future reference. If the product is to be handed over to a third party, hand it over with this user manual.
i) Keep the device away from children and animals.

Remember! Keep children and other bystanders safe while operating the appliance.

2.3. Personal safety

a) Do not operate this device if you are tired, ill, or under the influence of alcohol, drugs, or medication that could impair your ability to operate the device.
b) The unit may be operated by persons who are physically fit, capable of operating it, and appropriately trained, and who have read this instruction manual and have been trained in occupational safety and health.
c) The device is not intended to be used by persons (including children) with reduced mental, sensory, or intellectual functions or persons who lack experience and/or knowledge unless they are supervised or have been instructed by a person responsible for their safety on how to operate the device.
d) The unit may be operated by persons who are physically fit, capable of operating it, and appropriately trained, and who have read this instruction manual and have been trained in occupational safety and health.
e) Use caution and common sense when operating this unit. A moment's inattention during the operation may result in serious personal injury.
f) Do not overestimate your capabilities. Maintain body balance and equilibrium at all times during operation. This allows for better control of the machine in unexpected situations.
g) The product is not a toy. Children should be watched to ensure that they do not play with the product.
h) Do not place your hands or any objects inside the running device!

2.4. Safe use of the device

a) Do not overload the device. Use tools that are suitable for the application. A correctly selected product will do a better and safer job for which it was designed.
b) Do not use the device if the ON/OFF switch does not function properly (does not turn on and off). Units that cannot be controlled by the switch are unsafe, cannot operate, and must be repaired.
c) Unplug the unit before making adjustments, changing accessories, or putting it away. This precaution reduces the risk of accidental start-up.
d) Disconnect the device from the power supply before adjusting, cleaning, or servicing. This precaution reduces the risk of accidental start-up.
e) Keep unused product out of the reach of children and anyone unfamiliar with the device or this manual. Products are dangerous when used by inexperienced users.
f) Keep the product out of the reach of children.
g) Repairs and maintenance should be carried out by qualified personnel using only original spare parts. This will ensure the safety of use.
h) To ensure the designed operational integrity of the device, do not remove factory-installed covers or loosen screws.
i) Do not leave the device switched on unattended.
j) Clean the device regularly to prevent permanent dirt build-up.
k) The product is not a toy. Cleaning and maintenance must not be performed by children without adult supervision.
I) Do not tamper with the device to alter its performance or design.
m) Keep the unit away from sources of fire and heat.
n) Do not overload the device.

CAUTION! Although the product has been designed to be safe, with adequate safeguards, and despite the additional safety features provided to the user, there is still a slight risk of accident or injury when handling the unit. Caution and common sense are advised when using the product.

3. Instructions for use

An engraver is a device designed for engraving on glass, metal, wood or plastic.

The product is intended for home use only!

The user is responsible for any damage resulting from misuse.

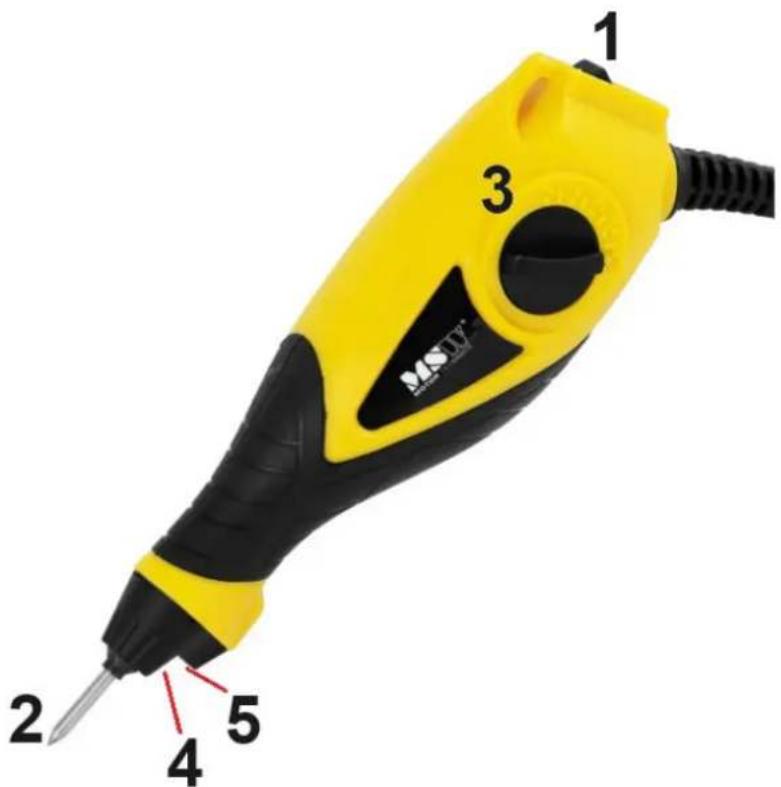

3.1. Product overview

1 3 2 4 5 MSTV

1 - Main switch:

Close-up of a yellow plastic door with a black key and white letter 'O' on the left (no additional text or symbols)

2 - Engraving tip

3 - Stroke adjustment knob:

Close-up of a yellow and black mechanical component with a circular hole (no visible text or symbols)

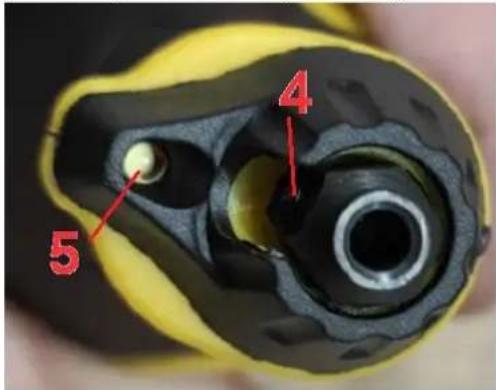

4 - Tip release screw / 5 - LED light:

4 5

3.2. Preparation for operation

POSITIONING OF THE UNIT

The ambient temperature must not exceed 40^ C and ambient humidity should not exceed 85%. Place the unit in a way that ensures good air circulation. Maintain a minimum clearance of 10 cm from any wall of the unit. Keep the unit away from any hot surfaces. Always operate the unit on a level, stable, clean, fireproof, and dry surface and out of the reach of children and persons with impaired mental, sensory, and intellectual functions. Place the unit in such a way that the main plug can be reached at any time. Ensure that the power supply to the unit corresponds to that specified on the identification plate!

3.3. Working with the unit

Do not apply too much pressure when engraving.

WARNING! The use of accessories or attachments other than those recommended in this manual may present a risk of personal injury. To use this tool correctly, the safety regulations, installation instructions and operating instructions contained in this manual must be followed. All persons using and servicing the device must read this manual and be informed of potential dangers. Children and minors are not allowed to use this tool. Children should be supervised at all times if they are in the area where the tool is being used. It is also necessary to comply with the accident prevention regulations in force in your region. The same applies to general health and safety rules.

The manufacturer is not responsible for any changes made to the tool or for any damage resulting from such changes.

Even if the tool is used as intended, it is not possible to eliminate all remaining risk factors. Due to the design and construction of the tool, the following hazards may occur:

• Injury to the lungs if an effective dust mask is not worn.
• Hearing damage if effective ear muffs are not worn.
• Eye damage if safety glasses are not worn.
- Risk of injury if hands are not kept away from the cutting tools.

3.3.1. Installing the engraving tip

WARNING! Before performing any adjustment or maintenance activities, disconnect the device from the power source.

a) Loosen the tip release screw (4) by turning it counterclockwise with a flathead screwdriver.
b) To install a new engraving tip (2), insert the tip through the center of the engraving machine hole, making sure that the tip is fully inserted into the housing. The new tip should protrude approximately 8.5 mm from the end of the housing.
c) Tighten the tip release screw (4) fully by turning it clockwise.

3.3.2. Operation

WARNING! Always wear safety glasses when using this tool.

a) Before using the machine, make sure that the engraving tip is installed.
b) Connect the appliance plug to the power supply and, holding firmly, press the main on/off switch (1) with your thumb.

CAUTION! To turn on the tool, press the main switch (1) upwards to position (I). To turn off the tool, press the main switch (1) down to position (O).

Hold the device at an angle, just like holding a pen. Do not press hard when engraving, use light pressure while guiding the tip over the work in progress.

3.3.3. Adjusting the depth of engraving

a) The stroke adjustment knob (3) on the side of the machine controls the stroke length and the engraving depth.
b) To obtain a precise mark, turn the stroke adjustment knob (3) counterclockwise to the "1" position.
c) To obtain a deeper, thicker mark, turn the stroke adjustment knob (3) clockwise to the "5" position.
d) CAUTION! Before starting work, it is recommended to practice the engraving settings on the item intended for trash.

3.4. Cleaning and maintenance

a) Pull the mains plug and let the unit cool down completely before cleaning, adjusting or replacing accessories and when the unit is not in use.
- Wait until the rotating parts stop.
b) Use only non-corrosive cleaning agents for cleaning the surfaces.
c) Store the unit in a dry and cool place protected from moisture and direct sunlight.
d) Do not spray the unit with a stream of water or immerse it in water.
e) Make sure that no water enters through the ventilation openings in the casing.
f) Clean the ventilation openings with a brush and compressed air.
g) Perform regular inspections of the unit checking technical fitness and any damages.
h) Use a soft, damp cloth for cleaning.
i) Do not use sharp and/or metal objects (e.g. wire brush or metal spatula) as they may damage the surface of the material from which the appliance is made.
j) Do not clean the unit with acidic substances, medical agents, thinners, fuel, oils, or other chemicals. It may cause damage to the device.

DISPOSAL OF USED UNITS.

At the end of its useful life, this product should not be disposed of with normal household waste but should be taken to a collection point for the recycling of electrical and electronic equipment. This is indicated by the symbol on the product, operating instructions, or packaging. The materials used in this appliance are

EN

recyclable according to their marking. By reusing, recycling, or applying other forms of use of waste machines, you make a significant contribution to the protection of our environment.

Your local administration will provide you with information about the appropriate disposal point for used appliances.

Close-up of a yellow plastic tool's black key with white lettering (no readable text or symbols)

Close-up of a yellow plastic door with black handle and black button (no text or symbols visible)

Close-up of a yellow and black mechanical component with a circular hole (no visible text or symbols)

Safety warning symbols including hand, boot, lightning bolt, flame, square, and ground symbol

Close-up of a yellow plastic tool's black and white button with 'O' and 'I' labels (no additional text or symbols)

2 - Astuce gravure

Close-up of a yellow and black mechanical component with a circular hole (no visible text or symbols)

Close-up of a yellow plastic tool's black square button with white letter 'O' and 'I' on the left (no additional text or symbols)

Close-up of a yellow and black mechanical component with a circular hole (no visible text or symbols)

Close-up of a yellow plastic tool's black key with white letter 'O' and 'I' on the button (no additional text or symbols)

Close-up of a yellow and black mechanical component with a circular hole (no visible text or symbols)

Safety warning symbols including hand, boot, lightning bolt, flame, hazard symbol, square, and ground symbol

Close-up of a yellow plastic tool's black and white key (no text or symbols visible)

2 - Vésőhegy

Close-up of a yellow and black mechanical component with a circular hole (no visible text or symbols)

Close-up of a yellow plastic door with a black key and white letter 'O' on the left (no additional text or symbols)

2 - Graveringsspids

Close-up of a yellow and black mechanical component with a circular hole (no visible text or symbols)

APPARATETS PLACERING

Close-up of a yellow plastic door with a black key and white letter 'O' on the left (no text or symbols beyond the letter)

2 - Kaiverruskärki

Safety warning symbols including hand, boot, lightning bolt, flame, hazard symbol, square, and ground symbol

Bruk vernehansker.

Bruk vernesko.

Close-up of a yellow plastic door with a black key and white letter 'O' on the left (no additional text or symbols)

2 - Graveringsspiss

3 - Slag justeringsknapp:

Close-up of a yellow and black mechanical component with a circular hole (no visible text or symbols)

Close-up of a yellow glove with a black key inserted into the center (no text or symbols visible)

2 - Graveertip

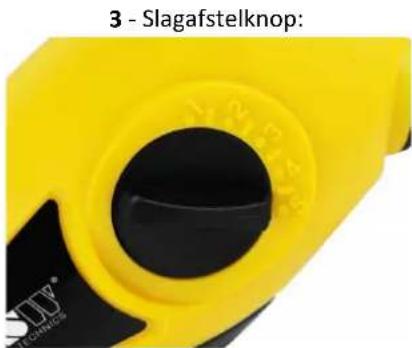

3 - Slagafstelknop:

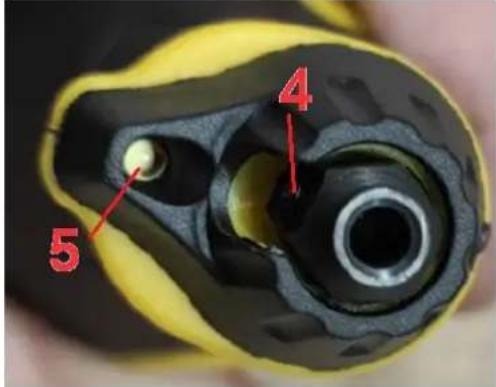

4 - Tipontgrendelingsschroef / 5 - LED-lampje:

4 5

OBS! Brandrisk - brandfarliga material!

Close-up of a yellow plastic door with a black key and white 'O' and 'I' button (no text or symbols beyond basic markings)

2 - Gravyrspets

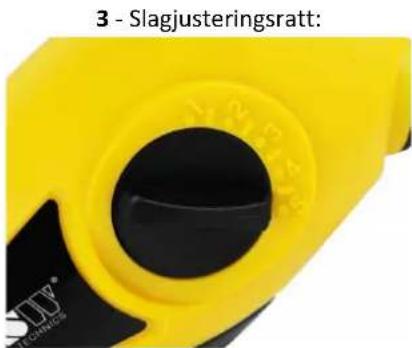

3 - Slagjusteringsratt:
