USER MANUAL DSM01 MSW

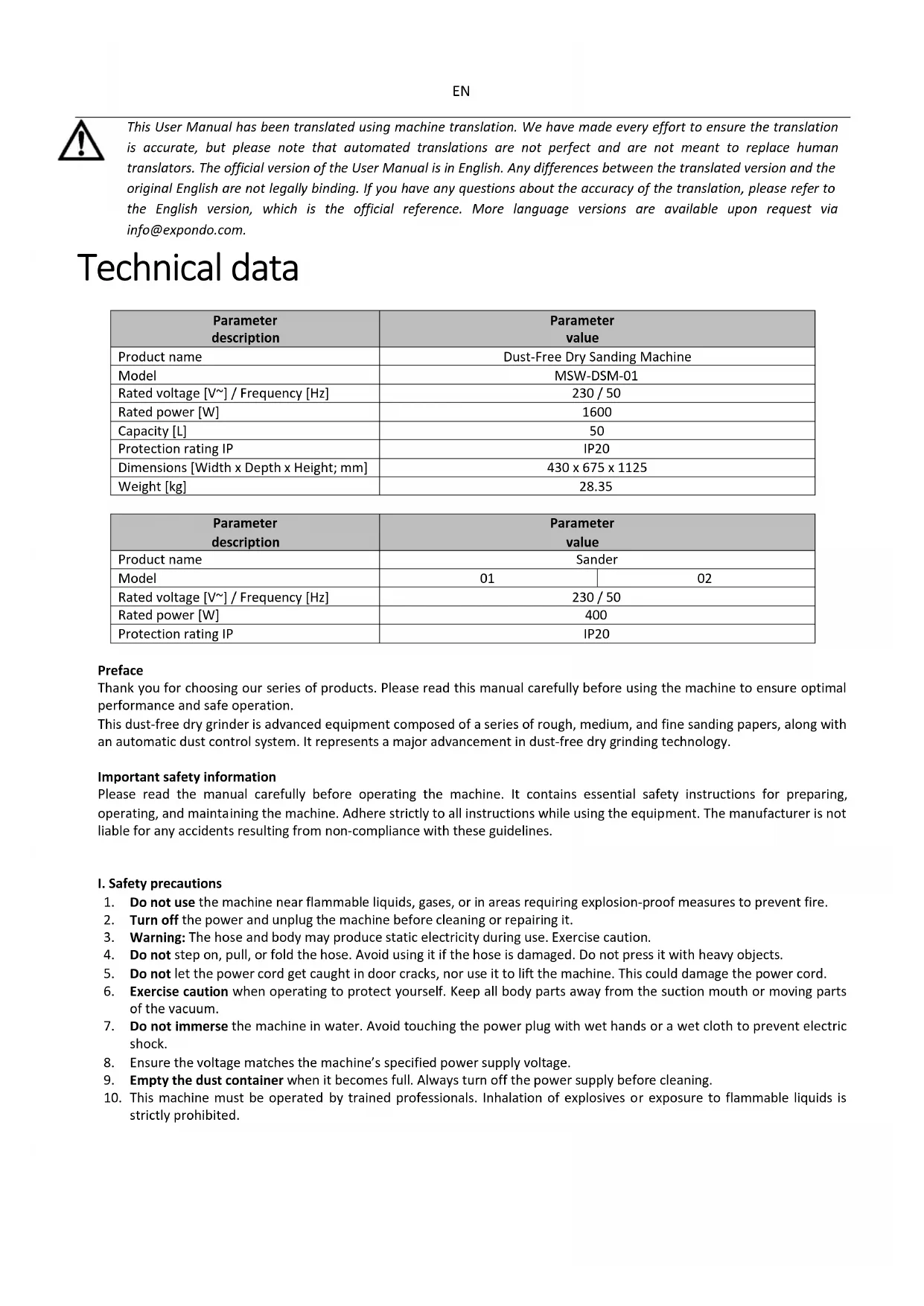

This User Manual has been translated using machine translation. We have made every effort to ensure the translation is accurate, but please note that automated translations are not perfect and are not meant to replace human translators. The official version of the User Manual is in English. Any differences between the translated version and the original English are not legally binding. If you have any questions about the accuracy of the translation, please refer to the English version, which is the official reference. More language versions are available upon request via info@expondo.com. Technical data Parameter description Parameter value Product name Dust-Free Dry Sanding Machine Model MSW-DSM-01 Rated voltage [V~] / Frequency [Hz] 230 / 50 Rated power [W]

Rated voltage [V~] / Frequency [Hz] 230 / 50 Rated power [W]

Protection rating IP IP20

Preface Thank you for choosing our series of products. Please read this manual carefully before using the machine to ensure optimal performance and safe operation. This dust-free dry grinder is advanced equipment composed of a series of rough, medium, and fine sanding papers, along with an automatic dust control system. It represents a major advancement in dust-free dry grinding technology. Important safety information Please read the manual carefully before operating the machine. It contains essential safety instructions for preparing, operating, and maintaining the machine. Adhere strictly to all instructions while using the equipment. The manufacturer is not liable for any accidents resulting from non-compliance with these guidelines.

1. Do not use the machine near flammable liquids, gases, or in areas requiring explosion-proof measures to prevent fire.

2. Turn off the power and unplug the machine before cleaning or repairing it.

3. Warning: The hose and body may produce static electricity during use. Exercise caution.

4. Do not step on, pull, or fold the hose. Avoid using it if the hose is damaged. Do not press it with heavy objects.

5. Do not let the power cord get caught in door cracks, nor use it to lift the machine. This could damage the power cord.

6. Exercise caution when operating to protect yourself. Keep all body parts away from the suction mouth or moving parts

7. Do not immerse the machine in water. Avoid touching the power plug with wet hands or a wet cloth to prevent electric

9. Empty the dust container when it becomes full. Always turn off the power supply before cleaning.

10. This machine must be operated by trained professionals. Inhalation of explosives or exposure to flammable liquids is

1. Do not allow sharp objects to remain in the hose or body.

2. Avoid inhaling hot objects, fire, corrosive solutions, or flammable/explosive materials to prevent burns and electric

shock. 3. Inhaling materials like hair, paper, cement, putty, or viscous substances may clog the machine and cause it to overheat.

4. Avoid prolonged use if the intake and exhaust ports are blocked, as this may cause deformation or damage.

5. If there is unusual noise or lack of suction, stop the machine immediately and inspect it.

6. Use caution when operating a high-power machine. Follow the patch board instructions if needed.

7. Unplug the machine when not in use, and do not leave it unattended.

8. Do not use damaged power supplies or plugs. Only authorized personnel should disassemble or repair the machine.

III. Functional features

1. Automatic start and stop function for easy control and effective dust collection.

2. Multi-stage filtration with a dust bag, filter screen, and HEPA filter for high-efficiency dust removal.

3. Integrated dust collection system with both dust filtering and suction capabilities.

4. Exquisite workmanship ensures the machine is reliable and durable.

1. Compared to traditional manual water mills, this machine significantly improves sanding speed, reduces labor intensity, shortens preparation time before spraying, increases work efficiency, and reduces the drying time for putty. It simplifies the repair process and enhances quality.

2. By capturing dust during sanding, this machine minimizes sandpaper usage, reduces water pollution, and ensures

maintenance quality. It protects the environment while enhancing personal safety and health.

3. This machine uses advanced European integrated circuit control, enabling the dust collector to automatically turn on

and off with a 10-second delay. It effectively absorbs dust from pipes, extending the machine's service life.

4. Machine efficiency depends on the dust collection system, not just dust volume. Dust collection depends on sanding

speed and dust bag thickness: if the bag is too thick, efficiency decreases, and if too thin, leaks may occur. With its robust design, this machine maintains high functionality and durability.

V. Instructions for use

The domestic version of this product has two air inlets, while the imported version has one. The domestic model includes a front suction port and an upper suction port, allowing flexible air inlet options. 1. Using the upper suction port (small dry filter): Connect the hose to the upper suction port and plug in the upper suction port. 2. Using the front suction port (large dry filter): Connect the hose to the front suction port and plug in the front suction port.

1. Connect a clean air source (or qualified power supply) as per the parameters.

2. Insert the plug with a grounding safety device into the socket.

3. Insert the dust suction pipe into the dust suction port and select appropriate sandpaper.

5. After use, unplug the machine and turn off the air or power supply.

button on the top of the cleaner.

2. Press the back-blow button repeatedly (3-5 times) to allow air to blow off dust from the filter, enhancing suction.

2. Installation and replacement of the dust bag

1. Remove the transparent back cover from the top of the machine.

2. After attaching the dust bag to the back cover, reattach the cover and secure the dust bag to the machine.

3. Separating the machine

1. Using both hands, open the catch handles on both sides of the can body and release the catch from the head.

2. Lift the handle on the top cover and raise the head to detach.

1. Remove the filter from the machine and clean it with tap water.

2. Allow the filter to dry naturally before reinstalling it. Do not bake the filter to speed up drying.

5. Suction adjustmentEN

1. Use the adjusting knob on the upper part of the switch to regulate suction.

2. Turn the knob left to decrease suction and right to increase it.

6. Synchronous operation with electric appliances

1. Plug the power cord of the electric appliance into the synchronous socket on the vacuum cleaner’s control panel.

2. Set the vacuum cleaner to the “second” position for standby and activate the electric appliance. The vacuum cleaner will operate synchronously.

7. Synchronous operation with pneumatic appliances

1. Connect the air pipe joint of the pneumatic appliance to the interface on the air valve seat of the vacuum cleaner.

Ensure the other end of the air valve is connected to an air compressor.

2. Set the vacuum cleaner to the “second” position for standby, then activate the pneumatic appliance. The vacuum

cleaner will start simultaneously.

VIII. Daily maintenance and cleaning

• Limit continuous use: To extend the vacuum cleaner’s lifespan, avoid using it continuously for more than 20 minutes at a time.

• Regular cleaning: To maintain optimal performance, clean the can body, filter screen, and dust separator after each use.

• Storage: After each use, wind the power cord and store all accessories in the designated accessory rack.

• Surface cleaning: Wipe the vacuum cleaner’s exterior with dry cloth. Avoid using a wet cloth to prevent water from entering the unit, which can cause short circuits or even damage the machine.

• Oil-water separator maintenance: Regularly drain the oil-water separator and refill it with pneumatic lubricating oil.

• Mill maintenance: Proper maintenance of the mill is crucial. Clean away any dust and apply pneumatic lubricating oil regularly to ensure smooth operation.PL
