USER MANUAL AIRS1290ASN MSW

Druckluft-Haftennagler

Hand holding a large airship with metal components, no visible text or symbols

Close-up of a hand holding a cylindrical mechanical component on a white surface (no visible text or symbols)

Hand holding a high-voltage pad kit on a plain surface (no text or symbols visible)

Technical diagram of a mechanical assembly with numbered parts and exploded view, likely for assembly or manufacturing purposes.

This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

Technical data

Parameter description	Parameter value
Product name	Air stapler nailer
Model	MSW-AIRS1290ASN
Staple length [mm]	6-16
Air consumption [l / min]	34
Air inlet size	1/4" PT
Max. supply pressure [bar]	8,27
Recommended supply range [bar]	4,14 - 6,89
Dimensions [width x depth x height; mm]	240x170x50
Weight [kg]	1

1. General Description

The manual is intended to assist in safe and reliable use. The product is designed and manufactured strictly according to technical specifications using the latest technology and components and maintaining the highest quality standards.

CAREFULLY READ AND UNDERSTAND THIS MANUAL BEFORE STARTING THE WORK.

To ensure the long and reliable operation of the device, make sure to operate and maintain it properly following the guidelines in this instruction manual. The technical data and specifications in this manual are up-to-date. The manufacturer reserves the right to make changes to improve the quality. Taking the technical progress and the possibility of reducing noise into account, the unit is designed and built in such a way that risks resulting from noise emissions are reduced to the lowest possible level.

Explanation of symbols

CE	The product complies with applicable safety standards.
	Read the manual before use.
	CAUTION! or WARNING! or REMEMBER! A general warning sign that describes a given situation.Wear ear protection. Exposure to noise may cause hearing loss.
	Wear protective goggles.
	Wear protective gloves.
	Wear protective footwear.
	CAUTION! Danger of hand injury!
	CAUTION! Correct operation is ensured by directly applying the outlet of the device to the work surface.

CAUTION! The figures in this manual are illustrative only and may vary in some details from the actual appearance of the product.

2. Safety of use

CAUTION! Read all safety warnings and instructions. Failure to follow warnings and instructions could result in serious injury or even death.

The term "device" or "product" in the warnings and in the description of the instructions refers to Air stapler nailer

2.1. Safety in the workplace

a) Keep the work area tidy and well-lit. Disorder or poor lighting can lead to accidents. Be foresighted, watch what you are doing and use common sense when using the device.
b) If you find any damage or irregularities in the operation of the product, immediately turn it off and report it to an authorized person.
c) If in doubt as to whether the device is working, contact the manufacturer's technical service.
d) Repairs to the device may only be carried out by the manufacturer's service. Do not attempt to repair the product on your own!
e) No children or unauthorized persons are allowed in the work area. (Inattention may result in loss of control of the unit.)
f) Connecting and disconnecting the pressure line should be done with the air valve closed.
g) Do not point the pressure hose toward yourself or other people or animals. Pressurized air can cause serious injury.
h) Do not cut off the compressed air supply by crushing or kinking the pressure hoses.
i) When starting to operate the unit, gradually increase the air supply to the unit to make sure it is working properly. If you notice that the unit is not working properly, immediately disconnect it from the compressed air supply and contact the manufacturer's service department.
j) Check the condition of the safety stickers regularly. Replace them if they are illegible.
k) Keep these instructions for use for future reference. If the product is to be handed over to a third party, hand it over with this user manual.
I) Keep packaging components and small installation parts out of the reach of children.
m) Keep the device away from children and animals.
n) When using this product together with other devices, also follow the other instructions for use.

2.2. Personal safety

a) Do not operate this device if you are tired, ill, or under the influence of alcohol, drugs, or medication that could impair your ability to operate the device.
b) The device is not intended to be used by persons (including children) with reduced mental, sensory, or intellectual functions or persons who lack experience and/or knowledge unless they are supervised or have been instructed by a person responsible for their safety on how to operate the device.
c) The unit may be operated by persons who are physically fit, capable of operating it, and appropriately trained, and who have read this instruction manual and have been trained in occupational safety and health.
d) Use caution and common sense when operating this unit. A moment's inattention during the operation may result in serious personal injury.
e) Use personal protective equipment as required when operating the unit as specified in Section 1 of the explanation of symbols. The use of appropriate, approved personal protective equipment reduces the risk of injury.
f) To prevent accidental start-up, make sure the switch is in the off position before connecting to a power source.
g) Do not overestimate your capabilities. Maintain body balance and equilibrium at all times during operation. This allows for better control of the machine in unexpected situations.
h) Do not wear loose clothing or jewelry. Keep hair, clothing, and gloves away from moving parts. Loose clothing, jewelry, or long hair can be caught in moving parts.
i) The product is not a toy. Children should be watched to ensure that they do not play with the appliance.

2.3. Safe use of the device

a) Do not overload the device. Use tools that are suitable for the application. A correctly selected product will do a better and safer job for which it was designed.
b) Disconnect the pressure hose before making adjustments, changing accessories, and after working with the equipment. This precaution reduces the risk of accidents.
c) Keep unused products out of the reach of children and anyone unfamiliar with the device or this manual. Products are dangerous when used by inexperienced users.
d) Keep the product in good working order. Check before each use for general damage or damage to moving parts (cracks in parts and components or any other condition that may affect the safe operation of the device). If damaged, return the device for repair before use.
e) Keep the product out of the reach of children.
f) Repairs and maintenance should be carried out by qualified personnel using only original spare parts. This will ensure the safety of use.
g) To ensure the designed operational integrity of the device, do not remove factory-installed covers or loosen screws.
h) Do not leave the device switched on unattended.
i) Clean the device regularly to prevent permanent dirt build-up.
j) Use reinforced hoses for the compressed air connection in areas with a high risk of mechanical damage.
k) Before each use, make sure that the nozzle is properly mounted in the machine and that the hose is properly attached and undamaged.
I) The air supplied to the machine should be dehumidified, clean, and free of contaminants. Contaminants can clog hoses and cause damage to the machine and its components.
m) Do not carry or hang the unit by the pressure hose.
n) Do not touch moving parts or accessories unless the unit has been disconnected from the compressed air supply.
o) If you notice any leakage from the unit or hoses, immediately disconnect the compressed air supply and correct the fault.
p) Do not exceed the recommended supply pressure as this may damage the unit.
q) Do not obstruct the air inlet or outlet.

r) The product is not a toy. Cleaning and maintenance must not be performed by children without adult supervision.
s) Do not tamper with the device to alter its performance or design.
t) Keep the unit away from sources of fire and heat.
u) The device is designed to be supplied with compressed air. The use of other gases to power the device is prohibited!
v) It is prohibited to direct the outlet of the device toward yourself, other people and animals.
w) Do not keep your hands on the trigger of the device when not in use! Risk of uncontrolled launch!
x) Before loading, unloading the device, or leaving the work area, remember to disconnect the device from the compressed air supply.
y) Caution! Releasing the trigger of the device with a filled magazine generates a strong impact between the outlet and the working surface. Special care should be taken!
z) Maintain a safe distance between the work surface and other objects that may be near the operation of the device.
aa) Caution! If, during the operation of the device, the fastener is jammed in the outlet of the device, disconnect the device from the power source before correcting the fault! Risk of injury!
bb) Be sure to oil the compressed air inlet daily.

CAUTION! Although the product has been designed to be safe, with adequate safeguards, and despite the additional safety features provided to the user, there is still a slight risk of accident or injury when handling the unit. Caution and common sense are advised when using the product.

3. Instructions for use

The product is designed for staple driving. It can be used for decorating, upholstery work, carpentry and finishing work.

The operator is responsible for any damage caused by misuse.

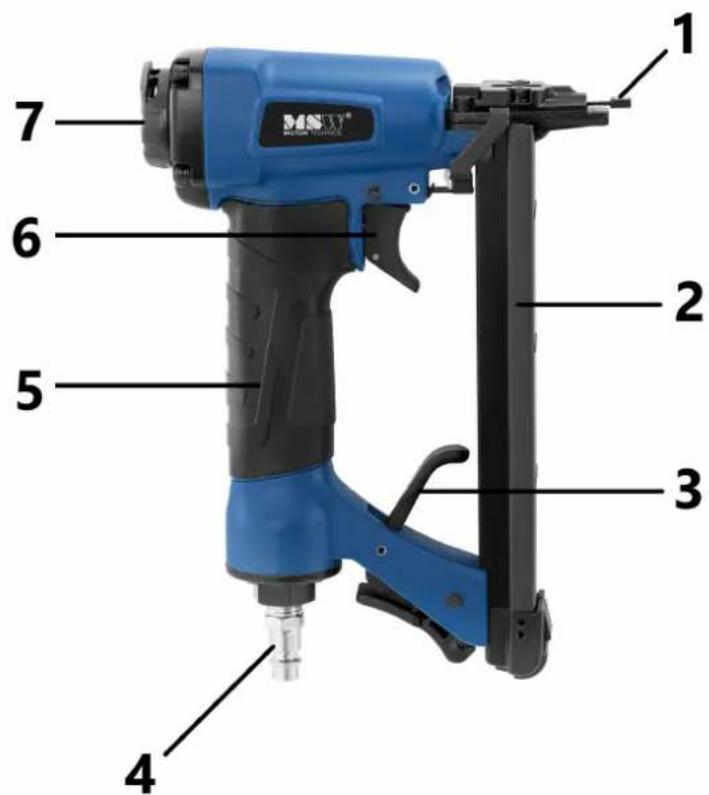

3.1. Product overview

MSX TT NDA1801 1 2 3 4 5 6 7

1 - Pressure safety element
2 - Magazine
3 - Magazine release lever
4 - Pneumatic connection
5 - Handle
6 - Trigger
7 - Adjustable air outlet

3.2. Working with the device

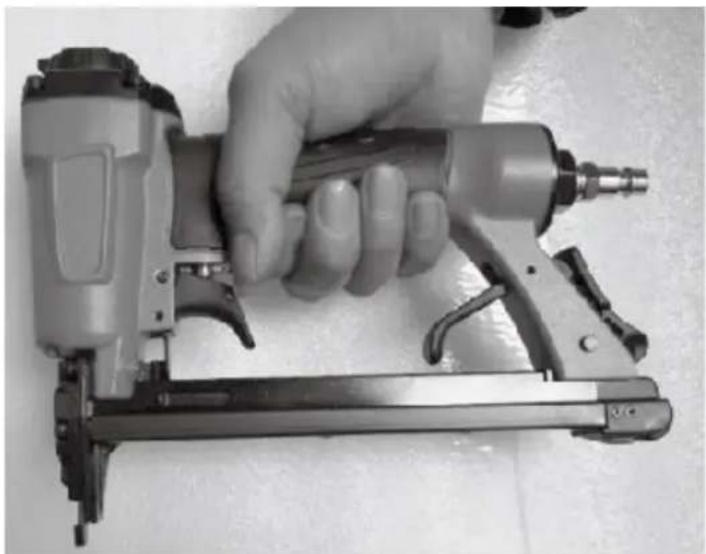

1. To load staples into the magazine, press the magazine release lever.

Hand holding a large airship with metal components, no visible text or symbols

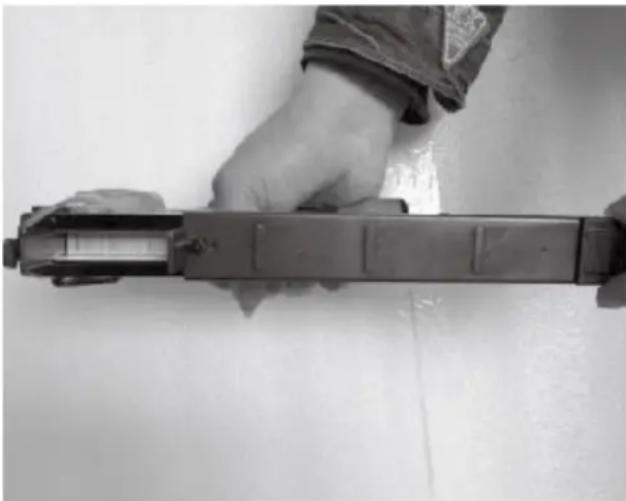

1. Load the staples into the magazine. Then close the magazine by pushing it fully upward.

Close-up of a hand holding a cylindrical mechanical component on a white surface (no visible text or symbols)

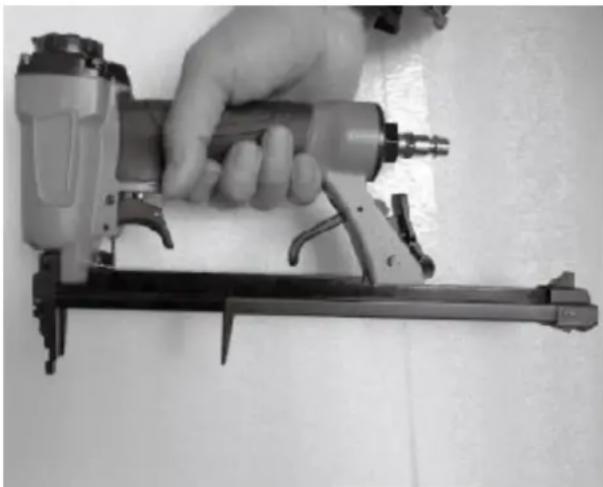

1. Check that the air supply pressure is in the range of 4.14 - 6.89 bar. Connect the pressure hose to the device connector. The device is ready for use. Press the gun head against the workpiece to be fixed and squeeze the trigger to fire the staple.

Hand holding a high-voltage pad kit (no visible text or symbols)

3.3. Cleaning and maintenance

a) Disconnect the device from the compressed air supply before any cleaning, adjustment, or replacement of accessories, and if the device is not in use.
b) Use only non-corrosive cleaning agents for cleaning surfaces.
c) After each cleaning, all parts should be thoroughly dried before the device is reused.
d) Store the appliance in a dry and cool place protected from moisture and direct sunlight.
e) Perform regular inspections of the unit checking technical fitness and any damages.
f) Use a soft cloth for cleaning.
g) Lubricate the gun by applying 2-3 drops of oil designed for air tools to the air inlet every day.
h) Keep the device clean.
i) Every month or every 50 hours of use, remove the top plate covering the striking pin and clean it.
j) Use a water separator in the compressor line to reduce moisture contamination and possible corrosion damage to the tool.

Disposal of used units.

At the end of its useful life, this product should not be disposed of with normal household waste but should be taken to a collection point for the recycling of electrical and electronic equipment. This is indicated by the symbol on the product, operating instructions, or packaging. The materials used in this appliance are

recyclable according to their marking. By reusing, recycling, or applying other forms of use of waste machines, you make a significant contribution to the protection of our environment.

Your local administration will provide you with information about the appropriate disposal point for used appliances.

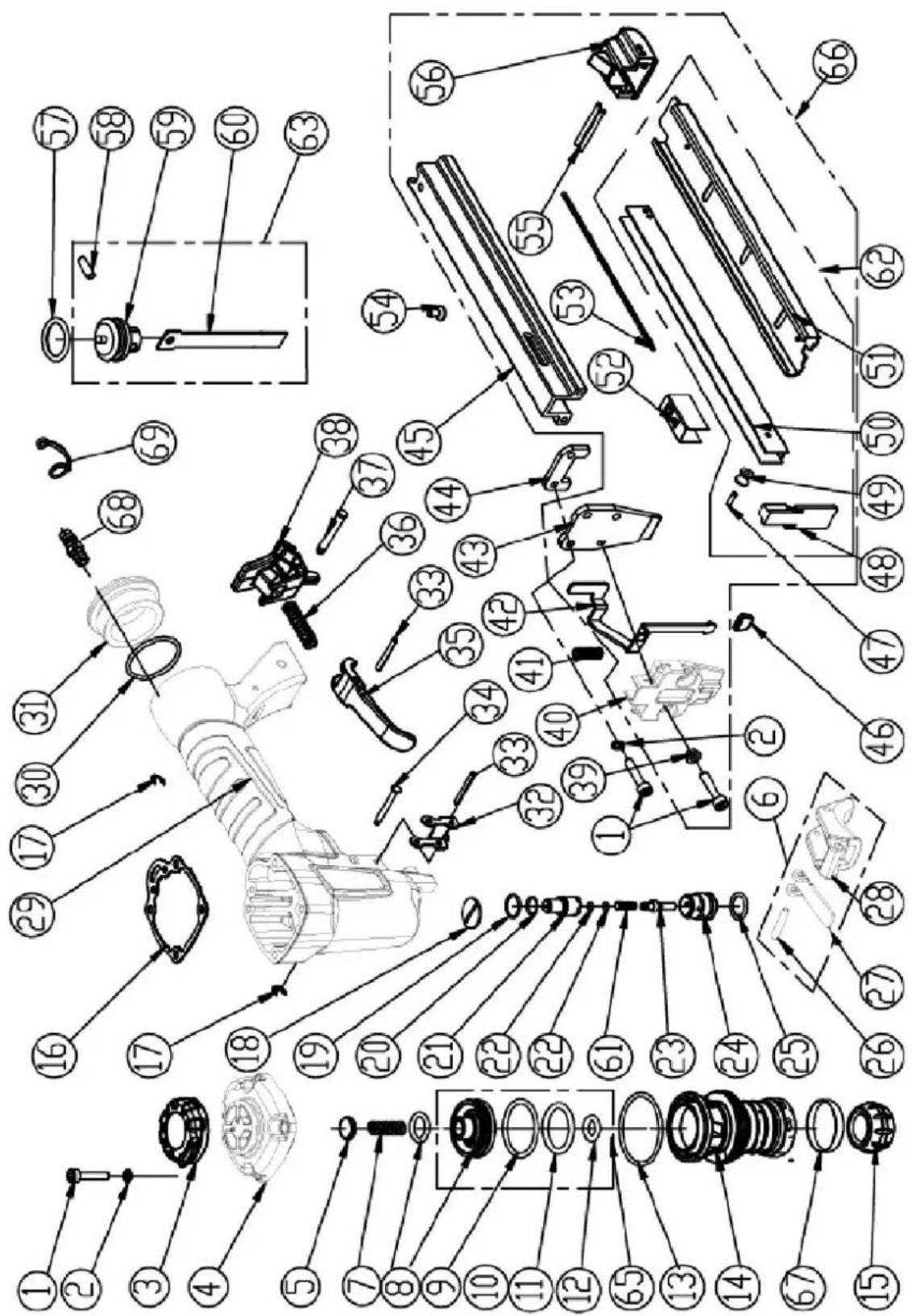

Assembly drawings:

Technical diagram of a mechanical assembly with numbered components and exploded view, likely for assembly or manufacturing purposes.

No.	Description of the	Quantity	No.	Description of the	Quantity
1	M4x20 screw	8	36	Feeder spring	1
2	Gasket	6	37	Stem	1
3	Exhaust cover	1	38	Lever A	1
4	Cylinder cover	1	39	Sleeve M4	2
5	Gasket	1	40	Side cover	1
6	Trigger assembly	1	41	Feeder spring	1
7	Feeder spring	1	42	Contact element boom	1
8	O-ring	1	43	Bar	1
9	Drain valve plunger	1	44	Spacer	1
10	O-ring 26.6x2.4	1	45	Magazine	1
11	O-ring 21.3x3	1	46	Contact element	1
12	O-ring 8x3	1	47	Spring pin 2.5x11	1
13	O-ring 35x2	1	48	Plate	1
14	Cylinder	1	49	Sleeve	1
15	Bumper	1	50	Guide plate	1
16	Gasket	1	51	Magazine cover	1
17	Ring	2	52	Pusher	1
18	Nozzle	1	53	Feeder spring	1
19	O-ring 11x1.05	1	54	M4x8 screw	1
20	O-ring 8x1	1	55	Spring pin 2.5x30	2
21	Top case	1	56	Rear guard	1
22	O-ring 1.9x1.2	2	57	O-ring 17.8x2.8	1
23	The core	1	58	Pin 4.2x13.5	1
24	Drain valve guide	1	59	Piston head	1
25	O-ring 11x1.9	1	60	Plate	1
26	Mandrel 2.5x13.8	1	61	Conical spring	1
27	Trigger lever	1	62	Magazine assembly	1
28	Trigger	1	63	Piston assembly	1
29	Body	1	64	Trigger assembly	1
30	O-ring 32.5x2.65	1	65	Head valve piston assembly	1
31	Rear guard	1	66	Trigger assembly	1
32	Plate	1	67	Ring	1
33	Spring pin 2.5x22	2	68	Air inlet	1
34	Stem	1	69	Plug	1
35	Lever B	1

Hand holding a large airship with metal components, no visible text or symbols

Close-up of a hand holding a cylindrical mechanical component on a white surface (no visible text or symbols)

Hand holding a high-voltage pad kit on a plain surface (no text or symbols visible)

Hand holding a large airship with metal components, no visible text or symbols

Close-up of a hand holding a cylindrical mechanical component on a white surface (no visible text or symbols)

Hand holding a high-voltage fastener (nitriller) with lever mechanism, no visible text or symbols

Technical diagram of a mechanical assembly with numbered components and exploded view, likely for assembly or manufacturing purposes.

Hand holding a large airship with metal components, no visible text or symbols

Close-up of a hand holding a cylindrical mechanical component on a white surface (no visible text or symbols)

Hand holding a high-voltage pad kit on a plain surface (no text or symbols visible)

Technical diagram of a mechanical assembly with numbered components and exploded view, likely for assembly or manufacturing purposes.

Hand holding a large airship with metal components, no visible text or symbols

Close-up of a hand holding a cylindrical mechanical component on a white surface (no visible text or symbols)

Hand holding a high-voltage pad kit (no visible text or symbols)

Technical diagram of a mechanical assembly with numbered components and exploded view, likely for assembly or manufacturing purposes.

Hand holding a large airship with metal components, no visible text or symbols

Close-up of a hand holding a cylindrical mechanical component on a white surface (no visible text or symbols)

Hand holding a high-voltage pad kit (no visible text or symbols)

Technical diagram of a mechanical assembly with numbered parts and exploded view, likely for assembly or manufacturing purposes.

MSX TT N/A N/A 1 2 3 4 5 6 7

Hand holding a large airship with metal components, no visible text or symbols

Close-up of a hand holding a cylindrical mechanical component on a white surface (no visible text or symbols)

Hand holding a high-voltage fastener (nitriller) with lever mechanism, no visible text or symbols

Technical diagram of a mechanical assembly with numbered components and exploded view, likely for assembly or manufacturing purposes.

Hand holding a large airship with metal components, no visible text or symbols

Close-up of a hand holding a cylindrical mechanical device on a white surface (no visible text or symbols)

Hand holding a large Nitrated pad or rack device, no visible text or symbols

For the disposal of the device please consider and act according to the national and local rules and regulations.
