SGD3000BKV - Iron GORENJE - Free user manual and instructions

Product type	Steam generator
Brand	Gorenje
Model	SGD3000BKV
Product dimensions (W x D x H)	420 x 298 x 234 mm
Packaging dimensions (W x D x H)	460 x 366 x 270 mm
Net weight	6.9 kg
Gross weight	4.9 kg
Water tank	Detachable, fill through opening, do not exceed MAX level
Adjustable steam output	3 levels (1, 2, 3) with indicator lights
Steam jet function	Activated by double quick press on steam trigger
Automatic shut-off	After 10 minutes of inactivity in normal mode
Iron lock	Allows transporting the iron+base unit
Temperature indicator	Flashes while heating, stays on when ready
Fill indicator	Lights up if water level is insufficient
Descaling indicator	Lights up to indicate need for descaling
Soleplate	Clean with damp cloth or non-abrasive product; do not use scrapers
Descaling	Drain the base through the plug after complete cooling
Child safety	Keep out of reach of children under 8 years old when powered or cooling
Power supply	Mains voltage (see rating plate)
Intended use	Household only
Warranty and repairability	Entrust to an approved center for any repair

Frequently Asked Questions - SGD3000BKV GORENJE

Can I use tap water in my Gorenje SGD3000BKV steam generator?

It is recommended to use distilled water for better ironing results and to reduce limescale buildup. Tap water can be used, but descaling will be more frequent.

How should I proceed for first use?

Remove all stickers and protective films. Fill the water tank (do not exceed MAX). Plug in the appliance, press the power button, select the maximum temperature, and iron a damp cloth for a few minutes to remove any residues.

What do the indicator lights on the control panel mean?

The temperature indicator flashes while heating and stays on when the iron is ready. The steam output indicators 1, 2, 3 show the selected level; if they flash, steam is being prepared. The fill indicator lights up if the water level is too low. The descaling indicator alerts you to the need for descaling.

How do I activate the steam jet function?

Press the steam trigger twice quickly within one second. You can then use the steam jet for stubborn wrinkles.

What should I do if the fill indicator lights up?

The appliance emits two beeps and stops working. Remove the water tank, fill it through the fill opening without exceeding the MAX mark, then put it back. The generator will resume operation.

How do I clean the iron's soleplate?

After cooling, use a damp cloth or a non-abrasive cleaning product (liquid). Never use chemicals, steel objects, wood, or abrasive cleaners to scrape the soleplate.

How do I descale my Gorenje SGD3000BKV steam generator?

Make sure the appliance is completely cooled. Turn the base upside down on a stable surface, place a towel over the cap and unscrew it. Drain the water, then fill with clean water to rinse. Screw the cap back on and put the base back in place.

Why does my iron emit a strange smell during first use?

This is normal. Some particles may detach from the soleplate and a smell may be released. These phenomena disappear after a short time of use.

How do I store and transport the appliance safely?

Empty the tank if the appliance is not used for a long time. Place the iron on the heat-resistant base, press the lock button to lock the iron. Wind the steam supply hose into the storage groove provided.

What are the important safety instructions to follow?

Never immerse the iron in water. Do not touch the hot soleplate. Keep out of reach of children under 8 years old. Unplug before cleaning. Use on a stable and horizontal surface. If the power cord is damaged, have it replaced by an approved professional.

USER MANUAL SGD3000BKV GORENJE

USER MANUALS SGD3000BKV

User manual / Steam generator EN....3

We sincerely thank you for your purchase. We believe you will find information that you can really rely on our products. To make the use of the appliance easier, we attach these comprehensive instruction manuals.

The instructions should aid you in getting familiar with your new appliance. Please read them carefully before using the appliance for the first time.

In any case, please make sure the appliance was supplied to you undamaged. Should you identify transport damage, contact your sales representative or the regional warehouse from where the product was delivered. You will find the telephone number on the receipt or delivery report.

We wish you a lot of pleasure with your new household appliance.

INSTRUCTIONS FOR USE

These instructions are intended for the user.

They describe the iron and how to use it. They also apply to different types of appliances, therefore you may find some descriptions of functions that may not apply to your appliance.

Never touch the surfaces of heating or ironing sole plate. They will become hot during operation. Keep children at a safe distance. There is a risk of burning!

WARNING!

This product does not apply to persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge (including children under the age of 8), unless they are under the supervision of an adult with civil conduct.

• Read all instructions.
• Before using, check and make sure that the voltage of wall outlet corresponds to the one shown on the rating plate.
• Do not use the appliance if the main cord, plug, light or the appliance itself shows visible damage, or the appliance has been dropped or is leaking. Take it to the nearest authorized service facility or a qualified serviceman for examination and repair in order to avoid a hazard.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Do not allow the cord to come into contact with the sole plate when it is hot.
• Burns may occur from touching hot metal parts, hot water, or steam.
• Do not let cord hang over edge of table or hot surface.
• To protect against a risk of electric shock, never immerse the iron in water or other liquids. If this has happened, do not use this appliance any more, dispose of the appliance.
• Do not leave iron unattended while connected into power supply or on an ironing board.

WARNING!

• Always place or use the appliance on a stable, level and horizontal surface. The use of accessory not recommended by manufacturer may cause injury to persons or damage to appliance.
• When placing the iron on its stand, ensure that the surface on which the stand is placed is stable.
• Never fill the water tank with hot water, scent, vinegar, starch, descaler, fabric softener or other chemical reagent.
• Unplug from outlet when not in use, before filling water or cleaning.
• Do not use the appliance for other than its intended use.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a way and understand the hazards involved.
• Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• The iron is not to be used if it has been dropped, if there are visible signs of damage or if it is leaking.
• Keep the iron and its cord out of reach of children less than 8 years of age when it is energized or cooling down.
• The appliance will produce a warning and then turn off automatically if it is operated in an environment with a temperature lower than 0°C.
• Do not use outdoors.
• Save these instructions.

HOUSEHOLD USE ONLY!

PRODUCT SPECIFICATIONS

Model number:	SGD3000BKV000BKV
Voltage //frequency:	220-240V, 50/60 Hz
Rated power:	2520-3000W
Product size:	420 x 298 x 234 mm
Package size:	460 x 366 x 270 mm
Net weight:	4,9 kg
Gross weight:	6,9 kg

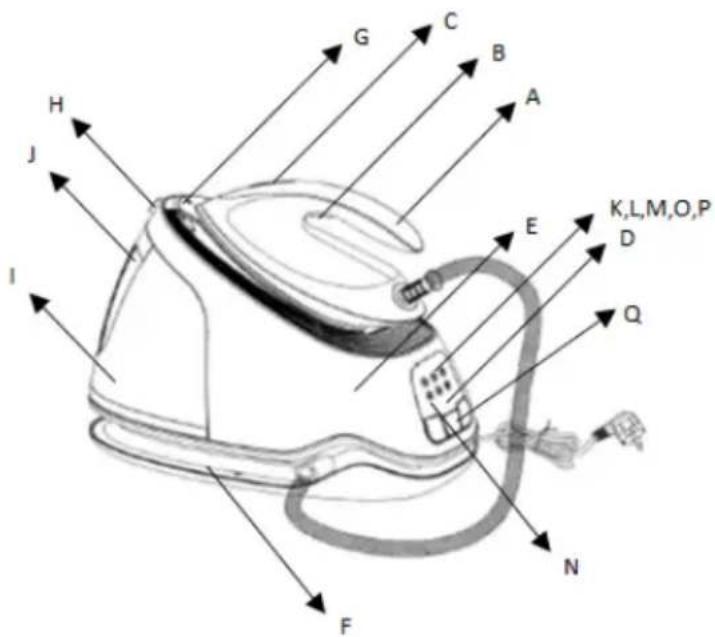

PRODUCT COMPONENTS

A. Iron B. Steam trigger C. Temp. indicator D. Control panel E. Unit base F. Cord storage groove G. Iron lock H. Iron lock release button I. Water tank J. Water tank release button K. Steam rate 1 indicator L. Steam rate 2 indicator M. Steam rate 3 indicator N. Power indicator O. Refill indicator P. Calc clean indicator Q. Power button

BEFORE USE

REMEMBER TO FILL WATER INTO IRON. WE RECOMMEND DISTILLED WATER FOR BEST IRONING EFFECT.

Each steam rate is provided with its corresponding temperature setting. When ironing, select the proper temperature setting according to the type of clothes.

BEFORE USE

BEFORE FIRST USE

• Remove any sticker or protective foil from the sole plate.
• Iron a piece of damp cloth under the maximum temperature for several minutes for the purpose of removing any residue on the sole plate according to the section of “Steam ironing”.

NOTES:

It is normal that strange odor comes out from the unit for the first use. This will cease after a short while.

Some particles may come out of the soleplate when you use the iron for the first time. This is normal; the particles are harmless and stop coming out of the iron after a short while.

After you switch on the appliance, the water pump in the unit base may produce a sound when spraying steam.

During the heating process of the soleplate, there will be little water coming out from the soleplate automatically and this phenomenon will continue for about 3 seconds. This is normal.

Water tank release button

Press the Water tank release button and carefully grasp the water tank handle to remove the water tank from the unit base.

Filling aperture

Fill the water tank with water through the filling aperture. Make sure that the water shall not exceed the MAX mark on water tank.

Temperature indicator

When the iron is heating up, the Temperature indicator will flash. Once the iron has reached the selected temperature, it will illuminate solidly. And the Temperature indicator will illuminate solidly during ironing.

Steam trigger

When the steam is ready, press and hold the Steam trigger with a little force, the steam will be sprayed from the sole plate continuously.

NOTE

When loosen the steam trigger, the appliance can only be used for dry ironing without steam.

BEFORE USE

Shot of steam

Press the steam trigger twice within 1 second to activate the shot of steam function and then you can use the shot of steam to remove the tough wrinkle.

Iron lock and Iron lock release button

When the iron is locked on the thermal insulation stand, press the Iron lock release button to unlock the iron lock, then the iron can be removed from the thermal insulation stand for ironing. When the iron lock is unlocked, the iron can be placed on the thermal insulation stand. When the iron is placed on the thermal insulation stand, press down the iron lock and then the iron is locked on the thermal insulation stand, at that time, the whole appliance can be lifted up for carrying conveniently.

Power button

Plug in the appliance and press down the Power button, the Power indicator will illuminate, the Steam rate 1 is regarded as defaulted one and its indicator will flash. Hold and press the Power button for about 2 seconds, and the appliance will be disconnected from the power supply.

Cord winding groove

When not in use, the steam supply hose can be wound along the Cord winding groove for storage.

USING YOUR STEAM GENERATOR

Steam rate control button "UP ARROW" & "DOWN ARROW"

Press the Steam rate control button “UP” & “DOWN” to make switch among the Steam rate 1, Steam rate 2 and Steam rate 3, and one beep can be heard when making switch. And the corresponding indicator of selected steam rate will light solidly.

NOTE: If Steam rate indicator is blinking, base is preparing steam. Once Steam rate indicator is solid, station is ready for ironing.

Refill indicator

The refill indicator will illuminate and two beeps can be heard as well as the steam generator will stop working if the water tank is lack of water. At that time, you should remove the water tank and refill it with water through the filling aperture, then replace the water tank well in position.

Calc/clean indicator

If the descaling indicator illuminates, it indicates that the steam generator should be cleaned because mineral deposits have accumulated to a certain degree. When the system ensures that the mineral deposits have been removed, the indicator will turn off.

Automatic power off

The appliance will turn off automatically if there is no operation within 10 minutes under normal standby mode. To restart the appliance, just press the Power button again. The appliance will enter energy-saving mode when it does not release steam for a long time at first use. To exit energy-saving mode, press and hold the steam trigger for more than 2 seconds; at that time, the indicator of the selected steam rate will blink, and the appliance will release steam after the indicator blinks for 30 seconds.

CLEANING AND MAINTENANCE

Before cleaning, first disconnect the power outlet and let the appliance cool down.

1. Wipe the flakes and any other deposits on the soleplate with a damp cloth or a non-abrasive (liquid) cleaner.

NOTE: Do not use chemical, steel, wooden, or abrasive cleaners to scrape the soleplate.

1. Clean the upper part of the iron with a soft damp cloth. Wipe the water drops on the unit base and the thermal insulation stand with a dry cloth.
2. To remove the mineral deposits that collect in the inner steam generator, follow the operation below:
3. First, turn the unit base upside down and place it on a level surface horizontally, making sure that the unit base is placed stably.
4. Then, cover a towel on the knob and rotate the knob with the towel to detach it.
5. After that, drain the steam generator, then refill it with clean water to clean it well.

WARNING: To avoid a risk of injury, make sure the steam generator has been cooled down completely before removing the knob.

• After drainage, tighten the knob and make the unit base stand again.
• When not using the appliance for a long time, empty the water in the tank, and put the iron on the thermal insulation stand and then press the iron lock to lock the iron well.

ENVIRONMENT AND FRIENDLY PROPOSAL

You can help protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipments to an appropriate waste disposal center

THANK YOU AND ENJOY IRONING WITH
