Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users.

• This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.
• This appliance is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.

• This symbol means "caution, hot surface." The temperature of the accessible surfaces may be high when the appliance is in operation.

• The rules and regulations contained in this instruction manual must be strictly observed. Do not allow anyone who is not familiar with the contents of this instruction manual to operate the ceramic hob.

• NOTE: adjacent furniture and all materials used in the installation must be able to withstand a minimum temperature of 85 °C above the room temperature of the room in which the hob is located.
• Cecotec will not be liable for any damage caused by installation of the appliance in disregard of this temperature limit, or by placing adjacent materials within 4 mm of the appliance.
• WARNING: if the surface is cracked, turn off the appliance to avoid the possibility of electric shock. Contact the official Cecotec Technical Support Service. Do not cook on a cracked or broken hob.
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the glass, as they may scratch the surface, which could result in glass breakage.
• Do not use a steam cleaner.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Risk of fire: Do not store objects on the cooking surfaces.
• CAUTION: the cooking process must be supervised. A short-term cooking process must be continuously monitored.
• WARNING: unattended cooking on a greasy or oily hob can be dangerous and could result in a fire.
• WARNING: never try to put out the fire with water, turn off the device and cover the flame, for example, with a lid or a fireproof blanket.

• Unplug the cooking hob before carrying out any cleaning or maintenance task.

• The appliance must not be installed behind a decorative door to avoid overheating.

• Ensure that the mains voltage matches the voltage specified on the device rating label and that the plug is earthed.
• Careful: the hob edges are sharp. Failure to exercise caution may result in injury or cuts.
• Do not place any flammable material or product on this appliance at any time.
• Do not install the appliance next to curtains or upholstered furniture.
• Never use the appliance to heat a room or to dry clothes.
• It is recommended that a suitably qualified person installs and connects the appliance correctly.
• This appliance must be connected to a circuit fitted with an isolating switch that allows total disconnection from the mains.
• If the device is not correctly installed, any guarantee or liability claims may be voided.
• If the cable is damaged, it must be replaced by Cecotec, the supplier, or qualified personnel to avoid hazards.
• The cookware handles may be hot to the touch after use. Check the cookware handles do not overlap other cooking areas that are on. Keep the handles out of the reach of children. Failure to follow this advice may result in burns.
• After use, always turn off the cooking areas and the hob as described in this manual.
• Make sure that other electrical appliances or devices, including their power cables, do not touch the hob, since the insulating material of this appliance is generally not resistant to high temperatures.

• Only use suitable worktop protectors (not included). The use of unsuitable protectors can cause accidents.

• Do not switch on the ceramic hob until you have placed suitable cookware on it.

• WARNING: The surfaces of the appliance will reach high temperatures during use and will retain heat for a certain time after switching off. Exercise extreme caution to avoid burns.
• Do not place containers weighing more than 25 kg, as this may cause damage to the hob.
• Do not use the hob in the event of a fault or malfunction. Disconnect the power supply and contact the official Cecotec Technical Support Service.
• WARNING: The appliance and its accessible parts become hot during use. Be careful not to touch the heating elements. Children under 8 years old must stay away from the appliance, unless they are constantly supervised.

INSTRUCTIONS DE SÉCURITÉ

1. 1.2 kW cooking area (165 mm in diameter)
2. 1.8 kW cooking area (200 mm in diameter)
3. 1.2 kW cooking area (165 mm in diameter)
4. 1.8 kW cooking area (200 mm in diameter)
5. Control panel

Control panel. Fig. 2

1. Top left cooking area icon and indicator light shows the power level, the high-temperature warning symbol, etc.
2. Bottom left cooking area icon and indicator light: shows the power level, the high-temperature warning symbol, etc.
3. Bottom right cooking area icon and indicator light: shows the power level, the high-temperature warning symbol, etc.
4. Top right cooking area icon and indicator light: shows the power level, the high-temperature warning symbol, etc.
5. Decrease icon: it is used to reduce time and power level.
6. Timer icon: it is used to set the cooking time of each cooking area.
7. Power Icon: press and hold to switch on or off the ceramic hob.
8. Safety child lock icon: press and hold to lock or unlock the control panel.
9. Increase icon: it is used to add time and increase power level.
10. Display

Please note

- The graphics in this manual are schematic representations and may not exactly match the appliance.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent damage to the appliance when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.

ENGLISHENGLISH

Box content

• Ceramic hob
• Mounting bracket and screws
• Instruction manual

3. INSTALLATION

Electrical connections

- Before connecting the appliance, make sure that the supply voltage indicated on the product marking corresponds to your mains voltage.

Warning:

Remember to connect the ground wire to the terminal in the junction box. The power supply to the ceramic hob must be fitted with a safety switch that allows the power to be switched off in an emergency. The distance between the working contacts of the safety switch must be at least 3 mm.

Warning:

• If the mains cable is to be replaced, the earthing conductor (yellow/green) must always be 10 mm longer than the line conductors.
• Make sure that the temperature of the power cable does not exceed 50 °C.
• If the power cable is damaged, it must be replaced by the manufacturer or the official Cecotec Technical Support Service to avoid any potential risk.
• The ceramic hob is designed to operate on two-phase alternating current (400V2N-50Hz). The nominal voltage of the heating elements of the hob is 230 V. The ceramic hob can be adapted for single-phase operation by means of a suitable bridge in the junction box, as shown in the wiring diagram. The wiring diagram can also be found on the junction-box cover.
• Remember that the connection cable must match the type of connection and the power rating of the ceramic hob.
• The connection cable must be fixed in a strain relief clamp.
• To access the inside of the junction box, proceed as shown in figure 3.

Connection types
Model	Selectable voltage range and connection cable types		Connection diagrams
	220-2401N-50-60 Hz	380-41S3N~50-60Hz	KADO K 1/5 KADO XT
01968	HOSVV-F3G2.5	HOSVV-F5G1.5			×

• The cable connections must be made in accordance with the wiring diagram on the bottom of the hob.
• You must use a good quality screwdriver to tighten ALL terminal screws carefully and completely.
• If only two areas work when you switch on the hob for the first time, you should double-check that all terminal screws are tightened securely. This must be done before contacting the official. Cecotec Technical Support Service.

NOTE: DO NOT connect the appliance to the mains using a plug and socket with a current rating of less than 13 A.

• It must be connected to a 30 A double-pole fused socket outlet, with a contact separation of 3 mm and located in an easily accessible place next to the appliance. It must not be placed above the appliance or more than 1.25 m from the appliance.
• The cable can be coiled, if necessary, but make sure that the cable is not kinked or pinched when installing the hob. Do not allow the cable to come into contact with hot parts of the appliance.

Replacing the power cable

• If the mains power cable is damaged, it must be replaced with a suitable one, please contact the official Cecotec Technical Support Service or a qualified technician.

• The power cable must be replaced according to the following instructions:

• Switch off the appliance.

• Open the terminal box at the bottom of the hob.

ENGLISHENGLISH

1. Unscrew the terminal screws securing the cable.

2. The "green-yellow" earth cable must be connected to the marked terminal. It should be about 10 mm longer than the power and neutral cables.

3. The "blue" neutral wire must be connected to the terminal marked with the letter (N) - the phase wire (L) must be connected to the terminal marked with the letter (L) as shown in figure 4. Power supply 220-240V-2+2N-.

Fig. 4 key:

1.- green-yellow earth wire

2.- blue-grey neutral wire (N)

3.- brown-black phase wire (L).

Before installing the ceramic hob

Warnings:

• The kitchen should be dry and well ventilated. When installing the hob, easy access to all control elements must be ensured.
• This is a built-in ceramic hob. Its heating elements have a Y-shaped design, which means that they have a more efficient distribution of heat and allow different sizes of cookware to be placed on the surface of the hob. Therefore, the back and one side of the hob can be placed next to a wall or wall unit. The cladding or veneer used in built-in furniture shall be applied with a heat-resistant adhesive (100 °C). This prevents deformation of the surface or detachment of the cladding.
• Kitchen hoods must be installed on the hob according to the manufacturer's instructions.
• The appliance can be installed on a worktop with a thickness between 30 and 40 mm and close to walls that are higher than the worktop, maintaining a minimum distance of 100 mm.
• Make all relevant cuts in the worktop and then carefully remove any shavings or sawdust before fitting the hob.
• To ensure correct ventilation of the hob, respect the dimensions indicated in figure 5.

Fig. 5 key:

1. Back of cabinet or worktop
2. Back edge of cutout

3. A: 40 mm (Min). B: 40 mm (Max)

4. Make sure that the surface is level and square and that no parts interfere with the space required for installation.

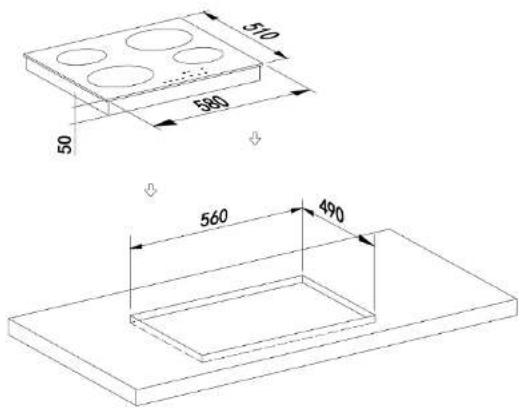

5. Prepare the cut as shown in figure 6.

Installing the ceramic hob

• Take the hob and the instruction manual out of the box.
• Before assembling and installation, carefully read this instruction manual.

Step 1

Place a towel or cloth on the worktop surface and place the hob face down on it.

Step 2

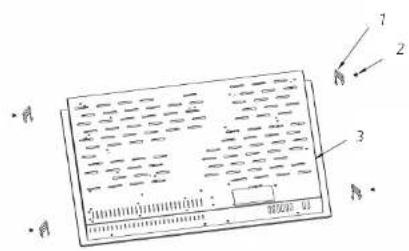

Attach the brackets (4 pieces) to the sides of the hob with the screws provided, as shown in figure 7. Make sure that all screws are tightened securely.

Fig. 7 key:

1. Bracket
2. Screw
3. Screw hole

Step 3

Place the plate in the recess in the worktop and centre it. Make sure that the edges of the hob are aligned with the edges of the worktop (Figure 8).

Fig. 8 key:

1. Top of the hob
2. Worktop
3. Bracket

4. Screw

5. When fitting the hob, turn it carefully and place it gently.

6. Check that the insulating gasket on the ceramic hob fits perfectly with the edges of the worktop recess, this is important to ensure correct sealing.
7. The brackets must be correctly adapted to the worktop recess.
8. If necessary, a wooden board can be placed on the underside of the hob to further secure it.

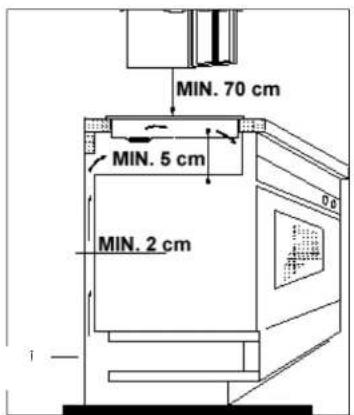

NOTE: ventilation requirements shown in figure 9 must be respected.

Fig. 9 key:

1. Air inlet

NOTE: there are ventilation holes around the exterior of the hob. You must ensure these gaps are not blocked by the worktop when placing the hob.

NOTE: do not use a silicone sealant to seal the device. This will make it difficult to remove the hob in the future, especially if maintenance work is required.

The hob itself includes an insulating gasket installed on its edges.

ENGLISHENGLISH

4. OPERATION

First use

Important

The surface of the ceramic hob must be cleaned as described in the Cleaning and maintenance section.
- Switch on the cooking areas one by one for 5 minutes at maximum power, do not switch them on simultaneously. Place a saucepan half full of cold water in each area. This will help to eliminate any new odours and evaporate any moisture that may have formed in the heating elements during transport.
- Do not switch on several cooking areas at the same time.

Icons

- All operations are performed using the icons on the control panel.

- Each icon has a status display.

Switching on the ceramic hob

• When we connect the hob to the power supply, it will beep to remind us that it is switched on. All the indicator lights on the control panel will light up for 2 seconds and then the appliance will go into Off mode.
• Off mode: all indicator lights on the control panel will switch off, except for the residual heat indicator light (H), if applicable. Only the Power icon will be active①

Standby mode

- In Off mode, press and hold the Power icon for approximately 3 seconds, the hob will beep once and then enter Standby mode.

- All indicator lights on the control panel will show "O" (the "H" symbol will be displayed on the cooking area indicator light if there is residual heat) and the timer display will also show "00". The hob will not heat up at this time.

- If no cooking area is activated in Standby mode, the appliance will automatically switch off after 10 seconds and beep.

Switching on/off one cooking area

• In Standby mode, you can choose the cooking area by pressing its icon on the control panel. Then, press the + or - icons to adjust the power level of the corresponding cooking area. Press and hold the + or - icons to continuously increase or decrease the power level.
• When the hob is in operation, press and hold the Power icon for about 3 seconds to turn it off, all cooking areas will stop heating. The indicator light of the corresponding cooking area that has been previously heated will show the high temperature warning symbol for residual heat "H" (if applicable).
• If you need to switch off one of the cooking areas, first select the area by pressing its

corresponding Icon on the control panel, then press the - Icon to power level "0", the cooking area will be switched off. This will not affect the heating of the other cooking areas. When the power level reaches "0", the corresponding cooking area indicator light will display the high temperature warning symbol "H" (provided there is residual heat).

- If more than one cooking area is operating at the same time, the total power will be equal to the sum of the powers of all cooking areas in operation, each cooking area will operate according to its power modulation ratio and will not affect each other.

NOTE: when switching on the hob, it is advisable to wait one minute before selecting the desired cooking area.

Setting the power level

• In Standby mode, press the cooking area icon: next to it and the power level will be displayed. You can press + or - to adjust the appropriate power level.
• Pressing and holding either of these icons will adjust the value on the area indicator light up or down. Each press of the + Icon will add one power level, up to level 9, and will be displayed on the control panel. Each press of the - icon will reduce one power level, down to level 0 (each time you press + or -, a short beep will be heard). If you continuously press + or -, the power level will be reduced or increased continuously.
• At the end of the power level adjustment, ●ill stop flashing and will normally display the power level within 10 seconds of no operation.
• Changing the power level of any of the cooking areas to level 0 will stop the heating.
• If the power level of all cooking areas is "0", the appliance will automatically switch off after 1 minute of inactivity.

Timer function

After selecting the corresponding power level of the cooking area, press the timer icon Ⓤ on the right will light up. At this point, the timer mode is accessed, and the desired time can be set.

- If you want to cancel the timer, you can set the timer time to zero.

• The first time you press +, the timer starts from 1 minute; then, you can press + or - again to adjust the time.
  Each time you press +, the hob will beep, and the time will increase by 1 minute. You can select between 1 and 99 minutes.
• Each time you press -, the hob will beep and the time will be reduced by 1 minute. When the selected time is less than or equal to 30 minutes, the continuous setting time will continuously change between 30 and 0 minutes. If the time selected with - is more than 30 minutes, press - to set the time to 0 and continue to adjust the time between 30 and 0 minutes using -.
• When the timer countdown reaches 0, a beep will sound for 2 minutes. You can press any icon to deactivate the beep.

ENGLISHENGLISH

Note:

• If you have set the time for a certain cooking area and wish to change it, press the timer icon again to select the corresponding cooking area and then set the new time using + and
• After selecting the cooking area, a time setting can be made before setting the power level. Within 10 seconds after timing (corresponding to the dot indicator light flashing on the control panel, once per second), if no operation is performed, the timing will automatically reset to zero (control panel 00) and the dot indicator light will switch off.
• When a cooking area is in operation, its indicator light flashes (once per second) during the timing process and continues until the time is up before it switches off.

Timer function for several cooking areas

• The timer can be programmed separately for any cooking area, and the timing of each cooking area is independent of each other.
• Timing of a single cooking area:
• When setting the timer for a cooking area, first press the timer icon, the dot indicator light on the control panel of the selected cooking area will light up, indicating that the time has been set correctly. At this point, you can use + and - to set the desired time.
• Timing of several cooking areas:
• Each timer setting operation shall be the same as 'Timing of a single cooking area'.
• Press any cooking area icon and the timer display will show the time for that cooking area.
• When several cooking areas are timed, different times can be selected for each area by pressing the Timer icon.
• If no cooking area is selected, the control panel will display the minimum timer value of the cooking areas, and ● will be displayed.

Switching off the hob

• In Standby mode, press and hold the Power icon for approximately 3 seconds, a short beep will sound, and the appliance will switch to off. If there is residual heat on the surface of a cooking area at this time, its power level indicator light will flash and display "H". This means that the temperature of the cooking area exceeds 60 °C (approx.) and is therefore still not enough to cause injury.
• When the temperature of the cooking area is below 60 °C (approx.), "H" will switch off.
• It may burn if you touch a cooking area, even if its temperature does not exceed 60 °C.

NOTE: the residual heat indicator light will disappear if the power supply is cut off.

Safety child lock

- The control panel can be locked by pressing and holding the Safety child lock icon for 3 seconds. The indicator light will light up. When the appliance is switched off, the child lock icon will turn off.

• Repeat the operation to unlock the hob.
• If the hob is locked, all icon will be disabled except the Safety child lock icon itself and the Power icon.

Safety shutdown system

- If one or more cooking areas are accidentally left on after a certain time has elapsed, the safety shutdown system will be activated. The duration depends on the power level set on the cooking area(s).

Power level Maximum time (hours)
1-26
3	5
45
54
6-91.5

- If a cooking area reaches the maximum operating time, the safety shutdown system will be activated. This will only affect the area in question, not the other areas in operation (if any).

Residual-heat Indicator Light

• When you switch off a cooking area or the entire hob, the display of the corresponding area may show "H". This means that the temperature of the cooking area exceeds 60 °C and is therefore still hot enough to cause injury.
• When the temperature of the cooking area is below 60 °C (approx.), "H" will switch off.
• NOTE: the residual heat indicator light will disappear if the power supply is cut off.
• It may burn if you touch a cooking area, even if its temperature does not exceed 60 °C.
• The residual heat indicator light will be displayed for 35 minutes continuously after the hob is switched off.

Safety system against overheating

The hob incorporates an electronic temperature sensor in the control panel which transmits the temperature in real time to the control circuit. The safety system is activated when the electronic temperature sensor detects that the current temperature is above a certain maximum value and acts by reducing the power level of the activated cooking area(s). Once the temperature decreases to a safe value, normal operation will resume.

ENGLISHENGLISH

Error codes

In the start state, if the control circuit does not receive the correct signal from the power supply board for 20 consecutive seconds, the control panel display will show E1, and all cooking areas will be switched off. After 1 minute, the hob will return to the Off state and the residual heat symbol "H" will be displayed, if applicable.

Guide to use the hob

• The first few times the hob is used, it may give off an acidic, burning smell. This is normal, it is due to residues from manufacturing components. This odour will disappear completely with repeated use and adequate ventilation.
• The hob is equipped with cooking areas of different diameters and power ratings.

- The positions from which the heat will radiate are clearly marked on the hob. Cookware must be placed exactly over these areas for effective heating to take place. Cookware must have the same diameter as the cooking area in which they are used.

- Do not use cookware with a rough base, as this may scratch the ceramic surface.

- Before using the cookware, make sure that the base is clean and dry.

- When cold, the bottom of the cookware should be slightly concave, as when hot it will expand and lie flat on the surface of the hob. This will allow heat to be transferred more easily.

- Failure to follow these recommendations will result in a great loss of heat and energy. Heat not absorbed by the cookware will spread to the hob, frame, and surrounding cabinets. - It is preferable to cover the cookware with a lid in order to be able to cook at a lower temperature.

- Always cook vegetables, potatoes, etc. in as little water as possible to reduce cooking time.

- Food or liquids with a high sugar content can damage the hob if they come into contact with the surface of the glass ceramic hob. Splashes should be wiped up immediately, although this will not prevent damage to the surface of the plate.

NOTE:

- The surface of the ceramic hob is resistant; however, it is not unbreakable and can be damaged. Especially if sharp or hard objects are allowed to fall on it with some force.

- Do not use the hob if the surface is cracked or broken. If this happens, unplug the hob to avoid electric shock and contact the official Cecotec Technical Support Service.

Use of power levels

The following settings are for guidance only. The exact setting will depend on different factors, such as cookware and the amount of food cooked. Test the ceramic hob to find the settings that suit you best.

Power level Use
1 - 2 - Lightly heat small amounts of food.- Melting chocolate, butter and foods that burn quickly.- Simmering.- Gradually heating.
3 - 4 - Reheat.- Quickly cooking.- Cooking rice.
5 - 6 - Pancakes.
7 - 8 - Stir-fry.- Cooking pasta.
9 - Stir-fry.- Browning.- Boiling broth.- Boiling water.

Cooking guidelines

Be careful when frying, as oil and grease heat up very quickly. At extremely high temperatures, oil and grease can spontaneously combust, creating a serious fire hazard.

Cooking tips

• When food starts boiling, reduce the power.
• Using a lid will reduce the cooking time and save energy by retaining heat.
• Use less liquid or grease to shorten cooking times.
• Start cooking with a high power setting and reduce it as food heats up.

5. CLEANING AND MAINTENANCE

- Let the hob cool down before cleaning it.

• The appliance must be disconnected from the mains before cleaning.
• Cleaning agent residues left on the surface of the ceramic hob can damage it. Remove residues with lukewarm water mixed with a little neutral liquid detergent.
• Abrasive cleaning agents or sharp objects damage the hob surface; clean it with lukewarm water mixed with a little liquid detergent.
• You may find it easier to clean up some food residues while the surface of the hob is still hot. However, you must be careful not to burn yourself if you wipe the surface of the hob while it is still hot.

ENGLISHENGLISH

• Wipe the stains with a damp cloth with detergent diluted in a little water. Then, wet with lukewarm water and dry the surface thoroughly. You can use specific cleaning products for induction / glass ceramic hobs.
• Spilled sugar, jam, etc. should be cleaned up immediately. This will prevent the surface from getting damaged.

After each use

• Wipe the hob with a damp cloth.
• Wipe the surface dry with a clean cloth.

Cleaning chart

Dirt Cleaning icon important details
Common dirt on the glass (fingerprints, marks, food stains, metallic discolouration, water, or oil stains, etc.)	1. Disconnect the ceramic hob from the power supply.2. Apply a suitable cleaner while the glass is still tempered (but not hot).3. Rinse and dry with a clean cloth or a paper towel.4. Connect the ceramic hob to the mains.	- When the hob is switched off, there will be no "hot surface" indicator light, but the cooking area may still be hot. Be especially careful.- Abrasive cloths, some nylon scouring pads, and strong/ abrasive cleaning products may scratch the glass. Always read the label to check if your cleaning product or scouring pad is suitable.- Never leave cleaning agent residues on the glass ceramic hob: the glass may become stained.

Hot sugar spills on the glass	Remove them immediately with a spatula or blade scraper suitable for glass ceramic hobs (not supplied), but be careful of hot surfaces in the cooking area:1. Disconnect the ceramic hob from the power supply.2. Hold the scraper or cookware at a 30° angle and scrape the dirt or spillage onto a cool area of the hob.3. Wipe up the dirt or spillage with a kitchen or paper towel.4. Follow steps 2 to 3 in the section "Usual dirt on the glass".5. Connect the ceramic hob to the mains.	- Remove melted and sugary food stains or spills as soon as possible. If left to cool down on the glass, they may be difficult to remove or may even permanently damage the glass surface.- Cutting hazard: when the safety cover is retracted, the blade of the scraper may be as sharp as a razor. Use it with extreme care and always store it safely and out of the reach of children.
Spills on icons 1. Disconnect the ceramic hob from the power supply.2. Blot the spill.3. Wipe the icons with a clean, damp sponge or cloth.4. Dry the area completely with a paper towel.5. Connect the ceramic hob to the mains.		- The hob may beep and switch off, and the icons may not work if wet.- Be sure to dry the icons before switching the hob back on.

Warning
- Make sure the hob is clean, since a dirty area does not transfer all the heat.
- Protect the hob against corrosion.
- Do not leave kitchen utensils unattended on the hob; hot fat can ignite spontaneously.

ENGLISHENGLISH

Important

If the appliance is not working properly, please contact the official Cecotec Technical Support Service.

6. TROUBLESHOOTING

• Do not try to repair the appliance by yourself.
  Please note that if a technician is called out while the appliance is under warranty and the problem is not due to a fault in the appliance, you may be liable for the cost.
• The appliance must be accessible so that the technician can carry out the necessary repairs. If your appliance is installed in such a way that the technician fears damage to the appliance or your kitchen, he will not carry out the repair.

Warning

• Make sure the hob is clean: a dirty area does not transfer all the heat.
• Protect the hob against corrosion.
• Unplug the hob from the mains.
• Do not leave frying pans with fat and oil dishes unattended on the hob; hot fat can ignite spontaneously.

Problem Possible causes	Possible solution
The hob does not switch on	Power cut.	Make sure that the hob is connected to the power supply and switched on.Check if there has been a power failure.Check the control and protection elements of the electrical panel in your home.If the problem persists, please contact the official Cocotec Technical Support Service.
The icons do not work	The icons are locked.	Unlock the icons. See section "Operation/Safety child lock" for instructions.

It is difficult to use the icons	The icons may be slightly wet, or you may be pressing them with your fingertip.	Make sure the icons are dry and press them with the base of your finger.
The glass is damaged	Cookware with rough edges.Use of inappropriate and abrasive scouring pads or cleaning products.	Use cookware with flat and smooth bases.Read the "Cleaning and maintenance" section.
Some cookware makes cracking or popping noises	This is normal and may be due to the construction of the cookware (layers of different metals vibrating differently).
The hob makes a slight buzzing sound when used at high power	It is usual, but the noise should decrease or completely disappear by lowering the power setting.
Cookware does not heat up	The cookware is not well centred on the cooking area.	Always place the cookware at the centre of the cooking area.
The ceramic hob or a cooking area has switched itself off unexpectedly	Technical fault.	Unplug the hob from the mains and contact the official Cecotec Technical Support Service.

ENGLISHENGLISH

7. TECHNICAL SPECIFICATIONS

Product reference: 01968

Product: Bolero Squad V 4001

Rated voltage: 220-240 V\~

Rated frequency: 50/60 Hz

Total rated power: 5000 W

Top left cooking area = 1805 W

Bottom left cooking area = 1231 W

Top right cooking area = 1210 W

Bottom right cooking area = 1827 W

(The power ratings given may vary depending on the size and material of the cookware).

Hob dimensions (approx.): 580 x 510 x 50 mm

Cut dimensions: 560 x 490 mm

	Symbol	Value	Unit
Model reference		01968
Type of cooking hob		Electric
Number of hotplates and/or cooking areas		4
Heating technology (induction hotplates and cooking areas, radiation hotplates, solid hotplates)		Panel heater
	Symbol	Value Unit
For circular lamps or cooking areas: diameter of the usable area of each electric cooking spot, rounded to the nearest 5 mm	^(1)	200	mm
	^(2)	165	mm
	^(3)	165	mm
	^(4)	200	mm

For non-circular lamps or cooking areas, width and length of the usable surface of each lamp or electric cooking area, rounded to the nearest 5 mm	LW	N/AN/A	cmcm
Energy consumption per lamp or cooking area, calculated per kg (°)	EC_cooling [1]	187.9 Wh/kg
	EC_cooling [2]	178.5 Wh/kg
	EC_cooling [3]	205.9 Wh/kg
	EC_cooling [2]	181.6 Wh/kg
Energy consumption of the hoo, calculated per kg (°) EC	EC_cooling	188.7 Wh/kg
Shutdown mode 0.46 W

(*) Calculated according to the performance measurement method (EN 60350-2).
(1) Top left cooking area
(1) Rear left cooking area
(2) Top right cooking area
(4) Bottom right cooking area

	Top left cooking area (circular)	Bottom left cooking area (circular)	Top right cooking area (circular)	Bottom right cooking area (circular)
Cooking area dimensions:	200 mm 165 mm 165 mm 200 mm
Diameter of used cookware	210 mm	180 mm	150 mm	210 mm
Cookware category	C	B	A	C

Technical specifications may change without prior notification to improve product quality. Made in China | Designed in Spain

ENGLISH

FRANÇAIS

8. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

9. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

10. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

1. PIÈCES ET COMPOSANTS

Img.1

6. PROBLEEMOPLOSSING

Isometric line drawing of a kitchen cabinet with drawers and appliances (no text or symbols)

Fig./img./Abb./Afb./Rys. 5

510 580 50 560 490

Fig./Img./Abb./Afb./Rys. 6

Technical diagram of a digital display panel with labeled components and measurement scales

Fig./Img./Abb./Afb./Rys.7

Fig./img./Abb./Afb./Rys.8

MIN. 70 cm MIN. 5 cm MIN. 2 cm

Fig./img./Abb./Afb./Rys. 9

www.cecotec.es
