USER MANUAL MS902 GRAEF

Illustration of a GRAEF coffee maker with lid and base (no text or symbols on the device itself)

EN Operating Instructions

Product description....16

Preface....17

Information on these operating instructions....17

Warning messages....17

General safety instructions 18

Danger caused by electric current 20

Intended use....20

Limitation of liability 21

After-sales service 21

Unpacking 21

Disposal of the packaging....21

Disposal of the unit....22

Requirements on the installation location 22

Electrical connection 22

Prior to first use 23

Start-up....23

A lot of milk foam 23

little milk foam 23

Hot milk 24

Hot chocolate....24

(※) Cold frothing with a lot of milk foam....24

Cold frothing with little milk foam....24

Cleaning 25

Two-year warranty 25

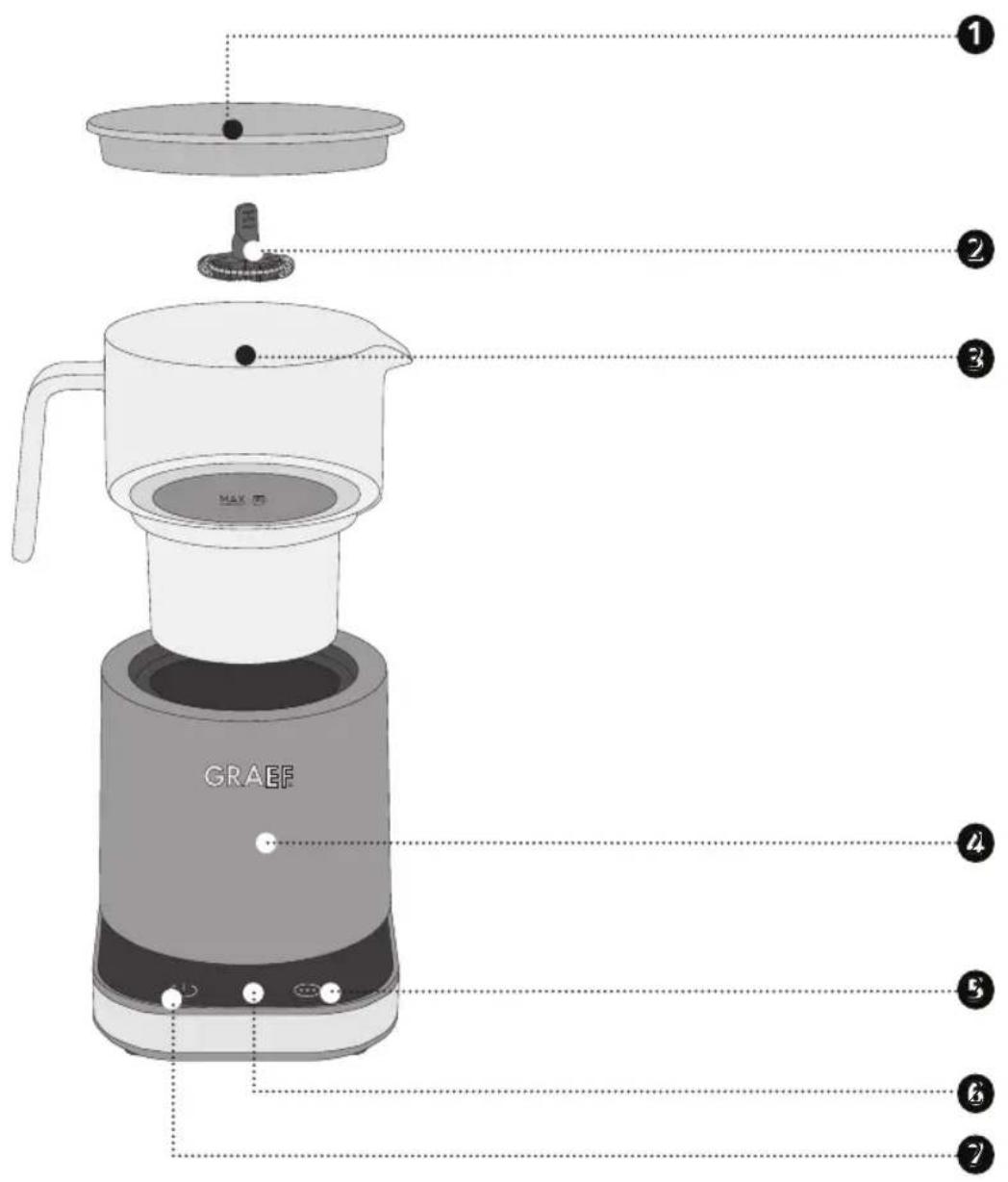

PRODUCT DESCRIPTION

1 2 3 MAX 50 GRAEF 4 3 6 7

1 Lid
2 Whisk
3 Glass milk container
4 Base station

Setting button
6 Display
2 On/Off button

PREFACE

Dear Customer,

You have made a good choice by buying this milk frother. You have purchased a recognized quality product.

We would like to thank you for buying this machine and wish you a lot of fun with your new Graef milk frother.

INFORMATION ON THESE OPERATING INSTRUCTIONS

These operating instructions are an integral part of the milk frother (in the following referred to as unit) and provide you with important information about initial operation, commissioning, security, intended use and care of the unit.

The operating instructions have to be available at the unit at all times. The instructions have to be read and applied by every person who is in charge for:

• Initial operation
• Operation
• Fault correction and/or
• Cleaning

Keep these operating instructions and pass them on to the next owner along with the unit.

These operating instructions cannot take into consideration every conceivable use. For further information or in the event of problems that are not covered or not covered in sufficient detail in these instructions, please contact Graef customer service or your specialist dealer.

WARNING MESSAGES

In these operating instructions, the following warning messages and signal words are used:

WARNING

This refers to a potentially dangerous situation. Failure to observe this warning may result in serious injury or even death.

CAUTION

This refers to a potentially dangerous situation. In case of non-observation of this warning message, material damage may occur.

IMPORTANT!

This refers to application hints and other especially important information!

GENERAL SAFETY INSTRUCTIONS

This unit is in conformity with the safety instructions mentioned hereinbefore. However, incorrect handling may lead to personal injury and material damage.

For safe handling of this unit, please observe the following safety instructions:

• Before using the unit check for any external visible damage of the housing, the connecting cable and plug. Do not operate a damaged unit.
• Repairs may be carried out only by an expert or by Graef after-sales service. Incorrect repairs may cause considerable hazards for the user. In addition, any claim under guarantee is forfeited.
• Defective parts must be replaced by original spare parts only. Only these parts are guaranteed to meet the safety requirements.
• This unit can also be used by children from 8 years age as well as by persons with limited physical, sensory or mental ability or with a lack of experience and/or knowledge if they are supervised or have been trained in using the unit and have understood the dangers which may result from it. Cleaning and user maintenance must not be carried out by children, unless they are 8 years or older and are supervised.
• The unit and its connecting cable have to be clear of children who are younger than 8 years.
• Children should be supervised in order to make sure that they do not play with this unit.
• The unit is not intended to be used with an external timer or a separate remote control.
• Always disconnect the connecting cable by using plug; do not pull the connecting cable.
• Do not use the unit if the connecting cable or plug is damaged.
  • Prevent that liquids get on the plug.
• If the connecting cable is damaged, it shall be replaced by the manufacturer, the manufacturer's customer service or a similarly qualified person only, in order to avoid potential dangers.
• Do not open the housing under any circumstances. When touching live

connections and if the electric and mechanical structure is changed, there is danger of electric shock.

• Never touch live parts. They may cause an electric shock or even may lead to death.
• Before connecting the unit, compare the connecting data (voltage and frequency) on the type plate with those of your energy network. These details must correspond so that no damage occurs to the unit.
• Check to be sure that the connecting cable has been safely laid. Due to getting caught on the cable, the unit might fall down from the work surface.
• Packaging materials must not be used for playing. There is danger of suffocation.

- Never use the unit in the vicinity of a heat source.

• Never use the unit outdoors, and always keep it in a dry place.
• Switch the unit off and pull the power cord from the electric socket before changing accessories or touching any parts which are rotating during operation of the unit.
• Immediately after use, clean all accessories coming into contact with foodstuffs.
• In the event of improper use of the unit and accessories, the unit might be damaged and there is danger of injury.
• In order to avoid electric shocks, never use the unit with wet hands or on a damp or wet surface.
• Be especially careful when opening the cap; the contents in the unit tank can squirt out.
• Do not move the unit while it is switched on as hot liquid may leak out.
• Do not use the glass container while on a hot plate or cooking plate, but only in connection with the base station.

• Never touch rotating parts of the unit.

- Never leave the unit unsupervised during operation.

- Observe the min. and max. markings in the milk container. Fill the glass container only up to the MAX marking. If overfilled, hot liquid can leak

out. Danger of burns! If the amount is too small, the unit can overheat.

• Switch on the unit only when having filled in milk.
• Let the unit cool down before cleaning. Switch it off before cleaning and pull the power cord from the electric socket.
• Do not immerse the unit, power cable and the plug in water or other liquids.
• Do not clean the base station, cover and whisk in a dishwasher.
• Do not use any aggressive or abrasive detergents and no solvents.
• Do not scratch off stubborn soiling with hard objects.
• The unit is intended exclusively for heating/frothing milk, hot chocolate, cocoa or similar water-based drinks. Do not fill in other liquids or solid foods.

DANGER CAUSED BY ELECTRIC CURRENT

WARNING

Mortal danger is caused by contact with live cables or components!

Please observe the following safety instructions in order to prevent exposure to electric current:

• Do not use the unit if the connecting cable or plug is damaged.
• In this case, you should let the Graef Customer Service or an authorized specialist install a new connecting cable before re-using the unit.
• Do not open the housing under any circumstances. When touching live connections and if the electric and mechanical structure is changed, there is danger of electric shock.
• Never touch live parts. They may cause an electric shock or even may lead to death.

INTENDED USE

This unit is not intended for commercial use. The unit is intended exclusively for heating/frothing milk, hot chocolate, cocoa or similar water-based drinks. Do not fill in other liquids or solid foods. Do not fill in other liquids or solid foods. Do not use them for other purposes.

This appliance is intended for domestic and similar use, such as:

• Staff kitchens in shops and office
• In agricultural estates
- By guests in hotels, motels and other living quarters
• In bed and breakfast boarding houses

IMPORTANT!

Use only in household-like areas!

Another or any exceeding use shall not be considered intended.

CAUTION

The unit can cause dangers, if is not used as intended.

• Use the unit exclusively as intended.
- Observe the procedures described in these operating instructions.

Claims of any kind caused by damage by unintended use shall be excluded.

The risk shall be borne sole by the user.

LIMITATION OF LIABILITY

All technical information, data and notes on the installation, the operation and the care contained in these operating instructions correspond to the last status before printing, and are rendered under consideration of our previous experience and to the best of knowledge.

No claims may be derived from the specifications, illustrations and descriptions in these instructions.

The manufacturer does not assume any liability for damage caused by:

• Non-observation of the instructions
- Unintended use
- Improper repairs
• Technical modifications
• Use of unapproved spare parts

Translations are carried out to the best of knowledge. We do not assume any liability for translation mistakes. The original German text shall be binding only.

AFTER-SALES SERVICE

If your Graef unit is damaged, please contact your dealer or the Graef Customer Service at [phone] or write an e-mail to [e-mail].

IMPORTANT!

If possible, keep the original packaging during the guarantee period of the unit in order to be able to pack the unit correctly in case of guarantee.

UNPACKING

When unpacking the unit, proceed as follows:

• Remove the unit from the box.
• Remove the packaging parts.
• Remove any stickers on the unit. Do not remove the type plate!

DISPOSAL OF THE PACKAGING

The packaging protects the unit against transport damage. The packaging materials are selected according to the environmental compatibility and disposal-related aspects and can there-

fore be recycled.

The return of packaging into the material cycle saves raw material and reduces the waste volume. Dispose of the packaging material no longer needed at collection points for the "Green Dot" recycling system (in Germany).

DISPOSAL OF THE UNIT

At the end of its service life, this product cannot be disposed of in normal domestic waste. The symbol on the product and in the operating instructions point out to this fact. Reuse the materials according to their marking. With the reuse, recycling or other forms of recycling of old equipment, you make an important contribution to the protection of our environment. Please ask your municipal administration for the disposal point.

REQUIREMENTS ON THE INSTALLATION LOCATION

For safe and faultless operation of the unit, the following requirements of the installation location have to be met:

• The unit has to be placed on a solid, flat, horizontal, and non-slipping surface with a sufficient weight-carrying capacity.
  • Make sure that the unit cannot topple over.
• Choose the location in such a way that children cannot reach the connecting cable of the unit.
• Do not place the unit on hot surfaces, such as hotplates, or near them.
• Never use the unit outdoor and store in a dry location.
• The unit is not designed for installation in a wall or a built-in cupboard.
• Do not set up the unit in a hot, wet or moist environment.
• The socket has to be easily accessible so that the connecting cable can be removed easily in case of emergency.

ELECTRICAL CONNECTION

For safe and fault-free operation of the unit, the following requirements have to be met during the electrical connection:

• Before connecting the unit, compare the connecting data (voltage and frequency) on the type plate with those of your energy network. These details must correspond so that no damage occurs to the unit. In case of uncertainty, contact a qualified electrician.
• The socket has to be protected at least by a 10 amps circuit breaker.
• Make sure that the connecting cable is not damaged and not laid across hot surfaces or sharp edges.
• The connecting cable must not be stretched tightly.
• The electric safety of the unit is ensured only when it is connected to a socket with protective conductor installed correctly. Operation on a socket without protective conductor is forbidden. If in doubt, let the house installation be checked by a skilled electrician. The manufacturer does not assume responsibility for damage which has been caused by missing or interrupted protective conductor.

PRIOR TO FIRST USE

Before using the unit for the first time, clean it as described in the Cleaning chapter.

START-UP

• Plug the connecting cable into the socket
  • The display then lights up briefly and a beep sounds.

- Remove the cover and place the whisk in the centre of the glass container.

- Place the glass container on the base station.

- Put the milk into the glass container.

IMPORTANT!

Observe the minimum and maximum filling quantities. Frothed milk expands; if the filling level is too high it will overflow the tank. Attention! The cover must always be on during operation.

Advice:

Refine your milk foam by adding syrup (e.g. vanilla, hazelnut or caramel syrup).

Especially when preparing latte macchiato, cappuccino or café au lait, coffee syrup provides a special aromatic taste.

Put the syrup into the container together with the milk.

- Place the lid back on.

- Then touch the on/off button. Now select the desired mode using the setting button.

A LOT OF MILK FOAM

In this mode you can vary the temperature for the milk foam. You can choose a temperature between 45^ and 65^ in 5^ steps. The maximum filling quantity is 200ml , but fill at least 100ml .

• You start in the first mode, the symbol flashes:
• Press the setting button once. The temperature display flashes after 3 seconds.
• As soon as the temperature display flashes, you can set the temperature from 45^ C - 65^ C using the setting button.
  • After another three seconds, the unit automatically starts frothing.
• When the process is finished, the unit switches off automatically.

LITTLE MILK FOAM

In this mode you can vary the temperature for the milk foam. You can choose a temperature between 45^ C and 65^ C in 5^ C steps. The maximum filling quantity is 200 ml, but fill at least 100 ml.

- Press the setting button until the following symbol flashes.

- After three seconds, when the temperature display flashes, you can set the temperature from 45^ C - 65^ C on the setting button.

• After another three seconds, the unit automatically starts frothing.

- When the process is finished, the unit switches off automatically.

HOT MILK

In this mode, the milk is only heated. The maximum filling quantity is 400 ml, but fill at least 150 ml. No milk foam is produced. You can choose a temperature between 45^ C and 85^ C in 5^ C steps.

- Press the setting button until the following symbols flashes.

- After three seconds, when the temperature display flashes, you can set the temperature from 45^ C - 85^ C on the setting button.

• After another three seconds, the unit automatically starts.

- When the process is finished, the unit switches off automatically.

HOT CHOCOLATE

In this mode you can produce hot chocolate. Add cocoa powder or chocolate chips to the milk.

IMPORTANT!

The chocolate should be grated before filling.

Alternatively, the chocolate can be put into the container in pieces of at least approx. 2 x 3 cm. Do not fill with smaller chocolate pieces (e.g. chocolate drops) or melted chocolate!

We recommend the following amounts:

200 ml milk - approx. 15-20 g / 400 ml milk - approx. 35-40 g

The maximum filling quantity is 400 ml, but fill at least 150 ml. No milk foam is produced. You can choose a temperature between 45^ C and 85^ C in 5^ C steps.

IMPORTANT!

At low temperatures, the chocolate may not dissolve completely.

- Press the setting button until the following symbol flashes.

- After three seconds, when the temperature display flashes, you can set the temperature from 45^ C - 85^ C on the setting button.

• After another three seconds, the unit automatically starts.

- When the process is finished, the unit switches off automatically.

COLD FROTHING WITH A LOT OF MILK FOAM

The maximum filling quantity is 200 ml, but fill at least 100 ml.

- Press the setting button until the following symbol flashes.

• After three seconds, the unit starts.

- When the process is finished, the unit switches off automatically.

COLD FROTHING WITH LITTLE MILK FOAM

The maximum filling quantity is 200 ml, but fill at least 100 ml.

- Press the setting button until the following symbol flashes.

• After three seconds, the unit starts.
- When the process is finished, the unit switches off automatically.

CLEANING

• Remove the power plug.
• Use a soft and moist cloth to clean the outer surfaces of the unit. Use a mild detergent in case of heavy contamination.
• Caution after use, the container becomes hot, let it cool down before cleaning.
• The glass container and the removable cover are dishwasher-safe. However, only put it in the dishwasher in the withdrawable unit.
• The whisk and the base station are not dishwasher-safe.
• Clean the removable cover and the whisk by hand with water and a mild detergent.
• Never immerse the base station in water, but wipe it with a damp cloth for cleaning.

TWO-YEAR WARRANTY

As from the date of purchase we assume manufacturer warranty of twenty four months for defects which can be traced back to manufacturing and material defect. Your legal warranty claim in conformity with Section 437 et seq. of the German Civil Code (BGB) shall remain unaffected by this regulation. The warranty does not cover any damage which is caused by incorrect handling or use as well as defects which only slightly influence the function or the value of the unit. Moreover, transport damage insofar we are not responsible shall be excluded from the claims under guarantee. Warranty shall be ruled out for damage, the repair of which has not been carried out by us or one of our representations. In case of justified complaints, we shall repair the defective product or replace it by a product without defects at our discretion.

TABLE DES MATIÈRES
