USER MANUAL CS1825DC HiKOKI

Technical line drawing of a chain-linking device (no text or symbols)

en Handling instructions
de Bedienungsanleitung
fr Mode d'emploi
it Istruzioni per l'uso
nl Gebruiksaanwijzing
es Instrucciones de manejo
pt Instruções de uso
sv Bruksanvisning
da Brugsanvisning
no Bruksanvisning
fi Käyttöohjeet

el Οδηγίες χειρισμού
pl Instrukcja obsługi
hu Kezelési utasítás
cs Návod k obsluze
tr Kullanım talimatları
ro Instructiuni de utilizare
① Navodila za rokovanje
sk Pokyny na manipuláciu
bg Инструкция за експлоатация
sr Uputstvo za rukovanje
hr Upute za rukovanje

1

A B C D E F G H I J K L M N

2

Diagram showing a spiral structure interacting with a chain, with directional arrows indicating movement (no text or symbols)

3

Line drawing of a hand using a chain drive to cut a saw (no text or symbols)

4

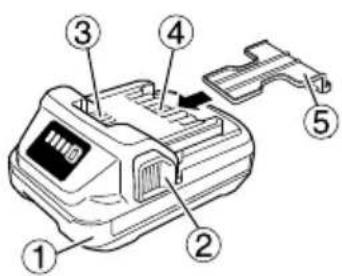

Diagram of a device with numbered parts labeled 1 to 5, showing internal components and a handle mechanism.

5

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

6

Technical diagram showing a device with labeled parts and an inset view of a housing component, likely illustrating a mechanical or electronic assembly.

7

Technical diagram of a camera module with numbered parts and measurement scale

8

Technical diagram of a car interior with numbered parts and directional arrows indicating movement or assembly.

9

Technical diagram of a chain drive with numbered components and directional arrow indicator

10

Technical diagram of a chain-linking device with numbered parts and directional arrows indicating assembly steps

11 12

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or flow.

25 14 16 15 O

13 14 15

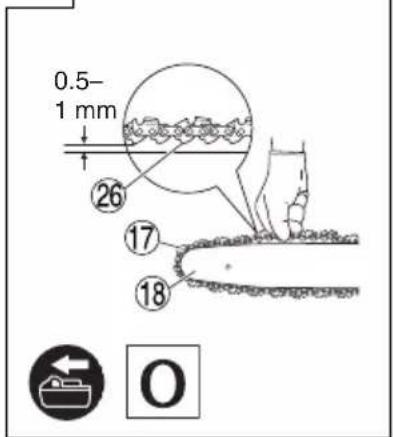

0.5- 1 mm 26 17 18 O

13 25 ↑ O

27 28 O

16 17 29 28 O

Technical diagram of a car interior showing seatbelt, lock, and adjustment parts with numbered annotations

Line drawing of a hand using a chain mill to cut a tree branch (no text or symbols)

Technical diagram of a mechanical device with labeled parts and directional arrows indicating movement or assembly.

Diagram showing a device with labeled components and directional arrows, including numbered parts 33 and 34.

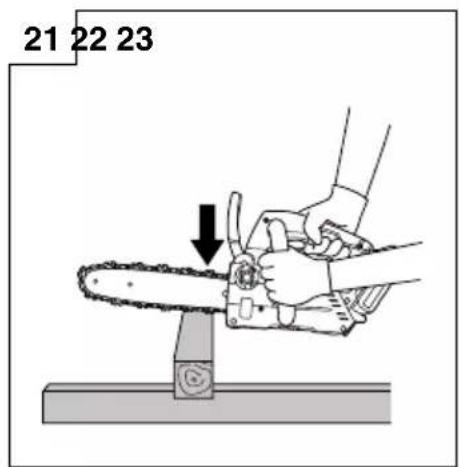

21 22 23

Illustration of a hand using a power saw to cut a circular saw (no text or symbols present)

Technical diagram showing a mechanical assembly with numbered components labeled 18, 35, 37, and 36.

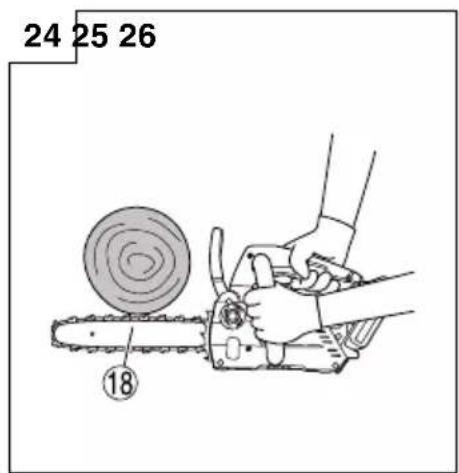

24 25 26 ⑱

① ② ③

Diagram of a snail with labeled parts and concentric contour lines, showing cross-sections and ground layer.

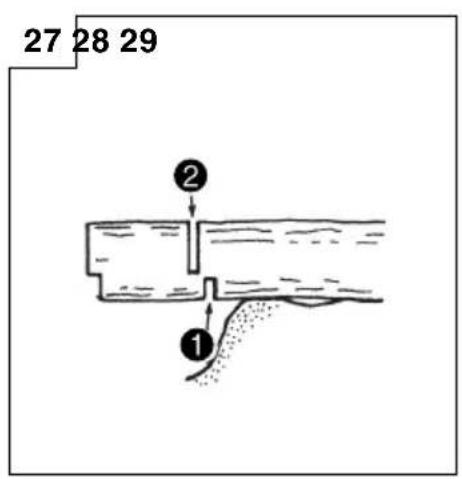

27 28 29 ② ①

Diagram showing a cross-section of a wellbore with labeled parts 1 and 2, likely illustrating a geological or sedimentary structure.

Illustration of a hand using a chain-linking tool to lift a gear (no text or symbols present)

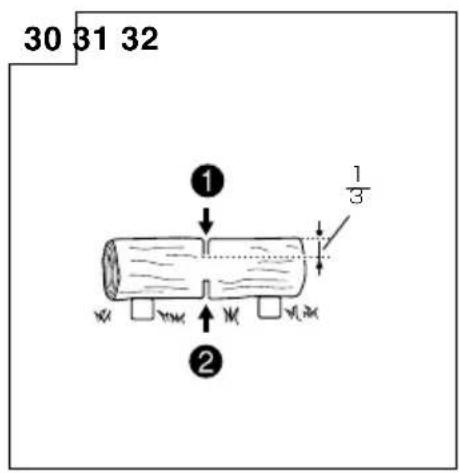

30 31 32 ① ½ ②

39 38 O

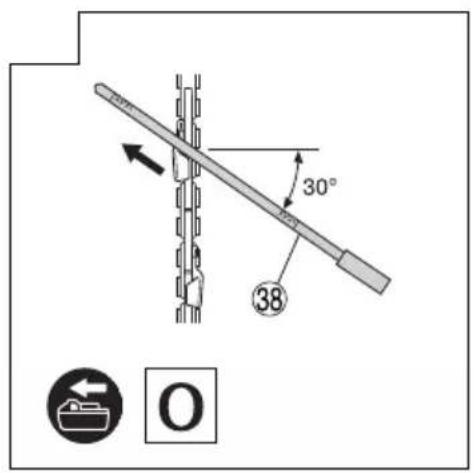

30° 38 O

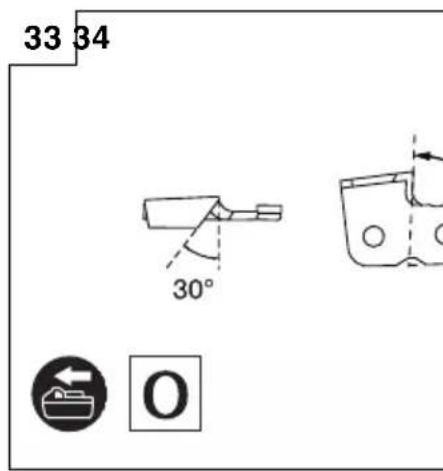

33 34 30° O

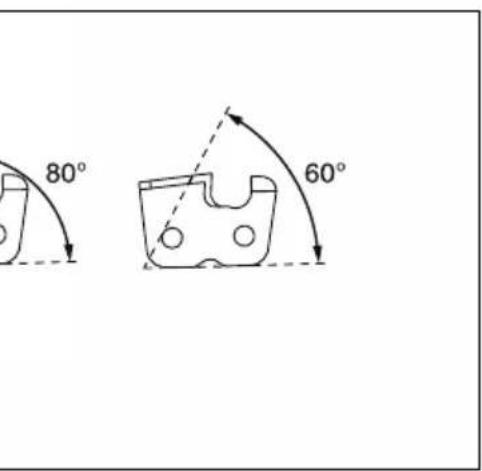

80° 60°

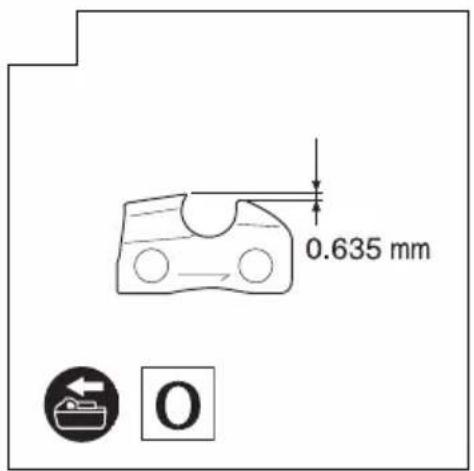

0.635 mm O

35 36 37 40 41 42 O

43 O

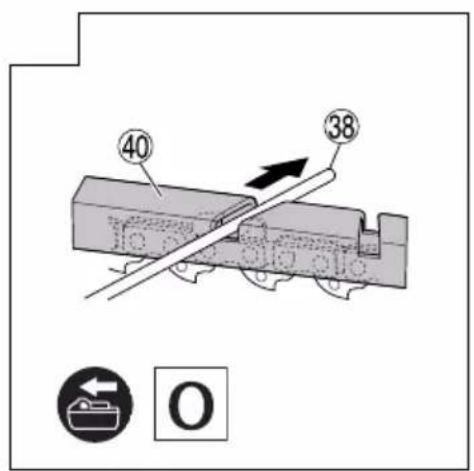

40 38 O

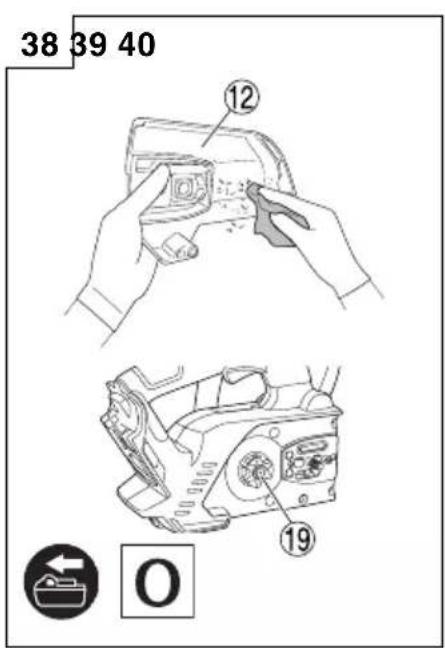

38 39 40 12 19 O

Technical diagram of a chain drive with labeled parts and directional indicators

44 45 46 O

41 42 30 O

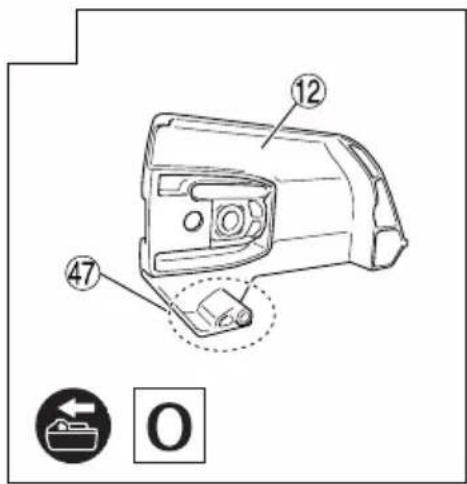

12 47 O

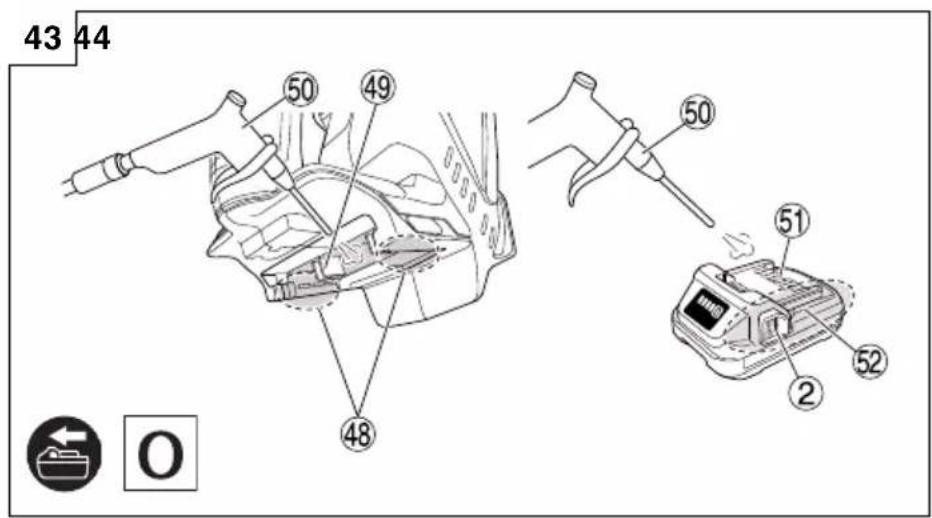

43 44 50 49 48 50 51 2 52 O

53 O

SYMBOLS

WARNING

The following show symbols used for the machine. Be sure that you understand their meaning before use.

	CS1825DC: Cordless Chain Saw
	To reduce the risk of injury, user must read instruction manual.
	Do not use a power tool in the rain and moisture or leave it outdoors when it is raining.
	Only for EU countriesDo not dispose of electric tools together with household waste material!In observance of European Directive 2012/19/EU on waste electrical and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility.
	Read, understand and follow all warnings and instructions in this manual and on the unit.
	Always wear eye, head and ear protectors when using this unit.
	Beware of chain saw kickback and avoid contact with bar tip.
	Always use chain saw two-handed.
	It is important that you wear the protective clothing for feet, legs, hands, fore-arms and head.
	This chain saw is for use by trained tree service operator only. Use without proper training can result in severe injuries.

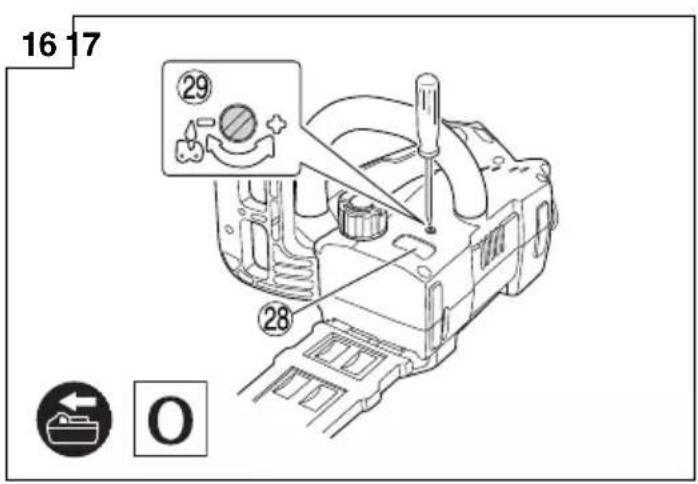

	Chain oil delivery rate adjustment
	Disconnect the battery

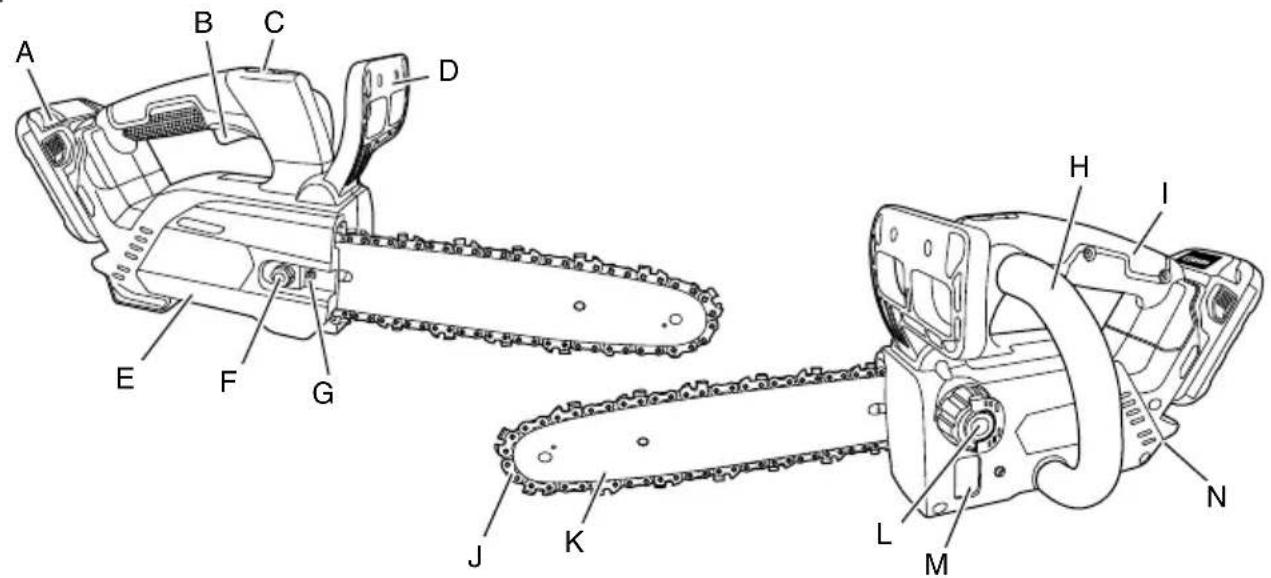

WHAT IS WHAT? (Fig. 1)

A: Battery (sold separately): Power source to drive the unit.
B: Switch: Device activated by the finger.
C: Lock-off lever: Lever that prevents the accidental operation of the trigger.

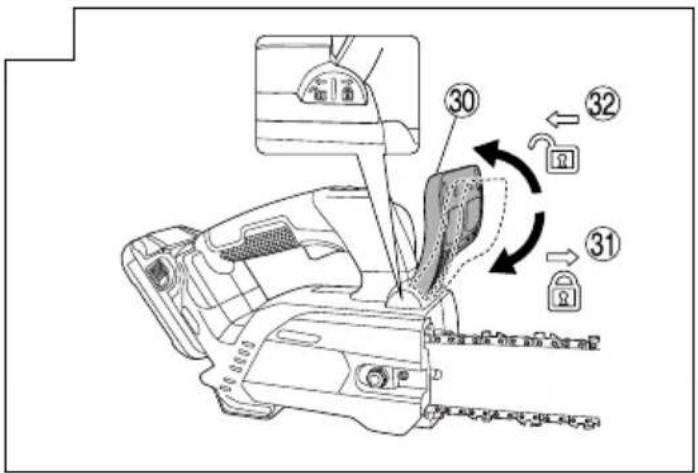

D: Chain brake: Device for stopping or locking the saw chain.

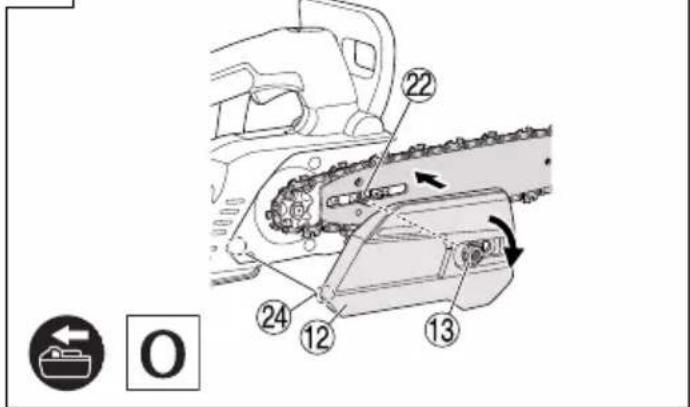

E: Side cover: Protective cover to the guide bar, saw chain, clutch and sprocket when the chain saw is in use.
F: Nut: Nut for securing side cover.

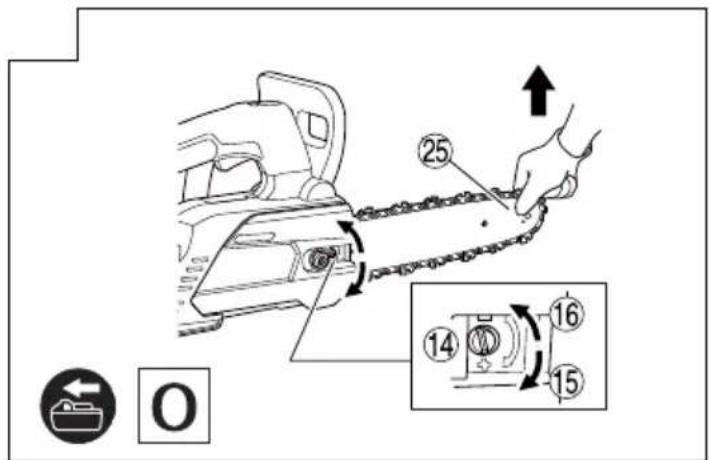

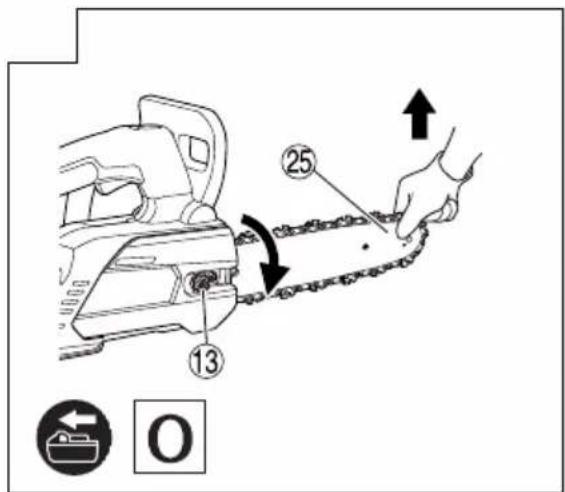

G: Tensioning screw: Device for adjusting tension of saw chain.
H: Front handle: Support handle located at or towards the front of the main body.
I: Rear handle (Top handle): Support handle located on the rear of the main body.
J: Saw chain: Chain, serving as a cutting tool.
K: Guide bar: The part that supports and guides the saw chain.

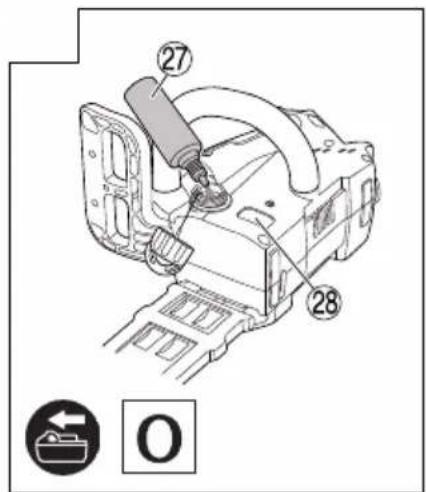

L: Oil tank cap: Cap for closing the oil tank.
M: Oil sight glass: Window to check chain oil amount.
N: Hook: Tool for hanging the unit with rope etc.
O: Oil feeder: Container for oil.
P: Chain case: Case for covering the guide bar and saw chain when the unit is not being used.
Q: Combi box spanner: The tool for removing or installing a side cover and tensioning the saw chain.

WARNING

This chain saw (CS1825DC) is designed especially for tree care and surgery. Only persons trained in tree care and surgery may use this saw. Observe all literature, procedures and recommendations from the relevant professional organization. Failure to do so constitutes a high accident risk. We recommend always using a rising platform for sawing in trees. Rappelling techniques are extremely dangerous and require special training. The operator must be trained in and familiar with the use of safety equipment and working and climbing techniques. Always use the restraining equipment for both the operator and the saw.

GENERAL POWER TOOL SAFETY WARNINGS

WARNING

Read all safety warnings, instructions, illustrations and specifications provided with this power tool.

Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust.

Power tools create sparks which may ignite the dust or fumes.

English

c) Keep children and bystanders away while operating a power tool.

Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet.

Never modify the plug in any way.

Do not use any adapter plugs with earthed (grounded) power tools.

Unmodifi ed plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators.

There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions.

Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.

Keep cord away from heat, oil, sharp edges or moving parts.

Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use.

Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply.

Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool.

Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication.

A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection.

Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protec used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off -position before connecting to power source and/or battery pack, picking up or carrying the tool.

Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on.

A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times.

This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and c from moving parts.

Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.

Use of dust collection can reduce dust-related hazards.

h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles.

A careless action can cause severe injury within a fraction of a second.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application.

The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off.

Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools.

Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.

Power tools are dangerous in the hands of untrained users.

e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation.

If damaged, have the power tool repaired before use.

Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean.

Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed.

Use of the power tool for operations different from those intended could result in a hazardous situation.

h) Keep handles and grasping surfaces dry, clean and free from oil and grease.

Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) Battery tool use and care

a) Recharge only with the charger specified by the manufacturer.

A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

b) Use power tools only with specifically designated battery packs.

Use of any other battery packs may create a risk of injury and fi re.

c) When battery pack is not in use, keep it away from other metal objects, like paper clips, n g c a i n s a k e y s, nails, screws or other small metal objects, that can make a connection from one terminal to another.

Shorting the battery terminals together may cause burns or a fire.

d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help.

Liquid ejected from the battery may cause irritation or burns.

e) Do not use a battery pack or tool that is damaged or modified.

Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.

f) Do not expose a battery pack or tool to fire or excessive temperature.

Exposure to fire or temperature above 130^ C may cause explosion. i)

g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the j) instructions.

Charging improperly or at temperat the specified range may damage the battery and increase the risk of fire.

6) Service

a) Have your power tool serviced by a qua repair person using only identical replacement parts.

This will ensure that the safety of the power tool is maintained.

b) Never service damaged battery packs.

Service of battery packs should only be performed by the manufacturer or authorized service providers.

PRECAUTION

Keep children and infi rm persons away.

When not in use, tools should be stored out of reach of children and infi rm persons.

CORDLESS CHAIN SAW SAFETY WARNINGS

1) General chain saw safety warnings

a) This chain saw is not intended for tree felling. Use of the chain saw for operations different than intended could result in serious injury to the operator or bystanders.

b) The operator must be trained in safe climbing techniques and in the use of all recommended additional safety equipment, such as harness, loops, straps, rope and karabiners, and other fall arrest systems for the operator and the saw. Establishing a secure location in the tree at each working position is essential to avoid a hazardous situation.

c) Wear eye protection, ear protection and protective equipment for head, forearms, hands, legs and feet that is suitable for tree climbing. Adequate protective equipment will reduce personal injury from flying debris or accidental contact with the saw chain.

d) Cut wood only. Do not use chain saw for purposes not intended. For example: do not use chain saw for cutting metal, plastic, masonry or non-wood building materials. Use of the chain saw for operations different than intended could result in a hazardous situation.

e) Always hold the chain saw with your right hand on the rear handle and your left hand on the front handle. Holding the chain saw with a reversed hand configuration increases the risk of personal injury and should never be done.

f) Hold the chain saw by insulated gripping surfaces only, because the saw chain may contact hidden wiring. Saw chains contacting a "live" wire may make exposed metal parts of the chain saw "live" and could give the operator an electric shock.

g) Keep all parts of the body away from the saw chain when the chain saw is operating. Before you start the chain saw, make sure the saw chain is not contacting anything. A moment of inattention while operating chain saws may cause entanglement of your clothing or body with the saw chain.

h) When cutting a limb that is under tension, be alert for spring back. When the tension in the wood fibres is released, the spring loaded limb may strike the may operator and/or throw the chain saw out of control.

i) Use extreme caution when cutting thin branches. The slender material may catch the saw chain and be whipped toward you or pull you off balance.

j) Follow all instructions when clearing jammed material, storing or servicing the chain saw. a t u Make suret the switch is off and the battery pack is removed. Unexpected actuation of the chain saw while clearing jammed material or servicing may result serious personal injury.

(k) Carry the chain saw by the front handle with the chain saw switched off and away from your body. When transporting or storing the chain saw, always fit the guide bar cover. Proper handling of the chain is saw will reduce the likelihood of accidental contact with the moving saw chain.

I) Follow instructions for lubricating, chain tensioning and changing the bar and chain. Improperly tensioned or lubricated chain may either break or increase the chance for kickback.

2) Causes and operator prevention of kickback:

Kickback may occur when the nose or tip of the guide bar touches an object, or when the wood closes in and pinches the saw chain in the cut. (Fig. 2)

Tip contact in some cases may cause a sudden reverse reaction, kicking the guide bar up and back towards the operator.

Pinching the saw chain along the top of the guide bar may push the guide bar rapidly back towards the operator.

Either of these reactions may cause you to lose control of the saw which could result in serious personal injury. Do not rely exclusively upon the safety devices built into your saw. As a chain saw user, you should take several steps to keep your cutting jobs free from accident or injury.

Kickback is the result of machine misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below:

a) Maintain a firm grip, with thumbs and fingers encircling the chain saw handles, with both hands on the saw and position your body and arm to allow you to resist kickback forces. (Fig. 3) Kickback forces can be controlled by the operator, if proper precautions are taken. Do not let go of the chain saw.

b) Do not overreach. This helps prevent unintended tip contact and enables better control of the chain saw in unexpected situations.

c) Only use replacement guide bars and saw chains specified by the manufacturer. Incorrect replacement guide bars and saw chains may cause chain breakage and/or kickback.

d) Follow the manufacturer's sharpening and maintenance instructions for the saw chain. Decreasing the depth gauge height can lead to increased kickback.

ADDITIONAL SAFEY WARNINGS

1. Work without pressure. In addition, always keep your body warm.
2. Keep all parts of the body away from the saw chain when the chain saw is operating.
3. Before commencing work, reflect fully on the work procedures involved and work to avoid accidents, otherwise injury may occur.
4. Do not use in the event of bad weather, such as strong wind, rain, snow, fog, or in areas prone to rockfall or avalanches.
   In bad weather, judgment may be impaired and the vibration may result in disaster.
5. When visibility is poor, such as during bad weather or night, do not use the unit. In addition, do not use it in rain or in a location exposed to rain.
   Unstable foothold or loss of balance may result accident.
6. Check the guide bar and saw chain before starting the unit.
   ○ If the guide bar or saw chain is cracked, or the product is scratched or bent, do not use the unit.
   ☐ Check if the guide bar and saw chain are securely installed. If the guide bar or saw chain is broken or dislodged, this may result in an accident.
7. Before starting work, check to ensure the switch does not engage unless the lock-off lever is pressed.
   If the unit does not working properly, immediately stop using and request repair from your HiKOKI Authorized Service Center.
8. Install the saw chain properly, in accordance with the instruction manual. If installed incorrectly, the saw chain will come off the guide bar and injury may occur.
9. Never remove any of the safety devices equipped on the chain saw (chain brake, lock-off lever, chain catcher etc.).
   In addition, do not alter or immobilize them. Injury may occur.
10. In the following cases, switch the unit off and ensure the saw chain is no longer moving:
    ○ When not in use.
    ○ When shifting to a new work location.
    ○ When inspecting, adjusting or replacing the saw chain, guide bar, chain case and any other part.
    ○ When refilling the chain oil.
    ○ When removing dust etc. from the body.
    ○ When removing obstacles, trash or sawdust generated from work from the work area.
    ○ When you take off the unit, or when you get away from the unit.
    ○ Otherwise, if you sense danger or anticipate risk.
    If the saw chain is still moving, an accident may occur.
11. Work should generally be performed individually. When multiple individuals are involved, ensure sufficient spacing between them.
12. Remain more than 15 m away from other people. In addition, when working with multiple persons, remain 15 m or more apart.
13. There is a risk of impact with scatters and other accidents.
    ○ Prepare a whistle alert etc. and determine appropriate contact method for other workers beforehand.

14. Before cutting standing trees, ensure the following:
    ○ Determine a safe evacuation location prior to cutting.
    ○ Remove obstacles (e.g., branches, shrubs) in advance.

15. During use, if the unit performance deteriorates, or you notice any abnormal sound or vibration, immediately switch off and discontinue use, and return to your HiKOKI Authorized Service Center for inspection or repair.
    If you continue using, injury may occur.

16. If the unit is accidentally dropped or exposed to impact, inspect carefully for damage or cracks and ensure there is no deformation.
    If the unit is damaged, cracked or deformed, injury may occur.
17. When transporting the unit by car, secure the unit to prevent it moving.
    There is a risk of accident.
18. Do not switch the unit on while the chain case is attached.
    Injury may occur.
19. Ensure there are no nails and other foreign objects in an the material.
    If the saw chain impact on the nail etc., injury may occur.
20. To avoid the guide bar becoming entangled with the material when chopping on a verge or when subject to the weight of material while cutting, install a supporting platform close to the cutting position.
    If the guide bar becomes entangled, injury may occur.
21. If the unit is to be transported or stored after use, either remove the saw chain, or attach the chain case.
    If the saw chain comes into contact with your body, injury may occur.
22. Adequately care for the unit.
    To ensure work can be performed safely and efficiently, care for the saw chain to ensure it provides optimal cutting performance.
    When replacing the saw chain or guide bar, maintaining the body, filling oil etc., follow the instruction manual.
23. Ask the shop to repair the unit.
    ○ Do not modify this product, since it already complies with the applicable safety standards.
    ○ Always refer to your HiKOKI Authorized Service Center for all repairs.
    Attempting to repair the unit yourself may result in an accident or injury.
24. When not using the unit, ensure it is properly stored.
    Drain off the chain oil, and keep in a dry place out of reach of children or a locked location.
25. If the warning label is no longer visible, peels off or is otherwise unclear, apply a new warning label.
    For the warning label, refer to your HiKOKI Authorized Service Center.
26. When working, if local rules or regulations apply, comply with the same.
27. Make sure that the battery is installed firmly. If it is at all loose it could come off and cause an accident.
28. Do not use the product if the tool or the battery terminals (battery mount) are deformed.
    Installing the battery could cause a short circuit that could result in smoke emission or ignition.
29. Keep the tool's terminals (battery mount) free of swarf and dust.
30. Prior to use, make sure that swarf and dust have not collected in the area of the terminals.
    ○ During use, try to avoid swarf or dust on the tool from falling on the battery.
    When suspending operation or after use, do not leave the tool in an area where it may be exposed to falling swarf or dust.
    Doing so could cause a short circuit that could result in smoke emission or ignition.
31. Always use the tool and battery at temperatures between -5^ and 40^ .

PRECAUTIONS FOR BATTERY AND CHARGER (sold separately)

1. Always charge the battery at a temperature of 0^ C– 40^ C. A temperature of less than 0^ C will result in over charging which is dangerous. The battery cannot be charged at a temperature higher than 40^ C.

The most suitable temperature for charging is that of 20^ C– 25^ C.

1. Do not use the charger continuously.

When one charging is completed, leave the charger for about 15 minutes before the next charging of battery.

1. Do not allow foreign matter to enter the hole for connecting the rechargeable battery.
2. Never disassemble the rechargeable battery or charger.
3. Never short-circuit the rechargeable battery.

Short-circuiting the battery will cause a great electric current and overheat. It results in burn or damage to the battery.

1. Do not dispose of the battery in fire.

If the battery is burnt, it may explode.

1. Using an exhausted battery will damage the charger.
2. Bring the battery to the shop from which it was purchased as soon as the post-charging battery life becomes too short for practical use. Do not dispose of the exhausted battery.
3. Do not insert objects into the air ventilation slots of the charger.

Inserting metal objects or fl ammable into the charger air ventilation slots will result in an electrical shock hazard or damage to the charger.

CAUTION ON LITHIUM-ION BATTERY

To extend the lifetime, the lithium-ion battery equips with the protection function to stop the output.

In the cases of 1 to 3 described below, when using this product, even if you are pulling the switch, the motor may stop. This is not the trouble but the result of protection function.

1. When the battery power remaining runs out, the motor stops.

In such case, charge it up immediately.

1. If the tool is overloaded, the motor may stop. In this case, release the switch of tool and eliminate causes of overloading. After that, you can use it again.
2. If the battery is overheated under overload work, the battery power may stop.

In this case, stop using the battery and let the battery cool. After that, you can use it again.

Furthermore, please heed the following warning and caution.

WARNING

In order to prevent any battery leakage, heat generation, smoke emission, explosion and ignition beforehand, please be sure to heed the following precautions.

1. Make sure that swarf and dust do not collect on the battery.
   ○ During work make sure that swarf and dust do not on the battery.
   ○ Make sure that any swarf and dust falling on the power tool during work do not collect on the battery.
   ○ Do not store an unused battery in a location exposed to swarf and dust.
   Before storing a battery, remove any swarf and dust that may adhere to it and do not store it together with metal parts (screws, nails, etc.).

2. Do not pierce battery with a sharp object such as a nail, strike with a hammer, step on, throw or subject the battery to severe physical shock.

3. Do not use an apparently damaged or deformed battery.

4. Do not use the battery for a purpose other than those specified.
5. If the battery charging fails to complete even when a specified recharging time has elapsed, immediately stop further recharging.
6. Do not put or subject the battery to high temperatures or high pressure such as into a microwave oven, dryer, or high pressure container.
7. Keep away from fire immediately when leakage or foul odor are detected.
8. Do not use in a location where strong static electricity generates.
9. If there is battery leakage, foul odor, heat generated, discolored or deformed, or in any way appears abnormal during use, recharging or storage, immediately remove it from the equipment or battery charger, and stop use.
10. Do not immerse the battery or allow any fluids to flow inside. Conductive liquid ingress, such as water, cause damage resulting in fire or explosion. Store your battery in a cool, dry place, away from combustible and flammable items. Corrosive gas atmospheres must be avoided.

CAUTION

1. If liquid leaking from the battery gets into your eyes, do not rub your eyes and wash them well with fresh clean water such as tap water and contact a doctor immediately.

If left untreated, the liquid may cause eye-problems.

1. If liquid leaks onto your skin or clothes, wash well with clean water such as tap water immediately.

There is a possibility that this can cause skin irritation.

1. If you find rust, foul odor, overheating, discolor, deformation, and/or other irregularities when using the battery for the first time, do not use and return it to your supplier or vendor.

WARNING

If an electrically conductive foreign object enters the terminals of the lithium ion battery, a short-circuit may occur resulting in the risk of fire. Please observe the following matters when storing the battery.

☐ Do not place electrically conductive cuttings, nails, steel wire, copper wire or other wire in the storage case.
☐ Either install the battery in the power tool or store by securely pressing into the battery cover until the ventilation holes are concealed to prevent short-circuits (See Fig. 4).

REGARDING LITHIUM-ION BATTERY TRANSPORTATION

When transporting a lithium-ion battery, please observe the following precautions.

WARNING

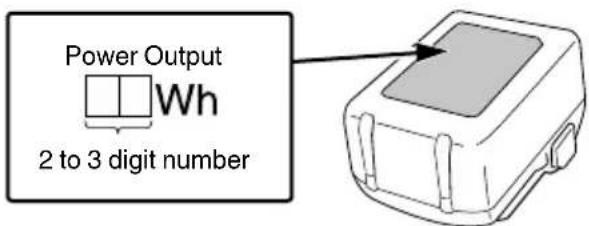

Notify the transporting company that a package contains a lithium-ion battery, inform the company of its power output and follow the instructions of the transportation company when arranging transport.

8 Lithium-ion batteries that exceed a power output of 100 Wh are considered to be in the freight classification of Dangerous Goods and will require special application procedures.
☐ For transportation abroad, you must comply with international law and the rules and regulations of the destination country.

Power Output Wh 2 to 3 digit number

NAMES OF PARTS (Fig. 1–Fig. 44)

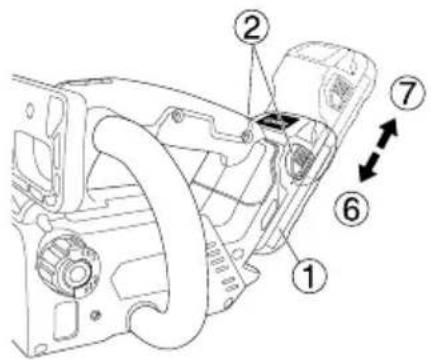

1	Battery(sold separately)	26	Oil sight glass
2	Latch Oil pump adjuster	29
3	Ventilation holes Chain brake
4	Terminals Actuation	31
5	Battery cover Release	32
6	Insert	33	Battery level indicator switch
7	Pull out	34	Battery level indicator lamp

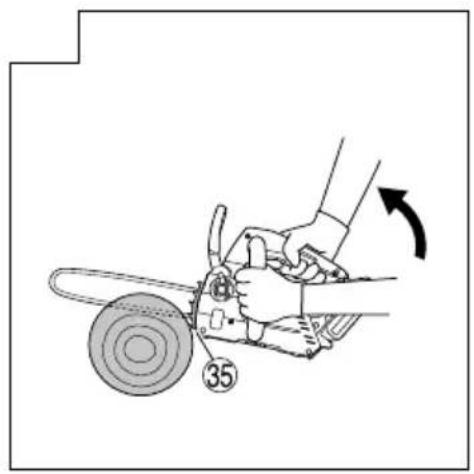

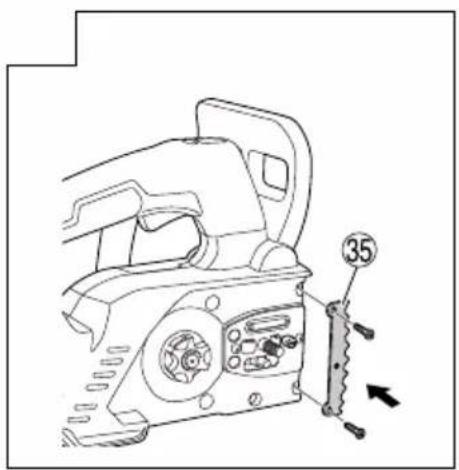

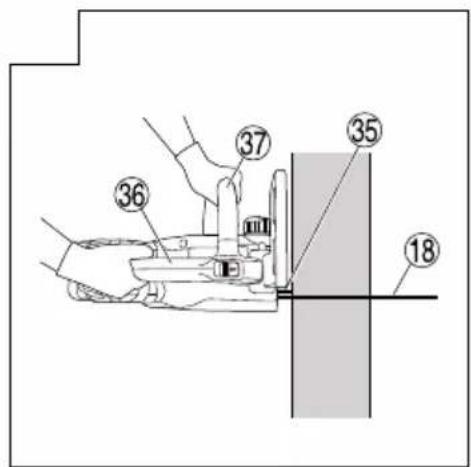

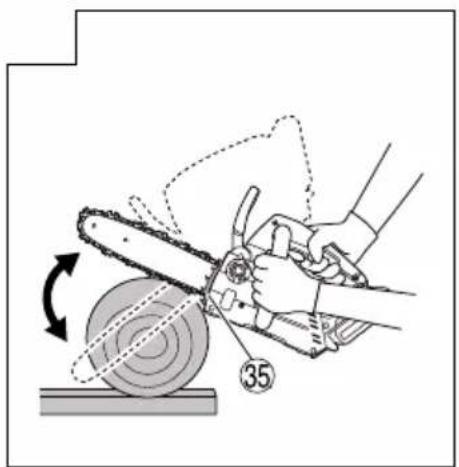

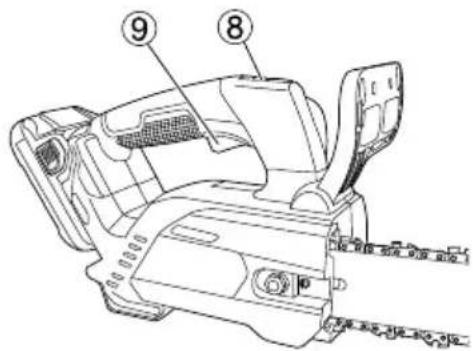

8	Lock-off lever	35	Spike(sold separately)
9	Switch	36	Rear handle(Top handle)
10	Pilot lamp Front handle	37
11	Combi box spanner Round file

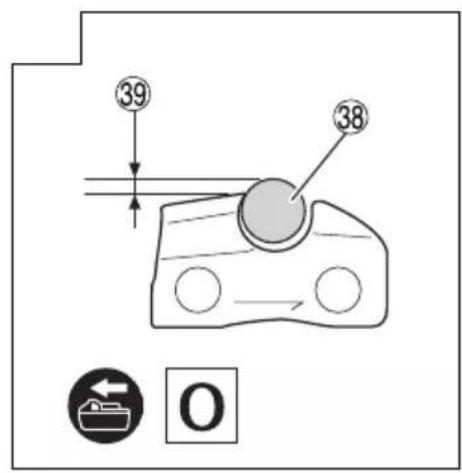

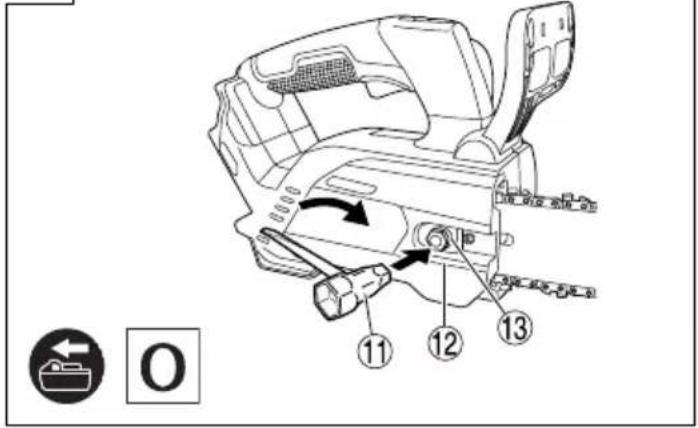

12	Side cover	39	1/5 of diameter of file

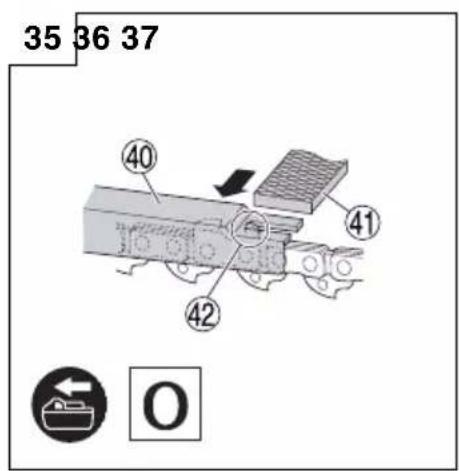

13	Nut Depth gauge jointer	40

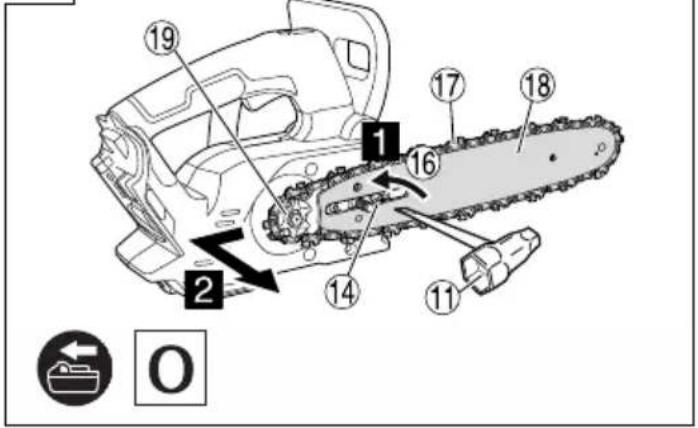

14	Tensioning screw Flat file	41
15	Increase the tension	42	Protruding depth gauge head

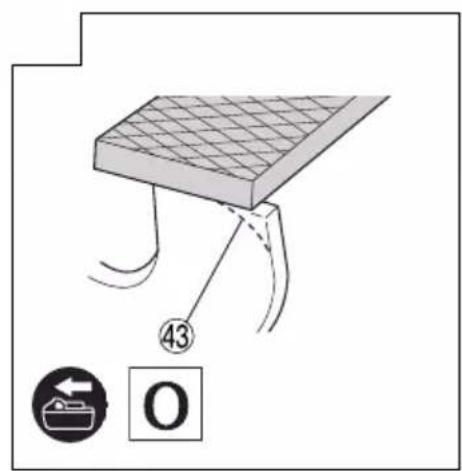

16	Decrease the tension Round off

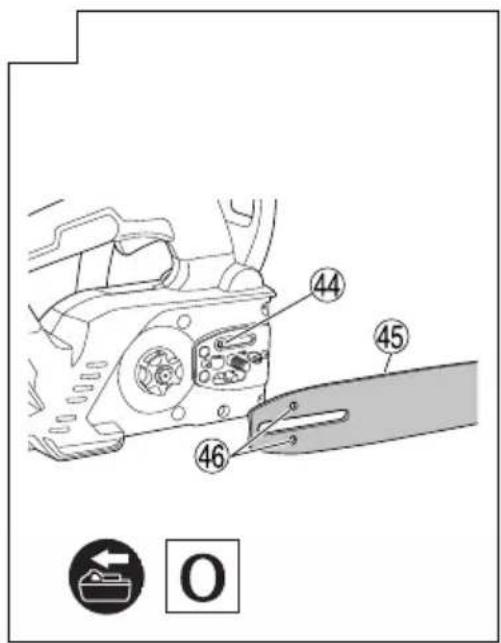

17	Saw chain	44	Chain oil spout
18	Guide bar Groove	45
19	Sprocket	46	Oil hole
20	Blade direction	47	Chain catcher
21	Illustration showing blade direction	48	Battery sliding grooves
22	Bolt	49	Terminal (Product)
23	Chain tensioner boss Airflow gun
24	Lug	51	Terminal (Battery)

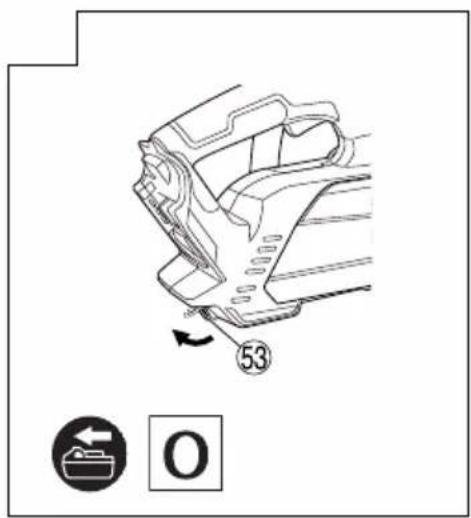

25	Guide bar tip	52	Sliding grooves
26	Drive link	53	Hook
27	Chain oil

SPECIFICATIONS
1. Power tool

Model	CS1825DC
Voltage	18 V
Saw chain	Type: 90PX-040XPitch: 9.5 mm (3/8")Gauge: 1.1 mm (0.043")
Guide bar	Type: 104MLEA041Size: 250 mm(Max. cutting legth)
Sprocket	Number of teeth: 6Pitch 9.5 mm (3/8")
No-load chain speed	12.1 m/s (730 m/min)
Chain oil tank capacity	70 ml
Battery available for this tool	BSL1820M, BSL1830C, BSL1840M, BSL1850, BSL1850C, BSL1850MA, BSL36A18, BSL36B18
Weight*	2.0 kg

* Weight: Saw chain, guide bar, chain case, oil, battery not included

NOTE

Due to HiKOKI's continuing program of research and development, the specifications herein are subject to change without prior notice.

1. Battery (sold separately)

Model	BSL1820M
Voltage	18 V
Battery capacity	2.0 A

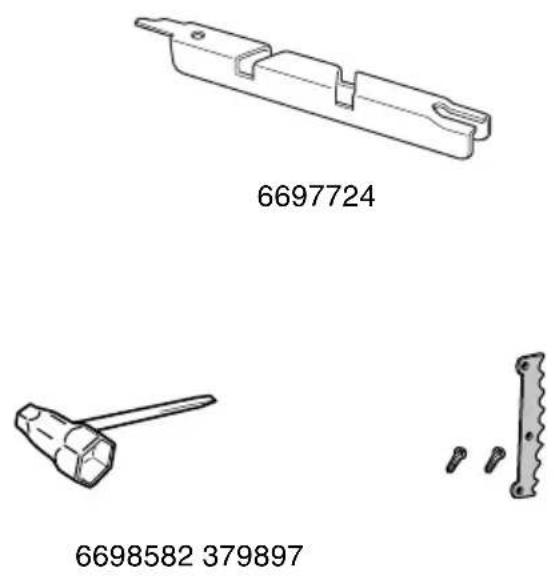

STANDARD ACCESSORIES

In addition to the main unit (1 unit), the package contains the accessories listed on page 322.

Standard accessories are subject to change without notice.

APPLICATIONS

○ Cutting of timber/logs
○ Pruning of garden trees

CHARGING

Battery and battery charger are not included with this product.

Before using the power tool, charge the battery as follows.

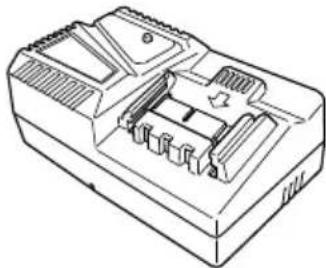

1. Connect the charger's power cord to the receptacle.

When connecting the plug of the charger to a receptacle, the pilot lamp will blink in red (At 1-second intervals).

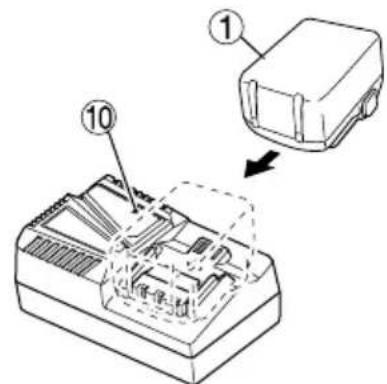

1. Insert the battery into the charger.

Firmly insert the battery into the charger as shown in Fig. 6.

3. Charging

When inserting a battery in the charger, charging will commence and the pilot lamp will light continuously in red.

When the battery becomes fully recharged, the pilot lamp will blink in red. (At 1-second intervals) (See Table 1)

● Pilot lamp indication

The indications of the pilot lamp will be as shown in Table 1, according to the condition of the charger or the rechargeable battery.

Table 1

Indications of the pilot lamp (RED)
Before charging	Lights on for 0.5 seconds and off for 0.5 secondsBlinks	Plugged into power source
While charging	Lights continuously Lights	—
Charging complete	Lights on for 0.5 seconds and off for 0.5 secondsBlinks	—
Overheat standby	Lights on for 1 second and off for 0.5 secondsBlinks	Battery overheated. Unable to charge.(Charging will commence when battery cools)
Charging impossible	Lights on for 0.1 seconds and off for 0.1 seconds Flickers	Malfunction in the battery or the charger

● Regarding the temperatures and charging time of the battery.

The temperatures and charging time will become as shown in Table 2.

Table 2

Battery\Charger		UC18YFSL
Charging voltage V 14.4	-18
Weight kg 0.5
Temperatures at which the battery can be recharged		0°C-50°C
Charging time for battery capacity, approx. (At 20°C)
1.5 Ah	min	22
2.0 Ah	min	30
2.5 Ah	min	35
3.0 Ah	min	45
4.0 Ah	min	60
5.0 Ah	min	75
6.0 Ah	min	90
8.0 Ah	min	120
Number of battery cells 4-10

NOTE

The recharging time may vary according to temperature and power source voltage.

CAUTION

When the battery charger has been continuously used, the battery charger will be heated, thus constituting the cause of the failures. Once the charging has been completed, give 15 minutes rest until the next charging.

1. Disconnect the charger's power cord from the receptacle.

2. Hold the charger firmly and pull out the battery. NOTE

Be sure to pull out the battery from the charger after use, and then keep it.

Regarding electric discharge in case of new batteries, etc.

As the internal chemical substance of new batteries and batteries that have not been used for an extended period is not activated, the electric discharge might be low when using them the first and second time. This is a temporary phenomenon, and normal time required for recharging will be restored by recharging the batteries 2–3 times.

How to make the batteries perform longer.

(1) Recharge the batteries before they become completely exhausted.

When you feel that the power of the tool becomes weaker, stop using the tool and recharge its battery. If you continue to use the tool and exhaust the electric current, the battery may be damaged and its life will become shorter.

(2) Avoid recharging at high temperatures.

A rechargeable battery will be hot immediately after use. If such a battery is recharged immediately after use, its internal chemical substance will deteriorate, and the battery life will be shortened. Leave the battery and recharge it after it has cooled for a while.

CAUTION

☐ If the battery is charged while it is heated because it has been left for a long time in a location subject to direct sunlight or because the battery has just been used, the pilot lamp of the charger lights for 1 second, does not light for 0.5 seconds (off for 0.5 seconds). In such a case, first let the battery cool, then start charging.
When the pilot lamp flickers (at 0.2-second intervals), check for and take out any foreign objects in the charger's battery connector. If there are no foreign objects, it is probable that the battery or charger is malfunctioning. Take it to your authorized Service Center.

MOUNTING AND OPERATION

Action	Figure	Page
Removing and inserting the battery	5	2
Switch operation*1	7	2
Using the hook*2	44	6
Selecting accessories	—	323

\*1 Switch operation

When the switch is engaged while sliding the lock-off lever, the saw chain rotates. (Fig. 7) Unless the lock-off lever is being slid, the switch cannot be engaged.

English

After the switch is engaged, the saw chain continues rotating as long as it is pressed down.

When the switch is released, a brake is applied to stop the saw chain rotation.

WARNING

Do not secure the lock-off lever in the slid position.

If the switch is accidentally engaged unexpectedly start and injury may occur.

7. Securing the nut (Fig. 14)

When adjustment is complete, lift up the guide bar, and fully tighten the nut.

WARNING

After adjusting the saw chain tension, ensure the nut is fully tightened.

Iftihis loosei tnjuryanyay occur.

*2 Using the hook

WARNING

When using the hook, ensure the unit is securely suspended to avoid the risk of falling.

If the unit falls, an accident may occur.

INSTALLING (REPLACING) SAW CHAIN

WARNING

☐ To prevent accidents, always switch the unit off, and remove the battery.
- Don't use the saw chain or the guide bar other than those specified in "SPECIFICATIONS".

CAUTION

Wear thick gloves and be careful to avoid injury with the saw chain.

NOTE

When removing the saw chain, remove sawdust from the oil spout, oil hole, and guide bar groove.
If sawdust accumulates, this may cause the unit to fail.

○ Use the correct type of saw chain in accordance with the specifications.

If you install the wrong type of guide bar, the saw chain may come off and injury may occur.

1. Removing the side cover (Fig. 8)

Turn the nut and remove the side cover.

2. Removing the saw chain and guide bar (Fig. 9)

Rotate the tensioning screw in the “-” direction to introduce a small amount of slack in the saw chain, then detach from the sprocket. Detach along with the guide bar in the direction indicated by the arrow.

3. Engaging the new saw chain in the sprocket (Fig. 10)

① Attach the saw chain from the guide bar tip. Make sure the saw chain is oriented so that the blade faces in the direction shown in the illustration below the sprocket.
② Insert the bolt and chain tensioner boss into the hole in the guide bar while holding the chain and guide bar tip. Engage the end of the saw chain to the sprocket and mount the guide bar to the saw body.

4. Installing the side cover (Fig. 11)

① Attach the side cover by inserting the lug into the slot in the saw body. Make sure the saw chain does not come loose from the guide bar.
② Rotate the nut once to temporarily fix it. Remove any dirt around the side cover before reattaching.

5. Adjusting the saw chain tension (Fig. 12)

○ While lifting the guide bar tip, turn the tensioning screw to adjust the saw chain tension.
○ Turn the tensioning screw to the "+" to increase the saw chain tension, and to the "-" to decrease it.

6. Checking the saw chain tension (Fig. 13)

Adjust the saw chain tension so that the gap between the saw chain drive link and the guide bar is 0.5 to 1 mm when you lift the saw chain slightly near the center of the guide bar.

INSPECTION AND PREPARATION PRIOR TO USE

Prior to use, make the following inspection and preparation.

WARNING

☐ To prevent accidents, always perform steps 1 to 3 ensuring the battery is removed from the body.
☐ Do not secure the lock-off lever in the slid position. If the switch is accidentally engaged, then unexpectedly start and injury may occur.

1. Ensuring the switch is off

☐ If you insert the battery without knowing whether the switch is engaged, the unit may unexpectedly start, which may result in an accident.
When the switch is engaged while the lock-off lever is in the slid position, the unit switches on, and when the switch is released, the unit switches off.

2. Checking the saw chain tension

☐ If the saw chain tension is incorrect, there is a risk of damage to the saw chain or guide bar and malfunction. Referring to steps 5 to 7 “Installing (replacing) saw chain,” ensure an appropriate tension is set.
○ While the saw chain is still new, it is particularly stretchy, so periodically check the tension and adjust as required.
○ Also check the nut is securely tightened.

3. Checking the chain oil

This unit is delivered without chain oil inside. Ensure the oil tank is filled with the chain oil provided before use. (Fig. 15)
○ Periodically check the oil sight glass during work and replenish oil as required.
○ If the chain oil supplied runs out, use HiKOKI chain oil sold separately or equivalent chain oil on the market.
○ The chain oil lubricates automatically.

The discharge rate for auto lubrication is factory preset to the maximum.

To reduce the discharge rate, turn the oil pump adjuster on the right side of the oil sight glass clockwise. (Fig. 16)

NOTE

○ The oil tank capacity is about 70 ml.
Make sure no oil leaks or overflows from the oil tank when replenishing the chain oil.
○ We recommend that you stock up with chain oil.
If you continue working without chain oil, the saw chain may burn through, or the motor may fail.

• Be careful to avoid dust or other foreign matter from entering the oil tank. If dust and other foreign matter enter the oil tank, the unit may fail.
  ○ Chain oil left in the tank may leak due to the structure of this unit. Although this does not indicate a malfunction, it may soil the storage location, so be careful.

When storing, empty the oil from the oil tank, and place an item under the main body which can absorb any leaks.

○ Replenish the oil after every approximately 10 minutes of operation. (*Varies depending on the cutting usage conditions)

4. Installing the battery (Fig. 5)

As shown in Fig. 5, push firmly until it clicks into place.

CAUTION

Securely attach the battery.

If the battery is not securely attached, it may come off and injury may occur.

5. Checking operation of chain brake (Fig. 17)

WARNING

Although the chain brake is an emergency stop device, this is not completely reliable. Operate carefully to avoid the risk of kickback.
○ The chain brake is intended for use in emergencies and when starting up. Do not use it indiscriminately.
To avoid impaired movement of the chain brake due to buildup of sawdust etc., clean regularly.
○ The chain brake is an important component to ensure safe use.
If you have any concern regarding the chain brake operation, request repair from your HiKOKI Authorized Service Center.

The chain brake is an emergency stop device that stops the saw chain when the unit is subject to kickback etc., to reduce risk.

(Refer to "Causes and operator prevention of kickback.") Push the chain brake in the direction indicated by the arrow

(31) to apply the chain brake and stop the saw chain. To release the chain brake, release the switch and pull back on the chain brake.

CAUTION

The chain brake functions only when power is turned on. Check chain brake function in a location with no people or obstructions nearby.

(1) Press the switch while sliding the lock-off lever.

(2) Once the saw chain begins turning, push the chain brake forward toward the saw chain.

(3) If the saw chain stops, the chain brake is functioning as it should. To release the brake, release the switch and pull back on the chain brake.

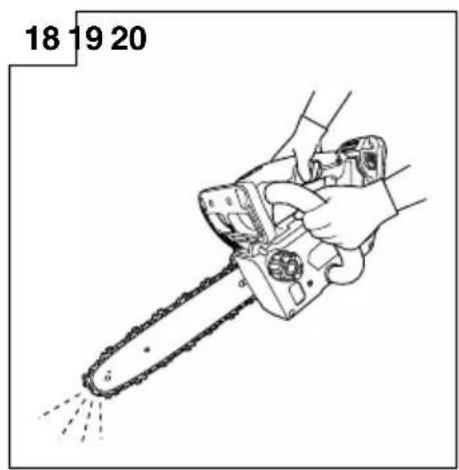

6. Checking chain oil discharge (Fig. 18)

When switching the unit on, chain oil automatically lubricates the saw chain and guide bar.
☐ If oil does not seem to emerge 2 to 3 minutes after the unit starts, check if any sawdust has accumulated around the oil spout.

(Refer to "Cleaning the chain oil spout.")

(Refer to "Checking the chain oil.")

7. Installing of the spike (sold separately) (Fig. 19)

When using the spike, refer to "Installing (replacing) saw chain", remove the saw chain and guide bar, and then install the spike with the two screws provided.

REMAINING BATTERY INDICATOR

You can check the battery's remaining capacity by pressing the remaining battery indicator switch to light the indicator lamp. (Fig. 20, Table 3)

The indicator will shut off approximately 3 seconds after the remaining battery indicator switch is pressed.

It is best to use the remaining battery indicator as a guide since there are slight differences such as ambient temperature and the condition of the battery.

Also, the remaining battery indicator may vary from those equipped to a tool or charger (Battery is not included, sold separately).

Table 3

State of lamp	Battery Remaining Power
	Lights;The battery remaining power is over 75%.
	Lights;The battery remaining power is 50%-75%.
	Lights;The battery remaining power is 25%-50%.
	Lights;The battery remaining power is less than 25%.
	Blinks;The battery remaining power is nearly empty. Recharge the battery soonest possible.
	Blinks;Output suspended due to high temperature.Remove the battery from the tool and allow it to fully cool down.
	Blinks;Output suspended due to failure or malfunction. The problem may be the battery so please contact your dealer.

NOTE

Do not give a strong shock to the switch panel or break it. It may lead to a trouble.

CUTTING PROCEDURES

WARNING

When working in trees, wear appropriate protection on your eyes, head, hands, legs, and arms, as well as slip-resistant foot protection.
○ Prior to operation, ensure that chain brake works.
○ During use, grip the handle securely with both hands. (Fig. 3)
When cutting timber from the bottom, ensure the saw chain does not impact with the timber.
If the unit is pushed back, injury may occur.
During work breaks or after work, always switch the unit off, and remove the battery from the main body.

Always monitor the workplace and surrounding area, ensure there are no objects which could cause injuries, accidents or failure, and if any are present, remove them in advance.

In particular, when establishing a foothold for working, ensure there is no instability or any object which could be tripped over.

① Ensuring the unit is switched off

If the storage battery is inserted while the switch is unknowingly engaged, the unit may unexpectedly start, which may result in an accident.

② Installing the battery (Fig. 5)

As shown in Fig. 5, push firmly until it clicks into place.

③ Engaging the switch

Ensuring the saw chain is not in contact with the timber, engage the switch, and start cutting when the saw chain speed has increased.

CAUTION

○ When switching the unit on, ensure the saw chain does not contact with material or anything else.
During use, be careful to ensure the saw chain does not contact with other material or object. In particular, when you have finished cutting, be careful to ensure it does not touch the ground.

English

NOTE

Refill the oil tank early to prevent the unit running out of oil.

1. General cutting procedures

(1) Switch ON the power while keeping the saw slightly away from the wood to be cut. Start sawing only the unit has reached full speed.
(2) When sawing a slender piece of wood, press the base section of the guide bar against the wood and saw downward as shown in Fig. 21.
(3) When sawing a thick piece of wood, press the spike (sold separately) on the front section of the unit against the wood and cut it with a lever action while using the spike as a fulcrum as shown in Fig. 22.
(4) When cutting wood horizontally, turn the unit body to the right so that the guide bar is below and hold the upper side of the front handle with your left hand. Hold the guide bar horizontally and place the spike (sold separately) that is on the front of the unit body on the lumbar. Using the spike as a fulcrum, cut into the wood by turning the rear handle to the right. (Fig. 23)
(5) When cutting into wood from the bottom, touch the upper part of the guide bar to the wood lightly. (Fig. 24)
(6) As well as carefully studying the handling instructions, ensure practical instruction in the operation of the chain saw prior to use, or at least practice working with the chain saw by cutting lengths of round timber on a sawing trestle.
(7) When cutting logs or timbers which are not supported, support them properly by immobilizing them during cutting using a sawing trestle or other proper method.

CAUTION

When cutting wood from the bottom, there is a danger that the unit body may be pushed back toward the user if the chain strongly impacts with the wood.
Do not cut all the way thorough the wood by starting from the bottom since there is the danger of the guide bar flying up out of control when the cut is finished.
○ Always prevent the operating chain saw from touching the ground or wire fences.

2. Branch cutting

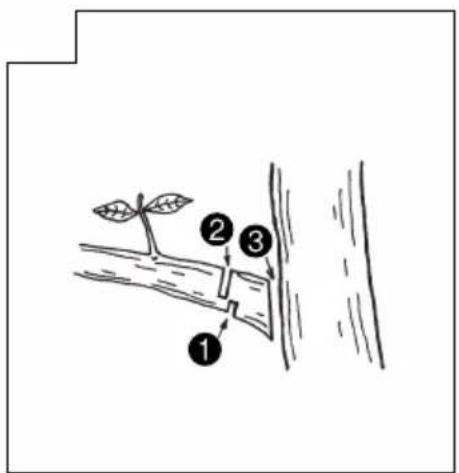

(1) Cutting branches from a standing tree: A thick branch should initially be cut off at a point away from the trunk of the tree.

First cut in about one third of the way from below, and then cut off the branch from above. Finally, cut off the remaining portion of the branch even with the trunk of the tree. (Fig. 25)

CAUTION

○ Always be careful to avoid falling branches.
○ Always be alert for chain saw recoil.

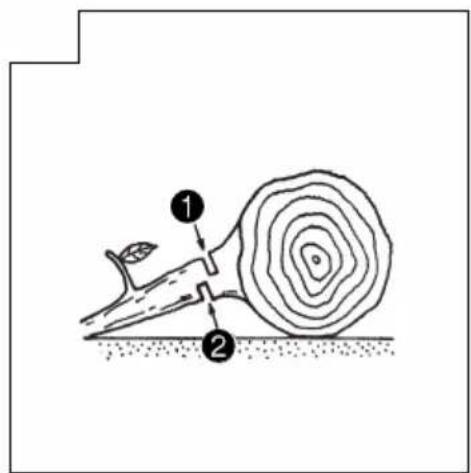

(2) Cutting branches from fallen trees:

First cut off branches that do not touch the ground, then cut off those which touch the ground. When cutting thick branches that touch the ground, first cut in about half of the way from above, then cut the branch off from below. (Fig. 26)

CAUTION

When cutting off branches which touch the ground, be careful that the guide bar does not become bound by pressure.
○ During the final cutting stage, beware of the log suddenly rolling.

3. Log cutting

When cutting a log positioned as shown in Fig. 27, first cut in about one third of the way from below, then cut down all the way from above. When cutting a log that straddles a hollow as shown in Fig. 28, first cut in about two thirds of the way from above, then cut upward from below.

CAUTION

○ Ensure the guide bar does not become bound in the log by pressure.
When working on inclined ground, be sure to stand on the uphill side of the log. If you stand on the downhill side, the cut-off log may roll toward you.

f4erCutting a log laid fl at

Make sure the log is stable.

Push the spike against the log. Use the spike as a fulcrum about which the handle can be lifted to facilitate cutting. (Fig. 29)

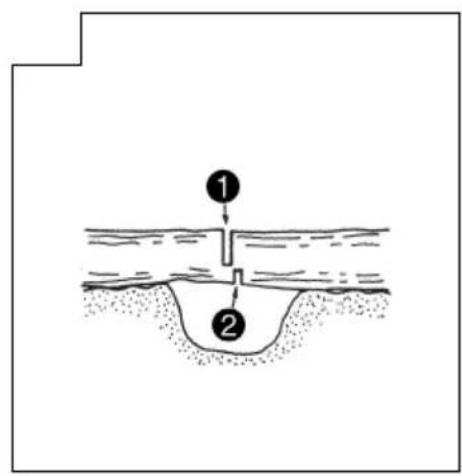

5. Cutting a log supported at both ends

Start by sawing to a depth of approximately one third from the top, then saw from underneath to complete the cut.

The guide bar may become stuck within the saw cut if you attempt to cut all the way through from the top. (Fig. 30)

Precaution for cutting work

For large-scale operation or non-stop work

This tool comes with an over-heat protection circuit that protects the electronic parts that control the rechargeable battery. During sustained use or during operations under high loads generated by pressure against the tool, tool temperature will rise and eventually trigger the over-heat protection circuit, which will shut down the tool.

If this happens, let the tool cool for a length of time. When the temperature drops, it will again become possible to use the tool. When the rechargeable battery has to be exchanged during continuous operation, let the tool rest for about 15 minutes.

Gripping/pushing force of chain saw

Always grip the chain saw securely.

In addition, do not force the chain saw more than necessary. When cutting, additional force exerted on the chain saw will not accelerate the cutting speed. This will strain the motor, impair the performance, and damage or cause malfunction of the motor or guide bar.

Use the unit in the range where the saw chain is at a reasonable speed.

In particular, when the saw chain stops (becomes jammed) due to the excessive force, it may cause an injury or failure of the unit.

Chain catcher

☐ The chain catcher is located on the power head just below the chain to further prevent the possibility of a broken chain striking the chain saw user.
When the saw chain is cut, replace it with a new one referring to "Installing (replacing) saw chain".

SHARPENING OF THE CHAIN BLADE

WARNING

To prevent accidents, always turn off the switch and remove the battery from the main body.

CAUTION

Always wear thick gloves when handling the saw chain.

NOTE

Sharpen the saw chain and adjust the depth gauge at the central position on the guide bar, with the saw chain attached to the main body.

When the sharpness of saw chains deteriorates, the motor and each part of the body are burdened and the efficiency declines.

For optimal performance of the unit, frequent maintenance is necessary to keep the saw chain sharp.

1. Blade sharpening

Use a 4 mm diameter round fi le.

The round file should be held against the chain b so that one-fifth of its diameter extends above the top of the blade, as shown in Fig. 31.

Sharpen the blades by keeping the round file at a 30^ angle in relation to the guide bar, as shown in Fig. 32. File the blades by gently pushing the round file in the direction of the grip.

Make sure the round fi le does not touch the saw chain when drawing back the fi le.

Ensure that all saw blades are filed at the same angle, or the cutting efficiency of the tool will be Appropriate angles for sharpening the blades correctly are shown in Fig. 33. (Round file is sold separately.)

2. Adjustment of depth gauge WARNING

○ Do not sand the top part of the bumper tie strap and bumper drive link, nor cause the shape of said parts to deform.
○ Adjustment of depth gauges must be in line predetermined dimensions and shapes, otherwise the risk of kickback may increase, causing an injury.

Bumper tie strap

Bumper drive link

Depth gauges shall be all lined up in the same manner because they are used to adjust depth at the position where the cutter inlays into the wood.

When sharpening the saw chain, be sure to check the depth gauge every two or three times. (Fig. 34)

Place a depth gauge jointer on the saw chain, leave the gauge visible at the groove, and use a flat file to bevel the portion out of the depth gauge jointer. (Fig. 35) (Depth gauge jointer and flat file are sold separately.) After filing away the depth gauge, round off the front side of the depth gauge as it was. (Fig. 36)

After sharpening the saw chain, place it into chain oil to wash off the filings.

If filings are not cleaned off, the saw chain and guide bar will quickly wear while in use.

The depth gauge jointer can also be used when dressing with a round file. (Fig. 37)

MAINTENANCE AND INSPECTION

After operation, perform inspection and maintenance of each part when storing the unit.

WARNING

During maintenance and inspection, always switch off the unit and remove the battery from the main body.

CAUTION

Always wear thick gloves when handling the saw chain.

1. Inspection of saw chains

○ Occasionally inspect the saw chain. In the event of any abnormality, replace it with a new one referring to "Installing (replacing) saw chain".
○ Inspect the chain tension and check If it is correctly tightened.
- Stop using the unit when the saw chain becomes blunt and sharpen it referring to "Sharpening of the chain blade".

○ After use, carefully lubricate the saw chain and guide bars with oil for rust-proofing.

NOTE

When cleaning the side cover, sprocket, chain oil spout, and guide bar, see the procedure "Installing (replacing) saw chain" and remove the saw chain.

2. Cleaning the side cover and sprocket (Fig. 38)

ade Clean and remove any swarf or dust left inside the parts.

3. Cleaning the chain oil spout (Fig. 39)

Before cleaning the chain oil spout, remove the side cover and guide bar.

4. Cleaning the guide bar (Fig. 40)

When sawdust and similar become clogged in the groove of the guide bar or oil spout, the oil may not flow, which may result in the unit failing.

Remove the guide bar and clean any sawdust clogged m pair ribed groove after use and when replacing the saw chain. (Refer to "Installing (replacing) saw chain.")

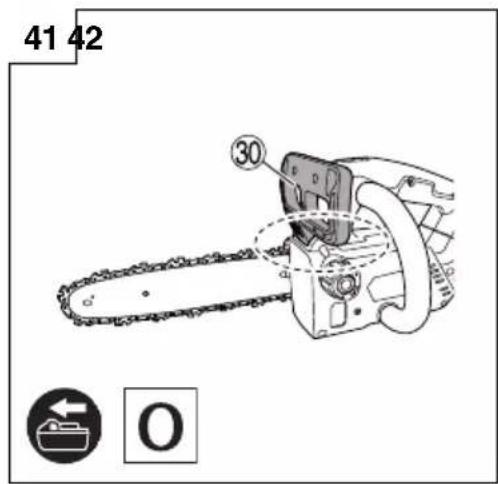

5. Cleaning the chain brake (Fig. 41)

Use a brush to remove any swarf from the gap to the saw body.

6. Inspecting the chain catcher (Fig. 42)

The chain catcher is designed to protect the operator from being struck by the saw chain if the chain comes

with theor is severed.

The chain catcher is integrated into the side cover.

Check to confirm that the chain catcher is not damaged.

7. Inspecting the mounting screws

Regularly inspect all mounting screws and ensure that they are properly tightened. Should any of the screws be loose, retighten them immediately. Failure to do so could result in serious hazard.

8. Maintenance of the motor

The motor unit winding is the very "heart" of the power tool.

Exercise due care to ensure the winding does not become damaged and/or wet with oil or water.

9. Cleaning the battery installation compartment and the battery (Fig. 43)

WARNING

Wear protective glasses and a dust mask when cleaning with an air blow gun.

Failure to do so may result in inhalation or exposure of the eyes to debris or dust.

Use a brush or air blow gun to remove any swarf or dust and keep the saw clean.

NOTE

○ Allowing swarf and dust to build up during use may cause the battery to fall off or other accidents.

Allowing swarf and dust to build up can also result in malfunctions, including faulty contact between the battery and the terminals.

○ After cleaning, check to confirm that the battery can be easily detached and reattached to the tool body.

10. Cleaning of the outside

When the chain saw is stained, wipe with a soft dry cloth or a cloth moistened with soapy water. Do not use chloric solvents, gasoline or paint thinner, for they melt plastics.

11. Storage

○ Clean all parts thoroughly. Coat metal parts with a thin layer of corrosion inhibitor.
○ Be sure to repair any damaged areas before storing.
When storing the unit, perform cleaning and maintenance of each part and mount the chain case to the guide bar.
○ Store the power tool and battery in a place in which the temperature is less than 40^ C and out of reach of children.

English

NOTE

Storing Lithium-ion Batteries

Make sure the lithium-ion batteries have been fully charged before storing them.

Prolonged storage (3 months or more) of batteries with a low charge may result in performance deterioration, signifi cantly reducing battery usage time or rendering the batteries incapable of holding a charge.

However, signifi cantly reduced battery usage time may be recovered by repeatedly charging and using the batteries two to fi ve times.

If the battery usage time is extremely short despite repeated charging and use, consider the batteries dead and purchase new batteries.

CAUTION

In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed.

Important notice on the batteries for the HiKOKI cordless power tools

Please always use one of our designated genuine batteries. We cannot guarantee the safety and performance of our cordless power tool when used with batteries other than these designated by us, or when the battery is disassembled and modified (such as disassembly and replacement of cells or other internal parts).

GUARANTEE

We guarantee HiKOKI Power Tools in accordance with statutory/country specific regulation. This guarantee does not cover defects or damage due to misuse, abuse, or normal wear and tear. In case of complaint, please send the Power Tool, undismantled, with the GUARANTEE CERTIFICATE found at the end of this Handling instruction, to a HiKOKI Authorized Service Center.

Information concerning airborne noise and vibration

The measured values were determined according to EN62841 and declared in accordance with ISO 4871.

Measured A-weighted sound power level: 98 dB (A)

Measured A-weighted sound pressure level: 88 dB (A)

Uncertainty K: 3 dB (A)

Wear hearing protection.

Vibration total values (triax vector sum) determined according to EN62841.

$$ \mathbf {a} _ {\mathrm{h}} = 2. 5 \mathrm{m} / \mathrm{s} ^ {2} $$

Uncertainty K = 1.5 m/s ^2

The declared vibration total value and the declared noise emission value have been measured in accordance with a standard test method and may be used for comparing one tool with another.

They may also be used in a preliminary assessment of exposure.

WARNING

☐ The vibration and noise emission during actual use of the power tool can differ from the declared total value depending on the ways in which the tool is used especially what kind of workpiece is processed; and
○ Identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).

NOTE

Due to HiKOKI's continuing program of research and development, the specifications herein are subject to change without prior notice.

TROUBLESHOOTING

Use the inspections in the table below if the tool does not operate normally. If this does not remedy the problem, consult your dealer or the HiKOKI Authorized Service Center.

Symptom Possible	cause Remedy
The motor sounds but the saw chain...○ does not move○ does not move freely	The chain brake may be activated. Release by pulling the chain brake toward you.
	The saw chain tension is excessive. Check the saw chain tension, and if it is too tight, loosen the tension.
	Saw chain comes out of the sprocket. Check the saw chain is properly engaged on the sprocket.
	Inside the side cover...→ sawdust is jammed→ foreign matter is trapped	Clean the side cover.
	In the guide bar groove...→ sawdust is jammed→ oil does not flow	Clean the guide bar groove and the oil hole.Make sure there is oil in the oil tank, and replenish as required.
Poor sharpness The saw chain...	→ is worn out or the blade is broken→ is rusted	Sharpen the saw chain.If the wear or breakage is very severe, replace with a new saw chain.
	The direction of the saw chain is reversed, Re-	-attach ensuring the correct direction.
	Saw chain tension is loose. Check the saw chain tension and tighten if it is loose.
Chain oil○ is slow-fl owing○ does not come out(seizes up)	Lack of chain oil in the tank.	Replenish with chain oil.
	Chain oil spout is clogged.	Clean the chain oil spout.

SYMBOLE

WARNUNG

HVAD ER HVAD? (Fig. 1)

● Pilot lysindikation

SLIBNING AF KÆDEKNIVENE

ADVARSEL

SIKKERHETSFORHOLDSREGLER FOR ELEKTROVERKT∅Y

ADVARSEL

VEDLIKEHOLD OG INSPEKSJON

Model	BSL1820M
Tensiune	18 V
Capacitate accumulator	2,0 A

ACCESORII STANDARD

DODATNA VARNOSTNA OPOZORILA

90PX-040X (3/8 × 10") 104MLEA041 (10")

379896

Simple line drawing of a flat, elongated object with two small dots and a horizontal bar on the right side (no text or symbols)

Line drawing of a mechanical component with a curved top and rectangular base (no text or symbols)

10":379898

Line drawing of a battery with a digital display and control panel (no text or symbols)

BSL18...

Line drawing of a portable electronic device with control panel and buttons (no text or symbols)

BSL36..18

957681

Line drawing of a mechanical device casing with internal components and mounting holes (no text or symbols)

UC18YFSL (14,4 V–18 V)

Simple line drawing of a rod or tool with a flat end and rounded ends (no text or symbols)

6698688

329897

Line drawing of a quill pen with ink drop (no text or symbols)

English Dansk Română
GUARANTEE CERTIFICATE1 Model No.2 Serial No.3 Date of Purchase4 Customer Name and Address5 Dealer Name and Address(Please stamp dealer name and address)		GARANTIBEVIS1 Modelnummer2 Serienummer3 Købsdato4 Kundes navn og adresse5 Forhandlers navn og adresse(Indsæt stempel med forhandlers navn og adresse)		CERTIFICAT DE GARANTIE1 Model nr.2 Nr. de serie3 Data cumpărării4 Numele și adresa clientului5 Numele și adresa distribuitorului(Vă rugăm aplicati štampila cu numele și adresa distribuitorului)
Deutsch Norsk Slovenščina
GARANTIESCHEIN1 Modell-Nr.2 Serien-Nr.3 Kaufdatum4 Name und Anschrift des Kunden5 Name und Anschrift des Händlers(Bitte mit Namen und Anschrift des Handlers abstempeln)		GARANTISERTIFIKAT1 Modellnr.2 Serienr.3 Kjøpsdato4 Kundens navn og adresse5 Forhandlerens navn og adresse(Vennligst stemple forhandlerens navn og adresse)		GARANCIJSKO POTRDILO1 Št. modela2 Serijska št.3 Datum nakupa4 Ime in naslov kupca5 Ime in naslov prodajalca(Prosimo vitsnite žig z imenom in naslovom prodajalca)
Français Suomi Slovenčina
CERTIFICAT DE GARANTIE1 No. de modèle2 No de série3 Date d'achat4 Nom et adresse du client5 Nom et adresse du revendeur(Cachet portant le nom et l'adresse du revendeur)		TAKUUTODISTUS1 Malli nro2 Sarja nro3 Ostopāivämäärä4 Asiakkaan nimi ja osoite5 Myyjän nimi ja osoite(Leimaa myyjän nimi ja osoite)		ZÁRUČNÝ LISTA1 Č. modelu2 Sériové č.3 Dátum zakúpenia4 Meno a adresa zákaznika5 Názov a adresa predajcu(Pečiatka s názvom a adresou predajcu)
Italiano Ελληγικά Βългарски
CERTIFICATO DI GARANZIA1 Modello2 N° di serie3 Data di acquisto4 Nome e indirizzo dell'acquirente5 Nome e indirizzo del rivenditore(Si prega di apporre il timbro con questi dati)		ПІЗТОПОІНТІКО ЕГГУНЄНЕ1 Ap. Movtéλου2 Aŭξων Ap.3 Нμερομηνία αγοράς4 ́Овоја кай дієυθυνση πελάτη5 ́Овоја кай дієυθυνση μεταπωλητή(Παρακαλούμε να χρησιμοποιηθεί σφραγίδα)		ГАРАНЦИОНЕН СЕРТИФИКАТ1 Модел No2 Сериен No3 Дата за закупуване4 Име и адрес на клиента5 Име и адрес на търговеца(Моля, отпечатайте името и адрес на дильра)
Nederlands Polski Srpski
GARANTIEBEWIJS1 Modelnummer2 Serienummer3 Datum van aankoop4 Naam en adres van de gebruiker5 Naam en adres van de handelaar(Stempel a.u.b. naam en adres vande de handelaar)		GWARANCJA1 Model2 Numer seryjny3 Data zakupu4 Nazwa klienta i adres5 Nazwa dealera i adres(Pieczęć punktu sprzedaży)		GARANTNI SERTIFIKAT1 Br. modela.2 Serijski br.3 Datum kupovine4 Ime i adresa kupca5 Ime i adresa prodavca(Molimo da stavite pečat na ime i adresu trgovca)
Español Magyar Hrvatski
CERTIFICADO DE GARANTÍA1 Número de modelo2 Número de serie3 Fecha de adquisición4 Nombre y dirección del cliente5 Nombre y dirección del distributor(Se ruega poner el sello del distribudor con su nombre y dirección)		GARANCIA BIZONYLAT1 Tipusszám2 Sorozatszám3 A vásárlás dátuma4 A Vásárló neve és címe5 A Kereskedő neve és címe(Kérjük ide elhelyezni a Kereskedő nevének és címének pecsétjét)		JAMSTVENI CERTIFIKAT1 Br modela.2 Serijski br.3 Datum kupnje4 Ime i adresa kupca5 Ime i adresa trgovca(Molimo stavite pečat na ime i adresu trgovca)
Português Češťina
CERTIFICADO DE GARANTIA1 Número do modelo2 Número do série3 Data de compra4 Nome e morada do cliente5 Nome e morada do distribuidor(Por favor, carímbe o nome e morada do distribuidor)		ZÁRUČNÍ LIST1 Model č.2 Série č.3 Datum nákupu4 Jméno a adresa zákazníka5 Jméno a adresa prodejce(Prosíme o razítko se jménem a adresou prodejce)
Svenska Türkçe
GARANTICERTIFIKAT1 Modellnr2 Serienr3 Inköpsdatum4 Kundens namn och adress5 Försäljarens namn och adress(Stámpla försäljarens namn och adress)		GARANTÍ SERTÍFÍKASI1 Model No.2 Seri No.3 Satin Alma Tarihi4 Müşteri Adı ve Adresi5 Bayi Adı ve Adresi(Lütfen bayi adini ve adresini kaşe olarak basın)

HiKOKI

1
2
3
4
5

Siemensring 34, 47877 willich, Germany

Tel: [phone]

Fax: [phone]

URL: http://www.hikoki-powertools.de

Hikoki Power Tools Netherlands B.V.

Brabanthaven 11, 3433 PJ Nieuwegein, The Netherlands

Tel: [phone]

Fax: [phone]

URL: http://www.hikoki-powertools.nl

Hikoki Power Tools (U.K.) Ltd.

25 Majestic Road, Southampton, SO16 OYT,

United Kingdom

Tel: [phone]

Fax: [phone]

URL: http://www.hikoki-powertools.uk

Hikoki Power Tools France S.A.S.

Hikoki Power Tools Belgium N.V./S.A.

Koningin Astridlaan 51, B-1780 Wemmel, Belgium

Tel: [phone]

Fax: [phone]

URL http://www.hikoki-powertools.be

Hikoki Power Tools Italia S.p.A

Via Piave 35, 36077, Altavilla Vicentina (VI), Italy

Tel: [phone]

Fax: [phone]

URL: http://www.hikoki-powertools.it

Hikoki Power Tools Ibérica, S.A.

C/ Puigbarral, 26-28, Pol. Ind. Can Petit, 08227 Terrassa

(Barcelona), Spain

Tel: [phone]

Fax: [phone]

URL: http://www.hikoki-powertools.es

Kjeller Vest 7, N-2007 Kjeller, Norway

Tel: [phone]

Fax: [phone]

URL: http://www.hikoki-powertools.no

Hikoki Power Tools Sweden AB

Rotebergsvagen 2B SE-192 78 Sollentuna, Sweden

Tel: [phone]

Fax: [phone]

URL: http://www.hikoki-powertools.se

Hikoki Power Tools Denmark A/S

Lillebaeltsvej 90, 6715 Esbjerg N, Denmark

Tel: [phone]

Fax: [phone]

URL: http://www.hikoki-powertools.dk

Hikoki Power Tools Finland Oy

Tupalankatu 9, 15680 Lahti, Finland

Tel: [phone]

Fax: [phone]

URL: http://www.hikoki-powertools.fi

Hikoki Power Tools Hungary Kft.

Hikoki Power Tools Romania S.R.L.

Ring Road, No. 66, Mustang Traco Warehouses, Warehouse

No.1, Pantelimon City, 077145, Ilfov County, Romania

Line drawing of a quill pen with ink drop (no text or symbols)

English Italiano
EC DECLARATION OF CONFORMITYWe declare under our sole responsibility that Cordless Chain Saw, identified by type and specific identification code *1), is in conformity with all relevant requirements of the directives *2) and standards *3). Technical fi le at *4) – See below.The European Standard Manager at the representative office in Europe is authorized to compile the technical fi le.2000/14/ECCS1825DC Measured sound power level: 98 dBGuaranteed sound power level: 100 dBNotified body (2006/42/EC) : 0158 DEKRA Testing and Certification GmbH Handwerkstraße 15 70565 Stuttgart, Germany has carried out a EC type examination and issued EC type examination certificate no. 4821002.22001 according to Annex IX.The declaration is applicable to the product affi xed CE marking.	DICHIARAZIONE DI CONFORMITÀ CEDichiariamo sotto la nostra esclusiva responsabilità che l'elettrosega a batteria, identificata dal tipo e dal codice identificativo specifico *1), è conforme a tutti i requisiti delle direttive *2) e degli standard *3). Documentazione tecnica presso *4) – Vedere sotto.Il gestore delle norme europee presso l'ufficio di rappresentanza in Europa è autorizzato a compilare il fascicolo tecnico.2000/14/CECS1825DC Livello di potenza sonora misurato: 98 dBLivello di potenza sonora garantito: 100 dBEnte notificato (2006/42/CE): 0158 DEKRA Testing and Certification GmbH Handwerkstraße 15 70565 Stoccarda, Germania, ha eseguito un esame di tipo CE ed ha emesso un certificato di esame di tipo CE n. 4821002.22001 secondo l'Allegato IX.La dichiarazione è applicabile ai prodotti cui sono applicati i marchi CE.
Deutsch Nederlands
EG-KONFORMITÄTSERKLÄRUNGWir erklären in alleiniger Verantwortung, dass die durch den Typ und den spezifischen Identifizierungscode *1) identifizierte Akku-Kettensäge allen einschlägigen Bestimmungen der Richtlinien *2) und Normen *3) entspricht. Technische Unterlagen unter *4) – Siehe unten.Die Leitung der repräsentativen Behörde für europäische Normen und Richtlinien ist berechtigt, die technischen Unterlagen zusammenzustellen.2000/14/ECCS1825DC Gemessener Schallleistungspegel: 98 dBGarantieter Schallleistungspegel: 100 dBBenannte Stelle (2006/42/EG): 0158 DEKRA Testing and Certification GmbH Handwerkstraße 15 70565 Stuttgart, Deutschland hat eine EG-konforme Prüfung durchgeführt und das Prüfungszertifikat vom Typ EG Nr. 4821002.22001 gemäß Anhang IX ausgestellt.Die Erklärung gilt für die an dem Produkt angebrachte CE-Kennzeichnung.	EC VERKLARING VAN CONFORMITEITWij verklaren onder onze eigen verantwoordelijkheid dat Snoerloze Kettingzaagmachine, geïdentificeerd door het type en de specifieke identificatiecode *1), voldoet aan alle relevante vereisten van de richtlijnen *2) en normen *3). Technische documentatie bij*4) – zie onder.De Europese Normen Manager bij de vertegenwoordiging in gemachtig om het technisch dossier samen te stellen.2000/14/ECCS1825DC Gemeten geluidsdruk: 98 dBGegarandeerde geluidsdruk: 100 dBVolgens (2006/42/EC): 0158 DEKRA Testing and Certification GmbH Handwerkstraße 15 70565 Stuttgart, Duitsland heeft een EC-type onderzoek uitgevoerd en het EC-type onderzoekcertificaat nr. 4821002.22001 volgens Aanhangsel IX afgegeven.Deze verklaring is van toepassing op producten voorz markeringen.
Français Español
DECLARATION DE CONFORMITE CENous déclarons sous notre entière responsabilité que la Scie à chaîne à batterie, identifiée par le type et le code d'identification spécifique *1) est en conformité avec toutes les exigences applicables des directives *2) et des normes *3). Dossier technique en *4) - Voir ci-dessous.Le Gestionnaire des normes européennes du bureau de représentation en Europe est autorisé à constituer le dossier technique.2000/14/CECS1825DC Niveau de puissance sonore mesuré: 98 dBNiveau de puissance sonore garanti: 100 dBOrganisme notifié (2006/42/CE) : 0158 DEKRA Testing and Certification GmbH Handwerkstraße 15 70565 Stuttgart, Allemagne a réalisé un contrôle CE et émis un certificat de contrôle CE n° 4821002.22001 conformément à l'Annexe IX.Cette déclaration s'applique aux produits désignés CE.	DECLARACIÓN DE CONFORMIDAD DE LA CEDeclaramos bajo nuestra única responsabilidad que la Sierra de cadena a batería, identificada por tipo y por código de identificación específico *1), está en conformidad con todas las disposiciones correspondientes de las directivas *2) y de las normas *3). Documentación técnica en *4) – Ver a continuación.El Director de Normas Europeas en la oficina de representación en Europa está autorizado para elaborar el expediente técnico.2000/14/CECS1825DC Nivel de potencia acústica medida: 98 dBNivel de potencia acústica garantizada: 100 dBOrganismo notificado (2006/42/CE) : 0158 DEKRA Testing and Certification GmbH Handwerkstraße 15 70565 Stuttgart, Alemania, ha realizado un examen tipo CE y emitido un certificado de examen tipo CE n° 4821002.22001 de conformidad con el Anexo IX.La declaración se aplica al producto con marcas de la CE.
*1) CS1825DC C363354S*2) 2006/42/EC, 2000/14/EC, 2014/30/EU, 2014/35/EU, 2011/65/EU*3) EN62841-1:2015+A11:2022EN62841-4-1:2020EN ISO 11681-2:2022EN60335-1:2012+A11:2014EN60335-2-29:2004+A2:2010EN IEC 55014-1:2021EN IEC 55014-2:2021
*4) Representative office in EuropeHikoki Power Tools Deutschland GmbHSiemensring 34, 47877 Willich, GermanyHead office in JapanKoki Holdings Co., Ltd.Shinagawa Intercity Tower A, 15-1, Konan 2-chome,Minato-ku, Tokyo, JapanPortuguês Norsk	30. 9. 2022Akihisa YahagiEuropean Standard Manager30. 9. 2022Osamu KawanobeGeneral Manager,Quality Assurance Division
DECLARAÇÃO DE CONFORMIDADE CEDeclaramos, sob nossa única e inteira responsabilidade, que Electro-serra a Bateria, identificada por tipo e código de identificação específico *1), está em conformidade com todos os requerimentos relevantes das diretivas *2) e normas *3). Ficheiro técnico em *4)-Consulte abaixo.O Gestor de Normas Europeias no escritório de representação na Europa está autorizado a compilar o fi cheiro técnico.2000/14/CECS1825DC Nível medido de potência de som: 98 dBNível garantido de potência de som: 100 dBOrganismo notificado (2006/42/CE): 0158 DEKRA Testing and Certification GmbH Handwerkstraße 15 70565 Estugarda, Alemanha efectuou um exame tipo CE e emitiu um certificado de exame tipo CE n.° 4821002.22001 de acordo com o Anexo IX.A declaração aplica-se aos produtos com marca CE.	EF'S ERKLÆRING OM OVERENSSTEMMELSEVi erklærer på eget ansvar atbatteridrevetkjedesag, identifisert etter type og spesifikk identifikasjonskode *1), er i samsvar med alle relevante krav i direktiver *2) og standarder *3). Teknisk fi I under *4) - Se nedenfor.Styreren for europeiske standarder ved representantkontoret i Europa er autorisert til å komilere den tekniske fi len.2000/14/EFCS1825DC Målt lydeff ektnivå: 98 dBGaranterl lydeff ektnivå: 100 dBGodkjent kontrollorgan (2006/42/EF) : 0158 DEKRA Testing and Certification GmbH Handwerkstraße 15 70565 Stuttgart, Tyskland har utfört en EF-typekontroll og utstedt et EF-kontrollsertifikat nr. 4821002.22001 i overensstemmelse med Annex IX.Erklæringen gjelder for CE-merket på produktet.
Svenska Suomi
EG-DEKLARATION BETRÄFFANDE LIKFORMIGHETVi förklarar på eget ansvar att produkten batteridriven kedjesåg, identifierad enligt typ och särskild identifikationskod *1), överensstämmer med alla relevanta krav i direktiven *2) och standarderna *3). Teknisk fil enligt *4) – Se nedan.Den europeiska standardansvariga på representationskontoret i Europa är auktoriserad att sammanställa den tekniska fi len.2000/14/EGCS1825DC Uppmätt ljudstyrkenivå: 98 dBGaranterad ljudstyrkenivå: 100 dBAnmält organ (2006/42/EG) : 0158 DEKRA Testing and Certification GmbH Handwerkstraße 15 70565 Stuttgart, Tyskland har utfört en EG-typ examen och utfärdat EG-typ examensbevis nr 4821002.22001 enligt Bilaga IX.Denna försäkran gäller för produkten med tillhörande CE-märkning.	EY-ILMOITUS YHDENMUKAISUUDESTAVakuutamme yksinomaisella vastuullamme, että tyypin ja erityisen tunnistuskoodin *1) perusteella tunnistettava akkutoiminen ketjusaha on kaikkien direktiivien *2) ja standardien *3) asiaankuuluvien vaatimusten mukainen. Tekninen tiedosto kohdassa *4) – katso alta.Eurooppalaisten standardien hallintaelin Euroopan edustustossa on valtuutettu kokoamaan teknisen tiedoston.2000/14/EYCS1825DC Mitattu äänenpainetaso: 98 dBTaattu äämempanetaso: 100 dBImoitettu elin (2006/42/EY) : 0158 DEKRA Testing and Certification GmbH Handwerkstraße 15 70565 Stuttgart, Saksa on suorittanut EY-typpitarkastuksen ja antanut EY-typpitarkastustodistuksen no. 4821002.22001 litteen IX mukaisesti.Ilmoitus on sovellettavissa tuotteeseen kiinnitettyyn CE-merkintään.
Dansk Ελληνικά
EF-OVERENSSTEMMELSESERKLÆRINGVi erklærer os fuldstændigt ansvarlige for, at den batteridrevne kædesav, identificeret ved type og specifik identifikationskode *1), er i overensstemmelse med alle relevante krav i direktiverne *2) og standarderne *3). Teknisk fi I *4) – Se nedenfor.Lederen af europæiske standarder på repræsentationskontoret i Europa er bemyndiget til at komilere den tekniske fi I.2000/14/EFCS1825DC Målt lydstyrkeniveau: 98 dBGaranteret lydstyrkeniveau: 100 dBAnmeldt instans (2006/42/EF): 0158 DEKRA Testing and Certification GmbH Handwerkstraße 15 70565 Stuttgart, Tyskland har udfört EF-typeapfrevning og udstedt EF-typeapfrevningsattest nr. 4821002.22001 iht. bilag IX.Erklæringen gælder produktet, der er mærket med CE.	EK ΔΗΛΟΣΗ ΕΝΑΡΜΟΝΙΣΜΟΥΔηλώνουμε με αποκλειστική μας ευθύνη ότι το Ασύρματο αλυσοπρίονο, το οποίο προσδιορίζεται από τον τύπο και ειδικό αναγνωριστικό κωδικό *1), είναι σύμφωνο με όλες τις σχετικές απαιτήσεις των Οδηγιών *2) και με τασχετικά πρότυπα *3). Τεχνικό Αρχείο στο *4) – Δείτε παρακάτω.Ο Διαχειριστής Ευρωταϊκών Προτύπων στο γραφείο εκπροσώπησης στην Ευρώτη είναι εξουσιοδοτημένος για τη σύνταξη του τεχνικού φακέλου.2000/14/EKCS1825DC Metρημένο επίπεδοηχητικής ισχύος: 98 dBγγγυημένο επίπεδοηχητικής ισχύος: 100 dBDιακοινωμένο όργανο (2006/42/EK) : 00158 DEKRA Testing and Certification GmbH Handwerkstraße 15 70565 Στουτγκόρδη, Γερμανία έχει διεξάγει μια εξέταση τύπου ΕΚ και εξέδωσε το υπ' αριθ. 4821002.22001 πιστοποιητικό τύπου εξέτασης ΕΚ σύμφωνα με το Παράρτημα ΙΧ.Η δήλωση ισχύει μόνο για το προϊόν που είναι τοποθετημένη σήμανση CE.
*1) CS1825DC C363354S*2) 2006/42/EC, 2000/14/EC, 2014/30/EU, 2014/35/EU, 2011/65/EU*3) EN62841-1:2015+A11:2022EN62841-4-1:2020EN ISO 11681-2:2022EN60335-1:2012+A11:2014EN60335-2-29:2004+A2:2010EN IEC 55014-1:2021EN IEC 55014-2:2021
*4) Representative office in EuropeHikoki Power Tools Deutschland GmbHSiemensring 34, 47877 Willich, GermanyHead offi ce in JapanKoki Holdings Co., Ltd.Shinagawa Intercity Tower A, 15-1, Konan 2-chome, Minato-ku, Tokyo, Japan	30. 9. 2022Akihisa YahagiEuropean Standard Manager30. 9. 2022Osamu KawanobeGeneral Manager,Quality Assurance Division

Polski Türkçe
DEKLARACJA ZGODNOŚCI Z WEOświadczamy na własną wyłączną odpowiedzialność, że Akumulatorowapila łańcuchowa podanego typu i oznaczona unikalnym kodemidentyfikacyjnym *1) jest zgodna z wszystkimi właściwymi wymogamidyrektyw *2) i norm *3). Dokumentacja techniczna w *4) – Patrz poniżej.Menedżer Norm Europejskich przedstawicielstwa firmy w Europie jestupoważniony do sporządzania dokumentacji technicznej.2000/14/WECS1825DC Zmierzony poziom mocy dźwięku: 98 dBGwarantowany poziom mocy dźwięku: 100 dBInstytucja notyfikująca (2006/42/WE) : 0158 DEKRA Testing andCertifi cation GmbH Handwerkstraße 15 70565 Stuttgart, Niemcyprzeprowadziła badanie typu WE i wydała certyfikat badania typu WE nr4821002.22001 zgodnie z Załącznikiem IX.Niniejsza deklaracja ma zastosowanie do produktu opatrzonego znakiemCE.	AT UYGUNLUK BEYANITip ve özel tanım koduyla *1) tanımlı Akülü Zincirli Testere’nin direktiflerin*2) ve standartların *3) tüm ilgili gereksinimlerine uygun olduğunu tamamen kendi sorumluluğumuz altında beyan ederiz. Teknik dosya*4)'dedir – Aşağıya bakın.Avrupa'daki temsilcilik ofisindeki Avrupa Standartları Yöneticisi, teknikdosyayı derlemek için yetkilendirilmiştir.2000/14/ATCS1825DC Ölçülen ses gücü seviyesi: 98 dBGaranti edilen ses gücü seviyesi: 100 dBYetkili Kuruluş (2006/42/AT) : 0158 DEKRA Testing and CertificationGmbH Handwerkstraße 15 70565 Stuttgart, Almanya, AT tip muayenesigereckleştirmiş ve Ek IX uyarınca 4821002.22001 numarali AT tipimuayene sertifikasını yayınlamıştır.Beyan, üzerinde CE işareti bulunan ürünler için geçerlidir.
Magyar Română
EK MEGFELELŐSÉGI NYILATKOZATA kizárólagos felelősségünkre kijelentjük, hogy az Akkus Láncfűrész,amely típus és egyedi azonosító kód *1) alapján azonosított, megfelel azirányelvek *2) és szabványok *3) vonatkozó követelményeinek. Müszakifájl a *4) - Lásd alább.Az EU képviseleti iroda európai szabványügyi menedzsere jogosult amüszaki dokumentáció összeállitására.2000/14/EKCS1825DC Mért hangteljesítmény szint: 98 dGBarantált hangteljesítmény szint: 100 dBErtesítendő szervezet(2006/42/EK) : 0158 DEKRA Testing andCertification GmbH Handwerkstraße 15 70565 Stuttgart, Németországvégezte el az EK típusú vizsgálato4821002.22001 számú vizsgálati bizonyítványt az Annex IX szerint.Jelen nyilatkozat a terméken feltüntetett CE jelzésre vonatkozik.	DECLARAȚIE DE CONFORMITATE CEDeclarăm pe propria răspundere că Fierăstrăul cu lanț cu acumulator,identificat după tipul și codul de identificare specific *1), este înconformitate cu toate cerințele relevante ale directivelor *2) și alestandardelor *3). Fișier tehnic la *4) – Vezi mai jos.Managerul standardelor europene de la biroul reprezentanței din Europaeste autorizat să întocmească dosarul tehnic.2000/14/CECS1825DC Nivel de putere sunet măsurat: 98 dBNivel de putere sunet garantat: 100 dBOrganism notificat (2006/42/CE): 0158 DEKRA Testing and CertificationGmbH Handwerkstraße 15 70565 Stuttgart, Germania a realizat o texaminare dedip €E și ia emis certifikatulide examinare CE de tip nr.4821002.22001 conform Anexei IX.Declarația se referă la produsul pe care este aplicat semnul CE.
Čeština	Slovenščina
PROHLÁŠENÍ O SHODĚ SESProhlašujeme na vlastní zodpovědnost, že Akku řetězová pila,identifikovaná podle typu a specifického identifikačního kódu *1), jev souladu se všemi příslušnými požadavky směrnic *2) a norem *3).Technický soubor *4) - viz niže.K sestavení technické dokumentace je oprávněn manažer pro evropskéstandardy v evropském obchodním zastoupení.2000/14/ESCS1825DC Naměřená hlučnost: 98 dBZaručená mez hluku: 100 dBZplnomocněný orgán (2006/42/ES): 0158 DEKRA Testing andCertification GmbH Handwerkstraße 15 70565 Stuttgart, Německo,provedl typovou zkoušku ES a vydal certifikát o typové zkoušce ES č.4821002.22001 podle přilohy IX.Toto prohlášení platí pro výrobek označený značkou CE.	ES IZJAVA O SKLADNOSTINa lastno odgovornost izjavljamo, da je Akumulatorska verižna žaga,označena z vrsto in posebno identifikacijsko kodo *1), v skladu zvsemi ustreznimi zahtevami direktiv *2) in standardov *3). Tehničnadokumentacija pod *4) – glejte spodaj.Upravitelj evropskih standardov na predstavništvu v Evropi je pooblaščenza pripravo tehnične dokumentacije.2000/14/ESCS1825DC Izmerjena raven zvočne moči: 98 dBBazjamčena raven zvočne moči: 100 dBPriglašeni organ (2006/42/ES) : 0158 DEKRA Testing and CertificationGmbH Handwerkstraße 15 70565 Stuttgart, Nemecko je opravil ES tipskipregled in izdal ES certifikat o tipskem pregledu št. 4821002.22001 vskladu z aneksom IX.Deklaracija je označena na izdelku s pritrjeno oznako CE.
*1) CS1825DC C363354S*2) 2006/42/EC, 2000/14/EC, 2014/30/EU, 2014/35/EU, 2011/65/EU*3) EN62841-1:2015+A11:2022EN62841-4-1:2020EN ISO 11681-2:2022EN60335-1:2012+A11:2014EN60335-2-29:2004+A2:2010EN IEC 55014-1:2021EN IEC 55014-2:2021
*4) Representative office in EuropeHikoki Power Tools Deutschland GmbHSiemensring 34, 47877 Willich, GermanyHead office in JapanKoki Holdings Co., Ltd.Shinagawa Intercity Tower A, 15-1, Konan 2-chome,Minato-ku, Tokyo, Japan		30. 9. 2022Akihisa YahagiEuropean Standard Manager30. 9. 2022Osamu KawanobeGeneral Manager,Quality Assurance Division

Slovenčina		Srpski
ES VYHLÁSENIE O ZHODETýmto vyhlasujeme na vlastnú zodpovednosť, že výrobok Akku refazová pila identifikovaný podľa typu a špecifického identifikačného kódu *1) je v zhode so všetkymi príslušnými požiadavkami smernic *2) a noriem *3).Technický súbor v *4) – Pozrite nižšie.Manažér európskych noriem na zastupujúcom úrade v Európe má oprávnenie na zostavovanie technickej dokumentácie.2000/14/ESC1825DC Nameraná hlučnosť : 98 dBZaručená medza hluku: 100 dBNotifikovaný orgán (2006/42/ES): 0158 DEKRA Testing and Certification GmbH Handwerkstraße 15 70565 Stuttgart, Nemčija vykonal skúšku typu ES a vydal certifikát o skúške typu ES č. 4821002.22001 podľa Prílohy IX.Toto vyhlásenie sa vztahuje na výrobok označený značkou CE.		EZ DEKLARACIJA O USAGLAŠENOSTIPod punom odgovornošću izjavljujemo da je Lanac testere bez kablova, identifikovana prema tipu i specifičnom identifikacionom kodu *1), u skladu sa svim relevantnim zahtevima direktiva *2) i standardima *3).Tehnička datoteka pod *4) - Pogledajte dole.Direktor za evropske standarde u kancelariji predstavníštva u Evropi je odgovoran za sastavljanje tehničke dokumentacije.2000/14/EZCS1825DC Izmerena jačina zvuka: 98 dBGarantovana jačina zvuka: 100 dBObavešteno telo (2006/42/EZ): 0158 DEKRA Testing and Certification GmbH Handwerkstraße 15 70565 Stuttgart, Nemačka i izvršeno od EZ tipa ispitivanja i objavljenog EZ tipa ispitivanja br. sertifikata 4821002.22001 u skladu sa Aneksom IX.Deklaracija je primenjiva na proizvod na koji je stavljena CE oznaka.
Български		Hrvatski
EO ДЕКЛАРАЦИЯ ЗА СЪОТВЕТСТВИЕДекларираме на своя собствена отговорност, че Безжичен верижен трион, идентифициран по тип и специален идентификационен код *1), е в съответствие с всички съответни изисквания на директивите *2) и стандартите *3). Техническо досие в *4) - Вижте по-долу.Мениджърът по европейските стандарти в представителния офис в Европа е упълномощен да съставя техническото досие.2000/14/EOCS1825DC Измерено ниво на акустична мощност: 98 dBGарантирано ниво на акустична мощност: 100 dBHотифициран орган (2006/42/EO): 0158 DEKRA Testing and Certification GmbH Handwerkstraße 15 70565 Щутгарт, Германия извърши оценка за типово одобрение на EO и издаде сертификат за типово одобрение на EO No 4821002.22001 съгласно Приложение IX.Декларацията е приложима за продукта, който има поставена СЕ маркировка.		EZ IZJAVA O SUKLADNOSTIIzjavljujemo pod vlastitom odgovornošću da je Bežična motorna pila, identificirana prema vrsti i posebnom identifikacijskom kodu *1), u skladu sa svim relevantnim zahtjevima direktiva *2) i standarda *3). Tehnička dokumentacija na *4) - Vidí dolje.Menadžer za europske standarde u europskom predstavništvu tvrtke ovlašten je za sastavljanje tehničke dokumentacije.2000/14/EZCS1825DC Izmjerena razina zvučne snage: 98 dBAzajamčena razina zvučne snage: 100 dBPrijavljeno tijelo (2006/42/EZ): Na 0158 DEKRA Testing and Certification GmbH Handwerkstraße 15 70565 Stuttgart, Njemačka, je provedeno ispitivanje tipa EZ i izdan certifikat o pregledu tipa EZ br. 4821002.22001 prema Dodatku IX.Izjava se primjenjuje na proizvod na kojem je stavljena CE oznaka.
*1) CS1825DC C363354S*2) 2006/42/EC, 2000/14/EC, 2014/30/EU, 2014/35/EU, 2011/65/EU*3) EN62841-1:2015+A11:2022EN62841-4-1:2020EN ISO 11681-2:2022EN60335-1:2012+A11:2014EN60335-2-29:2004+A2:2010EN IEC 55014-1:2021EN IEC 55014-2:2021
*4) Representative office in EuropeHikoki Power Tools Deutschland GmbHSiemensring 34, 47877 Willich, GermanyHead office in JapanKoki Holdings Co., Ltd.Shinagawa Intercity Tower A, 15-1, Konan 2-chome,Minato-ku, Tokyo, Japan			30. 9. 2022Akihisa YahagiEuropean Standard Manager30. 9. 2022Osamu KawanobeGeneral Manager,Quality Assurance Division

Koki Holdings Co., Ltd.
