USER MANUAL BSA1 INTENSO

Black intensio phone stand with charging cable and LED, no visible text or symbols on device body

(Intenso)®

Intenso International GmbH

Gutenbergstraße 2 | 49377 Vechta | Germany

LANGUAGES

Simple line drawing of a bent tool or bracket with a labeled point '1' at the base (no text or symbols on the diagram itself)

Simple line drawing of a USB connector with a USB symbol and pin, labeled with number 2 below (no text or symbols on the diagram itself)

Simple line drawing of a logic gate with three leads and a labeled pin (no text or symbols beyond the number 3)

1 Intenso Wireless Charger BSA1

1,5 Mete: USB A zu Type C Ladekabel

3 Netzteil (UC01C)

Declaration of conformity 2

Simplified EU Declaration of Conformity 2

General 2

U s e 3

Device overview 3

Operation 3

Safety instructions 4

Operating Conditions 4

Exclusion of liability 4

Technical Data 5

Disposal 5

Guarantee conditions and complaints procedure 6

OVERVIEW

Delivery scope

Simple line drawing of a bent tool or bracket with a labeled point '1' at the base (no text or symbols on the diagram itself)

Simple line drawing of a USB connector with a labeled pin (no text or symbols beyond the label)

Simple line drawing of an OR gate with a pin (no text or symbols)

1 Intenso Wireless Charger BSA1

1.5 Meters USB A to Type C charging cable

3 Adapter (UC01C)

Operating instructions4

Declaration of conformity

The CE marking says that this product meets the requirements of all EU Directives applicable for this product.

Simplified EU Declaration of Conformity

Hereby Intenso International declares that the radio installation type Wireless Charger BSA1 complies with the Directive 2014/53/EU. The complete text of the EU Declaration of Conformity is available at the following Internet address www.intenso-international.de.

GENERAL

About these instructions

Read these instructions carefully and please observe and heed all references made in these instructions to guarantee a long life and reliable use of the device. Please keep these instructions ready to hand and pass them on to other users of the device.

Intended use

This product is intended for the wireless charge of Qi-compatible devices. To check if your device supports the Qi-standard, please check the instruction manual of the respective device or get in touch with the constructor.

Another, more extended use is contrary to the designated use and can cause damage and injuries. Damage claims of all kind following a use contrary to the designated use are excluded.

USE

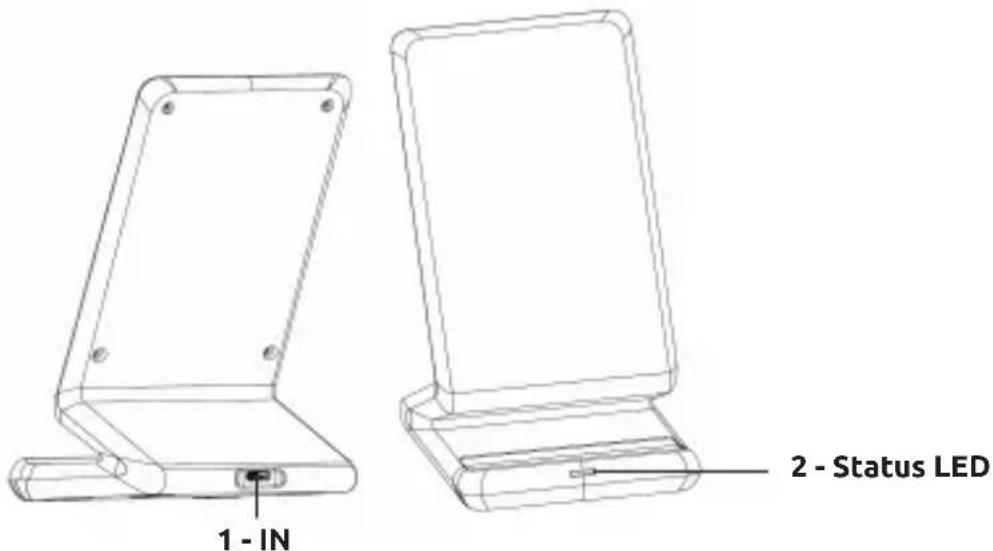

Device overview

1 - IN 2 - Status LED

Operation

1. LED Status display

The current operating state of the device is displayed via the status LED. The LED glows blue continuously as soon as the charging procedure starts. If the LED is off, the charging procedure is finished or there is no Qi-capable terminal device for charging on the inductive charging station. If the LED blinks blue, there is an error, for example the device has become too warm, there is a foreign body between the devices or a non-compatible power supply is being used.

2. Starting-Up / Charging Connected Devices

Step 1: Preparation

Connect the supplied USB A to Type C cable with the USB C port (IN) of the inductive charging station and connect the other end of the USB cable with a USB power supply. Next connect the power supply with a socket (please observe the above safety instructions for this).

Step 2: Start charge procedure

Position your Qi-capable device on the inductive charging station. You can position your device horizontally or vertically. The charging procedure starts automatically and the status LED glows blue continuously.

If this is not the case, please check whether:

a) There is a foreign body between the devices.
b) You have selected a compatible adapter.
c) Your device is Qi-compatible.
d) The cable ends and the adapter are connected correctly.

Step 3: Complete charge procedure

To complete the charge procedure, simply remove your device from the inductive charge station.

SAFETY INSTRUCTIONS

Dangers for children and persons with restricted physical, sensory or mental abilities:

Children often underestimate dangers or do not recognise them at all. This device is not intended to be used by persons (including children) with restricted sensory, physical or mental abilities or lack of experience and/or knowledge, unless they are supervised by a person responsible for their safety or received instructions from the person on how to use the device and they have understood the resultant dangers. Unsupervised children should not have access to the device. Make sure that children do not play with the device.

General

Do not disassemble the device into its parts and do no try to change or repair it by yourself. It does not contain serviceable parts and in this case the guarantee expires.

Do not insert objects intended for use into the product opening. There is short circuit danger.

Do not operate the device with wet hands.

Please do not use water or chemical substances to clean the device. Please only use a dry cloth.

It is normal that during the use the device produces heat. Do not cover the product during use.

Do not use the device if it has visible damages or has become wet.

If you have a pacemaker or another technical implant, consult your physician or the constructor of the implant, before you use the inductive charge station.

The socket must be next to the device and easily accessible. When you position the device, pay attention that nobody steps on the cable or trips over it. Do not put objects on the cable.

Do not open the adapter box. With the open box there may be a danger of life threatening electric shock. It does not contain serviceable parts.

Operate the adapter only on earthed sockets with AC 100-240V\~, 50/60 Hz. If the power supply is not safe at the installation site, ask the competent power supplier.

To interrupt the power supply of your device, disconnect the power supply from the power socket. When disconnecting, always hold the adapter. Never pull the cable.

OPERATING CONDITIONS

Operate the device at 0 to 35 degrees Celsius at max. 85% relative humidity.

The range of the ambient temperature affects the charging speed, as the charging control of most mobile devices reduces the current consumption at higher temperatures.

EXCLUSION OF LIABILITY

The firmware and/or hardware may be changed at any time without prior notice. For this reason it is possible that parts of these instructions, technical data and images in this documentation differ slightly from the product in your possession. All points described in these instructions only serve the purpose of clarification and must not inevitably correspond to a certain situation. Legal claims cannot be made on the basis of these instructions.

TECHNICAL DATA

Dimensions: 88 x 75 x 126 mm
Adapter: Fast charge adapter UC01C	5V 3A / 9V 2A / 12V 1.5A
Power consumption(compatible adapters):	Standard mode:5V 2A Standard adapterFast charge mode:9V 2A Fast charge adapter | QC2.0 / QC3.0 fastcharge adapter
Charging current delivery:(depending from the used adapter)	Up to 5 Watt in standard modeUp to 7.5 Watt, resp. up to 10 Watt inquick-charge mode (dependent on device tobe charged)
Qi-version: Version 1.2.4
Frequenzy band: 105-210 KHz
Max. rediated power: 10W
Status display: LED lamp
Overvoltage protection: Yes
Overheat protection: Yes
Foreign body detection: Yes
Cover-friendly: Yes (depending from cover material and thickness.Maximum 5mm and no metal.)
Use horizontally and vertically possible: Yes

DISPOSAL

	Disposal of old batteriesThe devices marked with this symbol are subject to the European Directive 2006/66/EC All old batteries must be disposed of separate from the municipal waste stream via designated collection facilities appointed by the government or the local authorities You avoid environmental damage with the proper disposal.
	Packaging:Packaging is raw material. The packaging material of this product is suitable for recycling and can be re-used. Please pay attention to the local recycling provisions when disposing of any materials.

GUARANTEE CONDITIONS AND COMPLAINTS PROCEDURE

Guarantee conditions:

Intenso International GmbH grants a two-year guarantee for this product in addition to the statutory warranty. The guarantee applies only to material and production errors. Intenso International GmbH is not liable for the loss of data. The free-of-charge guarantee relates to the repair or exchange of faulty parts. You are responsible for the safe elimination of your data which is not carried out by us. The sales receipt must be retained for the determination of the guarantee period. Please understand that we cannot provide a guarantee service in the case of, e.g.:

• Non-observance of the Operating Instructions
• Abusive or improper treatment, installation or use
• Damages, scratches or wear
• Arbitrary modifications, opening the housing, interventions or repairs
• Damage through other devices, force majeur or transport

Complaints procedure:

In the case of a complaint, please proceed as follows:

1. Only returns with sales receipt and full accessories will be accepted.
2. Furthermore, an RMA number is absolute precondition for returns. You can request this RMA number via the homepage, by email or via the service hotline. It must be attached clearly visible on the parcel.
3. Please pack the product including the sales receipt and complete accessories in a transport-proof manner. The parcel must have sufficient postage.

Please send the parcel to the following address:

INTENSO INTERNATIONAL GMBH

Service Center (your RMA-No.)

(0,39 € / min. from the German fixed network mobile phone prices may vary.)
